# The Adhesive Properties of Coherent and Semicoherent NiAl/V Interfaces Within the Peierls-Nabarro Model

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Details of the Calculations

**ab**

**initio**Simulation Package (VASP) code developed at the Institut für Theoretische Physik of Universität Wien [42,43]. The all-electron Projector Augmented Wave (PAW) method [44,45] within Generalized Gradient Approximation (GGA) was utilized. The GGA was adopted for the exchange-correlation functional according to the Perdew–Burke–Ernzerhof (PBE) method [46]. In our paper, the self-consistent convergence was set to 10${}^{-5}$ eV/atom. Before the calculation, the convergency of the total energies with respect to k-point sampling grids obtained by the Monkhorst–Park method, and the cutoff energy was checked. The plane wave cutoff energy was fixed to 550 eV in all calculations. As for the Brillouin zone k-point grids, we used a 25 × 25 × 25 k-point mesh for the bulk. The surface and interface systems were established by periodic supercell slabs containing a finite atomic slab and a vacuum layer. The thickness of the vacuum layer (15 Å) was sufficient to prevent systems from periodic images based on the convergence test. In this case, a 25 × 25 × 1 k-point mesh was employed. The accuracy of our approach was guaranteed by the good agreement between the calculated data and previous results (see Table 1).

## 3. Bulk Properties

**Å**for NiAl and 3.04

**Å**for V, which are in good agreement with previous studies [47,48,49,50]. Elastic constants are a basic mechanical quantity describing the stiffness of the material when strains are applied. It is essential to investigate the elastic constants to know the mechanical properties of both materials. The calculated elastic constants are shown in Table 1, and they all satisfy Born’s mechanical stability condition [51]. The calculated elastic constants of NiAl are well consistent with the previous values [47,48]; whereas, the obtained elastic constants for V exhibit some differences with the reported experiment values, which may due to the variation of temperature.

## 4. Surface Properties

## 5. Coherent Interfaces

#### 5.1. Interface Geometry

#### 5.2. Work of Adhesion

#### 5.3. Interface Energy

#### 5.4. Electronic Characteristics

## 6. Semicoherent Interfaces

#### 6.1. Generalized Stacking Fault Energy of the NiAlV and AlNiV Interfaces

#### 6.2. Core Structure and Energy of Misfit Dislocation

## 7. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Baker, I. A review of the mechanical properties of B2 compounds. Mater. Sci. Eng. A
**1995**, 192, 1–13. [Google Scholar] [CrossRef] - Sivakumar, R.; Mordike, B.L. High temperature coatings for gas turbine blades: A review. Surf. Coat. Technol.
**1989**, 37, 139–160. [Google Scholar] [CrossRef] - Medvedeva, N.I.; Mryasov, O.N.; Gornostyrev, Y.N.; Novikov, D.L.; Freeman, A.J. First-principles total-energy calculations for planar shear and cleavage decohesion processes in B2-ordered NiAl and FeAl. Phys. Rev. B
**1996**, 54, 13506. [Google Scholar] [CrossRef] - Grahle, P.; Arzt, E. Microstructural development in dispersion strengthened NiAl produced by mechanical alloying and secondary recrystallization. Acta Mater.
**1997**, 45, 201–211. [Google Scholar] [CrossRef] - Miracle, D.B. Overview No. 104 The physical and mechanical properties of NiAl. Acta Metall. Mater.
**1993**, 41, 649–684. [Google Scholar] [CrossRef] - Amouyal, Y.; Rabkin, E.; Mishin, Y. Correlation between grain boundary energy and geometry in Ni-rich NiAl. Acta Mater.
**2005**, 53, 3795–3805. [Google Scholar] [CrossRef] - Joslin, S.M.; Chen, X.F.; Oliver, B.F.; Noebe, R.D. Fracture behavior of directionally solidified NiAl-Mo and NiAl-V eutectics. Mater. Sci. Eng. A
**1995**, 196, 9–18. [Google Scholar] [CrossRef] - Hassel, A.W.; Smith, A.J.; Milenkovic, S. Nanostructures from directionally solidified NiAl-W eutectics. Electrochim. Acta
**2006**, 52, 1799–1804. [Google Scholar] [CrossRef] - Milenkovic, S.; Caram, R. Microstructure of the microalloyed NiAl-V eutectics. Mater. Lett.
**2002**, 55, 126–131. [Google Scholar] [CrossRef] - Subramanian, P.R.; Mendiratta, M.G.; Miracle, D.B. Microstructures and mechanical behavior of NiAl-Mo and NiAl-Mo-Ti two-phase alloys. Metall. Mater. Trans. A
**1994**, 25, 2769–2781. [Google Scholar] [CrossRef] - Yang, J.M.; Jeng, S.M.; Bain, K.; Amato, R.A. Microstructure and mechanical behavior of in-situ directional solidified NiAl/Cr (Mo) eutectic composite. Acta Mater.
**1997**, 45, 295–308. [Google Scholar] [CrossRef] - Milenkovic, S.; Coelho, A.A.; Caram, R. Directional solidification processing of eutectic alloys in the Ni-Al-V system. J. Cryst. Growth
**2000**, 211, 485–490. [Google Scholar] [CrossRef] - Hua, K.; Guo, J.; Ren, Z.; Gao, Q.; Yang, R. Effect of Nb on the microstructure and mechanical properties of cast NiAl-Cr (Mo) eutectic alloy. J. Mater. Sci. Technol.
**2006**, 22, 164–168. [Google Scholar] - Cui, C.Y.; Guo, J.T.; Qi, Y.H.; Ye, H.Q. Deformation behavior and microstructure of DS NiAl/Cr (Mo) alloy containing Hf. Intermetallics
**2002**, 10, 1001–1009. [Google Scholar] [CrossRef] - Whittenberger, J.D.; Noebe, R.D.; Joslin, S.M.; Oliver, B.F. Elevated temperature compressive slow strain rate properties of several directionally solidified NiAl-(Nb,Mo) alloys. Intermetallics
**1999**, 7, 627–633. [Google Scholar] [CrossRef] - Zeumert, B.; Sauthoff, G. Intermetallic NiAl-Ta alloys with strengthening Laves phase for high-temperature applications. I. Basic properties. Intermetallics
**1997**, 5, 563–577. [Google Scholar] [CrossRef] - Milenkovic, S.; Caram, R. Mechanical properties and fracture behavior of directionally solidified NiAl-V eutectic composites. Metall. Mater. Trans. A
**2015**, 46, 557–565. [Google Scholar] [CrossRef] - Choudhury, S.; Agular, J.A.; Fluss, M.J.; Hsiung, L.L.; Misra, A.; Uberuaga, B.P. Non-uniform solute segregation at semi-coherent metal/oxide interfaces. Sci. Rep.
**2015**, 5, 13086. [Google Scholar] [CrossRef] [PubMed] - Choudhury, S.; Morgan, D.; Uberuaga, B.P. Massive interfacial reconstruction at misfit dislocations in metal/oxide interfaces. Sci. Rep.
**2014**, 5, 6533. [Google Scholar] [CrossRef] [PubMed] - Benedek, R.; Alavi, A.; Seidman, D.N.; Yang, L.H.; Muller, D.A.; Woodward, C. First principles simulation of a ceramic metal interface with misfit. Phys. Rev. Lett.
**2000**, 84, 3362. [Google Scholar] [CrossRef] [PubMed] - Lu, S.; Hu, Q.M.; Punkkinen, M.P.J.; Johansson, B.; Vitos, L. First-principles study of fcc-Ag/bcc-Fe interfaces. Phys. Rev. B
**2013**, 87, 22104. [Google Scholar] [CrossRef] - Benedek, R.; Seidman, D.N.; Minkoff, M.; Yang, L.H.; Alavi, A. Atomic and electronic structure and interatomic potentials at a polar ceramic/metal interface: {222} MgO/Cu. Phys. Rev. B
**1999**, 60, 16094. [Google Scholar] [CrossRef] - Arya, A.; Carter, E.A. Structure, bonding, and adhesion at the TiC (100)/Fe (110) interface from first principles. J. Chem. Phys.
**2003**, 118, 8982–8996. [Google Scholar] [CrossRef] - Mu˜oz, M.C.; Gallego, S.; Beltr´n, J.I.; Cerd´, J. Adhesion at metal-ZrO
_{2}interfaces. Sur. Sci. Rep.**2006**, 61, 303–344. [Google Scholar] - Shang, J.X.; Guan, K.; Wang, F.H. Atomic structure and adhesion of the Nb(001)/α-Nb
_{5}Si_{3}(001) interface: A first-principles study. J. Phys. Condens. Matter**2010**, 22, 085004. [Google Scholar] [CrossRef] [PubMed] - Jung, J.; Cho, M.; Zhou, M. Ab initio study of the fracture energy of LiFePO
_{4}/FePO_{4}interfaces. J. Power Sorces**2013**, 243, 706–714. [Google Scholar] [CrossRef] - Li, J.; Qi, Y.N.; Zhang, M.; Zhou, Y.; Li, X. First-principle study of adhesion, wetting and bonding on Al/Al
_{3}V (001) interface. Surf. Sci.**2014**, 624, 1–7. [Google Scholar] [CrossRef] - Dong, N.; Zhang, C.; Liu, H.; Fan, G.; Fang, X.D.; Han, P. Effects of different alloying additives X (X= Si, Al, V, Ti, Mo, W, Nb, Y) on the adhesive behavior of Fe/Cr
_{2}O_{3}interfaces: A first-principles study. Comput. Mater. Sci.**2015**, 109, 293–299. [Google Scholar] [CrossRef] - Junkaew, A.; Ham, B.; Zhang, R.X. Arro´yave, Investigation of interfaces in Mg/Nb multilayer thin films. Comput. Mater. Sci.
**2015**, 108, 212–225. [Google Scholar] [CrossRef] - Pan, Y.; Lin, Y.H.; Wang, H.; Guo, J.M.; Singh, A.; Fu, C.Y. Interfacial stability, electronic structure and bond characteristics of Pt
_{3}Zr(111)/Pt (111) interfaces: A first-principles study. Comput. Mater. Sci.**2016**, 111, 74–78. [Google Scholar] [CrossRef] - Wang, Y.; Liu, Z.-K.; Chen, L.-Q.; Wolverton, C. First-principles calculations of β′′-Mg
_{5}Si_{6}/α-Al interfaces. Acta Mater.**2007**, 55, 5934–5937. [Google Scholar] - Finns, M.W. The theory of metal-ceramic interfaces. J. Phys. Condens. Matter
**1996**, 8, 5811–5836. [Google Scholar] [CrossRef] - Joos, B.; Duesbery, M.S. The Peierls stress of dislocations: An analytic formula. Phys. Rev. Lett.
**1997**, 78, 266. [Google Scholar] [CrossRef] - Schoeck, G. The core structure, recombination energy and Peierls energy for dislocations in Al. Philos. Mag. A
**2001**, 81, 1161–1176. [Google Scholar] [CrossRef] - Yao, Y.; Wang, T.C.; Wang, C.Y. Peierls-Nabarro model of interfacial misfit dislocation: An analytic solution. Phys. Rev. B
**1999**, 59, 8232. [Google Scholar] [CrossRef] - Yao, Y.; Wang, T.C. The modified Peierls-Nabarro model of interfacial misfit dislocation. Acta Mater.
**1999**, 47, 3063–3068. [Google Scholar] [CrossRef] - Zhang, Y.; Yao, Y. The two-dimensional Peierls-Nabarro model for interfacial misfit dislocation networks of cubic lattice. Eur. Phys. J. B
**2007**, 55, 355–362. [Google Scholar] [CrossRef] - Zhang, Y.; Yao, Y. The multiscale model combining elastic theory with ab initio calculations for metal-ceramic interfaces. Mod. Phys. Lett. B
**2008**, 22, 3135–3143. [Google Scholar] [CrossRef] - Johansson, S.A.E.; Christensen, M.; Wahnstrom, G. Interface energy of semicoherent metal-ceramic interfaces. Phys. Rev. Lett.
**2005**, 95, 226108. [Google Scholar] [CrossRef] [PubMed] - Fors, D.H.R.; Johansson, S.A.E.; Petisme, M.V.G.; Wahnstrom, G. Theoretical investigation of moderate misfit and interface energetics in the Fe/VN system. Comput. Mater. Sci.
**2010**, 50, 550–559. [Google Scholar] [CrossRef] - Medvedeva, N.I.; Gornostyrev, Y.N.; Kontsevoi, O.Y.; Freeman, A.J. Ab-initio study of interfacial strength and misfit dislocations in eutectic composites: NiAl/Mo. Acta Mater.
**2004**, 52, 675–682. [Google Scholar] [CrossRef] - Kresse, G.; Hafner, J. Ab initio molecular dynamics for liquid metals. Phys. Rev. B
**1993**, 47, 558. [Google Scholar] [CrossRef] - Kresse, G.; Furthmüller, J.; Hafner, J. Ab initio force constant approach to phonon dispersion relations of diamond and graphite. Phys. Rev. B
**1995**, 32, 729. [Google Scholar] [CrossRef] - Bl˙chl, P.E. Projector augmented-wave method. Phys. Rev. B
**1994**, 50, 17953. [Google Scholar] - Kresse, G.; Joubert, D. From ultrasoft pseudopotentials to the projector augmented-wave method. Phys. Rev. B
**1999**, 59, 1758. [Google Scholar] [CrossRef] - Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized gradient approximation made simple. Phys. Rev. Lett.
**1996**, 77, 3865. [Google Scholar] [CrossRef] [PubMed] - Lazar, P.; Podloucky, R. Ab initio study of the mechanical properties of NiAl microalloyed by X= Cr, Mo, Ti, Ga. Phys. Rev. B
**2006**, 73, 104114. [Google Scholar] [CrossRef] - Ponomareva, A.V.; Isaev, E.I.; Vekilov, Y.K.; Abrikosov, I.A. Site preference and effect of alloying on elastic properties of ternary B2 NiAl-based alloys. Phys. Rev. B
**2012**, 85, 144117. [Google Scholar] [CrossRef] - Rai, R.C.; Hemkar, M.P. Crystal equilibrium and lattice dynamics of chromium and vanadium. J. Phys. F Met. Phys.
**1978**, 8, 45. [Google Scholar] [CrossRef] - Bolef, D.I. Elastic constants of single crystals of the bcc transition elements V, Nb, and Ta. J. Appl. Phys.
**1961**, 32, 100. [Google Scholar] [CrossRef] - Born, M.; Huang, K. Dynamical Theory of Crystal Lattices; Oxford University Press: Oxford, UK, 1998. [Google Scholar]
- Hill, R. The elastic behaviour of a crystalline aggregate. Proc. Phys. Soc. A
**1952**, 65, 349. [Google Scholar] [CrossRef] - Ravindran, P.; Fast, L.; Korzhavyi, P.A.; Johansson, B. Density functional theory for calculation of elastic properties of orthorhombic crystals: Application to TiSi
_{2}. J. Appl. Phys.**1998**, 84, 4891–4904. [Google Scholar] [CrossRef] - Liu, W.; Li, J.C.; Zheng, W.T.; Jiang, Q. NiAl(110)/Cr(110) interface: A density functional theory study. Phys. Rev. B
**2006**, 73, 205421. [Google Scholar] [CrossRef] - Fiorentini, V.; Methfessel, M. Extracting convergent surface energies from slab calculations. J. Phys. Condens. Matter
**1996**, 8, 6525. [Google Scholar] [CrossRef] - Zhang, J.M.; Ma, F.; Xu, K.W. Calculation of the surface energy of bcc metals by using the modified embedded-atom method. Surf. Interface Anal.
**2003**, 34, 662–666. [Google Scholar] [CrossRef] - Neugebauer, J.; Scheffler, M. Adsorbate-substrate and adsorbate-adsorbate interactions of Na and K adlayers on Al (111). Phys. Rev. B
**1992**, 46, 16067. [Google Scholar] [CrossRef] - Liu, L.M.; Wang, S.Q.; Ye, H.Q. First-principles study of polar Al/TiN (111) interfaces. Acta Mater
**2004**, 52, 3681–3688. [Google Scholar] [CrossRef] - Siegel, D.J.; Hector, L.G.; Adams, J.B. Adhesion, atomic structure, and bonding at the Al(111)/α-Al
_{2}O_{3}(0001) interface: A first principles study. Phys. Rev. B**2002**, 65, 085415. [Google Scholar] [CrossRef] - Brown, J.A.; Mishin, Y. Monte Carlo modeling of low-index surfaces in stoichiometric and Ni-rich NiAl. Phys. Rev. B
**2003**, 67, 195414. [Google Scholar] [CrossRef] - Kriese, M.D.; Moody, N.R.; Gerberich, W.W. Effects of annealing and interlayers on the adhesion energy of copper thin films to SiO
_{2}/Si substrates. Acta Mater.**1998**, 46, 6623–6630. [Google Scholar] [CrossRef] - Raynolds, J.E.; Smith, J.R.; Zhao, G.L.; Srolovitz, D.J. Adhesion in NiAl-Cr from first principles. Phys. Rev. B
**1996**, 53, 13883. [Google Scholar] [CrossRef] - Christensen, M.; Dudiy, S.; Wahnstr¨m, G. First-principles simulations of metal-ceramic interface adhesion: Co/WC versus Co/TiC. Phys. Rev. B
**2002**, 65, 045408. [Google Scholar] [CrossRef] - Suo, Z.; Hutchinson, J.W. Interface crack between two elastic layers. Int. J. Fract.
**1990**, 43, 1–18. [Google Scholar] [CrossRef] - Vitek, V. Intrinsic stacking faults in body-centred cubic crystals. Philos. Mag.
**1968**, 18, 773–786. [Google Scholar] [CrossRef] - Wang, C.; Wang, C.Y. Density functional theory study of Ni/Ni
_{3}Al interface alloying with Re and Ru. Surf. Sci.**2008**, 602, 2604–2609. [Google Scholar] [CrossRef] - De Hosson1, J.T.M.; Groen, H.B.; Kooi, B.J.; Vitek, V. Metal-ceramic interfaces studied with high-resolution transmission electron microscopy. Acta Mater.
**1999**, 47, 4077–4092. [Google Scholar] [CrossRef] - Vellinga, W.P.; De Hosson, J.T.M.; Vitek, V. Misfit dislocations: An atomistic and elastic continuum approach. Acta Mater.
**1997**, 45, 1525–1534. [Google Scholar] [CrossRef] - Vellinga, W.P.; De Hosson, J.T.M. Atomic structure and orientation relation of interfaces between Ag and ZnO. Acta Mater.
**1997**, 45, 933–950. [Google Scholar] [CrossRef] - Trampert, A.; Ernst, F.; Flynn, C.P.; Fischmeister, H.F.; Ruhle, M. High resolution transmission electron microscopy studies of the Ag/MgO interface. Acta Metall. Mater.
**1992**, 40, S227–S236. [Google Scholar] [CrossRef] - Schnitker, J.; Srolovitz, D.J. Misfit effects in adhesion calculations. Model. Simul. Mater. Eng.
**1998**, 6, 153–164. [Google Scholar] [CrossRef]

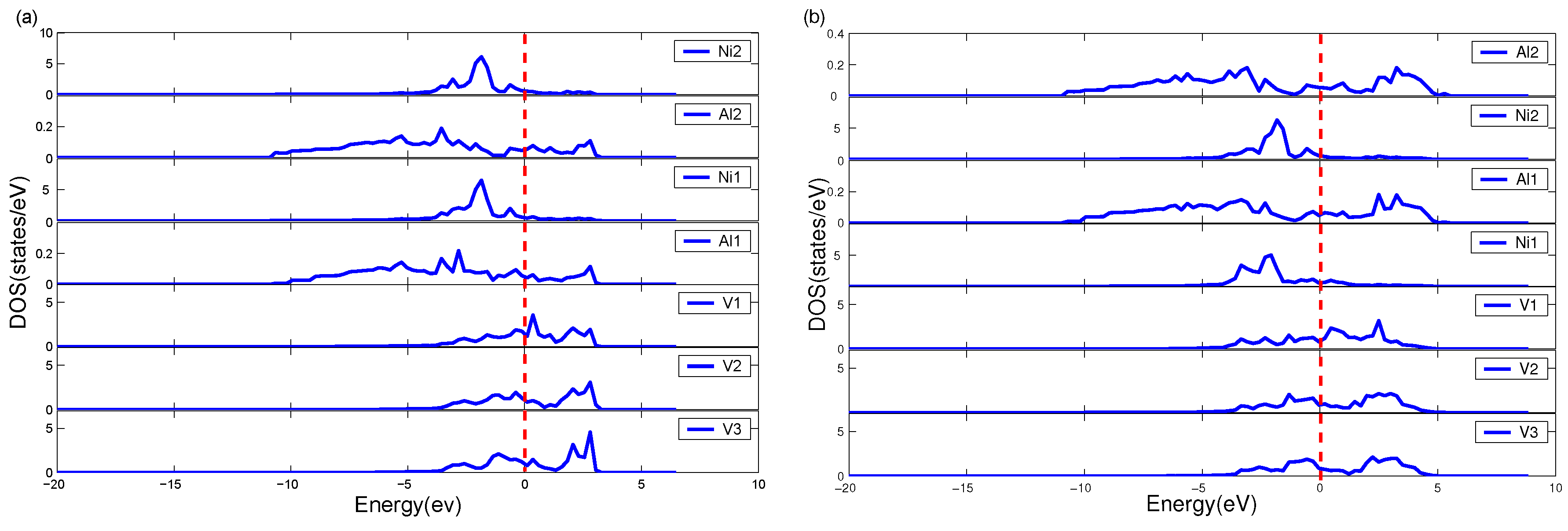

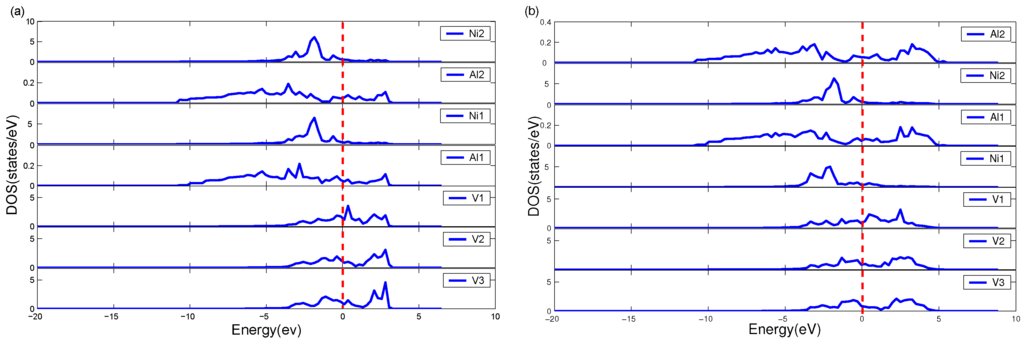

**Figure 4.**Layer-Projected Density of States (LPDOS) for (

**a**) NiAlV and (

**b**) AlNiV interfaces. The vertical dotted line gives the location of the Fermi level.

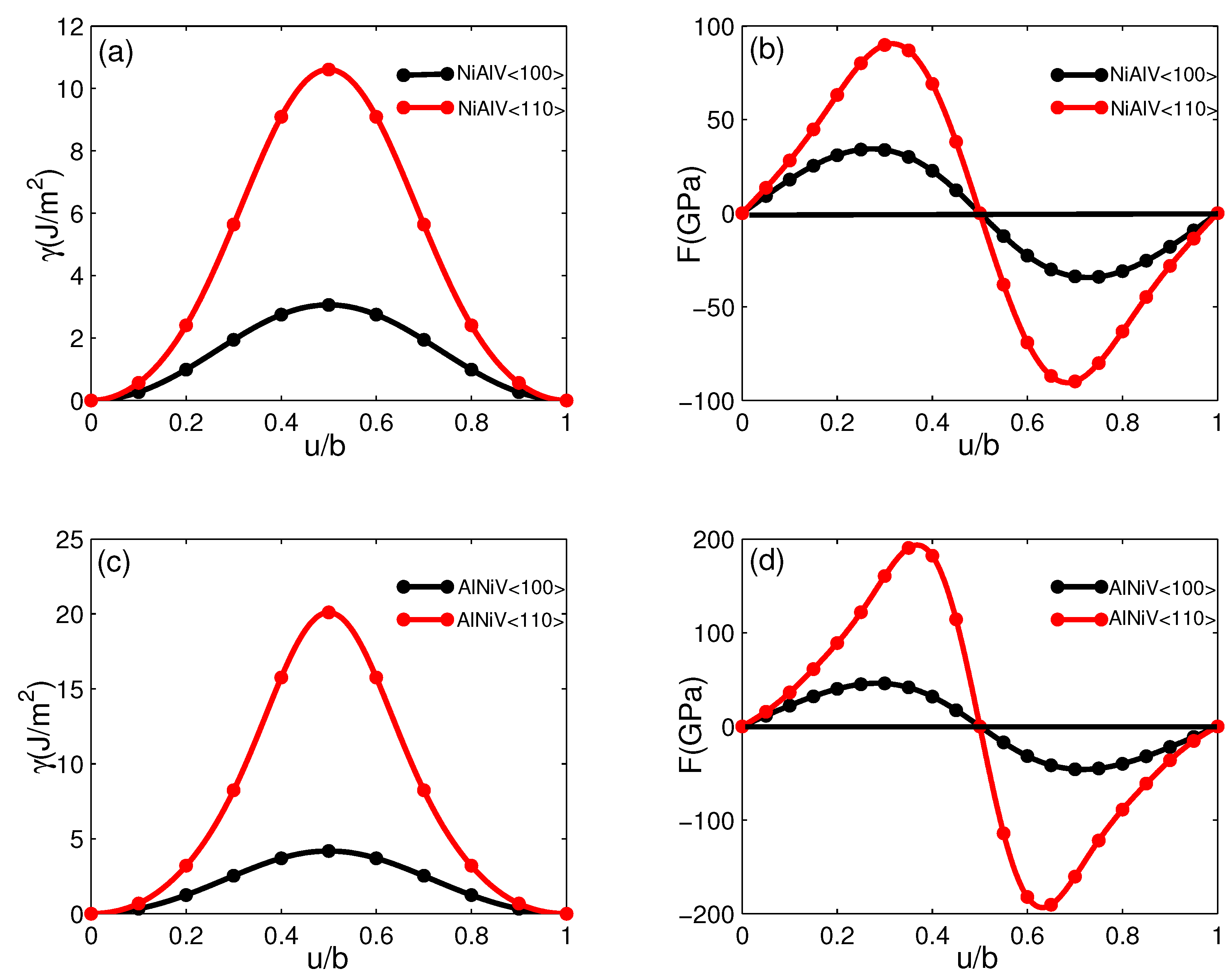

**Figure 5.**The generalized stacking fault energy curves and the corresponding restoring forces for the NiAlV interface AlNiV interface slip along $\langle 100\rangle $ and $\langle 110\rangle $, respectively.

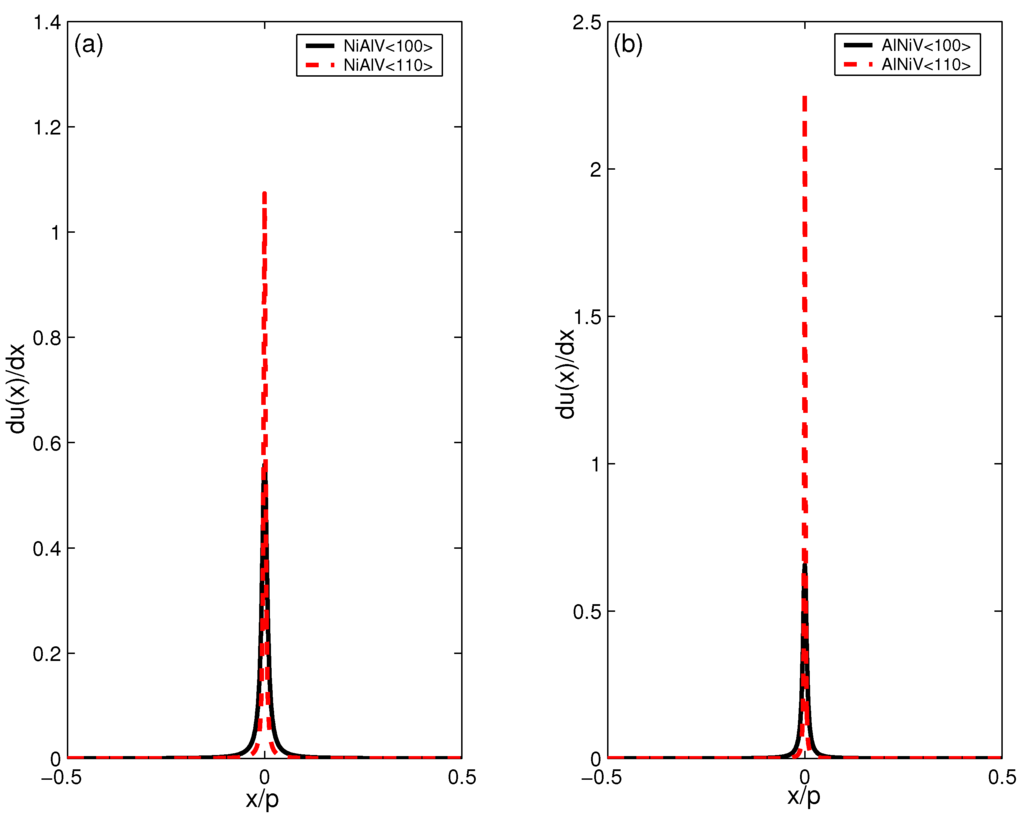

**Figure 6.**The density of misfit dislocations: (

**a**) NiAlV interface and (

**b**) AlNiV interface for Burgers vector along $\langle 100\rangle $ and $\langle 110\rangle $, respectively.

**Table 1.**Summary of the lattice constants a, elastic constants ${C}_{11}$, ${C}_{12}$, ${C}_{44}$, shear modulus G, bulk modulus B, Young’s modulus E and Poisson’s ratio ν for NiAl and V.

Materials | a(Å) | ${\mathit{C}}_{\mathbf{11}}$ (GPa) | ${\mathit{C}}_{\mathbf{12}}$ (GPa) | ${\mathit{C}}_{\mathbf{44}}$ (GPa) | G (GPa) | B (GPa) | E (GPa) | ν |
---|---|---|---|---|---|---|---|---|

NiAl | 2.89 | 205.1 | 136.1 | 116.9 | 83.9 | 159.1 | 214.2 | 0.40 |

[47] | 2.89 | 203 | 140 | 113 | 80.4 | 161.0 | 206.8 | 0.41 |

[48] | 2.89 | 233 | 121 | 114 | 85 | 159 | 218 | 0.34 |

V | 3.01 | 253.7 | 134.7 | 19.9 | 35.7 | 174.3 | 100.4 | 0.35 |

[49] | 3.04 | 228.0 | 118.8 | 42.6 | 47.4 | 155.2 | 129.0 | 0.34 |

[50] | – | 228 | 119 | 42.6 | 47.4 | 155.3 | 129.0 | 0.34 |

**Table 2.**The relaxed atomic arrangements of 7-layer NiAl, AlNi and V for surface energy calculations. We only show the atomic arrangements of the top four layers due to the symmetry of the supercell. The atomic position is given with respect to the basis vector of the supercell for surface calculations (Aln, Al atoms of the n-th layer; Nin, Ni atoms of the n-th layer; Vn, V atoms of the n-th layer).

Systems | Symbol | Atomic Position | ||
---|---|---|---|---|

x | y | z | ||

NiAl (Al-terminated) | Al1 | 0.0000 | 0.0000 | 0.0018 |

Ni1 | 0.5000 | 0.5000 | 0.0743 | |

Al2 | 0.0000 | 0.0000 | 0.1536 | |

Ni2 | 0.5000 | 0.5000 | 0.2308 | |

AlNi (Ni-terminated) | Ni1 | 0.0000 | 0.0000 | 0.0042 |

Al1 | 0.5000 | 0.5000 | 0.0730 | |

Ni2 | 0.0000 | 0.0000 | 0.1548 | |

Al2 | 0.5000 | 0.5000 | 0.2308 | |

V | V1 | 0.0000 | 0.0000 | 0.0108 |

V2 | 0.5000 | 0.5000 | 0.0770 | |

V3 | 0.0000 | 0.0000 | 0.1539 | |

V4 | 0.5000 | 0.5000 | 0.2308 |

**Table 3.**The interlayer relaxation change (${\Delta}_{ij}$) convergence of NiAl (001), AlNi (001) and V (001) with respect to the atom layers.

Systems | Interlayer | Atom Layers of Slab | ||||
---|---|---|---|---|---|---|

3 | 5 | 7 | 9 | 11 | ||

NiAl (Al terminated) | ${\Delta}_{12}$ | −1.4% | −6.6% | −5.7% | −6.4% | −7.0% |

${\Delta}_{23}$ | – | 4.2% | 3.1% | 3.6% | 4.1% | |

${\Delta}_{34}$ | – | – | 0.3% | 1.1% | 1.0% | |

${\Delta}_{45}$ | – | – | – | −1.3% | −0.5% | |

${\Delta}_{56}$ | – | – | – | – | −0.3% | |

AlNi (Ni terminated) | ${\Delta}_{12}$ | −5.3% | −10.0% | −10.7% | −10.3% | −10.9% |

${\Delta}_{23}$ | – | 4.8% | 6.3% | 7.0% | 6.1% | |

${\Delta}_{34}$ | – | – | −1.2% | −2.8% | −1.9% | |

${\Delta}_{45}$ | – | – | – | 0.7% | 1.2% | |

${\Delta}_{56}$ | – | – | – | – | 0.0% | |

V | ${\Delta}_{12}$ | −13.6% | −15.2% | −13.9% | −14.2% | −14.3% |

${\Delta}_{23}$ | – | 0.7% | 0.2% | −0.7% | −0.2% | |

${\Delta}_{34}$ | – | – | 0.3% | 1.9% | 2.0% | |

${\Delta}_{45}$ | – | – | – | −1.8% | −3.0% | |

${\Delta}_{56}$ | – | – | – | – | 0.7% |

**Table 4.**Convergence of the surface energy ${\gamma}_{s}$ (J/m${}^{2}$) of NiAl (Al-terminated), AlNi (Ni-terminated) and V with respect to the number of atom layers.

Number of Layers; n | ${\mathit{\gamma}}_{\mathit{s}\mathit{,}\mathit{NiAl}}$ | ${\mathit{\gamma}}_{\mathit{s}\mathit{,}\mathit{AlNi}}$ | ${\mathit{\gamma}}_{\mathit{s}\mathit{,}\mathit{V}}$ | |||
---|---|---|---|---|---|---|

Stoichiometric | Non-Stoichiometric | Stoichiometric | Non-Stoichiometric | |||

3 | – | $2.63\sim 3.96$ | – | $3.33\sim 4.67$ | – | |

4 | 2.27 | – | 2.27 | – | 2.61 | |

5 | – | $2.70\sim 4.03$ | – | $3.27\sim 4.60$ | – | |

6 | 2.31 | – | 2.31 | – | 2.36 | |

7 | – | $2.69\sim 4.03$ | – | $3.25\sim 4.58$ | – | |

8 | 2.30 | – | 2.30 | – | 2.36 | |

9 | – | $2.69\sim 4.03$ | – | $3.25\sim 4.58$ | – | |

10 | 2.30 | – | 2.30 | – | 2.36 | |

11 | – | $2.69\sim 4.03$ | – | $3.25\sim 4.58$ | – |

**Table 5.**Interfacial distance ${d}_{0}$ (Å), work of adhesion ${W}_{ad}$ (J/m${}^{2}$) and interface energy ${E}_{int}$ (J/m${}^{2}$) using two different methods.

Interfaces | Unrelaxed | Relaxed | |||||
---|---|---|---|---|---|---|---|

${\mathit{d}}_{\mathbf{0}}$ | ${\mathit{W}}_{\mathit{ad}}$ | ${\mathit{E}}_{\mathit{int}}$ | ${\mathit{d}}_{\mathit{eq}}$ | ${\mathit{W}}_{\mathit{ad}}$ | ${\mathit{E}}_{\mathit{int}}$ | ||

NiAlV | 1.769 | 4.09 | $0.96\sim 2.30$ | 1.775 | 4.03 | $1.02\sim 2.36$ | |

AlNiV | 1.515 | 5.01 | $0.60\sim 1.93$ | 1.506 | 4.85 | $0.76\sim 2.09$ |

**Table 6.**The unstable stacking fault energy ${\gamma}_{us}$ (J/m${}^{2}$), Burgers vectors b(Å), the misfit dislocation spacing p (Å), parameter a, core structure parameter β, the elastic strain energy ${E}_{ela}$ (J/m${}^{2}$), misfit energy ${E}_{mis}$ (J/m${}^{2}$), interface energy ${E}_{int}$ (J/m${}^{2}$), the work of adhesion ${W}_{ad}$ (J/m${}^{2}$) for semicoherent and the work of adhesion difference Δ${W}_{ad}$ (J/m${}^{2}$) between coherent and semicoherent interfaces.

Misfit Dislocations | ${\mathit{\gamma}}_{\mathit{us}}$ | b | p | a | β | ${\mathit{E}}_{\mathit{ela}}$ | ${\mathit{E}}_{\mathit{mis}}$ | ${\mathit{E}}_{\mathit{int}}$ | ${\mathit{W}}_{\mathit{ad}}$ | $\frac{\Delta {\mathit{W}}_{\mathit{ad}}}{{\mathit{W}}_{\mathit{ad}}}$ |
---|---|---|---|---|---|---|---|---|---|---|

NiAlV$\langle 100\rangle $ | 3.06 | 2.89 | 72.5 | 0.029 | 0.048 | 1.83 | 0.75 | 2.57 | $2.48\sim 3.91$ | $2.4\%\sim 38.2\%$ |

NiAlV$\langle 110\rangle $ | 10.60 | 4.09 | 102.5 | 0.010 | 0.018 | 3.63 | 1.07 | 4.70 | $0.36\sim 1.69$ | $57.8\%\sim 91.3\%$ |

AlNiV$\langle 100\rangle $ | 4.18 | 2.89 | 72.5 | 0.021 | 0.035 | 2.06 | 0.75 | 2.81 | $2.80\sim 4.13$ | $14.5\%\sim 41.9\%$ |

AlNiV$\langle 110\rangle $ | 20.10 | 4.09 | 102.5 | 0.005 | 0.008 | 4.43 | 1.08 | 5.51 | $0.10\sim 1.43$ | $70.3\%\sim 97.8\%$ |
