Non-Covalent Interactions in Hydrogen Storage Materials LiN(CH3)2BH3 and KN(CH3)2BH3

Department of Theoretical Chemistry, Faculty of Chemistry, Jagiellonian University, R. Ingardena 3, Cracow 30-060, Poland
Author to whom correspondence should be addressed.
Academic Editor: Sławomir J. Grabowski
Received: 29 January 2016 / Revised: 4 March 2016 / Accepted: 14 March 2016 / Published: 18 March 2016
(This article belongs to the Special Issue Analysis of Hydrogen Bonds in Crystals)
Full-Text   |   PDF [8164 KB, uploaded 21 March 2016]   |

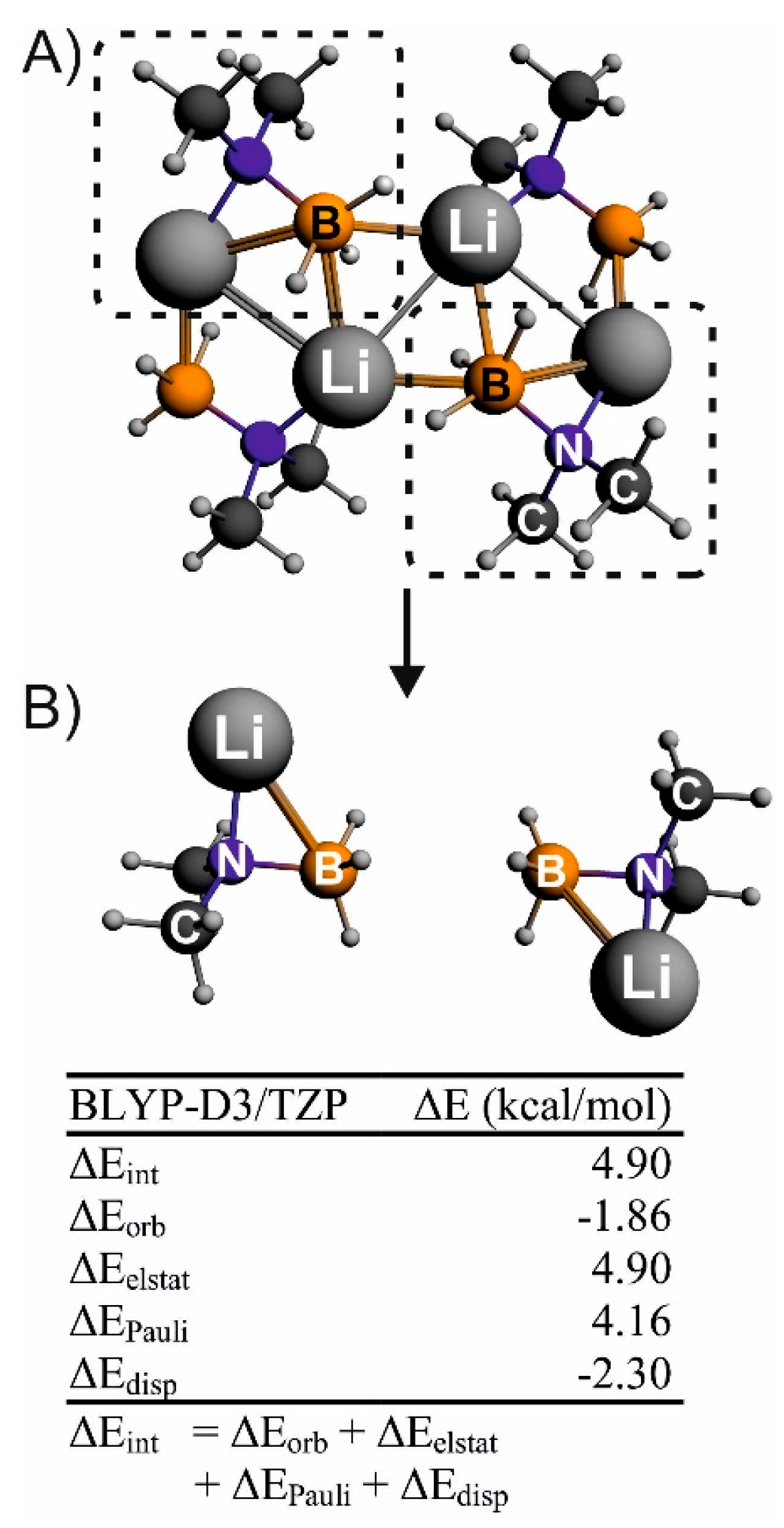

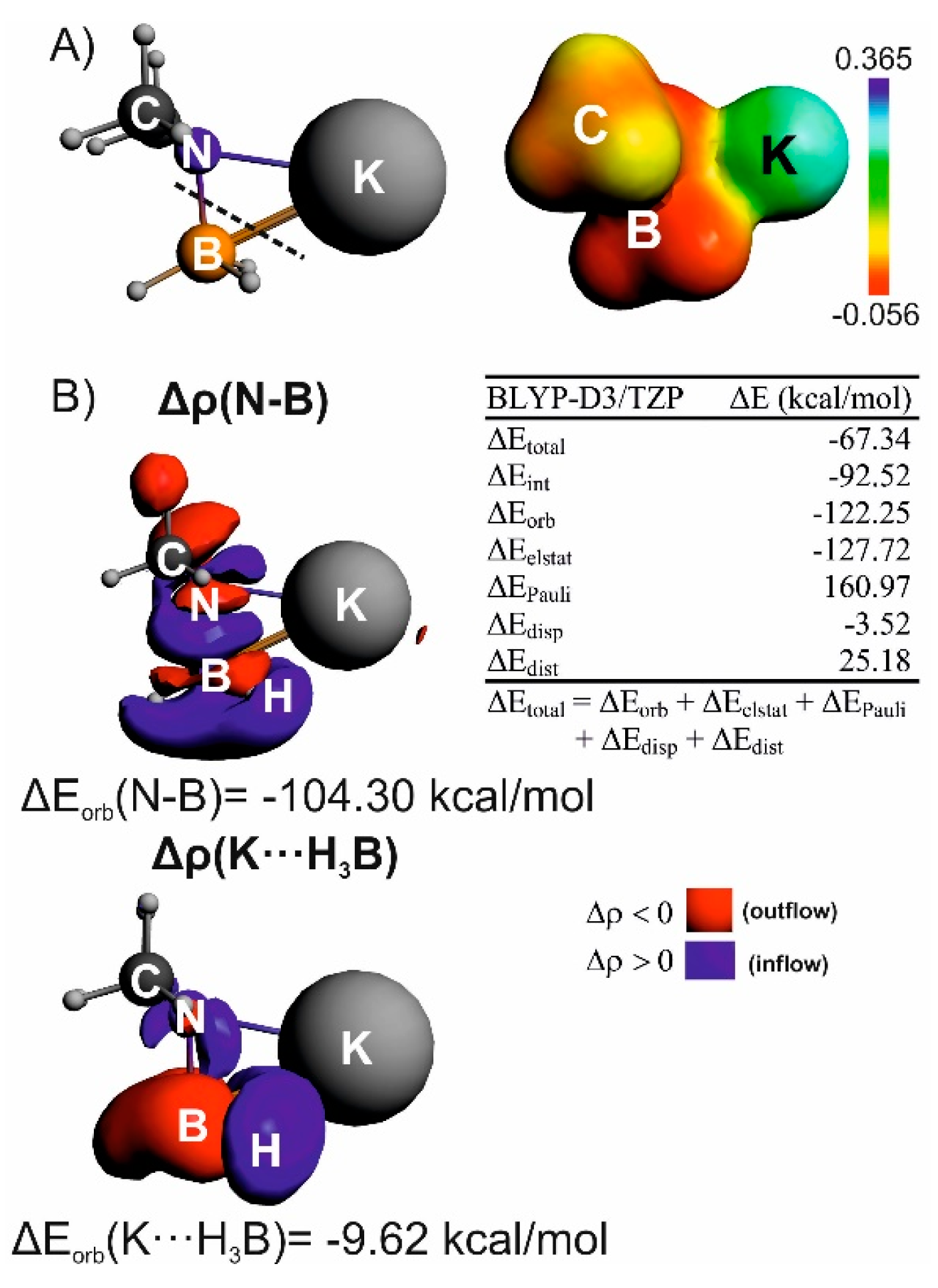

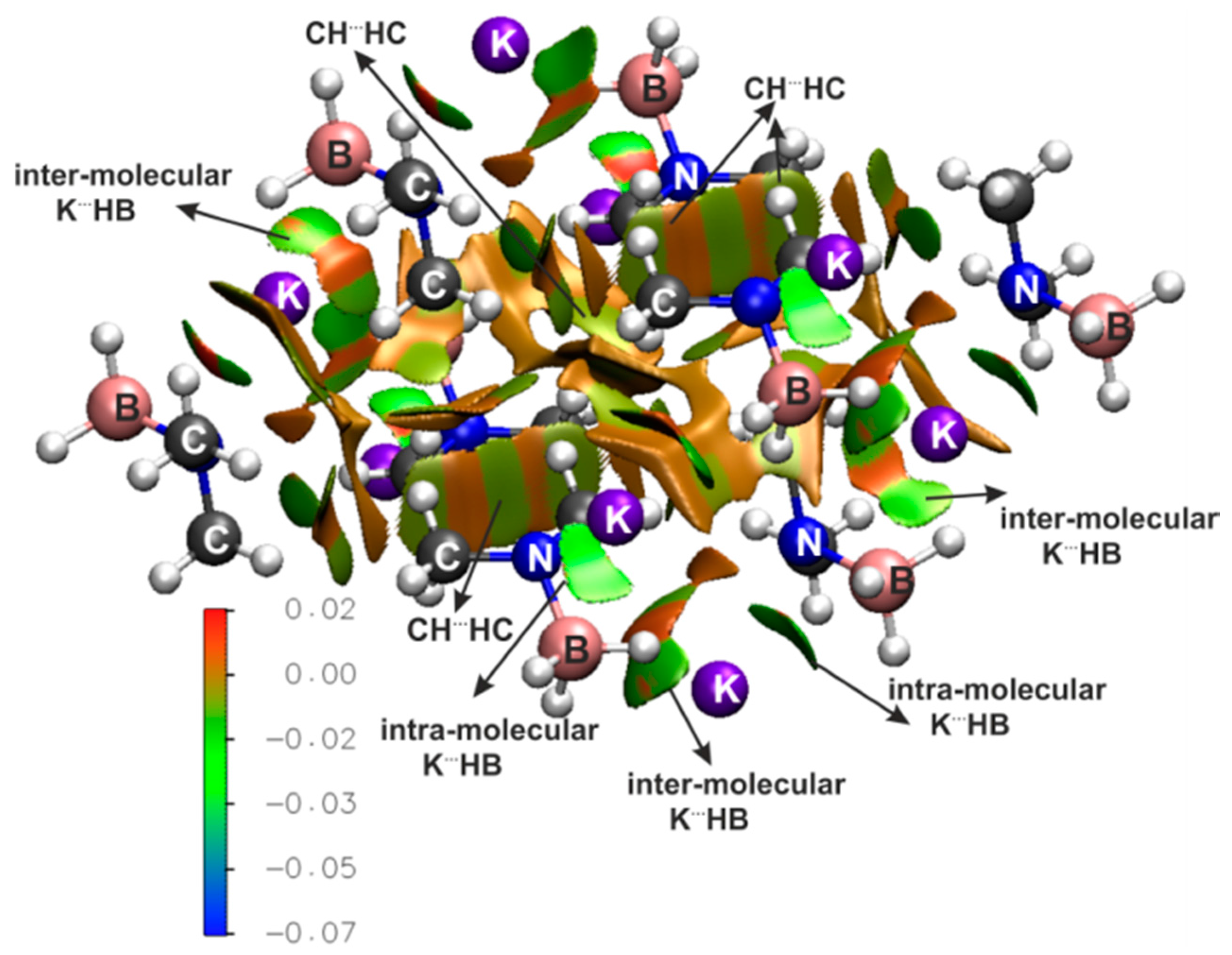

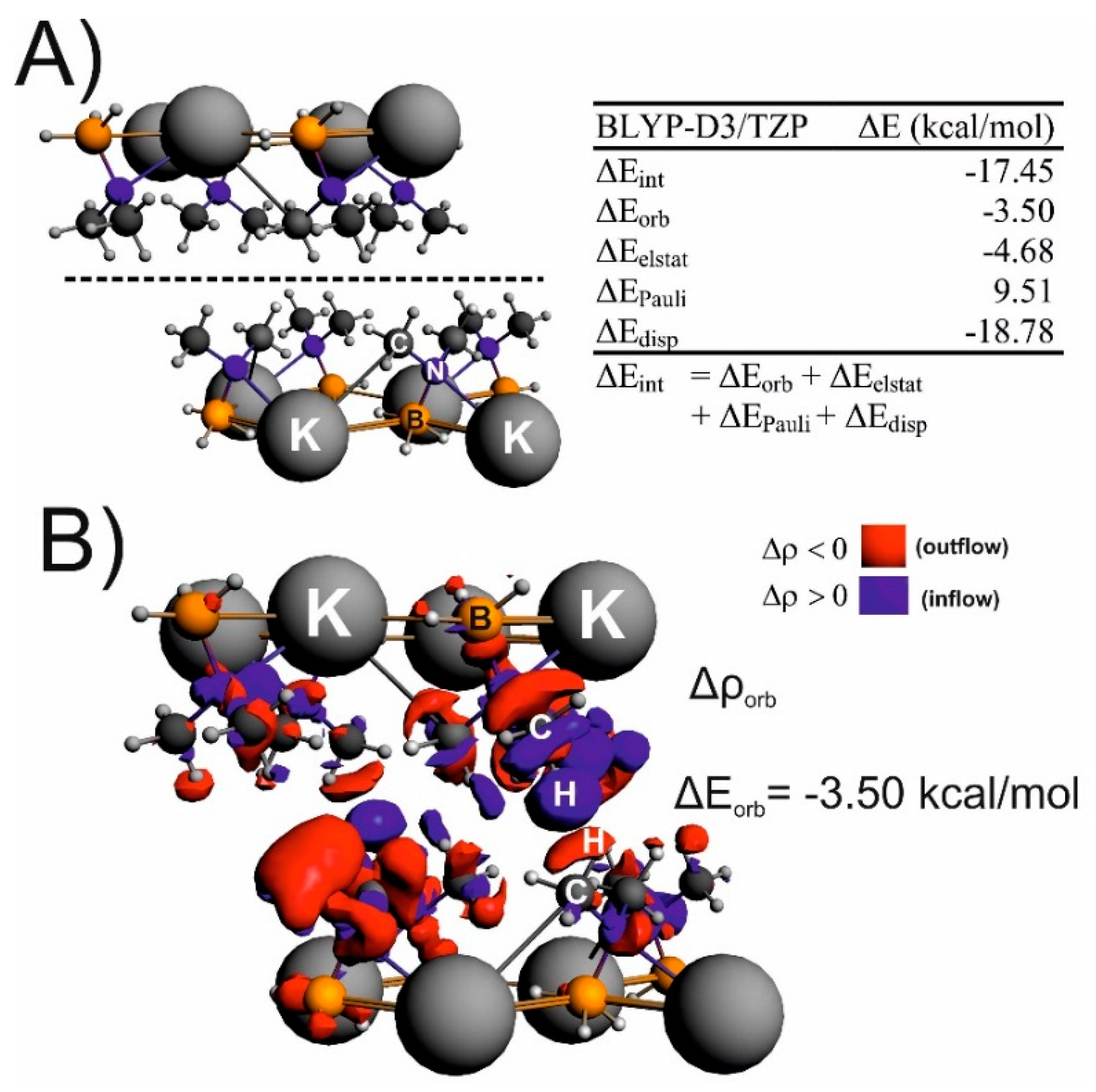

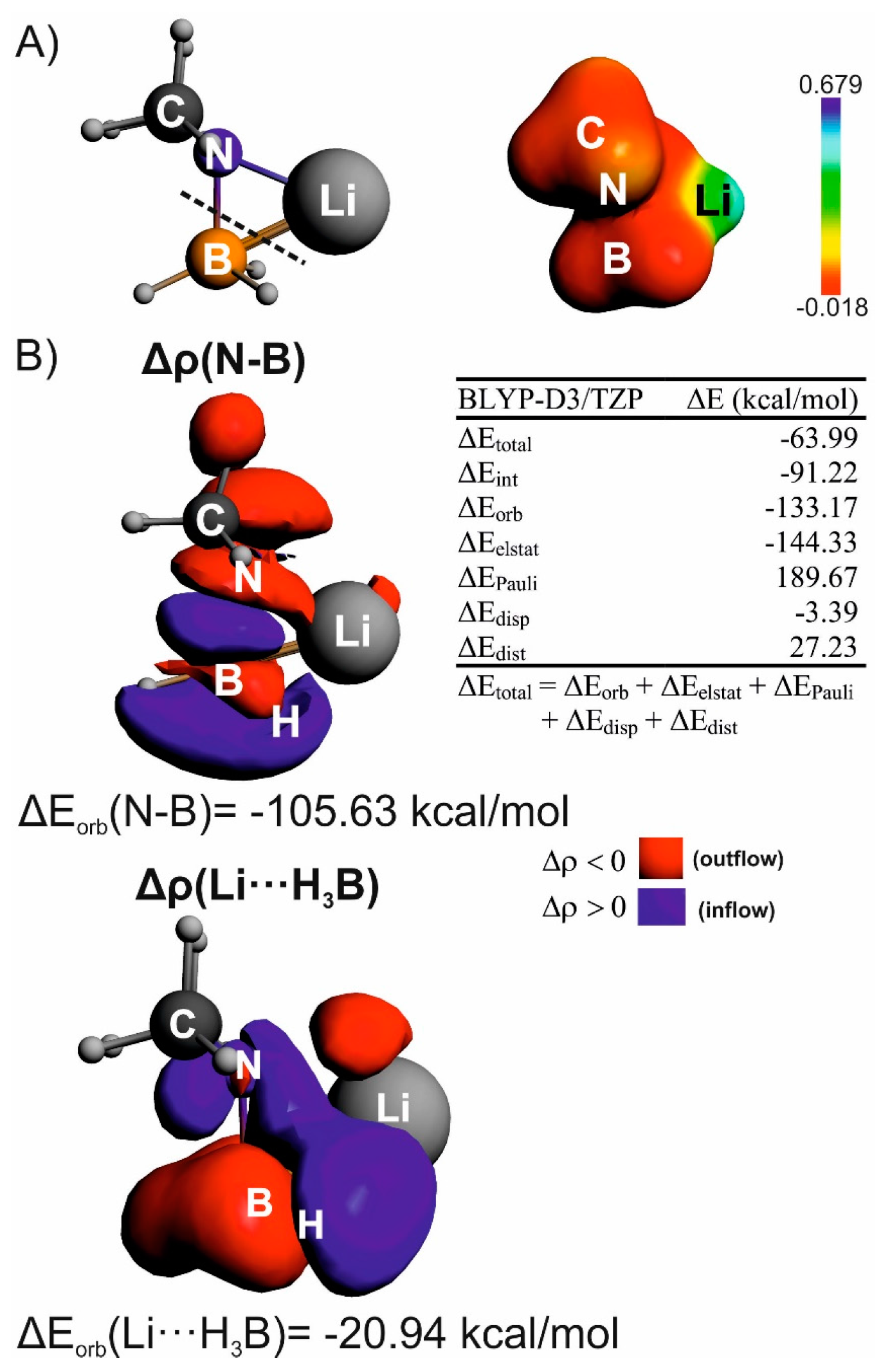

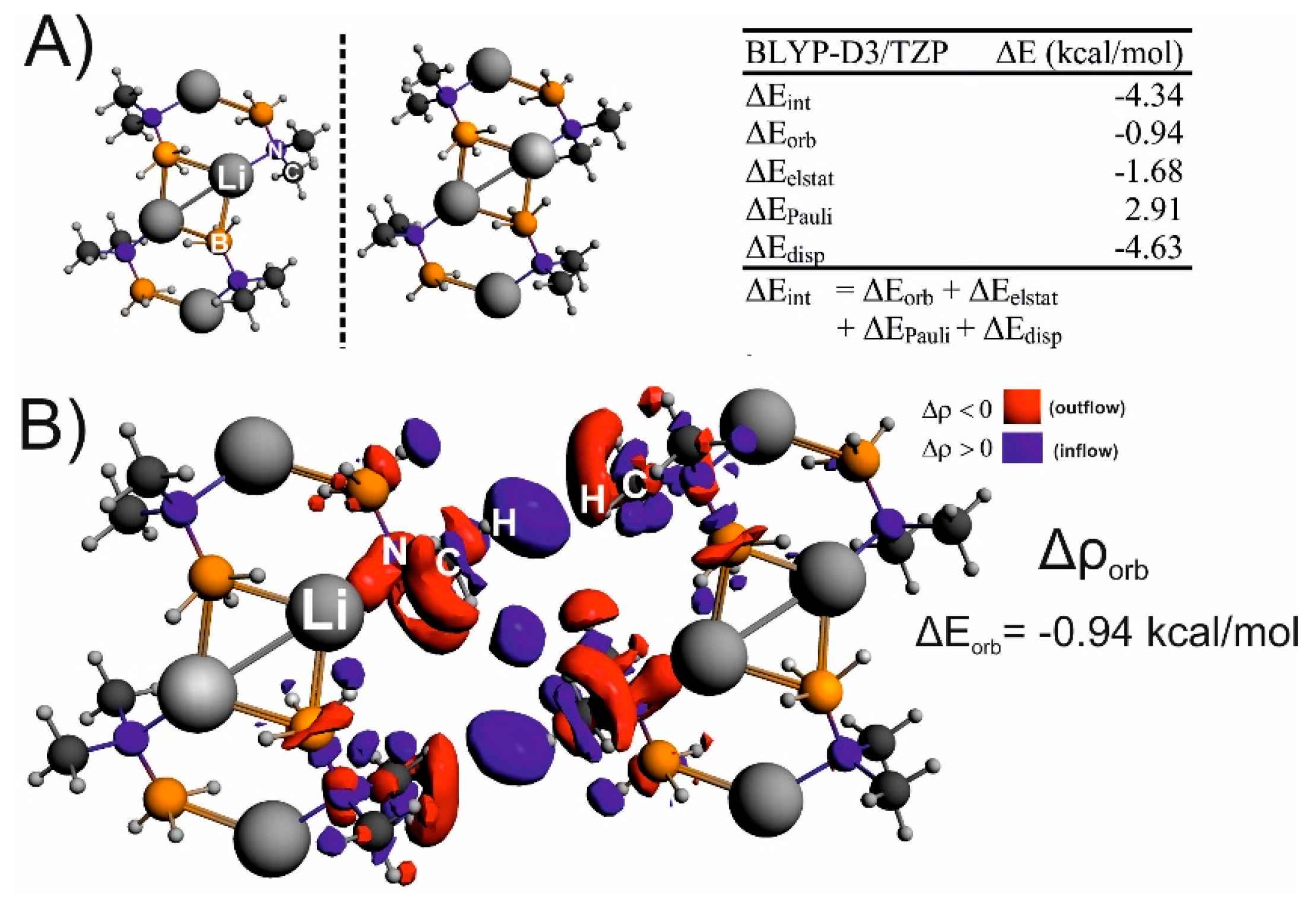

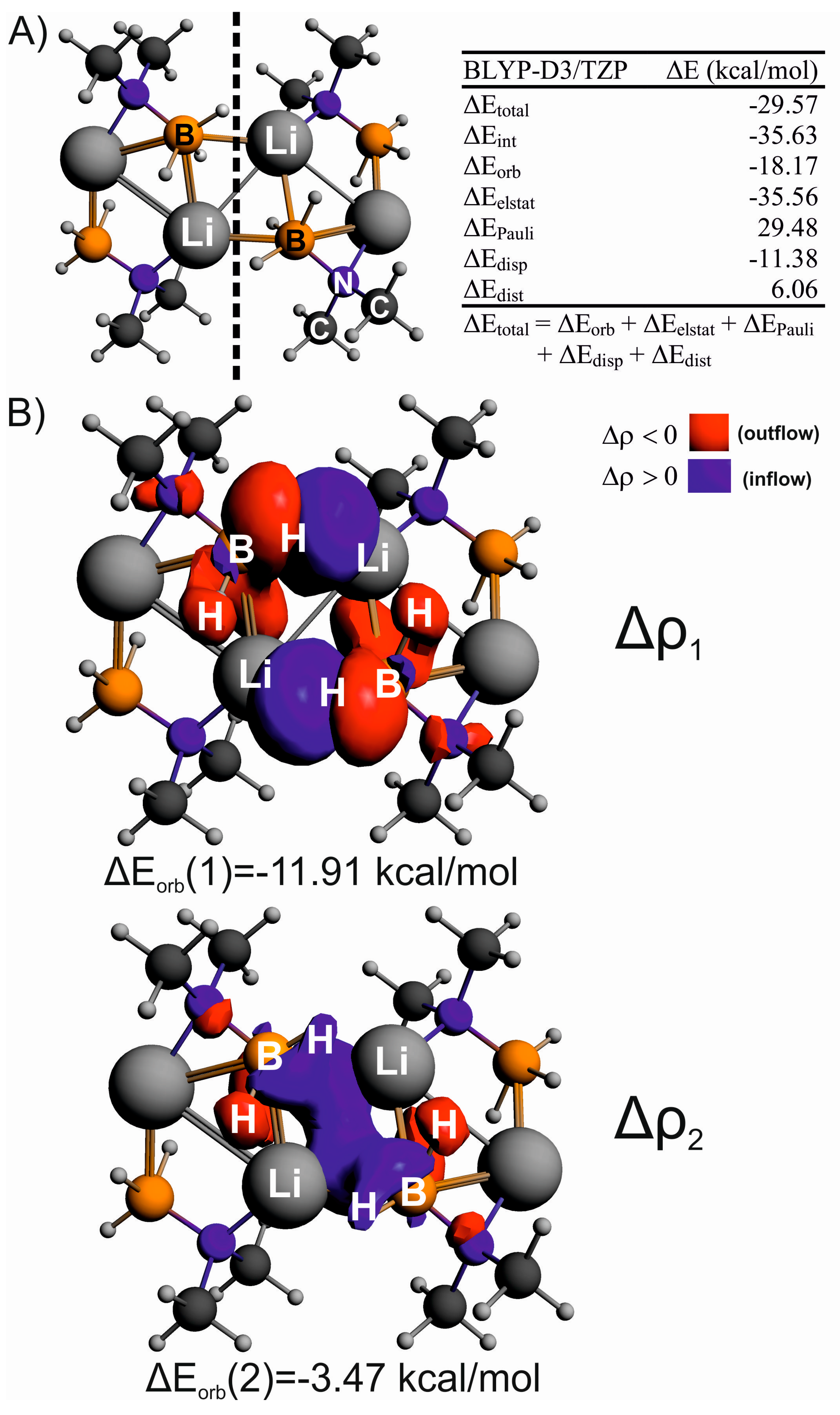

In the present work, an in-depth, qualitative and quantitative description of non-covalent interactions in the hydrogen storage materials LiN(CH3)2BH3 and KN(CH3)2BH3 was performed by means of the charge and energy decomposition method (ETS-NOCV) as well as the Interacting Quantum Atoms (IQA) approach. It was determined that both crystals are stabilized by electrostatically dominated intra- and intermolecular M∙∙∙H–B interactions (M = Li, K). For LiN(CH3)2BH3 the intramolecular charge transfer appeared (B–H→Li) to be more pronounced compared with the corresponding intermolecular contribution. We clarified for the first time, based on the ETS-NOCV and IQA methods, that homopolar BH∙∙∙HB interactions in LiN(CH3)2BH3 can be considered as destabilizing (due to the dominance of repulsion caused by negatively charged borane units), despite the fact that some charge delocalization within BH∙∙∙HB contacts is enforced (which explains H∙∙∙H bond critical points found from the QTAIM method). Interestingly, quite similar (to BH∙∙∙HB) intermolecular homopolar dihydrogen bonds CH∙∙∙HC appared to significantly stabilize both crystals—the ETS-NOCV scheme allowed us to conclude that CH∙∙∙HC interactions are dispersion dominated, however, the electrostatic and σ/σ*(C–H) charge transfer contributions are also important. These interactions appeared to be more pronounced in KN(CH3)2BH3 compared with LiN(CH3)2BH3. View Full-Text
Keywords: hydrogen storage materials; non-covalent interactions; dihydrogen bonds; charge and energy decomposition ETS-NOCV hydrogen storage materials; non-covalent interactions; dihydrogen bonds; charge and energy decomposition ETS-NOCV

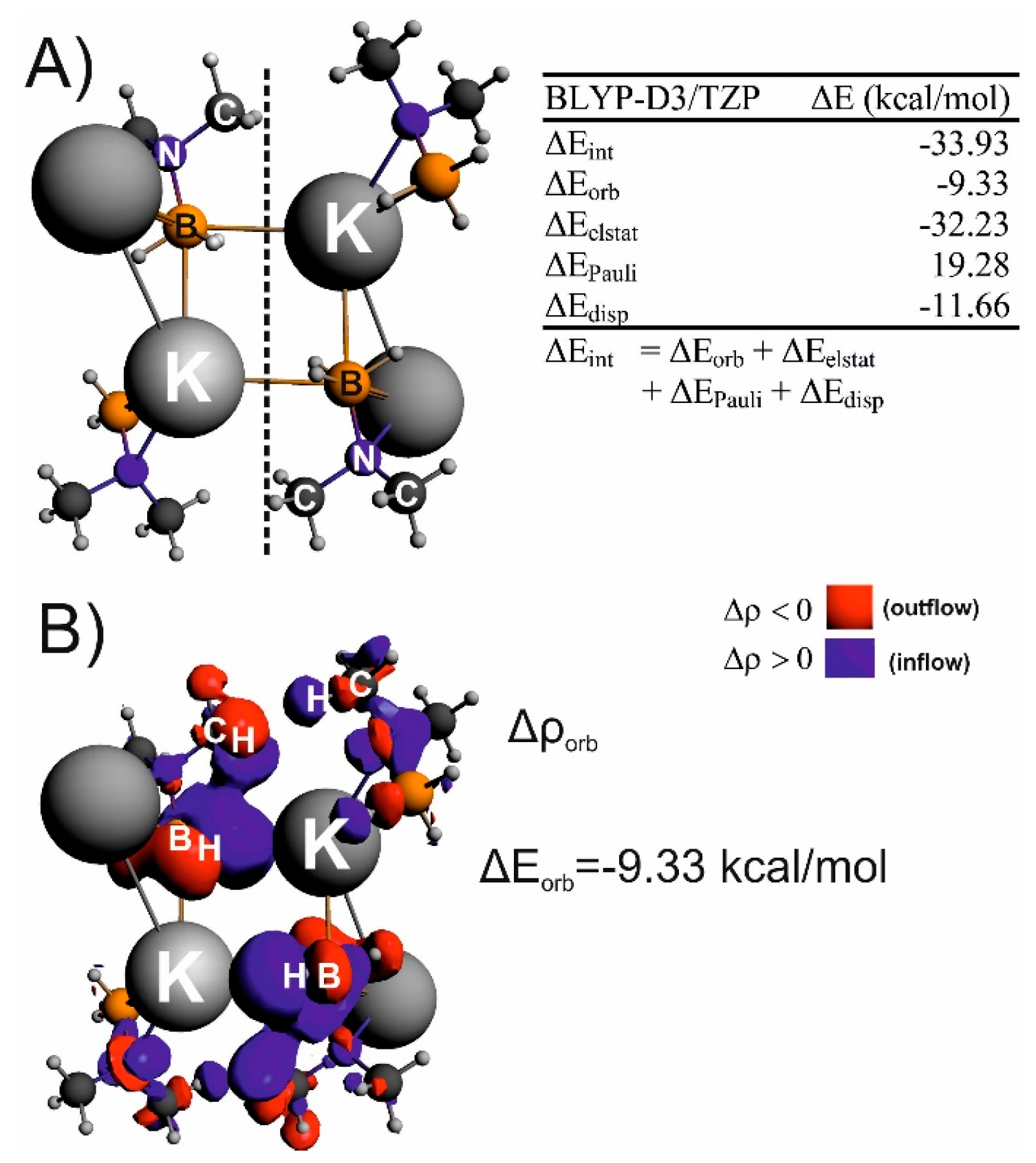

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
