Article

Study on Thermal Deformation Behavior and Thermal Processing Map of a New Al-Li Alloy

1
College of Materials, Xiamen University, Xiamen 361005, China
2
School of Materials Science and Engineering, Fuzhou University, Minhou 350116, China
*
Authors to whom correspondence should be addressed.
Crystals 2025, 15(5), 431; https://doi.org/10.3390/cryst15050431
Submission received: 22 March 2025 / Revised: 18 April 2025 / Accepted: 25 April 2025 / Published: 30 April 2025
(This article belongs to the Special Issue Microstructure and Properties of Metals and Alloys)

Abstract

:
As a representative third-generation Al-Li alloy, 2A97 alloy has attracted significant attention for applications in aeronautics and astronautics, but its poor hot workability and complex thermal deformation behavior, which make for difficult optimization, significantly limit its widespread industrial utilization. In this study, the thermal deformation behavior of 2A97 Al-Li alloy was systematically investigated via thermal compression tests conducted over a temperature range of 260–460 °C and strain rates ranging from 0.001 s−1 to 1 s−1. The effects of deformation parameters on the alloy’s microstructural evolution were examined using electron backscatter diffraction (EBSD) and transmission electron microscopy (TEM). Based on the dynamic materials model, a constitutive equation was established by analyzing the stress–strain data under various thermal deformation conditions. Furthermore, a thermal processing map was compiled to analyze the effects of the temperature and strain rate on the power dissipation efficiency and flow instability factor. The thermal deformation mechanisms were identified through combined analysis of the thermal processing map and microstructural features. Results indicate that the fraction of low-angle grain boundaries increases with a rising lnZ value (Zener–Hollomon parameter) during the thermal compression process. Dynamic recrystallization is the main deformation mechanism of 2A97 Al-Li alloy in the stable region, whereas the alloy exhibits flow localization in the unstable region. According to the thermal processing map, the optimal hot working windows for the 2A97 Al-Li alloy were determined to be (1) 360–460 °C at strain rates of 0.05 s−1–1 s−1, and (2) 340–420 °C at strain rates of 0.001 s−1–0.005 s−1. These conditions offer favorable combinations of microstructure and deformation stability, providing critical guidance for the thermo-mechanical processing of 2A97 alloy.

1. Introduction

In the aerospace industry, one of the most effective strategies for reducing fuel consumption is to choose lightweight structural materials. As a representative third-generation advanced Al-Li alloy, 2A97 Al-Li alloy has attracted considerable interest for military and aerospace applications due to its low density, high stiffness, and excellent mechanical strength [1]. When compared with conventional aluminum alloys, the use of Al-Li alloys in aircraft structures can increase the overall structural stiffness by 15–20% while reducing the weight by 10–20% [2,3,4]. Consequently, 2A97 Al-Li alloy is widely regarded as a critical material for components such as aircraft cockpits and wing skins. Notably, these aluminum components of aircraft are typically fabricated through thermal deformation processes, which demand a good thermal workability of the alloys. However, the thermal deformation behavior of Al-Li alloys is complex and challenging to control [5,6]. During thermal deformation, Al-Li alloys experience both work hardening and dynamic softening mechanisms. In the case of the 2A97 Al-Li alloy, microalloying elements such as Mg, Cu, Zn, Li, and Zr are deliberately added to the matrix to enhance strength and toughness. These elements promote the formation of complex precipitate phases, including T1 (Al2CuLi), δ′ (Al3Li), S′ (Al2CuMg), β′ (Al3Zr), and θ′ (Al2Cu) phases during T6 and T8 heat treatments [3,4]. The presence of these intricate precipitates significantly influences the thermal deformation behavior of 2A97 Al-Li alloy.
On the other hand, microstructural evolution induced by the coupled effects of temperature and stress during the thermal deformation process can significantly influence both the microstructure and properties of the alloy [7,8,9]. Compared to conventional aluminum alloys, 2A97 Al-Li alloy exhibits a distinct grain orientation preference after thermal deformation, and its recrystallization behavior markedly differs from that of other aluminum alloy systems. Furthermore, as a high-stacking-fault-energy metal, the 2A97 Al-Li alloy tends to undergo dynamic recovery (abbreviated as DRV); however, dynamic recrystallization (abbreviated as DRX) can also occur under certain processing conditions [9]. DRX not only facilitates microstructure refinement and defect elimination but also enhances mechanical properties and reduces anisotropy, which is critical for improving the formability of 2A97 Al-Li alloys.
The thermal deformation behavior and deformation mechanisms are fundamental prerequisites for controlling both the shape and properties of Al-Li alloy components during manufacturing processes. Yang et al. [10] conducted thermal compression tests to investigate the softening mechanism of 2297 Al alloy within the processing safety zone and found that it results from a combination of DRX and DRV, with continuous DRX playing a dominant role in deformation-induced softening. It was observed that increasing the deformation temperature while decreasing the strain rate significantly promotes the extent of DRX. Ahmad et al. [11] reported that the primary softening mechanism in 6099 Al alloy during thermal deformation is DRV, especially under conditions of low temperature and high strain rate. Li et al. [12] studied the effect of various deformation parameters on the DRX behavior of 2195 Al-Li alloy. Zhang et al. [13] utilized a combination of EBSD and TEM techniques to examine the DRV mechanisms in 2099 alloy during thermal deformation. Shen et al. [14] revealed that 2397 Al-Li alloy undergoes DRX during thermal deformation. They identified grain boundary protrusion and the transformation of low-angle grain boundaries (abbreviated as LAGBs) into high-angle grain boundaries (abbreviated as HAGBs) as key mechanisms governing recrystallization, and subsequently proposed a DRX model incorporating both mechanisms to describe the microstructural evolution of the alloy.
The flow stress of aluminum alloys, as determined by constitutive equations, is a key factor influencing formation quality during thermal processing. Therefore, the development of accurate constitutive equations and a clear understanding of the deformation mechanisms are of great significance for optimizing thermal processing and controlling the final shape and properties of aluminum alloy components. Constitutive equations not only enable accurate prediction of flow stress but also provide theoretical guidance for the optimization of formation processes [15,16,17]. These equations also capture the coupling relationships between flow stress and the strain rate, which are critical for the design and improvement of thermal processing. Additionally, thermal processing maps are widely used to investigate the thermal workability and deformation mechanisms of alloys. These maps can effectively identify “stability domains “ and “instability domains “ during thermal deformation, helping to prevent defects such as cracking, folding, and grain coarsening [18,19,20,21,22]. In the aerospace industry, hot working is a common manufacturing method for producing Al–Li alloy components. However, the poor hot-working stability of 2A97 alloy limits its practical application. Inappropriate process parameters during thermal deformation may lead to severe defects due to the alloy’s strong tendency toward localized deformation. Therefore, to achieve formability and mechanical performance, the processing parameters must be carefully controlled within a narrow processing window and under a high risk of thermal processing cracks. The thermal deformation behavior of Al-Li alloys has thus become a consistent focus of research. To date, most studies on 2A97 Al-Li alloy have concentrated on its heat treatment processes [23,24,25], while investigations into its deformation behavior and microstructural evolution during thermal processing remain limited. A comprehensive study on the thermal deformation behavior and thermal processing map of 2A97 Al-Li alloy holds significant engineering value for improving the final product quality and mechanical performance

2. Materials and Methods

In this paper, the chemical composition of 2A97 Al-Li alloy provided by the Beijing Institute of Aeronautical Materials (Beijing, China) is Al–3.5 Cu–1.5 Li–0.5 Mg–0.5 Zn–0.3 Mn–0.1 Zr–0.08 Ti. Hot compression was carried out using a Gleeble-1500 thermal simulation machine manufactured by Dynamic Systems Inc. (St. Paul, MN, USA). The ϕ8×12mm cylindrical samples for hot compression were cut from the 2A97 Al-Li alloy plate. In addition, the specimen and indenter surfaces were lubricated with graphite during the thermal compression process. The compression temperatures (T) were 260 °C, 310 °C, 360 °C, 410 °C, and 460 °C, and the strain rates έ were 0.001 s−1, 0.01 s−1, 0.1 s−1, and 1 s−1, respectively. The compression direction was consistent with the thickness direction of the plate. In order to maintain the thermal deformation microstructure, the specimens were quenched immediately after compression. Subsequently, the samples were cut from the center of quenched specimens for microstructural analysis. These samples were polished step by step with 600#, 1000#, 1400#, 1800#, and 2500# sandpaper, and finally electrolytic polished to eliminate the surface mechanical stress in the polishing solution (10 mL HClO4 + 90 mL CH3CH2OH) at 15V for 35–45 s. A ZEISS SUPRA 55 scanning electron microscope (SEM) with an EBSD probe manufactured by Carl Zeiss AG (Oberkochen, Baden-Württemberg, Germany) was used to analyze the microstructure in the center of deformed samples, and EBSD data were analyzed by HKL Channel 5 software. A transmission electron microscope (TEM, Philips Tecnai G2 F30 microscope operated at 300 kV) manufactured by Field Electron and Ion Company (Hillsboro, OK, USA) was employed to observe the sub-grain, precipitates, and dislocation of 2A97 Al–Li alloy after thermal deformation. We prepared 70 μm thin foils for TEM observation from samples treated by hot compression, ground, and thinned by twinjet electro-polishing in a 30% Nital solution (methanol 700 mL + nitric acid 300 mL) at −20 °C and 15 V.

3. Results and Discussion

3.1. Stress–Strain Curves and Flow Deformation Behavior of 2A97 Al-Li Alloy

The stress–strain curves of the 2A97 Al-Li alloy under various thermal deformation conditions are shown in Figure 1. It is evident that, at a constant strain rate, the flow stress of the 2A97 Al-Li alloy decreases significantly with increasing temperature. This is primarily attributed to elevated temperatures facilitating DRV and DRX, thereby enhancing the softening behavior of the alloy. Higher temperatures also shorten the incubation period for recovery and accelerate both the nucleation and growth of recrystallized grains. Finally, the dissolution of alloying elements into the aluminum matrix is promoted at elevated temperatures, which reduces the precipitation strengthening effect. Additionally, as shown in Figure 1, both the peak strain and peak stress of the 2A97 Al-Li alloy decrease with increasing temperature at the same strain rate. On the other hand, the flow stress is also significantly affected by the strain rate. At low strain rates (e.g., 0.001 s−1 and 0.1 s−1), the stress rapidly rises to a peak and then declines, indicating flow softening. However, at high strain rates (e.g., 1 s−1), a steady flow plateau is observed. In general, both peak stress and steady-state stress decrease with an increasing deformation temperature or decreasing strain rate.
Figure 1d shows that the flow stress curve at a strain rate of 1 s−1 and deformation temperature of 260–460 °C is a typical DRV curve. At the beginning of deformation, the stress increases instantaneously to the peak stress with strain increasing, and then it remains stable afterward. As 2A97 Al-Li alloy is a high-stacking-fault-energy metal, dislocations can glide and climb relatively easily, so DRV is usually the dominant softening mechanism. In addition, the flow stress curve suggests that 2A97 Al-Li alloy also undergoes DRX. As shown in Figure 1a, the true stress–strain curve of 2A97 alloy at a 0.001 s−1 strain rate and 260–460 °C exhibits typical DRX. At the beginning of deformation, the stress increases rapidly with increasing strain, while the strain reaches the critical strain; then, the stress increases slowly due to the softening effect of DRX, and after reaching the peak, the stress tends to decrease as the deformation furthers. Additionally, the plateau stage in the true stress–strain curves of 2A97 Al-Li alloy is ascribed to a dynamic equilibrium between the work hardening and softening provided by DRX and DRV.

3.2. Z Parameter and Constitutive Equation of 2A97 Alloy

The flow stress of metals is a critical parameter in forming processes and plays a key role in predicting the microstructure and mechanical properties of materials after deformation. To accurately determine the flow stress of an alloy under specific deformation conditions, it is essential to establish a reliable constitutive equation. In this study, a modified hyperbolic sine equation incorporating the Arrhenius-type activation energy (Q) and temperature (T) is proposed to characterize the steady-state flow stress of the 2A97 Al-Li alloy, as expressed below.
ε ˙ = A sin h α σ n exp Q R T
where A, α , and n are material constants; R is the ideal gas constant; Q is the heat deformation activation energy (KJ/mol); ε ˙ is the strain rate (s−1); T is the thermodynamic temperature (K); and σ is the flow stress (MPa).
Usually, at low stress levels (ασ < 0.8), the relationship between the strain rate and the flow stress takes the form of the following exponential relationship.
ε ˙ = A 1 σ n 1 exp Q R T
where A1 and n1 are material constants, and in the case of high stress (ασ > 1.2), the flow stress and strain rate conform to the following power exponential relationship.
ε ˙ = A 2 exp β σ exp Q R T
where A2 and β are material constants, and the parameters satisfy the α = β/n1 functional equation. According to the study of Zener and Hollomon [22], the strain rate of metal during plastic deformation at high temperatures is controlled by the thermal activation process, and the relationship between the strain rate and temperature can be expressed by the Zener–Hollomon parameter (abbreviated as the Z parameter). So, according to Equation (1), the Z parameter can be conveniently expressed in terms of a temperature-compensated strain rate.
z = ε ˙ exp Q R T = A sinh α σ n
The 2A97 Al-Li alloy was found to be at low stress levels at 410 °C and 460 °C and at high stress levels at 260 °C, 310 °C, and 360 °C by calculation. Taking logarithms for each side of Equations (2) and (3), respectively, the following expressions can be derived:
ln ε ˙ = ln A 1 Q / ( R T ) + n 1 ln σ
ln ε ˙ = ln A 2 Q / ( R T ) + β σ
Based on the experimental data, ln σ - ln ε ˙ in Equation (5) and σ - l n ε ˙ in Equation (6), respectively, can be plotted, as shown in Figure 2. We use the slopes of the fitted lines in Figure 2a,b to calculate the value of n1 as 7.026392 and the value of β as 0.068747, respectively. Hence, α = β/n1 = 0.009785.
The natural logarithm of both sides of Equation (1) is taken to obtain Equation (7), which is expressed as follows:
ln ε ˙ = ln A + n 1 ln sinh α σ Q R T
In addition, the slope of the plot of ln ε ˙ against ln s inh α σ can be used for calculating the value of n. For the given strain rate conditions, differentiating Equation (7) produces Equation (8) as follows:
Q = R ln ε · ln [ sinh ( α σ ) ] T [ sinh ( α σ ) ] 1 / T
According to the experimental data, ln sin h α σ ln ε ˙ can be plotted, as shown in Figure 2c. Therefore, n = 6.346478 is the average slope according to the fitted straight line for each temperature in Figure 2c. The hot deformation data of the 2A97 Al-Li alloy are substituted into Equation (8), and we perform a linear regression of ln sinh α σ 1 T relationship. For convenient calculation, the value of 1/T is expanded by 1000 times and finally plotted as ln sinh α σ 1000 T , since the value of 1/T is too small. As shown in Figure 2d, and the average slope of fitted lines is 6.408685. In addition, when calculating Equation (8), the value of activation energy Q is 337,806 J/mol.
Taking the logarithm of both sides of Equation (4), we obtain Equation (9) as follows:
ln Z = ln A + n ln sinh α σ
On the basis of the data, the relationship of ln sin h α σ ln Z can be plotted, as shown in Figure 2e. The value of A can be calculated as 5.398 × 1024. The correlation coefficient is near 0.99, revealing a good linear relation between lnZ and ln[sinh(ασ)]. Finally, when substituting the values of α, n, A, and Q into Equation (1), the flow stress and constitutive equation for 2A97 alloy can be expressed as follows:
ε ˙ = 5.398 × 10 24 [ sinh ( 0.009785 σ ) ] 6.346478 exp ( 337806 R T )
z = 5.398 × 10 24 sinh 0.009785 σ 6.346478
σ = 1 0.009785 ln Z 5.398 × 10 24 1 6.346478 + Z 5.398 × 10 24 2 6.346478 + 1 1 2

3.3. Microstructural Analysis

The EBSD characterization results reveal the grain morphology and misorientation characteristics of 2A97 Al-Li alloy subjected to various thermal deformation conditions, as shown in Figure 3 and Figure 4. In these figures, blue lines indicate LAGBs with misorientation angles between 2° and 10°, while black lines denote HAGBs with misorientations greater than 10°. Overall, the presence of grains with diverse sizes and shapes—ranging from equiaxed to elongated structures—demonstrates that both temperature and the strain rate have a significant influence on grain evolution. As shown in Figure 4, the misorientation distribution varies with hot deformation conditions, which clearly suggests that the proportion of LAGBs increases with an increasing strain rate at a constant temperature, whereas it decreases with rising temperature at a constant strain rate. Furthermore, the trend in average misorientation angle closely follows the changes in the fraction of HAGBs, indicating a dynamic equilibrium between work hardening and dynamic softening during thermal deformation.
In detail, there are many equiaxed grains and elongated grains in every deformed sample. In detail, Figure 3a–e show the standard grain morphology and orientation of 2A97 Al-Li alloy deformed by a strain rate of 0.001 s−1 at 260 °C, 310 °C, 360 °C, 410 °C, and 460 °C, respectively. When the temperature is lower than 410 °C, the grain boundaries are relatively rough and jagged. During the hot deformation process, the dislocation migration is restricted at a low temperature, which leads to the accumulation of dislocation. New fine grains are formed at the triple grain boundaries or change into a fine grain chain distributed along the original grain boundary, as shown as the red circle in Figure 3a–c. There are many small necklace-shaped grains around the serrated grain boundaries, which also indicates that DRX is occurring. The recrystallized grains distributed along the serrated grain boundaries suggest that the recrystallized grains are often formed by grain boundary migration-provided strain, which is consistent with the general nucleation theory of discontinuous dynamic recrystallization. The dislocation multiplication caused by deformation produces many LAGBs, which results in a small average value of misorientation, as shown in Figure 4a,b.
Comparing the recrystallization grain sizes in these samples deformed at different temperatures reveals that a high deformation temperature will lead to further growth of the DRX grain, as there is high energy for growth under a high temperature. Therefore, a high temperature is beneficial to improve the number of recrystallized grains. Moreover, Figure 3b,d show the morphology of 410 °C at 0.001 s−1 and 0.01 s−1. It can be found that with an increasing strain rate, the fine DRX grains decrease along the boundary, while elongated grains increase. This phenomenon was observed in Figure 3e,g, too, because the low strain rate supplied a longer time for nucleation and growth, thus forming abundant recrystallized grains, compared with the fast strain.
Based on the above results, the microstructural evolution of the alloy during thermal deformation is directly influenced by either temperature or the strain rate when the other parameter is held constant. However, to fully understand the microstructural evolution of the alloy, it is necessary to consider the combined effects of strain rate and temperature. According to Equations (9) and (11), the calculated Z parameter can be used to analyze the combined influence of strain rate and temperature on microstructural evolution during the thermal deformation process, thereby revealing the thermal deformation behavior of the 2A97 Al-Li alloy. The strong correlation between the lnZ value and the DRX process of the 2A97 Al-Li alloy has been extensively studied [26]. Regarding the formation of recrystallized grains, DRX processes are generally categorized into three types: discontinuous dynamic recrystallization (abbreviated as DDRX), continuous dynamic recrystallization (abbreviated as CDRX), and grain boundary migration-driven dynamic recrystallization (abbreviated as GDRX). Figure 5 illustrates the variation in the volume fraction of LAGBs for different lnZ values. The corresponding lnZ values under different thermal deformation conditions are provided in Table 1.
With increasing lnZ values, the fraction of HAGBs decreases, while that of LAGBs increases, as shown in Figure 5. In contrast, under lower lnZ conditions, the volume fraction of HAGBs increases significantly, indicating that sub-grains are progressively transforming into new recrystallized grains. A comprehensive analysis of Figure 3 and Figure 4 further reveals that, under identical deformation conditions, the growth of sub-grains and the completion of recrystallization are strongly dependent on the lnZ value. Moreover, both DRV and DRX are inhibited at high lnZ values due to the limited deformation energy and reduced time for dislocation motion. This leads to a lower fraction of DRX and an increased presence of clustered LAGBs within the deformed grains. Consequently, a large number of LAGBs are gradually transformed into HAGBs or medium-angle grain boundaries (abbreviated as MLGBs).
Theoretically, the processes of DRV and DRX during thermal deformation processing are accompanied by the evolution of misorientation angles. At high lnZ values—corresponding to deformation at low temperatures and high strain rates—the hard precipitates in 2A97 Al-Li alloys effectively pin dislocations. As a result, the limited occurrence of DRX is insufficient to eliminate work hardening, leading to increased deformation resistance and a higher tendency for flow localization. In contrast, at low lnZ values—corresponding to deformation at high temperatures and low strain rates—the dislocation pinning effect of the hard precipitates is weakened. Consequently, extensive DRX (primarily governed by continuous dynamic recrystallization (CDRX) and grain boundary migration-driven dynamic recrystallization (GDRX)) takes place, resulting in lower deformation resistance and promoting favorable conditions for thermo-mechanical processing.
In the different thermal deformation, the dominant softening mechanism gradually transforms from DRV to DRX due to the decrease in lnZ value. Aluminum alloy is a high-stacking-fault-energy metal. With increasing deformation, the lattice defect density and the deformation energy storage will increase, which leads to abundant dislocation slip and cross-slip for continuous DRX, thus producing more sub-grains. The EBSD results suggest that DRX and DRV become the dominant deformation mechanisms in thermal compression. It is well-known that DRX can provide stable flow and ideal workability for Al alloy by simultaneously softening and reconstituting the microstructure during the hot deformation process.
The dislocation and precipitation features of these samples at different lnZ values were also characterized by TEM, as shown in Figure 6. It was found that numerous spherical and needle-like fine precipitates, like T1 (Al2CuLi) and θ’ (Al2Cu) phases, were present at low temperatures (310 °C and 360 °C), as shown in Figure 7a,b. We characterized 2A97 Al-Li alloy as a precipitation-hardening alloy during thermal deformation at low temperatures, and found that abundant dislocations can be used as diffusion channels to promote precipitation behavior. At temperatures above 460 °C, a significant quantity of the secondary phase dissolves into the matrix, as shown in Figure 6c; however, some large spherical secondary phases can still be found.
As shown in Figure 6, several dislocations are either pinned by fine secondary phases or become entangled with each other, leading to the formation of dislocation clusters. These regions of agglomerated dislocations undergo DRV and subsequently experience polygonization, resulting in the formation of dislocation cells and sub-grains. As the lnZ value decreases, the dislocation density is reduced, indicating a more ordered dislocation arrangement due to the weakening of precipitate-induced pinning and the enhanced degree of DRV. With further development, dislocation cells and sub-grains gradually evolve into DRX grains characterized by clean and straight HAGBs.

3.4. Thermal Processing Map

A processing map for 2A97 Al-Li alloy was constructed through a dynamic materials model (DMM). 2A97 Al-Li alloy during thermal deformation is a dissipater of power. The power is instantaneously dissipated into two parts, G and J [27], as follows:
p = σ ε ˙ = G + J = 0 ε σ d ε ˙ + 0 σ σ ε ˙ d σ
where G represents power dissipated in plastic deformation, most of which is converted into strain heat, while little remaining power is stored as lattice defects. The co-content of J is related to the power dissipated by recovery and recrystallization. The power partitioning between G and J is controlled by the constitutive deformation behavior of the material and is decided by the strain rate sensitivity (m):
m = d J d G = ε ˙ d σ σ d ε ˙ = d ln σ d ln ε ˙
Generally, when considering the ideal linear dissipater, m = 1 and
J = J m a x = σ ε ˙ 2
The efficiency of power dissipation of a nonlinear dissipater may be expressed as a dimensionless parameter:
η = J J m a x = 2 m m + 1 × 100
The parameter η suggests there is an efficient dissipation of energy during microstructural evolution in materials. Thus, η is an important parameter for the determination of the optimum conditions for thermal deformation.
Based on the stress–strain curves and the deformed microstructural features, typical thermal processing maps of 2A97 Al-Li alloy at different strains were established, as shown in Figure 7. These processing maps provide valuable insights into the thermal workability of the 2A97 alloy. In these maps, the contour lines represent power dissipation efficiencies, and the shaded regions indicate the flow destabilization zones.
The shapes of the thermal processing maps at strains of 0.3, 0.5, 0.7, and 0.9 are similar, with the destabilization zones primarily occurring in the low-temperature and high-strain-rate regions. Strain has a significant impact on the destabilization zones in the processing map. At a strain of 0.1, the destabilization zones of 2A97 Al-Li alloy are more scattered and smaller compared to other Al-Li alloys, mainly distributed within the deformation temperature and strain rate ranges of 260 °C and 0.01 s−1 to 1 s−1, as well as 330 °C to 390 °C and 0.01 s−1 to 1 s−1. At a strain of 0.3, there is a noticeable expansion of the destabilization zone, and the workable range of the 2A97 alloy becomes narrower. At a strain of 0.5, the destabilization zones are primarily distributed in the deformation temperature and strain rate ranges of 280 °C to 400 °C and 0.1 s−1 to 1 s−1, as well as 400 °C to 450 °C and 0.001 s−1 to 0.01 s−1. As the strain increases from 0.7 to 0.9, the shape of the destabilization zone changes significantly, with the destabilization zone expanding as strain increases.
On the other hand, power dissipation is beneficial to identify the safe region during thermal processing, and also to investigate the dominant mechanism of 2A97 alloy, and the value of the power dissipation factor can be found visually in Figure 7. The maximum power dissipation factors of 2A97 alloy for different strains are 0.31 at a strain of 0.1, 0.35 at a strain of 0.3, 0.39 at a strain of 0.5, 0.44 at a strain of 0.7, and 0.49 at a strain of 0.9, respectively. In the thermal processing map at a strain of 0.9, the safe region for thermal processing is in the temperature range of 360–460 °C with a strain rate range of 0.05 s−1–1 s−1, is in the temperature range of 340–420 °C with a strain rate range of 0.001 s−1–0.005 s−1, and is at 360 °C with a strain rate close to 0.001 s−1. In the above thermal deformation range, the power dissipation factor is large and close to 0.5, which is favorable for hot working.
The thermal processing map determines the dominant mechanism for microstructural evolution and suggests the limiting conditions for avoidance of flow instability. There are two mechanisms: work hardening and dynamic softening (including dynamic recovery and dynamic recrystallization). According to above grain features, as shown in Figure 3 and Figure 4, there are elongated grains, a banded structure, and equiaxed grains in samples treated by different thermal deformations. The grains are elongated in the deformation direction in work hardening, and a banded structure can be obtained. After that, the banded structure can transform to equiaxed grains in dynamic recrystallization due to the nucleation and growth of recrystallized grains.
The results of thermal processing maps and microstructural evolution of 2A97 Al-Li alloy subjected to different thermal compression treatments indicate that dislocation movement is the primary deformation mechanism during thermal deformation, with dynamic recovery predominantly occurring at low temperatures and high strain rates. Furthermore, based on the thermal processing map, the optimized processing parameters are a temperature range of 360 °C to 460 °C with a strain rate range of 0.05 s−1 to 1 s−1, and a temperature range of 340 °C to 420 °C with a strain rate range of 0.001 s−1 to 0.005 s−1. Under these conditions, the power dissipation efficiency exceeds 30%, and flow instability can be avoided.

4. Conclusions

In this study, the thermal deformation behavior of 2A97 Al-Li alloy was investigated through thermal compression within a temperature range of 260 °C to 460 °C and a strain rate range of 0.001 s−1 to 1 s−1. In addition, the flow stress constitutive equation and thermal processing maps of 2A97 Al-Li alloy were compiled by analyzing the stress–strain curves and microstructural evolution. The following conclusions can be drawn:
1. During a thermal deformation process, the flow stress of 2A97 Al-Li alloy is clearly affected by temperature and the strain rate; when elevating the temperature or reducing the strain rate, the flow stress gradually decreases.
2. The flow stress constitutive equation of 2A97 Al-Li alloy during high-temperature compression can be represented as follows:
ε ˙ = 5.398   ×   10 24 [ sin h ( 0.009785 σ ) ] 6.346478 exp ( 337806 R T ) z = 5.398 × 10 24 sin h 0.009785 σ 6.346478 σ = 1 0.009785 ln Z 5.398 × 10 24 1 6.346478 + Z 5.398 × 10 24 2 6.346478 + 1 1 2
3. Based on the analysis of the microstructure and Z parameter, both DRV and DRX occur simultaneously during the thermal compression process of 2A97 Al-Li alloy, and the softening mechanism is mainly controlled by DRX.
4. Thermal processing maps of 2A97 Al-Li alloy were established. It was found that the optimum thermal deformation domains for 2A97 Al-Li alloy are in the temperature range of 360–460 °C with a strain rate range of 0.05 s−1–1 s−1, and in the temperature range of 340–420 °C with a strain rate range of 0.001 s−1–0.005 s−1, respectively.

Author Contributions

Conceptualization, J.C.; Methodology, Y.Z.; Data Curation, D.C. and X.H.; Writing—Original Draft Preparation. D.C. and X.H.; Visualization, Investigation, Y.L. and X.H.; Supervision, J.C.; Writing—Reviewing and Editing, Y.Z. and X.H. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the National Natural Science Foundation of China (Grant Nos. 52271095, 51871057, and 51501040), the Production and Research Project of Fujian Province (2024H6004, 2024H4021), and the Fujian Natural Science Foundation (2022J01946).

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding authors.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Dursun, T.; Soutis, C. Recent developments in advanced aircraft aluminium alloys. Mater. Des. 2014, 56, 862–871. [Google Scholar] [CrossRef]
  2. Rajan, R.; Kah, P.; Mvola, B.; Martikainen, J. Trends in Aluminium Alloy Development and Their Joining Methods. Rev. Adv. Mater. Sci. 2016, 44, 383–397. [Google Scholar]
  3. Starke, J.; Edgar, A.; Staley, J.T. Application of modern aluminum alloys to aircraft. Prog. Aerosp. Sci. 1996, 32, 131–172. [Google Scholar] [CrossRef]
  4. Feng, C.H.; Li, G.A.; Chen, J.Z. Research progress and trends in aluminum-lithium alloys. J. Aeronaut. Mater. 2020, 40, 1–11. [Google Scholar]
  5. Zhang, J.; Liu, Z.M.; Shi, D.F. Hot compression deformation behavior and microstructure of as-cast and homogenized AA2195 Al-Li alloy. Metals 2022, 12, 1580. [Google Scholar] [CrossRef]
  6. Xiang, S.; Liu, D.Y.; Zhu, R.H.; LI, J.; Chen, Y.L.; Zhang, X.H. Hot deformation behavior and microstructure evolution of 1460 Al-Li alloy. Trans. Nonferrous Met. Soc. China 2015, 25, 3855–3864. [Google Scholar] [CrossRef]
  7. Yu, W.C.; Li, H.Y.; Du, R.; You, W.; Zhao, M.C.; Wang, Z.A. Characteristic constitution model and microstructure of an Al-3.5 Cu-1.5 Li alloy subjected to thermal deformation. Mater. Charact. 2018, 145, 53–64. [Google Scholar] [CrossRef]
  8. Wang, X.W.; Zhao, G.Q.; Sun, L.; Wang, Y.L.; Xu, S.Q.; Lu, Z.F. Investigation on hot deformation behavior and quenching precipitation mechanism of 2195 Al-Li alloy. Mater. Des. 2023, 234, 112366. [Google Scholar] [CrossRef]
  9. Niu, J. Physical Simulation Technology in Materials and Heat Treatment Field; National Defense Industry Press: Arlington, VA, USA, 1999. [Google Scholar]
  10. Yang, S.-L.; Shen, J.; Zhang, Y.-A.; Li, Z.-H.; Li, X.-W.; Huang, S.-H.; Xiong, B.-Q. Processing maps and microstructural evolution of Al-Cu-Li alloy during hot deformation. Rare Met. 2017, 38, 1136–1143. [Google Scholar] [CrossRef]
  11. Chamanfar, A.; Alamoudi, M.T.; Nanninga, N.E.; Misiolek, W.Z. Analysis of flow stress and microstructure during hot compression of 6099 aluminum alloy (AA6099). Mater. Sci. Eng. A 2019, 743, 684–696. [Google Scholar] [CrossRef]
  12. Li, X.; Yang, Q.B.; Fan, X.Z.; Kuang, Y.L.; Lin, L.; Zhang, Z.C. Effect of Deformation Parameters on Dynamic Recrystallization of 2195 Al-Li Alloy. J. Met. 2019, 55, 709–719. [Google Scholar]
  13. Zhang, F.; Shen, J.; Yan, X.D.; Sun, J.L.; Jiang, N.; Zhou, H. Dynamic Softening Mechanism in Hot Deformation Process of 2099 Alloy. Acta Metall. Sin. 2014, 50, 691–699. [Google Scholar]
  14. Shen, B.; Deng, L.; Wang, X.Y. A new dynamic recrystallisation model of an extruded Al-Cu-Li alloy during high-temperature deformation. Mater. Sci. Eng. A 2015, 625, 288–295. [Google Scholar] [CrossRef]
  15. Ashtiani, H.R.R.; Parsa, M.H.; Bisadi, H. Constitutive equations for elevated temperature flow behavior of commercial purity aluminum. Mater. Sci. Eng. A 2012, 545, 61–67. [Google Scholar] [CrossRef]
  16. Trimble, D.; O’Donnell, G.E. Flow stress prediction for hot deformation processing of 2024Al-T3 alloy. Trans. Nonferrous Met. Soc. China 2016, 26, 1232–1250. [Google Scholar] [CrossRef]
  17. Lu, D.D.; Li, J.F.; Guo, Y.J.; Ma, P.C.; Chen, Y.L.; Zhang, X.H.; Zhang, K.; Zhang, R.F. Hot Processing Map and Dynamic Precipitation Behavior of 1460 Al-Li Alloy During Hot Deformation. Met. Mater. Int. 2023, 29, 1652–1668. [Google Scholar] [CrossRef]
  18. Lin, Y.C.; Li, L.; Xia, Y.; Jiang, Y. Hot deformation and processing map of a typical Al-Zn-Mg-Cu alloy. J. Alloys Compd. 2013, 550, 438–445. [Google Scholar] [CrossRef]
  19. Miao, J.S.; Sutton, S.; Luo, A.A. Microstructure and hot deformation behavior of a new aluminum lithium copper based AA2070 alloy. Mater. Sci. Eng. A 2020, 777, 139048. [Google Scholar] [CrossRef]
  20. Zhang, J.J.; Yi, Y.P.; Huang, S.Q.; Mao, X.C.; He, H.L.; Tang, J.G.; Wang, F.G.; Dong, F. Dynamic recrystallization mechanisms of 2195 aluminum alloy during medium/high temperature compression deformation. Mater. Sci. Eng. A 2021, 804, 3–5. [Google Scholar] [CrossRef]
  21. Liu, Y.; Zhao, C.X.; Chen, J.F.; Liu, R.Y.; Jiang, J.T.; Cui, X.P.; Liang, S.Y.; Chi, H.; Zou, L. Effects of pre-strain deep cryogenic aging on the mechanical and corrosion properties of 2A97 aluminum-lithium alloy. J. Mater. Res. Technol. 2024, 30, 2728–2737. [Google Scholar] [CrossRef]
  22. Zener, C.; Hollomon, J.H. Effect of Strain Rate Upon Plastic Flow of Steel. J. Appl. Phys. 1944, 15, 22–32. [Google Scholar] [CrossRef]
  23. Chen, Z.W.; Zhao, K.; Li, F. Combinative hardening effects of precipitation in a commercial aged Al-Cu-Li-X alloy. Mater. Sci. Eng. A 2013, 588, 59–64. [Google Scholar] [CrossRef]
  24. Lin, Y.; Zheng, Z.Q.; Han, Y. Effects of heat treatment process on tensile and corrosion properties of 2A97 Al-Li alloy. Trans. Nonferrous Met. Soc. China 2012, 22, 2181–2192. [Google Scholar]
  25. Ning, H.; Li, J.F.; Ma, P.C.; Chen, Y.L.; Zhang, X.H.; Zhang, K.; Zhang, R.F. Evolution of aging precipitates in an Al-Li alloy with 1.5 wt% Li concentration. Vacuum 2020, 182, 109677. [Google Scholar] [CrossRef]
  26. Fu, R.; Huang, Y.C.; Liu, Y.; Li, H. Microstructural Evolution and Dynamic Recrystallization Behavior of the Homogenized 2195 Al-Li Alloy During Hot Deformation. Metall. Mater. Int. 2023, 29, 2605–2622. [Google Scholar] [CrossRef]
  27. Prasad, Y.K.; Gegel, H.L.; Dorivelu, S.M.; Malas, J.C.; Morgan, J.T.; Lark, K.A.; Barker, D.R. Modeling of dynamic material behavior in hot deformation: Forging of Ti-6242. Metall. Mater. Trans. A 1984, 15, 1883–1892. [Google Scholar] [CrossRef]

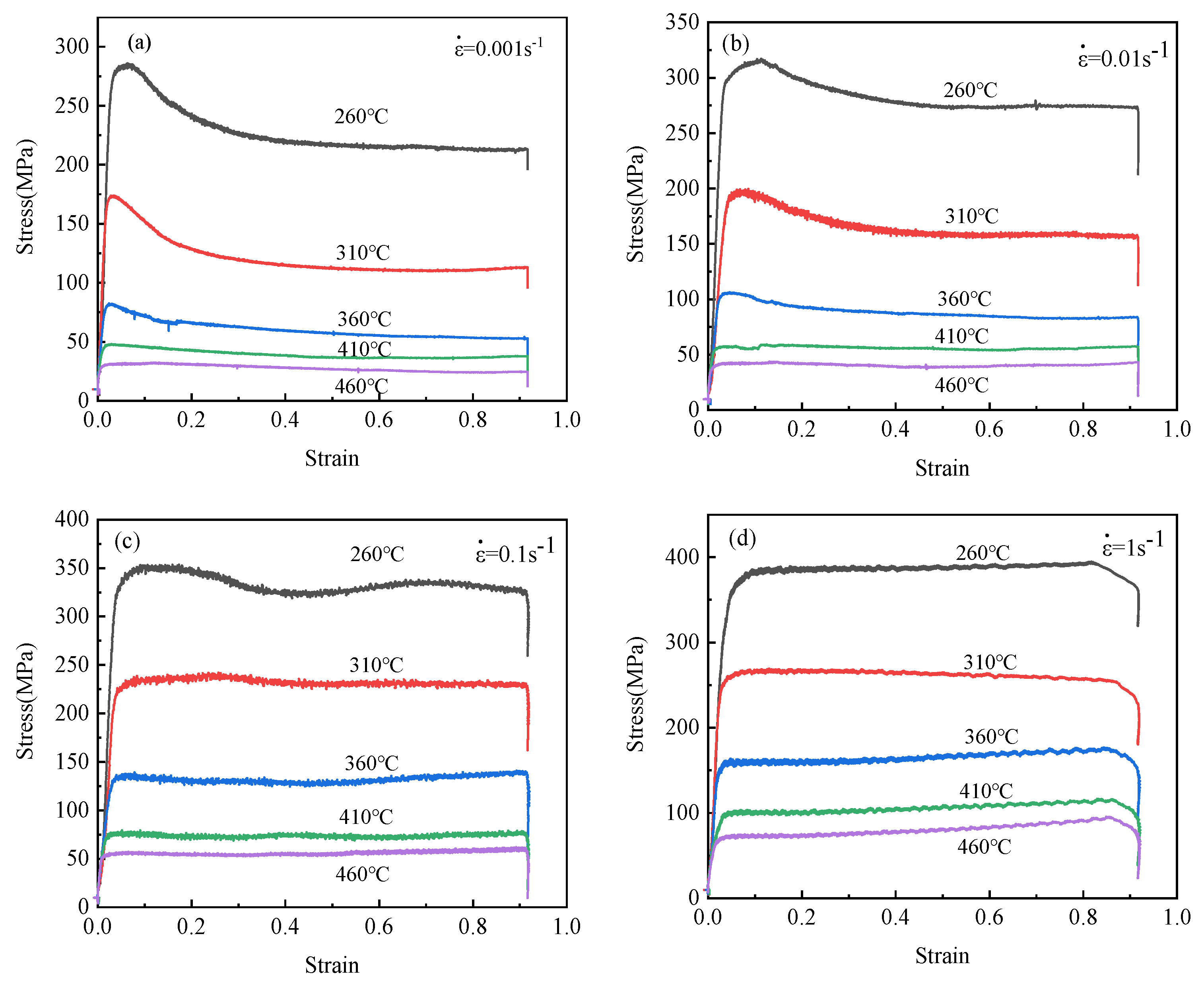

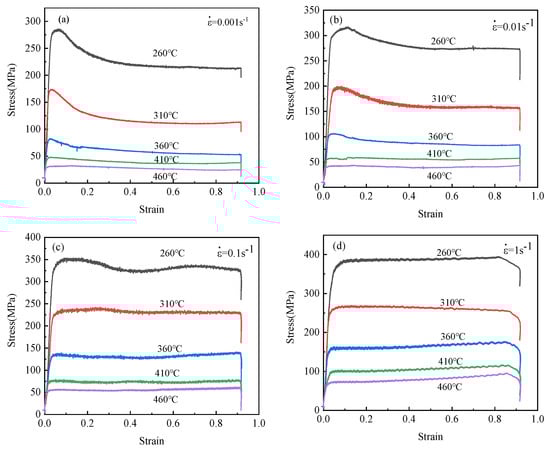

Figure 1. True stress–strain curves of 2A97 Al-Li alloy treated by thermal compression at different strain rates. (a) 0.001 s−1, (b) 0.01 s−1, (c) 0.1 s−1, (d) 1 s−1.
Figure 1. True stress–strain curves of 2A97 Al-Li alloy treated by thermal compression at different strain rates. (a) 0.001 s−1, (b) 0.01 s−1, (c) 0.1 s−1, (d) 1 s−1.
Crystals 15 00431 g001

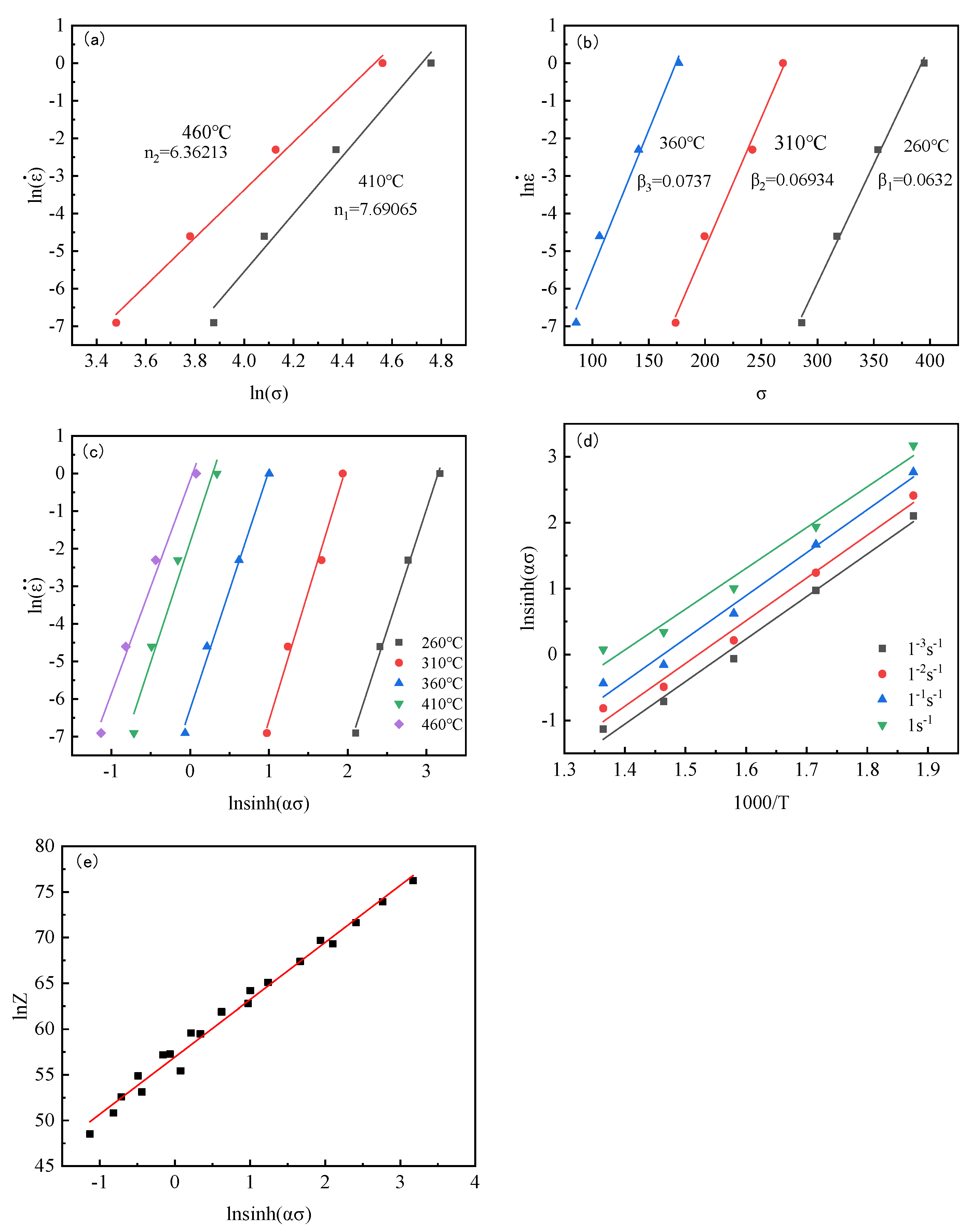

Figure 2. Relationships between strain rate, flow stress, and T and Z parameters of 2A97 alloy. (a) ln σ ln ε ˙ , (b) σ ln ε ˙ , (c) ln sin h α σ ln ε ˙ , (d) ln sinh α σ 1000 / T , (e) ln   sin   h α σ ln   Z .
Figure 2. Relationships between strain rate, flow stress, and T and Z parameters of 2A97 alloy. (a) ln σ ln ε ˙ , (b) σ ln ε ˙ , (c) ln sin h α σ ln ε ˙ , (d) ln sinh α σ 1000 / T , (e) ln   sin   h α σ ln   Z .
Crystals 15 00431 g002
Figure 3. EBSD IPF map of 2A97 alloy under different deformation conditions. (a) 260 °C × 0.001 s−1, (b) 310 °C × 0.001 s−1, (c) 360 °C × 0.001 s−1, (d) 410 °C × 0.001 s−1, (e) 460 °C × 0.001 s−1, (f) 410 °C × 0.01 s−1, (g) 460 °C × 0.01 s−1, (h) 410 °C × 1 s−1.
Figure 3. EBSD IPF map of 2A97 alloy under different deformation conditions. (a) 260 °C × 0.001 s−1, (b) 310 °C × 0.001 s−1, (c) 360 °C × 0.001 s−1, (d) 410 °C × 0.001 s−1, (e) 460 °C × 0.001 s−1, (f) 410 °C × 0.01 s−1, (g) 460 °C × 0.01 s−1, (h) 410 °C × 1 s−1.
Crystals 15 00431 g003

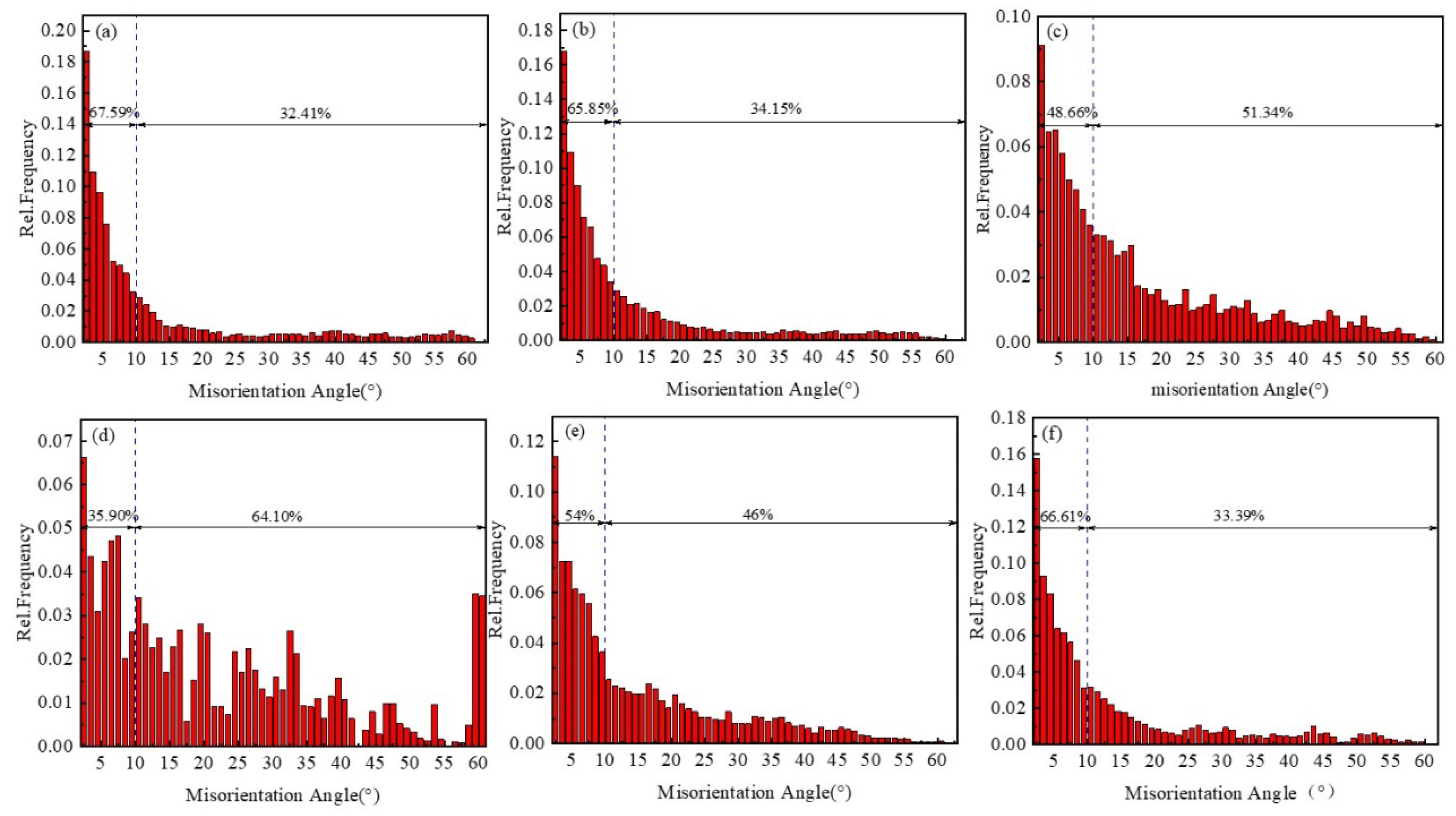

Figure 4. Misorientation of 2A97 alloy samples under different hot deformation conditions. (a) 310 °C × 0.001 s−1, (b) 360 °C × 0.001 s−1, (c) 410 °C × 0.001 s−1, (d) 460 °C × 0.001 s−1, (e) 410 °C × 0.01 s−1, (f) 410 °C × 1 s−1.
Figure 4. Misorientation of 2A97 alloy samples under different hot deformation conditions. (a) 310 °C × 0.001 s−1, (b) 360 °C × 0.001 s−1, (c) 410 °C × 0.001 s−1, (d) 460 °C × 0.001 s−1, (e) 410 °C × 0.01 s−1, (f) 410 °C × 1 s−1.
Crystals 15 00431 g004

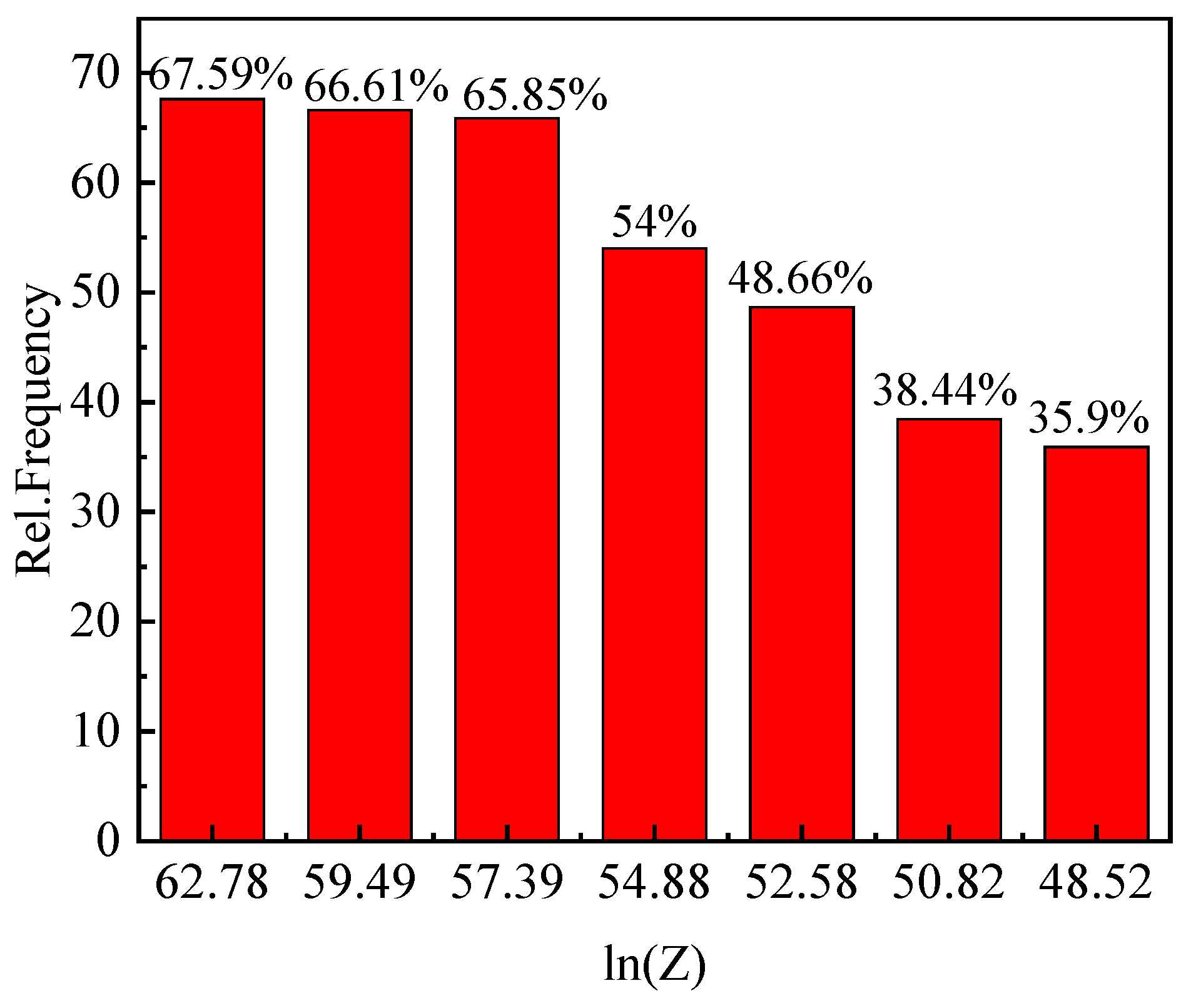

Figure 5. The volume fraction of small-angle grain boundary (2° < θ < 10°) change with different lnZ.
Figure 5. The volume fraction of small-angle grain boundary (2° < θ < 10°) change with different lnZ.
Crystals 15 00431 g005
Figure 6. TEM images of 2A97 Al-Li alloy samples under different lnZ values. (a) lnZ = 62.78 deformation at 310 °C × 0.001 s−1, (b) lnZ = 57.39 deformation at 360 °C × 0.001 s−1, (c) lnZ = 48.52 deformation at 460 °C × 0.001 s−1.
Figure 6. TEM images of 2A97 Al-Li alloy samples under different lnZ values. (a) lnZ = 62.78 deformation at 310 °C × 0.001 s−1, (b) lnZ = 57.39 deformation at 360 °C × 0.001 s−1, (c) lnZ = 48.52 deformation at 460 °C × 0.001 s−1.
Crystals 15 00431 g006

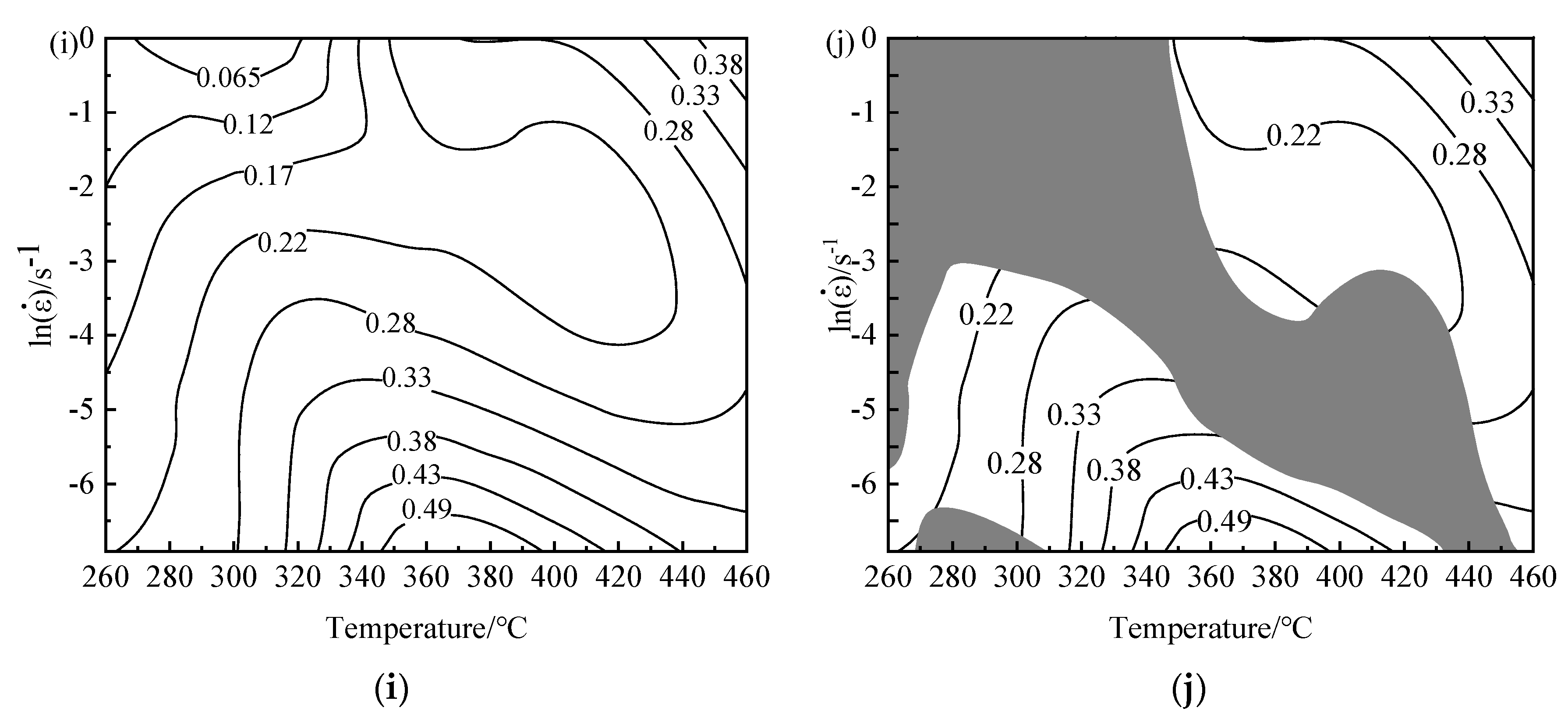

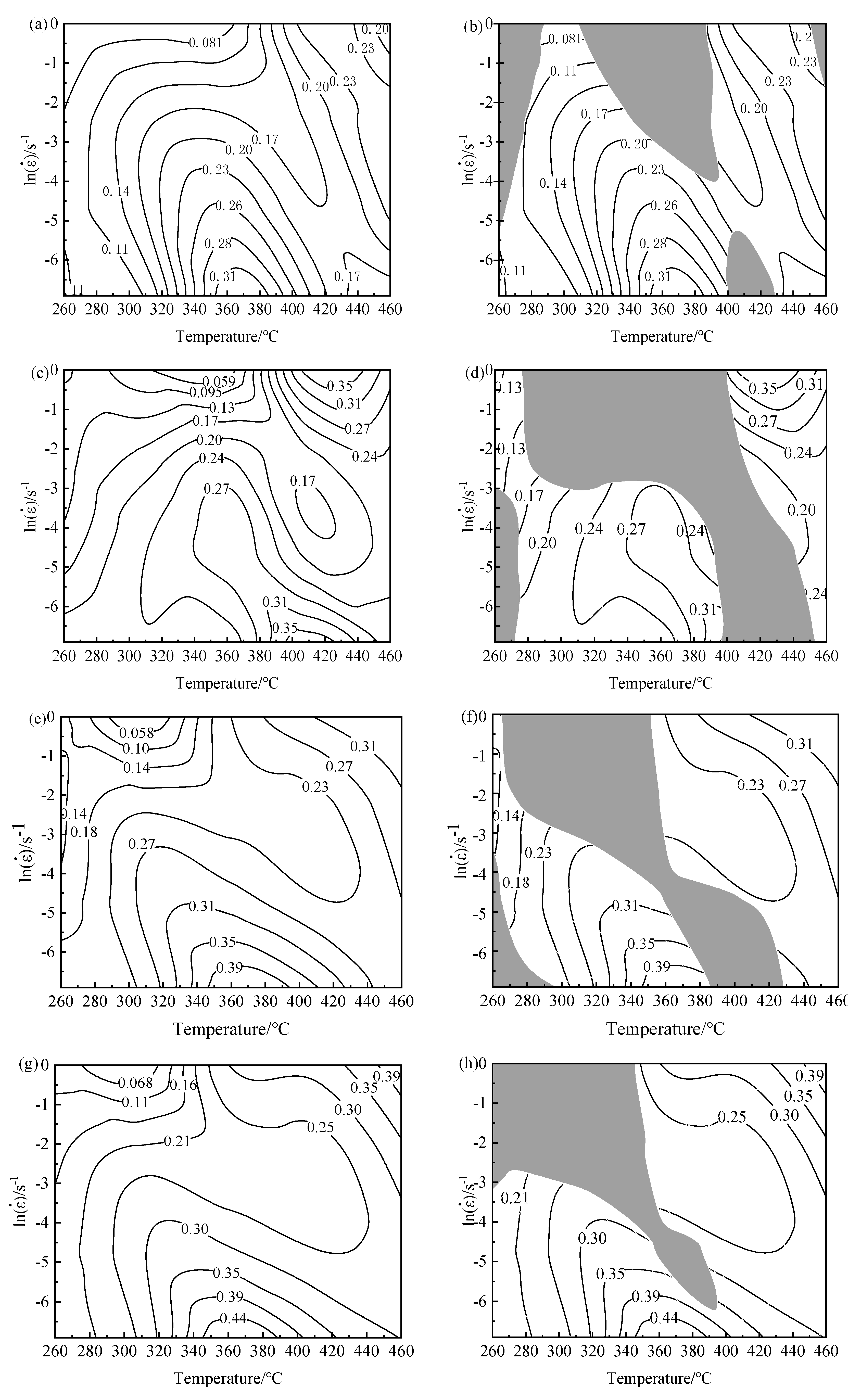

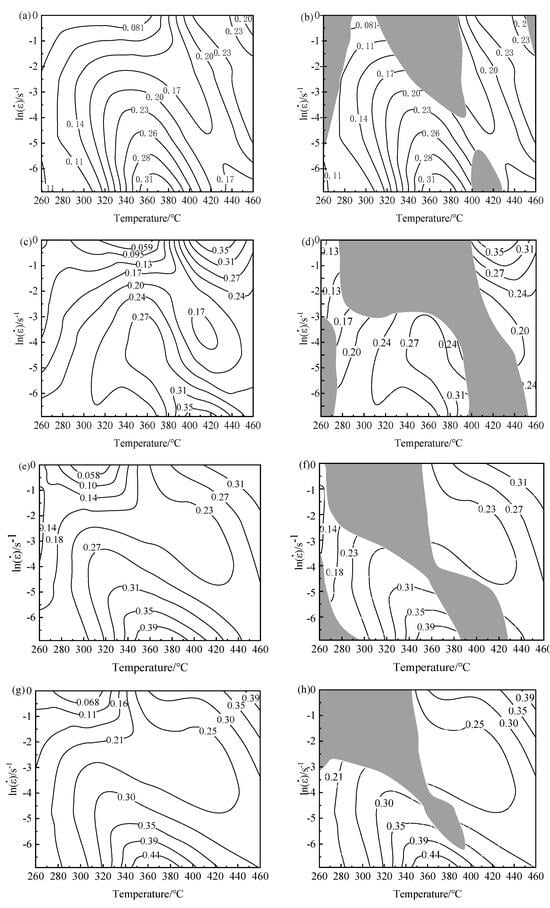

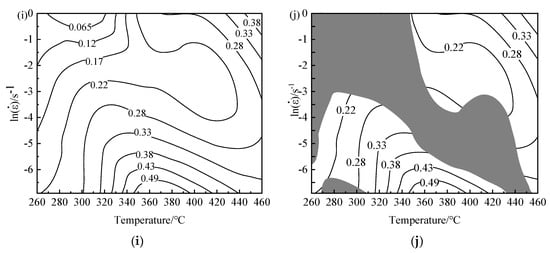

Figure 7. Power dissipation map and thermal processing map of 2A97 Al-Li alloy under different strain conditions. (a,b) 0.1; (c,d) 0.3; (e,f) 0.5; (g,h) 0.7; (i,j) 0.9.
Figure 7. Power dissipation map and thermal processing map of 2A97 Al-Li alloy under different strain conditions. (a,b) 0.1; (c,d) 0.3; (e,f) 0.5; (g,h) 0.7; (i,j) 0.9.
Crystals 15 00431 g007aCrystals 15 00431 g007b
Table 1. The values of lnZ at different thermal deformation process.
Table 1. The values of lnZ at different thermal deformation process.
Thermal
Deformation Parameter
T = 310 °C
έ = 0.001 s−1
T = 360 °C
έ = 0.001 s−1
T = 410 °C
έ = 1 s−1
T = 410 °C
έ = 0.01 s−1
T = 410 °C
έ = 0.001 s−1
T = 460 °C
έ = 0.01 s−1
T = 460 °C
έ = 0.001 s−1
lnZ62.7857.3959.4954.8852.5850.8248.52
