Barium Carbonate Synthesized via Hydrolysis: Morphostructural Analysis and Photocatalytic Performance in Polymer and Geopolymer Matrices

Abstract

Barium carbonate (BaCO₃) nanoparticles were synthesized by a facile hydrolysis route using BaCl₂ and KOH in aqueous solution, with atmospheric CO₂ as the carbonate source, without external agents. Their structural and morphological properties were investigated by XRD, ATR-FTIR, SEM, and BET, confirming the formation of a pure orthorhombic witherite phase with rod-like morphology and different surface specific areas. The crystallite size increased from 52 to 86 nm with higher precursor concentration and synthesis temperature, as predicted by a regression model correlating synthesis parameter with particle growth. When incorporated into polymer (PVC) and geopolymer (GP) matrices, BaCO₃ enhanced the photocatalytic degradation of methylene blue (MB) under solar light, with GP@Nano-BaCO₃ achieving a higher rate constant compared to PVC@Nano-BaCO₃. The results highlight that the synthesis strategy yields well-defined BaCO₃ nanoparticles with tunable structural features and promising photocatalytic potential when integrated in functional polymer matrices. Future work will address doping strategies and testing in real wastewater conditions. Overall, this synthesis strategy offers a reproducible and environmentally friendly route to BaCO₃ nanoparticles with potential applications in hybrid materials for visible light-driven environmental remediation.

1. Introduction

The development and optimization of visible light-sensitive photocatalysts are a strategic research area that combines high catalytic performance with the principles of the circular economy and green chemistry, offering promising prospects for the industrial-scale implementation of advanced water treatment technologies. Visible light-activated photocatalysts have attracted considerable interest in recent decades due to their potential to provide sustainable solutions for the treatment of contaminated water [1,2,3]. Unlike systems based on UV radiation, the use of the visible spectrum allows for a more efficient use of natural light sources and reduces the energy costs associated with treatment processes. In particular, the application of these materials in the photodegradation of organic dyes from aqueous solutions responds to a pressing environmental problem, as these pollutants are highly resistant to biological degradation and can have significant toxic effects on aquatic ecosystems [1,2,3]. Barium carbonate (BaCO₃) can play a relevant role in the photodegradation processes of organic dyes, such as methylene blue, both through its intrinsic properties and through the synergistic effects obtained in combination with other photocatalysts.

BaCO₃ has recently attracted interest as a photocatalyst active under visible light, exhibiting a band gap of approximately 3.3 eV and high efficiency in the degradation of organic dyes, e.g., Crystal Violet, with yields up to 91% under optimal conditions [4]. The photocatalytic mechanism is based on the generation of electron–hole pairs, followed by the formation of reactive oxygen species (•OH, O₂⁻•), which determine the mineralization of pollutants. Compared to TiO₂, a reference standard with a band gap of ~3.2 eV, which is doping-dependent for the extension into the visible region, and ZnO, comparable in terms of band gap, BaCO₃ demonstrates an intrinsic sensitivity to visible light and good recyclability associated with stability and low cost [4,5,6,7].

In the literature, the synthesis of barium carbonate (BaCO₃) nanostructures has been intensively explored by using various methods, including microwave-assisted techniques, green biosynthesis, homogeneous precipitation, and synthesis in hydroalcoholic media [4,8,9,10,11].

The diversity of methods for the synthesis of barium carbonate (BaCO₃) nanostructures presented in the literature highlights a close correlation between the choice of precursors, the reaction conditions, and the final morphology of the material. Comparative studies have shown that the use of barium salts such as Ba(CH₃COO)₂, BaCl₂, or Ba(NO₃)₂ in combination with surfactants (cetyl trimethyl ammonium bromide, sodium dodecyl sulphate, Tween 80) allows controlled morphologies to be obtained—from rod-like and needle-like structures to flower-like or pea nut-like formations—with crystallite sizes between 24 and 41 nm, as shown in

Table 1. Effect of precursors, methods, and surfactants on morphology and dimensions of BaCO₃.

Ba Precursor	Method	Carbonization Agent	Surfactants	Dimension	Morphology	Reference
Ba(CH3COO)2 BaCl2·2H2O Ba(OH)2·8H2O	Microwave-assisted	NaOH	CTAB	average length of 3 μm	fruit	[9]
			SDS	average length of 4 μm	rod, peanut, bean
			Tween 80	average length 120 nm	fruit
Ba(NO)3	Oil bath heating	(NH4)2CO3	-	length 1 μm	fruit	[10]
BaCl2·2H2O	Biosynthesis with Gum acacia	NaHCO3	-	20 μm length, 200 nm to 2 μm diameter	rods, dumbbell, double-dumbbell, flower	[11]
BaCl2·2H2O	Biosynthesis with Stevia extract	(NH4)2CO3	-	50–70 nm	spherical	[8]

. These morphologies have been associated with applications in the field of catalysis or solid oxide fuel cells (SOFCs) [8,9,10,11,12]. On the other hand, biosynthesis using plant extracts (e.g., Stevia) has offered an environmentally friendly alternative, with the advantages of cost reduction and biological compatibility. The nanoparticles obtained in this way exhibit spherical morphology, are well crystallized (average size of ~35–40 nm), and demonstrate notable biological activity, including cytotoxic effects on glioblastoma U87 cells and leishmanicidal activity [11]. The biomimetic synthesis of BaCO₃ used BaCl₂ and NaOH in the presence of additives: para-aminobenzoic acid (C₇H₇O₂N), N-(2-hydroxyethyl) ethylenediamine-N,N′,N″-triacetic acid (C₁₀H₁₈O₇N₂), and ammonium carbonate (NH₄)₂CO₃ [12].

While barium carbonate (BaCO₃) has been traditionally investigated as a precursor for functional oxides or as a component in ceramic formulations, its direct incorporation into polymeric and inorganic matrices remains scarcely explored [12,13,14,15,16,17]. In contrast to these elaborate methods, a simplified synthetic approach was adopted in this study, based on the direct reaction between barium chloride (BaCl₂) and potassium hydroxide (KOH), carried out in an aqueous medium, in the absence of an external carbonic agent. This method is based on the conversion of Ba²⁺ ions and dissolved atmospheric CO₂ (by its reaction with OH⁻) into precipitated barium carbonate nanoparticles. From the perspective of structural characterization, the phase obtained was confirmed by X-ray diffraction (XRD) as BaCO₃ with a pure orthorhombic structure, and the morphology observed by electron microscopy indicated a good dispersion, adequate for the investigated functional applications. ATR-FTIR was used to complete the characterization of nanoparticles. BaCO₃ nanoparticles were integrated into two distinct supports—polyvinyl chloride (PVC) and geopolymer (GP) matrices—to develop systems capable of adsorbing and photodegrading methylene blue (MB) under solar irradiation.

The matrix provides the immobilization and fine dispersion of BaCO₃ nanoparticles, provides a favorable microenvironment for the generation of reactive species (•OH, O₂⁻•), and concentrates MB on the surface by adsorption (especially in geopolymers with an anionic surface).

This dual approach is novel in that it combines the stability of PVC and the high surface activity of GP with the interfacial role of BaCO₃, providing an accessible, low-cost route towards hybrid photocatalytic materials. To the best of our knowledge, this is the first comparative evaluation of BaCO₃-based PVC and GP composites in MB degradation, opening new prospects for the valorizing of carbonate-based fillers in sustainable environmental remediation.

Therefore, the choice of this synthesis method was guided by the desire to obtain a pure, reproducible material compatible with photocatalytic applications, using a sustainable, economical, and scalable synthetic pathway.

2. Materials and Methods

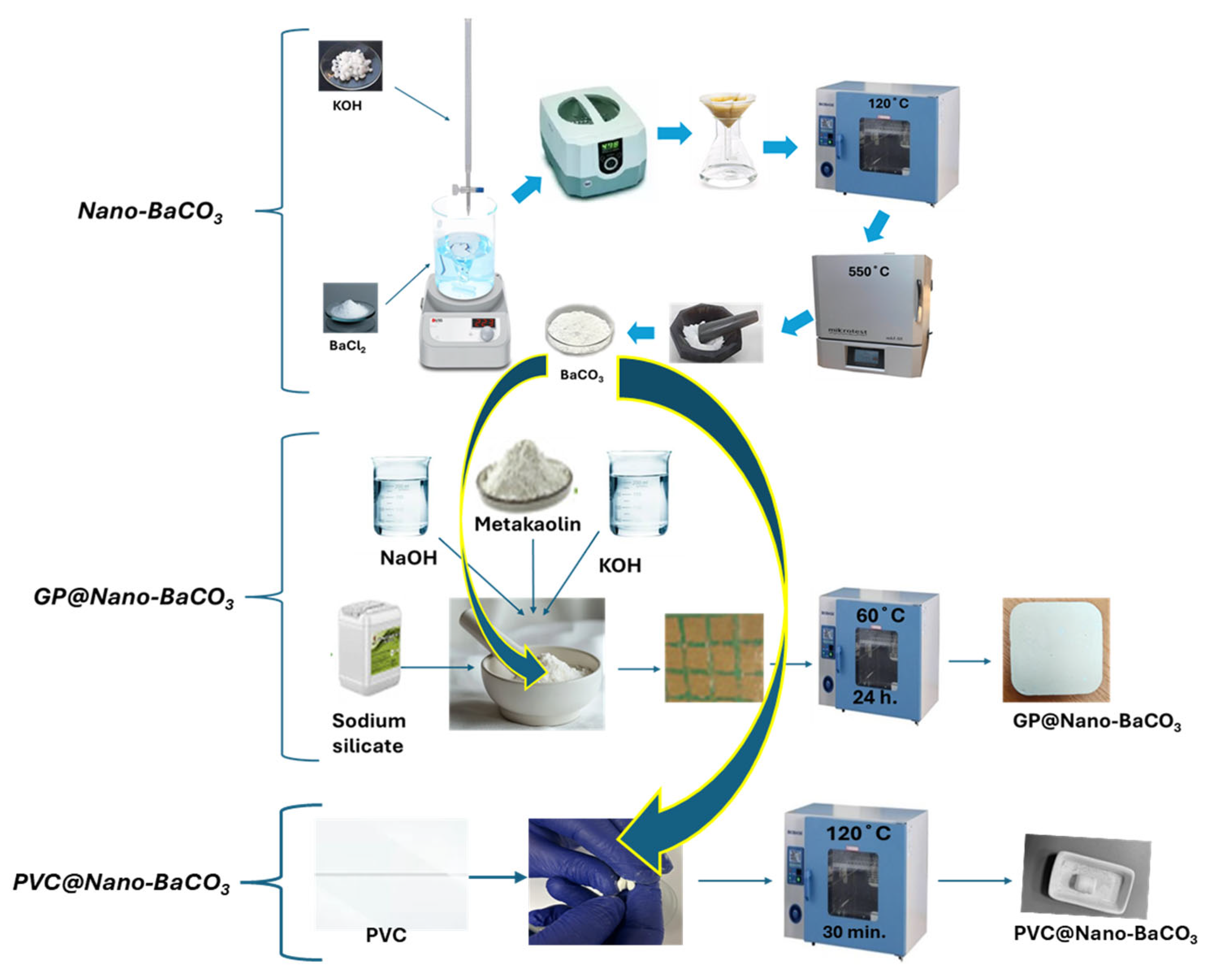

2.1. Nano-BaCO₃, PVC@Nano-BaCO₃, and GP@Nano-BaCO₃ Synthesis

For the synthesis of BaCO₃ nanoparticles, BaCl₂ (LabChem, Inc., Zelienople, PA, USA) and KOH (Roth, Newport Beach, CA, USA) were used as precursors. First, 50 mL BaCl₂ solutions of concentrations of 0.5 M, 1 M, and 1.5 M were each mixed for 2 h with 50 mL KOH 1 M, under agitation at 1500 rpm, in an open beaker, in a ventilated laboratory of ≈60 m³ surface area, at room temperature (23 °C, relative humidity ~36%). The pH variation was recorded for every 1 mL KOH added with a Eutech 5+ pH meter (Thermo Scientific, Eutech Instruments Pte Ltd., Singapore). pH variation curves and dpH/dV derivatives were created with OriginPro 2021 software. The resulting suspensions were sonicated for 10 min in a CD-4800 ultrasonic bath (Codyson Electrical Co., Ltd., Shenzhen, China) (42 kHz, 60 W) to ensure the proper dispersion of the particles. The obtained precipitates were filtered, dried at 120 °C for 2 h in a Biobase BOV-D35 oven (Biobase Bioland Co., Ltd., Jinan, China), and then calcined at 550 °C for 2 h in a Mikrotest MKF-05 muffle furnace (Mikrotest, Ankara, Türkiye). To evaluate the influence of temperature, an additional synthesis was carried out using 50 mL of 1.0 M BaCl₂ solution at 75 °C ad 50 mL KOH 1 M, in open air, at lab scale. To ensure the desired temperature, we used an MS-H280-Pro DLAB heating plate with magnetic stirring (DLAB Scientific Co., Ltd., Beijing, China). Unlike conventional methods that require a carbonic source (e.g., CO₂, Na₂CO₃, or (NH₄)₂CO₃), BaCO₃ formation occurred here through an alternative mechanism driven by the spontaneous absorption of atmospheric CO₂ [4,15].

For the synthesis of PVC@Nano-BaCO₃, PVC paste (Staedtler, Nuremberg, Germany) and previously elaborated nanoparticles, at 75 °C, were used. The PVC paste was spread very well on a plastic support, and a set amount of nanoparticles was added, after which the paste was kneaded manually. After kneading, it was dried, for hardening, in the Biobase BOV-D35 oven (Biobase Bioland Co., Ltd., Jinan, China) at 120 °C for 30 min.

The pristine GP was prepared by using the metakaolin obtained by the calcination of kaolin (Naturall Home, Salonta, Romania) at 750 °C, for 2 h. The MFK-05 muffle furnace was used, along with KOH 8 M, (Sigma Aldrich, St. Louis, MO, USA) NaOH 8 M (Sigma Aldrich, St. Louis, MO, USA), and sodium silicate (Kynita SRL, Barza, Romania), maintaining the proportion between the liquid and solid phases according to the protocol described in [13]. The paste resulting from mixing the precursors at room temperature was dried at 60 °C for 24 h in the BOV-D35 oven, after which it was kept for 28 days at room temperature (25 °C) for complete polymerization.

For synthesis, GP@Nano-BaCO₃ elaborated BaCO₃ nanoparticles at 75 °C were incorporated following the GP synthesis procedure. A schematic representation of the synthesis processes is shown in Figure 1.

2.2. Nano-BaCO₃ Characterization Methods

Fourier transform infrared (FTIR) spectroscopy with attenuated total reflectance (ATR) was employed to identify the main functional groups present in the synthesized calcium-based materials. The spectra were recorded in the range of 4000–350 cm⁻¹ using a Bruker Tensor 27 spectrometer (BrukerOptik GmbH, Ettlingen, Germany) equipped with a diamond ATR accessory, at a spectral resolution of 4 cm⁻¹ and averaging 32 scans per sample.

XRD measurements were carried out using a copper (Cu) anode X-ray tube, emitting characteristic radiation with a Kα1 wavelength of 1.54178 Å and a graphite monochromator, operating at 45 kV and 40 mA with a Rigaku Ultima IV diffractometer (Rigaku Corporation, Tokyo, Japan) in Bragg–Brentano geometry (θ–2θ), operating in reflection mode. The resulting diffraction patterns were analyzed to identify the crystalline phases by comparing the peak positions and intensities with reference data from the PDF 5+2024 database. Fourier transform infrared (FTIR) spectroscopy with attenuated total reflectance (ATR) was employed to identify the main functional groups present in the synthesized calcium-based materials. The surface morphology was investigated using scanning electron microscopy (SEM) with an SU 5000 Microscope (Hitachi High-Tech Corporation Hitachi, Hitachinaka, Japan). SEM images were acquired in backscattered electron (BSE) mode at an accelerating voltage of 25 kV, with a working distance of 11.5–11.6 mm. Both low-magnification (×5000) and high-magnification (×10,000) images were taken to provide an overview of the particle aggregation, as well as fine surface features. Three independent batches of nanoparticles were prepared under identical conditions, in line with high-quality standards for reproducibility. The results obtained from these replicate syntheses were consistent in terms of crystallite size and morphology. For brevity, only representative datasets are included in the main manuscript.

A BET (Brunauer–Emmett–Teller) analysis of GP, PVC, GP@Nano-BaCO₃, and PVC@Nano-BaCO₃ was conducted in a nitrogen atmosphere (absorption–desorption isotherms at 77 K). The moisture content of the samples was removed by degassing/drying at 100 and 300 °C for approximately three hours before analysis.

2.3. Photocatalytic Activity

MB was selected as a model dye to evaluate photocatalytic activity because it is one of the most colorant dyes with multiple practical applications in hair dyes, wool and cotton dyes, paper, and medical treatments [16]. The photocatalytic performance of the prepared GP, PVC, GP@Nano-BaCO₃, and PVC@Nano-BaCO₃ composites was evaluated through the degradation of MB in aqueous solution at an initial concentration of 15 ppm. Before irradiation, the suspensions were kept under ultrasonic agitation and in darkness for 30 min to ensure adsorption–desorption equilibrium at the catalyst surface. Photocatalytic degradation experiments were then conducted under natural sunlight, under continuous stirring, for a total duration of 80 min. Solar irradiance ranged from 550 to 620 W·m⁻², as measured by a Voltcraft PL-110SM pyranometer. Aliquots were collected at 30 min intervals, after an initial irradiation period of 20 min, and the residual MB concentration was monitored by UV–Vis spectroscopy (Shimadzu UV-1800 PC), (Shimadzu Corporation, Kyoto, Japan) at λmax = 664 nm. Each measurement was performed in triplicate, and the results were expressed as the arithmetic mean; the standard deviation was below 0.1%, confirming the reproducibility of the experimental protocol. The photocatalytic degradation efficiency (%D) was determined according to Equation (1):

The percentage degradation (%D) of MB was calculated using the following equation:

$$\mathrm{\%}\mathrm{D}={\displaystyle \frac{\mathrm{A}\mathrm{e}\mathrm{q}-A_t}{{\mathrm{A}}_{eq}}}\times 100\%$$

(1)

where A_eq is the absorbance, after the adsorption equilibrium is reached before sunlight irradiation, and A_t is the absorbance at t min.

For a first-order reaction, the degradation process follows the integrated rate law of the linear trendline of the natural logarithm [12,13]:

$$ln({\displaystyle \frac{C_{eq}}{C_t}})=-k t$$

(2)

By plotting the values of ln(A_t/A_eq) on the y-axis against time (t) on the x-axis, a straight line is obtained, using OriginPro 2021 software. The slope of this line is equal to the negative of the rate constant (−k).

The half-time t_1/2 is directly related to the rate constant k by the following simple relationship [12]:

$${\mathrm{t}}_{1/2}={\displaystyle \frac{\ln 2}{k}}$$

(3)

Reusability was also evaluated during 4 cycles. For each cycle, the catalyst was isolated by filtration, washed with ethanol followed by an excess of distilled water, and dried. The dried catalyst was then reused with a fresh solution containing 15 ppm MB as in the first cycle.

To determine the mechanism of photodegradation, isopropanol (IPA) was utilized as a scavenger for hydroxyl radicals (•OH⁻). We did not use EDTA as a scavenger for holes (h⁺) to clarify the role of species in MB degradation because EDTA may additionally chelate Ba²⁺ from the surface of the catalyst. For each experiment, 10 mL of 15 mM solution of scavenger was added to 100 mL of 15 ppm MB solution containing 1.5 g of catalyst. Then the mixture was exposed to sunlight for 80 min.

3. Results

3.1. Synthesis of Nano-BaCO₃

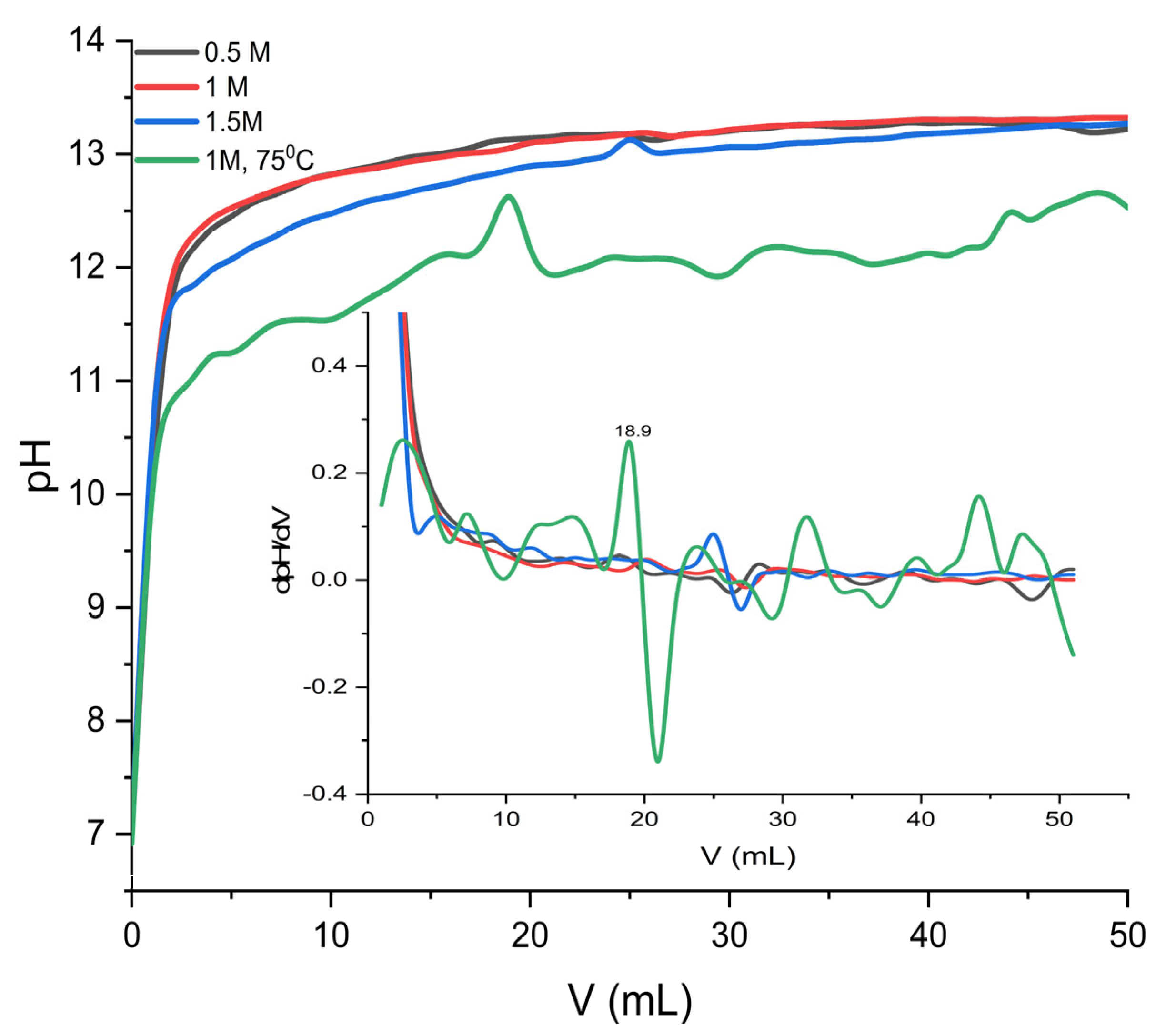

The synthesis of BaCO₃ nanoparticles was carried out in October 2024 in open brakers through the reaction between 50 mL of barium chloride solution, BaCl₂ (pH = 6.92), and 50 mL of potassium hydroxide solution, KOH 1 M (pH = 13.4), under continuous stirring at 1500 rpm for 2 h, without the addition of an external carbon source. During this process, the evolution of pH as a function of the volume of added KOH provides valuable insight into how both the concentration of Ba²⁺ ions and the synthesis temperature affect particle formation, as illustrated in Figure 2. The evolution of dpH as a function of the dV of added KOH highlights how the concentration of Ba²⁺ and the synthesis temperature influence the process, as shown in Figure 2. For solutions prepared at 23 °C, corresponding to concentrations of 0.5 M, 1.0 M, and 1.5 M, the pH–V curves show a rapid increase in pH in the first 15 to 20 mL, followed by a flattening in the range of 12.5 to 13.5 mL, indicating the gradual attainment of saturation and the balanced formation of precipitate. The slight increase in the final pH with the concentration of Ba²⁺ suggests more efficient conversion kinetics and a faster consumption of available carbonate ions, which favors nucleation and crystallite development.

The dpH/dV derivative shows low and steady values, characteristic of a controlled reaction, with the gradual formation of the solid phase. In contrast, the sample synthesized at 75 °C exhibits a distinct behavior: the lower initial pH ~10.32 (after addition of 1 mL KOH) increases slowly and unevenly, and the dpH/dV curve shows wide fluctuations and a pronounced maximum around 18.9 mL. This peak indicates a sudden stage of nucleation and the accelerated growth of crystallites. This behavior is attributed to a combination of the decrease in pKw with temperature, the change in carbonate equilibria, and the intensification of gas–liquid mass transfer.

After the precipitation, the suspensions were ultrasonicated for 10 min, in an open beaker. The Mauna Loa monthly mean for the ambient CO₂ for October 2024 was 422.38 ppm [14]. The low solubility product of BaCO₃ (Ksp ≈ 5.1 × 10⁻⁹) ensures that even the limited carbonate concentration derived from air is sufficient to trigger immediate precipitation with Ba²⁺ ions. Converting 0.025 mol Ba²⁺ (0.5 M) fully to BaCO₃ requires 0.025 mol CO₂, which at ~420 ppm corresponds to ~1.45 m³ of air. Converting 0.05 mol (1 M) requires 2.9 m³, and converting 0.075 mol (1.5 M) requires 4.35 m³. A conservative estimate of the convective sweep over the liquid surface (free-stream velocity ~0.2 m·s⁻¹ in a ventilated lab; free surface area ≈2.8 × 10⁻³ m² for a 6 cm diameter beaker) gives an air throughput of ~0.00056 m³·s⁻¹, i.e., ~4.0 m³ over 2 h, exceeding or comparable to the amount needed for 0.025–0.05 mol CO₂.

Thus, the continuous uptake of CO₂ from ambient air compensates for the absence of forced bubbling and drives the complete precipitation of BaCO₃. Our results are consistent with the literature on BaCO₃ obtained via the composite-hydroxide-mediated (CHM) route [16]. Both approaches show that CO₂ bubbling is not mandatory when there is a strong basic source and favorable mass transfer conditions, in our case KOH 1 M. Carbonation continues during post-stirring handling, drying, and calcination, leading to BaCO₃ as the final phase.

All the results suggest that, at ambient temperatures, the synthesis process of BaCO₃ particles is uniform and predictable, with the gradual formation of well-defined crystallites, while at high temperatures, the reaction becomes more dynamic, with accentuated variations in pH and its derivative, favoring rapid nucleation.

Given that the environment becomes strongly basic and gradually adds KOH, the process can be described as follows:

Step 1: Initially, Ba²⁺ ions react with OH⁻ from KOH.

$${\mathrm{B}\mathrm{a}\mathrm{C}\mathrm{l}}_2 (\mathrm{a}\mathrm{q})+2\mathrm{K}\mathrm{O}\mathrm{H} (\mathrm{a}\mathrm{q})\to {\mathrm{B}\mathrm{a}(\mathrm{O}\mathrm{H})}_2 (\mathrm{a}\mathrm{q})+2\mathrm{K}\mathrm{C}\mathrm{l} (\mathrm{a}\mathrm{q})$$

(4)

This reaction occurs quickly and causes the pH of the solution to increase.

Step 2: In an open system, OH⁻ and CO₂ ions in the air form the carbonate ion:

$${\mathrm{C}\mathrm{O}}_2 (\mathrm{g})+2{\mathrm{O}\mathrm{H}}^{-} (\mathrm{a}\mathrm{q})\to {\mathrm{C}\mathrm{O}}_3^{2-} (\mathrm{a}\mathrm{q})+{\mathrm{H}}_2\mathrm{O} (\mathrm{l})$$

(5)

Step 3: Barium carbonate (BaCO₃) is precipitated.

Barium ions react with carbonate ions formed in situ, leading to the formation of the solid precipitate:

$${\mathrm{B}\mathrm{a}}^{2+} (\mathrm{a}\mathrm{q})+{\mathrm{C}\mathrm{O}}_3^{2-} (\mathrm{a}\mathrm{q})\to {\mathrm{B}\mathrm{a}\mathrm{C}\mathrm{O}}_3 (\mathrm{s})$$

(6)

The overall reaction is expressed as follows:

$${\mathrm{B}\mathrm{a}\mathrm{C}\mathrm{l}}_2 (\mathrm{a}\mathrm{q})+2\mathrm{K}\mathrm{O}\mathrm{H} (\mathrm{a}\mathrm{q})+{\mathrm{C}\mathrm{O}}_2 (\mathrm{g})\to {\mathrm{B}\mathrm{a}\mathrm{C}\mathrm{O}}_3 (\mathrm{s})+2\mathrm{K}\mathrm{C}\mathrm{l} (\mathrm{a}\mathrm{q})+{\mathrm{H}}_2\mathrm{O} (\mathrm{l})$$

(7)

After filtration and washing, the samples were dried at 120 °C followed by calcination for 2 h at 550 °C. To determine the calcination yield, the powder was weighed before and after calcination, as presented in

Table 2. Synthesis condition of BaCO₃ particles.

Ba2+ Concentration (M)	Temperature (°C)	Calcination Temperature (°C)	Calcination Time (min)	Calcination Yield (%)	Sample Code
0.5	23	550	120	97.02	Nano-BaCO3/0.5
1.0	23			97.75	Nano-BaCO3/1
1.5	23			98.11	Nano-BaCO3/1.5
1.0	75			98.65	Nano-BaCO3/1/75

.

The concentration of Ba²⁺ has a positive effect on yield. Temperature positively influences yield, probably by accelerating the compound formation process and favoring a more stable crystal lattice.

3.2. ATR-FTIR Analysis

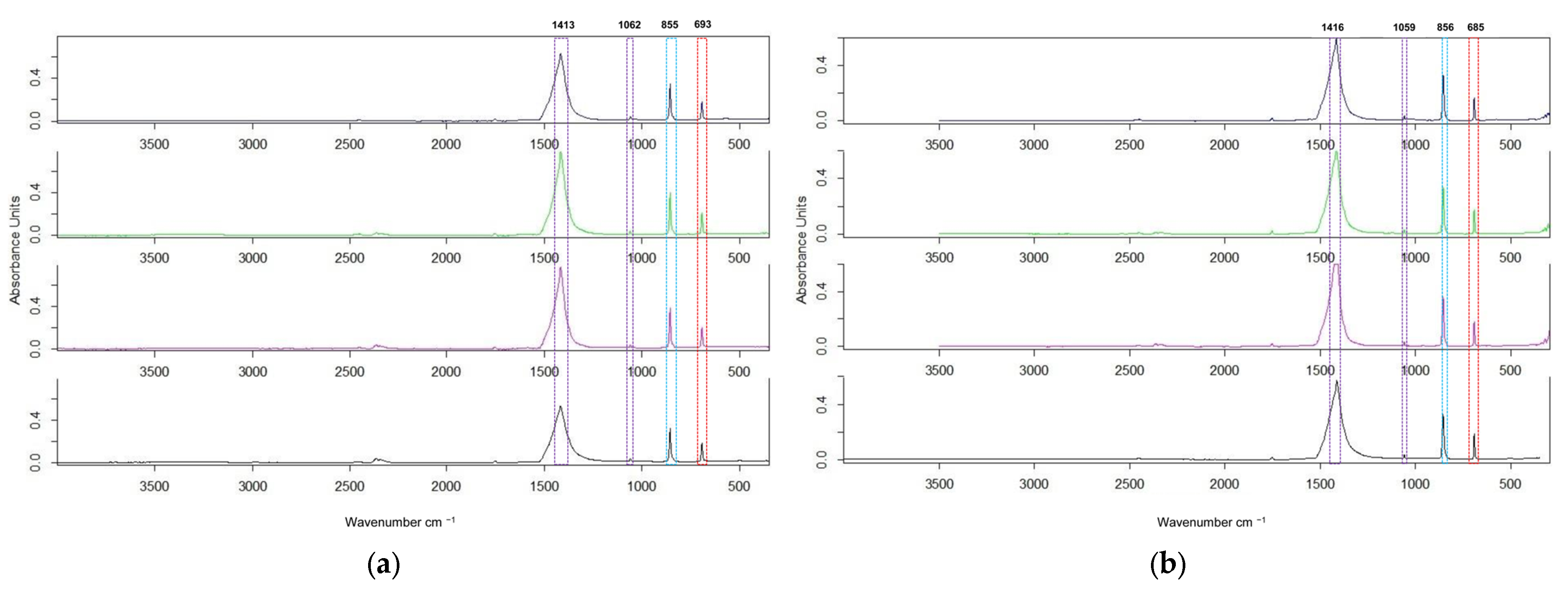

In Figure 3, the ATR-FTIR spectra of all samples, before and after calcination at 550 °C, show peaks between 3500 and 350 cm⁻¹, given by the Opus 7.0 software of the spectrometer.

Because of absent OH stretching (~3640 cm⁻¹), indicated by absent hydroxide phases, we analyzed the spectra between 1650 and 300 cm⁻¹. The ATR-FTIR spectra of all samples, before and after calcination, exhibited the characteristic carbonate group absorptions [16,18,19,20].

The intense band, observed at 1416/1413 cm⁻¹, corresponds to the asymmetric stretching vibration (ν₃) of the C-O bonds.

The band at 1062/1059 cm⁻¹ is attributed to the symmetric stretching vibration (ν₁). This vibration, usually inactive in the infrared spectrum of the free carbonate ion, becomes active in the witherite spectrum due to reduced crystallographic symmetry.

Two additional absorption bands confirm the presence of the CO₃²⁻ anion: one at 855/856 cm⁻¹, corresponding to the out-of-plane bending vibration (ν₂), and a second one at 683/685 cm⁻¹, associated with the in-plane bending vibration (ν₄).

The positions and intensities of these absorption bands are consistent with those previously reported in the literature for crystalline barium carbonate, confirming the successful formation of BaCO₃.

While Raman spectroscopy was not performed herein, the expected witherite fingerprint is consistent with the phase assigned by our IR analysis and aligns with representative BaCO₃ reports [21,22,23,24], as summarized in

Table 3. A comparison of Raman bands for the BaCO₃ reported in the literature with the FTIR bands obtained in this study.

Vibrational Mode	Raman BaCO3 (Lit.)	ATR-FTIR BaCO3 (This Work)	Observations
ν1	~1066–1075 cm−1	1062/1059 cm−1	Strongly dominant in Raman; activated and medium in IR for witherite
ν2	~855–870 cm−1	856 cm−1	Overlap
ν3	~1410–1460 cm−1	1416 cm−1	Weak-to-moderate in Raman, strong in IR
ν4	~690–710 cm−1 (often a doublet)	685 cm−1	Sharper in Raman can appear split in witherite

.

The differences in band intensities arise from the distinct selection rules: Raman spectroscopy is the most sensitive to changes in polarizability (making ν₁ dominant), whereas IR spectroscopy is driven by changes in dipole moment (favoring ν₃).

3.3. Structural Characterization of Nano-BaCO₃ Particles

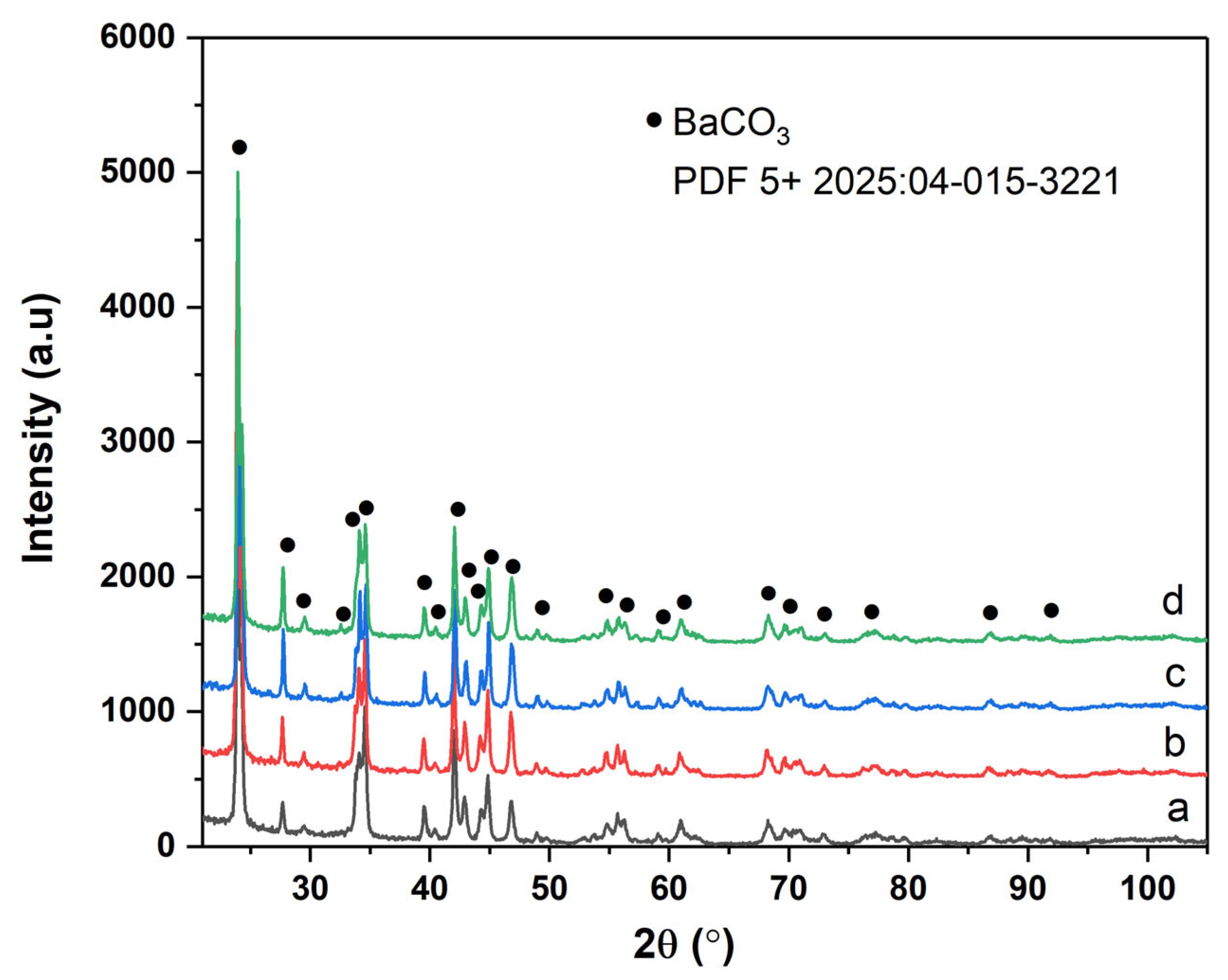

Crystallinity and phase analysis were confirmed using XRD analysis [9,10]. Figure 4 shows the XRD pattern of samples prepared using BaCl₂ and KOH under laboratory conditions. All the samples consisted of a single phase of well-crystallized witherite BaCO₃ (PDF 5+202504-015-3221) [10,15,21]. The diffraction lines are sharp and well-resolved, indicating a high degree of crystallinity across synthesis conditions. No secondary phases such as Ba(OH)₂, BaO, or BaCO₃ polymorphs (e.g., witherite-type) were detected, suggesting that the reaction conditions effectively favored the formation of a single, pure orthorhombic BaCO₃ phase. The microstructural parameters (crystallite size and lattice parameters,

Table 4. Crystal parameters of BaCO₃ particles.

Sample	Ba2+ Concentration (M)	Crystallite Size (nm) ± SD	a (Å)	b (Å)	c (Å)
Nano-BaCO3/0.5	0.5	52.00 ± 2.6	6.4481	5.2994	8.9300
Nano-BaCO3/1	1.0	56.26 ± 2.7	6.4413	5.3064	8.9201
Nano-BaCO3/1.5	1.5	64.74 ± 1.4	6.4455	5.3030	8.9404
Nano-BaCO3/1/75	1.0	86.65 ± 1.1	6.4424	5.3046	8.9182

) were determined by means of Rietveld refinement (Whole powder pattern fitting) using PDXL 2 software (Rigaku, Japan) and the Crystallographic information file of the BaCO₃ 04-015-3221 PDF5+ 2025 DB card.

The XRD structural analysis of BaCO₃ samples synthesized at different concentrations of Ba²⁺ ions (0.5 M, 1.0 M, 1.5 M) and at distinct temperatures (room temperature and 75 °C) revealed significant variations in the size of the crystallites, under the conditions of the relative stability of the lattice parameters. The values obtained for the lattice constants a, b, and c show variations below 0.3%, which indicates the preservation of the same crystalline phase, without major structural distortions induced by the change in the composition of the synthesis solution or the treatment temperature.

For samples obtained at room temperature, a progressive increase in crystallite size was observed from 52.00 ± 2.6 nm for the concentration of 0.5 M Ba²⁺ to 56.26 ± 2.7 nm for 1.0 M and 64.74 ± 1.4 nm for 1.5 M (Table 3). This trend can be correlated with a reduction in the number of initial nuclei and the favoring of particle growth as the concentration of the precursor increases. The effect of temperature was investigated by comparing the 1.0 M sample synthesized at room temperature with that obtained by holding the temperature at 75 °C. The results indicate a significant increase in crystallite size, from 56.26 ± 2.7 nm to 86.65 ± 1.1 nm, which corresponds to a relative increase of about 54%. This amplification is attributed to the intensification of coalescence and Ostwald ripening processes at higher temperatures, when the mobility of ionic species and the diffusion rate increase, favoring the preferential growth of large crystallites at the expense of small ones. The elemental cell volume, calculated based on lattice parameters, remained practically constant for all samples (305.10 ± 0.36 ų), confirming that the observed differences are due to crystalline growth processes and not to fundamental structural changes.

These results demonstrate that both the concentration of Ba²⁺ ions in the synthesis solution and the heat treatment temperature are key factors in controlling the size of BaCO₃ crystallites, with direct implications for the functional properties of the material, such as thermal stability, sintering behavior, and catalytic activity.

To establish a quantitative relationship between crystallite size (D) and synthesis parameters, namely Ba²⁺ concentration (C) and temperature (T), a regression-based analysis was performed using Minitab^® 2, according to [25,26]. Weighted least squares (WLS) regression was applied to account for measurement uncertainties. The model was fitted in logarithmic form to capture multiplicative effects [14]:

$$lnD = \alpha + \beta C + \gamma T$$

(8)

where C is Ba²⁺ concentration (M); T is a binary variable (0 = room temperature; 1 = 75 °C); and α, β, and γ are regression coefficients. After back-transformation, the predictive equation becomes the following:

$$D(C,T)= A{e}^{\beta C}· e^{\gamma T}$$

(9)

with A = e^α representing the baseline crystallite size at C = 0 and T = 0. The fitted parameters are as follows:

A = 45.78 ± 1.76 nm.

β = 0.229 ± 0.029, indicating that each 1 M increase in Ba²⁺ concentration increases crystallite size by approximately e^0.229 ≈ 25.8% at constant temperature.

γ = 0.409 ± 0.015, corresponding to a multiplicative increase in e^0.409 ≈ 50.5% when synthesis is performed at 75 °C compared to room temperature.

The exponential model showed superior statistical performance, with adjusted R² = 0.986 and residual diagnostics confirming the validity of model assumptions. This quantitative approach allows for the predictive estimation of crystallite size for intermediate synthesis parameters and supports process optimization for targeted BaCO₃ properties.

Increasing precursor concentration and synthesis temperature led to the progressive sharpening of IR bands, indicative of improved crystallinity. XRD confirmed witherite as the dominant phase, with a marked reduction in peak broadening for the 1 M and 75 °C sample, correlating with the highest FTIR band resolution, and no Ba(OH)₂ reflections were observed within detection limits. The integrated analysis demonstrates that subtle modifications in synthesis parameters significantly influence BaCO₃ structural order, with direct implications for tailoring material properties for optoelectronic, catalytic, and advanced ceramic applications [26].

3.4. Morphological Characterization of Nano-BaCO₃

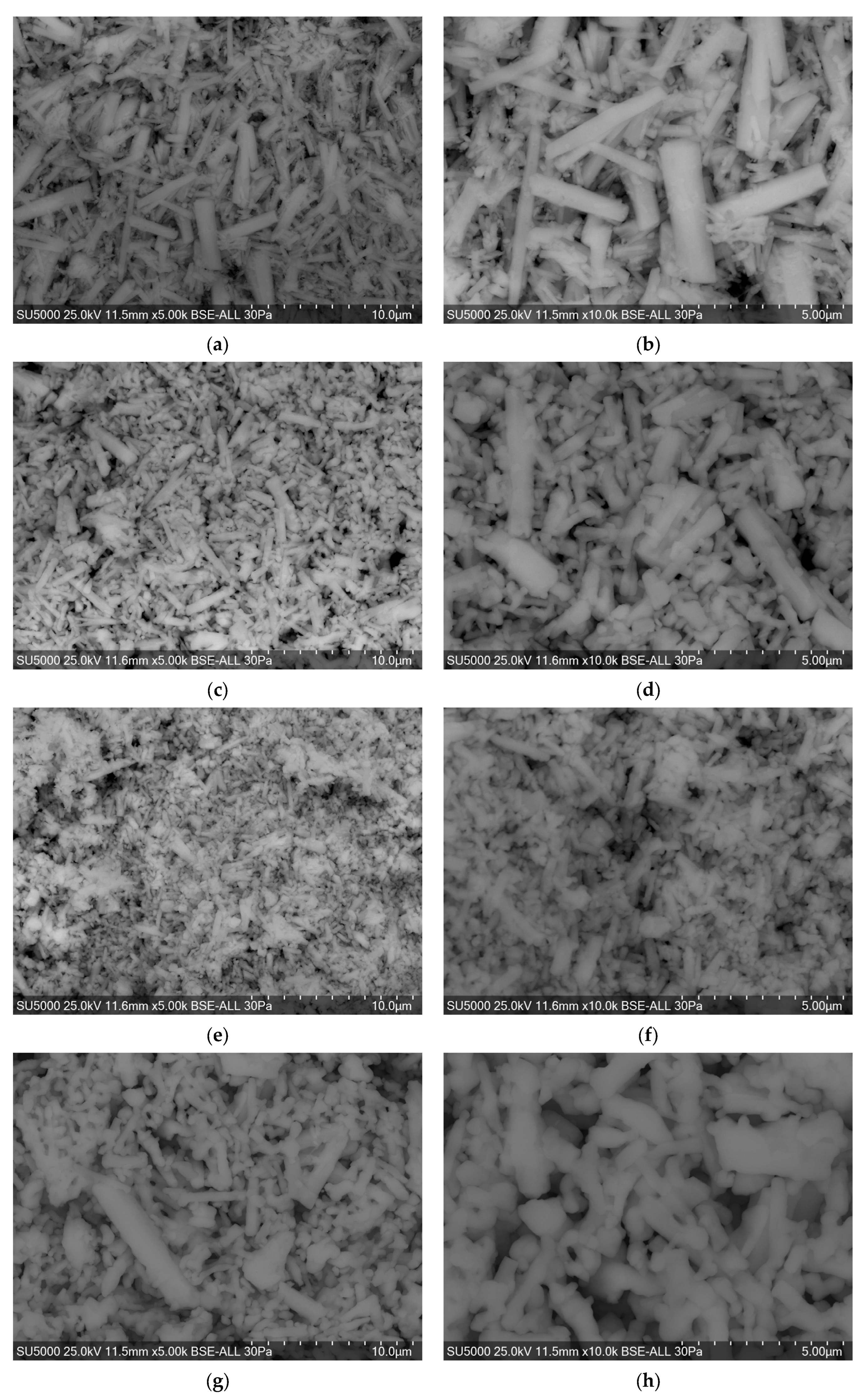

The morphology of the synthesized barium carbonate (BaCO₃) particles was investigated using scanning electron microscopy (SEM) at an accelerating voltage of 25 kV and a scan integration time of 30 s. Imaging was performed in backscattered electron (BSE) mode, which emphasizes compositional contrast and topographical differences, providing valuable insights into particle habit and aggregation patterns. Representative micrographs at 5000× and 10,000× magnifications for different precursor concentrations and synthesis conditions are presented in Figure 5.

SEM observations show that BaCO₃ particles predominantly exhibit a rod-like morphology, with variations in alignment, length, and edge definition depending on synthesis conditions. For the 0.5 M precursor concentration (Figure 5a,b), the particles display relatively shorter rod-like structures that are moderately aggregated and have smooth contours. The particle population is somewhat polydisperse in length, and individual rods appear loosely associated, indicating a relatively slow and uniform nucleation and growth process under low supersaturation.

At the 1.0 M concentration (Figure 5c,d), the rods are more elongated and well-defined, often forming aligned or intergrown assemblies. The aspect ratio increases compared to the 0.5 M sample, and crystal edges appear sharper, reflecting more pronounced directional growth. The overall morphology suggests a shift toward growth-dominated kinetics, with enhanced anisotropic extension along specific crystallographic axes.

The 1.5 M sample (Figure 5e,f) also presents rod-like particles but with increased clustering and partial intergrowth, which sometimes obscures individual rod boundaries. The higher ionic strength likely promoted rapid nucleation and simultaneous growth, leading to less ordered assemblies and the formation of compact, randomly oriented rod bundles.

The sample synthesized at 1.0 M using heating conditions (Nano-BaCO₃/1/75; Figure 5g,h) reveals uniform rod-like particles that are smaller and more evenly distributed than in the conventional synthesis. The rods maintain a well-defined morphology, and their dispersion is improved. This suggests that heating enhances nucleation control and suppresses excessive aggregation, enabling better control over rod growth and particle separation.

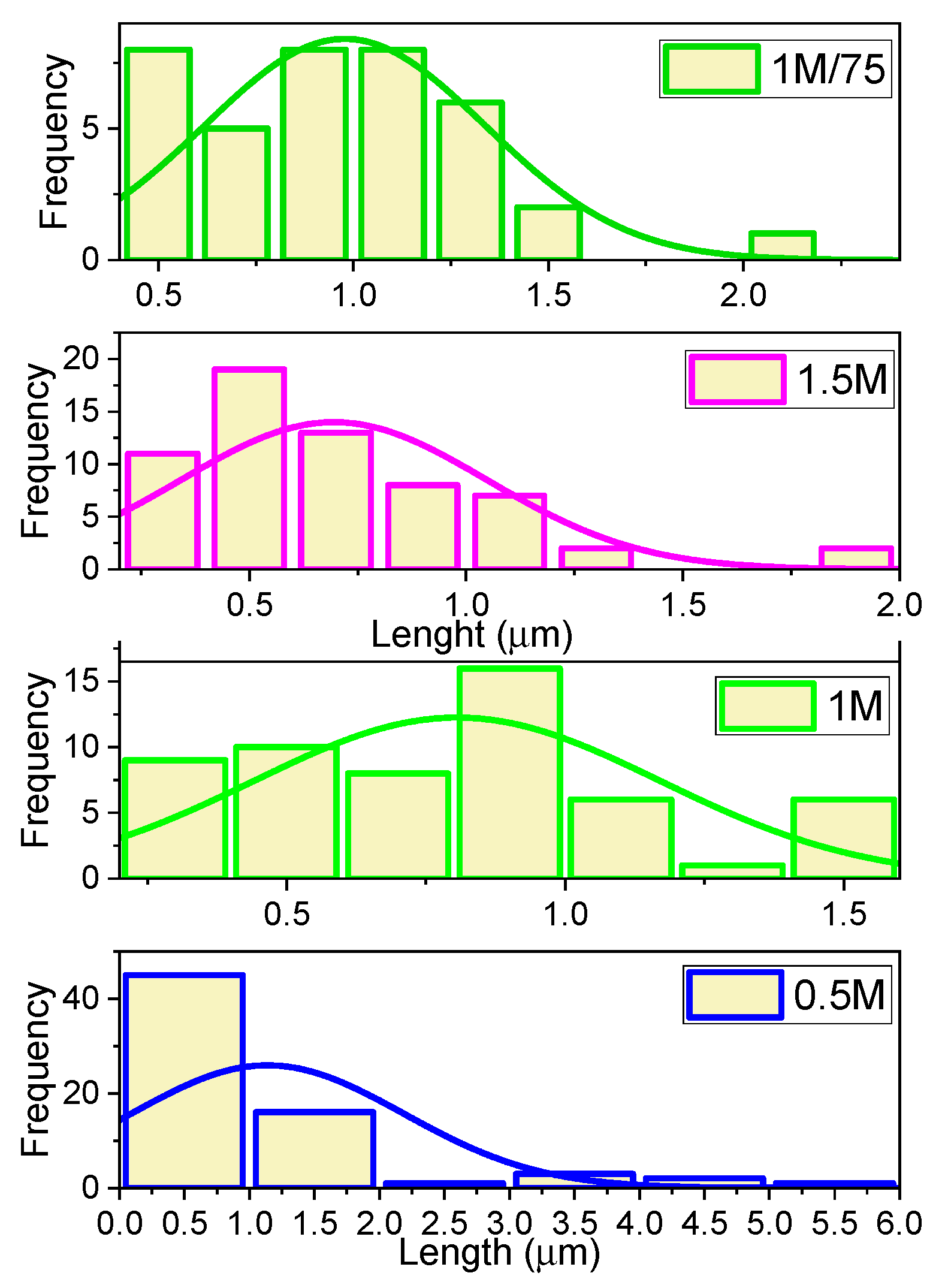

The BaCO₃ length distribution histograms obtained at different concentrations of the precursor solution (0.5 M, 1 M, 1 M/75, and 1.5 M) in Figure 6 show statistically significant variations in morphology, reflecting the direct influence of the supersaturation regime on the nucleation and crystal growth processes. In the case of BaCO₃ particles synthesized from the 0.5 M concentration solution, it displays a strongly asymmetrical distribution to the right, with a maximum in the range of 0.3–0.5 μm and a very long tail, extending to about 5–6 μm. This high polydispersity is characteristic of low-supersaturation regimes, where nucleation is limited and existing particles benefit from an extended growth time, leading to the formation of significantly longer rods. The stem length departition histogram of Nano-BaCO₃/1 particles is characterized by an almost symmetrical distribution, centered around 0.9–1.0 μm, but with a slight presence of both short (<0.5 μm) and longer (>1.5 μm) particles. The average width of the distribution suggests a balance between nucleation and growth, resulting in a particle with relatively uniform dimensions but with a structural diversity useful in functional applications. The BaCO₃/1.5 sample shows an asymmetrical distribution to the right, with a maximum frequency at 0.5–0.6 μm and an extended tail to higher values (~2 μm). This shape is specific to systems with high supersaturation, where rapid nucleation generates many small nuclei, while a small fraction of particles continue on the path of accelerated growth, leading to moderate polydispersity.

The length distribution histogram of Nano-BaCO₃/1/75 shows an almost symmetrical distribution, slightly shifted to the right, with a single pronounced peak around 1.0 μm. This reflects a controlled growth regime and uniform nucleation and elongation, good conditions for obtaining a homogeneous stem population. The comparative analysis highlights that the most uniform and controlled distribution is obtained for the Nano-BaCO₃/1/75 sample, while the maximum variability is associated with the Nano-BaCO₃/0.5 sample. The 1.5 M concentration regime favors the obtaining of short rods with moderate dispersion, being suitable for applications requiring small dimensions, and intermediate concentrations, such as 1 M, ensure a compromise between homogeneity and dimensional diversity.

In conclusion, SEM observations confirm that rod-like morphology is characteristic of all synthesized BaCO₃ samples, with size, uniformity, and degree of aggregation strongly influenced by precursor concentration and synthesis conditions. Temperature-assisted synthesis yielded the most homogeneous rod-shaped structures, while higher precursor concentrations under conventional conditions resulted in larger, more agglomerated assemblies.

3.5. BET Analysis

The experimental values for BET surface, total pore volume, and maximum pore volume are presented in

Table 5. BET results of GP, PVC, GP@Nano-BaCO₃, and PVC@Nano-BaCO₃.

Sample	Density (g/cm3)	Surface Area (m2/g)	Pore Volume (cm3/g)	Adsorption Average Pore Size Diameter (nm)	Desorption Average Size Diameter (nm)
GP	2.380	36.2189	0.93886	10.3688	16.5699
PVC	1.360	−0.0273	-	-	-
GP@Nano-BaCO3	2.360	22.6336	0.06237	10.6456	18.7904
PVC@ Nano-BaCO3	1.440	0.0359	0.000232	25.7709	28.0461

.

BET analysis highlights significant differences between GP and PVC matrices, as well as the effects of the addition of BaCO₃ nanoparticles on textural properties. The GP sample presents a high specific surface area (36.21 m²/g) and a considerable pore volume (0.938 cm³/g), with average pore sizes of 10.37 nm (adsorption) and 16.57 nm (desorption), which confirms its mesoporous nature and its ability to adsorb organic molecules. In contrast, PVC has negative and undefined values for the BET parameters, which suggests a compact structure, lacking accessible porosity and, implicitly, a negligible specific surface area.

The incorporation of BaCO₃ nanoparticles leads to obvious changes. In the case of GP@Nano-BaCO₃, the specific surface area decreases to 22.63 m²/g, and the pore volume drastically reduces to 0.062 cm³/g, indicating a partial occlusion of the pore network by the particles. However, the average pore size increases slightly (10.65–18.79 nm), suggesting that the nanoparticles may preferentially be located in micropores or in intermediate zones, causing a redistribution of the pore network.

In the case of PVC@Nano-BaCO₃, the addition of BaCO₃ causes the appearance of incipient porosity, with a specific surface area of 0.0359 m²/g and an extremely low pore volume (0.000232 cm³/g). However, the pore diameters (25.77–28.05 nm) are in the macroporous range, suggesting that the BaCO₃ nanoparticles generated a more open texture, without ensuring the significant development of the surface area.

In conclusion, the GP presents an intrinsic structure favorable for adsorption and photocatalysis, and the integration of Nano-BaCO₃ reduces the available surface area but modifies the pore distribution, which may influence the diffusion mechanisms and access to the active centers. In contrast, PVC is texturally inert, and only by the addition of BaCO₃ does it acquire an incipient porosity.

3.6. Photocatalytic Activity of GP@Nano-BaCO₃ and PVC@Nano-BaCO₃

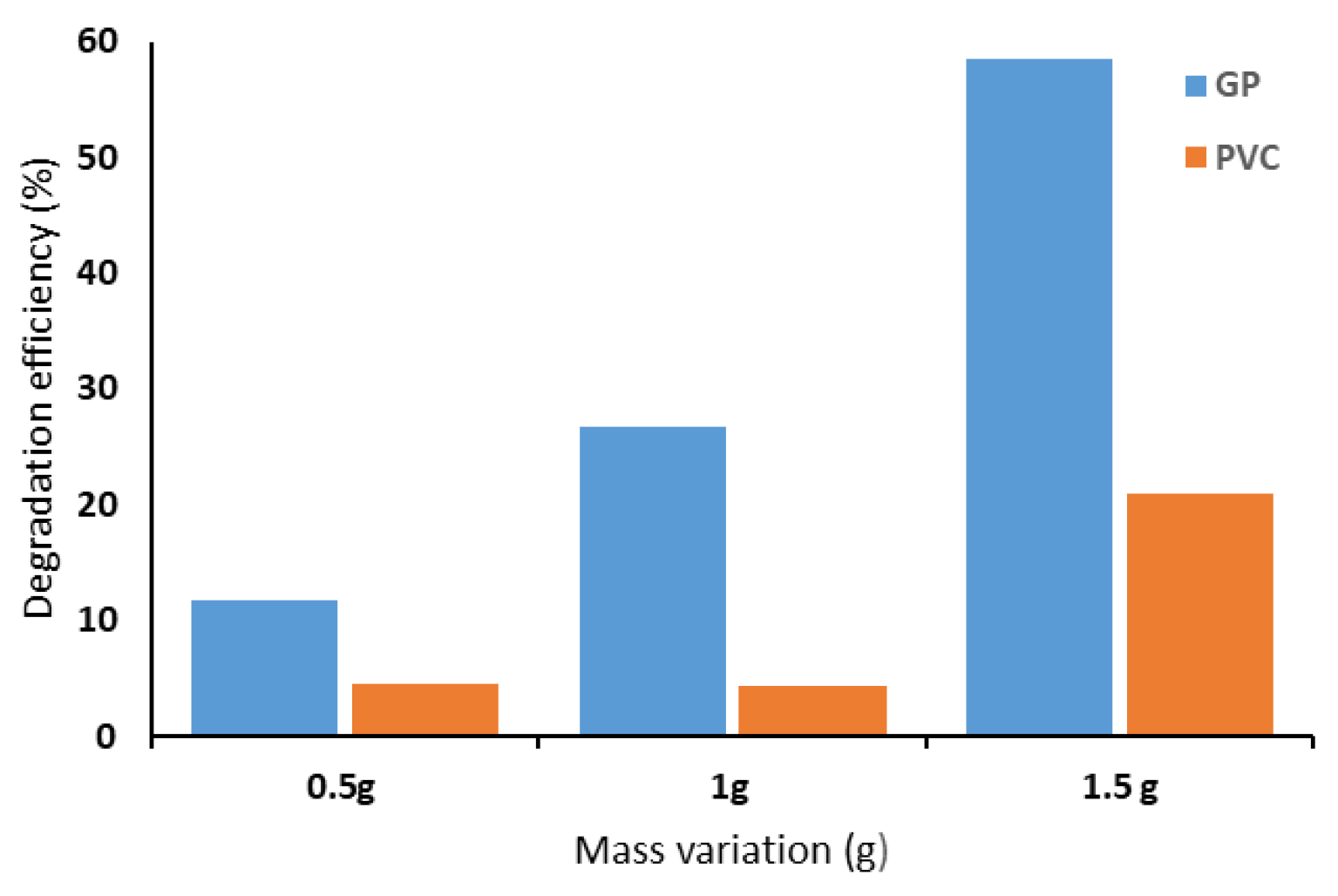

Because of the greatest rate production, Nano-BaCO₃/1/75 nanoparticles with good crystallinity and nanoscale crystallite dimension were incorporated into GP and PVC matrices to comparatively assess their photocatalytic performance. The formulation of PVC@Nano-BaCO₃ corresponds to 4.8 wt.% Nano-BaCO₃/1/75 particles, calculated to the total mass. The formulation of GP@Nano-BaCO₃ corresponds to 1.1 wt.% Nano-BaCO₃.1/75 particles relative to the total formulation. Before modification, the pristine materials were examined, in dark conditions, to establish their baseline capacity for MB adsorption. As illustrated in Figure 7, both GP and PVC showed improved removal efficiency with increasing catalyst dosage, though the effect was far more significant for GP. At 0.5 g, GP removed ~12% of MB compared to ~5% for PVC; at 1.0 g, GP reached ~27%, while PVC exhibited little variation; and at 1.5 g, GP achieved ~58% versus ~21% for PVC. These results confirm the superior adsorption capacity of GP, likely associated with its porosity and larger surface area, whereas PVC displayed a lower intrinsic affinity for MB [26]. Based on these findings, 1.5 g of catalyst in 100 mL of MB solution (15 ppm) was identified as the optimal dosage and subsequently adopted for all further experiments under sunlight radiation.

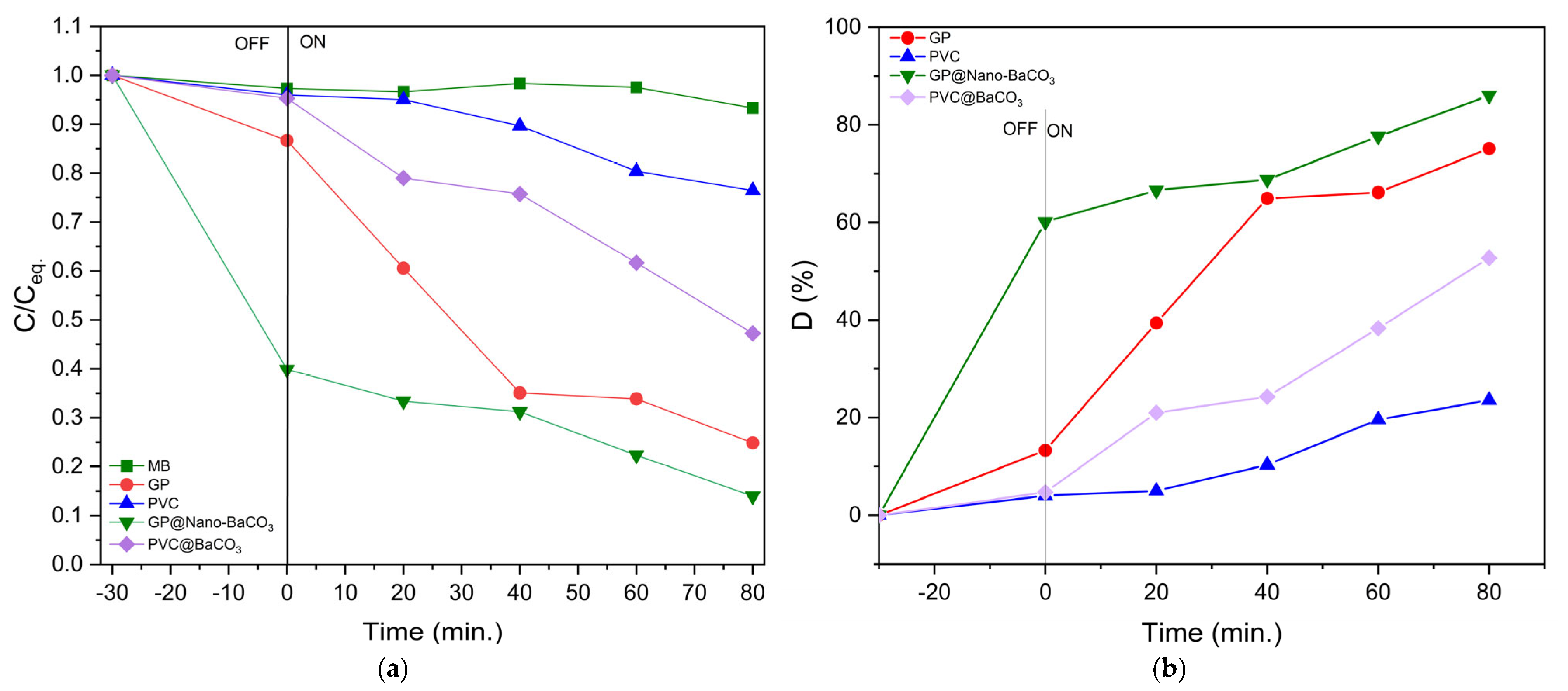

Figure 8 compares the degradation of MB using pristine GP and PVC with their corresponding composites incorporating Nano-BaCO₃/1/75 particles. Under dark conditions, both GP and PVC exhibited only moderate adsorption, as evidenced by a slight initial decrease in absorbance followed by stabilization, reflecting surface saturation and equilibrium adsorption. This behavior indicates that, in the absence of irradiation, the removal of MB is governed exclusively by physical and chemical adsorption phenomena at the catalyst surface.

When exposed to natural sunlight, a marked difference emerged between pristine materials and composites. GP and PVC alone showed limited photocatalytic activity, whereas the incorporation of BaCO₃ nanoparticles significantly enhanced degradation efficiency. GP@Nano-BaCO₃ consistently outperformed PVC@Nano-BaCO₃, reflecting the higher surface area and porosity of GP, which provide more accessible active sites for both adsorption and subsequent photocatalytic reactions. The continuous decrease in MB absorbance with irradiation time confirms the activation of photocatalytic processes, attributed to the in situ generation of reactive oxygen species (ROS), such as hydroxyl radicals (•OH⁻) and superoxide anions (•O²⁻). These species effectively attack the chromophoric groups of MB, leading to progressive molecular cleavage and eventual mineralization [11].

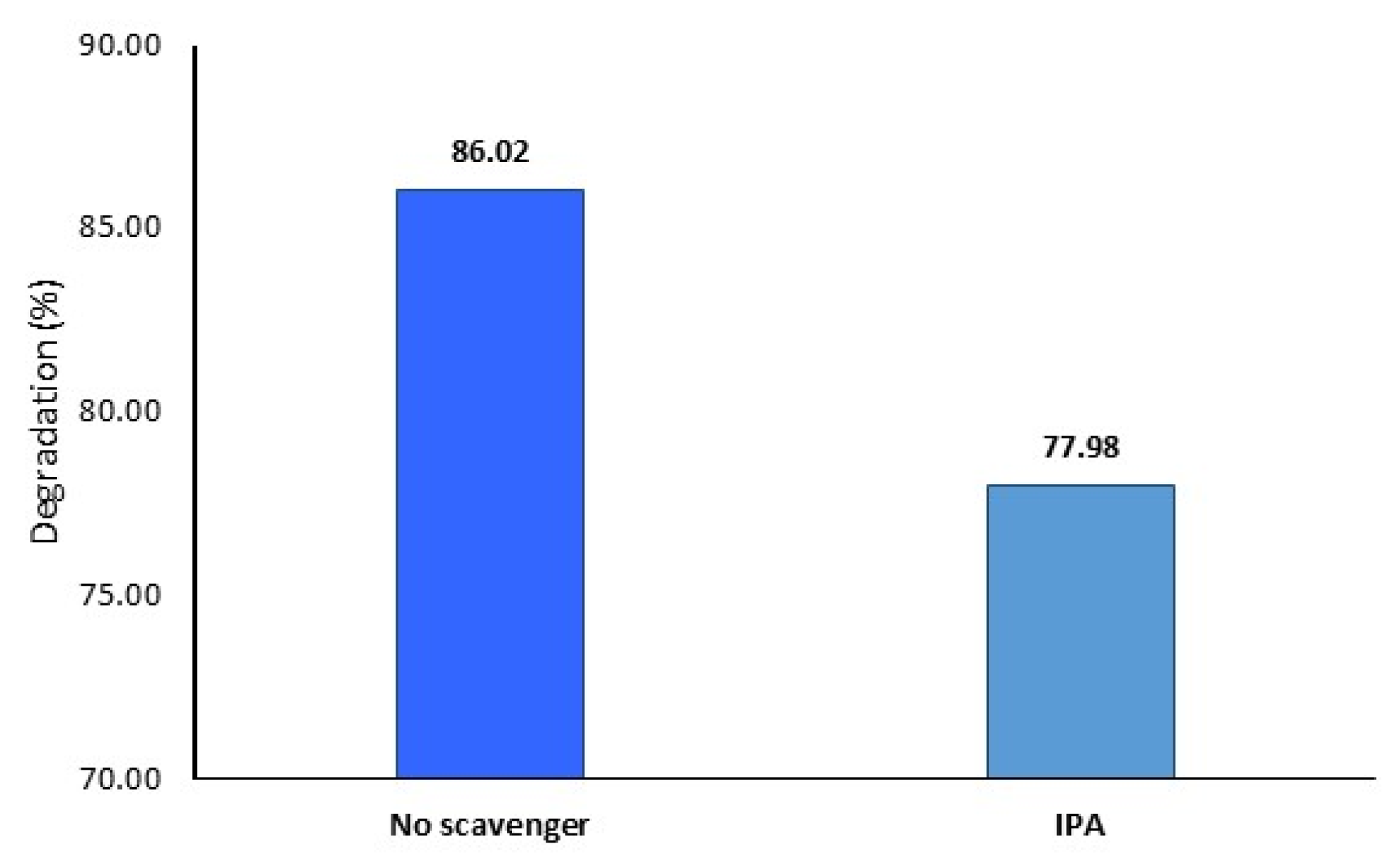

The mechanism of the photodegradation of MB using GP@Nano-BaCO₃ was explored using isopropanol (IPA) as a scavenger to capture hydroxyl radicals (OH⁻). As shown in Figure 9, the result indicates that the photocatalytic efficiency of GP@Nano-BaCO₃ decreased when IPA was used. This suggests that •O²⁻ radicals play a major role in MB degradation, while •OH⁻ has a minor role.

The superior performance of the composites, particularly GP@Nano-BaCO₃, can be directly correlated with structural improvements evidenced by sharper FTIR bands and reduced XRD peak broadening, which confirm enhanced crystallinity and long-range order. This synergy between adsorption capacity and photocatalytic reactivity underscores the importance of nanoparticle incorporation as a strategy to boost the efficiency of both GP and PVC matrices for water purification applications.

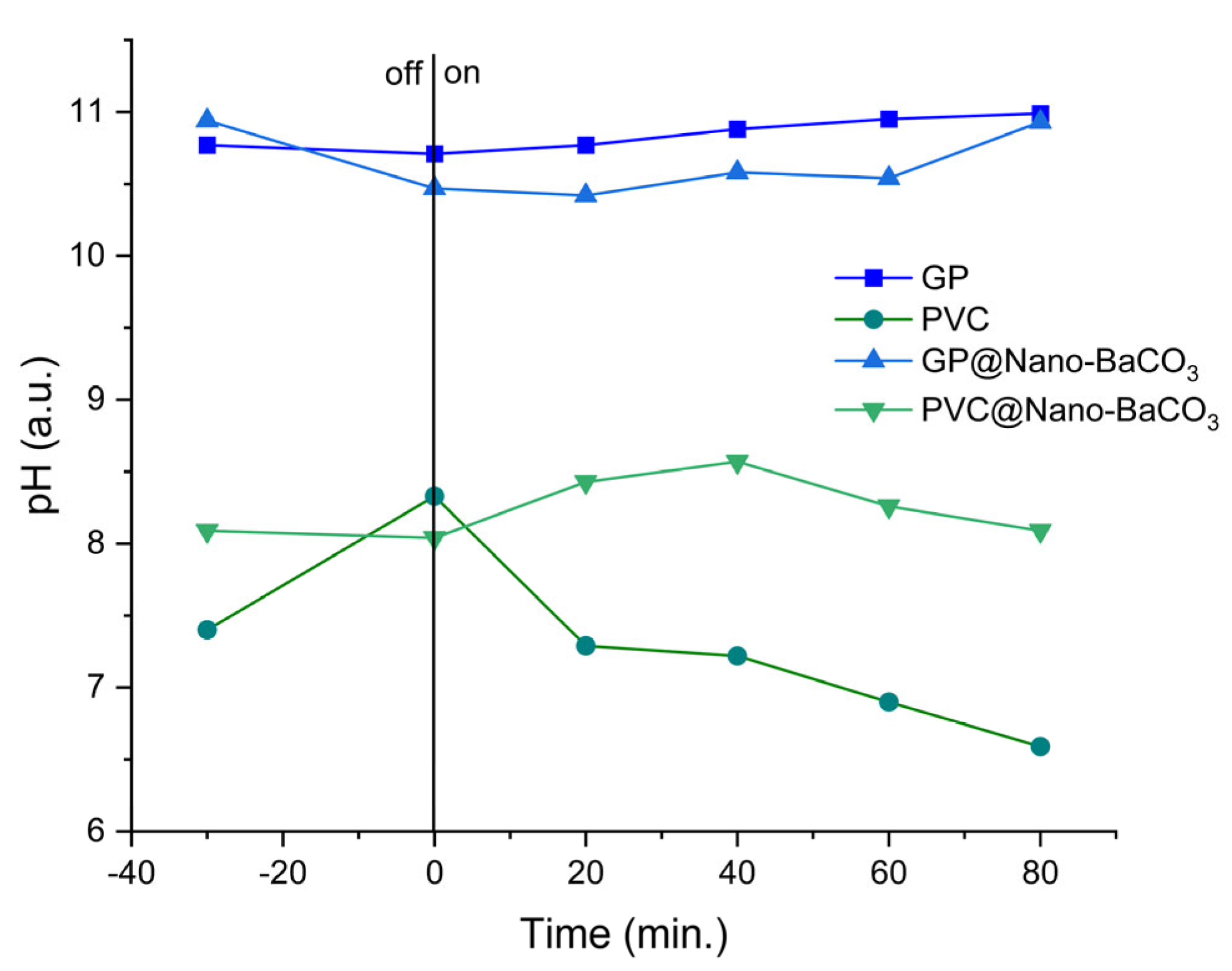

In continuity with the adsorption and photocatalytic results, the monitoring of pH under solar irradiation provides further clarification of the role played by the embedded BaCO₃ nanoparticles (Figure 10). For the pristine supports, GP maintained a nearly constant alkaline pH (~10.7–11.0), while PVC showed a gradual acidification. GP@Nano-BaCO₃ displayed only a small transient dip followed by stabilization and a slight recovery toward ~10.9, whereas PVC@Nano-BaCO₃ exhibited a mild alkalinization in the first 20–40 min (to ~8.5) and then a gentle drift back toward ~8.0. Because BaCO₃ is immobilized inside the polymeric/geopolymeric matrices, these trends cannot be ascribed to bulk dissolution but to interfacial carbonate buffering at the MB solution–catalyst boundary. The effect is more marked for GP@Nano-BaCO₃ than for PVC@Nano-BaCO₃, consistent with the higher hydrophilicity and better nanoparticle dispersion in the GP, which enhance solution access to BaCO₃.

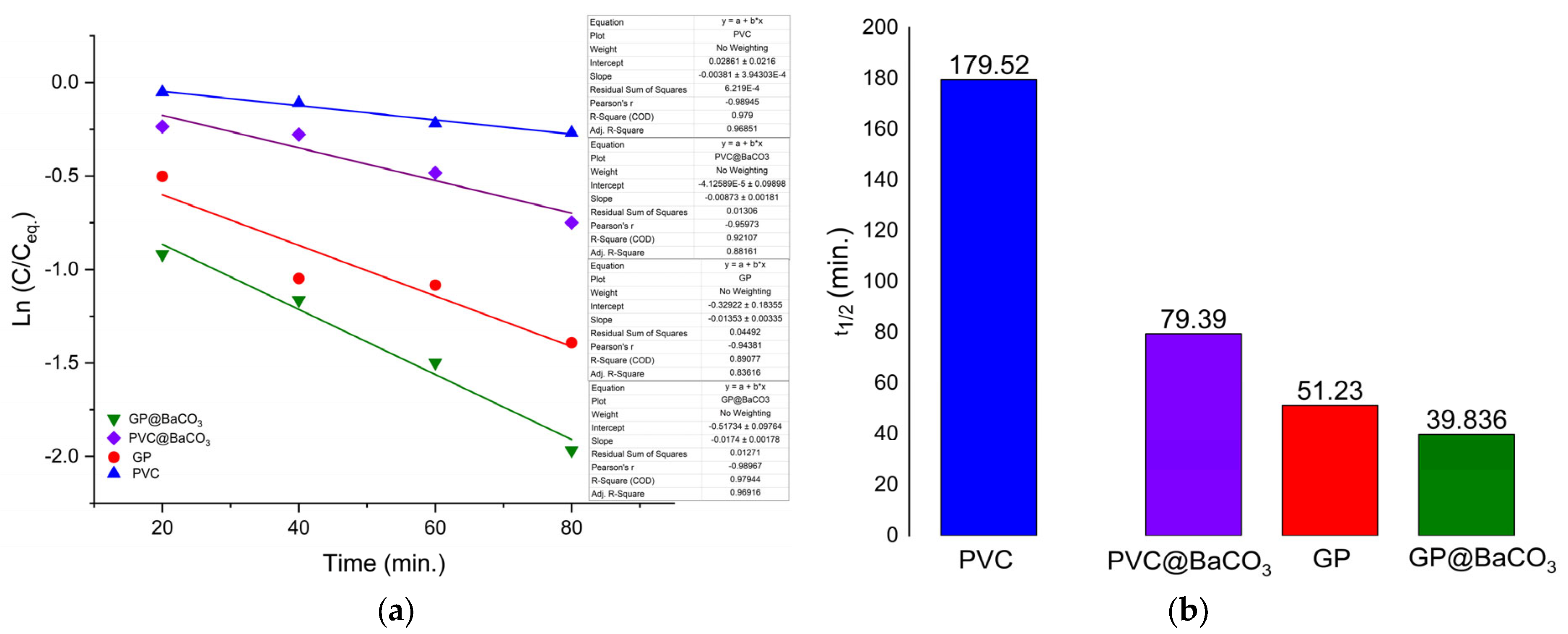

The photocatalytic degradation of MB was further evaluated through kinetic modeling using the pseudo-first-order rate law, as presented in Figure 11.

The kinetic analysis of MB degradation highlights the significant role of BaCO₃ nanoparticles in accelerating the photocatalytic process (see Table 3). Without BaCO₃ nanoparticles, the calculated rate constants were k ≈ 1.35 × 10⁻² for GP and k ≈ 3.86 × 10⁻³ for PVC, corresponding to a t_1/2 of ≈51 and ≈179 min, respectively. Upon incorporating BaCO₃, the degradation efficiency improved markedly, with k ≈ 1.17 × 10⁻² min⁻¹ for GP@Nano-BaCO₃ and k ≈ 8.7 × 10⁻³ min⁻¹ for PVC@Nano-BaCO₃, corresponding to shorter half-lives of ≈39 and ≈79 min, as presented in

Table 6. Kinetic parameters.

Sample	K (min−1)	t1/2 (min)
GP	1.45 × 10−2	51
PVC	3.62 × 10−3	179
GP@Nano-BaCO3	1.74 × 10−2	39
PVC@Nano-BaCO3	8.6 × 10−3	79

.

The results presented help us to conclude that in PVC@Nano-BaCO₃, the nanoparticles tend to be less exposed, being partially embedded in a hydrophobic matrix. Thus, the contact between the active surface and MB is reduced, resulting in a lower kinetic constant.

Such kinetic behavior is consistent with literature data on heterogeneous photocatalysis, where dye degradation typically follows pseudo-first-order kinetics [27].

When benchmarked against related systems reported in the literature, several important observations emerge, as presented in

Table 7. Related systems reported in the literature.

Material	Pollutant	Light Source	Performance (k/t1/2)	Observations	Reference
GP	MB	UV	97.9% in 240 min	behavior “adsorbent + photocatalysis”	[27]
Fe2O3/TiO2/PVC	MB	sun	~70.6% at 180 min	reusable PVC backing; adsorption contribution + photo	[28,29]
BaTiO3/zeolite	MB	sun	93% in 180 min	ferroelectric perovskite	[30]
GP@Nano-BaCO3	MB	sun	78% in 80 min	behavior “adsorbent + photocatalysis”	Present study
PVC@Nano-BaCO3	MB	sun	52% in 80 min	behavior “adsorbent + photocatalysis”	Present study

.

Compared to other fillers previously incorporated into GP and PVC matrices (e.g., TiO₂, Fe₂O₃, ZnO, or perlite-based systems), BaCO₃ presents several distinctive advantages. While other composites often require UV activation and involve multistep syntheses, GP@Nano-BaCO₃ and PVC@Nano-BaCO₃ reacted under sunlight irradiation using BaCO₃ nanoparticles obtained through a simple route using only atmospheric CO₂.

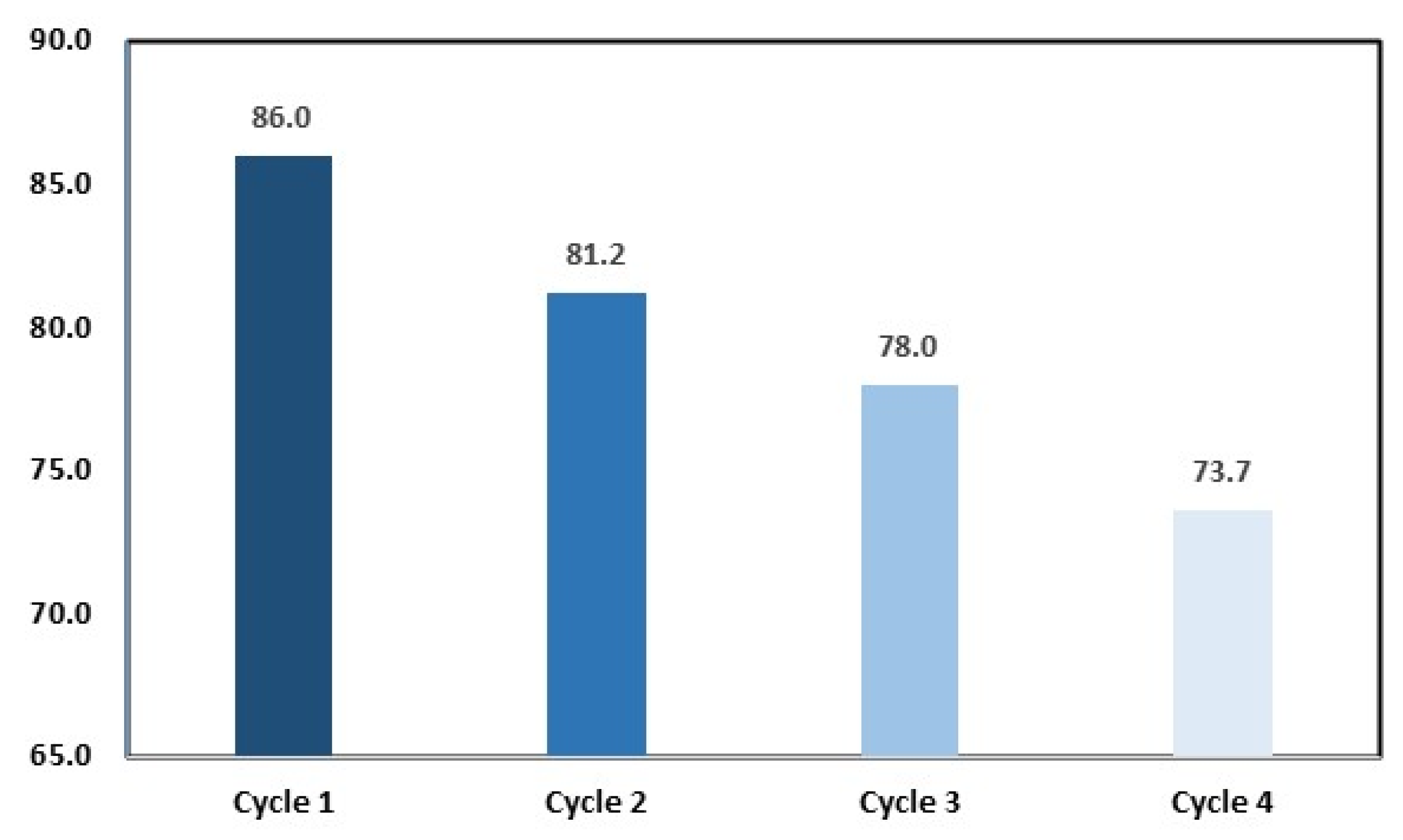

Regarding recycling, the GP@Nano-BaCO₃ catalyst was investigated during four cycles.

During the recycling process, the photodegradation resulted in an MB degradation of 86%, 81.2%, 78%, and 73.7, from the first cycle to the fourth, respectively, indicating a slight reduction inefficiency after four cycles, as shown in Figure 12. This slight decrease can be attributed to the activation of sites on the catalyst surface or phase alteration. To complement this, a BET analysis of GP@BaCO₃ was conducted after four cycles. The specific surface area becomes 21.96 g/cm³, demonstrating that micropores disappeared and shifted to mesopores, due to MB adsorption onto the catalyst surface during the degradation process.

4. Conclusions

This study demonstrated that BaCO₃ nanoparticles can be effectively synthesized by a simple hydrolysis reaction between BaCl₂ and KOH, with atmospheric CO₂ as the carbon source. The combined ATR-FTIR and XRD analysis revealed that precursor molarity and synthesis temperature strongly influence BaCO₃ crystallinity and phase purity. Structural analyses confirmed the orthorhombic witherite phase across all synthesis conditions, but the optimal structural order is achieved at 1 M and 75 °C, where both IR and XRD data converge toward high crystallinity indicators. Morphological investigations revealed rod-like particles, with the most homogeneous distribution obtained at 1 M Ba²⁺ and 75 °C.

The advantages of this method include the following: (i) operational simplicity, without the need for complexing agents or templates; (ii) avoiding the use of separate sources of carbonate (such as Na₂CO₃ or (NH₄)₂CO₃); and (iii) mild reaction conditions, compatible with obtaining nanoparticles that can be used later in organic and inorganic composites.

It is also noted that the method used is compatible with the further processing of nanoparticles into polymeric (PVC) and geopolymer (GP) matrices, which is a significant practical advantage for the development of photocatalytic materials. When integrated into polymeric and geopolymer matrices, BaCO₃ nanoparticles conferred dual adsorption–photocatalytic activity, with GP@Nano-BaCO₃ achieving faster MB degradation kinetics than PVC@Nano-BaCO₃. The results indicate that BaCO₃ nanoparticles incorporated in different matrices highlight the essential role of nanoparticle–support interaction in optimizing photocatalytic performance, opening perspectives for the development of sustainable composites for environmental applications.

These findings emphasize the relationship between synthesis parameters, structural order, and photocatalytic performance, offering insights into the design of functional systems. A limitation of this study is that the photocatalytic performance of the composites was evaluated only in relation to the degradation of MB, used as a model pollutant. This choice is justified by its representative nature and by its extensive use in the specialized literature as a reference for testing photocatalytic materials, allowing for an initial comparison with similar systems. The optimized conditions were demonstrated to be 1.5 g GP@Nano-BaCO₃ catalyst in 100 mL of 15 ppm MB, after 30 min dark equilibration, followed by 80 min natural sunlight irradiation (550–620 W·m⁻²) under continuous stirring to achieve the highest rate degradation.

However, given that the central objective of this work was to develop a simple and sustainable method for the synthesis of BaCO₃ nanoparticles, with morphostructural control under laboratory conditions without an external carbonate source, the preliminary validation by the photodegradation of MB is sufficient to demonstrate the feasibility of the material.

These findings provide a structural basis for tailoring BaCO₃ synthesis toward application-specific property optimization, particularly for photocatalysts activated by visible light, which have proven to be effective candidates for the photodegradation of organic dyes in aqueous solutions. Future research will focus on doping with transition metals to increase photocatalytic efficiency, testing in real wastewater conditions, and evaluating behavior for other commonly used dyes, such as rhodamine B, methyl orange, or Congo red.
