Superlattice Delineated Fermi Surface Nesting and Electron-Phonon Coupling in CaC₆

Abstract

The superconductivity of CaC₆ as a function of pressure and Ca isotopic composition was revisited using DFT calculations on a 2c–double hexagonal superlattice. The introduction of superlattices was motivated by previous synchrotron absorption and Raman spectroscopy results on other superconductors that showed evidence of superlattice vibrations at low (THz) frequencies. For CaC₆, superlattices have previously been invoked to explain the ARPES data. A superlattice along the hexagonal c-axis direction is also illustrative of atomic orbital symmetry and periodicity, including bonding and antibonding s-orbital character implied by cosine-modulated electronic bands. Inspection of the cosine band revealed that the cosine function has a small (meV) energy difference between the bonding and antibonding regions, relative to a midpoint non-bonding energy. Fermi surface nesting was apparent in an appropriately folded Fermi surface using a superlattice construct. Nesting relationships identified phonon vectors for the conservation of energy and for phase coherency between coupled electrons at opposite sides of the Fermi surface. A detailed analysis of this Fermi surface nesting provided accurate estimates of the superconducting gaps for CaC₆ with the change in applied pressure. The recognition of superlattices within a rhombohedral or hexagonal representation provides consistent mechanistic insight on superconductivity and electron−phonon coupling in CaC₆.

1. Introduction

Superlattices, quantum wells, and other related nanoscale heterostructures have played, and continue to play, important roles in technological applications, such as resonant tunnelling devices and lasers [1,2,3]. Many familiar superlattices are layered, nanoscale periodic structures of two materials, resulting in compositional and/or lattice spacing modulations that are perpendicular to the layers. Modulations and new periodicities introduced to artificial superlattices can also be engineered to advantageously modify electronic properties and material behavior [1,2,3]. More recent styles of superlattices, such as Moiré-like [4,5,6,7,8] and ordered arrays of nanocrystals [9,10,11], have also been experimentally fabricated and/or used conceptually to explain the observed electronic phenomena [12].

Superlattice concepts are used to explain the phenomena closely related to superconducting materials, particularly the tuning of properties in the proximity of electronic topological transitions (ETTs) and Feshbach resonances as a function of pressure and strain, as well as the appearance of Van Hove singularities [13,14]. In addition, superlattices have been used to model striped structures, experimentally observed in superconductors at both nano [15] and atomic [16] scales. The effects of modulated strain on superconducting materials, both from the intrinsic crystal structure of the complex metal oxide [3] or artificially created to mimic those strain modulations [17], are also linked to superlattice observations and models.

Experimental observations of superlattice vibration modes in synchrotron THz absorption spectroscopy [18] and Raman spectroscopy [19] on MgB₂ compounds, characterized by vibration modes of low frequency, have provided complementary numerical and mechanistic insights on the superconductivity of MgB₂. These low-frequency modes are substantially below the lowest absorption frequency predicted for the conventional P6/mmm symmetry ascribed to MgB₂ based on atomic positions [18,20]. The recognition of a superlattice in MgB₂ enabled the identification of bonding and antibonding regions, and the role of Fermi surface (FS) nesting and phase relationships that were not otherwise apparent [18,21].

For CaC₆, Yang et al. [12] introduced Ca-folded Brillouin zones to explain the ARPES measurements of the Fermi surface maps and the observations of π* pockets near Γ (see Figure 1 of reference [12]). These triangular π* pockets are attributed to a Ca superlattice [12] and denote the existence of a superconducting gap that is distinct from the carbon interlayer superconducting gap in CaC₆. This detailed ARPES study clarified that both the interlayer and the π* bands contribute to superconductivity in CaC₆ [12] and that a superlattice construct offers an effective means to understand superconductivity mechanisms. Other ARPES studies on CaC₆ [22,23] are addressed below.

For layer-structured superconductors, cosine-shaped electronic bands (EBs) are important indicators of conduction mechanisms. These cosine bands resemble tight-binding descriptors for the EBs of the semiconductors [21,24,25,26]. However, for many superconductors, the bonding (lower energy) and antibonding (higher energy) regions of the cosine amplitudes are marginally asymmetric. For CaC₆, cosine-shaped bands were identified as free-electron-like interlayer states, with a substantial Ca-4s orbital character with a contribution to superconductivity and gap appearance [12,27,28,29,30,31,32].

Theoretical double-cell superlattice constructs for DFT calculations split the energy (and/or phase), and explicitly, the bonding and antibonding regions of these cosine bands [18,21,33]. As discussed below, a double superlattice construct, combined with the use of reduced symmetry, provides a useful approximation for the orbital character of crystal symmetry and includes informative site symmetry detail [34].

We evaluated the asymmetry of cosine EBs for CaC₆ using DFT calculations with a high grid resolution and demonstrated a direct correlation with the superconducting gap at different pressures. The CaC₆ superconductor [35,36] is a hexagonal layered compound with a lower axial symmetry than MgB₂. This compound can be described in either hexagonal or rhombohedral lattices [35]. We utilized both types of lattice in this paper to demonstrate the equivalence of the results and to highlight the specific features. In addition, we considered the importance of phonon dispersions and the critical role played by acoustic phonons in superconductivity.

2. Materials and Methods

We conducted comprehensive DFT analyses on EB Structures (EBSs) and FSs for CaC₆ within a pressure range from 0 GPa to 16 GPa using Quantum ESPRESSO (QE) Version QE-7.3 [37] and Materials Studio CASTEP 2023 [38] for the comparison. Details of these analyses are given in an article published separately [39]. The crystal structures were visualized using Crystal Maker V11.0.2 using geometry-optimized cell parameters of the experimentally determined values [35].

Key parameters, such as plane wave cut-off energies, pseudopotentials, and k-point grids, are critical enablers of meV resolution for EBS and phonon dispersion (PD) calculations, as noted in earlier publications [20,40]. Using QE, we employed a cut-off energy of 120 Ry (=1632.68 eV), a k-point grid of 24 × 24 × 24 sampling density, ultrasoft pseudopotentials [41], and a generalized gradient approximation (GGA) [42,43] for the exchange–correlation functional. We also explored norm-conserving pseudopotentials within the LDA and GGA approximations using CASTEP with a cut-off energy of 990 eV and Δk-grid 0.005 Å⁻¹ for the additional comparisons.

The DFT calculations considered both the primitive rhombohedral unit cell and the hexagonal counterpart. The specific lattice constants were taken from the X-ray diffraction results of bulk CaC₆ [35]. We have also explored several superlattice variants, acknowledging their significance in accurately portraying the symmetry and phases of the orbitals [21]. Further evaluation of the essential parameters that enable the systematic detailed interpretation of the DFT calculations are provided in our earlier work [40,44]. For consistency, we show calculation outputs using the LDA functional, although equivalent calculations using the GGA functional show similar trends.

Constructing a supercell is a routine procedure for the DFT calculations of the electronic properties, although the context can differ substantially. For example, a supercell can be a “multiple of the smallest unit cell” or “a unit cell of a superlattice” structure. We initially built a supercell as a multiple of the smallest unit cell, and then we imposed reduced symmetry that contained symmetry elements of the parent space group, as shown in earlier work [19,45].

In a dynamic environment, we may also consider the other forms of a superlattice. For example, an elastic acoustic wave imposed on an initially symmetric, homogeneous structure [9,46,47]. In this case, at a particular instant of time, there will be a modulated expansion and contraction of the sub-units (e.g., the original smallest units) of a superlattice. According to the elastic theory, the structure will show a modulation of the lattice constants with a wavelength given by the acoustic wavelength. A positional modulation of the atoms will create a superlattice.

The smallest superlattice that can be created using elastic waves is a double-unit supercell, where one cell is contracted, and the other adjacent cell is expanded. In general, a cosine-shaped band in an EBS, particularly in superconductors, can be associated with nearly free electrons [27]. Such a band corresponds to a cosine wavefunction; that is, the real part of a plane wave or complex exponential. Thus, the electron density in that cosine band is modulated as the square of the cosine function and is periodically modulated as a superlattice structure.

3. Results and Discussion

In our earlier work on MgB₂, we showed that atomic orbital symmetry provides added detailed mechanistic understanding of superconductivity [21] compared with the atomic position symmetry of the space group P6/mmm. We utilized a similar strategy for the DFT calculations on CaC₆ by first identifying key bands–particularly along an equivalent real space layer direction–that demonstrate a cosine format across or near the Fermi level. We developed an argument for the construction of a double supercell, starting with a band that approximates a cosine function. Using a double cell for the DFT calculations, several features related to the superconductivity of CaC₆ were derived in a fashion consistent with that previously described for MgB₂ [18,21].

3.1. Cosine Functions and Linear Chains of Atoms

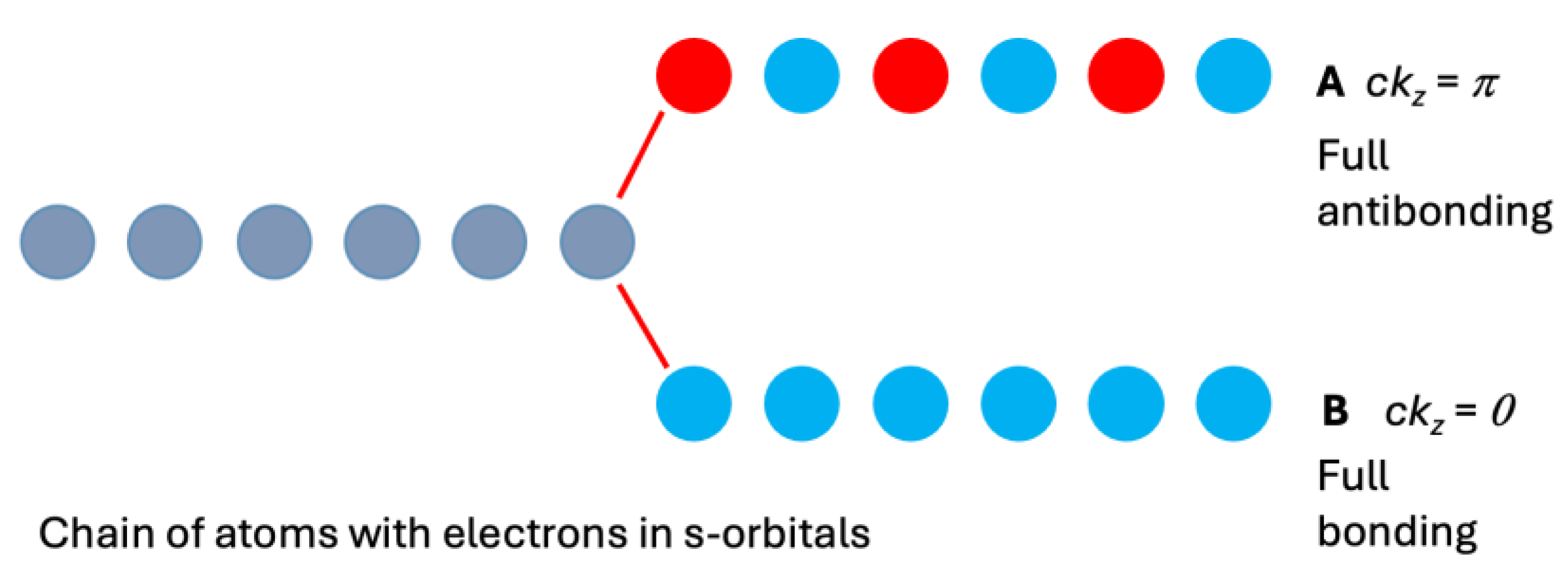

There is strong agreement that cosine-shaped bands in the EBS of CaC₆, as shown in Supplemental Figure S1, show nearly-free Ca 4s orbital character [27]. The cosine function for the EB has argument ck_z, implying that planes separated by the lattice parameter c are out of phase [48]. This phase relationship in the c-direction is identical to that encountered in discussions on chain(s) of atoms with s-orbitals [49,50], as exemplified by a chain of H-atoms or H ‘n-merization’ [33]. A schematic of this important phase relationship and change from predominantly bonding to predominantly antibonding states is shown in Figure 1.

For a group symmetry to appropriately represent the periodicity implied by an antibonding orbital arrangement, a reduced symmetry with a double supercell in the c-direction must be used [18,21]. In this case, reduced symmetry is a better representation of a compound for which the orbital character of electrons and likely effects on atomic positions are considered. This representation is analogous to that shown for MgB₂ [18,21], noting that for the c and ab-directions at Γ, the bands showed opposite bonding/antibonding character (see e.g., Figure 1 of reference [21]). In contrast, for CaC₆, in both the c and ab-directions at Γ, the bands showed the same bonding character. This band characteristic is reasonable for s-orbitals with local spherical symmetry; thus, the same orbital character was maintained in the entire set of spherical directions.

3.2. Electronic Band Structures for Superlattices

We calculated the EBS for three types of CaC₆ unit cells of Space Group 166 (R-3m) at a pressure of 0 GPa: (i) a rhombohedral lattice, (ii) an equivalent hexagonal lattice of the same Space Group 166, and (iii) an equivalent hexagonal lattice with a double c-axis, 2c. In the reciprocal space, a key visualization format for the EBS and Brillouin zones, doubling a real-space dimension (e.g., a unit cell dimension, c, increased to 2c) can be effected by folding along the appropriate reciprocal direction [36]. For the hexagonal lattice of Space Group R-3m, the Γ–Z direction is along c*. Hence, the focus of this work was along the Γ–Z directions in reciprocal space. The calculated EBSs for the conventional reciprocal directions for each CaC₆ format are provided in Figures S1–S3 in the Supplementary File. The key c* directions that contain cosine-shaped band(s) are identified in Figures S1–S3.

3.3. Antibonding-Bonding Asymmetry

Careful inspection of the shape for the interlayer cosine band of CaC₆ using a rhombohedral structure (Space Group 166 or R-3m) indicated that the cosine function was not perfectly symmetrical (see Figure 2a and Figure S1). We delineated this asymmetry as previously discussed in our evaluation of cosine sigma bands for MgB₂ [21]. The asymmetry of a cosine band suggests that adjustments to the tight-binding equations are appropriate in order to describe the EB along the c* direction [21], as shown below.

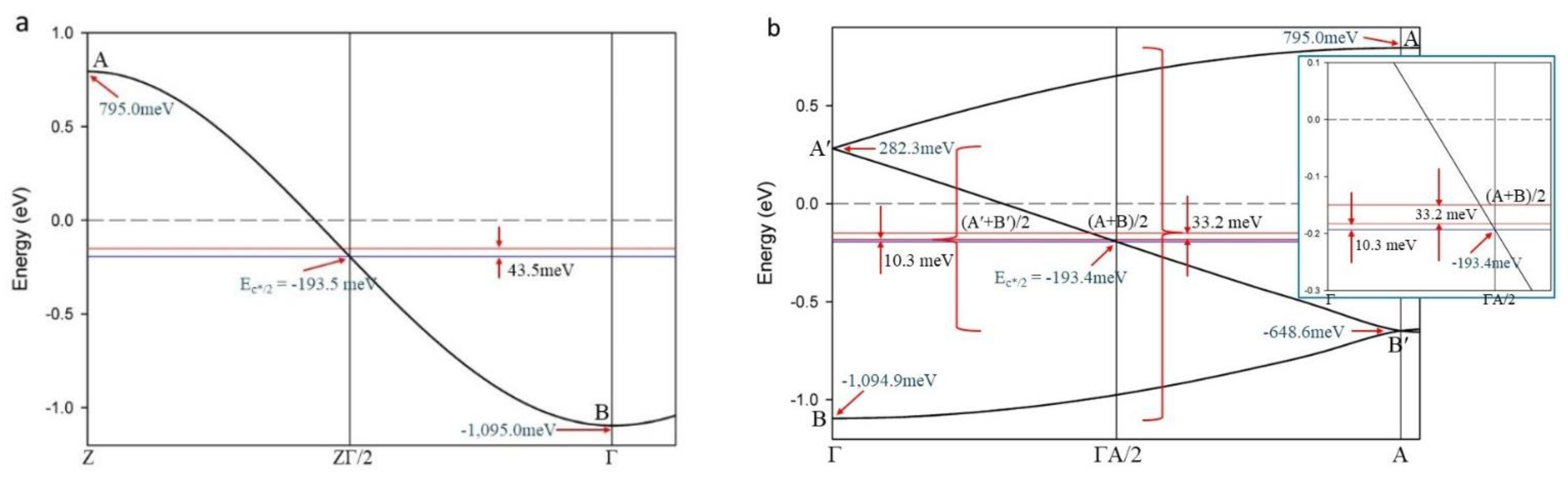

An asymmetry, or difference in energy, ΔE, is schematically shown for CaC₆ at 0 GPa calculated with a rhombohedral lattice in Figure 2a. The bonding and anti-bonding nodes, denoted “B” and “A”, respectively, of the cosine band along Γ–Z are shown in Figure 2a. The energy, E_c*/2, at the intersection of the cosine band with the reciprocal mid-point, ΓZ/2, is −193.5 meV. The average energy, E_av, between the bonding (B) and antibonding (A) nodes at Γ and at Z, respectively, was 43.5 meV higher than E_c*/2 (i.e., at −150.0 meV) and is denoted by a red horizontal line. This difference in energy, ΔE, represents the asymmetry of the cosine band for this rhombohedral lattice. A perfectly symmetric cosine band will show zero difference in energy between E_c*/2 and E_av (i.e., for the equivalent bonding and antibonding regions). In the following sections, we describe how a superconducting gap can be determined from this antibonding–bonding energy asymmetry.

Figure 2b shows the band structure along the c* direction for a hexagonal lattice equivalent to the rhombohedral configuration shown in Figure 2a. In this case, there was a folding of the c* direction because the a and b directions are multiples of the C-C bonds in CaC₆. This folding resulted in two distinct bonding and antibonding nodes in the band structure, as identified in Figure 2b. The energy at the intersection of the A′–B′ band at ΓA/2 was E_c*/2 and is denoted by a blue horizontal line in Figure 2b. For the hexagonal case, we determined E_av for both A–B and A′–B′, as shown by the red horizontal lines in Figure 2b. The asymmetries, or ΔE’ and ΔE, were 10.3 meV and 43.5 meV (ΔE = 10.3 + 33.2 meV), respectively, relative to the energy at E_c*/2.

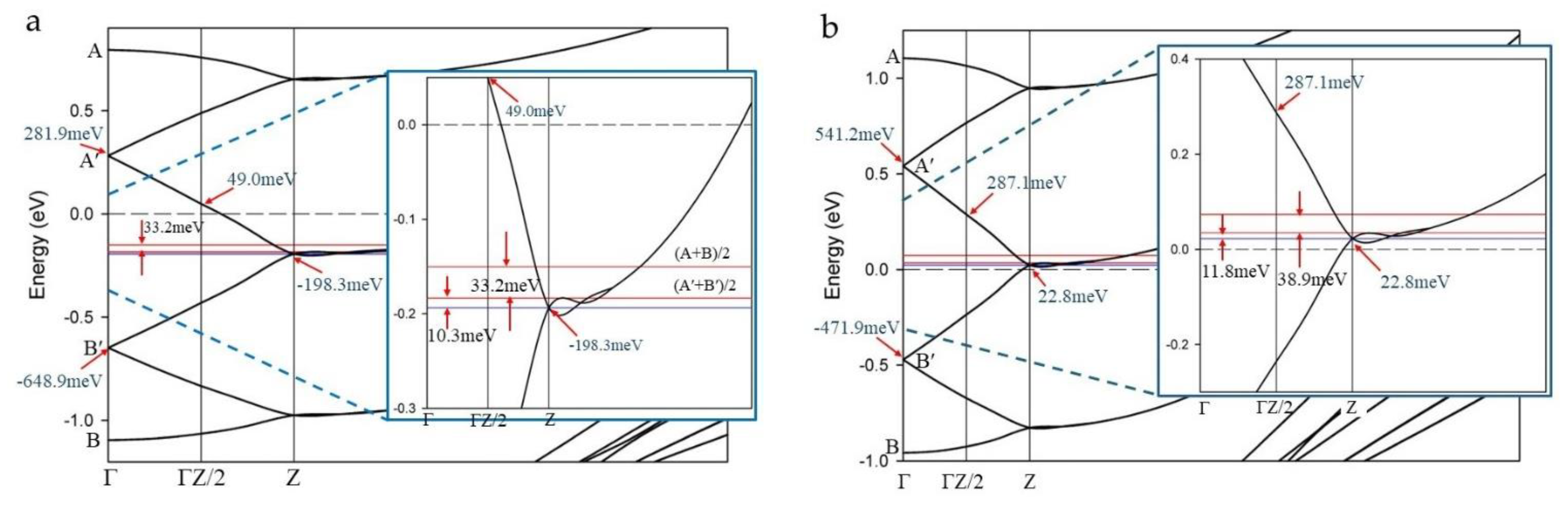

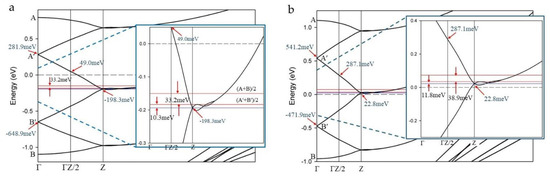

Figure 3 shows the band structure along the c* direction for CaC₆ at 0 GPa and at 7.5 GPa with a hexagonal 2c superlattice. For 2c superlattice symmetry, the Brillouin zone boundary line of the unfolded reciprocal space folded onto the Γ-direction. In an ideal structure, the bonding and antibonding bands will adopt a symmetric appearance relative to the mid-point energy (i.e., with the symmetry axis at a constant energy, E_c*/2), as shown by the blue horizontal line in Figure 3a (inset).

In Figure 3a, E_c*/2 is now at the intersection on Z, where the two branches of the cosine curve from A′ and B′ meet (i.e., blue line clearly shown in the inset). The energy for E_c*/2 was at a nominally lower energy (~5 meV) compared with E_c*/2 for the hexagonal cell, shown in Figure 2b. Again, measuring the values for E_av and E′_av, as shown in Figure 3a, the difference in energy for ΔE’ and ΔE was 10.3 meV and 43.5 meV (= 10.3 + 33.2 meV), respectively (inset, Figure 3a; red lines relative to the blue line).

A similar configuration for the folded cosine band of a 2c superlattice at 7.5 GPa is shown in Figure 3b. In this case, the folded band along c* is at a higher energy compared with the calculations at 0 GPa, consistent with the experimental data showing a higher T_c at 7.5 GPa [38]. Similar trends were observed for the DFT calculations of hexagonal 2c superlattices at other pressures (Supplemental Figure S4).

3.4. Revised Tight-Binding Equations

To accommodate the condition for CaC₆, we proposed the following adjustments to the tight-binding equations of the form shown in Equations (1) and (2):

$$E=E_{\frac{\mathrm{c}\mathrm{*}}{2}}-\left(E_{\frac{\mathrm{c}*}{2}}-B\right)\ast cos(ck\mathrm{z}),0<ck\mathrm{z}<\pi /2$$

(1)

$$E=E_{\frac{\mathrm{c}*}{2}}+\left(E_{\frac{\mathrm{c}*}{2}}-A\right)\ast cos(ck\mathrm{z}),\pi /2<ck\mathrm{z}<\pi$$

(2)

The highest asymmetry offset at Γ is given by the equation:

$$E_{\mathit{TB} \mathit{Gap}\mathit{@}\mathit{\Gamma }}=E_{\mathrm{av}}-E_{\frac{\mathrm{c}*}{2}}$$

(3)

where E_{TB Gap@Γ} is a tight-binding gap. Asymmetry values or tight-binding gaps vary with respect to the choice of unit cell symmetry or the type of supercell. However, the values are interrelated by the symmetry relationships between the hexagonal and rhombohedral lattice systems.

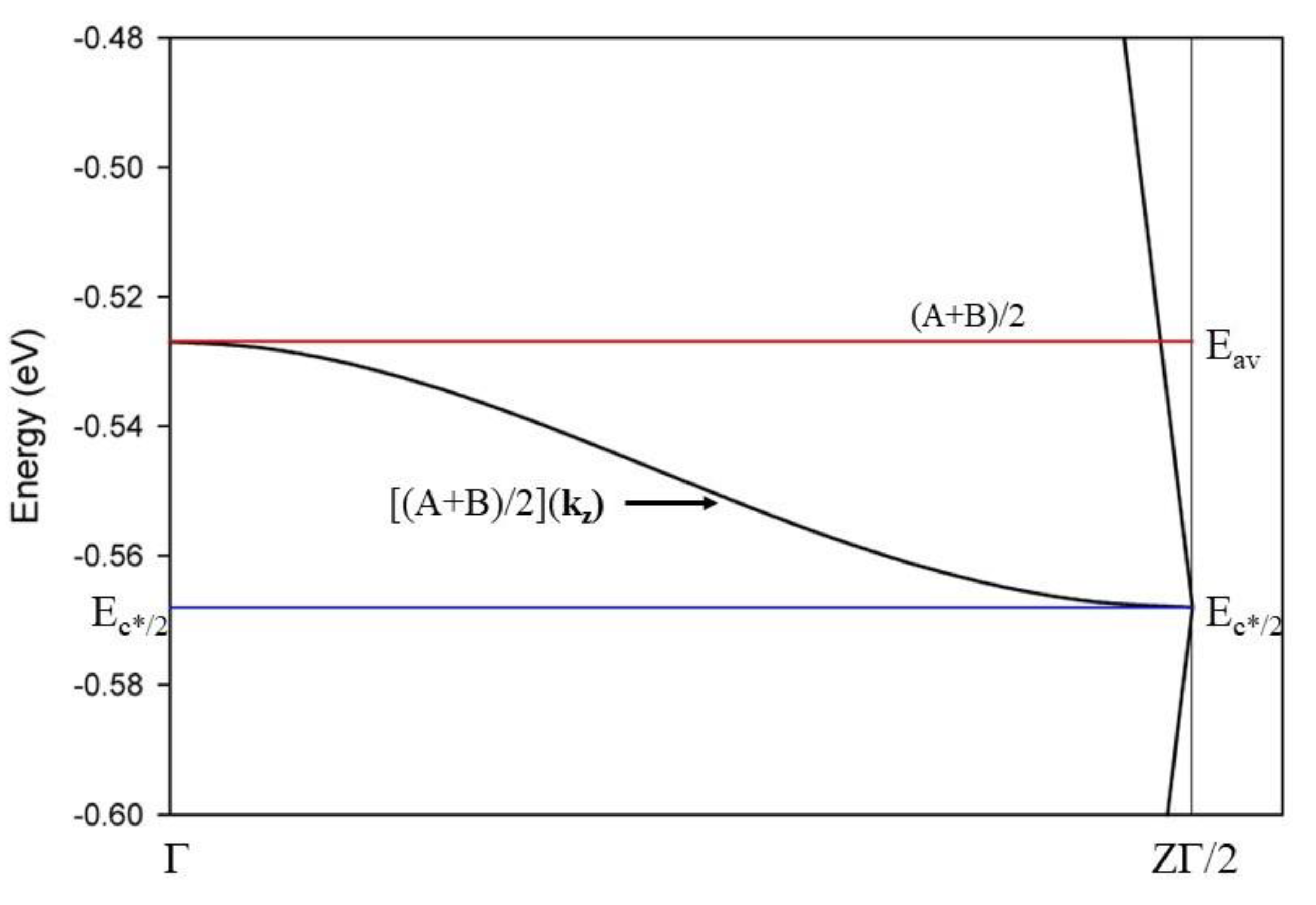

The dependence of E_av as function of k_z, E_av(k_z) is shown in Figure 4. E_av(k_z) has a cosine dependence itself, with half the reciprocal space period of that of the cosine-shaped band (=½ × 2π/c = 2π/2c), and for a bonding–antibonding format of the E_av(k_z) cosine, we halve this reciprocal distance (=2π/4c). That is, in real space, the periodicity is double that of the bonding–antibonding folded periodicity (=2 × 2c = 4c). A 4c superlattice periodicity has previously been identified for MgB₂ [18,21,51]. This result suggests that the origin of this super-periodicity also relates to electronic behavior, as represented by the EBS.

Figure S4 (Supplemental) shows the band structure calculations for two other pressures, at 4 GPa and 12 GPa, to delineate the trends in this modelling approach. We show in Figure 3 that at a pressure of 7.5 GPa, the non-bonding-point E_c*/2, is near the Fermi level (at 22.8 meV). The position of the bonding to antibonding crossing at this pressure corresponds to the highest experimentally determined T_c for CaC₆ as shown in Figure 5 (extracted and adapted from ref. [52]). The drop in T_c at about 8 GPa can be correlated to an electronic topological transition of the superlattice FS and is discussed in a separate publication. As shown in Figure S4, the cosine band crosses the Fermi level with different proportions of bonding and antibonding character, depending on the external pressure. This relative shift in the bonding–antibonding character is also consistent with the changes in T_c observed with pressure.

As discussed in detail below, to determine the superconducting gap, the tight-binding gap E_{TB Gap@Γ} (the highest asymmetry offset) must be corrected by a factor determined by the fraction of the Fermi surface that participates in unencumbered, or non-interfering, nesting between the open loops. If other Fermi surface bands cross the nested region, or the Fermi surface curvature deviates substantially, a different nesting vector is required. In such a case, additional phonons of different energy/frequency must become involved for the conservation of energy and momentum. In this case, coupling between electrons at opposite sides of the Fermi surface, requiring additional phonons, translates into the equivalent of scattering events.

3.5. Superlattice Nesting Vectors and Key Phonon Wavevectors

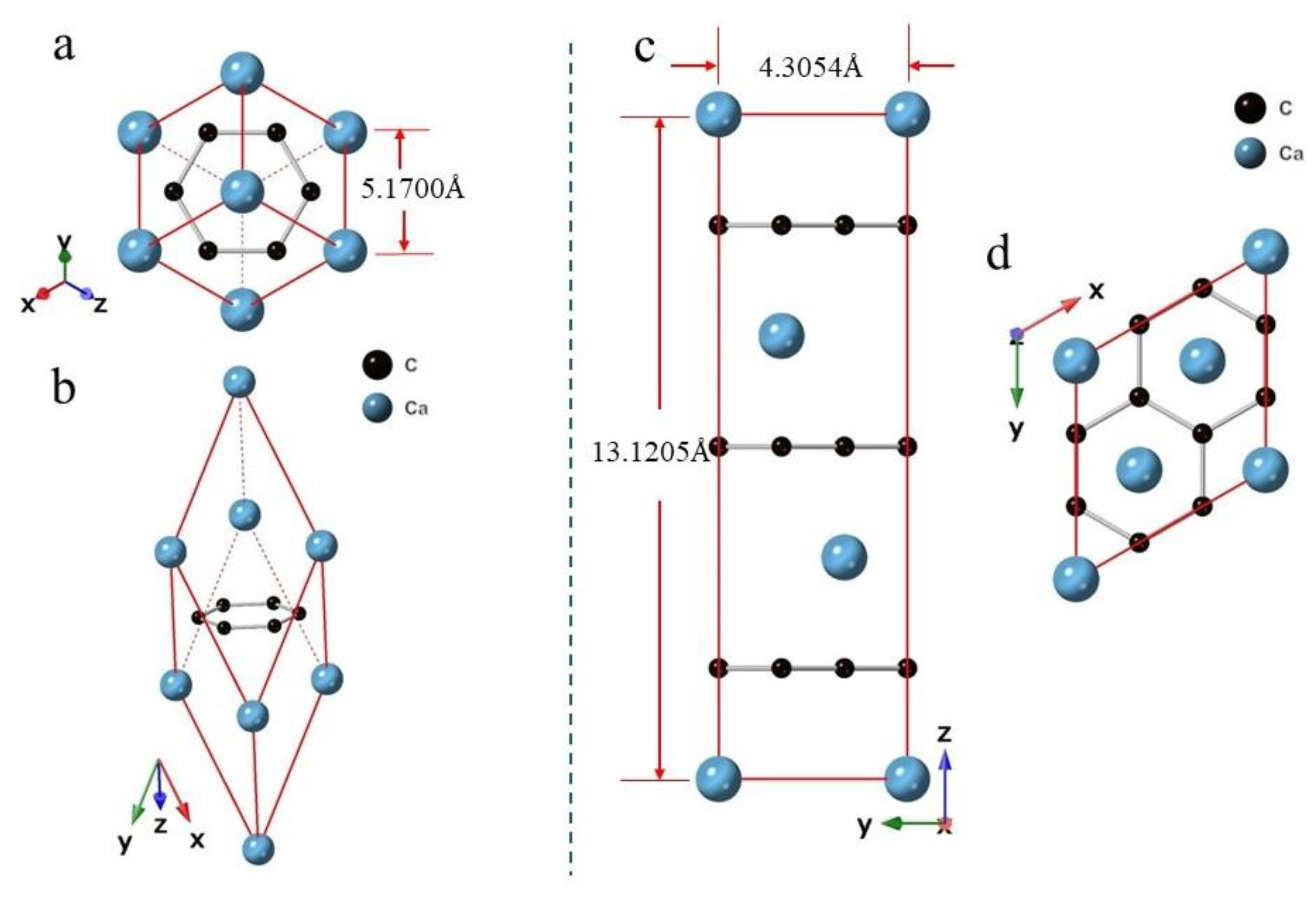

Figure 6 shows the schematics of the rhombohedral and hexagonal representations of CaC₆. The rhombohedral and hexagonal reciprocal unit cells of CaC₆ are related by the following equations:

ΓZ^R = 3ΓA^H

(4)

ΓZ^R = π/c

(5)

c = 13.572 Å

(6)

(a₁* + a₂* + a₃*)/3 = π/c

(7)

Thus, twice the ΓA^H distance of the reciprocal hexagonal unit cell (2π/3c), and half of the reciprocal distance (π/3c = 2π/6c), correspond to the distances between the Brillouin zone (BZ) boundaries or between Γ and the BZ boundary for the 2c-real space hexagonal superlattice. For Fermi surface features, this real space superlattice corresponds to a repeat distance of a folded hexagonal supercell in reciprocal space.

This reciprocal space vector and the related dimensional relationships to the primitive rhombohedral cell are particularly useful for understanding the crystallographic relationships in the CaC₆ structure. For example, the reciprocal space vector is itself a ‘nesting’ vector in the perpendicular c or c*-direction for the Fermi surfaces of the CaC₆ 2c superlattice, as shown in Figure 7a. This nesting vector joins significant proportions of the folded Fermi surfaces and can be considered a vertical component of diagonal nesting vectors [21].

The extent of the diagonal nesting vectors is clear in MgB₂ [21], which has a cosine-shaped Fermi surface profile. For MgB₂, nesting using parallel reciprocal vectors of identical magnitude spanned the entire warped tubular Fermi surfaces of MgB₂ [21]. The same condition cannot be said for CaC₆.

In CaC₆, the approximately circular profiles of the Fermi surface cross-sections significantly reduced the extent of nesting, although the nesting conditions did not require existence over the entire Fermi surface [48]. Consequently, for CaC₆, the nesting extent was difficult to determine accurately with comparable error or uncertainty to that followed for MgB₂ [21]. Another source of error was the thermal energy width (~k_BT) that occurred around the Fermi surface at temperatures above absolute zero. The width of this thermal energy nominally extended the region by ~1.4 meV at 16 K, where nesting by the same original phonon vector was maintained.

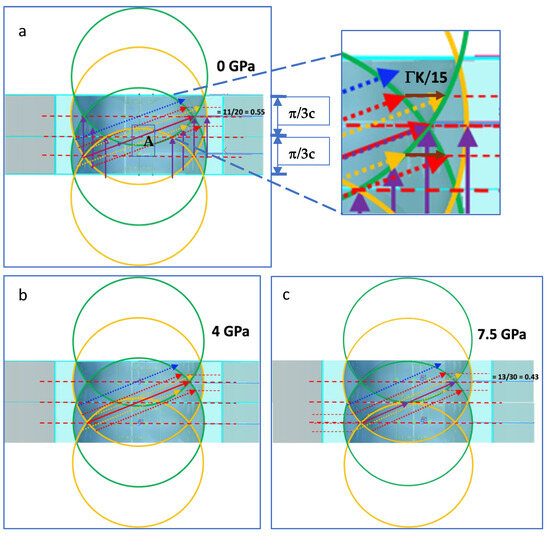

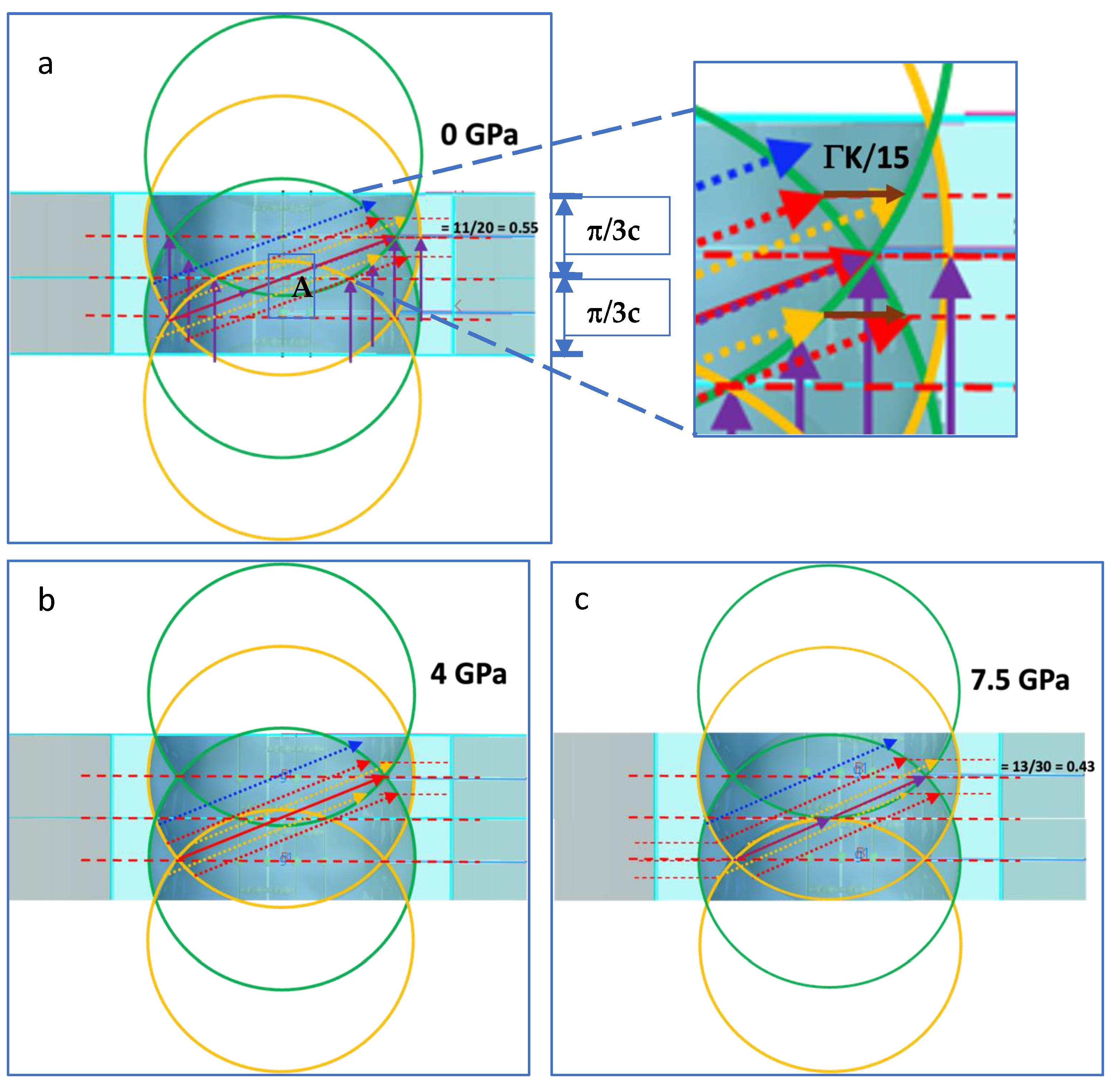

Figure 7 shows cross-sections of the Ca-4s-dominated Fermi surfaces for CaC₆ at selected pressures. In Figure 7, the green- and orange-colored circles delineate the contours of the Fermi surfaces, as well as indicating a change in phase introduced by folding on the alternating (approximate) spherical Fermi surfaces. Note that the changes in phase between the bonding and antibonding regions for the same Fermi surfaces exist as indicated by the phase of the cosine functions themselves, where the plane perpendicular to ΓZ at the mid-point Z/2 defines the transition boundary between the bonding and antibonding behaviors (see Supplementary Figure S5). Therefore, the folded Fermi surfaces require careful identification of phase variation, which may be complex and/or convoluted and so, is difficult to track and represent graphically.

In Figure 7, the blue lines that are parallel to the nesting vectors and of the same magnitude do not connect the Fermi surface regions. Thus, the extent of nesting is limited to a window around the ‘crossing’ of the Fermi surfaces (joined by the red and purple lines that cross the center of the double-stacked Brillouin zones). The brown arrows (circled) in the inset of Figure 7a correspond to the maximum electron momentum transfer between the y and z directions (~ΓK/15), which are coherently accommodated through nesting by a phonon of appropriate frequency for energy conservation.

At 0 GPa, both the red and orange vectors produced a nesting relationship that crossed the Γ point center at the midpoint. The diagonal nesting relationships had vectors q_D and q_d (in Figure 7a, D and d stand for long and short diagonals, respectively, where q_D = 3q_d) with projections approximately given by:

q_D = 2ΓK/3 ± ΓA^H = 2ΓK/3 ± (π/3c) k_z

(8)

q_d = q_D/3 = 2ΓK/9 ± ΓA^H/3 = 2ΓK/9 ± (π/9c) k_z

(9)

The nesting vectors connected open loops with k_F and −k_F at opposite sides through the origin. Thus, these nesting vectors connected the bonding and antibonding branches of the relevant band, and are associated with Cooper pairing [21]. In this case, the nesting vector corresponded to the primary phonon in electron–phonon coupling through the relationships:

−k_F¹ + q_D,d = k_F^1′

(10)

−k_F² − q_D,d = k_F^2′

(11)

At 7.5 GPa, the diagonal nesting relationships had vectors q_D and q_d (in Figure 7c, where q_D = 2q_d) with projections approximately given by:

q_D = 4ΓK/11 ± ΓA^H = 4ΓK/11 ± (π/3c) k_z

(12)

q_d = q_D/2 = 2ΓK/11 ± ΓA^H/2 = 2ΓK/11 ± (π/6c) k_z

(13)

Coherent Electron–Phonon Coupling via Acoustic Nesting

As schematically shown in Figure 7a–c, the nesting between mid-points in different Brillouin zones established favorable reference points for an electron–phonon coupling condition between the opposite sides of the Fermi surface. These points are non-bonding and establish a reference for the phase relationships. However, the coherence of the electrons coupled by this same nesting phonon vector only survives without disturbance while an intersection with any new Fermi surface associated with a different band of unrelated symmetry is absent. Coherent coupling is also lost when the curvature of the Fermi surfaces change, such that a nesting vector of fixed magnitude does not link electron states on the opposite sides of the Fermi surface. For CaC₆, examples of this loss of connectivity by nesting vectors on opposite sides of the Fermi surface are shown as blue (dotted) arrows in Figure 7a–c.

Figure 7 also enables the identification of two general types of nesting. These two types are:

• nesting that connects the Fermi surface regions with a closed loop (e.g., the green and yellow loop surrounding point A in Figure 7a) and
• nesting that connects the Fermi surface regions with an open loop (e.g., regions connected by the diagonal orange, red, and purple dotted lines in Figure 7a–c).

Closed loops alone do not appear to be conducive to superconductivity but may be indirectly involved in superconducting behavior. However, for this CaC₆ system, open loops were continuously connected in the extended Brillouin zone scheme. Thus, the open loops correlated with superconductivity through the magnitude of the nesting vectors and the extent of the nested regions. In Figure 7a, the purple-colored vectors are parallel to the red and orange arrows but are shorter in length. By comparing these vectors at pressures of 0 GPa and 7.5 GPa, we identified other features, including the densities of states. In Figure 7a,c, the purple-colored vectors are approximately one third and one half of the red nesting vectors, respectively. This relationship suggests that the shorter purple vectors are nesting vectors themselves, and given their multiplicity, they are indicators of the relative population of the densities of states.

The proportions of a Fermi surface that participates, and remains, with a given acoustic nesting vector, define a proportion of the cosine amplitude that remains coherently coupled. This fraction, multiplied by the above-mentioned tight-binding gap, E_{TB Gap@Γ}, provides an accurate estimate of the superconducting gap (provided DFT calculations are carried out with sufficient resolution [40]).

The superconducting TB gap value at 0 GPa is the E_{TB Gap@Γ} value at Γ divided by three, because of the three parallel nesting vectors that fit between the nested Fermi surface spheres, multiplied by the fraction of the folded z*-axis that is nested, which is ~0.55 (see Figure 7a). The superconducting TB gap value at 7.5 GPa is the value at Γ divided by two, because there are two parallel nesting vectors that fit between the nested Fermi surface spheres, multiplied by the fraction of the folded z*-axis that is nested, which is ~0.43 (see Figure 7c).

The superconducting TB gap value at 4 GPa was obtained by linearly extrapolating the number of parallel nesting vectors that fit between the nested Fermi surface spheres, multiplied by the linear extrapolation of the fraction of the folded z*-axis that is nested. These extrapolations resulted in 3.21 + (5.49 − 3.21) × (4/7.5) = 4.43, 0.55 − (0.55 − 0.43) × (4/7.5) = 0.486, and 4.43 × 0.486 = 2.15 for (i) the parallel nesting vectors, (ii) the fraction of the z*-axis that can be nested, and (iii) the superconducting TB gap, respectively (see

Table 1. Geometry optimized cell parameters for CaC₆ at selected pressures; other parameters extracted from calculated EBS.

Pressure (GPa)	Cell Values [Å]		Tight-Binding Gap [meV]				Eav [meV]	Tc Exptl [K]	Calc’d Ratios
	a	c	@ Γ	@ Γ/n	z* Nested Fraction	SC TB Gap			SC TB Gap	Tc
0	4.31	13.12	10.3	3.43 (n = 3)	0.55	1.89	−198.3	11.4	1.00	1.00
4	4.29	12.84	11.1	4.76 (n~7/3)	0.49	2.31	−67.1	13.6	1.22	1.19
7.5	4.28	12.63	11.8	5.9 (n = 2)	0.43	2.54	22.8	15.1	1.34	1.32
12	4.26	12.41	12.8	--	--	--	128.4	4.8	-	0.42

). We estimate the error in determining the superconducting TB gap at ±0.09 meV. The values of the calculated gaps for the other pressures are given in Table 1.

If we include the additional periodicity identified in Section 3.2 from the cosine dependence of the average of the bonding and antibonding energies, we obtain a 4c superlattice symmetry. This superlattice symmetry introduces an extra folding in the reciprocal space at π/4c. This additional folding more accurately reflects the dynamic symmetry of the structure, compared to calculations without additional folding. We suggest that calculations in which the full z*-axis participates in nesting are more likely to effectively represent coherent superconducting transport behavior. In addition, this additional folding brings the non-bonding, cosine inflection points to Γ. This condition is, intuitively, an appropriate locus for electron phonon coupling, which initiates the exchange of sound velocity between the y- and z-directions, as the electrons travel the cosine bands or the corresponding Fermi surface.

The highest T_c was obtained when the Fermi level and the non-bonding energy of the cosine-shaped band coincide. This represents the most balanced distribution between the fully occupied bonding states and the fully unoccupied antibonding states. This configuration suggests that the optimal conditions for superconductivity occur when the smallest energy is needed for the excitation of electrons in the filled bonding states into the empty antibonding states, and that this energy, translated for interactions between quasiparticles, corresponds to the superconducting gap.

3.6. Phonon Frequencies and the Superconducting Gap Energy

This section focuses on the 0 GPa case with a similar extension to the DFT calculations for CaC₆ under higher-pressure conditions. The difference in the phonon vectors for conserved momentum transfers in the y- and z-directions of the nested regions were approximately ΓK/15 and 3ΓK/10 (=(9/2) ΓK/15), and ΓA^H and ΓA^H/3, respectively, as shown in the inset of Figure 7a.

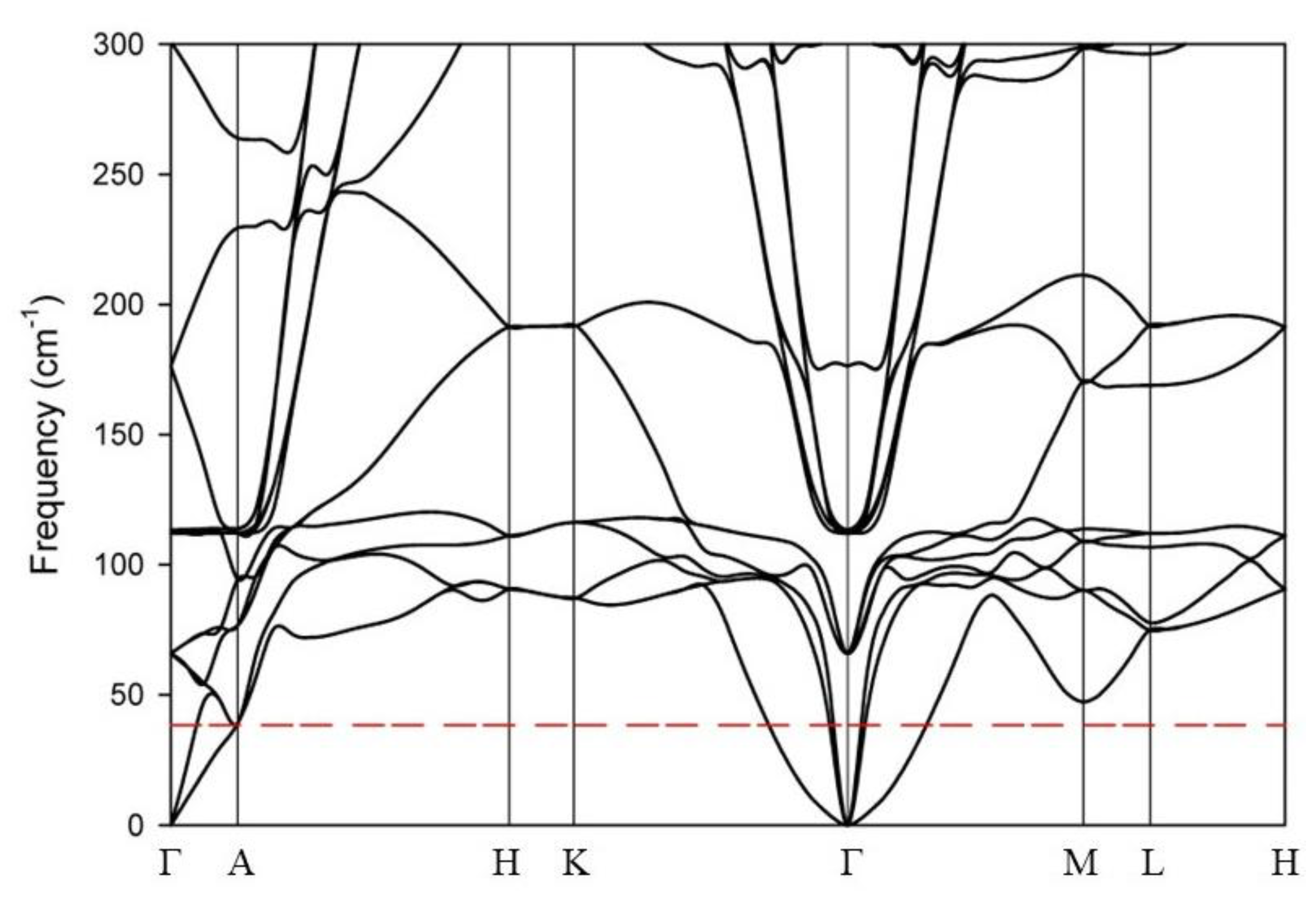

Figure 8 shows an expanded view of the phonon dispersion (PD) for ⁴⁰CaC₆, calculated using the LDA functional and k-grid Δk = 0.015 Å⁻¹, with the CASTEP Materials Studio 2023 software. A PD for CaC₆ with the Ca isotope 44 is also provided in the Supplemental section (Figure S6).

Figure 8 shows that all the phonon vectors associated with nesting (ΓK/15, 3ΓK/10, ΓA^H, and ΓA^H/3) had values on the acoustic PD branches with a similar energy at 39.6 cm⁻¹ (i.e., 4.91 meV). These acoustic energies (or multiples of energy depending on degeneracy or multiplicity) accompanying the nested momentum transfers must be exchanged (absorbed or provided) in an electron–phonon coupling, for the coupled electron movement along the nested regions on either side of the Fermi surface to conserve energy and remain coherent [21].

These calculations of PDs for CaC₆ using the hexagonal unit cell shown in Figure 6c,d are consistent with the calculated PDs for CaC₆ using the rhombohedral cell by Calandra and Mauri [29]. The latter gave the values of frequency for the equivalent of ~ ΓM/15 and ΓK/15 that closely matched half the energy of the asymmetry in the cosine function (i.e., the tight-binding gap) at Γ, as listed in Table 1 for the LDA (i.e., 10.3/2 meV = 5.15 meV; although, depending on the pseudopotential, values as low as 9.8/2 = 4.9 meV were obtained). In Figure 8, the frequency of 39.6 cm⁻¹ was ~4.91 meV (=3 × 1.63 meV), or approximately three times the superconducting gap energy [52,53] at 0 GPa. Thus, we showed that there is a clear geometrical origin for the phonons engaged in the conservation of energy, with electrons coupled via these nesting relationships.

The rhombohedral calculations by Calandra and Mauri [29] also showed that:

ω^L(ΓZ/6) = ω^T(ΓZ/2) ≈ ω^T(ΓT/2)

(14)

or, alternatively, from our hexagonal calculations:

ω^L(ΓA/3) = ω^T(ΓA) ≈ ω^{T, L}(ΓK/15) = ω^T(3ΓK/10)

(15)

These equivalences suggest that the interconversion of transverse phonons into longitudinal phonons, and vice versa, by addition and subtraction is highly probable. Similarly, longitudinal and transverse vibrations in the k_x k_y-plane may convert to the transverse and longitudinal vibrations in the k_z-direction, respectively [40]. This interaction favors energy conversion between the different acoustic phonon branches and perhaps enhances the creation of optical phonons; the latter may also be required to maintain coherency.

An outcome from the above is an emphasis on low-frequency phonons and the sensitivity of superconducting mechanisms on the low energy (meV) domain. Photon energies used for ARPES are often higher than the 9 eV used by Yang et al. [12]. Typical studies are undertaken between 40 eV and 50 eV [22,23] or higher. Concentrated photon illumination at these high energies is likely to excite electrons far below and far above the Fermi level. This likelihood implies localized heating effects and complex interactions that may not be inimical to superconductivity. For example, the Eliashberg calculations for CaC₆ [14] suggest that anomalies in the ARPES spectra originate from the out-of-plane and in-plane vibrations of carbon atoms. However, these anomalies occur at energies that are equivalent to temperatures well above room temperature.

The Isotope Effect for CaC₆

Employing the McMillan formula [54], the critical transition temperature for ⁴⁰Ca, computed by Calandra and Mauri, [29] aligned well with the experimental data. Notably, the calculated isotope effect for ⁴⁴Ca relative to ⁴⁰Ca differed by 0.24 K. This value contrasts with the experimental observation of a larger isotope effect, a ~0.5 K difference in T_c reported by Hinks et al. [55].

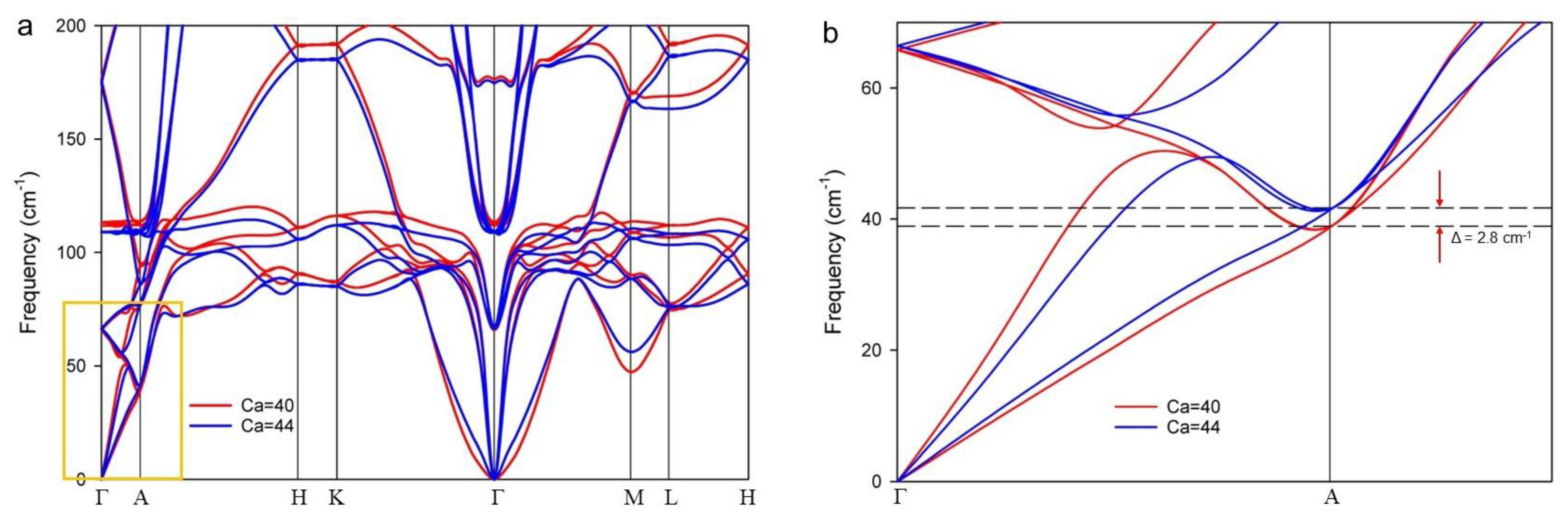

Figure 9 shows an overlay of the PDs calculated for a single hexagonal unit cell of CaC₆ using the two most abundant isotopes of Ca, namely ⁴⁰Ca and ⁴⁴Ca. Figure 9b is an enlarged view of the acoustic region in the ΓA direction, highlighted by the orange rectangle in Figure 9a. Figure 10 shows the low-frequency region of the phonon density of states (PDOS), calculated for a single hexagonal unit cell of CaC₆ and also using ⁴⁰Ca and ⁴⁴Ca. The PDOS for the full frequency range is given in Supplementary Figure S7. The reference lines are guides to the eye for the relative changes in frequency (or energy) with the colors matching the respective isotopes.

The difference in acoustic frequencies at the Brillouin zone boundary, A, was 3.0 ± 0.4 cm⁻¹ (=0.37 ± 0.05 meV). For the midpoint A/2, which corresponds to the Brillouin zone boundary of the folded reciprocal space of the 2c superlattice, ~1.5 cm⁻¹ (=0.18 meV). Therefore, if the isotope effect is predominantly controlled by the acoustic frequencies, the change in T_c for the isotope effect should be proportional to the frequency difference at the Brillouin zone boundaries of the 2c superlattice for the same nesting phonon vector. We assume that the frequency of 39.6 cm⁻¹ is proportional to the experimentally determined T_c of 11.4 K (see Figure 5 and Section 3.4). Therefore, 1.5 cm⁻¹ corresponds to 11.4 K × (1.5/39.6) = 0.43 ± 0.06 K. This calculated value for the difference in T_c for the Ca isotopes is in close agreement with the experimentally measured isotope shift determined by Hinks et al. [55].

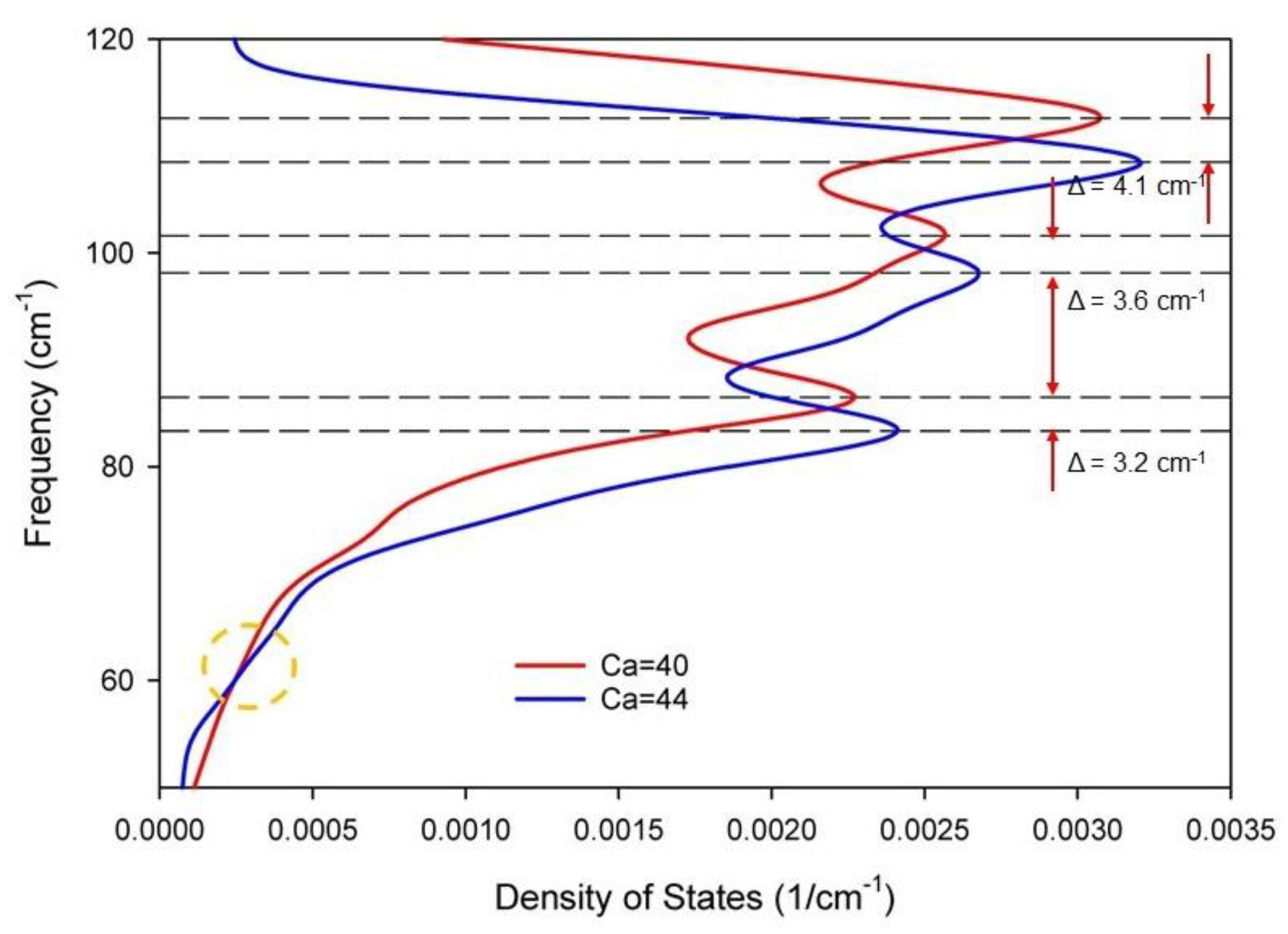

Comparing the PDOS for the Ca isotopes (see Figure 10 and Supplementary Figure S7), a change to their relative position occurs at ~60 cm⁻¹ (see the dotted circle in Figure 10). The first PDOS peak at low frequency shows a frequency difference in the ⁴⁰Ca and ⁴⁴Ca peak positions that exceed the calculated value determined above for the isotope effect using PDs. Moreover, the difference in the peak positions increases as the calculated frequencies approach the range of the optical phonons.

This variation in the peak positions suggests that the T_c estimates based on the density of states calculations will be inaccurate, particularly at higher frequencies than acoustic. This inaccuracy may account for a limited success with the accuracy of the McMillan equations and similar approaches, particularly for complex compounds. For the calculated PDs of complex compounds, some optical modes may contribute non-linearities to the dispersion. As stated by Jones and March [56], densities of states are a conceptual compromise when the full PD and EBS calculations are not available.

4. Conclusions

We used a systematic approach to DFT modelling that extracts superconductivity parameters from band structure and phonon dispersion calculations, enabled by a fine k-grid and a large cut-off radius for meV resolution. This theoretical approach is employed for CaC₆, for which the superlattice constructs, motivated by experimental observations on other layered superconductors and the topological similarities of EBs, are consistent with the cosine-shaped band structures along the layer direction. Interrogation of Fermi surfaces reveal important bonding–antibonding and nesting relationships that display an asymmetry with a strong connection to superconductivity and the identification of a superconductivity gap. The extent and nature of this asymmetry, evidenced in band structures and Fermi surface projections, aligns with the experimentally determined change in T_c with applied pressure. The gap energy was determined from the tight-binding bands and the approximate nesting relationship, resulting in a good match with the experimentally determined values as shown above. The approximate phonon nesting vectors identified from the superlattice FS reciprocal space geometry results in phonon wavevectors that have approximately the same frequency (or energy), which also match the experimentally determined superconducting gap.

These results demonstrate that superconductivity is largely a geometrically tuned phenomenon, implicit in the observations of superconductivity in many different crystal structures of widely varying geometry. We have shown that accurate and mechanistic information on superconductivity can be extracted from an analytical interrogation of EBS, the Fermi surface, and PD calculations. Superlattice constructs, supported by extensive experimental observations of their manifestation, for example using Raman and THz spectroscopy, are useful tools for understanding this important phenomenon. We encourage further experimental investigations on CaC₆ with a focus on the low-frequency, acoustic region. The acoustic phonon region is a key spectral region for superconductivity and an energy domain that is commensurate with superconducting gap energies.
