Synthesis, Crystal Structure, and Computational Investigations of 2-(2-(4-Fluorophenyl)-2-oxoethyl)-6-methyl-5-(4-methylbenzyl)pyridazin-3(2H)-one as Antiviral Agent

Laboratory of Applied Chemistry and Environment (LCAE), Department of Chemistry, Faculty of Sciences, Mohammed I University, Oujda 60000, Morocco
Department of Physics, Madras Christian College, East Tambaram 600059, India
Department of Fundamental Sciences, Faculty of Engineering, Samsun University, Samsun 55420, Turkey
Institute of Condensed Matter and Nanosciences, Molecular Chemistry, Materials and Catalysis (IMCN/MOST), Université Catholique de Louvain, 1348 Louvain-la-Neuve, Belgium
Department of Physics, Arignar Anna Government Arts College, Cheyyar 604407, India
Department of Physics, Faculty of Arts and Sciences, Ondokuz Mayıs University, Samsun 55139, Turkey
Department of Pharmaceutical Chemistry, College of Pharmacy, King Saud University, P.O. Box 2457, Riyadh 11451, Saudi Arabia
Laboratory of Analytical Chemistry and Bromatology, Team of Formulation and Quality Control of Health Products, Faculty of Medicine and Pharmacy, Mohammed V University in Rabat, Rabat 10100, Morocco
Author to whom correspondence should be addressed.
Crystals 2023, 13(7), 1098;
Submission received: 11 June 2023 / Revised: 2 July 2023 / Accepted: 3 July 2023 / Published: 13 July 2023


The aim of this work was to scrutinize the physiochemical properties of a new pyridazin-3(2H)-one derivative with potential pharmaceutical effectiveness via density functional theory (DFT) and molecular docking analysis. The compound 2-(2-(4-fluorophenyl)-2-oxoethyl)-6-methyl-5-(4-methylbenzyl)pyridazin-3(2H)-one (FOMMP) was synthesized and characterized by FT-IR, UV-Vis, 1H-NMR, 13C-NMR, ESI-MS, and single-crystal XRD analysis. In addition, the geometrical structure of the molecule was analyzed. Frontier molecular orbital (FMO) analysis showed a low energy gap that suggests the chemical reactivity of the title compound. The electrophilicity index (ω) points towards the probable biological activity of FOMMP. The molecular electrostatic potential (MEP) was used to assess the local reactivity properties and suggests that the nitrogen atom sites are electronegative. Computational and experimental UV-spectral analyses were performed to attain the bandgap associated with electronic transitions while the charge transfer length helped us determine that the excitation mode associated with the electronic transitions is long-ranged. Natural hybrid orbital (NHO) and natural bond orbital (NBO) analyses depicted the prominent acceptor-donor interactions in terms of the stabilization energies. Hirshfeld surface analysis was performed to analyze the intermolecular interactions in the crystal structure. In addition, a molecular docking study was executed to evaluate the potential of the protease inhibitors (PIs) against SARS-CoV-2.

1. Introduction

Heterocyclic compounds, in particular pyridazine derivatives, have attracted great interest from researchers for many years due to their wide range of biological and pharmacological properties, including antiviral [1,2], antimicrobial [3,4], antitubercular [5], analgesic and anti-inflammatory [6,7], anticancer [8], anti-HIV [9], anti-Alzheimer [10], antihypertensive [11], anticonvulsant [12], and antileishmanial activities [13]. Thus, several pyridazinone derivatives have been commercialized as agrochemical agents, such as herbicides, fungicides, and insecticides [14,15,16,17]. On the other hand, in order to examine the influence of different substituents on the structures and to reveal the relationship of these groups with their biological properties, the determinations of the geometrical and structural properties of these derivatives have become essential. Recently, DFT calculations have become a very important and commonly used tool in developing a relationship between experimental and theoretical data by providing evidence related to molecular geometry, electrical and spectroscopic properties, and also in predicting the properties of molecules with a high accuracy [18,19,20,21,22,23,24,25]. In the present study, new pyridazinone compound, i.e., 2-(2-(4-fluorophenyl)-2-oxoethyl)-6-methyl-5-(4-methylbenzyl)pyridazin-3(2H)-one (FOMMP), was prepared and identified using FT-IR, UV-Vis, 1H-NMR, 13C-NMR, and mass spectrometry (Scheme 1), and the molecular structure of FOMMP was confirmed by single-crystal XRD analysis. In addition, the geometrical structure, FMO analysis, electrophilicity index (ω), and MEP, NBO, and NHO analyses of FOMMP were carried out using the DFT/B3LYP method with a 6-311++ G (d,p) basis set. In addition, a docking study was performed to explore the potential of the studied molecules against the SARS-CoV-2 disease through the study of their binding modes to the active site of protein 5R82.

2. Materials and Methods

2.1. Materials and Instruments

Reactions were checked with TLC using aluminum sheets with silica gel 60 F254 (Merck, Darmstadt, Germany). Melting points were measured using a Buchi-Tottoli apparatus (Flawil, Switzerland). The FT-IR spectrum was recorded with Perkin-Elmer Fourier Transformer FT Pargamon 1000 PC Spectrophotometer (400–4000 cm−1) (Shelton, CT, USA). 1H and 13C NMR spectra were recorded in CDCl3 on a Bruker spectrometer (Switzerland). Mass spectra were collected using the API 3200 LC/MS/MS system (Framingham, MA, USA), equipped with an ESI source.

2.2. Synthesis Procedure for the Preparation of FOMMP

The FOMMP compound was synthesized following the reported procedure [26,27,28,29]. To a mixture of pyridazinone (1) (3 mmol) in 20 mL of THF, potassium carbonate (9 mmol) and 10% of tetrabutylammonium bromide (TBAB) were added as catalyst. The reaction mixture was refluxed for 1 h. After cooling, 2-bromo-1-(4-fluorophenyl)ethan-1-one (2) (3.2 mmol) was added dropwise and the mixture was refluxed for 6 h. The reaction mixture was filtered, the solvent was removed, and the residue was purified by chromatography on a silica column (Eluent: ethyl acetate/hexane: 5/5) to give the product (FOMMP). Yellow crystals produced the following yield = 67%, mp = 154–156 °C; 1H NMR (300 MHz, CDCl3, δ (ppm)): 1.48 (s, 3H, CH3); 2.19 (s, 3H, CH3); 3.72 (s, 2H, -CH2-), 5.54 (s, 2H, –CH2CO); 6.55 (s, 1H, H-pyridazinone); 7.10-8.25 (m, 8H, H–Ar). 13C NMR (75 MHz, CDCl3) δ, ppm: 19.29; 21.20; 38.34; 57.62; 77.71; 128.61; 128.92; 129.02; 129.61; 129.86; 129.92; 130.50; 133.37; 134.67; 135.74; 137.75; 146.29; 147.52; 161.68, 193.22. MS-ESI+: m/z = 351.2 [M+H]+, 373.0 [M+Na]+.

2.3. X-ray Analysis

X-ray data collection and structure refinement were conducted according to the literature [30,31,32,33]. A summary of the cell parameters, data collection, solution structures, and the refinement of the crystal structure are provided in Table 1. The corresponding crystallographic data were deposited with the Cambridge Crystallographic Data Centre as supplementary publications. CCDC 1960994.

2.4. Computational Details

DFT calculations were performed using the Gaussian 09W software, and physicochemical calculations were performed using the B3LYP method with the 6-311++ G (d,p) basis set [34,35]. Initial geometric optimization was carried out to find the minimum energy configuration of the compound. The wave function and energy were calculated at the starting geometry and then we proceeded until the lowest energy was found. The absence of imaginary frequencies points towards the attainment of an energy minimum. The electron localization function was used to study the chemical bonding between the atoms of FOMMP. The orbital contribution in terms of the density of states was analyzed using the GaussSum software [36]. TD-DFT in DMSO solution was considered to analyze the electronic absorption spectrum of the title molecule. Transfer of charges within the molecule was explored with the Multiwfn 3.4.1 program: a wave function analyzer software. The NBO and NHO analysis helped comprehend the intra- and intermolecular hydrogen bonding, intermolecular charge transfer, and delocalization of the electron density of FOMMP. An insight into the reactivity of FOMMP was studied in terms of the calculated hardness (η) values while an important CDFT parameter electrophilicity index (ω) was analyzed to obtain information about the probable biological activity. MEP analysis was employed to address the local reactivity properties of the compound. The Maestro program [37], also implemented in Schrödinger Materials Science Suite 2018-1, was used for the preparation of input files, the visualization of the results, and the calculation of drug-likeness parameters. The optimized structure was docked using AutoDock Tools (ADT) Version 1.5.6 [38].

3. Results

3.1. Description of Crystal Structure

Figure 1a shows the asymmetric unit of FOMMP and Table 1 summarizes the crystal data and structure refinement. There is one independent molecule in the asymmetric unit. In this crystal, FOMMP is not planar, the C1–C6 fluorophenyl ring is inclined to the pyridazin ring by 87.0(2)°, while the methylbenzyl and pyridazin rings are twisted for each other, making a dihedral angle of 89.8(2)°. The molecular structure is stabilized by the intermolecular C10–H10···O2 and C13–H13B···F1 hydrogen bonds (Figure 1b and Table 2). In the crystal, molecules are linked by a pair of C13–H13B···F1 hydrogen bonds forming inversion dimers. The dimers are linked by C10–H10···O2 hydrogen bonds forming chains along the b-axis direction. In the molecule, the C7–O1 and C9–O2 bond distances are essentially equivalent, i.e., 1.210(7) Å and 1.238(7) Å, respectively. These bond lengths are typical of double bonds.
Table 1. Crystallographic and refinement data for FOMMP.
Table 1. Crystallographic and refinement data for FOMMP.
CCDC Deposition NumberCCDC 1960994
Chemical formulaC21H19FN2O2
Crystal system, space groupMonoclinic, P21/c
Temperature (K)296
a, b, c (Å)13.7166 (15), 5.0232 (4), 27.016 (3)
β (°)103.413 (8)
V3)1810.6 (3)
Radiation typeMo Kα
µ (mm−1)0.09
Crystal size (mm)0.78 × 0.34 × 0.05
Data collection
DiffractometerSTOE IPDS 2
Absorption correctionIntergration (X-RED32 [39])
Tmin, Tmax0.980, 0.993
No. of measured, independent, and
observed [I > 2σ(I)] reflections
10,673, 3174, 1320
(sin θ/λ)max−1)0.596
R[F2 > 2σ(F2)], wR(F2), S0.091, 0.334, 1.02
No. of reflections3174
No. of parameters236
H-atom treatmentH-atom parameters constrained
Δρmax, Δρmin (e Å−3)0.21, −0.29

3.2. Optimized Molecular Geometry

Figure 2 shows the optimized structure and the atom numbering of the title compound. The structure used in all subsequent analyses takes the optimized structure of this molecule into account. Let the ring systems C9–C10–C11–C12–C13–C14 and C20–C21–C22–C23–C24–C25 be designated as ring I and II, respectively. C–C bond lengths in benzene rings were observed to be 1.42 Å for ring I and in ring II. The presence of fluorine in the carbon skeleton of ring I caused a slight deviation in the C–C bond distance from the regular expected value, which is 1.393 ± 0.02 Å [40,41,42]. H–C–H angles varied between 108.8–110.8°. Angle C1–N6–C17 = 119.2°, which falls in an expected range of 119° [42] such that the asymmetry observed was due to interactions between C and N–H groups. Slight aberrations from the literature values can be attributed to the variations due to the least-square refinements and inverse overlap [43,44].

3.3. FT-IR Spectra Analysis

The vibrational spectral analysis of FOMMP was performed on the basis of the experimentally obtained FT-IR spectrum (Figure 3). In general, multiple bands are displayed in the spectral range 3100–3000 cm−1 by aromatic C-H stretching vibrations [45,46,47,48,49,50]. For FOMMP, the vibration bands observed between 2856 and 3083 cm−1 were attributed to the stretching modes of five CH groups in 4-methylbenzyl, 4-fluorobenzyl, and pyridazinone rings, in addition to two CH2 bonds and one CH3 bond. C–H in-plane deformation vibrations are generally observed as medium to weak bands in the 1300–1000 cm−1 region [45,46,47,48]. The C–H in-plane deformation vibration of the title compound was observed between 1017 and 1291 cm−1. C–H out-of-plane deformations were reported in the region 600–900 cm−1 [45,46,47,48]. The C–H out-of-plane deformation vibration for FOMMP was observed at 840, 810, 731, 634, and 593 cm−1 with weak intensity [45,46,47,48]. The carbonyl (C=O) stretching vibrations appeared generally in the region 1600–1800 cm−1, which is one of the most representative and intense bands in an infrared spectrum [45,46,47,48]. Daoui et al. [46] and El Kalai et al. [47] reported the C=O stretching vibration in the pyridazinone ring at 1652 cm−1 and 1653 cm−1, respectively. The ν(C=O) vibration of the title compound was observed at 1650 cm−1. On the other hand, the band at 1599 cm−1 was attributed to C=N stretching vibration in the pyridazinone ring. This mode was reported at 1604 and 1606 cm−1 [48,49]. C=C stretching vibrations were attributed to bands in the interval in the region 1430–1625 cm−1 [45]. The C=C vibrations of the aromatic rings of the title compound were observed at 1552, 1509, 1460, and 1427 cm−1.

3.4. NMR Spectra Analysis

The experimental 1H and 13C NMR spectra of FOMMP were obtained using DMSO-d6 as a solvent (Figures S1 and S2 in Supplementary Materials). The proton NMR spectrum of FOMMP showed two singlets at δ = 2.28 and 2.37 ppm, which are characteristic of two CH3 groups, and the two CH2 groups resonate at δ = 3.79 and 5.57 ppm as two singlets. The H-4 proton of pyridazinone resonates at δ = 6.58 ppm as a singlet. The aromatic protons resonate as multiplets in the range δ = 7.03–8.07 ppm.
For carbon NMR spectrum, the signals at 193.22 and 161.68 ppm were attributed to two carbonyls (C=O). The C3, C4, and C5 carbons of the pyridazinone ring resonate at 146.29, 137.75, and 135.74 ppm. The signal at 147.52 ppm was assigned to the C–F group, and the aromatics carbon of FOMMP appeared in the range of 134.67–127.81 ppm. The signals at 38.34 and 57.62 ppm were attributed to two CH2 groups and the signals at 19.29 and 21.20 ppm were attributed to two CH3 groups.

3.5. ESI-MS Study

The ESI-MS spectrum of FOMMP displayed molecular ion peaks with m/z values of 351.2 and 373.0, corresponding to the molecular weights of [M+H]+ and [M+Na]+, respectively (Figure S3 in Supplementary Materials). These values are in good agreement with the proposed composition for FOMMP (C21H19FN2O2).

3.6. Hirshfeld Surface Analysis

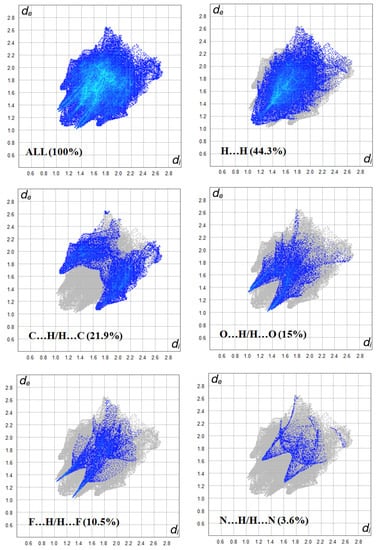

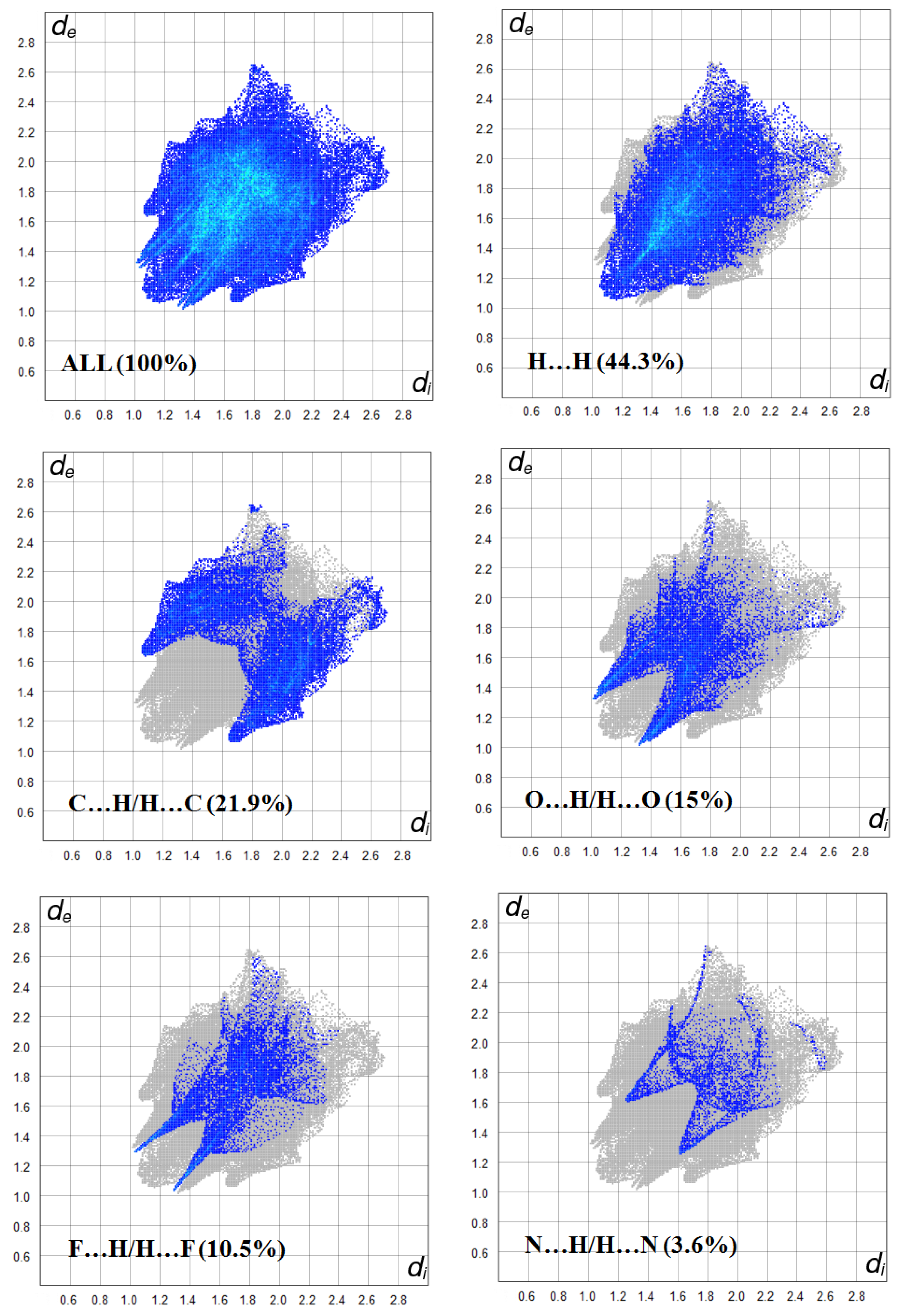

In this study, the contributions of different intermolecular interactions to the crystal structure were investigated using Hirshfeld surface (HS) analysis. Figure 4 illustrates the Hirshfeld surface of FOMMP with mapped dnorm. The red spots on the HS indicate the intercontacts included in the intermolecular interactions [51,52,53]. Areas where neighboring atoms are too far apart to interact with each other are indicated by blue fields.

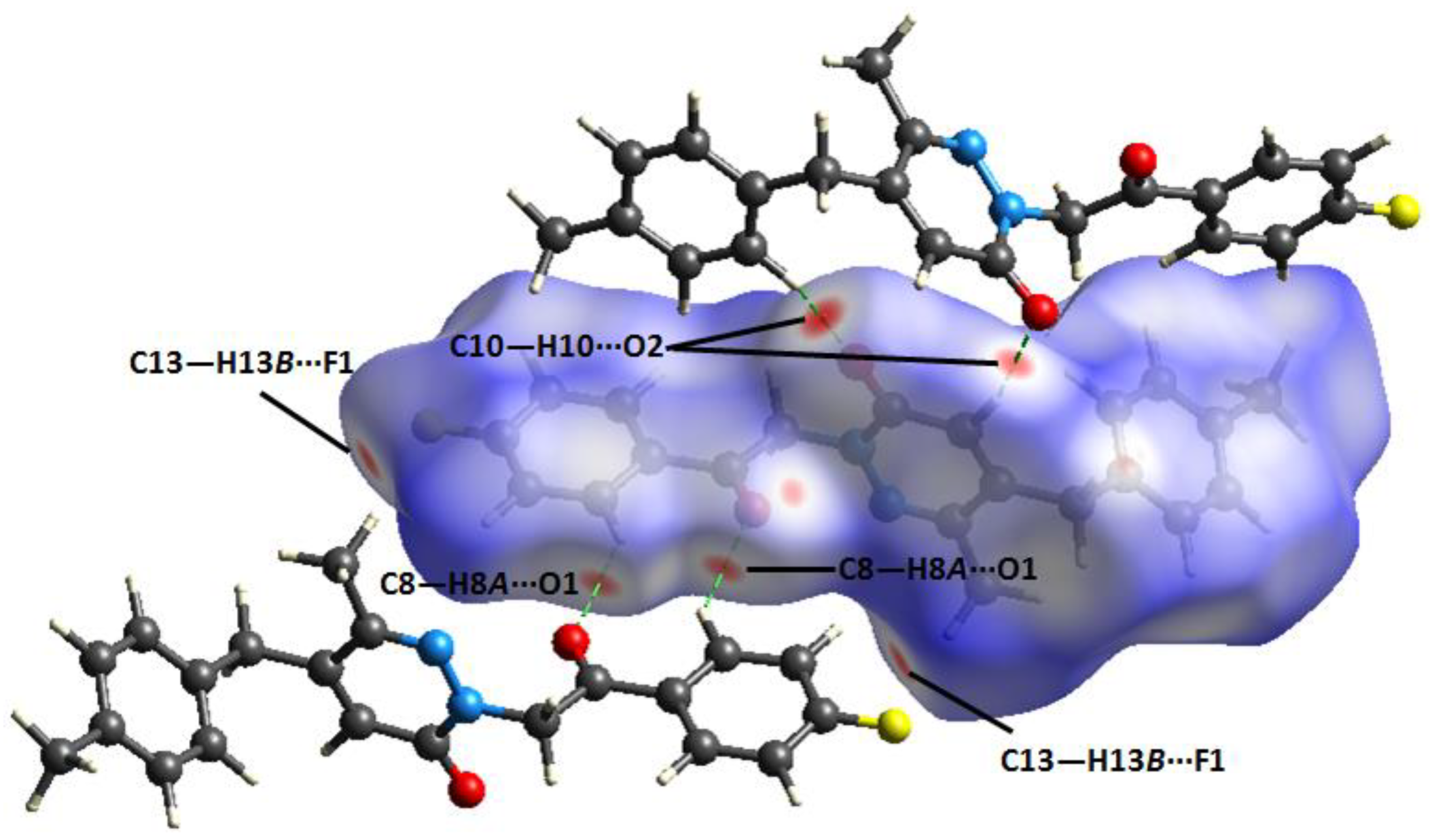

The surfaces of 3D dnorm were plotted over a fixed color scale of −0.1843 (red) to 1.4882 (blue) with a standard (high) surface resolution. In Figure 4, the red circular collapsing on the dnorm surface of the FOMMP structure represents the C–H∙∙∙O and C–H∙∙∙F intermolecular interactions. The 2D fingerprint of the total contacts in HS is illustrated in Figure 5. The major contributions to the total HS are H∙∙∙H interactions with 44.3%, which illustrates the 2D fingerprint of the (di, de) points related with H atoms in Figure 5. In Figure 5, two symmetrical wings on the left and right sides (21.9%) are shown on the graph of C∙∙∙H/H∙∙∙C interactions. In addition, there are O∙∙∙H/H∙∙∙O (15%), F∙∙∙H/H∙∙∙F (10.5%), and N∙∙∙H/H∙∙∙N (3.6%) contacts.

3.7. Frontier Molecular Orbitals (FMOs) Analysis

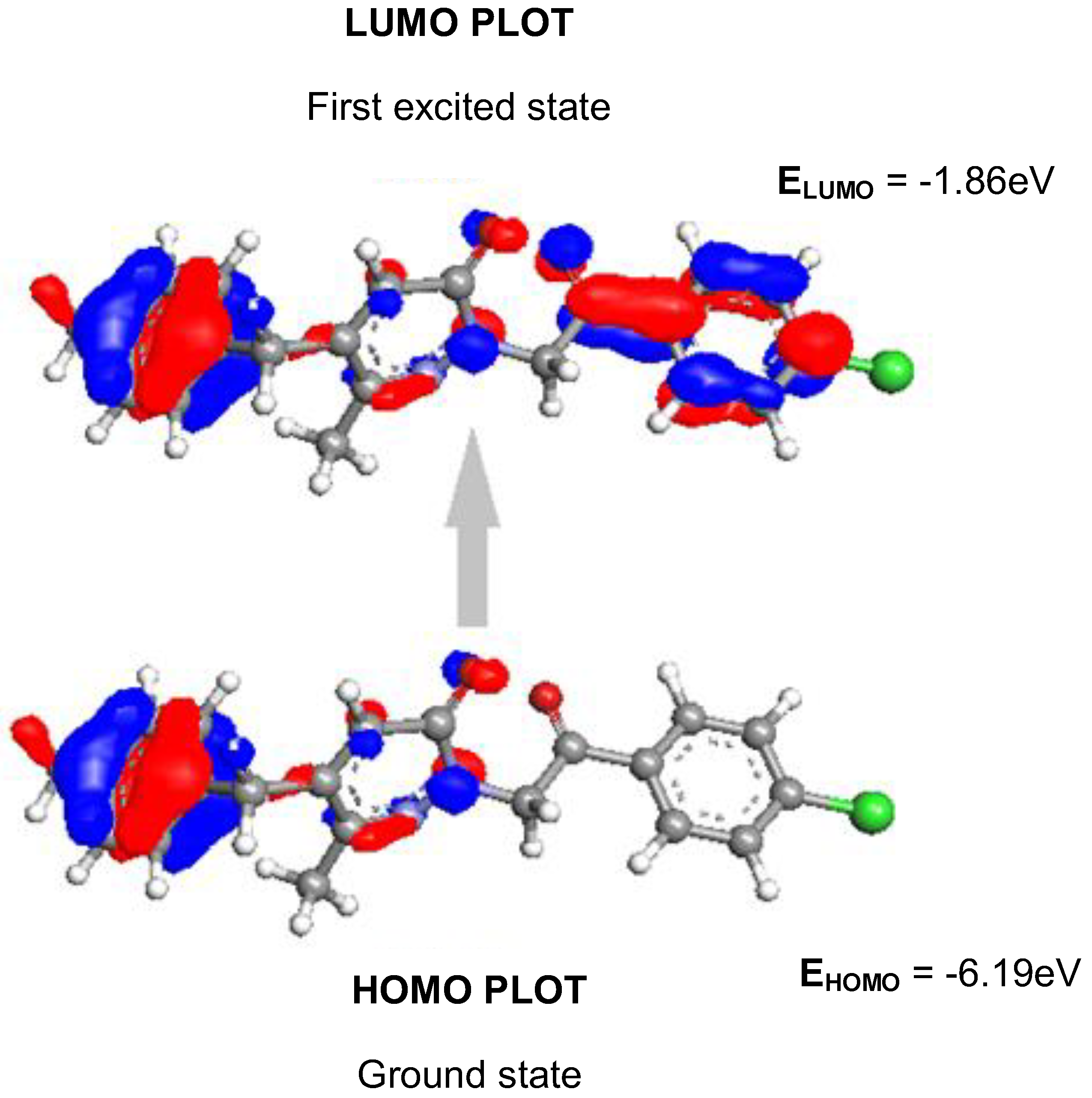

FMO analysis is suitable to attain details on the reactivity and stability associated with the title compound [54,55]. HOMO, LUMO energies, and the energy gap were −6.19, −1.863, and 4.327 eV, respectively, and are represented in Figure 6. The calculated energy values of FOMMP are seen in Table 3. A considerably low energy gap suggests chemical reactivity associated with FOMMP [56]. A hardness η of 2.164 eV defines the degree of resistance to the distortion in electronic configuration [57,58] in the molecule while an electronegativity χ calculated to be 4.027 eV explicates the affinity of the selected molecule towards electrons [59]. Compared with the available literature [60,61], it can, thus, be concluded that the η value in this molecule demonstrates that it is not a very hard molecule. This, in turn, is associated with greater reactivity due to an amplified sensitivity towards the transfer of charges [62]. In addition, the electrophilicity index ω (3.747 eV) falls in a region that suggests the title molecule is biologically active [63]. These reactivity and bioactivity descriptors behave as a precursor in scrutinizing the title compound further for its biological activity in terms of molecular docking.

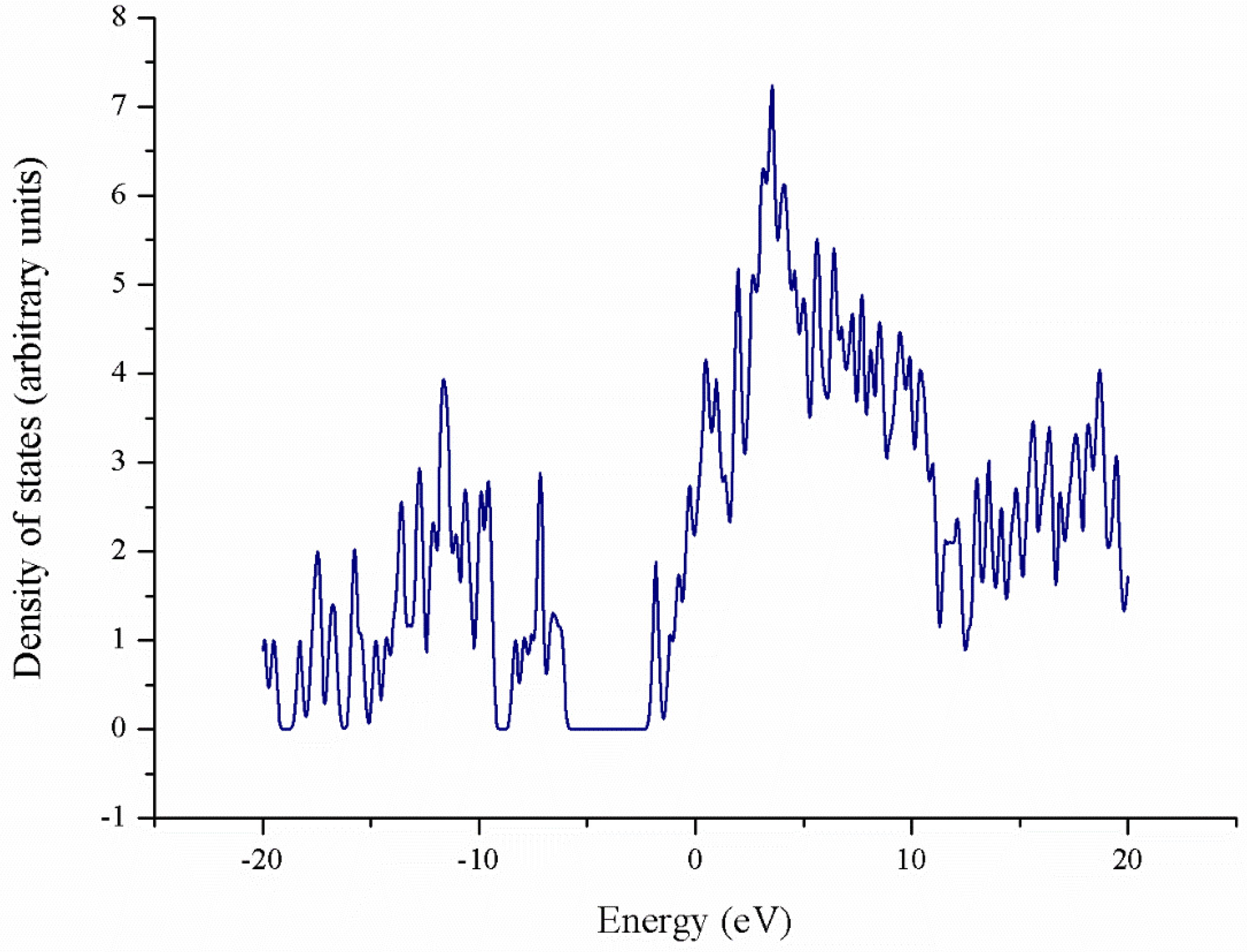

The DOS spectrum as seen in Figure 7 depicts the available states to be occupied by electrons for an energy range of −20 to 20 eV. The maximum number of states available to be occupied by electrons in the positive and negative domains corresponds to ≈11.5 eV and 3.5 eV along the negative and positive axes, respectively.

3.7.1. Charge Transfer and Excitation Analysis

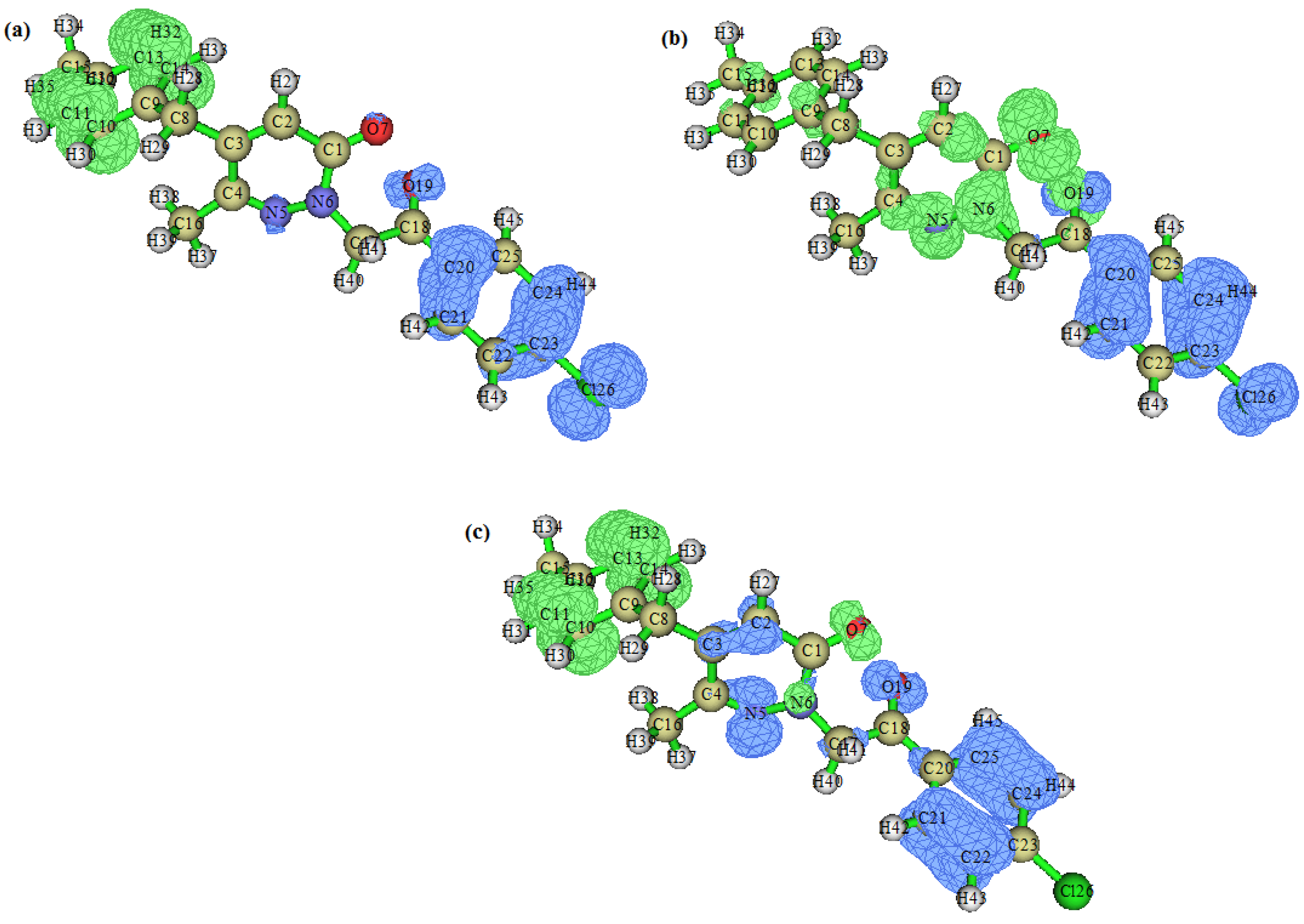

Details about D, S, and the excitation energy of the first three excited states: S1, S2, and S3, are presented in Table 4, while the electron–hole (represented by green–blue, respectively) distribution is represented in Figure 8. The value of Δr, which is the numerical gauge of the electron excitation mode [64] in the title molecule, was greater than 2 Å. This suggests that the molecule exhibits long-range excitations corresponding to all three excitation states. From Table 4, it can be seen that the largest value of D and the smallest value of S is for S1, thereby indicating a greater CT length. In all three excited states, the electron and hole distribution observed in terms of the RSMD of the electron and hole values was maximum along the X direction (refer Table 4). The extent of separation between holes and electrons represented by the t-index suggests that, if the ‘t’ value along any one direction is greater than zero, then sufficient spatial separation is present between holes and electrons [64]. In this molecule, the ‘t’ index was detected to be greater than zero along the X direction, thus indicating a hole–electron spatial separation. This observation was in concurrence with data attained in terms of D and S values. On visualizing the hole–electron spatial separations, all three states can be seen to show significant spatial separation (refer to Figure 7).

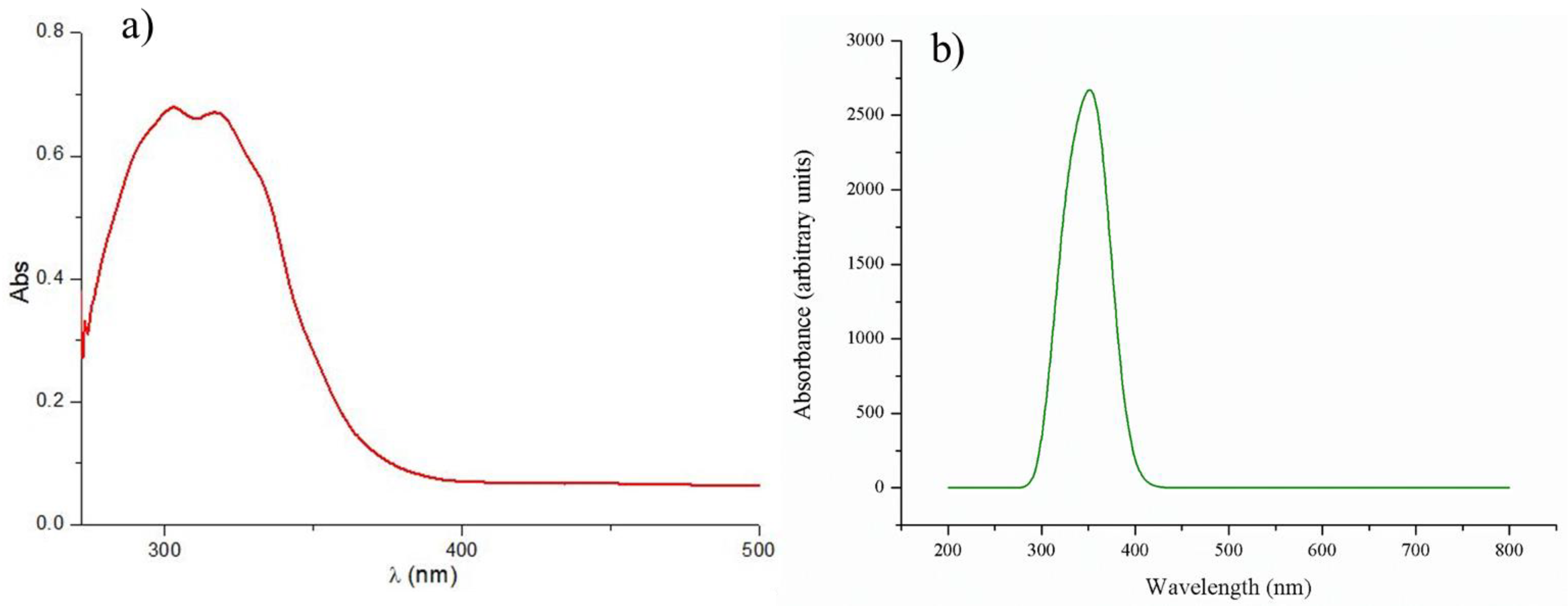

Absorption based on the first three excited states: S1, S2, and S3, in the solvent phase is summarized in Table 5, which helped in identifying the regions that are most responsible for excitations within the title molecule. The theoretically obtained UV spectrum in the solvent phase (DMSO) is shown in Figure 9. The excitation mode with the maximum absorption wavelength (λmax = 359.45 nm) was found to have oscillator strength (f = 0.0294).
The transition from HOMO to LUMO present in S1 has a bandgap of 3.452 eV in the solvent (DMSO) phase with a contribution of 77%. In the lower oscillator strength state, i.e., S2, details of transitions from HOMO to LUMO+1 and HOMO−2 to LUMO+1 are depicted with contributions of 31% and 54%, respectively. In S3, transitions from HOMO−2 to LUMO were seen to have a contribution of 53%, while HOMO−1 to LUMO showed a 30% contribution.

3.7.2. Natural Bond Orbital Analysis

The stabilization energies (E2) of the donor–acceptor interactions of the title compound FOMMP were studied (Table S1 in Supplementary Materials). The following transitions showed significantly high stabilization energies and are, thus, responsible for the stabilization of the structure:
  • π (C9–C10) transition to π* (C11–C12) and π* (C13–C14) has stabilization energies of 18.36 and 19.08 kJ/mol, respectively;
  • π (C11–C12) transition to π* (C9–C10) and π* (C13–C14) has stabilization energies of 20.39 and 18.68 kJ/mol, respectively;
  • π (C13–C14) transition to π* (C9–C10) and π* (C13–C14) has stabilization energies of 20.41 and 21.05 kJ/mol, respectively;
  • π (C20–C21) transition to π* (C22–C23) and π* (C24–C25) has stabilization energies of 18.35 and 20.27 kJ/mol, respectively;
  • π (C22–C23) transition to π* (C20–C21) and π* (C24–C25) has stabilization energies of 20.48 and 16.09 kJ/mol, respectively;
  • π (C24–C25) transition to π* (C20–C21) and π* (C22–C23) has stabilization energies of 17.83 and 23.12 kJ/mol, respectively.
The aforementioned transitions with high stabilization energies correspond to only six pairs of orbitals, namely, (C9–C10), (C11–C12), and (C13–C14), and (C20–C21), (C22–C23), and (C24–C25), which form the ring structures I and II, respectively. These values predict that FOMMP has intensive donor–acceptor interactions within the ring structure. A few prominently observed lone pair (LP) transitions are associated with the following:
  • LP(1) N5 transition to σ* (C3–C4) with stabilization energy of 10.64 kJ/mol;
  • LP(1) N6 transition to π* (C1–O7) and π* (C4–N5)with stabilization energy of 29.65 and 22.18 kJ/mol, respectively;
  • LP(2) O7 transition to σ* (C1–C2) and σ* (C1–N6)with stabilization energy of 20.05 and 27.22 kJ/mol, respectively;
  • LP(2) O19 transition to σ* (C17–C18) and σ* (C18–C20) with stabilization energy of 23 and 20.82 kJ/mol, respectively;
  • LP(2) F26 transition to σ* (C22–C23) and σ* (C23–C24) with stabilization energy of 7.22 and 7.15 kJ/mol, respectively;
  • LP(3) F26 transition to π* (C22–C23)with stabilization energy of 21.7 kJ/mol.
Besides analyzing the natural hybrid orbitals of the title molecule, it can be seen that, in bond orbitals corresponding to π (C9–C10), π (C11–C12), and π (C13–C14), and π (C20–C21), π (C22–C23), and π (C24–C25), which form the ring structures I and II, respectively, the bond hybrids have a near 100% p-character. In addition, orbitals π* (C9–C10), π* (C11–C12), π* (C13–C14), and π* (C20–C21), π* (C22–C23), and π* (C24–C25) have a near 100% p-character. Thus, transitions between the π to π* orbitals of these bonds present in the ring system are mainly defined by the p orbital-character (Table S2 in Supplementary Materials).

3.7.3. Electron Localization Function (ELF)

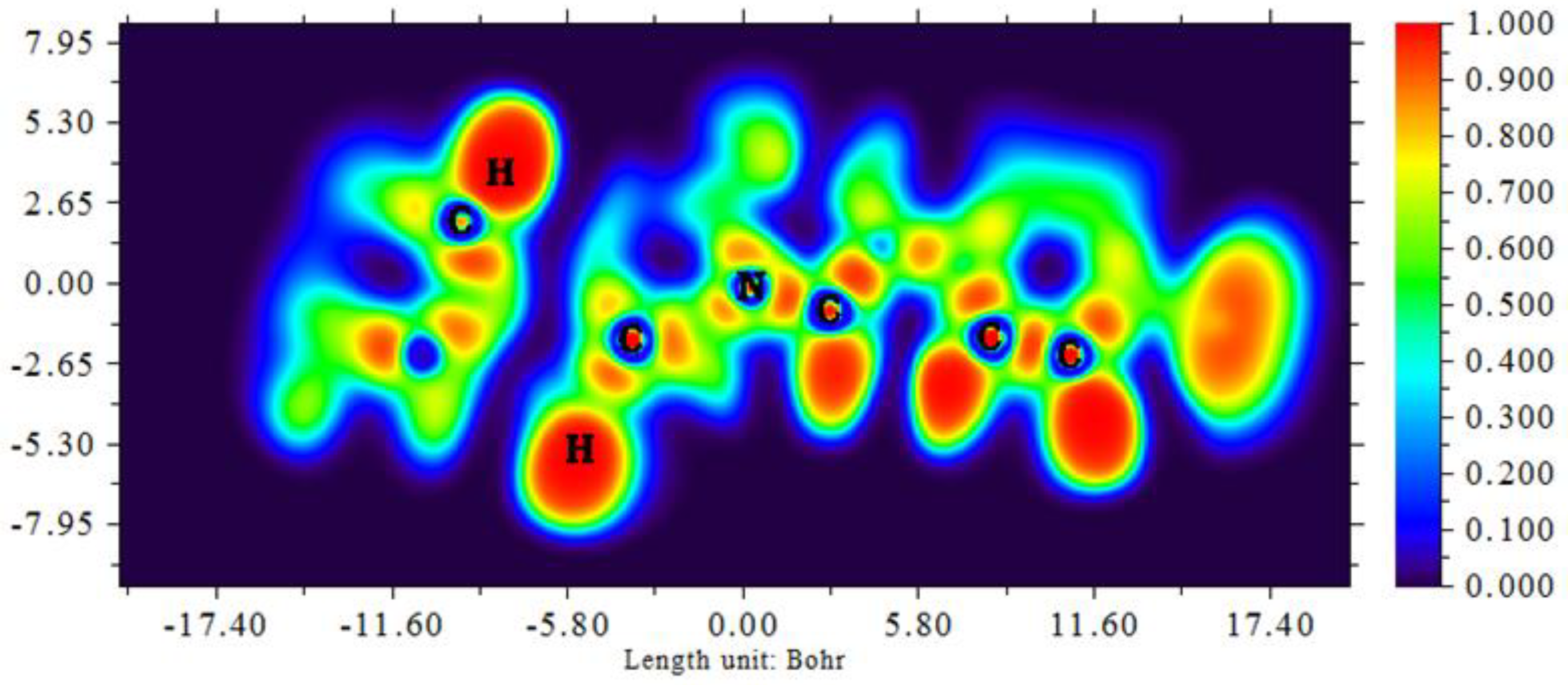

The ELF values can be characterized using the 2D representation shown in Figure 10. The regions represented in red are the regions of space where the probability of finding a single electron or opposite spin pair behavior is strong, with an ELF value close to 1, while the regions represented in blue are the regions where Pauli repulsion is minimal, with an ELF value close to 0. It was observed that high-value ELF (represented by the red region) occurs for the lighter hydrogen atoms in the ring system and the side chain [65]. By examining the ELF values of nitrogen, the blue areas represent the regions with the lowest values. The carbon atoms also had very low ELF values. The red region represents the location of the electrons in the carbon–carbon bonds in comparison to the electrons in the carbon–hydrogen bonds represented by the green region (Figure 10). The carbon–nitrogen bonds in the structure depicted localization characterized by substantial red regions.

3.7.4. Molecular Electrostatic Potential Analysis

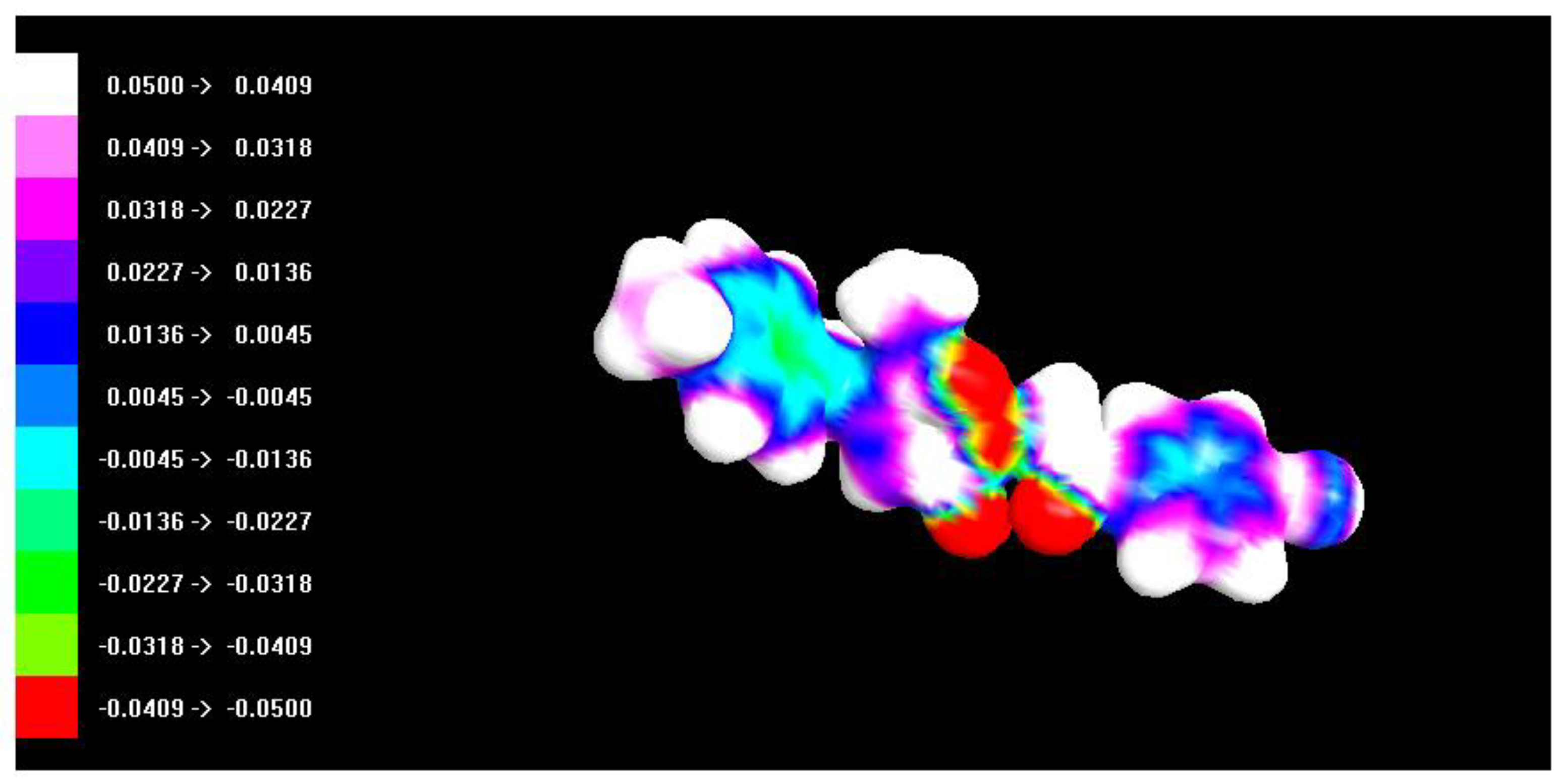

Site selectivity and reactivity analyses in terms of electrophilic and nucleophilic regions were conducted based on the 3D surfaces of MEP. This graphical representation reveals a repulsion region or a region of positive potential in blue, and the region of the negative potential of the title compound in red [66]. The red areas indicate electron-rich regions with negative values of the electrostatic potential. In the case of FOMMP, the most electronegative area is composed of nitrogen and oxygen atoms. The blue tones represent electron deficiency, which was observed in benzene ring I and II of the compound. The hydrogen and carbon atoms (focusing on areas of carbon) showed an area of higher electropositive behavior (Figure 11).

3.7.5. Molecular Docking and Drug-Likeness Studies

Calculating the drug-likeness parameters for a molecule helps identify its oral bioavailability and absorption rates. For drug candidates, the initial classification must take into account the famous Lipinski rule [67,68]. The AlogP in the case of the FOMMP represented in Table 6 is equal to 4.01, which is lower than the threshold of 5. This parameter helps indicate the lipophilicity/hydrophobicity of the title molecule, which suggests that FOMMP could be considered as a leading drug candidate. Other conditions were also satisfied, such as HBA and HBD, which must be 10 and 5, respectively. According to Ghose et al. [69], the PSA was lower than 140 Å2, molar refractivity was within the range of 40 and 130, and the number of rotatable bonds was also within the required range, further underlining the pharmaceutical potential of FOMMP.

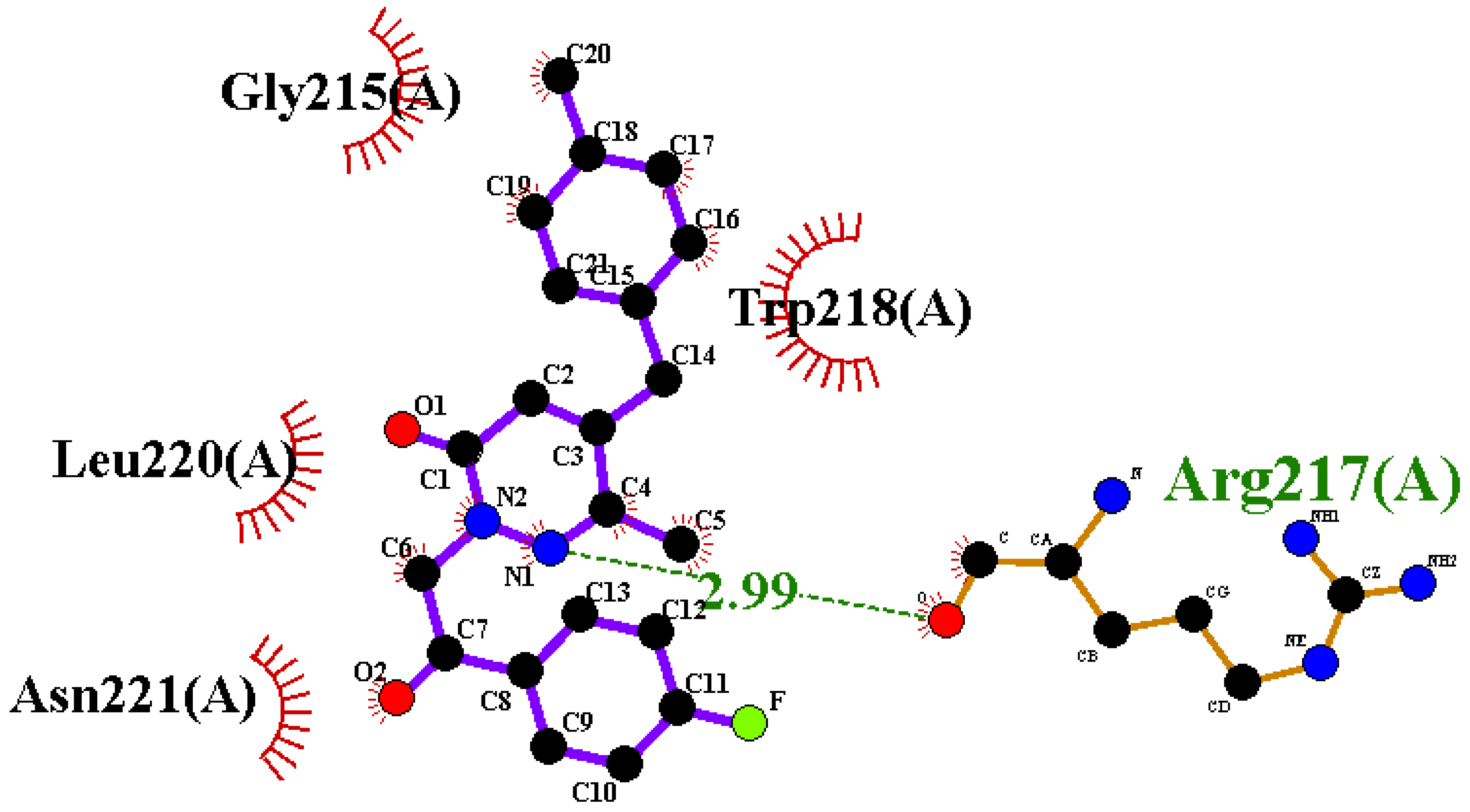

Docking aids in identifying the highest energy of the binding site of a ligand to its receptor in relation to the binding energy. The aim of this docking study was to determine the interaction modes of the title ligand (FOMMP) with the protein 5R82, i.e., SARS-CoV-2’s main protease with a cocrystallized structure, and thus investigate its potential as an antiviral drug [70].
The AutoDock software implements the Lamarckian genetic algorithm (LGA). The AGL is powerful because it adds local minimization to the genetic algorithm and, thus, allows the gene population to be modified. The binding free energy of the best conformation was estimated at −4.90 kcal/mol, and Table 7 shows the binding residues. The interaction modes diagram of the title ligand with the target receptor is shown in Figure 12 [71]. The ligand was embedded in the active site of the selected protein, and from the binding energy, we found that the ligand can bind easily with the desired protein to produce a postbinding effect.

4. Conclusions

In summary, a new pyridazin-3(2H)-one derivative, 2-(2-(4-fluorophenyl)-2-oxoethyl)-6-methyl-5-(4-methylbenzyl)pyridazin-3(2H)-one (FOMMP), was synthesized and characterized using experimental techniques involving FT-IR, UV-Vis, 1H-NMR, 13C-NMR, ESI-MS, and single-crystal X-ray diffraction analysis and theoretical techniques involving DFT and molecular docking analysis. From the FMO analysis, the η value showed that it is not a very hard molecule and, thus, is associated with greater reactivity. The ω value in this molecule falls in a region that suggests it is biologically active. The theoretically attained UV-spectrum in the solvent phase shows the excitation mode with a maximum absorption wavelength corresponding to 359.45 nm. According to MEP, nitrogen and oxygen were identified as the most significant reactive centers. Transitions with high stabilization energies correspond to orbitals (C9–C10), (C11–C12), and (C13–C14), and (C20–C21), (C22–C23), and (C24–C25), which form the ring structures I and II, respectively. In addition, the molecular docking results ascertained the binding relationship between the FOMMP and protein 5R82. Thus, it was indicated that FOMMP could be exploited as an excellent target to develop drugs against COVID-19 by targeting SARS-CoV-2’s main protease.

Supplementary Materials

The following supporting information can be downloaded at:, Figure S1: 1H-NMR spectrum of FOMMP; Figure S2: 13C-NMR spectrum of FOMMP; Figure S3: ESI-MS spectrum of FOMMP; Table S1: Second-order perturbation theory analysis of Fock matrix in NBO basis of FOMMP; Table S2: Hybrid, polarization coefficient, and atomic orbital contribution in selected natural bond orbitals of FOMMP.

Author Contributions

Conceptualization, F.E.K.; methodology, F.E.K. and C.S.A.; software, C.S.A.; formal analysis, S.K. and N.D.; resources, A.O.; writing—original draft preparation, K.K., C.S.A. and S.K.; visualization, S.M. and J.C.P.; writing—review and editing, K.K., H.A.A. and R.A.-S.; funding acquisition, H.A.A. and R.A.-S.; supervision, N.B. All authors have read and agreed to the published version of the manuscript.


This research received funding from Researchers Supporting Project at King Saud University (Grant code RSPD2023R566).

Data Availability Statement

CCDC 1960994 contain the supplementary crystallographic data for this compound, and can be obtained free of charge from the Cambridge Crystallographic Data Centre via


The authors extend their appreciation to the Researchers Supporting Project, King Saud University, Riyadh, Saudi Arabia for funding this work through grant number RSPD2023R566. This work has been supported by Ondokuz Mayıs University and Mohammed I University of Oujda.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Flefel, E.M.; Tantawy, W.A.; El-Sofany, W.I.; El-Shahat, M.; El-Sayed, A.A.; Abd-Elshafy, D.N. Synthesis of some new pyridazine derivatives for anti-HAV evaluation. Molecules 2017, 22, 148. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Li, D.; Zhan, P.; Liu, H.; Pannecouque, C.; Balzarini, J.; De Clercq, E.; Liu, X. Synthesis and biological evaluation of pyridazine derivatives as novel HIV-1 NNRTIs. Bioorg. Med. Chem. 2013, 21, 2128–2134. [Google Scholar] [CrossRef] [PubMed]
  3. Singh, B.; Bhatia, R.; Pani, B.; Gupta, D. Synthesis, crystal structures and biological evaluation of new pyridazine derivatives. J. Mol. Struct. 2020, 1200, 127084. [Google Scholar] [CrossRef]
  4. Daoui, S.; Direkel, Ş.; Ibrahim, M.M.; Tüzün, B.; Chelfi, T.; Al-Ghorbani, M.; Karrouchi, K. Synthesis, Spectroscopic Characterization, Antibacterial Activity, and Computational Studies of Novel Pyridazinone Derivatives. Molecules 2023, 28, 678. [Google Scholar] [CrossRef]
  5. Mantu, D.; Luca, M.C.; Moldoveanu, C.; Zbancioc, G.; Mangalagiu, I.I. Synthesis and antituberculosis activity of some new pyridazine derivatives. Part II. Eur. J. Med. Chem. 2010, 45, 5164. [Google Scholar] [CrossRef] [PubMed]
  6. Ahmed, E.M.; Kassab, A.E.; El-Malah, A.A.; Hassan, M.S. Synthesis and biological evaluation of pyridazinone derivatives as selective COX-2 inhibitors and potential anti-inflammatory agents. Eur. J. Med. Chem. 2019, 171, 25–37. [Google Scholar] [CrossRef]
  7. Barberot, C.; Moniot, A.; Allart-Simon, I.; Malleret, L.; Yegorova, T.; Laronze-Cochard, M.; Gérard, S. Synthesis and biological evaluation of pyridazinone derivatives as potential anti-inflammatory agents. Eur. J. Med. Chem. 2018, 146, 139–146. [Google Scholar] [CrossRef]
  8. Rafi, U.M.; Mahendiran, D.; Devi, V.G.; Doble, M.; Rahiman, A.K. Pyridazine-based heteroleptic copper (II) complexes as potent anticancer drugs by inducing apoptosis and S-phase arrest in breast cancer cell. Inorg. Chim. Acta 2018, 482, 160–169. [Google Scholar] [CrossRef]
  9. Livermore, D.G.; Bethell, R.C.; Cammack, N.; Hancock, A.P.; Hann, M.M.; Green, D.V.; Orr, D.C. Synthesis and anti-HIV-1 activity of a series of imidazo [1, 5-b] pyridazines. J. Med. Chem. 1993, 36, 3784–3794. [Google Scholar] [CrossRef]
  10. Zerroug, A.; Belaidi, S.; BenBrahim, I.; Sinha, L.; Chtita, S. Virtual screening in drug-likeness and structure/activity relationship of pyridazine derivatives as Anti-Alzheimer drugs. J. King Saud Univ. Sci. 2018, 31, 595–601. [Google Scholar] [CrossRef]
  11. Demirayak, S.; Karaburun, A.C.; Beis, R. Some pyrrole substituted aryl pyridazinone and phthalazinone derivatives and their antihypertensive activities. Eur. J. Med. Chem. 2004, 39, 1089–1095. [Google Scholar] [CrossRef]
  12. Partap, S.; Akhtar, M.J.; Yar, M.S.; Hassan, M.Z.; Siddiqui, A.A. Pyridazinone hybrids: Design, synthesis and evaluation as potential anticonvulsant agents. Bioorg. Chem. 2018, 77, 74–83. [Google Scholar] [CrossRef]
  13. Jacomini, A.P.; da Silva, M.J.; Poletto, J.; Ribeiro, G.M.; Yokoyama, J.T.; Bidóia, D.L.; Rosa, F.A. Potential antileishmanial activity of 4-N-Acylhydrazone Pyrazolo [3, 4-d] pyridazin-7-ones: Synthesis, in vitro biological evaluations and computational studies. J. Braz. Chem. Soc. 2018, 29, 2657–2668. [Google Scholar] [CrossRef]
  14. Lümmen, P. Complex I inhibitors as insecticides and acaricides. Biochim. Biophys. Acta Bioenerg. 1998, 1364, 287–296. [Google Scholar] [CrossRef] [Green Version]
  15. Dekeyser, M.A. Acaricide mode of action. Pest. Manag. Sci. 2005, 61, 103–110. [Google Scholar] [CrossRef]
  16. Weissmuller, J.; Tietjen, K.G.; Stendel, W.; Wachendorff-Neumann, U. U.S. Patent No. 5,004,744, CI. 514-247.000; U.S. Patent and Trademark Office: Washington, DC, USA, 1991.
  17. Asif, M. Antifeedant, herbicidal and molluscicidal activities of pyridazinone compounds. Mini-Rev. Org. Chem. 2013, 10, 113–122. [Google Scholar] [CrossRef]
  18. Abraham, C.S.; Prasana, J.C.; Muthu, S. Quantum mechanical, spectroscopic and docking studies of 2-amino-3-bromo-5-nitropyridine by density functional method. Spectrochim. Acta A 2017, 181, 153–163. [Google Scholar] [CrossRef]
  19. Pillai, R.R.; Karrouchi, K.; Fettach, S.; Armaković, S.; Armaković, S.J.; Brik, Y.; Faouzi, M.E.A. Synthesis, spectroscopic characterization, reactive properties by DFT calculations, molecular dynamics simulations and biological evaluation of Schiff bases tethered 1, 2, 4-triazole and pyrazole rings. J. Mol. Struct. 2019, 1177, 47–54. [Google Scholar] [CrossRef]
  20. Tighadouini, S.; Radi, S.; Abrigach, F.; Benabbes, R.; Eddike, D.; Tillard, M. Novel β-keto–enol pyrazolic compounds as potent antifungal agents. Design, synthesis, crystal structure, DFT, homology modeling, and docking studies. J. Chem. Inf. Model. 2019, 59, 1398–1409. [Google Scholar] [CrossRef]
  21. Karrouchi, K.; Yousfi, E.B.; Sebbar, N.K.; Ramli, Y.; Taoufik, J.; Ouzidan, Y.; Radi, S. New pyrazole-hydrazone derivatives: X-ray analysis, molecular structure investigation via density functional theory (DFT) and their high in-situ catecholase activity. Int. J. Mol. Sci. 2017, 18, 2215. [Google Scholar] [CrossRef] [Green Version]
  22. Abraham, C.S.; Muthu, S.; Prasana, J.C.; Rizwana, B.F.; Armaković, S.; Armaković, S.J. Vibrational and electronic absorption spectroscopic profiling, natural hybrid orbital, charge transfer, electron localization function and molecular docking analysis on 3-amino-3-(2-nitrophenyl) propionic acid. J. Mol. Struct. 2018, 1171, 733–746. [Google Scholar] [CrossRef]
  23. Abraham, C.S.; Muthu, S.; Prasana, J.C.; Armaković, S.J.; Armaković, S.; AS, B.G. Spectroscopic profiling (FT-IR, FT-Raman, NMR and UV-Vis), autoxidation mechanism (H-BDE) and molecular docking investigation of 3-(4-chlorophenyl)-N, N-dimethyl-3-pyridin-2-ylpropan-1-amine by DFT/TD-DFT and molecular dynamics: A potential SSRI drug. Comput. Biol. Chem. 2018, 77, 131–145. [Google Scholar] [CrossRef] [PubMed]
  24. Bouzian, Y.; Karrouchi, K.; Sert, Y.; Lai, C.H.; Mahi, L.; Ahabchane, N.H.; Essassi, E.M. Synthesis, spectroscopic characterization, crystal structure, DFT, molecular docking and in vitro antibacterial potential of novel quinoline derivatives. J. Mol. Struct. 2020, 1209, 127940. [Google Scholar] [CrossRef]
  25. El Kalai, F.; Çınar, E.B.; Lai, C.H.; Daoui, S.; Chelfi, T.; Allali, M.; Benchat, N. Synthesis, spectroscopy, crystal structure, TGA/DTA study, DFT and molecular docking investigations of (E)-4-(4-methylbenzyl)-6-styrylpyridazin-3 (2H)-one. J. Mol. Struct. 2021, 1228, 12943. [Google Scholar] [CrossRef]
  26. Daoui, S.; Faizi, M.S.H.; Kalai, F.E.; Saddik, R.; Dege, N.; Karrouchi, K.; Benchat, N. Crystal structure and the DFT and MEP study of 4-benzyl-2-[2-(4-fluorophenyl)-2-oxoethyl]-6-phenylpyridazin-3 (2H)-one. Acta Cryst. 2019, E75, 1030. [Google Scholar] [CrossRef] [Green Version]
  27. El Kalai, F.; Baydere, C.; Daoui, S.; Saddik, R.; Dege, N.; Karrouchi, K.; Benchat, N. Crystal structure and Hirshfeld surface analysis of ethyl 2-[5-(3-chlorobenzyl)-6-oxo-3-phenyl-1, 6-dihydropyridazin-1-yl] acetate. Acta Cryst. 2019, E75, 892–895. [Google Scholar] [CrossRef]
  28. Dadou, S.; Kansiz, S.; Daoui, S.; El Kalai, F.; Baydere, C.; Saddik, R.; Benchat, N. Crystal structures and Hirshfeld surface analyses of 4-benzyl-6-phenyl-4, 5-dihydropyridazin-3 (2H)-one and methyl 2-[5-(2, 6-dichlorobenzyl)-6-oxo-3-phenyl-1, 4, 5, 6-tetrahydropyridazin-1-yl] acetate. Acta Cryst. 2019, E75, 1679–1684. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. El Kalai, F.; Chelfi, T.; Benchat, N.; Bouklah, M.; Daoui, S.; Karrouchi, K.; Ben Hadda, T. New heterocyclic compounds based on pyridazinones scaffold as efficient inhibitor of corrosion of mild steel in acidic solution 1 M HCl. J. Bio-Tribo-Corros. 2020, 6, 89. [Google Scholar] [CrossRef]
  30. Bruker. APEX3, SAINT, SADABS & SHELXTL; Bruker AXS, Inc.: Madison, WI, USA, 2016. [Google Scholar]
  31. Sheldrick, G.M. SHELXT–Integrated space-group and crystal-structure determination. Acta Cryst. 2015, A71, 3–8. [Google Scholar] [CrossRef] [Green Version]
  32. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Cryst. 2015, C71, 3–8. [Google Scholar]
  33. Brandenburg, K.; Berndt, M. DIAMOND; Crystal Impact GbR: Bonn, Germany, 2012. [Google Scholar]
  34. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Montgomery, J.A., Jr.; Vreven, T.; Kudin, K.N.; Burant, J.C.; et al. Gaussian 09, Revision E.01; Gaussian, Inc: Wallingford, CT, USA, 2004. [Google Scholar]
  35. Becke, A. Density-functional thermochemistry. III. The role of exact exchange. J. Chem. Phys. 1993, 98, 5648–5656. [Google Scholar] [CrossRef] [Green Version]
  36. O’boyle, N.M.; Tenderholt, A.L.; Langner, K.M. Cclib: A library for package-independent computational chemistry algorithms. J. Comp. Chem. 2008, 29, 839–845. [Google Scholar] [CrossRef]
  37. Schrödinger Release 2018-1: Maestro; Schrödinger, LLC: New York, NY, USA, 2018.
  38. Sanner, M.F. Python: A programming language for software integration and development. J. Mol. Graph. Mod. 1999, 17, 57. [Google Scholar]
  39. Stoe, C. X-AREA (Version 1.18) and X-RED (Version 1.04); Stoe & Cie: Darmstadt, Germany, 2002. [Google Scholar]
  40. Bak, B.; Christensen, D.; Dixon, W.B.; Hansen-Nygaard, L.; Rastrup-Andersen, J. Benzene ring distortion by one substituent. microwave determination of the complete structure of benzonitrile. J. Chem. Phys. 1962, 37, 2027. [Google Scholar] [CrossRef]
  41. Bailey, A.S.; Prout, C.K. 899. Molecular complexes. Part III. The crystal and molecular structure of the 1:2 molecular compound of bis-8-hydroxyquinolinatocopper (II) and picryl azide. J. Chem. Soc 1965, 4867–4881. [Google Scholar] [CrossRef]
  42. Schomaker, V.T.; Pauling, L. The electron diffraction investigation of the structure of benzene, pyridine, pyrazine, butadiene-1, 3, cyclopentadiene, furan, pyrrole, and thiophene. J. Am. Chem. Soc. 1939, 61, 1769. [Google Scholar] [CrossRef]
  43. James, M.N.G.; Williams, G.J.B. Structural studies of histamine H1 effector molecules: The crystal structure of the antihistamine drug (+)-chlorpheniramine maleate;[(+)-S-1-(p-chlorophenyl)-1-(2-pyridyl)-3-N, N-dimethylpropylamine maleate]. J. Chem. 1974, 52, 1872–1879. [Google Scholar] [CrossRef]
  44. Srinivasan, R. On the method of least squares as applied to the refinement of crystal structures. Acta Cryst. 1961, 14, 1163–1167. [Google Scholar] [CrossRef]
  45. Karrouchi, K.; Brandán, S.A.; Sert, Y.; El-Marzouqi, H.; Radi, S.; Ferbinteanu, M.; Garcia, Y. Synthesis, X-ray structure, vibrational spectroscopy, DFT, biological evaluation and molecular docking studies of (E)-N′-(4-(dimethylamino) benzylidene)-5-methyl-1H-pyrazole-3-carbohydrazide. J. Mol. Struct. 2020, 1219, 128541. [Google Scholar] [CrossRef]
  46. Karrouchi, K.; Brandán, S.A.; Sert, Y.; El Karbane, M.; Radi, S.; Ferbinteanu, M.; Garcia, Y. Synthesis, structural, molecular docking and spectroscopic studies of (E)-N′-(4-methoxybenzylidene)-5-methyl-1H-pyrazole-3-carbohydrazide. J. Mol. Struct. 2021, 1225, 129072. [Google Scholar] [CrossRef]
  47. Karrouchi, K.; Brandán, S.A.; Hassan, M.; Bougrin, K.; Radi, S.; Ferbinteanu, M.; Garcia, Y. Synthesis, X-ray, spectroscopy, molecular docking and DFT calculations of (E)-N′-(2, 4-dichlorobenzylidene)-5-phenyl-1H-pyrazole-3-carbohydrazide. J. Mol. Struct. 2021, 1228, 129714. [Google Scholar] [CrossRef]
  48. Karrouchi, K.; Fettach, S.; Jotani, M.M.; Sagaama, A.; Radi, S.; Ghabbour, H.A.; Issaoui, N. Synthesis, crystal structure, hirshfeld surface analysis, DFT calculations, anti-diabetic activity and molecular docking studies of (E)-N′-(5-bromo-2-hydroxybenzylidene) isonicotinohydrazide. J. Mol. Struct. 2020, 1221, 128800. [Google Scholar] [CrossRef]
  49. Daoui, S.; Baydere, C.; Akman, F.; El Kalai, F.; Mahi, L.; Dege, N.; Benchat, N. Synthesis, X-ray crystallography, vibrational spectroscopy, thermal and DFT studies of (E)-6-(4-methylstyryl)-4, 5-dihydropyridazin-3 (2H)-one. J. Mol. Struct. 2021, 1225, 129180. [Google Scholar] [CrossRef]
  50. El Kalai, F.; Karrouchi, K.; Baydere, C.; Daoui, S.; Allali, M.; Dege, N.; Brandan, S.A. Synthesis, crystal structure, spectroscopic studies, NBO, AIM and SQMFF calculations of new pyridazinone derivative. J. Mol. Struct. 2021, 1223, 129213. [Google Scholar] [CrossRef]
  51. Spackman, M.A.; Byrom, P.G. A novel definition of a molecule in a crystal. Chem. Phys. Lett. 1997, 267, 215–2020. [Google Scholar] [CrossRef]
  52. Demircioğlu, Z.; Kaştaş, G.; Kaştaş, Ç.A.; Frank, R. Spectroscopic, XRD, Hirshfeld surface and DFT approach (chemical activity, ECT, NBO, FFA, NLO, MEP, NPA& MPA) of (E)-4-bromo-2-[(4-bromophenylimino) methyl]-6-ethoxyphenol. J. Mol. Struct. 2019, 1191, 129–137. [Google Scholar]
  53. Uzun, S.; Demircioğlu, Z.; Taşdoğan, M.; Ağar, E. Quantum chemical and X-ray diffraction studies of (E)-3-(((3, 4-dimethoxybenzyl) imino) methyl) benzene-1, 2-diol. J. Mol. Struct. 2020, 1206, 127749. [Google Scholar] [CrossRef]
  54. Padmaja, L.; Ravikumar, C.; Sajan, D.; Joe, I.H.; Jayakumar, V.S.; Pettit, G.R.; Neilsen, F.O. Density functional study on the structural conformations and intramolecular charge transfer from the vibrational spectra of the anticancer drug combretastatin-A2. J. Raman. Spectrosc. 2020, 40, 419–428. [Google Scholar] [CrossRef]
  55. Ravikumar, C.; Joe, I.H.; Jayakumar, V.S. Charge transfer interactions and nonlinear optical properties of push–pull chromophore benzaldehyde phenylhydrazone: A vibrational approach. Chem. Phys. Lett. 2008, 460, 552–558. [Google Scholar] [CrossRef]
  56. Zhou, Z.; Parr, R.G. Activation hardness: New index for describing the orientation of electrophilic aromatic substitution. J. Am. Chem. Soc. 1990, 112, 5720–5724. [Google Scholar] [CrossRef]
  57. Pearson, R.G. Recent advances in the concept of hard and soft acids and bases. J. Chem. Ed. 1987, 64, 561. [Google Scholar] [CrossRef]
  58. Parr, R.G.; Yang, W. Density Functional Theory of Atoms and Molecules; Oxford University Press: Oxford, UK, 1989. [Google Scholar]
  59. Yang, W.; Parr, R.G. Hardness, softness, and the fukui function in the electronic theory of metals and catalysis. Proc. Natl. Acad. Sci. USA 1985, 82, 6723–6726. [Google Scholar] [CrossRef] [PubMed]
  60. Parr, R.G.; Pearson, R.G. Absolute hardness: Companion parameter to absolute electronegativity. J. Am. Chem. Soc. 1983, 105, 7512–7516. [Google Scholar] [CrossRef]
  61. Kovačević, N.; Kokalj, A. Analysis of molecular electronic structure of imidazole-and benzimidazole-based inhibitors: A simple recipe for qualitative estimation of chemical hardness. Corros. Sci. 2011, 53, 909–921. [Google Scholar] [CrossRef]
  62. Geerlings, P.; De Proft, F.; Langenaeker, W. Conceptual density functional theory. Chem. Rev. 2003, 103, 1793–1874. [Google Scholar] [CrossRef]
  63. Parthasarathi, R.; Subramanian, V.; Roy, D.R.; Chattaraj, P.K. Electrophilicity index as a possible descriptor of biological activity. Bioorg. Med. Chem. 2004, 12, 5533. [Google Scholar] [CrossRef]
  64. Guido, C.A.; Cortona, P.; Mennucci, B.; Adamo, C. On the metric of charge transfer molecular excitations: A simple chemical descriptor. J. Chem. Theory Comput. 2013, 9, 3118–3126. [Google Scholar] [CrossRef]
  65. Mandal, S.; Nandi, S.; Anoop, A.; Chattaraj, P.K. Viability of aromatic all-pnictogen anions. Phys. Chem. Chem. Phys. 2016, 18, 11738–11745. [Google Scholar] [CrossRef]
  66. Williams, D.E. Comprehensive Chemical Kinetics. Rev. Comp. Chem. 1991, 2, 226. [Google Scholar]
  67. Lipinski, C.A.; Lombardo, F.; Dominy, B.W.; Feeney, P.J. Experimental and computational approaches to estimate solubility and permeability in drug discovery and development settings. Adv. Drug Deliv. Rev. 1997, 23, 4–17. [Google Scholar] [CrossRef]
  68. Lipinski, C.A. Lead-and drug-like compounds: The rule-of-five revolution. Drug Discov. Today Technol. 2004, 1, 337–341. [Google Scholar] [CrossRef] [PubMed]
  69. Ghose, A.K.; Viswanadhan, V.N.; Wendoloski, J.J. A knowledge-based approach in designing combinatorial or medicinal chemistry libraries for drug discovery. 1. A qualitative and quantitative characterization of known drug databases. J. Comb. Chem. 1999, 1, 55. [Google Scholar] [CrossRef] [PubMed]
  70. Fearon, D.; Powell, A.J.; Douangamath, A.; Protein Data Bank. PanDDA Analysis Group Deposition—Crystal Structure of COVID-19 Main Protease in Complex with Z219104216; Protein Data Bank Japan: Suita, Japan, 2020. [Google Scholar]
  71. Wallace, A.C.; Laskowski, R.A.; Thornton, J.M. LIGPLOT: A program to generate schematic diagrams of protein-ligand interactions. Protein Eng. 1995, 8, 127–134. [Google Scholar] [CrossRef] [PubMed]

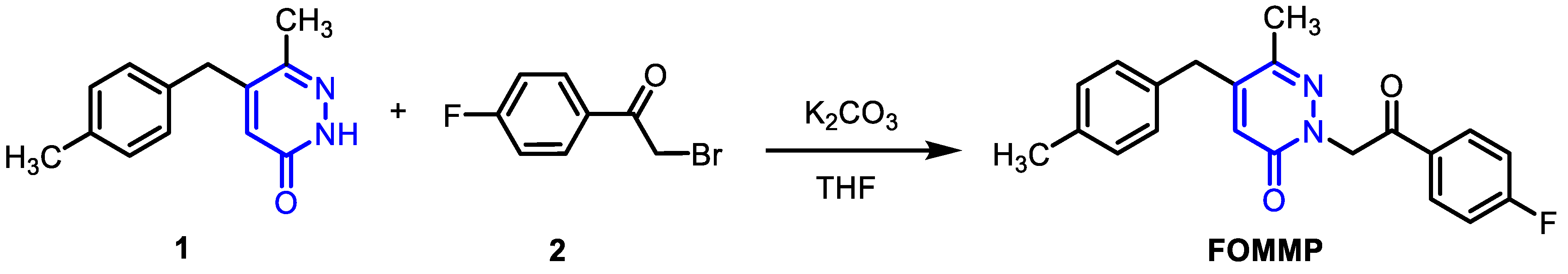

Scheme 1. Synthetic route for the preparation of FOMMP.
Scheme 1. Synthetic route for the preparation of FOMMP.
Crystals 13 01098 sch001

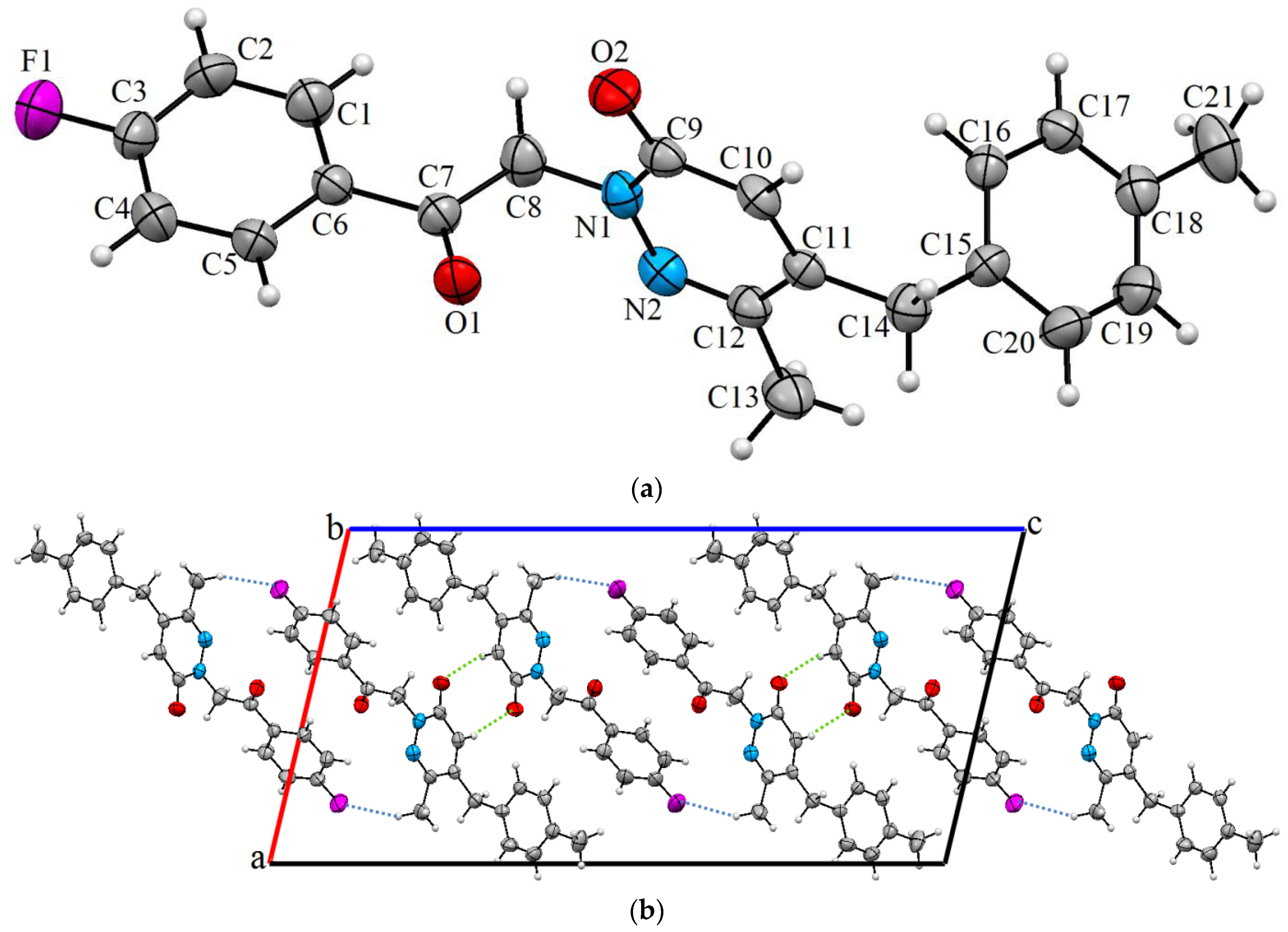

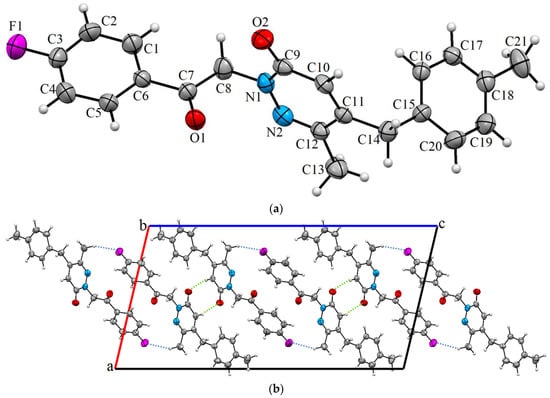

Figure 1. (a) Molecular structure of FOMMP. (b) A partial view of the crystal packing of FOMMP along the b-axis direction. Blue dashed lines denote the intermolecular C–H···F hydrogen bonds and green ones denote C–H···O hydrogen bonds.
Figure 1. (a) Molecular structure of FOMMP. (b) A partial view of the crystal packing of FOMMP along the b-axis direction. Blue dashed lines denote the intermolecular C–H···F hydrogen bonds and green ones denote C–H···O hydrogen bonds.
Crystals 13 01098 g001

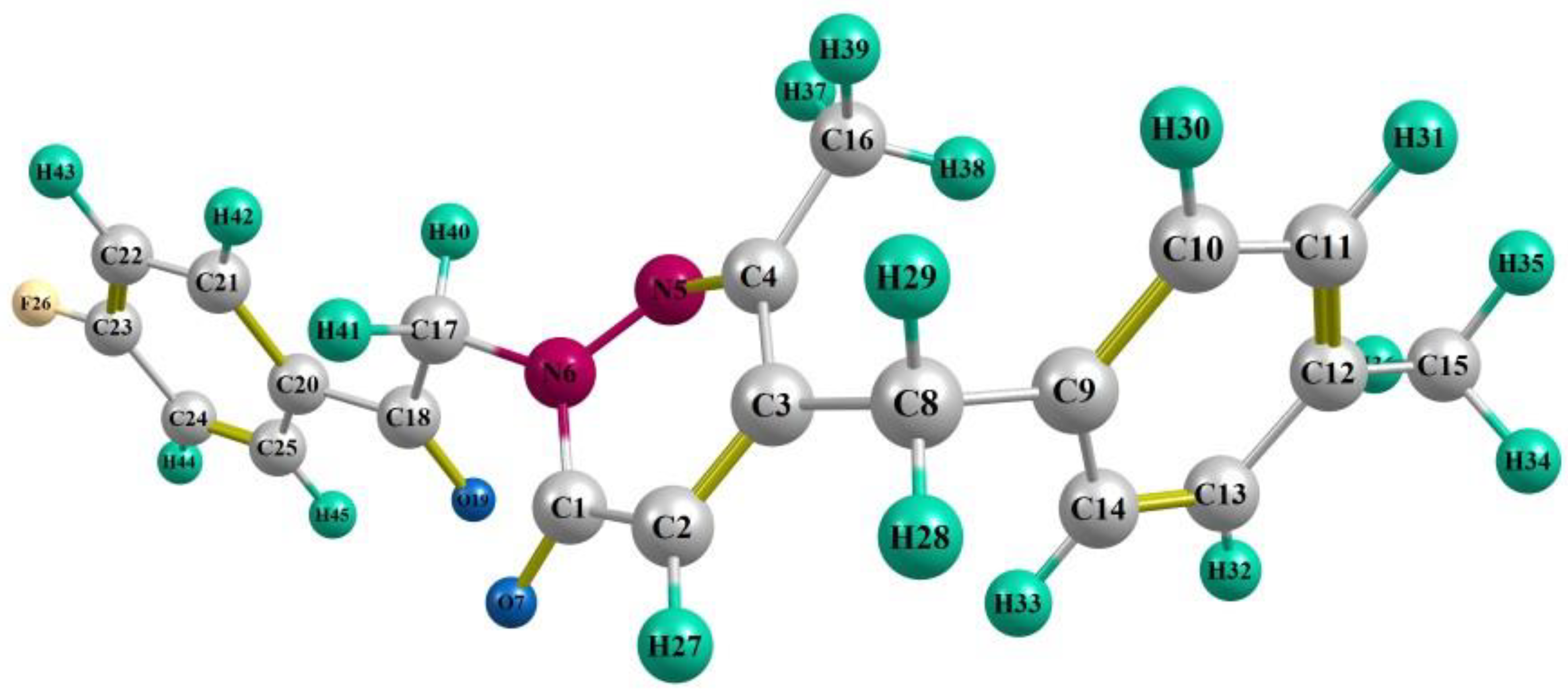

Figure 2. Optimized structure of FOMMP.
Figure 2. Optimized structure of FOMMP.
Crystals 13 01098 g002
Figure 3. FT-IR spectrum of FOMMP.
Figure 3. FT-IR spectrum of FOMMP.
Crystals 13 01098 g003
Figure 4. dnorm mapped on HS for the intercontacts of FOMMP.
Figure 4. dnorm mapped on HS for the intercontacts of FOMMP.
Crystals 13 01098 g004
Figure 5. Finger plots of FOMMP.
Figure 5. Finger plots of FOMMP.
Crystals 13 01098 g005
Figure 6. Frontier molecular orbital depiction of FOMMP.
Figure 6. Frontier molecular orbital depiction of FOMMP.
Crystals 13 01098 g006
Figure 7. Calculated DOS of FOMMP.
Figure 7. Calculated DOS of FOMMP.
Crystals 13 01098 g007
Figure 8. Electron–hole distribution for excited states (a) S1, (b) S2, and (c) S3 of FOMMP (represented as green and blue isosurfaces, respectively).
Figure 8. Electron–hole distribution for excited states (a) S1, (b) S2, and (c) S3 of FOMMP (represented as green and blue isosurfaces, respectively).
Crystals 13 01098 g008
Figure 9. Experimental (a) end simulated (b) UV-Vis absorption spectra of FOMMP.
Figure 9. Experimental (a) end simulated (b) UV-Vis absorption spectra of FOMMP.
Crystals 13 01098 g009
Figure 10. Color-filled ELF map of FOMMP in the molecular plane.
Figure 10. Color-filled ELF map of FOMMP in the molecular plane.
Crystals 13 01098 g010
Figure 11. MEP plot of FOMMP.
Figure 11. MEP plot of FOMMP.
Crystals 13 01098 g011
Figure 12. FOMMP embedded in the active site of 5R82 protein (3D representation).
Figure 12. FOMMP embedded in the active site of 5R82 protein (3D representation).
Crystals 13 01098 g012
Table 2. Hydrogen bond geometry (Å, °) for FOMMP.
Table 2. Hydrogen bond geometry (Å, °) for FOMMP.
C10–H10···O2 i0.932.593.496(8)
C8–H8A···O1 ii0.972.623.543(9)
C13–H13B···F1 iii0.962.463.357(6)
Symmetry codes: (i) −x + 1, y−1/2, −z + 3/2; (ii) x, y + 1, z; (iii) −x + 1, −y + 1, −z + 1.
Table 3. Calculated energy values of FOMMP.
Table 3. Calculated energy values of FOMMP.
Energy (eV)−6.19−1.8636.4601.7776.7011.163
Energy Gap (eV)4.327 4.683 5.538
Ionization Potential (I)6.190 6.460 6.701
Electron Affinity (A)1.863 1.777 1.162
Global Hardness (η)2.164 2.341 2.770
Electro negativity (χ)4.027 4.118 3.932
Global Softness (σ)0.231 0.214 0.181
Chemical Potential (µ)−4.027 −4.118 −3.932
Global Electrophilicity (ω)3.747 3.621 2.792
Table 4. Overlap integral, charge transfer length, Δr, and excitation energy for different excited states of FOMMP.
Table 4. Overlap integral, charge transfer length, Δr, and excitation energy for different excited states of FOMMP.
ParameterExcited States
Overlap integral of electron–hole, S0.020.080.08
Charge transfer length, D (Å)
Excitation energy, ΔE (eV)3.453.723.93
RMSD of electron
RMSD of hole
t index
Table 5. Electronic properties of FOMMP at solvent phase.
Table 5. Electronic properties of FOMMP at solvent phase.
Excited StatesBand Gap (eV)Wavelength (nm)Energy (cm−1)Osc. Strength
Table 6. Drug-likeness parameters of FOMMP.
Table 6. Drug-likeness parameters of FOMMP.
Hydrogen bond donor (HBD)4
Hydrogen bond acceptor (HBA)0
Polar surface area (PSA) [Å2]51.96
Molar refractivity98.82
Number of rotatable bonds5
Table 7. Hydrogen bonding and molecular docking of FOMMP with 5R82 protein target.
Table 7. Hydrogen bonding and molecular docking of FOMMP with 5R82 protein target.
LigandProtein PDB IDBinding Amino Acid ResiduesBond Distance (Å)Binding Energy (kcal/mol)Inhibition Constants (uM)
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

El Kalai, F.; Abraham, C.S.; Kansiz, S.; Oulmidi, A.; Muthu, S.; Prasana, J.C.; Dege, N.; Abuelizz, H.A.; Al-Salahi, R.; Benchat, N.; et al. Synthesis, Crystal Structure, and Computational Investigations of 2-(2-(4-Fluorophenyl)-2-oxoethyl)-6-methyl-5-(4-methylbenzyl)pyridazin-3(2H)-one as Antiviral Agent. Crystals 2023, 13, 1098.

AMA Style

El Kalai F, Abraham CS, Kansiz S, Oulmidi A, Muthu S, Prasana JC, Dege N, Abuelizz HA, Al-Salahi R, Benchat N, et al. Synthesis, Crystal Structure, and Computational Investigations of 2-(2-(4-Fluorophenyl)-2-oxoethyl)-6-methyl-5-(4-methylbenzyl)pyridazin-3(2H)-one as Antiviral Agent. Crystals. 2023; 13(7):1098.

Chicago/Turabian Style

El Kalai, Fouad, Christina Susan Abraham, Sevgi Kansiz, Afaf Oulmidi, Sambantham Muthu, Johanan Christian Prasana, Necmi Dege, Hatem A. Abuelizz, Rashad Al-Salahi, Noureddine Benchat, and et al. 2023. "Synthesis, Crystal Structure, and Computational Investigations of 2-(2-(4-Fluorophenyl)-2-oxoethyl)-6-methyl-5-(4-methylbenzyl)pyridazin-3(2H)-one as Antiviral Agent" Crystals 13, no. 7: 1098.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
