Crystal Structure, Thermal Expansion and Luminescence of Ca_10.5−xNi_x(VO₄)₇

Abstract

The structural and luminescence properties of a new material, Ca_10.5−xNi_x(VO₄)₇, formed by substitution of a fraction of calcium by nickel, are studied as a function of the Ni content (x). The powder X-ray diffraction results for the polycrystals, synthesized using a solid-state reaction method, show that in the studied temperature range (300–1150 K), the structure of the unsubstituted material (space group R3c, whitlockite-$\beta$-Ca₃(PO₄)₂ structure type) is conserved up to the solubility limit, x = 0.72(2), determined on the basis of variation of unit cell size with x. The samples of nominal composition exceeding this limit contain a significant amount of the impurity phase.The structural refinements demonstrate that Ni atoms preferentially occupy the M5 site (one of the five independent Ca sites, M1–M5). The unit cell size was equally studied in the range of 300–1150 K, leading to the determination of the thermal expansion coefficients. It was found that with rising Ni content, the room temperature volumetric thermal expansion decreases from 41.80 MK⁻¹ (x = 0.16) to 39.24 MK⁻¹ (x = 0.66) and to 38.92 MK⁻¹ at the solubility limit, this reduction being in line with earlier reported data for x=0. In the unit cell variation, around 800–900 K, a weak anomaly is observed, detectable most clearly for the axial ratio; it is also visible at thermal expansion coefficient temperature dependence. Substitution of Ca by Ni ions reduces the optical band gap of Ca_10.5−xNi_x(VO₄)₇ from 3.56 (x = 0) to 3.29 and 3.16 eV observed for Ni-containing samples (x = 0.33 and 0.66, respectively). Observed bands in the absorption and photoluminescence spectra are assigned to electronic transitions in both VO${}_4^{3-}$ groups and Ni²⁺ ions, confirming that Ni mainly occupies the M5 site. The band gap narrowing and decrease in photoluminescence intensity when the Ni concentration increases makes Ni-substituted compounds attractive for application, e.g., as photocatalysts.

1. Introduction

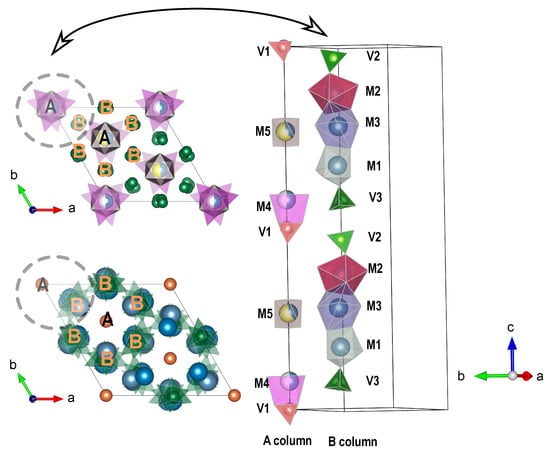

The structure of calcium orthovanadate Ca₃(VO₄)₂ (TCV) under ambient-conditions was first reported by Gopal and Calvo in 1973 [1], additional information can be found in [2,3] about its polymorphs formed under high-pressure. Like $\beta$-Ca₃(PO₄)₂ (TCP) [4], this material crystallizes in a trigonal structure corresponding to the R3c space group; the reported unit cell parameters are a = 10.809(1) Å and c = 38.028(9) Å [1]. There are five crystallographic sites for Ca²⁺ (M1–M5), three sites for V⁵⁺ (V1–V3) and ten sites for O²⁻ (O1–O10) [1,4,5], as illustrated in Figure 1. The M1–M5 sites differ in coordination number (CN) with oxygen atoms: M1, M2 and M3, centres of three irregular polyhedra, display 7-fold, 8-fold and 9-fold coordination, respectively. The M5 site (CN = 6) shows a regular octahedral geometry. The M4 site (CN = 3 + 3) exhibits a distinctive triangular coordination with three identical Ca–O distances, while the distances to the three other neighbouring oxygen atoms are notably longer. The cation-centred polyhedra are located in columns usually named “A” and “B” that are parallel to the c-axis [4,5]. Column B is more densely occupied compared to column A. Vanadium atoms are located on three crystallographic sites V1 (in column A), V2 and V3 (in column B). All V atoms are four-fold coordinated with oxygen atoms. An unusual characteristic of the calcium orthovanadate family is their possibility to distribute monovalent, divalent or trivalent cations (with a reported substitution rate of approximately 10 at.% of Ca atoms) on the M1–M5 crystallographic sites, while maintaining the original structure. For the substituted compounds, with full or partial occupation of specific sites, disparate chemical formulas are used, depending on the valence of the substituting element, as described in [6]. Various whitlockite-$\beta$-Ca₃(PO₄)₂-type compounds based on TCV can be classified as substitutionally disordered due to the mixed occupation of at least one site by calcium and foreign cations.

Most previous investigations of substituted materials of this kind have concentrated on the characterization of TCP substituted with monovalent, divalent, and trivalent cations. Studies have been conducted to substitute transition metals, zinc and magnesium into TCP, namely for Ca_10.5−xCu_x(PO₄)₇ [7,8], Ca_10.5−xCo_x(PO₄)₇ [9,10,11], Ca₉CoM(PO₄)₇ (M = Li, Na, K) [12], Ca_2.90(Me)_0.10(PO₄)₂ (Me = Mn, Ni, Cu) [13], Ca_3-xZn_x(PO₄)₂ [14], and Ca_3−xMg_x(PO₄)₂ [15]. Recently, for the latter (known for a long time), using the Ca₉(Ca_0.5□_0.5)Mg(PO₄)₇ formula, a new mineral name, keplerite, was introduced by the International Mineralogical Association (IMA) [16].

In contrast to orthophosphates, the knowledge of structures and applications of calcium orthovanadates substituted by monovalent and divalent ions require more investigation. Various studies on the structure and application on TCV with substitution of trivalent ions can be found in [17,18,19,20,21,22]. Only a few works concerning the substitution of TCVs with monovalent and divalent ions have been reported but they show the persistent interest in these materials. For instance, the structural analysis of Ca₁₀K(VO₄)₇ was studied in [23]. Subsequently, the structure of Ca₁₀Li(VO₄)₇, synthesized using the Czochralski method, was characterized in [24]. The Raman spectra of Ca₁₀Na(VO₄)₇ were analysed, but no information was provided about the structure of this material [25]. High-temperature diffusion methods to prepare Mn-doped Ca₃(VO₄)₂ single crystals was reported in [26]. Very recently, the effect of cobalt doping of Ca₃(VO₄)₂ single crystal was investigated using X-ray diffraction and absorption spectroscopy: the formal charge of cobalt, between 2+ and 3+, is found to decrease when increasing the Co concentration [27]. The structural impact of Cu and Co substitution into Ca₃(VO₄)₂ (Ca₁₀Cu_0.5(VO₄)₇, Ca₁₀Co_0.5(VO₄)₇) studied at room and high temperature demonstrates that cobalt and copper occupy the M5 site [6]. Even though Ni belongs to the same row of the Periodic Table as Mn, Co, and Cu, there is currently a lack of data regarding the structure and peculiarities of yet unreported Ni²⁺ ion incorporation into the Ca₃(VO₄)₂ crystal and the influence on its properties.

Unsubstituted and substituted variants of Ca₃(VO₄)₂, among other compounds, exhibit diverse and valuable properties. Notably, Ca₃(VO₄)₂ demonstrates a remarkably high Curie temperature (${\mathrm{T}}_c$ = 1383 K) and is the first reported ferroelectric in the whole TCV family, rendering it a significant and fascinating material [28]. This crystal possesses non-linear optical properties [29]. Orthovanadates present intrinsic photoluminescence (PL) relating to the ${\mathrm{V}\mathrm{O}}_4^{3-}$ groups [30,31,32]. Furthermore, they are well-known matrices for luminescent rare-earth (RE) ion doping, enhancing the PL characteristics [33,34,35] and making the material attractive for white LED applications [36,37]. Substituting and co-doping Ca₃(VO₄)₂ with M⁺, M²⁺, M³⁺, and RE³⁺ ions also improves the optical properties [37,38]. Particularly, the nickel ions in the composition of vanadates increase their abilities in photocatalysis [39,40], accumulator cells cathode and anode electrodes [41], energy storage devices [42], and solar-driven photo-electrochemical water oxidation [43]. The above-mentioned applications require knowledge of the effect of Ni ions on not only the structural components of the crystal lattice, but also the behaviour of the band gap and photo-excited electronic energy. The band gap energy can be estimated from the optical absorption spectra, but there are limited reports concerning this value for TCV families. The direct band gap of Ca₃(VO₄)₂ was found to be 3.55 eV [44]. The band gap energy was estimated to be 3.28 eV for Ca_2.95(VO₄)₂:Sm_0.05 [45]. The calculated band gap energy of Ca₃(VO₄)₂:1%Eu was found to be 3.80 eV [46], while Ni constituents decreased the band gap to 2.13 eV for the compositionally close (but Ni-rich) garnet-type Ca₅Ni₄(VO₄)₆ compound [39].

In this work, we present the thermostructural properties of Ca_10.5−xNi_x(VO₄)₇ (Ni-TCV), based on X-ray powder diffraction results at room and high temperatures (300–1150 K). The high-temperature analysis focused on the impact of Ni content (x) on the thermal expansion behaviour. The effects of substitution on the lattice and electronic structure, and the excited energy relaxation of Ca_10.5−xNi_x(VO₄)₇ were also investigated via changes in the absorption and luminescence characteristics in the VUV, UV and visible light ranges.

2. Materials and Methods

Polycrystalline samples of formula Ca_10.5−xNi_x(VO₄)₇, with x varying from 0 to 1 (sample named as as S0–S6, see

Table 1. Structural details of Ca_10.5−xNi_x(VO₄)₇ (nominal Ni content, lattice parameters (a, c), volume (V), density ($\rho$), fractional occupancy of Ni at M5 and reliability factors (R${}_p$ and R_wp)) at room temperature (300(2) K). For all compounds the space group is R3c (Z = 6).

Sample	x			a (Å)	c (Å)	V (Å${}^3$)	$\mathit{\rho }$ ($\mathbf{g}/{\mathbf{cm}}^3$)	Fractional Occupancy of Ni at M5 Site	${\mathbf{R}}_{\mathbf{p}}$	${\mathbf{R}}_{\mathbf{wp}}$	Ref.
	Nominal	EDX	Rietveld Refinement
	0		0	10.809(1)	38.028(9)	3847.73	3.17	0	-	-	[1]
	0		0	10.81221(8)	38.02620(3)	3849.840(5)	3.171	0	3.07	4.46	[3]
S0	0		0	10.81388(4)	38.02858(15)	3851.269(25)	3.170	0	3.14	4.26	Present study
S1	0.16	0.16(2)	0.28(3)	10.80110(5)	37.96817(20)	3836.069(33)	3.191	0.104(8)	3.30	4.44
S2	0.33	0.29(3)	0.39(3)	10.78838(5)	37.89214(21)	3819.375(34)	3.213	0.144(8)	3.33	4.56
S3	0.5	0.48(2)	0.48(2)	10.77604(6)	37.80589(21)	3801.969(34)	3.237	0.175(8)	2.82	3.95
S4	0.66	0.66(4)	0.59(2)	10.76527(4)	37.71474(15)	3785.225(25)	3.258	0.214(7)	3.33	4.51
	0.72(2) ${}^a$			10.7622 ${}^a$	37.6878 ${}^a$	3780.39 ${}^a$
S5	0.83 ${}^b$	0.71(4)	0.65(2)	10.76219(4)	37.68766(18)	3780.342(28)	3.264	0.237(8)	3.42	4.66
S6	1 ${}^b$	0.69(2)	0.59(3)	10.76227(6)	37.68802(24)	3780.435(38)	3.264	0.217(10)	3.58	5.34

^a value estimated from the V(x) dependence analysis; ^b x = 0.83 and x = 1 refer to the nominal composition of the pellets, while the true Ni content corresponds to the solubility limit.

), were synthesized by solid-state reactions. The samples were prepared using stoichiometric ratios of CaO, NiO (99.99%, Sigma-Aldrich, St. Louis, MO, USA) and V₂O₅ (99%, Prolabo, France). CaO was prepared from CaCO₃ (99%, Prolabo) heated in air at 1173 K for a few days. For each composition, 5 g of powder was weighed, thoroughly mixed, and put in air at 1173 K for about 16 h in a covered alumina crucible. After grinding, pellets were prepared and heated at 1273 K for 16 h, except the first sample (Ca_10.34Ni_0.16(VO₄)₇—S1) which was heated at 1323 K. The compound formation was carried out according to the reaction:

$$(10.5-x)\mathrm{CaO}+3.5{\mathrm{V}}_2{\mathrm{O}}_5+x\mathrm{N}\mathrm{i}\mathrm{O}⟶{\mathrm{Ca}}_{10.5-x}{\mathrm{Ni}}_x{\left({\mathrm{VO}}_4\right)}_7$$

The chemical composition of the crystal was studied using scanning electron microscopy (SEM). The measurements were performed using a JSM-7600F microscope (JEOL, Akishima, Tokyo, Japan). The microscope was equipped with an energy dispersive X-ray (EDX) spectrometer using an X-MaxN 150 Silicon Drift Detector (Oxford Instruments, Abingdon, UK). For the analysis, the surface was coated, using the sputtering method, with a 10 nm thick carbon layer. The measurements were conducted applying a 20 kV accelerating voltage.

Room temperature (RT) X-ray powder diffraction (XRPD) measurements were performed using a Philips X’Pert Pro Alpha1 diffractometer with CuK${\alpha }_1$ radiation, in Bragg–Brentano geometry, working in continuous scanning mode, equipped with a linear silicon strip detector and, in RT studies, with an incident beam Ge(111) Johansson monochromator. The idea of utilizing such a detector was first described in [47], whereas the setting of this commercial instrument was reported in [48]. XRPD data were collected at room temperature over the 2$\theta$ range of 6${}^{\circ }$–159.2${}^{\circ }$, with a step of 0.0167${}^{\circ }$. Crystal structures were refined using the Rietveld method [49,50] using the Fullprof (version April 2019) software [51].

High-temperature diffraction measurements were conducted using the same diffractometer equipped with an HTK 1200N (Anton Paar, Graz, Austria) temperature stage, in the Bragg–Brentano geometry with CuK$\alpha$ radiation. The high-temperature XRPD data were collected over the 2$\theta$ range of 9${}^{\circ }$–100${}^{\circ }$. The set temperature range from room temperature (300 K) to 1150 K was selected, with different temperature steps (usually 50 or 100 K). A waiting time was set to 2 min after reaching each temperature step, to stabilize the heater and guarantee uniform temperature within the sample. The high-temperature measurements for x = 0 have been performed in [3].

A Carry 5000 UV-Vis-NIR spectrophotometer with a diffuse reflectance accessory (optical integration sphere, DRA 2500) was used to measure diffuse reflection spectra in the 200–850 nm range. Photoluminescence (PL) and luminescence excitation spectra were measured in the 325–850 nm range using a Horiba/Jobin-Yvon Fluorolog 3 spectrofluorometer equipped with various detectors for UV and IR. The PL spectra with UV excitation (120–330 nm) were measured using synchrotron excitation at the PETRA III P66 beamline at Deutsches Elektronen-Synchrotron DESY (Hamburg, Germany). All light reflection and luminescence measurements were performed at room temperature.

3. Results and Discussion

3.1. Structure at Room Temperature as a Function of the Ni Content

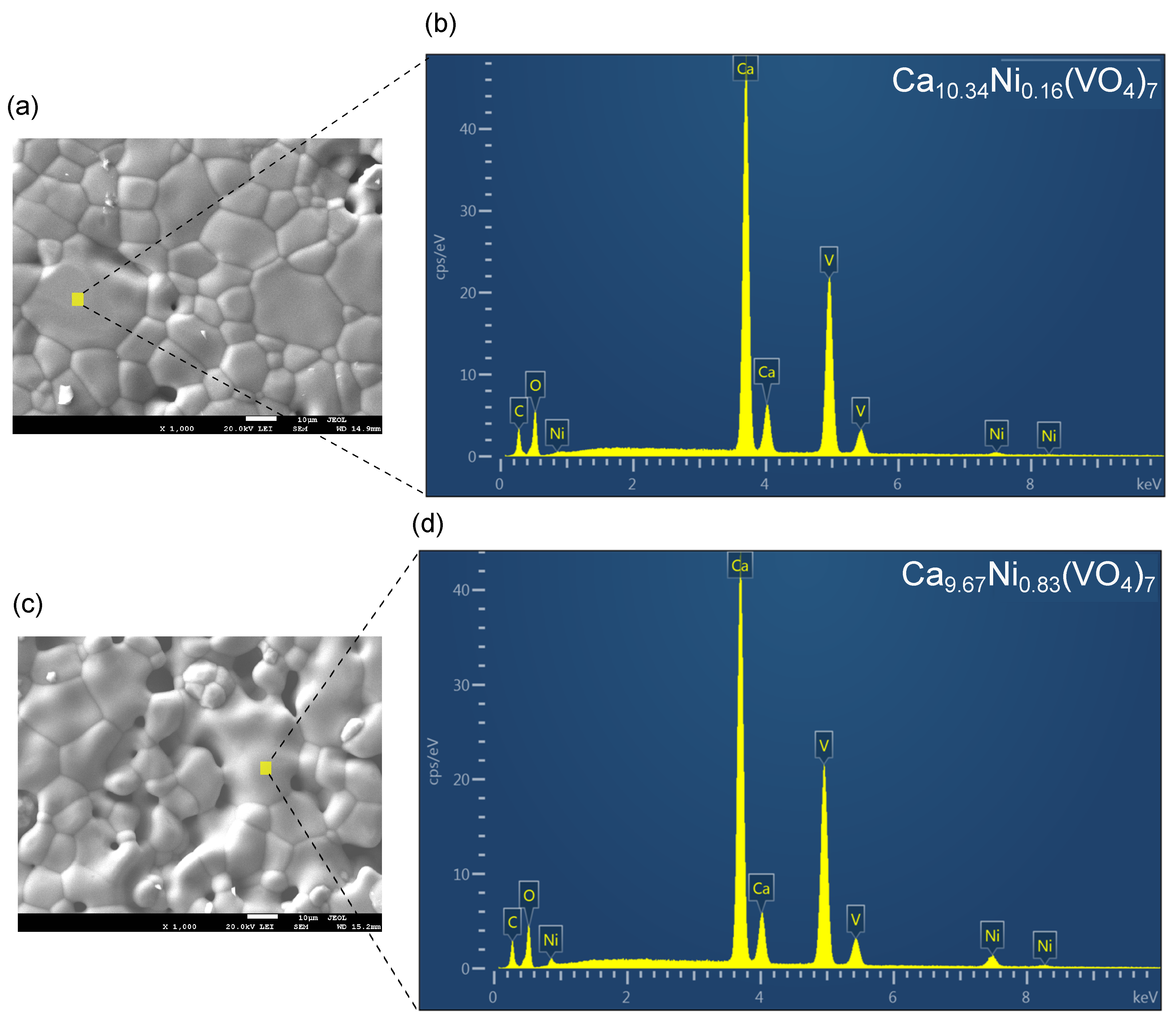

In order to explore the material elemental composition, the EDX technique was performed (Figure A1). The EDX analysis demonstrates that the Ni content is in line, in the error limit, with the nominal one for all samples of x ranging to 0.66 (see Table 1). For the last two samples, the difference between the Ni content and the nominal value indicates aconsistent solubility limit around x = 0.71(4).

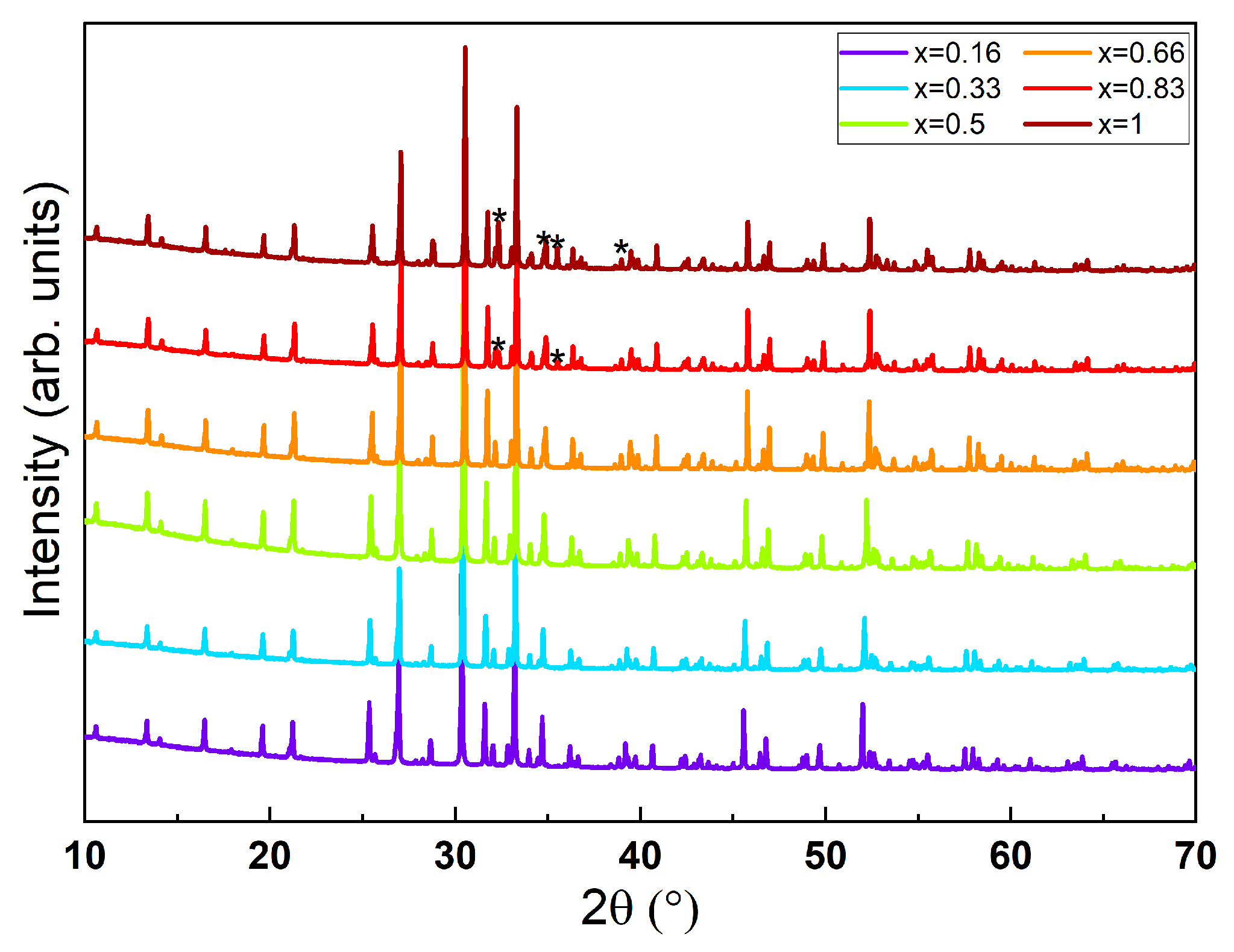

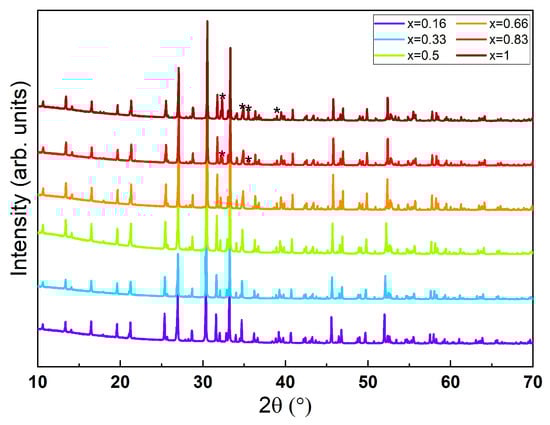

The XRPD patterns clearly indicate a whitlockite-related structure with a R3c space group. Sample S5 shows a few extra low-intensity peaks and for S6 these peaks are markedly stronger (see Figure A2), providing further proof that these two samples are out of the solubility range. This impurity in S5 and S6 was identified as Ca_2.5Ni₂(VO₄)₃ [52], crystallized in a garnet structure.

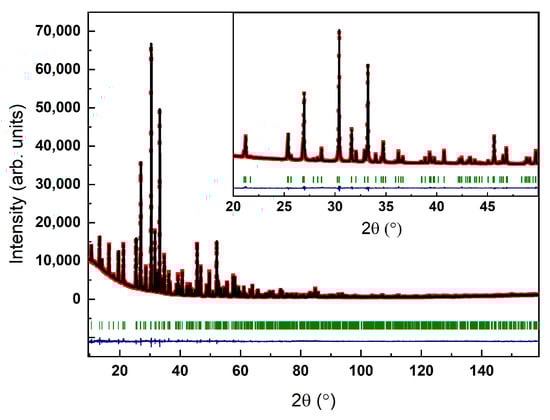

Rietveld refinements were performed for all samples considering the structure of Ca_2.71Mg_0.29(PO₄)₂ [15], recently named keplerite [16], as the initial model, allowing for the fractional refined occupation of the M5 site by Ni. Similar refinements assuming partial Ni occupation at any of remaining four sites led to considerably higher R factors, therefore such assumptions were rejected.

The refinement procedures followed those described in [6]. The peak shape was determined using the pseudo-Voigt-type function considering two parameters of asymmetry. For oxygen atoms, isotropic displacement factors were set as identical. The minority phase percentage, Ca_2.5Ni₂(VO₄)₃, increased from 3 wt% (for S5) to 7 wt% (for S6). The obtained garnet-type lattice parameters for Ca_2.5Ni₂(VO₄)₃ are close to those reported in [52] (a discrepancy is as low as 0.12%). The final refinement results are summarized in Table 1 and

Table 2. Results of the structural refinement for Ca_10.5−xNi_x(VO₄)₇ within the solubility range.

Site	Wyckoff Position	Coordination	x
			0.16	0.33	0.5	0.66
M1	18b	x	0.1974(3)	0.1975(3)	0.1993(3)	0.1975(3)
		y	0.3938(3)	0.3944(3)	0.3954(3)	0.3955(3)
		z	0.0028(1)	0.0025(1)	0.0022(1)	0.00275(9)
M2	18b	x	0.1582(3)	0.1590(3)	0.1600(3)	0.1589(3)
		y	0.2808(3)	0.2813(3)	0.2808(3)	0.2805(2)
		z	0.2009(1)	0.20119(11)	0.2014(1)	0.20241(9)
M3	18b	x	0.1873(3)	0.1864(3)	0.1874(3)	0.1860(3)
		y	0.3988(2)	0.3974(2)	0.3973(2)	0.3960(2)
		z	0.1097(1)	0.10983(11)	0.1099(1)	0.11087(9)
M4	6a	x	0	0	0	0
		y	0	0	0	0
		z	0.074(5)	0.0766(5)	0.0749(5)	0.0766(3)
M5	6a	x	0	0	0	0
		y	0	0	0	0
		z	0.2658(2)	0.2655(1)	0.2651(1)	0.2654(1)
V1	6a	x	0	0	0	0
		y	0	0	0	0
		z	0	0	0	0
V2	18b	x	0.3103(2)	0.3109(2)	0.3119(2)	0.3109(2)
		y	0.1371(3)	0.1371(3)	0.1382(3)	0.1378(2)
		z	0.1323(1)	0.1324(1)	0.13213(1)	0.1324(1)
V3	18b	x	0.3484(3)	0.3479(3)	0.3471(3)	0.3466(2)
		y	0.1498(3)	0.1498(3)	0.1483(3)	0.1484(2)
		z	0.2347(1)	0.2350(1)	0.2352(1)	0.2361(1)
O1	6a	x	0.1558(8)	0.1565(8)	0.1542(7)	0.1557(6)
		y	0.0093(10)	0.0106(10)	0.0090(9)	0.0121(8)
		z	0.0123(3)	0.0119(3)	0.0110(3)	0.0121(2)
O2	18b	x	0	0	0	0
		y	0	0	0	0
		z	0.4546(4)	0.4543(4)	0.4550(4)	0.4555(3)
O3	18b	x	0.2683(9)	0.2680(9)	0.2624(9)	0.2565(7)
		y	0.0692(7)	0.0715(7)	0.0689(7)	0.0665(6)
		z	0.0911(2)	0.0911(2)	0.0916(2)	0.09154(19)
O4	18b	x	0.2306(11)	0.2304(11)	0.2320(10)	0.2308(8)
		y	0.2257(10)	0.2256(10)	0.2235(10)	0.2310(8)
		z	0.1446(2)	0.1445(2)	0.1444(2)	0.14583(19)
O5	18b	x	0.2805(10)	0.2818(10)	0.2825(10)	0.2801(8)
		y	−0.0114(9)	−0.0105(8)	−0.0085(8)	−0.0089(7)
		z	0.1561(2)	0.1565(2)	0.1559(2)	0.15765(19)
O6	18b	x	0.0873(10)	0.0857(10)	0.0852(10)	0.0808(8)
		y	0.1843(8)	0.1806(9)	0.1792(8)	0.1722(7)
		z	0.3045(3)	0.3032(3)	0.3022(3)	0.3025(2)
O7	18b	x	0.3998(9)	0.3998(9)	0.3999(8)	0.4006(7)
		y	0.0329(8)	0.0309(8)	0.0308(8)	0.0300(7)
		z	0.2240(3)	0.2246(3)	0.2252(3)	0.2254(2)
O8	18b	x	0.0189(10)	0.0223(9)	0.0225(9)	0.0275(7)
		y	0.2331(10)	0.2357(10)	0.2361(10)	0.2365(8)
		z	0.3804(2)	0.3800(2)	0.3795(2)	0.37923(20)
O9	18b	x	0.1705(8)	0.1701(8)	0.1697(8)	0.1696(7)
		y	0.0762(11)	0.0749(11)	0.0752(11)	0.0717(8)
		z	0.2219(3)	0.2227(3)	0.2249(3)	0.2252(2)
O10	18b	x	0.3752(7)	0.3757(7)	0.3785(7)	0.3788(6)
		y	0.1826(10)	0.1824(10)	0.1831(9)	0.1836(8)
		z	0.2794(2)	0.2797(2)	0.2794(2)	0.27974(19)

. The atomic position results for S5 and S6 were consistent with those of other samples. The final refinement results indicate a whitlockite-$\beta$-Ca₃(PO₄)₂ structure type (in naming the type, we follow the ICSD database nomenclature [53]) and show strong structural similarity to the samples studied in [6]. The polycrystalline samples have the formula closest to keplerite among the whitlockite-related materials. The quality of the refinements is illustrated for Ca₁₀Ni_0.5(VO₄)₇ (at 300(2) K) (Figure 2) as a representative example.

3.1.1. Lattice Parameters

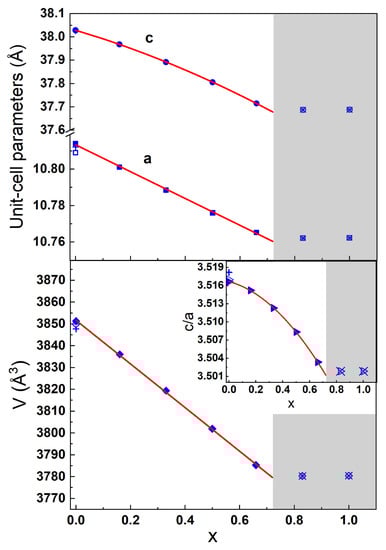

The refined lattice parameter a decreases from 10.81388(4) Å (sample S0) to 10.76527(4) Å (sample S4), in the same way, the lattice parameter c decreases from 38.02858(15) Å to 37.71474(18) Å (Table 1) (Figure 3). The reduction in both lattice parameters a and c, and consequently the unit cell volume, with increasing Ni clearly proves Ni substitution into the TCV structure. The shrinkage of the lattice is explained by the ionic radii difference of Ca²⁺ and Ni²⁺. For a six-fold coordination, Ca shows an ionic radius of 1.00 Å, whereas Ni exhibits a considerably smaller radius of 0.69 Å [54]. The observed contradictory trend is consistent with the results previously reported on the substitution of small divalent ions into TCP and TCV, see refs. [6,8,55,56].

3.1.2. Solubility Limit

Determining the solubility limit involves analysis of the calculated (i) unit cell size (lattice parameters, unit cell volume and axial ratio), (ii) site occupancies and (iii) interatomic distances. As mentioned above, the ionic sizes of Ca and Ni are markedly different; therefore, the analysis of the unit cell size is expected to provide reliable information when determining the solubility. The difference in the number of electrons is small (20 and 28, respectively). Consequently, using the refined occupancies to determine solubility is less precise, and as a result, this approach was not used here. Naturally, this limit could also be influenced by the synthesis conditions.

The solubility (x${}_{lim}$) limit for several iso-structural orthophosphates has been reported to be x${}_{lim}$ = 1 or even higher [8,57,58,59]. For orthovanadates, the known examples refer to doubly substituted compounds, Ca_9−xMg_xBi(VO₄)₇ [60] and Ca_9−xBa_xBi(VO₄)₇ [61]. Here, both reported x${}_{lim}$ values are lower than unity (x${}_{lim}$ = 0.7), as demonstrated by the phase analysis and the unit cell size. It is notable that the site occupation scheme in doubly substituted compounds is more complex, but the presence of trivalent Bi ions is thought to not alter the occupation by Mg ions, because Bi ions occupy the M1, M2 and M3 sites [60]. In these compounds, Mg and Ba are reported to enter the M5 and M3 sites, respectively. For Ca_10.5−xNi_x(VO₄)₇, the secondary phase (Ca_2.5Ni₂(VO₄)₃) appeared in S5 and S6. Furthermore, no discrepancies were observed in the unit cell size for these two samples when compared to S4. This confirmed that the solid solution limit, x${}_{lim}$, for this compound is between 0.66 and 0.83, the latter resulting from analysis of refined occupancy of M5 site. The solubility limit x${}_{lim}$ = 0.72(2) was evaluated from V(x) dependence obtained for the samples prepared by the given synthesis method. This value is in line with results of EDX analysis. The predicted unit cell size data for x = 0.72 are listed in Table 1.

3.1.3. Occupancy

Divalent ions with an ionic radius markedly smaller than Ca²⁺, such as Mn²⁺ [13,62], Co²⁺ [9], Cu²⁺ [63], and Zn²⁺ [55], which are substituted to TCP, were routinely reported to enter the M5 site. Aside from the experimental results, according to the DFT calculations for divalent ions (Mg²⁺, Zn²⁺) substituted into the Ca₃(PO₄)₂ lattice, divalent ions prefer to enter the M5 site [64,65]. Due to the similar the electronic structures of phosphorus and vanadium substituents, divalent ions were expected to occupy the TCV M5 site. Different sites (M1–M5) for hosting Ni were considered in trial Rietveld refinements. However, according to the best matching model, Ni resides in M5.

3.1.4. Interatomic Distances and Bond Valence Sum Analyses

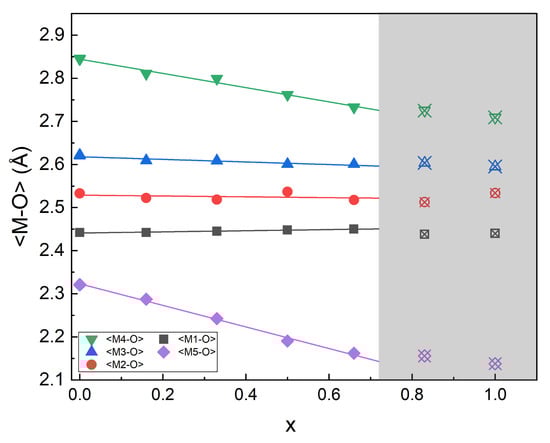

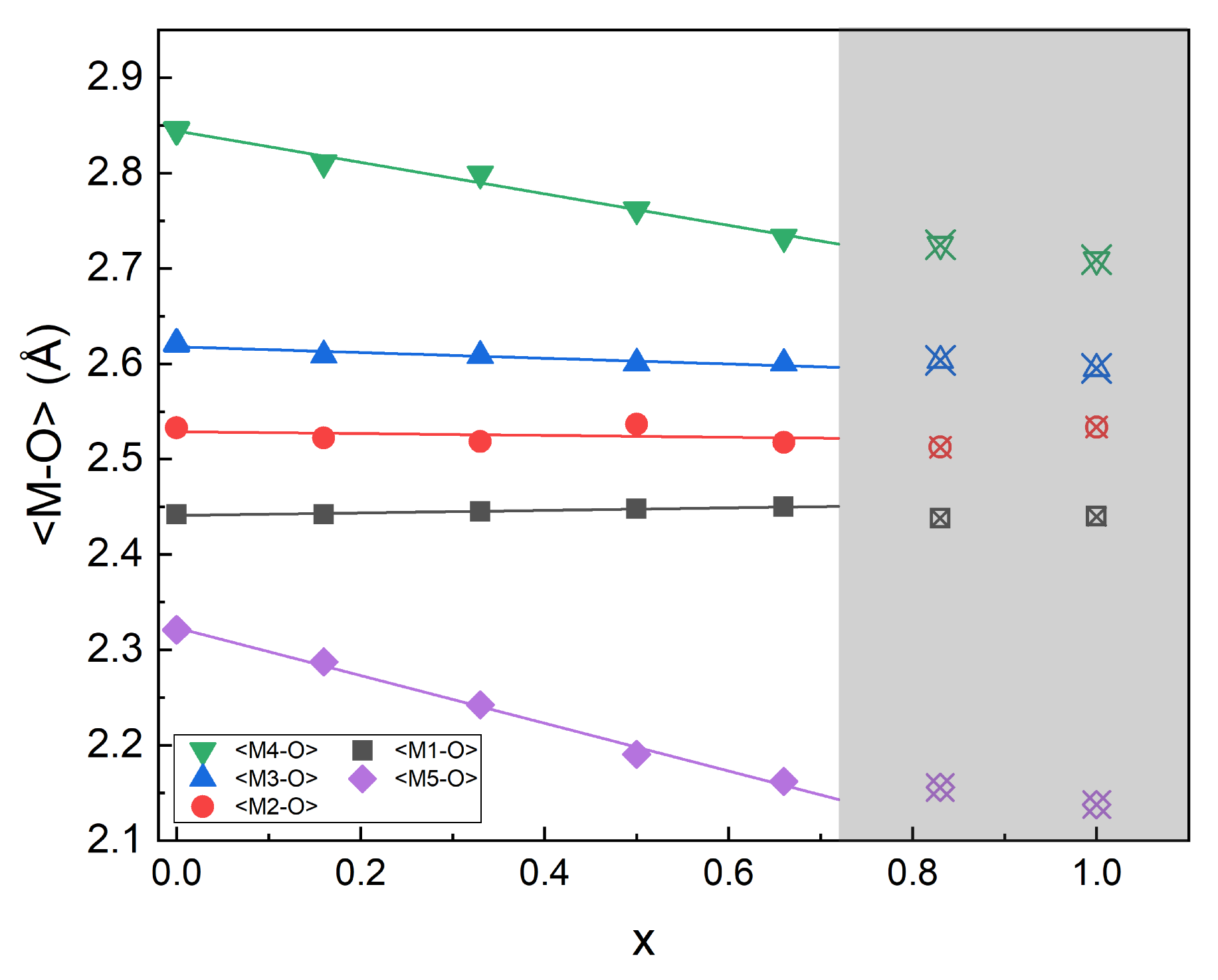

A further proof of M5 occupancy can be obtained from interatomic distance analysis. The M1 site displays a 7-fold coordination environment and the M1–O average distance is constant at 2.44(1) Å from S0 to S4. The M1–O, M2–O and M3–O distances remain approximately consistent irrespectively of the Ni content (Figure 4 and

Table A1. Interatomic distances (with oxygen) and bond valence sum of Ca_10.5−xNi_x(VO₄)₇.

Site	x
	0.16		0.33		0.5		0.66
	Interatomic Distances (Å)	BVS (v.u.)	Interatomic Distances (Å)	BVS (v.u.)	Interatomic Distances (Å)	BVS (v.u.)	Interatomic Distances (Å)	BVS (v.u.)
M1–O	2.507(8)		2.517(8)		2.523(8)		2.541(6)
	2.453(13)		2.438(12)		2.424(13)		2.455(11)
	2.514(12)		2.52(12)		2.531(12)		2.502(10)
	2.598(9)	2.02	2.602(9)	2.01	2.592(9)	1.99	2.603(7)	1.99
	2.433(12)		2.456(12)		2.475(12)		2.464(9)
	2.233(11)		2.246(11)		2.245(11)		2.235(9)
	2.359(9)		2.338(9)		2.348(9)		2.351(8)
M2–O	2.372(9)		2.364(9)		2.398(9)		2.381(7)
	2.476(8)		2.454(8)		2.483(8)		2.471(7)
	2.45(10)		2.456(10)		2.47(10)		2.418(9)
	2.369(11)	1.96	2.375(11)	2.01	2.411(11)	1.85	2.369(9)	1.97
	2.795(12)		2.795(12)		2.811(12)		2.793(10)
	2.852(12)		2.825(11)		2.802(11)		2.82(9)
	2.415(13)		2.429(13)		2.438(13)		2.462(10)
	2.450(8)		2.450(8)		2.482(8)		2.426(6)
M3–O	2.962(11)		2.939(11)		2.905(11)		2.899(8)
	2.548(3)		2.554(3)		2.555(3)		2.562(3)
	2.617(7)		2.629(7)		2.620(7)		2.61(6)
	2.519(12)		2.503(12)		2.517(12)		2.446(10)
	2.419(9)	1.71	2.421(9)	1.72	2.416(9)	1.76	2.425(8)	1.77
	2.445(12)		2.423(12)		2.396(12)		2.411(9)
	2.724(10)		2.754(10)		2.776(10)		2.829(9)
	2.700(8)		2.698(8)		2.663(8)		2.673(7)
	2.554(12)		2.557(12)		2.557(11)		2.548(10)
M4–O	2.964(19)		2.946(19)		2.906(19)		2.92(12)
	2.964(20)		2.946(20)		2.906(19)		2.92(12)
	2.964(19)	0.33	2.946(19)	0.34	2.906(19)	0.37	2.92(12)	0.42
	2.657(10)		2.652(10)		2.617(11)		2.545(8)
	2.657(11)		2.652(11)		2.617(11)		2.545(9)
	2.657(7)		2.652(7)		2.617(8)		2.545(6)
M5–O	2.264(10)		2.212(10)		2.182(10)		2.129(8)
	2.264(11)		2.212(11)		2.182(11)		2.129(8)
	2.264(12)	2.03	2.212(13)	2.09	2.182(12)	2.28	2.129(9)	2.25
	2.311(11)		2.273(11)		2.199(10)		2.196(8)
	2.311(3)		2.273(13)		2.199(13)		2.196(9)
	2.311(12)		2.273(11)		2.199(11)		2.196(8)

). In contrast, for the M5 site, corresponding to the only regular polyhedron, a distance reduction up to about 5.4% is observed from S0 to S4, after which no change in distances is observed at this site. We observe some shortening (up to about 2.7%) of the M4–O distance, but there are no other indications of presence of Ni at M4. This decrease in M5–O length correlates with the presence of Ni²⁺ at this site, possessing a smaller ionic radius compared to Ca²⁺, strongly supporting M5 as a host for Ni substitution. This is in line with results reported for related compounds. Namely, the distance analyses confirmed the presence of Ni and Cu at M5 for Ca_2.9Me_0.1(PO₄)₂ [13]. Bond length analysis of Mn-substituted Ca₃(PO₄)₂ also showed a decrease in M5–O distance [66].

The bond valence sum (BVS) calculations are in good agreement with the expected values from the empirical formula. The value of BVS at M1, M2 and M3 are nearly constant when increasing the Ni content (Table A1). In contrast to the other sites, M4 showed a significantly low BVS value because of the site occupancy factor (the site is half occupied). Conversely, this value for the M5 site changed from 2.03 to 2.25 v.u. The large BVS value for M5 may indicate the presence of Ni in this site, alsoconcluded from the occupancy obtained from the Rietveld refinement. Such a change can be interpreted as described in [13,67,68]. The BVS analysis of Ca_2.9Me_0.1(PO₄)₂ showed large values M5 indicating the presence of Mn, Ni and Cu [13]. A similar analysis for Ca₉Fe_0.83Mg_0.37H_0.37(PO₄)₇ and a natural whitlockite specimen indicated a tendency for Fe and Mg to enter the M5 site [67,68].

3.2. Structural Study of Ca_10.5−xNi_x(VO₄)₇ in the 300–1150 K Temperature Range

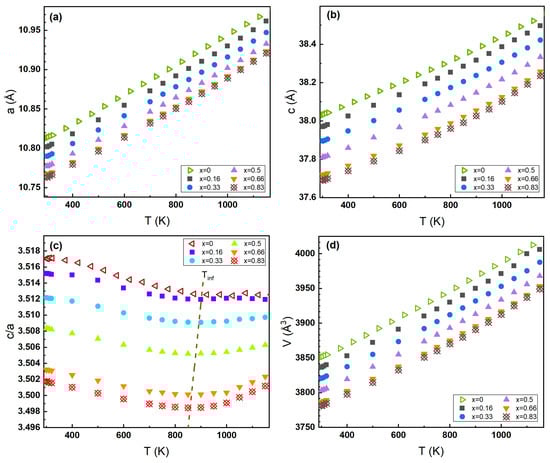

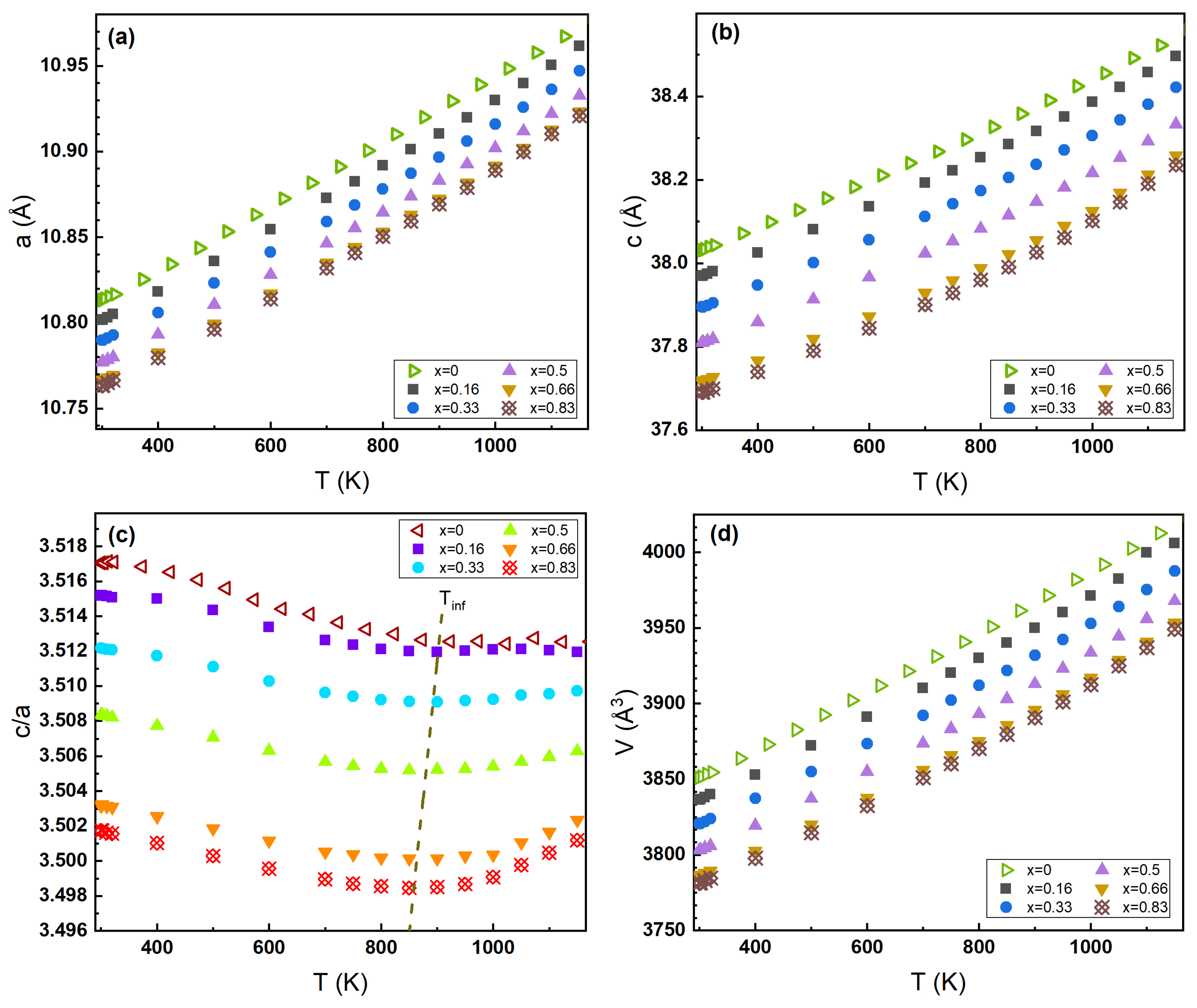

High-temperature measurements were carried out for samples S1–S5 (including the first sample exceeding the solubility limit with an Ni content of 0.72(2)), allowing for the detection of a possible alternative occupation scheme. The x = 0 data are taken from [3]. For all samples, the diffraction patterns demonstrate no phase transition or symmetry change from 300 to 1150 K. Due to the increasing temperature, the diffraction peaks shift slightly towards the low-angle side due to continuous lattice expansion. The Rietveld refinement results show that the unit cell volume variation as a function of temperature is smooth but there is an anomaly at around 800–900 K (Figure 5). This anomaly is most visible at the axial ratio (c/a)(T) curve. From 300(2) K to the inflection temperature (${\mathrm{T}}_{inf}$), the expansion in the a direction is larger compared to the c direction, whereas at a temperature exceeding ${\mathrm{T}}_{inf}$, the lattice parameter c increases faster than a (this is reflected in the thermal expansion behavior (Figure 6). In other words, for the whole composition range, at that temperature the expansion anisotropy changes its sign. The ${\mathrm{T}}_{inf}$ can be estimated as 905 K for S1 and it decreases to 870 K for S4. Further studies with a finer temperature step should be performed to determine ${\mathrm{T}}_{inf}$ more precisely.

The nature of the above-described anomaly is not fully understood. There have been reports of similar anomalies at high temperatures in structurally related TCV compounds containing mostly trivalent substituents. These anomalies have been observed as phase transitions and symmetry changes (R3c to R-3c) for Ca₉RE(PO₄)₇, where RE = In [69], Fe [70], and Eu [71]. Other phase transitions that occur for Ca₉Yb(VO₄)₇ and Ca₈MgEu(PO₄)₇ include space group changes from R-3c to R-3m [72,73]. Such transitions have yet to be observed for divalent substituents, consistent with the findings for Ni-TCV. One hypothesis that could explain the anomaly observed here is that is that at the higher temperatures the Ni ions fractionally migrate to another Ca sites.

For many materials, including minerals of various structural complexities, the Laurent polynomial is successfully used to approximate the unit cell size variation with respect to temperature (see, e.g., the review by Fei [74]). This provides a simple analytical description of the thermal expansion coefficient (TEC). If anomalous behaviours in the lattice parameters are observed, then a different description of the variation is required. For Ni-TCV, we applied a combined approach: behaviour below the anomaly is described (I) using a simple model based on the Laurent polynomial, while (II) the Lagrange approach is used for the whole range except the 300 K and 1150 K points.

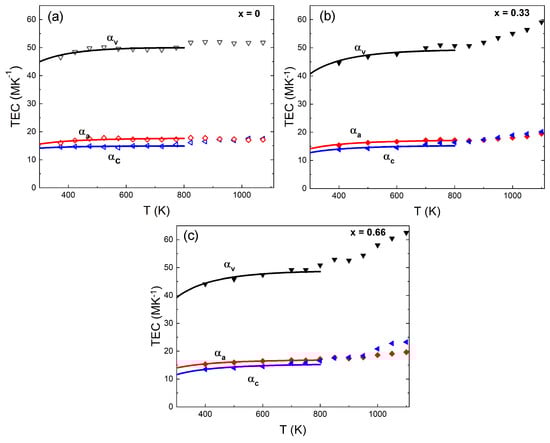

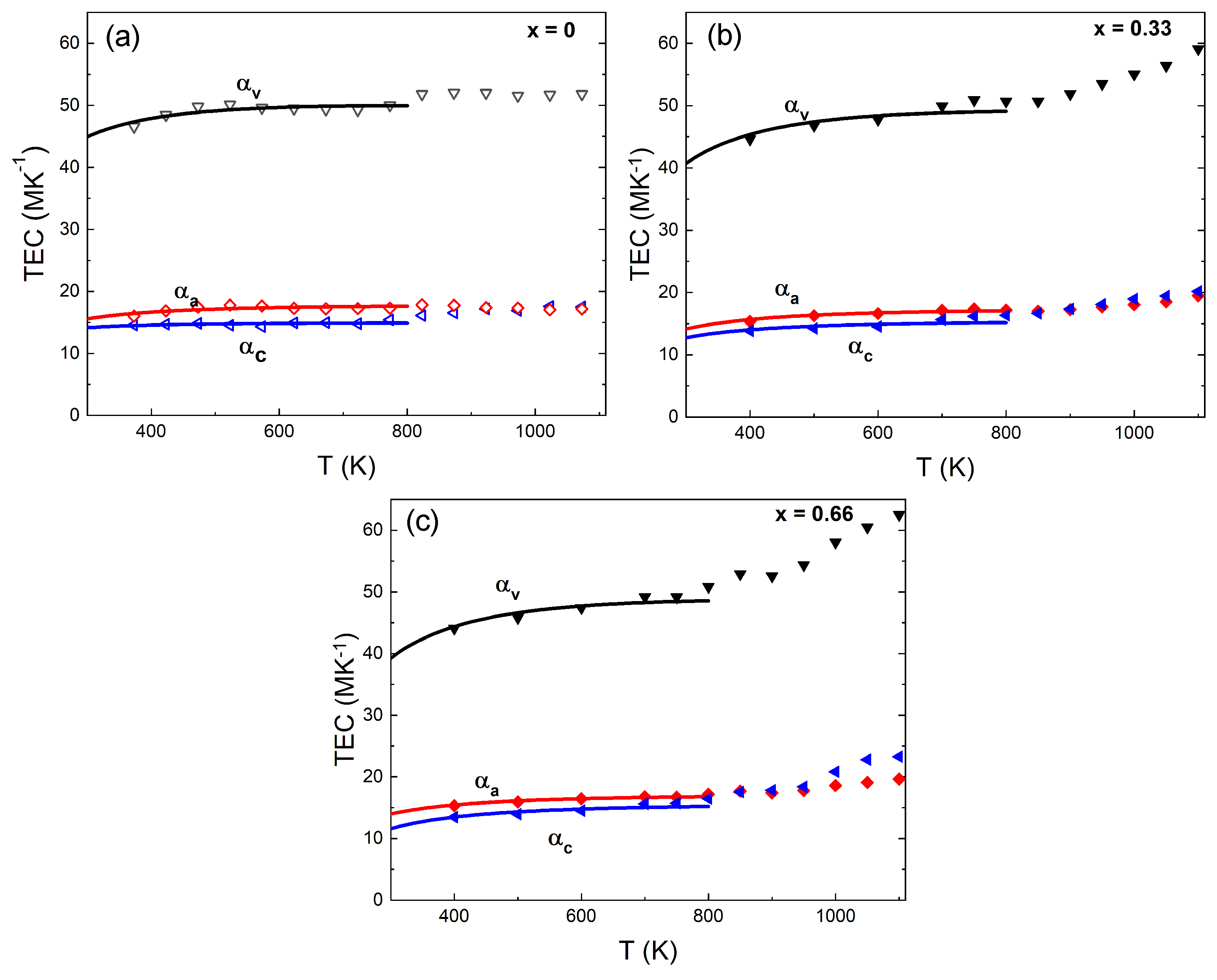

Results of the TEC variation with respect to temperature are presented in Figure 6. From 300 to 800 K, the temperature dependence of the lattice parameters and volume is well described by Laurent polynomial $y\left(T\right)=A+BT+C/T$, similar to other studies for similar temperature ranges [6,75]. A, B and C are fitted coefficients and y describes the unit cell size. Variations in the thermal expansion coefficient with respect to temperature for each variable, y, were calculated by

$${\alpha }_y=\frac{dy\left(T\right)}{dT}\frac{1}{y\left(T\right)}$$

(1)

The Laurent polynomial calculation covers most of the data modelled by the Lagrangian method up to 800 K (Figure 6 and

Table 3. Volumetric thermal expansion coefficient of Ca_10.5−xNi_x(VO₄)₇ at different temperatures.

T (K)	Volumetric Thermal Expansion Coefficient (MK${}^{-1}$)
	x
	0.16	0.33	0.5	0.66	0.83 ${}^{\mathit{a}}$
300	41.80${}^b$	40.73	40.22	39.24	38.92
400	46.58	44.61	44.85	44.08	43.92
	46.44	45.38	44.93	44.37	44.26
500	49.33	46.80	46.35	45.81	45.69
	48.44	47.40	46.97	46.61	46.60
600	48.54	47.77	47.47	47.41	47.48
	49.41	48.37	47.96	47.71	47.75
700	50.03	49.93	48.70	49.16	48.16
	49.88	48.90	48.46	48.27	48.34
750	50.56	50.90	49.22	49.16	49.99
	50.02	49.00	48.60	48.44	48.52
800	51.09	50.69	50.51	50.83	50.32
	50.10	49.09	48.69	48.55	48.63
850	50.78	50.69	50.99	52.91	52.08
900	51.11	51.88	51.76	52.55	54.58
950	53.94	53.48	52.97	54.36	56.13
1000	55.31	55.07	54.06	58.04	60.84
1050	71.15	56.40	56.53	60.47	62.44
1100	58.88	59.11	59.16	62.49	61.82

^a Sample with x = 0.83 is biphasic and thus out of the solubility limit (the Ni content in the main phase is lower, 0.72(2)). ^b Underlined values are derived from the polynomial function.

). Above the inflection temperature, the thermal expansion of the lattice parameter c sharply increases, influencing the dependence of ${\alpha }_V$. The volumetric thermal expansion coefficient for sample x = 0 at 300 K is 44.9 MK${}^{-1}$ [3], it decreases to 39.24 MK${}^{-1}$ for the S4 sample and 38.92 MK${}^{-1}$ at the solubility limit. The value obtained for Ca₁₀Ni_0.5(VO₄)₇ at RT is higher by 7.5% and 12.7% in comparison to Ca₁₀Co_0.5(VO₄)₇ and Ca₁₀Cu_0.5(VO₄)₇, respectively [6].

A hypothetical source of anomalies in lattice parameter and thermal expansion temperature variations is the process of cation rearrangement with rising temperature. Such anomalies have been reported for other oxides with mixed crystallographic site occupation, such as Ca₃Eu₂(BO₃)₄ [76,77]: changes in the cation ordering, namely in the fractional occupation of Eu³⁺ at M1 and M3 was observed above 923 K. The cited results could be obtained due to the use of high quality synchrotron diffraction data.

3.3. Band Gap, Luminescence Behaviour

The absorption spectra F(λ) were calculated from the experimentally measured diffuse reflectance spectra R(λ) using the well-known and repeatedly tested Kubelka–Munk expression [78]:

$$F=\frac{{(1-R)}^2}{2R}$$

(2)

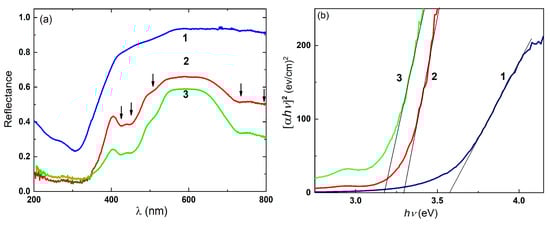

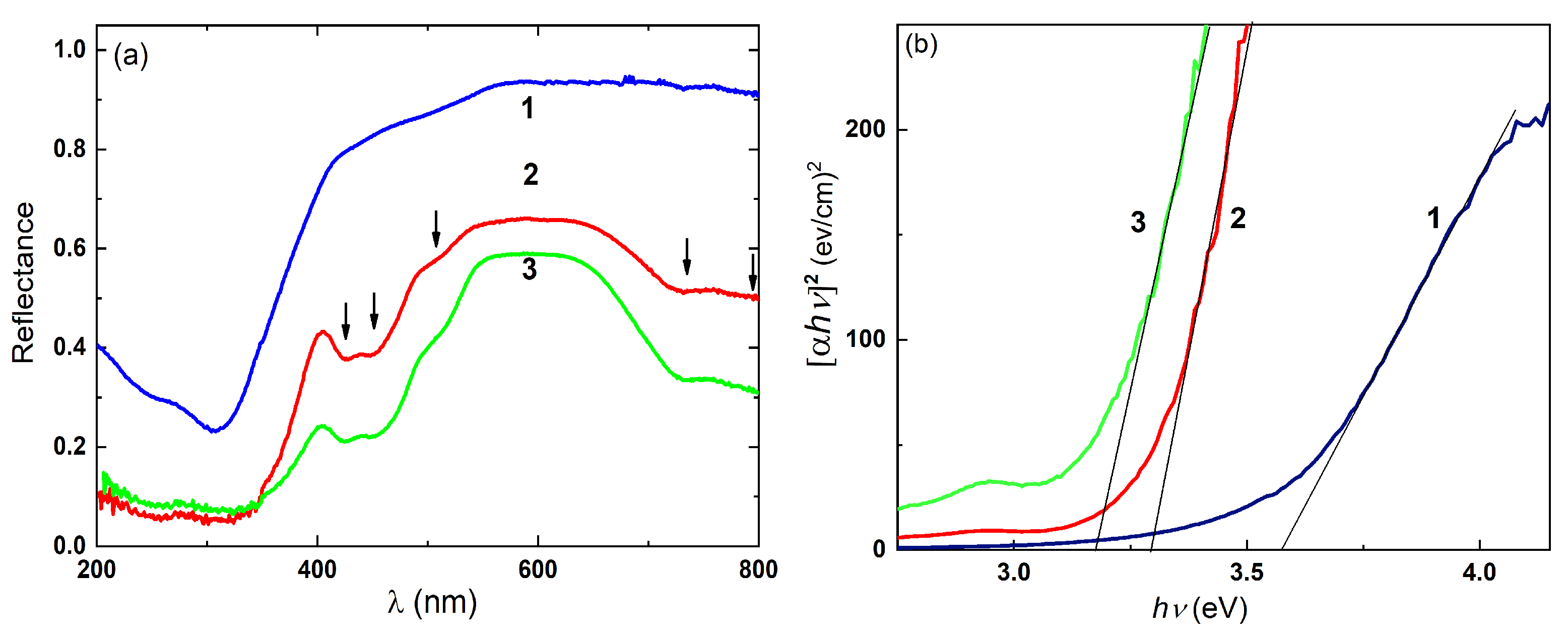

The reflection spectra used in this calculation are shown in Figure 7. Spectrum 1 represents the previously known absorption spectra of the TCV orthovanadate. Absorption in the wavelength range >400 nm is due to spin-allowed electronic transitions from the ground ${}^1$A${}_1$ to the excited ${}^1$T${}_1$ and ${}^1$T${}_2$ states in the VO${}_4^{3-}$ molecular groups [79,80,81]. Since there are three types of VO${}_4^{3-}$ groups in TCV, the energies of the VO${}_4^{3-}$ transitions must be different for each of them [46,82], causing a slow increase in the absorption edge in the 350–450 nm range.

Defects and impurities in the crystal lattice have various effects on different types of vanadate groups; therefore, when a nickel dopant is introduced, the shape of the absorption edge changes (Figure 7a, curve 2). In addition, noticeable absorption appears in the 400–550 and 625–800 nm spectral ranges. In the first range, three bands with maxima at 423, 450, and 515 nm are observed, while in the second, two bands appear with maxima at 735 and 800 nm. The peak positions of these bands are marked with arrows in Figure 7a. As the nickel content is increased, the intensity of these absorption bands increases too (Figure 7a, curve 3), indicating their connection with the presence of nickel ions. Referring to the literature data, the aforementioned absorption bands can be assigned to electronic transitions in the Ni²⁺ ions [83,84,85]. According to the Tanabe–Sugano diagrams, the observed bands in the absorption spectra at 800, 720, 510, 460, and 420 nm can be attributed to electronic transitions from light absorption from the ${}^3$A${}_2$(3F) ground state of Ni²⁺ in an octahedral oxygen environment to the ${}^3$T${}_2$(3F), ${}^1$T${}_2$(1D), and ${}^3$T${}_1$(3P) excited states, respectively. Furthermore, two absorption bands at 460 and 420 nm can be attributed to the ${}^3$T${}_1$(3P) ←${}^3$A${}_2$(3F) transition [83]. The influence of Ni ions on the crystal lattice is also revealed in the red shift of the optical band gap E_g of the studied compounds. The E_g values were estimated from optical absorption data using the well-known Tauc equation [86]:

$${\alpha }_E=A{(E-E_g)}^n$$

(3)

where $\alpha$ is the absorption coefficient, $E=h\nu$, and A is a value considered constant within certain assumptions; while n = 1/2, 3/2, 2, and 3 for direct allowed transitions (n = 1/2), direct forbidden transitions (n = 3/2), indirect allowed transitions (n = 2), and indirect forbidden transitions (n = 3). Considering that there are direct allowed transitions [44,46] (n = 1/2), Equation (3) can be written as:

$${\left[\alpha \left(h\nu \right)h\nu \right]}^2=A(h\nu -E_g)$$

(4)

Now, using $\alpha$(h$\nu$) as the above calculated absorption coefficient, F(h$\nu$), we can plot the dependence of f(h$\nu$) for the studied samples (Figure 7b):

$$f\left(h\nu \right)={\left[F\left(h\nu \right)h\nu \right]}^2$$

(5)

The point of the f(hν) intersection with the abscissa determines the optical band gap of the studied material. In particular, we obtained E_g = 3.56 eV for Ca₃(VO₄)₂. This value is close to previously reported values using the same optical method (i.e., 3.55 eV) [44].

The introduction of Ni ions into the composition of the compounds leads to a red shift of the E${}_g$ value: E_g = 3.29 and 3.16 eV for x = 0.33 and 0.66, respectively. The observed change in E_g is expected, as noted in the introduction, due to the effect of Ni²⁺ on the vanadate band gap. Additionally, it can be said that the band gap for nickel vanadate Ni₂V₂O₇ was E_g = 2.15 eV [43]. The decrease in E_g is the result of a stronger deformation of the VO${}_4^{3-}$ groups adjacent to the Ni ions. A deformation of the VO${}_4^{3-}$ groups under the influence of Ni ions can also be identified by the spectral characteristics of the intrinsic PL of the samples [87,88]. A band of intrinsic PL with a main maximum at 540 nm is observed in the spectra of Ca₃(VO₄)₂ in the 350–750 nm range. In addition, at least two more components with maxima at 500 and ∼610 nm can be noted in the composition of this band (Figure 8, curve 2). The peak position of these bands is approximately marked with arrows in Figure 8. Such PL is excited by a wide range of UV radiation, from 100 to 350 nm, with a maximum at 308 nm (Figure 9, curve 1). The position of the noted peak in the excitation spectrum coincides with a peak in the Ca₃(VO₄)₂ absorption spectrum; therefore, the observed PL is due to VO${}_4^{3-}$ group excitation from electronic transitions with absorption (${}^1$T${}_1$, ${}^1$T${}_2$) ←${}^1$A${}_1$. The VO${}_4^{3-}$ groups in the studied materials are not ideal tetrahedra, and therefore the decrease in symmetry and the strengthening of the spin–orbit interaction lead to an increase in the probability of transitions with a change of spin <3> ←→ <1>. As a result of the non-radiative relaxation of the energy of the singlet levels (${}^1$T${}_1$, ${}^1$T${}_2$), low-energy levels of the triplet state (${}^3$T${}_1$, ${}^3$T${}_2$) are populated, and radiative transitions occur from the ground ${}^1$A${}_1$ level (${}^3$T${}_1$, ${}^3$T${}_2$) →${}^1$A${}_1$ [79,81], causing the PL band described above.

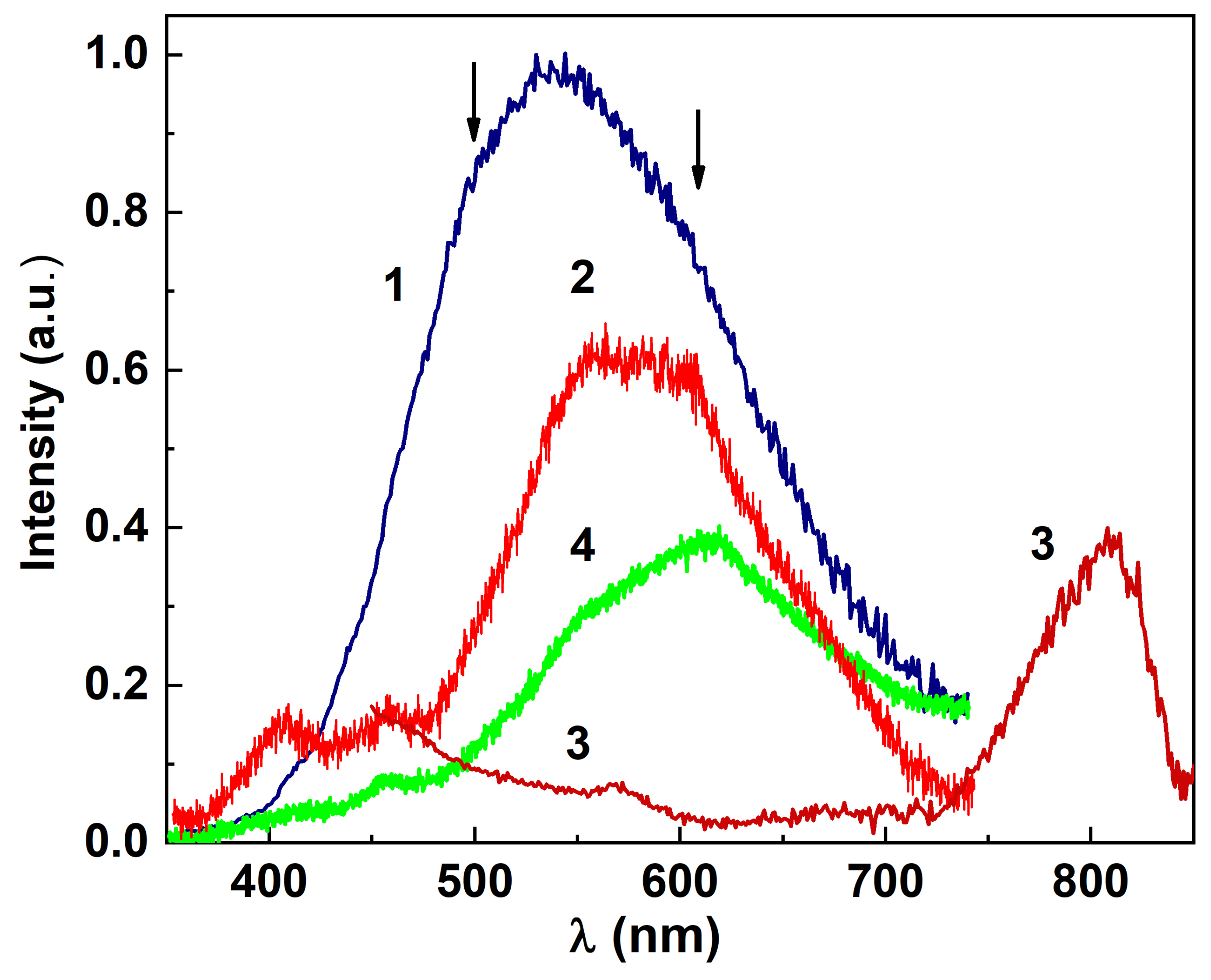

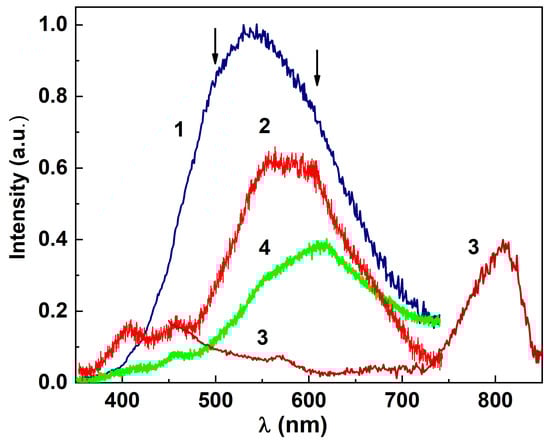

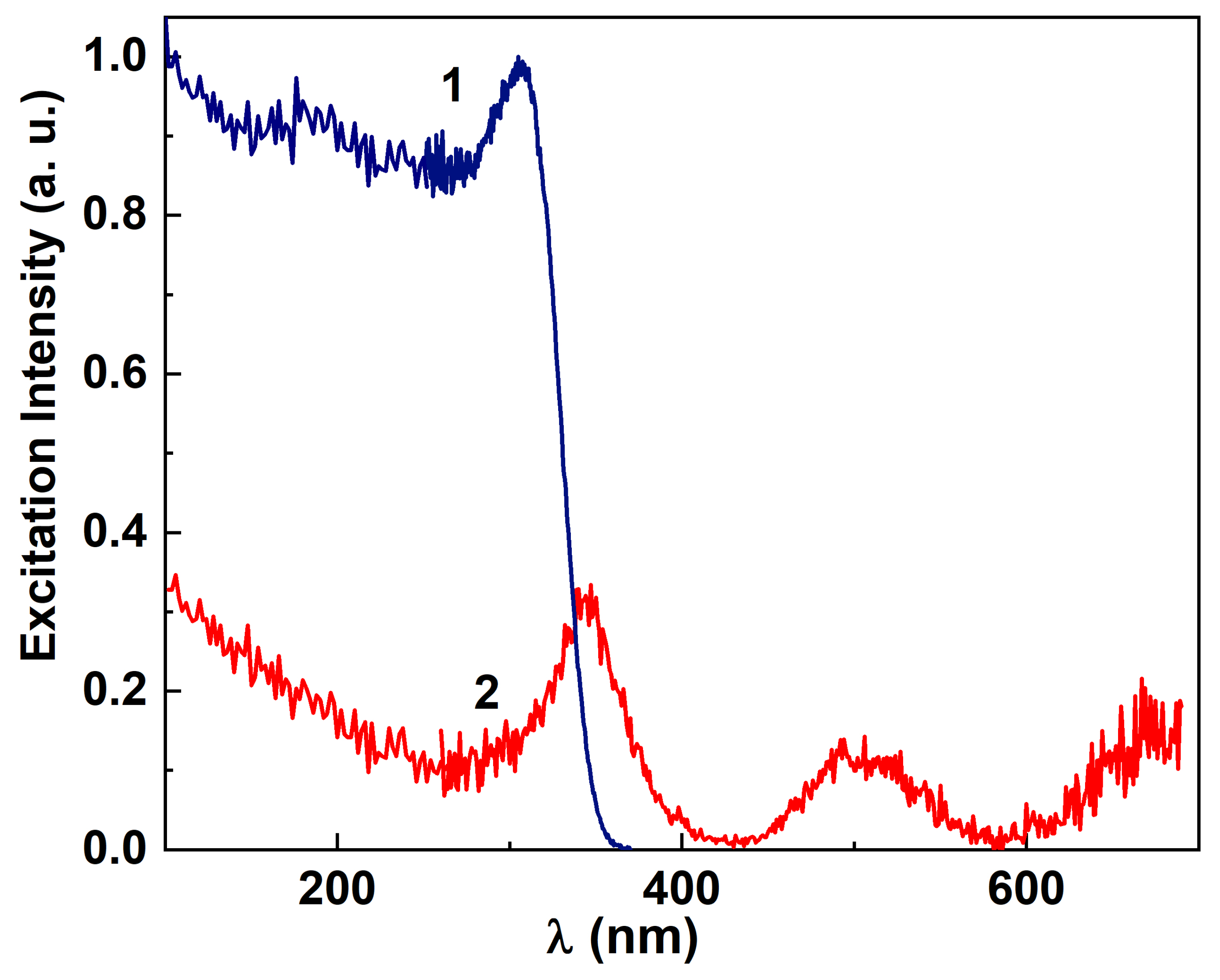

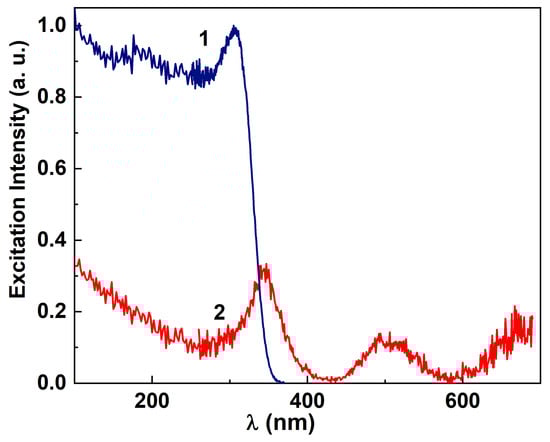

The shape of this band changes and the luminescence intensity decreases noticeably when the compounds contain Ni²⁺. Thus, the spectrum of the sample with x = 0.33 is dominated by the luminescence component with a maximum at 540 nm, but the contribution of the 610 nm component noticeably increases (Figure 9, curve 2). By increasing the Ni content (x = 0.66), the contribution of this component becomes dominant. Moreover, the contribution of the red shoulder in the 650–725 nm range also increases (Figure 8, curves 2, 3). The described changes in the spectrum profile are associated with the effects of Ni²⁺, which can be located in different positions (mainly M4 and M5), on neighbouring VO${}_4^{3-}$ groups. The observed red shift in the PL spectra correspond to band gap narrowing when the Ni²⁺ concentration increases, while the decrease in the PL intensity is due to a decrease in the rate of radiation transitions of excited electrons. This behaviour makes Ni-substituted compounds more attractive for applications, particularly, for photocatalysis, especially compounds with high (the highest studied here) Ni content.

In addition, in the PL spectra of samples containing Ni, PL bands were observed at 375–475, 575–700, and 725–850 nm. These bands do not exist in Ca₃(VO₄)₂, which exhibits bands at 320–425 nm (excitation maximum at 353 nm), 425–575 (498 nm maximum) and 600–675 nm, with a maximum around 670 nm. It is easy to see that the positions of these PL excitation bands correlate with the bands in the absorption spectra of Ni ions (as discussed above). Therefore, we conclude that the PL bands described above are caused by radiative electronic transitions in Ni ions. These are ${}^1$T${}_2$ (1D) →${}^3$A${}_2$(3F) transitions (they cause a green-yellow PL band, 400–525 nm), ${}^3$T${}_1$(3P) →${}^3$A${}_2$(3F) (yellow–red PL, 575–700 nm), and ${}^1$T${}_2$ (1D) →${}^3$T${}_2$ (3F) (the band of red PL, 700–850 nm) [83,84]. Consequently, the blue-green and yellow-red PL is associated with Ni ions located in the octahedral environment, while tetrahedrally coordinated Ni²⁺ ions do not show PL, or it appears in the blue-green and yellow-red emission bands [84]. Taking into account the fact that the intensity of the red band is ten times higher than the intensity of the short-wavelength luminescence bands, we conclude that the Ni ions in the studied structures mainly occupy octahedrally coordinated positions of M5, consistent with the data of the crystal structure analysis.

4. Conclusions

This study describes the crystal-structure-related properties of a new material,

Ca_10.5−xNi_x(VO₄)₇, a solid solution at ambient and high temperatures. It also provides basic information on its luminescence properties and band gap. Data on the structure obtained from the Rietveld refinements showed that (1) the solubility limit, x${}_{lim}$, is 0.72(2), with lattice parameters for this composition evaluated as a = 10.7622 Å, c = 37.6878 Å and volume = 3780.39 Å${}^3$; (2) Ca_10.5−xNi_x(VO₄)₇ crystallizes in a trigonal structure within the R3c space group, whitlockite-$\beta$Ca₃(PO₄)₂ structure type. Analysis of the occupancies at the available octahedral sites (M1–M5) revealed a preference for Ni ions to occupy the M5 site, consistent with previous findings on similar materials demonstrating a non-random distribution of small divalent ions substituting Ca ions. As a result of the identical site occupancy pattern, the investigated crystals can be regarded as iso-structural with previously reported compounds, such as Ca₃(VO₄)₂ with partial substitution of Ca atoms by Mn, Co, or Cu, and keplerite (Ca_10.5-xMg_x(PO₄)₇). Further evidence of M5 occupation by Ca and Ni was provided by analysing the interatomic distances and BVS. Lattice parameters and unit cell volume display a smooth variation up to around 800–900 K, with a slight anomaly observed at at temperature of about 850 K. With increasing nickel content, the volumetric thermal expansion at room temperature decreased by about 7%. The observed anomaly was most noticeable in the axial ratio and thermal expansion variations with temperature. Hypothetically, the mentioned anomaly could be attributed to a change in the Ni ion distribution over the different crystallographic sites at higher temperatures.

The optical band gap value decreased from 3.54 eV for the x = 0 sample to 3.16 eV for the x = 0.66 sample. This decrease is significant and suggests that compounds with a high Ni content are potentially useful as photocatalysts. The absorption and photoluminescence spectra indicate that the Ni ions preferentially occupy the M5 site in the TCV structure, consistent with the structural refinement results.
