Review

Recent Progress of Film Fabrication Process for Carbon-Based All-Inorganic Perovskite Solar Cells

1
College of Physics and Optoelectronics Technology, Baoji University of Arts and Sciences, Baoji 721016, China
2
Shaanxi Key Laboratory of Phytochemistry, College of Chemistry and Chemical Engineering, Baoji University of Arts and Science, Baoji 721013, China
3
North Automatic Control Technology Institute, Taiyuan 030006, China
4
Wide Bandgap Semiconductor Technology Disciplines State Key Laboratory, School of Microelectronics, Xidian University, Xi’an 710071, China
*
Authors to whom correspondence should be addressed.
Crystals 2023, 13(4), 679; https://doi.org/10.3390/cryst13040679
Submission received: 20 March 2023 / Revised: 4 April 2023 / Accepted: 11 April 2023 / Published: 14 April 2023

Abstract

:
Although the certified power conversion efficiency of organic-inorganic perovskite solar cells (PSCs) has reached 25.7%, their thermal and long-term stability is a major challenge due to volatile organic components. This problem has been a major obstacle to their large-scale commercialization. In the last few years, carbon-based all-inorganic perovskite solar cells (C−IPSCs) have exhibited high stability and low-cost advantages by adopting the all-inorganic component with cesium lead halide (CsPbI3−xBrx, x = 0 ~ 3) and eliminating the hole-transporting layer by using cheap carbon paste as the back electrode. So far, many astonishing developments have been achieved in the field of C−IPSCs. In particular, the unencapsulated CsPbBr3 C-IPSCs exhibit excellent stability over thousands of hours in an ambient environment. In addition, the power conversion efficiencies of CsPbI3 and CsPbI2Br C-IPSCs have exceeded 15%, which is close to that of commercial multicrystalline solar cells. Obtaining high-quality cesium lead halide-based perovskite films is the most important aspect in the preparation of high-performance C-IPSCs. In this review, the main challenges in the high-quality film fabrication process for high performance C-IPSCs are summarized and the film fabrication process strategies for CsPbBr3, CsPbIBr2, CsPbI2Br, and CsPbI3 are systematically discussed, respectively. In addition, the prospects for future film fabrication processes for C-IPSCs are proposed.

1. Introduction

Among the next generation of photovoltaic technologies, the remarkable perovskite solar cells (PSCs) were first reported in 2009 [1]. The initial power conversion efficiency (PCE) of PSCs is only about 3% but, due to their unique properties—high light absorption efficiency [2,3], tunable band gap [4,5], small exciton binding energy [6], high carrier mobility [7,8] etc.—they have rapidly gained widespread attention from the photovoltaic research community worldwide. The certificated PCE has surged to 25.7% [9]. With the fast growth of PCE and low-cost preparation process, PSCs are expected to be commercially available in coming years [10,11,12].
The general molecular formula of perovskite adopted in the photovoltaic field is ABX3, whose crystal structure is shown in the inset of Figure 1a, where A is monovalent cation such as methylammonium (CH3NH3+; MA+) or formamidinium (HC(NH2)2+; FA+) or Cs+, B is divalent metal such as Pb2+ or Sn2+, and X is a monovalent halide anion such as Cl or Br or I. PSCs with PCE exceeding 22% are mostly made of organic-inorganic perovskite film containing organic components (MA+ or FA+) [13,14,15,16]. Although organic-inorganic perovskite films have excellent photovoltaic properties, the inherent stability of the organic component [17,18,19], especially thermal stability [20,21], is very poor. For instance, MAPbCl3 and FAPbCl3 films decomposed to some extent under one of the standard test conditions ISOS−D−2 (85 °C) [22]. These disadvantages limit the scope of application of PSCs.
The most effective way to improve the long-term stability and thermal stability of PSCs is to completely replace the organic component of A in the ABX3 with an inorganic component [23,24]. Since 2015, researchers have revealed that cesium lead halide PSCs have an excellent stability and the unencapsulated devices can operate continuously and stably for over 900 h at 100 °C [23,25,26,27]. In particular, hole-transporting materials (HTM)-free carbon-based cesium lead halide PSCs (C-IPSCs) exhibit two distinct advantages. Firstly, conventional small-molecule HTMs (spiro-OMeTAD: 2,2,7,7-tetrakis (N,N-di-p-methoxyphenylamine)-9, 90-spirobifluorene) and polymer HTMs (PTAA: poly(triarylamine)) in IPSCs require dopants, such as lithium bis (trifluoromethanesulfonyl) imide (LiTFSI) and tert-butylpyridine (tBP), which leads to the hydrophilicity of HTM layer, thus accelerating the decomposition of perovskite film and aggravating the long-term operational instability issues [28,29,30]. Secondly, precious metal electrodes such as Au used in IPSCs are expensive, and the HTMs are more than 10 times more expansive than Au electrodes [31,32]. By eliminating the HTM layers in the configuration of C-IPSCs and using low-cost carbon electrodes, C-IPSCs have the remarkable advantage of high stability and low cost. The main advantages of carbon electrodes are low cost, suitable work function with all-inorganic perovskite, simple process, and inertness to water and ions in perovskite. There are two major disadvantages of carbon electrodes. First, the adhesion between the carbon electrode and the perovskite is not dense enough, which easily leads to the recombination of carriers at the interface [33,34]. Second, the carbon electrode is less reflective of sunlight compared to the Ag/Au electrode, resulting in less secondary absorption of sunlight by the perovskite layer.
Up to date, C-IPSCs have shown high stability, while performance is still far below their Shockley-Queisser limit [35]. For instance, the top level PCE of CsPbI3-based devices reported so far is about 15%, which is only 50% of the Shockley-Queisser limit [36,37,38]. In order to increase the progress of large-scale commercialization of C-IPSCs, it is necessary to overcome the obstacles, such as further enhancement of PCE of C-IPSCs, decreasing energy level difference at the interfaces for more efficient carrier transport, and improvement of phase stability of the all-inorganic perovskite films. The most effective way to solve these issues is to fabricate high-quality inorganic perovskite films. However, there are great differences in the optical properties, optoelectronic properties, and device performance of C-IPSCs obtained by methods such as one-step solution process, two−step solution process, vacuum process, and vapor-assisted process.
In this review, we first discuss the primary challenges associated with the high-quality films fabrication process for C-IPSCs. Due to the large differences in the optoelectronic properties, film formation mechanism, and stability of the inorganic films, we then discuss and summarize in detail the representative films fabrication processes for CsPbBr3, CsPbIBr2, CsPbI2Br, and CsPbI3 films of C-IPSCs. Finally, we provide our perspectives and an outlook of possible solutions for the film fabrication process for C-IPSCs.

2. Primary Challenges with Film Fabrication Process for C-IPSCs

2.1. Energy Level Mismatch

Because the unstable and expensive HTM is eliminated from the structure of C-IPSCs, the device has a configuration of glass/electron transport material (ETM)/perovskite/carbon, as shown in Figure 1a, where compact TiO2 (c−TiO2) and/or mesoporous TiO2 (m−TiO2) is typically used as ETM. The energy level diagram of CsPbBr3, CsPbIBr2, CsPbI2Br, and CsPbI3 C-IPSCs is shown in Figure 1b. The energy difference between the conduction band minimum (CBM) of TiO2 layer and the all-inorganic perovskite film is so large that it tends to cause electrons to flow back to the interface of TiO2/perovskite [39]. These electrons can easily recombine with holes through deep level defects, thus reducing the PCE of the devices. It is obvious that there is energy level mismatch between the interfaces, which leads to carrier recombination and, thus, affects the performance of the devices [40,41,42].

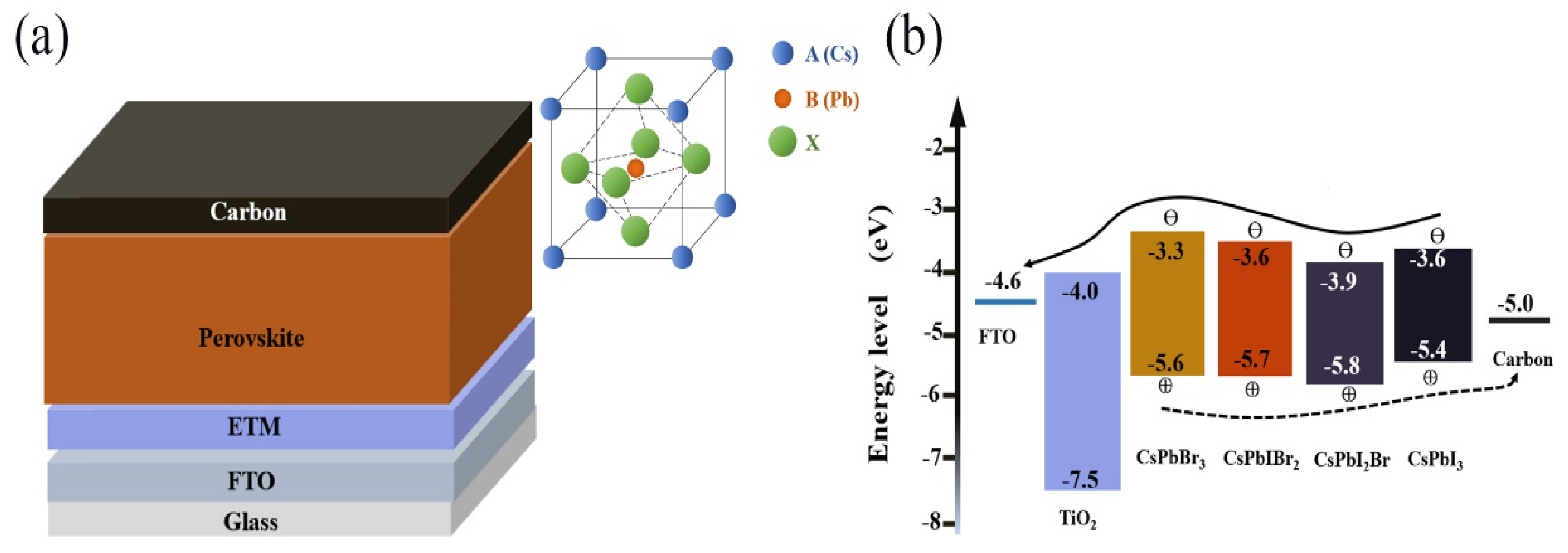

Figure 1. (a) The device configuration (inset: crystal structure of perovskite films) and (b) the energy level diagram of CsPbBr3, CsPbIBr2, CsPbI2Br, and CsPbI3 C-IPSCs. The band structures of FTO, TiO2, carbon, and perovskite films are referred to from the previous literature [25,42,43,44].
Figure 1. (a) The device configuration (inset: crystal structure of perovskite films) and (b) the energy level diagram of CsPbBr3, CsPbIBr2, CsPbI2Br, and CsPbI3 C-IPSCs. The band structures of FTO, TiO2, carbon, and perovskite films are referred to from the previous literature [25,42,43,44].
Crystals 13 00679 g001
Certainly, the energy level alignment can be improved by interface engineering, such as modifying the ETM or the carbon electrode layers [41,45,46,47,48]. However, the more effective and convenient strategy is to achieve energy level alignment by optimizing the perovskite film fabrication process to enhance the performance of the devices while modifying the valence band maximum (VBM) or the conduction band minimum (CBM) of the inorganic films [49,50,51], which will be discussed in more detail in the later part of this review.

2.2. Phase Stability

The phase stability of perovskite films can be predicted by the Goldschmidt tolerance factor t and octahedral factor μ:
t = r A + r X 2 ( r B + r X )
μ = r B r X
where rA, rB, and rX are the ionic radii of A, B, and X in the perovskite formula ABX3, respectively [52,53].
It is generally accepted that the stable black inorganic perovskite with photovoltaic properties can only be formed when 0.813 < t < 1.107 and 0.442 < μ < 0.895 [53]. Due to the smaller ionic radius of Cs+ (1.81 Å) compared to the organic ions MA+ (2.70 Å) and FA+ (2.79 Å), the t values for CsPbBr3, CsPbIBr2, CsPbI2Br, and CsPbI3 range from 0.814 (CsPbBr3) to 0.81 (CsPbI3) and the value μ ranges from 0.62 (CsPbBr3) to 0.54 (CsPbI3) [54,55]. It is the weakest phase stability for CsPbI3 films (Eg: ~1.8 eV), which have a broader absorption spectrum and greater potential for higher efficiency. The stability of C-IPSCs is significantly better than that of organic-inorganic PSCs. However, stability remains a challenge for C-IPSCs, especially for CsPbI3 C-IPSCs. Here are some strategies that have been proposed to improve the stability of C-IPSCs:
Encapsulation: CsPbI3 is sensitive to moisture, heat, and light, which can degrade the perovskite film and reduce the device stability. Encapsulating the device with suitable barrier layers, such as polymer, glass, or metal, can protect the device from environmental factors and improve its stability.
Interface engineering: Interfaces in C-IPSCs, such as those between the perovskite and the electron transport layer or carbon electrode, can also affect the device stability. The introduction of a suitable interlayer or interface modifier can improve the charge transfer and reduce interface recombination, leading to improved device stability [56,57].
Doping: Doping the perovskite film with suitable materials, such as metals or metal oxides, can improve the stability of the device by reducing the trap density and improving the charge transport properties [58,59,60].
Composition engineering: The composition of the perovskite film can also affect the stability of the device. Introducing suitable additives, such as dimethylammonium iodide [36] and CsI [61], can improve the crystal quality and reduce the defect density in the perovskite film, leading to improved device stability.
Passivation of defects: Defects in perovskite films can lead to charge carrier recombination and reduce the device stability. Passivation of these defects by using organic or inorganic materials, such as alkali hydroxides [45], N, N’-Dicyclohexylcarbodiimide (DCC) [62], or halogenoid ions [63], can improve the device stability.
Overall, the strategies mentioned above can be combined to achieve the best stability improvement results for C-IPSCs.
Therefore, the main consideration in film fabrication processes should be how to improve the stability.

2.3. Exceeding the Solubility Limit of Cs Salts

Since the device configuration of C-IPSCs and the all-inorganic perovskite components are significantly different from those of organic-inorganic hybrid halide PSCs, it is more complicated to regulate the fabrication process of inorganic perovskite films for C-IPSCs. How to exceed the solubility limit of Cs salts is very important in the film fabrication process.
Firstly, the trade−off between band gap and phase stability of perovskite films requires precise control of the halide composition regulation. However, the solubility limit of Cs salts, especially CsBr, in N,N-dimethylformamide (DMF) is very low, so a certain amount of dimethyl sulfoxide (DMSO) with higher polarity index should be mixed into the solvent to improve the solubility of CsBr [64,65]. However, the boiling point of DMSO (189 °C) is higher than that of DMF (153 °C), which will slow down the crystallization process of all-inorganic perovskite, resulting in a large number of pinholes in the films [66,67].
Secondly, due to the weak light reflectance ability of carbon-electrode-based IPSCs compared to metal Au/Ag-based IPSCs, the effective secondary absorption cannot be established [68,69,70]. To achieve more light absorption, it is necessary to fabricate thicker inorganic layers compared to metal electrode devices (~400 nm) [70,71]. For the above reasons, it is necessary to exceed the solubility limit by methods such as vapor deposition [72,73], precursor composition engineering [61,74], and post-annealing processing [75,76,77]. In particular, it is more important to exceed the solubility limit of Cs salts for large-scale industrial film fabrication processes, such as spray coating, inkjet-printing, etc. [78,79,80].
In addition to the above three main challenges, there are also some concerns in the film fabrication process of IPSCs: it was found that the self-trapped electrons (STEL) and holes (STH) in PbCl2 and PbBr2, which are one of the important components in the formation of all-inorganic perovskite, have an important influence on carrier recombination. Meanwhile, due to the different halogen-halogen distances in CsCl, CsBr, and CsI crystal structure, the temperature for STH migration onset is different, which has an important impact on the PV characteristics of C-IPSCs (as shown in Table 1) [81,82].
In addition, there is phase segregation upon illumination due to the kinetic mechanism of film formation [33,83], severe nonradiative recombination due to defects in the film [84,85], insufficient environmentally friendly solvents used in the solution methods [86,87], etc.
The advantages and disadvantages of C-IPSCs with CsPbBr3, CsPbIBr2, CsPbI2Br, and CsPbI3 films are summarized in Table 2.
More importantly, the film fabrication process for CsPbBr3, CsPbIBr2, CsPbI2Br, and CsPbI3 films of C-IPSCs has some different concerns. In the third part of this review, the film fabrication processes for CsPbBr3, CsPbIBr2, CsPbI2Br, and CsPbI3 films of C-IPSCs are discussed, respectively.

3. Strategies of Film Fabrication Process for C-IPSCs

3.1. CsPbBr3

Due to the remarkable stability of CsPbBr3 film, the C-IPSCs based on CsPbBr3 were first proposed among all the C-IPSCs in 2016 [88]. It is difficult to achieve accurate stoichiometric ratios of precursors by the conventional one-step method because of the low solubility of CsBr in DMF or DMSO, so the two-step solution method and multi-step solution method are the mainstream strategies for CsPbBr3 film fabrication process for C-IPSCs [89,90,91,92,93].

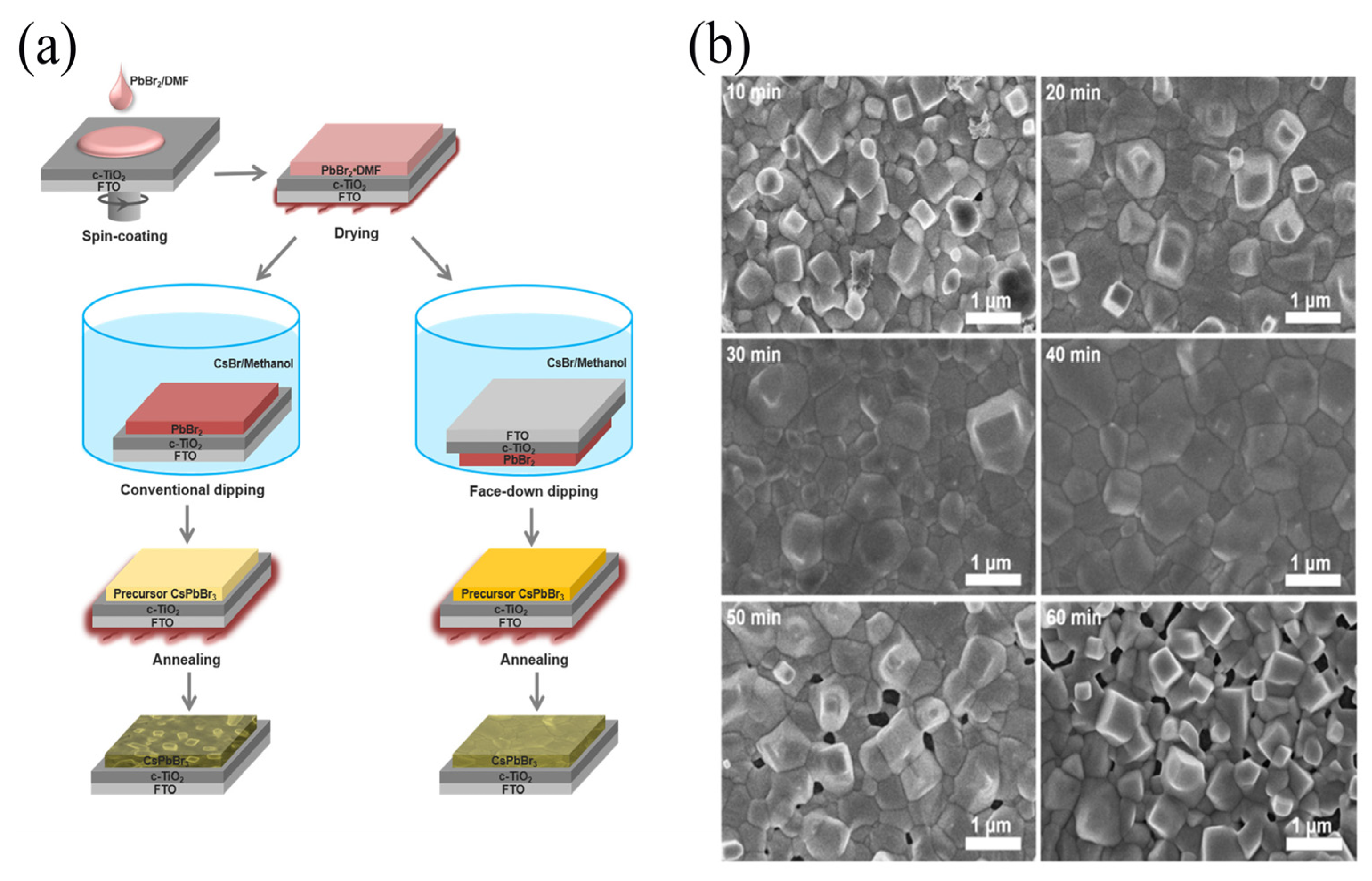

Jin et al. adopted the two-step solution; the first step is to prepare the PbBr2 layer by the solution of 1.0 M PbBr2 in DMF spin-coated on the substrate of c−TiO2 and m−TiO2, then drying at 80 °C for 30 min [88]. In the second step, the solution of 0.07 M CsBr in methanol was dipped onto the substrate for 10 min, and afterwards rinsed by isopropanol, dried in air, and heated to 250 °C for 5 min, resulting in CsPbBr2 film. It is worth mentioning that the whole preparation process of C-IPSCs was accomplished in ambient air, which means lower fabrication costs. Through optimizing the thicknesses of m−TiO2 and PbBr2 layers, the best performance achieved a 6.7% PCE with an active area of 0.12 cm2. Moreover, the unencapsulated cells showed no degradation in performance after 860 h under extreme conditions (100 °C, 90–95% relative humidity (RH)). The high stability and low cost of C-IPSCs aroused much attention, but the initial C-IPSCs had to be prepared on the complicated c−TiO2 and m−TiO2 substrate.

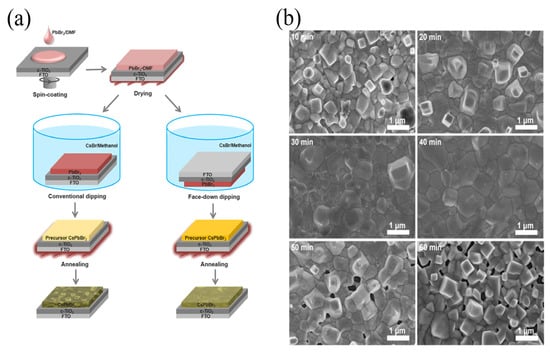

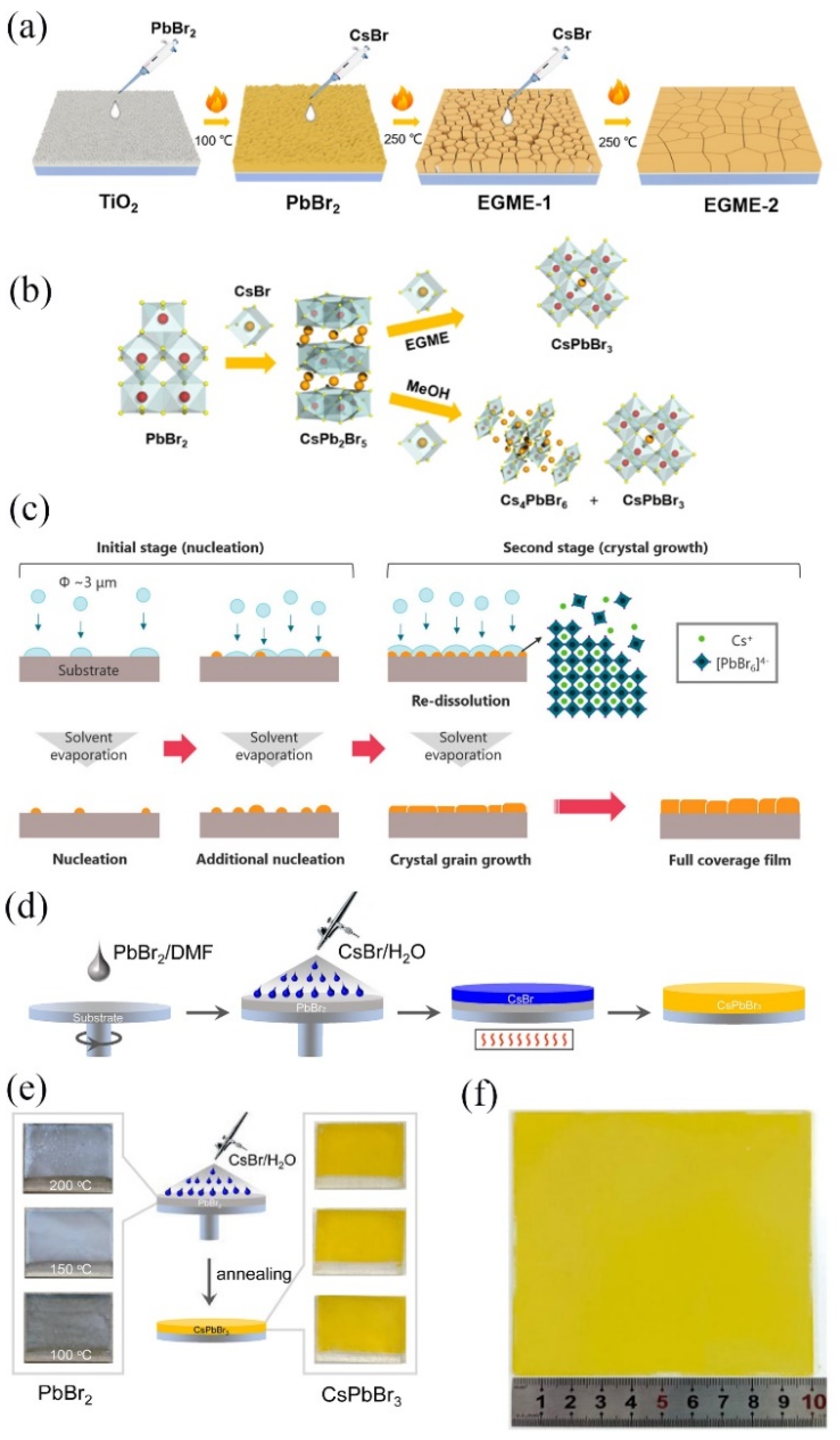

Yang et al. revised the two-step solution method by innovatively proposing the face-downing dipping process, by which the best performance cell with a PCE of 5.86% and higher open-circuit voltage (VOC) of 1.34 V was prepared on the relatively simple c−TiO2 substrate, on which it is more difficult to prepare homogeneous and pinhole-free CsPbBr3 films (as shown in Figure 2a) [94]. In order to find out the optimal dipping parameters, the substrates were dipped face down in CsBr solution at 50 °C from 10 min to 60 min. As shown by the corresponding SEM images in Figure 2b, when the dipping time reached 40 min, the surface morphology of the CsPbBr3 film is uniform and smooth, with the average grain sizes increasing to 860 nm. In addition, the PCEs of that device remained mostly unchanged in an ambient environment of 50–60% RH at 25 °C.
The formation of CsPb2Br5 or Cs4PbBr6 due to incomplete reactions is the main reason for the relatively low PCE for CsPbBr3 C-IPSCs [95,96,97]. Therefore, how to obtain a high purity CsPbBr3 phase is the main concern in the film preparation process. Consequently, a diversity of multi-steps of spin-coating CsBr solution had been developed for accurate control of the crystallization process of CsPbBr3 to avoid formation of mixed phases. Wu et al. fabricate pinhole-free and phase-pure CsPbBr3 film through an innovative triple-step solution method, as shown in Figure 3a [93]. The highlight of this method is the use of the green bi-solvent of water (the high polarity index) and ethylene glycol monomethyl ether (EGME with high viscosity) to dissolve CsBr. Through twice spin-coating CsBr solution, the reaction kinetics were balanced and Ostwald ripening was achieved. Compared to adopting methanol as the solvent for CsBr, adopting water/EGME bi-solvent system can form a homogenous CsPbBr3 film without any phase separation, as illustrated in Figure 3b. The optimal device is a PCE of 9.55% with a fill factor (FF) of 84.49%, a short-circuit photocurrent density (JSC) of 7.18 mA/cm3, an open-circuit photovoltage (VOC) of 1.5 V, and a PCE of the unencapsulated device was maintained at 86.8% of its initial value after 34 days in an open-air environment.
In addition to the spin-coating methods, the fabrication processes of CsPbBr3 films suitable for large-scale production are of great interest to the industry, such as spray coating [80], misting treatment [79], thermal evaporation process [98,99], etc. Hirato et al. adopted misting treatment in which the small and uniform mist particles of the precursor solution were first generated by a 2.4 MHz ultrasonic vibration [79]. Then, these mist particles were deposited on the preheated substrate through two stages: initial stage and crystal growth, as shown in Figure 3c. Finally, the area of the uniform CsPbBr3 film obtained by this method can be up to 2.5 × 2.5 cm2. However, duo to the limitation of electrode area, the final area of the devices is only 0.08–0.10 cm2. Our team proposed a generic spray-assisted film process, which is suitable for large-scale production for IPSCs [80]. The film preparation process is shown in Figure 3d. First, PbBr2 solution was spin-coated onto the substrate. Through the annealing process, the water-based CsBr solution was sprayed onto the surface of the PbBr2 film using a commercial airbrush. The PCE of the optimal device with an area of up to 1 cm2 was 8.21%, which is a record efficiency for the large-area CsPbBr3 cells reported to date. In addition, this spray-assisted method has a high degree of process compatibility with different morphologies of PbBr2 films. The morphologies of CsPbBr3 films were almost identical with the annealing temperature of PbBr2 films at 100 °C, 150 °C, and 200 °C (Figure 3e). At the same time, this method also shows generic applicability for the preparation of CsPbIBr2 films, CsPbI2Br films, and CsPbCl3 films. The area of CsPbBr3 films can be scaled up to 10 × 10 cm2 by adopting this method (Figure 3f), so the large-scale film fabrication processes for C-IPSCs have great potential for further research.
The stability of CsPbBr3 C-IPSCs is excellent but their PCE is currently mostly below 10%. Therefore, further improvement of the crystalline quality, degree of coverage, grain size, and the film thickness of the CsPbBr3 films is a major concern in future film fabrication processes.

3.2. CsPbIBr2

As CsPbIBr2 (Eg: ~2.1 eV) has a narrower band gap compared to CsPbBr3 (Eg: ~2.3 eV), the C-IPSCs based on CsPbIBr2 have the potential to achieve higher PCE. In addition, CsPbIBr2 shows excellent stability in ambient air, even at high temperature [100,101,102]. Therefore, the C-IPSCs based on CsPbIBr2 films can achieve a balance between efficiency and stability.
CsPbIBr2 films can be deposited by solution [103,104,105], dual-source thermal evaporation [106], vapor-assisted [49,107], and spray-assisted methods [107]. Since the solubility of CsI in DMSO can reach 1M, the convenient one-step spin-coating solution by dissolving CsI and PbBr2 into DMSO (~1.0 M) is the mainstream film fabrication process for CsPbIBr2. However, in the process of crystallization dynamics of the one-step spin-coating solution for CsPbIBr2 films, the weaker volatility of DMSO and the formation of CsI-PbBr2-DMSO complexes during the spin-coating would introduce ionic vacancy into the CsPbIBr2 films, which would form nonradiative recombination centers, resulting in poor device performance [50,75,108]. Therefore, the methods of intermolecular exchange [50,105], precursor solution additive engineering [51,75], pretreatment, and post-treatment [75] have been proposed to improve crystallization quality in the one-step solution CsPbIBr2 film fabrication process.

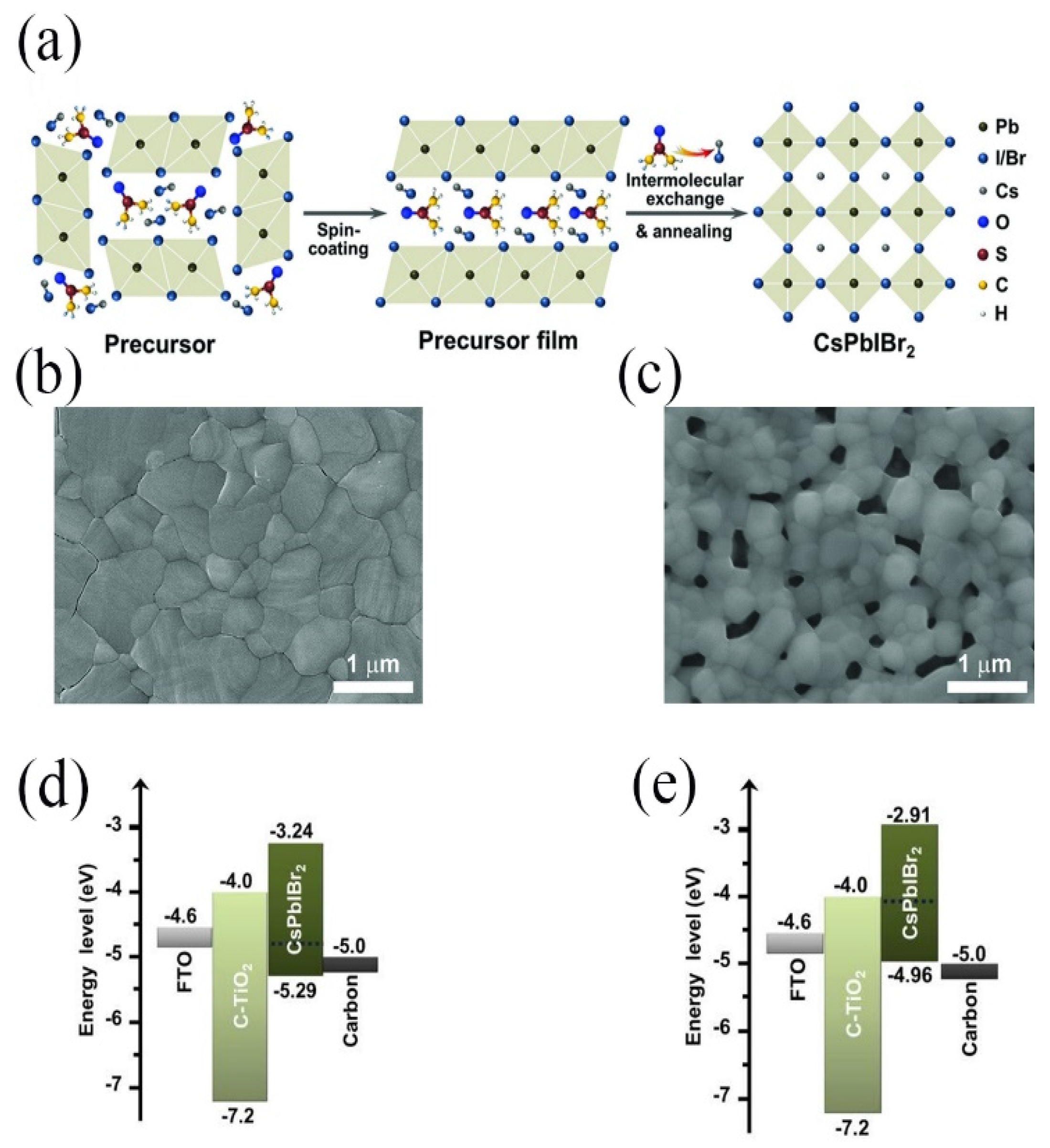

Our team first proposed a facile intermolecular exchange approach for CsPbIBr2 film fabrication [50]. The most essential step of this method is the spin-coating of an optimized concentration of CsI solution onto the CsPbIBr2 precursor films to promote the crystallization of CsPbIBr2 films. Finally, the pure-phase CsPbIBr2 films with uniform morphology and a pinhole-free structure were obtained by annealing at 280 °C for 10 min. Since CsI have a stronger affinity for PbBr than DMSO, the intermolecular exchange took place between CsI and DMSO molecules to facilitate the formation of high-quality CsPbIBr2 films (as shown in Figure 4a).
From the SEM images in Figure 4b,c, the film obtained by intermolecular exchange is fully covered with larger grain size, while the film obtained by conventional one-step solution has obvious voids and the grain size is small. In particular, as shown in Figure 4d,e, the CBM, the VBM, and the work function of the CsPbIBr2 film are adjusted by intermolecular exchange so that the energy level mismatch of the devices is improved, which can suppress carrier recombination and increase the VOC to 1.245 V. The champion PCE has reached 9.16% with excellent long-term stability.

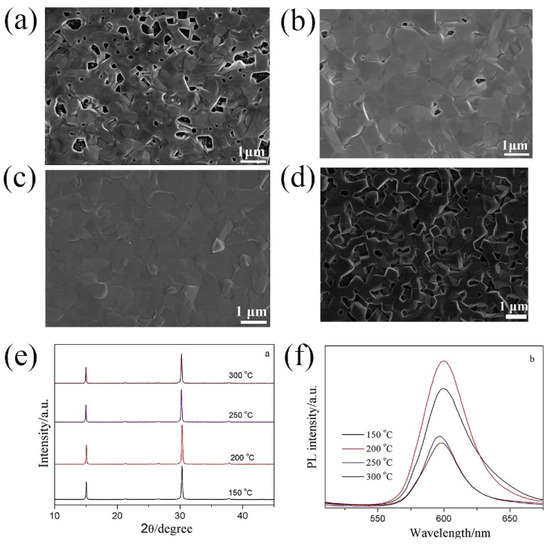

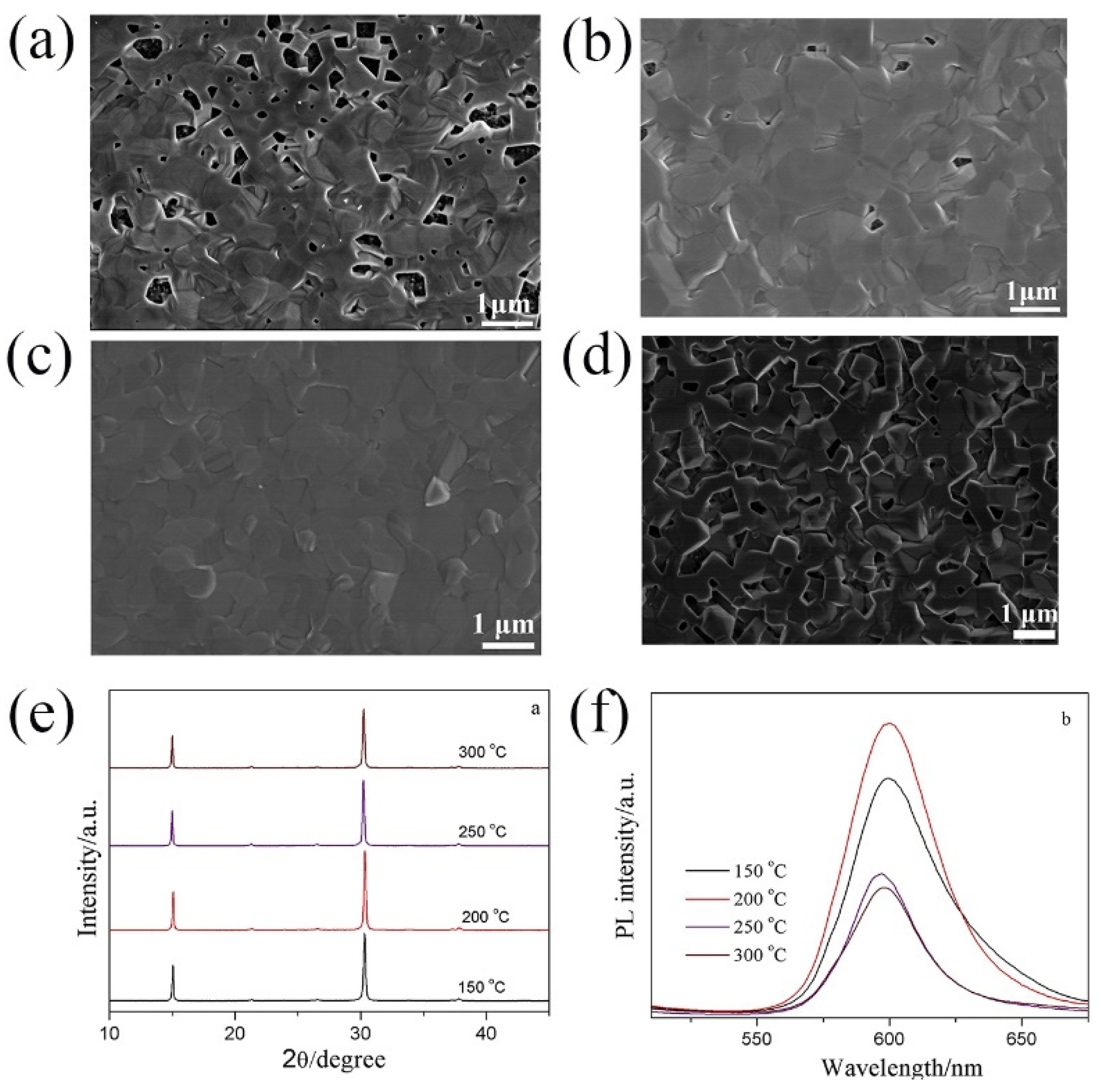

Optimizing the substrate preheating and post-annealing temperature during the film fabrication process is also an effective approach to obtain high-quality CsPbIBr2 films for fast removal of DMSO from precursor films. Wang et al. optimized the substrate preheating temperature and post-annealing temperature to 70 °C and 200 °C, respectively [75]. It can be clearly observed in Figure 5a–d that, when the substrate preheating reaches 70 °C, the CsPbIBr2 film shows compact and uniform morphology with the largest grain size. The X-ray diffraction (XRD) peaks of the α-phase CsPbIBr2 films are strongest when the temperature of post-annealing is 200 °C, which indicates higher crystalline quality (as shown in Figure 5e). As shown in Figure 5f, the peaks of the steady-state photoluminescence (PL) spectra for all CsPbIBr2 films are centered at 595 nm, which is due to the radiation recombination of the CsPbIBr2 films. In addition, PL peak corresponding to this temperature means that the CsPbIBr2 film has the least defects.

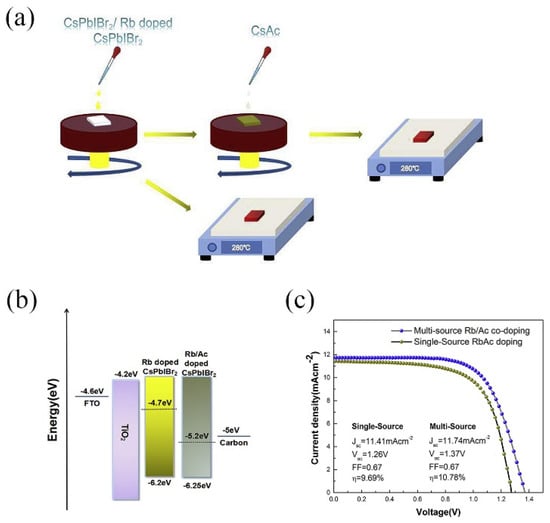

To reduce the nonradiative recombination centers in CsPbIBr2 films, doping with anions and/or cations in the film fabrication process is also an effective method. Guo et al. further improved the devices’ performance by doping the precursor solution with multi-source cations/anions [51]. The CsPbIBr2 film fabrication process is schematically shown in Figure 6a. In the first step, RbI (0.5%) was added to the precursor solution, followed by intermolecular exchange between the spin-coated CsAc solution and the CsPbIBr2 precursor film. The introduction of Ac reduces the anion vacancy defects in the CsPbIBr2 film to decrease the work function of the film, which increases the VOC of the device (as shown in Figure 6b). In addition, the doping of Rb+ can improve the crystalline quality of the CsPbIBr2 film. As a result, the optimum PCE of CsPbIBr2 C-IPSC up to 10.78% with VOC of 1.37 V.
The ionic vacancy in CsPbIBr2 films resulting from the lower volatility of DMSO can also be improved by light-assisted [109], flux-mediated [110], and residual CsPbIBr2-derived species from the recycling substrates [111]. By these methods, the energy level mismatch of CsPbIBr2 C-IPSC can also be improved. Recently, Luo et al. adopted solvent engineering by adding low boiling point methanol to DMSO, which effectively improved the crystallinity of the CsPbIBr2 film [105]. In this way, the champion PCE of the devices with spiro-OMeTAD as HTM has exceeded 11%. In the future, this preparation of CsPbIBr2 film is expected to be applied to C-IPSC.

3.3. CsPbI2Br

CsPbI2Br has the more suitable band gap compared to CsPbIBr2 and CsPbBr3, which has the potential for higher PCEs. However, as the iodine component increases, the Goldschmidt tolerance factor t is close to 0.813, which means that the CsPbI2Br film is more easily transformed into the unfavorable perovskite yellow δ-phase at room temperature [112,113]. Therefore, it is important to consider how to improve the photovoltaic performance of the devices, as well as the stability of the phase stability of the CsPbI2Br film under ambient conditions during the film fabrication process.
Currently, CsPbI2Br films can be prepared by vacuum evaporation [114], spray-coating [115], and solution spin-coating [42,61,116,117]. Considering the relatively high solubility of CsI, PbI2, and PbBr2 in DMF or DMSO, either the one-step solution process or the two-step solution process can be adopted to bring more flexibility to the fabrication of CsPbI2Br films. The one-step solution process is convenient and easy to prepare for CsPbI2Br films but it has some limitations in controlling the film thickness and morphology compared with the two-step solution process. Therefore, there are advantages and disadvantages to the different film processes.

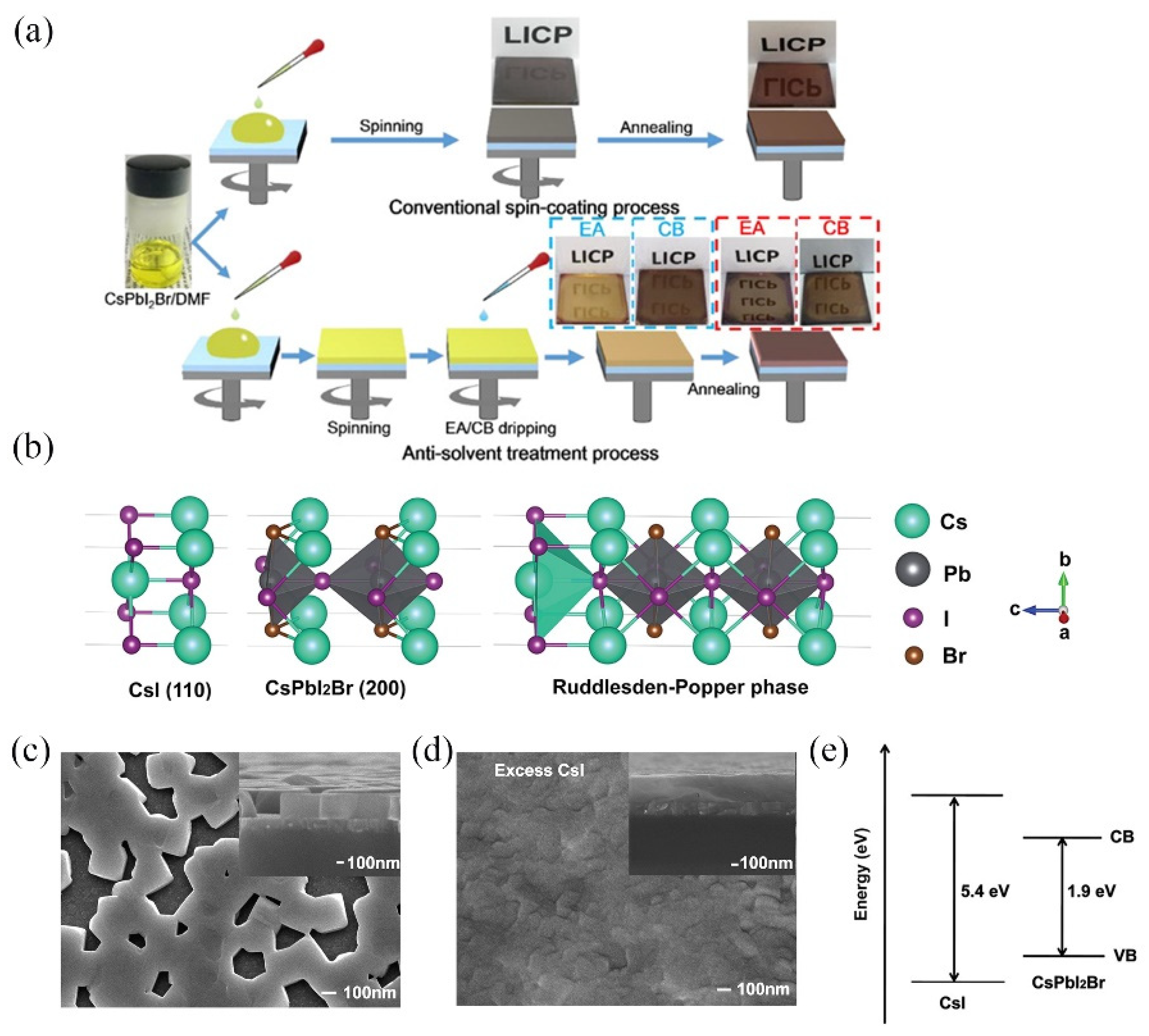

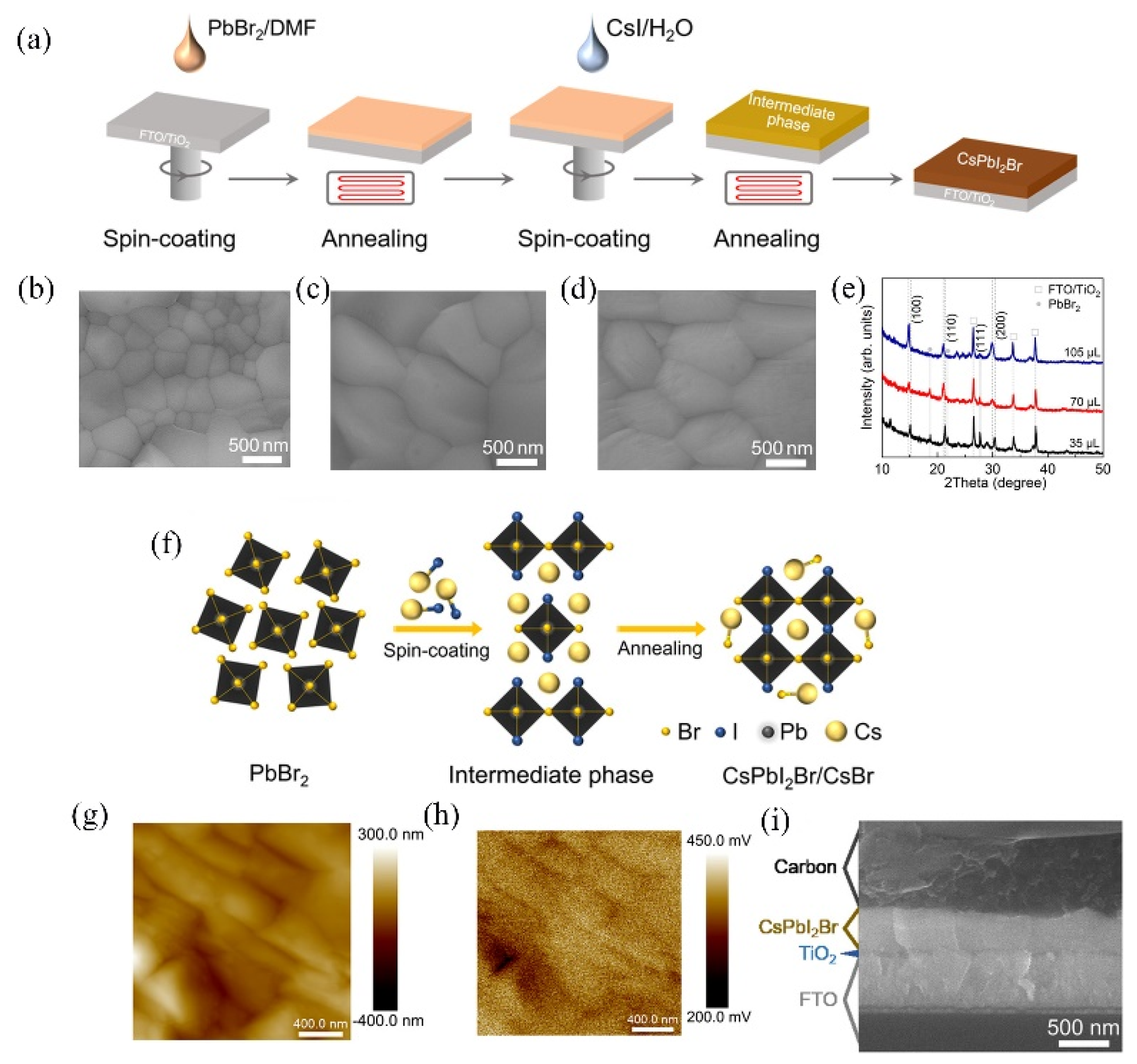

Dong et al. adopted the one-step solution processes and dropped chlorobenzene (CB) or ethyl acetate (EA) as antisolvent onto the precursor film at 30 s from the beginning of spin-coating (as illustrated in Figure 7a) [86]. The introduction of the antisolvent for CsPbI2Br films has a similar effect as for organic-inorganic perovskite films [118], which accelerated the crystallization, resulting in a more homogeneous and smoother surface morphology. More importantly, they had revealed through in-depth research that the devices prepared by adopting eco-friendly EA as the antisolvent achieved a champion PCE of 10.0%. The additive engineering of the precursor solution in the one-step process can also effectively improve the quality and stability of CsPbI2Br films [42,119,120]. Meng et al. added excess CsI to the precursor solution, in which the (110) plane of CsI and the (200) plane of CsPbI2Br could be able to match well to form spinodal decomposition (as shown in Figure 7b) [61]. The co-crystallization between CsI and CsPbI2Br not only formed a dense surface morphology and a phase-pure cubic CsPbI2Br perovskite structure, but also improved the energy band matching to reduce the carrier recombination due to the excess CsI (Figure 7c–e). The champion C-IPSC-based CsPbI2Br achieved a PCE of 10.13% and very good long-term stability at 80 °C for 200 h with only 10% loss of PCE.
Although the one-step solution process is relatively convenient, the performance of the devices is generally low, only about 10%. The two-step solution process can precisely control the growth process of CsPbI2Br films, which has great potential for fabricating higher performance C-IPSC-based CsPbI2Br. Our team adopted the two-step solution process to form a precursor film composed of Cs-Pb-Br complex, which was finally transformed into CsPbI2Br films containing CsBr by annealing (as shown in Figure 8a) [121]. In the second spin-coating process, water was innovatively used as the solvent for CsI, and the dose of CsI/H2O was optimized to 105 μL, which resulted in CsPbI2Br films with high crystallinity and large grain sizes were achieved, as indicated by the SEM images and XRD patters (Figure 8b–e). After optimized annealing, the Ruddlesden-Popper perovskite intermediate-phase film composed of Cs-Pb-Br complex was converted into CsPbI2Br grains and CsBr species by the spinodal decomposition reaction, and the mechanism of film formation is shown in Figure 8f. The atomic force microscope (AFM) and Kelvin probe force microscope images (Figure 8g,h) of the final CsPbI2Br film indicated that the surface was relatively uniform and, especially, the cross-sectional SEM image (Figure 8i) of the device showed that the thickness of the CsPbI2Br film reached an excellent 460 nm. As a result, the PCE of the device reached 15.24%, which is the highest value of C-IPSC-based CsPbI2Br. It is worth mentioning that the whole fabrication process is completed in ambient air, while the devices have excellent stability in ambient air with RH of 60–70%.

3.4. CsPbI3

Among all-inorganic C-IPSCs, the C-IPSCs based on CsPbI3 have the greatest potential to achieve high PCEs due to the smallest bandgap of CsPbI3 (~1.73 eV) [122,123]. However, CsPbI3 films are also the worst in terms of thermal and moisture stability and easily transform into yellow δ-CsPbI3 at room temperature [124,125,126]. To improve the phase stability of CsPbI3 films, ion doping and additive engineering [60,127,128] are usually employed in the fabrication process of CsPbI3 films for C-IPSCs.
The addition of HI into the precursor solution was first proposed by Snaith et al. in 2015 [124], which significantly improved the phase stability of CsPbI3 at room temperature, with a PCE up to 2.9% based on the regular architecture. Chen et al. used HI for mixing and reaction with PbI2 to derive HPbI3. Subsequently, HPbI3 and CsI were dissolved in DMF to form a precursor solution (referred to as HPbI3 precursor) [127]. The introduction of the HI additive resulted in the lattice expansion, which led to tensile lattice strain and, thus, improved film stability. As shown in Figure 9a, the fabrication of CsPbI3 films using the HPbI3 precursor can employ a lower temperature (200 °C) compared to the adopted precursor conventional solution (PbI2 and CsI in DMF labelled as PbI2-precursor), and the phase stability of CsPbI3 films is significantly improved, as the films can retain their black color for several days in dry air. The SEM images showed that the coverage and density of the CsPbI3 film obtained from the HPbI3 precursor were obviously better than those of the film obtained from the PbI2 precursor (Figure 9b,c). The CsPbI3-C-IPSCs-based HPbI3 precursor achieved a champion PCE of 9.5% and can remain unencapsulated in dry air conditions for 3000 h with only 10% loss of PCE.

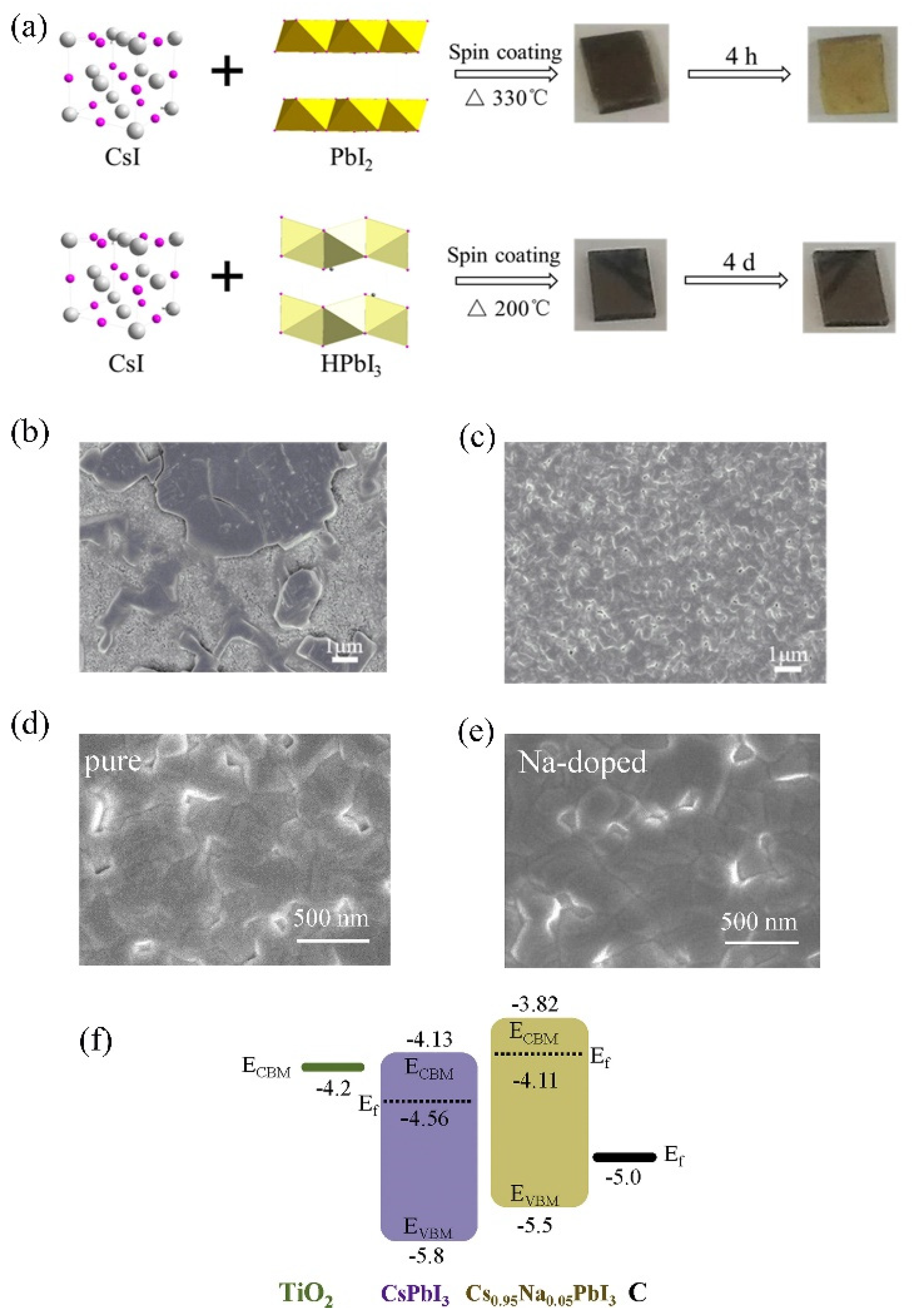

In recent years, Chen and his colleagues adopted the HPbI3 precursor, in which Na doping has also been applied [60]. The smoothness and grain size of the films were further enhanced by Na doping, as shown in Figure 9d,e. At the same time, the Fermi level of the films was raised for energy-level matching, which increased the VOC of the device from 0.77 V to 0.92 V (as shown in Figure 9f).

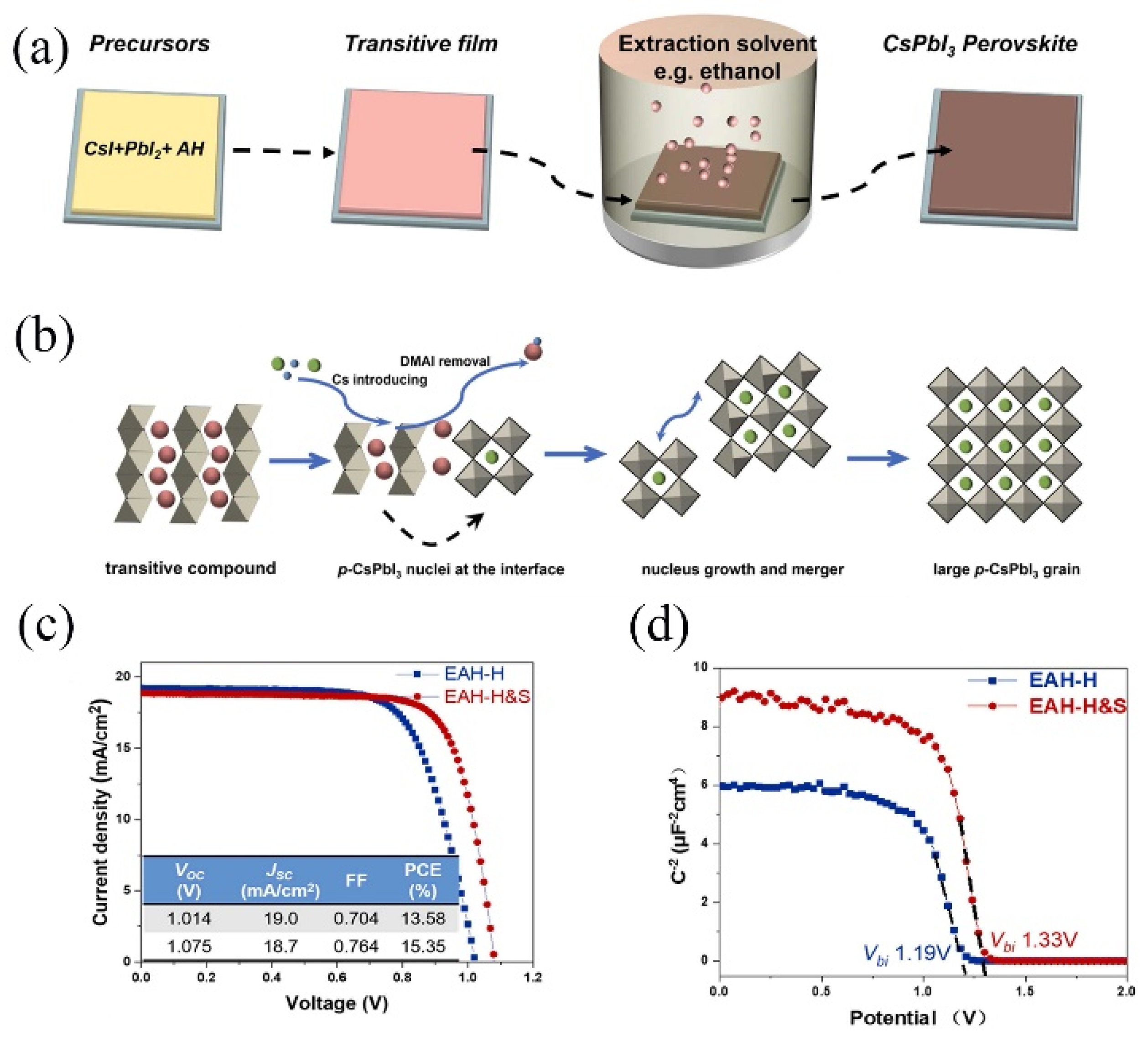

More recently, Chen et al. innovatively incorporated ammonium halide as an additive into the precursor solution and promoted the crystallization of CsPbI3 films by extracting ammonium halide by solvent (EAH-S), as illustrated in Figure 10a [128]. The film formation mechanism of perovskite phases of CsPbI3 (p-CsPbI3) was demonstrated in Figure 10b. Due to the introduction of ammonium halides, which tended to occupy the position of PbI2 in transitive compounds, the formation of δ-phase of CsPbI3 was inhibited. After immersion in a solvent with moderate polarity, p-CsPbI3 nuclei were generated at the films’ surface, followed by the formation of large p-CsPbI3 grains. In combination with the extraction of ammonium halide by heating (EAH−H&S), high-quality p-CsPbI3 films with PbI2 passivator were achieved, resulting in a champion PCE of CsPbI3 C-IPSCs of 15.35% and built-in potentials (Vbi) increasing up to 1.33 V (Figure 10c,d).
There are other approaches to fabrication of CsPbI3 films that are stable in dry air [129,130]. However, the poor stability in humid air is the main challenge for C-IPSCs based on CsPbI3. Recently, Yang et al. found that laser irradiation accelerated the phase transition of CsPbI3 under ambient moisture compared to without moisture. Therefore, the instability of CsPbI3 under ambient moisture may be due to the interaction of defects, surface vacancies, and moisture [131]. Therefore, the effective reduction in defects in the CsPbI3 films is essential for the film fabrication of high stable C-IPSCs based on CsPbI3.

4. Conclusions

Carbon-based all-inorganic perovskite solar cells have the significant advantage of low cost and high stability in the field of photovoltaics. In recent years, the performance of C-IPSCs has been greatly improved through composition engineering, interface engineering, and, in particular, optimization of the film fabrication process. In this review, we have categorically summarized the recent progress of the film fabrication process for C-IPSCs.
C-IPSCs are promising for photovoltaic applications due to their high PCE and stability. However, there are still several challenges that need to be overcome for their commercialization:
Toxicity: Lead is a toxic material, and its use in C-IPSCs raises concerns about environmental and health impacts. Although there are efforts to reduce or eliminate lead content in perovskites, current lead−free alternatives often suffer from lower PCE or stability. This creates a challenge for C-IPSCs to be used in commercial applications due to environmental and health regulations.
Scalability: The scalability of the perovskite solar cell manufacturing process is another challenge. The C-IPSCs deposition process, which is often conducted using solution-based methods, can be difficult to scale up to large-area and high-throughput production. Moreover, the uniformity and reproducibility of the perovskite film are still challenges that need to be addressed for commercialization.
Lifetime: The lifetime of perovskite solar cells is still a challenge for commercialization. C-IPSCs have shown rapid degradation in accelerated aging tests, and the long-term stability and durability of these devices are still unknown.
In addition, a promising commercialization direction for all-inorganic perovskite films is to form two- or four-terminal tandem solar cells with silicon or organic solar cells to obtain wider absorption spectra under sunlight [54,132]. The technology of the fabrication process for all-inorganic thin films compatible with tandem devices is worthy of further research. Finally, the kinetic mechanism of film formation and the phase transition mechanism need to be further investigated.
In summary, IPSCs have shown great potential for photovoltaic applications but there are still challenges to overcome for commercialization, such as toxicity, scalability, lifetime, and the kinetic mechanism of film formation. These challenges need to be addressed through further research and development to make IPSCs a competitive alternative to traditional silicon solar cells.
