Growth, Structure, Spectroscopy, and Laser Operation of a “Mixed” Yb:(Y,Lu)₃Al₅O₁₂ Garnet Crystal

Abstract

A single crystal of ytterbium-doped “mixed” yttrium–lutetium aluminum garnet with a stoichiometric composition of (Y_0.601Lu_0.233Yb_0.166)₃Al₅O₁₂ was grown by the Czochralski method and its structure, vibronic, spectroscopic, and laser properties were studied. The stimulated-emission cross-section for Yb³⁺ ions was maximized to 2.53 × 10⁻²⁰ cm² at 1031 nm. The emission bandwidth was ~8 nm, and the reabsorption-free luminescence lifetime of the ²F_5/2 state was 1.063 ms. Pumped at 941 nm, the Yb laser generated a maximum output power of 1.04 W at 1.03 and 1.05 μm with a high slope efficiency of 76.4% and a laser threshold of 76 mW. A continuous wavelength tuning over a range of 51.6 nm (1026.4–1078.0 nm) was also achieved. Power scaling was achieved using a 969 nm diode-pumped microchip cavity. A maximum output power of ~9 W was obtained at 1.05 μm with a slope efficiency of 76% and an almost circular laser beam profile.

1. Introduction

The Ytterbium ion (Yb³⁺) is a highly desirable choice for creating lasers that emit light at 1 μm. With its electronic configuration [Xe]4f¹³, it possesses a straightforward energy-level structure consisting of just two sets (the ground state ²F_7/2 and the excited state ²F_5/2). This characteristic results in inherently high laser efficiency and minimal heat generation during in-band pumping. The Yb³⁺ ion’s absorption can be conveniently addressed using commercially available high-power fiber-coupled InGaAs laser diodes that emit light at 0.94–0.98 μm. Additionally, the significant separation in energy levels of the ground state (²F_7/2) makes Yb³⁺-doped crystals exceptionally well-suited for generating ultra-short (femtosecond) pulses in mode-locked lasers.

Yttrium aluminum garnet (Chemical formula Y₃Al₅O₁₂), commonly known as YAG, is a cutting-edge crystal that can be doped with Yb³⁺ ions to enable efficient laser emission around 1 μm [1,2]. YAG possesses favorable thermal, mechanical, and thermo-optical characteristics [3], and it allows for straightforward Yb³⁺ doping at high concentrations (10 at.% and higher). Moreover, it has a well-established growth method using the Czochralski technique. YAG crystallizes in a cubic structure (space group Ia$\overline{3}$d) with a single rare-earth site (D₂ symmetry and VIII-fold oxygen coordination). Yb: YAG crystals are exceptionally well-suited for the development of efficient high-power/high-energy lasers and amplifiers operating at approximately 1 μm [4,5], including thin-disk laser configurations [6].

Lutetium aluminum garnet (LuAG), which shares the same crystal structure as YAG [7], possesses notable characteristics. When LuAG crystals are not doped with other elements, they exhibit significant thermal conductivity (κ = 8.3 Wm⁻¹K⁻¹), a small coefficient of thermal expansion (CTE = 6.1 × 10⁻⁶ K⁻¹), and a positive thermo-optic coefficient (dn/dT = 8.3 × 10⁻⁶ K⁻¹) at room temperature [3]. These properties lead to minimal and positively behaving thermal lensing effects [8].

Interestingly, even though undoped LuAG has lower thermal conductivity compared to YAG, it becomes a more appealing option for incorporating Yb³⁺ ions due to the weak dependency on concentration. This is due to the closer ionic radii and atomic weights of the host material and dopant ions [9,10,11]. In contrast, YAG experiences a rapid decline in thermal conductivity upon the introduction of Yb³⁺ ions (it is reduced by half when 10 at.% Yb is added), whereas LuAG undergoes only a minor change. Additionally, Yb³⁺ ions in LuAG also have slightly broader absorption characteristics around 940 nm and higher stimulated-emission cross-sections at approximately 1030 nm compared to Yb: YAG [11,12].

In a similar way, LuAG exhibits a comparable pattern to other Yb³⁺-doped laser host crystals based on lutetium, such as Lu₂O₃ [13], LuAlO₃ [14], LiLuF₄ [15], and others. Prior studies have documented the successful development of efficient and scalable Yb:LuAG lasers that utilize InGaAs laser diodes as their pump sources, including thin-disk laser configurations [9,16]. The growth process, thermal properties, spectroscopic characteristics, and laser performance of Yb:LuAG crystals have already been detailed in previous literature [7]. It’s worth noting that Yb³⁺-doped LuAG can also be produced using transparent ceramic technology [10,17], enabling efficient laser operation with ceramics [11,18].

The crystal growth of LuAG crystals faces two main obstacles: (i) the expensive Lu₂O₃ raw materials and (ii) the relatively high melting point (2010 °C) [19]. These obstacles can be bypassed by using compositionally “mixed’’ crystals (Y_1−xLu_x)₃Al₅O₁₂, or shortly (Y, Lu) AG. These crystals share the same structure for any value of 0 < x < 1. Hence, it is worthwhile to investigate Yb³⁺-doped (Y,Lu)AG crystals as potential materials for generating laser at ~1 μm wavelength. There are some studies on Yb³⁺-doped “mixed” (Y,Lu)AG ceramics [20,21] but not much on the corresponding crystals. Cheng et al. and R.F. Tian et al. reported on the crystal growth and a few details on the spectroscopy of mixed Yb:(YLu)₃Al₅O1₂ crystal samples [22,23]. Lv et al. utilized such crystals in diode-pumped lasers [24]. In this paper, we aimed to explore the structure, vibronic, detailed spectroscopic study, and lasing features of a composition of the mixed yttrium–lutetium aluminum garnet crystal, (Y₀.₆₀₁Lu₀.₂₃₃Yb₀.₁₆₆)₃Al₅O₁₂.

2. Experimental Section

2.1. Crystal Growth

The Czochralski method, using radio-frequency induction heating, was employed to grow a single crystal of ytterbium-doped mixed yttrium–lutetium aluminum garnet. The raw materials used, including high-purity Yb₂O₃, Lu₂O₃, Y₂O₃, and Al₂O₃ (all with 5N purity), were accurately measured according to the formula (Y₀.₆₃₈Lu_0.212Yb_0.150)₃Al₅O₁₂. The crystal growth took place using an oriented [111] seed obtained from an undoped YAG crystal within an atmosphere of argon.

After the growth process, the crystal was gradually cooled to room temperature. To eliminate residual stresses and color centers formed during growth in oxygen-deficient conditions, the as-grown crystal underwent annealing in air at 1400 °C for 12 h. Figure 1a displays a photograph of the as-grown crystal boule, showcasing its cylindrical shape, which is characteristic of Czochralski-grown garnet crystals (with a diameter of 40 mm and a cylindrical length of 120 mm). The bluish tint of the as-grown crystal is attributed to the presence of color centers (explained below), while the annealed crystal samples are transparent and colorless.

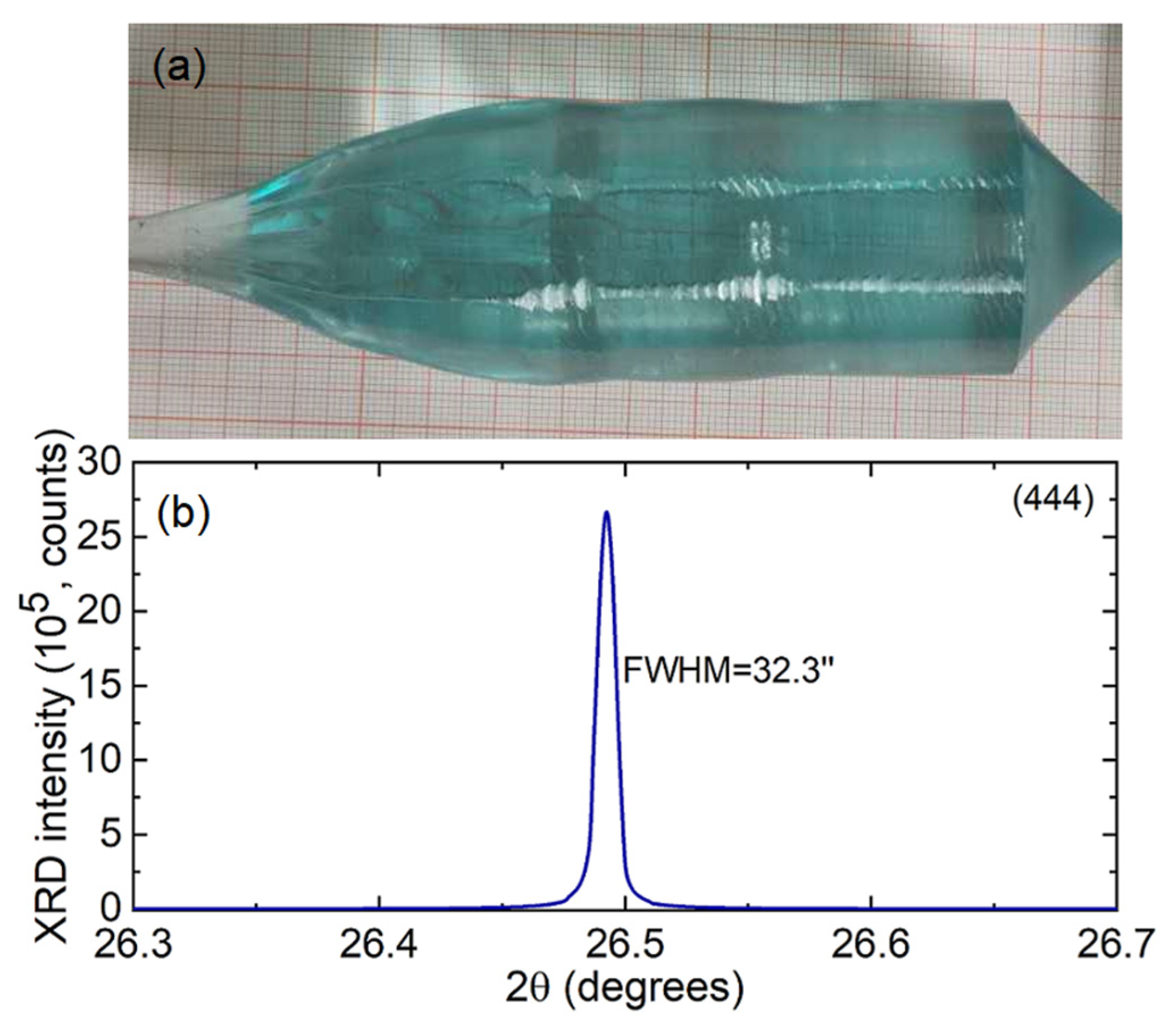

The quality of the single crystal was evaluated by measuring the X-ray rocking curve using a high-resolution diffractometer (Bruker D8 DISCOVER) with CuKα1 radiation (λ = 1.5406 Å), as depicted in Figure 1b. This measurement was conducted around the (444) reflection, revealing a symmetric profile with a full width at half maximum of 32.3 arcsec. This indicates that the crystal possesses excellent quality and a high degree of crystallinity.

To determine the precise concentrations of Yb³⁺ and Lu³⁺ ions in the grown crystal, we employed Inductively Coupled Plasma-Atomic Emission Spectrometry (ICP-AES).

Table 1. Composition of the Yb³⁺-doped (Y,Lu)AG crystal according to the ICP-MS analysis.

Parameter	Lu3+ Content, at.%	Yb3+ Content, at.%	Stoichiometry
Melt	21.2	15.0	(Y0.638Lu0.212Yb0.150)3Al5O12
Crystal	23.3	16.6	(Y0.601Lu0.233Yb0.166)3Al5O12
KRE	1.10	1.11	-

compares the starting and actual compositions of the crystal. The actual doping levels of Yb³⁺ and Lu³⁺ are found to be 16.6 at.% and 23.3 at.%, respectively, resulting in corresponding segregation coefficients, K = C_crystal/C_melt, of 1.11 and 1.10, respectively. These values are consistent with prior research [22,25]. The stoichiometry of the grown crystal is determined to be (Y_0.601Lu_0.233Yb_0.166)₃Al₅O₁₂.

2.2. Characterization Methods

The grown crystal’s structure and phase purity were examined through X-ray powder diffraction (XRD). This involved using a Bruker-AXS D8-Advance diffractometer (Billerica, MA, USA) with a vertical θ-θ goniometer and Cu Kα1 radiation. A PSD detector LynxEye-XE-T was utilized with an opening angle of 2.94°. The XRD patterns were obtained for Rietveld refinement, employing a step size of 0.02° and a step time of 2 s in the 2θ range spanning from 5° to 80°. The sample was supported on Si (510) to ensure a low background signal.

For acquiring room temperature Raman spectra, a confocal microscope (inVia, Renishaw, Wotton-under-Edge, UK) equipped with a 50 objective (Leica, Wetzlar, Germany) and an Ar⁺ ion laser (488.0 nm) was used. Transmission spectra were captured using a spectrophotometer (Lambda 1050, Perkin Elmer, Waltham, MA, USA) and an FTIR spectrometer (Bruker Tensor 27). The emission spectrum was recorded employing a Ti:Sapphire laser as an excitation source and an optical spectrum analyzer (OSA (Yokogawa Electric Corporation, Tokyo, Japan), Ando AQ6315-E). Luminescence decay was investigated in finely powdered crystalline samples using a nanosecond optical parametric oscillator (Horizon, Continuum, Newark, NJ, USA), a 1/4 m monochromator (Oriel 77200), an InGaAs detector, and an 8 GHz digital oscilloscope (DSA70804B, Tektronix, Beaverton, OR, USA). For spectroscopic measurements at low temperatures (12 K), the crystal was positioned on an APD DE-202 closed-cycle cryocooler equipped with an APD HC 2 Helium cryo-compressor and a Lakeshore 330 temperature regulator.

2.3. Laser Characterization

2.3.1. Laser Set-Up Using Ti:Sapphire Laser

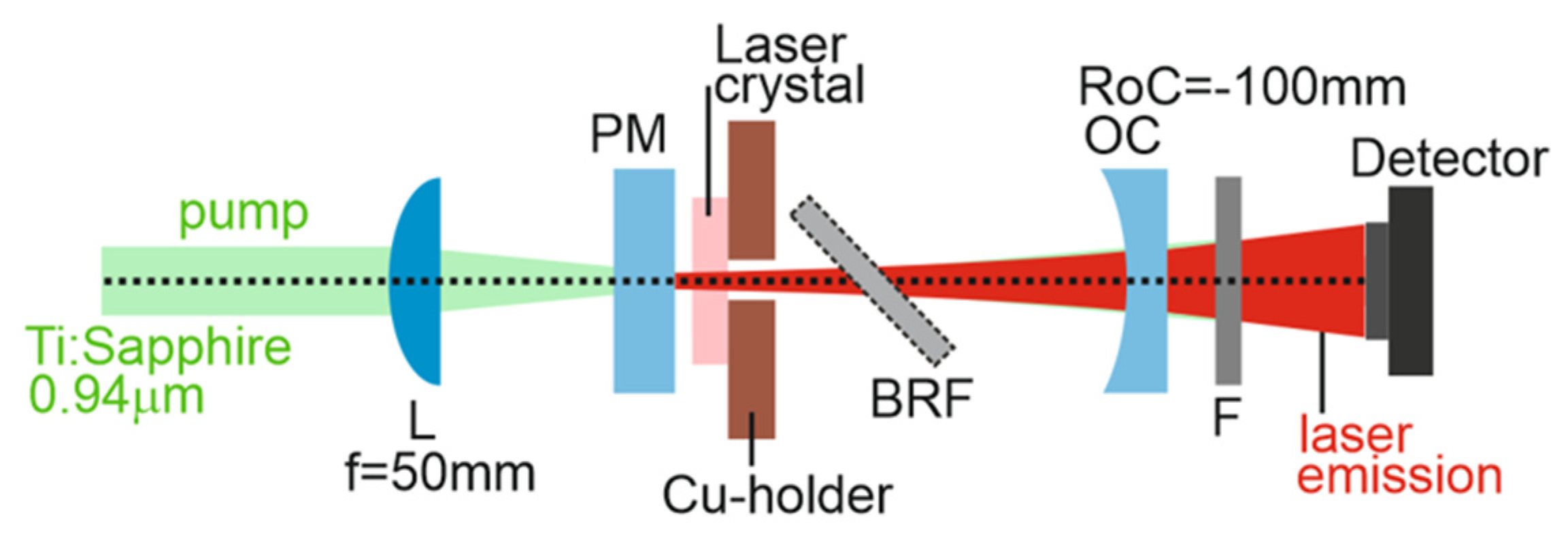

The laser setup is depicted in Figure 2. To conduct laser experiments, a rectangular active component was sectioned from the annealed Yb:(Y,Lu)AG crystal along the [111] crystallographic orientation. It had a thickness of 2.03 mm and an aperture measuring 4.0 × 4.0 mm². Both its entrance and exit surfaces were finely polished for laser-grade quality and were left uncoated. This component was affixed onto a passively cooled copper holder using silver paint to enhance heat dissipation. The laser cavity, nearly hemispherical in shape, was constructed with a planar pump mirror (PM) coated for high transmission (HT) at 0.88–0.99 μm and for high reflection (HR, R > 99.9%) at 1.02–1.20 μm. It also incorporated a series of concave output couplers (OC), all with the same radius of curvature (RoC) of −100 mm and a transmission T_OC ranging from 1% to 20% at 1.0–1.1 μm. The crystal was positioned at normal incidence in close proximity to the PM with a minimal gap of less than 1 mm. The cavity’s physical length was nearly 98 mm.

A continuous-wave Ti:sapphire laser (3900S, Spectra Physics) was utilized as the pump source, tuned to 941.0 nm and operating in the fundamental transverse mode (with beam quality factor M² near to 1). The pump beam was directed into the laser crystal through the planar pump mirror (PM) using an uncoated spherical CaF2 lens with a focal length (f) of 50 mm, resulting in a pump spot size (2_wP) of 34 ± 5 μm. The pumping occurred in a single pass, with the crystal absorbing approximately 97% of the pump radiation (excluding Fresnel losses). Any remaining pump radiation after passing through the output coupler (OC) was filtered out using a long-pass filter (FEL1000, Thorlabs, Newton, NJ, USA). The measured powers were adjusted to account for the transmission of this filter.

For wavelength tuning, an uncoated quartz birefringent disc (BIR1020, New light Photonics, Toronto, ON, Canada) with a diameter of 1 inch and a width of 2.0 mm was selected. It was cut along the a-axis, ensuring that the optical axis lay within the plane of the plate. This disc was positioned at Brewster’s angle adjacent to the laser crystal, allowing for control of the laser’s vertical polarization. Laser emission spectra were recorded using the same optical spectrum analyzer (OSA) device (Ando AQ6315-E).

2.3.2. Power Scaling Using Diode Pumping

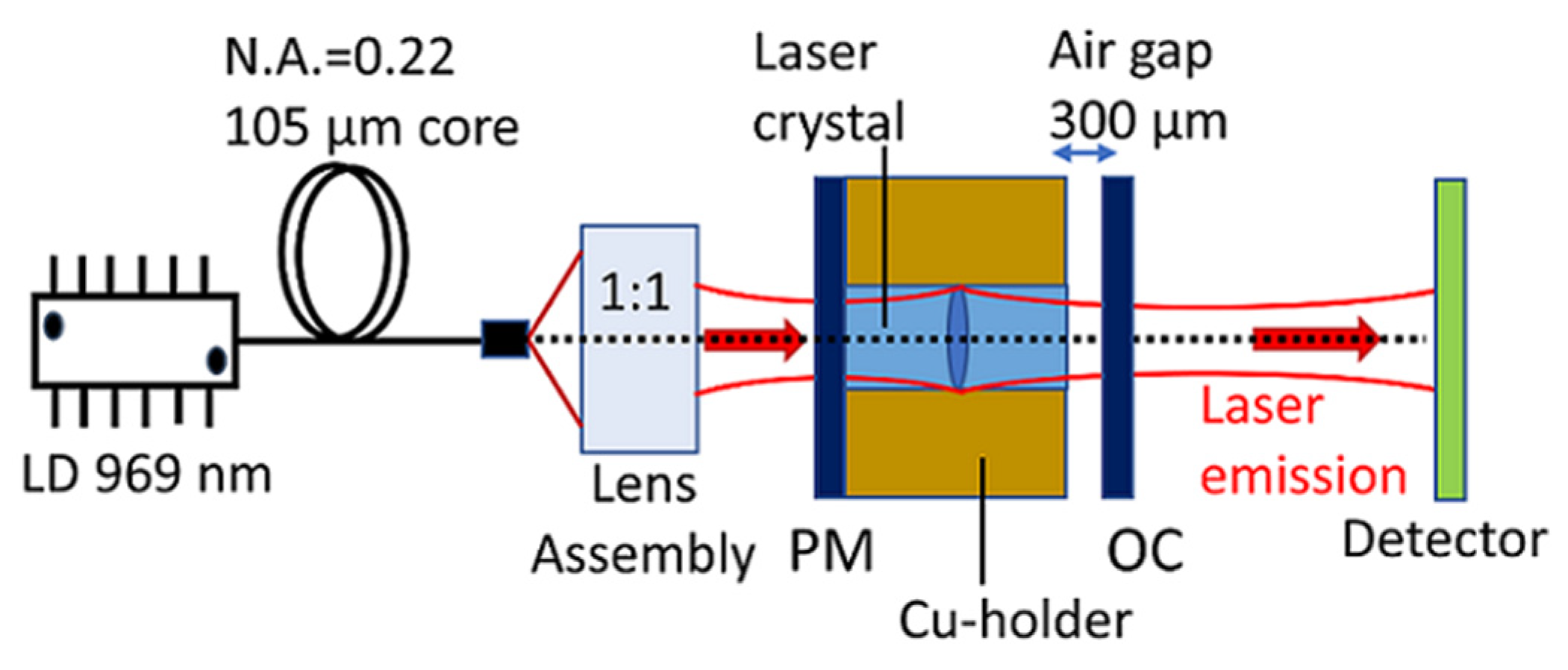

For power scaling, we examined the performance of the diode-pumped laser within a simple plane–plane laser cavity configuration (microchip), as depicted in Figure 3. This configuration was feasible due to the positive thermal lens properties of (Y,Lu)YAG crystals. The same sample that had been employed in the earlier laser experiment using Ti:sapphire laser pumping was used again, this time within the compact microchip cavity. To enhance thermal contact, the crystal was enveloped with indium foil on all four sides and securely mounted in a water-cooled copper holder maintained at approximately 12 °C. The microchip laser cavity was comprised of a flat pump mirror with anti-reflective (AR) coating for the 0.9–1.0 μm range and high reflection (HR) coating for the 1.02–1.20 μm range. It also included a series of flat output couplers with transmission values of 1%, 3%, 5%, or 10% at the laser wavelength. The output coupler (OC) was positioned close to the crystal surface, maintaining an air gap of 300 μm.

A fiber-coupled InGaAs laser diode (LD) was employed as the pump source, with a core diameter of 105 μm and a numerical aperture (N.A.) of 0.22. This LD was stabilized using a Volume Bragg Grating (VBG), and its emission exhibited a Full Width at Half Maximum (FWHM) of approximately 0.1 nm, centered at 969.2 ± 0.1 nm. The LD’s emission wavelength was kept stable by controlling the temperature with circulating water. The pump beam was focused into the crystal through the planar pump mirror (PM) using an anti-reflection (AR) coated lens assembly, which provided a re-imaging ratio of 1:1 and had a focal length (f) of 30 mm. The focused pump spot size was 2_wP = 100 ± 10 μm, with a confocal parameter of 2_zR = 3.2 mm. The crystal was pumped in a single-pass configuration, and the total (single-pass) pump absorption was calculated through pump-transmission measurements under non-lasing conditions at the threshold pump power, resulting in an absorption of 97%. The laser output was separated from the remaining pump radiation using a long-pass filter (FEL1000, Thorlabs) with a cutoff wavelength of 1000 nm, exhibiting a transmission of about 84% at 1030 nm. Laser emission spectra were recorded using an Ocean Optics compact spectrometer (model USB 2000+) with a spectral resolution of 0.3 nm.

3. Results and Discussion

3.1. Crystal Structure

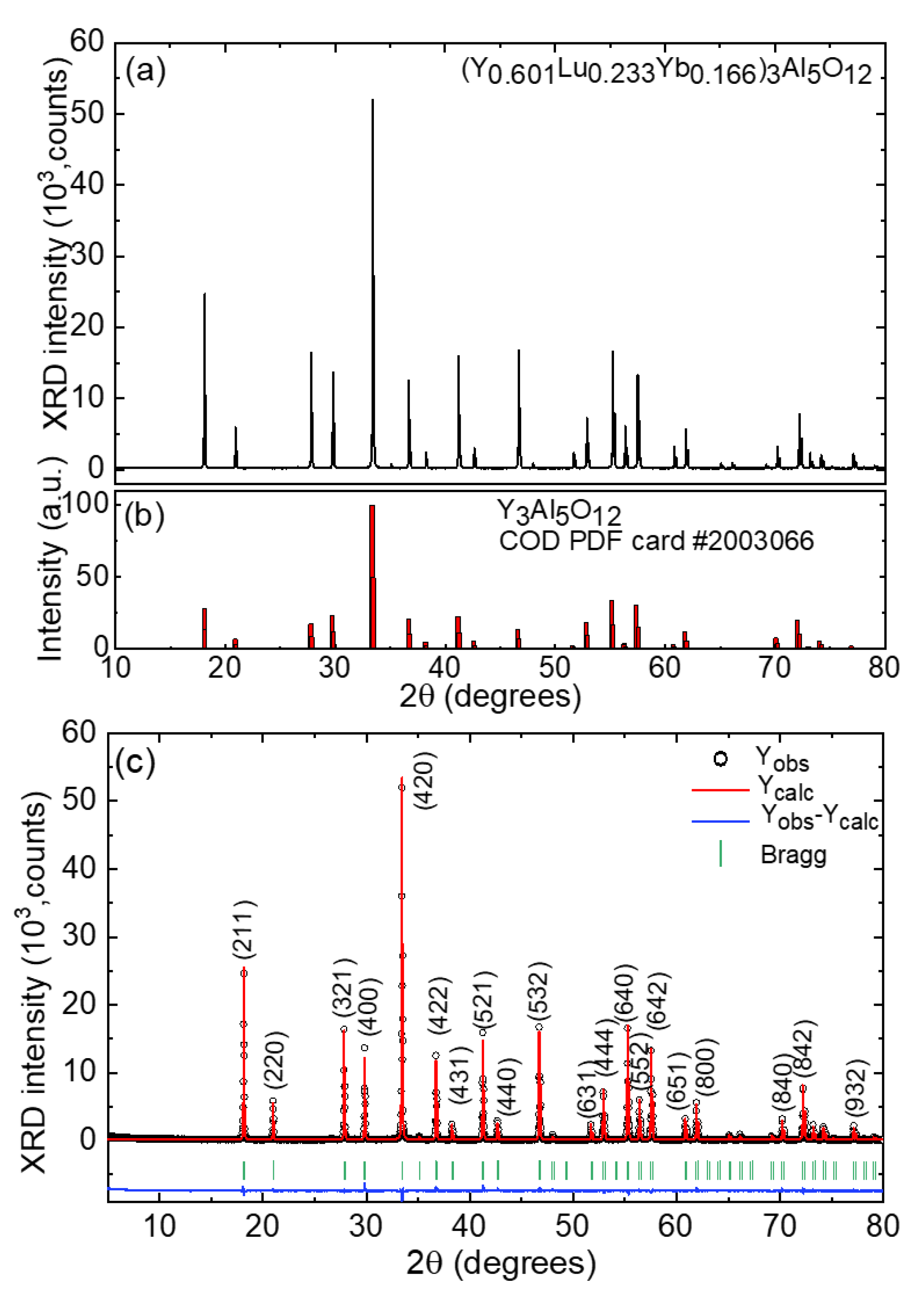

The X-ray powder diffraction pattern of the (Y_0.601Lu_0.233Yb_0.166)₃Al₅O₁₂ crystal, measured at room temperature, is presented in Figure 4a. All identified diffraction peaks match the standard cubic Y₃Al₅O₁₂ phase (Crystallography Open Database (COD) card No. 2003066), as shown in Figure 4b. This alignment indicates that the introduction of Yb³⁺ and Lu³⁺ ions does not alter the crystal structure or introduce secondary phases. The measured XRD pattern reveals a cubic garnet structure, with the most prominent diffraction peak observed at 2θ = 33.43°, attributed to the (420) Bragg reflection.

Table 2. Crystallographic data and Rietveld refinement details for the (Y_0.601Lu_0.233Yb_0.166)₃Al₅O₁₂ crystal.

Parameter	Value
Crystal system	cubic
Space group (IT number, Z)	$Ia\overline{3}$d–O10h (No. 230, Z = 8)
Hall symbol	-I 4bd 2c 3
Laue class	m-3m
Reduced number of S.O.	24
General multiplicity	96
Calculated density (g/cm3)	6.869
Lattice constants: a = b = c (Å)	11.9790(0)
α = β = γ (deg.)	90
Unit-cell volume (Å3)	1718.944(0)
2θ range (deg.)	5–80
2θ step	0.02
Radiation	Cu Kα1 (λ = 1.5418 Å)
No. of reflections	100
Refinement software	Match!-version 3.0 software
Reliability factors	Rp = 6.07%, Rwp = 7.95%, Rexp = 3.83% and χ2 = 4.31

and Figure 4c provide the results of the Rietveld refinement, including the observed (Y_obs), calculated (Y_calc), and residual (Y_obs-Y_calc) profiles, along with the Bragg reflections. The (Y_0.601Lu_0.233Yb_0.166)₃Al₅O₁₂ crystal falls into the cubic class (space group Ia$\overline{3}$d – O10h, No. 230), with a lattice parameter of a = 11.9790(0) Å (with eight formula units per unit cell), unit cell volume V = 1718.944(0) ų, and a calculated crystal density ρ_calc = 6.869 g/cm³. The reliability factors include R_p = 6.07%, R_wp = 7.95%, R_exp = 3.83%, and the chi-squared value χ² = (R_wp/R_exp)² is 4.31, indicating a successful fit convergence.

The lattice constant of the grown crystal is slightly smaller than that of undoped Y₃Al₅O₁₂ (a = 12.010 Å), primarily due to the smaller ionic radii of both Yb³⁺ (R_Yb = 0.858 Å) and Lu³⁺ (R_Lu = 0.850 Å) cations compared to the host-forming Y³⁺ ions (R_Y = 0.893 Å). All these values pertain to VIII-fold oxygen coordination.

Table 3. Fractional atomic coordinates (x/a, y/b, and z/c), site occupancy factors (O.F.), and isotropic displacement parameters (B_iso) for the (Y_0.601Lu_0.233Yb_0.166)₃Al₅O₁₂ crystal.

Atoms	Sites	x/a	y/b	z/c	O.F.	Biso, Å2
Y	24c	1/8	0	1/4	0.601	1.112(0)
Lu	24c	1/8	0	1/4	0.233	1.112(0)
Yb	24c	1/8	0	1/4	0.166	1.112(0)
Al1	16a	0	0	0	1	1.131(2)
Al2	24d	0.3750(0)	0	1/4	1	1.636(8)
O	96h	−0.0323(7)	0.0541(3)	0.1521(7)	1	2.011(1)

provides details on the calculated fractional atomic positions, site occupancy factors (based on ICP-MS analysis results), and isotropic displacement parameters for the (Y_0.601Lu_0.233Yb_0.166)₃Al₅O₁₂ crystal.

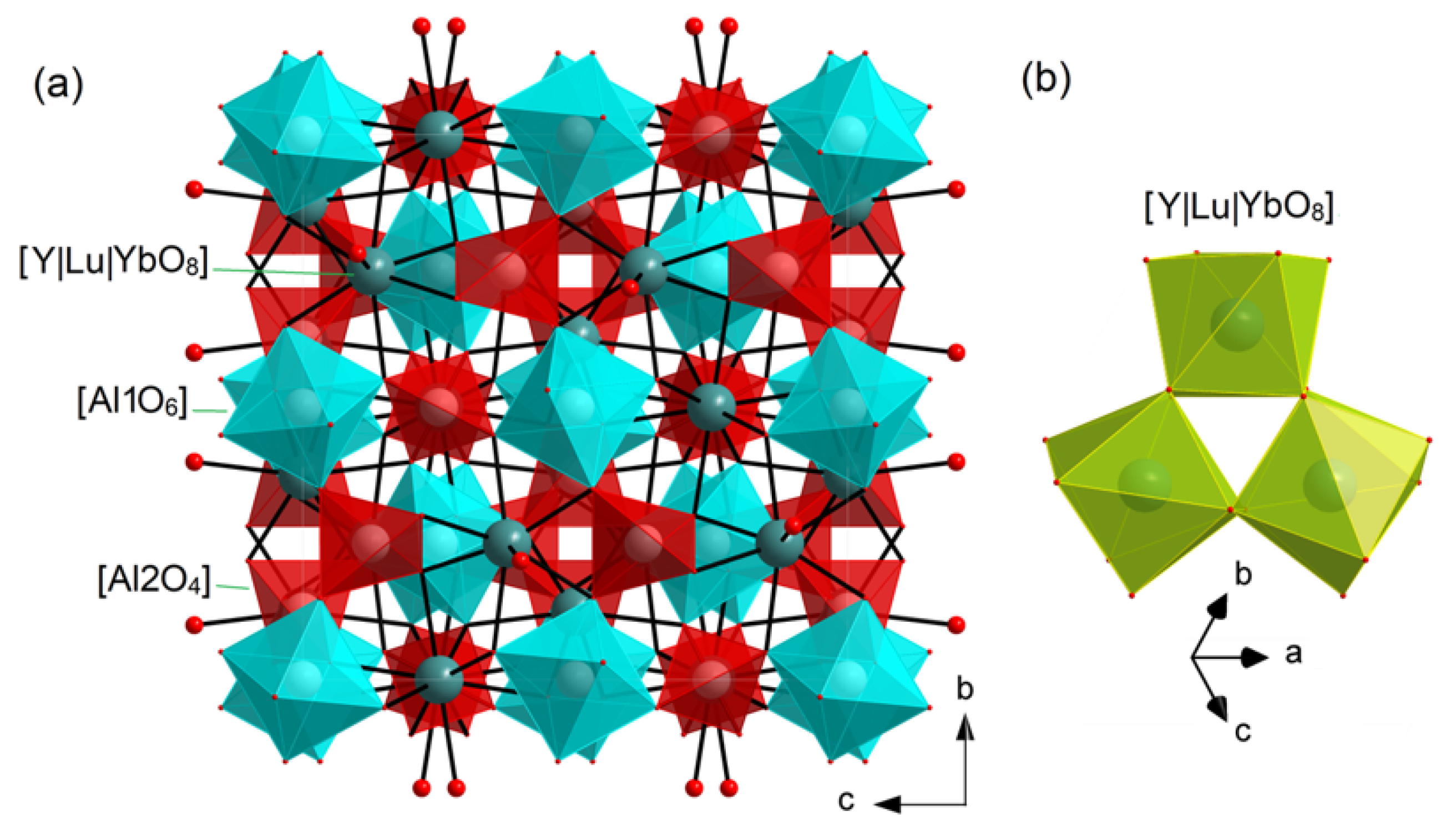

Figure 5a illustrates a graphical representation of a portion of the Yb:(Y,Lu)AG crystal structure. Within this structure, there is a single type of rare-earth (RE = Y|Lu|Yb) site (Wyckoff: 24c) and two aluminum (Al) sites (16a and 24d). The Al1 atom exhibits coordination with six oxygen atoms, forming [Al1O₆] octahedra. On the other hand, the Al2 atom is coordinated by four oxygen atoms, giving rise to [Al2O₄] tetrahedra. The Yb:(Y,Lu)AG structure is characterized by the presence of vertex-sharing [AlO₆] octahedra and [AlO4] tetrahedra, with metal-to-oxygen (Al–O) bond lengths measured at 1.9732(8) Å (×6) and 1.7390(4) Å (×4), respectively. The rare-earth (RE) atoms exhibit coordination with eight oxygen atoms, forming a distorted [Y|Lu|YbO₈] cube. In this configuration, there are four shorter (2.3127(7) Å) and four longer (2.4003(8) Å) metal-to-oxygen (RE–O) distances. Each set of three [Lu|Y|YbO₈] polyhedra is interconnected by sharing a common O–O edge, as illustrated in Figure 5b, thereby creating a [(Lu|Y|Yb)₃O₁₈] group. Each [(Lu|Y|Yb)₃O₁₈] group is linked to the [AlO₆] octahedra and [AlO₄] tetrahedra through shared bridges, ensuring the structural integrity and rigidity of the crystal.

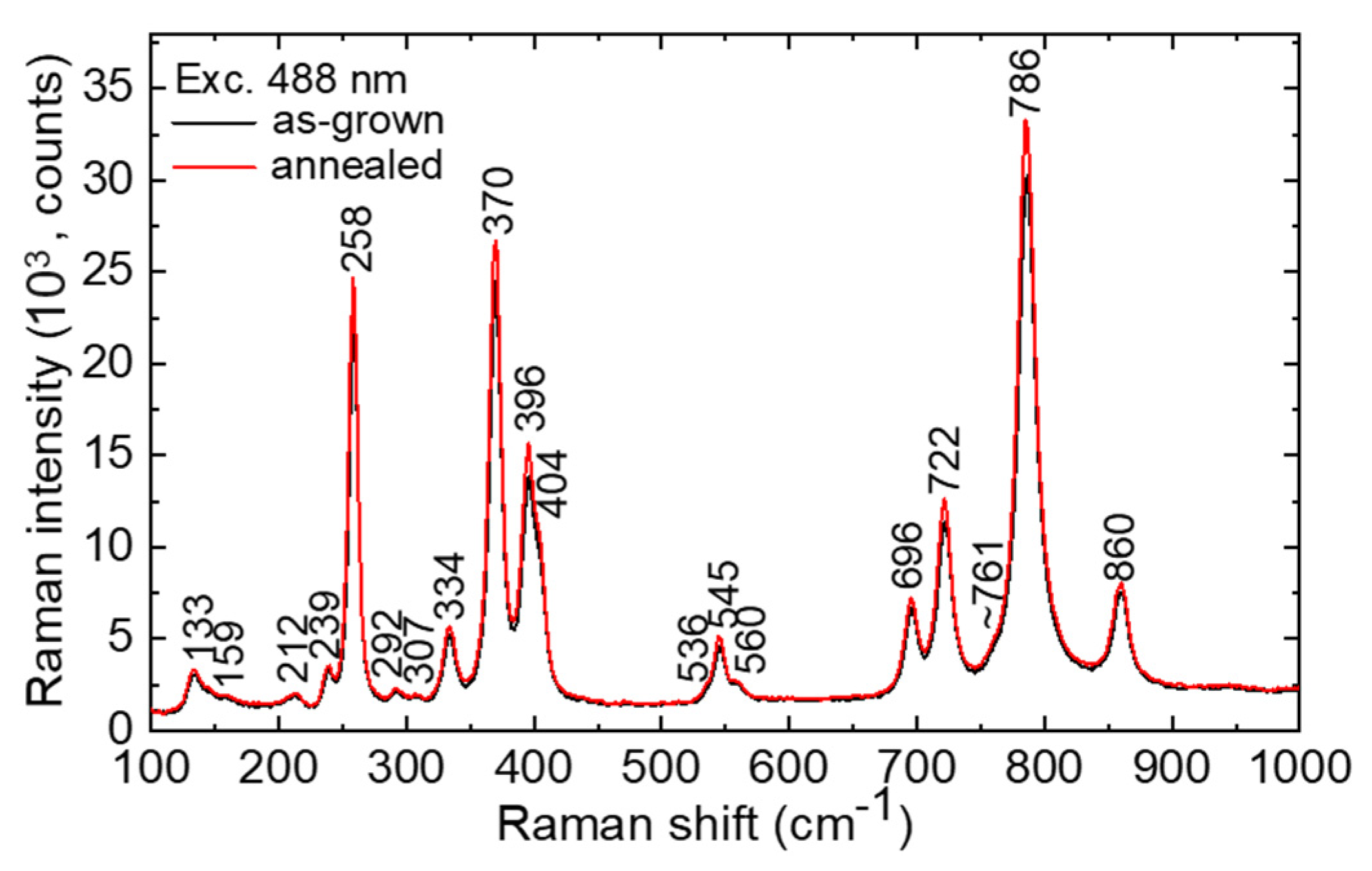

The unpolarized Raman spectra of the as-grown and annealed Yb:(Y,Lu)AG crystals are shown in Figure 6. There are 80 atoms inside the unit-cell of O¹⁰_h cubic garnets. Following factor-group analysis, it leads to 97 lattice modes. At the center of the Brillouin zone (k = 0), the irreducible representations can be written as follows: Г = 3A_1g + 8E_g +14F_2g + 5A_1u + 5A_2u = 5A_2g + 10E_u + 14F_1g + 16F_2u + 17F_1u, among which 25 modes (A_1g, E_g and F_2g) are Raman-active [26]. In the spectra, 19 modes are observed. The most intense Raman band at 786 cm⁻¹ (A_1g) is assigned to the breathing mode of the [AlO₄] tetrahedrons [27]. The maximum phonon energy of Yb:(Y,Lu)AG is 860 cm⁻¹.

3.2. Optical Spectroscopy

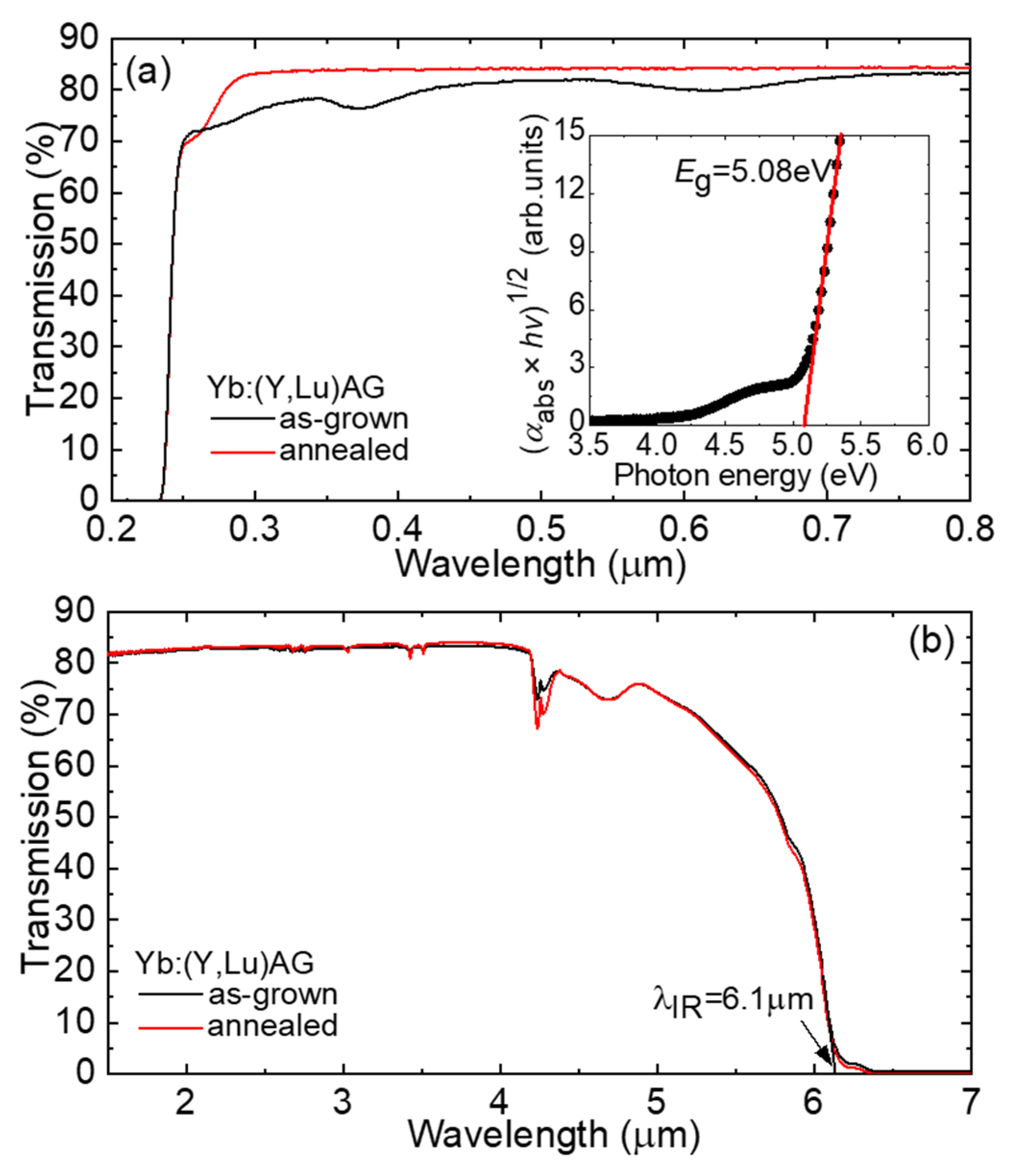

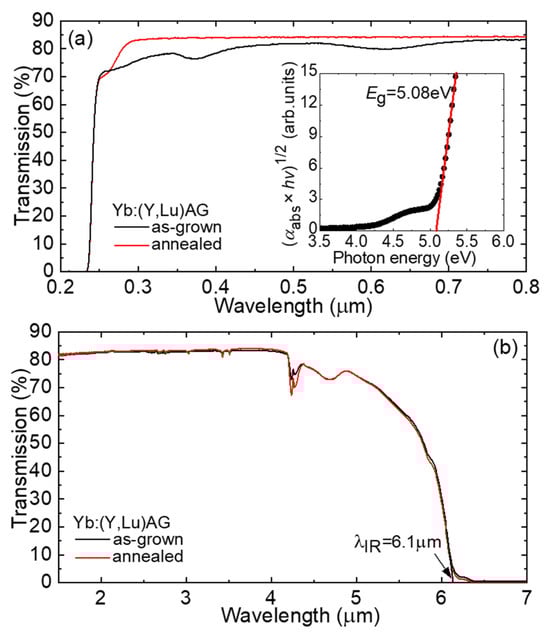

Figure 7a,b display the transmission spectra of laser-grade-polished samples of Yb:(Y,Lu)AG, each with a thickness of 2.0 mm, obtained from both as-grown and annealed crystals. In the visible spectrum, the as-grown crystal exhibits several broad absorption bands, with centers around ~0.28, 0.37, and 0.62 μm, contributing to its slight bluish coloration. These absorption bands are well-documented for Yb-doped garnets produced under inert atmospheric conditions [28]. They are primarily linked to the presence of oxygen vacancies and Yb²⁺ ions that arise in oxygen-deficient conditions. Annealing the crystal in oxygen-rich conditions promotes the conversion of Yb²⁺ to Yb³⁺, causing these bands to disappear and improving the crystal’s transparency. Indeed, the transmission spectrum of the annealed crystal lacks these bands, although a weak band centered at ~0.26 μm emerges. The position of the UV absorption edge was determined by analyzing the Tauc plot [29] for direct allowed transitions (based on the electronic structure of YAG [30]), involving plotting (α_abs × hν)^1/2 against photon energy hν (where α_abs is the absorption coefficient). This analysis revealed the UV absorption edge at λ_UV = 0.244 μm, corresponding to an optical bandgap energy Eg of 5.08 eV (as shown in the inset in Figure 7a). The optical curve displays both linear and nonlinear segments, representing distinct features of permissible transitions. The linear part of the curve, predominantly found on the higher energy side of the Tauc plot, signifies the primary absorption of the materials. Conversely, the nonlinear segment, which is located at energy < Eg, corresponds to residual absorption associated with defect states [31,32]. Moving into the infrared (IR) range, the Yb:(Y,Lu)AG crystals maintain transparency until λ_IR = 6.1 μm, as depicted in Figure 7b. The IR transmission edge corresponds to an energy of 2 × 786 cm⁻¹ (indicative of two-phonon absorption, as described in the Raman spectra earlier). It is worth noting that crystal annealing has a limited impact on the IR transmission spectra.

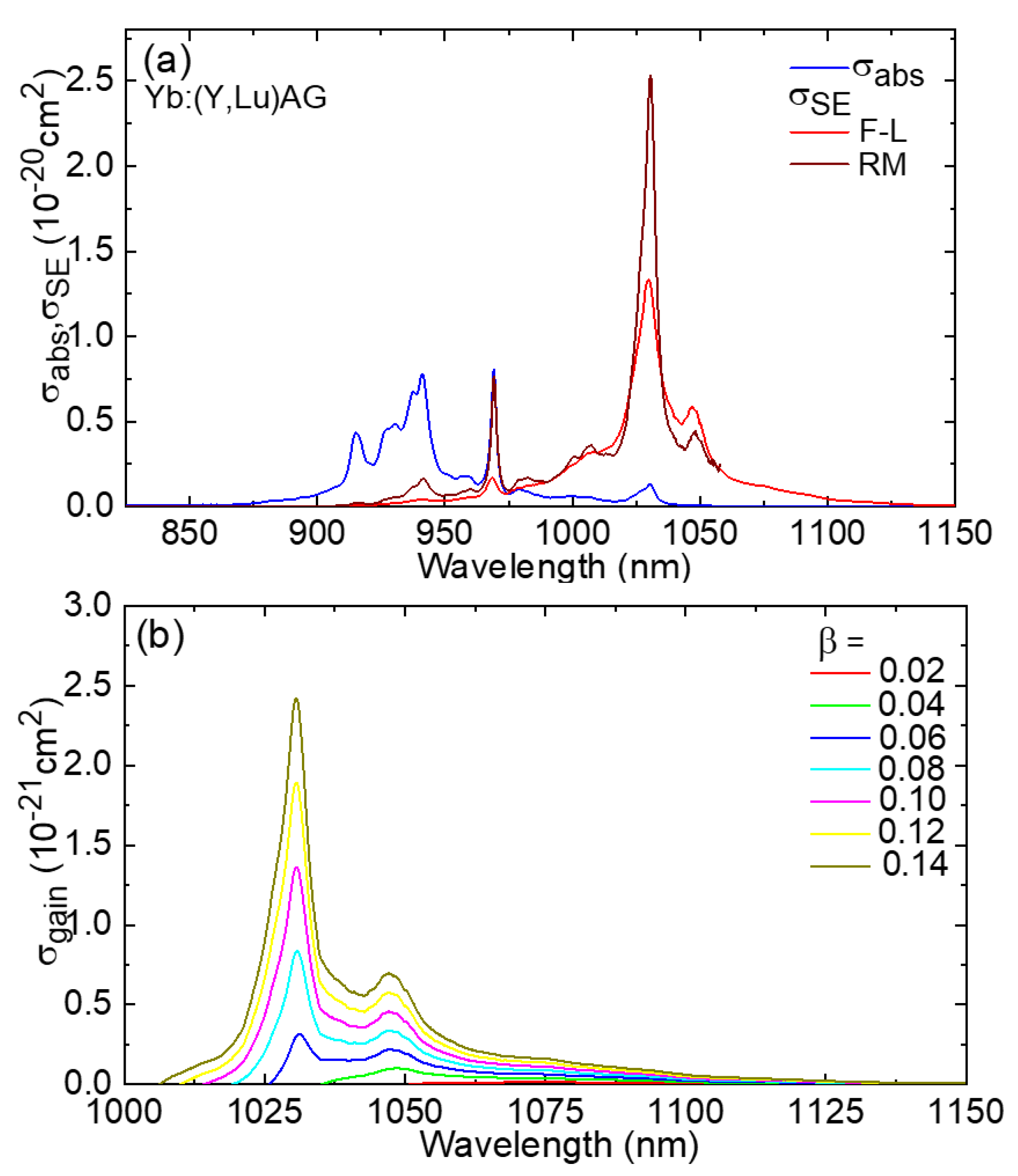

In Figure 8a, we present the absorption spectrum of the annealed Yb:(Y,Lu)AG crystal at room temperature (293 K). The absorption observed around 1 μm arises from the ²F_7/2 → ²F_5/2 transition of Yb³⁺ ions. The peak absorption cross-section σ_abs, which is calculated as α_abs/N_Yb, is measured at 0.80 × 10⁻²⁰ cm² at 969.2 nm. This corresponds to the “zero phonon line” (ZPL) transition occurring between the weakest Stark sublevels within the relevant multiplets. Notably, the bandwidth (expressed as the full width at half maximum, FWHM) of the ZPL in absorption, denoted as Δλ_abs, is relatively narrow, measuring less than 3 nm. Furthermore, at shorter wavelengths, another prominent absorption line (σ_abs = 0.78 × 10⁻²⁰ cm²) is observed, centered at 941.0 nm, with a much broader bandwidth Δλ_abs of approximately 19 nm. This line holds greater promise for pumping Yb:(Y,Lu)AG crystals using diode lasers based on InGaAs, as its wider bandwidth has the potential to mitigate the impact of temperature-related wavelength drift in these diode lasers.

The stimulated-emission (SE) cross-section, denoted as σ_SE, was determined through two different calculation methods. The first method relies on the Füchtbauer–Ladenburg (F-L) formula [33]:

$${\sigma }_{\mathrm{SE}}^{}(\lambda )=\frac{{\lambda }^5}{8\pi <n{>}_{}^2{\tau }_{\mathrm{rad}}c}\frac{W\prime (\lambda )}{{\displaystyle \int \lambda W\prime (\lambda )\mathrm{d}\lambda }},$$

(1)

In this equation, λ represents the wavelength of light, and <n> is the refractive index of the host material, which is approximately 1.819 and corresponds to the mean emission wavelength (derived from refractive index values for YAG [34] and LuAG [19]). τ_rad signifies the radiative lifetime of the emitting state, specifically the ²F_5/2 state of Yb³⁺ ions. The constant “c” denotes the speed of light, and W′(λ) refers to the luminescence spectrum that has been adjusted to account for the response of the experimental setup.

The second approach uses the reciprocity method (RM) [35]:

$${\sigma }_{\mathrm{SE}}^{}(\lambda )={\sigma }_{\mathrm{abs}}^{}(\lambda )\frac{Z_1}{Z_2}\exp \left(-\frac{hc/\lambda -E_{\mathrm{ZPL}}}{kT}\right),$$

(2)

Here, h represents the Planck constant, k stands for the Boltzmann constant, T signifies the temperature (room temperature, RT), E_ZPL denotes the energy associated with the ZPL transition, and Z_m pertains to the partition coefficients of the lower (m = 1, ²F_7/2) and upper (m = 2, ²F_5/2) multiplets of the Yb³⁺ ion:

$$Z_m={\displaystyle \sum _k{g}_k^m}\exp (-E_k^m/kT).$$

(3)

where g^m_k = 1 represents the degeneracy of the Stark sublevel with the index k, and it is based on the energy E^m_k calculated from the lowest sublevel within each multiplet. By simultaneously applying the F–L formula and RM, we can obtain a comprehensive spectrum of the SE cross-section. This approach serves a dual purpose: it helps mitigate the influence of reabsorption on observed luminescence spectra, which can be particularly significant in heavily Yb³⁺-doped crystals, and it accounts for the impact of extremely low absorption values measured at very long wavelengths. The outcomes regarding σ_SE are depicted in Figure 8a. The spectra derived from both methods show reasonable agreement with each other. In the spectral range where laser operation is anticipated (above the ZPL in emission), the maximum σ_SE is measured at 2.53 × 10⁻²⁰ cm² at 1031 nm, with the corresponding emission bandwidth (FWHM) Δλ_em spanning approximately 8 nm. Notably, there is a good correspondence between the σSE spectra calculated using the F–L formula and RM when considering the radiative lifetime of the upper multiplet, which is τ_rad = 1.00 ± 0.05 ms.

In the case of Yb³⁺ ions, which operate under a quasi-three-level laser scheme with reabsorption, the gain cross-sections, denoted as σgain, are typically calculated to determine the anticipated laser wavelength and the extent of the gain bandwidth. In this context, σ_gain = βσ_SE − (1 − β)σ_abs, where β = N²(²F_5/2)/N_Yb represents the inversion ratio and N² signifies the population of the upper laser level. The gain profiles for the Yb:(Y,Lu)AG crystal are depicted in Figure 8b. As the inversion ratio increases, the peak in the gain spectra shifts from 1048 nm (for low β < 0.05) to 1030 nm (for higher β). When β = 0.10, the gain bandwidth of the latter peak (FWHM) measures approximately 7 nm.

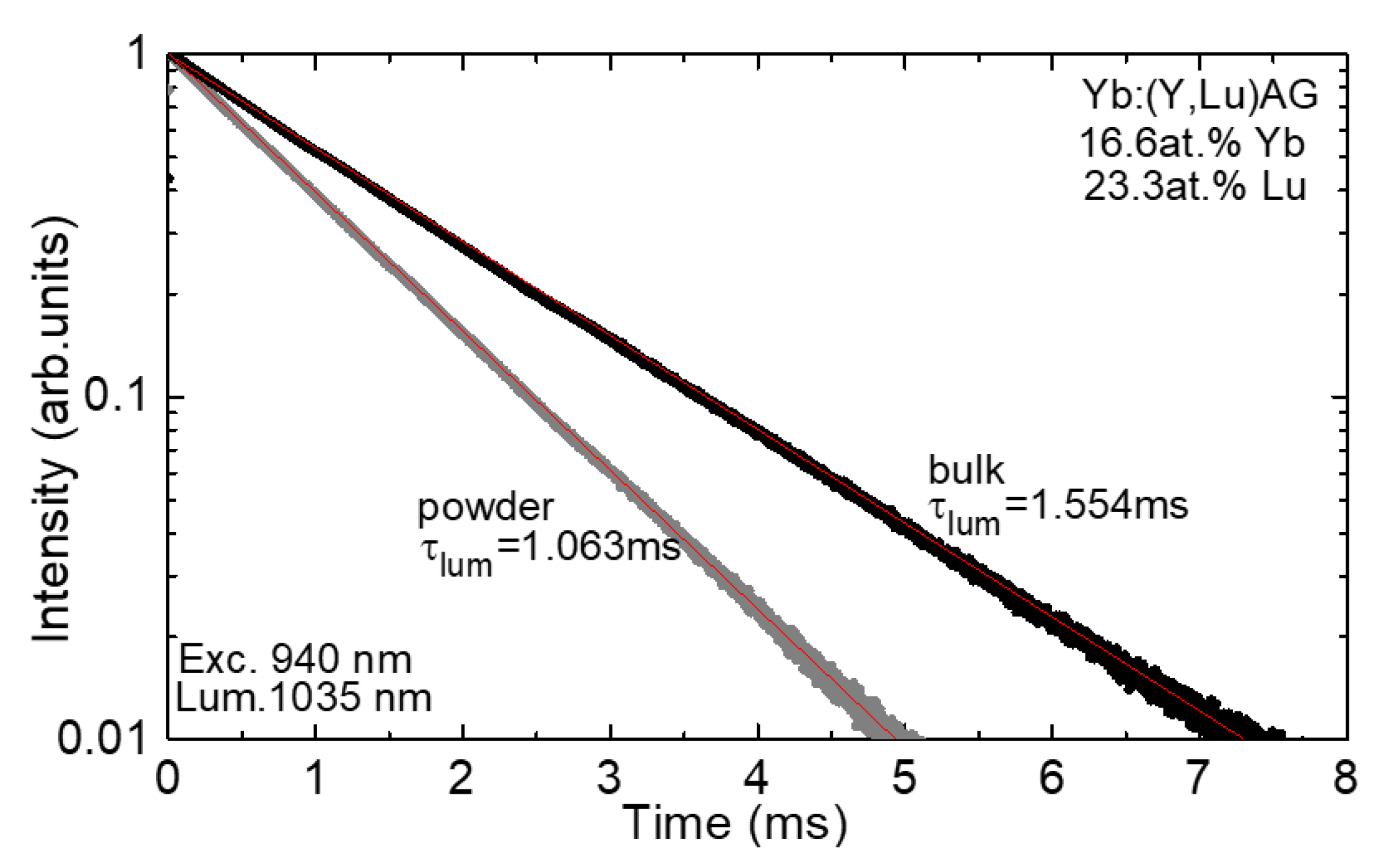

Figure 9 illustrates the luminescence lifetime curve for Yb³⁺ ions. To minimize the influence of reabsorption, also known as radiation trapping, on the measured luminescence lifetime (τ_lum), we conducted the decay analysis using finely powdered crystalline samples. The resulting decay curve fits well to a single exponential model, yielding a luminescence lifetime of τ_lum equal to 1.063 ms. It is noteworthy that for the bulk sample, a significantly longer lifetime of 1.554 ms is observed. This measured luminescence lifetime, unaffected by reabsorption, closely aligns with the radiative lifetime estimate obtained from the calculation of the SE cross-sections, as mentioned earlier.

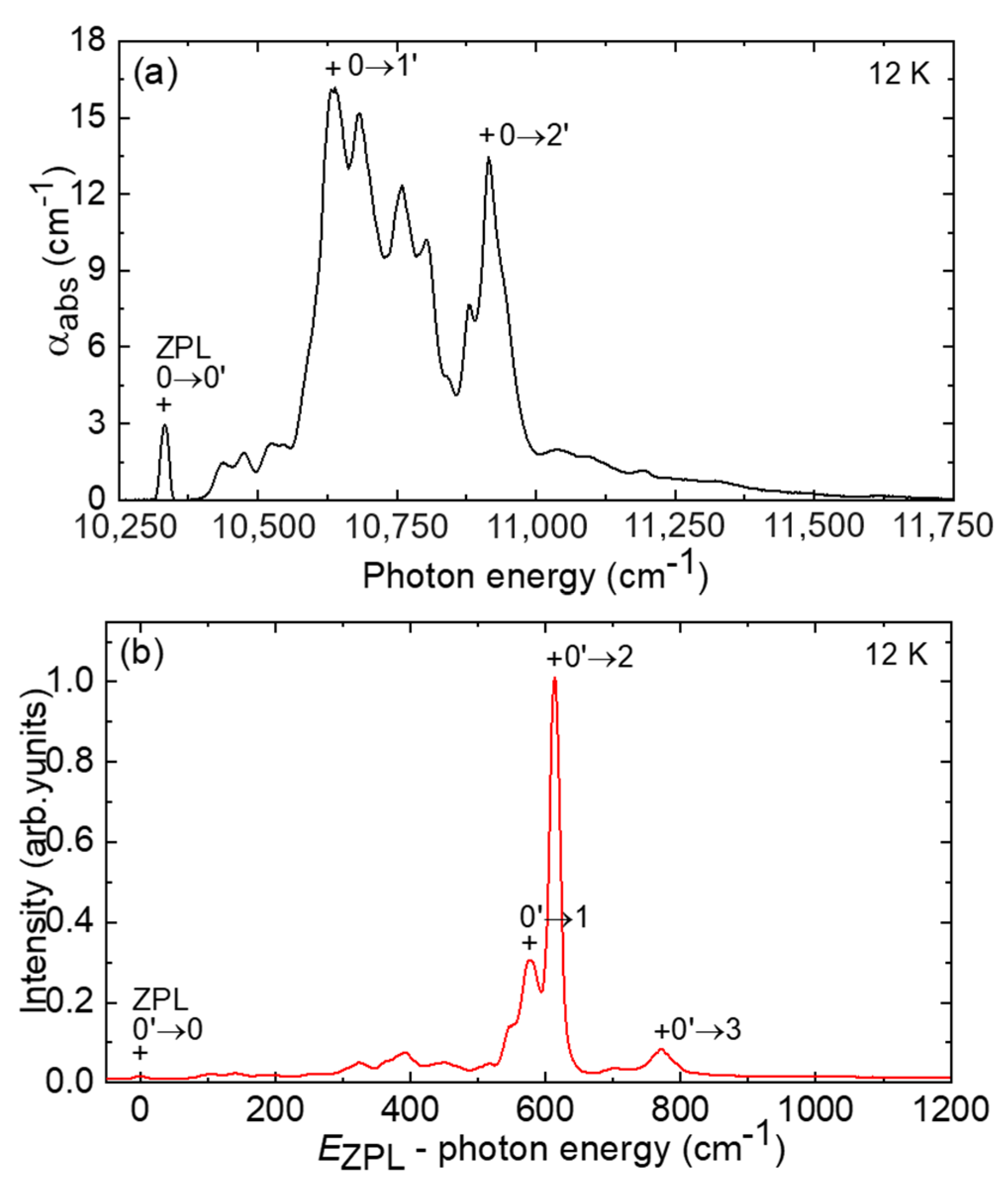

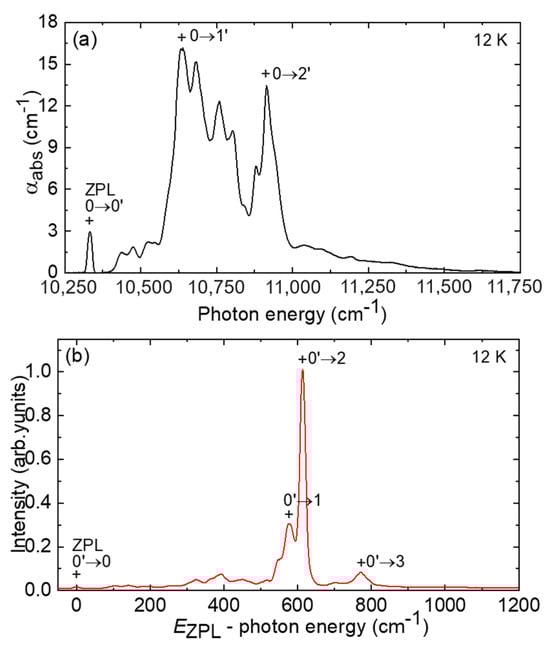

In Figure 10a,b, we present the absorption and luminescence spectra of Yb³⁺ ions in the (Y,Lu)AG crystal measured at a low temperature of 12K. The absorption spectrum is plotted against photon energy (hν_ph), while the emission spectrum is plotted against (E_ZPL − hν_ph) to facilitate the determination of the Stark sublevel energies within the Yb³⁺ multiplets. In the crystal field of (Y,Lu)AG, Yb³⁺ ions are anticipated to replace the host-forming Y³⁺|Lu³⁺ cations, occupying a specific site with D₂ symmetry and VIII-fold coordination by oxygen. Within each ^{2S +1}L_J multiplet of Yb³⁺ ions, the crystal field splits the states into J + 1/2 components, labeled as 0…3 for the ground state and 0′…2′ for the excited state. By analyzing the low-temperature spectra and excluding the phonon sidebands (as determined from the Raman spectrum), we can assign electronic transitions that occur between the Stark sublevels.

Table 4. Experimental Stark splitting of Yb³⁺ multiplets in the (Y,Lu)AG (this work), YAG, and LuAG crystals [7].

Yb3+ Multiplet	E, cm−1
2S+1LJ	(Y,Lu)AG	YAG	LuAG
2F7/2	0	0	0
	578	565	602
	613	612	643
	771	785	764
2F5/2	10,333	10,327	10,333
	10,636	10,650	10,643
	10,915	10,923	10,908

displays the crystal-field splitting of Yb³⁺ ions within the (Y,Lu)AG crystal, and we have included a comparison with the splitting observed in YAG and LuAG crystals [7]. In the case of Yb:(Y,Lu)AG, the energy associated with the zero-phonon line (ZPL) is measured at E_ZPL = 10,333 cm⁻¹, equivalent to a ZPL wavelength of 967.8 nm at 12 K. Notably, the total Stark splitting of the ground state, ΔE(²F_7/2), is relatively substantial, measuring 771 cm⁻¹, and this characteristic is advantageous for achieving low-threshold laser operation. The partition functions are represented as Z1 = 1.130 and Z2 = 1.282, with a ratio of Z1/Z2 equal to 0.881.

To provide insights into laser operation, we have summarized the spectroscopic properties of the Yb:(Y,Lu)AG crystal in

Table 5. Spectroscopic properties of Yb³⁺ ions in the (Y,Lu)AG, YAG and LuAG crystals.

Crystal	σabs, 10−20 cm2	λabs, nm	Δλabs, nm	σSE, 10−20 cm2	λem, nm	τrad, ms
(Y,Lu)AG	0.80	969.2	<3	2.53	1030.6	1.00
	0.78	941.0	19
YAG	0.80	969.0	2.5	2.31	~1030	0.95
	0.77	~942	~18
LuAG	0.73	969.0	<3	2.76	1030.4	1.01
	0.79	940.7	~20

and compared them to those of the parent crystals, Yb:YAG and Yb:LuAG (as presented in this work).

3.3. Laser Performance

3.3.1. Laser Performance Using Ti:Sapphire Pumping

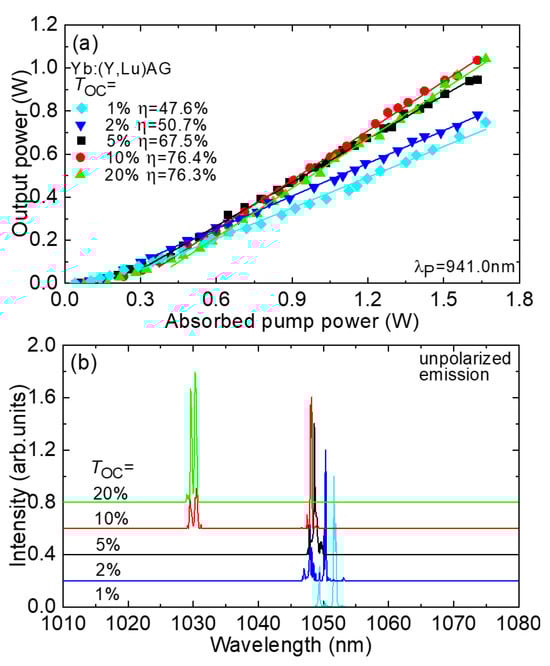

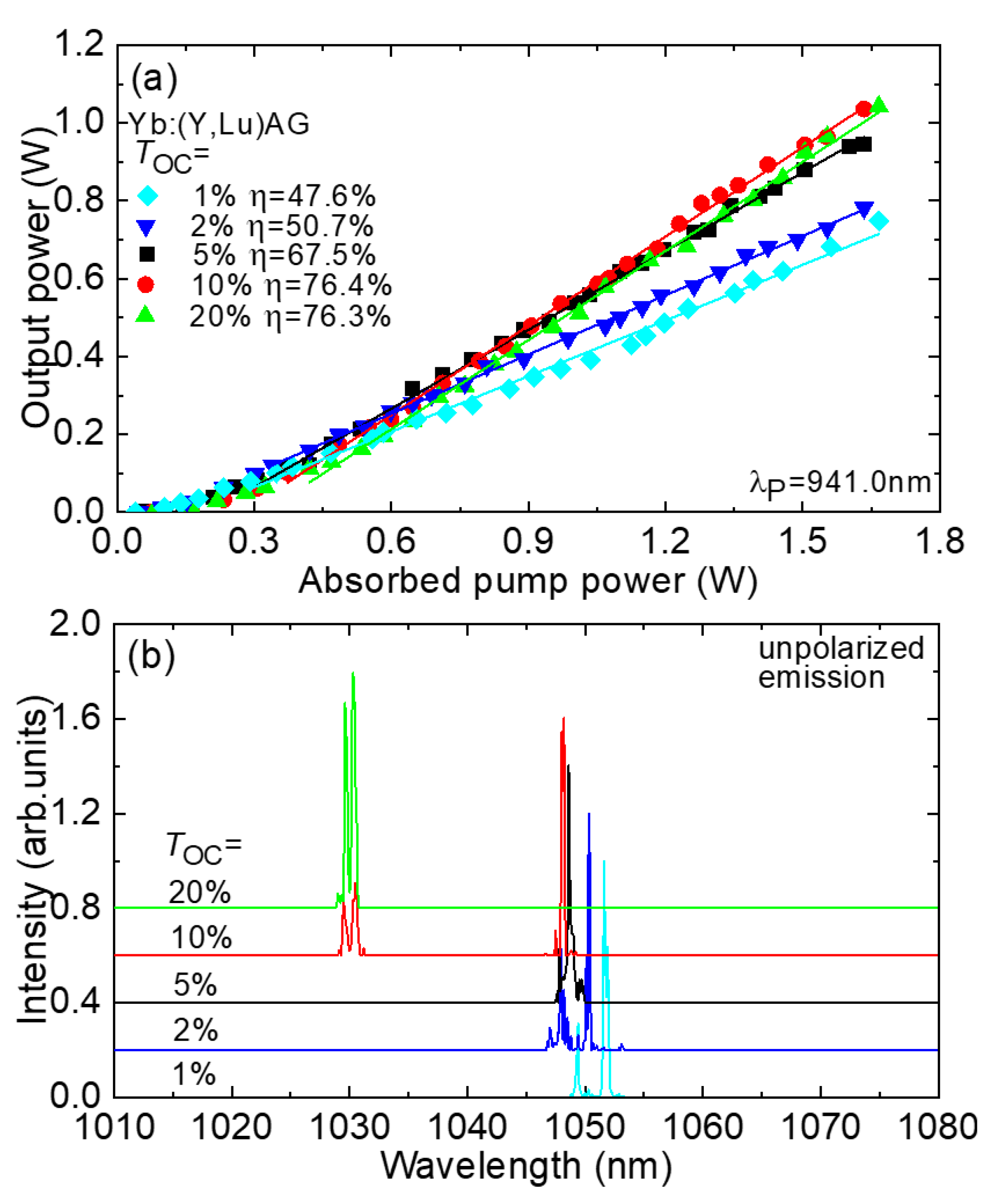

The performance of the free-running Yb:(Y,Lu)AG laser, pumped at λ_P = 941.0 nm, is illustrated in Figure 11a. The laser achieved a peak output power of 1.04 W, emitting at wavelengths of 1029–1031 nm and 1047–1049 nm. Its slope efficiency η, relative to the absorbed pump power, reached 76.4%, and the laser exhibited a threshold of 76 mW (with T_OC = 10%). When the incident pump power reached its maximum at 1.83 W, the optical-to-optical conversion efficiency was 56.8%. As the output coupling (T_OC) increased, the laser threshold gradually rose, starting from 39 mW (T_OC = 1%) and reaching 80 mW (TOC = 20%). The output characteristics displayed a linear relationship well beyond the laser threshold.

Figure 11b presents typical spectra of the laser emission, which was unpolarized. For lower output coupling (T_OC = 1–5%), the laser emitted at 1.05 μm, while for T_OC = 10%, it exhibited emission in two spectral ranges, specifically at 1.03 and 1.05 μm. With even higher T_OC (T_OC = 20%), the laser operated exclusively in the shorter-wavelength range. This behavior aligns with the gain spectra, taking into consideration the need to increase the inversion within the laser crystal to compensate for higher output coupling losses. This phenomenon can be explained by the quasi-three-level scheme of the Yb³⁺ laser transition from ²F_5/2 to ²F_7/2, which involves reabsorption at the laser wavelength. The multi-peak structure observed in the laser emission spectra is attributed to the relatively broad gain spectra of Yb³⁺ ions within the (Y,Lu)AG crystal and etalon (Fabry–Perot) effects occurring at the interfaces of the crystal and the pump mirror (PM). It is important to note that the laser operated in the fundamental transverse mode, with measured beam quality factors at the maximum pump power (M²_x,y) being less than 1.1.

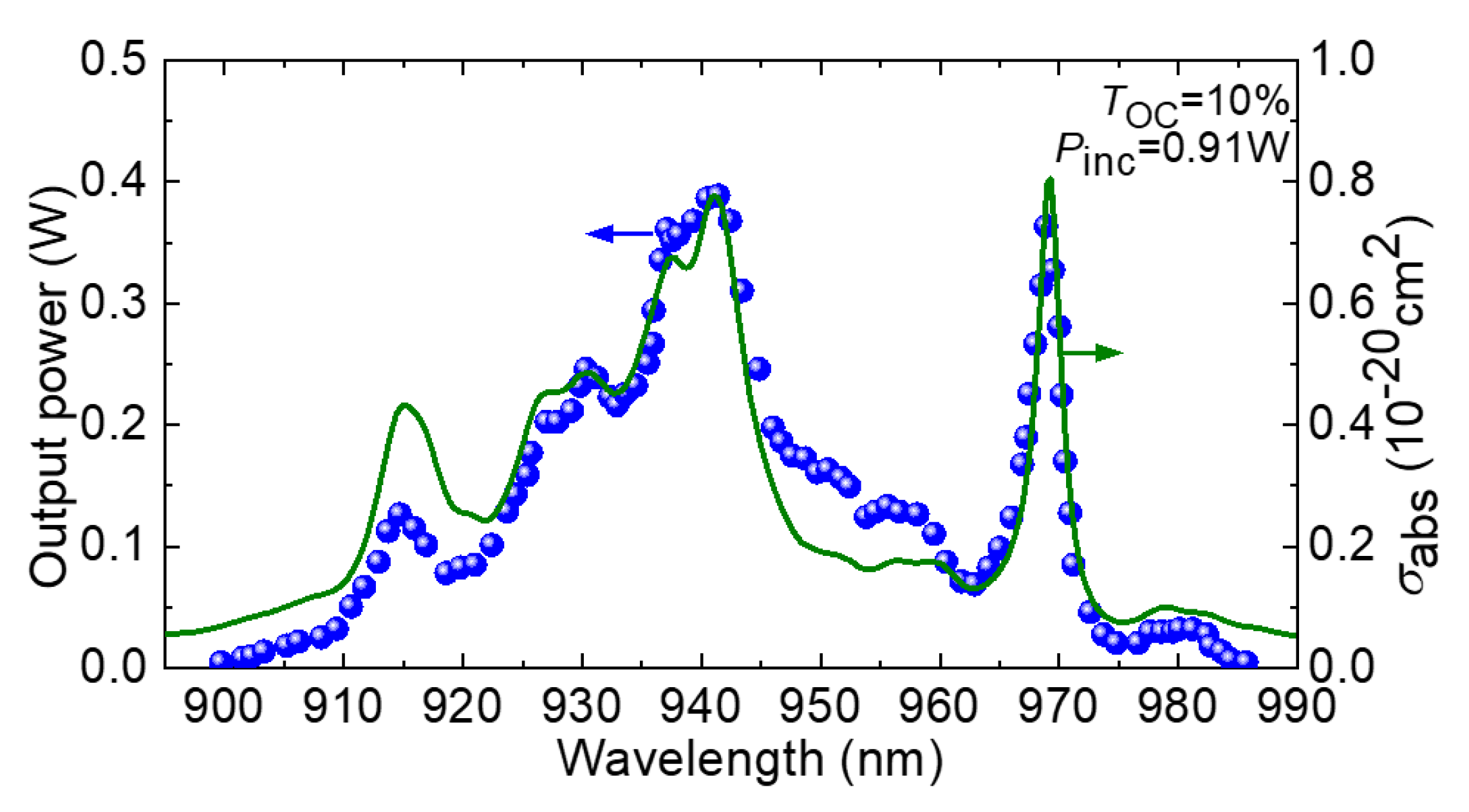

The laser’s excitation spectrum, which shows how the output power varies with the pump wavelength (λ_P), was also measured, as depicted in Figure 12. To conduct this measurement, the incident pump power on the crystal was maintained at a constant 0.91 W. The shape of the laser excitation curve closely mirrors that of the absorption cross-section spectrum for Yb³⁺:(Y,Lu)AG. Consequently, laser operation was successfully attained within the range of λP spanning from 899.7 to 985.7 nm. Notably, the two optimal pump wavelengths are 941.0 nm and 969.2 nm, corresponding to the zero-phonon line (ZPL).

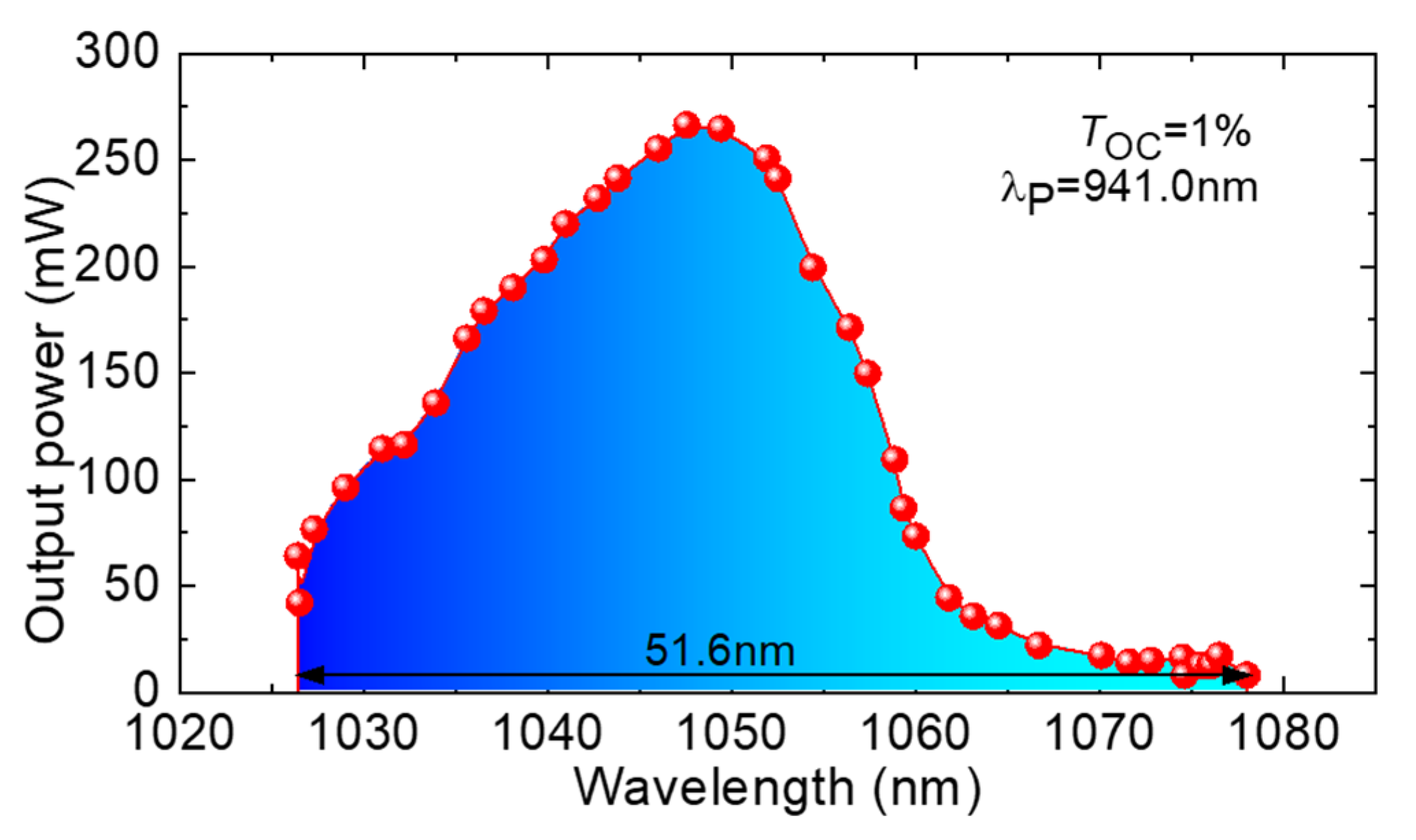

To investigate wavelength tunability, a birefringent plate was inserted into the laser cavity and oriented at Brewster’s angle. Employing a 1% output coupler (OC), we achieved continuous wavelength tuning across the range of 1026.4–1078.0 nm, corresponding to a tuning span of 51.6 nm at the zero-power level, as illustrated in Figure 13. The highest output power was achieved at approximately 1050 nm, aligning with the gain spectra for small β values and the characteristics of the free-running laser spectra.

3.3.2. Diode-Pumped Laser Performance

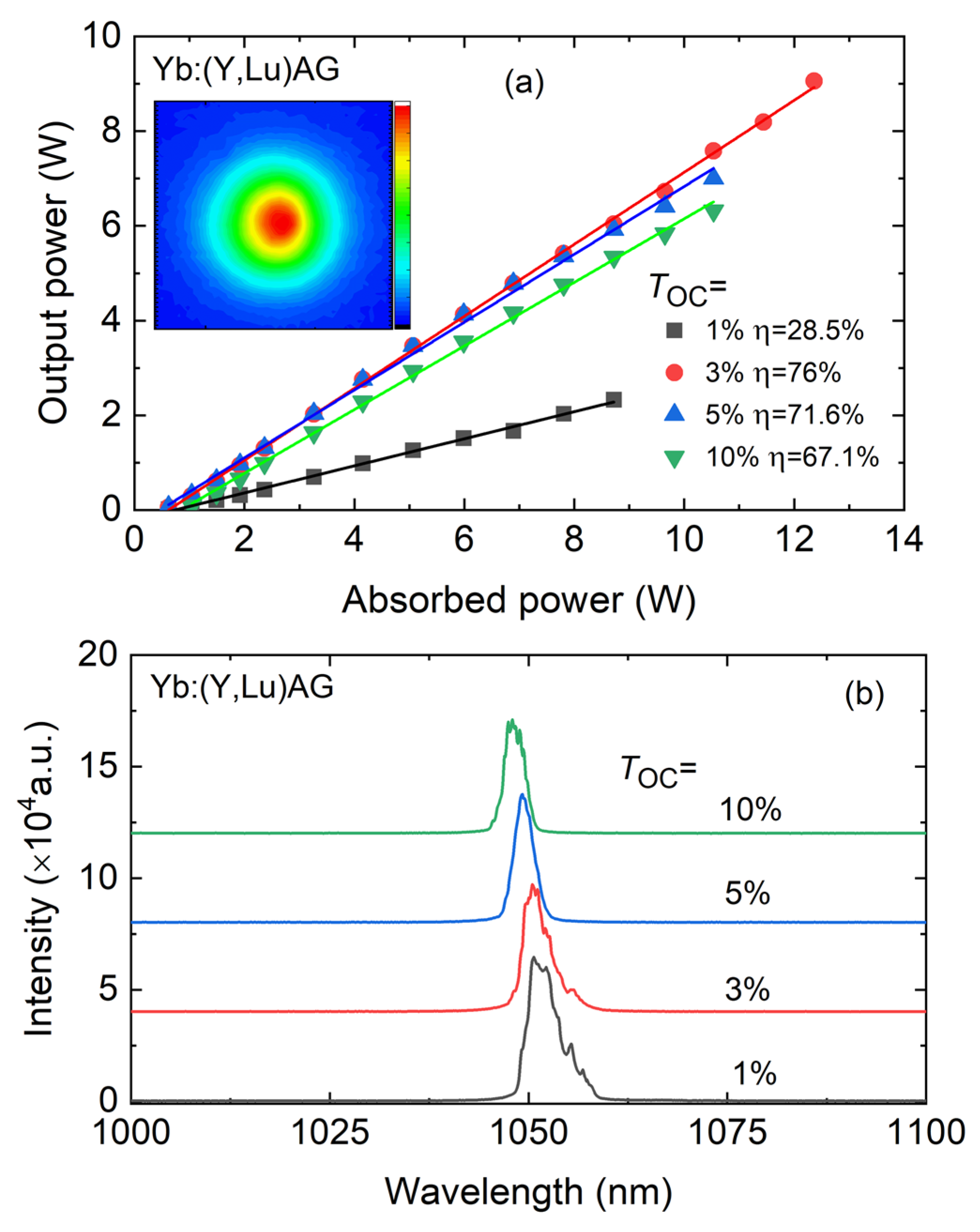

Microchip laser operation has been successfully achieved using the Yb:(Y, Lu)YAG crystal. The input–output characteristics are presented in Figure 14a, illustrating the power scaling achieved with fiber-coupled InGaAs laser diode pumping. The laser generated its maximum output power at 9.10 W, operating at a wavelength of 1050.7 nm, with a slope efficiency η of 76% relative to the absorbed pump power. The laser’s threshold power (P_th) was measured at 0.82 W (with T_OC = 3%). As the output coupling (T_OC) increased, the laser threshold gradually rose, ranging from 0.62 W (T_OC = 1%) to 1.04 W (T_OC = 10%).

Using this diode for pumping resulted in a lower quantum defect (η_h~6–8%, depending on the OC), ensuring that the input–output characteristics remained linear without experiencing thermal roll-over across the entire range of pump powers studied. This linearity was maintained up to a minimum of 12.36 W of absorbed pump power.

The Yb:(Y,Lu)YAG microchip laser’s typical laser emission spectra are depicted in Figure 4. As the output coupling increased from 1% to 10%, there was a noticeable shift towards shorter wavelengths in the emission, transitioning from 1051.3 nm to 1047.8 nm. This wavelength shift can be attributed to the quasi-three-level nature of the Yb³⁺ laser scheme.

In the inset of Figure 14a, the output beam profile of the Yb:(Y,Lu)YAG microchip laser can be observed, which was captured using a near-IR camera positioned 10 cm from the output coupler (T_OC = 3%, P_abs = 11.44 W). As expected, due to the low astigmatism of the thermal lens, the Yb:(Y, Lu)YAG microchip laser displayed a nearly circular output beam. This outstanding beam profile can also be attributed to the precise mode-matching achieved within the microchip laser cavity.

4. Conclusions

In summary, we present the growth process via the Czochralski method, detailed structural refinement, and an extensive spectroscopic examination of a novel composite, ytterbium-doped yttrium–lutetium aluminum garnet, denoted as (Y_0.638Lu_0.212Yb_0.150)₃Al₅O₁₂. This crystal possesses a cubic structure (space group Ia$\overline{3}$d, lattice parameter a = 11.9790(0) Å), sharing structural similarity with its parent compound, Y₃Al₅O₁₂. It exhibits promising spectroscopic characteristics in terms of Yb³⁺ ion doping, including a broad absorption band around 940 nm, well-matched to InGaAs laser diode emissions. Moreover, it showcases a relatively high stimulated-emission cross-section of 2.53 × 10⁻²⁰ cm² at approximately 1031 nm, along with a substantial reabsorption-free luminescence lifetime of 1.063 ms. Efficient laser operation of this crystal, doped with 16.6 at.% Yb³⁺, was successfully achieved under high-brightness pumping. This yielded an impressive output power of 1.04 W within the range of 1.03–1.05 μm, demonstrating a high slope efficiency of 76.4% and a low laser threshold of only 76 mW. Additionally, we demonstrated continuous wavelength tuning across 51.6 nm (1026.4–1078.0 nm). Furthermore, through microchip laser operation, we achieved power scaling with a maximum output power of approximately 9 W at around 1.05 μm, exhibiting a slope efficiency of 76%. This “mixed” crystal shows promise for diode-pumped, power-scalable lasers operating at approximately 1 μm.
