Article

Intermolecular Interactions of 3,5-bis(4-Methoxyphenyl)-4,5-dihydro-1H-pyrazole-1-carbothioamide in a Cocrystal with 1,3-bis(4-Methoxyphenyl)prop-2-en-1-one and Dimethylformamide Solvate

by
Benson M. Kariuki
1,
Bakr F. Abdel-Wahab
2,
Mohamed S. Bekheit
3 and
Gamal A. El-Hiti
4,*
1
School of Chemistry, Cardiff University, Cardiff CF10 3AT, UK
2
Applied Organic Chemistry Department, Chemical Industries Research Institute, National Research Centre, Giza 12622, Egypt
3
Department of Pesticide Chemistry, National Research Centre, Giza 12622, Egypt
4
Department of Optometry, College of Applied Medical Sciences, King Saud University, Riyadh 11433, Saudi Arabia
*
Author to whom correspondence should be addressed.
Crystals 2022, 12(5), 663; https://doi.org/10.3390/cryst12050663
Submission received: 22 April 2022 / Revised: 3 May 2022 / Accepted: 4 May 2022 / Published: 5 May 2022
(This article belongs to the Special Issue New Trends in Crystals at Saudi Arabia (Volume II))
Browse Figures
Versions Notes

Abstract

:
Two new multicomponent crystals consisting of 3,5-bis(4-methoxyphenyl)-4,5-dihydro-1H-pyrazole-1-carbothioamide (1) with 1,3-bis(4-methoxyphenyl)prop-2-en-1-one (2) and with dimethylformamide (DMF), both in 1:1 ratio, prepared and structurally characterized. The occurrence of 1 in different crystal structures enabled a comparison of hydrogen bonding contacts between the two structures as well as with the known structure of pure 1. The backbone of molecule 1 was similar in the structures but the orientation of the methoxy groups varied. Molecule 1 was involved in various combinations of the possible hydrogen bonding contacts, including N–H…O=C, N–H…OMe, and N–H…S. Both N–H hydrogens in the cocrystal (1–2) and the solvate (1-DMF) participated in hydrogen bonding but only one hydrogen atom took part in the structure of pure 1. The S atom accepted contacts in both the structures of pure 1 and cocrystal 1–2 but not in that of the 1-DMF solvate. The oxygen atoms of both methoxy groups acted as acceptors in the structure of pure 1, whereas one oxygen was involved in the 1-DMF solvate and none in cocrystal 1–2.

1. Introduction

The generation of crystalline materials with predictable molecular assembly is an important aim of crystal engineering [1,2]. Thus, materials with desired physical and chemical properties can be produced for beneficial application. In the organic solid state, crystal engineering is dependent on the ability to predict and control the assembly of molecules into the crystalline state. The mode of molecular packing is determined by the synergy between a variety of factors which include the need for efficient packing and optimization of electrostatic interactions. In addition, the structure can be influenced by directional interactions, of which a well-characterized example is hydrogen bonding.
The control of molecular assembly requires a detailed understanding of the complex relationships between intermolecular interactions in the crystalline state. A significant amount of knowledge can be gained by analysis of accumulated empirical data. The study of polymorphism [3,4], where a molecule or molecules crystallize in different crystal structures, is an example. It has contributed significantly toward the accumulation of the information required for the rationalization of intermolecular interactions [5].
Where crystallization of a molecule does not produce polymorphs but can form one or more multicomponent crystals, more detailed information about its packing preferences can be derived by analysis and comparison of the pure and/or co-crystalline forms. This is a broadening of the information landscape that is beneficial to crystal engineering. More generally, the formation of multicomponent molecular systems is a topic of continued interest in solid state chemistry and materials science [6,7,8,9,10,11]. A particularly active area currently is the potential application of cocrystallization in the modification of physical properties of pharmaceuticals [12,13,14,15,16,17,18].
This paper reports an investigation of multicomponent crystals containing 3,5-bis(4-methoxyphenyl)-4,5-dihydro-1H-pyrazole-1-carbothioamide (1; Figure 1). The material was obtained based on a reported procedure [19] as a precursor in the synthesis of novel heterocycles as part of our ongoing research [20,21,22,23,24,25]. Molecule 1 contained hydrogen bonding donors (N–H) and acceptors (S, O) as well as phenyl groups that could be involved in π…π and X–H…π interactions. It was therefore a suitable candidate for investigation of the intermolecular contacts preferred in different crystal structures. Formation of multicomponent molecular crystals of 1 with 1,3-bis(4-methoxy-phenyl)prop-2-en-1-one (2) and with dimethylformamide (DMF) solvent are reported. Figure 1 shows the chemical structures of molecules 1 and 2. Both DMF and molecule 2 contained carbonyl groups which are strong hydrogen bond acceptors, and additionally, 2 contained methoxy groups which can also accept hydrogen bonds. While recognizing the ambiguity in the term ‘cocrystal’ [10], materials 1–2 are referred to as cocrystals and material 1–DMF as a solvate for ease of discussion.

2. Materials and Methods

2.1. Synthesis and Crystallization

A mixture of chalcone 2 (0.54 g, 2.0 mmol) and thiosemicarbazide (0.32 g, 3.5 mmol) in ethanolic sodium hydroxide (0.22 g, 5.5 mmol; 20 mL) was refluxed for 12 h. The mixture was poured into ice water (100 mL) with continuous stirring for an hour and left at 20 °C overnight. The solid produced was filtered, washed with ethanol, and dried to give a mixture of 1 and 2. Cocrystallization of the mixture produced 1:1 cocrystals of 1 and 2. The mixture was purified by column chromatography using a mixture of ethyl acetate and petroleum ether 40–60 °C (5:1 by volume) followed by crystallization from DMF to give 1 and 2 in pure forms. Compound 1. Mp 164–165 °C (lit. 165.2 °C [19]. 1H NMR (500 MHz, DMSO-d6): 3.40 (m, 2H, pyrazoline-H), 3.71 (s, 3H, OCH3), 3.73 (s, 3H, OCH3), 5.80 (d, J = 11.5 Hz, 1H, pyrazoline-H), 6.82 (d, J = 8.6 Hz, 2H, Ar), 6.92–7.00 (m, 4H, Ar), 7.70 (d, J = 8.6 Hz, 2H, Ar), and 7.91 (s, exch., 2H, NH2). 13C NMR (125 MHz, DMSO-d6): 40.4, 55.6, 55.9, 62.8, 114.3, 114.7, 123.9, 127.2, 129.4, 135.6, 155.5, 158.7, 161.8, and 176.3. Compound 2. Mp 102–103 °C (lit. 99–103 °C [26]). 1H NMR (500 MHz, DMSO-d6): 3.78 (s, 3H, OCH3), 3.83 (s, 3H, OCH3), 6.98 (d, J = 8.6 Hz, 2H, Ar), 7.04 (d, J = 9.6 Hz, 2H, Ar), 7.65 (d, J = 16.2 Hz, 1H), 7.79 (d, J = 16.2, 1H), 7.81 (d, J = 8.6 Hz, 2H, Ar), and 8.12 (d, J = 9.6 Hz, 2H, Ar). 13C NMR (125 MHz, DMSO-d6): 55.9, 56.1, 114.5, 114.9, 120.1, 128.0, 131.1, 131.3, 131.7, 143.6, 161.8, 163.6, and 187.8.

2.2. Crystal Structure Determination

Data for cocrystal 1–2 and 1–DMF solvate were recorded at 296 K on an Agilent SuperNova Dual Atlas single crystal diffractometer with mirror monochromated Mo radiation. Structure solution calculations were performed using SHELXS [27] and refinement by SHELXL [28]. Anisotropic displacement parameters were used for non-hydrogen atoms during refinement. A riding model was used for hydrogen atoms with idealized geometry and Uiso set to 1.2 or 1.5 times the value of Ueq for the atom to which they are bonded. HFIX 43 was used for hydrogens bonded to sp2 hybridized carbon atoms and HFIX 137 for methyl hydrogens. HFIX 93 was used for N–H hydrogens. The dataset for 1-DMF was noticeably weak particularly at high angles and the DMF solvent molecule was disordered. The DMF site was refined with two components with occupancies 0.854(3) and 0.146(3). The crystal structures of 1–DMF and 1–2 were deposited in the CSD with reference numbers CCDC 2167760 and 2167761 (Supplementary Material).

2.3. Electrostatic Potentials and Hirshfeld Surface Calculations

The input files for electrostatic potential calculation were prepared using Avogadro [29]. The calculation was performed using RHF/631G(dp) basis set in Gamess [30] and analyzed using Macmolplot [31]. The Hirshfeld surface was generated using CrystalExplorer17 [32].

3. Results and Discussion

The crystal structure of pure 1 was previously reported (monoclinic, C2/c) [19]. This, along with cocrystal 1–2 and 1–DMF solvate, enabled a comparison of the intermolecular interactions of 1 in different crystal environments. The structures of two polymorphs of 2 have also been reported (orthorhombic, P212121 [33,34] and Pc [35]).

3.1. Crystal Structure of Cocrystal 1–2

The crystal structure of cocrystal 1–2 was triclinic, PĪ (Table 1). The material was a 1:1 cocrystal of molecules of 1 and 2 (Figure 2a). Molecule 1 comprised two phenyl rings A (C2–C7) and C (C12–C17) as well as a pyrazolyl ring B (N1, N2, C8, C9, and C10). In cocrystal 1–2, rings A and B were essentially coplanar as shown by the small twist angle (3.38(21)) between them (Table 2). In the molecule, both methoxy groups (C1, O1) and (C18, O2) were essentially coplanar with the phenyl rings they were bonded to (the torsion angles were below 8°, Table 1). The pyrazolyl ring was in envelop conformation with C10 out of the least squares plane of the rest of the atoms by 0.278 (4) Å. The methane-thioamide group (S1, C11, and N2) was coplanar with the pyrazolyl ring (torsion angle N3-C11-N2-N1 = 3.0(3))°.
In the crystal, molecule 2 was essentially planar with a maximum deviation from the least-squares plane of 0.191(4) Å. The same planarity in the molecule was also observed in the structure of one polymorph of pure 2 (lit. 2 in Table 2) [35]. The difference between the molecule in cocrystal 1–2 and in this pure form, however, is in the orientation of both methoxy groups which were rotated by ca 180° relative to the O–C(phenyl) bonds (Table 2, torsion angles C19–O3–C20–C25 and C35–O5–C32–C31). Molecule 2 in the other polymorph (lit. 2) was not planar, with a twist angle of 57.58° between the rings.
In cocrystal 1–2, intermolecular hydrogen bonding contacts with geometry (N3–H3A…O4 = 132.2°, N3…O5 = 3.159(3) Å and N3–H3B…S1 = 154.8°, N3…S1 = 3.412(2) Å) occurred as shown in Figure 2b. C–H…π interactions with H-to-ring-centroid contact distances of ca 3 Å also occurred in the structure.

3.2. Crystal Structure of Solvate 1–DMF

The crystal structure of the 1–DMF solvate contained molecules of 1 and DMF in a 1:1 ratio (Figure 3a). The DMF site was disordered with two components with occupancies of 0.854(3) and 0.146(3). The twist angles between rings A, B, and C were similar to those observed for molecule 1 in the structure of cocrystal 1–2 (Table 2) with the largest difference being ca 8° in the B/C twist angle. The main difference in the conformation of the molecule of 1 was the orientation of one of the methoxy groups (C1, O1) which was still in the plane of the phenyl group but rotated by ca. 180° about the O–C (phenyl) bond. Like in the molecule 1 in cocrystal 1–2, ring B was in envelop conformation but the deviation from the least squares plane of the rest of the atoms of 0.373(3) Å was observed for atom C8 (i.e., not C10).
N–H…O hydrogen bonding was observed between two molecules of 1 with geometry (N3–H3A…O2 = 155.2°, N3…O2 = 3.101(2) Å) and between 1 and DMF with geometry (N3-H3B…O3 = 171.5°, N3…O3 = 2.888(5) Å) as shown in Figure 3b. C–H…π interaction also occurred between centro-symmetrically related molecules and involved methylene and phenyl groups with a H-to-centroid distance of 2.851 Å.

3.3. Comparison of Intermolecular Contacts for Molecule 1

As already stated, the crystal structures of pure 1, as well as cocrystal 1–2 and the 1–DMF solvate, enabled a comparison of intermolecular interactions of 1 in different crystalline environments. The electron density map surface for a molecule of 1 is shown in Figure 4. The blue color indicates the most negative regions on the surface of the molecule. These regions were located mainly on the oxygen and sulfur atoms of the molecule, with the most prominent region being in the vicinity of the sulfur atom. It was no surprise, therefore, that these atoms acted as hydrogen bond acceptors. What was notable was that the degree of participation by different acceptors in hydrogen bonding varied from structure to structure.
The Hirshfeld surface [36] is particularly useful in analysis as it provides a visual representation of close intermolecular contacts. Figure 5a,b show two views of the surface for the molecule of 1 in the structure of cocrystal 1–2. The closest intermolecular contacts, shown in red, involved the sulfur atom (which accepts an N–H…S contact) and the two hydrogen atoms of the amine group (which form N–H…S and N–H…O contacts). Notably, the methoxy oxygen atoms were not involved in close contact, with the N–H group preferring to interact with the carbonyl oxygen atom of molecule 2.
Figure 5c,d show the surfaces for the molecule of 1 in the 1–DMF solvate structure. The amine group formed a close contact (N–H…O) with the carbonyl group of the DMF molecule. A short contact was also observed for one methoxy oxygen (N–H…O) but the S atom was not involved as closely as in cocrystal 1–2.
In the structure of pure 1, one hydrogen atom of the NH2 group interacted with a methoxy oxygen atom (Figure 5e,f). The other N–H hydrogen did not form close contact with the other methoxy oxygen and sulfur atoms, accepting C–H contacts instead.

4. Conclusions

Two new types of multicomponent crystals containing molecule 1 were obtained and characterized. The materials were a 1:1 cocrystal of molecules 1 and 2 and a solvate containing a 1:1 ratio of molecule 1 and DMF. Comparing the two structures with the known structure of the pure material showed that the molecular conformations of the backbone of 1 were generally similar, but the orientation of the methoxy groups may vary.
Thus, one of the two methoxy groups of molecule 1 assumed a different conformation in cocrystal 1–2 relative to the structures of 1–DMF solvate and pure 1.
Examination of intermolecular contacts indicated clearly that different combinations of the available hydrogen bonding options for molecule 1 were preferred in the three crystal structures. The possible hydrogen bonding in the crystals included N–H…O=C, N–H…OMe, and N–H…S contacts. Both N–H hydrogen atoms were involved in hydrogen bond formation in cocrystal 1–2 and 1–DMF solvate but only one N–H hydrogen atom took part in pure 1. The S atoms in both the structures of pure 1 and cocrystal 1–2 participated, but the S atom in the 1–DMF solvate did not. Oxygen atoms of both methoxy groups took part in bonding in pure 1, but only one was involved in the 1–DMF solvate and none in cocrystal 1–2.
Additionally, the N–H group formed an N–H…O hydrogen bond preferentially with the C=O carbonyl group rather than interacting with a methoxy oxygen or sulfur atoms, as illustrated by cocrystal 1–2 and 1–DMF solvate.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/cryst12050663/s1, 1H and 13C NMR spectra, CIFs and checkcif reports for compounds 1 and 2.

Author Contributions

Conceptualization: B.M.K. and G.A.E.-H.; methodology: B.M.K., B.F.A.-W., M.S.B. and G.A.E.-H.; X-ray crystal structures: B.M.K.; investigation: B.M.K., B.F.A.-W., M.S.B. and G.A.E.-H.; writing—original draft preparation: B.M.K., B.F.A.-W. and G.A.E.-H.; writing—review and editing: B.M.K. and G.A.E.-H. All authors have read and agreed to the published version of the manuscript.

Funding

The authors thank the Researchers Supporting Project number (RSP-2021/404), King Saud University, Riyadh, Saudi Arabia.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Acknowledgments

We thank Cardiff University and National Research Centre for technical support. Gamal A. El-Hiti thanks the Researchers Supporting Project number (RSP-2021/404), King Saud University, Riyadh, Saudi Arabia.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Desiraju, G.R. Crystal engineering: A holistic view. Angew. Chem. Int. Ed. 2007, 46, 8342–8356. [Google Scholar] [CrossRef] [PubMed]
  2. Braga, D. Crystal engineering, Where from? Where to? Chem. Commun. 2003, 22, 2751–2754. [Google Scholar] [CrossRef] [PubMed]
  3. Cruz-Cabeza, A.J.; Reutzel-Edens, S.M.; Bernstein, J. Facts and fictions about polymorphism. Chem. Soc. Rev. 2015, 44, 8619–8635. [Google Scholar] [CrossRef] [PubMed]
  4. Bernstein, J. Polymorphism in Molecular Crystals, 2nd ed.; Oxford University Press: New York, NY, USA, 2002; p. 352. [Google Scholar]
  5. Gavezzotti, A. A solid-state chemist’s view of the crystal polymorphism of organic compounds. J. Pharm. Sci. 2007, 96, 2232–2241. [Google Scholar] [CrossRef] [PubMed]
  6. Hunter, C.A.; Prohens, R. Solid form and solubility. CrystEngComm 2017, 19, 23–26. [Google Scholar] [CrossRef] [Green Version]
  7. Lehn, J.M.; Mascal, M.; DeCian, A.; Fischer, J. Molecular recognition directed self-assembly of ordered supramolecular strands by cocrystallization of complementary molecular components. J. Chem. Soc. Chem. Commun. 1990, 6, 479–481. [Google Scholar] [CrossRef]
  8. Stahly, G.P. A survey of cocrystals reported prior to 2000. Cryst. Growth Des. 2009, 9, 4212–4229. [Google Scholar] [CrossRef]
  9. Cincic, D.; Friscic, T.; Jones, W. A cocrystallisation-based strategy to construct isostructural solids. New J. Chem. 2008, 32, 1776–1781. [Google Scholar] [CrossRef]
  10. Bond, A.D. What is a co-crystal? CrystEngComm 2007, 9, 833–834. [Google Scholar] [CrossRef]
  11. Trask, A.V.; Jones, W. Crystal Engineering of Organic Cocrystals by the Solid-State Grinding Approach. In Organic Solid State Reactions. Topics in Current Chemistry; Toda, F., Ed.; Springer: Berlin/Heidelberg, Germany, 2005; Volume 254, pp. 41–70. [Google Scholar]
  12. Duggirala, N.K.; Perry, M.L.; Almarsson, O.; Zaworotko, M.J. Pharmaceutical cocrystals: Along the path to improved medicines. Chem. Commun. 2016, 52, 640–655. [Google Scholar] [CrossRef]
  13. Brittain, H.G. Pharmaceutical cocrystals: The coming wave of new drug substances. J. Pharm. Sci. 2013, 102, 311–317. [Google Scholar] [CrossRef] [PubMed]
  14. Chadha, R.; Saini, A.; Arora, P.; Bhandari, S. Pharmaceutical cocrystals: A novel approach for oral bioavailability enhancement of drugs. Crit. Rev. Ther. Drug Carrier Syst. 2012, 29, 183–218. [Google Scholar] [CrossRef] [PubMed]
  15. Goud, N.R.; Gangavaram, S.; Suresh, K.; Pal, S.; Manjunatha, S.G.; Nambiar, S.; Nangia, A. Novel furosemide cocrystals and selection of high solubility drug forms. J. Pharm. Sci. 2012, 101, 664–680. [Google Scholar] [CrossRef]
  16. Brittain, H.G. Cocrystal systems of pharmaceutical interest: 2009. Profiles Drug Subst. Excip. Relat. Methodol. 2011, 36, 361–381. [Google Scholar] [CrossRef]
  17. Kratochvil, B. Cocrystals and their expected pharmaceutical applications. Chem. Listy 2010, 104, 823–830. [Google Scholar]
  18. Peterson, M.; Bourghol Hickey, M.; Oliveira, M.; Almarsson, O.; Remenar, J. Mixed Co-crystals and Pharmaceutical Compositions. U.S. Patent No. 7,671,093, 02 March 2010. [Google Scholar]
  19. Kanmazalp, S.D.; Dege, N.; Ilhan, I.O.; Akin, N. Crystal structure and Hirshfeld surface analysis of 3,5-bis(4-methoxyphenyl)-4,5-dihydro-1H-pyrazole-1-carbothioamide. J. Struct. Chem. 2020, 61, 126–132. [Google Scholar] [CrossRef]
  20. Gökce, H.; Şen, F.; Sert, Y.; Abdel-Wahab, B.F.; Kariuki, B.M.; El-Hiti, G.A. Quantum computational investigation of (E)-1-(4-methoxyphenyl)-5-methyl-N′-(3-phenoxybenzylidene)-1H-1,2,3-triazole-4-carbohydrazide. Molecules 2022, 27, 2193. [Google Scholar] [CrossRef]
  21. Kariuki, B.M.; Abdel-Wahab, B.F.; El-Hiti, G.A. Synthesis and structural characterization of isostructural 4-(4-aryl)-2-(5-(4-fluorophenyl)-3-(1-(4-fluorophenyl)-5-methyl-1H-1,2,3-triazol-4-yl)-4,5-dihydro-1H-pyrazol-1-yl)thiazoles. Crystals 2021, 11, 795. [Google Scholar] [CrossRef]
  22. Balakit, A.A.; Makki, S.Q.; Sert, Y.; Ucun, F.; Alshammari, M.B.; Thordarson, P.; El-Hiti, G.A. Synthesis, spectrophotometric and DFT studies of new triazole Schiff bases as selective naked-eye sensors for acetate anion. Supramol. Chem. 2020, 32, 519–526. [Google Scholar] [CrossRef]
  23. Kariuki, B.M.; El-Hiti, G.A. A reversible single-crystal to single-crystal thermal phase transformation of 3-(2-bromo-4-(1-methylethyl)phenyl)-1,1-dimethylurea. Crystals 2017, 7, 75. [Google Scholar] [CrossRef] [Green Version]
  24. Abdel-Wahab, B.F.; Farahat, A.A.; Awad, G.E.A.; El-Hiti, G.A. Synthesis and antimicrobial activity of some novel substituted 3-(thiophen-2-yl)pyrazole-based heterocycles. Lett. Drug Des. Discov. 2017, 14, 1316–1323. [Google Scholar] [CrossRef]
  25. Baashen, M.A.; Abdel-Wahab, B.F.; El-Hiti, G.A. A simple procedure for the synthesis of novel 3-(benzofur-2-yl)pyrazole-based heterocycles. Chem. Pap. 2017, 71, 2159–2166. [Google Scholar] [CrossRef]
  26. Ravindra, H.J.; Harrison, W.T.A.; Suresh Kumar, M.R.; Dharmaprakash, S.M. Synthesis, crystal growth, characterization and structure–NLO property relationship in 1,3-bis(4-methoxyphenyl)prop-2-en-1-one single crystal. J. Cryst. Growth 2009, 311, 310–315. [Google Scholar] [CrossRef]
  27. Sheldrick, G.M. A short history of SHELX. Acta Crystallogr. A 2008, 64, 112–122. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. C 2015, 71, 3–8. [Google Scholar] [CrossRef]
  29. Hanwell, M.D.; Curtis, D.E.; Lonie, D.C.; Vandermeersch, T.; Zurek, E.; Hutchison, G.R. Avogadro: An advanced semantic chemical editor, visualization, and analysis platform. J. Cheminform. 2012, 4, 17. [Google Scholar] [CrossRef] [Green Version]
  30. Barca, G.M.J.; Bertoni, C.; Carrington, L.; Datta, D.; De Silva, N.; Deustua, J.E.; Fedorov, D.G.; Gour, J.R.; Gunina, A.O.; Guidez, E.; et al. Recent developments in the general atomic and molecular electronic structure system. J. Chem. Phys. 2020, 152, 154102. [Google Scholar] [CrossRef] [Green Version]
  31. Bode, B.M.; Gordon, M.S. Macmolplt: A graphical user interface for GAMESS. J. Mol. Graph. Model. 1998, 16, 133–138. [Google Scholar] [CrossRef]
  32. Spackman, P.R.; Turner, M.J.; McKinnon, J.J.; Wolff, S.K.; Grimwood, D.J.; Jayatilaka, D.; Spackman, M.A. CrystalExplorer: A program for Hirshfeld surface analysis, visualization and quantitative analysis of molecular crystals. J. Appl. Crystal. 2021, 54, 1006–1011. [Google Scholar] [CrossRef]
  33. Hurst, D.P.; Titterington, J.A.; Van Wier, S.P.; Adrian, C.; Whitwood; Wood, N.J. Experimental Crystal Structure Determination CCDC 184226. Available online: https://doi.org/10.5517/ccdc.csd.cc1ztznf (accessed on 1 April 2022).
  34. Shen, P.; Zheng, J.; Zhang, D.; Che, Y. A new organic nonlinear optical crystal-4,4′-dimethoxychalcone. Rengong Jingti Xuebao 1992, 21, 280–285. [Google Scholar]
  35. Shu, Y.; Ye, K.; Yue, Y.; Sun, J.; Wang, H.; Zhong, J.; Yang, X.; Gao, H.; Lu, R. Fluorine as a robust balancer for tuning the reactivity of topo-photoreactions of chalcones and the photomechanical effects of molecular crystals. CrystEngComm 2021, 23, 5856–5868. [Google Scholar] [CrossRef]
  36. Spackman, M.A.; Jayatilaka, D. Hirshfeld surface analysis. CrystEngComm 2009, 11, 19–32. [Google Scholar] [CrossRef]
Crystals 12 00663 g001 550

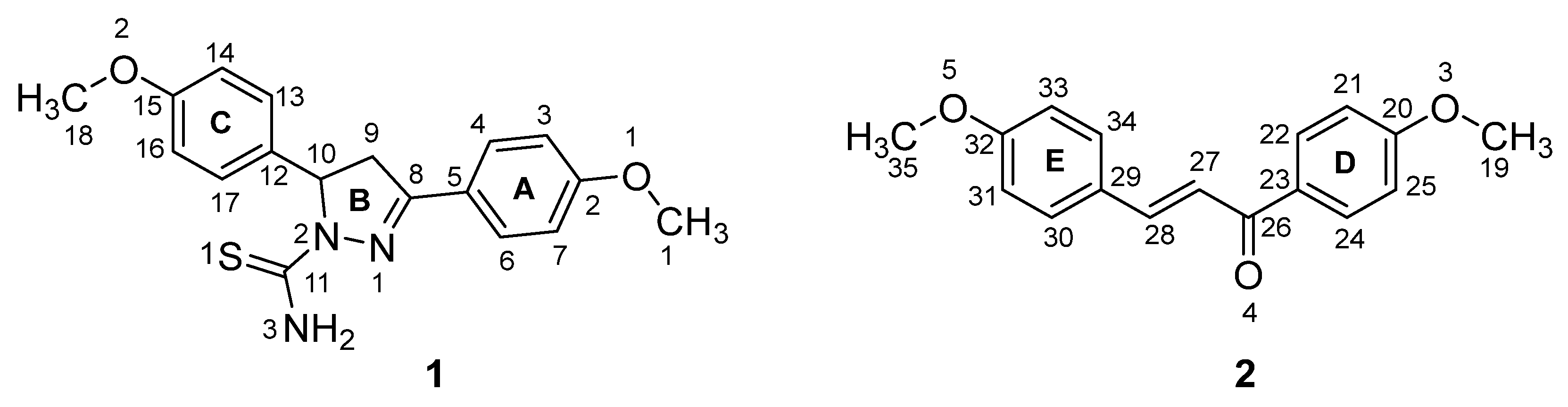

Figure 1. The molecules 1 and 2 showing the atom numbering scheme used in the discussion.
Figure 1. The molecules 1 and 2 showing the atom numbering scheme used in the discussion.
Crystals 12 00663 g001
Crystals 12 00663 g002 550

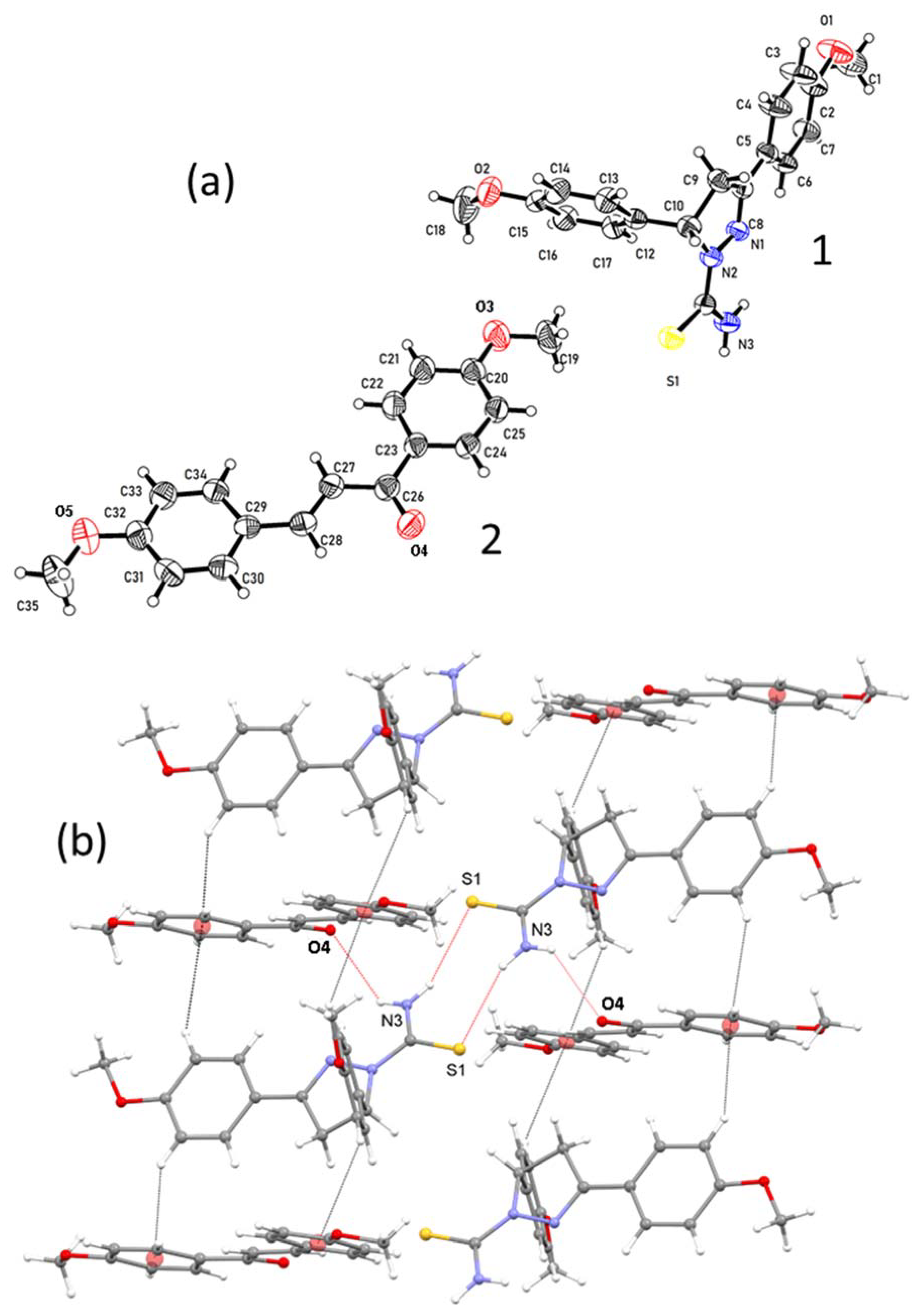

Figure 2. (a): The molecules of 1 and 2 in cocrystal 1–2 showing anisotropic displacement ellipsoids drawn at 50% probability level and (b): a segment of the structure of 1–2 showing intermolecular contacts.
Figure 2. (a): The molecules of 1 and 2 in cocrystal 1–2 showing anisotropic displacement ellipsoids drawn at 50% probability level and (b): a segment of the structure of 1–2 showing intermolecular contacts.
Crystals 12 00663 g002
Crystals 12 00663 g003 550

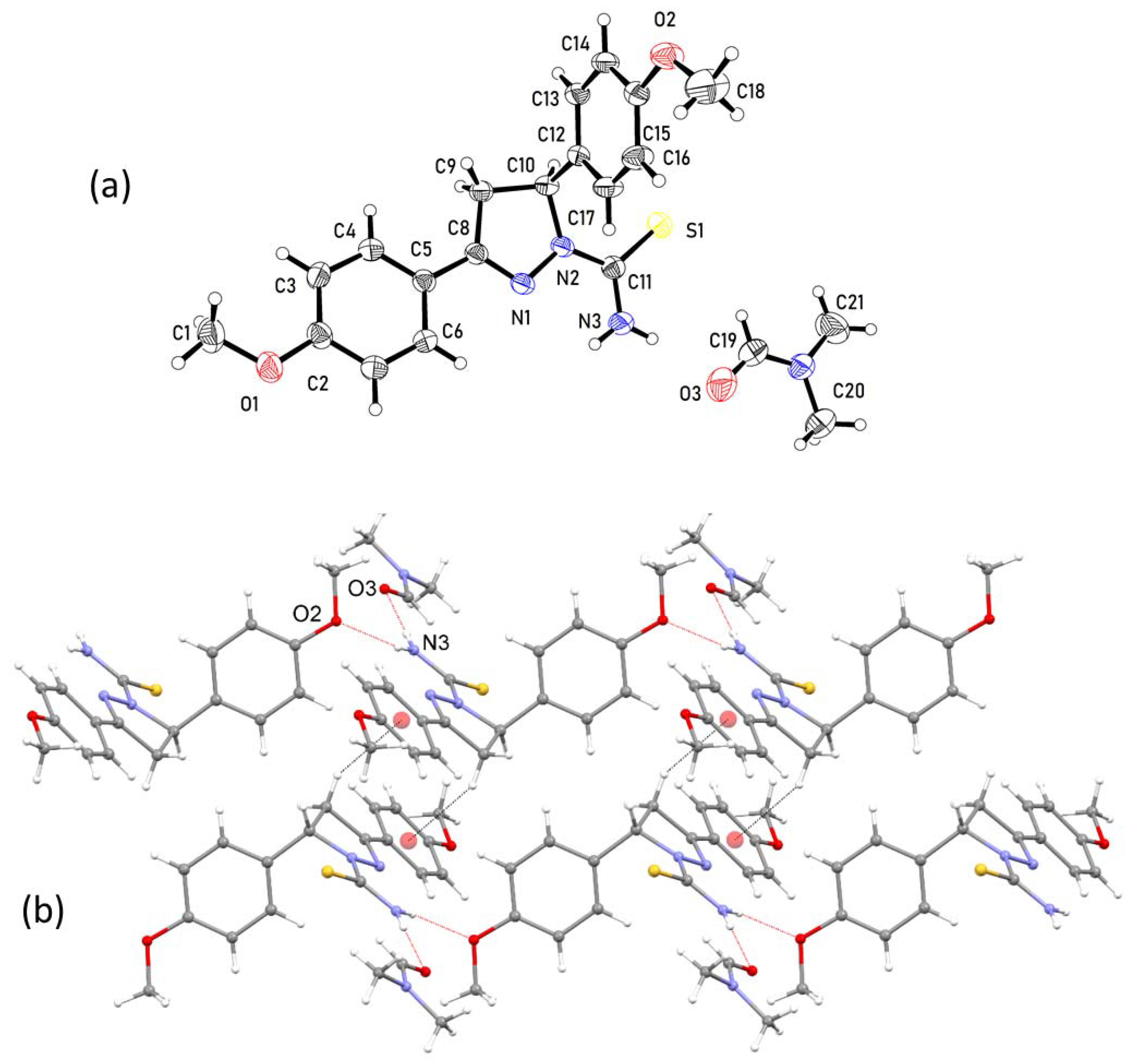

Figure 3. (a): The asymmetric unit of the 1–DMF solvate showing the main component of the disordered DMF solvent with anisotropic displacement ellipsoids drawn at 50% probability level and (b): a segment of the structure of 1–DMF showing intermolecular contacts.
Figure 3. (a): The asymmetric unit of the 1–DMF solvate showing the main component of the disordered DMF solvent with anisotropic displacement ellipsoids drawn at 50% probability level and (b): a segment of the structure of 1–DMF showing intermolecular contacts.
Crystals 12 00663 g003
Crystals 12 00663 g004 550

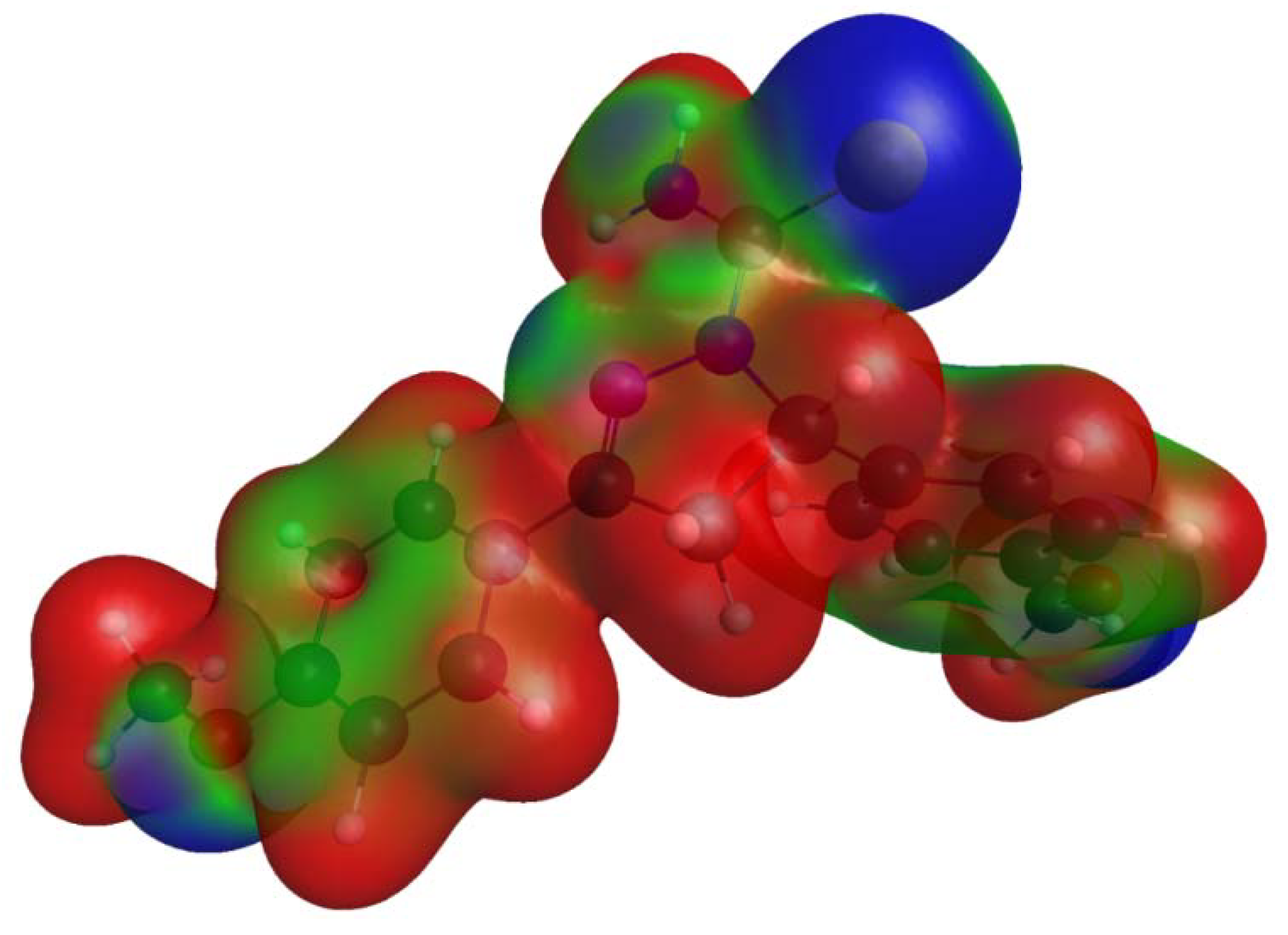

Figure 4. Electron density map for 1 with negative and positive regions represented in blue and red colors, respectively.
Figure 4. Electron density map for 1 with negative and positive regions represented in blue and red colors, respectively.
Crystals 12 00663 g004
Crystals 12 00663 g005 550

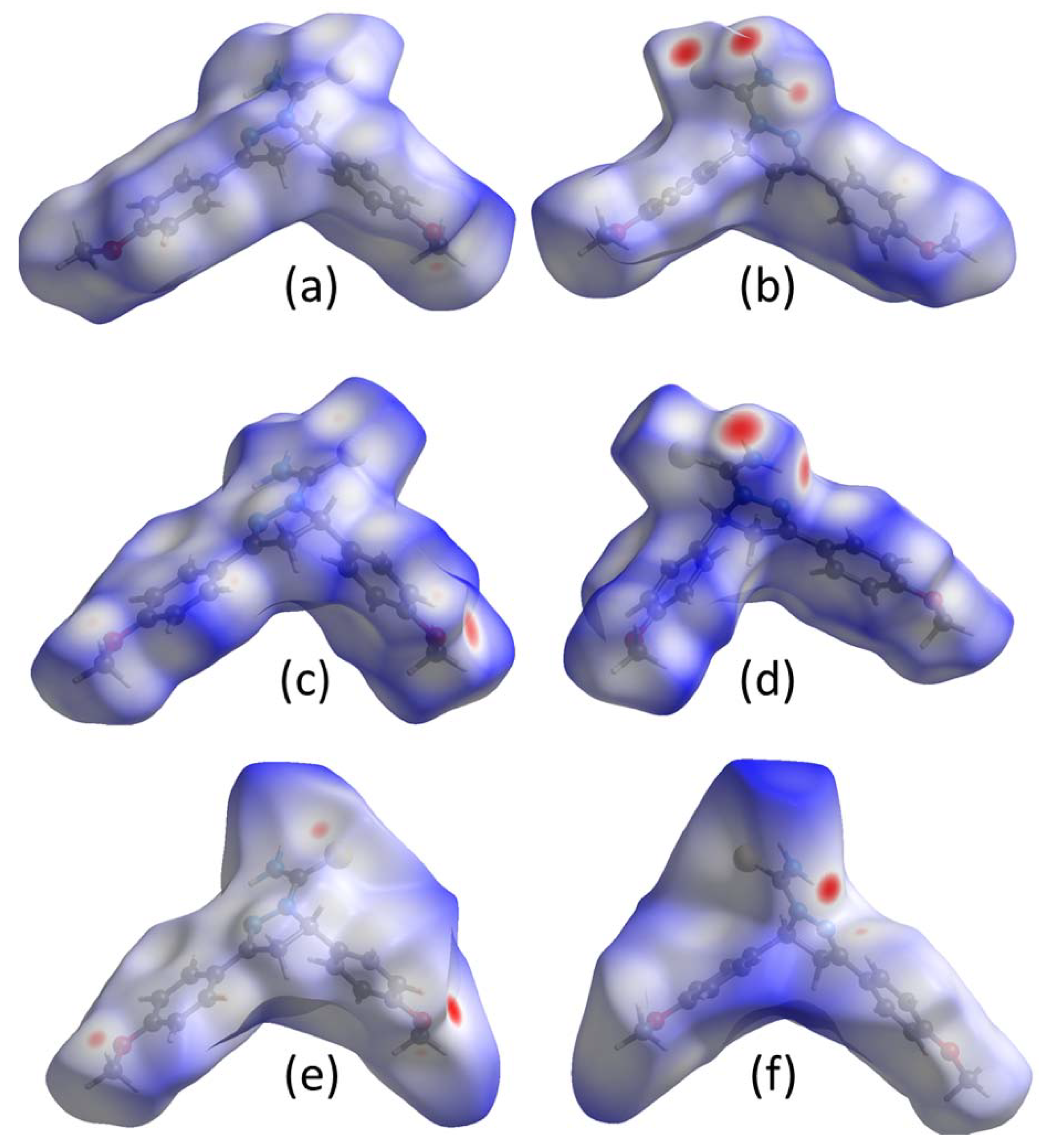

Figure 5. Hirshfeld surfaces for molecule 1 in the crystal structures of (a,b): cocrystal 1–2, (c,d): 1–DMF solvate, and (e,f): pure 1.
Figure 5. Hirshfeld surfaces for molecule 1 in the crystal structures of (a,b): cocrystal 1–2, (c,d): 1–DMF solvate, and (e,f): pure 1.
Crystals 12 00663 g005
Table
Table 1. Crystal and structure refinement data for 1–2 and 1–DMF.
Table 1. Crystal and structure refinement data for 1–2 and 1–DMF.
1–21–DMF
Molecular formulaC18H19N3O2S, C17H16O3C18H19N3O2S, C3H7NO
T (K)293(2)293(2)
λ (Å)0.710730.71073
Crystal systemTriclinicTriclinic
Space groupPĪPĪ
a (Å)9.6162(6)9.3300(10)
b (Å)13.2978(11)9.4551(11)
c (Å)14.2415(11)13.6082(13)
α (°)70.629(7)91.915(9)
β (°)74.519(6)94.146(9)
γ (°)72.199(7)115.268(11)
V (Å3)1607.8(2)1080.0(2)
Z22
Calculated density (Mg m−3)1.2591.275
Absorption coefficient (mm−1)0.1460.179
F(000)644440
Crystal size (mm3)0.389 × 0.105 × 0.0790.431 × 0.179 × 0.155
Reflections collected15,5409197
Independent reflections76985143
R(int)0.04510.0206
Goodness-of-fit on F21.0281.061
R1 (I > 2σ(I))0.06330.0517
wR2 (I > 2σ(I))0.13690.1189
R1 (all data)0.14340.0785
wR2 (all data)0.18170.1392
Max/Min residual densities (e Å−3)0.17/–0.250.19/–0.24
Table
Table 2. Selected geometrical parameters.
Table 2. Selected geometrical parameters.
Molecule 11–21–DMFlit. 1 [19]
Ring twist angle (°)
A/B3.38 (21)4.73(14)6.48
B/C77.59 (11)83.30(6)84.41
Max deviation from ring B plane/Å0.278(4)0.373(3)0.357
Torsion angle (°)
C1–O1–C2–C70.88 (50)179.85(19)179.48
C16–C15–O2–C187.69 (46)4.06(33)0.70
C17–C12–C10–N217.47 (35)15.13(24)26.80
Molecule 21–2lit. 2 [33]lit. 3 [35]
Ring twist angle (°)
D/E5.14(3)4.2957.58
Torsion angle (°)
C19–O3–C20–C252.66 (46)170.65178.66
C35–O5–C32–C312.50 (47)170.57174.76
