Severe Plastic Deformation and Phase Transformations in High Entropy Alloys: A Review

Abstract

This review discusses an area of expertise that is at the intersection of three large parts of materials science. These are phase transformations, severe plastic deformation (SPD), and high-entropy alloys (HEA). First, SPD makes it possible to determine the borders of single-phase regions of existence of a multicomponent solid solution in HEAs. An important feature of SPD is that using these technologies, it is possible to obtain second-phase nanoparticles included in a matrix with a grain size of several tens of nanometers. Such materials have a very high specific density of internal boundaries. These boundaries serve as pathways for accelerated diffusion. As a result of the annealing of HEAs subjected to SPD, it is possible to accurately determine the border temperature of a single-phase solid solution area on the multicomponent phase diagram of the HEA. Secondly, SPD itself induces phase transformations in HEAs. Among these transformations is the decomposition of a single-phase solid solution with the formation of nanoparticles of the second phase, the formation of high-pressure phases, amorphization, as well as spinodal decomposition. Thirdly, during SPD, a large number of new grain boundaries (GBs) are formed due to the crystallites refinement. Segregation layers exist at these new GBs. The concentration of the components in GBs differs from that in the bulk solid solution. As a result of the formation of a large number of new GBs, atoms leave the bulk solution and form segregation layers. Thus, the composition of the solid solution in the volume also changes. All these processes make it possible to purposefully influence the composition, structure and useful properties of HEAs, especially for medical applications.

1. Introduction

This paper is at the crossroads of three large areas of materials science. These are phase transformations, severe plastic deformation, SPD (and, in particular, high-pressure torsion, HPT), as well as multicomponent alloys without the main component (they are also called high-entropy alloys, HEAs). Each of these areas is truly immense: thousands, and in the case of phase transformations, dozens of thousands of articles are devoted to them. Nevertheless, the area of their intersection is not too large and is quite accessible for presentation in a small review. In this case, we are not talking about their simple, mechanical superposition. All three areas, intersecting, do not just overlap one another, but cause something like mutual fertilization (or pollination). It seems to us that in the near future such combined studies will arise great interest and lead not only to unusual results but also to serious advances in materials science.

2. The Borders of the Single-Phase Region of Existence of HEAs

An important feature of HEAs is that the atoms of five, six, or more components included in them form a single, disordered and homogeneous solid solution [1,2,3,4]. This solid solution is formed already during solidification, and after homogenizing annealing, it loses all residual inhomogeneities. However, an essential question arises: how wide is the temperature range in which this homogeneous solid solution remains thermodynamically stable? In other words, below what temperature do precipitates of the second phase begin to appear in the solid solution? It would seem that the answer to this question is very easy: you only need to carry out long-term annealing at different temperatures, and then measure and interpret the X-ray diffraction (XRD) patterns. However, if the formation of second phase precipitates occurs by the volume diffusion and is determined by its rate, then such annealing needs a very long time. For example, a similar direct experiment for the equiatomic CoCrFeMnNi Cantor alloy, which has a face-centered (fcc) lattice of the γ-phase, was carried out in just one work [5]. The authors of [5] homogenized samples of the Cantor alloy at 1200 °C for 2 h, and then annealed at 900, 700, and 500 °C for 500 days. After annealing at 900 °C, the alloy remained homogeneous. At a temperature of 700 °C, particles of the σ-phase rich in chromium were formed in it. However, these particles appeared mainly at the grain boundaries (GBs) of the fcc matrix (see Figure 1). At 500 °C, in addition to the particles of the σ-phase, the precipitates with a body-centered cubic (bcc) lattice, rich in nickel and manganese, appeared at GBs as well (see Figure 2).

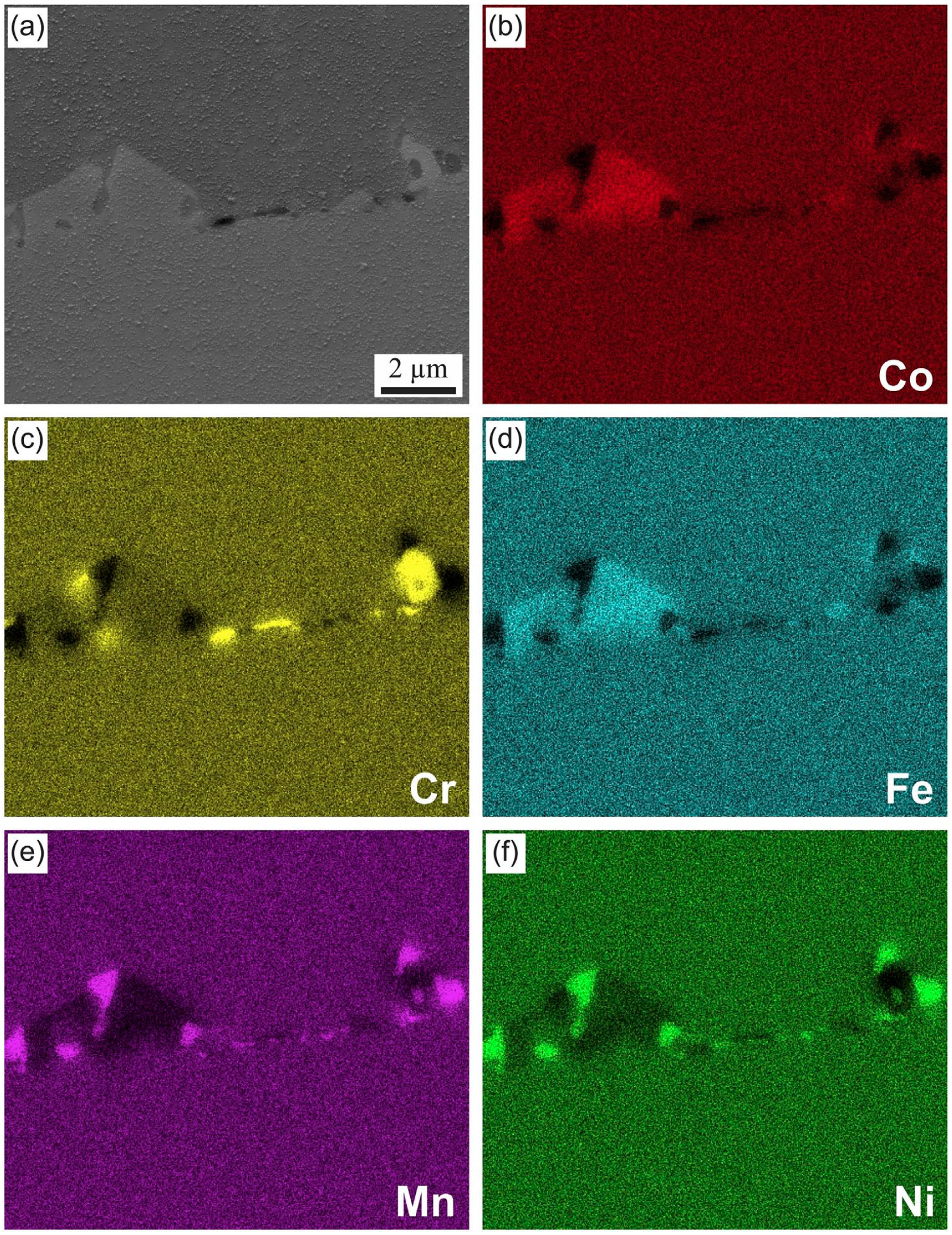

Fortunately, the experiments to determine the borders of the existence of a single-phase solid solution in HEAs can be significantly facilitated if samples with fine grains and, accordingly, a large specific GB area is created. In this case, the growth of second phase precipitates will be controlled by GB rather than bulk diffusion, and the thermodynamic equilibrium can be achieved much faster. Small grains in HEAs can be created using the so-called severe plastic deformation (SPD), and in particular, the high-pressure torsion (HPT), equal channel angular pressing (ECAP), or hot-pressing sintering [6,7,8,9,10,11,12,13,14,15,16,17]. Thus, the TiZrNbMoV and NbTiAlTaV HEAs after hot-pressing sintering contained in addition to the solid solution a small number of complex metal compounds like Mo₉Ti₄, Nb₉Ti_4, or Mo₂Zr [17]. In a number of studies, Kantor’s alloys were deformed using HPT or ECAP. After SPD, the resulting polycrystals with a grain size of 10–20 nm was annealed for a relatively short time at different temperatures in the range from 200 to 900 °C [5,18,19,20,21,22,23,24]. Simultaneously with the growth of grains, particles of the σ-phase and bcc-phase rapidly appeared at GBs in such samples. Figure 3 shows typical XRD patterns of Cantor alloy after HPT (6 GPa, 5 rpm, 1 rpm) and short annealing (60 min) [20].

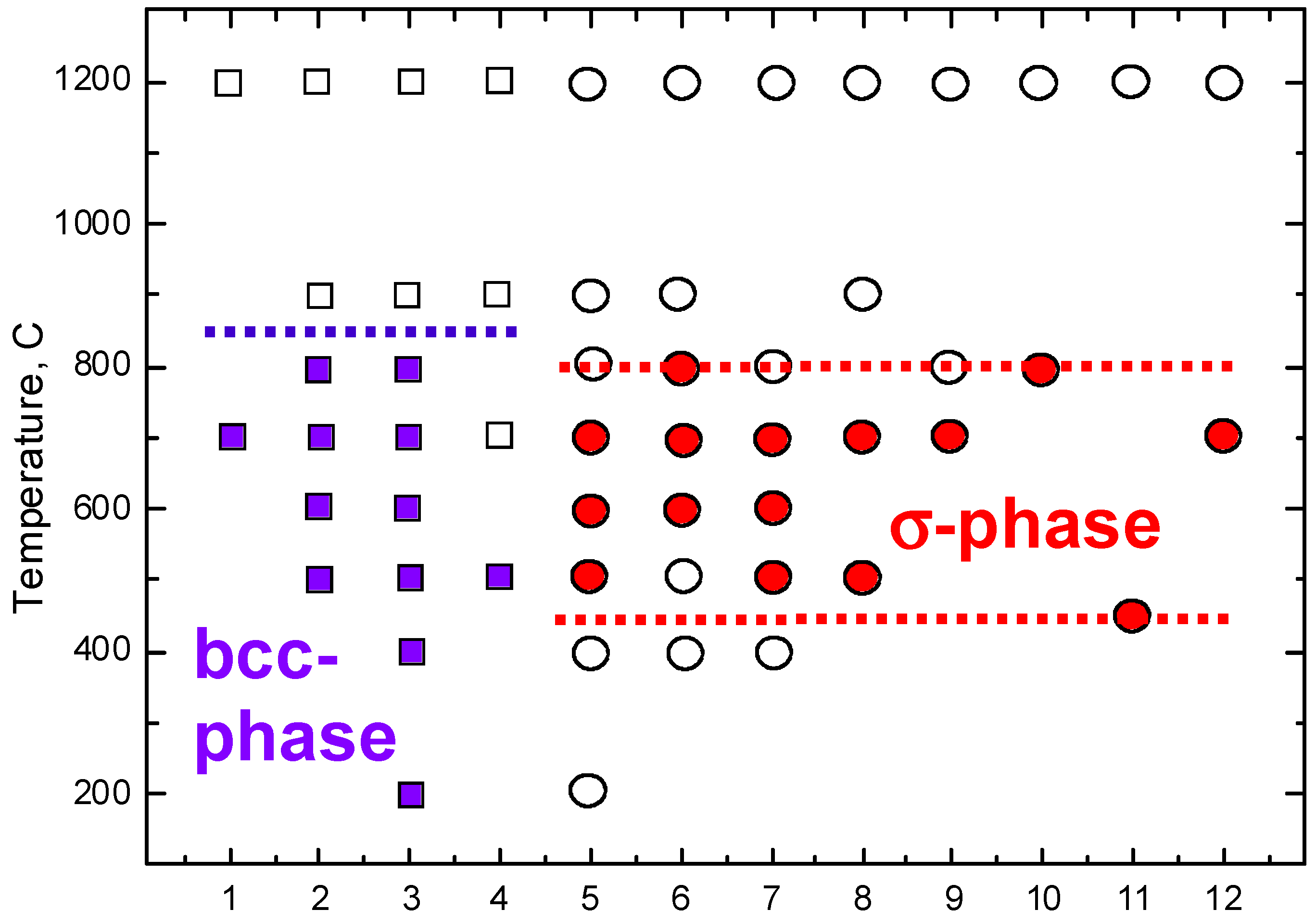

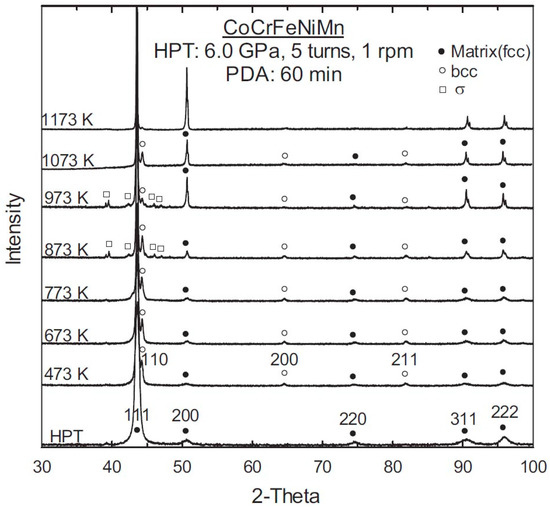

Figure 4 summarizes the results of such works [5,18,19,20,21,22,23,24]. It is clearly seen from the graph that a bcc-phase exists in the Cantor alloy at temperatures below 800 °C. The bcc-phase was observed even upon annealing at 200 °C. Thus, the region of existence of a bcc-phase does not have an obvious lower temperature border. In contrast, the σ-phase exists in a limited temperature range. The σ-phase appears at about 800 °C and disappears again below 450 °C. A similar phenomenon is often observed for σ-phases in binary alloys (for example, in iron-chromium ones). In binary alloys, the σ-phase usually arises between metals, one of which has a bcc lattice, and the other has a fcc lattice, and the difference in atomic diameters of the metals included in the σ-phase does not exceed 8%. The σ-phase has a complex tetragonal crystal lattice with a unit cell of 30 atoms, similar to the crystal lattice of uranium. The σ-phase is usually characterized by a wide homogeneity region.

It is interesting that in the modified Cantor alloy Co₂₀Cr₂₆Fe₂₀Mn₂₀Ni₁₄ where the ratio of nickel and chromium is changed, the σ-phase exists up to higher temperatures [25,26]. In particular, it is observed after annealing at 1050 °C for 24 h [26]. In another modified Cantor alloy, Co₄₀Cr₄₀Fe₁₀Mn₁₀, the σ-phase is not observed after homogenization at 900 °C, which is consistent with the diagram in Figure 4 [27].

3. Phase Transformations in HEAs under the SPD Action

It was found relatively recently that phase transformations can occur under the influence of SPD. This means that the phases in the sample after SPD will not be the same as they were before SPD [28,29,30,31]. For example, under the action of SPD, crystalline materials can transform into amorphous ones [32,33,34,35,36,37,38,39,40,41,42]. After SPD, they can contain one, two, or even several amorphous phases and vice versa, in amorphous materials under the influence of SPD, the formation and growth of a crystalline phase can occur [43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59]. If the initial sample consists of two different solid solutions, then SPD almost always changes the concentration in these solid solutions [60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79]. For example, the concentration of element B in a solid solution based on element A can either increase or decrease. SPD is always accompanied by grain refinement and an increase in microhardness [80,81,82,83,84,85,86,87,88,89,90,91,92]. If various intermetallic compounds are present in the sample together with the solid solution, then under the influence of SPD, some intermetallic phases can be replaced by others [93,94,95]. Moreover, the disordering of ordered phases [96,97,98,99,100,101,102,103,104,105,106] can occur. Under the action of SPD, not only phase transformations associated with barrier mass transfer can occur but also martensitic phase transformations take place. During martensitic transformations, the nearest environment of atoms remains practically unchanged and there is no mass transfer over distances larger than interatomic [107,108,109,110,111,112].

The so-called effective temperature T_eff can serve as a formal tool for describing such phase transformations [61,62,63,64,65,66,67,68,69,70,71]. Usually, one can find the phrases that appear in the sample after SPD in the equilibrium phase diagram at a certain temperature. Then, this state after SPD can be attributed to the value of this temperature called the effective temperature T_eff. Usually, the effective temperature T_eff is higher than the temperature T_SPD at which the SPD treatment takes place. One can explain this fact with increased concentration of crystal structure defects (such as vacancies) arising upon SPD. The same thing happens when one heats the sample. Thus, the set of phases in the sample after SPD is similar to the set of phases after annealing at this increased effective temperature T_eff. A significant difference, of course, is that high-temperature annealing usually leads to grain growth, while SPD leads to grain refinement [80,81,82,83,84,85,86,87]. In this section, we will show that phase transformations under the action of SPD can occur not only in binary or ternary systems but also in multicomponent HEAs.

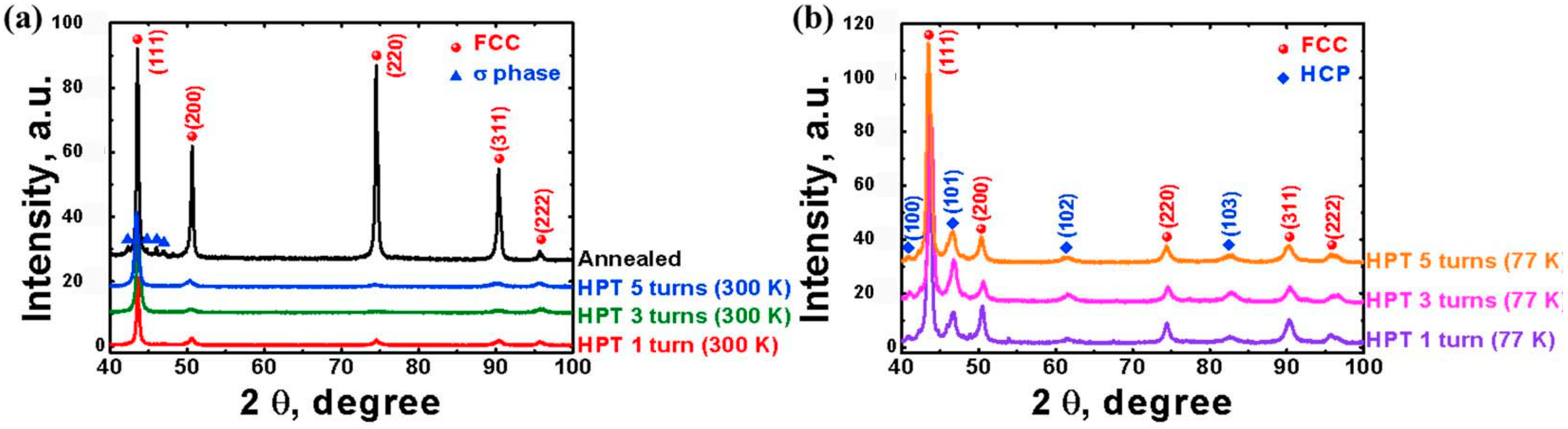

In the modified Cantor alloy Co₂₀Cr₂₆Fe₂₀Mn₂₀Ni₁₄, prepared by vacuum arc melting and annealed at 1050 °C for 24 h [26], σ-phase precipitates appear in the γ-matrix with fcc lattice. In the unmodified equiatomic Cantor alloy Co₂₀Cr₂₀Fe₂₀Mn₂₀Ni₂₀, the σ-phase exists in the range from 450 to 800 °C (see Figure 4). HPT at room temperature, 5 GPa and 1, 3, 5 plunger revolutions leads to the disappearance of the σ-phase. A single-phase fcc solid solution is formed again from the two-phase sample (see XRD patterns in Figure 5a [25]. Using the diagram in Figure 4 and the data in Figure 5a [25], we can assume that the effective temperature T_eff of such a process exceeds 1050 °C, since above this temperature the σ-phase becomes unstable and only a single-phase fcc solid solution remains in equilibrium.

It is interesting that if HPT of the Co₂₀Cr₂₆Fe₂₀Mn₂₀Ni₁₄ alloy annealed at 1050 °C is carried out at 77 K, then the σ-phase also disappears (Figure 5b). In this case, the alloy does not remain single-phase with the fcc-lattice (as after HPT at room temperature, RT) but an additional phase with a hexagonal close-packed (hcp) lattice appears (Figure 5b). In the equiatomic Cantor alloy, ε-phase appears only upon annealing at a very high pressure of 14 GPa [113]. A similar γ → ε phase transformation is observed, for example, in steels and is facilitated by the presence of twin GBs [114]. In the Co₄₀Cr₄₀Fe₁₀Mn₁₀ alloy, HPT causes the γ → ε phase transformation, and with strain increase, the fraction of the ε-phase increases as well (see Figure 6). Transmission electron microscopy (TEM) shows that the crystals of the γ and ε phases have the Shoji–Nishiyama (S–N) orientation relationship. This indicates the martensitic nature of the γ → ε transformation. Interestingly, with an increase in the HPT deformation, the ratio of the lattice constants c/a in the ε-phase does not change. It is close to the optimal c/a ratio required to fulfill the Shoji–Nishiyama (S–N) conditions. A similar martensitic transformation of the cubic β-phase with the bcc-lattice into the hexagonal ω-phase is observed during HPT in many Ti- and Zr-based alloys [109,110,111,115,116]. For example, by changing the concentration of iron in titanium, it is possible to choose such a lattice constant of the β-phase that the necessary Nishiyama orientation relations will be fulfilled very accurately, and after HPT almost 95% of the β-phase is converted to the ω-phase [111].

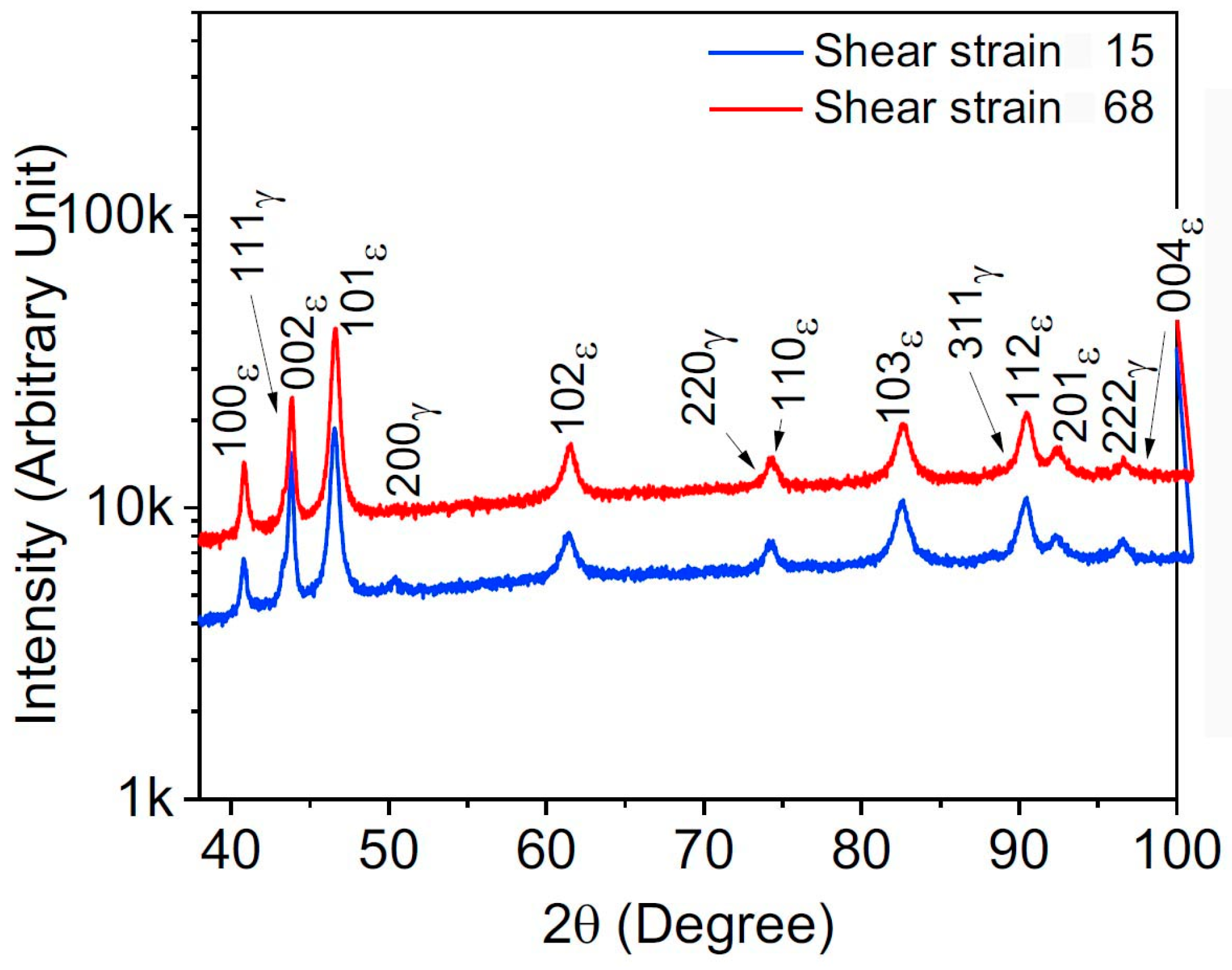

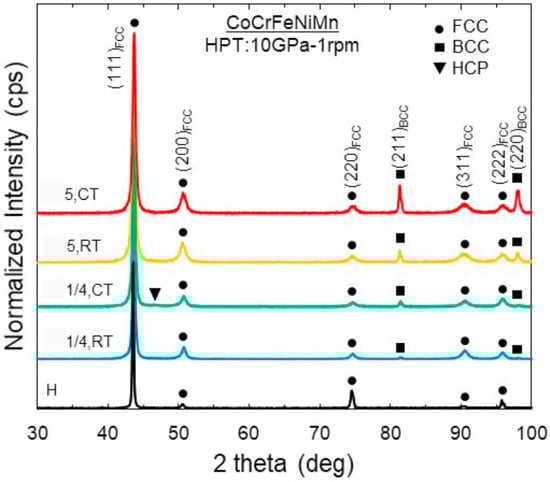

If HPT of the equiatomic Cantor alloy is carried out at a pressure of 5–6 GPa, then the initial fcc alloy remains single-phase with fcc structure [5,18,19,20,21,22,23,24]. If the pressure of HPT treatment is increased up to 10 GPa, then phase transformations occur in the initial fcc-alloy and not only the high-pressure ε-phase, but also the bcc-phase appears (see Figure 7). In this case, the portion of ε- and bcc-phases in the sample increases not only with an increase in the number of revolutions from 0.25 to 5 but also with a decrease in the HPT temperature from RT to 77 K (Figure 7).

With equal channel angular pressing (ECAP), a different deformation scheme is implemented in comparison with HPT. Nevertheless, during ECAP of the Cantor alloy of equiatomic composition at a temperature of 300 or 900 °C, a martensitic ε-phase is also formed [118]. Another option for SPD is multiaxial swaging. In [119], the Cantor alloy was subjected to a multiaxial swaging with 80% deformation in each pass. As a result, there was a complete amorphization of the alloy. This means that the crystal lattice was completely disordered due to the increased concentration of defects that do not have enough time to relax. Consequently, from the point of view of the effective temperature T_eff, this means that T_eff exceeds the melting temperature of the Cantor alloy (~1350–1400 °C [120,121]).

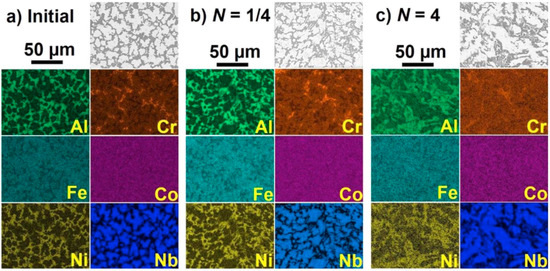

In Ref. [122], the change in structure and properties under the influence of HPT was studied for the equiatomic alloy AlCrFeCoNiNb. This alloy in the as-cast state consists of two phases, namely, a phase with a bcc lattice and a hexagonal Laves phase C14 with lattice constants a = 0.484 nm and c = 0.789 nm. Their volume ratio is roughly 40:60. It is interesting that in the as-cast and in the as-homogenized state (1000 °C, 1 h), the bcc-phase forms continuous interlayers along the GBs of the Laves phase (see Figure 8). This is due to the phenomena of GB wetting, which is frequently observed not only in binary alloys [122,123,124,125] but also in HEAs [126,127]. It is interesting to note that the structure with the distribution of the bcc phase along the GBs of the Laves phase is partially retained after HPT (see Figure 8). This behavior of the GB phase was observed also after HPT in magnesium alloys [128]. In this case, the grain size in each of the phases decreases to several hundred nanometers independently of each other.

HPT of AlCrFeCoNiNb alloys at 6 GPa and RT (0.25 and 4 plunger turns) leads to spinodal decomposition of the bcc phase [122]. During spinodal decomposition, regions enriched and depleted in chromium are formed. At the same time, they retain the bcc-lattice. The size of these regions is small, it is about 80 nm. The decomposition of a solid solution caused by HPT has also been observed many times in binary systems such as Al–Zn and Al–Mg [60,70,71], Cu–Co [61,62,63,64,74], Cu–Ag [65,66,67,68], Cu–Sn [68], Cu–Ni [75], Cu–In [76] and Cu–Cr [78]. Comparison of the concentration in the solid solution after HPT with the equilibrium phase diagram allowed one to determine the effective temperature T_eff for such HPT effect in binary alloys [68,74]. Moreover, we found that the effective temperature T_eff increases proportionally with an increase in the activation energy for the diffusion of the second component in the matrix [74]. Unfortunately, in the case of HEA, the phase diagrams have not yet been sufficiently studied. This does not allow us to estimate the effective temperature in the case of spinodal decomposition, which was observed in [122]. However, a rough estimate of T_eff is possible. Typically, spinodal decomposition is observed in binary systems at a temperature of about 50% of the melting point of the alloy. In our case, it will be approximately 700–800 °C.

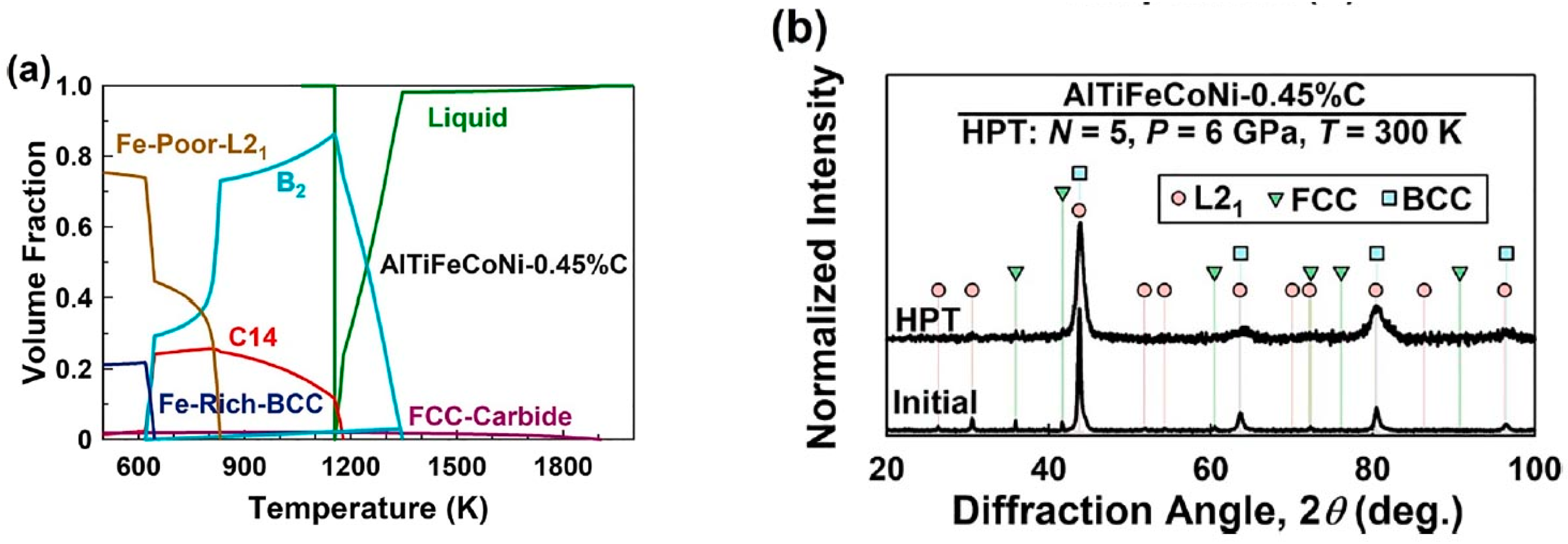

In Ref. [129] the AlTiFeCoNi alloy with the addition of 0.45% carbon has been studied. In the as-cast state, this alloy contained large grains of an iron-rich ordered L2₁ phase (about 77%), surrounded by interlayers of an iron-depleted disordered bcc phase (about 22%), with individual carbide inclusions with a fcc structure. Figure 9 shows the SEM micrographs and distribution of components in the as-cast state and after HPT (6 GPa for 5 turns, 1 rpm, RT).

It is clearly seen that, as in the previous case [122], the phenomenon of GB wetting is observed, namely, the grains of the matrix L2₁ phase are almost completely separated from each other by interlayers of a disordered bcc phase depleted in iron. A similar phenomenon of GB wetting by a melt or a second solid phase was observed in other works [126,127]. After HPT, such a structure of GB wetting, when the interlayers of the bcc phase separate the grains of the L2₁ phase from each other, almost did not change (see Figure 9). At the same time, as the results of XRD studies show (see Figure 10b), a phase transformation of the ordered phase L2₁ into the disordered bcc phase B₂ took place. In [129], the thermodynamic calculations of the phase diagram were performed using the CALPHAD program (see Figure 10a). The results obtained show that the ordered L2₁ phase transforms into the disordered B₂ phase at a temperature of about 400 °C. This means that the disordering caused by HPT makes it possible to determine the effective temperature T_eff of the HPT process as T_eff = ~ 400 °C.

4. Equilibrium between the Composition of Bulk Phases and GB Segregation

Any polycrystal consists of crystallites of bulk phases and GB or interphase boundaries (IBs) between them. It is well known that the composition of a thin (1–2 nm) layer at a GB or an IB significantly differs from the composition of the surrounding bulk phases. This phenomenon is called GB segregation. In equilibrium, there is a certain relationship between the composition of bulk phases and segregation at GBs and IBs. During SPD, significant refinement of grains usually occurs [80,81,82,83,84,85,86,87]. If the grain size before SPD can be tens, hundreds, or even thousands of micrometers, then after SPD the crystallite size drops to hundreds or tens of nanometers. Obviously, in this case, the specific area of GBs and IBs increases by several orders of magnitude. At the same time, at each new GB or IB, a segregation layer should form, the composition of which differs from that of the volume. If there are many such new interfaces, then the formation of respective segregation layers will require many atoms from bulk phases. The thickness of such segregation layers in HEAs after HPC can reach 5–10 nm [130]. In this case, the composition of the bulk phases can change significantly. These changes can become visible in XRD patterns since they should affect the lattice constant in a bulk solid solution. For example, it was observed that the composition of the solid solution in the bulk of copper-silver alloys or carbon steels significantly changes during HPT [131,132,133,134,135]. Segregation of the second component at GBs in nanocrystalline materials can lead to the fact that the total solubility of the second component in such a substance can be several times higher than the solubility of the second component in bulk [131,132,133,134,135,136,137,138,139,140,141,142].

An equiatomic five-component AlFeCoNiCu alloy was studied in [143]. After melting and casting it was homogenized at 1000 °C for 1 h, and then subjected to HPT under 6 GPa, RT, 1 rpm, for various turns of N = 0 (only compression), 1/16, 1/4, 1 and 4. In the initial state, the alloy consisted of two phases, with fcc and bcc lattice. They were enriched and depleted in aluminum, respectively. At the beginning of the HPT process, with simple compression, as well as with 1/16 turns, the X-ray peaks remain in the same place. Then they begin to diverge in different directions. The peaks of the bcc-phase are shifted towards higher diffraction angles (this corresponds to a decrease in the lattice constant), and the peaks of the fcc-phase are shifted towards low diffraction angles (which corresponds to an increase in the lattice constant). As in all other cases, HPT led to a significant decrease in the grain size from tens of microns to tens of nanometers. In this case, the specific density of GBs increased, and segregation layers are formed on them due to the escape of atoms from the bulk to the GBs These layers are different in two different phases, bcc and fcc, respectively. Therefore, their formation has a different effect on the concentration of atoms in the volume of these two phases. As a result, the lattice constant of the bcc-phase decreases, while the lattice constant of the fcc-phase increases.

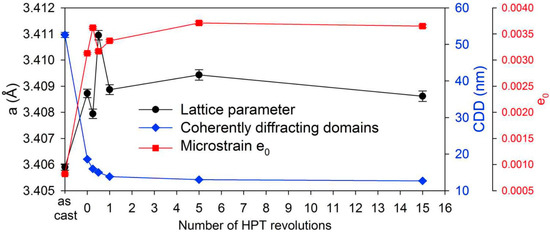

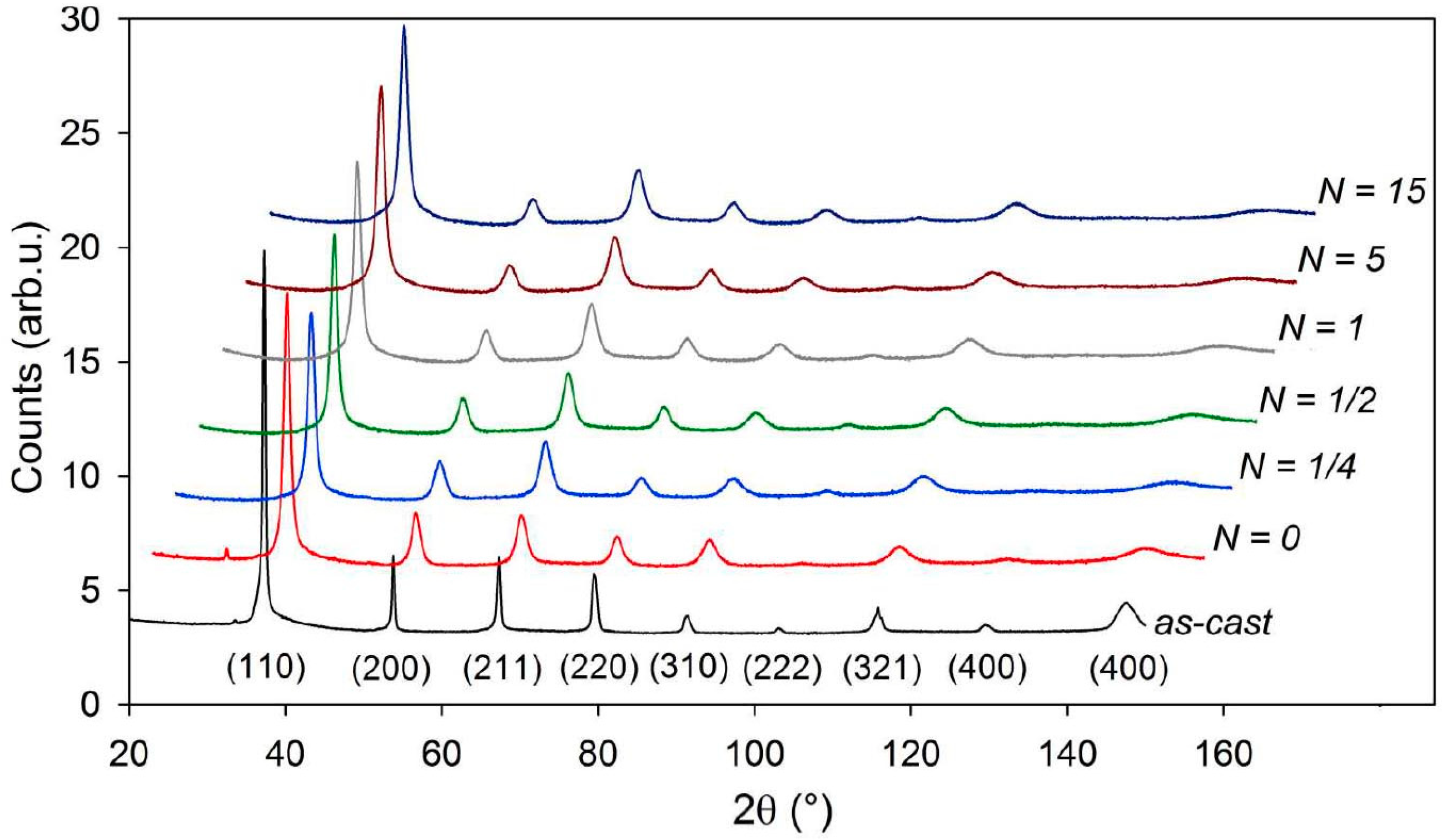

In Ref. [144], the five-component equiatomic alloy HfNbTaTiZr in the as-cast state was subjected to HPT at 2.5 GB with a different number of plunger revolutions from 0 (simply with the application of pressure), and then a quarter turn, half a turn, one, 5 and 15 plunger turns. Both in the as-cast state and after HPT, the alloy consisted of one bcc phase. HPT resulted in grain refinement from about 200–500 μm to 50 nm. Figure 11 shows the XRD patterns for the as-cast sample and all samples subjected to HPT with a different number of revolutions. It is clearly seen that the peaks gradually broaden as the grains are refined and shift to the left, which corresponds to an increase in the lattice constant. Figure 12 shows the change in the lattice constant, the size of the coherent diffraction domains and the magnitude of microstrain with the number of plunger revolutions. As in the previous cases, such an increase in the lattice constant in the absence of phase transformations can only be explained by grain refinement, namely, by the formation of segregation layers at new GBs, which required the outflow of atoms from the bulk to the boundaries.

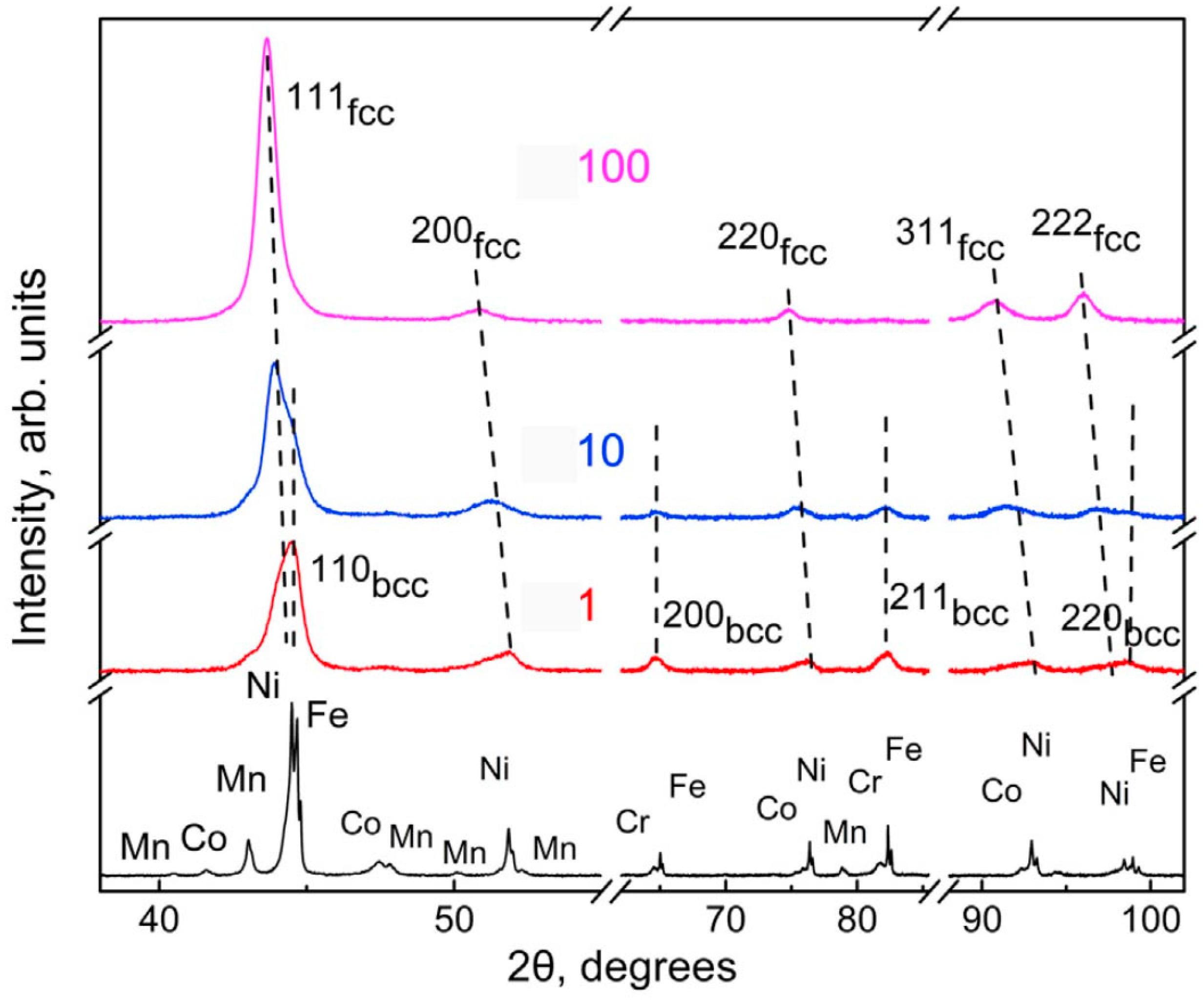

In Ref. [145], an equiatomic mixture of powders of cobalt, chromium, iron, nickel and manganese was taken as a starting material. This mixture was placed between the plungers of the HPT installation, compressed to a pressure of 5 GPa and subjected to torsion with the number of revolutions reaching 100. The XRD patterns (Figure 13) show that after one revolution, the fcc solid solution phase is formed from the powder mixture, and after 10 revolutions the peaks of the bcc-phase completely disappear. The initial particle size was about 10 μm. The grain size in the homogeneous fcc-phase after one hundred revolutions was about 50 nm. In Figure 13 it is clearly seen how the peaks for the fcc solid solution shift to the left with an increase in the number of revolutions. This shift corresponds to an increase in the fcc lattice constant. This effect, as in other studies considered above, can be explained by the formation of new GBs and the segregation of individual elements on them from the bulk solid solution. In addition, in [145], the microstructure of the samples was analyzed using atomic force tomography (APT). These high-resolution measurements showed, in particular, that the GBs in the solid solution after HPT are markedly enriched in manganese.

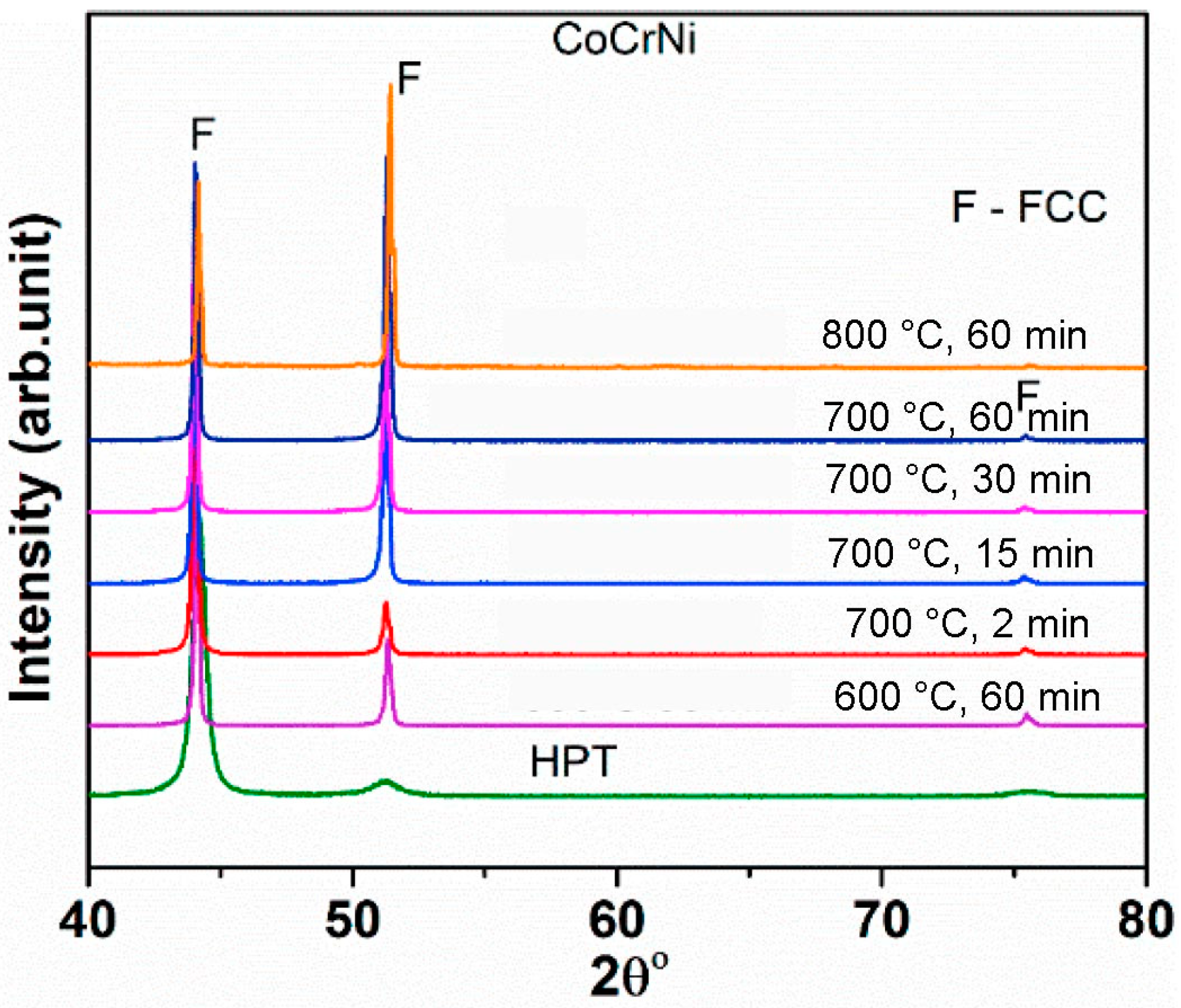

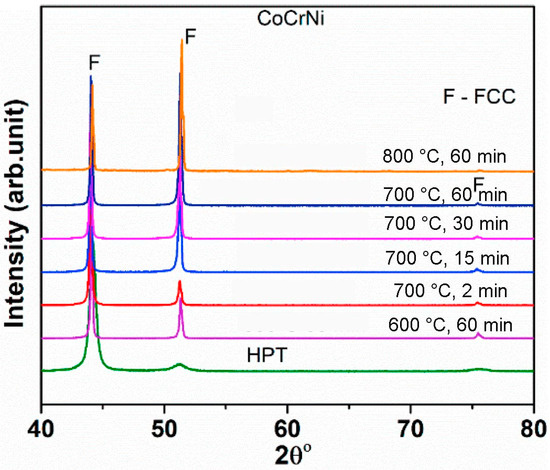

In Ref. [146], a three-component iron-cobalt-nickel alloy was subjected to HPT. Both before and after HPT, the alloy consisted of one fcc phase. After HPT, the grain size was approximately 50 nm. Then a series of samples of this alloy was annealed at temperatures of 600–800 °C. The alloy remained single-phase, but the grain size increased at the same time by about 5–10 μm. The XRD patterns shown in Figure 14 demonstrate that although the alloy remains single-phase with the fcc structure, the lattice constant changes. Peaks being wide after HPT become narrow (due to grain growth) and noticeably shift to the right. This corresponds to a decrease in the lattice constant in volume. This phenomenon can be explained by the fact that with an increase in the grain size by two and a half orders of magnitude, the specific area of GBs drops sharply and the atoms that formed segregation layers at the boundaries are released and passed into the volume. In this case, the lattice constant changes noticeably.

So far, in our reasoning, we have not taken into account individual differences between GBs. Meanwhile, the GB structure and properties substantially depend on their misorientation angles and the orientation of the GB plane [147,148,149]. There is ample evidence that HEAs also contain different types of GBs. In particular, many of them can contain a large number of deformation and annealing twins [150,151,152]. On the other hand, it is well known that twin GBs differ greatly in structure, composition and properties from general GBs and other coincidence GBs [153,154,155]. For example, the number and morphology of twins in HEAs strongly depend both on the composition of these alloys and on their pretreatment [23,156,157,158]. In addition, the faceting-roughening GB phase transitions lead to the fact that the spectrum of GB properties also depends on temperature, as well as on the composition of the alloy [159,160]. Thus, we demonstrated that SPD can significantly expand the spectrum of the structure and properties of HEAs, and the simultaneous use of the features of phase transformations gives material scientists and engineers an important tool for purposefully changing the properties of WESs [161,162,163,164,165,166,167,168,169,170].

The area of HEAs is very broad; however, this review appears quite short. Nevertheless, we really discussed or mentioned here all papers from the intersection of areas “HEAs”, “SPD” and “phase transformations”. It is because the combination of these approaches is quite new and concerns mainly the Cantor alloy and similar HEAs. The goal of this review is to demonstrate how fruitful can be the application of ideas of bulk and GB phase transitions and SPD to various HEAs. Therefore, we can expect the new breakthrough results in similar investigations, for example for novel HEAs obtained by the additive manufacturing (like AlCoFeNiTiV_0.9Sm_0.1 and AlCoFeNiV_0.9Sm_0.1 HEAs with high corrosion resistance [171], hybrid HEAs based on AlCoFeNiSmTiVZr system [172], as well as titanium-free AlCoCrFeNiMn, CoCr_1.3FeMnNi_0.7, AlCoCrFeNi_1.3, and AlCoCr_1.3FeNi_1.3 HEAs [173]). Even more promising can be the studies of high-entropy oxides and other ceramics [174,175].

5. Conclusions

We have shown that SPD makes it possible to determine the borders of single-phase regions of the existence of a multicomponent solid solution in HEAs. The GBs that are formed in t HEAs during SPD serve as pathways for accelerated diffusion, and during the annealing of such samples, the precipitates of the second phase are rapidly formed. Such accelerated mass transfer makes it possible to accurately determine the border temperature for the single-phase solid solution area in the multicomponent phase diagram of HEAs. In addition, SPD causes a variety of phase transformations in HEAs. These include the decomposition of a single-phase solid solution with the formation of second-phase particles, the formation of high-pressure phases, amorphization, and spinodal decomposition. As we have already noted, during SPD, a large number of new GB are formed due to grain refinement. These new GBs have segregation layers, the composition of which differs from the composition of the bulk solid solution. For the formation of segregation layers at new GBs, atoms from the bulk are required. As a result, the composition of the solid solution in the volume changes during SPD. All these SPD processes make it possible to adapt the composition, structure and useful properties of HEA to solve a wide range of problems in various fields of industry, science and health care. In particular, the possibility of modifying individual properties of HEA (especially those with titanium, zirconium and hafnium), which have already proven their safety and reliability during a long history of use in clinical practice, can significantly diversify the range of medical devices developed on their basis, expanding the scope of their application in medicine.
