# Impact of Bias Temperature Instabilities on the Performance of Logic Inverter Circuits Using Different SiC Transistor Technologies

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Charge Trapping and Model Calibration

_{2}[9,10,11,12], Si/HK [13,14,15,16] and SiC/SiO

_{2}material systems [17]. BTI typically evolves as a drift of the threshold voltage with operation time and is characterized at higher gate voltages to accelerate $\u2206{V}_{\mathrm{th}}$ degradation. The origin of the observed $\u2206{V}_{\mathrm{th}}$ lies in charge trapping at interface traps and oxide defects [18,19].

**left**), and (ii) AC-MSM measurements to characterize the operation of the transistors in switching applications, see Figure 3 (

**right**). In the last case, a short AC stress during a time around 100 ms is applied repeatedly. At the last AC cycle of the signal, the stress is interrupted (${t}_{\mathrm{AC},\mathrm{interrupt}}$). Then a $\u2206{V}_{\mathrm{th}}$ recovery trace is extracted for a time equal to 10 ms considering a fixed ${I}_{\mathrm{D}}$ = 1 mA through the channel of the device.

## 3. Compact Modeling of BTI for Circuit Simulations

## 4. Results and Discussion

**(left)**. With this circuit, we can efficiently verify our approach and implementation to determine the BTI impact in the propagation delay ${t}_{\mathrm{D}}$ considering only one transistor. The values are extracted as the time difference when ${V}_{\mathrm{in}}$ and ${V}_{\mathrm{out}}$ are equal to ${V}_{\mathrm{DD}}$/2, as we show in Figure 9

**(right)**. Each value of the delay time distribution ${t}_{\mathrm{D}}$ represents the aging of the inverter circuit for each $\u2206{V}_{\mathrm{th}}$ or, equivalently, for a certain degradation of the device with time.

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Pulvirenti, M.; Montoro, G.; Nania, M.; Scollo, R.; Scelba, G.; Cacciato, M.; Scarcella, G.; Salvo, L. 2018 IEEE Energy Conversion Congress and Exposition (ECCE); IEEE: Portland, OR, USA, 2018; pp. 1895–1902. [Google Scholar]
- Dimitrijev, S. SiC Power MOSFETs: The current status and the potential for future development. In Proceedings of the 30th International Conference on Microelectronics (MIEL 2017), Nis, Serbia, 9–11 October 2017. [Google Scholar] [CrossRef] [Green Version]
- Litchtenwalner, D.J.; Hull, B.; Van Brunt, E.; Sabri, S.; Gajewski, D.A.; Grider, D.; Allen, S.; Palmour, J.W. Reliability studies of SiC vertical power MOSFETs. In Proceedings of the 2018 IEEE International Reliability Physics Symposium (IRPS), Burlingame, CA, USA, 11–15 March 2018. [Google Scholar] [CrossRef]
- Berens, J.; Weger, M.; Pobegen, G.; Aichinger, T.; Rescher, G.; Schleich, C.; Grasser, T. Similarities and Differences of BTI in SiC and Si Power MOSFETs. In Proceedings of the IRPS, Dallas, TX, USA, 28 April–30 May 2020. [Google Scholar] [CrossRef]
- Barbagallo, C.; Rizzo, S.; Scelba, G.; Scarcella, G.; Cacciato, M. On the Lifetime estimation of SiC power MOSFEts for motor drive applications. Electronics
**2021**, 10, 324. [Google Scholar] [CrossRef] - Guevara, E.; Herrera-Perez, V.; Rocha, C.; Guerrero, K. Threshold Voltage Degradation for n-Channel 4H-SiC power MOSFETs. J. Low Power Electron. Appl.
**2020**, 10, 3. [Google Scholar] [CrossRef] [Green Version] - www.wolfspeed.com. Available online: https://www.wolfspeed.com/document-library/?documentType=ltspice-and-plecs-models&productLine=power (accessed on 10 July 2021).
- www.st.com. Available online: https://www.st.com/en/power-transistors/wide-bandgap-transistors.html#cad-resource (accessed on 10 July 2021).
- Waltl, M.; Rzepa, G.; Grill, A.; Wolfgang, G.; Franco, J.; Kaczer, B.; Witters, L.; Mitard, J.; Horiguchi, N.; Grasser, T. Superior NBTI in High-k Si-Ge Transistors—Part I: Experimental. IEEE Trans. Electron Devices
**2017**, 64, 2092–2098. [Google Scholar] [CrossRef] - Habersat, D.B.; Lelis, A.J.; Green, R. Measurement considerations for evaluating BTI effects in SiC MOSFETs. Microelectron. Reliab.
**2018**, 81, 121–126. [Google Scholar] [CrossRef] - Green, R.; Lelis, A.; Habersat, D. Threshold-voltage bias- temperature instability in commercially-available SiC MOSFETs. Jpn. J. Appl. Phys.
**2016**, 55. [Google Scholar] [CrossRef] - Peters, D. Investigation of threshold voltage stability of SiC MOSFETs. In Proceedings of the 2018 IEEE 30th International Symposium on Power Semiconductor Devices and ICs (ISPSD), Chicago, IL, USA, 13–17 May 2018; pp. 42–43. [Google Scholar] [CrossRef]
- Toledano-Luque, M.; Kaczer, B.; Simoen, E.; Roussel, P.; Veloso, A.; Grasser, T.; Groeseneken, G. Temperature and Voltage Dependences of the Capture and Emission Times of Individual Traps in High-k Dielectrics. Microelectron. Eng.
**2011**, 88, 1243–1246. [Google Scholar] [CrossRef] - Kim, J.J.; Linder, B.P.; Rao, R.M.; Kim, T.H.; Lu, P.F.; Jenkins, K.A.; Kim, C.H.; Bansal, A.; Mukhopadhyay, S.; Chuang, C.T. Reliability monitoring ring oscillator structures for isolated/-combined NBTI and PBTI measurement in high-k metal gate technologies. In Proceedings of the 2011 International Reliability Physics Symposium, Monterey, CA, USA, 10–14 April 2011. [Google Scholar] [CrossRef]
- Miki, H.; Tega, N.; Yamaoka, M.; Frank, D.J.; Bansal, A.; Kobayashi, M.; Cheng, K.; D’Emic, C.P.; Ren, Z.; Wu, S.; et al. Statistical measurement of random telegraph noise and its impact in scaled-down high-k/metal-gate MOSFETs. In Proceedings of the 2012 International Electron Devices Meeting, San Francisco, CA, USA, 10–13 December 2012. [Google Scholar] [CrossRef]
- Rzepa, G.; Franco, J.; Subirats, A.; Jech, M.; Chasin, A.; Grill, A.; Waltl, M.; Knobloch, T.; Stampfer, B.; Chiarella, T.; et al. Efficient Physical Defect Model Applied to PBTI in High-k Stacks. In Proceedings of the 2017 IEEE International Reliability Physics Symposium (IRPS), Monterey, CA, USA, 2–6 April 2017. [Google Scholar] [CrossRef]
- Schleich, C.; Waldhoer, D.; Waschneck, K.; Feil, M.W.; Reisinger, H.; Grasser, T.; Waltl, M. Physical Modeling of Charge Trapping in 4H-SiC DMOSFET Technologies. IEEE Trans. Electron Devices
**2021**, 68, 4016–4021. [Google Scholar] [CrossRef] - Lelis, A.J.; Habersat, D.; Green, R.; Ogunniyi, A.; Gurfinkel, M.; Suehle, J.; Goldsman, N. Time Dependence of Bias-Stress-induced SiC MOSFET Threshold-Voltage Instability Measurements. IEEE Trans. Electron Devices
**2008**, 55, 1835–1840. [Google Scholar] [CrossRef] - Schleich, C.; Berens, J.; Rzepa, G.; Pobegen, G.; Tyaginov, S.; Grasser, T.; Waltl, M. Physical Modeling of Bias Temperature Instabilities in SiC MOSFETs. In Proceedings of the 2019 IEEE International Electron Devices Meeting (IEDM), San Francisco, CA, USA, 7–11 December 2019. [Google Scholar] [CrossRef]
- Grasser, T. Stochastic Charge Trapping in Oxides: From Random Telegraph Noise to Bias Temperature Instabilities. Microelectron. Reliab.
**2012**, 52, 39–70. [Google Scholar] [CrossRef] - Rzepa, G.; Franco, J.; O’Sullivan, B.; Subirats, A.; Simicic, M.; Hellings, G.; Weckx, P.; Jech, M.; Knobloch, T.; Waltl, M.; et al. Comphy—A compact-physics framework for unified modeling of BTI. Microelectron. Reliab.
**2018**, 85, 49–65. [Google Scholar] [CrossRef] - Puschkarsky, K.; Grasser, T.; Aichinger, T.; Gustin, W.; Reisinger, H. Review on SiC MOSFETs High-Voltage Device Reliability Focusing on Threshold Voltage Instability. IEEE Trans. Electron Devices
**2019**, 66, 4604–4616. [Google Scholar] [CrossRef] - Martin-Martinez, J.; Ayala, N.; Rodriguez, R.; Nafria, M.; Aymerich, X. RELAB: A tool to include MOSFETs BTI and variability in SPICE simulators. In Proceedings of the 2012 International Conference on Synthesis, Modeling, Analysis and Simulation Methods and Applications to Circuit Design (SMACD), Seville, Spain, 19–21 September 2012. [Google Scholar] [CrossRef]
- Grasser, T.; Kaczer, B.; Goes, W.; Reisinger, H.; Aichinger, T.; Hehenberger, P.; Wagner, P.J.; Schanovsky, F.; Franco, J.; Roussel, P.; et al. Recent Advances in Understanding the Bias Temperature Instability. In Proceedings of the 2010 International Electron Devices Meeting, San Francisco, CA, USA, 6–8 December 2010. [Google Scholar] [CrossRef]
- Fukuda, K.; Sekitani, T.; Yokota, T.; Kuribara, K.; Huang, T.C.; Sakurai, T.; Zschieschang, U.; Klauk, H.; Ikeda, M.; Kuwabara, H.; et al. Organic Pseudo-CMOS Circuits for Low-Voltage Large-Gain High-Speed Operation. IEEE Electron Device Lett.
**2011**, 32, 1448–1450. [Google Scholar] [CrossRef] - Huang, T.C.; Fukuda, K.; Lo, C.M.; Yeh, Y.H.; Sekitani, T.; Someya, T.; Cheng, K.T. Pseudo-CMOS: A Design Style for Low-Cost and Robust Flexible Electronics. IEEE Trans. Electron Devices
**2011**, 58, 141–150. [Google Scholar] [CrossRef] - Kuroki, S.; Kurose, T.; Nagatsuma, H.; Ishikawa, S.; Maeda, T.; Sezaki, H.; Kikkawa, T.; Makino, T.; Ohshima, T.; Östling, M.; et al. 4H-SiC Pseudo-CMOS Logic Inverters for Harsh Environment Electronics. Mater. Sci. Forum
**2017**, 897, 669–672. [Google Scholar] [CrossRef]

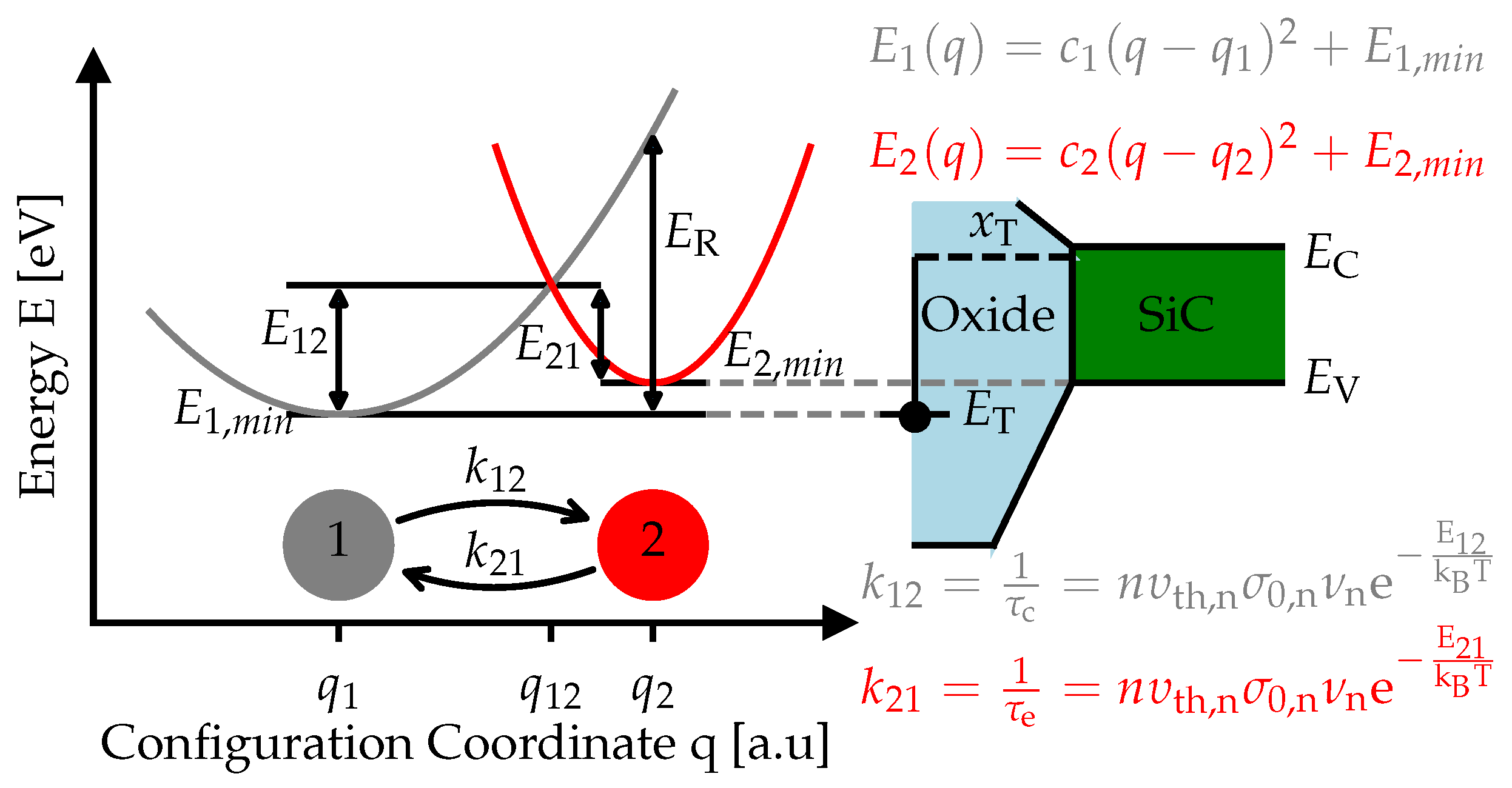

**Figure 1.**Schematic of the potential energy surfaces of our physical defect model and the corresponding model parameters required to calculate the charge trapping at defects. The model is based on non-radiative multi-phonon (NMP) theory to calculate the transition times at single defects corresponding to charge transfer reactions.

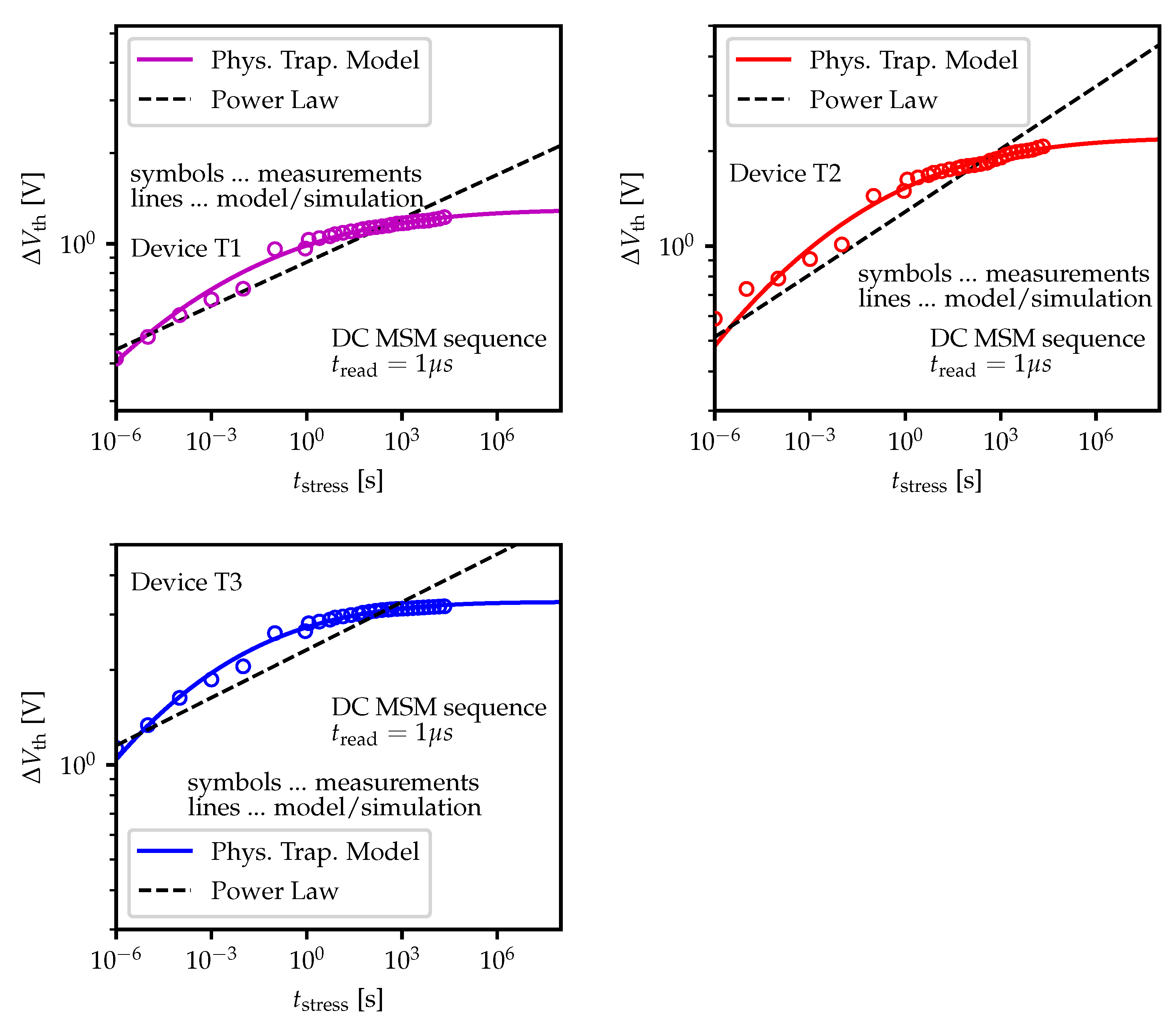

**Figure 2.**The prediction of the two-state model is shown versus power-law like functions for the three technologies evaluated in this work: T1 (

**top-left**), T2 (

**top-right**) and T3 (

**bottom**). As can be seen, our simulations nicely replicate the experimental data, while the power-law (black) significantly deviates from the experimental data. The measurement delay for recording ${V}_{\mathrm{G}}$ after stress for this setup is ${t}_{\mathrm{read}}$ = 1 μs.

**Figure 3.**Schematic of the MSM measurement sequences of the input signals that are applied to the gate terminal of the transistors. The $\u2206{V}_{\mathrm{th}}$ values are extracted considering, (

**left**) a long-term DC PBTI degradation where a constant stress bias is applied before the recovery phase is recorded, and (

**right**) a short-term AC $\u2206{V}_{\mathrm{th}}$ is measured at different time points (${t}_{\mathrm{AC},\mathrm{interrupt}}$) at which the short AC stress is interrupted [22].

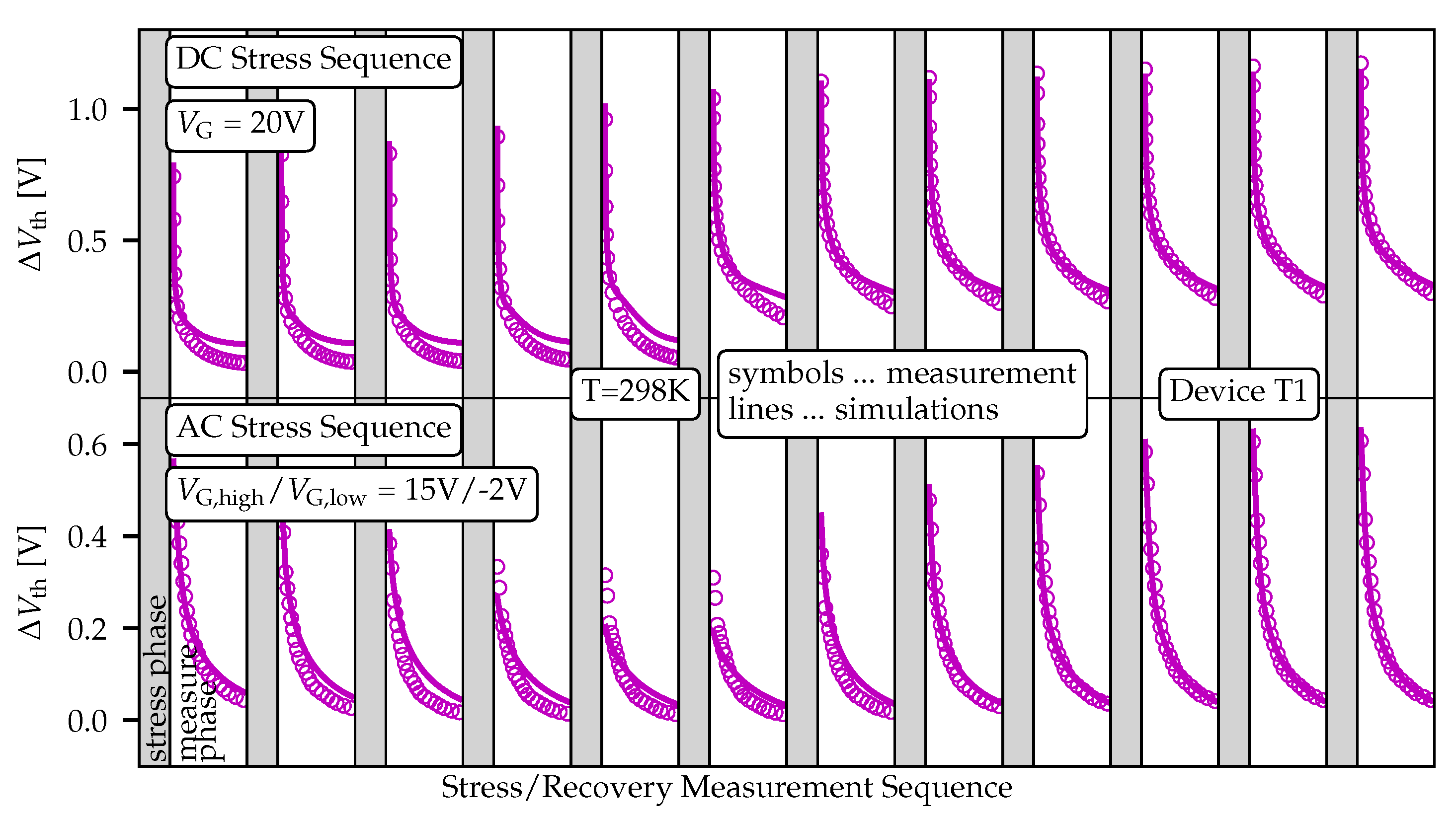

**Figure 4.**Comparison between simulation and experimentally $\u2206{V}_{\mathrm{th}}$ extracted values for T1. The simulations nicely reproduce the measured data set $\u2206{V}_{\mathrm{th}}$.

**Figure 5.**Similar measurement sequence as shown in Figure 4 is presented here for T2. Again our model agrees well with the experimental data.

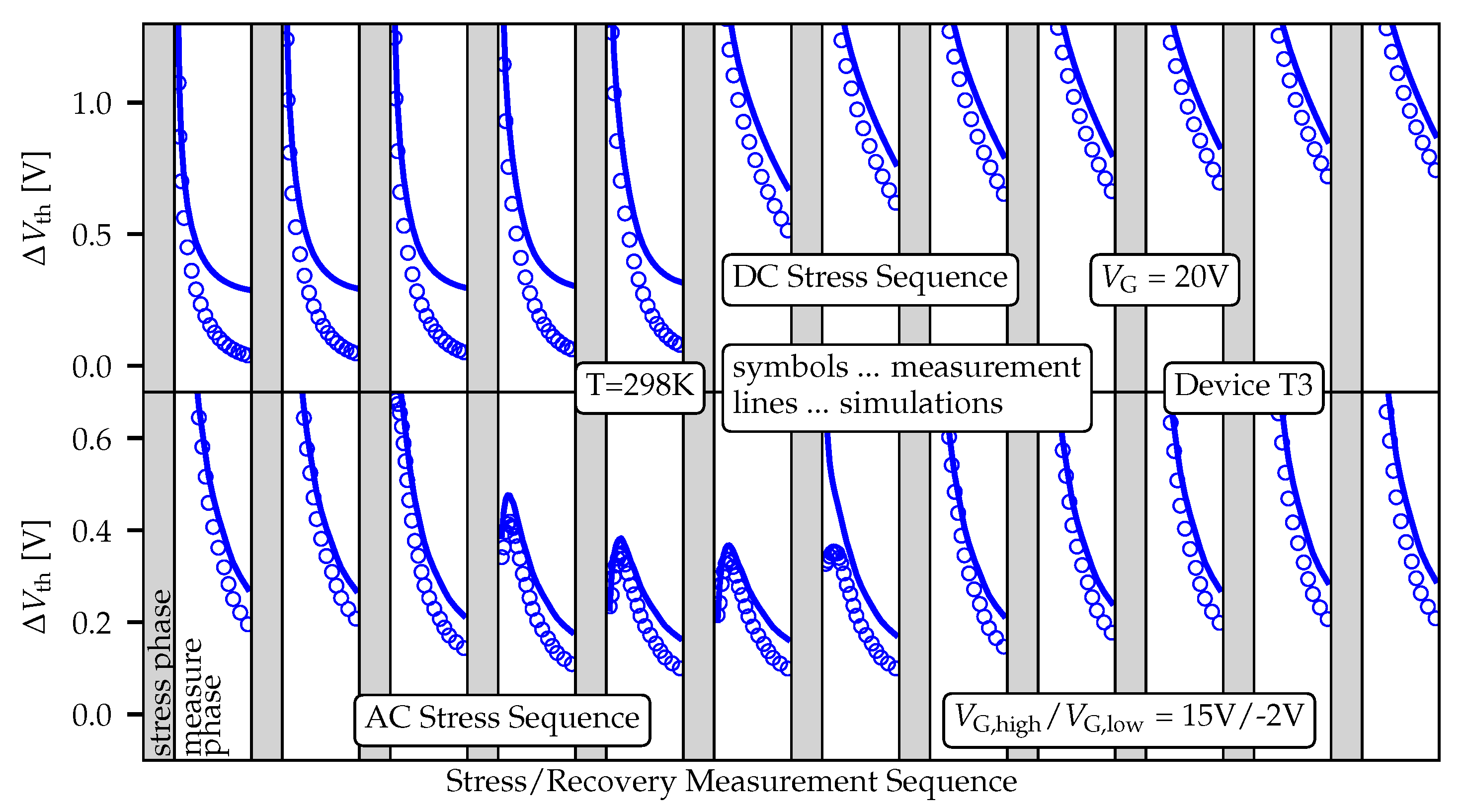

**Figure 6.**Also the data recorded employing T3 can be reconstructed at high accuracy by our physical computer models.

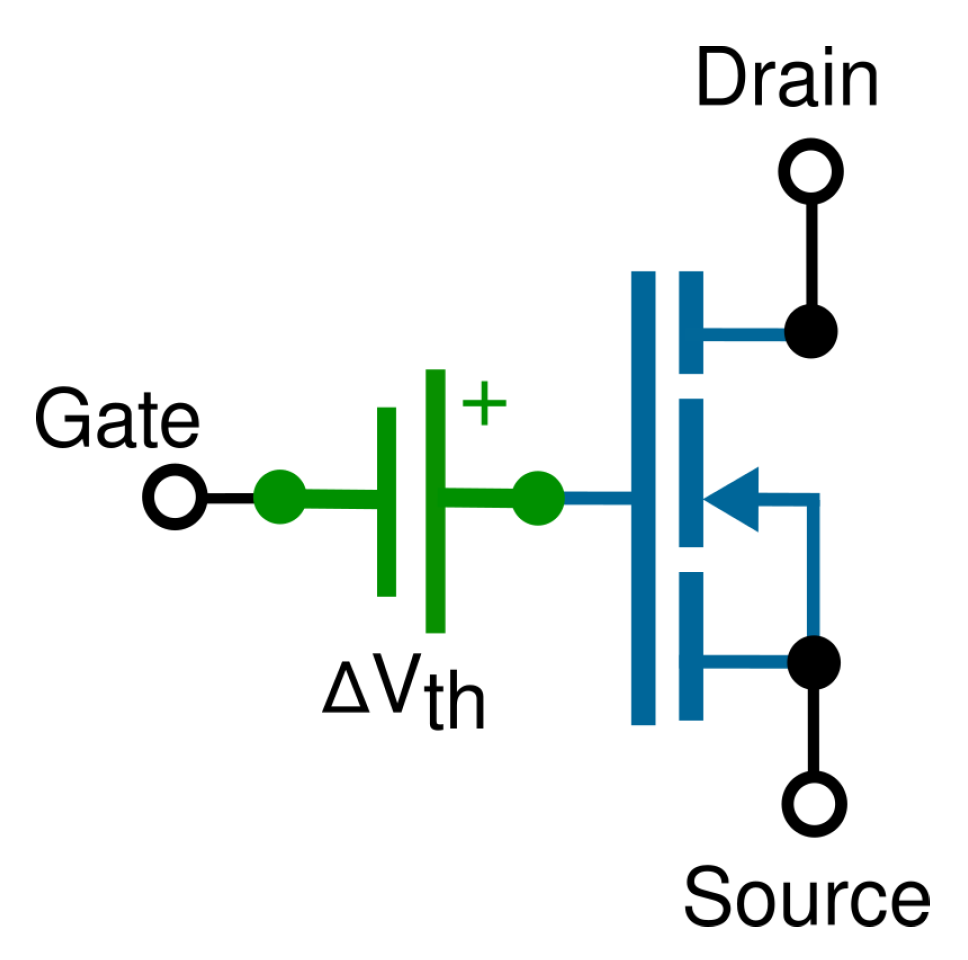

**Figure 7.**The BTI impact on the transistors is represented by adding a voltage source with a value equal to $\u2206{V}_{\mathrm{th}}$ to the gate of the devices implemented in the Spice simulator. $\u2206{V}_{\mathrm{th}}$ values are extracted from the accurate physical defect trapping model.

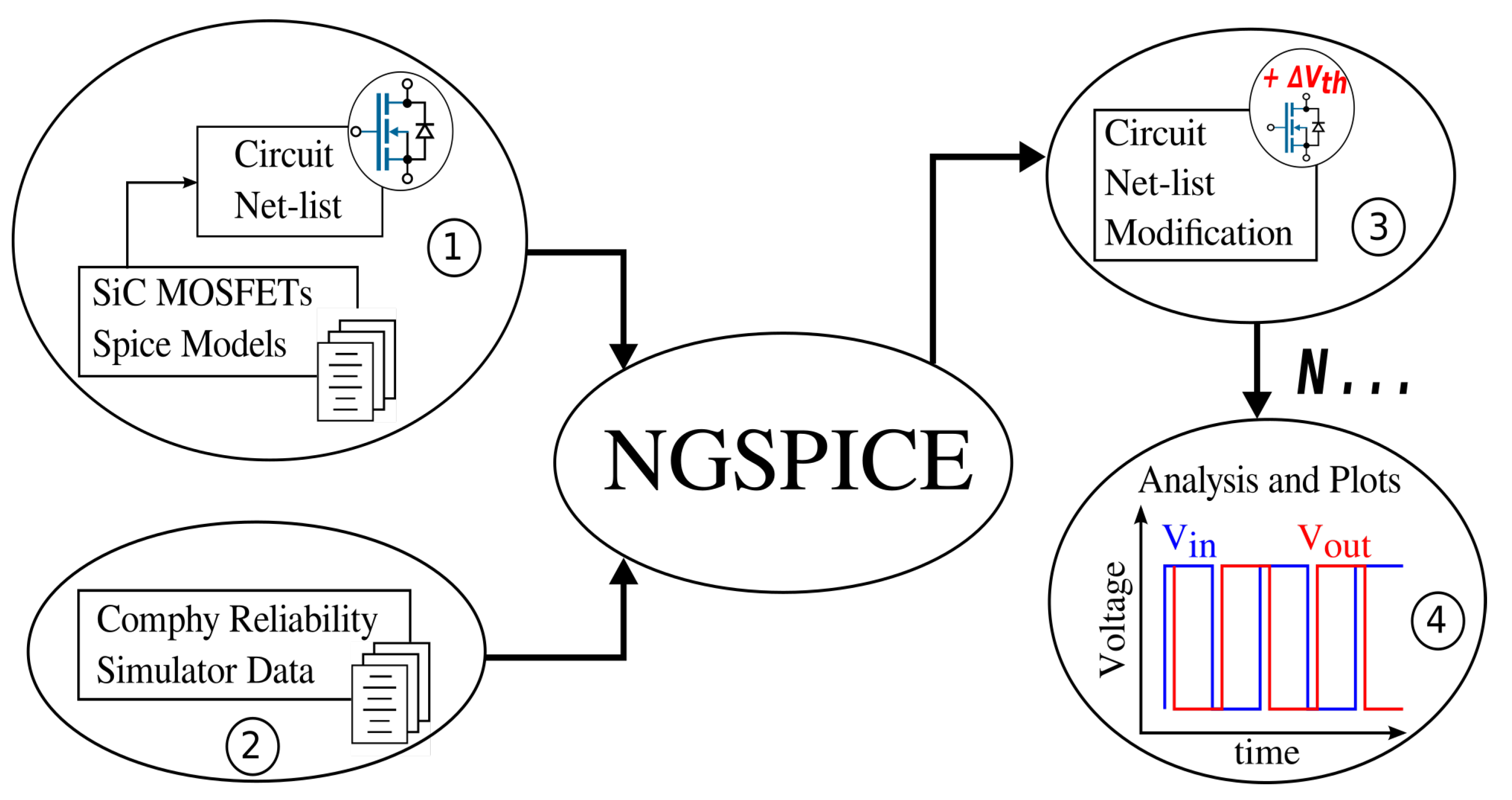

**Figure 8.**Simulation process flow using open-source simulator ngspice, to analyze the BTI impact on the inverter circuits performance. The spice simulator uses the data from the reliability simulator Comphy to modify the initial net-list of the circuit. It launches simulations to extract the aged circuit parameters for long operation time. Each simulation (step 3) corresponds to an inevitable degradation of the transistors for a specific time (step 2).

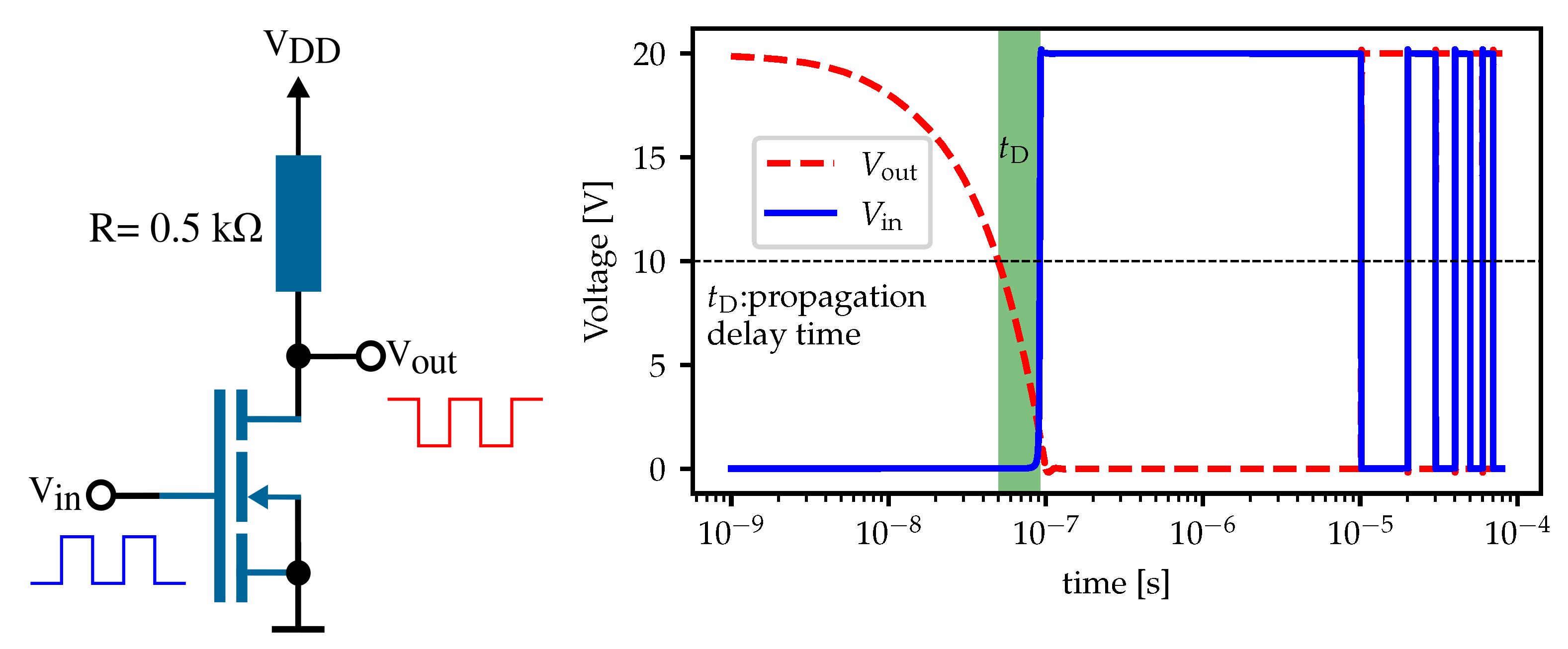

**Figure 9.**Schematic of the resistivity load inverter used as simple test circuit with $R=0.5\mathrm{k}\mathsf{\Omega}$, ${V}_{\mathrm{DD}}=20\mathrm{V}$ (

**left**) and propagation delay time ${t}_{\mathrm{D}}$ extraction at T = 298 K (

**right**). The latter is defined as the time difference when the output ${V}_{\mathrm{out}}$ and input voltage ${V}_{\mathrm{in}}$ equals ${V}_{\mathrm{DD}}$/2.

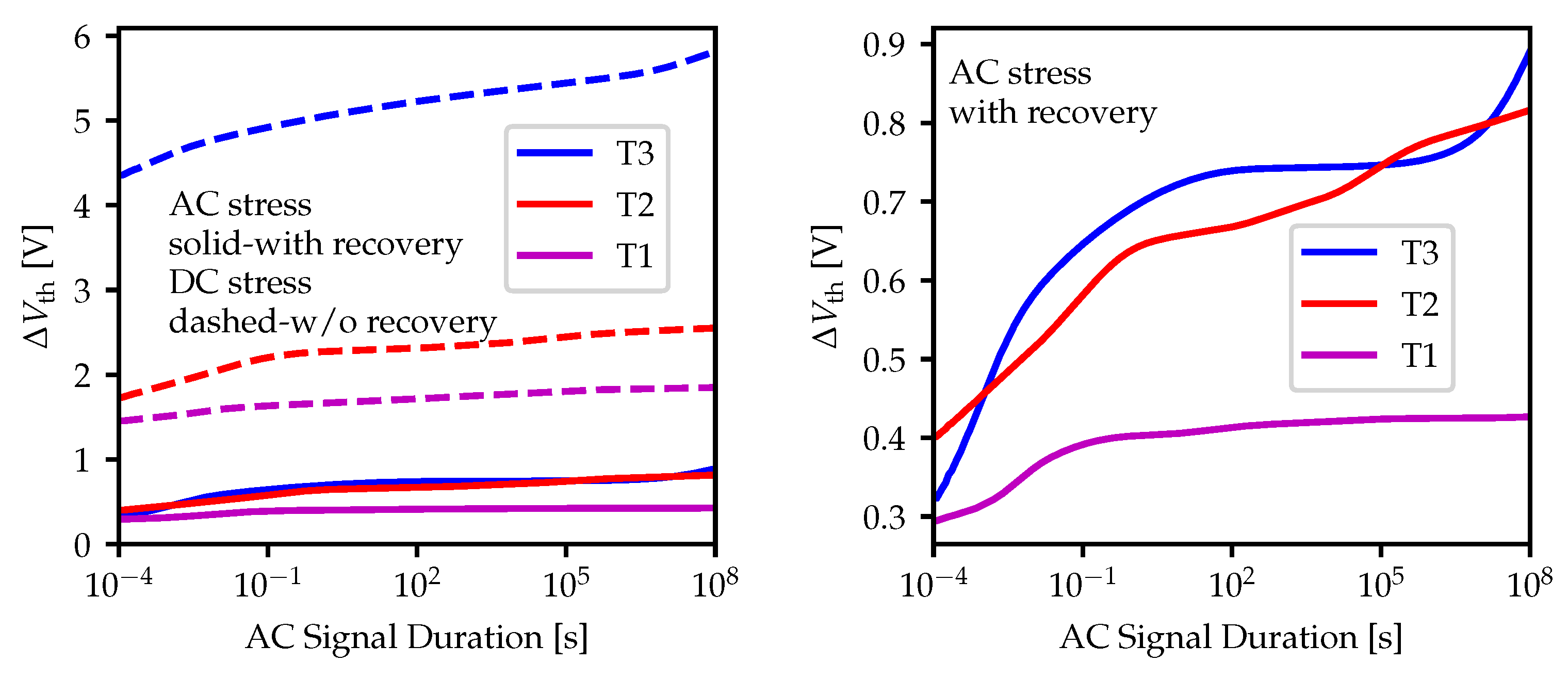

**Figure 10.**Threshold voltage drift ($\u2206{V}_{\mathrm{th}}$) behavior extracted employing Comphy for the different SiC power MOSFETs used in this work, i.e., T1, T2 and T3 at room temperature (T = 298 K), for an AC input signal with duty cycle = $0.5$, f = 50 kHz and a stress time equal to ${t}_{\mathrm{str}}$ = 100 ms. A comparison of the extracted values when the recovery phase is considered and omitted is shown (

**left**). A more detailed representation of the short-term AC stress case is depicted (

**right**).

**Figure 11.**The impact of BTI on the propagation delay time for the resistivity load inverter circuit based on T1 (

**left**), T2 (

**center**), and T3 devices (

**right**) is shown. For the three technologies, after ten years of the operating time, ${t}_{\mathrm{D}}$ is overestimated around by 2–4 ns if the recovery phase in the AC input signal is omitted. The results show a BTI impact less significant on T3 than in the other ones.

**Figure 12.**Schematic representation of the pseudo-D CMOS inverter circuit using commercially available SiC power MOSFETs. We analyze the BTI impact on the circuit performance considering the degradation of the ${V}_{\mathrm{th}}$ of the transistors.

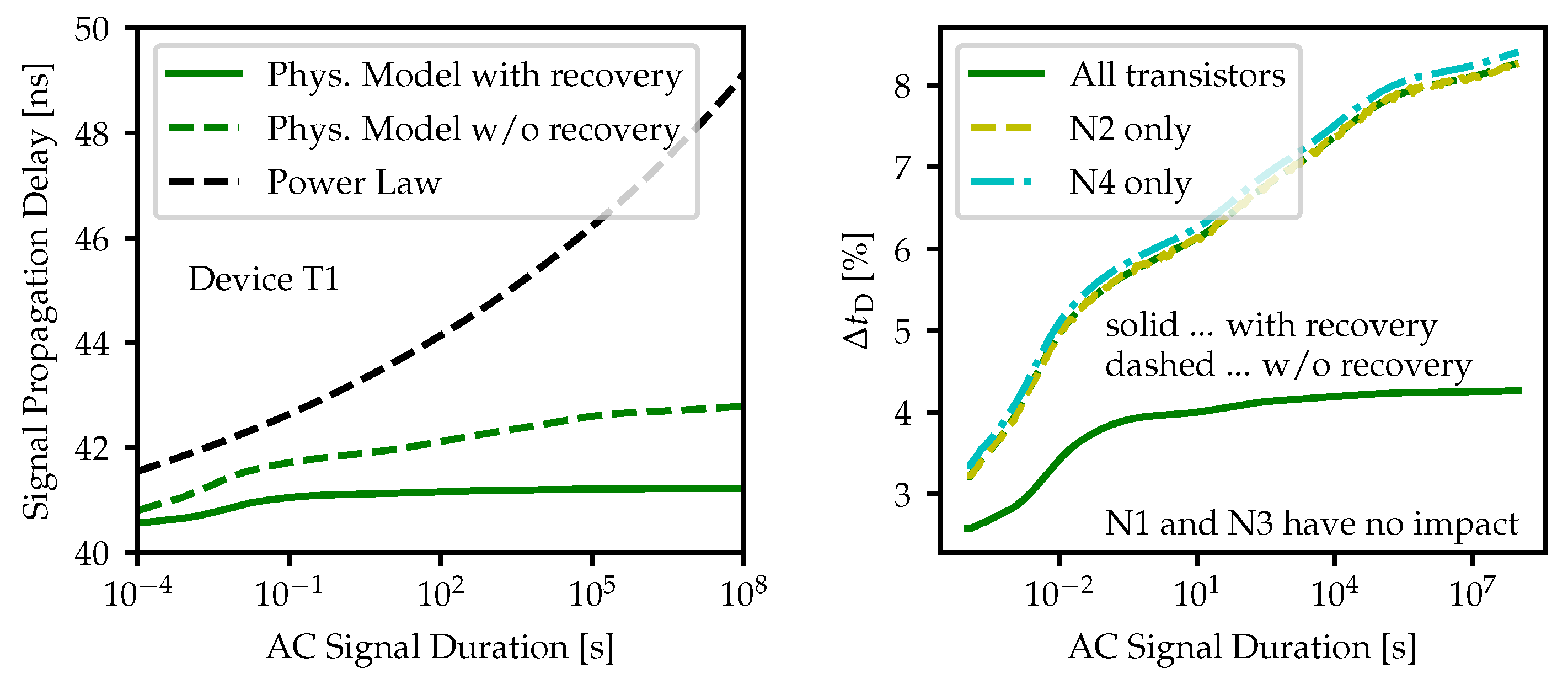

**Figure 13.**Extracted signal propagation delay for the pseudo-CMOS inverter circuit considering the impact of BTI for ten years of operating time. A comparison of the results when simple power-law-like functions and physical models are used is shown (

**left**). While N1 and N3 have no to impact on ${t}_{\mathrm{D}}$, the propagation delay is affected by N2 and N4 in a similar way (

**right**).
