On the Coordination Role of Pyridyl-Nitrogen in the Structural Chemistry of Pyridyl-Substituted Dithiocarbamate Ligands

by
Edward R.T. Tiekink
Research Centre for Crystalline Materials, School of Medical and Life Sciences, Sunway University, Bandar Sunway 47500, Selangor Darul Ehsan, Malaysia
Crystals 2021, 11(3), 286; https://doi.org/10.3390/cryst11030286
Submission received: 2 March 2021 / Revised: 9 March 2021 / Accepted: 11 March 2021 / Published: 14 March 2021
(This article belongs to the Special Issue A 10 Years Journey: Chemical, Physical, and Biological Properties and Applications of Crystals)
Browse Figures
Versions Notes

Abstract

:
A search of the Cambridge Structural Database was conducted for pyridyl-substituted dithiocarbamate ligands. This entailed molecules containing both an NCS2− residue and pyridyl group(s), in order to study their complexation behavior in their transition metal and main group element crystals, i.e., d- and p-block elements. In all, 73 different structures were identified with 30 distinct dithiocarbamate ligands. As a general observation, the structures of the transition metal dithiocarbamates resembled those of their non-pyridyl derivatives, there being no role for the pyridyl-nitrogen atom in coordination. While the same is true for many main group element dithiocarbamates, a far greater role for coordination of the pyridyl-nitrogen atoms was evident, in particular, for the heavier elements. The participation of pyridyl-nitrogen in coordination often leads to the formation of dimeric aggregates but also one-dimensional chains and two-dimensional arrays. Capricious behaviour in closely related species that adopted very different architectures is noted. Sometimes different molecules comprising the asymmetric-unit of a crystal behave differently. The foregoing suggests this to be an area in early development and is a fertile avenue for systematic research for probing further crystallization outcomes and for the rational generation of supramolecular architectures.

Graphical Abstract

1. Introduction

In their most common form, dithiocarbamate ligands are mono-anionic ligands of the general formula −S2CNR2, for R = alkyl, aryl. These are readily prepared from the reaction of a secondary amine and carbon disulfide in the presence of a base, for example, an alkali hydroxide. The dithiocarbamates are clearly the most important member of the 1,1-dithiolate class of ligands, and have been known for 150 years or thereabouts [1,2]. The motivations for studying metal complexes of dithiocarbamates (and their diseleno-analogues), including their main group element and lanthanide compounds, are many and varied, as summarized in a number of reviews published over the last 50 years [3,4,5,6,7,8]. Notwithstanding the utility of dithiocarbamates in materials chemistry, medicine, lubricating oils, etc., here, the focus is upon the structural chemistry of a specific class of multi-functional dithiocarbamate ligands, namely pyridyl-substituted dithiocarbamate ligands.
Generally, the reaction to form −S2CNR2 is facile and the range of ligands that can be generated is only limited by the availability of the amine, both secondary (Scheme 1, Equation (1)) and primary (Scheme 1, Equation (2)), where the latter generates −S2CN(H)R; the coordination chemistry of −S2CNH2 is relatively limited [6,7]. While dissymmetric secondary amines can lead to −S2CNRR’, further broadening of the range of the available dithiocarbamate ligands for investigation can be achieved by functionalizing the amine substituents to give rise to multi-functional dithiocarbamate ligands. A relevant example of this idea is the reaction of piperazine with two equivalents of carbon disulfide to form the piperazine bis(dithiocarbamate) ligand, i.e., −S2CN(CH2CH2)2NCS2−. Complexation of this with metal salts can be anticipated to result in di-nuclear molecules, and experience suggests that the methods and handling of reactants, reactions, and products for this synthesis presents no special difficulties [9]. Indeed, very recently, a review of the coordination chemistry of such poly-functional dithiocarbamate ligands was published [10].
This aforementioned survey [10] reported 40 poly-functional dithiocarbamate ligands that were characterized by the crystal structures of their metal complexes. While the overwhelming majority of poly-functional dithiocarbamates carried two NCS2− residues, there were examples of ligands with three, four, and up to six NCS2− residues. In terms of coordination chemistry, while many of the resultant coordination complexes were relatively simple di-nuclear species, higher nuclearity aggregates, up to an impressive 36 (gold) atoms [11], were noted. Less common were one- and two-dimensional architectures with a sole example of a three-dimensional architecture adopted by a series of isostructural lanthanide-based materials [12]. Naturally, the functionalization of amines could proceed beyond additional amine functionality, such as in multi-functional dithiocarbamate ligands bearing carboxylic groups. However, despite being known since the 1980’s, with the preparation of barium salts of various dithiocarbamates derived from amino acids [13], the chemistry of this potentially interesting class of ligands remains relatively unexplored [14]. In contrast, considerably more attention was directed towards the study of dithiocarbamate ligands, bearing at least one neutral pyridyl residue, and this chemistry formed the focus of the present survey.
Herein, a bibliographic survey of the reported crystal structures of transition metal (d-block elements) and main group element (p-block elements that form the majority of examples) dithiocarbamates that also present pyridyl group(s) available for further coordination is presented. Brief comments on the context behind their syntheses is also given when pertinent, as well as a comparison with their non-functionalized analogues.

2. Methods

The present bibliographic review of the crystallographic literature is based on a systematic search of the Cambridge Structural Database (CSD, version 5.41 + three updates) [15] employing ConQuest (version 2.0.4) [16]. The search involved an evaluation of all structures containing an NCS2 residue, plus a pyridyl group. No other restrictions were applied. Each of the 493 retrieved structures was manually screened, leading to 73 independent crystal structures of coordinated pyridyl-substituted dithiocarbamate ligands. A total of 30 different ligands were noted, many were isomers or differ only in a minor way, such as in the nature of the remote substituents; their chemical diagrams with abbreviations are given in Figure 1. The composition details for each crystal are given in Table 1, as well as the CSD REFCODE and literature citation. All crystallographic diagrams are original and were generated by employing DIAMOND [17], using the data included in the Crystallographic Information File obtained from the CSD for each structure.

3. Results

The full chemical composition for each crystal discussed herein, i.e., 1–73 [18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51], is included in Table 1: for the purposes of the following description of structures, counter-ions, co-crystal co-formers and solvents are ignored, unless they were pertinent to the coordination modes adopted by the dithiocarbamate ligands or supramolecular aggregation. The ensuing discussion is arranged in terms of the Group of the Periodic Table and in order of lightest to heaviest element. Generally, within each category, homoleptic structures are discussed before organometallic species and other formulations, and the description of structures are in the order of increasing nuclearity of the aggregate, i.e., monomeric species before dimeric species, etc.

3.1. Structures of the Nickel-Triad Elements

There were four homoleptic nickel(II) complexes and each essentially adopted the same structural motif, namely a square–planar geometry defined by an S4 donor set. The complexes were formulated as Ni(Lx)2, where x = 1 (1) [18], x = 2 (2) [18], x = 3 (3) [19], and x = 4 (4) [20] with that of 3, which was representative of these (illustrated in Figure 2a); the nickel atom was located on a crystallographic site of inversion in each of 1–4. The dithiocarbamate ligand coordinated in a symmetrically chelating mode [Ni–S: 2.20 & 2.21 Å] with no role for the pyridyl-nitrogen atoms in coordination being apparent. This observation, at least for some of the transition metal complexes to be described herein, related to the very nature of the dithiocarbamate ligand itself, in that the contribution of the dithiolate canonical form, i.e., R2N(+)=CS2(2−), to the overall electronic structure was significant, approaching 40%. This confirmed the very strong bidentate coordination mode of the dithiocarbamate ligand towards metals that reduced the Lewis acidity of the metal center and, in turn, reduced the propensity of the metal to increase its coordination number via interaction with donors such as pyridyl-nitrogen [52].
The interest in several of these structures related to their propensity to form unusual C–H⋯Ni anagostic interactions that were shown to be dependent on the nature of the substituents [18,20,53]. The other non-standard, non-covalent interaction observed in over 35% of the crystals of square–planar nickel(II) dithiocarbamate complexes was the formation of stabilizing intermolecular C–H⋯π(NiS2C) interactions [54]. This was also accounted for in terms of the prevalence of the aforementioned canonical structure that ensured considerable delocalization of π-electron density over the four-membered (NiS2C) chelate ring, making this a good acceptor for such interactions, as for any π-system.
The remaining nickel(II) complex was (NN1)Ni(L5) (5) [21], where (NN1)H was N,N-dimethyl-4-[1H-pyrrol-2-yl(pyrrol-2-ylidene)methyl]aniline, and is represented in Figure 2b; the dithiocarbamate ligand was chelating in nature [2.19 & 2.21 Å]. This complex was designed specifically to form C–H⋯π(NiS2C) interactions in the crystal, which were noted [21].
Only two palladium(II) structures are known, namely Pd(L1)2 (6) [22], which is isostructural with 1, and [(4-tol)3P]Pd(L6)Cl (7) [23], a new structural motif to be described. In 7, Figure 2c, one dithiocarbamate ligand was substituted with chloride and phosphane atoms so a ClPS2 square–planar geometry resulted; the dithiocarbamate ligand chelated the palladium atom, forming dissymmetric Pd–S bond lengths [2.35 & 2.39 Å]. No evidence for Pd⋯N interactions was noted.
There were two homoleptic platinum(II) complexes, i.e., Pt(L1)2 (8) [24], isostructural with 1 and 6, and Pt(L7)2 (9) [25]. Complex 9 was of particular note as it was the first example having two pyridyl donors per dithiocarbamate ligand. The coordination geometry for [(4-tol)3P]Pt(L6)Cl (10) [26] was as for 7, Figure 2c. Interest in 7 and 10 relate to investigations of anti-cancer potential, as both species were more active than cisplatin, at least based on in vitro screening, and preliminary SAR pointed to an advantage of L6.

3.2. Structures of the Copper-Triad Elements

The two homoleptic copper(II) complexes in this section were Cu(L1)2 (11) [27] and Cu(L7)2 (12) [28]; 11 featured two independent molecules in the asymmetric-unit and was investigated as a part of a wider series for electrochemical, conducting, and dielectric properties [27]. Each copper(II) center existed in the expected square–planar geometry within an S4 donor set [Cu-S: 2.30 to 2.31 Å]. Of interest, and as highlighted in Figure 3a for 12, the molecules approached each other over a center of inversion, to enable the formation of close Cu⋯S contacts. The Cu⋯S contact of 3.23 Å was just beyond the sum of the van der Waals radii for copper and sulfur, at 3.20 Å [55]. For 11, one molecule approached the other in a side-on manner and only one Cu⋯S was formed at a rather long separation of 3.58 Å. The formation of intermolecular interactions proved a potential for related interactions with nitrogen but, more decisively, pointed to a competition between sulfur and nitrogen, as borne out in several instances later in the survey.
The three remaining copper complexes conformed to the general formula (Ph3P)2Cu(Lx) for x = 8 (13) [29], x = 9 (14) [30] and x = 10 (15) [31]. The dithiocarbamate ligand in 15 was particularly notable not only for having two pyridyl substituents but for them being dissymmetric, i.e., containing 3- and 4-pyridyl residues. All three complexes were strongly luminescent [29,30,31] with 13, in particular, exhibiting a blue–green emission at 480 nm. Further, 15 proved to be an efficient catalyst for the generation of “glycoconjugate triazoles under Click protocol” [31]. The complexes conformed to the same structural motif as exemplified in Figure 3b for 15. The copper(I) atom was coordinated in a distorted tetrahedral geometry, by a symmetrically chelating dithiocarbamate ligand [2.40 & 2.41 Å] and two phosphorus donors. This was the uniformly adopted structural motif for these molecules according to a recent survey [56]. With such a congested environment about the central atom, it was not surprising that additional contacts involving copper and pyridyl-nitrogen atoms were not apparent.
Attention was now directed towards silver, for which the first examples of coordination polymers appeared. The first two complexes were related to monomeric 13–15 but were formulated as di-nuclear [(Ph3P)Ag(Lx)]2 with x = 1 (16) and x = 11 (17) [32]. Their study indicated some semi-conductor behavior and striking luminescent characteristics in the solid-state. The di-nuclear molecules, represented by 17 in Figure 4a, arose as the dithiocarbamate ligand simultaneously chelated one silver(I) atom [2.63 & 2.72 Å] and bridged to the second [2.68 Å], centrosymmetrically related silver(I) atom. The distorted PS3 donor set was completed by the phosphorus atom. Again, no evidence for Ag⋯N interactions was found. Indeed, the structures closely resembled those found for non-functionalized dithiocarbamate ligands [57], of interest owing to anti-bacterial activity. In the absence of phosphane ligands, one-dimensional coordination polymers were formed for the isostructural x = 1 (18) and x = 11 (19) species formulated as [Ag(Lx)]n. Two images for the exemplar complex 18 are given in Figure 4b. The dithiocarbamate ligand was tridentate, bridging two silver atoms via one sulfur atom [2.59 & 2.64 Å], while linking a third silver atom via the second sulfur atom [2.65 Å]. The interactions perpetuated to form a helical supramolecular chain being propagated by 41-screw symmetry. This arrangement allowed for the formation of intra-chain Ag⋯Ag contacts, which in the case of 18 amounted to 2.89 Å; for 19, the Ag⋯Ag separation was 2.85 Å. A simplified view of the chain along the axis of propagation in 18 is shown in the right-hand image of Figure 4b. Metal⋯metal interactions, this time involving gold, were also noted in the two examples of gold(I) structures to be discussed next.
Two independent molecules comprised the asymmetric-unit of [Au(L7)]2 20 [33] and each was disposed about a center of inversion to generate the di-nuclear molecule shown in Figure 5a; the second molecule was essentially identical. Here, two gold(I) atoms were bridged by two dithiocarbamate ligands [2 × 2.29 Å; 2.28 & 2.29 Å for the second independent molecule] to form a close to planar, eight-membered {–AuSCS}2 ring. Within the ring, an Au⋯Au (aurophilic) interaction of 2.79 Å was noted; for the second molecule, Au⋯Au was 2.82 Å. In the crystal, weak Au⋯S interactions at separations just beyond the van der Waals radii were noted; these served to link the molecules into a twisted supramolecular chain (not shown). A similar di-nuclear molecule was noted in the crystal of 21 [34], which along with [Au(L12)]2 contained one equivalent of isophthalic acid. Both studies [33,34] were motivated by investigations of the solid-state luminescence attributes of the gold dimers, a well-documented phenomenon for gold thiolates [58]. There were two independent formula units of [Au(L12)]2 in 21, neither with symmetry [Au–S: 2.28 to 2.30 Å]. The transannular Au⋯Au separations were 2.75 and 2.78 Å. In the crystal, by virtue of hydroxyl-O–H⋯N(pyridyl) hydrogen-bonding, known to be a persuasive supramolecular synthon [59], the di-nuclear molecules were connected into a twisted supramolecular chain, as shown in Figure 5b; see [60] for a review on the competition between conventional hydrogen bonding and aurophilic interactions in supramolecular chemistry.

3.3. Structures of the Zinc-Triad Elements

The zinc-triad elements were the most populous in this survey, providing in excess of 40% of all structures covered herein. Of these, the least represented was zinc, having four examples only. Nevertheless, three distinct structural motifs were apparent. Crystals of homoleptic [Zn(L1)2]2 (22) [35] and [Zn(L13)2]2 (23) [36] present di-nuclear molecules with that of 22, shown in Figure 6a; an evaluation of solid-state luminescence was a motivation for the original studies. There were two quite distinct coordination modes for the dithiocarbamate ligand. One ligand was chelating [2.42 & 2.52 Å] while the other chelated one zinc atom [2.40 & 2.50 Å] and simultaneously linked a centrosymmetrically-related zinc atom via the pyridyl-nitrogen atom to form the di-nuclear aggregate of Figure 6a and a five-coordinate NS4-donor set. This motif was readily related to the aggregate normally seen in the majority of homoleptic zinc bis(dithiocarbamate) structures [61], where one ligand was exclusively chelating with the other and at the same bridging, via one of the sulfur atoms, akin to that noted above for the bridging dithiocarbamate ligand in 17 (Figure 4a); in these circumstances a S5 donor set was apparent. In this sense, the bridging pyridyl-nitrogen atom was simply substituted for the bridging-sulfur atom. However, this simple idea did not pertain to the remaining zinc dithiocarbamate structures to be described.
As illustrated in Figure 6b, a one-dimensional coordination polymer was noted in the crystal containing [Zn(L14)2]n. (24) [37]. It was noted that 4-methylpyridine was also present in the crystal of 24 (Table 1) but this did not coordinate zinc. The coordination modes of the dithiocarbamate ligands [chelating ligand: 2.40 & 2.50 Å and bridging: 2.35 & 2.67 Å] were as for each of 22 and 23, but in this case, rather than dimer formation, an extended chain with a zig-zag topology was formed, owing to the formation of a Zn–N(pyridyl) bond. The common feature of 22–24 was the presence of a pyridyl-substituent on each dithiocarbamate ligand and the participation of only one of these in coordination with zinc. In the crystal of [Zn(L5)]2 (25) [36], the same situation applies and yet, a two-dimensional array ensued as each available pyridyl-nitrogen atom participated in coordination to symmetry-related zinc atoms.
As shown in the lower view of Figure 7, each dithiocarbamate ligand of [Zn(L5)]2 adopted a μ2-bridging mode, employing the sulfur atoms to chelate one zinc atom [2.48 & 2.49 Å] and the pyridyl-nitrogen atom to link another; the zinc atom was located on a center of inversion. This resulted in an increase in the coordination number, as the zinc atom now existed within a trans-N2S4 donor set. The analogous structure to 25 but with the 3-pyridyl substituent, i.e., 23, was a dimer. This being the case, it might be that steric congestion precluded further supramolecular aggregation. Clearly, systematic studies are highly desirable to resolve issues such as these but, of course, that depends on the availability of suitable crystalline materials, preferably solvent-free crystals grown under similar conditions of concentration, time, temperature, etc.
The first four cadmium(II) structures were zero-dimensional and the remaining were two-dimensional arrays of varying topologies. Three structures conformed to the general formula Cd(Lx)2(NN), namely x = 13, NN = 2,2′-bipyridyl (26) [38], and x = 13 (27) [38] and x = 14 (28) [36] for NN = 1,10-phenanthroline; 26 and 27 were noted for their ability to co-sensitize TiO2 photoanodes, by virtue of the presence of ferrocenyl substituents [38]. The prototype for these structures (illustrated in Figure 8a) was 27, which showed the cadmium atom to be chelated by two dithiocarbamate ligands [2.63 & 2.77 Å and 2.65 & 2.69 Å], as well as by the 1,10-phenanthroline molecule, to give a cis-N2S4 donor set. A di-nuclear molecule, akin to that found in each of 22 and 23, was formed by [Cd(L15)2]2 in the crystal of 29 [39], as shown in Figure 8b. Here, an NS4 donor set was manifested [Cd–S: 2.57 & 2.69 Å (chelating ligand) and 2.59 & 2.64 Å (bridging ligand)].
Of the six two-dimensional arrays formed by homoleptic cadmium dithiocarbamates, three distinct morphologies might be discerned. The first of these was found in the crystal of [Cd(L14)2]n (30), which also contained non-coordinating 3-methylpyridine molecules [40]. Here, both pyridyl-nitrogen atoms of the dithiocarbamate ligand were involved in coordination, leading to cis-N2S4 donor sets, as the thiolate ends of the ligand were chelating [2.64 & 2.66 Å and 2.66 & 2.69 Å]. A plan view of the resulting two-dimensional array is shown in Figure 9, as well as a side-on view which highlighted the distinctive square-wave topology of the array; one plan view highlighted the formation of the coordination polyhedra.
Four structures, i.e., [Cd(Lx)2]n for x = 1 (31), 11 (32) and 16 (33) [39], and x = 13 (34) [36] adopted a very similar structure in their crystals but, were not isostructural. As might be seen from Figure 10, showing images for 33, the mode of coordination of the ligands was as for 30 [2 × 2.61 & 2.69 Å] but crucially resulted in trans-N2S4 donor sets; the cadmium atom in each of 33 and 34 lay on a center of inversion. The ensuing arrangement was decidedly symmetric in appearance and from the side-on view, the array was undulating. When considered in terms of polyhedra alone, the packing resembled a hexagonal array.
The sixth structure in this category was that of [Cd(L2)2]n (35) [39]. Again, the same features, i.e., coordination mode and trans-N2S4 donor sets, as noted above for 31–34, were observed, but the relative disposition of the cadmium coordination geometries differed and the topology of the array was more jagged in appearance, Figure 11. The different arrangements of the coordination polyhedra in the three structural motifs noted for [Cd(Lx)2]n is highlighted in Figure 9, Figure 10 and Figure 11.
Of all elements covered in the survey, mercury was the most prevalent, with 17 examples; organomercury structures were also present. Many studies were motivated by an evaluation of the influence of molecular packing upon luminescence characteristics. Despite very similar formulae, quite distinct structural motifs were noted in many crystals. This was no better exemplified than by the six homoleptic mercury dithiocarbamates to be described. The common feature of Hg(L1)2 (36) [35] and Hg(L8)2 (37) [41] was a square–planar geometry for mercury, defined by two asymmetrically coordinating dithiocarbamate ligands, as shown for 36 in Figure 12a [2 × 2.40 & 2.95 Å]. Molecules assembled into a linear supramolecular chain via Hg⋯S interactions, therefore the mercury atom had a 4 + 2 coordination geometry. In each case, the mercury atom lay on a center of inversion and the Hg⋯S separations in the crystals leading to the linear chains were 3.22 and 3.21 Å, respectively. A distinct coordination geometry was found in each of Hg(L17)2 (38) [42] and Hg(L18)2 (39) [43], as shown for the former in Figure 12b. The tetrahedral S4-donor set [2.45 to 2.64 Å] did not allow for further coordination by sulfur (or nitrogen) and so both molecules were monomeric in their crystals. The mercury atom in 39 lay on a 2-fold axis of symmetry. In [Hg(L13)2]2 (40), Figure 12c, molecules assembled about a center of inversion in the crystals to form a di-nuclear aggregate. The bidentate mode of coordination of one of the dithiocarbamate ligands in 40 was similar to that seen in several examples above, such as in the silver structure 17, namely, asymmetrically chelating one mercury atom [2.44 & 3.12 Å] while simultaneously linking a centrosymmetric mate via one of the sulfur atoms [2.64 Å]. The other independent dithiocarbamate ligand was chelating only [2.44 & 2.83 Å]. A longer Hg⋯S bond of 3.12 Å was noted within the eight-membered {–HgSCS}2 ring, which had a chair conformation. This Hg⋯S interaction might be considered a transannular contact and was shown as dashed bonds in Figure 12c. In the final homoleptic structure to be covered, i.e., [Hg(L19)2]2 (41) [42], a role for the pyridyl-nitrogen atom was apparent. As illustrated in Figure 12d, compared to 40, the bridging dithiocarbamate ligand [2.50 & 2.72 Å] also employed the pyridyl-nitrogen atom, rather than a sulfur atom to connect the centrosymmetrically-related mercury center. The second dithiocarbamate ligand was asymmetrically chelating [2.42 & 3.00 Å] so the mercury atom existed within an NS4-donor set. The result was a considerably larger, compared to 40, central 16-membered {–HgSCNC3N}2 ring that was disposed about a center of inversion.
There were five phenylmercury(II) dithiocarbamates and these adopted two distinct motifs depending on the mode of coordination of the dithiocarbamate ligand. The first motif was found in [PhHg(Lx)]2 for x = 5 (42) [44], x = 17 (43) [42] and x = 20 (44) [35]. This motif is illustrated for 43 in Figure 13a. Here, the mercury atom was asymmetrically coordinated by the dithiocarbamate ligand [2.39 & 2.89 Å] and the centrosymmetrically-related molecules were linked via the Hg⋯S interactions of 3.14 Å; the equivalent separations in 42 and 44 were 3.18 and 3.19 Å, respectively. The {–HgSCS}2 ring had a chair conformation with the dithiocarbamate ligands lying either side of the central {⋯HgS}2 core. The second motif, adopted by [PhHg(L18)]2 (45) [43] and PhHg(L21)]2 (46) [41], illustrated for 45 in Figure 13b, also featured asymmetrically chelating dithiocarbamate ligands [2.38 & 3.02 Å] but the connections between centrosymmetrically-related mates were via the Hg–N bonds. Thus, there was a transformation from one motif to another, as the position of the pyridyl-nitrogen atom migrated from the 3-position in 43 to the 4-position in 45. This might indicate a steric influence in directing the mode of coordination coming into play but it was noted that 44 also carried a 4-pyridyl substituent. Then again, in the crystal of 44, there was occluded methanol and this formed a methanol-O–H⋯N(pyridyl) hydrogen bond, already noted as a reliable supramolecular synthon [59].
The next four molecules assembled into supramolecular chains in their crystals. All four resultant topologies were distinct. In [Hg(L10)2]n (47) [43], both dithiocarbamate ligands were bidentate, bridging two mercury centers to form eight-membered {–HgSCS}2 rings with a chair conformation; the bridges were non-symmetric [2 × 2.39 & 2.95 Å]. Within each ring, there were two transannular Hg⋯S interactions [2 × 3.05 Å] such that one of the dithiocarbamate ligands might be considered tri-connective. The rings were concatenated into a chain, sharing mercury atoms at the corners. The one-dimensional chain was propagated by glide-symmetry with the mercury atoms lying on 2-fold axes of symmetry, perpendicular to the axis of the chain. Side- and end-on views of the chain are shown in Figure 14a. A variation was noted in the crystal of [Hg(L22)2]n (48) [35]; two independent molecules comprised the asymmetric-unit. The mercury atom in each independent molecule was chelated by two asymmetrically coordinating dithiocarbamate ligands [2.41 & 3.01 Å and 2.42 & 3.01 Å for molecule 1 and 2.43 & 2.83 and 2.42 & 3.00 Å for molecule 2], with the sulfur atom forming the longer of the Hg–S bonds bridging to a second mercury atom [2.92 and 2.90 Å, respectively]. The chain was propagated by translational symmetry but owing to the relative disposition of the two molecules in the asymmetric-unit, the chain had a zig-zag topology, as seen in the two views of Figure 14b. While the bridges leading to the chains in 47 and 48 involved sulfur atoms, in the next two crystals, it was the participation of the pyridyl-nitrogen atom that led to the formation of the chains.
Two distinct structural motifs were observed in the crystals of [Hg(L21)2]n (49) and [Hg(L23)2]n (50) [35]. In the former, the mercury atom was chelated by two dithiocarbamate ligands, one forming close to symmetric Hg–S bonds [2.60 & 2.66 Å], with the other coordinating less symmetrically [2.51 & 2.84 Å]. The fifth site about the mercury atom was occupied by a pyridyl-nitrogen atom from a translationally-related molecule, giving rise to a NS4-donor-set and a one-dimensional chain with a linear topology, Figure 15a. In 50, Figure 15b, a similar mode of coordination of the dithiocarbamate ligands was noted, whereby the mercury atom was coordinated by two dithiocarbamate ligands, one forming almost symmetric Hg–S bonds [2.51 & 2.66 Å] and the other forming quite asymmetric Hg–S bonds [2.39 & 3.11 Å]. The coordination was completed by a pyridyl-nitrogen atom derived from a symmetry related molecule to define a NS4-donor set, and a supramolecular chain with a zig-zag (glide-symmetry) topology.
One of the homoleptic mercury dithiocarbamates assembled into a two-dimensional array in the crystal, i.e., [Hg(L9)2]n (51) [35]. Different views of the assembly are shown in Figure 16. The mercury atom lay on a center of inversion and was coordinated by the dithiocarbamate ligand in an asymmetric mode [2.48 & 2.82 Å]. The distorted N2S4-donor set was completed by two pyridyl-nitrogen atoms derived from two symmetry-related dithiocarbamate ligands, as a result, an array was formed with a flat topology. The alignment of successive rows of the polyhedra was off-set.
The final structure to be described among the zinc-triad elements is a phenylmercury derivative, [PhHg(L8)]n (52) [41]. As usual for the phenylmercury dithiocarbamates, the dithiocarbamate ligands formed short and long Hg–S interactions [2.41 & 2.99 Å]. The weakly bound sulfur atom formed a bridge [3.20 Å] to a symmetry-related mercury atom to form a helical chain. The chains were connected into a layer via pyridyl-nitrogen bridges to translationally-related molecules, resulting in the undulating assembly shown in Figure 17. This arrangement highlighted the cooperativity between bridging dithiocarbamate-sulfur and pyridyl-nitrogen atoms.

3.4. Structures of Thallium(I)

The eight structures of thallium(I) were homoleptic and conformed to the general formula [Tl(Lx)]n, with all crystals being solvent-free. Two basic structural motifs were observed. The first of these was adopted by a single example only, namely [Tl(L24)]n (53) [45]. As illustrated from the views in Figure 18, the thallium(I) center was chelated by a dithiocarbamate ligand in a symmetric mode [2.97 & 3.04 Å for the first independent molecule and 2.96 & 3.08 Å for the second]. Each independent molecule self-associated about a center of inversion via two additional Tl⋯S interactions [3.06 & 3.30 Å for the first dimer and 3.10 & 3.11 Å for the second dimer]. The sulfur atom forming the longer of the specified Tl⋯S interactions provided a bridge to the second independent dimer [3.41 Å] and in this sense the first dithiocarbamate ligand was penta-connective, whereas the second ligand was tetra-connective. The pairs of dimeric units were connected into a chain via translational symmetry so the resulting topology was somewhat flattened. By contrast to 53, the seven remaining structures adopted a very similar, two-dimensional structural motif.
The second structural motif adopted for [Tl(Lx)]n was found for x = 1 (54), x = 11 (55), x = 13 (56), x = 23 (57) [46], x = 16 (58), x =25 (59) and x = 26 (60) [45]. Indeed, structures 54, 55, 56, and 58 were isostructural, as were the trio of structures 57, 59, and 60. The differentiation between the supramolecular assembly of 53, as compared with 54–60, was the participation of pyridyl-nitrogen atoms, in coordination, in the latter series. This had a crucial result that two-dimensional arrays eventuated. The exemplar structure was that of 54. Here, the thallium(I) center was chelated in a symmetric mode by a dithiocarbamate ligand [2.96 & 3.05 Å], which linked to a centrosymmetrically-related thallium via two additional Tl⋯S contacts [3.22 & 3.33 Å] to form a dimeric aggregate, akin to that seen in 53. Each thallium(I) atom formed an additional Tl⋯S contact that extended laterally [3.50 Å]. Importantly, the pyridyl-nitrogen atom also connected to thallium, ensuring the stability of the two-dimensional array that had an undulating topology. Alternatively, the structure might be described more simply in terms of the chelating dithiocarbamate ligand linked to neighbors via the pyridyl-nitrogen atom, as shown in the top right-hand view of Figure 19. This chain had a distinctive, square-wave topology, and was connected to the array via the aforementioned, second tier Tl⋯S interactions.

3.5. Structures of Organotin(IV)

The nine organotin structures might be conveniently divided into two groups, with the majority not having tin interacting with a pyridyl-nitrogen atom. Three distinct structural motifs were noted among the first five organotin structures and these conformed with literature expectation [62], with the first three examples featuring skew-trapezoidal bipyramidal geometries for tin, i.e., in (nBu)2Sn(L8)2 (61) [47], (nBu)2Sn(L14)2 (62) [48], and Ph2Sn(L14)2 (64) [48]. This is illustrated for 62 in Figure 20a. The tin atom, lying on a 2-fold axis of symmetry, was asymmetrically chelated by two dithiocarbamate ligands [2.52 & 3.01 Å], which define a trapezoidal plane. The organic substituents lay over the weaker Sn⋯S bonds to complete the C2S4-donor set; each of 61 and 64 also manifested a 2-fold symmetry. A recent survey [63] reported that diphenyltin dithiocarbamates adopted such geometries in about one-third of their structures, with the majority being based on cis-C2S4 donor sets with a more symmetric mode of coordination for the dithiocarbamate ligand. This is exemplified in Figure 20b for Ph2Sn(L1)2 (63) [47], which is 2-fold symmetric and has intermediate Sn–S bond lengths [2.59 & 2.68 Å]. The triphenyltin derivative, Ph3Sn(L27) (65) [49], Figure 20c, also conformed to expectation with the dithiocarbamate ligand coordinating in an asymmetric mode [2.46 & 3.06 Å].
A rather unusual multi-functional ligand was evident in L28. Here, there were two dithiocarbamate residues connected in the 2,5-positions of a pyridyl ring that gave rise to a di-anion with multiple coordination sites. In (Ph3Sn)2(L28) (66) [49], each dithiocarbamate ligand asymmetrically chelated a tin atom [2.45 & 3.11 Å and 2.46 & 3.11 Å; the molecule lacked symmetry] resembling the coordination mode in the mono-nuclear species 65. This mode of coordination gave rise to a di-nuclear molecule with an open configuration, as shown in Figure 20d. When the diorganotin centers were introduced in place of the triorganotin species, a cyclic dimer was noted in the crystal of [(PhCH2)2Sn)(L28)]2 (67) [49], as illustrated in Figure 20e. The coordination geometries for the tin atoms (the molecule lacks symmetry) is as described for 61, 62, and 64 above. The Sn–S bonds [2.50 & 2.96 Å and 2.54 & 3.03 Å] for one molecule closely followed that indicated for 62 but, a difference was noted for the second independent tin atom where one ligand coordinated in the expected mode [2.51 & 2.83 Å] but the other was decidedly more asymmetric [2.54 & 3.29 Å]. As for the previous organotin dithiocarbamates, no role in coordination was noted for the pyridyl-nitrogen atom. The two remaining structures were rather exceptional.
The crystallographic asymmetric-unit of [Me2Sn(L14)2]2 (68) [48] comprised two independent molecules. As illustrated in Figure 20f, one molecule adopted the expected skew-trapezoidal pyramidal geometry and this donated one of the pyridyl-nitrogen atoms to the second molecule to form a dimer. The expanded coordination geometry for the second molecule was based on a pentagonal bipyramidal geometry, as the incoming nitrogen atom occupied a position between the less strongly bound sulfur atoms. It is of interest to comment on the systematic changes in geometric parameters. Thus, there was an expansion of the Sn–S bond lengths from the low-coordinate species [2.54 & 2.94 Å and 2.55 & 2.91 Å] to the high-coordinate species [2.58 & 2.94 Å and 2.61 & 3.00 Å], and an expansion of the C–Sn–C angle [143° cf. 153°]. Two independent molecules also comprised the asymmetric-unit of [Ph3Sn(L11)]n (69) [47]. These also behaved differently, emphasizing the enigmatic behavior in these systems. While one molecule adopted the anticipated geometry, as noted for 67, the other formed additional Sn–N interactions to generate the linear chain shown in Figure 20g. The Sn–S bond lengths in the first independent molecule [2.47 & 3.04 Å] were shorter than those for the tin atom in the chain [2.52 & 3.22 Å], reflecting the increased coordination number within the C3NS2-donor set, which defined a skew-trapezoidal bipyramidal geometry with the phenyl groups lying over the longer Sn–S and Sn–N bonds.

3.6. Structures of Bismuth(III)

The final group of structures could also be divided, depending on the mode of supramolecular association. Well known for their anti-cancer potential [64], interest in these compounds largely related to their biological activity. Additionally, the propensity of the homoleptic bismuth dithiocarbamates to aggregate into supramolecular spheres via Bi⋯S interactions [65] is well-documented, reflecting the thiophilic nature of bismuth. This was the case for the first three examples, namely, [Bi(L6)3]2 (70) [50], [Bi(L25)3]2 (71), and [Bi(L28)3]2 (72) [51]. In 70, Figure 21a, the bismuth center was coordinated by three dithiocarbamate ligand [2.70 to 3.22 Å], and centrosymmetrically-related molecules assembled to form a dimer via a pair of Bi⋯S contacts [3.17 Å]. A similar situation pertained for 71 [2.67 to 3.12 Å], Figure 21b, but, there were four intra-dimer Bi⋯S contacts [2 × 3.09 to 3.14 Å] to stabilize the dimer. Simply changing the remote substituent from a chloride in 71 to a bromide, giving [Bi(L29)3]n (73) [51], resulted in a profound change in supramolecular aggregation.
As seen from Figure 21c, there were three chelating dithiocarbamate ligands [2.67 to 3.04 Å] and one of the dithiocarbamate ligands also connected to a translationally-related molecule via the pyridyl-nitrogen atom to generate a linear, one-dimensional arrangement. The resultant NS6-donor was a based on a pentagonal-bipyramidal geometry, with the nitrogen and one sulfur atom occupying the axial positions.

4. Discussion

Among the ubiquitous dithiocarbamate ligands, those carrying pyridyl functionality only formed a small subset. There were 30 different pyridyl-functionalized dithiocarbamate ligands that were characterized in 73 crystal structures. Indeed, crystal structures were only reported for the nickel-, copper-, and zinc-triad elements, along with examples of thallium(I), organotin(IV), and bismuth(III) structures. Approaching half the structures were derived from the zinc-triad elements with a high representation of mercury, including organomercury, structures. The involvement of the pyridyl-nitrogen atom(s) often led to the formation of dimeric aggregates but also one-dimensional chains and two-dimensional arrays. The limited study of these ligands, thus far, clearly indicates there is enormous scope to expand this chemistry, especially that of the main group elements.
Generally, the transition metal structures did not see a role for nitrogen in coordinating the metal center, with the individual structures resembling their non-pyridyl-functionalized congeners. The situation was rather different for the reported main group element structures where participation of the pyridyl-nitrogen atom was often observed to give rise to quite distinct and previously unknown structural motifs and disparate coordination geometries. The coordination of pyridyl-nitrogen notwithstanding, many molecules assembled via M⋯S secondary bonding interactions [66] rather than M–N dative bonding. More perplexing was the problematic formation of the M⋯S secondary bonding versus the M–N dative bonding. These interactions also worked in concert, i.e., cooperated, to form higher dimensional architectures. Additionally, it was noted that a seemingly small change in a non-participating substituent could result in a very different structural motif. The most perplexing observation was the different behavior exhibited by the independent molecules comprising the asymmetric-unit within a crystal, for example, for [Me2Sn(L14)2]2 (68) [48] and [Ph3Sn(L11)]n (69) [47]. This being stated, it is well-established that dithiocarbamate structural chemistry, as revealed by X-ray crystallographic studies, can be quite unpredictable [52,61,62,65,67,68,69]. This present analysis of the structural chemistry of pyridyl-functionalized dithiocarbamate ligands vindicated this conclusion and clearly added to the rich tapestry of structures found for dithiocarbamate ligands.

5. Conclusions

The structural chemistry of pyridyl-functionalized dithiocarbamate ligands is relatively unexplored and given the unpredictable behavior exhibited thus far, competition between the formation of M–N dative bonds and M⋯S secondary bonding interactions, and the appearance of unprecedented structural motifs, further examination of these ligands is clearly warranted. Especially, systematic studies under controlled crystallization conditions are needed.

Funding

This research was funded by Sunway University Sdn Bhd, grant number GRTIN-IRG-01-2021.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data are included in the review article.

Conflicts of Interest

The author declares no conflict of interest.

References

  1. Debus, H. Ueber die Verbindungen der Sulfocarbaminsäure. Justus Liebigs Ann. Chem. 1850, 73, 26–34. [Google Scholar] [CrossRef]
  2. Delépine, M. Metallic salts of dithiocarbamic acids; preparation of isothiocyanates in the aliphatic series. Compt. Rend. 1907, 144, 1125–1127. [Google Scholar]
  3. Coucouvanis, D. The chemistry of the dithioacid and 1,1-dithiolate complexes. In Progress in Inorganic Chemistry; Lippard, S.J., Ed.; John Wiley & Sons: Hoboken, NJ, USA, 1970; Volume 11, pp. 234–371. [Google Scholar] [CrossRef]
  4. Eisenberg, R. Structural systematics of 1,1- and 1,2-dithiolato chelates. In Progress in Inorganic Chemistry; Lippard, S.J., Ed.; John Wiley & Sons: Hoboken, NJ, USA, 1970; Volume 12, pp. 295–369. [Google Scholar] [CrossRef]
  5. Coucouvanis, D. The chemistry of the dithioacid and 1,1-dithiolate complexes, 1968–1977. In Progress in Inorganic Chemistry; Lippard, S.J., Ed.; John Wiley & Sons: Hoboken, NJ, USA, 1979; Volume 26, pp. 301–469. [Google Scholar] [CrossRef]
  6. Hogarth, G. Transition metal dithiocarbamates: 1978–2003. In Progress in Inorganic Chemistry; Karlin, K.D., Ed.; John Wiley & Sons: Hoboken, NJ, USA, 2005; Volume 53, pp. 71–561. [Google Scholar] [CrossRef]
  7. Heard, P.J. Main group dithiocarbamate complexes. In Progress in Inorganic Chemistry; Karlin, K.D., Ed.; John Wiley & Sons: Hoboken, NJ, USA, 2005; Volume 53, pp. 1–69. [Google Scholar] [CrossRef]
  8. Lee, S.M.; Heard, P.J.; Tiekink, E.R.T. Molecular and supramolecular chemistry of mono- and di-selenium analogues of metal dithiocarbamates. Coord. Chem. Rev. 2018, 375, 410–423. [Google Scholar] [CrossRef]
  9. Poplaukhin, P.; Tiekink, E.R.T. (μ-Piperazine-1,4-dicarbodithioato-κ4S,S′:S″,S‴)bis[triphenyltin(IV)] dichloromethane solvate. Acta Crystallogr. Sect. E Crystallogr. Commun. 2008, 64, m1177. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Lee, S.M.; Tiekink, E.R.T. A structural survey of poly-functional dithiocarbamate ligands and the aggregation patterns they sustain. Inorganics 2021, 9, 7. [Google Scholar] [CrossRef]
  11. Yu, S.-Y.; Sun, Q.-F.; Lee, T.K.-M.; Cheng, E.C.-C.; Li, Y.-Z.; Yam, V.W.-W. Au36 crown: A macrocyclization directed by metal-metal bonding interactions. Angew. Chem. Int. Ed. 2008, 47, 4551–4554. [Google Scholar] [CrossRef] [PubMed]
  12. Wang, S.; Xu, J.; Wang, J.; Wang, K.-Y.; Dang, S.; Song, S.; Liu, D.; Wang, C. Luminescence of samarium(III) bis-dithiocarbamate frameworks: Codoped lanthanide emitters that cover visible and near-infrared domains. J. Mater. Chem. C 2017, 5, 6620–6628. [Google Scholar] [CrossRef]
  13. Castillo, M.; Criado, J.J.; Macias, B.; Vaquero, M.V. Chemistry of dithiocarbamate derivatives of amino acids. I. Study of some dithiocarbamate derivatives of linear α-amino acids and their nickel(II) complexes. Inorg. Chim. Acta 1986, 124, 127–132. [Google Scholar] [CrossRef]
  14. Liebing, P.; Witzorke, J.; Oehler, F.; Schmeide, M. Dithiocarbamatocarboxylate (DTCC) ligands—building blocks for hard/soft-heterobimetallic coordination polymers. Inorg. Chem. 2020, 59, 2825–2832. [Google Scholar] [CrossRef]
  15. Taylor, R.; Wood, P.A. A million crystal structures: The whole is greater than the sum of its parts. Chem. Rev. 2019, 119, 9427–9477. [Google Scholar] [CrossRef]
  16. Bruno, I.J.; Cole, J.C.; Edgington, P.R.; Kessler, M.; Macrae, C.F.; McCabe, P.; Pearson, J.; Taylor, R. New software for searching the Cambridge Structural Database and visualizing crystal structures. Acta Crystallogr. Sect. B Struct. Sci. Cryst. Eng. Mater. 2002, 58, 389–397. [Google Scholar] [CrossRef]
  17. Brandenburg, K.; Berndt, M. DIAMOND, Version 3.2k; GbR: Bonn, Germany, 2006. [Google Scholar]
  18. Rajput, G.; Singh, V.; Gupta, A.N.; Yadav, M.K.; Kumar, V.; Singh, S.K.; Prasad, A.; Drew, M.G.B.; Singh, N. Unusual C–H⋯Ni anagostic interactions in new homoleptic Ni(II) dithio complexes. CrystEngComm 2013, 15, 4676–4683. [Google Scholar] [CrossRef]
  19. Halimehjani, A.Z.; Torabi, S.; Amani, V.; Notash, B.; Saidi, M.R. Synthesis and characterization of metal dithiocarbamate derivatives of 3-((pyridin-2-yl)methylamino)propanenitrile: Crystal structure of [3-((pyridin-2-yl)methylamino)propanenitrile dithiocarbamato] nickel(II). Polyhedron 2015, 102, 643–648. [Google Scholar] [CrossRef]
  20. Yadav, M.K.; Rajput, G.; Prasad, L.B.; Drew, M.G.B.; Singh, N. Rare intermolecular M⋯H–C anagostic interactions in homoleptic Ni(II)–Pd(II) dithiocarbamate complexes. Polyhedron 2015, 39, 5493–5499. [Google Scholar] [CrossRef]
  21. Kumar, V.; Singh, V.; Gupta, A.N.; Singh, S.K.; Drew, M.G.B.; Singh, N. Cooperative influence of ligand frameworks in sustaining supramolecular architectures of Ni(II)/Pd(II) heteroleptic dithio-dipyrrin complexes via non-covalent interactions. Polyhedron 2015, 89, 304–312. [Google Scholar] [CrossRef]
  22. Gupta, A.N.; Kumar, V.; Singh, V.; Manar, K.K.; Drew, M.G.B.; Singh, N. Intermolecular anagostic interactions in group 10 metal dithiocarbamates. CrystEngComm 2014, 16, 9299–9307. [Google Scholar] [CrossRef]
  23. Khan, S.Z.; Zia-ur-Rehman; Butler, I.S.; Bélanger-Gariepy, F. New ternary palladium(II) complexes: Synthesis, characterization, in vitro anticancer and antioxidant activities. Inorg. Chem. Commun. 2019, 105, 140–146. [Google Scholar] [CrossRef]
  24. Poirier, S.; Rahmani, F.; Reber, C. Large d–d luminescence energy variations in square-planar bis(dithiocarbamate) platinum(II) and palladium(II) complexes with near-identical MS4 motifs: A variable-pressure study. Dalton Trans. 2017, 46, 5279–5287. [Google Scholar] [CrossRef] [PubMed]
  25. Poirier, S.; Roberts, R.J.; Le, D.; Leznoff, D.B.; Reber, C. Interpreting effects of structure variations induced by temperature and pressure on luminescence spectra of platinum(II) bis(dithiocarbamate) compounds. Inorg. Chem. 2015, 54, 3728–3735. [Google Scholar] [CrossRef]
  26. Imran, M.; Zia-ur-Rehman; Kondratyuk, T.; Bélanger-Gariepy, F. New ternary platinum(II) dithiocarbamates: Synthesis, characterization, anticancer, DNA binding and DNA denaturing studies. Inorg. Chem. Commun. 2019, 103, 12–20. [Google Scholar] [CrossRef]
  27. Gupta, A.N.; Singh, V.; Kumar, V.; Rajput, A.; Singh, L.; Drew, M.G.B.; Singh, N. Syntheses, crystal structures and conducting properties of new homoleptic copper(II) dithiocarbamate complexes. Inorg. Chim. Acta 2013, 408, 145–151. [Google Scholar] [CrossRef]
  28. Lanfredi, A.M.M.; Ugozzoli, F.; Camus, A. X-ray crystal structure of the copper(II)bis(2,2′-dipyridyl)dithiocarbamate, produced by an unusual reaction of CS2 with Cu−N bonds. J. Chem. Crystallogr. 1996, 26, 141–145. [Google Scholar] [CrossRef]
  29. Rajput, G.; Singh, V.; Singh, S.K.; Prasad, L.B.; Drew, M.G.B.; Singh, N. Cooperative metal–ligand-induced properties of heteroleptic copper(I) xanthate/dithiocarbamate PPh3 complexes. Eur. J. Inorg. Chem. 2012, 3885–3891. [Google Scholar] [CrossRef]
  30. Gupta, A.N.; Singh, V.; Kumar, V.; Prasad, L.B.; Drew, M.G.B.; Singh, N. Syntheses, crystal structures and optical properties of heteroleptic copper(I) dithio/PPh3 complexes. Polyhedron 2014, 79, 324–329. [Google Scholar] [CrossRef]
  31. Singh, A.K.; Yadav, C.L.; Mishra, K.B.; Singh, S.K.; Gupta, A.N.; Tiwari, V.K.; Drew, M.G.B.; Singh, N. Highly efficient and recyclable pre-catalysts based on mono- and dinuclear heteroleptic Cu(I) dithio-PPh3 complexes to produce variety of glycoconjugate triazoles. Mol. Catal. 2019, 470, 152–163. [Google Scholar] [CrossRef]
  32. Kumar, V.; Singh, V.; Gupta, A.N.; Manar, K.K.; Prasad, L.B.; Drew, M.G.B.; Singh, N. Influence of ligand environment on the structure and properties of silver(I) dithiocarbamate cluster-based coordination polymers and dimers. New J. Chem. 2014, 38, 4478–4485. [Google Scholar] [CrossRef]
  33. Roberts, R.J.; Bélanger-Desmarais, N.; Reber, C.; Leznoff, D.B. The luminescence properties of linear vs. kinked aurophilic 1-D chains of bis(dithiocarbamato)gold(I) dimers. Chem. Commun. 2014, 50, 3148–3150. [Google Scholar] [CrossRef] [PubMed]
  34. Han, S.; Jung, O.-S.; Lee, Y.-A. Adduct effects on structure and luminescence in a series of new dithiocarbamatogold(I) complexes. Transit. Met. Chem. 2011, 36, 691–697. [Google Scholar] [CrossRef]
  35. Singh, V.; Kumar, V.; Gupta, A.N.; Drew, M.G.B.; Singh, N. Effect of pyridyl substituents leading to the formation of green luminescent mercury(II) coordination polymers, zinc(II) dimers and a monomer. New J. Chem. 2014, 38, 3737–3748. [Google Scholar] [CrossRef]
  36. Kumar, V.; Manar, K.K.; Gupta, A.N.; Singh, V.; Drew, M.G.B.; Singh, N. Impact of ferrocenyl and pyridyl groups attached to dithiocarbamate moieties on crystal structures and luminescent characteristics of group 12 metal complexes. J. Organomet. Chem. 2016, 820, 62–69. [Google Scholar] [CrossRef]
  37. Poplaukhin, P.; Arman, H.D.; Tiekink, E.R.T. A one-dimensional coordination polymer, catena-poly[[[[N-ethyl-N-(pyridin-4-ylmethyl)dithiocarbamato-κ2S,S′]zinc(II)]-μ2-N-ethyl-N-(pyridin-4-ylmethyl)dithiocarbamato-κ3S,S′:N] 4-methyl­pyridine hemisolvate]. Acta Crystallogr. Sect. E Cryst. Commun. 2017, 72, 1162–1166. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Manar, K.K.; Neetu; Anamika; Srivastava, P.; Drew, M.G.B.; Singh, N. A new series of heteroleptic Cd(II) diimine-ferrocenyl dithiocarbamate complexes which successfully co-sensitizes TiO2 photoanode with Ru N719 dye in DSSC. Chem. Sel. 2017, 2, 8301–8311. [Google Scholar] [CrossRef]
  39. Singh, V.; Kumar, V.; Gupta, A.N.; Drew, M.G.B.; Singh, N. Influence of ligand environments on the structures and luminescence properties of homoleptic cadmium(II) pyridyl functionalized dithiocarbamates. CrystEngComm 2014, 16, 6765–6774. [Google Scholar] [CrossRef]
  40. Arman, H.D.; Poplaukhin, P.; Tiekink, E.R.T. A two-dimensional coordination polymer: Poly[[bis[μ2-N-ethyl-N-(pyridin-4-ylmethyl)dithiocarbamato-κ3N:S,S′]cadmium(II)] 3-methylpyridine monosolvate]. Acta Crystallogr. Sect. E Cryst. Commun. 2017, 73, 488–492. [Google Scholar] [CrossRef] [Green Version]
  41. Singh, V.; Kumar, A.; Prasad, R.; Rajput, G.; Drew, M.G.B.; Singh, N. The interplay of secondary Hg⋯S, Hg⋯N and Hg⋯π bonding interactions in supramolecular structures of phenylmercury(II) dithiocarbamates. CrystEngComm 2011, 13, 6817–6826. [Google Scholar] [CrossRef]
  42. Rajput, G.; Yadav, M.K.; Thakur, T.S.; Drew, M.G.B.; Singh, N. Versatile coordination environment and interplay of metal assisted secondary interactions in the organization of supramolecular motifs in new Hg(II)/PhHg(II) dithiolates. Polyhedron 2014, 69, 225–233. [Google Scholar] [CrossRef]
  43. Yadav, M.K.; Rajput, G.; Gupta, A.N.; Kumar, V.; Drew, M.G.B.; Singh, N. Exploring the coordinative behaviour and molecular architecture of new PhHg(II)/Hg(II) dithiocarbamate complexes. Inorg. Chim. Acta 2014, 241, 210–217. [Google Scholar] [CrossRef]
  44. Singh, V.; Chauhan, R.; Kumar, A.; Bahadur, L.; Singh, N. Efficient phenylmercury(II) methylferrocenyldithiocarbamate functionalized dye-sensitized solar cells. Dalton Trans. 2010, 39, 9779–9788. [Google Scholar] [CrossRef] [PubMed]
  45. Manar, K.K.; Rajput, G.; Yadav, M.K.; Yadav, C.L.; Kumari, M.; Drew, M.G.B.; Singh, N. Potential impact of substituents on the crystal structures and properties of Tl(I) ferrocenyl/picolyl-functionalized dithiocarbamates; Tl⋯H-C anagostic interactions. Chem. Sel. 2016, 1, 5733–5742. [Google Scholar] [CrossRef]
  46. Kumar, V.; Singh, V.; Gupta, A.N.; Drew, M.G.B.; Singh, N. Intermolecular Tl⋯H–C anagostic interactions in luminescent pyridyl functionalized thallium(I) dithiocarbamates. Daltons Trans. 2015, 44, 1716–1723. [Google Scholar] [CrossRef] [PubMed]
  47. Gupta, A.N.; Kumar, V.; Singh, V.; Rajput, A.; Prasad, L.B.; Drew, M.G.B.; Singh, N. Influence of functionalities on the structure and luminescent properties of organotin(IV) dithiocarbamate complexes. J. Organomet. Chem. 2015, 787, 65–72. [Google Scholar] [CrossRef]
  48. Barba, V.; Arenaza, B.; Guerrero, J.; Reyes, R. Synthesis and structural characterization of diorganotin dithiocarbamates from 4-(ethylaminomethyl)pyridine. Heteroat. Chem. 2012, 23, 422–428. [Google Scholar] [CrossRef]
  49. Yu, Y.; Yang, H.; Wei, Z.-W.; Tang, L.-F. Synthesis, structure, and fungicidal activity of organotin dithiocarbamates derived from pyridinamines and aryl diamines. Heteroat. Chem. 2014, 25, 274–281. [Google Scholar] [CrossRef]
  50. Guo, Y.-C.; Ma, Q.-G.; Chen, S.-Y.; Feng, Y.-Q.; Sun, R.-Z. Syntheses, crystal structures and anticancer activities of dithiocarbamate bismuth(Ⅲ) complexes. Chin. J. Struct. Chem. 2015, 34, 1028–1034. [Google Scholar] [CrossRef]
  51. Anamika; Singh, R.; Manar, K.K.; Yadav, C.L.; Kumar, A.; Singh, R.K.; Drew, M.G.B.; Singh, N. Impact of substituents on the crystal structures and anti-leishmanial activity of new homoleptic Bi(III) dithiocarbamates. New J. Chem. 2019, 43, 16921–16931. [Google Scholar] [CrossRef]
  52. Tiekink, E.R.T. Perplexing coordination behaviour of potentially bridging bipyridyl-type ligands in the coordination chemistry of zinc and cadmium 1,1-dithiolate compounds. Crystals 2018, 8, 18. [Google Scholar] [CrossRef] [Green Version]
  53. Poirier, S.; Lynn, H.; Reber, C.; Tailleur, E.; Marchivie, M.; Guionneau, P.; Probert, M.R. Variation of M···H-C interactions in square-planar complexes of nickel(II), palladium(II), and platinum(II) probed by luminescence spectroscopy and X-ray diffraction at variable pressure. Inorg. Chem. 2018, 57, 7713–7723. [Google Scholar] [CrossRef] [Green Version]
  54. Tiekink, E.R.T. The remarkable propensity for the formation of C–H⋯π(chelate ring) interactions in the crystals of the first-row transition metal dithiocarbamates and the supramolecular architectures they sustain. CrystEngComm 2020, 22, 7308–7333. [Google Scholar] [CrossRef]
  55. Spek, A.L. checkCIF validation ALERTS: What they mean and how to respond. Acta Crystallogr. Sect. E Cryst. Commun. 2020, 76, 1–11. [Google Scholar] [CrossRef] [Green Version]
  56. Jamaludin, N.S.; Halim, S.N.A.; Khoo, C.-H.; Chen, B.-J.; See, T.-H.; Sim, J.-H.; Cheah, Y.-K.; Seng, H.-L.; Tiekink, E.R.T. Bis(phosphane)copper(I) and silver(I) dithiocarbamates: Crystallography and anti-microbial assay. Z. Kristallogr. 2016, 231, 341–349. [Google Scholar] [CrossRef] [Green Version]
  57. Tan, Y.J.; Tan, Y.S.; Yeo, C.I.; Chew, J.; Tiekink, E.R.T. In Vitro anti-bacterial and time kill evaluation of binuclear tricyclohexylphosphanesilver(I) dithiocarbamates, {Cy3PAg(S2CNRR′)}2. J. Inorg. Biochem. 2019, 192, 107–118. [Google Scholar] [CrossRef] [PubMed]
  58. Tiekink, E.R.T.; Kang, J.-G. Luminescence properties of phosphinegold(I) halides and thiolates. Coord. Chem. Rev. 2009, 253, 1627–1648. [Google Scholar] [CrossRef]
  59. Shattock, R.T.; Arora, K.K.; Vishweshwar, P.; Zaworotko, M.J. Hierarchy of supramolecular synthons: Persistent carboxylic acid···pyridine hydrogen bonds in cocrystals that also contain a hydroxyl moiety. Cryst. Growth Des. 2008, 8, 4533–4545. [Google Scholar] [CrossRef]
  60. Tiekink, E.R.T. Supramolecular assembly of molecular gold(I) compounds: An evaluation of the competition and complementarity between aurophilic (Au⋯Au) and conventional hydrogen bonding interactions. Coord. Chem. Rev. 2014, 275, 130–153. [Google Scholar] [CrossRef]
  61. Tiekink, E.R.T. Exploring the topological landscape exhibited by binary zinc-triad 1,1-dithiolates. Crystals 2018, 8, 292. [Google Scholar] [CrossRef] [Green Version]
  62. Tiekink, E.R.T. Tin dithiocarbamates: Applications and structures. Appl. Organomet. Chem. 2008, 22, 533–550. [Google Scholar] [CrossRef]
  63. Haezam, F.N.; Awang, N.; Kamaludin, N.F.; Jotani, M.M.; Tiekink, E.R.T. (N,N-Diallyldithiocarbamato-κ2S,S′)triphenyltin(IV) and bis(N,N-diallyldithiocarbamato-κ2S,S′)diphenyltin(IV): Crystal structure, Hirshfeld surface analysis and computational study. Acta Crystallogr. Sect. E Crystallogr. Commun. 2020, 76, 167–176. [Google Scholar] [CrossRef]
  64. Li, H.; Lai, C.S.; Wu, J.; Ho, P.C.; de Vos, D.; Tiekink, E.R.T. Cytotoxicity, qualitative structure-activity relationship (QSAR), and anti-tumor activity of bismuth dithiocarbamate complexes. J. Inorg. Biochem. 2007, 101, 809–816. [Google Scholar] [CrossRef]
  65. Lai, C.S.; Tiekink, E.R.T. Prevalence of intermolecular Bi…S interactions in bismuth dithiocarbamate compounds: Bi(S2CNR2)3. Z. Kristallogr. 2007, 222, 532–538. [Google Scholar] [CrossRef]
  66. Alcock, N.W. Secondary bonding to nonmetallic elements. Adv. Inorg. Chem. Radiochem. 1972, 15, 1–58. [Google Scholar] [CrossRef]
  67. Liu, Y.; Tiekink, E.R.T. Supramolecular associations in binary antimony(III) dithiocarbamates: Influence of ligand steric bulk, influence on coordination geometry, and competition with hydrogen bonding. CrystEngComm 2005, 7, 20–27. [Google Scholar] [CrossRef]
  68. Tiekink, E.R.T. Aggregation patterns in the crystal structures of organometallic Group XV 1,1-dithiolates: The influence of the Lewis acidity of the central atom, metal- and ligand-bound steric bulk, and coordination potential of the 1,1-dithiolate ligands upon supramolecular architecture. CrystEngComm 2006, 8, 104–118. [Google Scholar] [CrossRef]
  69. Tiekink, E.R.T.; Zukerman-Schpector, J. Stereochemical activity of lone pairs of electrons and supramolecular aggregation patterns based on secondary interactions involving tellurium in its 1,1-dithiolate structures. Coord. Chem. Rev. 2010, 254, 46–76. [Google Scholar] [CrossRef]
Crystals 11 00286 sch001 550

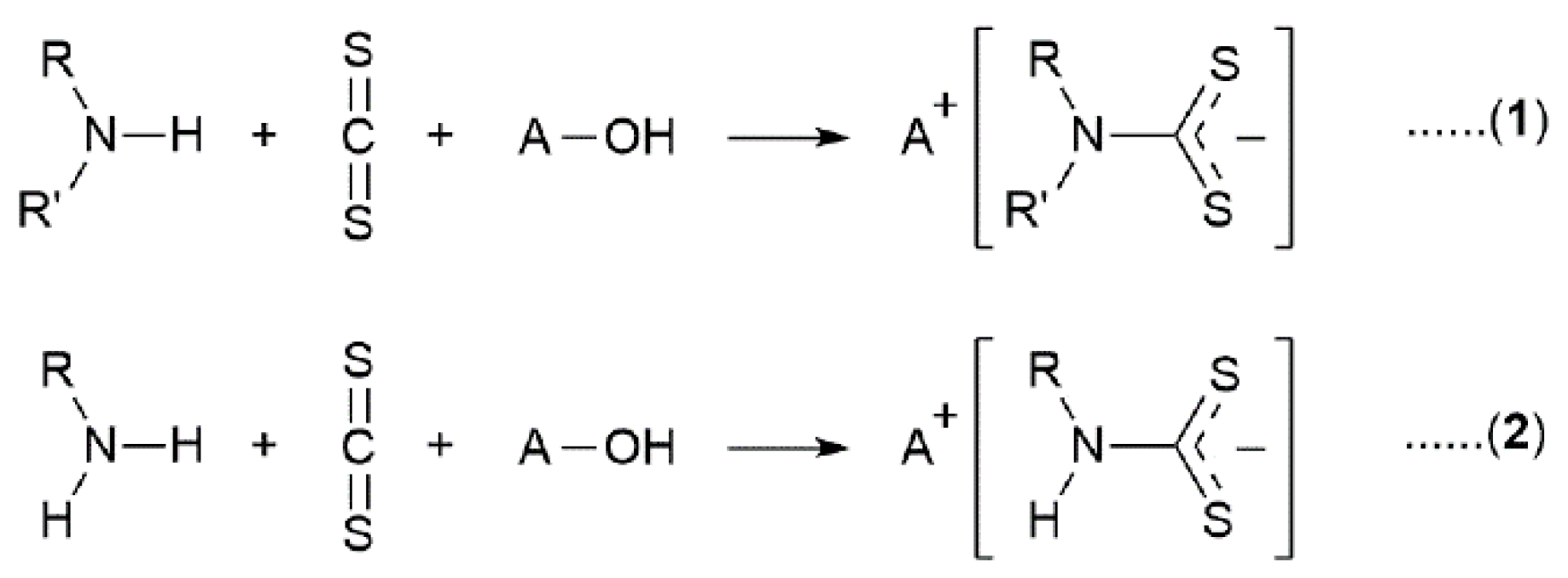

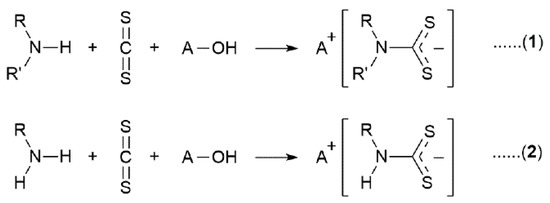

Scheme 1. Preparation of dithiocarbamate ligands from secondary (Equation (1)) and primary (Equation (2)) amines. R, R′ = alkyl, aryl, and A = alkali metal or ammonium salt.
Scheme 1. Preparation of dithiocarbamate ligands from secondary (Equation (1)) and primary (Equation (2)) amines. R, R′ = alkyl, aryl, and A = alkali metal or ammonium salt.
Crystals 11 00286 sch001
Crystals 11 00286 g001 550

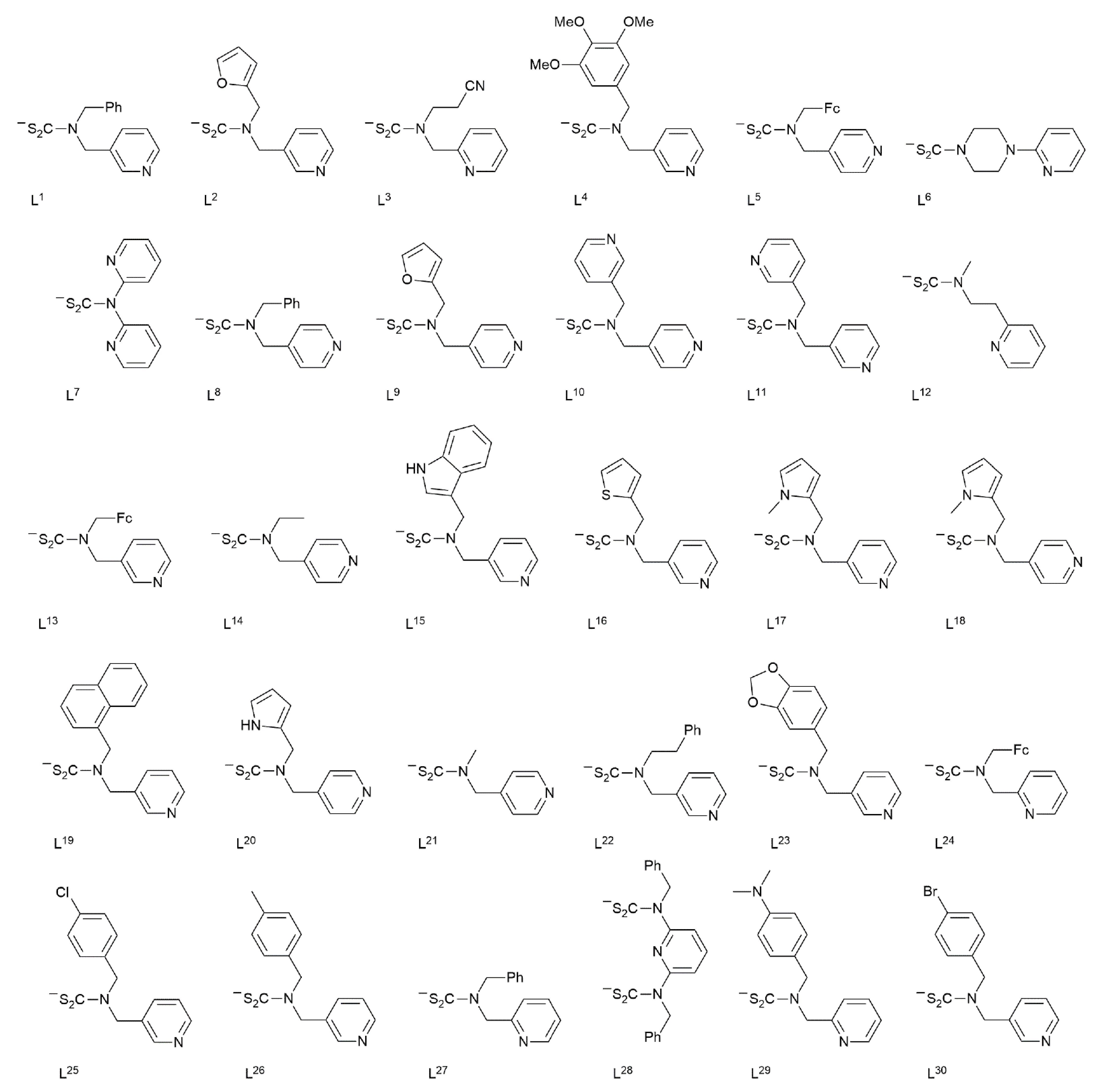

Figure 1. Chemical diagrams for pyridyl-functionalized dithiocarbamate anions L1 to L30. Fc = (C5H4)Fe(C5H5), ferrocenyl.
Figure 1. Chemical diagrams for pyridyl-functionalized dithiocarbamate anions L1 to L30. Fc = (C5H4)Fe(C5H5), ferrocenyl.
Crystals 11 00286 g001
Crystals 11 00286 g002 550

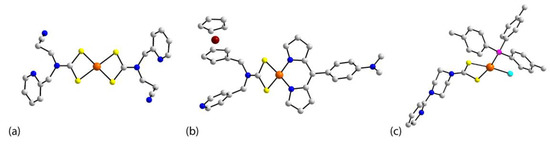

Figure 2. Molecular structures for (a) Ni(L3)2 (3), (b) (NN1)Ni(L5) (5), and (c) [(4-tol)3P]Pd(L6)Cl (7). Color code in this and subsequent diagrams—the central metal atom is shown in orange; other heavy element, brown; chloride, cyan; sulfur, yellow; phosphorus, purple; nitrogen, blue; and carbon, grey. Generally, hydrogen atoms are omitted for clarity.
Figure 2. Molecular structures for (a) Ni(L3)2 (3), (b) (NN1)Ni(L5) (5), and (c) [(4-tol)3P]Pd(L6)Cl (7). Color code in this and subsequent diagrams—the central metal atom is shown in orange; other heavy element, brown; chloride, cyan; sulfur, yellow; phosphorus, purple; nitrogen, blue; and carbon, grey. Generally, hydrogen atoms are omitted for clarity.
Crystals 11 00286 g002
Crystals 11 00286 g003 550

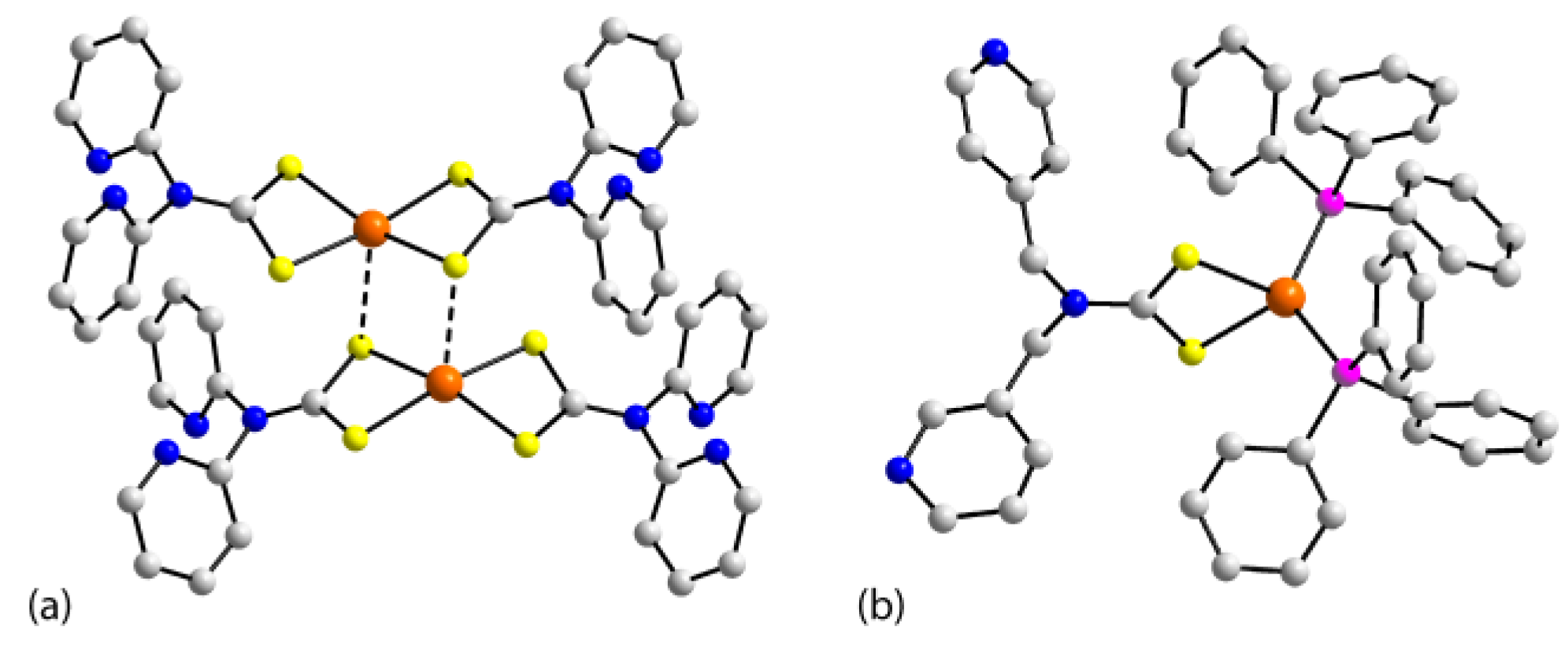

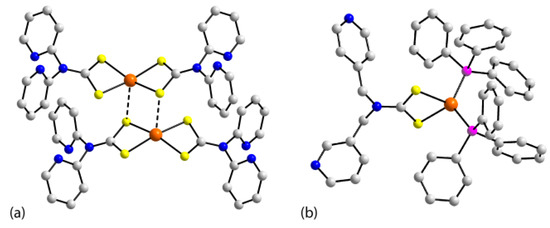

Figure 3. Molecular structures for (a) Cu(L7)2 (12) (showing supramolecular association via Cu⋯S interactions between centrosymmetrically-related molecules) and (b) (Ph3P)2Cu(L10) (15).
Figure 3. Molecular structures for (a) Cu(L7)2 (12) (showing supramolecular association via Cu⋯S interactions between centrosymmetrically-related molecules) and (b) (Ph3P)2Cu(L10) (15).
Crystals 11 00286 g003

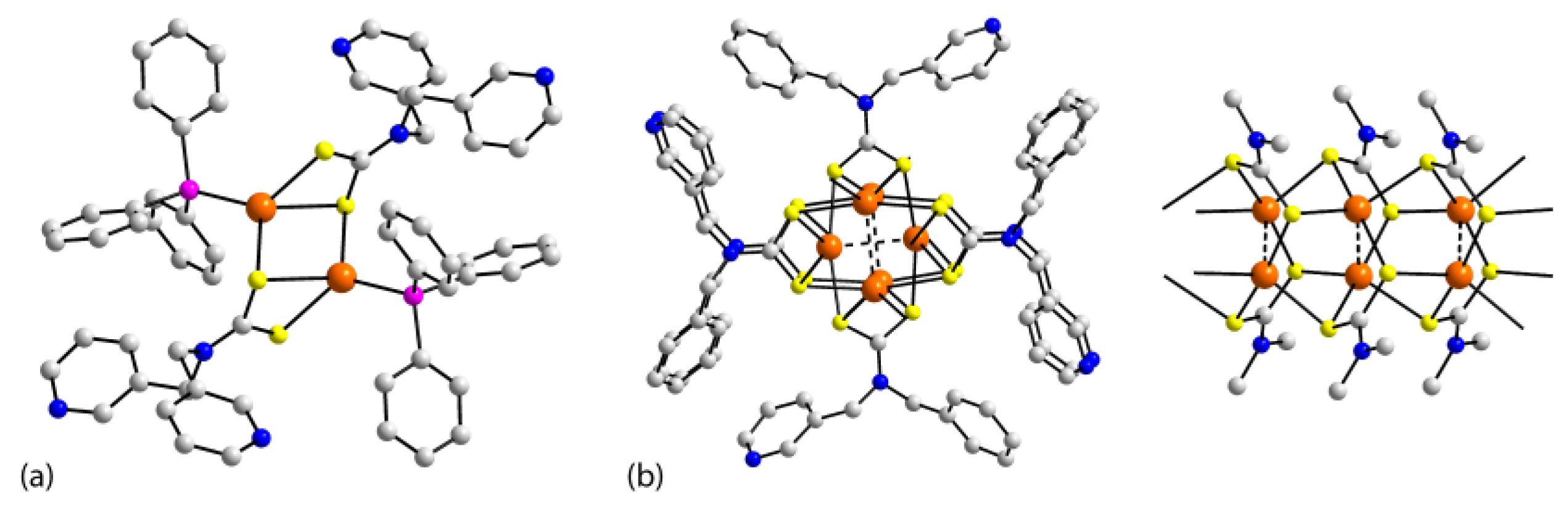

Crystals 11 00286 g004 550

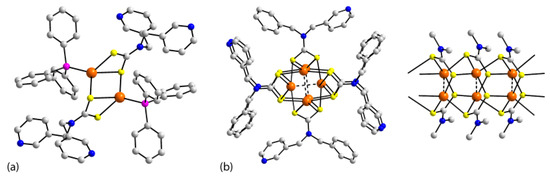

Figure 4. (a) Molecular structure for [(Ph3P)Ag(L11)]2 (17) and (b) two views of the 1-D supramolecular chain in [Ag(L1)]n (18); in the right-hand image, all but the α-carbon atoms of the dithiocarbamate residues were removed. The dashed lines indicate M⋯M interactions, in this case M = Ag with the separation being 2.89 Å.
Figure 4. (a) Molecular structure for [(Ph3P)Ag(L11)]2 (17) and (b) two views of the 1-D supramolecular chain in [Ag(L1)]n (18); in the right-hand image, all but the α-carbon atoms of the dithiocarbamate residues were removed. The dashed lines indicate M⋯M interactions, in this case M = Ag with the separation being 2.89 Å.
Crystals 11 00286 g004
Crystals 11 00286 g005 550

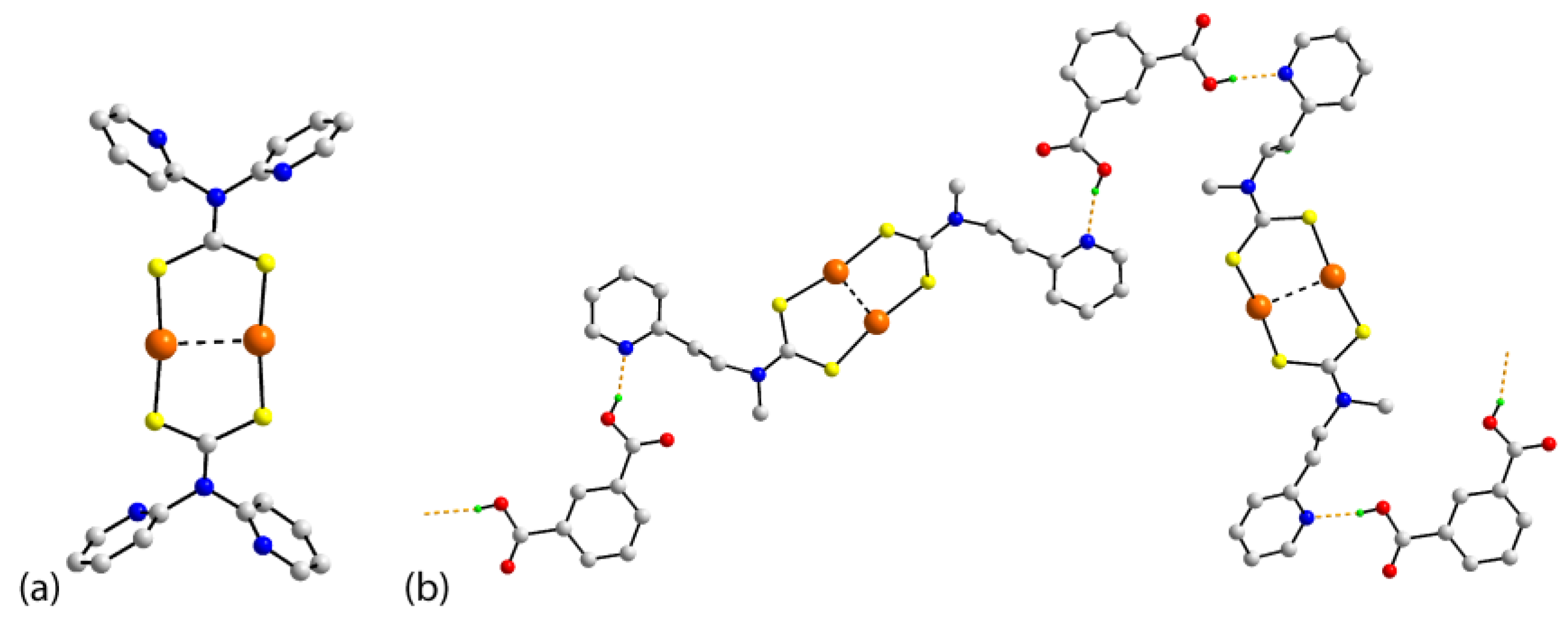

Figure 5. (a) Molecular structure for [Au(L7)]2 (20) and (b) supramolecular aggregation in the crystal of 21, being a 1:1 co-crystal of [Au(L12)]2 and isophthalic acid. Additional color code: oxygen, red. The orange dashed lines indicate hydroxyl-O–H⋯N(pyridyl) hydrogen bonds leading to a twisted supramolecular chain.
Figure 5. (a) Molecular structure for [Au(L7)]2 (20) and (b) supramolecular aggregation in the crystal of 21, being a 1:1 co-crystal of [Au(L12)]2 and isophthalic acid. Additional color code: oxygen, red. The orange dashed lines indicate hydroxyl-O–H⋯N(pyridyl) hydrogen bonds leading to a twisted supramolecular chain.
Crystals 11 00286 g005
Crystals 11 00286 g006 550
Figure 6. (a) The centrosymmetric, dimeric aggregate formed by [Zn(L1)2]2 in (22) and (b) supramolecular chain formed by [Zn(L14)2]n. in the crystal of 24.
Figure 6. (a) The centrosymmetric, dimeric aggregate formed by [Zn(L1)2]2 in (22) and (b) supramolecular chain formed by [Zn(L14)2]n. in the crystal of 24.
Crystals 11 00286 g006
Crystals 11 00286 g007 550

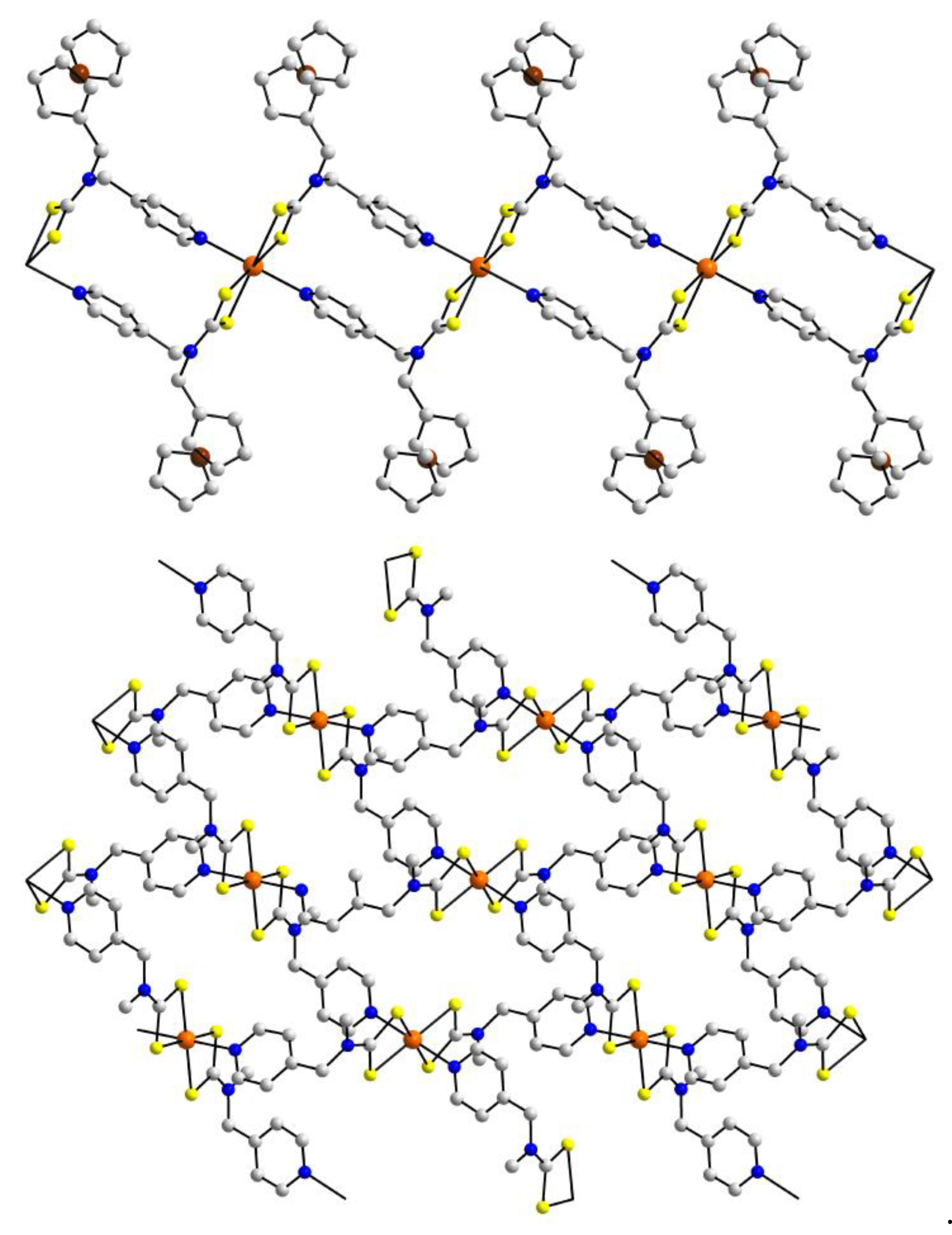

Figure 7. Two views of the two-dimensional array formed by [Zn(L5)2]2 in the crystal of 25. In the lower view, only the α-carbon atom of the ferrocenyl (Fc) substituent is shown.
Figure 7. Two views of the two-dimensional array formed by [Zn(L5)2]2 in the crystal of 25. In the lower view, only the α-carbon atom of the ferrocenyl (Fc) substituent is shown.
Crystals 11 00286 g007

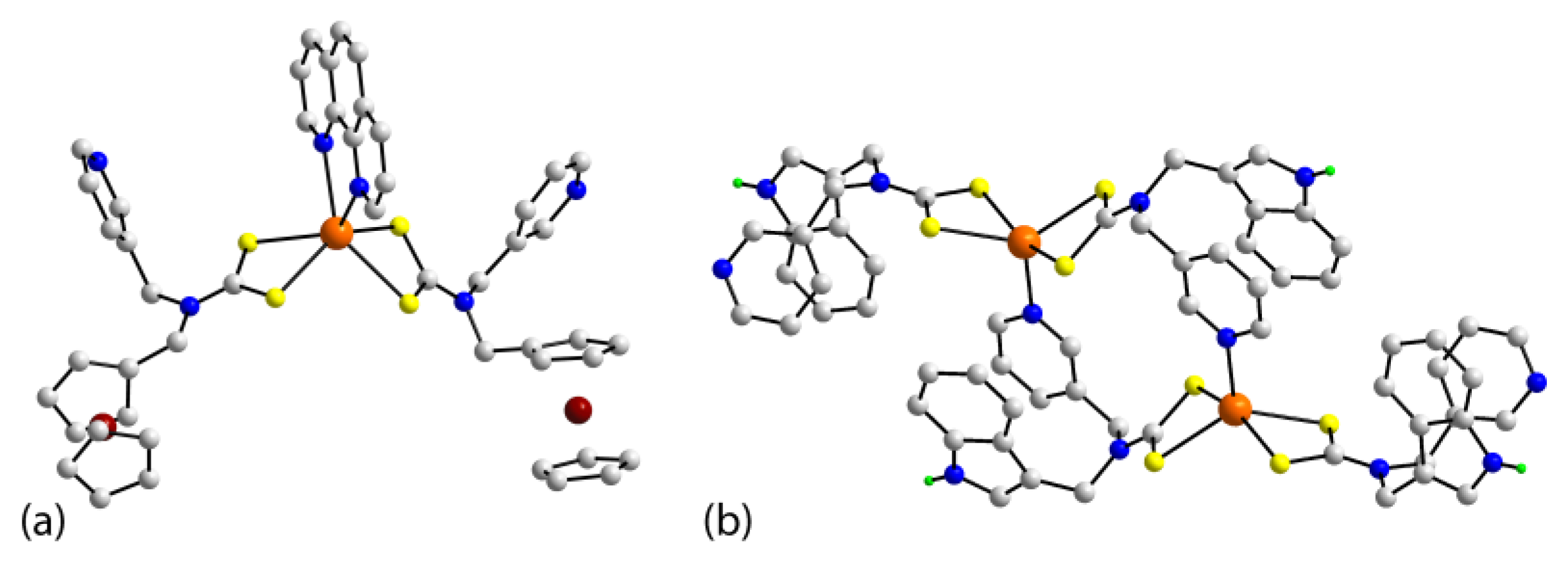

Crystals 11 00286 g008 550
Figure 8. Molecular structures of (a) mononuclear Cd(L13)2(1,10-phenanthroline) (27) and (b) di-nuclear and centrosymmetric [Cd(L15)2]2 in (29). Additional color code—hydrogen, green.

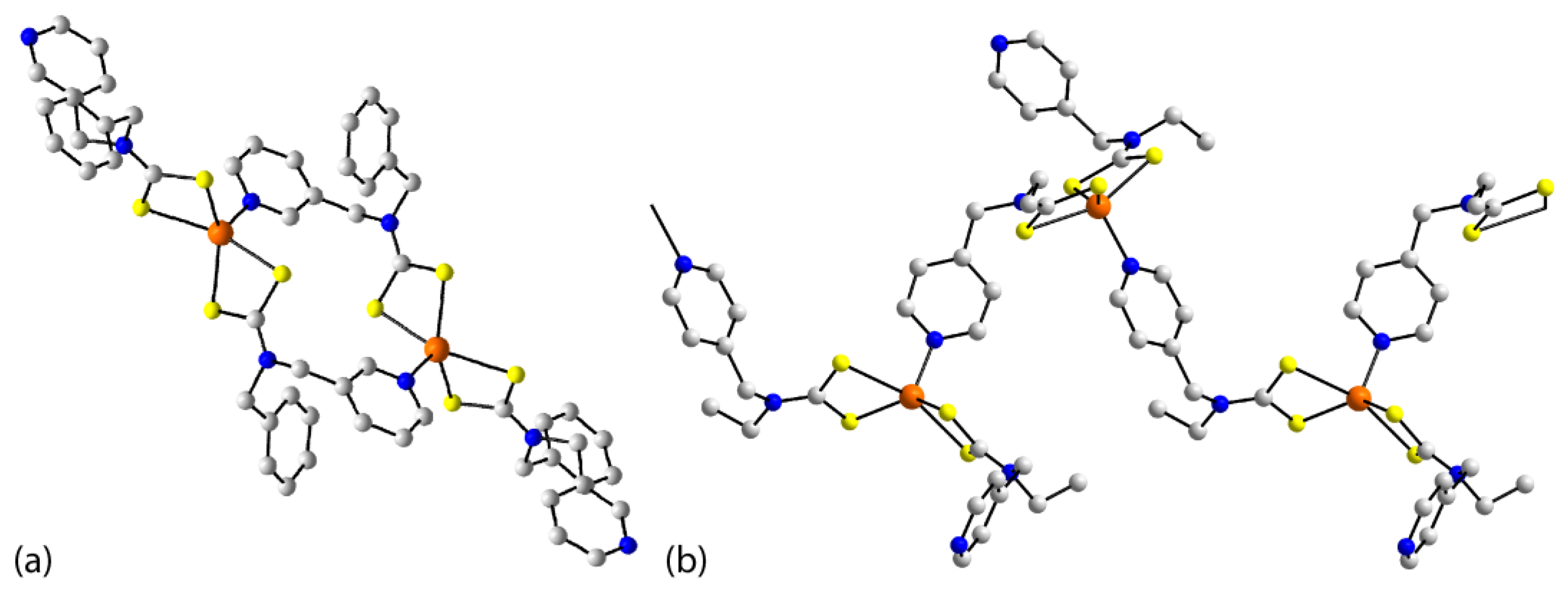

Figure 8. Molecular structures of (a) mononuclear Cd(L13)2(1,10-phenanthroline) (27) and (b) di-nuclear and centrosymmetric [Cd(L15)2]2 in (29). Additional color code—hydrogen, green.
Crystals 11 00286 g008
Crystals 11 00286 g009 550

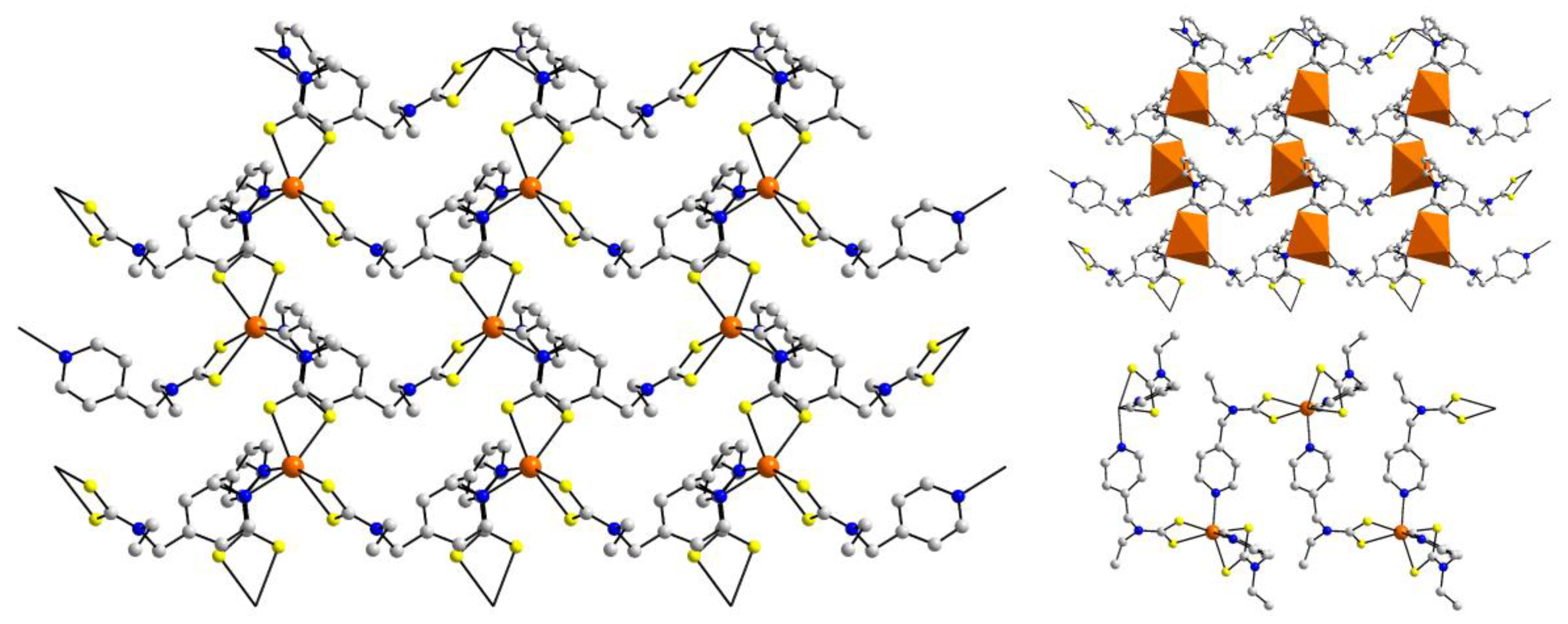

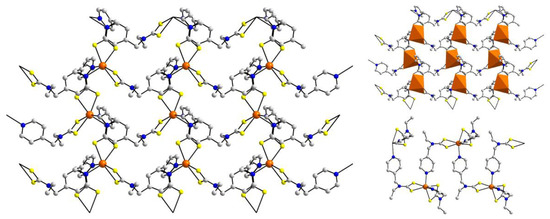

Figure 9. Plan and side-on views of the two-dimensional array in the crystals of [Cd(L14)2]n (30); one of the plan views highlights the relative disposition of the cadmium atom coordination polyhedra.
Figure 9. Plan and side-on views of the two-dimensional array in the crystals of [Cd(L14)2]n (30); one of the plan views highlights the relative disposition of the cadmium atom coordination polyhedra.
Crystals 11 00286 g009
Crystals 11 00286 g010 550

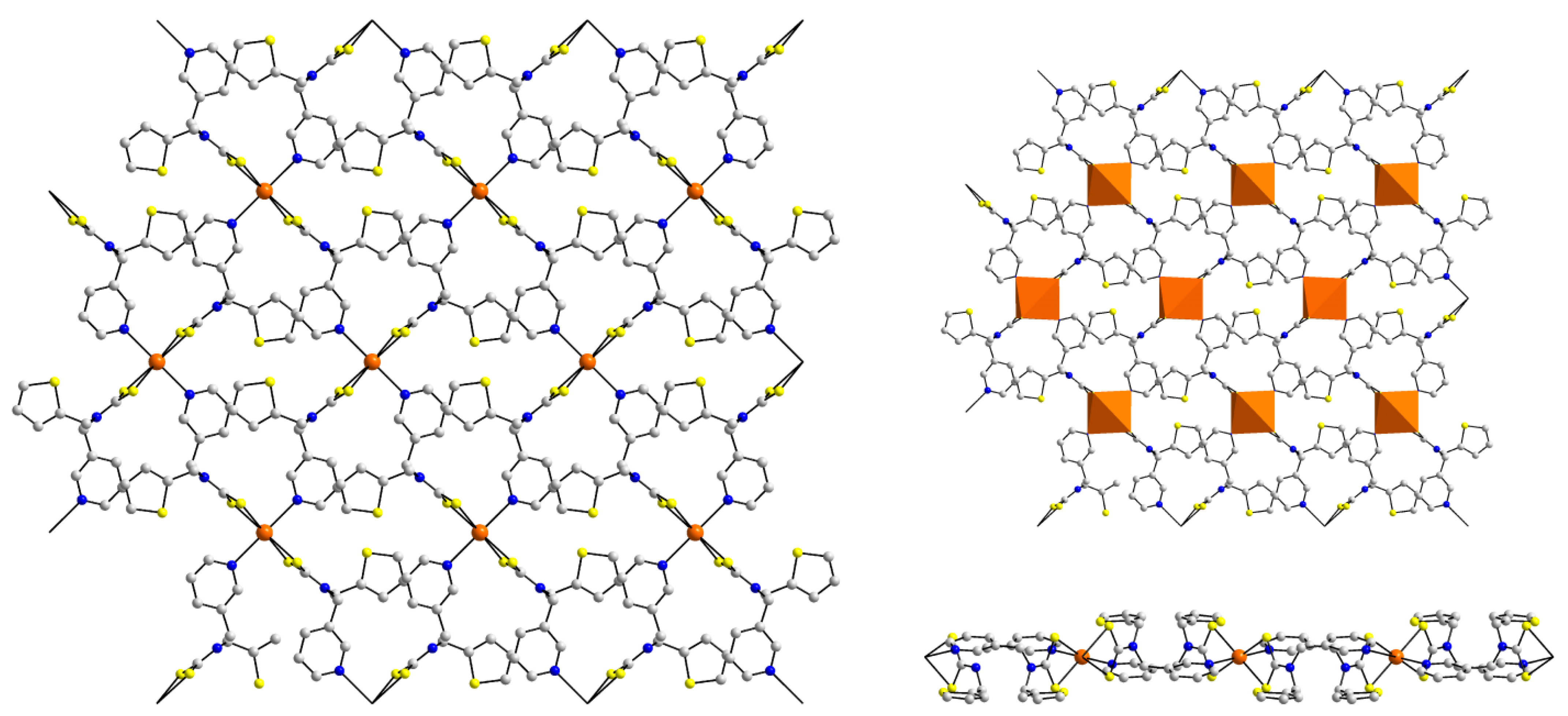

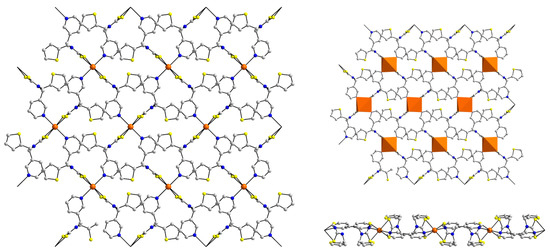

Figure 10. Plan and side-on views of the two-dimensional array in the crystals of [Cd(L16)2]n (33); one plan view highlights the hexagonal pattern of the coordination polyhedra.
Figure 10. Plan and side-on views of the two-dimensional array in the crystals of [Cd(L16)2]n (33); one plan view highlights the hexagonal pattern of the coordination polyhedra.
Crystals 11 00286 g010
Crystals 11 00286 g011 550

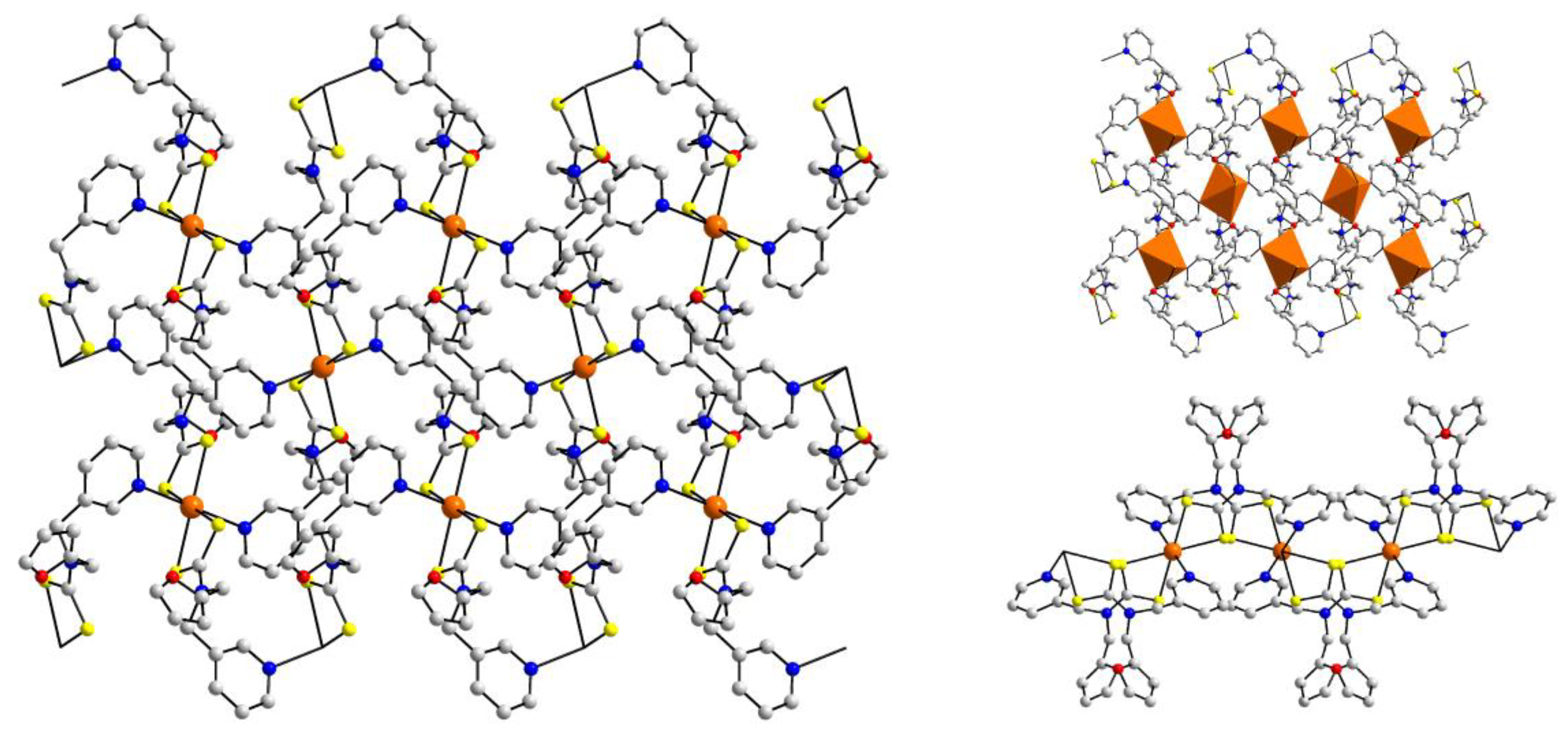

Figure 11. Plan and side-on views of the two-dimensional array in the crystals of [Cd(L2)2]n (35); one plan view highlights the arrangement of the coordination polyhedra.
Figure 11. Plan and side-on views of the two-dimensional array in the crystals of [Cd(L2)2]n (35); one plan view highlights the arrangement of the coordination polyhedra.
Crystals 11 00286 g011
Crystals 11 00286 g012 550

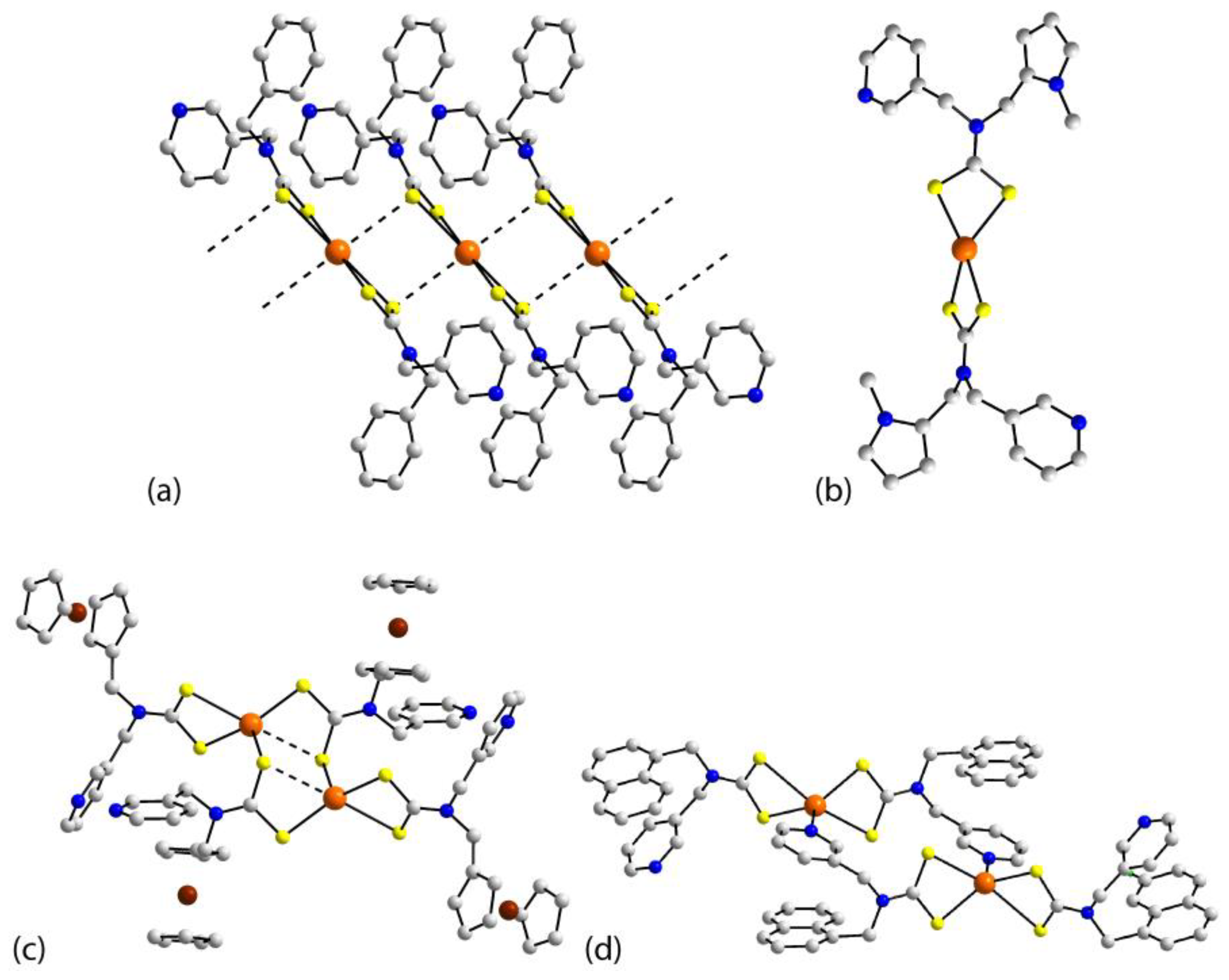

Figure 12. (a) The supramolecular chain in Hg(L1)2 (36) mediated by Hg⋯S interactions, (b) the tetrahedral molecule in Hg(L17)2 (38), (c) the di-nuclear molecule in [Hg(L13)2]2 (40), and (d) the di-nuclear molecule in [Hg(L19)2]2 (41).
Figure 12. (a) The supramolecular chain in Hg(L1)2 (36) mediated by Hg⋯S interactions, (b) the tetrahedral molecule in Hg(L17)2 (38), (c) the di-nuclear molecule in [Hg(L13)2]2 (40), and (d) the di-nuclear molecule in [Hg(L19)2]2 (41).
Crystals 11 00286 g012
Crystals 11 00286 g013 550

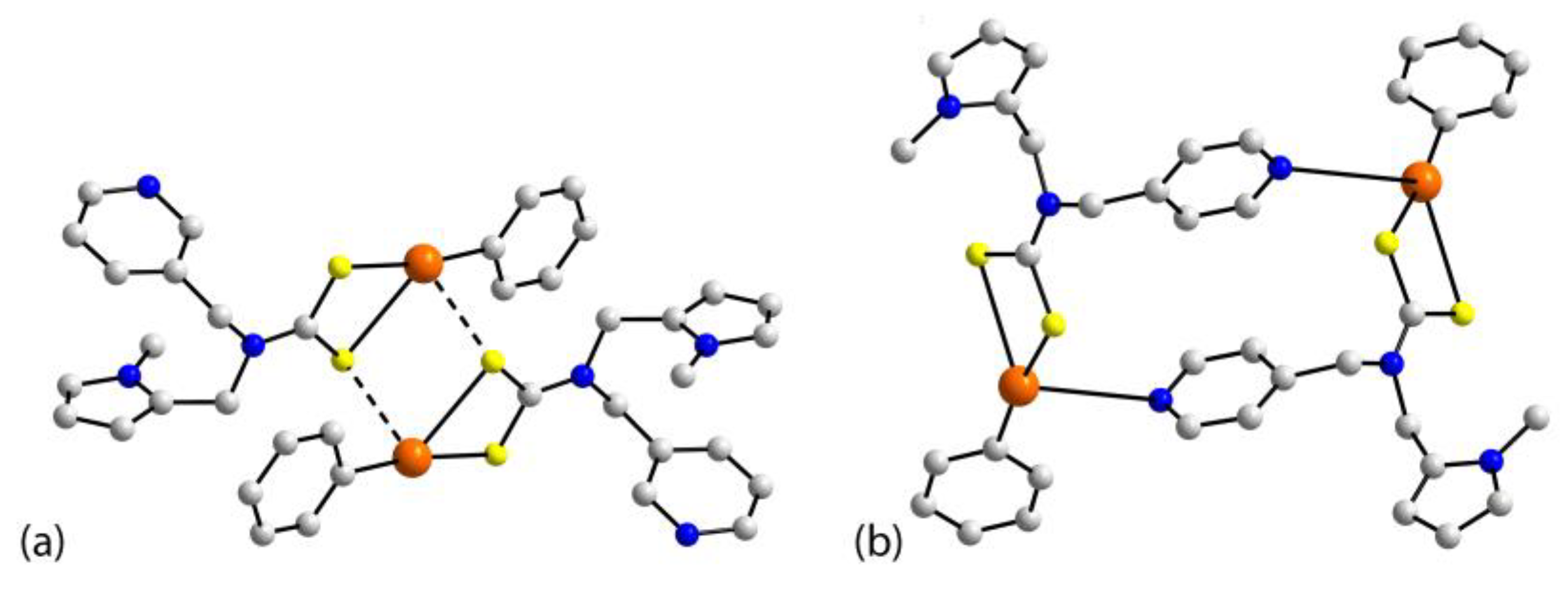

Figure 13. (a) The supramolecular dimer in [PhHg(L17)]2 (43) mediated by the Hg⋯S interactions and (b) the di-nuclear molecule in [PhHg(L18)]2 (45).
Figure 13. (a) The supramolecular dimer in [PhHg(L17)]2 (43) mediated by the Hg⋯S interactions and (b) the di-nuclear molecule in [PhHg(L18)]2 (45).
Crystals 11 00286 g013
Crystals 11 00286 g014 550

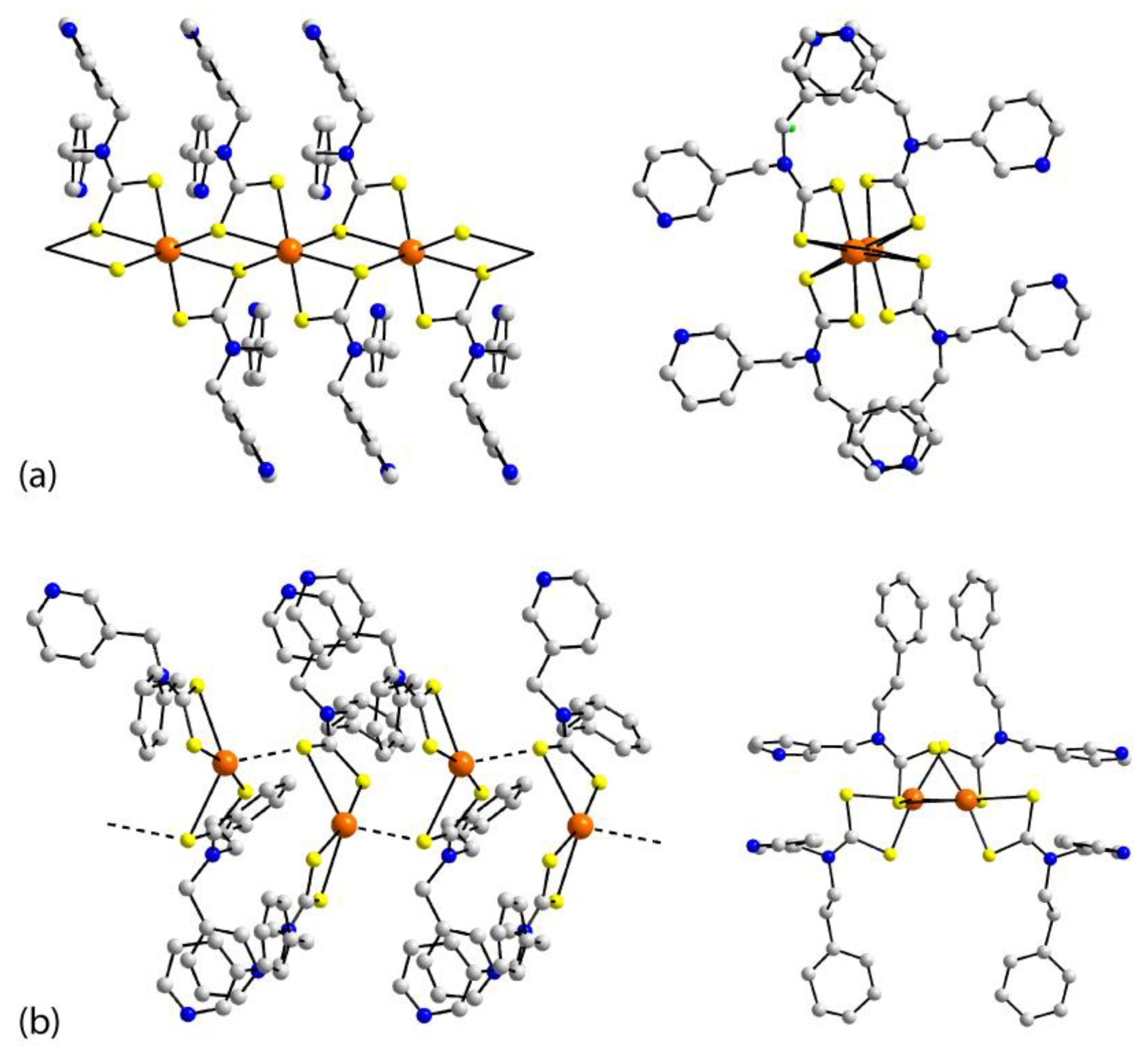

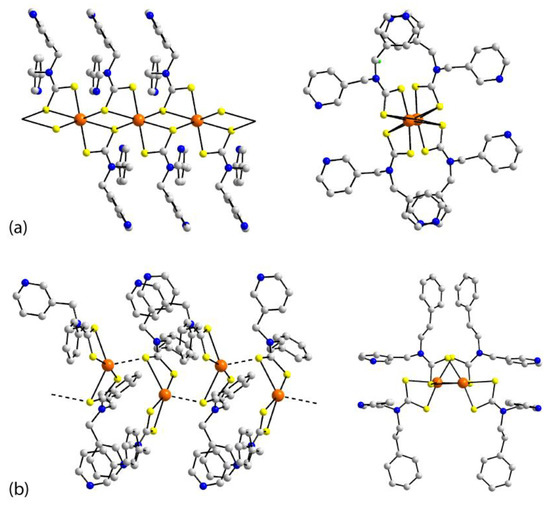

Figure 14. The zig-zag supramolecular chain mediated by the Hg⋯S interactions in (a) [Hg(L10)2]n (47) and (b) [Hg(L22)2]n (48).
Figure 14. The zig-zag supramolecular chain mediated by the Hg⋯S interactions in (a) [Hg(L10)2]n (47) and (b) [Hg(L22)2]n (48).
Crystals 11 00286 g014
Crystals 11 00286 g015 550

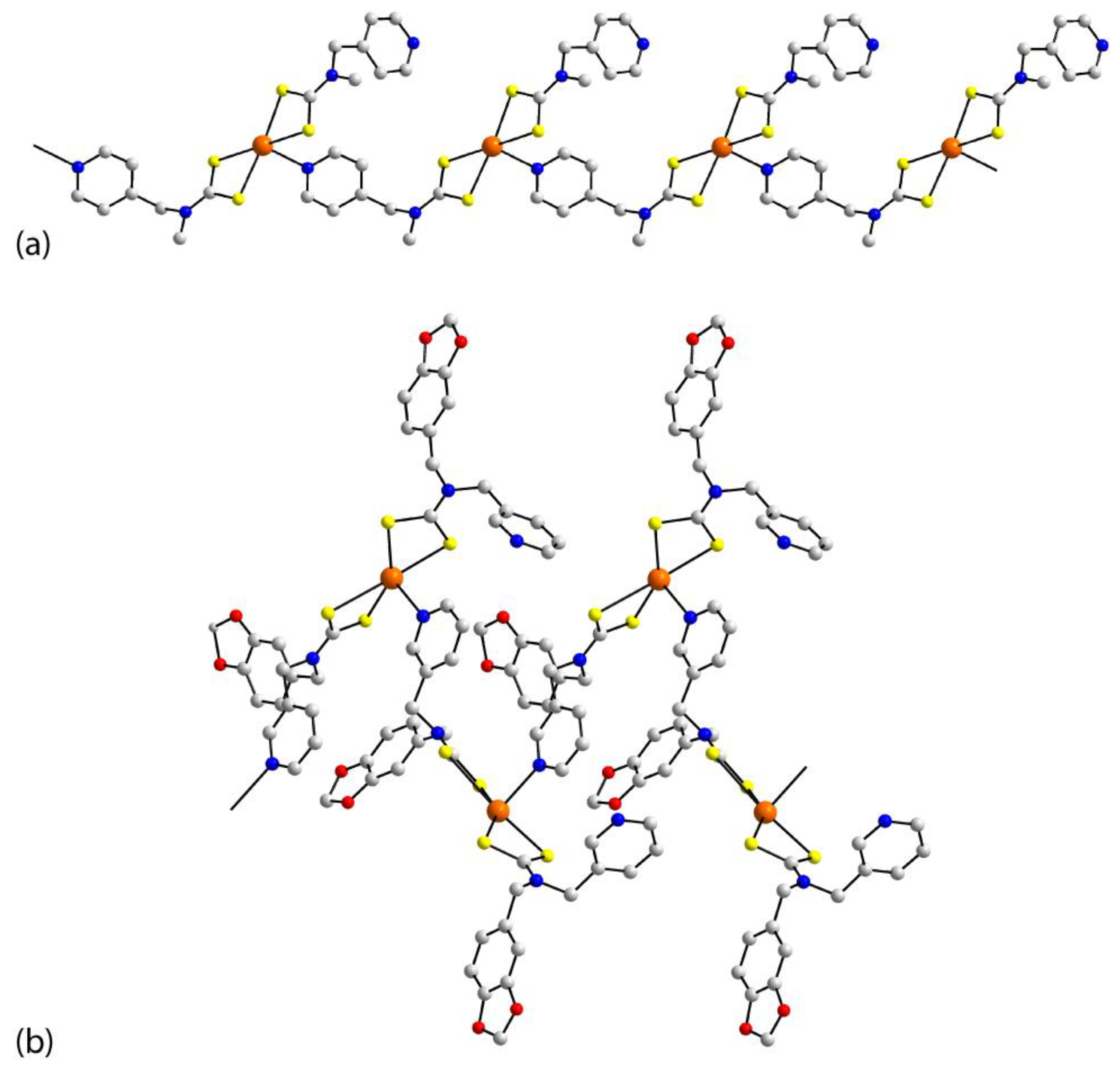

Figure 15. The supramolecular chain mediated by the Hg⋯S interactions in (a) linear [Hg(L21)2]n (49) and (b) zig-zag [Hg(L23)2]n (50).
Figure 15. The supramolecular chain mediated by the Hg⋯S interactions in (a) linear [Hg(L21)2]n (49) and (b) zig-zag [Hg(L23)2]n (50).
Crystals 11 00286 g015
Crystals 11 00286 g016 550

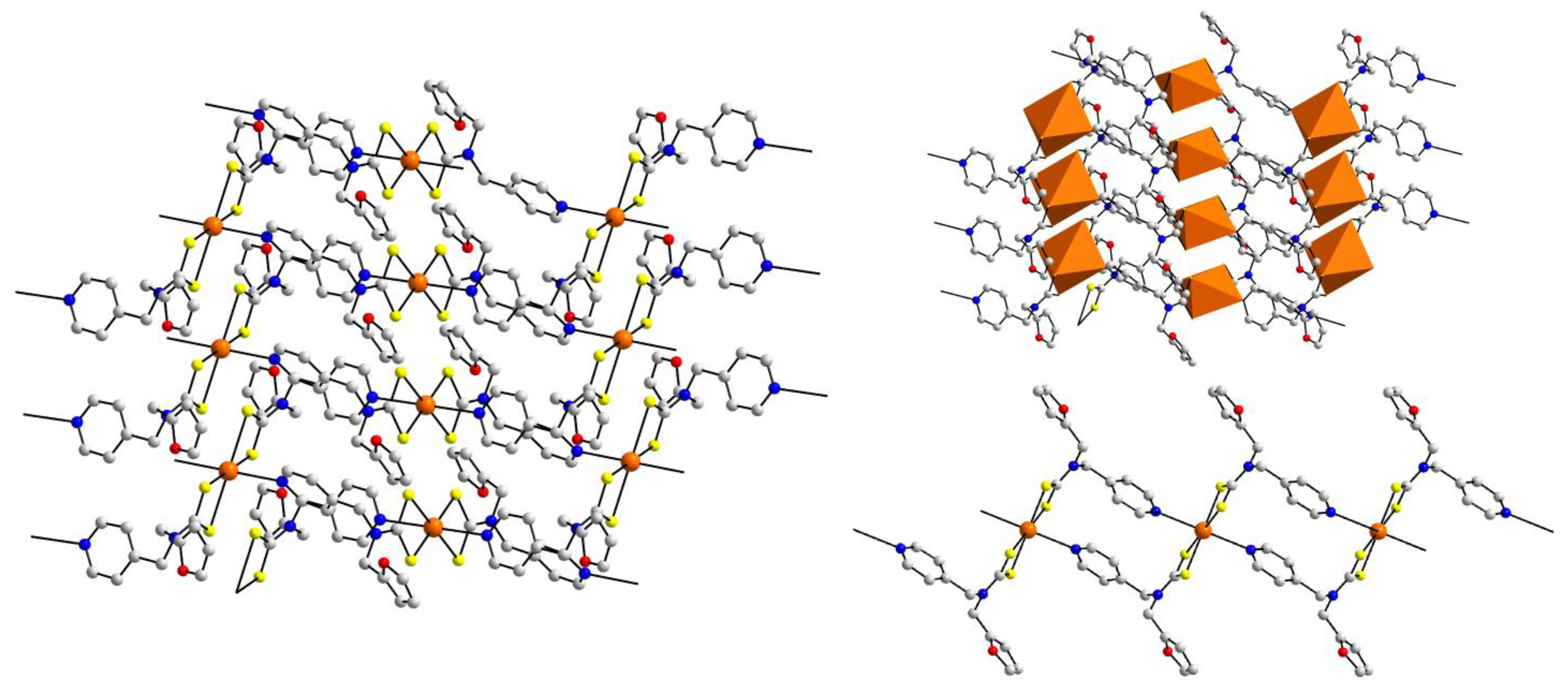

Figure 16. Views of the two-dimensional array in the crystal of [Hg(L9)2]n (51); one plan view highlights the arrangement of the coordination polyhedra.
Figure 16. Views of the two-dimensional array in the crystal of [Hg(L9)2]n (51); one plan view highlights the arrangement of the coordination polyhedra.
Crystals 11 00286 g016
Crystals 11 00286 g017 550

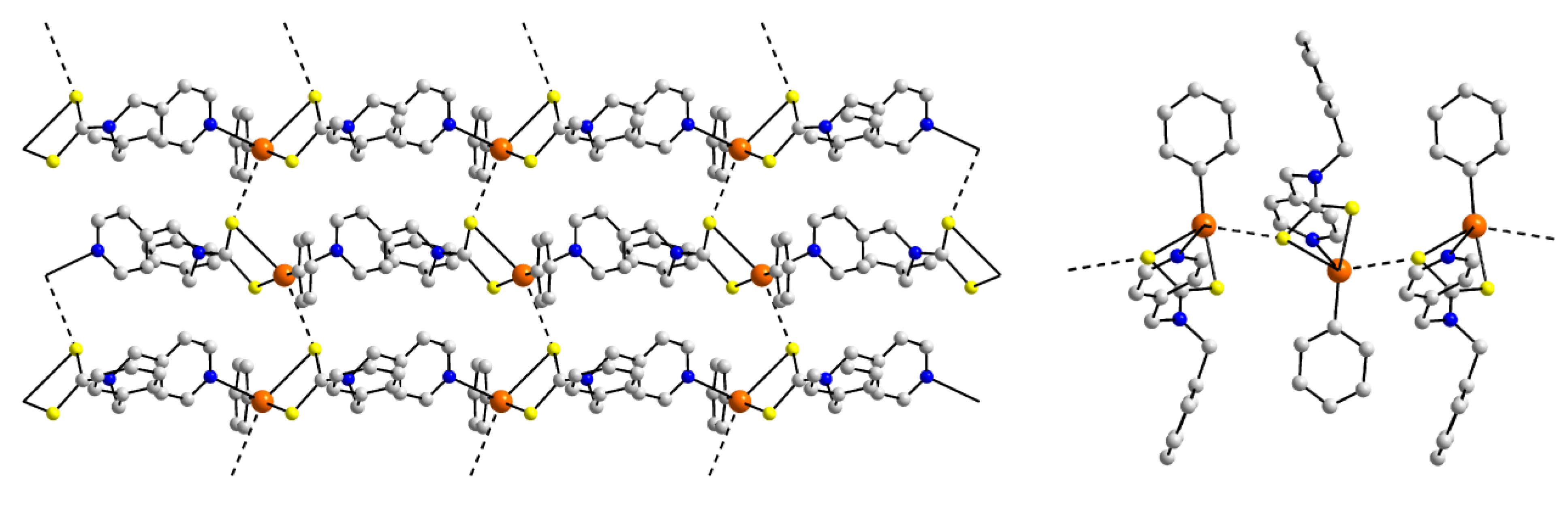

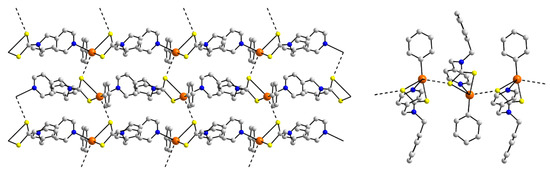

Figure 17. Views of the two-dimensional array in the crystal of [PhHg(L8)]n (52).
Figure 17. Views of the two-dimensional array in the crystal of [PhHg(L8)]n (52).
Crystals 11 00286 g017
Crystals 11 00286 g018 550

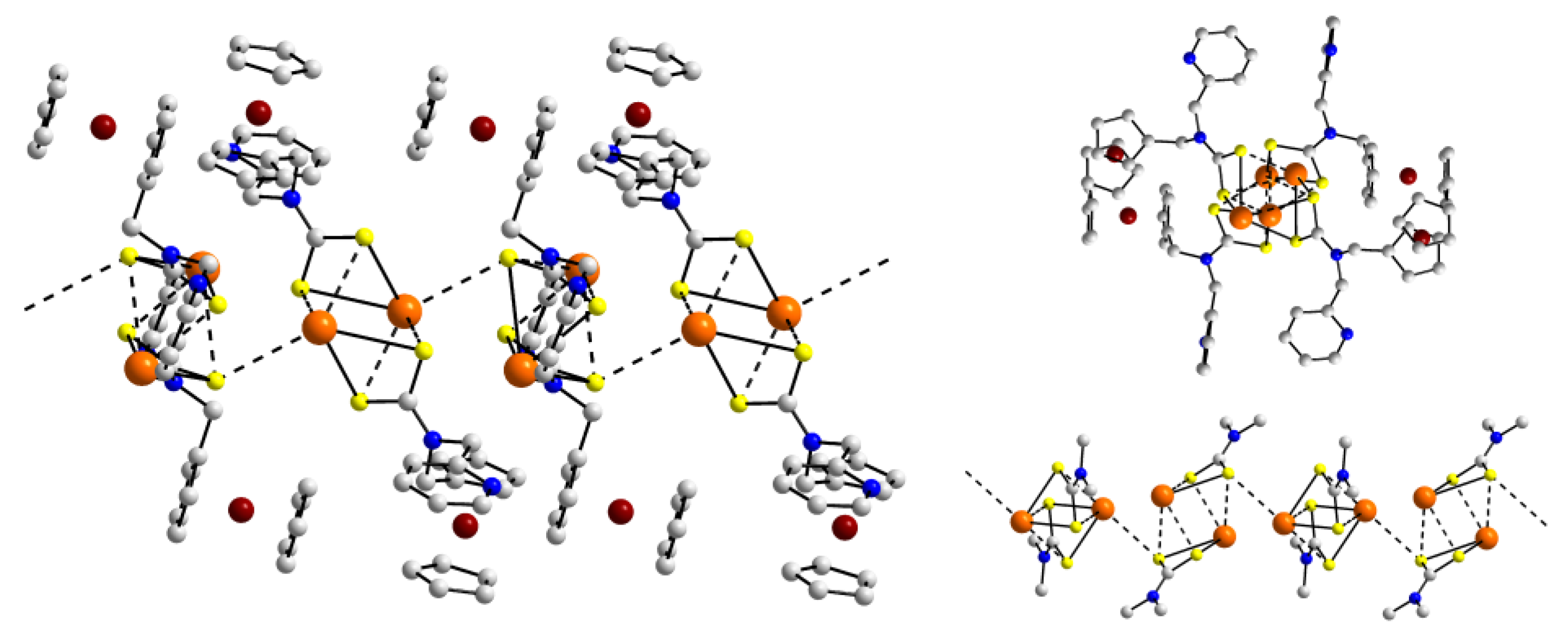

Figure 18. Views of the one-dimensional chain in the crystal of [Tl(L24)]n (53).
Figure 18. Views of the one-dimensional chain in the crystal of [Tl(L24)]n (53).
Crystals 11 00286 g018
Crystals 11 00286 g019 550

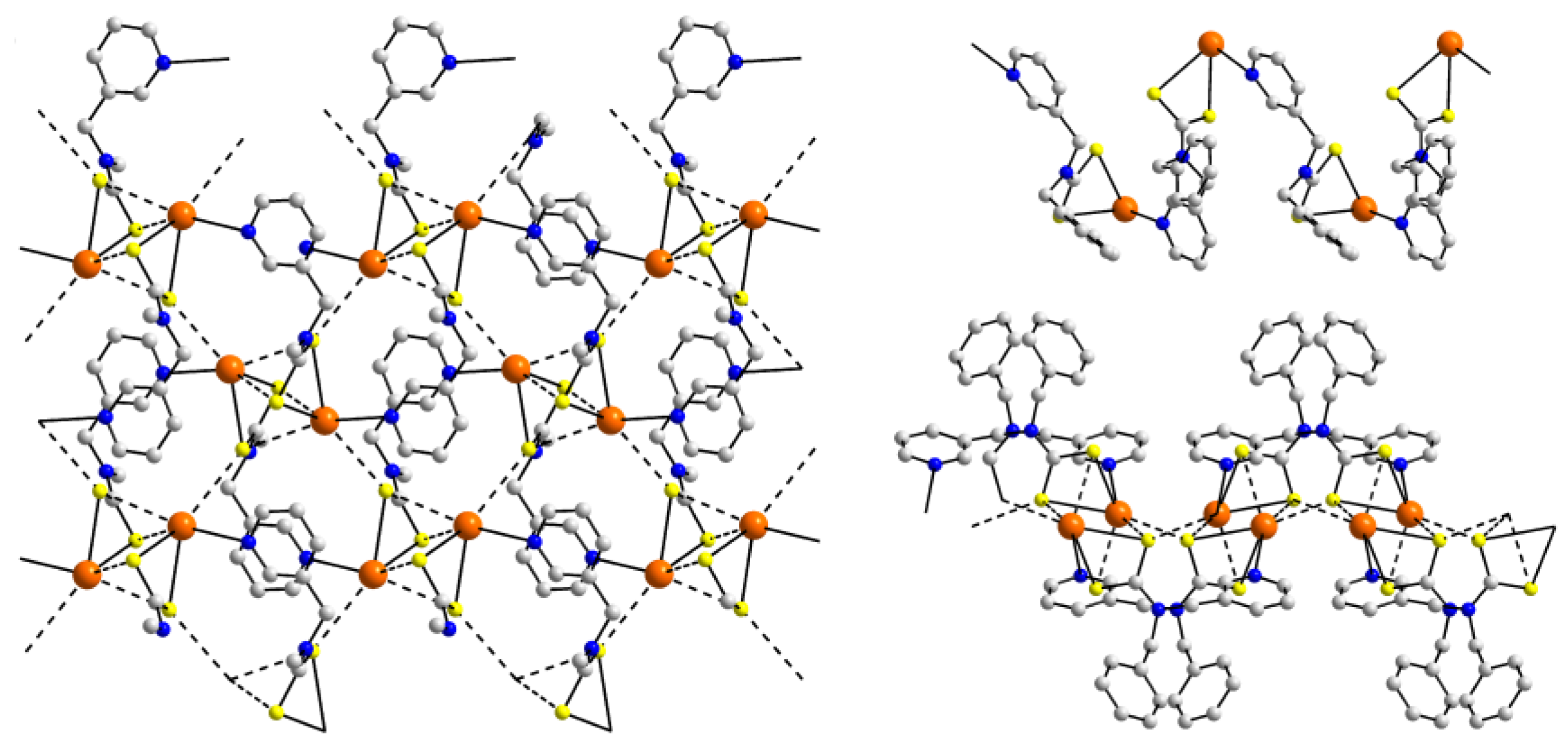

Figure 19. Views of the two-dimensional array in the crystal of [Tl(L1)]n (54).
Figure 19. Views of the two-dimensional array in the crystal of [Tl(L1)]n (54).
Crystals 11 00286 g019
Crystals 11 00286 g020 550

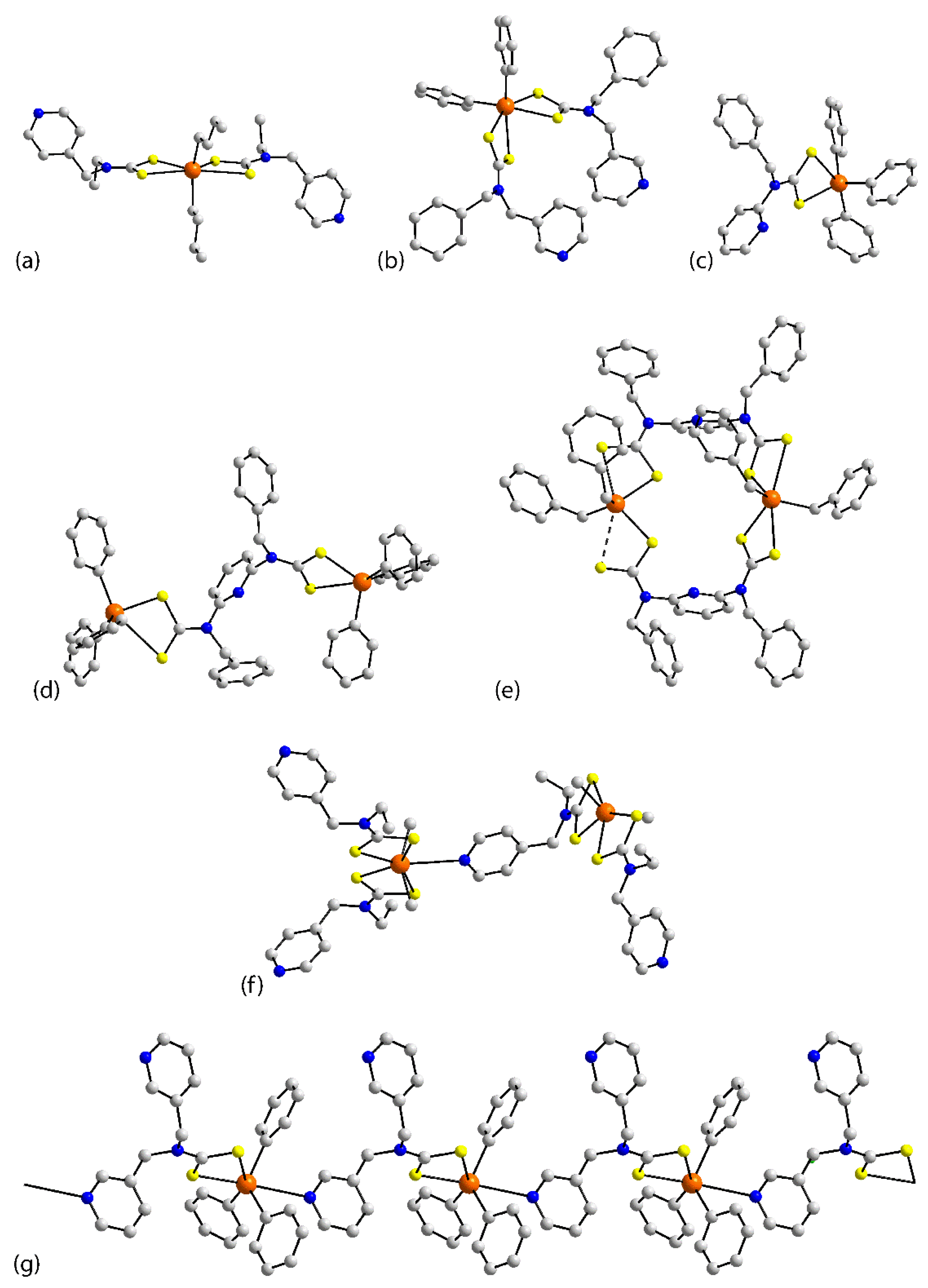

Figure 20. Molecular structures of (a) (nBu)2Sn(L14)2 (62), (b) Ph2Sn(L1)2 (63) and (c) Ph3Sn(L27) (65), (d) the open dimer in (Ph3Sn)2(L28) (66), (e) the cyclic dimer in the crystal of [(PhCH2)2Sn)(L28)]2 (67), (f) the dimer in the crystal of [Me2Sn(L14)2]2 (68), and (g) the one-dimensional chain in [Ph3Sn(L11)]n (69).
Figure 20. Molecular structures of (a) (nBu)2Sn(L14)2 (62), (b) Ph2Sn(L1)2 (63) and (c) Ph3Sn(L27) (65), (d) the open dimer in (Ph3Sn)2(L28) (66), (e) the cyclic dimer in the crystal of [(PhCH2)2Sn)(L28)]2 (67), (f) the dimer in the crystal of [Me2Sn(L14)2]2 (68), and (g) the one-dimensional chain in [Ph3Sn(L11)]n (69).
Crystals 11 00286 g020
Crystals 11 00286 g021 550

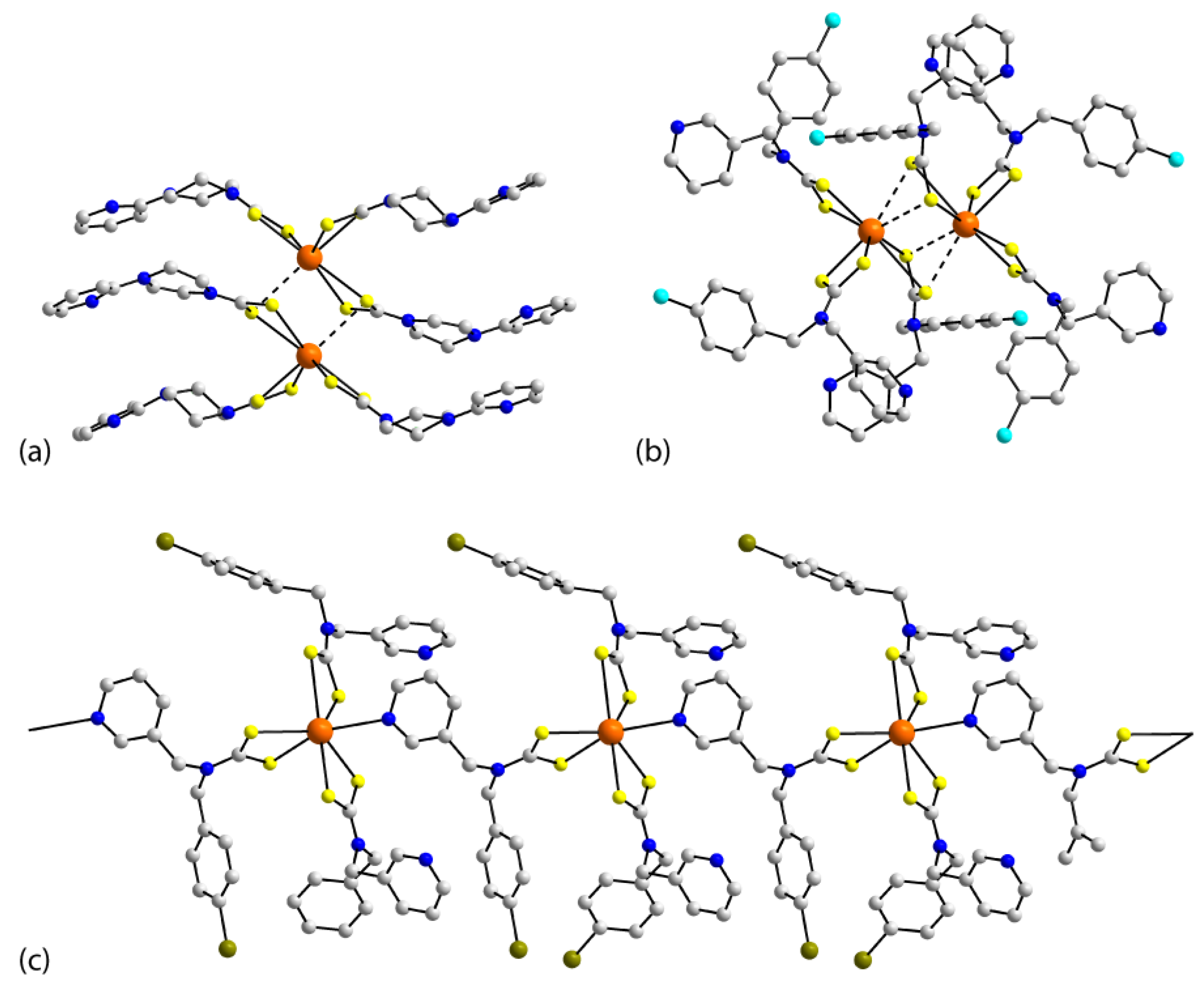

Figure 21. Supramolecular aggregation in the crystals of (a) [Bi(L6)3]2 (70) and (b) [Bi(L25)3]2 (71), via Bi⋯S interactions, and (c) [Bi(L29)3]n (73) via Bi–N interactions. Additional color code—bromide, dark-green.
Figure 21. Supramolecular aggregation in the crystals of (a) [Bi(L6)3]2 (70) and (b) [Bi(L25)3]2 (71), via Bi⋯S interactions, and (c) [Bi(L29)3]n (73) via Bi–N interactions. Additional color code—bromide, dark-green.
Crystals 11 00286 g021
Table
Table 1. Summary of structures 1–73 discussed in this bibliographic review.
Table 1. Summary of structures 1–73 discussed in this bibliographic review.
CrystalFormulationMotifCSD REFCODERef.
1Ni(L1)2monomerDEXFIX[18]
2Ni(L2)2monomerDIFHIL[18]
3Ni(L3)2monomerHUTNOB[19]
4Ni(L4)2monomerLUKTIW[20]
5a(NN1)Ni(L5)monomerVOTDEP[21]
6Pd(L1)2monomerHOMXEO[22]
7[(4-tol)3P]Pd(L6)ClmonomerROHKAD[23]
8Pt(L1)2monomerLASPIH[24]
9Pt(L7)2monomerUHOGIJ[25]
10[(4-tol)3P]Pt(L6)ClmonomerRIZNEW[26]
11Cu(L1)2monomerMISLUX[27]
12Cu(L7)2monomerZUWLUY[28]
13(Ph3P)2Cu(L8).2H2OmonomerLEBDIH[29]
14(Ph3P)2Cu(L9)monomerNOJVIT[30]
15(Ph3P)2Cu(L10).0.5(CH2Cl2).0.5(H2O)monomerMORNIT[31]
16[(Ph3P)2Ag(L1)]2dimerGONMED[32]
17[(Ph3P)2Ag(L11)]2dimerGONMIH[32]
18[Ag(L1)]n1-DGONLUS[32]
19[Ag(L11)]n1-DGONMAZ[32]
20[Au(L7)]2monomerXIRYII[33]
21[Au(L12)]2.isophthalic acidmonomerEYURAS[34]
22[Zn(L1)2]2.EtOHdimerFODSIC[35]
23[Zn(L13)2]2dimerUTEJOU[36]
24[Zn(L14)2]n.0.5(4-methylpyridine)1-DFECRIR[37]
25[Zn(L5)2]2.2(DMF)2-DUTEJUA[36]
26Cd(L13)2(2,2′-bipyridyl)monomerGIVGUQ[38]
27Cd(L13)2(1,10-phenanthroline)monomerGIVGOK[38]
28Cd(L14)2(1,10-phenanthroline)monomerUTEKIP[36]
29[Cd(L15)]2.2(DMF)dimerZODSUI[39]
30[Cd(L14)]n.3-methylpyridine2-DGAMVAU[40]
31[Cd(L1)]n2-DZODSAO[39]
32[Cd(L11)]n2-DZODSES[39]
33[Cd(L16)]n2-DZODSOC[39]
34[Cd(L13)]n.acetonitrile2-DUTEKAH[36]
35[Cd(L2)]n2-DZODSIW[39]
36Hg(L1)2monomerFODSAU[35]
37Hg(L8)2monomerEBUTAY[41]
38Hg(L17)2monomerXOBCEY[42]
39Hg(L18)2monomerYOMYOQ[43]
40[Hg(L13)2]2dimerUTEKEL[36]
41[Hg(L19)2]2·MeOHdimerXOBCAU[42]
42PhHg(L5)dimerEKIYON[44]
43PhHg(L17)dimerXOBBOH[42]
44PhHg(L20)·2(MeOH)dimerFODRUN[35]
45[PhHg(L18)]2dimerYOMYAC[43]
46[PhHg(L21)]2dimerEBUSOL[41]
47[Hg(L10)2]n1-DYOMYIK[43]
48[Hg(L22)2]n1-DFODROH[35]
49[Hg(L21)2]n1-DFODREX[35]
50[Hg(L23)2]n1-DFODRAT[35]
51[Hg(L9)2]n2-DFODRIB[35]
52[PhHg(L8)]n2-DEBUSIF[41]
53[Tl(L24)]n1-DFEGHEH[45]
54[Tl(L1)]n2-DGOQHUR[46]
55[Tl(L11)]n2-DGOQJED[46]
56[Tl(L13)]n2-DGOQKAA[46]
57[Tl(L23)]n2-DGOGJON[46]
58[Tl(L16)]n2-DFEGHOR[45]
59[Tl(L25)]n2-DFEGHUX[45]
60[Tl(L26)]n2-DFEGJAF[45]
61(nBu)2Sn(L8)2monomerUGEFAP[47]
62(nBu)2Sn(L14)2monomerCEHKUX[48]
63Ph2Sn(L1)2monomerUGEFET[47]
64Ph2Sn(L14)2monomerCEHLAE[48]
65Ph3Sn(L27)monomerTOHBOJ[49]
66[Ph3Sn]2(L28)dimerTOHGEE[49]
67[(PhCH2)2Sn)(L28)]2·CH2Cl2dimerTOHBUP[49]
68[Me2Sn(L14)2]2dimerCEHKOR[48]
69[Ph3Sn(L11)]n1-DUGEFIX[47]
70[Bi(L6)3]2dimerJURXAX[50]
71[Bi(L25)3]2dimerNOTTIC[51]
72[Bi(L29)3]2dimerNOTTOI[51]
73[Bi(L30)3]n·0.5(HCl)1-DNOTTUO[51]
a (NN1)H is N,N-dimethyl-4-[1H-pyrrol-2-yl(pyrrol-2-ylidene)methyl]aniline
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Tiekink, E.R.T. On the Coordination Role of Pyridyl-Nitrogen in the Structural Chemistry of Pyridyl-Substituted Dithiocarbamate Ligands. Crystals 2021, 11, 286. https://doi.org/10.3390/cryst11030286

AMA Style

Tiekink ERT. On the Coordination Role of Pyridyl-Nitrogen in the Structural Chemistry of Pyridyl-Substituted Dithiocarbamate Ligands. Crystals. 2021; 11(3):286. https://doi.org/10.3390/cryst11030286

Chicago/Turabian Style

Tiekink, Edward R.T. 2021. "On the Coordination Role of Pyridyl-Nitrogen in the Structural Chemistry of Pyridyl-Substituted Dithiocarbamate Ligands" Crystals 11, no. 3: 286. https://doi.org/10.3390/cryst11030286

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
