1D Perovskitoid as Absorbing Material for Stable Solar Cells

Abstract

The instabilities of perovskite solar cells hinder their commercialisation. To resolve this problem, a one-dimensional (1D) perovskitoid, PyPbI₃, was fabricated, and its structure and photovoltaic performance were investigated in this work. XPS and FTIR results suggest hydrogen bonds existed in the 1D hexagonal PyPbI₃. Stability measurements indicate that 1D perovskitoid is much more stable than the commonly employed FA-based perovskite. In addition, solar cells adopting PyPbI₃ as an absorbing layer led to a device lifetime of one month. Our results suggest that 1D perovskitoid has great potential to be employed in solar cells.

1. Introduction

The growing demand for renewable energy in the 21st century has made photovoltaics (PV) a popular research area [1,2]. Among all PV cells, perovskite solar cells (PSC) have attracted lots of interest. The power conversion efficiency of PSC has achieved a maximum of 25.5% within only one decade since its original report in 2009 [3]. The rapid development of PSC can be attributed to its long diffusion length [4], high absorption coefficient [5], tunable bandgap [6] and so forth.

However, the commonly employed perovskite is not stable when exposed to moisture or thermal stress [7,8], which leads to a short lifetime of the fabricated solar cell devices, thereby limiting their commercialisation. Various attempts have been made to overcome these instability problems, such as interface engineering [9,10,11], strain engineering [12,13], encapsulation [14,15], etc., yet the PSC lifetime is still far from satisfactory; i.e., most PSCs would lose most of their initial efficiency within only hundreds of hours under ambient conditions. In this regard, replacing the hydrophilic methylammonium (MA) and formamidinium (FA) cations seems imperative and inevitable.

Most recently, the employment of carbocyclic cations with strong hydrophobic nature to form a perovskite structure has attracted lots of interest. For instance, Pering et al. (2017) [16] employed four-membered carbocyclic ring azetidine as cation to form perovskite (AztPbI₃). Despite the enhanced moisture resistance, the AztPbI₃ is found to be thermodynamically unstable and exhibits low crystallinity [16]. To resolve this, Zheng et al. (2018) [17] proposed a new perovskite material, aziridinium lead iodide (AzrPbI₃), which possesses three-membered carbocyclic rings. According to the authors’ simulation results, the AzrPbI₃ exhibits good thermodynamic stability as well as a low bandgap of 1.49 eV, which is comparable to that of MAPbI₃ [18]. However, fabricating such materials seems impractical, as aziridine molecules are highly toxic [19]. In addition, recent reports on low-dimensional Bi and Sb-based halide semiconductors have also attracted lots of interest [20,21,22,23,24,25], due presumably to their good environmental stability as an absorber layer in solar cells.

Based on previous attempts, a five-membered ring-based pyrrolidinium lead iodide (PyPbI₃) was first introduced by our group in 2019 [26], which exhibited a 1D “perovskitoid” structure [27], and immediately attracted lots of interest [28,29,30,31,32,33]. Although promising results have been achieved in solar cell applications employing PyPbI₃ as interfacial modification agents to either improve device stability and efficiency [28,30,31] or to control the crystallization process of the 3D MA-based perovskite [32], the application of PyPbI₃ as a single absorbing layer has not been reported so far. Therefore, it will be of great significance to explore the potential of such perovskitoid as absorbing material for solar cell applications. Moreover, the structure of PyPbI₃ film remains ambiguous [32], which hinders its practical applications.

It is, therefore, the purpose of the current report to evaluate the feasibility of 1D perovskitoids, such as PyPbI₃, as a single absorbing layer in PSCs, as well as to investigate its structural properties. Based on the results of XRD, X-ray photoelectron spectroscopy (XPS) and FTIR, we were able to confirm the hexagonal structure of PyPbI₃, as well as the interatomic force between Py cation and PbI₂ lattice. The stability of 1D perovskitoid film is much more stable than commonly employed FA-based perovskite, as revealed by stability measurements. Lastly, we employed PyPbI₃ as absorbing material to fabricate solar cells, yielding a device lifetime of more than one month. In addition, the outlook of 1D perovskitoid in photovoltaics is briefly discussed in the summary part.

2. Materials and Methods

2.1. Materials

Pyrrolidinium hydroiodide (98%, TCI America, Portland, Oregon, USA), PbI₂ (99.999%, Sigma-Aldrich, St. Louis, MO, USA), isopropanol (IPA, 99.99%, Sigma-Aldrich, St. Louis, MO, USA), N,N-dimethylformamide (DMF, 99.99%, Sigma-Aldrich, St. Louis, MO, USA), Dimethyl sulfoxide (DMSO, 99.9%, Sigma-Aldrich, St. Louis, MO, USA), Spiro-OMeTAD (Xi’an Polymer Light Technology Corp., Xi’an, Shaanxi, China), bis(trifluoromethane)sulfonimide lithium salt (99.95%, Aldrich, St. Louis, MO, USA), 4-tertbutylpyridine (99.9%, Sigma-Aldrich, St. Louis, MO, USA) and ITO substrates.

2.2. Device Fabrication

To fabricate perovskite solar cell devices, the ITO substrate was first washed with distilled water and ethanol, two times each. After 20 min of UV–O₃ treatments, the SnO₂ electron transport layers (ETLs) were spin-coated on ITO substrates from the SnO₂ colloidal solutions and annealed on a hot plate at the displayed temperature of 150 °C for 30 min in ambient air. For the PyPbI₃ layer, sequential deposition method was adopted. Thirty microlitres of lead iodide solutions were first spin-coated at 2300 rpm for 30 s and annealed at 70 °C for 1 min. Then, 80 μL of PyI solutions were spin-coated at 2000 rpm for 30 s. The as-fabricated films were then annealed at 150 °C for 30 min in air. Next, 30 μL Spiro-OMeTAD solution doped with LiTFSI and tBP was deposited at 3000 rpm for 30 s. Finally, 100 nm Ag was thermally evaporated as a counter electrode under a pressure of 5 × 10⁻⁵ Pa on top of the hole transport layer to form the metal contact.

2.3. Characterizations

The absorption spectra were recorded by Hitachi UH4150 spectrophotometer. X-ray diffraction (XRD) patterns were obtained using a Rigaku D/Max 2200 with Cu Kα as the X-ray source. X-ray photoelectron spectroscopy (XPS) measurement was carried out on PHI Quantera-II SXM. The FTIR spectra were measured by a Nicolet 6700 FT-IR spectrometer. The current density–voltage characteristics of photovoltaic devices were obtained using a Keithley 2400 source-measure system. The photocurrent was measured under AM 1.5 G illumination at 100 mW/cm² using a Newport Thermal Oriel 91192 1000 W solar simulator. The light intensity was calibrated using a KG-5 Si diode. The thin film morphology was measured using a scanning electron microscope (SEM) (S4800).

The calculated XRD data were obtained from our previous report [26]. In short details, the calculations were performed using SHELXTL crystallographic software package. Symmetry analysis of the model using PLATON revealed that no obvious space group change was needed. In the refinement, the commands EDAP and EXYZ were used to restrain some of the related bond lengths and bond angles.

3. Results

3.1. Fabrication and Characterizations of 1D Perovskitoid Films

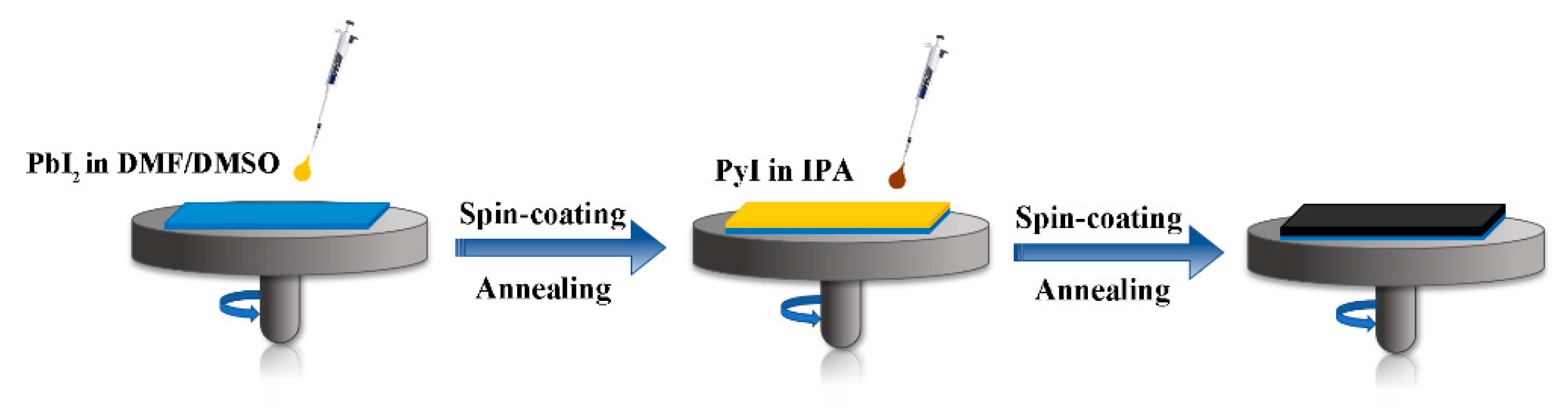

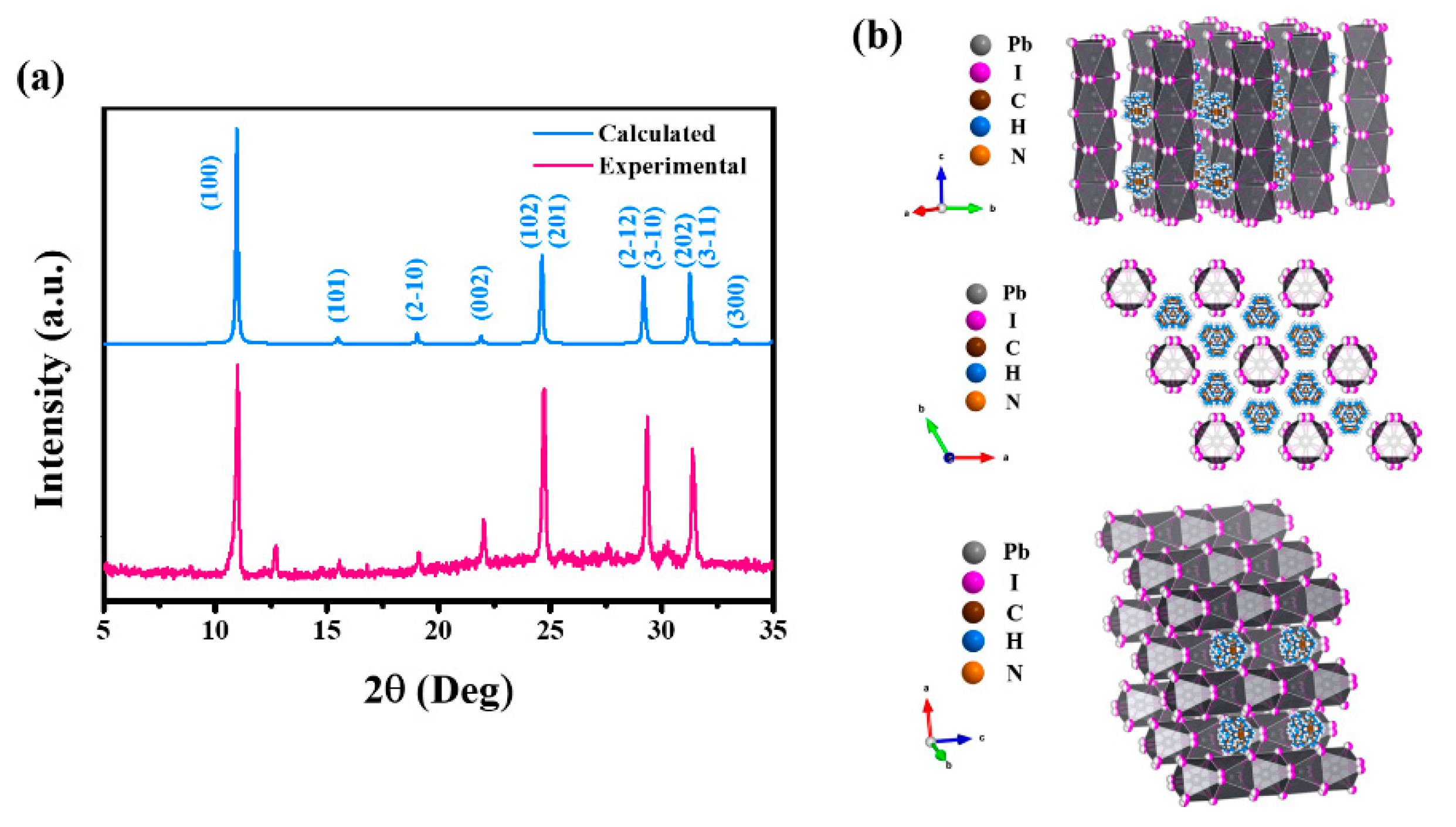

The PyPbI₃ films were fabricated via a simple sequential deposition method [34], as schematically illustrated in Figure 1. The details are shown in the experimental section. Previous reports suggest that PyPbI₃ may exhibit two different crystal structures, such as hexagonal [26] and orthorhombic [32] phases. However, during our fabrication, all obtained PyPbI₃ were crystallized following the same hexagonal space group P6₃/mmc, which was confirmed by powder XRD measurements. As shown in Figure 2a, the diffraction peaks of the experimental PyPbI₃ film correspond well with its single-crystal XRD data, suggesting the formation of hexagonal PyPbI₃ in the film. In general, 1D perovskitoid may exhibit diffraction peaks below 10° [35]. However, all peaks of 1D PyPbI₃ are above 10°, with the lowest peak located at around 11° (Figure 2a), which is consistent with other perovskitoid [27]. This might be attributed to their various lattice parameters.

The microscopic crystal structures of PyPbI₃ viewed from different directions are illustrated in Figure 2b; as can be observed, lead iodide octahedrons were arranged in a face sharing method, with Py⁺ cations located in between them, indicating the 1D characteristics of PyPbI₃ [36]. However, the positions and interactions between pyrrolidinium rings and lead iodide lattice remain unresolved (a large cluster of atoms lies in between each chain, Figure 2b), as it is not easy to precisely detect low mass elements such as carbon, nitrogen and hydrogen with XRD measurements. This may result in uncertainty in determining the exact role of Py⁺ cations; i.e., the C and N atoms may have interactions with iodides, or they may only maintain the charge balance in crystal lattices [37,38].

X-ray photoelectron spectroscopy (XPS) has been widely employed as a powerful tool to evaluate the interactive forces between atoms in the molecule [39]. Therefore, to further understand the role of organic cations, we conducted XPS measurements to PyI and PyPbI₃ crystals, respectively. The results were illustrated in Figure 3a–c. The total XPS spectrum is shown in Figure 3a. Compared to PyI, an extra binding peak for Pb element was found in PyPbI₃, indicating the reaction between PyI molecules and PbI₂ chains. In addition, the N1s and I3d spectrums exhibit an energy blue shift of more than 3 eV, suggesting a higher binding energy in 1D PyPbI₃ than that in PyI powder. This indicates that there is a strong interaction force between Py⁺ cations and [PbI₃]⁻ octahedra cages, i.e., the hydrogen bonding between N-H and I, bonding them together [37,38]. The existence of hydrogen bonds was further confirmed by FTIR [40] (Figure 3d). The interaction forces between the Py cations and inorganic chains may help to keep the perovskitoid phase unchanged when exposed to external stress such as moisture, since more energy is required to break the hydrogen bonds [38]. The enhanced stability of PyPbI₃ observed in the next section could thus be attributed to not only the hydrophobic nature [19] of Py molecule but also their hydrogen bonds.

Moreover, the surface morphology of the film was evaluated via SEM technique, which exhibited many small grains (Figure 3f), indicating the formation of 1D perovskitoid [27].

3.2. Stability Measurements of 1D Perovskitoid Films

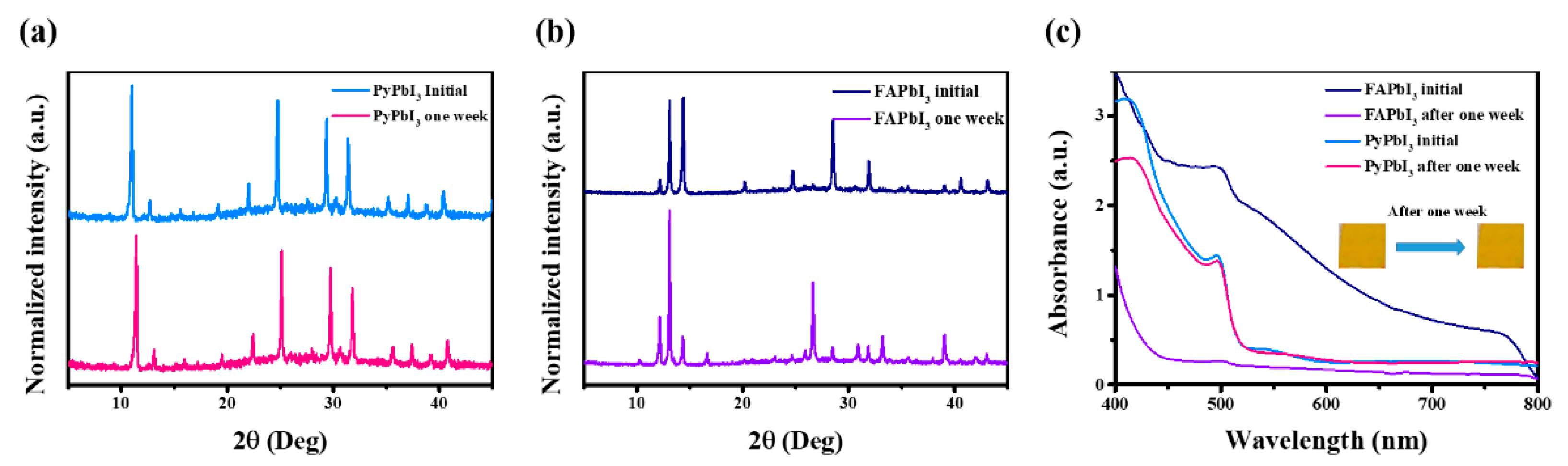

Next, we investigated the stability of PyPbI₃ perovskite films. To make a comparison, two different perovskites, PyPbI₃ and FA-based perovskite, were both prepared and evaluated via XRD and UV absorption spectra. All prepared films were stored under ambient conditions with a relative humidity (RH) of 50 ± 5%. The XRD results of PyPbI₃ before and after one week are shown in Figure 4a, which show the same patterns, indicating the good environmental stability of PyPbI₃. In contrast, the FA-based perovskite film degraded into photoinactive δ-phase after 1 week in air, as is demonstrated in Figure 4b.

Figure 4c illustrates the UV absorption spectra for these films. As can be observed, the FAPbI₃ film exhibited a drastic decrease in light absorbance over the whole visible range after 7 days. In contrast, the absorption onset of PyPbI₃ film exhibited no obvious change after one week. The photographs of PyPbI₃ film before and after one week were presented in the inset of Figure 4c. The color of the film remained unchanged, which is consistent with the XRD and UV results. The above results indicate that PyPbI₃ is much stable than FAPbI₃.

3.3. Photovoltaic Performance of 1D Perovskitoid Solar Cells

To evaluate the photovoltaic performance of PyPbI₃ solar cells, we fabricated PSCs employing ITO/SnO₂/PyPbI₃/Spiro-OMeTAD/Ag configuration. The J–V curve of the best device is shown in Figure 5a. The photovoltaic parameters were also summarized in the figure, with V_oc of 0.74 V, J_sc of 0.94 mA/cm², FF of 28.05, PCE of 0.3%. The series and shunt resistance of the device were measured to be 6245 and 9483 Ω, respectively, via a Keithley 2400 source-measure system. Based on the literature [16] and absorption results (Figure 4c), the onset of PyPbI₃ light absorption was inferred to be around 520 nm. The non-absorption loss may significantly reduce the device photocurrent. While the V_oc is comparable to that of AzPbI₃ [16] and CsPbI₃ [41], the J_sc is as low as 1.0 mA/cm². The low J_sc might be attributed to the relatively large bandgap of PyPbI₃, resulting in its low FF and PCE [31,42]. Apart from the bandgap, we also investigated interfacial properties between perovskitoid and CTLs by presenting the energy band diagram of PyPbI₃ solar cell [31,39]. As demonstrated in Figure 5b, such energy alignment prevents the back diffusion of electrons and holes toward HTL and ETL, respectively, which is favorable for PV applications. However, the relatively large energy offset (1.31 eV and 0.49 eV for electrons and holes, respectively) may also induce severe voltage and current loss [43], thereby deteriorating device performance. Future work on device modification may be focused on these two aspects. It should be noted that the dark J–V curves can also reveal important cell parameters such as leakage current [44,45]. We expect future investigation on device physics employing this powerful method to gain more insights.

The device stability of PyPbI₃ PSCs was also evaluated. Ten solar cell devices were prepared and measured for reliability analysis. All devices were stored in ambient conditions with RH of 65 ± 5% and temperature of 22 ± 3 °C. As illustrated in Figure 5c, even after one month in air, the PCE of PyPbI₃ PSCs still did not exhibit any drop, while for other 3D PSCs such as FAPbI₃, their efficiency may decay to nil after only several days [30]. This further indicates the excellent stability of the PyPbI₃ PSCs.

4. Discussion

In summary, for the first attempt, a 1D perovskitoid, PyPbI₃, was employed as an absorbing material in solar cells. The PyPbI₃ obtained in this work exhibits a hexagonal crystal structure, instead of the orthorhombic phase reported elsewhere [32], as confirmed by XRD results. More importantly, XPS and FTIR results reveal that there are strong interatomic forces between Py⁺ cations and inorganic cages, which may help to stabilize its phase. The PyPbI₃ exhibited excellent environmental stability compared to 3D FA-based perovskite, as revealed by our stability measurements. Last, PSCs with a lifetime of more than one month employing PyPbI₃ as a single absorbing layer was fabricated.

Although the efficiency is not ideal, the kinetically and thermodynamically sTable 1D perovskitoid may play an important role in obtaining long-term stability of PSCs by forming 1D/3D heterojunctions. Moreover, the environmentally sTable 1D perovskitoid, as well as its broadband emission properties [46], have shown great potential in other semiconductor applicationsm including LED, photodetector and memory device. We anticipate that there will be more related 1D perovskitoid work coming in the near future.
