Bis (Diamines) Cu and Zn Complexes of Flurbiprofen as Potential Cholinesterase Inhibitors: In Vitro Studies and Docking Simulations
Abstract
:1. Introduction
2. Materials and Methods
2.1. Synthesis of Flurbiprofen Metal Complexes (1a-b)
2.1.1. Zn(H2O)2(L)2 (1a)
2.1.2. Cu(H2O)2(L)2 (1b)
2.2. Synthesis of Bis (1,2-diaminoethane) Metal Flurbiprofen Complexes (2a-b)
2.2.1. Zn(H2O)2 (C2H8N2)2 (C15H12FO2)2 (2a)
2.2.2. Cu(H2O)2 (L1)2 (L)2 (2b)
2.3. Synthesis of Bis (1,3-diaminopropane) Metal Flurbiprofen Complexes (3a-b)
2.3.1. Zn(H2O)2 (L1)2 (L)2 (3a)
2.3.2. Cu(H2O)2 (L1)2 (CL)2 (3b)
2.4. Molecular Docking Simulations
2.5. Determination of AChE and BChE Inhibitory Activity
3. Results

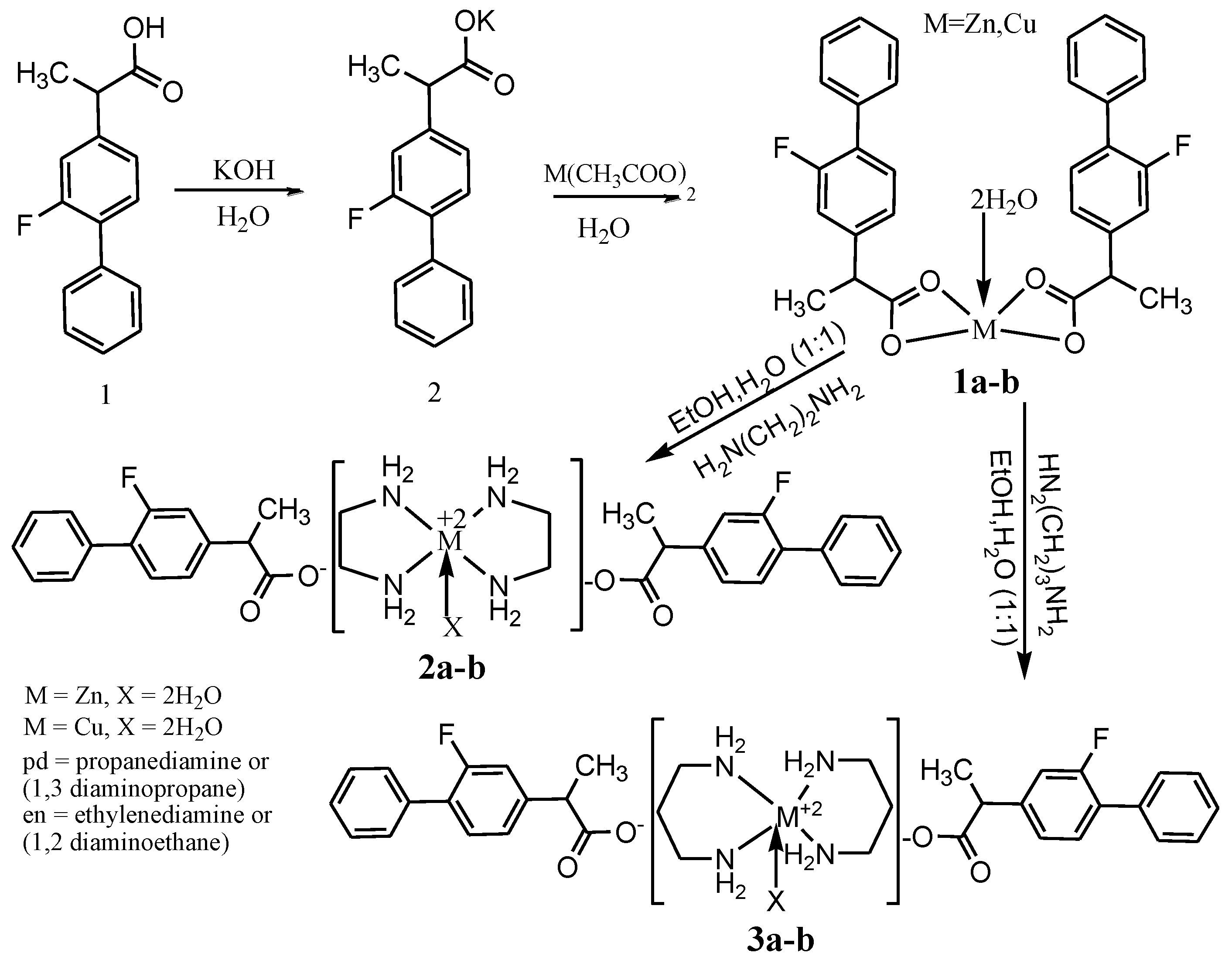

3.1. Synthesis

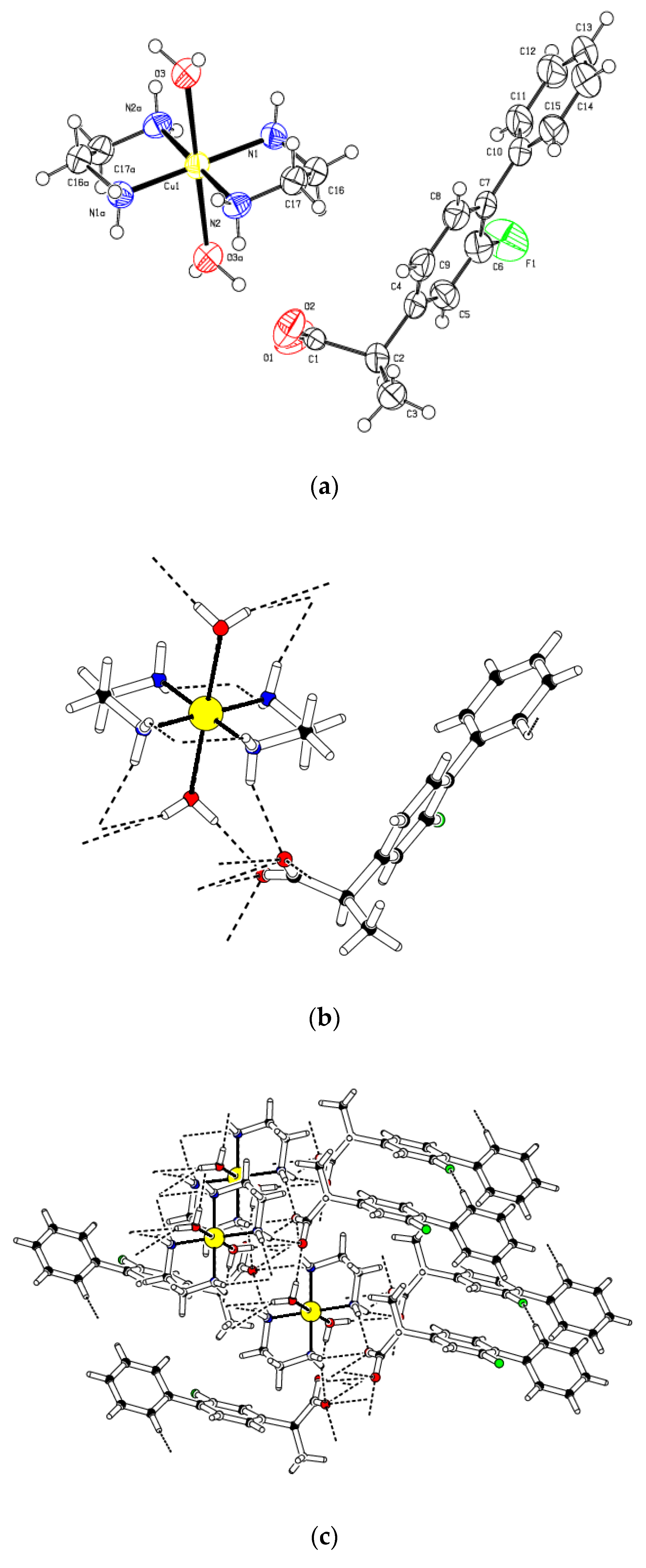

3.2. X-ray Crystallography
3.3. NMR Analysis
3.4. FT-IR Analysis
3.5. UV/vis and Magnetic Susceptibility
3.6. Elemental Analysis
3.7. Conductivity Measurements
3.8. Anticholinesterase Activity

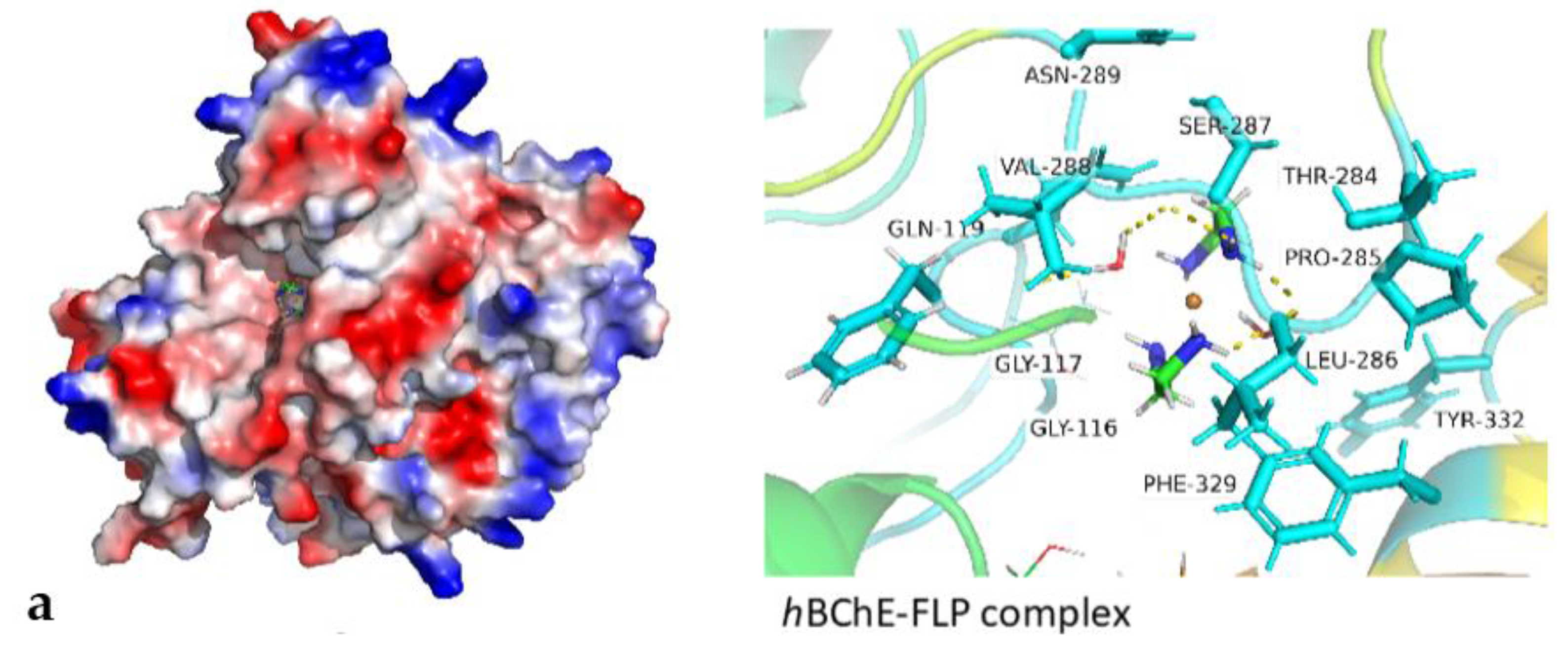

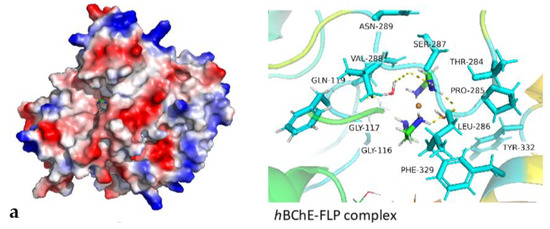

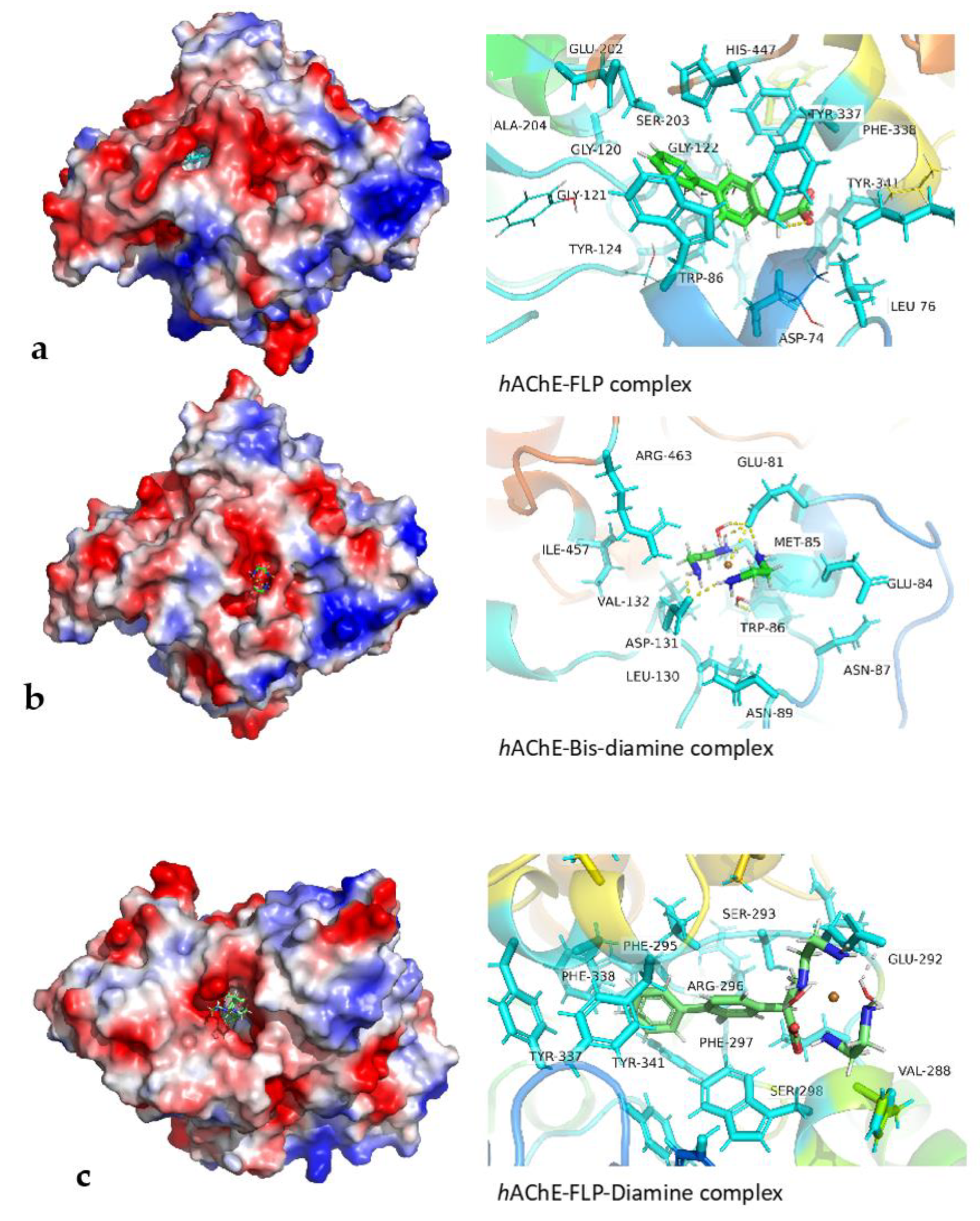

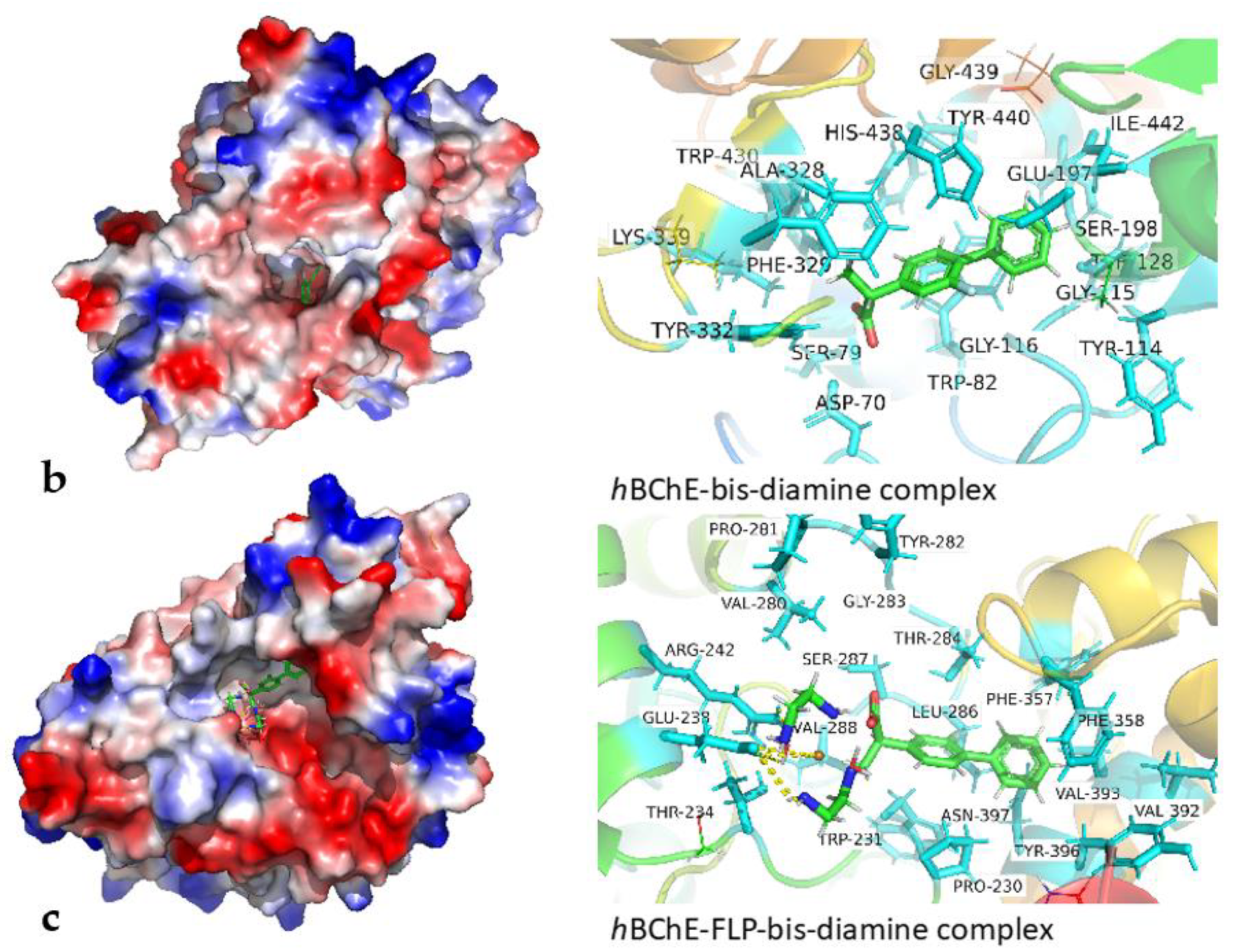

3.9. Molecular Docking Studies
4. Conclusions
Supplementary Materials
Author Contributions
Funding
Conflicts of Interest
References
- Bakkour, A.; Morris, J.C.; Dickerson, B.C. The cortical signature of prodromal AD: Regional thinning predicts mild AD dementia. Neurology 2009, 72, 1048–1055. [Google Scholar] [CrossRef] [Green Version]
- Liu, Y.; Patricelli, M.P.; Cravatt, B.F. Activity-based protein profiling: The serine hydrolases. Proc. Natl. Acad. Sci. USA 1999, 96, 14694–14699. [Google Scholar] [CrossRef] [Green Version]
- Simon, G.M.; Cravatt, B.F. Activity-based proteomics of enzyme superfamilies: Serine hydrolases as a case study. J. Biol. Chem. 2010, 285, 11051–11055. [Google Scholar] [CrossRef] [Green Version]
- Rosenbek, J.C.; Troche, M.S. Progressive neurologic disease and dysphagia (including Parkinson’s disease, multiple sclerosis, amyotrophic lateral sclerosis, myasthenia gravis, post-polio syndrome). In Principles of Deglutition; Springer: Berlin/Heidelberg, Germany, 2013; pp. 395–409. [Google Scholar]
- Withiam-Leitch, S.; Pullicino, P. Ataxic hemiparesis with bilateral leg ataxia from pontine infarct. J. Neurol. Neurosurg. Psychiatry 1995, 59, 557. [Google Scholar] [CrossRef] [Green Version]
- Shaw, K.; Aracava, Y.; Akaike, A.; Daly, J.; Rickett, D.; Albuquerque, E. The reversible cholinesterase inhibitor physostigmine has channel-blocking and agonist effects on the acetylcholine receptor-ion channel complex. Mol. Pharmacol. 1985, 28, 527–538. [Google Scholar] [PubMed]
- Gallucci, M.; Spagnolo, P.; Aricò, M.; Grossi, E. Predictors of response to cholinesterase inhibitors treatment of Alzheimer’s disease: Date mining from the TREDEM registry. J. Alzheimer’s Dis. 2016, 50, 969–979. [Google Scholar] [CrossRef] [PubMed]
- Burns, A.; Rossor, M.; Hecker, J.; Gauthier, S.; Petit, H.; Möller, H.-J.; Rogers, S.; Friedhoff, L. The Effects of Donepezil in Alzheimer’s Disease–Results from a Multinational Trial1. Dement. Geriatr. Cogn. Disord. 1999, 10, 237–244. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Birks, J.S.; Evans, J.G. Rivastigmine for Alzheimer’s disease. Cochrane Database Syst. Rev. 2015. [Google Scholar] [CrossRef]
- Loy, C.; Schneider, L. Galantamine for Alzheimer’s disease and mild cognitive impairment. Cochrane Database Syst. Rev. 2006. [Google Scholar] [CrossRef] [PubMed]
- Morris, J.C.; Cyrus, P.A.; Orazem, J.; Mas, J.; Bieber, F.; Ruzicka, B.B.; Gulanski, B. Metrifonate benefits cognitive, behavioral, and global function in patients with Alzheimer’s disease. Neurology 1998, 50, 1222–1230. [Google Scholar] [CrossRef]
- Mehta, M.; Adem, A.; Sabbagh, M. New acetylcholinesterase inhibitors for Alzheimer’s disease. Int. J. Alzheimer’s Dis. 2012, 2012. [Google Scholar] [CrossRef] [PubMed]
- Tang, X.C.; De Sarno, P.; Sugaya, K.; Giacobini, E. Effect of huperzine A, a new cholinesterase inhibitor, on the central cholinergic system of the rat. J. Neurosci. Res. 1989, 24, 276–285. [Google Scholar] [CrossRef] [PubMed]
- Young, S.; Fabio, K.; Guillon, C.; Mohanta, P.; Halton, T.A.; Heck, D.E.; Flowers II, R.A.; Laskin, J.D.; Heindel, N.D. Peripheral site acetylcholinesterase inhibitors targeting both inflammation and cholinergic dysfunction. Bioorganic Med. Chem. Lett. 2010, 20, 2987–2990. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Chang, Y.-C.; Wang, J.D.; Hahn, R.A.; Gordon, M.K.; Joseph, L.B.; Heck, D.E.; Heindel, N.D.; Young, S.C.; Sinko, P.J.; Casillas, R.P. Therapeutic potential of a non-steroidal bifunctional anti-inflammatory and anti-cholinergic agent against skin injury induced by sulfur mustard. Toxicol. Appl. Pharmacol. 2014, 280, 236–244. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Young, S.C.; Fabio, K.M.; Huang, M.T.; Saxena, J.; Harman, M.P.; Guillon, C.D.; Vetrano, A.M.; Heck, D.E.; Flowers, R.A.; Heindel, N.D. Investigation of anticholinergic and non-steroidal anti-inflammatory prodrugs which reduce chemically induced skin inflammation. J. Appl. Toxicol. 2012, 32, 135–141. [Google Scholar] [CrossRef]
- Jamil, M.; Sultana, N.; Ashraf, R.; Sarfraz, M.; Tariq, M.I.; Mustaqeem, M. Tris-diamine-derived transition metal complexes of flurbiprofen as cholinesterase inhibitors. Trop. J. Pharm. Res. 2018, 17, 451–459. [Google Scholar] [CrossRef] [Green Version]
- Colovic, M.B.; Krstic, D.Z.; Lazarevic-Pasti, T.D.; Bondzic, A.M.; Vasic, V.M. Acetylcholinesterase inhibitors: Pharmacology and toxicology. Curr. Neuropharmacol. 2013, 11, 315–335. [Google Scholar] [CrossRef] [Green Version]
- Louie, A.Y.; Meade, T.J. Metal complexes as enzyme inhibitors. Chem. Rev. 1999, 99, 2711–2734. [Google Scholar] [CrossRef]
- Eremina, J.A.; Lider, E.V.; Samsonenko, D.G.; Sheludyakova, L.A.; Berezin, A.S.; Klyushova, L.S.; Ostrovskii, V.A.; Trifonov, R.E. Mixed-ligand copper (II) complexes with tetrazole derivatives and 2, 2′-bipyridine, 1, 10-phenanthroline: Synthesis, structure and cytotoxic activity. Inorg. Chim. Acta 2019, 487, 138–144. [Google Scholar] [CrossRef]
- Matesanz, A.I.; Caballero, A.B.; Lorenzo, C.; Espargaró, A.; Sabaté, R.; Quiroga, A.N.G.; Gamez, P. Thiosemicarbazone Derivatives as Inhibitors of Amyloid-β Aggregation: Effect of Metal Coordination. Inorg. Chem. 2020, 59, 6978. [Google Scholar] [CrossRef]
- Gomes, L.M.; Vieira, R.P.; Jones, M.R.; Wang, M.C.; Dyrager, C.; Souza-Fagundes, E.M.; Da Silva, J.G.; Storr, T.; Beraldo, H. 8-Hydroxyquinoline Schiff-base compounds as antioxidants and modulators of copper-mediated Aβ peptide aggregation. J. Inorg. Biochem. 2014, 139, 106–116. [Google Scholar] [CrossRef] [Green Version]
- Deraeve, C.; Pitié, M.; Mazarguil, H.; Meunier, B. Bis-8-hydroxyquinoline ligands as potential anti-Alzheimer agents. New J. Chem. 2007, 31, 193–195. [Google Scholar] [CrossRef]
- Ellman, J.; Mendel, D.; Anthony-Cahill, S.; Noren, C.J.; Schultz, P.G. Biosynthetic method for introducing unnatural amino acids site-specifically into proteins. Methods Enzymol. 1991, 202, 301–336. [Google Scholar] [PubMed]
- Santini, C.; Pellei, M.; Gandin, V.; Porchia, M.; Tisato, F.; Marzano, C. Advances in Copper Complexes as Anticancer Agents. Chem. Rev. 2014, 114, 815–862. [Google Scholar] [CrossRef] [PubMed]
- Figiel, P.J.; Kirillov, A.M.; Guedes da Silva, M.F.C.; Lasri, J.; Pombeiro, A.J.L. Self-assembled dicopper(ii) diethanolaminate cores for mild aerobic and peroxidative oxidation of alcohols. Dalton Trans. 2010, 39, 9879–9888. [Google Scholar] [CrossRef] [PubMed]
- Dias, S.S.P.; Kirillova, M.V.; André, V.; Kłak, J.; Kirillov, A.M. New tricopper(ii) cores self-assembled from aminoalcohol biobuffers and homophthalic acid: Synthesis, structural and topological features, magnetic properties and mild catalytic oxidation of cyclic and linear C5–C8 alkanes. Inorg. Chem. Front. 2015, 2, 525–537. [Google Scholar] [CrossRef]
- Eckert, P.K.; Vieira, I.d.S.; Gessner, V.H.; Börner, J.; Strohmann, C.; Herres-Pawlis, S. Simple is best: Diamine zinc complexes as unexpected catalysts in lactide polymerisation. Polyhedron 2013, 49, 151–157. [Google Scholar] [CrossRef]
- Girek, M.; Szymański, P. Tacrine hybrids as multi-target-directed ligands in Alzheimer’s disease: Influence of chemical structures on biological activities. Chem. Pap. 2019, 73, 269–289. [Google Scholar] [CrossRef]
- Jamil, M.; Sultana, N.; Sarfraz, M.; Tahir, M.N.; Tariq, M.I. Diamines Derived Transition Metal Complexes of Naproxen: Synthesis, Characterization and Urease Inhibition Studies. Iran. J. Chem. Chem. Eng. (Ijcce) 2020, 39, 45–57. [Google Scholar] [CrossRef]
- Krieger, E.; Vriend, G. YASARA View—Molecular graphics for all devices—From smartphones to workstations. Bioinformatics 2014, 30, 2981–2982. [Google Scholar] [CrossRef] [Green Version]
- Bilal, S.; Mudassir Hassan, M.; Fayyaz ur Rehman, M.; Nasir, M.; Jamil Sami, A.; Hayat, A. An insect acetylcholinesterase biosensor utilizing WO3/g-C3N4 nanocomposite modified pencil graphite electrode for phosmet detection in stored grains. Food Chem. 2021, 346, 128894. [Google Scholar] [CrossRef] [PubMed]
- Ellman, G.L.; Courtney, K.D.; Andres Jr, V.; Featherstone, R.M. A new and rapid colorimetric determination of acetylcholinesterase activity. Biochem. Pharmacol. 1961, 7, 88–95. [Google Scholar] [CrossRef]
- Sami, A.J.; Bilal, S.; Khalid, M.; Shakoori, F.R.; Shakoori, A. Effect of crude neem (Azadirachta indica) powder and azadirachtin on the growth and acetylcholinesterase activity of Tribolium castaneum (Herbst) (Coleoptera: Tenebrionidae). Pak. J. Zool 2016, 48, 881–886. [Google Scholar]
- Kryger, G.; Silman, I.; Sussman, J.L. Structure of acetylcholinesterase complexed with E2020 (Aricept®): Implications for the design of new anti-Alzheimer drugs. Structure 1999, 7, 297–307. [Google Scholar] [CrossRef] [Green Version]
- Bai, F.; Xu, Y.; Chen, J.; Liu, Q.; Gu, J.; Wang, X.; Ma, J.; Li, H.; Onuchic, J.N.; Jiang, H. Free energy landscape for the binding process of Huperzine A to acetylcholinesterase. Proc. Natl. Acad. Sci. USA 2013, 110, 4273–4278. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Berg, L.; Andersson, C.D.; Artursson, E.; Hörnberg, A.; Tunemalm, A.-K.; Linusson, A.; Ekström, F. Targeting acetylcholinesterase: Identification of chemical leads by high throughput screening, structure determination and molecular modeling. PLoS ONE 2011, 6, e26039. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Tripathi, R.K.; Sasi, M.V.; Gupta, S.K.; Krishnamurthy, S.; Ayyannan, S.R. Design, synthesis, and pharmacological evaluation of 2-amino-5-nitrothiazole derived semicarbazones as dual inhibitors of monoamine oxidase and cholinesterase: Effect of the size of aryl binding site. J. Enzym. Inhib. Med. Chem. 2018, 33, 37–57. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Renfrew, A.K. Transition metal complexes with bioactive ligands: Mechanisms for selective ligand release and applications for drug delivery. Metallomics 2014, 6, 1324–1335. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Jaros, S.W.; Guedes da Silva, M.F.C.; Florek, M.; Smoleński, P.; Pombeiro, A.J.L.; Kirillov, A.M. Silver(I) 1,3,5-Triaza-7-phosphaadamantane Coordination Polymers Driven by Substituted Glutarate and Malonate Building Blocks: Self-Assembly Synthesis, Structural Features, and Antimicrobial Properties. Inorg. Chem. 2016, 55, 5886–5894. [Google Scholar] [CrossRef] [PubMed]
- Dabrowiak, J.C. Metals in Medicine; John Wiley & Sons: Hoboken, NJ, USA, 2017. [Google Scholar]
Identification Code | Shelx |
---|---|
Empirical formula | C34 H44 Cu F2 N4 O6 |
Formula weight | 706.27 |
Temperature | 296(2) K |
Wavelength | 0.71073 Å |
Crystal system | Monoclinic |
Space group | P 21/n |
Unit cell dimensions | |
a = 6.6291(8) Å | α = 90° |
b = 40.392(5) Å | β = 112.243(6)° |
c = 6.8061(9) Å | γ = 90° |
Volume | 1686.8(4) Å3 |
Z | 2 |
Density (calculated) | 1.391 Mg/m3 |
Absorption coefficient | 0.708 mm−1 |
F(000) | 742 |
Crystal size | 0.420 × 0.280 × 0.200 mm3 |
Theta range for data collection | 1.008 to 27.356°. |
Index ranges | −8 ≤ h≤ 7, −51 ≤ k ≤ 49, −5 ≤ l ≤ 8 |
Reflections collected | 10,124 |
Independent reflections | 3611 [R(int) = 0.0400] |
Completeness to theta = 25.242° | 98.4% |
Refinement method | Full-matrix least-squares on F2 |
Data/restraints/parameters | 3611/0/221 |
Goodness-of-fit on F2 | 1.172 |
Final R indices [I > 2sigma(I)] | R1 = 0.0884, wR2 = 0.2301 |
R indices (all data) | R1 = 0.1181, wR2 = 0.2532 |
Extinction coefficient | n/a |
Largest diff. peak and hole | 1.684 and −0.713 e.Å−3 |
(1a-b, 2a-b and 3a-b) | ||||
---|---|---|---|---|
Sample Code | Compounds | Anticholinesterase Activity * (IC50 µM) | ||
eeAChE | eqBChE | SI | ||
1a | Zn(H2O)2(L)2 | 32.3 ± 1.4 | 43.2 ± 1.23 | 1.3 |
2a | Zn(H2O)2(L1)2(L)2 | 3.5 ± 0.14 | 13.6 ± 0.38 | 5.4 |
3a | Zn(H2O)2(L2)2(L)2 | 9.3 ± 0.22 | 21.3 ± 2.31 | 2.2 |
1b | Cu(H2O)2(L)2 | 22.5 ± 0.62 | 45.4 ± 1.45 | 2.0 |
2b | Cu(H2O)2(L1)2(L)2 | 3.0 ± 0.24 | 12.3 ± 0.21 | 4.1 |
3b | Cu(H2O)2(L2)2(L)2 | 3.4 ± 0.17 | 14.5 ± 0.27 | 4.2 |
A * | Galantamine | 4.0 ± 0.10 | 15.0 ± 0.67 | 3.7 |
L | Flurbiprofen | 45 ± 0.13 | 443 ± 30.73 | 9.5 |
