Enhanced X-ray Attenuating Efficiency of Silicon Dioxide Nanoparticles with Cesium Lead Bromide and 2,5-Diphenyloxazole Co-Embedded Therein

Abstract

An X-ray-attenuation-based in vivo imaging can be a promising candidate for real-time detection of cancer in an early stage due to its significantly longer penetration depth compared to currently investigated fluorescence-emission-based imaging techniques. It has recently been demonstrated that this novel concept of imaging is feasible using cesium lead bromide (CPB) quantum dots (QDs) stably embedded in silicon dioxide (SiO₂) nanoparticles (NPs). However, further improvements are necessary to realize its practical use, especially in terms of X-ray attenuation efficiency. In this study, we have found that the X-ray attenuation capability of CPB/SiO₂ NPs was significantly enhanced by embedding an organic X-ray scintillator, 2,5-diphenyloxazole (PPO), together with CPB QDs in the NPs. The embedment not only solved the water dispersibility and stability problem of PPO, but also significantly increased the Hounsfield unit of the NPs, which was proportional to the degree of X-ray attenuation, by 2.7 times.

1. Introduction

Researches on the biological applications of semiconductor nanocrystals, such as in vivo imaging and diagnostics, have been steadily evolving [1,2]. Especially, emission-based optical imaging technologies using fluorescent nanomaterials have attracted attention in order to overcome the limited target-specificity and contrast issues of conventional tomographical techniques such as magnetic resonance imaging (MRI), computed tomography (CT), and positron emission tomography (PET) [3,4,5]. However, currently investigated fluorescence-emission-based approaches have a fatal drawback of short tissue penetration, that is, fluorophores existing deep inside the body are hardly detected outside [6,7,8]. Although fluorophores emitting the wavelength, λ, of longer tissue penetration, especially near-infrared-II (λ of 900–1700 nm), have extensively been investigated in recent years, they also have intrinsically limited penetration depth and a trade-off between the depth and the resolution [7,8]. To overcome the limitations of such emission-based imaging technologies, we have recently proposed an X-ray-attenuation-based imaging technique using cesium lead bromide (CPB; CsPbBr₃) quantum dot (QD)-embedded silicon dioxide (SiO₂) nanoparticles (NPs) that effectively attenuate incident X-rays [9]. Because X-rays have almost unlimited depth of tissue penetration, the X-ray-based imaging can be a plausible candidate for real-time in vivo detection of cancer wherever it is located in a body. When NPs, the surface of which is conjugated with cancer-specific antibodies, are injected intravenously into a tumor-grown mouse, a bright spot at the tumor position is clearly visible due to the target-specificity of the NPs and the outstanding X-ray attenuation capability of the CPB QDs therein.

However, there still remains much room for improving the X-ray attenuation quantum yield and stability of NPs for their practical use. Recently, it has been reported that the X-ray attenuating quantum efficiency of a CPB-containing liquid scintillator is significantly improved by adding organic scintillators such as 2,5-diphenyloxazole (PPO) [10]. In addition, the significantly short decay time (~7 ns) of PPO is also expected to result in a rapidly repeated consumption of incident X-ray photons [11,12]. The improvement was explained by the effective transfer of X-ray-induced charges from PPO molecules to CPB nanocrystals via the strong interaction between N atoms of PPO and Pb atoms of CPB. In the literature, a mixture of inorganic CPB nanocrystals and organic PPO molecules dispersed in octane is used as a liquid scintillator. However, it is not possible to use the mixture directly in vivo due to its extremely poor dispersibility and stability in water. In this study, we have solved both problems by encaging PPO molecules and CPB QDs simultaneously and stably in SiO₂ NPs. The synthesized CPB–PPO/SiO₂ NPs were highly dispersible in water and showed significantly improved the X-ray-attenuating efficiency, compared to the SiO₂ NPs containing CPB QDs only.

2. Materials and Methods

SiO₂ NPs containing CPB QDs and PPO molecules, denoted as CPB–PPO/SiO₂ NPs, were synthesized using a modified “rapid co-synthesis and double-encapsulation method”, which was described elsewhere [9]. Briefly, 2 mL CPB precursor solution prepared by adding 0.3 g lead bromide (99.999%; Sigma-Aldrich, Seoul, Korea), 0.17 g cesium bromide (99.999%; Sigma-Aldrich, Seoul, Korea), 1.2 mL oleylamine (70%; Sigma-Aldrich, Seoul, Korea), 3.6 mL oleic acid (90%; Sigma-Aldrich, Seoul, Korea), and catalytic amount of ammonium hydroxide (28%; Deajung, Seoul, Korea) in 20 mL N,N-dimethylformamide (99.5%, Deajung, Seoul, Korea) were rapidly injected into a SiO₂ precursor solution containing 1600 μL tetramethyl orthosilicate (98%; Sigma-Aldrich, Seoul, Korea) and 200 mg PPO (grade for spectrometry; Sigma-Aldrich, Seoul, Korea) in 100 mL toluene (99.7%; Deajung, Seoul, Korea), followed by stirring at room temperature for 2 h. The synthesized CPB–PPO/SiO₂ NPs were collected using centrifugation and washed with ethanol three times, followed by annealing at 150 °C for 2 h to remove surface hydroxyl groups. For comparison, SiO₂ NPs containing CPB QDs only, denoted as CPB/SiO NPs, were also prepared in the same manner without the PPO in the above process.

The size and shape of the synthesized CPB/SiO₂ and CPB–PPO/SiO₂ NPs were characterized by field-emission scanning electron microscopy (FE-SEM, JSM-7610F; JEOL Ltd., Tokyo, Japan). The existence of the PPO molecules in the NPs was confirmed by a Fourier-transform infrared (FTIR) spectrometer (Nicolet™ iS™ 50 FTIR Spectrometer; Thermo Fisher, Waltham, MA, USA). The PPO leakage from the CPB–PPO/SiO₂ NPs was evaluated by electronic absorption measurements (Mega-800; Scinco, Seoul, Korea). Three milliliters of toluene were added into 3 mL of 1 mg/mL CPB–PPO/SiO₂ NP-dispersed aqueous solution. After vigorous stirring and phase separation, the toluene layer was taken, and the measurement was performed. The X-ray attenuation characteristics of the synthesized NPs were estimated by a micro-CT system (SKYSCAN 1176; Bruker, Billerica, MA, USA) at a tube potential of 50 kVp.

3. Results and Discussion

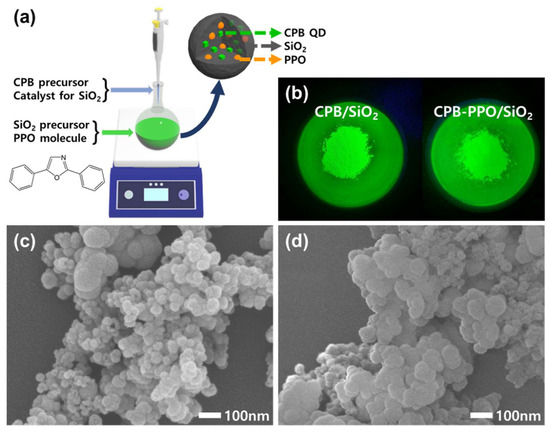

The basic strategy for synthesizing CPB–PPO/SiO₂ NPs is illustrated in Figure 1a. The embedment of individual CPB QDs without aggregation in SiO₂ NPs was successfully performed by the rapid co-synthesis of QDs and NPs, which was well presented in the earlier report [13]. Briefly, CPB/SiO₂ NPs were obtained by rapidly injecting a CPB precursor solution containing a catalyst for SiO₂ synthesis into a SiO₂ precursor solution, hence synthesizing CPB QDs and SiO₂ NPs simultaneously in a very short time. In this study, the additional embedment of PPO molecules with CPB QDs in SiO₂ NPs was successfully achieved by dissolving the PPO molecules in the SiO₂ precursor solution prior to the injection of the CPB precursor solution. The 512 nm-wavelength green emissions of both the CPB/SiO₂ and CPB–PPO/SiO₂ NPs under UV irradiation indicated that the individual CPB QDs were well embedded inside the NPs since it was the typical emission of 4–15 nm CPB QDs (Figure 1b) [13,14]. As shown in the FE-SEM images (Figure 1c,d), the morphologies of the CPB/SiO₂ and CPB–PPO/SiO₂ NPs did not differ significantly, although the average particle size of the CPB–PPO/SiO₂ NPs was slightly larger than that of the CPB/SiO₂ NPs.

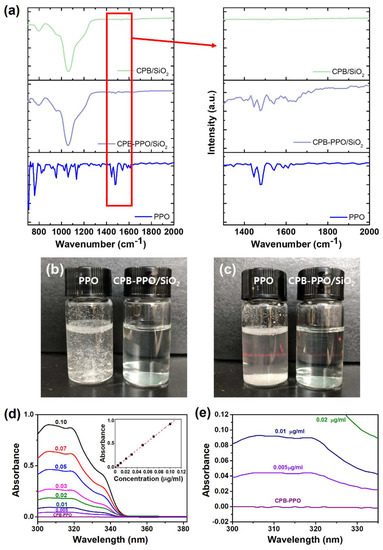

The embedment of PPO molecules in the NPs was confirmed by FTIR spectroscopic measurements (Figure 2a). While any vibrational peak in the 1400–1600 cm⁻¹ wavenumber region was absent for the CPB/SiO₂ NPs, the characteristic aromatic C=C vibrational peaks originated from the PPO molecules in that region were clearly observed in the spectrum of the CPB–PPO/SiO₂ NPs [15]. The encaging of the PPO molecules in the SiO₂ NPs also appeared to solve their problem of dispersibility in water. As shown in Figure 2b, the CPB–PPO/SiO₂ NPs were highly dispersible in water even at a high concentration of 10 mg/mL, but the unencapsulated PPO molecules were not soluble or dispersible in water. While the PPO molecules were precipitated in a short time, the dispersibility of the colloidal CPB–PPO/SiO₂ NPs in water was maintained for at least 1 h, as shown in Figure 2c. Not only the dispersibility of PPO molecules, but also their stability in SiO₂ NPs is important because of their potential for eye irritation and acute toxicity [16]. Electronic absorption measurements were performed to evaluate the stability of the embedded PPO molecules (Figure 2d,e). Prior to the evaluation, it was confirmed that the absorption intensity was almost exactly proportional to the PPO concentration, as shown in the inset of Figure 2d. Comparing these spectra, any detectable PPO signal was not observed for the solution, in which the CPB/SiO₂ NPs were dispersed for 30 days, indicating the high stability of PPO molecules in the NPs. Furthermore, based on the report that most SiO₂ NPs of this size intravenously injected into mice are excreted within 7 days [9], the accumulated PPO or SiO₂ in the body would be much less. Of course, further in-depth evaluation will be required to safely apply this material to in vivo imaging.

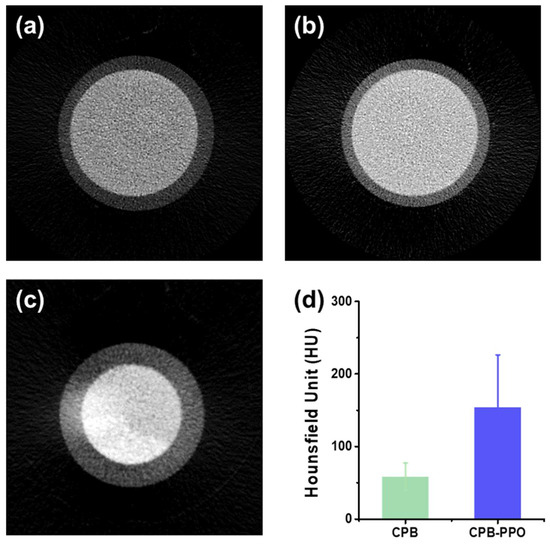

As shown in Figure 3a–c, the addition of a small amount of PPO molecules in the CPB/SiO₂ NPs resulted in a brighter micro-CT image, which is attributed to the enhanced X-ray attenuation by the synergetic effect of the CPB QDs and PPO molecules (Figure 3a–c). The images were obtained under the same condition, i.e., a tube potential of 50 kVp and an NP concentration of 1.0 mg/mL. To more quantitatively investigate the enhancement of the X-ray attenuation quantum efficiency after the addition of PPO molecules in the CPB/SiO₂ NPs, the Hounsfield unit (HU) was calculated using the micro-CT imaging of the NP-dispersed aqueous solutions (Figure 3d). The HU is a quantitative measurement, which is proportional to the degree of X-ray attenuation when the X-ray penetrates the matter [17,18]. The corresponding HU value was calculated by the following equation:

$$\mathrm{HU}=\left(\frac{{\mu }_x-{\mu }_{water}}{{\mu }_{water}-{\mu }_{air}}\right)\times 1000$$

(1)

where μ_x, μ_water, and μ_air are the attenuation coefficients of the sample solution, water, and air, respectively. Because the attenuation coefficient of the air is nearly zero, the change of one HU of the sample represents a change of the 0.1% attenuation coefficient with respect to that of water. The obtained HU of the CPB–PPO/SiO₂ NP solution was 154, which was significantly larger than that of the only-CPB-containing NP solution, i.e., 57.8. The brighter micro-CT image and the increased HU indicated that the X-ray attenuation capability of the CPB/SiO₂ NPs was effectively improved by the addition of PPO molecules.

4. Conclusions

In summary, we have developed a new synthetic route for X-ray-attenuating SiO₂ NPs, which contained CPB QDs and PPO molecules simultaneously. The synthesis was successfully achieved by rapidly mixing a CPB precursor solution containing a catalyst for SiO₂ synthesis and a SiO₂ precursor solution containing PPO molecules. The effective embedment of PPO molecules in SiO₂ NPs, confirmed by FTIR measurements, solved the poor dispersibility problem of organic PPO scintillators in water. The co-embedment of inorganic and organic scintillators in SiO₂ NPs resulted in a significant improvement in their X-ray-attenuating efficiencies. The HU of the 1.0 mg/mL CPB–PPO/SiO₂ NP solution was 154, which was approximately 2.7 times larger than that of the CPB/SiO₂ NP solution with the same concentration.
