Design of MFI Type Aluminum- and Titanium-Containing Zeolites

Abstract

HZSM-5 (MFI type) of composition (H_x)[Al³⁺_xSi_12−xO₂₄] × wH₂O and nanocomposites NA/HZSM-5, NA:M/HZSM-5 (NA—nanoscale anatase; M = V, Ni, Ag) with Si/Al = 12, 25, 40, 300 (sp.gr. Pnma or P2₁/n; z = 8), as well as zeolites [(Ti⁴⁺_xSi_12−xO₂₄] × wH₂O (TS) with Si/Ti = 47, 53, 73.5 (sp.gr. Pnma) were studied by XRPD, XAS, FTIR-spectroscopy, BET, XPS, SEM, EDX, TPD, UV–VIS-spectroscopy, UV–DRS, and chemiluminescence methods. The results obtained together with photocatalytic, adsorption, antimicrobial, catalytic properties were analyzed using crystallochemical concepts and literature data. It was shown that NA or NA:M introduction into HZSM-5 leads, respectively, to the photodegradation of MeO dye in the UV region or difenoconazole in the visible range, and contributes to the appearance in the dark of adsorption (almost complete extraction of P(V), As(V), and Se(V) from aquatic environment) and bacteriostatic properties in respect to Staphylococcus epidermidis, Bacillus antracoides, and Escherichia coli for NA:Ag/HZSM-5(40, 300). The presence of titanium ions in NA nanoparticles on the HZSM-5 surface improves the catalytic activity in ethanol and propane (the best performance for NA/HZSM-5(25) and NA/HZSM-5(40), respectively) conversion. Determination of the composition (surface and bulk) and structure (statistical and local) of TS zeolites together with the found correlations made it possible to propose new catalysts in the reactions of propane, ethanol, and allyl chloride conversion.

1. Introduction

Zeolites are a large group of silicates that include several hundreds of compounds with a generalized composition formula where M^m+ denotes inorganic or organic cations and (Tⁿ⁺_xSi_1−x) denotes cations T and Si with tetrahedral coordination arranged in one crystallographic site [1]. Currently, zeolites are considered to be tetrahedral oxide structures with the skeleton density no less than 20 T atoms per 1000 Å irrespective of the material chemical composition [2].

Primary structural units in zeolites (H_(4-n)x)[Tⁿ⁺_xSi⁴⁺_12−xO₂₄] × wH₂O are tetrahedra (T) SiO₄ and TO₄ with typical average bond lengths Si-O and T-O ~1.6 Å and ~1.7 Å, angles O-(Si,T)-O inside tetrahedra close to tetrahedral (109.4°), and angles O-(Si,T)O between tetrahedra varying in rather large limits from ~135° to 180° (an average value is ~154°) [3]. Tetrahedra are connected by vertexes of oxygen atoms with the formation of the three-dimensional skeleton (primary structure) with voids (cavities) of 4, 5, 6, 8, 10, and 12 T and sizes from 0.26 to 1.0 nm, in which X, or neutral “guest” molecules are arranged, in particular, water. Just the general composition of the skeleton [(Tⁿ⁺_xSi_1−x)O₂], T composition, and angles between T are responsible for the configuration and sizes of cavities, and consequently, for the crystalline structure of zeolites. Undoubtedly, the structure is affected by the form (composition) and content of M^m+ and X, but we speak about only protonated HZSM-5 zeolites in this work. According to the IUPAC nomenclature, they refer to MFI type.

Functional properties of zeolites are determined by the skeleton composition and structure, the number and specific arrangement of active chemical centers in it, which are V_Siⁿ′, or vacancies in the silicon site, T_Si^m′ or T_Si^m depending on the formal charge of the T ion in the Si⁴⁺ site, and charged ions compensating them, in particular, OH⁻ and H⁺ groups in the case of protonated forms of zeolites.

Sizes, geometry, and connectivity of cavities, which determine the skeleton configuration, serve as no less important characteristics of zeolites. Geometry of combined voids is described in terms of the “channel system” (secondary structure), which can be linear or sinusoidal, and one-, two-, and three-dimensional depending on channel intersections in three dimensions [4]. Channel sizes, which are characterized by sizes of rings of T, specify limitations to the size and shape of molecules capable to “penetrate” into the zeolite crystalline structure.

All things described above (the skeleton, voids in the skeleton, and channels) refer to structural characteristics of zeolites, which predetermine their structure-dependent properties (for example, catalytic and molecular-sieve) [5,6,7]. However, zeolites possess unique textural characteristics (specific surface and its composition; porosity and pore size), which also affect the properties (absorption, diffusion, mechanical, etc.) and processes (heat-and-mass transfer) [8,9,10,11].

Zeolites HZSM-5 (MFI type) with the general composition (H_(4-n)x)[Tⁿ⁺_xSi⁴⁺_12−xO₂₄] × wH₂O, which are considered in this work, form the large group of mesoporous and microporous crystalline silicates with micropore sizes from 0.2 to 2 nm, and mesopores sizes from 2 to 50 nm and with large specific surface (up to 834.41 m²/g) [12], which are distinguished by a broad spectrum of silicate module Si/T and, from here, by variable properties, among other zeolites.

Aluminosilicalites (H¹⁺_x)[Al³⁺_xSi⁴⁺_12−xO₂₄] × wH₂O are used in acid-catalyzed reactions such as isomerization and alkylation of hydrocarbons [13], acylation of anisole (C₇H₈O) with a propionic anhydride (C₆H₁₀O₃) to obtain p-methoxypropiophenone (C₁₀H₁₂O₂) [14], transformation of ethanol (C₂H₅OH) into diethyl ether ((C₂H₅)₂O) [15,16] or ethylene (C₂H₄) [16,17], propane (C₃H₈) conversion with the formation of the main products propylene (C₃H₆) and ethylene (C₂H₄) [16], etc., and as adsorbents for recovery of methanol (CH₃OH) [18], hydrocarbons (propane C₃H₈, propene C₃H₆, and n-butane C₄H₁₀) [19] from carbon monoxide (CO) [20] from the gas phase; and dyes (for example, methyl green [21]), which are used in the staining process (in textile industry) and contaminate wastewater [22]—from an aqueous medium.

Titanosilicalites of the composition [Ti⁴⁺_xSi⁴⁺_12−xO₂₄] × wH₂O, MFI type (they are denoted in publications as TS-1) are currently most efficient among heterogeneous catalysts of liquid-phase oxidation of various organic substrates by H₂O₂ aqueous solutions. TS-1 are used in such reactions as alkene epoxidation [23], cyclohexene conversion [24], oxidative desulfurization of dibenzothiophene (DBT) and 4,6-dimethyldibenzothiophene (4,6-DMDBT) [25], desulfurization [26], oxidation of 2,3,6-trimethylphenol [27], conversion of biomass to chemicals [28], cyclohexene epoxidation [29], oxidative hydration of ethylene [30], propylene epoxidation [31], propene epoxidation [32], allyl chloride epoxidation to epichlorohydrin, dehydrogenation of ethanol to acetaldehyde, propane conversion to propylene and ethylene [33], nitrous oxide decomposition [34], etc. Titanosilicalites can adsorb hydrocarbons in the presence of water [35], while ability of TS-1 to adsorb toluene and isopentane from the gas phase exceeds HZSM-5 aluminosilicate (Si/Al = 30.5) [36].

The HZSM-5 zeolite matrix is promising as a stable inert “host” for various nanoobjects, in particular, nanodimensional oxides of titanium (IV) (NOT) with structures of anatase (NA) or rutile (general formula TiO₂) or their mixtures, η-phase (E) with the structure derivative from the NA structure (superstructure to anatase; general formula TiO_2−x × nH₂O).

The samples with nanoscale anatase (NA) are used as catalysts in “green” chemistry (for example, aldol condensation of furfurol with acetone) due to high oxidizing power, thermal and moisture resistance, and possibility of repeated use [37]. NOT samples are considered mainly as a support [38] or promoter [39] for nitrous oxide decomposition. Antimicrobial activity of the samples with NOT with respect to bacteria Staphylococcus aureus, Staphylococcus epidermidis, Escherichia coli, Bacillus antracoides, and fungi Candida albicans is known, which is determined by both physicochemical properties of NOT modifications (the samples with NA prepared by hydrolysis of TiOSO₄ × xH₂SO₄ × yH₂O are most active with respect to Staphylococcus aureus, Escherichia coli, and Candida albicans [40], while the samples with η-phase (E) are most active with respect to Staphylococcus aureus [41,42]), and by the nature of bacteria and fungi. Photocatalytic and adsorption properties of NOT are conditioned by surface hydroxyl groups with high reaction activity, which are self-generated when contacting with water, which leads to high adsorption ability to extract Ni, Co, Sr, Zn, Ag, Cu, Hg, Cd, Tl, Pb, Mn, Rb, Cs, Sn, Cr, Sb, Al, V, As, P, Se, Te, Ta, U, and transuranic ions, regardless of the oxidation state, from aqueous systems, see, e.g., [43], and photocatalytic activity in an ultraviolet part of sunlight [44].

Photocatalytic activity of NOT in a visible range is attained by modification either bulk (activator introduction into the phase composition—NOT:M), or surface (deposition of dyes, peroxide groupings, or Au, Ag, Pt, Ce, V, and Pt ions on the surface of NOT particles, see, e.g., [45]. NOT:M demonstrate the photocatalytic activity in the visible region in the reaction of photodegradation of the cationic dye rhodamine 6G (R6G) and the systemic triazole fungicide difenoconazole (in the UV and visible regions) (NA:V⁴⁺ and E:V⁴⁺) [43], methylene blue (MB) in water (a mixture of anatase and rutile:V⁴⁺) [46] and NA:Cu²⁺ [47]), methyl orange (MeO) (a mixture of anatase and rutile:V⁴⁺) [48], isobutanol diluted in water (NA:V⁴⁺) [49], ibuprofen (Degussa P25:Bi³⁺ and Degussa P25:Ni²⁺; Degussa P25 is a mixture of nanodimensional anatase and rutile in a ration of ~85%:15%) [50], dissolved organic matter represented by a model humic acid (Degussa P25:Cu²⁺) [51], and phenol in aqueous suspension (a mixture of anatase and rutile:Al³⁺) [52]. In addition, NOT:M manifest the higher adsorption ability for the extraction of As(V) anions from aqueous systems (NA:V⁴⁺) when compared with initial NOT:M [43] and antimicrobial activity in darkness against Staphylococcus aureus, Escherichia coli, and Bacillus anthracoides (NA:V⁴⁺) [43] and Escherichia coli and Staphylococcus aureus under visible light irradiation (NA:Cu²⁺) [53].

The formation of nanocomposites in the HZSM-5 system (with various silicate moduli Si/Al)—NOT (nominally pure or M-doped) can promote not only the enhancement of present properties of composites but the appearance of new ones due to the combination of separate parts into the united system.

Nanocomposites NA/HZSM-5 demonstrate:

-

An increase in relative photocatalytic activity of NA under the effect of UV irradiation in an aqueous phase for the decomposition MeO (NA/HZSM-5(12, 40, 300) [54], NA/HZSM-5(2.3–2.5 wt.% Al₂O₃) [55], NA:In/HZSM-5(50)) [56]), Brilliant Red X-3B (NA/HZSM-5(2.3–2.5 wt.% Al₂O₃) [57], NA/HZSM-5 [58]), Acid Green 25 (NA/HZSM-5) [59]), Acid Red 1 (NA/HZSM-5 (Si/Al = 25) [60]), degradation of aqueous phenol and p-chlorophenol (Degussa P25/HZSM-5(30) [61]), enhancement of photocatalytic properties for (NA/HZSM-5(50) [62]) and NOx in the presence of water vapor (Degussa P25/HZSM-5(500, 200, 25) [63]), as well as photocatalytic properties under the effect of visible light in an aqueous medium with respect to MeO (NA:Fe/HZSM-5(Al₂O₃ 2.3–2.5 wt.%) [64]) and triazole fungicide difenoxazole (NA:M/HZSM-5, M = Ag, Ni, V [65]);

-

Improvement of adsorption properties when compared with initial HZSM-5 and NA on the recovery (in darkness) of aqueous media of P(V) ions (NA/HZSM-5(12, 40, 300) [66], NA:M/HZSM-5(40) with M = Ag, Ni, V [65]), As(V) (NA/HZSM-5(12, 40, 300) [67], NA:M/HZSM-5(40) with M = Ag, Ni, V [65]), and Se(V) (NA:M/HZSM-5(40) with M = Ag, Ni, V [65]);

-

Antimicrobial properties (in darkness) with respect to Staphylococcus epidermidis, Bacillus antracoides, and Escherichia coli (NA:Ag/HZSM-5(40) [65]);

-

Enhancement of catalytic properties relative to initial HZSM-5 in epoxidation reaction of allyl alcohol and allyl chloride (NA/HZSM-5(12, 40) [68]) and in the reactions of propane and liquid ethanol conversions (NA/HZSM-5(12, 25, 40 [16]).

The broadly variable chemical composition of HZSM-5 zeolites (Si/T), void sizes, the possibility of ordered arrangement of active centers, selectivity and directionality of the effect on chemical groups of molecules, and modification of nanocomposite formation (NA/HZSM-5)—all these factors make it possible to improve the properties of HZSM-5 in the specified direction and/or select zeolite necessary for the application. The knowledge of the composition and structure of HZSM-5, their textural and structural characteristics make it possible to establish the correlation bonds “composition–structure–properties” and “select” HZSM-5 with Si/T with optimal parameters for the specific application.

The goal of this work is to analyze the functional properties of (H¹⁺_(4-n)x)[Tⁿ⁺_xSi⁴⁺_12−xO₂₄] × wH₂O (T = Al, Ti) zeolites and their composites with nanoscale anatase (initial and activated with transition metal ions) and to establish their correlations with composition and structure to select possible application areas.

2. Materials: General Information

The objects of the study are HZSM-5 zeolites (H_(4-n)x)[Tⁿ⁺_xSi⁴⁺_12−xO₂₄] × wH₂O (hereinafter as HZSM) with Si/Al and Si/Ti silicate modules, nanocomposites in the systems of HZSM (Si/Al = 12, 25, 40, 300)—nanoscale anatase (NA/HZSM) and HZSM (Si/Al = 40, 300)—nanoscale anatase doped with transition metals (NA:M/HZSM, M = Ag, Ni, V). Methods of HZSM zeolites, NA/HZSM, and NA:M/HZSM nanocomposites synthesis and characterization are systematized based on works [16,33,34,54,65,66,67,68,69,70,71,72,73,74,75,76] and presented in Supplementary Materials.

3. Results and Discussion

3.1. HZSM-5 Zeolites

HZSM-5 (HZSM) zeolites with MFI-type structure according to the IUPAC nomenclature show two stable structures: a low temperature phase having monoclinic symmetry (sp. gr. P2₁/n; 24 T) and a high temperature one with orthorhombic symmetry (sp. gr. Pnma; 12 T) [77,78,79,80,81,82,83].

The phase transition temperature mainly depends on several parameters: (i) the chemical composition of the framework (i.e., the nature and the amount of tetrahedrally incorporated atoms [84]); (ii) the density of internal defects (i.e., Si vacancies generating internal hydroxyl groups [84,85,86,87,88,89]); (iii) the nature and the equilibrium pressure of adsorbed organic molecules; (iv) the presence/absence (after burning) of the template [77]; and (v) as far as trivalent or with another formal charge heteroatoms are concerned, the chemical nature of the counterions [81].

HZSM zeolites (sp. gr. P2₁/n or sp. gr. Pnma; z = 8) have general compositions [Si⁴⁺₁₂O₂₄] × wH₂O (defect-free silicalite) or {(Si⁴⁺_12−x□_x)[O_24−x(OH)_x]} × wH₂O (defective silicalite; □-vacancies), as well as substituted silicalites of general compositions (H_2x)[T²⁺_xSi⁴⁺_12−xO₂₄] × wH₂O), (H_x)[T³⁺_xSi⁴⁺_12−xO₂₄] × wH₂O), [T⁴⁺_xSi⁴⁺_12−xO₂₄] × wH₂O), (T⁵⁺_xSi⁴⁺_12−x□_x)O₂₄) × wH₂O, according to the quasi-chemical reactions (reactions 1–4) [90]:

$$0\to V_{Si}^{\prime }+{\left(OH\right)}_O^{•},$$

(reaction 1)

Vacancies in the silicon position and partial replacement of oxygen ions by OH groups for defective silicalite,

$$0\to T_{Si}^{n\prime }+n{H}^{•}\left(\mathrm{for}{\displaystyle T^{2+}}\mathrm{and}{\displaystyle T^{3+}}\right),$$

(reaction 2)

$$0\to T_{Si}^x\left(\mathrm{for}{\displaystyle T^{4+}}\right),$$

(reaction 3)

$$0\to T_{Si}^{n•}+V_{Si}^{n\prime }\left(\mathrm{for}{\displaystyle T^{5+}}\right),$$

(reaction 4)

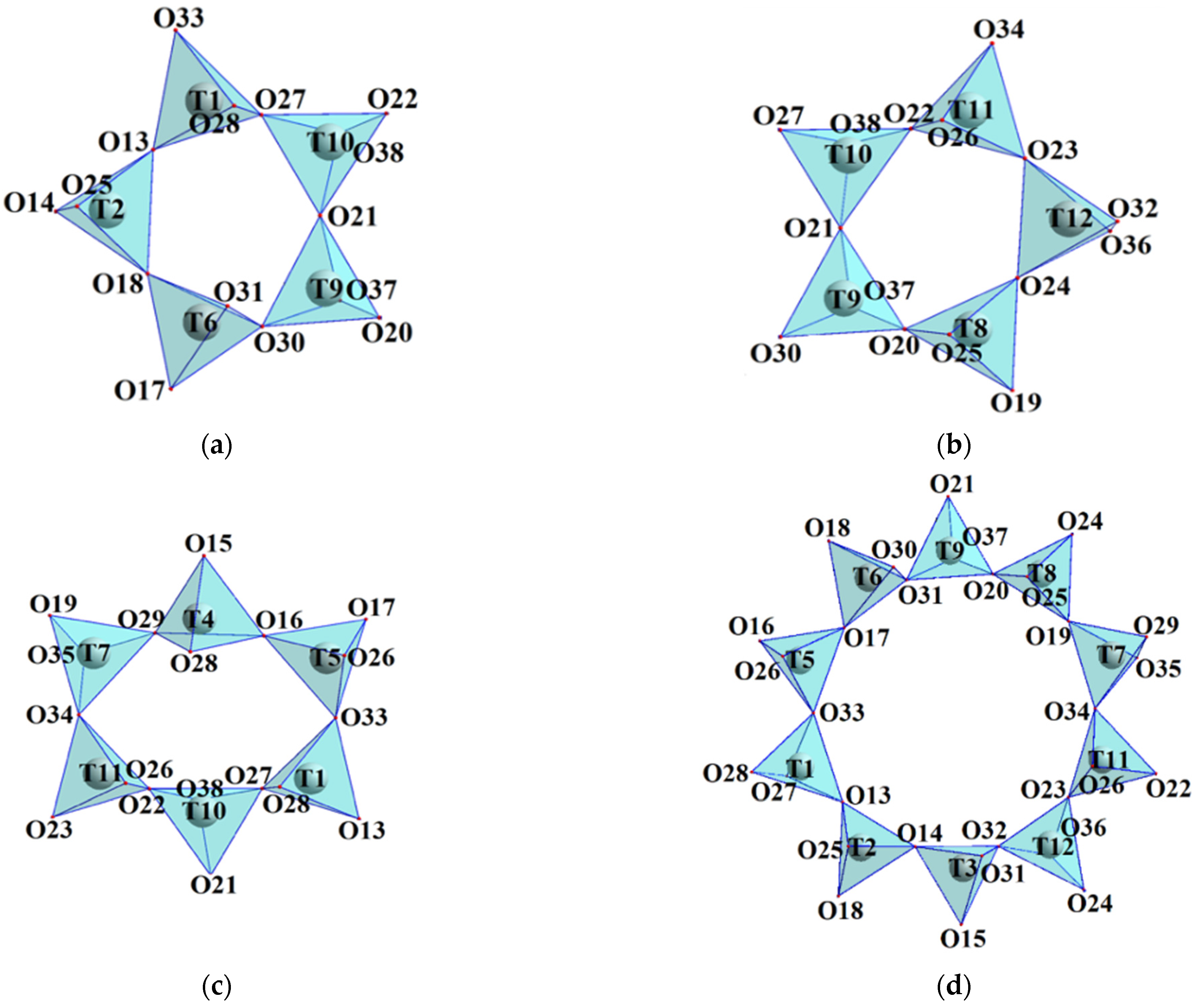

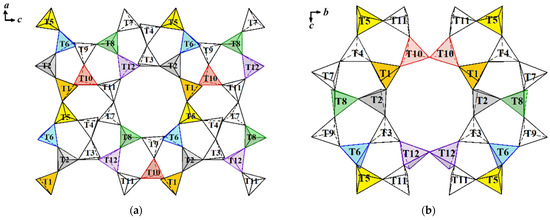

The tetrahedra (T) in HZSM structure are connected by vertices of oxygen atoms to form a framework of two 5-membered, one 6-membered, and one 10-membered rings (Figure 1), forming a three-dimensional system of intersecting channels.

These rectilinear and sinusoidal channels, which can contain atoms, groups of atoms, molecules, water, etc., are located along the <010> and <100> directions, respectively, and are bounded by 10-membered tetrahedron rings [78].

In this case, the dimensions of the cavities (voids) of HZSM depend on the composition (Si/T ratio) and on the symmetry: the maximum “effective” size of 10-membered rings cavities is ~5.3 to 5.4 Å for the orthorhombic HZSM (sp. gr. Pnma) and ~5.9 to 6.0 Å for monoclinic one (sp. gr. P2₁/n) [16,77].

Silicalite with monoclinic symmetry, as compared to orthorhombic, demonstrates higher values of SiO₄ polyhedra distortion degree, average values of interplanar spacings (d_average^IV Å) and sizes of cavities in the structure frame as well as minimum values of Si-O-Si angles connecting SiO₄ tetrahedra (Figure 1), with a slight divergence of the O-Si-O angles inside the SiO₄ tetrahedra [78,91].

The properties of silicalites are determined by the presence of vacancies and their content in the framework. It was found that among the 12 tetrahedral sites in orthorhombic silicalite structure, the T2, T3, T6, T7, T9, T10, and T11 sites are less occupied (

Table 1. Defects in tetrahedral sites (marked with a plus) of orthorhombic structures: defect-free [Si⁴⁺₁₂O₂₄] × wH₂O and defective {(Si⁴⁺_12−x□_x)[O_24−x(OH)_x]} × wH₂O (□-vacancies) silicalites.

T Site
Sample	T1	T2	T3	T4	T5	T6	T7	T8	T9	T10	T11	T12
Si-1						+	+			+	+
Si-2		+	+			+
Si-3									+	+
Si-4						+	+			+	+

Note. Si-1 [89]—powder neutron diffraction (Rietveld method); silicalite deuteration (D₂O), determination of the sites occupancy (p) in the structure (p ~0.75); Si-2 [93]—powder X-ray diffraction (diffractometer; Rietveld method; the number of defective Si atoms is ~1.5 per unit cell); solid-state ²⁹Si NMR spectroscopy (the number of defective Si atoms is ~1.6 per unit cell); Si-3 [91]—single crystal X-ray diffraction (synchrotron, room temperature) and NMR spectroscopy of defect-free silicalite: positions T9 and T10 are favorable for substitution; Si-4 [94]—powder neutron diffraction (Rietveld method); determination of T positions occupation degree; comparison with the T sites fully occupied by the Si atom.

), i.e., the formation of vacancies in the silicon sites is observed [92].

It is believed [92] that it is in these sites that T ions can be found in substituted silicalites of general compositions [(Ti⁴⁺_xSi⁴⁺_12−x)O₂₄] or (H¹⁺_x)[Tⁿ⁺_xSi⁴⁺_12−xO₂₄] × wH₂O.

Si atoms in [SiO₂] × wH₂O structure [89,93] occupy distorted tetrahedra, in which four oxygen atoms are located at distances d ~1.56 ÷ ~1.63 Å. Based on the oxygen radius (R ~1.35 Å [94]), the T⁴⁺ ions, replacing Si⁴⁺ ions in (H¹⁺_(4-n)x)[Tⁿ⁺_xSi⁴⁺_12−xO₂₄] × wH₂O, can have dimensions r ~0.20 ÷ ~0.28 Å (r_Si^IV = 0.26 Å; r^IV—radius for coordination number CN = 4 [95]). Considering the size factor of isomorphic miscibility [96], namely, the ion size (r, Å) and criterion:

$$\Delta r,\%=\frac{r_{max}-r_{Si}}{r_{si}} ~ 15\%,$$

(1)

Wide substitution of Si⁴⁺ ions by Tⁿ⁺ ions with r_max ~0.30 Å is possible with the formation of (H¹⁺_(4-n)x)[Tⁿ⁺_xSi⁴⁺_12−xO₂₄] × wH₂O. Notwithstanding the conventionality of the above estimates, it can be expected that the limits of substitution of Si⁴⁺ ions by Tⁿ⁺ ions will decrease in the row Be²⁺ (r = 0.27 Å) > V⁵⁺ (r = 0.36 Å) > Ge⁴⁺ (r = 0.39 Å) ~Al³⁺ (r = 0.39 Å) > Cr⁴⁺ (r = 0.41 Å) > Ti⁴⁺ (r = 0.42 Å) > Ga³⁺ (r = 0.47 Å) > Fe³⁺ (r = 0.49 Å) > Ni²⁺ (r = 0.55 Å) ~Sn⁴⁺ (r = 0.55 Å) > Cu²⁺ (r = 0.57 Å) > Co²⁺ (r = 0.58 Å) > Zr⁴⁺ (r = 0.59 Å) > Zn²⁺ (r = 0.60 Å) > In³⁺ (r = 0.62 Å) > Mn²⁺ (r = 0.66 Å). It is necessary to take into account the polarity of the substitution (an ion with a larger radius is more difficult to replace with ions of a smaller size, for example, Si⁴⁺ (r = 0.26 Å) with P⁵⁺ (r = 0.17 Å)) and formal charges (FC) of substituted (Si⁴⁺ with FC = 4) and substitutional ions (Tⁿ⁺) (an increase in the difference between FC sharply decreases the limits of components isomorphic miscibility) [96].

However, if we rely on the principle of G. Bokii [97]: “The apparent size of atoms depends on their relative number (the smaller the relative number of atoms, the smaller its apparent size)”, then the fabrication of zeolites (in particular, HZSM) with partial replacement of Si⁴⁺ ions with larger ones (Tⁿ⁺) in tetrahedra is quite likely. However, for Tⁿ⁺ ions that are prone to octahedral coordination (for example, Ti⁴⁺ ions), there will be a tendency to transform the tetrahedron into an octahedron [98]. On the other hand, if the size of the T ion is less than the specified limit (for example, B³⁺ with r = 0.11 Å), then the tendency to rearrange the tetrahedron into a trigonal pyramid and then into a triangle can be observed [98].

According to [96], using interatomic distances as the size factor (d, Å) for wide isomorphic substitutions:

$$\Delta d,\%=\left(d_{max}-d_{Si}\right)/d_{Si},$$

(2)

Δd < 4–5% (at all temperatures) and Δd < 8–10% (>373 to 673 K). According to [89,92,93], the Si⁴⁺-O interatomic distances are in the range d_Si ~1.56 ÷ ~1.63 Å, then d_max ~1.7 Å with r_max ~0.35 Å (at all temperatures) and d_max ~1.8 Å with r_max ~0.45 Å (>373 to 673 K).

The sizes of Tⁿ⁺ ions substituting for Si⁴⁺ ions in HZSM framework affect the parameters and unit cell volumes. Figure 2 shows the relationship between the ionic radius of T ions (r_T^IV, Å) and the unit cell volume (V, ų) of HZSM zeolites.

With an increase in the substituting ion radius (r, Å), an increase in the unit cell volume (V, ų) is observed (Figure 2), which can be described by two dependences:

$$V\left(r, \mathsf{\AA }\right)=150.73r+5309.30 \left(\mathrm{from}{\mathrm{P}}^{5+}\mathrm{to}{\mathrm{Ni}}^{2+}\right),$$

(3)

$$V\left(r, \mathsf{\AA }\right)=1121.63r+4780.66 \left(\mathrm{from}{\mathrm{Ni}}^{2+}\mathrm{to}{\mathrm{Mn}}^{2+}\right),$$

(4)

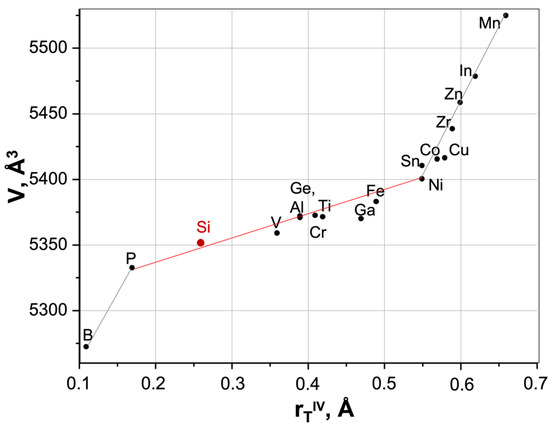

Two fractures in Figure 2 can be caused either by a change in T atom coordination (with a decrease or increase in coordination from tetrahedral, respectively, the first and second breaks), or by partial entry of T atoms into the extraframework space.

For (H)ZSM with T = Al³⁺ (Si/Al) and Ti⁴⁺ (Si/Ti; TS) limited solid solutions should be expected at all temperatures: up to ~5 wt.% and ~4.2 wt.% of Si⁴⁺ ions can be replaced, respectively, by Al³⁺ [112] and Ti⁴⁺ [114] ions (it should be noted that these values differ in the literature). The solid solutions region can expand by an increase in the synthesis temperature, which usually promotes the isomorphic miscibility of components. Although there is no clear relation between the pressure and substitution of components, an increase in the degree of substitution can be observed with an increase in pressure in some cases. On the other hand, it is most promising to apply crystal chemical “assisting” rules (transition to another structure-directing agent with the larger size of the structural unit) and “mediator” (introduction of a buffer component), which can lead to an increase in limits of the isomorphic substitution [96]. The first rule was implemented by the authors of [115]: incorporation into (H)ZSM with Si/Ti (TS) up to ~9 mol% of Ti (~9 Ti atoms/unit cell; Si/Ti~10) was attained by using tetrabutylorthotitanate (TBOT) instead of tetraethylorthotitanate (TEOT) in the synthesis. The second rule, which was applied by W. Fan et al. [116], allowed them by using the content of Ti⁴⁺ ions in TS with (NH₄)₂CO₃ as a crystallization-mediating agent by modifying the original dissolved titanium method. There are also other possibilities to vary the degree of substitution of Si⁴⁺ ions by T ions in the zeolite structure, for example, by varying the synthesis conditions (in particular, pH) or/and the type of treatment of the reaction mixture (microwave, ultrasonic, etc.).

Despite numerous publications devoted to the experimental and theoretical determination of an actual composition of [Ti⁴⁺_xSi⁴⁺_12−xO₂₄] × wH₂O or (H_x)[Al³⁺_xSi⁴⁺_12−xO₂₄] × wH₂O allowing for the defect character of silicon sites, the number of OH groups and water, the content and distribution of T ions over crystal structure sites and their coordination by various techniques including powder X-ray (a diffractometer and synchrotron) and neutron diffraction, FTIR, Raman, and UV–Vis spectroscopy, XAFS, computer modeling, etc., (see, e.g., [94,114,117,118] and references in these works), the content and the location of the T ions in the HZSM structure remains the subject of considerable debate.

The main (initial) method for studying zeolites (as well as other objects) is diffraction (in particular, the most accessible X-ray method using laboratory diffractometers) with all its techniques. However, the full-profile method application in the scope of the X-ray experiment (X-ray and X-ray synchrotron radiation) to determine the silicate modulus Si/T with the T ions placement at the structural sites is not an easy task. This is due to the small number of introduced T ions, the large number of cationic and oxygen sites (for the sp. gr. Pnma, respectively, 12 and 24 and for the sp. gr. P2₁/n 24 and 48), the overwhelming majority of which are common. For each atom, it is necessary to refine the coordinates and atomic displacement, and for cations (preferably for oxygen as well), the occupancy of the sites is also added, which introduces additional difficulties due to a correlation between atomic displacements and occupancy of sites. One should not forget about the difficulty of determining the real coordinates of silicon and oxygen atoms (“light” atoms) and the proximity of Si and Al form factors (the X-ray experiment). In many cases, the aluminum atoms content is determined by chemical or elemental analysis, and their distribution over the structural sites by calculation methods (

Table 2. Aluminum atoms distribution (* possible presence) over tetrahedral positions (marked with “+”) of orthorhombic structures.

T site
Sample	T1	T2	T3	T4	T5	T6	T7	T8	T9	T10	T11	T12
Al-1						+			+			+
Al-2				+			+	+	+
Al-3				+		+		+
Al-4		+									+
Al-5	+			*
Al-6	+		+		+		+
Al-7	+	+			+				+			+
Al-8			*								*
Al-9		+										+

Note. Al-1 [119]—ab initio Hartree–Fock calculation method; Al-2 [120]—semi-empirical quantum chemistry method MNDO; Al-3 [121]—quantitative analysis with ²⁷Al 3Q MAS NMR spectroscopy, theoretically calculated DFT QM Pot method (QM—quantum mechanics, Pot—parameterized interatomic potential functions); Al-4 [122]—quantitative analysis with ²⁷Al 3Q MAS NMR spectroscopy; Al-5 [123]—solid state NMR ²⁹Si-²⁷Al and ¹H-²⁷Al D-HMQC and calculation method DFT; Al-6 [124]—Calculated enthalpy of C₅H₅N and NH₃, temperature programmed desorption (TPD) of C₅H₅N and NH₃; Al-7 [125]—X-ray powder diffraction (XRPD): a difference Fourier map; Al-8 [126]—semi-empirical quantum chemistry method MNDO; Al-9 [127]—calculation method DFT, local density functional (LDF) approximation.

).

Comparison of data from Table 1 and Table 2 indicates the presence of Al³⁺ ions both in defective tetrahedral sites of silicalite (T2, T3, T6, T7, and T9) (Table 1) and in others that were not identified as defective (T1, T4, T5, T8, and T12) (Table 1). This evidences that there are currently no reliable methods for determining the structural sites of aluminum atoms in HZSM zeolites.

In their turn, structural characteristics of zeolites, the majority of which are a real composition, coordination, and distribution of atoms over structural sites, depend on the method and conditions of their fabrication, which is important for the directed synthesis of objects with required parameters.

3.1.1. Aluminosilicalites (H_x)[Al³⁺_xSi⁴⁺_12−xO₂₄] × wH₂O and Composites NA/(H_x)[Al³⁺_xSi⁴⁺_12−xO₂₄] × wH₂O

3.1.1.1. Composition and Structure

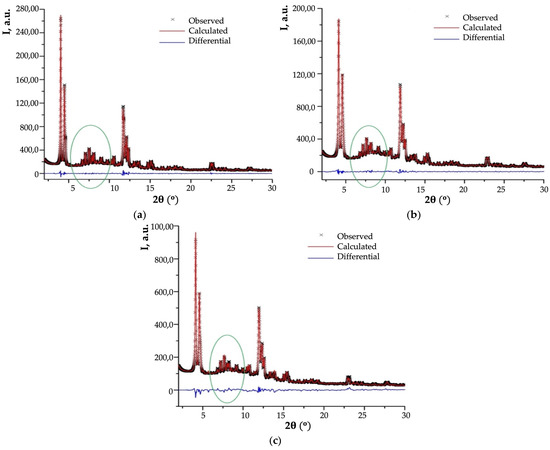

The full-profile Rietveld method (Section S2.1) was used to determine the symmetry of HZSM aluminosilicates (for Si/Al = 12 and 25 the symmetry is orthorhombic, for Si/Al = 40 and 300-monoclinic) and NA/HZSM composites (Method 1a; see Section S1) as well as their unit cell parameters (Si/Al = 12, 40, 300) (

Table 3. Crystallographic parameters of HZSM (12, 40, 300) and NA/HZSM (12, 40, 300).

Characteristics	HZSM (12) *	NA/HZSM (12) *	HZSM (40)	NA/HZSM (40)	HZSM (300)	NA/HZSM (300)
	Pnma		P21/n
a, Å	20.1421 (17)	20.1085 (19)	20.1221 (16)	20.1201 (19)	20.1166 (15)	20.1208 (19)
b, Å	19.9402 (18)	19.9502 (18)	19.9109 (15)	19.9097 (18)	19.8834 (15)	19.8938 (17)
c, Å	13.4464 (14)	13.4494 (15)	13.3966 (12)	13.3944 (14)	13.3740 (11)	13.3832 (15)
α, o	-	-	90.416 (15)	90.422 (16)	90.664 (14)	90.546 (16)
V, Å3	5400 (1)	5396 (1)	5367 (1)	5366 (1)	5350 (1)	5357 (1)
Biso (T)	1.10 (1)	1.43 (2)	0.23 (1)	0.18 (1)	0.37 (1)	0.63 (2)
Biso (O)	2.02 (1)	2.36 (2)	0.72 (1)	0.78 (1)	0.21 (1)	1.10 (2)
2θmin–2θmax, Δ2θ (o)	1.000–21.200, 0.003	1.000–21.200, 0.003	1.000–21.200, 0.003	1.000–21.200, 0.003	1.000–21.200, 0.003	1.000–21.200, 0.003
χ2/Rwp/Rexp	9.141/0.047/0.020	10.638/0.044/0.017	13.048/0.053/0.018	11.720/0.045/0.016	57.357/0.075/0.013	22.216/0.0495/0.014
Number of water molecules per unit cell	36(1)	42(1)	10(1)	11(1)	6(1)	5(1)

* impurity phase—zeolite MOR ~7%.

).

Using the found volumes of HZSM(12, 40, and 300) unit cells (Table 3) and the known literature data (Figure 3), these zeolites contain, respectively, ~10, ~1.0, and <1.0 Al atoms per unit cell.

Calculation results of Al wt.% based on the aluminosilicalites composition (H¹⁺_(4-n)x)[Tⁿ⁺_xSi⁴⁺_12−xO₂₄] × wH₂O and the above mentioned amount of Al atoms per unit cell showed that HZSM with Si/Al = 12, 40, and 300 contain ~4.6 wt.%, ~0.47 wt.%, and <0.47 wt.% Al, respectively. It qualitatively coincides with Table S1 data.

The relationship between HZSM Si/Al value and unit cell volume can be described by linear dependences (Equation (5) (Si/Al = 12, 25, 40, Figure 4b) and Equation (6) (Si/Al = 40, 300, Figure 4a).

$$V\left(x\right)=5412.1-1.17\left(6\right)\left(Si/Al\right),$$

(5)

$$V\left(x\right)=5369.6-0.07\left(Si/Al\right),$$

(6)

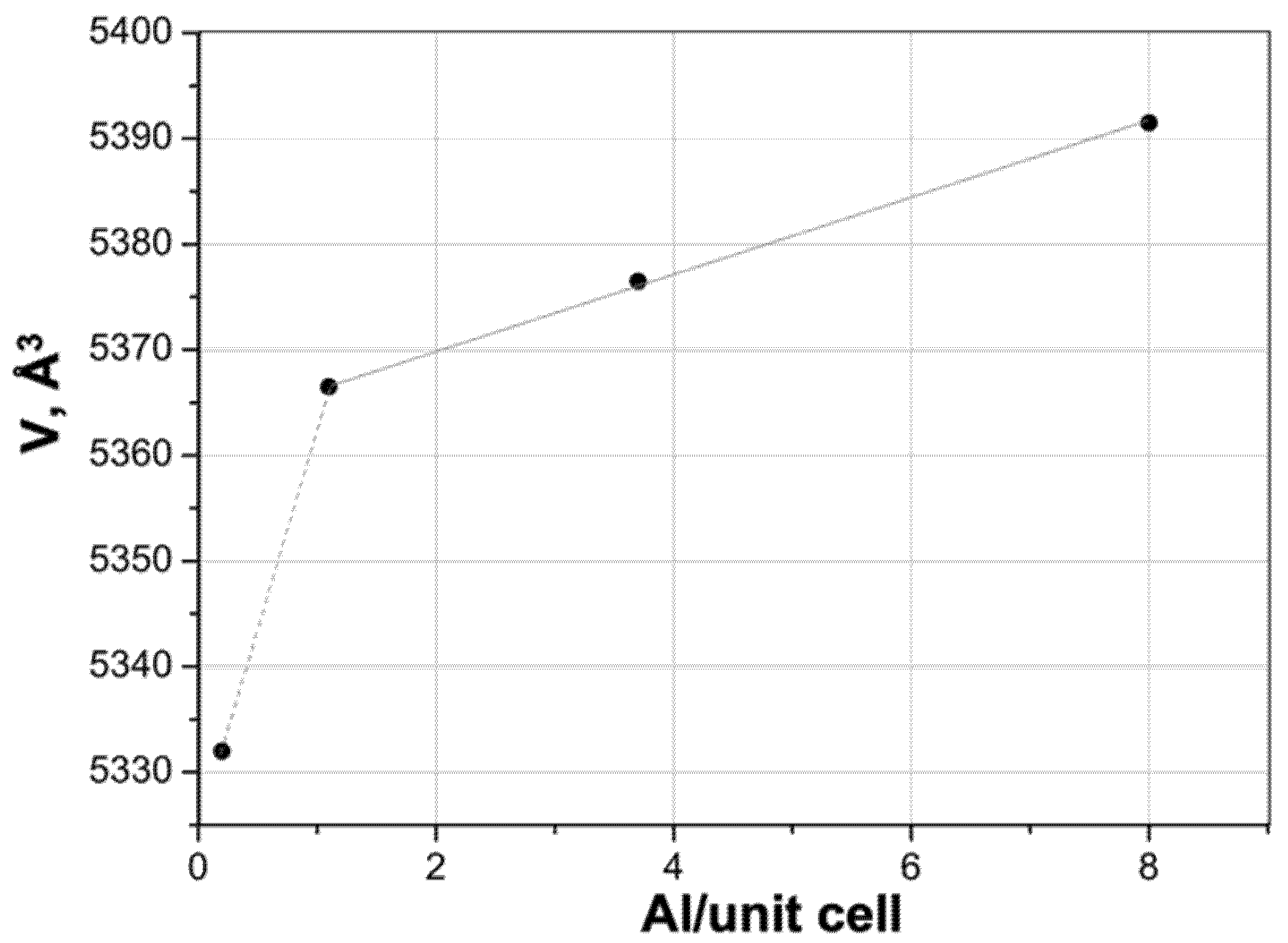

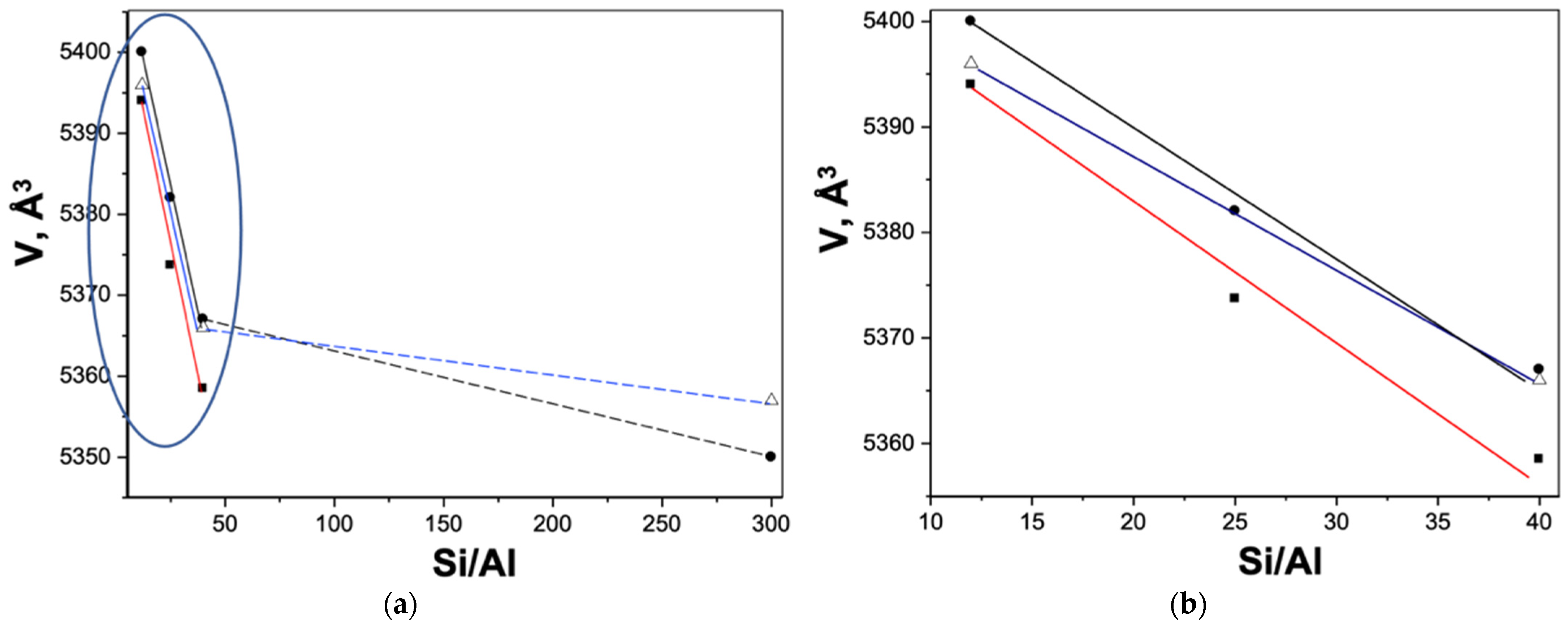

Figure 4 shows a decrease in the unit cell volume of HZSM zeolites and NA/HZSM composites with an increase in the silicate modulus (Si/Al according to the chemical analysis of HZSM; Table S1), which seems to be logical due to the ratio of the ionic radii of Si⁴⁺ (r_Si^IV = 0.26 Å) and Al³⁺ (r_Al³⁺ = 0.39 Å) with CN = 4 [95]. Note that the unit cell parameters and the cell volume of the same sample can be different depending on the diffraction pattern obtaining conditions (Figure 4). The same reason causes a discrepancy between the composition calculated according to Figure 3 and the experimentally determined one.

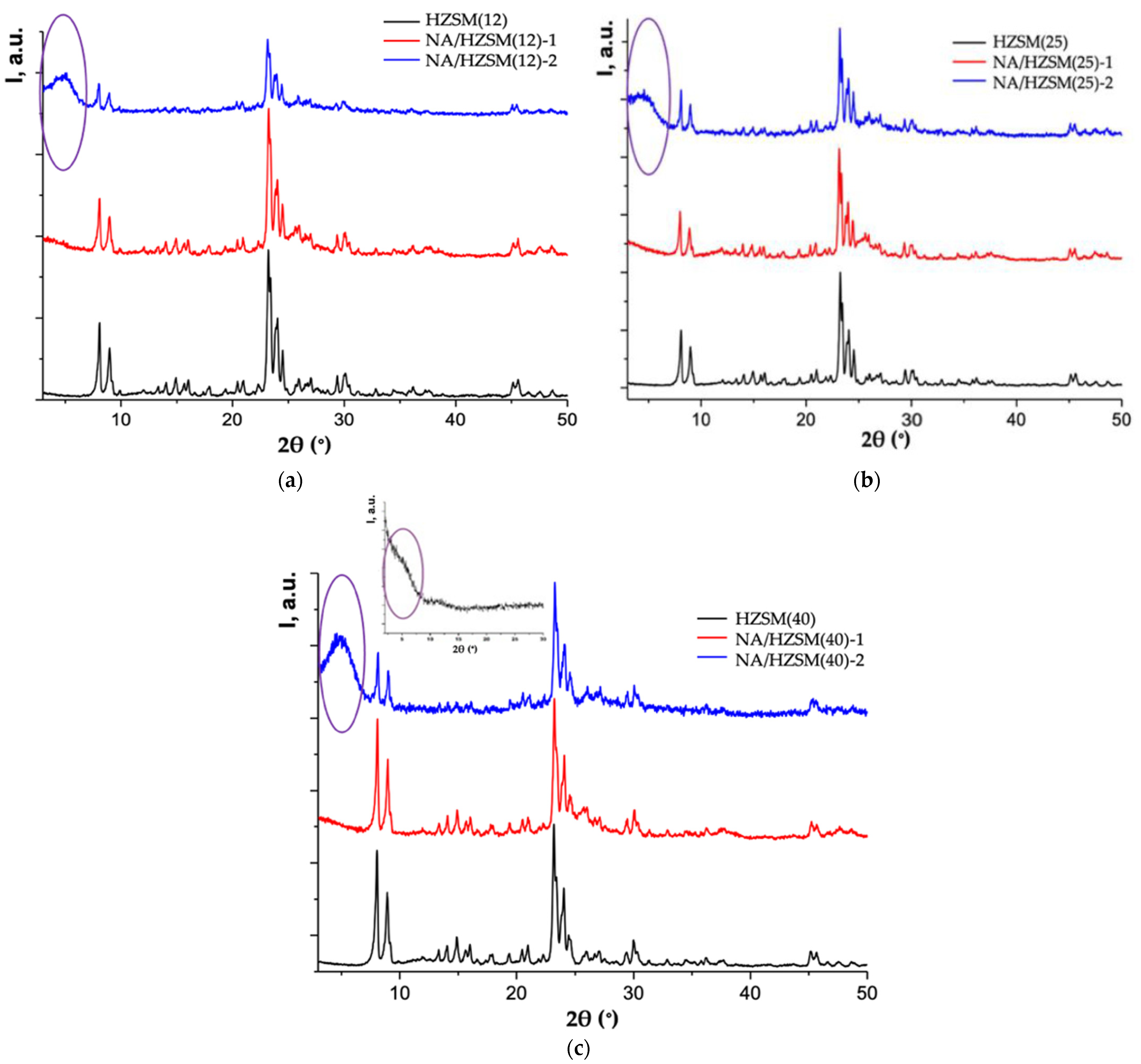

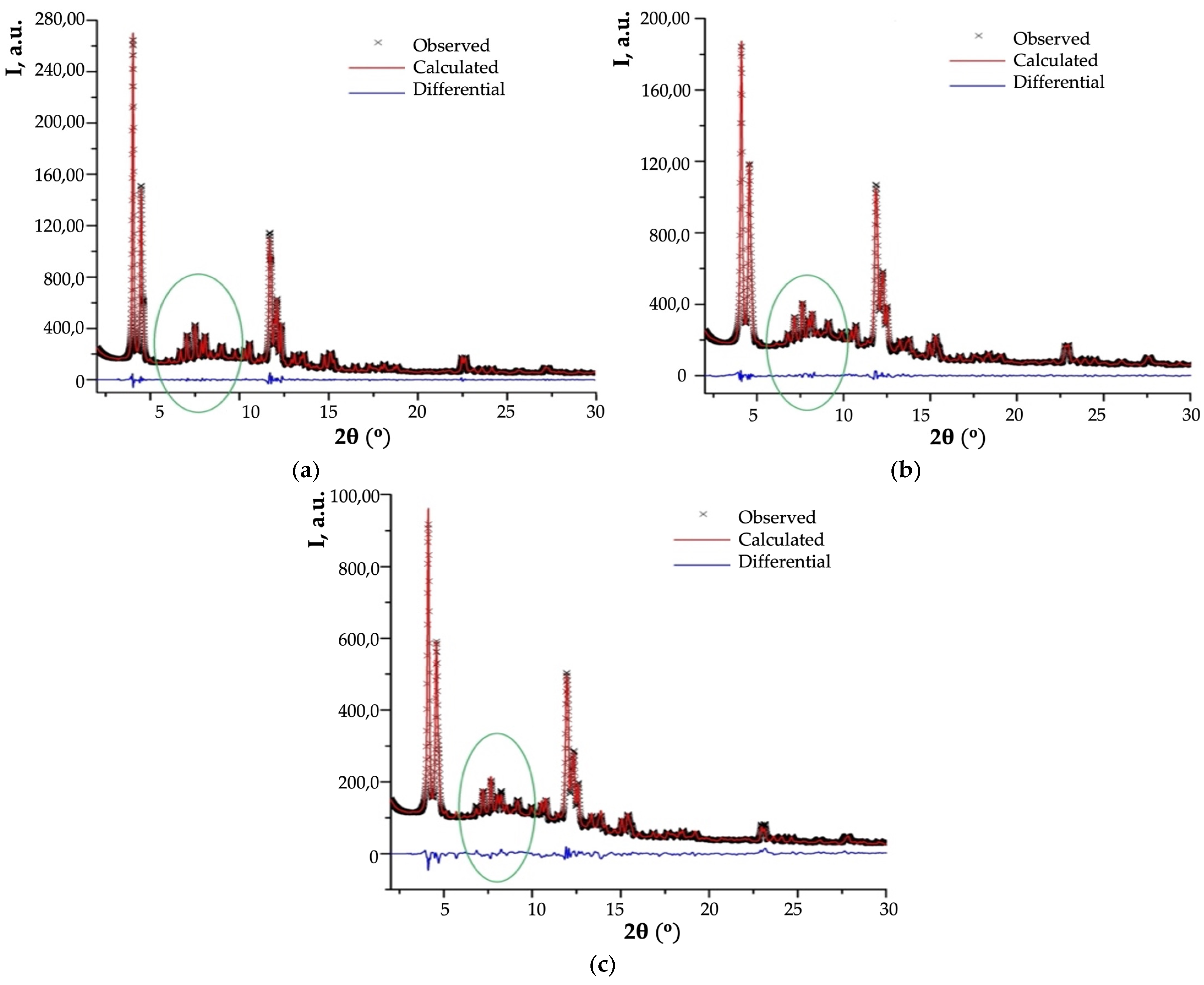

Well distinguishable amorphous region in angle range ~6 to 7° over 2θ (d ~13.38 Å) (Figure 5a–c), which is responsible for silicon-containing oxygenous formations (more and less, respectively, in NA/HZSM with Si/Al = 12 and Si/Al = 40) is present in X-ray diffraction patterns of all samples. The coordinates of all atoms (initial model from [77]) and the total averaged atomic displacements of Si/Al and O in the isotropic approximation were refined, and the structural localization and oxygen content in water molecules were determined. The number of water molecules per unit cell decreases in the row: NA/HZSM(12) > HZSM(12) > NA/HZSM(40) > HZSM(40) > HZSM(300) > NA/HZSM(300) (Table 3).

In NA/HZSM samples with Si/Al = 12, 40, 300, in addition to the main zeolite phase, diffuse peaks from nanosized anatase are present (mostly in NA/HZSM with Si/Al = 12) (Figure S1a–c, black arrow), which was taken into account in the full-profile method.

The increase in water content in the framework cavities of HZSM and NA/HZSM is in direct ratio to the increase in Si/Al and the volume of their unit cells (XRPD) (Figure S1d).

The unit cell volumes of HZSM(40) and corresponding composite NA/HZSM(40) are the same. For NA/HZSM(12) the unit cell volume is slightly less, and for NA/HZSM(300)—more compared to zeolites HZSM(12) and HZSM(300), respectively (Table 3). These data indicate the absence of Ti⁴⁺ ions (r_Ti^IV = 0.42 Å) incorporation into the framework of NA/HZSM(12) and NA/HZSM(40) structures. In addition, the structural movement of Al³⁺ from the inner framework (H¹⁺_x)[Al³⁺_xSi⁴⁺_12−xO₂₄] × wH₂O to the outer one (Al³⁺_y[Al³⁺_x−ySi⁴⁺_12−x−yO₂₄] × wH₂O) is excluded, as the nanocomposites dealumination occurs at a temperature range of 873–1073 K [130].

The compositions of NA/HZSM(25)-1 and NA/HZSM(25)-2 also differ with the presence of amorphous formations in NA/HZSM(25)-2: a small-angle diffuse peak at 2θ~5° in the XRPD patterns of NA/HZSM-2 (marked with an oval) which is absent in NA/HZSM-1 (Figure 5).

It is the metastable polymeric titanium-containing phase that is responsible for this peak. Titanyl ions are known to form hydroxo complexes in aqueous solution [131], in which titanium atoms are linked through ol bridges, which can transform into oxo bonds during the thermal hydrolysis. This hydrolysis product nearly corresponds to TiO(OH)₂ in gross composition, and is called metatitanic acid H₂TiO₃. It is one of the possible acids of the total composition H₂Ti_xO_2x+1, formed from the initial precursor Ti(C₄H₉O)₄ (a diffuse peak at 2θ°~5° in the inset to Figure 5c). In the polyion of this acid (acids), some of the basic groups can be replaced by different structural groups, including OH⁻ groups, water (H₂Ti_xO_2x+1 × nH₂O (Ti_xO_2x−1(OH)₂ × nH₂O [132]), organic anion, with the formation of a polymerization product in the form of chains of different dimensions.

FTIR spectroscopy is one of the most available and informative methods, except for XRPD, to characterize such objects. It allows for the provision of data on the crystallinity degree, qualitative and quantitative phase composition, on individual bonds between atoms, groups of atoms, the form of water and OH groups, and their location both in the zeolite framework and on the surface of the particles and inside the pores of different dimensions. FTIR spectra of HZSM (Figure 6a) in the absorption range up to 1300 cm⁻¹ shows the framework structural groups vibrations, which are subdivided into vibrations of bonds between tetrahedra and within individual tetrahedra.

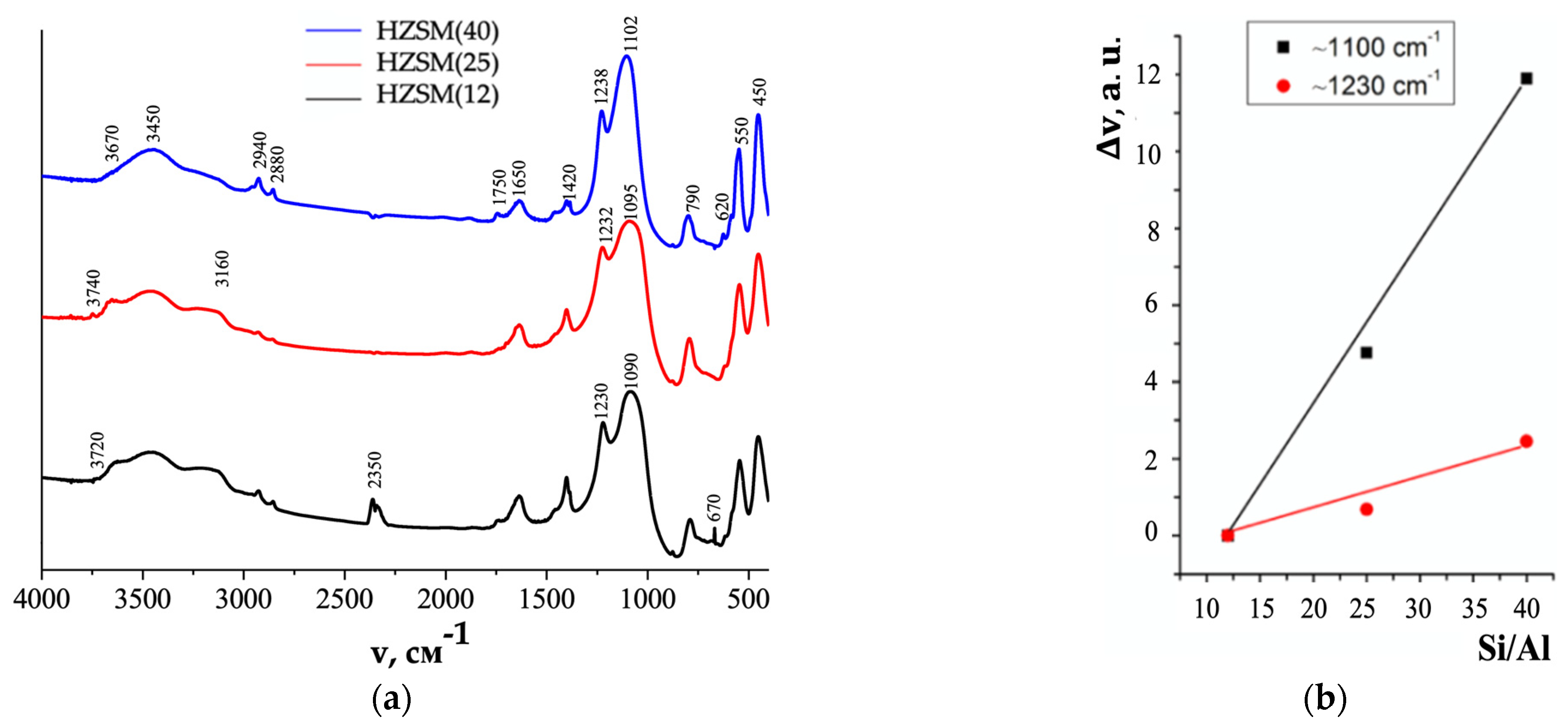

Antisymmetric stretching vibrations in the region of 1090–1238 cm⁻¹ (Figure 6a) and deformation vibrations at 450 cm⁻¹ (Figure 6a) belong to the vibrations of O-Si(Al)-O bonds inside Si(Al)O₄ tetrahedra. Bands at 550, 575, and 620 cm⁻¹, symmetric stretching vibration at 790 cm⁻¹ (Figure 6a), and antisymmetric stretching vibrations in the region of 1090–1102 cm⁻¹ (Figure 6a) characterize the vibrations of Si(Al)-O-Si(Al) external bonds between Si(Al)O₄ tetrahedra. The higher intensity of the bands in the ranges of 450–620 cm⁻¹ and 1090–1102 cm⁻¹ in HZSM(40) FTIR spectra as compared to HZSM(12) and HZSM(25) (Figure 6a) can be explained by the lower content of aluminum within the HZSM(40) framework.

The absorption bands positions in the ranges of ~1080 to 1105 cm⁻¹ and ~1220 to 1250 cm⁻¹ are related to the value of HZSM silicate modulus (Figure 6a): an increase in Si/Al is accompanied by a shift of the bands to the high-frequency region (Δv, cm⁻¹). The increase in Si/Al is in direct ratio to the increase in Δv, cm⁻¹ volume (Figure 6b), which makes it possible to evaluate the composition of HZSM framework (Si/Al) from FTIR spectroscopy data.

The absorption bands in the regions of ~1650 cm⁻¹ and ~3450 cm⁻¹ (Figure 6a) belong to the bending vibrations of water molecules and OH-groups, respectively [133,134,135]. The band ~3160 cm⁻¹ (Figure 6a) is responsible for the stretching vibrations of OH-groups of “zeolite water” (water molecule size is 0.28 nm) in the framework voids (void sizes are from 0.53 to 0.59 nm) linked by hydrogen bonds [133]. With an increase in Si/Al in the row HZSM(12) > HZSM(25) > HZSM(40), the intensity of the bands ~1600 to 1650 cm⁻¹ and ~3100 to 3360 cm⁻¹ decreases (Figure 6a), i.e., the water content on the particle surface and in the zeolite framework voids decreases, respectively. With a decrease in the intensity of the ~3450 cm⁻¹ band in the row HZSM(40) > HZSM(25) > HZSM(12) (Figure 6a), the content of OH groups decreases.

The bands at ~1750 cm⁻¹ and ~2880 to 2940 cm⁻¹ with low intensities (Figure 6a) correspond, respectively, to vibrations of C=O groups and templates cations (C₈H₂₀)¹⁺, (C₄H₉)¹⁺ and, probably, (C₃H₇)¹⁺ in HZSM(40), HZSM(25), and HZSM(12) frameworks voids with the maximum content for HZSM(40). This is due to the larger specific surface area of HZSM(40) (Table S3) and the maximum number of C-H (CH₃, CH₂, CH) bonds in the (C₈H₂₀)¹⁺ cation.

Judging by the intensity and appearance, the band at ~2350 cm⁻¹ (Figure 6a) in the HZSM(40) spectrum is caused by adsorbed CO₂ molecules (molecule size is 0.33 nm) in the pores with the largest sizes in HZSM(40) (Table S3). A different form and intensity of the band at ~2350 cm⁻¹ in HZSM(12) spectrum (Figure 6a) is responsible for N-H group stretching vibrations, which forms a strong bond with water oxygen (-N-H⁺…O). This band is possible to be caused by the template cation [(C₃H₇)₄N](OH) in the commercial sample HZSM(12) framework voids, the background of which is unknown (Section S1). The same reason is for the appearance of the band at ~670 cm⁻¹, which is present in the spectrum of only this sample (Figure 6a) and is responsible for C-H bond deformation vibrations.

Analysis of the stretching vibrations intensity in the regions of ~3650 to 3680 cm⁻¹ and ~3720 to 3740 cm⁻¹ allows us to judge Brønsted acid sites (Figure 6a) [16]. The content of bridging hydroxyls Si⁴⁺-OH-Al³⁺ (~3650 to 3680 cm⁻¹ [133]) in HZSM structure large cavities as well as weak terminal silanol groups Si-OH (~3720 cm⁻¹ and ~3740 cm⁻¹, respectively, in the inner framework for HZSM (12) and in the outer frame for all HZSM [136]) is greater in HZSM(25) than in HZSM(12). These groups are practically absent in HZSM(40), although there is a shoulder at ~3670 cm⁻¹ (Figure 6a). The high content of bridging hydroxyls in HZSM(25) is probably caused by the presence in it of a higher impurity Fe³⁺ ions content (Si⁴⁺-OH-Fe³⁺) (Table S1), which together with Al³⁺ ions (Si⁴⁺-OH-Al³⁺) are responsible for the formation of OH-groups in zeolite framework [16].

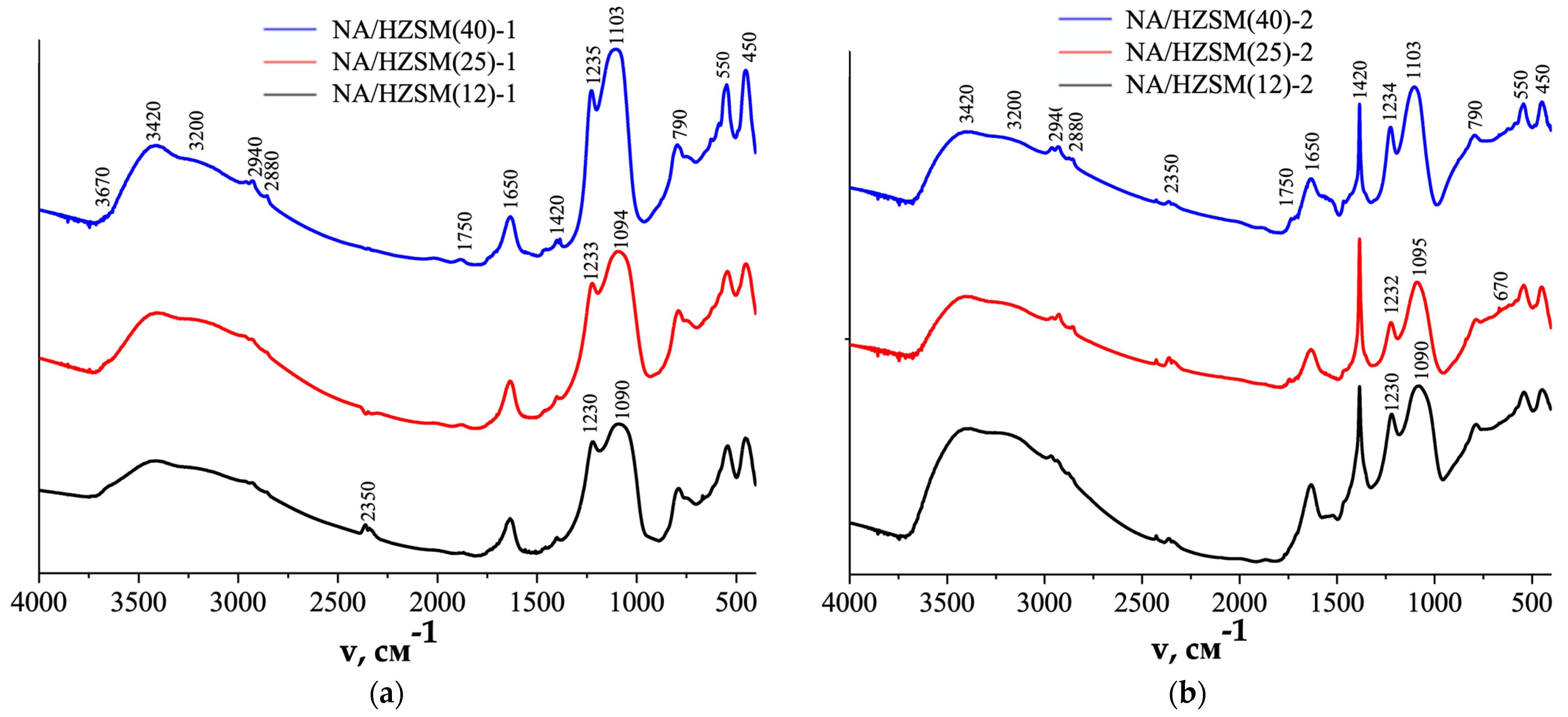

In the FTIR spectra of the NA/HZSM-1 (Figure 7a) and NA/HZSM-2 (Figure 7b) nanocomposites, the bands responsible for Ti-O-Ti and Ti-O natural fundamental vibrations of NA (~400 to 700 cm⁻¹), as well as for the bending (~3420 cm⁻¹) and stretching (~3200 cm⁻¹) vibrations of the Ti-OH groups [16,137], are superimposed on the corresponding bands of the initial zeolites (Figure 6), which can be judged by the appearance of additional shoulders in the range of 400–550 cm⁻¹ vibrations, most noticeable in the NA/HZSM-2 spectra (Figure 7b).

At that, the nanocomposites exhibit a decrease in the content of Brønsted acid sites in NA/HZSM-1 (marked with an oval in Figure 7a) compared to the initial zeolites (Figure 6a) and almost their absence in NA/HZSM-2 (marked with an oval in Figure 7b). An increase in the content of water (~1650 cm⁻¹) and OH groups (~3420 cm⁻¹), but a decrease in the content of “zeolite water” with OH-groups in the framework voids linked by hydrogen bonds (~3200 cm⁻¹) were also found in nanocomposites (Figure 7) as compared to the initial HZSM (Figure 6a).

Differential scanning calorimetry (DSC) results (

Table 4. Correspondence of peaks (T, K) in HZSM and NA/HZSM-1,2 DSC thermograms to possible thermal processes.

	HZSM(12)	NA/HZSM (12)-1	NA/HZSM (12)-2	HZSM(25)	NA/HZSM (25)-1	NA/HZSM (25)-2	HZSM(40)	NA/HZSM (40)-1	NA/HZSM (40)-2	Thermal Process
T, K	346.9			331			339.5			Removal of physically adsorbed different water [16,138]
H, J/g	−170.8			−134.6			−37.07
T, K		384	364		368.6	361.2		360.9	342.4	Removal of physically adsorbed different water of the nanocomposites [16]
H, J/g		−190.1	−140.2		−191.6	−199.7		−147.1	−153.9
T, K	454.2			436.6			429.3			Removal of OH groups from the surface of the zeolite [16,138]
H, J/g	−60.4			−49.06			−18.3
T, K		450,7	420.7		455.7	412.7		490.7	434.6	Removal of OH groups from the surface of the nanocomposites [16]
H, J/g		−31.3	−32.4		−30.1	−47.4		−49.9	−60.2
T, K	-	-	467.3	-	-	441	-	-	-	Pyrolysis n-butoxide [139,140] $\left(1\right)TiO{\left(OBu\right)}_4\to TiO{\left(OBu\right)}_2+B{u}_{2}O$ $\left(2\right)TiO{\left(OBu\right)}_2\to Ti{O}_2+B{u}_{2}O$ Bu2O—dibutyl ether
H, J/g			302.6			217.8
T, K	-	-	512	-	-	526.9	-	-	499.9
H, J/g			26.7			34.02			103.6
T, K	513.2									Probably, the phase transition of MOR impurity phase in HZSM-5 [16]
H, J/g	18.4
T, K	733			694.2			699.7			Removal of “zeolite water” with OH-groups from zeolite framework voids [16,141]
H, J/g	−102.7			−64.77			−14.58
T, K		680.6	663.2		685.4	662.7		692	689.6	Removal of “zeolite water” with OH-groups from nanocomposite framework voids [16]

, Figure S2) confirm the FTIR spectroscopy data on the decrease in physically adsorbed water together with OH groups on HZSM zeolite particles surface and in the framework voids with an increase in Si/Al, which does not contradict the XRPD results (Figure S1d).

The increase in HZSM and NA/HZSM unit cell volumes is in direct ratio to the water content in the framework cavities according to DSC data (Table 4). The distinctions in the results of examining samples with different methods (XRPD and DSC) are caused by both the physical basis of the method and the dynamics of water removal (DSC).

NA addition to the system with zeolites in the synthesis of NA/HZSM-1 and NA/HZSM-2 nanocomposites leads to an increase in the removal temperature of adsorbed water together with OH groups from the particle surface (mostly for NA/HZSM-1; the total content of OH groups is higher in NA/HZSM(25)-1, 2). At that, the desorption temperature decreases in the row NA/HZSM(12) > NA/HZSM(25) > NA/HZSM(40) (Table 4), regardless of the method of nanocomposites obtaining. It may indicate a decrease in the binding strength of active groups on NA nanoparticles surface with water molecules and OH groups on the zeolites surface in this series.

With an increase in the temperature, water with OH groups begins to remove from the near-surface layers of zeolite particles and NA nanoparticles of NA/HZSM-1, 2 composites (a higher total content for NA/HZSM(40)-1, 2, Table 4) with a decrease in the row NA/HZSM(40) > NA/HZSM(25) > NA/HZSM(12) (Table 4).

As for zeolite water (in the framework voids), the temperature of its removal from nanocomposites is lower compared to zeolites (Table 4), and the content is lower in NA/HZSM(12,25)-1, 2 and NA/HZSM(40)-2 and significantly higher in NA/HZSM(40)-1 compared to corresponding zeolites (Table 4).

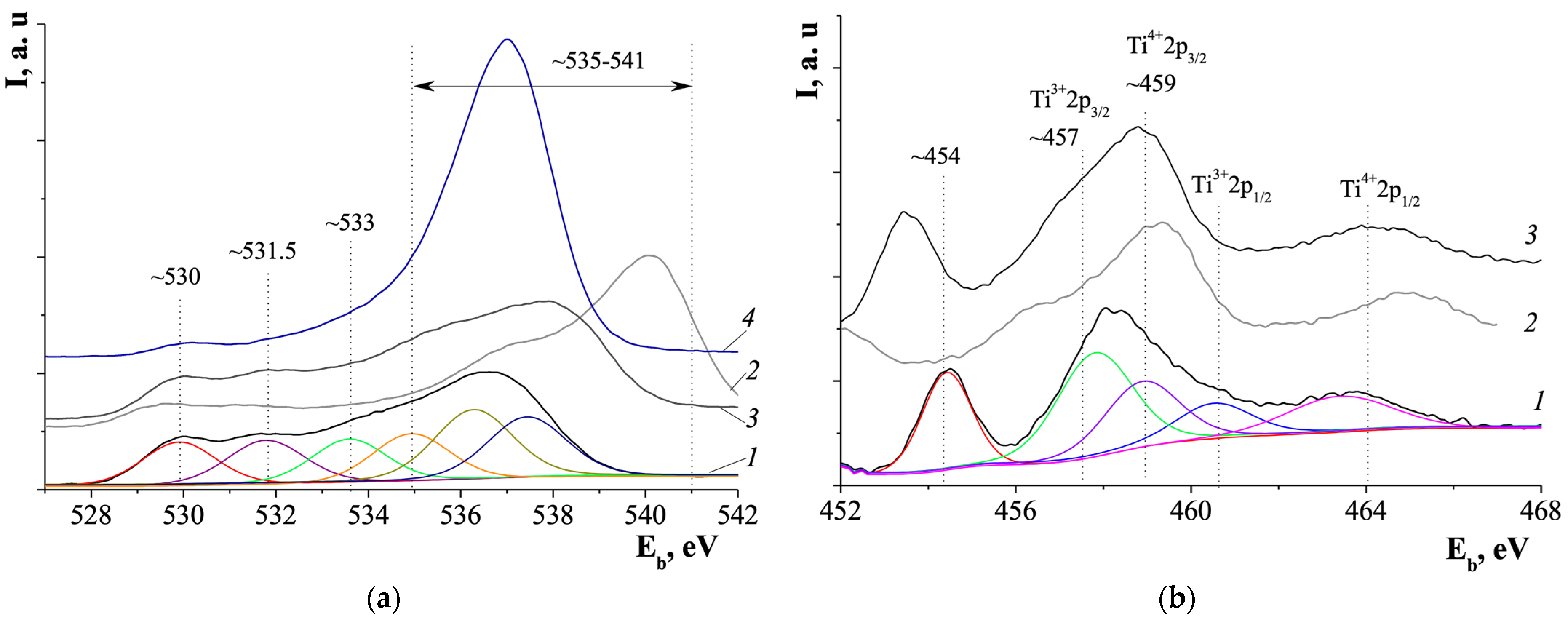

HZSM zeolites differ from each other in their surface composition, which does not correlate with the bulk one, namely, with the silicate modulus: according to X-ray Photoelectron Spectroscopy (XPS), the content of Al and Si atoms decreases, respectively, in the rows HZSM(12) > HZSM(40) > HZSM(25) and HZSM(25) > HZSM(12) ≈ HZSM(40) (

Table 5. Sample surface composition (at.%) (XPS) (data from [16]).

Elemental Composition, at.%		Peak Positions, eV 1	Sample
			HZSM(12)	NA/HZSM(12)-1	NA/HZSM(12)-2	HZSM(25)	NA/HZSM(25)-1	NA/HZSM(25)-2	HZSM(40)	NA/HZSM(40)-1	NA/HZSM(40)-2
Al 2p	Al	~74 to 75	3.27	2.13	-	2.16	1.54	-	3.08	1.29	-
Si 2p	Si	~102 to 103	30.56	25.17	6.68	32.08	23.52	9.62	30.25	26.46	7.41
Ti 2p	Ti4+	~458 to 459	-	5.96	26.17	-	7.31	25.45	-	4.68	25.32
O 1s	Si(Al)-O	~532.5	57.67	43.14	15.35	56.24	43.72	18.86	56.35	50.74	14.58
	Ti-O	~529.8	-	7.67	17.70	-	8.87	3.63	-	7.17	20.39
	H2O	~533 to 534	2.01	5.08	1.20	1.49	5.96	8.62	0.67	2.73	4.58
	OH- groups	~530 to 531	6.49	10.84	32.91	8.02	9.09	33.82	9.65	6.93	27.73

¹ Bands attribution according to [142].

).

Water molecules number on the zeolite particles surface decreases in the row HZSM(12) > HZSM(25) > HZSM(40) (consistent with XRPD and DSC data; Table 4), and OH groups content decreases in the row HZSM(40) > HZSM(25) > HZSM(12) (consistent with DSC and FTIR spectroscopy data; Figure 7, Table 4).

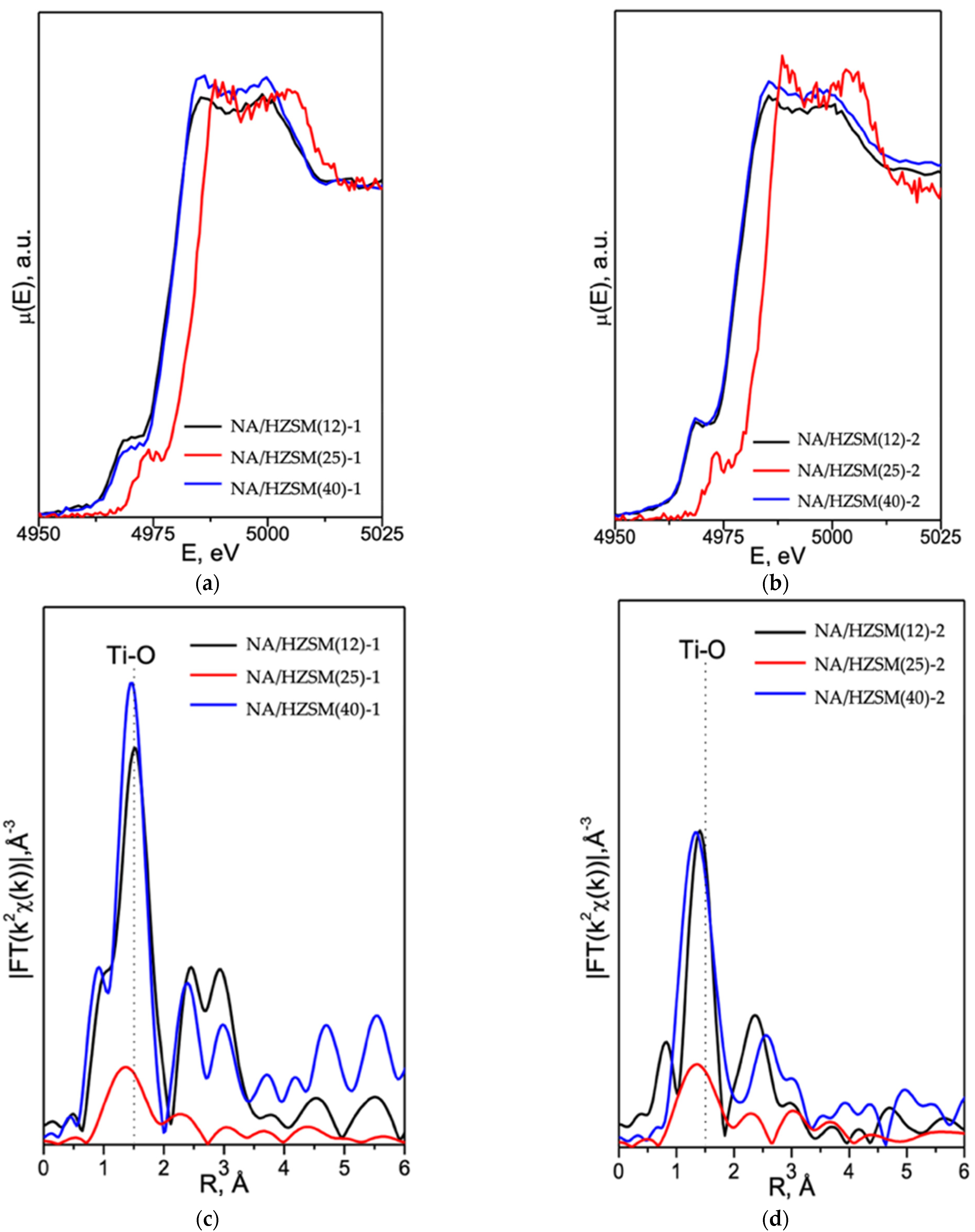

XANES spectra at the Ti K-edge for nanocomposites are shown in Figure 8. NA/HZSM(12)-1,2 and NA/HZSM(40)-1,2 spectra coincide with each other in the absorption edge position. At the same time, NA/HZSM(25)-1,2 spectra are shifted towards higher energies, which may mean a lower formal titanium charge in NA in NA/HZSM(12)-1,2 and NA/HZSM(40)-1,2 as compared to NA/HZSM(25)-1,2. The XANES spectra of all samples (Figure 8a,b) contain a single pre-edge peak, which is not typical of crystalline titanium dioxide and was observed for nanosized anatase.

In the EXAFS Fourier transforms (Figure 8c,d), the most intense peak at R ~1.5 Å corresponds to the Ti atoms oxygen environment. The results of the simplest EXAFS simulation (single Ti-O scattering path) are shown in

Table 6. Results of EXAFS modeling: (CN—coordination number, R_Ti-O, Å—Ti-O interatomic distance, σ^2—Debye–Waller factor, and R_f—the convergence factor). Only the first coordination sphere was modeled (distance range R = 1–2 Å, range k = 2–10 Å⁻¹) (data from [16]).

	NA/HZSM(12)-1	NA/HZSM(25)-1	NA/HZSM(40)-1	NA/HZSM(12)-2	NA/HZSM(25)-2	NA/HZSM(40)-2	NA
CN Ti	3.4	3.5	4.1	2.9	4.6	2.9	5.8
RTi-O, Å	1.95	1.94	1.94	1.92	1.94	1.88	1.92
σ2, Å2	0.0033	0.0025	0.0041	0.0051	0.0056	0.0046	0.0039
Rf, %	3.4	1.9	1.6	0.8	4.0	4.7	1.4

.

The oxygen peak intensity in NA/HZSM(25)-1,2 spectra is significantly lower compared to NA/HZSM(12)-1,2 and NA/HZSM(40)-1,2, but according to the simulation results, the differences in coordination numbers (CN) are within the error. Without taking into account the determination error, CN Ti = 6 in NA local structure, CN Ti = 4 in NA/HZSM(40)-1, CN < 4 in NA/HZSM(12)-1 and NA/HZSM(25)-1 (Table 6). Due to the fact that the XAS method (Section S2.4) in this experiment determines the averaged coordination environment of titanium atoms by oxygen atoms, it is quite likely that the CN Ti~3 in NA/HZSM(12)-2 and NA/HZSM(40)-2 (Table 6) refers not to NA, but to titanium-containing phases, for which the diffuse reflection at at 2θ~5° (Figure 5) is responsible. CN~5 in NA/HZSM(25)-2 is most likely a superposition of the local Ti environment in NA and in titanium-containing phases. Hence, the method and conditions for nanocomposites obtaining affect the local environment of titanium atoms by oxygen atoms in titanium-containing formations, including nanosized anatase in NA/HZSM.

3.1.1.2. Photocatalytic Properties of NA/HZSM

MFI type HZSM zeolites do not exhibit photocatalytic activity (PCA), in contrast to NA/HZSM nanocomposites, whose photoactivity is caused by titanium dioxide nanoparticles with anatase structure (NA). The most famous are commercial Hombifine N (anatase), Hombikat UV100 (anatase), Degussa P25 (~85% anatase + ~15% rutile), anatase (Sigma Aldrich, Saint Louis, Missouri, USA) with the rate constants (k, min⁻¹) in the reaction of MeO model dye photodegradation (UV light, 250–400 nm, Camelion UV lamp, 26 W; Section 3.2.3.) k = 0.0123 min⁻¹, k = 0.0122 min⁻¹, k = 0.0061 min⁻¹ and k = 0.0155 min⁻¹, respectively [143]. They demonstrate a considerable increase in its photocatalytic activity, and the doubtless advantage of nanoparticles when compared with microparticles due to the formation of very active radicals (^•OO⁻, HOOH, ^•OH, ¹O₂), which are called reactive oxygen species (ROS) [44,143]. The ROS formation causes a strong oxidizing ability of NA surface, which allows complete decomposition of both model and harmful organic pollutants to CO₂ and H₂O [144].

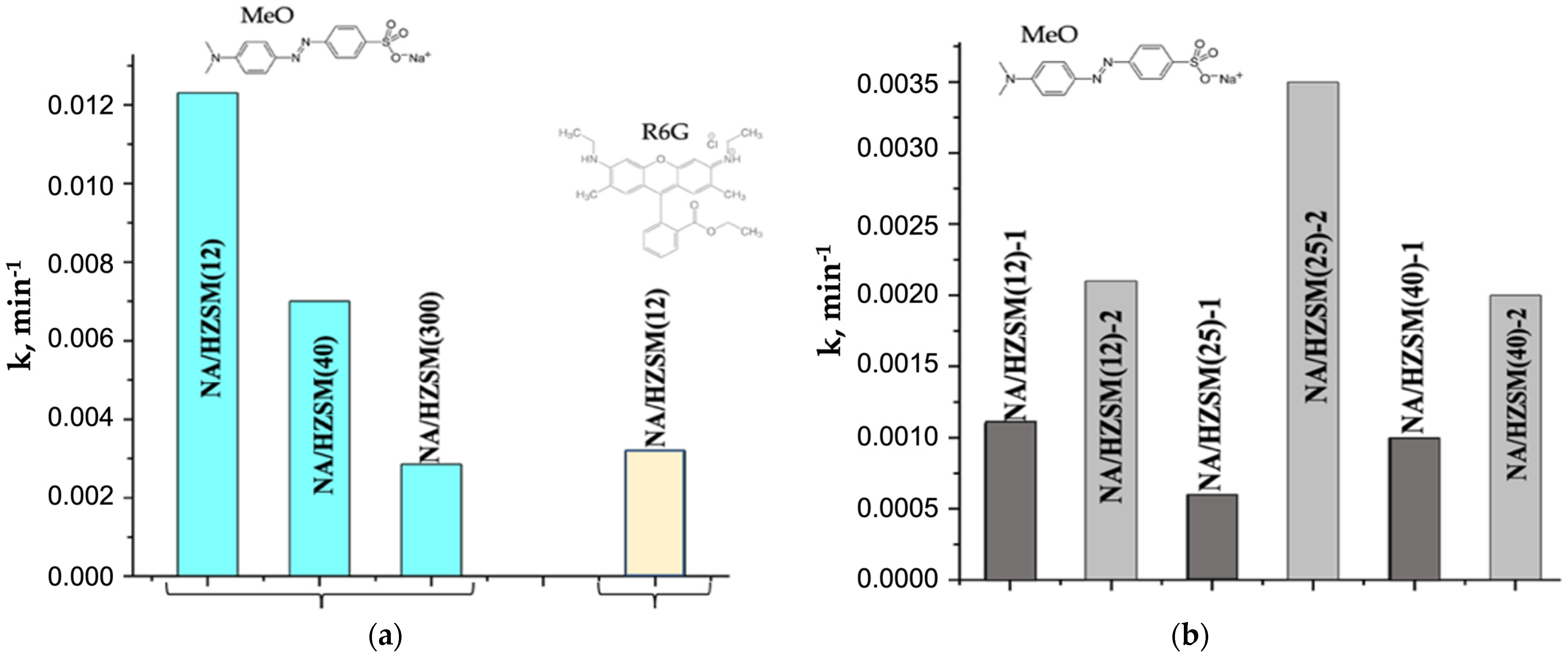

NA/HZSM(12, 40, 300) nanocomposites exhibit PCA with the highest rate constants for NA/HZSM(12) (Figure 9a) under UV irradiation in photodegradation reactions of anionic dye MeO (k_max = 0.01231 min⁻¹) compared to cationic R6G (k_max = 0.00321 min⁻¹, Figure 9a), but comparable to the commercial Hombifine N (k_MeO = 0.0123 min⁻¹) and Hombikat UV100 (k_MeO = 0.0122 min⁻¹) [143].

This is explained by the fact that the anionic dye MeO is more likely to be adsorbed on the positively charged surface of NA nanoparticles in the composition of nanocomposites [54] than the cationic R6G. The adsorption of an organic compound on the surface of an NA-based photocatalyst is the first stage of the photocatalytic process [145], followed by the generation of charge carriers (the second stage of the photocatalytic process) under UV to form ROS. MeO dye is adsorbed on the photocatalysts surface either through the Coulomb interaction [146] (negatively charged—SO₃⁻ ion of the MeO interacts with the positively charged NA/HZSM surface) or through OH groups to form hydrogen bonds [147]. The nitrogen atom in the MeO structure (C₁₄H₁₄N₃NaO₃S) binds to OH groups on the surface of the nanocomposite. After charge carriers generation on the surface of NA nanoparticles under UV irradiation, ^•OH radicals are formed in the composition of nanocomposites (reactions 5–7) [143], which oxidize MeO [148] (reaction 8):

$$Ti{O}_2+hv\to Ti{O}_{2 }\left(e_{CB}^{-}+h_{VB}^{+}\right),$$

(reaction 5)

$$Ti{O}_{2 }\left(h_{VB}^{+}\right)+H_{2}O\to Ti{O}_2+H^{+}+• {\mathrm{O}}_2^{-},$$

(reaction 6)

$$Ti{O}_2\left(h_{VB}^{+}\right)+O{H}^{-}\to Ti{O}_2+•\mathrm{OH},$$

(reaction 7)

$$• OH+C_{14}{H}_{14}{N}_{3 }Na{O}_{3}S\to Mineralization products$$

(reaction 8)

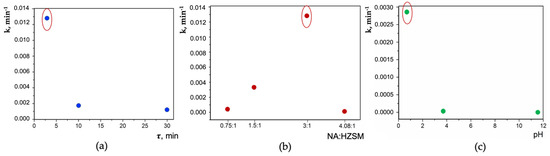

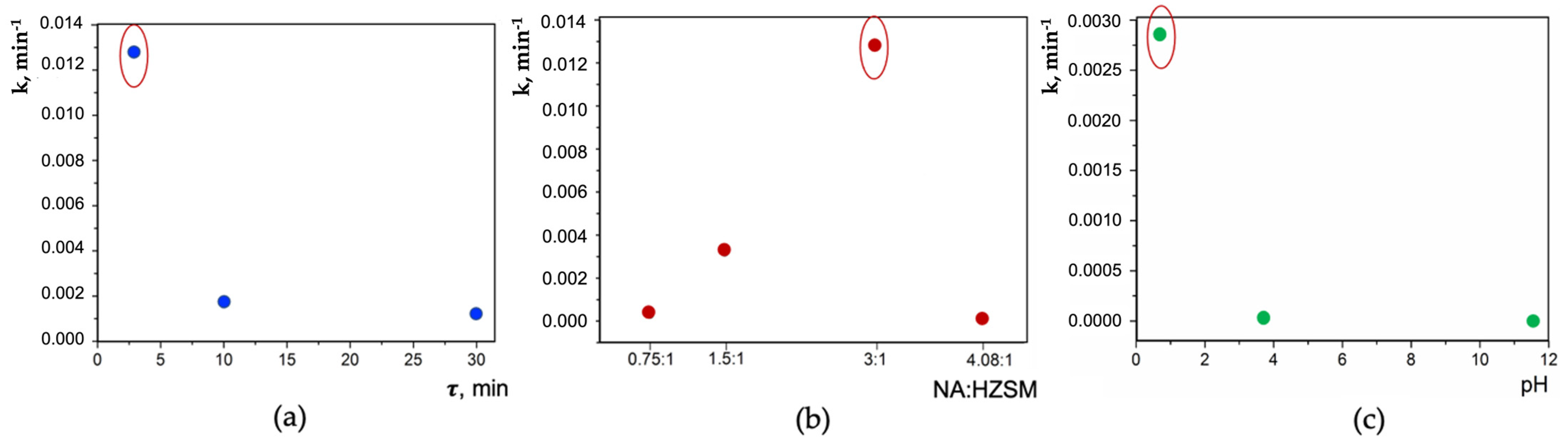

The highest photocatalytic activity (PCA) in the reaction of MeO photodegradation under UV irradiation was achieved for nanocomposite NA/HZSM(12) (Method 1a) (Figure 9) with the highest content of water molecules (more than in the initial HZSM(12)), and hence, OH groups, in the structure cavities (XRPD). The PCA of NA/HZSM(12) (Figure 10, the initial sample is marked with an oval) correlates with synthesis duration (Figure 10a), NA:HZSM(12) ratio (Figure 10b) and pH of precursor (TiOSO₄×xH₂SO₄×yH₂O, Sigma-Aldrich) (Figure 10c) [54].

The only advantage of the NA/HZSM(12) nanocomposite over Hombifine N and Hombikat UV100 with similar rate constants is a significant decrease in the number of the active component NA in NA/HZSM(12) while maintaining the characteristics of PCA.

The nanocomposites fabrication by Methods 1b and 2 (Section S1) leads to a decrease in PCA in MeO photodegradation under UV irradiation (Figure 9b) as compared to nanocomposites synthesized by Method 1a (Figure 9a). This is due, first of all, to the precursor composition and to its lesser amount in the preparation of samples by Methods 1b and 2 (see Section S1), which also determines the lower content of titanium ions responsible for PCA in the systems. PCA of NA/HZSM-2 > PCA of NA/HZSM-1 with k_max = 0.0006 min⁻¹ for NA/HZSM(25)-2 and k_min = 0.0035 min⁻¹ for NA/HZSM(25)-1. NA/HZSM-2 nanocomposites exhibiting higher PCA in MeO photodegradation (Figure 9b), are distinguished from NA/HZSM-1 nanocomposites by the higher content of OH groups and water (except for frame water) (FTIR-spectroscopy, Figure 7; DSC, Table 4) as well as Ti⁴⁺ ions on the particles surface (XPS, Table 5).

Comparison of the DSC results (Table 4) with the PCA data of NA/HZSM-2 nanocomposites (Figure 9b) reveals a k_max, min⁻¹ for NA/HZSM(25)-2 with a maximum content of physically adsorbed water molecules with OH groups (Table 4).

According to XPS data (Table 5), the content of Si and H₂O on the surface of zeolite particles and NA nanoparticles decreases in the same series. The content of Si, Si(Al)-O and OH groups is the highest in the NA/HZSM(25)-2 among other nanocomposites obtained by Method 2. For NA/HZSM(25)-2 with the largest coordination environment of titanium ions—CN Ti ~5 (XAS; Table 6), the highest activity in the photodegradation of MeO (Figure 9b) was obtained among other NA/HZSM(12, 40)-2 samples.

Thus, the PCA of nanocomposites in the NA-HZSM system depends mainly on the surface composition (i.e., correlates with the content of atoms or group of atoms) and the local structure of titanium-containing formations, giving preference to the local structure of nanosized anatase.

The photoactivity in visible light was obtained using nanocomposites based on HZSM(40) and HZSM(300) with nanosized anatase (NA) doped with transition metal ions (NA:M). NA:M/HZSM(40)-3 and NA:M/HZSM(300)-3 nanocomposites are active in the photooxidation of difenoconazole contaminants, at that, the photocatalytic activity is higher in the presence of NA:Ni/HZSM(40)-3 (

Table 7. Functional properties of NA:M/HZSM(40)-3 and NA:M/HZSM(300)-3 (data from [65]).

Sample	Photocatalytic Properties, Reaction Rate Constant (k, min−1)
	Difenoconazole		Thiamethoxam
NA:Ni/HZSM(40)-3	0.0083(2)		0.0007(1)
NA:Ag/HZSM(40)-3	0.0073(2)		0.0010(1)
NA:V/HZSM(40)-3	0.0069(2)		0.0007(1)
NA:Ni/HZSM(300)-3	0.0077(2)		0.0005(1)
NA:Ag/HZSM(300)-3	0.0059(2)		0.0007(1)
NA:V/HZSM(300)-3	0.0045(2)		0.0004(1)
	Adsorption properties (in the dark), removal degree (R, %)
	P(V)	As(V)		Se(VI)
NA:Ni/HZSM(40)-3	99.35	99.86		>99.65
NA:Ag/HZSM(40)-3	>99.90	99.85		>99.65
NA:V/HZSM(40)-3	>99.90	99.68		>99.65
NA:Ni/HZSM(300)-3	99.64	99.67		>99.65
NA:Ag/HZSM(300)-3	>99.90	99.70		>99.65
NA:V/HZSM(300)-3	97.55	98.36		99.45
	Bactericidal properties (in the dark), diameter of inhibition growth zone (D, mm)
	St. epidermidis	Bacillus antracoides		Es. coli
NA:Ni/HZSM(40)-3	0	0		0
NA:Ag/HZSM(40)-3	12	12		13
NA:V/HZSM(40)-3	8	0		0
NA:Ni/HZSM(300)-3	0	0		0
NA:Ag/HZSM(300)-3	12	12		11
NA:V/HZSM(300)-3	9	9		0

) [65].

The presence of photocatalytic processes in the NA:M/HZSM(40)-3 systems rather than adsorption ones was shown in [65] based in the analysis of kinetic curves of the pollutants decomposition in the dark and under visible light.

Samples with NA:M/HZSM(40)-3 and NA:M/HZSM(300)-3 are almost inert in the reaction of thiamethoxam photooxidation (Table 7).

The unit cell parameters (a, Å) of NA in the composition of NA:M/HZSM(40)-3 nanocomposites calculated in [65] differ (smaller in NA:V/HZSM(40)-3: a = 3.784, c = 9.575 Å and larger in NA:Ni/HZSM(40)-3 zeolite: a = 3.822, c = 9.570 Å) from those of the anatase (a = 3.798, c = 9.454 Å) presented in [43]. This fact assumes that Ti⁴⁺ ions are replaced by V⁵⁺/V⁴⁺ and Ni²⁺ ions in the structure of NA (r(Ti⁴⁺) = 0.61 Å, r(V⁵⁺) = 0.54 Å and r(V⁴⁺) = 0.58 Å, r(Ni²⁺) = 0.69 Å, r(Ni³⁺) = 0.60 Å; ionic radii are given for the coordination number CN = 6 [95]. The absence of differences (considering a possible error of the method) between the a (Å) parameters of anatase and NA in the composition of NA:Ag/HZSM(40)-3 (a = 3.784, c = 9.565 Å) excludes the substitution of Ti⁴⁺ ions by Ag⁺ ones in the NA structure (r(Ag⁺) = 1.15 Å. Ag⁺ ions may be on the NA particles surface but not in the NA composition [65].

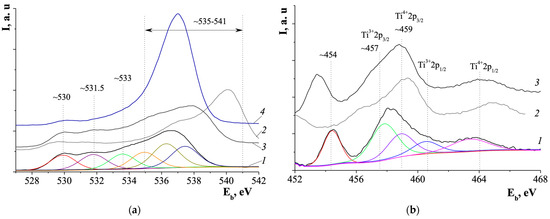

According to XPS data (Figure 11), among NA:M/HZSM(40)-3 samples, the smallest content of OH groups (~531.5 eV) (Figure 11a) was found on the surface of NA:Ag/HZSM(40)-3 zeolite particles, while Ti³⁺ ions content (~457 eV) was lower on the surface of NA:Ni/HZSM(40)-3 particles (Figure 11b).

The analysis of NA:M/HZSM(40)-3 chemiluminescence spectra with luminol (indicator for ^•OH, ^•O₂⁻ and H₂O₂ [149,150]) and lucigenin (indicator for ^•O₂⁻ and H₂O₂ [149,150]) with a comparison of the subintegral curves areas (hν, eV value), correlating with the number of formed ROS [65], evidences a different content of ROS on the particle surface. The content of ^•O₂⁻, ^•OH and H₂O₂ decreases in series NA:Ag/HZSM(40)-3 > NA:Ni/HZSM(40)-3 > NA:V/HZSM(40)-3 [65], which does not correlate with photocatalytic activity (Table 7). It means that the photocatalytic process is multifactorial: the symbate connection of k, min⁻¹ with dopant M concentration (mol%) (more for M = Ni) and Ti-O was found as well as the antibatic relationship between k, min⁻¹ and Ti³⁺ ions content on NA:M/HZSM(40)-3 particles surface.

3.1.1.3. Antimicrobial Activity in the Dark of NA/HZSM

MFI type HZSM zeolites do not exhibit adsorption properties in contrast to NA/HZSM nanocomposites [66], whose adsorption activity is associated with anatase nanoparticles (removal degree (R value, %) of P(V) ions in the presence of NA/HZSM(12, 40, 300) is 81–98%) [66]. The R value of As(V), P(V), and Se(VI) ions using NA:M/HZSM(40)-3 and NA:M/HZSM(300)-3 composites is over 99% (Table 7) [65].

HZSM zeolites and NA/HZSM(12, 40, 300) nanocomposites do not exhibit antimicrobial properties [54] in contrast to nanocomposites NA:M/HZSM(40)-3 [65] and NA:M/HZSM(300)-3 (Table 7). According to [42,65], antimicrobial activity is determined both by the physicochemical parameters of the sample (bulk and surface composition, size factor, and texture parameters) and by the nature of microorganisms.

NA:Ag/HZSM(40)-3 and NA:M/HZSM(300)-3 composites demonstrate low sensitivity to Gram-positive (Staphylococcus epidermidis and Bacillus antracoides) and Gram-negative (Escherichia coli) bacteria (Table 7) that can be assumed based on the value of bacterial growth zone (diameter) inhibition [151]: up to 10 mm—lack of sensitivity, 11–15 mm—low sensitivity, 15–25 mm—medium sensitivity, over 25 mm—high sensitivity to microorganisms.

NA:Ag/HZSM(40)-3 and NA:Ag/HZSM(300)-3 exhibit AMA in respect to all three microorganisms, which excludes one reason for the AMA implementation of the samples examined. AMA of nanocomposite with Ag⁺ ions on the surface of zeolites is reasonable, i.e., silver ions have good biocidal properties. Among the numerous theories explaining the mechanisms of silver ions action (they are the ones to be on the surface of nanocomposites) on microorganisms, the most common is adsorption theory. According to it, a bacterial cell loses its viability as a result of interaction of electrostatic forces between the cell (membrane) and silver ions adsorbed on it [152].

Therefore, the answer to the question—what causes the bactericidal properties of the samples—should be sought, both in their physicochemical characteristics and in the nature of a specific microorganism.

3.1.1.4. Catalytic Properties

The catalytic properties of HZSM (MFI) zeolites depend on the compositions of the channels and tetrahedra in the framework and oxygen positions, the presence of OH groups together with oxygen atoms, surrounding Si(Al)), the matching of reactants molecules size and reaction products to the size of voids, windows, and channels. Moreover, the catalytic activity of HZSM (MFI) zeolites is determined by the crystal structure and structural characteristics [78,153].

The catalytic properties of zeolites are determined with respect to the nature of acid sites (Brønsted or Lewis), their location, concentration, and strength. Two types of acid sites are known for HZSM, which determine their catalytic properties: aprotonic—Lewis sites (Figure 12a) and protonic—Brønsted sites (Figure 12b,c).

Their ratio can be changed by varying the processing modes (temperature, environmental conditions, and heating duration) of zeolites [154], as well as by modifying [155].

Catalytic systems based on HZSM zeolites with various silicate modules (Si/Al = 12, 25, 40), both initial and modified with nanosized anatase (NA/HZSM-1 and NA/HZSM-2) have been proposed for the propane and ethanol conversion.

Propane conversion (T = 473–1143 K). There are two major mechanisms of propane (P, C₃H₈) cracking which are considered to be beneficial in terms of commercial use [16]. The first one takes place at T ≥ 900 to ~1273 K and implies the production of propylene (PP, C₃H₆) by the dehydrogenation mechanism (reaction 9) [16,156]:

$$C_3{H}_8\to C_3{H}_6+H_2,$$

(reaction 9)

The second one takes place at T > ~700 to 923 K and leads to the formation of ethylene (ETH, C₂H₄) (reaction 10):

$$C_3{H}_8\to C_4{H}_4+C{H}_4,$$

(reaction 10)

Thermal cracking (reaction without a catalyst) begins after T = 900 K, while the initial HZSM zeolites and NA/HZSM-1,2 nanocomposites shift the catalytic area to lower temperatures. Using HZSM(40) allows to achieve the propane conversion value (α_P, %) of 65% at 923 K (

Table 8. Optimal propane cracking reaction performance (T = 923 K) (data from [16]).

	HZSM(12)	NA/HZSM(12)-1	NA/HZSM(12)-2	HZSM(25)	NA/HZSM(25)-1	NA/HZSM(25)-2	HZSM(40)	NA/HZSM(40)-1	NA/HZSM(40)-2
α, % (Equation (2) in Section 3.1)
	30	29	47	48	49	66	65	65	78
w, μM/(gxs) (Equation (3) in Section 3.1)
C2H4 (ETH)	126.9	139.1	126.9	150.0	180.0	165.0	346.2	440	540
C3H6 (PP)	200	190	163.4	67.0	67.0	67.0	57.7	57.7	57.7
S,% (Equation (4) in Section 3.1)
C2H4 (ETH)	9	9	9	12	20	25	75	80	85
C3H6 (PP)	82	75	70	9	9	9	6	9	12
TON (Equation (5) in Section 3.1.1.1)
	800	800	811	1610	1621	1623	1501	1509	1511
Ea, kJ/mol (Equation (6) in Section 3.1.1.1)
	91	90	88	83	82	80	77	76	76

). In case of HZSM(12) and HZSM(25), the α_P of 30% and 48%, respectively, was observed (T = 923 K) (Table 8). These data are in good agreement with the values of activation energy (E_a) of the propane decomposition process which decreases in the row HZSM(12) > HZSM(25) > HZSM(40) (Table 8).

At T = 923 K HZSM(40) demonstrates the maximum ETH selectivity (S_ETH, %) while HZSM(12) shows the maximum PP selectivity (S_PP, %) (Table 8), which indicates different catalytic processes of propane cracking occurring on HZSM catalysts (Table 8):

- HZSM(12) catalyst is responsible for the formation of PP (HZSM(12) > HZSM(25) > HZSM(40)) (propane cracking reaction according to the dehydrogenation mechanism, reaction 9) [16];

- The use of HZSM(40) results in ETH formation (HZSM(40) > HZSM(25)> HZSM(12)) (destructive mechanism, reaction 10) [16].

The high ETH release yield evidences the free radical mechanism of propane cracking, close to thermal decomposition. On the other hand, the high PP yield indicates a carbene catalytic cracking.

The row in which of S_PP,% decreases and α_P,% increases (Z12 > Z25 > Z40, Table 8) coincides with an increase in Si/Al, specific surface area and mesopores volume (Table S3), but a decrease in the content of strong acid Brønsted sites (FTIR, Figure 6), Si(Al)-O (XPS, Table 5) and strong, medium, and weak acid sites concentration (

Table 9. Acidic properties of HZSM and NA/HZSM-2 samples (data from [16]).

	HZSM(12)	HZSM(25)	HZSM(40)	HZSM(300)	NA/HZSM(12)-1	NA/HZSM(25)-1	NA/HZSM(40)-1	NA/HZSM(12)-2	NA/HZSM(25)-2	NA/HZSM(40)-2
Low temperature peak (weak acid sites)
Tmax, K	479	462	486	-1	-1	-1	-1	447	470	-2
C, μmol/g (Section S2.10)	78	66	48	-1	-1	-1	-1	113	28	-2
Medium temperature peak (medium acid sites)
Tmax, K	553	542	540	482	-1	-1	-1	522	532	517
C, μmol/g (Section S2.10)	421	343	116	75	-1	-1	-1	332	176	36
High temperature peak (strong acid sites)
Tmax, K	783	768	760	635	-1	-1	-1	733	761	615
C, μmol/g (Section S2.10)	352	217	116	89	-1	-1	-1	313	126	13
ΣC, μmol/g (strong + medium acid sites)
	773	560	232	164	-1	-1	-1	645	302	49
N, mmol/g (Equation (1))
	0.18	0.18	0.20	-1	0.36	0.30	0.25	0.25	0.17	0.17

¹ not measured; ² not found.

).

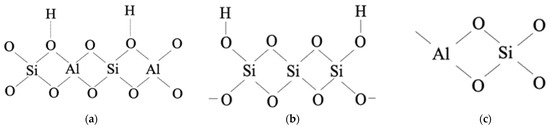

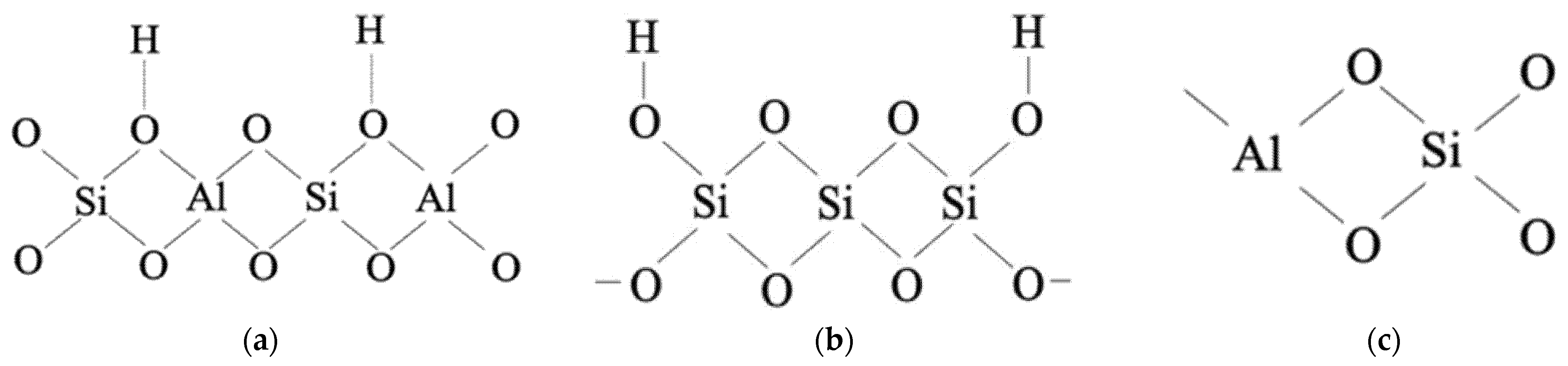

Alkane activation on acidic zeolites occurs either at the Brønsted acid sites or at the Lewis ones [157]. The acid site of P and the carbonium ion resulting from various transformations lead to the dehydrogenation of P or its cracking with the formation of PP or ETH, respectively [16,158].

The thermal dehydrogenation of propane by the reaction 9 produces PP (reaction 11; ΔH = −125.7 kJ/mol) with a low conversion, as compared to the destruction process by reaction 10, which proceeds with the formation of methane and ETH (reaction 12; ΔH = −67.5 kJ/mol) [16]. The prevailing formation of methane during the thermal cracking of P could be explained by the cleavage of the C-C bond requires significantly less energy (261.9 kJ/mol) than that one of the C-H bond (364.5 kJ/mol for the primary carbon atom) [159].

$$C_3{H}_8\leftrightarrow C_3{H}_6+H_2,$$

(reaction 11)

$$C_3{H}_8\leftrightarrow C{H}_4+C_2{H}_4,$$

(reaction 12)

Modification with NA leads to an increase in w_ETH of HZSM(40) (Table 8). The values of α_P,% and w_ETH, μM/(g × s) decrease in the row NA/HZSM(40)-2 > NA/HZSM(40)-1 > HZSM(40) (Table 8). HZSM(12) modification with NA reduces the values of S_PP,% and w_PP,% in the row HZSM(12) > NA/HZSM(12)-1 > NA/HZSM(12)-2 with a slight increase in α_P,% for NA/HZSM(12)-2 (Table 8) [16].

The value of α_P,% is higher for NA/HZSM-2 than for NA/HZSM-1 (Table 8) which coincides with an increase in NA content in the composition of nanocomposites (NA content in the NA/HZSM-2 is higher as compared to NA/HZSM-1 according to EDX and XPS, Table S3 and Table 5). The minimum concentration of acid sites and minimum CN Ti correspond to the maximum value of α_P,% (Table 6, Table 8 and Table 9), which indicates Lewis acid sites [16]. An increase in NA content in NA/HZSM-2 leads to an increase in S_ETH,% (Table 8). The value of S_PP,% decreases for NA/HZSM(12)-1,2 (Table 8) together with a decrease in the concentration of strong acid sites in nanocomposites compared to initial HZSM(12) (Table 9).

HZSM(25) modification with NA does not change the reaction mechanism and the amount of PP produced, but within the destruction reaction the equilibrium shifts towards ETH formation (Table 8) [16].

A change in the composition of the samples under the reaction conditions is a significant problem in the analysis of catalytic activity together with physicochemical characteristics, which is confirmed by the X-ray diffraction patterns of the samples before (Figure 6e) and after catalysis [16].

Analysis of NA/HZSM-1,2 diffraction patterns after propane conversion indicated an appearance of carbon-containing formations only in NA/HZSM-2 samples (diffraction peak at 2θ~22°) which is consistent with their synthesis conditions (Section S1) [16].

The carbon balance was 95–100% over the entire temperature range. Propane conversion temperature increase results in water removal which contributes to HZSM(12) acidity with the maximum concentration of strong acid sites (Table 9). However, the presence of strong acid sites results in the side reaction 13 with the formation of free carbon:

$$C_3{H}_8\to 3C+4H_2,$$

(reaction 13)

The coke forms on the cracking catalysts surface and remains there causing an abrupt loss of the catalyst activity (HZSM(12) has the minimum α_p,% value among the initial zeolites, Table 8). At the same time the contribution of the destruction mechanism increases, which leads to the additional methane formation (reaction 14):

$$C{H}_4\to C+2H_{2 }\left(\Delta \mathrm{H}=+74.8\mathrm{kJ}/\mathrm{mol}°\mathrm{C}\right)$$

(reaction 14)

A tendency to some decrease in the carbon balance values with an increase in the temperature was observed and can be explained by an experimental error, the contribution of which is larger at small amounts of reaction products [16]. The maximum fraction of surface carbon was revealed at the maximum temperature of the propane cracking process (T ~1273 K). Figure 13 demonstrates the carbon accumulation on all the catalysts. A decrease in temperature by 373 K suppresses the process of the reaction 14 and reduces the fraction of free carbon by a factor of 10.

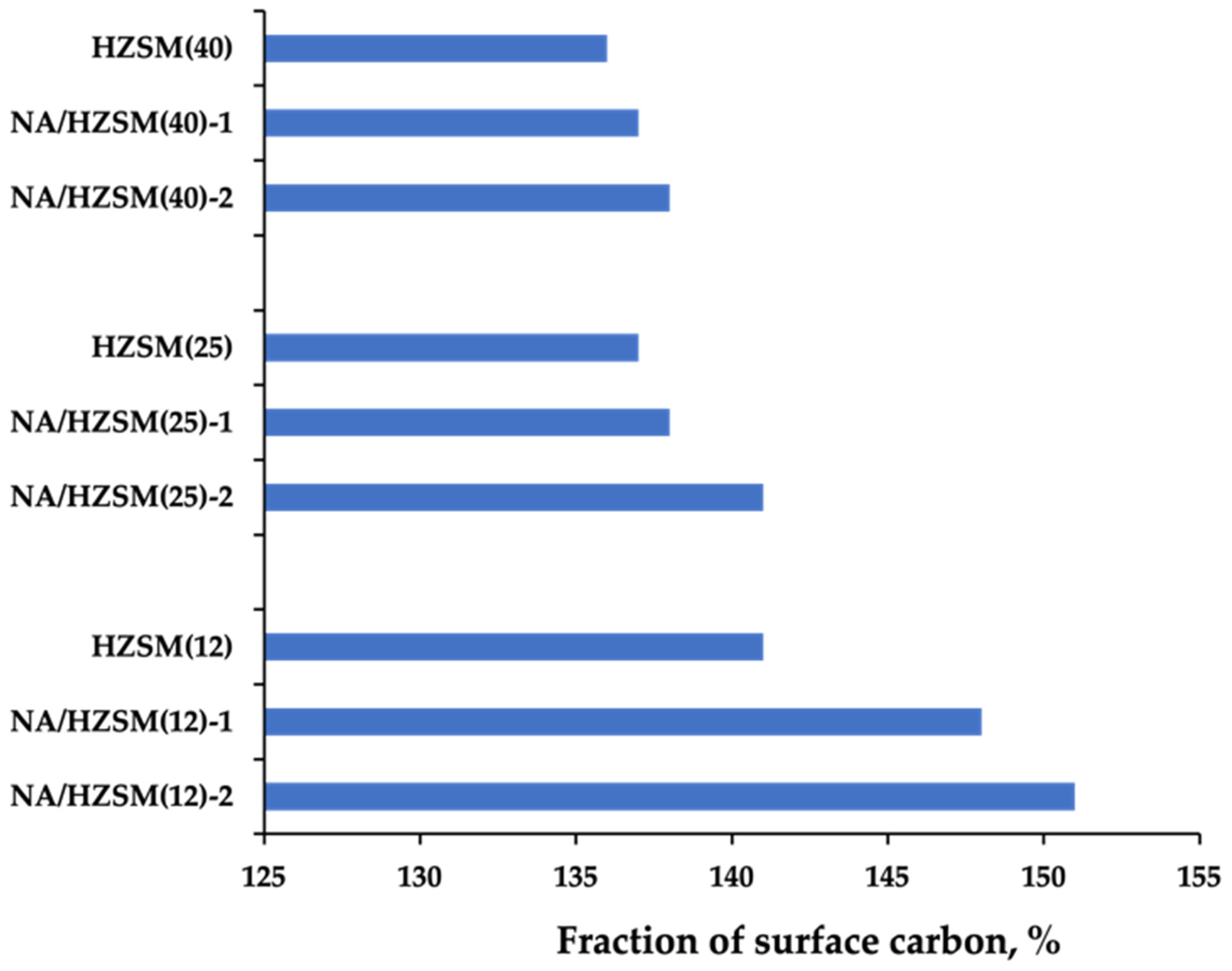

The highest carbon deposits formation was found in the modified samples obtained by method 2 with the carbon-containing precursor Ti(C₄H₉O)₄, which complies with the results of XRPD [16]. The data obtained on carbonization antibatically correlate with the catalytic activity: the least carbon accumulation on the catalyst surface contributes to the highest activity [16]. The catalytic systems regeneration takes place in an air stream at T = 573 K for 10 h. The amount of carbon remained does not exceed 10 wt.% and does not affect the catalytic activity of the systems studied.

The industrial processes are carried out at the T ~873 K with PP selectivity on catalysts of 75–85% and propane conversion of 50–80% [160]. However, these catalytic systems are highly unstable to carbonization. Currently there is a trend towards industrialization of catalytic systems based on zeolites.

Ethanol conversion (T = ~430–660 K). Unlike propane conversion, in the conversion of ethanol (E, C₂H₅OH) on the same catalysts (HZSM, NA/HZSM-1 and NA/HZSM-2) there are no carbon-containing formations in nanocomposites after catalysis which was confirmed by the absence of the diffraction peak at 2θ~22° on NA/HZSM-1, 2 X-ray diffraction patterns after ethanol conversion [16].

The main reaction products of E conversion are ETH (reaction 15) and diethyl ether (DEE, (C₂H₅)₂O) (reaction 16), by-product is H₂O.

$$C_2{H}_{5}OH+C_2{H}_{5}OH\stackrel{-H_{2}O}{\to }{\left(C_2{H}_5\right)}_{2}O,$$

(reaction 15)

$$C_2{H}_{5}OH\stackrel{-H_{2}O}{\to }{C}_2{H}_4,$$

(reaction 16)

According to [45,156], in the reaction 15 of DEE formation at T ~473 K E interacts with the proton (H⁺) of the Brønsted acid site, while in the reaction 16 of ETH formation at T ~573 K E interacts with the Lewis acid site. TPD data (Table 9) indicate that at T ~473 K both weak and medium acid sites present in HZSM and NA/HZSM and at T ~573 K there are only medium one.

At low temperature (~493 to 533 K) and conversion the reaction occurring in all cases with almost total selectivity is dehydration of E to DEE, which means that in low-temperature conditions the formation of DEE is much faster than ETH [16]. Vice versa, at higher temperature (~513 to 633 K) and conversion the reaction observed with high and almost total selectivity is the dehydration of E to ETH (

Table 10. Selectivity of ethanol conversion to ethylene (S_ETH, %) and diethyl ether (S_DEE, %) for HZSM, NA/HZSM-1, and NA/HZSM-2 (data from [16]).

	HZSM(12)	NA/HZSM(12)-1	NA/HZSM(12)-2	HZSM(25)	NA/HZSM(25)-1	NA/HZSM(25)-2	HZSM(40)	NA/HZSM(40)-1	NA/HZSM(40)-2
Temperature, K	SETH, %
473	94	92	98	98	93	95	96	91	100
513	45	46	83	83	48	72	78	68	91
573	4	0	2	12	1	2	1	1	20
Temperature, K	SDEE, %
473	6	8	2	2	7	5	4	9	0
513	55	54	17	17	52	28	22	32	9
573	96	100	98	88	99	98	99	99	80

).

Differences were found for α_E,% to DEE and ETH and S_DEE/ETH,%: S_ETH,% at 573 K is significantly less for HZSM(25) compared to HZSM(12) and HZSM(40), but S_DEE,% at 473 K for all HZSM is almost the same (Table 10). α_E,% to DEE decreases in the row HZSM(12) > HZSM(25) > HZSM(40) (513 K) (Figure 14), coinciding with a decrease in the concentration of all kinds of acid sites (Table 10). HZSM(12) has the maximum concentration of strong, medium, and weak acid sites (Table 10), maximum content of Si(Al)O groups (XPS data, Table 5), physically adsorbed water and “zeolite water” with OH groups in the framework voids (FTIR, DSC, and XPS data, Table 4 and Table 5, Figure 6).

HZSM(25) with the highest S_DEE,% (513 K) (Table 10) has maximum content of bridging hydroxyls Si-OH-Al(Fe) and terminal silanol groups Si-OH (FTIR data, Figure 6), maximum micropores volume and average pore hydraulic radius, but minimum particle size (Table S3).

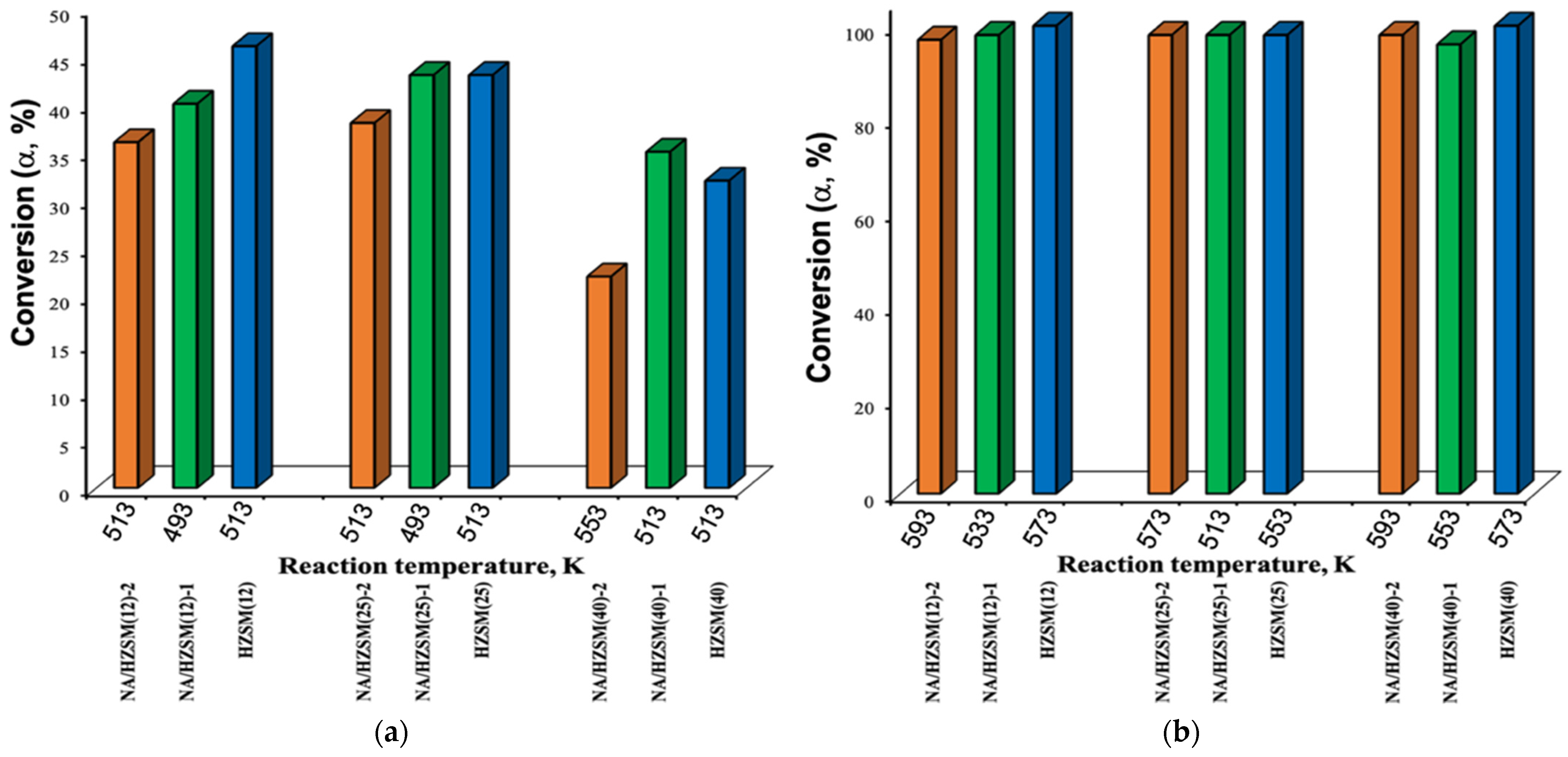

All HZSM have α_E,% comparable to ETH (Figure 14b). The highest S_ETH,% (573 K) is for HZSM(40) with maximum values of mesopores volume, specific surface area, size of spherical particles associates (Table S3), minimum content of Si(Al)O groups (Table 5), bridging hydroxyls Si-OH-Al (Figure 7), physically adsorbed water and “zeolite water” with OH groups in the framework voids (Table 4 and Table 5, Figure 7) and minimum concentration of medium acid sites (Table 9).

Fabrication of NA/HZSM-1 nanocomposites leads to a decrease in the reaction temperature of E conversion to DEE and ETH (493 K and 553 K correspondingly for DEE and ETH, mostly in NA/HZSM(25)-1 and slightly lower in NA/HZSM(12)-1 with the maximum total acidity (Table 9, Figure 14a and Figure S3). The values of α_E,%, S_DEE,%, and S_ETH,% maintain comparable to those of initial zeolites (Table 10, Figure 14). The maximum total acidity of NA/HZSM(12)-1 and NA/HZSM(25)-1 indicates the effect of NA in the composition of nanocomposites obtained by Method 1b on their acidic properties. According to [13,41] on the NA surface there are Lewis acid sites, enhancing the nearby Bronsted sites, provoking an increase in the selectivity for hydrocarbons in reactions proceeding via the redox mechanism.

Synthesis of NA/HZSM-2 nanocomposites has no significant effect on catalytic activity (Table 10, Figure 14).

The catalytic activity of samples obtained is higher or comparable to the commercial NKC-03A with α_ETH = 98% at T = 533 K and S_ETH = 98% [161] and Al-B with S_ETH = 92% at T = 673 K and S_DEE = 57% at T = 573 K [16,162].

3.2. Titanosilicalites [Ti⁴⁺_xSi⁴⁺_12-xO₂₄] × wH₂O

3.2.1. Composition and Crystal Structure

Titanosilicalites (TS; MFI) crystallize in two crystal systems: monoclinic and orthorhombic: the anhydrous orthorhombic [(Ti⁴⁺_xSi⁴⁺_12−x)O₂₄] phase (2.6 wt.% TiO₂) exists above 160 K, and the monoclinic phase exists below it [163]. Cooling the sample from 170 K to 80 K leads to a decrease in the unit cell volume (V, ų) from 5361.2(3) to 5352.5(4) ų, i.e., V, ų of the monoclinic phase is smaller in comparison with the orthorhombic one, while V, ų of this sample at room temperature is 5390.5(4) ų [163]. Moreover, the symmetry of titanosilicalites depends on the titanium content in the framework and the fabrication (processing) conditions (see, for example, [94]).

According to [163,164], the limiting content of Ti⁴⁺ ions in TS is, correspondingly, 3.1 wt.% TiO₂ and 4.2 wt.% TiO₂. The difference in values according to various publications can be explained by methods and obtaining conditions of TS [68,115,165]. It is obvious that the real compositions of titanosilicalites should not be lower than Si/Ti ~20 for obtaining pure and well-crystallized TS. High concentration of titanium atoms leads to the formation of anatase as a secondary phase. The maximum titanium doping level in TS is around 2.5 wt.% (Si/Ti = 40) [117,163]. The maximum volume of the unit cell (V(x), ų) lies in the range of 5389–5396.5 ų irrespective of the maximum Ti content in TS [117].

The objects of our study were: three commercial samples TS-1, TS-2, and TS-3 from different batches (their fabrication conditions were not known, and the TiO₂ content in the sample (3.1 wt.%) was known only for TS-2 and TS-3); TS-4 sample obtained by the hydrothermal method (Table S1); and the same samples, but annealed at 348 K for 2 h (TS-1(348), TS-2(348), TS-3(348), and TS-4(348) samples,

Table 11. Crystallographic data of TS-1, TS-2, TS-3, TS-4, TS-1(348), TS-2(348), TS-3(348), and TS-4(348) (data from [33,34]).

Sample	Initial Composition [(Ti4+xSi4+12-x)O24] × wH2O
	TS-1 *	TS-1(348) *	TS-2 *	TS-2(348) *	TS-3 *	TS-3(348) *	TS-4 **	TS-4(348) **
Scherrer size, nm	101.7	99.2	55.7	75.1	66.3	64.9	-	-
Microstrains, %	0.344	0.354	-	0.311	0.22	0.14	-	-
System, sp. gr., Z	Orthorombic, Pnma (62), 8
a, Å	20.0995(3)	20.0998(3)	20.1061(8)	20.1087(5)	20.1086(8)	20.1110(8)	20.0526(11)	20.0518(12)
b, Å	19.9245(3)	19.9237(3)	19.9425(8)	19.9392(5)	19.9408(9)	19.9423(8)	19.9323(11)	19.9318(11)
c, Å	13.4105(2)	13.4096(2)	13.4225(6)	13.4184(4)	13.4225(7)	13.4193(6)	13.4069(9)	13.4065(9)
Volume, Å3	5370.55(14)	5370.03(14)	5382.0(4)	5380.1(2)	5382.2(4)	5382.0(4)	5358.7(9)	5358.2(9)
λ, Å	0.7836	0.7836	0.79351	0.8	0.8	0.8	0.354345(3)	0.354345(3)
2θ range, measured	0.33–37.32	0.33–37.32	1.02–59.82	0.97–60.34	0.99–60.28	0.99–60.28	1.000–23.000	1.000–23.000
2θ range, used	3.18–33.80	3.18–33.80	2.26–33.60	2.48–34.82	3.04–35.90	3.01–35.59	-	-
Number of points	7398	7398	5881	5869	5875	5875	-	-
Number of refined parameters	154	154	144	154	154	154	-	-
Rp/ wRp	1.75/2.36	1.78/2.34	2.08/2.75	1.47/1.87	2.13/2.77	2.81/3.54	0.043/0.058	0.042/0.054
GOF	0.87	0.99	1.09	0.72	0.77	1.13	9.270	6.938
RBragg	1.90	2.56	1.90	1.98	2.86	3.39	0.017	0.019
Number of water molecules	6.5	5.0	6.0	7.5	7.5	7.5	1.614(11)	1.645(12)

*—XRPD (Kurchatov Synchrotron Radiation Source), **—ESRF (Grenoble, France).

) and at 773 K for 2 h (TS-3(773) and TS-4(773) samples).

The presence of silicon-containing oxygenous formations (marked with an oval on Figure 15) makes it impossible to correctly determine the titanium content in TS-1, TS-2, and TS-3 frameworks by elemental methods of analysis.

The maximal intensity of amorphous region in X-ray diffraction pattern (XRPD) of the studied samples (Figure 15) is ~5.0% and ~4.5% of most intense peak for TS-2 and TS-3, ~2.4% for TS-1, and the intensity for other samples (TS-1(348), TS-2(348), and TS-3(348)) is much lower. This fact means than amorphous formations decompose after performed thermal treatment of TS-1, TS-2, and TS-3 samples. In this regard, Bragg peaks of impurity anatase are absent in all diffraction patterns.

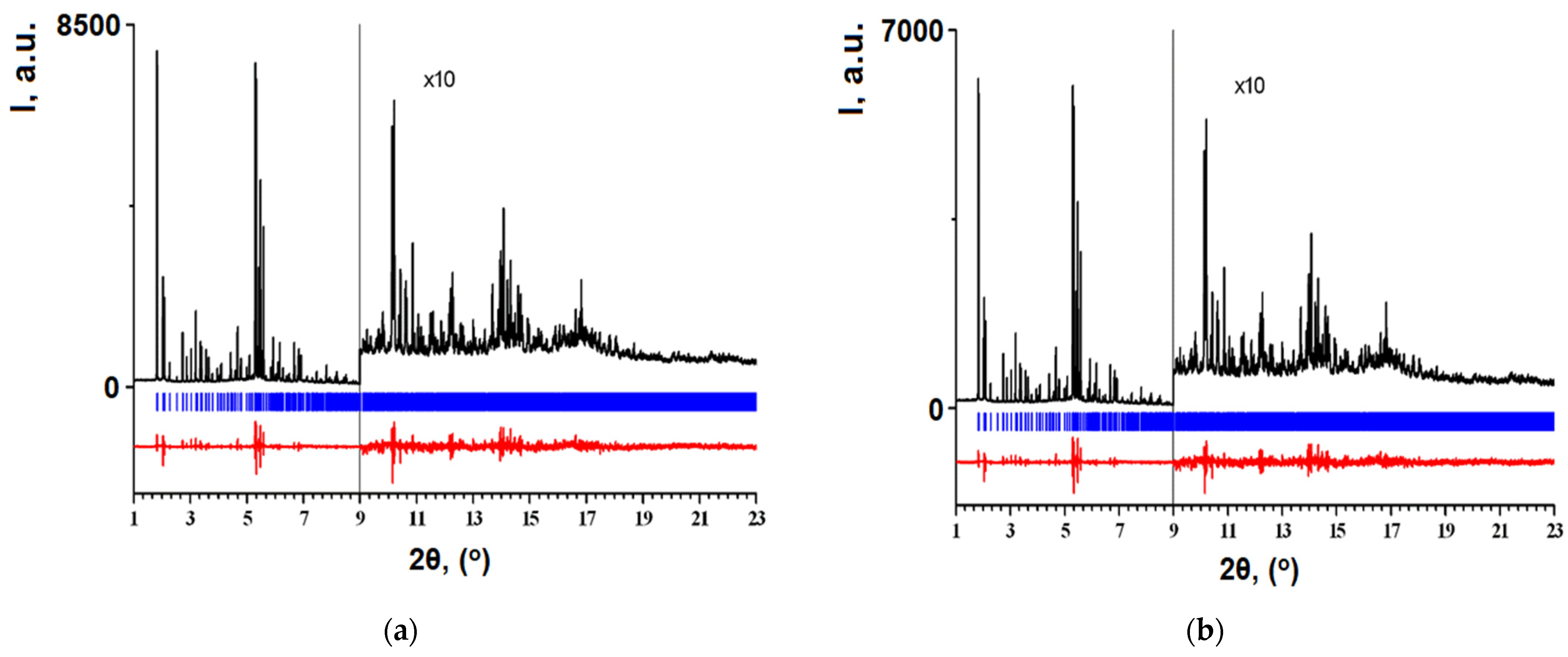

Analysis of TS-4 titanosilicalite X-ray patterns (Figure 16a) and crystallographic data (Table 11) shows that the amorphous region responsible for silicon-containing oxygenous formations is absent, but tetrapropylammonium hydroxide (which is used in the synthesis of ZSM-5 zeolites) presents in the framework voids.

The full-profile Rietveld method data analysis (Table 11, Figure 15) revealed that both commercial TS-1, TS-2, and TS-3 and synthesized by us TS-4 titanosilicalites crystallize in orthorhombic symmetry but judging by the unit cell volume their compositions are different: Ti⁴⁺ ions content is higher in TS-3 and TS-2 compared to TS-1 and TS-4. This ratio of titanium and silicon atoms in TS-1, TS-2, and TS-3 and TS-4 (TS-4 > TS-1 > TS-3 >TS-2) is confirmed by FTIR spectroscopy data (Figure 17).

Antisymmetric stretching vibrations inside TO₄ tetrahedra are characterized by the band at ~1108 cm⁻¹, which intensity is approximately identical to TS-1 (I_1108cm⁻¹ = 0.2509 a.u.), TS-3 (I_1108cm⁻¹ = 0.2438 a.u.), and TS-4 (I_1108cm⁻¹ = 0.2580 a.u.) and is higher for TS-2 (I_1108cm⁻¹ = 0.1915 a.u.) (Figure 17). It is caused by the higher content of Si⁴⁺ ions in the TS-1 and TS-4 than in the TS-2, TS-3 structure. 2θ, (^o).

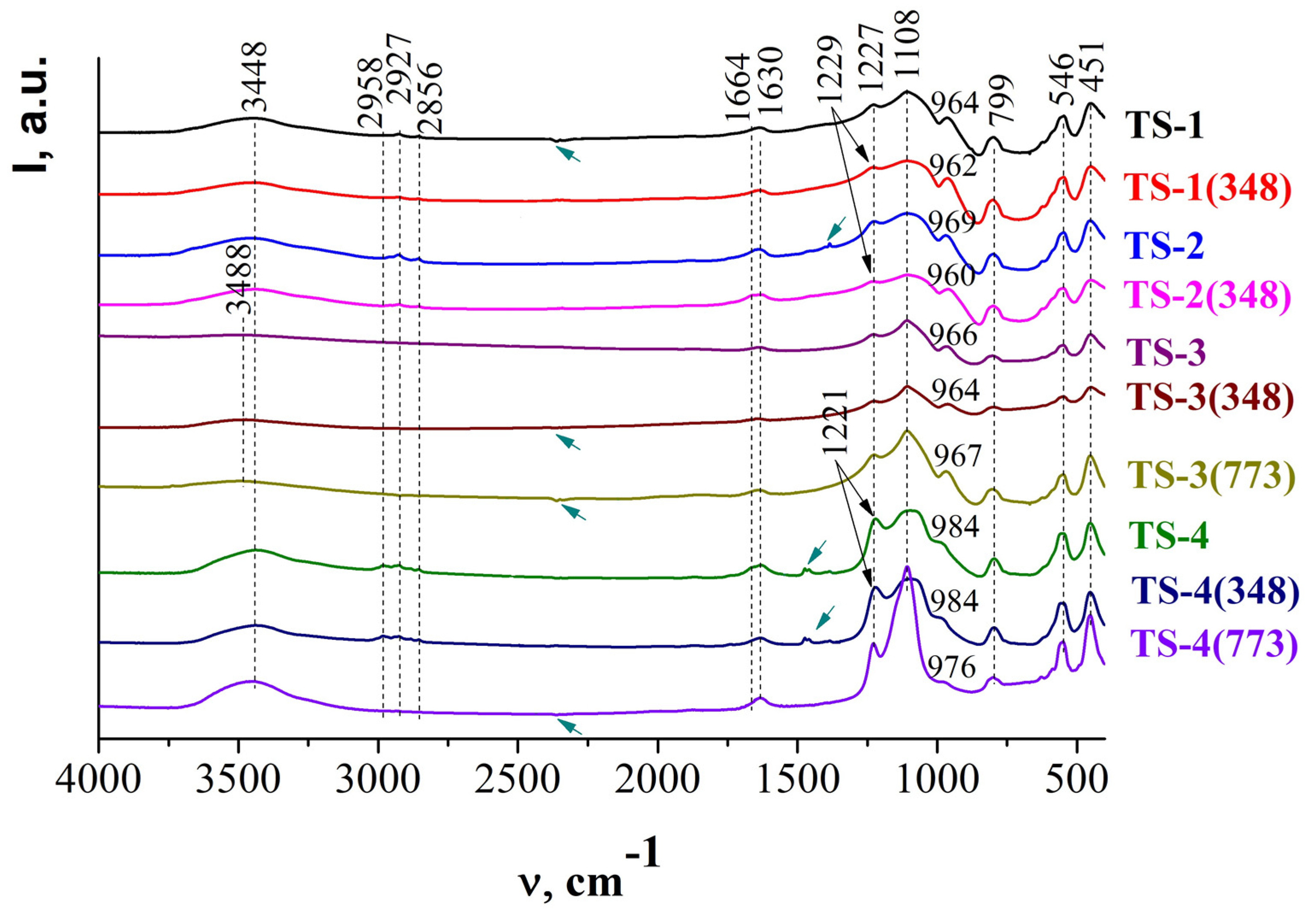

The band at ~960 to 970 cm⁻¹ (Figure 17) in FTIR spectra of titanium silicalites is responsible for the titanium content in the TS framework [165]. This band is currently considered as the “fingerprint” of Ti-containing zeolites and is not observed in pure silica and aluminosilicalites (Figure 6). Its intensity decreases in the row TS-2 (I_969cm⁻¹ = 0.144 a.u.) > TS-1 (I_694cm⁻¹ = 0.134 a.u.) > TS-3 (I_966cm⁻¹ = 0.079 a.u.) > TS-4 (I_984cm⁻¹ = 0.075 a.u.), i.e., the content of Ti atoms is higher in TS-2.

Judging by the unit cells volumes (Table 11) the compositions of TS-1 and TS-1(348), TS-2 and TS-2(348) are almost the same, although the unit cell volume of TS-2 is slightly larger compared to TS-2(348) (Table 11). The unit cell volume of the synthesized TS-4 (Table 11), the X-ray pattern of which was recorded on another radiation source (ESRF), is less than the unit cell volumes of commercial TS-1, TS-2, and TS-3 (XRPD source), but the tendency of a decrease in the unit cell volume of TS-4 after annealing at 348 K for 2 h can be traced (Table 11).

Annealing of TS samples at T = 348 K decreases contents of physically bound adsorbed water (TS-2 >> TS-2(348), TS-3 >> TS-2(348), TS-1 > TS-1(348)), and water in the framework cavities (TS-1 >> TS-1(348), TS-2 ≈ TS-2(348), TS-2 >TS-2(348)), except for TS-4 in which the content of physically bound adsorbed water with OH groups and water in the framework cavities increases (

Table 12. Correspondence of peaks (T, K) in the DSC thermograms to possible thermal processes (data from [33,34]).

KERRYPNX	TS-1	TS-1(348)	TS-2	TS-2(348)	TS-3	TS-3(348)	TS-4	TS-4(348)	TS-4(773)	Thermal Process
First Temperature Scanning
T, K	344.15	-	342.85	-	342.85	-	-	-	-	Removal of physically sorbed water
H, J/g	−71.48	-	−231.9	-	−208.3	-	-	-	-
T, K	-	355.25	-	344.35	-	340.75	383.35	347.25	346.05	Removal of physically sorbed water with OH groups (constitution water)
H, J/g	-	−62.51	-	−162.2	-	−104.7	−30.8	−42.76	−89.02
T, K	-	-	-	-	-	-	-	458.45	-	Decomposition of TPA+, which is physically adsorbed on the particle external surface
H, J/g	-	-	-	-	-	-	-	−0.899	-
T, K	-	-	-	-	-	-	663.05	657.45	-	Decomposition of TPA+ tightly filled in the pore channel of the zeolite framework
H, J/g	-	-	-	-	-	-	−9.975	−10.056	-
T, K	-	-	-	-	-	-	668.55	668.45	-
H, J/g	-	-	-	-	-	-	−53.426	−44.809	-
T, K	-	-	-	-	-	-	694.55	694.45	705.55	Desorption of “zeolite water” with OH groups from the voids in the framework
H, J/g	-	-	-	-	-	-	−32.116	−32.134	−1.731
T, K	781.15	770.95	772.15	771.15	707.85	708.25	734.05	732.45	728.55
H, J/g	−4.48	−1.06	−3.53	−3.45	−14.21	−11.81	−88.766	−90.146	−0.710
Second temperature scanning
T, K	355.05	357.45	335.35	352.75	356.25	335.95	-	404.05	-	Removal of residual weakly bound water with OH groups
H, J/g	−2.05	−11.06	−56.58	−12.55	−5.46	−52.61	-	−12.15	-
T, K	-	-	-	-	-	-	-	530.85	-	Decomposition of TPA+ residues, which is physically adsorbed on the particle external surface
H, J/g	-	-	-	-	-	-	-	−0.1551	-
T, K	719.55	735.15	739.55	743.15	719.85	717.25	735.65	736.75	720.15	Removal of residual strongly bound water
H, J/g	−0.71	−0.71	−3.51	−2.01	−8.396	−8.328	−0.926	−2.479	−8.573

, Figure S7).

In the TS-1 structure, the silicate module (Si/Ti = 53(1)) was found when refining occupancy of T2, T6, and T10 sites (

Table 13. Occupation of tetrahedral sites by Ti⁴⁺ ions.

T-Sites
	T1	T2	T3	T4	T5	T6	T7	T8	T9	T10	T11	T12
TS-1	-	0.046(12)	-	-	-	0.115(11)	-	-	-	0.059(13)	-	-
TS-2	-	-	-	-	0.08(3)	-	-	0.17(2)	-	0.08(2)	-	-
TS-3	-	0.055(15)	-	-	-	-	-	0.023(7)	-	0.135(15)	-	0.050(17)
TS-4	0.081(9)	-	-	-	-	0.074(10)	-	-	-	-	-	-
TS-4(348)	0.090(10)	-	-	-	-	0.077(10)	-	-	-	-	-	-

), i.e., exactly in defective silicon positions. For TS-2, the silicate module turned out to be Si/Ti = 35 with titanium atoms in positions T8, T10 (coincides with the data of [118]) and T5 (in order of decreasing titanium content). If we take into account the standard deviation 3σ for site occupancy (Table 13), To Si/Ti = 47(1), i.e., titanium atoms are absent in T5 position. Despite the good agreement between the observed and calculated X-ray diffraction patterns for TS-1 and TS-2 (Figure 13), it is likely that a large fraction of the amorphous component in TS-2 did not allow an increase in the accuracy of the structural parameters determining, including the silicon positions occupation.

In the TS-3 structure with the same titanium content as in the TS-2 sample, Ti⁴⁺ ions occupy other sites in the framework: T2, T9 (unlikely, considering 3σ), T10, T12 (Si/Ti = 45(1) (Table 13) or Si/Ti = 48(1) taking into account the standard deviation of 3σ for sites occupancy (titanium atoms are absent in the T9 site). For TS-4 and TS-4(348) with tetrapropylammonium hydroxide in the framework voids an average value of Si/Ti = 73.5 was found [34].

In TS-1, structure titanium atoms are located in 5-, 6-, and 10-membered rings (T2, T6, and T10 sites) (Table 13), straight channels (T6, T10, and T2 sites) (Figure 18a, Table 13), and sinusoidal ones (T6, T2, and double site T10) (Figure 18b, Table 13). In the TS-2 structure titanium atoms occupy sites in 5-, 6-, and 10-membered rings (T8 and T10) (Figure 18a) and sinusoidal channels (T10 double site) (Figure 18b, Table 13). In contrast to the TS-2 structure, in the TS-3 structure titanium ions are located in sinusoidal channels not in one (T10), but in two double positions T10 and T12. In TS-4 structure titanium atoms occupy sites in 5-, 6-, and 10-membered straight and sinusoidal channels (T1 and T6) (Figure 18, Table 13) [33,34].

These results do not contradict the generalized structural data of [166]: Ti⁴⁺ titanium ions occupy T10 (67%), T8 and T11 (50%), and T12 (42%) in MFI type TS structure. However, the titanium content and its distribution over the structural sites depend not only on the sample fabrication and processing conditions, but, to a greater extent, on the strategy for composition determining by X-ray and neutron diffraction methods. In [34], it was assumed that the correct strategy of TS crystal structure refining is the substantiated minimization of the refining parameters number and their residence in narrow fixed limits for cations as well as a varying of the occupancy of tetrahedral sites only to sites, which have the pronounced tendency to such behavior.

3.2.2. Local Structure

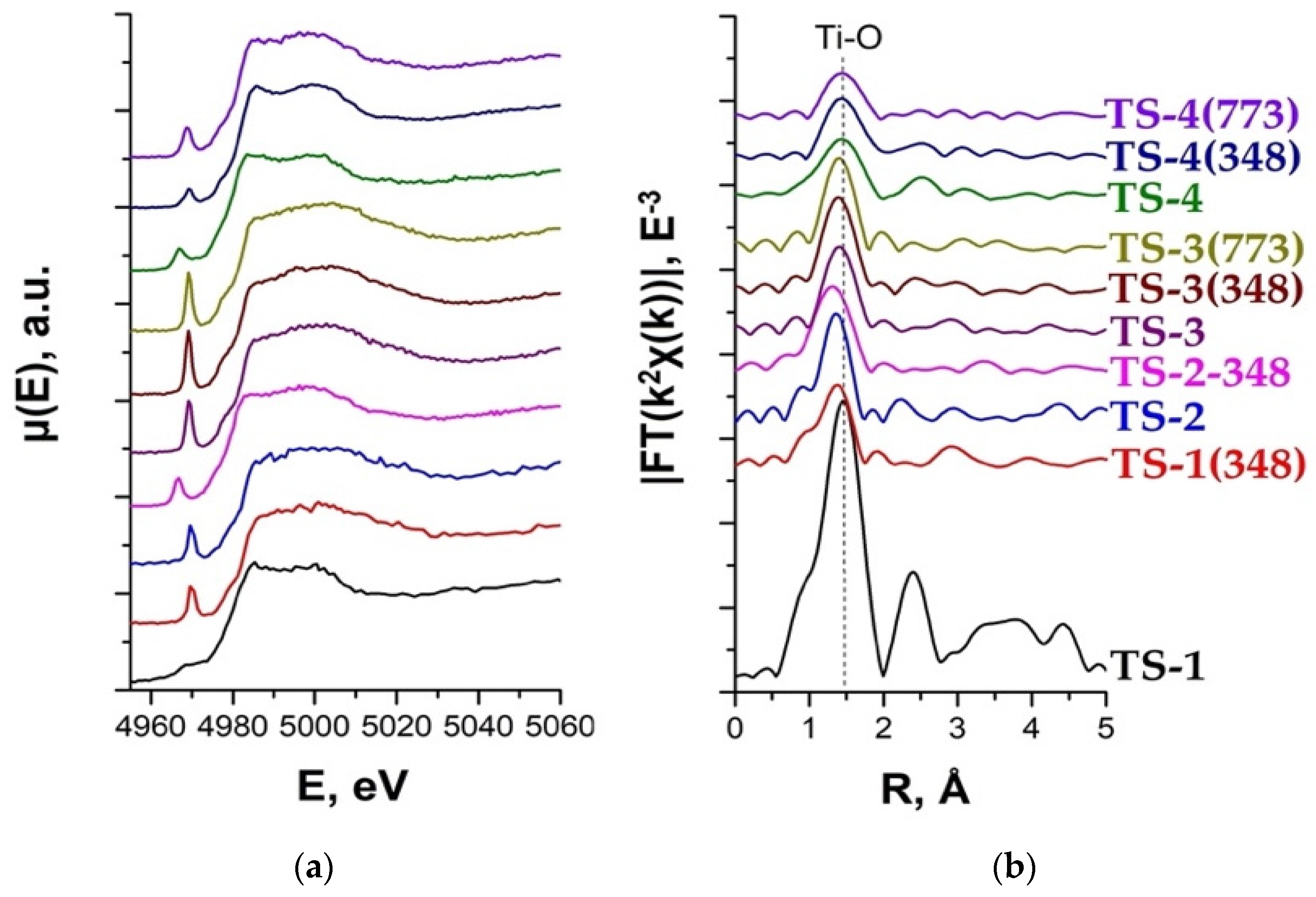

XANES spectroscopy is widely employed to discriminate among four-, five-, and six-fold coordinated Ti⁴⁺ species as the local coordination strongly influences the intensity and, appreciably, the position of the 1s-3pd electronic transition [167,168,169]. Ti K-edge EXAFS and XANES data are shown in Figure 19.

XANES data reveal a sharp pre-edge maximum (1s-3d) for all the samples, which indicates the tetrahedral coordination of Ti (Figure 19a). A broader maximum for TS-1 can be either due to the local structure disordering or to the presence of multiple types of Ti coordination in the sample [33]. The intensity of the pre-edge maximum is higher for TS-3 series, which indicates more ordered local structure of these samples compared to TS-1 and TS-4 (Figure 19a).

EXAFS spectroscopy plays a determining role in understanding the local environment and the reactivity of Ti in the Ti–silicalite system. The results of single-sphere EXAFS fit are shown in

Table 14. Results of EXAFS modeling (R_Ti-O, Å is the Ti-O interatomic distance, σ is the Debye–Waller factor, CN- coordination number, and R_f is the convergence factor). The first coordination sphere (R = 1–2 Å) (Data from [33,34]).

Sample	CN Ti	RTi-O, Å	σ2, Å2	Rf, %
TS-1	4.9	1.93	0.0066	1.7
TS-1(348)	3.6	1.84	0.0015	0.7
TS-2	4.5	1.82	0.0001	1.5
TS-2(348)	4.4	1.82	0.0004	0.1
TS-3	5.0	1.83	0.0011	0.5
TS-3(348)	5.1	1.81	0.0008	0.9
TS-3(773)	5.3	1.90	0.0085	2.0
TS-4	4.6	1.94	0.0035	0.5
TS-4(348)	4.6	1.95	0.0032	0.8
TS-4(773)	3.8	1.92	0.0044	0.1

.

No significant difference was found between coordination numbers of TS samples, (mostly due to the error in CN determination), except for TS-1(348) and TS-4(773), whose values of CN are more and less, respectively, compared to other samples (Table 14). However, without taking into account CN determination error, there is a tendency for CN decrease in the row TS-3(773) ≈ TS-3(348) ≈ TS-3 ≈ TS-1 > TS-4 = TS-4(348) ≈ TS-2 ≈ TS-2(348) > TS-4(773) ≈ TS-1(348) (Table 14). In this row, according to DSC (Table 12), the content of framework water molecules together with OH groups decreases, with the exception of TS-4, TS-4(348), and TS-4(773), the cavities of which, in addition to water, contain a large amount of TPAOH.

It is a matter of fact that a pure tetrahedral coordination is present only in outgassed TS, completely deprived of the adsorbed water acting as an additional ligand. For highly hydrated samples, an increase in the coordination from four (tetrahedral) up to six (octahedral) (Figure 20a) passing through a coordination of five (semi-octahedron or trigonal bipyramidal) (Figure 20b,c), according to the extent of hydration, is observed [170].

This can be interpreted with the existence of two different structural situations for Ti⁴⁺ ions in the studied structures [171]: a [Ti(OSiO₃)₄] “closed site” corresponding to Ti in tetrahedral coordination (CN Ti = 4) (Figure 21a) in the framework, and a defective [(OH)Ti(HOSiO₃)(OSiO₃)₃] or [(OH)₂Ti(HOSiO₃)(OSiO₃)₃] “open site” in which Ti is CN Ti = 5 or 6 (Figure 21b).

The CN ~5.0 in TS-1, TS-3, TS-3(348) and TS-3(773) structures and CN ~4.5 in TS-2, TS-2(348), TS-4 and TS-4(348) structures (Table 14) reflect the presence of a fraction of titanium atoms having slightly more than four oxygen atoms in the first coordination sphere owing to the interaction of tetracoordinated Ti in an “open site” with the oxygen atoms of a silanol in the nearness (Figure 21b). It is not excluded that CN Ti < 4.0 in TS-1(348) and TS-4(773) structures (Table 14) is conditioned by the [Ti(OSiO₃)₃] “closed site” of Ti in defective tetrahedral coordination.

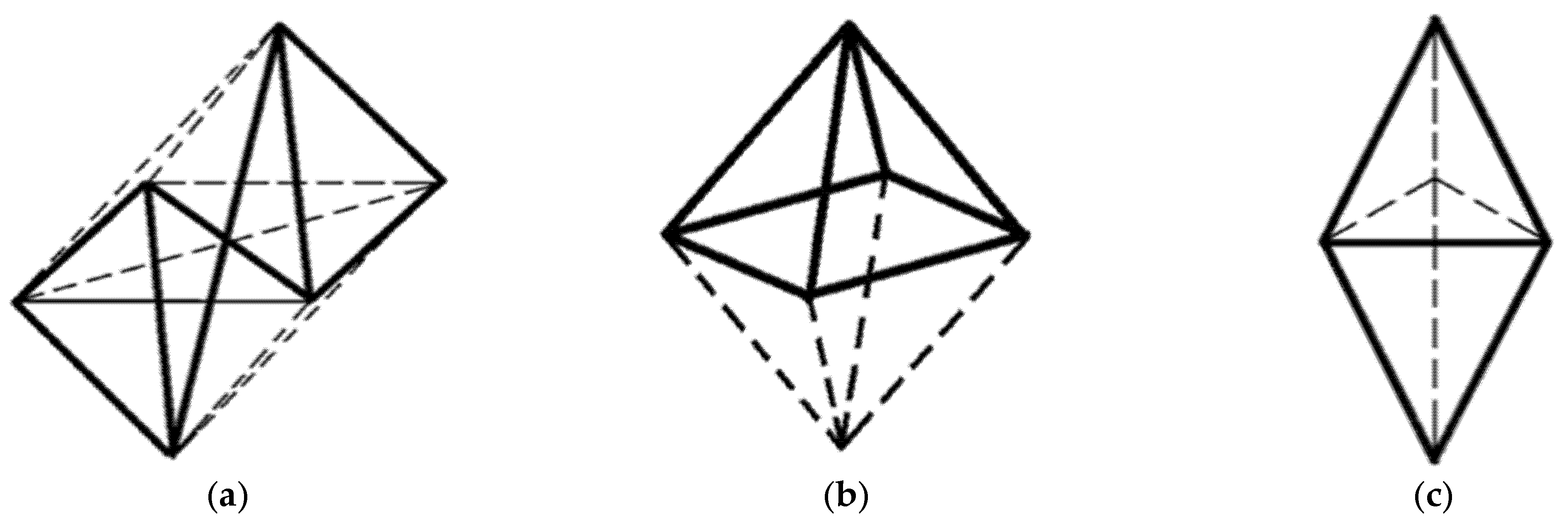

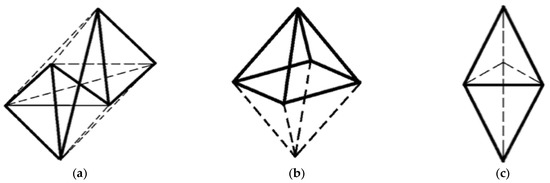

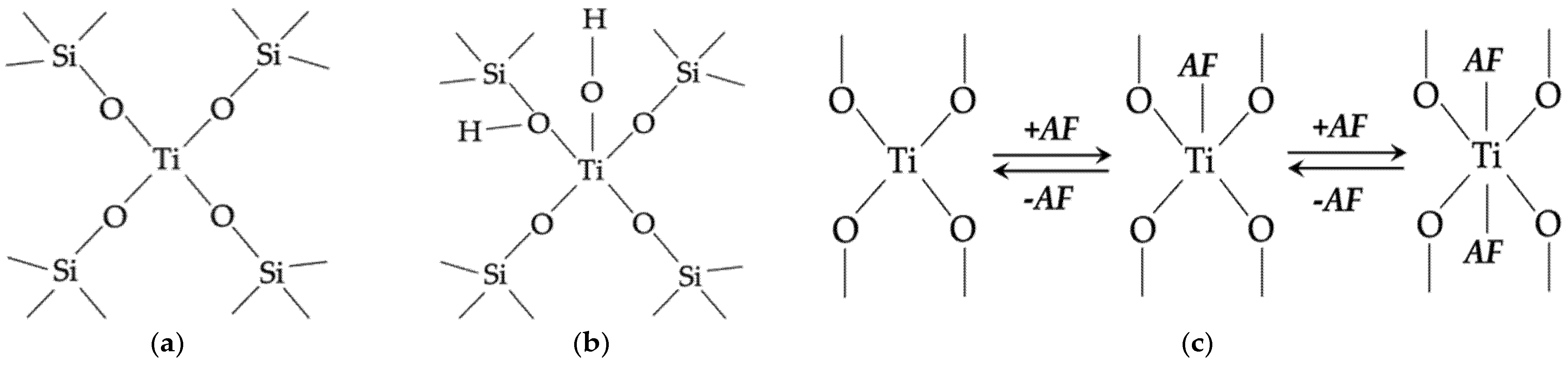

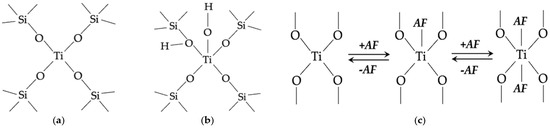

The model reported in Figure 21c based on the ability of the fourfold coordinated Ti species to increase their coordination sphere by interaction with adjacent atomic formations (AF, which can be precursor ions, OH, water) is able to explain why a coordination number higher than CN = 4 has been observed for dehydrated TS, in particular, TS-1, TS-3, TS-3(348), TS-3(773), TS-2, TS-2(348), TS-4, and TS-4(348) (Table 14).

It is evident that only a defect-free TS, calcined and dehydrated, containing all perfect or “closed” Ti(OSi)₄ sites, will exhibit a theoretical value of CN = 4.0 (Figure 21a) [114]. The EXAFS results agree with the FTIR spectroscopy data, notably, the content of framework water with internal OH groups decrease in the row TS-3 > TS-3(348) >> TS-1 > TS-2 ≈ TS-2(348) > TS-1(348). It is accompanied by a decrease in the content of internal OH groups, i.e., with the passage from “open” sites of “defect” titanium silicalite (vacancies in the silicon site are compensated by terminal silanol OH groups in oxygen sites) to closed sites.

Thus, the relative fraction of defective “open’’ Ti(OSi)₃(OH) sites is higher at low x values, i.e., TS-4 (Si/Ti = 73.5) > TS-1 (Si/Ti = 53) > TS-2(TS-3) (Si/Ti~47). Moreover, defective sites have four ‘‘chemically bonded’’ oxygen atoms, three bridging Ti with three different Si framework atoms and one hosting the titanol (Figure 21b). In this case, the insertion of a fifth oxygen of the silanol, formed in the adjacent Si center when the Ti–O–Si bridge (Figure 21b) is broken, is expected [114]. So, a CN = 5 is consequently expected in an ideal EXAFS measurement performed on a TS-1 sample containing only open sites. This means that the presence of a relative fraction y of open sites and of 1.0-y of closed sites, would give rise to CN = 4.0 + y, being 0 ≤ y ≤ 1.0, in an ideal EXAFS measurement.

3.2.3. Catalytic Properties

Three catalytic processes were considered as an example: allyl chloride (AC, C₃H₅Cl) epoxidation (T = 303 K), ethanol (E, C₂H₅OH) conversion (T = 473–673 K), and propane (P, C₃H₈) conversion (T = 298–1145 K) to reveal the characteristics of titanosilicalites.

AC epoxidation to epichlorohydrin (ECH, C₃H₅ClO) proceeds according to reaction 17.

$$C_3{H}_{5}Cl+H_{2}O\to C_3{H}_{5}ClO+H_{2}O,$$

(reaction 17)

The study results of AC epoxidation process on commercial titanosilicalites (

Table 15. Comparison of the main parameters for the process of allyl chloride (AC) epoxidation to epichlorohydrin (ECH) on titanosilicalite catalysts (T = 303 K, atmospheric pressure, C_ECH = C_H2O2 = 2.35 mol/L) (data from [33,34]).

Sample	τ, min	SECH|AC, % (Equation (4), Section 3.1)	S ECH|H2O2, % (Equation (4), Section 3.1)	αAC, % (Equation (2), Section 3.1)	αH2O2, % (Equation (2), Section 3.1)
TS-1	85	48.5	70.6	98.0	65.5
TS-2		67.9	92.5	84.8	67.4
TS-3		66.2	90.9	86.1	66.2
TS-4		22.5	26.0	34.5	26.3
TS-4(348)		18.8	49.7	24.5	8.9
TS-4(773)		32.3	41.6	8.7	6.8
TS-2(773)	120	74.2	79.2	82.5	62.3
TS-3(773)		70.9	90.4	85.8	67.6
TS-4		29.2	26.5	30.6	26.5
TS-4(348)		19.4	34.3	33.6	10.6
TS-4(773)		16.5	42.0	17.9	7.1

) [33] showed that TS-1 sample with a small fraction of the amorphous component (Figure 15), a large silicate modulus and crystallite size, as well as a smaller number of acid sites (Figure 22), is inferior in all parameters to the TS-2 and TS-3 samples with Si/Ti ~47 and crystal sizes 55.7 and 66.3 nm (Table 11), respectively, but better than synthesized TS-4, TS-4(348) and TS-4(773) titanosilicalites with Si/Ti = 73.5.

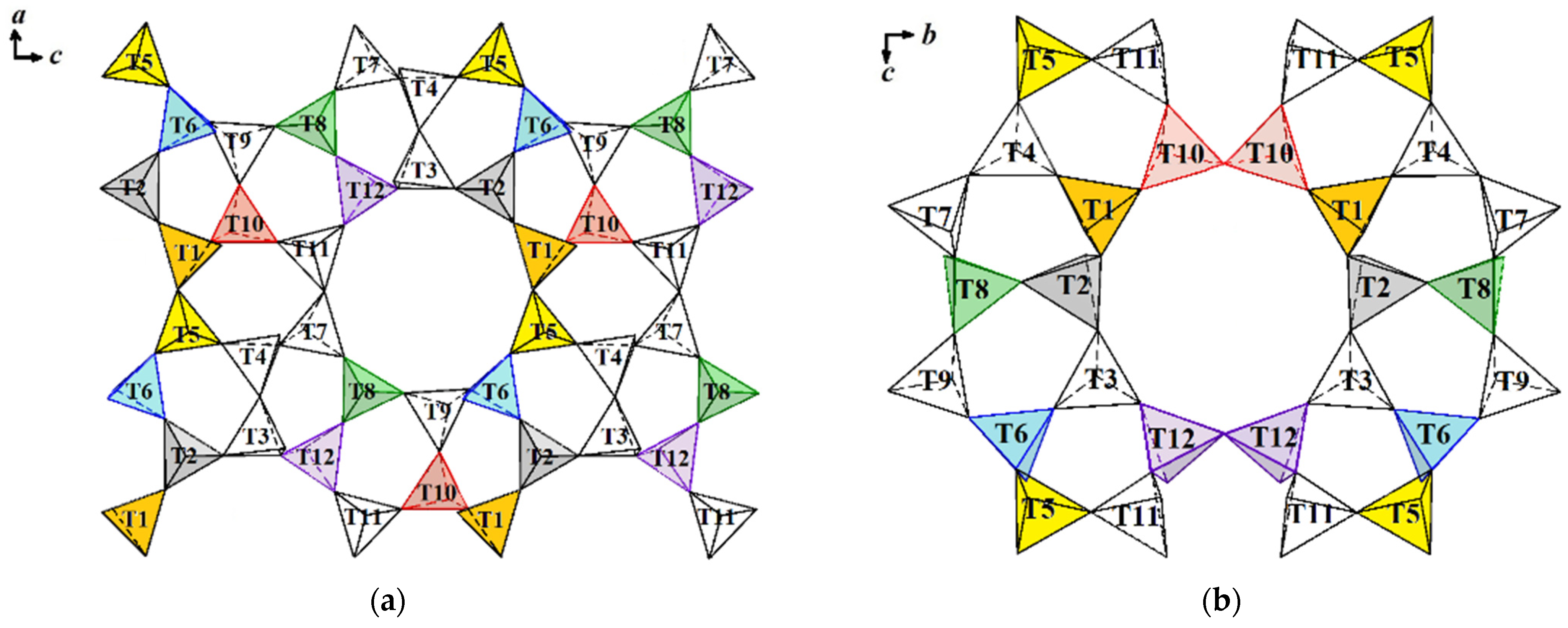

According to Table 13, in the structures of TS-1, TS-2, and TS-3, titanium ions are located in T2, T6, T10 (TS-1), T8, T10 (TS-2) and T2, T10, T12 (TS-3) sites (only T10 site is the same for all three samples) [33]. In TS-4 samples, titanium ions occupy other sites: T1 and T6 [34]. Therefore, it can be concluded that the determining factors affecting the catalytic properties in P conversion are the silicate modulus (Si/Ti) and the distribution of titanium ions over titanosilicalite crystal structure sites.

Ethanol conversion proceeds in two directions: dehydrogenation with acetaldehyde (AcH, CH₃CHO) formation (reaction 15—the main one) and intramolecular dehydration with ethylene (ETH, C₂H₄) formation—(reaction 16—by-product), described in Section 3.1.1.

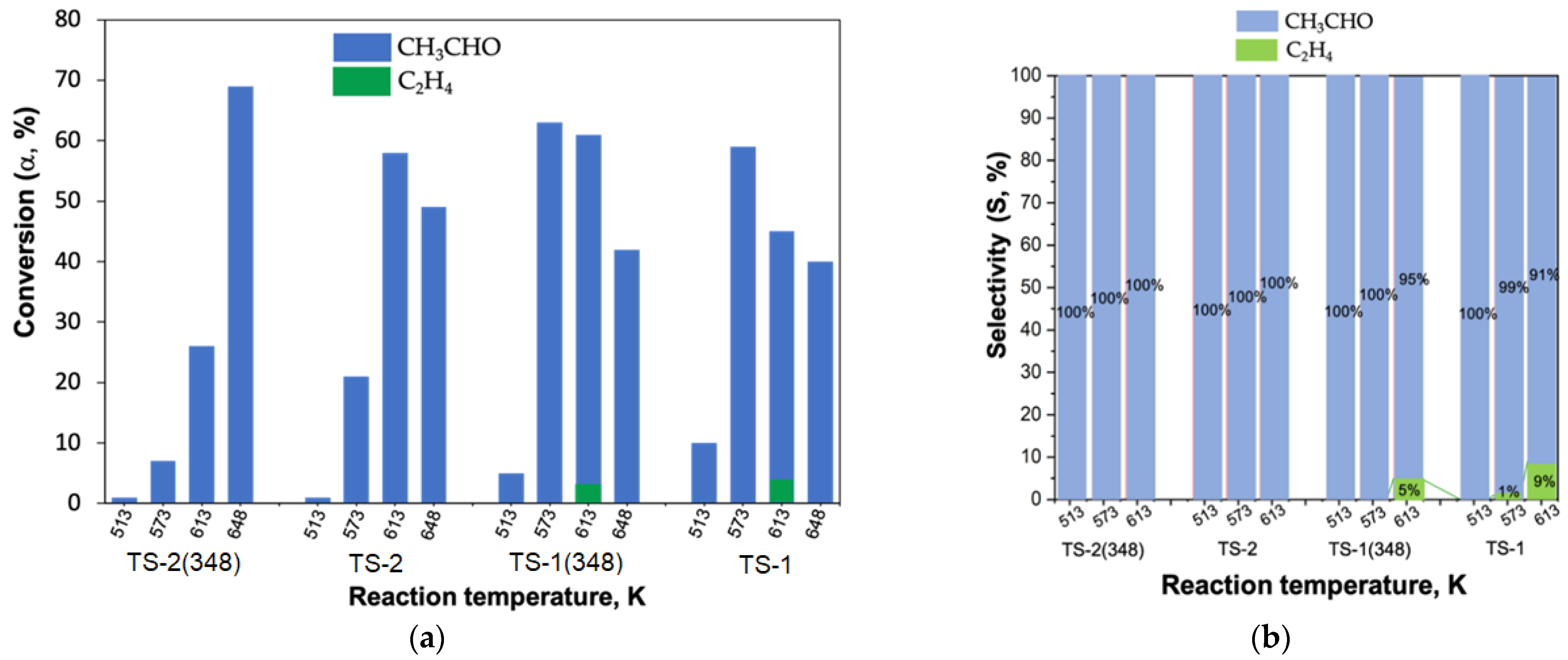

The resulting AcH (reaction 18) is one of the important products of organic synthesis, which is obtained in industry from petroleum and natural gas. The best results among the studied catalysts were shown by samples TS-1, TS-2, TS-1(348) with α_E(max) = 57–69% in the temperature range of 513–648 K: T = 573 K for TS-1, T = 613 K for TS-2, T = 573–613 K for TS-1(348) and T = 648 K for TS-2(348) (Figure 23a).

All the samples are characterized by high selectivity for AcH (Figure 23b) (S_AcH = 95–100%) in the temperature range of 513–613 K with S_AcH(max) = 100% for TS-2 and TS-2(348) at all temperatures, for TS-1(348) at T = 513–573 K, and for TS-1 at T = 513 K. The CN Ti ~4.5 in the local structures of TS-2 and TS-2(348) are the same (Table 14).

The formation of ETH as a by-product (reaction 16) can be associated with the reduction in titanium ions under the action of reactive hydrogen.

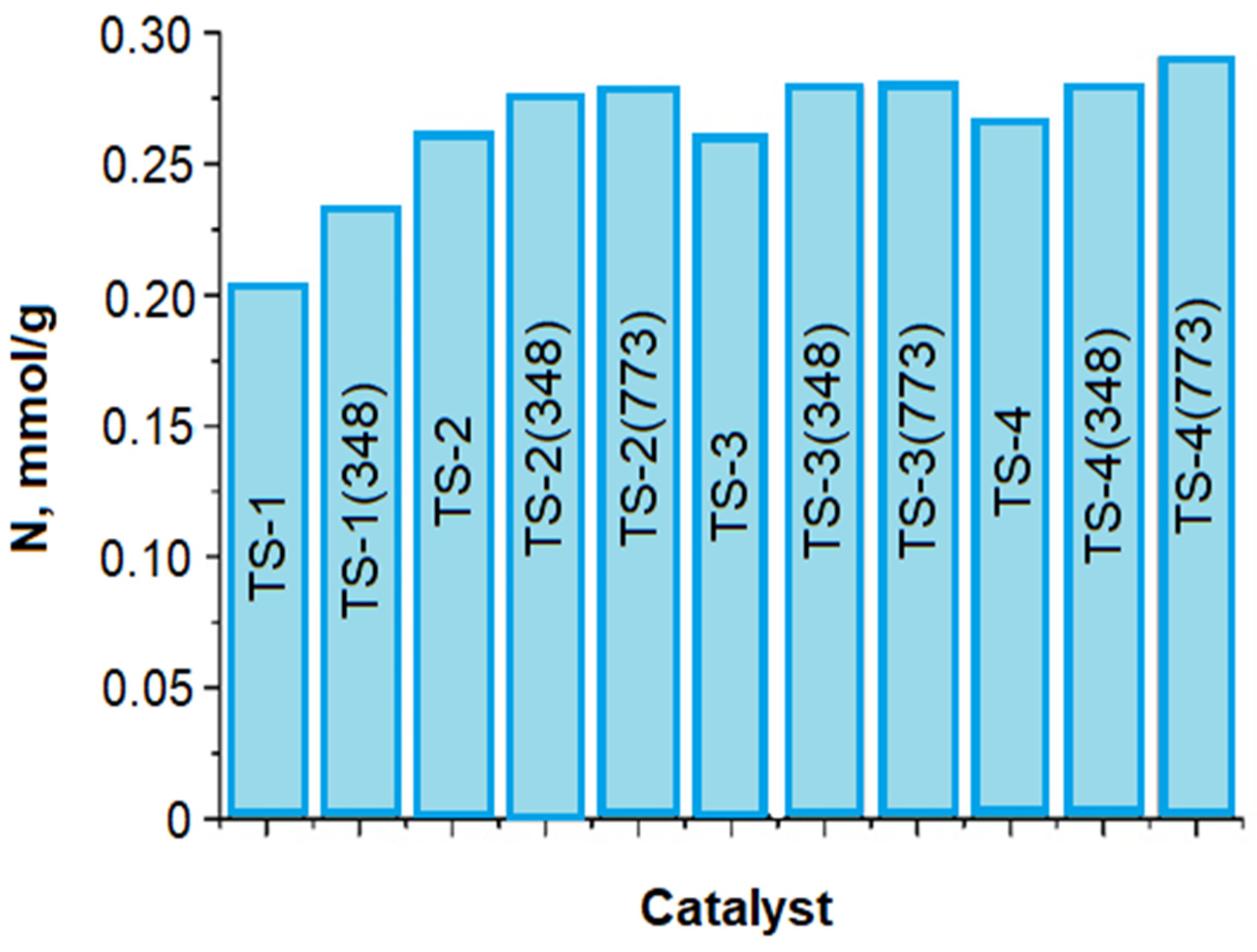

The number of acid sites on TS-2 and TS-2(348) samples is 0.26–0.28 mmol/g, which is somewhat higher than that on TS-1(348) and TS-1 (Figure 22). This, apparently, makes it difficult for the dehydrogenation reaction to proceed at low temperatures, but at the same time it is the reason for the absence of the side dehydration reaction (reaction 19) in the studied region up to 673 K.

Catalytic performance obtained with this series of samples is superior to known supported oxide catalysts [172].

Propane conversion (temperature 523–1173 K) on tiranosilicalites proceeds according to two main mechanisms (Section 3.1.1.4, reactions 9 and 10).

Analysis of the samples catalytic activity in P conversion showed the highest P decomposition degree (α_P(max) ~100%) (

Table 16. Optimal propane cracking reaction performance (T = 973 K) (data from [33,34]).

	Termo	TS-1	TS-1(348)	TS-2	TS-2(348)	TS-2(773)	TS-3	TS-3(348)	TS-3(773)	TS-4	TS-4(348)	TS-4(773)
αP,%
	21	32	43	55	73	73	51	71	75	86	98	98
S,%
C2H4 (ETH)	0	43	43	58	85	83	56	85	80	42	41	40
C3H6 (PP)	0	15	15	9	9	13	14	13	14	5	9	9
C4H6	0	6	11	4	3	5	2	4	5	4	15	15

) for TS-4(348) and TS-4(773) catalysts with a larger silicate modulus (Si/Ti ~73.5) and a larger number of acid sites (Figure 22). The lowest α_P = 33% under the same conditions is for TS-1 sample (Table 16).

The same tendency is observed as in E conversion at 648 K (Figure 23a): TS-2(348) > TS-2 > TS-1S ≈ TS-1(348).

Apart from the by-products of alkanes and hydrogen the formation of two more unsaturated hydrocarbons, PP (C₃H₆) and butadiene (C₄H₆), was observed (reactions 9 and 10).

The TS samples selectivity (S,%) determination for the main reaction products (ETH, PP, butadiene as well as methane and ethane) was carried out up to the optimum cracking temperature of 973 K. It should be noted that at T = 973 K the S_ETH,% decreases in the row TS-2(348) ≈ TS-3(348) ≈ TS-2(773) ≈ TS-3(773) > TS-2 ≈ TS-3 > TS-1(348) ≈ TS-1 ≈ TS-4 ≈ TS-1(348) ≈ TS-1(773) (Table 16) as in the case of alcohol dehydrogenation with AcH formation at T = 613 K (Figure 23b). Moreover, the selectivity for PP and butadiene at T = 973 K is almost 10 times less, which indicates a more favorable course of the destruction process. (Table 16). The tendency in the butadiene formation is traced in the row TS-4(773) ≈ TS-4(348) > TS-1(348) > TS-1 ≈ TS-2(773) ≈ TS-3(773) > TS-2 ≈ TS-3(348) ≈ TS-4 > TS-2(348) > TS-3, but the quantitative formation is small (~2 to 15%) (Table 16). This product is specific in the course of the thermocatalytic process and is very valuable. The multiple bonds position cannot be identified, since in the chromatographic analysis of the reaction products, the retention time of butadiene 1–2 (C₄H₆) and butadiene 1–3 (C₄H₆) is comparable.

The results obtained are consistent with the total acidity (N value), which decreases in the row TS-4(773) > TS-2(773) ≈ TS-3(348) ≈ TS-3(773) ≈ TS-4(348) > TS-2 ≈ TS-3 ≈ TS-4 > TS-1(348) > TS-1 (Figure 22). The smallest N value is in TS-1 with the highest coordination number for titanium in the local structure (Table 14).

4. Conclusions

The work presents the synthesis and characterization (surface and bulk compositions; structural and textural characteristics) of (H)ZSM zeolites (MFI type) with Si/Al = 12, 25, 40, 300 and Si/Ti ~47, 53, and 73.5 as well as composites based on aluminosilicalites with nanoscale anatase NA, both nominally pure (NA/HZSM and NA/HZSM-1,2) and doped with transition metals (NT:M/HZSM-3, M = Ni, V, Ag). The results obtained indicate the realization of photocatalytic, adsorption, and biocidal properties only for the NA/HZSM and NA:M/HZSM nanocomposites, which is associated with nanosized anatase (NA or NA:M) located on the surface of zeolite particles. By varying the methods or conditions for nanocomposites fabrication, one can change the NA or NA:M characteristics, and hence the properties. The materials prepared can be used for complex purification of water from harmful pollutant (pesticide, and fungicide) under sunlight irradiation, Se(VI), P(V), As(V) ions, and pathogenic bacteria both under sunlight and in the dark. Due to the bacteriostatic activity of composites, they are perspective as a component for wound dressings, disinfectant, and antiseptic ointments. The coating of cheap and biocompatible zeolites HZSM with NA or NT:M will significantly reduce the undesirable effect of nanoscale objects on the environment and the cost of the final product.

The transition from aluminosilicalites HZSM to nanocomposites NA/HZSM with Si/Al = 12, 25, 40, 300 and further to titanium silicalites with Si/Ti ~47, 53, 73.5 leads to a change in catalytic properties (selectivity, conversion, and yield of main products) in propane and ethanol cracking reactions. A considerable improvement in the catalytic process with new reaction products obtained was observed in the case of using titanosilicalites, which makes it possible to recommend them as catalysts for a wide range of applications.

5. Patents

1. Kuzmicheva, G.M.; Podbelsky, V.V.; Stepanov, A.N.; Gainanova, A.A. Program for processing diffraction patterns of nanosized and amorphous substances and calculating the substructure characteristics. Certificate of state registration of software package No. 2017610699 [Russ.].

2. Kuzmicheva, G.M.; Podbelsky, V.V.; Timaeva, O.I.; Iskhakova, L.R. Software for IR spectra processing and correlating absorption bands with reference standards. Certificate of state registration of software package No. 2017611789 [Russ.].

3. Kuzmicheva, G.M.; Podbelsky, V.V.; Mulakov, S.P. Program for processing the data of the chemiluminescence method and calculating the concentration of reactive oxygen species. Certificate of state registration of software package No. 201866661169 [Russ.].

4. Kravchenko, G.V.; Podbelsky, V.V.; Kuzmicheva, G.M. Program for quantitative and qualitative diffraction phase analysis of samples in a system with zeolites. Certificate of state registration of software package No. 2020612665 [Russ.].

5. Kravchenko, G.V.; Podbelsky, V.V.; Kuzmicheva, G.M. Program for determining the dimensions of voids in frame structures Certificate of state registration of software package No. 2020667596 [Russ.].
