Article

Influence of Cr/Zr Ratio on Activity of Cr–Zr Oxide Catalysts in Non-Oxidative Propane Dehydrogenation

by
Alexander Zubkov
,
Tatiana Bugrova
,
Mikhail Salaev
and
Grigory Mamontov
*
Laboratory of Catalytic Research, National Research Tomsk State University, 36 Lenin Ave., 634050 Tomsk, Russia
*
Author to whom correspondence should be addressed.
Crystals 2021, 11(11), 1435; https://doi.org/10.3390/cryst11111435
Received: 30 October 2021 / Revised: 16 November 2021 / Accepted: 19 November 2021 / Published: 22 November 2021
(This article belongs to the Special Issue Nanocrystalline Materials: Preparation, Structural, Magnetic, Dielectric, Electrical, Optical, Thermal Properties and Applications (Volume II))
Browse Figures
Versions Notes

Abstract

:
Two series of chromium–zirconium mixed oxide catalysts with different Cr/Zr molar ratio are prepared by co-precipitation method. Porous structure of the catalysts is studied by low-temperature N2 adsorption–desorption. Phase composition and chromium states in the catalysts are characterized by X-ray diffraction (XRD), UV-visible spectroscopy, and temperature-programmed reduction with hydrogen (TPR-H2). The mixed catalysts are tested in non-oxidative dehydrogenation of propane at 550 °C. The catalysts synthesized without ageing of precipitate show higher activity in propane dehydrogenation due to the higher content of reducible Cr+5/+6 species due to its stabilization on the ZrO2 surface.

1. Introduction

Catalytic technologies for dehydrogenation of hydrocarbons, especially propane and butanes, are among those environmentally benign approaches yielding important in-demand chemicals [1,2]. Among these chemicals is propylene, one of the most important raw materials for the petrochemical industry, used to manufacture polymers (e.g., polypropylene, polyacrylonitrile) and various commodity and value-added chemicals (e.g., acrolein, propylene oxide, acrylic acid) [3]. Presently, the catalytic dehydrogenation of paraffinic hydrocarbons is a promising way to produce olefins and is carried out through industrial approaches, including adiabatic fixed-bed (Catofin and Star), moving-bed (Oleflex), and fluidized-bed (FBD) processes [4], with the Catofin and Oleflex technologies being most frequently used. Additionally, two main approaches are currently used for propane dehydrogenation, namely, direct non-oxidative (PDH) and oxidative (ODH) processes [5,6,7,8], with the latter group also utilizing a number of soft oxidants, e.g., CO2, N2O, halogens, and S-containing compounds [9,10,11,12,13].
The catalysts for dehydrogenation of paraffins mostly contain CrOx [14,15,16,17,18,19] or Pt–Sn [20,21,22,23] as active components, while many other catalyst formulations, including but not limited to V [24,25], Ga [26], Co [27], Rh [28], Rh-Sn [29], zirconia-supported Rh, Ru, Pt or Ir [30], Pt-Ga [31], Pt-In [32], Pt-Ge [33], Pt-Pd [34], and TiO2-supported catalysts with ZnO and ZrO2 [35] have already shown their potential. Such composites are usually supported on various alumina or silica. While the latter feature more developed porous structure and show almost negligible activity in PDH reaction, they do not allow stabilizing Cr in highly oxidized states, resulting in the formation of α-Cr2O3 phase particles that are inactive in dehydrogenation [36]. Thus, the reduction of Cr content in the catalysts [37] and introduction of other supports that can act synergistically with the CrOx species and other catalyst components [38] has been in focus, and the development of such catalysts has become a topical challenge.
Recently, ZrO2 has become a promising candidate as a support for CrOx-containing PDH catalysts [39,40,41]. This is connected with its capability to stabilize CrOx species on the surface [42] and also with its own activity in dehydrogenation of hydrocarbons [43], with monoclinic ZrO2 showing a higher rate of propene formation and higher propene selectivity as compared to tetragonal zirconia. For bare zirconia, both catalyst activity and selectivity were higher as the crystallite sizes decreased, and for both monoclinic and tetragonal phases, the release of lattice oxygen during the reductive treatment resulted in the formation of coordinatively unsaturated Zr sites. Such Zr sites can also be formed under the influence of reaction conditions with the participation of active CrOx species in Cr–Zr oxide catalysts [38] (or other dopants, e.g., Mg, Sm, and La [44]) and their silica-supported counterparts [42], resulting in efficient C–H bond activation [45]. The strength of interaction between CrOx, ZrO2, and support as well as the sizes of zirconia crystallites in CrZrOx were found crucial for PDH performance. The crystallite sizes also controlled the concentration of oxygen vacancies. Weak CrOx–SiO2 interaction was found preferable, while the active species also increased the coke formation. For SiO2-supported CrZrOx-based composites, the zirconia crystallinity was shown to play an important role in propylene formation [46], with the increased crystallinity being beneficial for activity without selectivity loss.
The CrZrOx systems can be obtained by various methods, including impregnation of ZrO2 with precursor of active ingredient (chromium (III) nitrate, ammonium dichromate) [47,48]. In this case, the catalyst surface is represented by highly dispersed species of the active component stabilized on the support, but the catalyst is characterized by a low specific surface area (10–30 m2/g). Another promising approach is the preparation of mixed chromium and zirconium oxides using isolation from salt solutions, making it possible to obtain samples with a developed structure and high specific surface area [49]. Nevertheless, the peculiarities of the structure formation in Cr–Zr oxide catalysts depending on the changing of synthesis conditions, the effect of the Cr/Zr ratios on the phase composition, and the catalytic activity of such systems in the paraffin dehydrogenation have been poorly studied.
The present work is focused on the effect of synthesis conditions and the Cr/Zr molar ratio in mixed Cr–Zr oxides on the physical-chemical and catalytic properties of the resulting composites. The states of chromium on the surface and in the bulk of zirconium oxide are studied, and the catalysts are tested with nonoxidative propane dehydrogenation.

2. Materials and Methods

2.1. Catalysts Preparation

Two series of chromia–zirconia catalysts with different Cr/Zr molar ratio were prepared by co-precipitation method [26,50]. The required amounts of ZrO(NO3)2·2H2O (chemically pure) and/or Cr(NO3)3·9H2O (chemically pure) were dissolved in water. After that, an aqueous ammonia solution was added dropwise until pH = 9. The as-prepared or overnight-aged precipitates were filtered and washed by distilled water. Then, the prepared catalysts were dried at 100 °C overnight and calcined at 600 °C for 4 h. The reference sample Cr2O3 was synthesized by the thermal decomposition of Cr(NO3)3·9H2O at 600 °C for 4 h. The catalysts were denoted as Cr1Zr99Ox, Cr3Zr97Ox, Cr10Zr90Ox, and Cr20Zr80Ox, with the numbers standing for molar fraction of each metal and depending on the synthesis conditions with ageing, i.e., CryZr1−yOx (aged), and without ageing, (CryZr1−yOx).

2.2. Characterization

The porous structure was studied by the low-temperature adsorption–desorption of nitrogen at −196 °C using the TriStar 3020 analyzer (Micromeritics, Norcross, GA, USA). The specific surface area was determined using the multipoint Brunauer–Emmett–Teller (BET) method to rectify the adsorption isotherms in the P/P0 range from 0.05 to 0.30. Pore size distributions were plotted using the Barrett–Joyner–Halenda method (BJH) with the analysis of adsorption branch of the isotherms. Prior to the measurements, the samples with mass of ~200 mg were degassed under vacuum at 200 °C for 2 h.
The phase composition was studied by X-ray diffraction (XRD) on the Rigaku Miniflex 600 (Rigaku Corporation, Tokyo, Japan) using a CuKα-radiation source (λ = 1.5418 Å) with monochromator. Conditions were as follows: rate was 2 degree/min, spacing was 0.2 degree/min, and angular range was 2θ = 10–90°. The analysis of the phase composition was carried out using the database PCPDFWIN and full profile analysis program POWDER CELL 2.4. The size of the crystallites was calculated using the POWDER CELL 2.4 software according to the Scherrer equation:
DXRD = K·λ/β·cosθ
where:
DXRD is the size of the ordered (crystalline) domains;
K is a dimensionless shape factor, with a value close to unity;
λ is the X-ray wavelength;
β is the line broadening at half maximum intensity (FWHM).
Diffuse reflectance spectroscopy (DRS) analyses were performed on the Thermo Scientific Evolution 600 (Thermo Fisher Scientific, Waltham, MA, USA).
Reduction ability of the chromium oxides in the catalysts was studied by the temperature-programmed reduction in hydrogen (TPR-H2). The TPR-H2 was conducted using the AutoChem HP 2950 (Micromeritics, Norcross, GA, USA) with a thermal conductivity detector (TCD) ramping rate of 10 degree/min under a flow of argon–hydrogen (10% H2/Ar) at a flow rate of 20 mL/min. To capture water produced during the reduction, a freezing trap was installed in front of the detector.

2.3. Catalytic Tests

Catalytic properties were studied in non-oxidative dehydrogenation of propane (PDH) to propylene. The samples were loaded into a flow-type tubular reactor with a quartz wool. The catalyst volume was 0.25 cm3, and the fraction was 0.25–0.5 mm. The catalysts were heated under a flow of N2 (50 mL/min), then regenerated with air at 600 °C (50 mL/min) for 15 min and reduced under a flow of 15% H2/N2 for 5 min. After that, the dehydrogenation reaction occurred, and the sampling was carried out at 6 min. The catalyst was exposed to 15% C3H8/N2 with a flow rate of 6 l/h (8000 h−1) at 550 °C. The compositions of the obtained products were analyzed online by the Chromatek-Crystal gas chromatograph (CHROMATEC, Yoshkar-Ola, Mari El, Russia) with the Porapak Q capillary column, thermal conductivity detector (TCD), and flame ionization detector (FID). The components of the gas mixture were quantitatively determined using the Chromatek-Analyst software and the method of absolute calibration with a test gas mixture.
The activity of the catalysts was calculated as a space time yield (STY, kg/h·m3) taking into account the amount of converted propane (kg/h) per catalyst volume (m3). The turnover frequency (TOF) value was calculated as the rate of catalytic reaction per amount of chromium atoms.
TOF = V(C3H8) · C(C3H8) · P · M(Cr)/R · T · m(cat) · ϖ(Cr)
where:
V(C3H8)—volume rate of C3H8/N2 gas mixture (m3/h);
C(C3H8)—the C3H8 concentration in C3H8/N2 gas mixture (0.15);
P—pressure (Pa);
M(Cr)—molar weight of chromium (52 g/mol);
R—universal gas constant (8.314 m3 Pa/K · mol);
T—reaction temperature (K);
m(cat)—catalyst weight (g);
ϖ(Cr)—Cr weight content in catalysts (g/g).

3. Results

According to the results of investigations by the method of low-temperature adsorption/desorption of nitrogen, all synthesized catalysts feature a mesoporous structure. Figure 1a,b shows the isotherms for catalysts synthesized by co-precipitation method with and without ageing. For two series of catalysts, the presence of a hysteresis loop in the relative pressure range of 0.45–1.0 is characteristic and indicates the presence of small- and medium-sized mesopores. Figure 1a represents a pore size distribution (BJH). For the catalysts obtained without ageing, the pore size distribution is observed in the range from 2 to 21 nm, and with an increase in the chromium content, the distribution maximum is shifted from 2–30 nm to up to 2–9 nm.
The differences in the pore size distribution for the mixed oxides within this series may be due to the different equilibrium sizes at time of deposition at different chromium content. Figure 1b shows the series with ageing characterized by a more uniform pore size distribution that is also shifted with an increasing chromium content, although in a more narrow range: from 2–8 nm to up to 2–4.5 nm.
Table 1 shows the textural characteristics for two series of mixed oxides prepared with and without ageing. The series without ageing is characterized by specific surface area growth with increasing chromium content. The specific surface area values for these systems vary from 24 m2/g (ZrO2 (a)) to 107 m2/g (Cr10Zr90Ox (a)). Further increase in the Cr content to up to 20 mol.% leads to a decrease in the specific surface area (77 m2/g for Cr20Zr80Ox (a)). The values of the specific surface for the samples with ageing vary in the range 38 to 62 m2/g, and the one for ZrO2 is 5 m2/g.
Figure 2 shows the XRD patterns for the obtained samples. According to the XRD results (Figure 2 and Table 2), a mixture of monoclinic and tetragonal phase of ZrO2 is observed for the ZrO2 supports. The increase in the chromium content in the catalyst leads to ZrO2 stabilization, mainly in the tetragonal modification. The tetragonal ZrO2 phase in the mixed oxides obtained with ageing prevails even at low chromium contents, while the Cr1Zr99Ox-Cr3Zr90Ox samples without ageing mainly contain the monoclinic ZrO2 phase.
The absence of reflections of the Cr-containing phases indicates the stabilization of chromia in a highly dispersed state. The reflections of α-Cr2O3 were found only in the Cr20Zr80Ox catalyst (without ageing). This is attributed to the high Cr loading. The aging of the Cr20Zr80Ox catalyst leads to the disappearance of reflections of α-Cr2O3 phase (insertion in Figure 2b), which indicates chromia redistribution during the precipitate adding. The precipitate ageing leads to both increase in the size of ZrO2 crystallites and changing of the cell parameter of ZrO2 phases (Table 2). The shift in the t-ZrO2 phase reflections towards large angles with high chromium contents in the catalysts may be due to the incorporation of chromium ions into zirconia lattice, with the corresponding decreasing of the cell parameter from 3.603–3.600 Å to 3.567–3.570 Å for Cr20Zr80Ox sample (parameter a in Table 2).
Thus, according to the XRD results, the Cr/Zr ratio in the mixed Cr–Zr oxide catalysts significantly affects the phase composition. Increasing the Cr content leads to stabilization of tetragonal ZrO2 phase, which is attributed to the Cr incorporation into this phase. The size of the t-ZrO2 crystallites is smaller with the increasing Cr loading. The aging of the precipitate influences both the phase composition of catalysts and the size of crystallites. The precipitate aging leads to the increasing of the crystallites’ size and the increased amount of tetragonal ZrO2 phase that is associated with the chromia redistribution and t-ZrO2 stabilization due to the incorporation of Cr atoms into zirconia lattice. The changing of the phase composition and increased size of the crystallites lead to the decreasing of SBET and pore volume (Table 1).
The chemical state of chromium on the surface of ZrO2 was studied by the DRS method, and Figure 3 shows the diffuse reflectance spectra for the mixed oxides. The onset of the linear increase in the diffuse reflectance spectrum is taken as a measure of the forbidden gap that occurs at around 230 nm. This is a characteristic of the end of the bulk tetragonal zirconia phase. All samples are characterized by the intensive absorption bands at 280 and 370 nm, attributed to the ligand-to-metal charge transfer for the Cr+6 cations in the tetrahedral oxygen symmetry.
The absorption bands with maxima at 470 and 580 nm in the spectrum for the Cr20Zr80Ox (a) catalyst can be attributed to A2g→T1g and A2g→T2g Cr(III) transitions in octahedral symmetry [20,29], which is consistent with the XRD results. For the samples with Cr content from 1.3 to 4.4/9.2 wt.%, the DRS spectra contain non-intensive absorption bands at 550 and 730 nm. According to the literature, these absorption bands may be due to the appearance of the resonant d–d transition of the Cr3+ cations [51] or due to the presence of the small content of Cr5+ ions in the octahedral oxygen coordination [52].
The TPR-H2 profiles (Figure 4) for all catalysts contain two broad peaks of hydrogen consumption, with the temperature maxima at 351–383 and 488–535 °C. These peaks can be attributed to the Cr+5/+6 reduction into Cr+3, since the intensity of these peaks increases as the Cr content rises [30].
However, the second consumption peak can also be attributed to the ZrO2 reduction, and an increase in its intensity corresponds to an increase in the number of defects in ZrO2 structure with enrichment in the chromium content. The TPR-H2 for ZrO2 samples are characterized by the presence of the H2 consumption peak at ~500 °C, but its intensity is relatively low. It is noteworthy that for the series obtained without aging, the intensity of this high-temperature peak after the catalytic experiment is significantly reduced.
Table 3 represents the quantification of the hydrogen consumed in the TPR experiments as well as the amount of maximal theoretical H2 consumption corresponding to the reduction of all Cr6+ chromium into Cr3+. The values of H2 consumption for Cr1Zr99Ox and Cr3Zr97Ox catalysts are close to the theoretical consumption, which indicates the chromium stabilization on the surface of catalysts predominantly as Cr6+ species. The highest reduction ability (722 μmol/g) is observed for Cr10Zr90Ox catalyst. The decreased hydrogen consumption for Cr20Zr80Ox samples can be attributed to both the formation of a-Cr2O3 phase and a significant incorporation of Cr3+ species into the zirconia lattice.
Table 3 also shows that the amount of consumed H2 for the catalysts after propane dehydrogenation (PHD) is lower than for the as-prepared catalysts. This indicates the decreased amount of reversibly oxidized/reduced Cr6+/3+ species in the catalytic process that may also be attributed to the Cr3+ incorporation into the zirconia lattice.
The catalytic properties of the synthesized catalysts were tested with the reaction of non-oxidative propane dehydrogenation. Figure 5 shows the obtained conversion and selectivity values in three cycles of PDH with sampling at 6 min. The activity of the catalysts obtained without ageing gradually increases as the chromium content rises: Cr1Zr99Ox < Cr3Zr97Ox < Cr10Zr90Ox. Table 4 summarizes the space time yield (STY) and turnover frequencies (TOF). The conversion and selectivity values for the Cr20Zr80Ox catalyst are similar to those for Cr10Zr90Ox. However, the stability of the sample during three cycles is higher.
For the catalysts obtained with ageing, the conversion and productivity are observed to increase with an increase in the active component content. The sample Cr10Zr90Ox shows the highest conversion and selectivity. The activity decreased with an increase in the Cr content in the series with ageing to up to Cr20Zr80Ox (aged). The Cr10Zr90Ox samples obtained without and with ageing feature the highest rate of propene formation in the reaction of propane dehydrogenation, which is consistent with the TPR results.

4. Discussion

Two series of aged and non-aged Cr–Zr oxidative catalysts were prepared, and the catalyst series differed from each other in their structural and phase characteristics. The low-temperature nitrogen adsorption method determines more advanced porous structure of the non-aged catalysts. The obtained XRD results describe the phase composition function of the Cr/Zr ratio. Increasing of the chromium content leads to stabilization of the tetragonal zirconium oxide (IV). The α-Cr2O3 phase is detected only for Cr20Zr80Oy catalyst with high Cr content. According to the UV-vis spectroscopy data, Cr is stabilized as Cr(VI) in the highly dispersed state. The TPR results confirm the presence of Cr(VI) and its reduction in the reductive atmosphere into Cr(III). The amount of redox Cr(VI/III) species is higher for the catalysts prepared without precipitate ageing.
Furthermore, the above-mentioned catalyst series is more reactive in propane dehydrogenation, which can be explained by higher surface area and higher amount of highly dispersed redox CrOx species. The highest activity is observed for Cr10Zr90Ox catalysts that also feature the highest amount of H2 consumed in TPR. Thus, the activity correlates with the amount of redox Cr6+ species in the catalyst. The TOF value is highest for Cr1Zr99Ox and Cr3Zr97Ox catalysts, which may be attributed to high dispersion of these Cr6+ (and probably Cr5+) species and minimal amount of Cr species incorporated into the zirconia structure. Probably, the activity of the catalysts is attributable to both chromia and zirconia active species in the CrZrOx catalysts, but the pristine ZrO2 sample is characterized by rather low activity.

5. Conclusions

Thus, the influence of the Cr/Zr ratio and he precipitate ageing was shown for the CrZrOx catalysts for non-oxidative propane dehydrogenation. The precipitate ageing had a negative influence on the activity of CrZrOx catalysts with low Cr loading. In the case of Cr10Zr90Oy and Cr20Zr80Oy catalysts, the stability of the catalysts with precipitate ageing was higher. The highest activity was found for the Cr10Zr90Oy catalyst.

Author Contributions

Conceptualization, G.M. and T.B.; investigation, A.Z. and T.B.; resources, G.M.; writing—original draft preparation, A.Z. and T.B.; writing—review and editing, M.S. and G.M.; visualization, T.B. and M.S.; supervision, G.M.; project administration, G.M.; funding acquisition, G.M. All authors have read and agreed to the published version of the manuscript.

Funding

This work was carried out within the framework of the state assignment of the Ministry of Science and Higher Education of the Russian Federation (project No. 0721-2020-0037).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Otroshchenko, T.; Jiang, G.; Kondratenko, V.A.; Rodemerck, U.; Kondratenko, E.V. Current status and perspectives in oxidative, non-oxidative and CO2-mediated dehydrogenation of propane and isobutane over metal oxide catalysts. Chem. Soc. Rev. 2021, 50, 473–527. [Google Scholar] [CrossRef]
  2. Sattler, J.J.; Ruiz-Martinez, J.; Santillan-Jimenez, E.; Weckhuysen, B.M. Catalytic dehydrogenation of light alkanes on metals and metal oxides. Chem. Rev. 2014, 114, 10613–10653. [Google Scholar] [CrossRef]
  3. Dai, Y.; Gao, X.; Wang, Q.; Wan, X.; Zhou, C.; Yang, Y. Recent progress in heterogeneous metal and metal oxide catalysts for direct dehydrogenation of ethane and propane. Chem. Soc. Rev. 2021, 50, 5590–5630. [Google Scholar] [CrossRef]
  4. Monai, M.; Gambino, M.; Wannakao, S.; Weckhuysen, B.M. Propane to olefins tandem catalysis: A selective route towards light olefins production. Chem. Soc. Rev. 2021, 50, 11503–11529. [Google Scholar] [CrossRef] [PubMed]
  5. Lawson, S.; Farsad, A.; Adebayo, B.; Newport, K.; Schueddig, K.; Lowrey, E.; Polo-Garzon, F.; Rezaei, F.; Rownaghi, A.A. A Novel Method of 3D Printing High-Loaded Oxide/H-ZSM-5 Catalyst Monoliths for Carbon Dioxide Reduction in Tandem with Propane Dehydrogenation. Adv. Sustain. Syst. 2021, 5, 2000257. [Google Scholar] [CrossRef]
  6. De Oliveira, J.F.S.; Volanti, D.P.; Bueno, J.M.C.; Ferreira, A.P. Effect of CO2 in the oxidative dehydrogenation reaction of propane over Cr/ZrO2 catalysts. Appl. Catal. A Gen. 2018, 558, 55–66. [Google Scholar] [CrossRef][Green Version]
  7. Kharlamova, T.S.; Timofeev, K.L.; Salaev, M.A.; Svetlichnyi, V.A.; Vodyankina, O.V. Monolayer MgVOx/Al2O3 catalysts for propane oxidative dehydrogenation: Insights into a role of structural, redox, and acid-base properties in catalytic performance. Appl. Catal. A Gen. 2020, 59825, 117574. [Google Scholar] [CrossRef]
  8. Kharlamova, T.; Sushchenko, E.; Izaak, T.; Vodyankina, O. Phase composition, structural peculiarities and catalytic properties of supported MgO-V2O5/Al2O3 catalysts for oxidative dehydrogenation of propane: Insight into formation of surface Mg-V-O phase. Catal. Today 2016, 278, 174–184. [Google Scholar] [CrossRef]
  9. Jiang, X.; Sharma, L.; Fung, V.; Park, S.J.; Jones, C.W.; Sumpter, B.G.; Baltrusaitis, J.; Wu, Z. Oxidative dehydrogenation of propane to propylene with soft oxidants via heterogeneous catalysis. ACS Catal. 2021, 11, 2182–2234. [Google Scholar] [CrossRef]
  10. Wu, R.; Xie, P.; Cheng, Y.; Yue, Y.; Gu, S.; Yang, W.; Miao, C.; Hua, W.; Gao, Z. Hydrothermally prepared Cr2O3–ZrO2 as a novel efficient catalyst for dehydrogenation of propane with CO2. Catal. Commun. 2013, 39, 20–23. [Google Scholar] [CrossRef]
  11. Bugrova, T.A.; Dutov, V.V.; Svetlichnyi, V.A.; Cortés Corberán, V.; Mamontov, G.V. Oxidative dehydrogenation of ethane with CO2 over CrOx catalysts supported on Al2O3, ZrO2, CeO2 and CexZr1-xO2. Catal. Today 2019, 333, 71–80. [Google Scholar] [CrossRef]
  12. Rahmani, F.; Haghighi, M.; Mohammadkhani, B. Enhanced dispersion of Cr nanoparticles over nanostructured ZrO2-doped ZSM-5 used in CO2-oxydehydrogenation of ethane. Microp. Mesopor. Mater. 2017, 242, 34–49. [Google Scholar] [CrossRef]
  13. Gao, Y.; Jie, X.; Wang, C.; Jacobs, R.M.J.; Li, W.; Yao, B.; Dilworth, J.R.; Xiao, T.; Edwards, P.P. One-Pot Synthesis of Ca Oxide-Promoted Cr Catalysts for the Dehydrogenation of Propane Using CO2. Ind. Eng. Chem. Res. 2020, 59, 12645–12656. [Google Scholar] [CrossRef]
  14. Hu, Z.-P.; Wang, Z.; Yuan, Z.-Y. Cr/Al2O3 catalysts with strong metal-support interactions for stable catalytic dehydrogenation of propane to propylene. Molec. Catal. 2020, 493, 111052. [Google Scholar] [CrossRef]
  15. Nazimov, D.A.; Klimov, O.V.; Saiko, A.V.; Trukhan, S.N.; Glazneva, T.S.; Prosvirin, I.P.; Cherepanova, S.V.; Noskov, A.S. Effect of the K loading on effective activation energy of isobutane dehydrogenation over chromia/alumina catalysts. Catal. Today 2021, 375, 401–409. [Google Scholar] [CrossRef]
  16. Nazimov, D.A.; Klimov, O.V.; Danilova, I.G.; Trukhan, S.N.; Saiko, A.V.; Cherepanova, S.V.; Chesalov, Y.A.; Martyanov, O.N.; Noskov, A.S. Effect of alumina polymorph on the dehydrogenation activity of supported chromia/alumina catalysts. J. Catal. 2020, 391, 35–47. [Google Scholar] [CrossRef]
  17. Zolotukhina, A.I.; Romanova, E.V.; Bugrova, T.A.; Knyazev, A.S.; Mamontov, G.V. Influence of impregnation conditions on the activity of CrOx/Al2O3 catalysts in dehydrogenation of isobutane in fixed bed reactor. Arab. J. Chem. 2020, 13, 9130–9138. [Google Scholar] [CrossRef]
  18. Salaeva, A.A.; Salaev, M.A.; Vodyankina, O.V.; Mamontov, G.V. Synergistic effect of Cu and Zn modifiers on the activity of CrOx/Al2O3 catalysts in isobutane dehydrogenation. Appl. Catal. A Gen. 2019, 581, 82–90. [Google Scholar] [CrossRef]
  19. Salaeva, A.A.; Salaev, M.A.; Mamontov, G.V. Effect of Cu modifier on the performance of CrOx/Al2O3 catalysts for isobutane dehydrogenation. Chem. Eng. Sci. 2020, 2156, 115462. [Google Scholar] [CrossRef]
  20. Xu, Z.; Xu, R.; Yue, Y.; Yuan, P.; Bao, X.; Abou-Hamad, E.; Basset, J.-M.; Zhu, H. Bimetallic Pt-Sn nanocluster from the hydrogenolysis of a well-defined surface compound consisting of [(≡AlO–)Pt(COD)Me] and [(≡AlO–)SnPh3] fragments for propane dehydrogenation. J. Catal. 2019, 374, 391–400. [Google Scholar] [CrossRef]
  21. Natarajan, P.; Khan, H.A.; Yoon, S.; Jung, K.-D. One-pot synthesis of Pt–Sn bimetallic mesoporous alumina catalysts with worm-like pore structure for n-butane dehydrogenation. J. Ind. Eng. Chem. 2018, 63, 380–390. [Google Scholar] [CrossRef]
  22. Pham, H.N.; Sattler, J.J.H.B.; Weckhuysen, B.M.; Datye, A.K. Role of Sn in the regeneration of Pt/γ-Al2O3 light alkane dehydrogenation catalysts. ACS Catal. 2016, 6, 2257–2264. [Google Scholar] [CrossRef][Green Version]
  23. Srinath, N.V.; Poelman, H.; Buelens, L.; Dendooven, J.; Reyniers, M.-F.; Marin, G.B.; Galvita, V.V. Behaviour of Platinum-Tin during CO2-assisted propane dehydrogenation: Insights from quick X-ray absorption spectroscopy. J. Catal. 2021. [Google Scholar] [CrossRef]
  24. Rodemerck, U.; Stoyanova, M.; Kondratenko, E.V.; Linke, D. Influence of the kind of VOx structures in VOx/MCM-41 on activity, selectivity and stability in dehydrogenation of propane and isobutane. J. Catal. 2017, 352, 256–263. [Google Scholar] [CrossRef]
  25. Jeon, N.; Choe, H.; Jeong, B.; Yun, Y. Propane dehydrogenation over vanadium-doped zirconium oxide catalysts. Catal. Today 2020, 352, 337–344. [Google Scholar] [CrossRef]
  26. Matveyeva, A.N.; Wärnå, J.; Pakhomov, N.A.; Murzin, D.Y. Kinetic modeling of isobutane dehydrogenation over Ga2O3/Al2O3 catalyst. Chem. Eng. J. 2020, 381, 122741. [Google Scholar] [CrossRef]
  27. Dai, Y.; Gu, J.; Tian, S.; Wu, Y.; Chen, J.; Li, F.; Du, Y.; Peng, L.; Ding, W.; Yang, Y. γ-Al2O3 sheet-stabilized isolate Co2+ for catalytic propane dehydrogenation. J. Catal. 2020, 381, 482–492. [Google Scholar] [CrossRef]
  28. Zhang, Y.; Zhao, Y.; Otroshchenko, T.; Perechodjuk, A.; Kondratenko, V.A.; Bartling, S.; Rodemerck, U.; Linke, D.; Jiao, H.; Jiang, G.; et al. Structure-Activity-Selectivity Relationships in Propane Dehydrogenation over Rh/ZrO2 catalysts. ACS Catal. 2020, 10, 6377–6388. [Google Scholar] [CrossRef]
  29. Natarajan, P.; Khan, H.A.; Jaleel, A.; Park, D.S.; Kang, D.-C.; Yoon, S.; Jung, K.-D. The pronounced effect of Sn on RhSn catalysts for propane dehydrogenation. J. Catal. 2020, 392, 8–20. [Google Scholar] [CrossRef]
  30. Perechodjuk, A.; Zhang, Y.; Kondratenko, V.A.; Rodemerck, U.; Linke, D.; Bartling, S.; Kreyenschulte, C.R.; Jiang, G.; Kondratenko, E.V. The effect of supported Rh, Ru, Pt or Ir nanoparticles on activity and selectivity of ZrO2-based catalysts in non-oxidative dehydrogenation of propane. Appl. Catal. A Gen. 2020, 60225, 117731. [Google Scholar] [CrossRef]
  31. Wang, P.; Yao, J.; Jiang, Q.; Gao, X.; Lin, D.; Yang, H.; Wu, L.; Tang, Y.; Tan, L. Stabilizing the Isolated Pt Sites on PtGa/Al2O3 Catalyst via Silica Coating Layers for Propane Dehydrogenation at Low Temperature. Appl. Catal. B Environ. 2022, 300, 120731. [Google Scholar] [CrossRef]
  32. Tolek, W.; Suriye, K.; Praserthdam, P.; Panpranot, J. Effect of preparation method on the Pt-In modified Mg(Al)O catalysts over dehydrogenation of propane. Catal. Today 2020, 358, 100–108. [Google Scholar] [CrossRef]
  33. Rimaz, S.; Chen, L.; Monzón, A.; Kawi, S.; Borgna, A. Enhanced selectivity and stability of Pt-Ge/Al2O3 catalysts by Ca promotion in propane dehydrogenation. Chem. Eng. J. 2021, 405, 126656. [Google Scholar] [CrossRef]
  34. Saxena, R.; De, M. Enhanced performance of supported Pd-Pt bimetallic catalysts prepared by modified electroless deposition for butane dehydrogenation. Appl. Catal. A Gen. 2021, 610, 117933. [Google Scholar] [CrossRef]
  35. Han, S.; Zhao, D.; Lund, H.; Rockstroh, N.; Bartling, S.; Doronkin, D.E.; Grunwaldt, J.-D.; Gao, M.; Jiang, G.; Kondratenko, E.V. TiO2-Supported catalysts with ZnO and ZrO2 for non-oxidative dehydrogenation of propane: Mechanistic analysis and application potential. Catal. Sci. Technol. 2020, 10, 7046–7055. [Google Scholar] [CrossRef]
  36. Takehira, K.; Ohishi, Y.; Shishido, T.; Kawabata, T.; Takaki, K.; Zhang, Q.; Wang, Y. Behavior of active sites on Cr-MCM-41 catalysts during the dehydrogenation of propane with CO2. J. Catal. 2004, 224, 404–416. [Google Scholar] [CrossRef]
  37. Otroshchenko, T.; Radnik, J.; Schneider, M.; Rodemerck, U.; Linke, D.; Kondratenko, E.V. Bulk binary ZrO2-based oxides as highly active alternative-type catalysts for non-oxidative isobutane dehydrogenation. Chem. Commun. 2016, 52, 8164–8167. [Google Scholar] [CrossRef]
  38. Han, S.; Zhao, Y.; Otroshchenko, T.; Zhang, Y.; Zhao, D.; Lund, H.; Vuong, T.H.; Rabeah, J.; Bentrup, U.; Kondratenko, V.A.; et al. Unraveling the Origins of the Synergy Effect between ZrO2 and CrOx in Supported CrZrOx for Propene Formation in Nonoxidative Propane Dehydrogenation. ACS Catal. 2020, 10, 1575–1590. [Google Scholar] [CrossRef]
  39. Kim, T.H.; Kang, K.H.; Baek, M.; Song, J.H.; Hong, U.G.; Park, D.S.; Choi, W.C.; Park, Y.-K.; Song, I.K. Dehydrogenation of propane to propylene with lattice oxygen over CrOy/Al2O3-ZrO2 catalysts. Molec. Catal. 2017, 433, 1–7. [Google Scholar] [CrossRef]
  40. Kim, T.H.; Gim, M.Y.; Song, J.H.; Choi, W.C.; Park, Y.-K.; Hong, U.G.; Park, D.S.; Song, I.K. Deactivation behavior of CrOy/Al2O3-ZrO2 catalysts in the dehydrogenation of propane to propylene by lattice oxygen. Catal. Commun. 2017, 97, 37–41. [Google Scholar] [CrossRef]
  41. Bugrova, T.A.; Mamontov, G.V. The Study of CrOx-Containing Catalysts Supported on ZrO2, CeO2, and CexZr(1–x)O2 in Isobutane Dehydrogenation. Kinet. Catal. 2018, 59, 143–149. [Google Scholar] [CrossRef]
  42. Otroshchenko, T.P.; Rodemerck, U.; Linke, D.; Kondratenko, E.V. Synergy effect between Zr and Cr active sites in binary CrZrOx or supported CrOx/LaZrOx: Consequences for catalyst activity, selectivity and durability in non-oxidative propane dehydrogenation. J. Catal. 2017, 356, 197–205. [Google Scholar] [CrossRef]
  43. Zhang, Y.; Zhao, Y.; Otroshchenko, T.; Han, S.; Lund, H.; Rodemerck, U.; Linke, D.; Jiao, H.; Jiang, G.; Kondratenko, E.V. The effect of phase composition and crystallite size on activity and selectivity of ZrO2 in non-oxidative propane dehydrogenation. J. Catal. 2019, 371, 313–324. [Google Scholar] [CrossRef]
  44. Otroshchenko, T.P.; Kondratenko, V.A.; Rodemerck, U.; Linke, D.; Kondratenko, E.V. Non-oxidative dehydrogenation of propane, n-butane, and isobutane over bulk ZrO2-based catalysts: Effect of dopant on the active site and pathways of product formation. Catal. Sci. Technol. 2017, 7, 4499–4510. [Google Scholar] [CrossRef]
  45. Zhang, Y.; Zhao, Y.; Otroshchenko, T.; Lund, H.; Pohl, M.-M.; Rodemerck, U.; Linke, D.; Jiao, H.; Jiang, G.; Kondratenko, E.V. Control of coordinatively unsaturated Zr sites in ZrO2 for efficient C–H bond activation. Nat. Commun. 2018, 9, 3794. [Google Scholar] [CrossRef]
  46. Han, S.; Otroshchenko, T.; Zhao, D.; Lund, H.; Rockstroh, N.; Vuong, T.H.; Rabeah, J.; Rodemerck, U.; Linke, D.; Gao, M.; et al. The effect of ZrO2 crystallinity in CrZrOx/SiO2 on non-oxidative propane dehydrogenation. Appl. Catal. A Gen. 2020, 59025, 117350. [Google Scholar] [CrossRef]
  47. Cutrufello, M.G.; De Rossi, S.; Ferino, I.; Monaci, R.; Rombia, E.; Solinas, V. Preparation, characterisation and activity of chromia-zirconia catalysts for propane dehydrogenation. Thermochim. Acta 2005, 434, 62–68. [Google Scholar] [CrossRef]
  48. Annuar, N.H.R.; Jalil, A.A.; Triwahyonoa, S.; Fatah, N.A.A.; The, L.P.; Mamat, C.R. Cumene cracking over chromium oxide zirconia: Effect of chromium(VI) oxide precursors. Appl. Catal. A Gen. 2014, 475, 487–496. [Google Scholar] [CrossRef]
  49. Otroshchenko, T.; Sokolov, S.; Stoyanova, M.; Kondratenko, V.A.; Rodemerck, U.; Linke, D.; Kondratenko, E.V. ZrO2-Based Alternatives to Conventional Propane Dehydrogenation Catalysts: Active Sites, Design, and Performance. Angew. Chem. Int. Ed. 2015, 54, 15880–15883. [Google Scholar] [CrossRef]
  50. Mahmoud, H.R. Highly dispersed Cr2O3–ZrO2 binary oxide nanomaterials as novel catalysts for ethanol conversion. J. Mol. Catal. A Chem. 2014, 392, 216–222. [Google Scholar] [CrossRef]
  51. Baronskiy, M.G.; Kostyukov, A.I.; Larina, T.V.; Snytnikov, V.N.; Zaitseva, N.A.; Zhuzhgov, A.V. Photoluminescence of surface chromium centers in the Cr/Al2O3 system that is active in isobutane dehydrogenation. Mater. Chem. Phys. 2019, 234, 403–410. [Google Scholar] [CrossRef]
  52. Cavani, F.; Koutyrev, M.; Trifiro, F.; Bartolini, A.; Ghisletti, D.; Iezzi, R.; Santucci, A.; Del Piero, G. Chemical and physical characterization of alumina-supported chromia-based catalysts and their activity in dehydrogenation of isobutane. J. Catal. 1996, 158, 236–250. [Google Scholar] [CrossRef]
Crystals 11 01435 g001 550

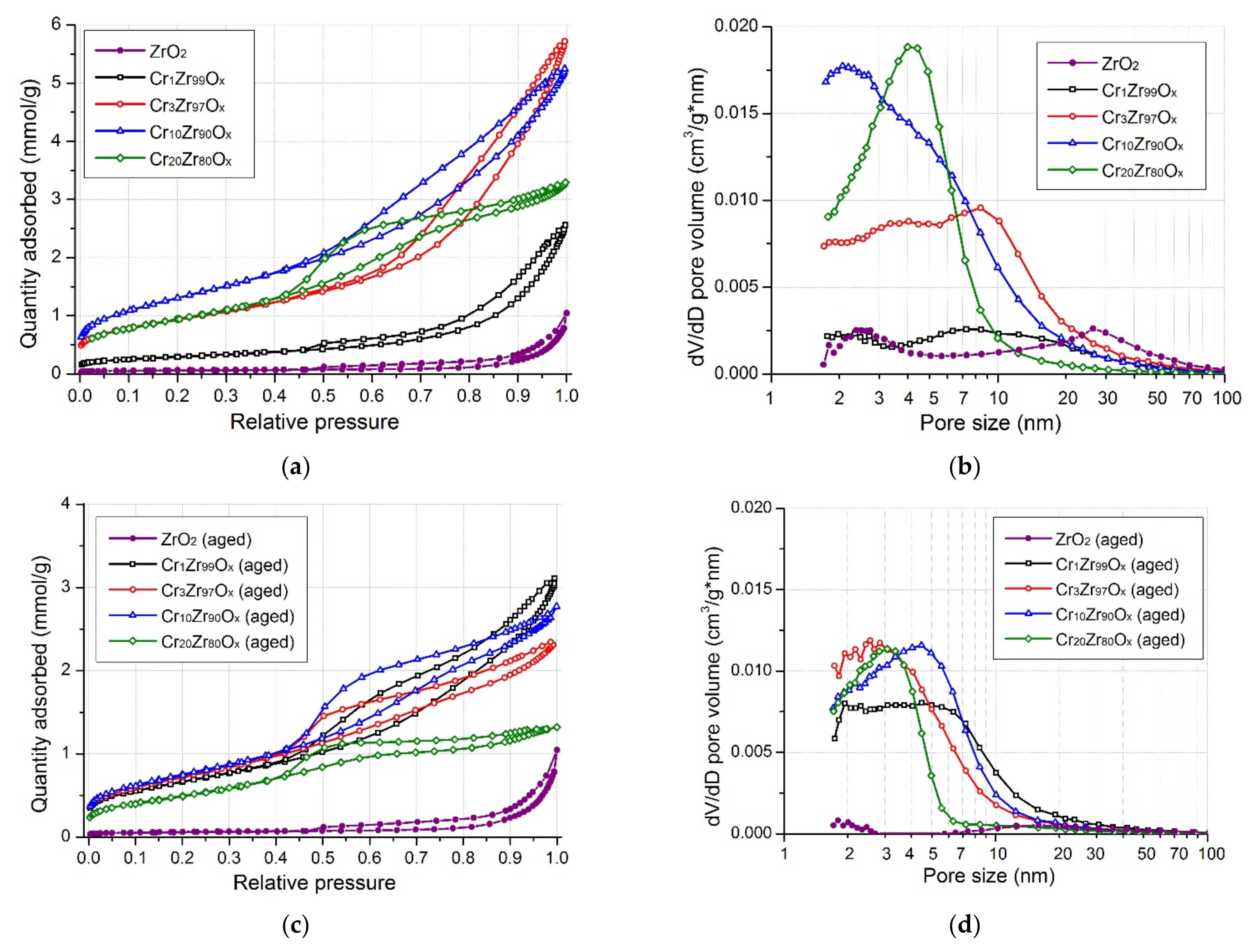

Figure 1. Nitrogen adsorption–desorption isotherms (a,c) and pore size distributions (b,d) for prepared catalysts: (a,b) without ageing, (c,d) with ageing of precipitate.
Figure 1. Nitrogen adsorption–desorption isotherms (a,c) and pore size distributions (b,d) for prepared catalysts: (a,b) without ageing, (c,d) with ageing of precipitate.
Crystals 11 01435 g001
Crystals 11 01435 g002 550

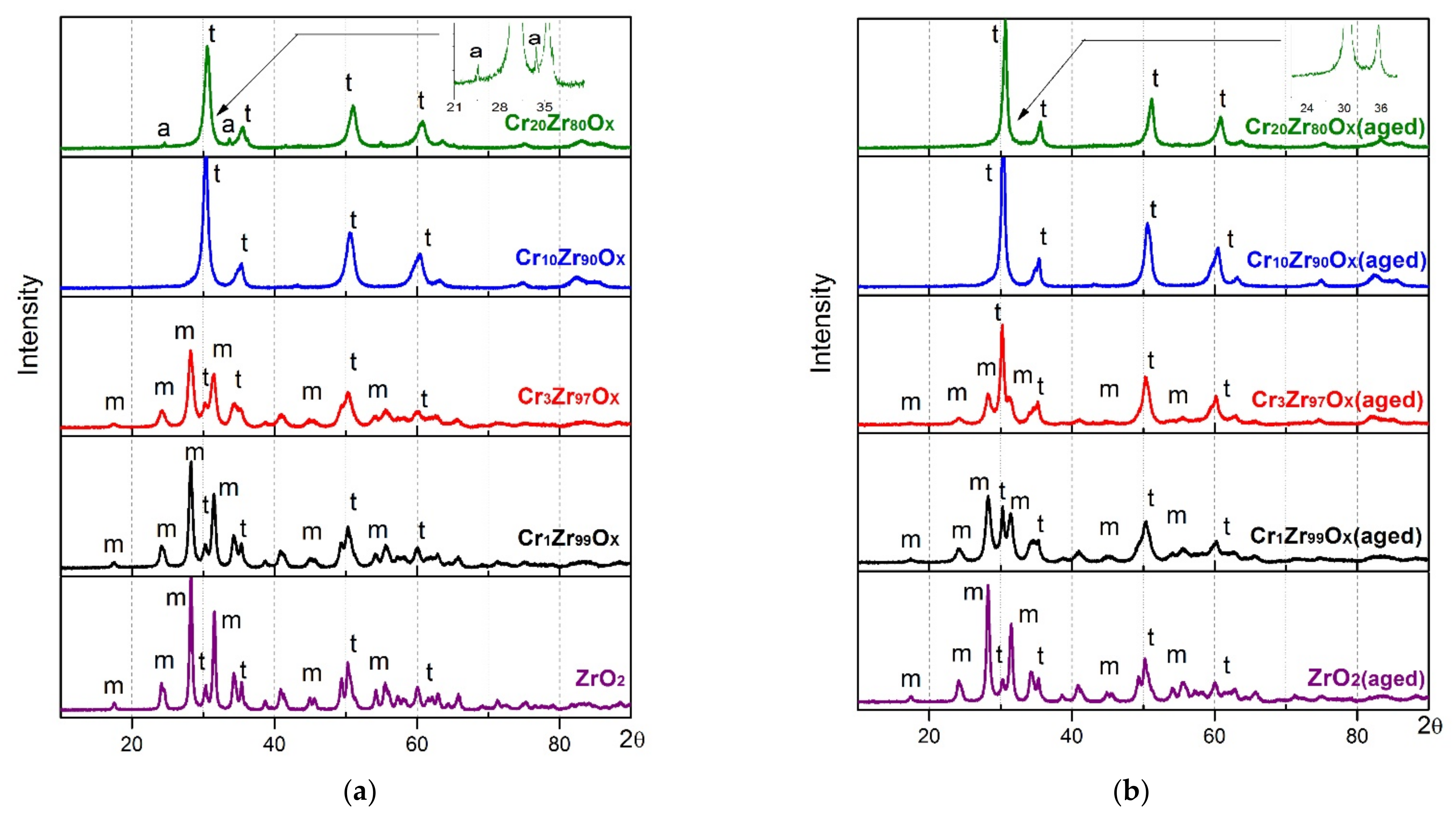

Figure 2. XRD patterns for Cr–Zr mixed oxide samples prepared (a) without and (b) with ageing of precipitate: m—monoclinic ZrO2 phase, t—tetragonal ZrO2 phase, a—α-Cr2O3.
Figure 2. XRD patterns for Cr–Zr mixed oxide samples prepared (a) without and (b) with ageing of precipitate: m—monoclinic ZrO2 phase, t—tetragonal ZrO2 phase, a—α-Cr2O3.
Crystals 11 01435 g002
Crystals 11 01435 g003 550

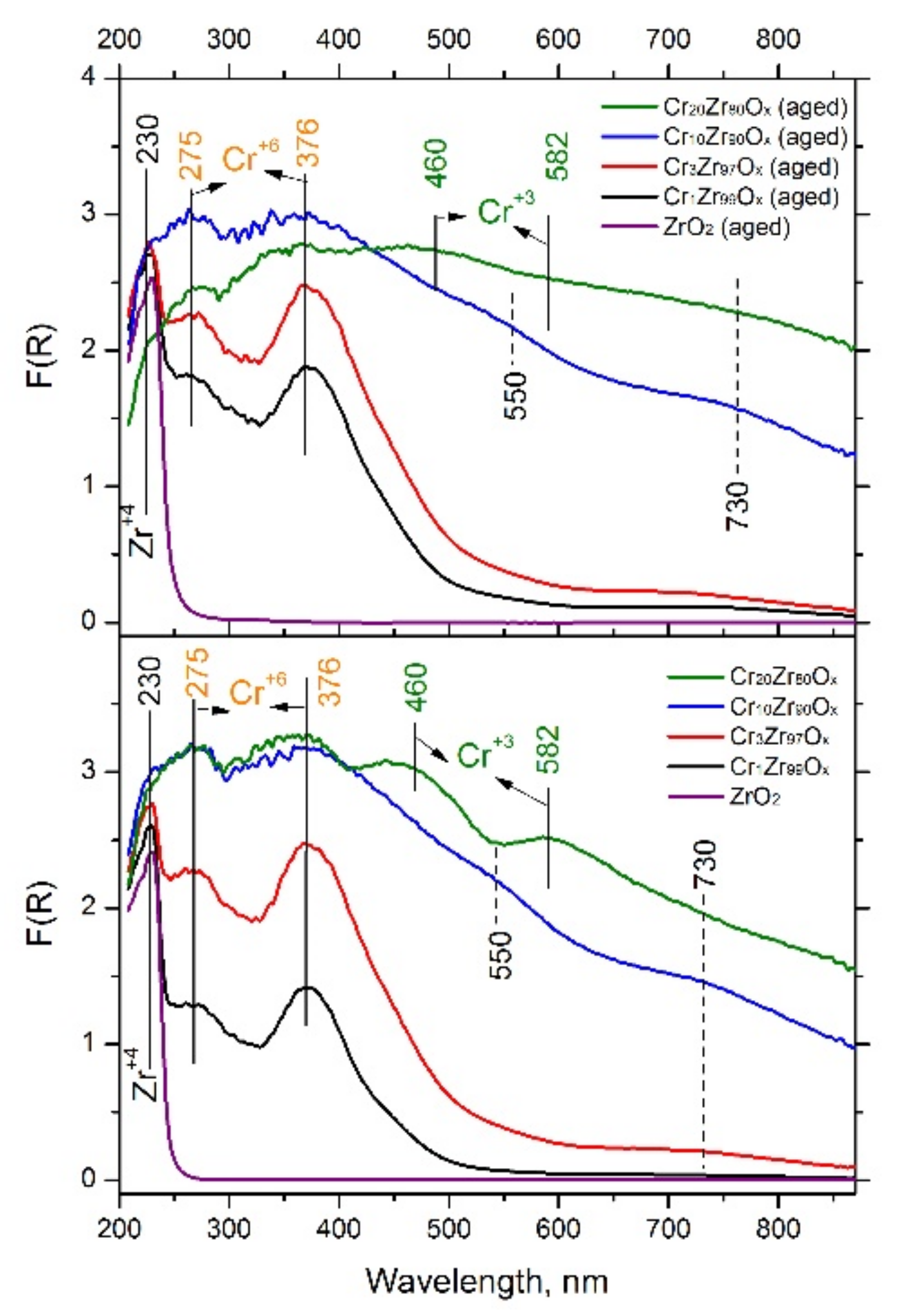

Figure 3. DRS spectra for CrZrOx catalysts synthesized with and without ageing of precipitate.
Figure 3. DRS spectra for CrZrOx catalysts synthesized with and without ageing of precipitate.
Crystals 11 01435 g003
Crystals 11 01435 g004 550

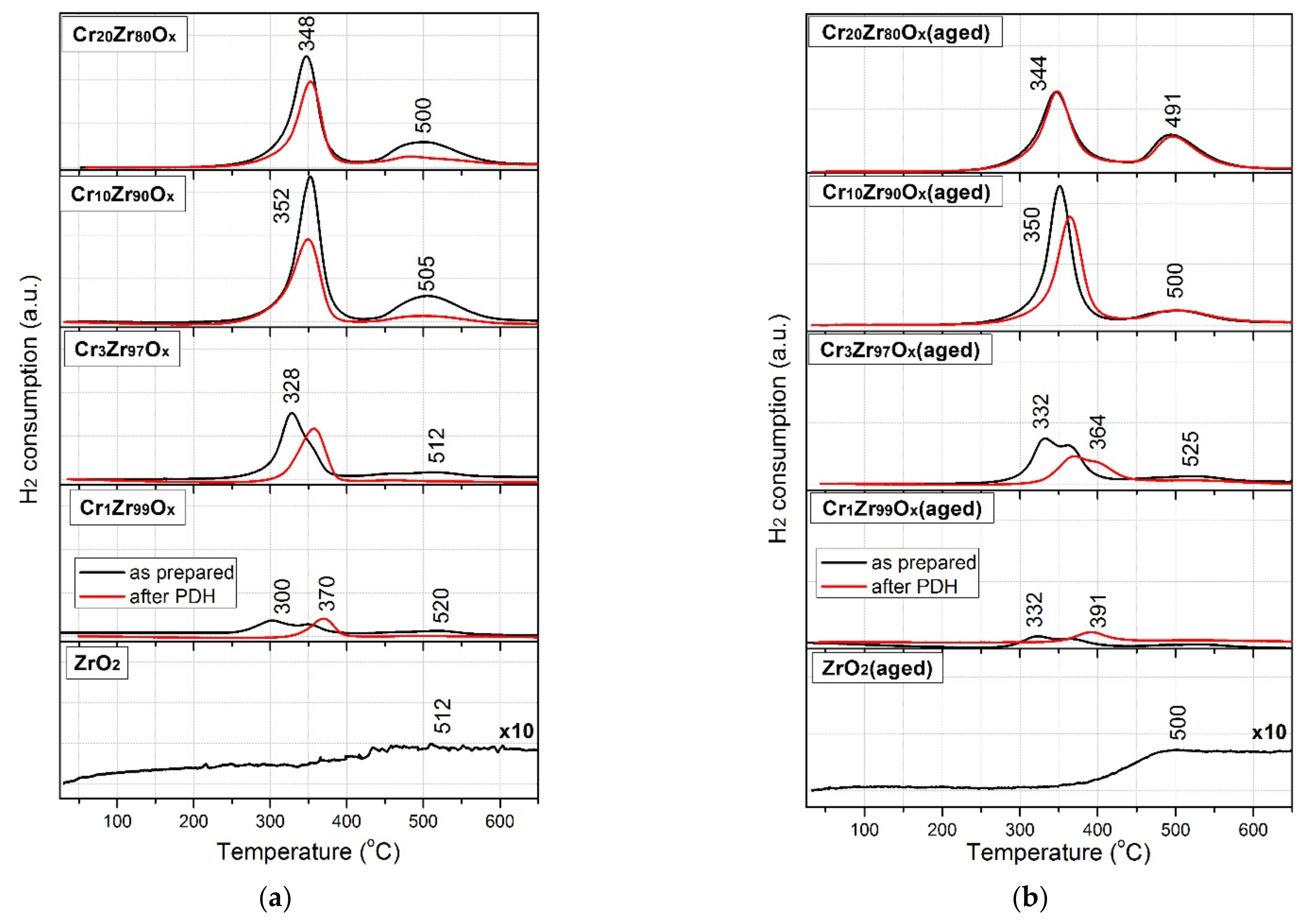

Figure 4. TPR-H2 profiles for ZrO2 and CrZrOx catalysts: catalysts (a) without ageing, (b) with ageing of precipitate.
