The Role of Substitution in the Apex Position of the Bent-Core on Mesomorphic Properties of New Series of Liquid Crystalline Materials

Abstract

We present the synthesis and mesomorphic properties of the new series of bent-core liquid crystals based on 3-hydroxybenzoic acid bearing a lateral substituent in the apex position. Four different substituents of various sizes and electronic properties have been used. We have found that only compounds substituted with fluorine are mesogenic and exhibit one mesophase, whose type differs when prolonging the terminal alkyl chain. For homologues with shorter alkyl chains (octyl, decyl), a columnar B₁-type of a mesophase was observed, while materials with longer terminal chains (dodecyl, tetradecyl) exhibited a switchable lamellar SmC_AP_A phase. Calorimetric measurements, texture observations under a polarizing microscope were performed and electro-optical properties studied. Additionally, dielectric measurements were realized to characterize the molecular dynamics in the SmC_AP_A phase. All mesogenic compounds were further studied by X-ray measurements to confirm phase identification and obtain more information about their structural parameters.

1. Introduction

Bent-core materials represent a unique class of liquid crystals (LCs). The first compounds of this type were already synthesized at the beginning of the 20th century [1]. However, they were not studied more widely due to the low thermal stability of formed mesophases. They were rediscovered in the 1990s, when the polar character and macroscopic chirality of mesophases formed exclusively by bent-core materials were described [2,3]. Since then, many unique features of bent-core LCs have been discovered. Bent-core compounds can form a broad variety of mesophases ranging from low-organized nematic phases over various lamellar mesophases to structurally complex ones [4]. The nematic phase of bent-core LCs has attracted much attention due to its possible practical applications [5]. In particular, the biaxial nematic phase formed by bent molecules has been the aim of extensive research, since it could be useful for the construction of a new generation of liquid crystal displays [6,7]. The polar and chiral orders of nematic phases formed by bent-core LCs are nowadays of great interest [8,9,10] as well as their modulation with light stimulus, which can be used for the construction of diffraction devices [11].

Polar order with the ability of symmetry breaking is a typical feature of lamellar and columnar phases formed by bent-core LCs [12,13]. The most typical example of a lamellar phase is a tilted polar smectic C phase (SmCP), where the tilt correlation can be synclinic (SmC_S) or anticlinic (SmC_A) and the correlation between adjacent layers can be either ferroelectric (P_F) or antiferroelectric (P_A) leading to four possible molecular arrangements: SmC_SP_F, SmC_SP_A, SmC_AP_F, SmC_AP_A. From these four states, SmC_SP_F and SmC_AP_A are chiral and for each of them an enantiomeric state exists. The ability of SmCP phases to switch under an applied electric field then offers an interesting option for electro-optical applications [2,12,14,15]. Two basic structures were proposed for columnar mesophases and the nomenclature B₁ and B_1Rev was utilized [15,16]. The columnar mesophases can be described as blocks of molecular layers. For the B₁ phase the modulation exists in the plane parallel to the polarization vector, P, and no electro-optic response or switching current has been detected. In the case of the modulation plane perpendicular to the P vector, designation B_1Rev was proposed. Both columnar structures can exist with tilted or nontilted molecules with respect to the layer normal.

The molecule of a bent-core LC is a dynamic system in which even a tiny structural modification can lead to different physical properties. The central aromatic unit significantly contributes to the stabilization of mesomorphic behavior by means of π−π-interactions increasing the size of the central core leading to the preferential formation of columnar phases [16]. The side arms connected to the central core (typically with the included angle of 120°) feature polar-linking groups. The character and orientation of these linking units contribute to the overall polarity and dipole moment of the molecule. For resorcinol-based materials, it was documented that mesomorphic properties significantly varied, depending on the orientation of the ester groups in the side arms [17]. A similar trend was observed also for naphthalene-based materials [18,19,20]. For resorcinol as well as naphthalene-based materials, terminal alkyl chains were used to stabilize a lamellar phase over a columnar phase. Generally, homologues with short alkyl chains (up to C₁₀H₂₁) formed columnar phases, while materials bearing longer terminal alkyl chains exhibited smectic phases (SmCP). This is due to a higher increment of London dispersion forces of alkyl chains, which in the case of longer chains prevail over the effect of the π−π-interactions of the aromatic units. A similar effect can be induced by the introduction of siloxane or perfluoroalkyl chains, where the nanosegregation of fluorinated (siloxane) and alkyl chains leads to preferential formation of lamellar-ordered phases [21,22].

Lateral substituents connected to the central core, or the aromatic units in the side chains, play an important role in tuning the mesomorphic properties of bent-core LCs. A number of studies on the influence of lateral substituents on mesomorphic behavior in terms of their steric and electronic effect in various positions of aromatic units of bent-core materials have been published thus far [23,24,25,26,27,28,29,30,31]. In our preceding studies, we have systematically investigated the effect of lateral substituents connected in different positions to a central unit of 3-hydroxybenzoic acid [32,33,34,35]. We observed the preferential formation of a nematic phase for materials with lateral substituent (F, Cl, CH₃) in position four of the central unit. This tendency was tuned by the orientation and number of the linking ester units. Materials with a uniform orientation of five ester units formed columnar B_1Rev, polar SmA (SmAP) phase or SmC_SP_A [33]. A significant effect of lateral substituents was observed for six substituted materials, for which only columnar and lamellar phases were observed. With the increasing size of the substituent (i.e., for the chlorine and methyl groups) and the increasing number of ester-linking units with uniform orientation the materials became crystalline [34]. Surprisingly, positioning the lateral substituents between the side arms (in position two) did not substantially influence the mesomorphic behavior; materials exhibited a columnar B₁ phase and lamellar SmC_AP_A phase in the case of short (C₈H₁₇ and C₁₀H₂₁) and long (C₁₂H₂₅ and C₁₄H₂₉) terminal alkyl chains, respectively. Exceptional behavior was determined for methyl-substituted materials that showed a nematic phase as well as polymorphism and a sequence of nematic, SmC and SmC_AP_A phases [35].

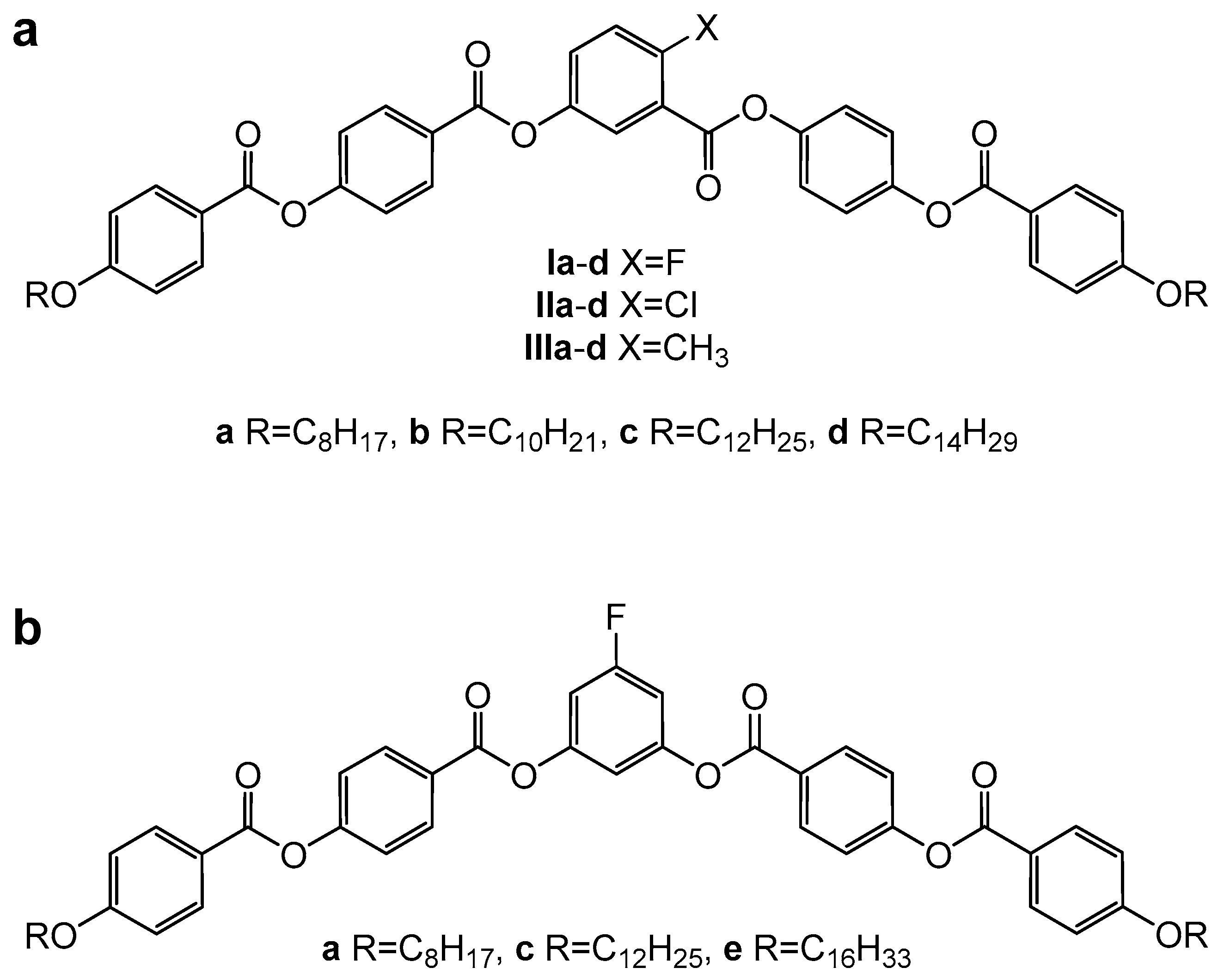

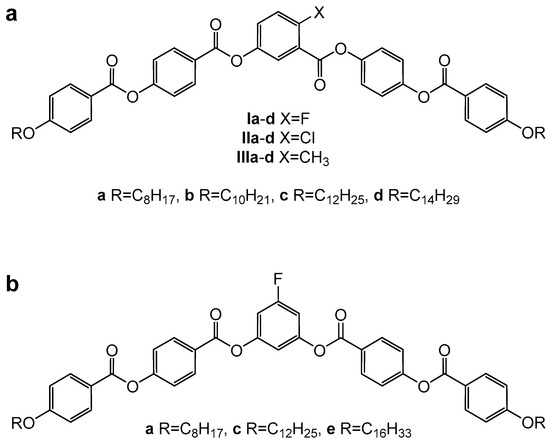

In this study, we have focused on materials bearing the lateral substitution in position five (the apex) of the central 3-hydroxybenzoic acid-based unit. In comparison to the previously studied materials, the lateral substituents (F, Cl, CH₃, NO₂) used here have shown a strong steric effect on mesomorphic behavior.

2. Materials and Methods

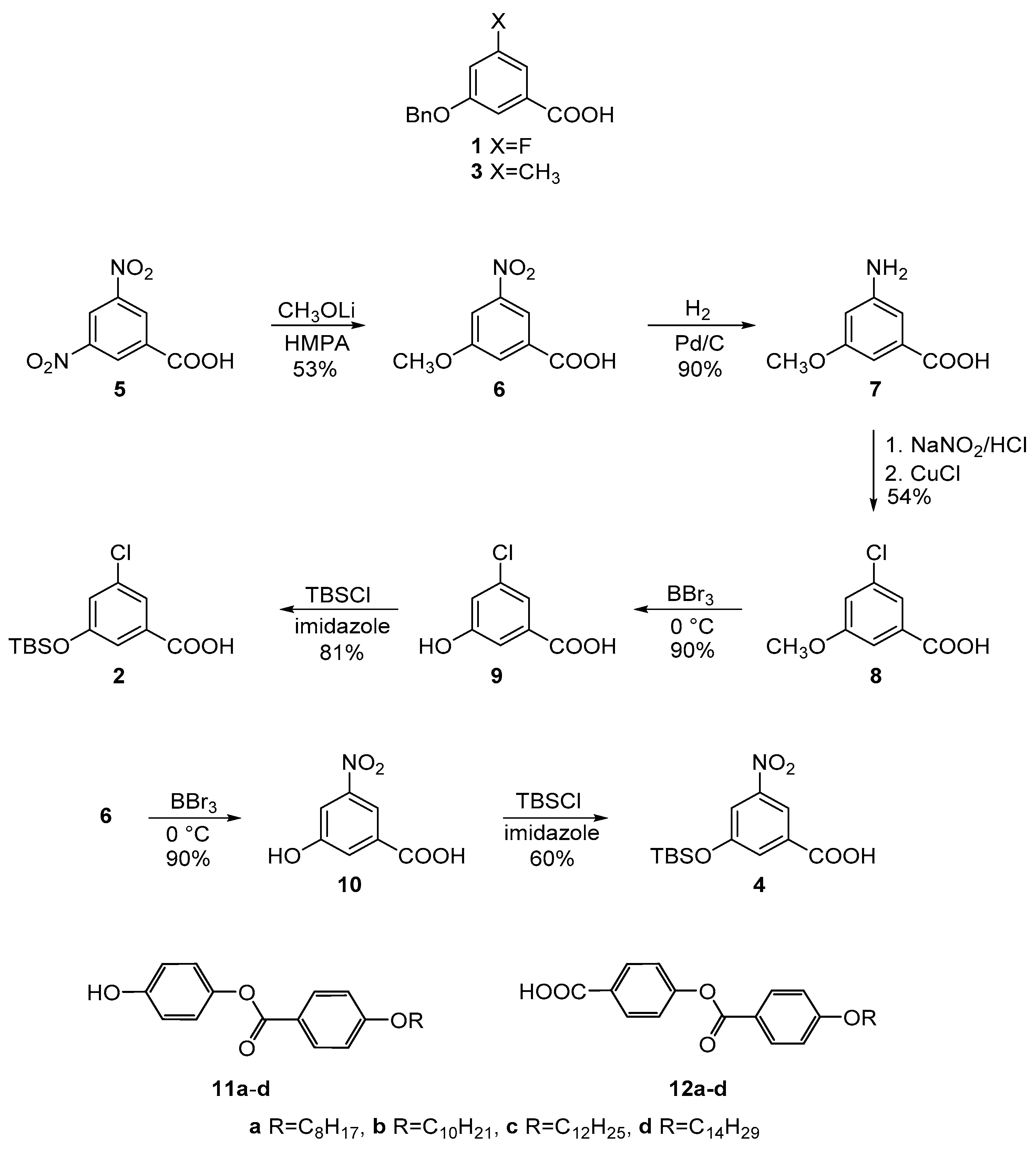

2.1. Synthesis of the Protected Central Cores

Synthesis of the 5-fluoro (1) and 5-methyl-3-hydroxy protected benzoic acids (3) has been described elsewhere [36]. Preparation of the corresponding 5-chloro 2 and 5-nitro-3-hydroxy protected benzoic acid (4) is depicted in Scheme 1. While the hydroxylic group of the fluoro and methyl substituted central cores 1,3 was protected by benzyl group (Bn), for synthetic reasons protection of acids 2 and 4 was achieved by tert-butyldimethylsilyl group (TBS).

The protected chloro acid 2 was obtained by a multistep transformation of 3,5-dinitrobenzoic acid (5). First, one of the nitro groups was substituted by the means of lithium methoxide in hexamethylphosphoric amide (HMPA) [37] to give rise to methoxy acid 6. The nitro group of 6 was then reduced by catalytic hydrogenation on Pd/C to yield the corresponding amino acid 7, see reference [38]. The amino group of 7 was subsequently diazotized and the diazonium group substituted in a standard Sandmeyer reaction to yield the chloro acid 8. Deprotection of the methoxy group was achieved with boron tribromide and the released hydroxylic group of 9 was finally reprotected by silylation with tert-butyldimethylsilyl chloride (TBSCl) to form the protected central core 2.

The intermediate methoxy nitro acid 6 served also for the synthesis of the nitro acid 4. The methoxy group of 6 was first deprotected with boron tribromide to yield the hydroxy acid 10 and the free hydroxylic group was finally reprotected with TBSCl to provide the 5-nitro protected acid 4. To introduce the lengthening arms, the known phenols 11a–d and acids 12a–d were used [20].

2.2. Synthesis of the Target Materials

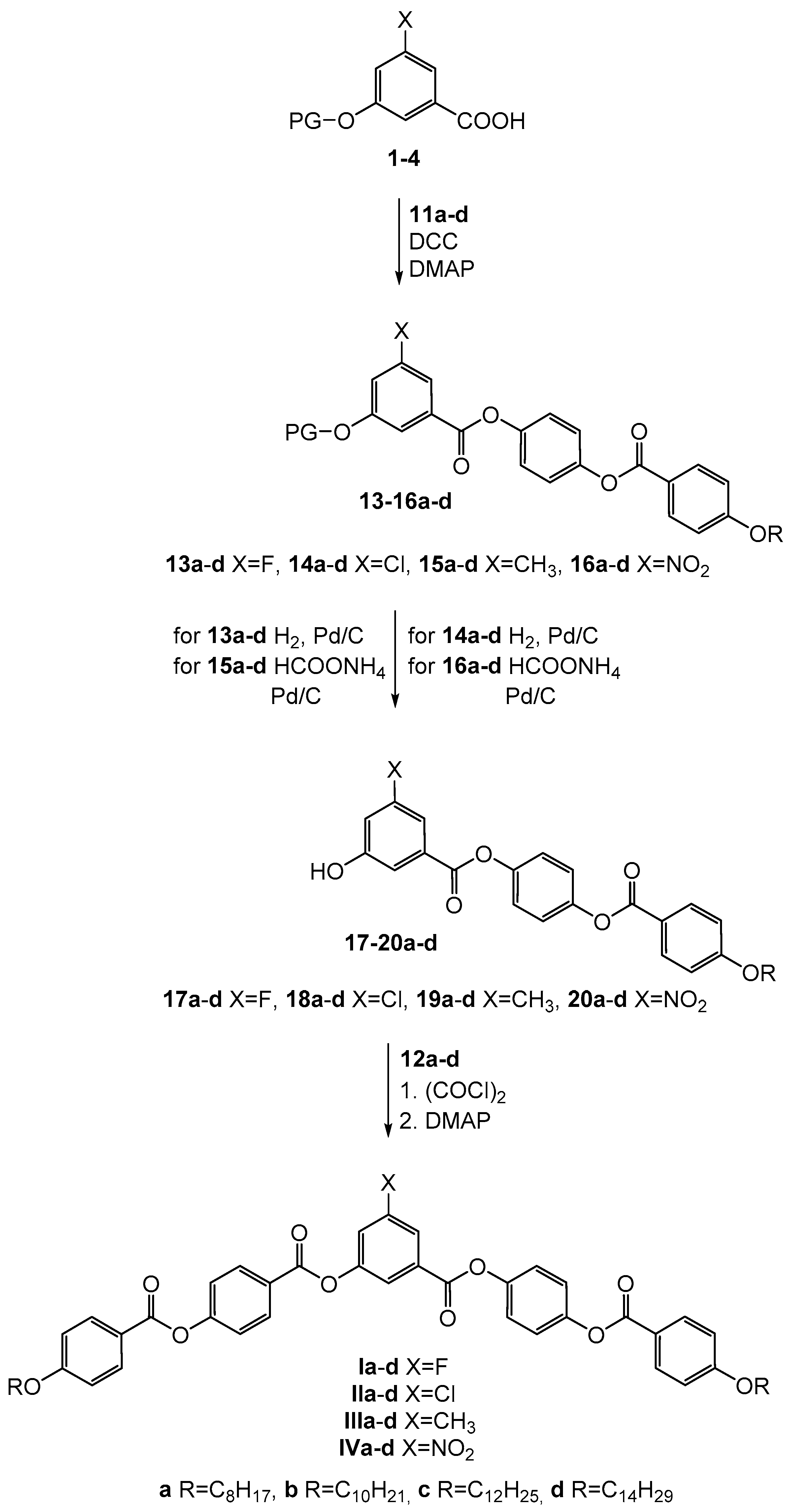

The series of target materials Ia–d (X = F), IIa–d (X = Cl), IIIa–d (X = CH₃), and IVa–d (X = NO₂) (Scheme 2) were prepared by the same methodology as previously [18,19,20]. First, the acids 1−4 were coupled with the substituted phenols 11a–d in the presence of N,N’-dicyclohexylcarbodiimide (DCC) and N,N-dimethylaminopyridine (DMAP) as catalyst to yield the protected (PG = protecting group) intermediates 13a–d–16a–d. The protecting group was removed with respect to its character. While for the deprotection of the benzyl group (PG = C₆H₅CH₂) transfer-hydrogenation using Pd/C and ammonium formate was utilized, the silyl moiety (PG = (CH₃)₃CSi(CH₃)₂) was removed by the means of tetrabutylammonium fluoride (Bu₄N⁺ F⁻) in wet tetrahydrofuran [39]. In the last step, the hydroxy esters 17a–d-20a–d were acylated with acid chlorides of acids 12a–d in the presence of DMAP as a base yielding target compounds of series Ia–d (X = F), IIa–d (X = Cl), IIIa–d (X = CH₃), and IVa–d (X = NO₂), respectively.

2.3. Synthesis of the Central Cores

3-Methoxy-5-nitrobenzoic acid (6)

A mixture of dinitro acid 5 (49.0 g; 231 mmol) and lithium methoxide (35.0 g; 0.92 mol) in freshly distilled hexamethylphosphoric amide (HMPA) (600 mL) was stirred in an inert argon atmosphere at room temperature for 18 h and at 80 °C for 6 h until the starting compound disappeared (tlc). After cooling, the mixture was poured on ice (600 mL) and acidified with conc. hydrochloric acid (200 mL). The product was extracted with ether (6 × 600 mL), the combined ethereal solution was washed with brine (400 mL), and dried with anhydrous magnesium sulphate. The solvent was removed to yield 44.6 g (98%) of acid 6, m.p. 194–197 °C, 187–189 °C [37].

3-Amino-5-methoxybenzoic acid (7)

To a solution of acid 6 (29.3 g; 148 mmol) in ethyl acetate (300 mL), 10% Pd/C (4.2g) was added and the mixture was hydrogenated in a Parr apparatus. The catalyst was filtered and the filtrate evaporated. Crystallisation from ethanol yielded 19.7 g (79%) of acid 7, m.p. 194–197 °C, m.p. 184 °C [40].

3-Chloro-5-methoxybenzoic acid (8)

To a solution of 3-amino-5-methoxybenzoic acid (7) (4.98 g; 29.8 mmol) in 12% aq. HCl (60 mL) cooled to 5 °C, a solution of sodium nitrite (2.59 g; 37.5 mmol) in water (20ml) was added drop wise. The mixture was stirred at 0 °C for 30 min, then a solution of copper (I) chloride (3.60 g; 36.3 mmol) in 36% aq. HCl (20 mL) was added to keep the temperature below 10 °C. The formed suspension was diluted with water and stirred at room temperature for 1 h and at 80 °C for 30 min. After cooling to room temperature, the product was filtered, washed with water (2 × 50 mL), and dried at reduced pressure. After purification by a column chromatography (toluene/methanol/acetic acid 32/1/1), 3.02 g (54%) of acid 8 was isolated, m.p. 182–184 °C, 170–171 °C [41].

3-Chloro-5-hydroxybenzoic acid (9)

To a solution of acid 8 (3.20 g; 17.1 mmol) in dichloromethane (40 mL) cooled to −78 °C, boron tribromide (6.1 mL; 65.2 mmol) was added drop wise in the argon atmosphere. The solution was stirred for 30 min, then the cooling bath was removed, and the stirring continued at 0 °C for 6 h. The mixture was poured on ice (300 mL) and after decomposition of the reagent extracted with ethyl acetate (3 × 150 mL). The organic solution was then washed with brine (150 mL) and dried with anhydrous magnesium sulphate. After evaporation of the solvent, the crude product was purified by column chromatography (toluene/methanol/acetic acid 32/1/1) to yield 2.67 g (90%) of 9, m.p. 213–216 °C. ¹H NMR spectrum (acetone-d₆): 2.82 (s, 1 H, OH), 7.11 (m, 1 H), 7.45 (m, 1 H), 7.48 (m, 1 H), 9.18 (s, 1 H, COOH). Elemental analysis: for C₇H₅ClO₃ (172.57): calculated C 48.72, H 2.92, Cl 20.54; found C 48.55, H 2.82, Cl 20.36%.

3-(tert-Butyldimethylsilyloxy)-5-chlorobenzoic acid (2)

To a solution of acid 9 (2.67 g; 15.5 mmol) and imidazole (3.21 g; 47.2 mmol) in dry DMF (45 mL), a solution of tert-butyldimethylchlorosilane (7.08 g; 46.9 mmol) in dry DMF (45 mL) was added in an argon atmosphere and the mixture was stirred and heated to 60 °C for 9 h. After cooling to room temperature, the mixture was acidified with 4% aq. HCl (40 mL) and then extracted with toluene (6 × 60 mL). The combined organic solution was washed with brine (2 × 60 mL) and dried with anhydrous magnesium sulphate. The solvent was evaporated and the product was purified by column chromatography (toluene/methanol/acetic acid 32/1/1) to yield 2.98 g (81%) of protected acid 2, m.p. 126–130 °C. ¹H NMR spectrum (CDCl₃): 0.23 (s, 9 H, C(CH₃)₃), 0.99 (s, 6 H, 2 × CH₃), 7.07 (m, 1 H), 7.43 (m, 1 H), 7.68 (m, 1 H). Elemental analysis: for C₁₃H₁₉ClO₃Si (286.83): calculated C 54.44, H 6.68, Cl 12.36; found C 54.39, H 6.90, Cl 12.22%.

3-Hydroxy-5-nitrobenzoic acid (10)

Boron tribromide (13.8 mL; 153 mmol) was added drop wise in an inert argon atmosphere to a solution of acid 6 (3.65 g; 18.5 mmol) in dry dichloromethane (40 mL) cooled to 78 °C. The mixture was brought slowly to 0 °C, then stirred at this temperature for 16 h, and decomposed by pouring on ice (250 mL). The product was extracted with ethyl acetate (3 × 80 mL) and the combined organic solution was washed with brine (80 mL), and dried with anhydrous magnesium sulphate. The solvent was evaporated and the crude product was purified by column chromatography (toluene/methanol/acetic acid 32/1/1) to give rise to 3.06 g (90%) of the corresponding hydroxy acid 10, m.p. 202–206 °C, m.p. 195–197 °C, see reference [37].

3-(tert-Butyldimethylsilyloxy)-5-nitrobenzoic acid (4)

By the same method as for acid 2, silylation of acid 10 (1.50 g; 8.19 mmol) with TBSCl (1.23 g; 8.19 mmol) in the presence of imidazole (1.12 g; 16.4 mmol) yielded 1.45 g (60%) of acid 4, m.p. 166–170 °C. ¹H NMR spectrum (CDCl₃): 0.29 (s, 6 H, CH₃), 1.02 (s, 9 H, (CH₃)₃C), 7.86 (m, 1 H, H2), 7.90 (m, 1 H, H4), 8.54 (s, 1 H, H6). Elemental analysis: for C₁₃H₁₉NO₅Si (297.39): calculated C 52.51, H 6.44, N 4.71; found C 52.44, H 6.40, N 4.65%.

2.4. Synthesis of Intermediates and Target Compounds

Synthesis of intermediates 13a–d,15a–d,17a–d, and 19a–d and their characterisation was reported in the current paper [36].

4-[4-(Octyloxy)benzoyloxy]phenyl 3-(tert-butyldimethylsilyloxy)-5-chlorobenzoate (14a).

A mixture of acid 2 (0.704 g; 2.45 mmol), phenol 11a (0.680 g; 1.99 mmol), DCC (0.647 g; 3.13 mmol), and DMAP (10 mg) in dry dichloromethane (40 mL) was stirred at room temperature for 2 h in an inert atmosphere. The deposited solid was filtered and washed with dichloromethane (20 mL). The filtrate was evaporated and the crude product was purified by column chromatography (hexane/tert-butyl methyl ether 10/1). Yield 0.722 g (59%) of 14a, m.p. 98–99 °C. ¹H NMR spectrum (CDCl₃): 0.25 (s, 9 H, C(CH₃)₃), 0.88 (m, 3 H, CH₃), 1.00 (s, 6 H, 2 × CH₃), 1.25–1.61 (m, 10 H, (CH₂)₅), 1.82 (m, 2 H, CH₂), 4.06 (t, 2 H, CH₂, J = 6.5), 6.97 (d, 2 H, J = 8.8), 7.10 (m, 1 H), 7.25–7.28 (m, 4 H), 7.52 (m, 1 H), 7.79 (m, 1 H), 8.14 (d, 2 H, J = 8.8). Elemental analysis: for C₃₄H₄₃ClO₆Si (611.26): calculated C 66.81, H 7.09, Cl 5.80; found C 66.69, H 7.03, Cl 5.69%.

In the same way, homologues 14b-d have been prepared.

4-[4-(Decyloxy)benzoyloxy]phenyl 3-(tert-butyldimethylsilyloxy)-5-chlorobenzoate (14b). Yield 75%, m.p. 85−87 °C.

4-[4-(Dodecyloxy)benzoyloxy]phenyl 3-(tert-butyldimethylsilyloxy)-5-chlorobenzoate (14c). Yield 73%, m.p. 56−58 °C.

4-[4-(Tetradecyloxy)benzoyloxy]phenyl 3-(tert-butyldimethylsilyloxy)-5-chlorobenzoate (14d). Yield 73%, m.p. 54−56 °C.

By the method shown above, reaction of nitro acid 4 with phenols 11a–d yielded the corresponding intermediates 16a–d.

4-[4-(Octyloxy)benzoyloxy]phenyl 3-(tert-butyldimethylsilyloxy)-5-nitrobenzoate (16a). Yield 59%, m.p. 100−103 °C. ¹H NMR spectrum (CDCl₃): 0.30 (s, 9 H, C(CH₃)₃), 0.88 (m, 3 H, CH₃), 1.03 (s, 6 H, 2 × CH₃), 1.25–1.54 (m, 10 H, (CH₂)₅), 1.81 (m, 2 H, CH₂), 4.05 (t, 2 H, CH₂, J = 6.3), 6.98 (d, 2 H, J = 9.1), 7.29 (s, 2 H), 7.93 (m, 2 H), 8.15 (d, 2 H, J = 9.1), 8.63 (m, 1 H). Elemental analysis: for C₃₄H₄₃NO₈Si (621.81): calculated C 65.68, H 6.97, N 2.25; found C 65.53, H 6.88, N 2.16%.

4-[4-(Decyloxy)benzoyloxy]phenyl 3-(tert-butyldimethylsilyloxy)-5-nitrobenzoate (16b). Yield 80%, m.p. 115−119 °C.

4-[4-(Dodecyloxy)benzoyloxy]phenyl 3-(tert-butyldimethylsilyloxy)-5-nitrobenzoate (16c). Yield 57%, m.p. 95–99 °C.

4-[4-(Tetradecyloxy)benzoyloxy]phenyl 3-(tert-butyldimethylsilyloxy)-5-nitrobenzoate (16d). Yield 55%, m.p. 96−101 °C.

4-[4-(Octyloxy)benzoyloxy]phenyl 3-chloro-5-hydroxybenzoate (18a)

A 1 M solution of TBAF in THF (0.2 mL, 0.2 mmol) was added drop wise to a solution of 14a (487 mg; 0.79 mmol) in a mixture of THF (50 mL) and water (15 mL). The solution was stirred at room temperature for 1 h, diluted with water (100 mL) and extracted with ethyl acetate (3 × 100 mL). The combined extracts were washed with brine (100 mL) and dried with anhydrous magnesium sulphate. After removing the solvent, the product was purified by column chromatography (hexane/tert-butyl methyl ether 20/1). 0.34 g (86%) of 18a was isolated, m.p. 169–171 °C. ¹H NMR spectrum (CDCl₃): 0.88 (t, 3 H, CH₃), 1.25–1.54 (m, 10 H, (CH₂)₅), 1.81 (m, 2 H, CH₂), 4.05 (t, 2 H, CH₂, J = 6.4), 5.42 (s, 1 H, OH), 6.97 (d, 2 H, J = 8.8), 7.13 (m, 1 H), 7.17–7.31 (m, 4 H), 7.54 (m, 1 H), 7.77 (m, 1 H), 8.14 (d, 2 H, J = 8.8). Elemental analysis: for C₂₈H₂₉ClO₆ (496.99): calculated C 67.67, H 5.88, Cl 7.13; found C 67.55, H 5.76, Cl 7.03%.

In the same manner, deprotection of compounds 14b–d yielded compounds 18b–d.

4-[4-(Decyloxy)benzoyloxy]phenyl 3-chloro-5-hydroxybenzoate (18b). Yield 72%, m.p. 122–127 °C.

4-[4-(Dodecyloxy)benzoyloxy]phenyl 3-chloro-5-hydroxybenzoate (18c). Yield 84%, m.p. 96–123 °C.

4-[4-(Tetradecyloxy)benzoyloxy]phenyl 3-chloro-5-hydroxybenzoate (18d). Yield 83%, m.p. 108–119 °C.

The 5-nitro substituted intermediates 20a–d have been prepared by deprotection of the compounds 16a–d by the same method.

4-[4-(Octyloxy)benzoyloxy]phenyl 3-hydroxy-5-nitrobenzoate (20a). Yield 80%, m.p. 126–141 °C. ¹H NMR spectrum (CDCl₃): 0.88 (t, 3 H, CH₃), 1.24–1.52 (m, 10 H, (CH₂)₅), 1.83 (m, 2 H, CH₂), 4.05 (t, 2 H, CH₂, J = 6.4), 6.98 (d, 3 H, J = 9.1), 7.9 (m, 2 H), 7.93 (m, 2 H), 8.14 (d, 3 H, J = 8.8), 8.57 (m, 1 H). Elemental analysis: for C₂₈H₂₉NO₈ (507.55): calculated C 66.26, H 5.76, N 2.76; found C 66.20, H 5.70, N 2.72%.

4-[4-(Decyloxy)benzoyloxy]phenyl 3-hydroxy-5-nitrobenzoate (20b). Yield 76%, m.p. 142−144 °C.

4-[4-(Dodecyloxy)benzoyloxy]phenyl 3-hydroxy-5-nitrobenzoate (20c). Yield 90%, m.p. 132−136 °C.

4-[4-(Tetradecyloxy)benzoyloxy]phenyl 3-hydroxy-5-nitrobenzoate (20d). Yield 74%, m.p. 122−124 °C.

2.5. Synthesis of Target Compounds

4-[4-(Octyloxy)benzoyloxy]phenyl 3-fluoro-5-{4-[4-(octyloxy)benzoyloxy]benzoyloxy}benzoate (Ia)

A mixture of acid 12a (0.37 g; 1 mmol) and oxalyl chloride (0.43 mL; 5 mmol) in dichloromethane (10 mL) was stirred at room temperature for 12 h and then evaporated. The crude acid chloride was dissolved in toluene (30 mL) and added to a solution of 17a (0.236 g; 0.49 mmol) and DMAP (0.079 g; 0.69 mmol) in toluene (30 mL). The mixture was heated to boiling for 1 h, cooled to room temperature and acidified with 2% aq. HCl (50 mL). The layers were divided and the aqueous phase was extracted with chloroform (3 × 50 mL). The collected organic solution was washed with brine (50 mL) and dried with anhydrous magnesium sulphate. The solvent was evaporated and the crude product was purified by column chromatography (toluene/tert-butyl methyl ether 20/1) and multiple crystallisations from a toluene/acetone mixture. Yield 0.379 g (93%). ¹H NMR spectrum (CDCl₃): 0.88 (m, 6 H, 2 × CH₃), 1.25–1.54 (m, 20 H, 2 × (CH₂)₅), 1.83 (m, 4 H, 2 × CH₂), 4.05 (t, 2 H, OCH₂, J = 6.6), 4.06 (t, 2 H, OCH₂, J = 6.6), 6.98 (m, 4 H), 7.22–7.35 (m, 5 H), 7.40 (d, 2 H, J = 8.8), 7.85 (m, 1 H), 7.91 (s, 1 H), 8.15 (m, 4 H), 8.28 (d, 2 H, J = 8.5). IR (KBr): 3731 s, 3627 s, 2921 s, 2852 s, 1734 s, 1609 m, 1508 v, 1306 w, 1260 s, 1165 s, 1064 m, 844 w, 758 w. Elemental analysis: for C₅₀H₅₃FO₁₀ (832.97): calculated C 72.10, H 6.41; found C 72.03, H 6.33%.

By the same procedure, compounds Ib–d have been prepared by the reaction of acids 12b–d with phenols 17b–d.

4-[4-(Decyloxy)benzoyloxy]phenyl 5-{4-[4-(decyloxy)benzoyloxy]benzoyloxy}-3-fluorobenzoate (Ib). Yield 77%. ¹H NMR spectrum (CDCl₃): 0.88 (m, 6 H, 2 × CH₃), 1.24–1.54 (m, 28 H, 2 × (CH₂)₇), 1.83 (m, 4 H, 2 × CH₂), 4.05 (t, 2 H, OCH₂, J = 6.4), 4.06 (t, 2 H, OCH₂, J = 6.6), 6.98 (m, 4 H), 7.12–7.35 (m, 5 H), 7.40 (d, 2 H, J = 8.5), 7.84 (m, 1 H), 7.89 (s, 1 H), 8.15 (m, 4 H), 8.28 (d, 2 H, J = 8.8). IR (KBr): 3729 s, 3614 s, 2920 s, 2853 s, 1736 s, 1607 m, 1509 v, 1306 w, 1261 s, 1208 s, 1167 s, 1063 m, 879 w, 758 w. Elemental analysis: for C₅₄H₆₁FO₁₀ (889.08): calculated C 72.95, H 6.92; found C 72.86, H 6.85%.

4-[4-(Dodecyloxy)benzoyloxy]phenyl 5-{4-[4-(dodecyloxy)benzoyloxy]benzoyloxy}-3-fluorobenzoate (Ic). Yield 78%. ¹H NMR spectrum (CDCl₃): 0.88 (m, 6 H, 2 × CH₃), 1.21–1.56 (m, 36 H, 2 × (CH₂)₉), 1.83 (m, 4 H, 2 × CH₂), 4.05 (t, 2 H, OCH₂, J = 6.6), 4.06 (t, 2 H, OCH₂, J = 6.6), 6.98 (m, 4 H), 7.24–7.35 (m, 5 H), 7.40 (d, 2 H, J = 8.8), 7.83 (m, 1 H, H2), 7.90 (s, 1 H, H6), 8.15 (m, 4 H), 8.29 (d, 2 H, J = 8.8). IR (KBr): 3741 s, 3636 s, 2918 s, 2852 s, 1736 s, 1606 m, 1510 v, 1470 w, 1306 w, 1262 s, 1208 m, 1167 s, 1132 m, 1063 m, 842 w, 758 w. Elemental analysis: for C₅₈H₆₉FO₁₀ (945.19): calculated C 73.70, H 7.36; found C 73.59, H 7.32%.

4-[4-(Tetradecyloxy)benzoyloxy]phenyl 3-fluoro-5-{4-[4-(tetradecyloxy)benzoyloxy]benzoyloxy}benzoate (Id). Yield 90%. ¹H NMR spectrum (CDCl₃): 0.88 (m, 6 H, 2 × CH₃), 1.20–1.54 (m, 44 H, 2 × (CH₂)₁₁), 1.83 (m, 4 H, 2 × CH₂), 4.05 (t, 2 H, OCH₂, J = 6.6), 4.06 (t, 2 H, OCH₂, J = 6.6), 6.99 (m, 4 H), 7.22–7.34 (m, 5 H), 7.40 (d, 2 H, J = 8.5), 7.83 (m, 1 H, H2), 7.87 (s, 1 H, H6), 8.16 (m, 4 H), 8.29 (d, 2 H, J = 9.1). IR (KBr): 3742 w, 2918 s, 2851 s, 1735 s, 1606 m, 1510 v, 1470 w, 1447 w, 1321 w, 1259 s, 1209 m, 1168 s, 1132 m, 1063 m, 843 w, 758 w. Elemental analysis: for C₆₂H₇₇FO₁₀ (1001.30): calculated C 74.37, H 7.75; found C 74.26, H 7.66%.

The procedure for synthesis Ia was further utilized for the synthesis of compounds of series IIa–d by the reaction of acids 12a–d with intermediates 18a–d, series IIIa–d by the reaction of acids 12a–d with intermediates 19a–d, and compounds IVa–d by the reaction of acids 12a–d with intermediates 20a–d, respectively.

4-[4-(Octyloxy)benzoyloxy]phenyl 3-chloro-5-{4-[4-(octyloxy)benzoyloxy]benzoyloxy}benzoate (IIa). Yield 97%. ¹H NMR spectrum (CDCl₃): 0.88 (m, 6 H, 2 × CH₃), 1.22–1.54 (m, 20 H, 2 × (CH₂)₅), 1.81 (m, 4 H, 2 × CH₂), 4.05 (t, 2 H, CH₂, J = 6.3), 4.06 (t, 2 H, CH₂, J = 6.4), 6.98 (m, 4 H), 7.27 (s, 4 H), 7.40 (d, 2 H, J = 8.8), 7.57 (m, 1 H, J = 2.0), 7.98 (m, 1 H, J = 1.2), 8.15 (m, 5 H), 8.28 (d, 2 H, J = 8.8). Elemental analysis: for C₅₀H₅₃ClO₁₀ (849.43): calculated C 70.70, H 6.29; found C 70.58, H 6.30%.

4-[4-(Decyloxy)benzoyloxy]phenyl 3-chloro-5-{4-[4-(decyloxy)benzoyloxy]benzoyloxy}benzoate (IIb). Yield 92%. ¹H NMR spectrum (CDCl₃): 0.88 (m, 6 H, 2 × CH₃), 1.25–1.55 (m, 28 H, 2 × (CH₂)₇), 1.81 (m, 4 H, 2 × CH₂), 4.05 (t, 2 H,CH_2, J = 6.3), 4.06 (t, 2 H, CH₂, J = 6.3), 6.98 (m, 4 H), 7.28 (s, 4 H), 7.40 (d, 2 H, J = 8.8), 7.57 (m, 1 H), 7.98 (m, 1 H), 8.14 (m, 5 H), 8.28 (d, 2 H, J = 8.8). Elemental analysis: for C₅₄H₆₁ClO₁₀ (905.54): calculated C 71.63, H 6.79; found C 71.55, H 6.71%.

4-[4-(Dodecyloxy)benzoyloxy]phenyl 3-chloro-5-{4-[4-(dodecyloxy)benzoyloxy]benzoyloxy}benzoate (IIc). Yield 92%. ¹H NMR spectrum (CDCl₃): 0.88 (m, 6 H, 2 × CH₃), 1.27–1.54 (m, 36 H, 2 × (CH₂)₉), 1.81 (m, 4 H, 2 × CH₂), 4.05 (t, 2 H, CH₂, J = 6.3), 4.06 (t, 2 H, CH_2, J = 6.4), 6.98 (m, 4 H), 7.28 (s, 4 H), 7.40 (d, 2 H, J = 8.8), 7.57 (m, 1 H), 7.98 (m, 1 H), 8.14 (m, 5 H), 8.28 (d, 2 H, J = 8.8). Elemental analysis: for C₅₈H₆₉ClO₁₀ (961.64): calculated C 72.44, H 7.23; found C 72.40, H 7.19%.

4-[4-(Tetradecyloxy)benzoyloxy]phenyl 3-chloro-5-{4-[4-(tetradecyloxy)benzoyloxy]benzoyloxy}benzoate (IId). Yield 98%. ¹H NMR spectrum (CDCl₃): 0.88 (m, 6 H, 2 × CH₃) 1.26–1.56 (m, 44 H, 2 × (CH₂)₁₁), 1.81 (m, 4 H, 2 × CH₂), 4.05 (t, 2 H, CH_2, J = 6.3), 4.06 (t, 2 H, CH₂, J = 6.4), 6.98 (m, 4 H), 7.28 (s, 4 H), 7.40 (d, 2 H, J = 8.8), 7.57 (m, 1 H), 7.98 (m, 1 H), 8.14 (m, 5 H), 8.28 (d, 2 H, J = 9.1). Elemental analysis: for C₆₂H₇₇ClO₁₀ (1017.75): calculated C 73.14, H 7.63; found C 73.01, H 7.56%.

4-[4-(Octyloxy)benzoyloxy]phenyl 3-methyl-5-{4-[4-(octyloxy)benzoyloxy]benzoyloxy}benzoate (IIIa). Yield 75%. ¹H NMR spectrum (CDCl₃): 0.88 (m, 6 H, 2 × CH₃), 1.22–1.54 (m, 20 H, 2 × (CH₂)₅), 1.81 (m, 4 H, 2 × CH₂), 2.50 (s, 3 H, CH₃), 4.05 (t, 2 H, OCH₂, J = 6.3), 4.06 (t, 2 H, OCH₂, J = 6.4), 6.98 (m, 4 H), 7.27 (s, 4 H), 7.34 (s, 1 H), 7.40 (d, 2 H, J = 8.8), 7.87 (s, 1 H), 7.95 (s, 1 H), 8.15 (m, 4 H), 8.28 (d, 2 H, J = 8.8). IR (KBr): 3729 w, 3625 w, 2923 s, 2856 s, 1735 s, 1606 m, 1509 v, 1306 w, 1259 s, 1164 s, 1066 m, 844 w, 757 w. Elemental analysis: for C₅₁H₅₆O₁₀ (829.01): calculated C 73.89, H 6.81; found C 73.77, H 6.69%.

4-[4-(Decyloxy)benzoyloxy]phenyl 5-{4-[4-(decyloxy)benzoyloxy]benzoyloxy}-3-methylbenzoate (IIIb). Yield 75%. ¹H NMR spectrum (CDCl₃): 0.88 (m, 6 H, 2 × CH₃), 1.25–1.55 (m, 28 H, 2 × (CH₂)₇), 1.81 (m, 4 H, 2 × CH₂), 2.49 (s, 3 H, CH₃), 4.05 (t, 2 H, OCH₂, J = 6.3), 4.06 (t, 2 H, OCH₂, J = 6.3), 6.98 (m, 4 H), 7.28 (s, 4 H), 7.34 (s, 1 H), 7.41 (d, 2 H, J = 8.8), 7.86 (s, 1 H), 7.94 (s, 1 H), 8.15 (m, 4 H), 8.28 (d, 2 H, J = 8.8). IR (KBr): 3728 w, 3625 w, 2923 s, 2854 s, 1735 s, 1606 m, 1509 v, 1308 w, 1259 s, 1169 s, 1069 m, 844 w, 759 w. Elemental analysis: for C₅₅H₆₄O₁₀ (885.12): calculated C 74.64, H 7.21; found C 74.44, H 7.10%.

4-[4-(Dodecyloxy)benzoyloxy]phenyl 5-{4-[4-(dodecyloxy)benzoyloxy]benzoyloxy}-3-methylbenzoate (IIIc). Yield 58%. ¹H NMR spectrum (CDCl₃): 0.88 (m, 6 H, 2 × CH₃), 1.27–1.54 (m, 36 H, 2 × (CH₂)₉), 1.81 (m, 4 H, 2 × CH₂), 2.50 (s, 3 H, CH₃), 4.05 (t, 2 H, OCH₂, J = 6.3), 4.06 (t, 2 H, OCH₂, J = 6.4), 6.98 (m, 4 H), 7.29 (s, 4 H), 7.34 (s, 1 H), 7.40 (d, 2 H, J = 8.8), 7.88 (s, 1 H), 7.95 (s, 1 H), 8.14 (m, 4 H), 8.28 (d, 2 H, J = 8.8). IR (KBr): 3729 w, 3627 w, 2922 s, 2853 m, 1735 s, 1605 m, 1509 v, 1309 w, 1259 s, 1167 s, 1068 m, 845 w, 759 w. Elemental analysis: for C₅₉H₇₂O₁₀ (941.23): calculated C 75.29, H 7.71; found C 75.20, H 7.56%.

4-[4-(Tetradecyloxy)benzoyloxy]phenyl 3-methyl-5-{4-[4-(tetradecyloxy)benzoyloxy]benzoyloxy}benzoate (IIId). Yield 7%.¹H NMR spectrum (CDCl₃): 0.88 (m, 6 H, 2 × CH₃), 1.26–1.56 (m, 44 H, 2 × (CH₂)₁₁), 1.81 (m, 4 H, 2 × CH₂), 2.50 (s, 3 H, CH₃), 4.05 (t, 2 H, OCH₂, J = 6.3), 4.06 (t, 2 H, OCH₂, J = 6.4), 6.98 (m, 4 H), 7.28 (s, 4 H), 7.34 (s, 1 H), 7.40 (d, 2 H, J = 8.8), 7.87 (s, 1 H), 7.95 (s, 1 H), 8.15 (m, 4 H), 8.28 (d, 2 H, J = 9.1). IR (KBr): 3729 w, 3636 w, 2929 s, 2852 m, 1736 s, 1606 m, 1508 v, 1308 w, 1257 s, 1167 s, 1068 m, 845 w, 758 w. Elemental analysis: for C₆₃H₈₀O₁₀ (997.33): calculated C 75.87, H 8.09; found C 75.69, H 7.97%.

4-[4-(Octyloxy)benzoyloxy]phenyl 3-nitro-5-{4-[4-(octyloxy)benzoyloxy]benzoyloxy}benzoate (IVa). Yield 97%. ¹H NMR spectrum (CDCl₃): 0.88 (t, 6 H, 2 × CH₃), 1.25–1.40 (m, 20 H, 2 × (CH₂)₅), 1.83 (m, 4 H, 2 × CH₂), 4.05 (t, 2 H, CH₂, J = 6.5), 4.06 (t, 2 H, CH₂, J = 6.2), 6.98 (d, 2 H, J = 8.8), 6.99 (d, 2 H, J = 8.8), 7.30 (s, 4 H), 7.44 (d, 2 H, J = 8.8), 8.14 (d, 2 H, J = 8.8), 8.16 (d, 2 H, J = 8.8), 8.31 (d, 2 H, J = 8.8), 8.42 (m, 2 H), 8.94 (m, 1 H). IR (ATR): 3110 w, 2918 s, 2855 s, 1731 s, 1600 s, 1543 m, 1504 m, 1471 w, 1252 s, 1160 s, 1072 s, 910 m, 839 m, 792 m. Elemental analysis: for C₅₀H₅₃NO₁₂ (859.98): calculated C 69.83, H 6.21, N 1.63; found C 69.68, H 6.11, N 1.50%.

4-[4-(Decyloxy)benzoyloxy]phenyl 5-{4-[4-(decyloxy)benzoyloxy]benzoyloxy}-3-nitrobenzoate (IVb). Yield 84%. ¹H NMR spectrum (CDCl₃): 0.88 (m, 6 H, 2 × CH₃), 1.25–1.45 (m, 28 H, 2 × (CH₂)₇), 1.83 (m, 4 H, 2 × CH₂), 4.05 (t, 2 H, CH₂, J = 6.4), 4.06 (t, 2 H, CH₂, J = 6.6), 6.98 (d, 2 H, J = 8.8), 6.99 (d, 2 H, J = 8.8), 7.30 (s, 4 H), 7.43 (d, 2 H, J = 8.8), 8.14 (d, 2 H, J = 8.8), 8.16 (d, 2 H, J = 8.8), 8.30 (d, 2 H, J = 8.8), 8.42 (m, 2 H), 8.97 (m, 1 H). IR (ATR): 3115 w, 2916 s, 2851 m, 1726 s, 1604 m, 1543 m, 1509 m, 1468 w, 1250 s, 1199 m, 1160 s, 1062 s, 1017 m, 841 m, 757 m. Elemental analysis: for C₅₄H₆₁NO₁₂ (916.09): calculated C 70.80, H 6.71, N 1.53; found C 70.69, H 6.59, N 1.44%.

4-[4-(Dodecyloxy)benzoyloxy]phenyl 5-{4-[4-(dodecyloxy)benzoyloxy]benzoyloxy}-3-nitrobenzoate (IVc). Yield 95%. ¹H NMR spectrum (CDCl₃): 0.88 (t, 6 H, 2 × CH₃), 1.22–1.40 (m, 36 H, 2 × (CH₂)₉), 1.83 (m, 4 H, CH₂), 4.05 (t, 2 H, CH₂, J = 6.4), 4.06 (t, 2 H, CH₂, J = 6.6), 6.98 (d, 2 H, J = 8.8), 6.99 (d, 2 H, J = 8.8), 7.31 (s, 4 H), 7.43 (d, 2 H, J = 8.8), 8.14 (d, 2 H, J = 8.8), 8.16 (d, 2 H, J = 8.8), 8.31 (d, 2 H, J = 8.7), 8.42 (m, 2 H), 8.97 (m, 1 H). IR (ATR): 3125 w, 3110 w, 2914 s, 2850 s, 1734 s, 1725 s, 1606 m, 1543 m, 1509 m, 1470 w, 1251 s, 1199 m, 1167 s, 1065 s, 1018 m, 875 m, 846 m, 750 m. Elemental analysis: for C₅₈H₆₉NO₁₂ (972.20): calculated C 71.66, H 7.15, N 1.44; found C 71.60, H 7.04, N 1.36%.

4-[4-(Tetradecyloxy)benzoyloxy]phenyl 3-nitro-5-{4-[4-(tetradecyloxy)benzoyloxy]benzoyloxy}benzoate (IVd). Yield 91%. ¹H NMR spectrum (CDCl₃): 0.88 (m, 6 H, 2 × CH₃), 1.26–1.50 (m, 44 H, 2 × (CH₂)₁₁), 1.82 (m, 4 H, 2 × CH₂) 4.05 (t, 2 H, CH₂, J = 6.6), 4.06 (t, 2 H, CH₂, J = 6.5), 6.98 (d, 2 H, J = 8.8), 6.99 (d, 2 H, J = 8.8), 7.30 (s, 2 H), 7.42 (d, 2 H, J = 8.8 Hz), 8.14 (d, 2 H, J = 8.8), 8.16 (d, 2 H, J = 8.8), 8.30 (d, 2 H, J = 8.8), 8.42 (m, 2 H), 8.97 (m, 1 H). IR (ATR): 3117 w, 2916 s, 2851 s, 1736 s, 1726 s, 1604 m, 1543 m, 1508 m, 1475 w, 1249 s, 1198 m, 1166 s, 1064 s, 1016 m, 875 m, 755 m. Elemental analysis: for C₆₂H₇₇NO₁₂ (1028.30): calculated C 72.42, H 7.55, N 1.36; found C 72.31, H 7.52, N 1.27%.

2.6. Characterization

The structure of intermediates and target materials were confirmed by ¹H NMR spectroscopy (Varian Gemini 300 HC instrument, Varian, Palo Alto, CA, USA), deuteriochloroform and acetone-d₆ were used and signals of the solvents served as internal standards. Chemical shifts are given in ppm and J values in Hz. Infrared (IR) spectra were acquired on Thermo Scientific Nicolet FT-IR spectrometer in KBr discs or on Bruker ALPHA FT-IR (Bruker, Santa Barbara, CA USA) using attenuated total reflectance (ATR) technique. Elemental analyses were carried out using Elementar vario EL III instrument (Elementar Analysensysteme GmbH, Langenselbold, Germany). Chemical purity of target materials was verified by high-performance liquid chromatography analysis on a Luna Silica column (150 × 4.6 ID, 5 µ) (Phenomenex, Aschaffenburg, Germany) and found to be ≥99.8%. Column chromatography was performed using Merck Kieselgel 60 (60−100 μm) (Merck, Darmstadt, Germany). The experimental part summarizes syntheses and spectral data of the selected homologues and all target compounds of series I-IVa–d. In the case of intermediates, ¹H NMR characterization is reported for the homologue with the shortest terminal alkyl chain only. Other homologues differ only in the integral value of methylene units in the side chains.

2.7. Equipment and Set-up for Studies of Mesomorphic Property

Differential scanning calorimetry (DSC) measurements were carried out on a Perkin-Elmer 7 Pyris calorimeter (PerkinElmer, Shelton, CT, USA). Phase transition temperatures and corresponding enthalpies were determined from the second heating and cooling runs, which were taken at a rate of 10 K/min. A small amount of compound (2−5 mg) was hermetically closed in aluminum measuring pans and inserted into the calorimeter working chamber. During measurements, a nitrogen atmosphere was applied for better temperature stabilization. The calorimeter was calibrated on extrapolated onset of the melting points of water, indium and zinc.

Electro-optical properties were studied using transparent sample cells fabricated from glass with transparent ITO electrodes (5 × 5 mm²). The glass plates were separated by mylar sheets to establish the cell thickness. The studied materials were heated to the isotropic phase (Iso) to fill the cells by capillary action. A Nikon Eclipse polarising optical microscope (Nikon, Tokyo, Japan) was used to observe textures and their changes with temperature. Another type of cell (one-free-surface sample) was prepared when we removed the upper glass from a cell without any surface treatment. Temperature stabilization within ±0.1 K and temperature changes were achieved by the Linkam LTS E350 heating/cooling stage (Linkam, Tadworth, UK) with temperature programmer.

Electric field was applied using driving voltage from generator Philips PM 5191 (Philips Eindhoven, Netherlands), the signal was amplified to reach the maximum amplitude of about ±120 V. A Tektronix DPO4034 digital oscilloscope (Tektronix, Beaverton, OR, USA) was utilized to obtain information about the switching current profile vs. time. Dielectric spectroscopy was measured by Solartron impedance analyser (Solartron Analytical, Farnborough, UK) to establish complex permittivity, ε*(f), in frequency range 10 Hz to 10 MHz. The real, ε’, and imaginary, ε’’, parts of permittivity were fitted to the Cole−Cole formula:

$${\epsilon }^{*}-{\epsilon }_{\infty }=\frac{\Delta \epsilon }{1+{(if/f_r)}^{(1-\alpha )}}-i(\frac{\sigma }{2\pi {\epsilon }_0{f}^n}+A{f}^m)$$

(1)

where f_r is the relaxation frequency, Δε is the dielectric strength, α is the distribution parameter of relaxation, ε₀ is the permittivity of vacuum, ε_∞ is the high frequency permittivity and n, m, A are the parameters of fitting. We obtained f_r and Δε values to assess dynamic properties and the relaxation process in studied compounds.

X-ray diffraction measurements were performed using Bruker GADDS system (CuKα radiation, point beam collimator, Vantec 2000 area detector) working in the reflexion mode. The set-up was equipped with a modified Linkam heating stage with the temperature stability of 0.1 K. Partially oriented samples for experiments were prepared as films on a heated surface.

3. Results

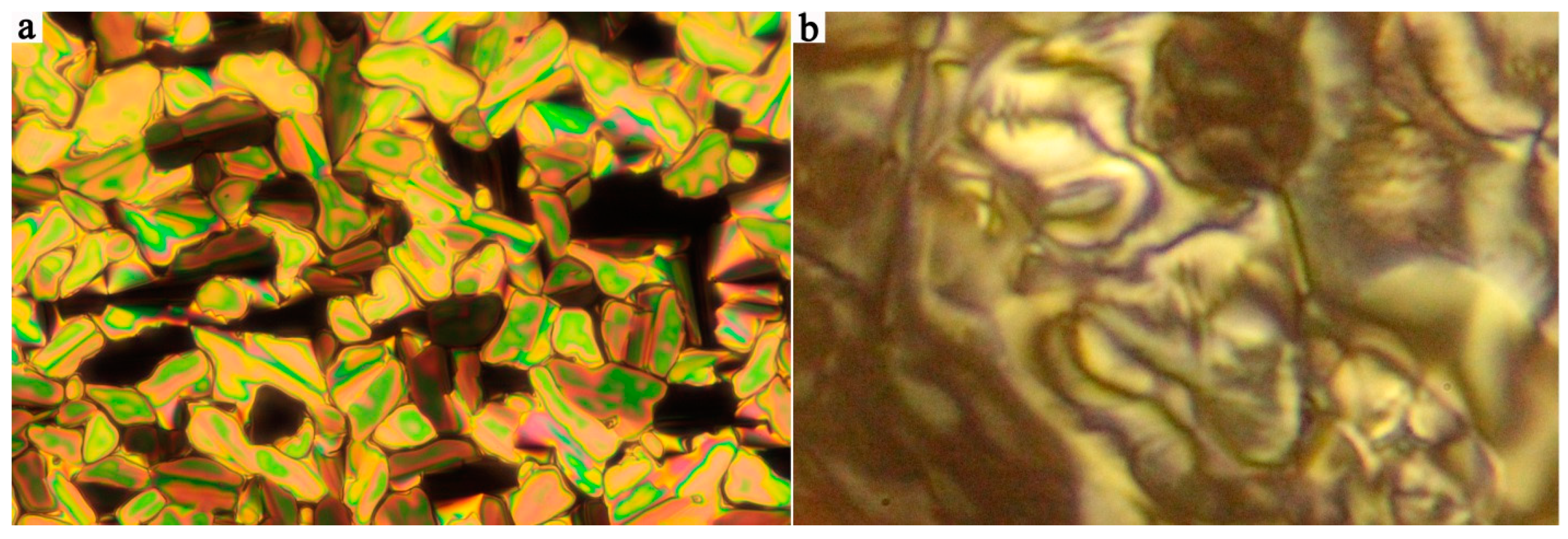

3.1. Mesomorphic Properties and Electro-Optical Behaviour

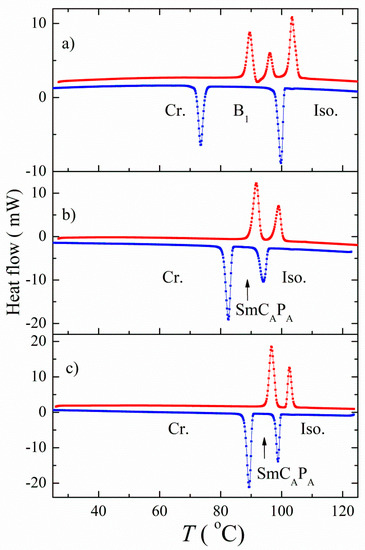

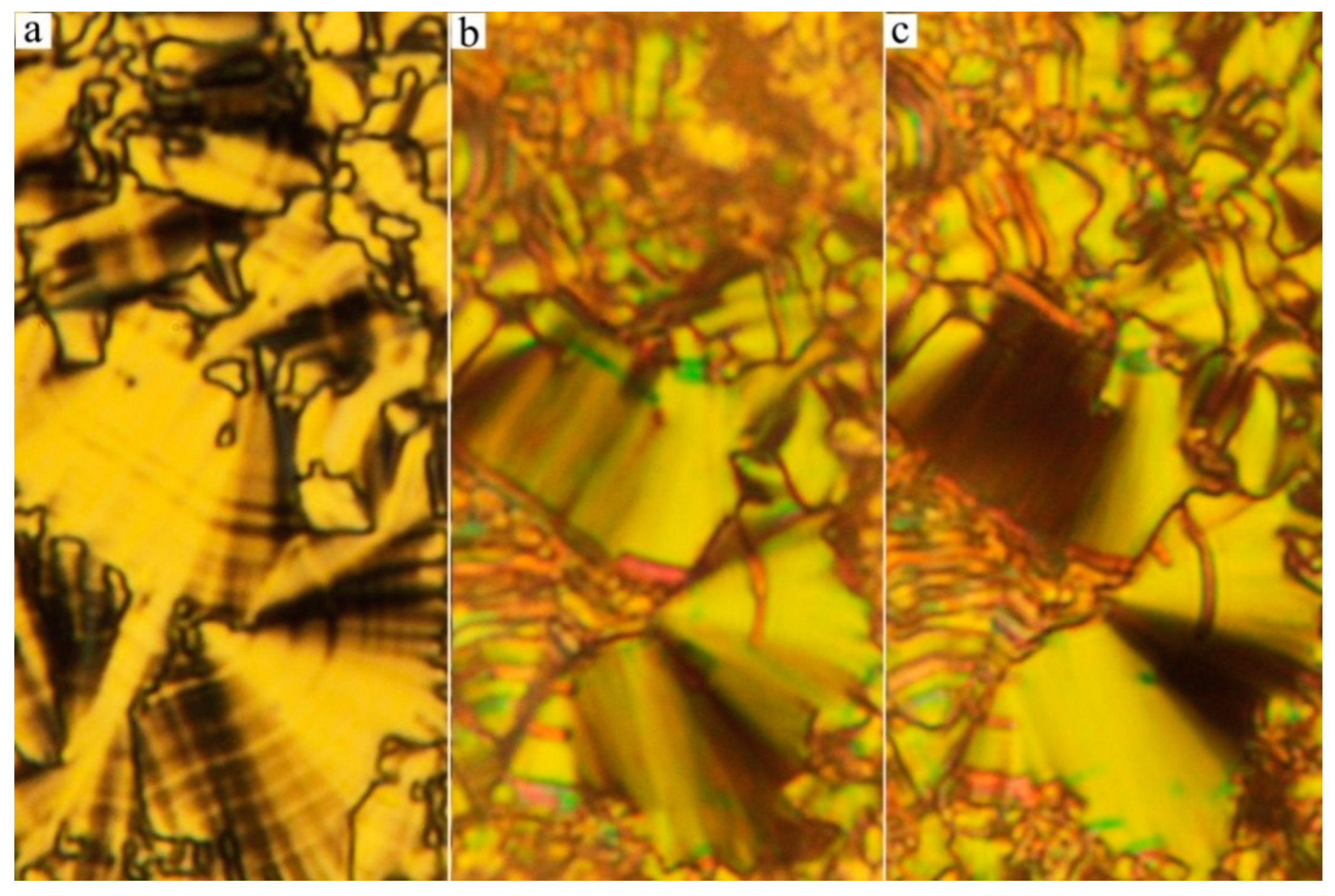

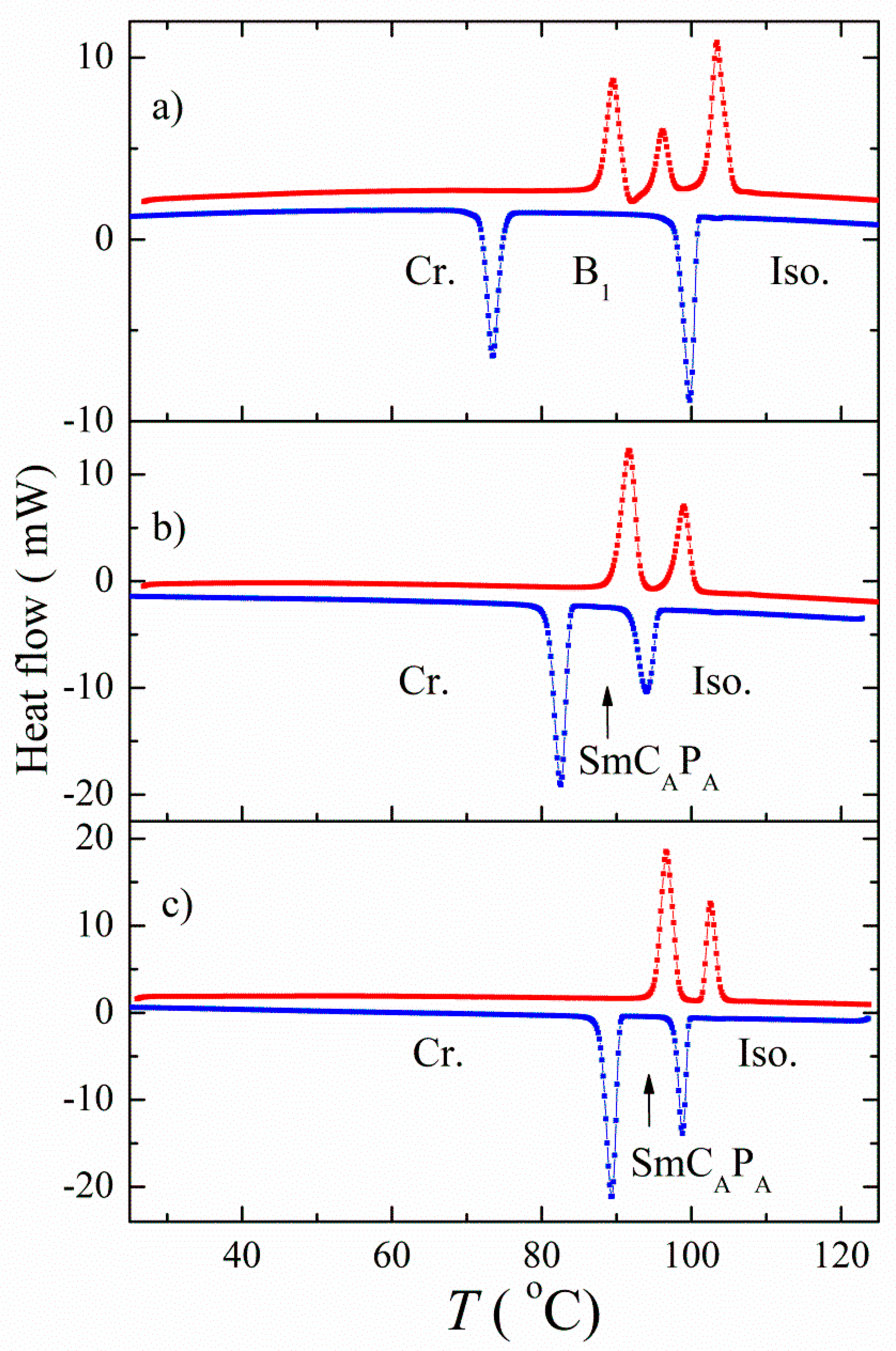

All compounds were studied by a calorimetric method; DSC measurements were performed at the heating and cooling runs. We analyzed the measured data and the phase transition temperatures and corresponding enthalpy values (

Table 1. Melting point, m.p., the phase transition temperature from the isotropic (Iso) phase to the mesophase, T_iso, and temperature of crystallization, T_cr, in °C, and corresponding enthalpy changes, ΔH in kJ mol⁻¹, detected on the second temperature runs, are in brackets.

Comp.	X	R	m.p. ΔH	Tcr ΔH	M	Tiso ΔH	Iso
Ia	F	C8H17	123 (+50.0)	104 (−29.6)	B1	121 (−50.0)	•
Ib	F	C10H21	88 (+18.7)	75 (−16.6)	B1	101 (−18.8)	•
Ic	F	C12H25	95 (+31.9)	83 (−33.5)	SmCAPA	96 (−19.1)	•
Id	F	C14H29	95 (+44.3)	90 (−44.3)	SmCAPA	100 (−21.1)	•
IIa	Cl	C8H17	118 (+45.7)	101 (−44.0)	−	−	•
IIb	Cl	C10H21	107 (+40.0)	100 (−37.6)	−	−	•
IIc	Cl	C12H25	106 (+41.0)	101 (−37.4)	−	−	•
IId	Cl	C14H29	107 (+50.1)	102 (−42.8)	−	−	•
IIIa	CH3	C8H17	125 (+45.3)	103 (−44.9)	−	−	•
IIIb	CH3	C10H21	108 (+66.1)	100 (−32.6)	−	−	•
IIIc	CH3	C12H25	88 (+35.9)	99 (−25.1)	−	−	•
IIId	CH3	C14H29	66 (+11.4)	65 (−14.2)	CrX	103 (−25.9)	•
IVa	NO2	C8H17	127 (+39.1)	125 (−37.4)	−	−	•
IVb	NO2	C10H21	129 (+42.1)	126 (−41.9)	−	−	•
IVc	NO2	C12H25	132 (+44.2)	128 (−42.6)	−	−	•
IVd	NO2	C14H29	129 (+47.2)	126 (−48.6)	−	−	•

). The transition peaks observed in DSC plots were sharp and revealed big enthalpy values associated with phase transitions, for demonstration see Figure 1 with thermographs for two selected compounds from the series I. We observed textures under a polarizing microscope to assess mesomorphic behavior. We found that only series I showed mesogenic properties. Namely, for shorter homologues Ia and Ib a columnar B₁-type of a mesophase was established from textural features. For illustration, Figure 2a shows the planar texture for Ia with a texture typical for a columnar B₁ phase. We observed colored domain-like textures, which did not respond to an applied electric field. For compounds Ic and Id from series I, a SmCP phase appeared with typical textures and specific electro-optical properties. For samples with one free surface, a schlieren texture was found (Figure 2b). In the planar textures without the electric field, we could distinguish a fine structure of stripes. Nevertheless, the averaged extinction without the electric field was oriented along polarizer’s direction. Under the applied electric field, the color of the observed fan-shaped texture slightly changed from yellow-orange to yellow-green, so we could expect that the birefringence changes. Moreover, the extinction position rotated clockwise and anticlockwise depending on polarity of the applied field (Figure 3). Such texture transformation is characteristic for a transition from the SmC_AP_A phase to the SmC_SP_F phase under the electric field. In the SmC_SP_F, all molecules are turned towards polarity of the applied field. The electro-optical behavior for the SmC_AP_A−SmC_SP_F transition has been described in literature [2,11,12], schematically, we demonstrated such a type of molecular reorientation in Figure 4. We expect that the molecules rotate on the conus and do not change the chirality.

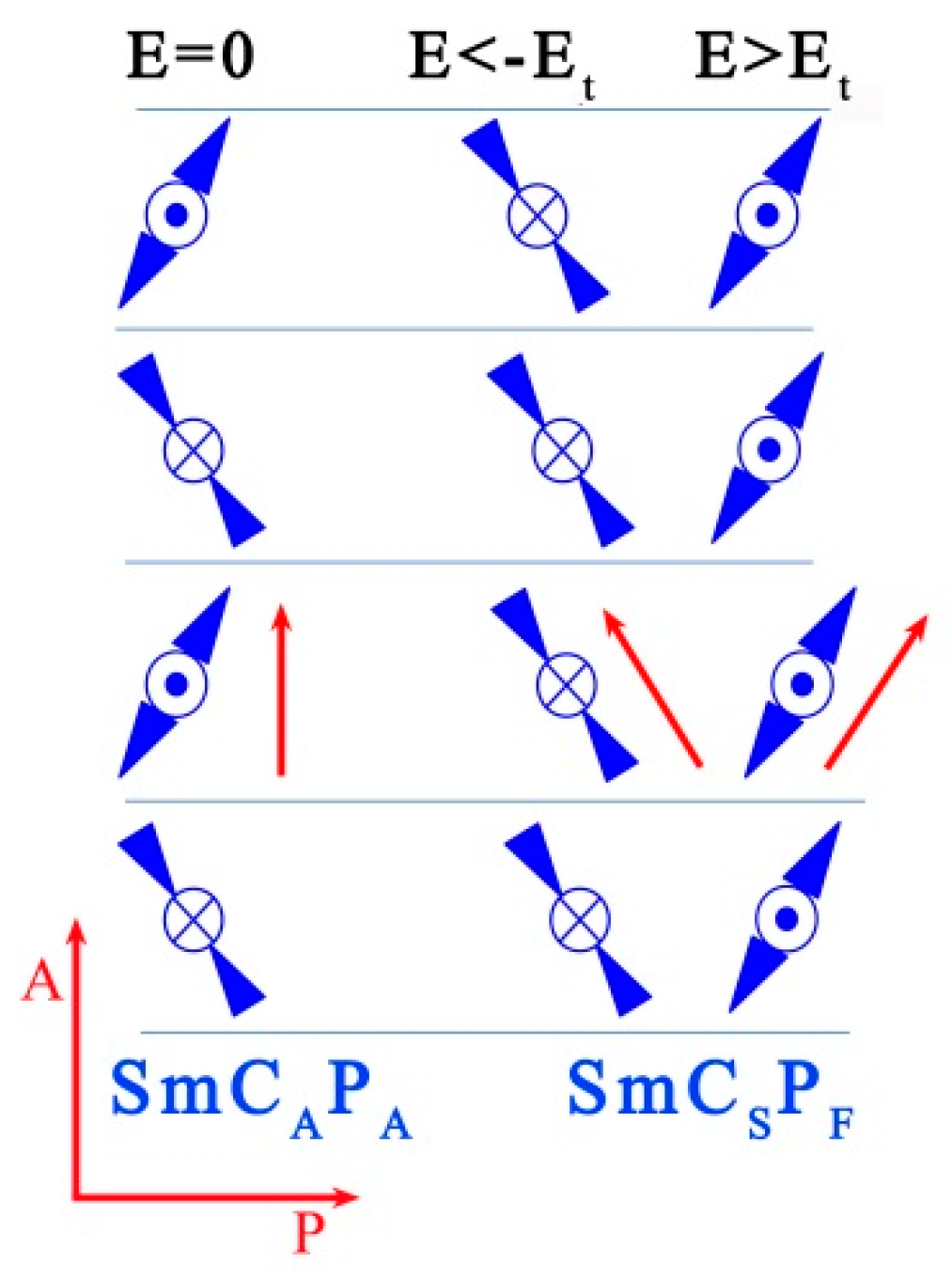

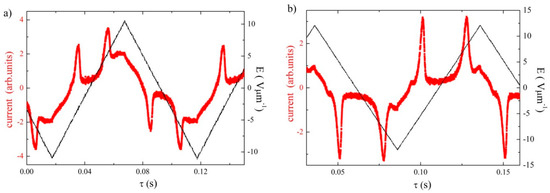

We studied a polarization current in the SmC_AP_A phase. We found that there were two peaks per half-cycle in the profile of the polarization current, which was induced in an a.c. field of the triangular shape. The switching current is demonstrated in Figure 5a,b for Ic and Id, respectively. Under a sufficiently large applied electric field, higher than 10V/μm, we detected polarization, P(T), which did not change with temperature within the SmC_AP_A phase on cooling and P values reached about 500 nC/cm² and 700 nC/cm² for Ic and Id, respectively.

3.2. Dielectric Spectroscopy

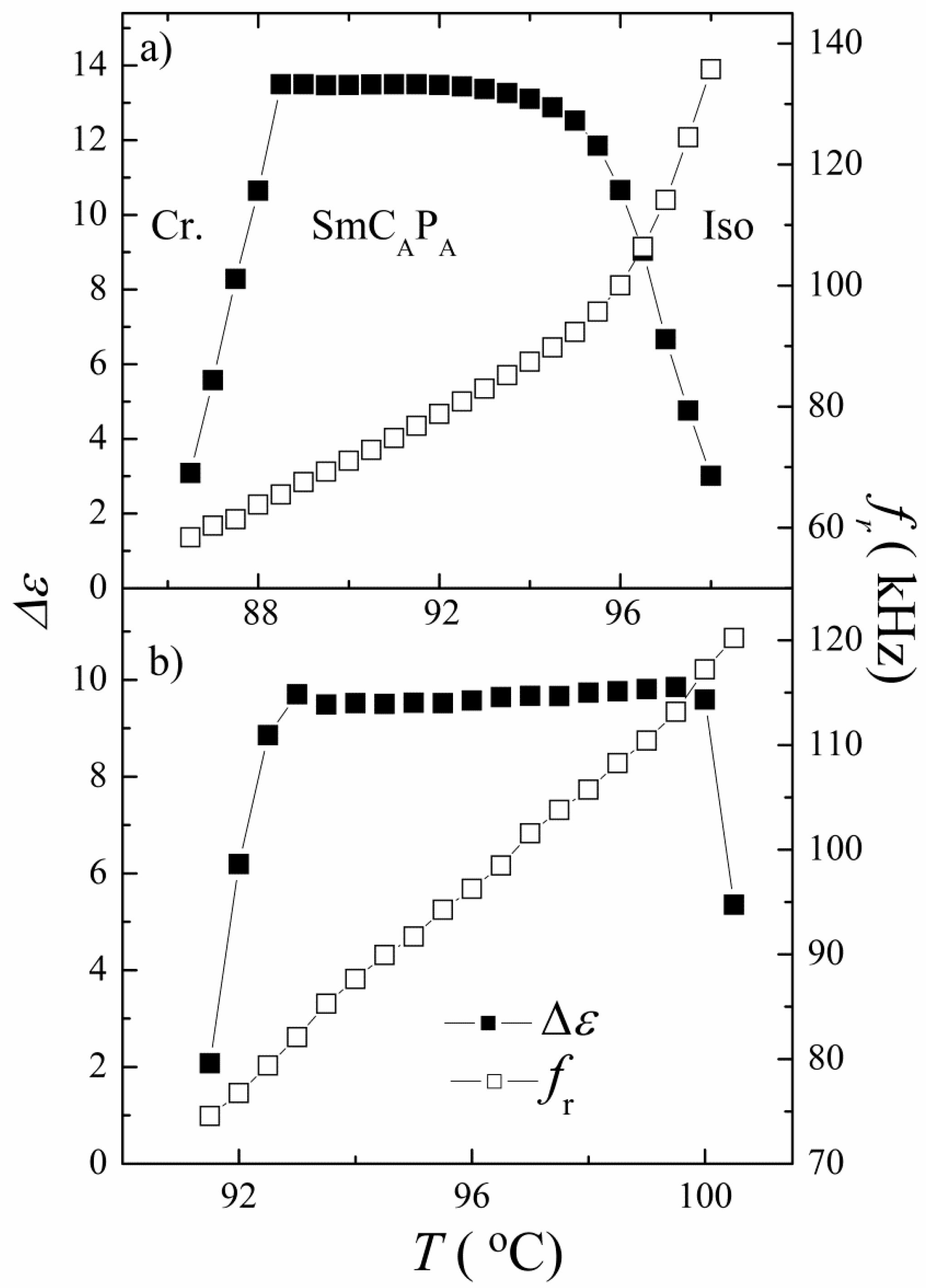

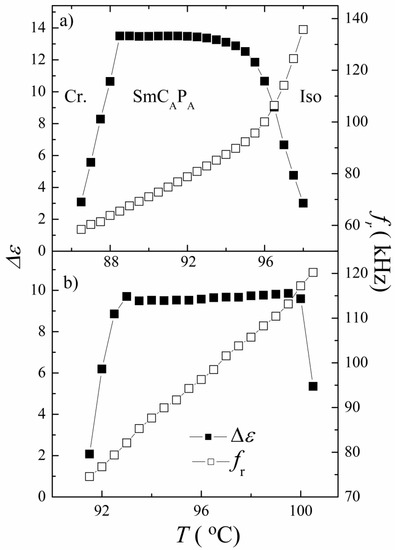

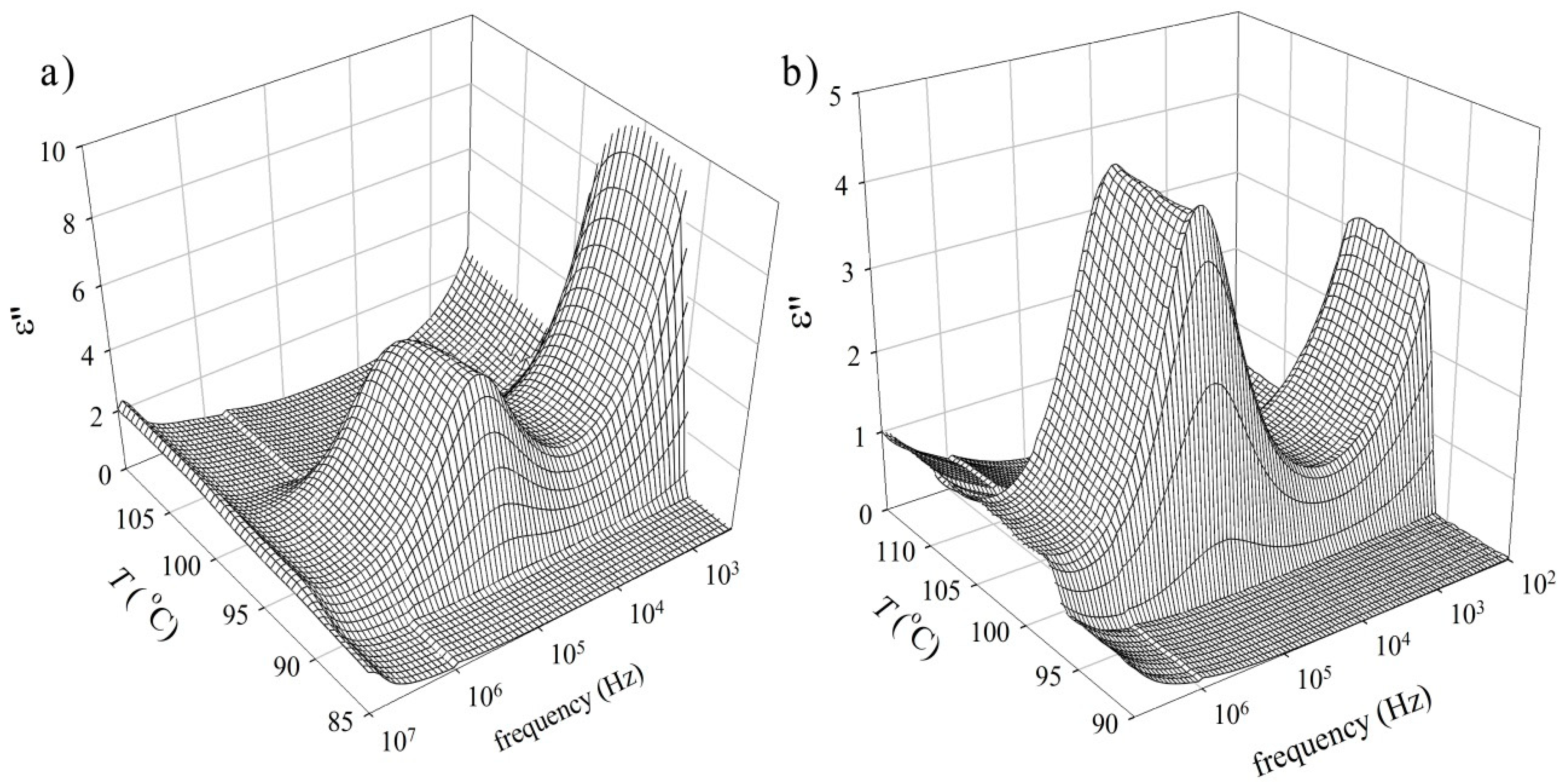

Dielectric properties in the SmC_AP_A phase were studied in detail. The complex permittivity was acquired in the frequency range from 100 Hz to 10 MHz on cooling from the isotropic phase. We detected a weak high-frequency mode, which was present only in the temperature range of the SmC_AP_A phase. Three-dimensional (3D) graphs of the imaginary part of the permittivity, ε’’, are shown in Figure 6 for compounds Ic and Id, on cooling from the isotropic phase, through the SmC_AP_A phase down to the crystallization. The relaxation mode was present only in the temperature range of the SmC_AP_A phase and it disappeared in the isotropic as well as in the crystalline phases. The mode can be attributed to the collective mode, which is often present in SmCP phases, which is probably related to the antiferroelectric character of the mesophase. We analyzed the dielectric behavior with respect to Cole−Cole formula (1) and obtained the relaxation frequency, f_r, and the dielectric strength, Δε, in the SmC_AP_A phase. Temperature dependency of the relaxation frequency, f_r, and the dielectric strength, Δε, for Ic and Id are shown in Figure 7. We found f_r(T) decreased continuously on cooling and we obtained an activation energy when fitted to the Arrhenius law.

3.3. X-ray Measurements

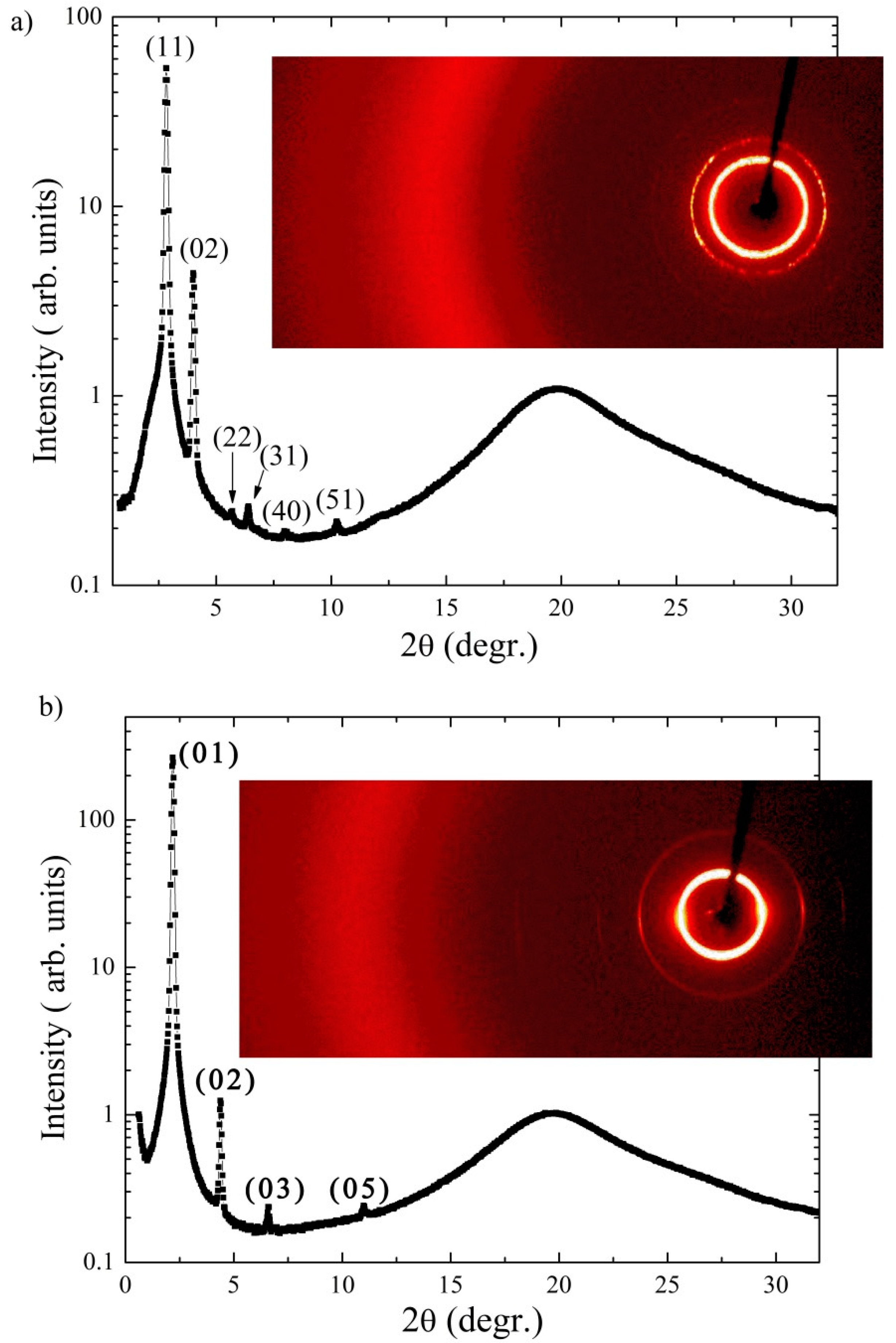

X-ray scattering measurements were performed for all mesogenic compounds from the series I. For compounds Ia and Ib in the small-angle region, the diffractograms exhibited incommensurate reflections (Figure 8a) that can be indexed assuming centred rectangular unit cells. This type of diffraction pattern is characteristic for a B₁-type of columnar mesophases. For Ia, the unit cell at T = 114 °C was calculated and we established a = 32.5 Å and b = 41.8 Å. For Ib at T = 100 °C, a = 43.8 Å and b = 44.2 Å were found. The parameter b of the unit cell is related to the molecular length and it reflects the extension of the terminal chains, when we compare Ia and Ib. For Ic and Id in the SmC_AP_A phase, the XRD signal in the small-angle region revealed sharp commensurate peaks, which corresponded to the smectic layers. The layer spacing value, d, was calculated and for Ic we found d = 40.3 Å (at the temperature T = 95 °C) and for Id d = 42.2 Å (at T = 99 °C). For all studied mesogenic compounds, the diffuse high-angle maxima correspond to about 4.5 Å, which is the averaged intermolecular distance within layers. In Figure 8, we present an XRD intensity profile with respect to the scattering angle for two selected compounds. In Figure 8a, there is the intensity versus scattering angle for Ib in the B₁ phase with Miller indexes at the corresponding peaks. In Figure 8b, the intensity versus scattering angle is demonstrated for Ic. In

Table 2. Parameters of the crystallographic unit cell, a and b, at selected temperatures, T. For Ic and Id the layer spacing, d, and the calculated length of the molecule, l, and calculated value of the tilt angle, γ, are presented.

	T/ºC	a/Å	b/Å	d/Å	l/Å	γ/degr.
Ia	114	32.5	41.8		45.8	24
Ib	100	43.8	44.2		50.1	28
Ic	95			40.3	54.5	42.3
Id	99			42.2	58.9	44.2

, crystallographic parameters are summarized and compared with the length of the molecule, l, obtained from ab initio calculations. The tilt angle of molecules with respect to the layer normal, γ, can be calculated and we calculated it for both types of mesophases, the columnar B₁ phase as well as in the SmC_AP_A phase (Table 2). In the SmC_AP_A phase, the value of the tilt angle was approaching 45 degrees, which was in agreement with observations of textures under the applied electric field, as we observed rotation of the extinction position for an angle of 42−45 degrees.

4. Discussion and Conclusions

In this study, we have focused on the mesomorphic behavior of bent-core liquid crystals bearing the lateral substituent in the apex position of the core. Previously, we documented for derivatives of 3-hydroxybenzoic acid with lateral substituents in position six that only materials bearing the smallest substituent (fluorine) exhibited mesomorphic behavior while other substituents caused crystallinity of the substances [34]. In this particular case, the mesomorphic behavior was highly dependent on the number and orientation of the ester linkages. Tuning the orientation of the ester groups (Figure 9a), it was possible to induce the formation of an enantiotropic columnar B₁ phase and lamellar SmC_AP_A phases. In the case of methyl and chlorine as the substituents in the apex position, only monotropic B₁ and an enantiotropic SmC_AP_A phase for the materials with longest terminal alkyl chain (C₁₄H₂₉) were observed. Subsequently, this plausible orientation of ester linkages was adopted also for the materials studied here. Despite the optimum number and orientation of the ester linking units, only the fluoro-substituted materials I exhibited mesomorphic properties. It is reasonable to assume that in the case of materials of series II–IV, a negative steric effect of larger substituents hinders the formation of a mesophase. Similar behavior has already been discussed for 5-substituted resorcinol-based materials (1,3-phenylene bis[4-(4-alkyloxyphenoxycarbonyl)benzoates, (Figure 9b) for which all studied fluoro-substituted homologues exhibited a SmCP_A phase, while other lateral substituents were not tolerated [29]. It should be noted that the electronic effect of the substituents is less likely to affect the physical properties of the materials. The lateral substituents are located in meta-position to the functional groups connecting the elongating side arms and, thus, cannot significantly affect their electronic state and, consequently, their conformation.

In this contribution we have synthesized central cores laterally substituted in the apex position and applied them in the synthesis of four series of novel bent-core liquid crystals. From the DSC studies and texture observation under an optical polarizing microscope, we have found that only the materials of the series I show mesomorphic behavior, while materials of series II–IV bearing bulky substituents are crystalline only. Using electro-optical investigations, dielectric spectroscopy, and X-ray measurements, we have determined the character of the mesophases. We show that the fluoro-substituted homologues with the shorter terminal alkyl chains (C₈H₁₇ and C₁₀H₂₁) exhibit the columnar B₁ phase while materials with longer terminal alkyl chains (C₁₂H₂₅ and C₁₄H₂₉) show the SmC_AP_A phase.

It can be concluded that the mesomorphic behavior of the materials substituted in the apex position strongly depends on the size of the lateral substituent with fluorine being most probably the only tolerable one. The mesomorphic properties of the fluoro-substituted materials can be tuned by the length of the terminal alkyl chains. However, the effect of the type, number, and orientation of the linking units in the side chains is yet to be studied in detail.
