Preparation and Electrochemical Properties of Co₃O₄ Supercapacitor Electrode Materials

Abstract

A special gas-phase diffusion precipitation method with ammonia as the gas-phase diffusion precipitant was adopted. After fully reacting with different cobalt sources in a sealed space, the liquid funnel was separated and dried, and calcined at different temperatures for 2 h. The prepared Co₃O₄ powder was used as a supercapacitor (SCs) electrode to measure the electrochemical properties of the prepared material. The influences of different cobalt sources and sodium phosphate monobasic dehydrate on the preparation of Co₃O₄ SCs electrodes were investigated. The optimal performance of Co₃O₄ was 640 F·g⁻¹ before modification, and this reached 1140 F·g⁻¹ after modification, which was an improvement of 78.1%.

1. Introduction

Supercapacitors (SCs) have been extensively studied due to their high specific power density, long cycle life and fast charge and discharge rate in important electrical energy storage devices [1,2,3]. In recent years, transition metal oxides have been widely studied for their variable oxidation states and high charge storage capacity [4,5,6]. Among them, RuO₂ has been considered for its good electrochemical properties [7], but its environmentally poisonous nature and relatively high cost make it limited in commercial application. For other transition oxides [8], Co₃O₄ has been found to be a better alternative material due to its low price and environmental friendliness [9]. Furthermore, recent research has shown that Co₃O₄ with different dimensions and special morphology exhibits excellent specific capacitance and electrochemical performance [10,11,12]. For example, Liu et al. prepared zero dimensional (0D) Co₃O₄ nanoparticles [13]. These Co₃O₄ nanoparticles showed a specific capacitance of 523.0 F·g⁻¹ at 0.5 A·g⁻¹. Venkatachalam et al. successfully fabricated Co₃O₄ one-dimensional (1D) rod-like arrays [14], which exhibited a specific capacitance of 655 F·g⁻¹ at 0.5 A·g⁻¹. Besides this, a two-dimensional (2D) Co₃O₄ nanosheet was prepared [15]. The electrode showed a specific capacitance of 233.6 F·g⁻¹ at 0.5 A·g⁻¹. Therefore, the research on Co₃O₄ SCs attracts more and more attention from researchers.

The preparation methods of the Co₃O₄ SCs materials have been widely reported [16,17], and include the hydrothermal method [18], the solvothermal method [19], chemical precipitation [20], thermal decomposition [21], the sol-gel method [22], the template method [23], electrodeposition [24], chemical vapor deposition (CVD) [25], chemical bath deposition [26], the in-situ self-organization method [27], spray pyrolysis [28], galvanic displacement [29], laser ablation [30], the electrospinning technique [31], and so on. Although the Co₃O₄ electrode materials synthesized by one of these synthetic methods have excellent properties, they require difficult synthesis conditions or are confined to the laboratory stage, which affects the rapid development of their commercialization and industrialization. Therefore, developing a low-cost and simple synthesis method for Co₃O₄ electrode materials with excellent performance is an important work. The gas-phase diffusion precipitation method is an improvement of chemical precipitation. It retains the advantages of chemical precipitation, but also has the characteristics of being able to synthesize homogeneous and smaller particles of supercapacitor materials.

In addition, different cobalt sources have great influence on the properties of the materials in the process of synthesis [32]. Material post-treatment modification is also an important means by which to enhance the performance of Co₃O₄ electrode materials [33]. Herein, Co₃O₄ electrode materials for SCs have been prepared by the gas-phase diffusion precipitation method. Ammonium hydroxide is a gas-phase diffusion precipitator. It is placed in a sealed space with the cobalt source. After the full reaction of gas diffusion, precipitation is obtained. This is followed by separate drying and calcination for 2 h. The prepared Co₃O₄ was used as an SCs electrode to measure the electrochemical properties. The effects of ammonium hydrogen phosphate and different cobalt sources on the preparation of Co₃O₄ SCs electrode materials were investigated in order to obtain the best reaction conditions. In addition, the materials were tested and characterized via X-ray diffraction (XRD), scanning electron microscopy (SEM) and electrochemical properties.

2. Materials and Methods

2.1. Materials and Instrumentation

The reagents were commercially purchased and not further purified. These mainly contained cobalt chloride hexahydrate (CoCl₂·6H₂O, 99%, Shenyang Huadong Reagent Co., Ltd., Shenyang, China), cobaltous acetate tetrahydrate (Co(OAc)₂·4H₂O, 99%, Liaoning Quanrui Reagent Co., Ltd., Shenyang, China), ammonium hydroxide (NH₃·H₂O, 28 wt.%, Liaoning Quanrui Reagent Co., Ltd., Shenyang, China), sodium hypophosphite (NaH₂PO₂·H₂O, 99%, Sinopharm Group Chemical Reagent Co., Ltd., Shanghai, China), potassium hydroxide (KOH, 90%, Liaoning Quanrui Reagent Co., Ltd., Shenyang, China), nickel foam (Ni, 99.8%, 1 mm, Shanghai Tanqi New Materials., Ltd., Shanghai, China), acetylene carbon black (C, 40 nm, Sinopharm Group Chemical Reagent Co., Ltd., Shanghai, China), polytetrafluoroethylene (PTFE) (-(CF₂-CF₂)_n-, 5 μm, Sinopharm Group Chemical Reagent Co., Ltd., Shanghai, China), ethanol absolute (C₂H₆O, 99.7%, 0.82 g/mL, Sinopharm Group Chemical Reagent Co., Ltd., Shanghai, China) and deionized water.

A Bruker D8 X-ray diffractometer (Bruker, Karlsruhe, Germany) was used to measure the powder X-ray diffraction (XRD) data. A JEOL JSM-7500F scanning electron microscopy (SEM) device (JEOL Inc., Tokyo, Japan) was utilized to characterize the surface morphology of the Co₃O₄ samples. An Ivium Stat electrochemical workstation (IVIUM Inc., Amsterdam, The Netherlands) was employed to test the galvanostatic charge–discharge (GCD), cyclic voltammetry (CV) and electrochemical impedance spectroscopy (EIS) of the Co₃O₄ electrode materials. In addition, an SX2-4−10GJ muffle furnace, a DHG-9036A constant temperature drying oven, a JKKZ-4−10GJ centrifuge and a KQ-700 ultrasonic cleaner were incorporated into the preparation process of Co₃O₄ electrode materials.

The electrode active substance Co₃O₄, an acetylene black conductive agent and a PTFE emulsion (diluted to 15%) were mixed uniformly in accordance with the mass ratio of 80:15:5. This mixture was poured into agate mortar and we added an appropriate amount of deionized water. The mixed paste substance was achieved by grinding for more than 1 h. A piece of nickel foam (1 cm × 3 cm) was taken to weigh the quality of nickel foam and recorded as m₁. The mixed slurry material was uniformly coated on one side of the nickel foam with an area of 1 cm × 1 cm. The coated active material was pressed at a constant pressure of 15 MPa for 1 min. The loading mass of the active material was acquired via measuring electrode with a microbalance with accuracy of 0.1 mg. Typically, the loading mass of the active material was ≈4.0 mg. The pressed electrode was placed in a drying oven for 10 h at 60 °C. After that, the electrode was taken out, and the quality of the dried nickel foam was weighed and recorded as m₂. The accomplished electrodes were put in 6 M KOH solution for 24 h, after using a three-electrodes system and electrochemical workstation to measure the electrochemical properties of the electrodes. The Co₃O₄ electrode, the platinum plate and the Hg/HgO electrode were used as the working electrode, the counter electrode and the reference electrode, respectively.

2.2. Synthesis and Preparation

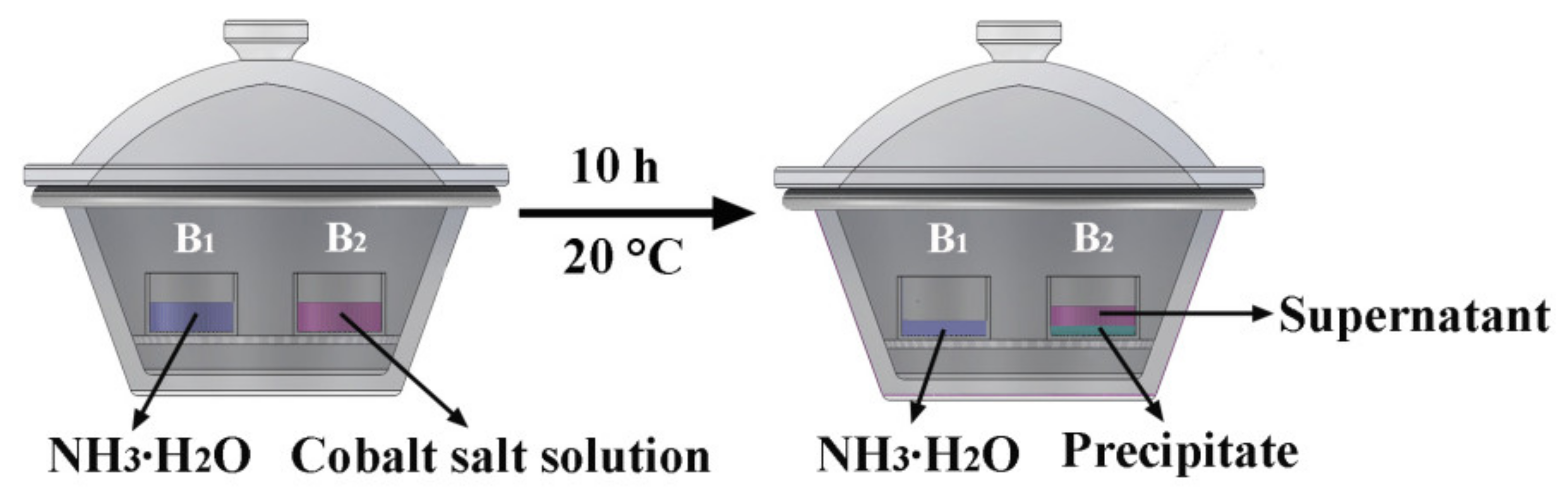

The schematic diagram of the gas-phase diffusion precipitation method for Co₃O₄ synthesis is shown in Figure 1. The materials for the synthesized Co₃O₄ electrode materials are provided in

Table 1. Co₃O₄ electrode materials were prepared by gas-phase diffusion precipitation method.

Sample	Cobalt Source	Solvent	Precipitator	NaH2PO4·2H2O
A	Co(OAc)2·4H2O	H2O	NH3·H2O	Unmodified
B	CoCl2·6H2O	H2O	NH3·H2O	Unmodified
C	CoCl2·6H2O	H2O	NH3·H2O	Modified

. The specific conditions for synthesis are as follows, taking synthesis B as an example. A quantity of 20 mL of NH₃·H₂O was loaded into beaker B₁. A measured amount of CoCl₂·6H₂O (0.692 g, 3 mmol) was dissolved into beaker B₂ with 50 mL deionized water, and then the two beakers were put into an airtight container at the same time. After being heated at 20 °C for 10 h, the upper layer of beaker B₂ was a red solution, the lower layer was a blue-green precipitation, and there was small amount of ammonium hydroxide in beaker B₁. Beaker B₂ was taken out, and the precipitate in the beaker was separated by centrifuge. The product was washed several times with deionized water and ethanol respectively, and dried at 60 °C to obtain the dark green substance Co(OH)₂. Finally, the prepared precursor was calcined in a muffle furnace at 300 °C for 2 h with a heating rate of 10 °C/min⁻¹. Co₃O₄ target product (B) was obtained. A was obtained by replacing CoCl₂·6H₂O with Co(OAc)₂·4H₂O under the same reaction conditions.

The Co₃O₄ electrode was modified by NaH₂PO₂·H₂O with heat treatment under the protection of an Ar atmosphere. To introduce phosphate ions, the as prepared B products were further thermally annealed in the presence of NaH₂PO₄·2H₂O. With a ratio of B to NaH₂PO₂·H₂O of 5, the B material and NaH₂PO₂·H₂O were respectively placed in two separate positions in a porcelain boat, whereby NaH₂PO₂·H₂O was at the upstream side of the furnace. After introducing Ar gas into the tube furnace for 30 min, the tubular furnace was heated to 250 °C with a heating rate of 5 °C/min⁻¹ and held at this temperature for 30 min. Then, the tube furnace was naturally cooled to room temperature under Ar, and the black powder was obtained, which was abbreviated as C.

3. Results and Discussion

3.1. Structural and Morphological Characterization

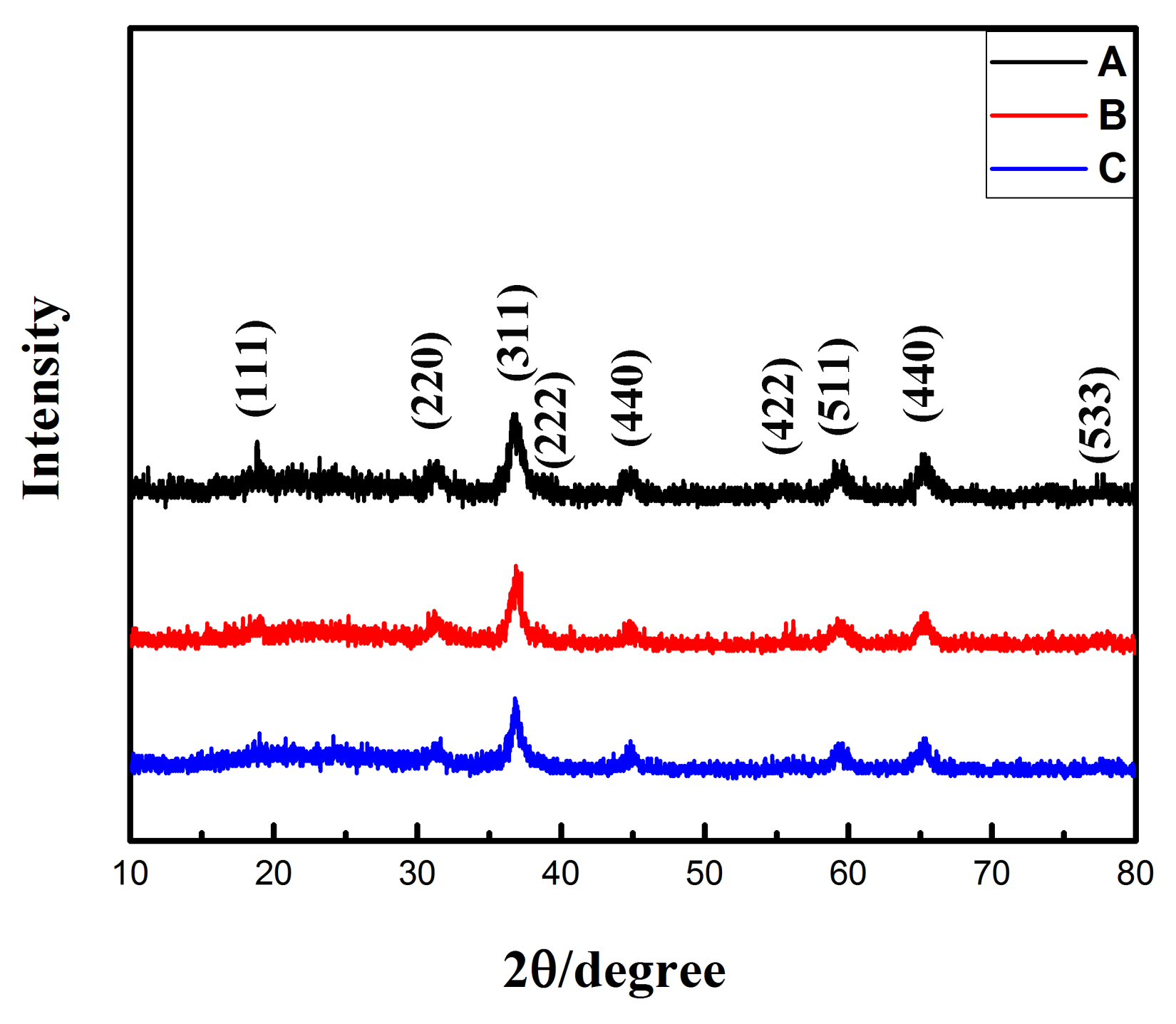

As shown in Figure 2, A is the XRD pattern of Co₃O₄ prepared by CoCl₂·6H₂O, B is the XRD pattern of Co₃O₄ prepared by Co(OAc)₂·4H₂O, and C is the XRD pattern of B modified by NaH₂PO₄·2H₂O. The XRD pattern of them all can be well indexed as face-centered cubic (fcc) Co₃O₄ (PDF no. 80−1542). The diffraction peaks at 18.98°, 31.32°, 36.90°, 44.84°, 59.64° and 65.35° can be denoted as (1 1 1), (2 2 0), (3 1 1), (4 0 0), (5 1 1) and (4 4 0) reflections of Co₃O₄, respectively [34]. The XRD data confirmed that Co₃O₄ was obtained by the calcining of the Co(OH)₂ precursor at 300 °C.

To observe the morphology of the Co₃O₄ electrode materials, SEM images with different magnification are shown in Figure 3. We can find that sample A has a micro-spherical morphology (Figure 3a). It is about 1 μm in diameter. From SEM images with high multiples, it can be confirmed that the morphology of A is a hollow micro-spherical morphology (Figure 3b), which is composed of nanoflocculent Co₃O₄ electrode materials. As for B, it has a flower-like microsphere (Figure 3c), which is composed of thin nanosheets (Figure 3d). The thickness of the nanosheet is about 10 nm. Here, it becomes apparent that the cobalt source plays the most significant role in directing the morphological habit of the aerogel structure. The SEM images of the materials resulting from the cobalt source syntheses reveal variability in the microstructures. This variability results from the selection of the precursor metal salt [32]. The phosphate modification of sample B resulted in sample C. It can be seen that the morphology of sample C has not changed significantly (Figure 3e). However, it can be observed that there are some small nanoparticles in the middle of the petals (Figure 3f). This is due to phosphate modification [33]. Generally, NaH₂PO₄·2H₂O will decompose and form PH₃ gas at a temperature greater than 150 °C, according to the reaction equation:

$$2\mathrm{N}\mathrm{a}{\mathrm{H}}_2\mathrm{P}{\mathrm{O}}_2·2{\mathrm{H}}_2\mathrm{O}\left(\mathrm{s}\right)\triangleq \mathrm{P}{\mathrm{H}}_3\left(\mathrm{g}\right)+\mathrm{N}{\mathrm{a}}_2\mathrm{H}\mathrm{P}{\mathrm{O}}_4\left(\mathrm{s}\right)+2{\mathrm{H}}_2\mathrm{O}\left(\mathrm{g}\right)$$

(1)

$$\mathrm{P}{\mathrm{H}}_3+\frac{\mathrm{x}}{4}\mathrm{C}{\mathrm{o}}_3{\mathrm{O}}_4=\frac{\mathrm{x}}{4}\mathrm{C}{\mathrm{o}}_3{\mathrm{O}}_{4-\mathrm{x}}+{\mathrm{H}}_3\mathrm{P}{\mathrm{O}}_4$$

(2)

In the copresence of PH₃ gas and H₂O gas, the Co₃O₄ was modified. The small nanoparticles in the middle of the petals were Na₂HPO₄ and phosphate residue after modification.

3.2. Electrochemical Performances

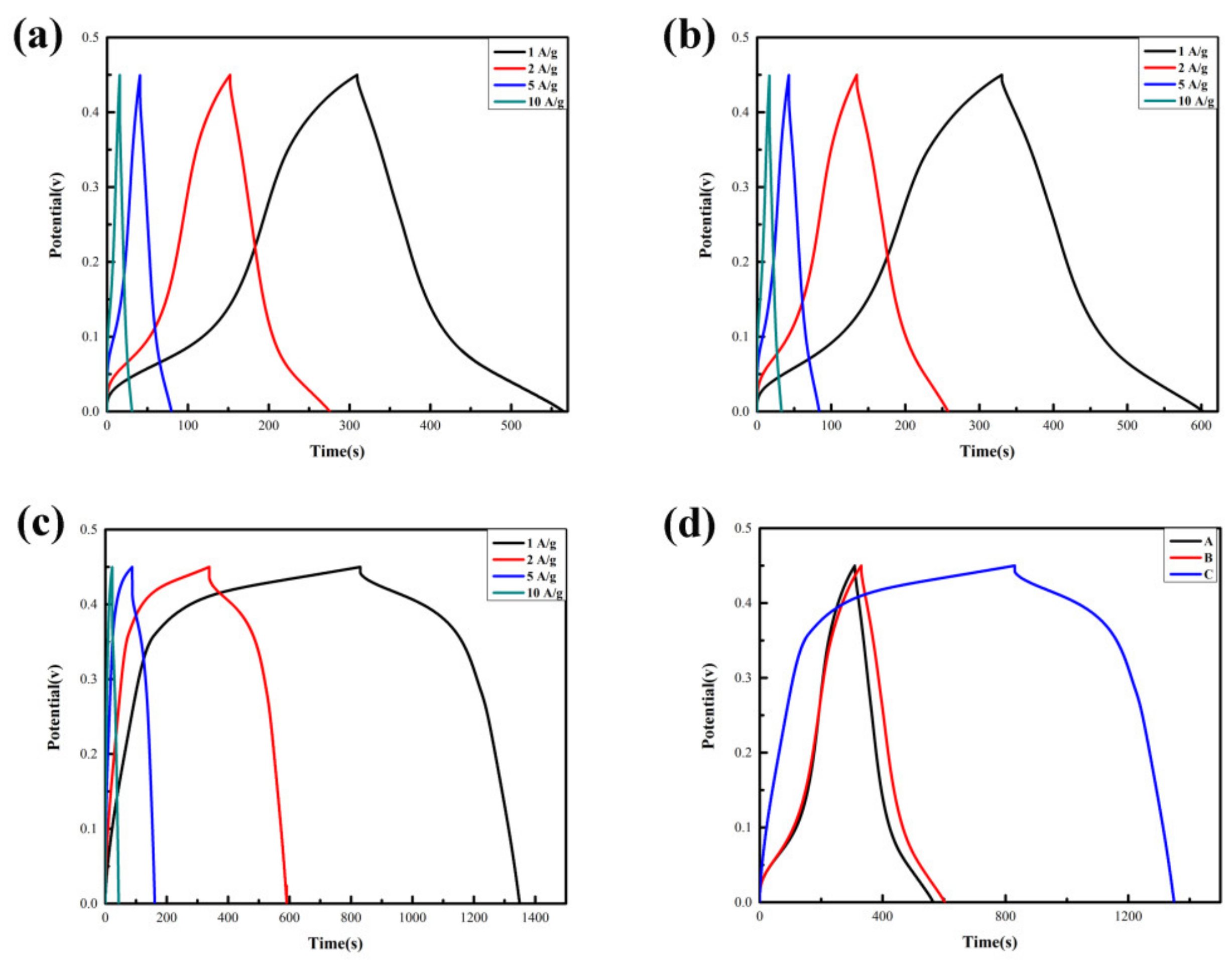

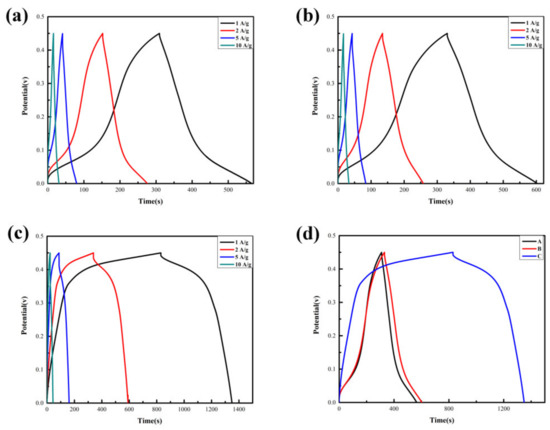

To evaluate the electrochemical performances of the Co₃O₄ electrode materials, galvanostatic charge–discharge (GCD), cyclic voltammetry (CV) and electrochemical impedance spectroscopy (EIS) were used to test. Figure 4a–c show that the GCD measurements of A-C Co₃O₄ electrodes in the potential window 0–0.45 V exhibited the current densities of 1, 2, 5 and 10 A·g⁻¹. There is a big deviation between the discharge curve and the straight line, especially for C, indicating that the capacitance is mainly caused by faradic redox reactions. Therefore, the Co₃O₄ electrode has typical pseudo-capacitance characteristics. According to Figure 4d, it can be found that the C discharge time increases significantly after phosphate modification at 1 A·g⁻¹. The specific capacitances from the discharge curves are calculated from the following equation:

C = IΔt/mΔV

(3)

where I is the discharging current, Δt is the discharging time, m is the mass load of the active materials and ΔV is the discharging potential range.

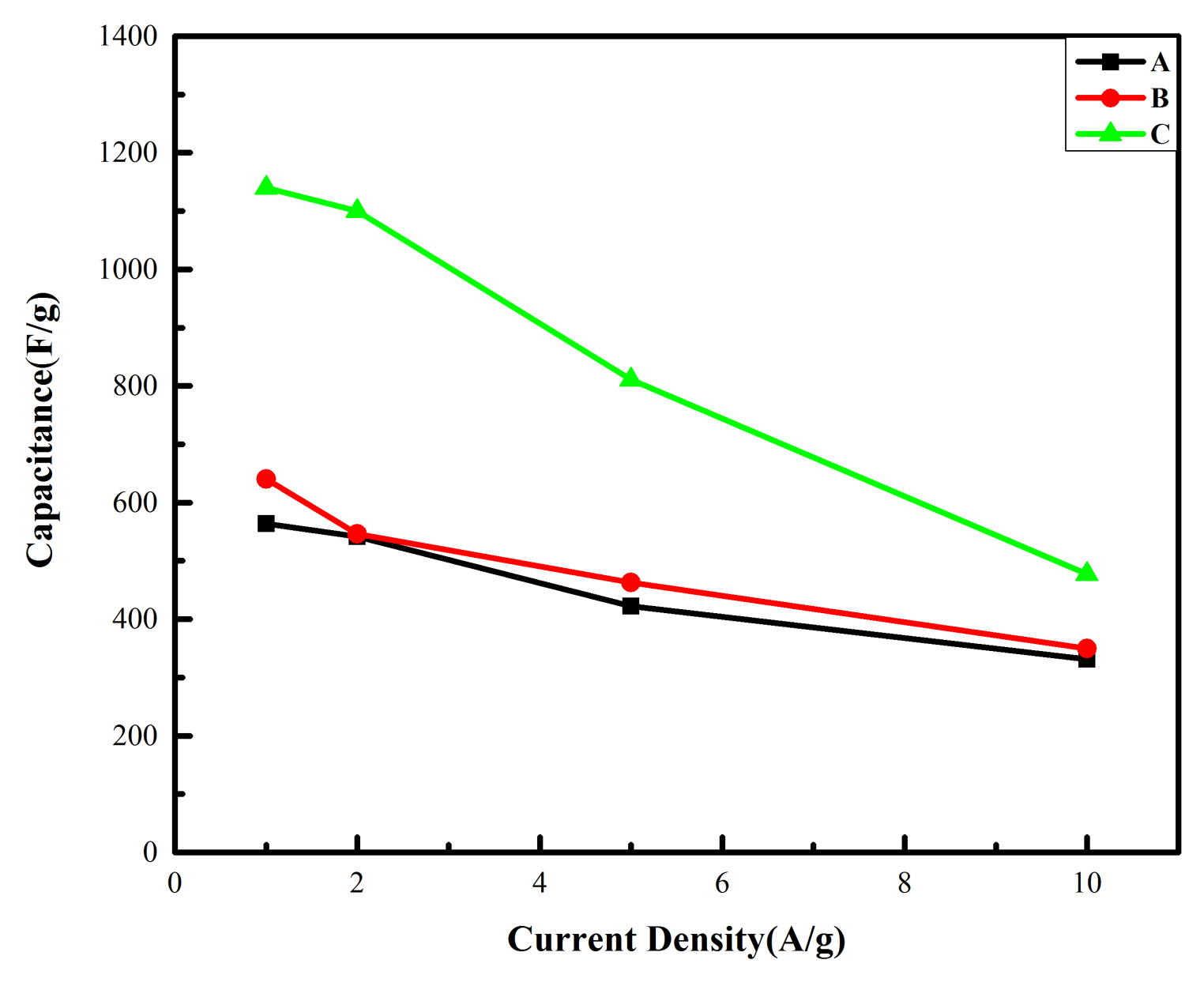

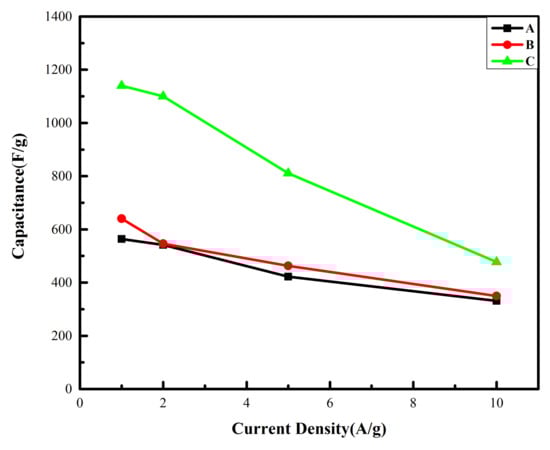

The plot of specific capacitance at different discharge current densities is shown in Figure 5. The capacitance of the A electrodes is 564 F·g⁻¹ at 1 A·g⁻¹ and 331 F·g⁻¹ at 10 A·g⁻¹, with a capacitance retention of 58.7%. It shows the best rate performance among the three samples. The capacitance of B retains 85.3%, 72.3% and 54.7% at 2 A·g⁻¹, 5 A·g⁻¹ and 10 A·g⁻¹, versus 640 F·g⁻¹ at 1 A·g⁻¹. The sample of C shows the maximum capacitance of 1140 F·g⁻¹ at 1 A·g⁻¹. It can retain 96.5% at 2 A·g⁻¹, and 41.8% at 10 A·g⁻¹. The phosphate ion groups (H₂PO₄)⁻ formed on the surface of Co₃O₄ were key to enhancing the electrochemical performance of the electrode materials [35]. With the increase in discharge current density, the specific capacitance decreases gradually. This is due to an increase in the potential drop, and only the external active substance participates in the electrochemical redox at a higher current density [36]. Especially for sample C, dissociating small particles can accelerate the reaction but hinder the movement of ions at higher current densities [37]. There are some small nanoparticles present in the middle of the petals on electrode C, which are phosphate particles left after modification. By comparing with the literature [35], it can be found that the remaining particles are larger. Although these particles can accelerate the redox reaction, they will affect the charge transfer, especially under the condition of a large current density, so the deterioration of capacitance is significant at a high current density. The performances of Co₃O₄ samples synthesized via different methods are shown in

Table 2. Electrochemical performance of Co₃O₄ electrode materials.

Method	Structure	Specific Capacitance	Rate	Ref.
Hydrothermal	Nanoflake	1500 F·g−1 at 1 A·g−1	55.2% at 10 A·g−1	[10]
Template	Nanosheet	1121 F·g−1 at 1 A·g−1	77.9% at 25 A·g−1	[12]
Solvothermal	Nanoparticle	523.0 F·g−1 at 0.5 A·g−1	66.9% at 5 A·g−1	[13]
CVD method	Nanosphere	128 F·g−1 at 10 A·g−1	90% at 20 A·g−1	[25]
Chemical bath deposition	Nanowire	850 F·g−1 at 5 mV·s−1	85% at 100 mV·s−1	[26]
In-site self-organization	Nanorods	1486 F·g−1 at 1 A·g−1	72.9% at 15 A·g−1	[27]
Galvanic displacement	Nanosheet	1095 F·g−1 at 1 A·g−1	61.9% at 15 A·g−1	[29]
Laser ablation	Nanosheet	762 F·g−1 at 6 A·g−1	82.7% at 36 A·g−1	[30]
Electrospinning technique	Nanofiber	340 F·g−1 at 1 A·g−1	87.1% at 10 A·g−1	[31]
Sol-gel	Netlike	708 F·g−1 at 5 A·g−1	71.9% at 50 A·g−1	[32]
Chemical precipitation	Nanonet	739 F·g−1 at 1 A·g−1	72.1% at 15 A·g−1	[38]
Thermal decomposition	Nanoflake	576.8 F·g−1 at 1 A·g−1	49.2% at 50 A·g−1	[39]
Electrodeposition	Nanoplate	517 F·g−1 at 1 A·g−1	39.1% at 20 A·g−1	[40]
Spray pyrolysis	Thin film	412 F·g−1 at 1 A·g−1	93% at 4 A·g−1	[41]
Gas-phase diffusion precipitation	Nanofloc	564 F·g−1 at 1 A·g−1	58.7% at 10 A·g−1	A
Gas-phase diffusion precipitation	Nanosheet	640 F·g−1 at 1 A·g−1	54.7% at 10 A·g−1	B
Gas-phase diffusion precipitation	Nanosheet	1140 F·g−1 at 1 A·g−1	41.8% at 10 A·g−1	C

.

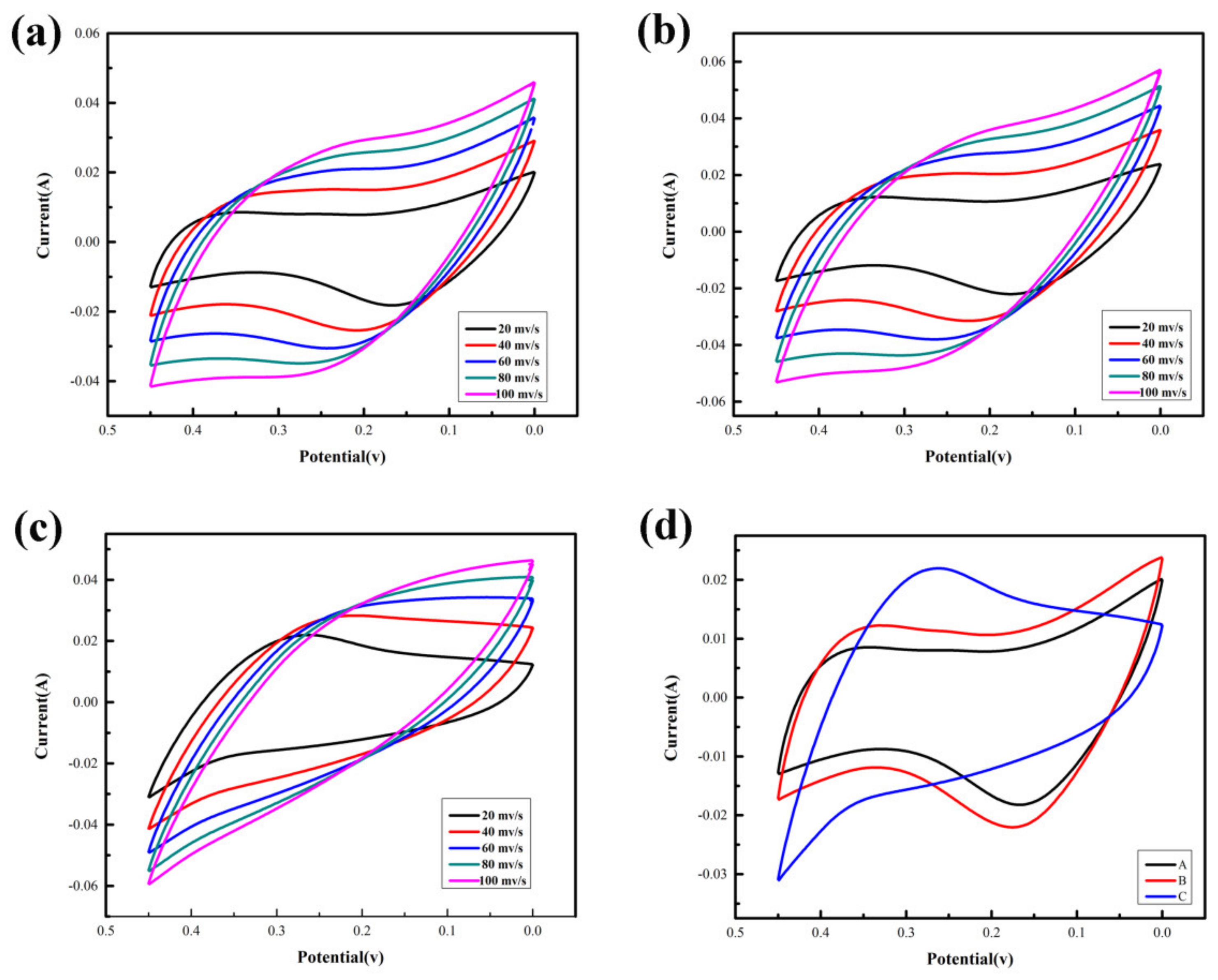

Figure 6a–c shows the CV measurement curves of three Co₃O₄ electrodes with a potential window of 0–0.45 V at scan rates of 20–100 mV·s⁻¹, respectively. The integral area of the CV curves increased with the increase in scanning rate. The CV curves of three Co₃O₄ electrodes show peaks that indicate the pseudocapacitive nature of three Co₃O₄ electrode. For the three Co₃O₄ electrodes, a couple of redox peaks can be observed on the CV curves. Compared with other electrodes, the C electrode has the largest CV area, indicating the highest levels of stored charge (Figure 6d). However, it can be found that as the scanning rate increases, the area of sample C increases most slowly. This is related to the morphology of the modified sample, as evidenced by GCD.

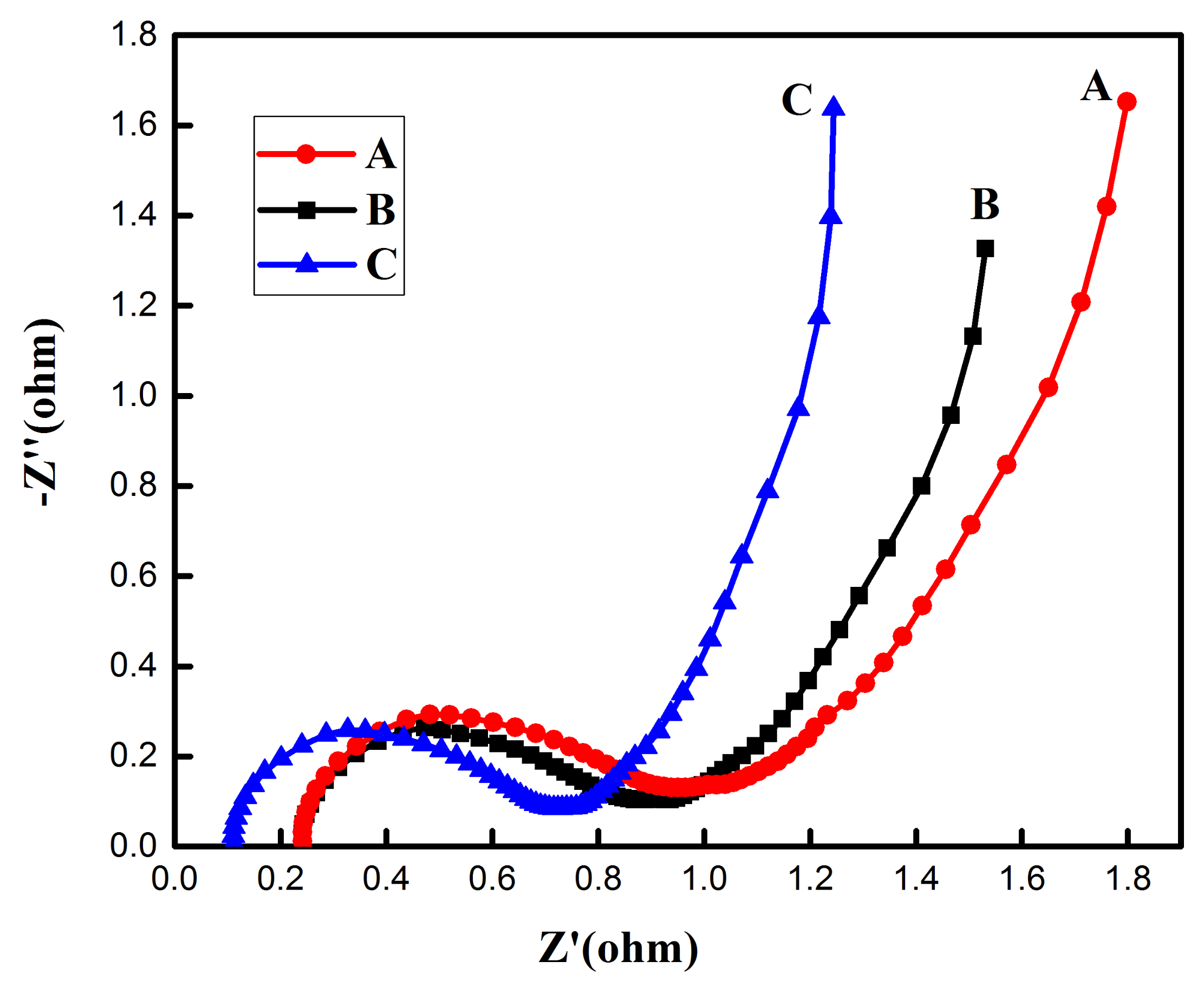

EIS technology was used to research the electrochemical behavior of the Co₃O₄ electrode material in an electrolyte. Figure 7 reveals the Nyquist plots of three Co₃O₄ electrodes in a frequency range from 1 to 10⁵ Hz. The Nyquist impedance curve is the plot of the imaginary component (Z″) of the impedance against the real component (Z′), which consists of a semicircle at a high frequency region (charge transfer process) and a straight line at a low frequency region (diffusion-limited process). The X-intercept of the Nyquist plot is defined as the equivalent series resistance (Rs). It is obvious that C has a lower solution resistance (corresponds to curve intercept with real axis), Rs = 0.12 Ω, than A and B (0.25 Ω). The Nyquist plot shows a small semicircle at high frequency regions. The diameter of the semicircle is related to the charge–transfer resistance (Rct) of the redox reactions [38]. Comparing the semicircle diameter of three Co₃O₄ samples (C < B < A), it can be concluded that the charge transfer resistance (Rct) of B synthesized by CoCl₂·6H₂O is smaller than that of A synthesized by Co(OAc)₂·4H₂O, and the Rct of C modified by sodium phosphate monobasic dehydrate is smaller than that of the unmodified B. The steep slope of the straight line at the lower frequency can show the ion diffusion speed. At the low frequency range, the slope of the straight line represents the diffusion of ions in the electrolyte. The curve slopes decrease in the order of A, B and C, which demonstrates the fastest ion transfer speed of C between the inner channel of the electrode and the electrolyte in, accordance with the specific capacitance of the three samples. In all three areas, the Co₃O₄ electrodes of the C sample have good presentation. This is due to phosphate modification [42].

4. Conclusions

Three Co₃O₄ supercapacitor materials were prepared by a special gas-phase diffusion precipitation method. A has a hollow nano-spherical morphology, while B and C have flower-like microsphere. The Co₃O₄ of B prepared from Co(OAc)₂·4H₂O has a good electrochemical performance. The capacitance of the A electrode is 564 F·g⁻¹ at 1 A·g⁻¹, with a high capacitance retention. It shows the best rate performance among the three samples. The capacitance of B is 640 F·g⁻¹ at 1 A·g⁻¹. The C sample shows the maximum capacitance of 1140 F·g⁻¹ at 1 A·g⁻¹, which improved by 78.1% after NaH₂PO₂·H₂O modification.
