Microstructures and Mechanical Properties of Nanocrystalline AZ31 Magnesium Alloy Powders with Submicron TiB2 Additions Prepared by Mechanical Milling

1
College of Mechanical and Electronic Engineering, Shandong University of Science and Technology, Qingdao 266590, China
2
Medical engineering and technology center, Shandong First Medical University & Shandong Academy of Medical Sciences, Taian 271000, China
*
Author to whom correspondence should be addressed.
Crystals 2020, 10(6), 550; https://doi.org/10.3390/cryst10060550
Received: 26 May 2020 / Revised: 23 June 2020 / Accepted: 25 June 2020 / Published: 26 June 2020
(This article belongs to the Special Issue Mechanical Behavior of Nanocrystalline Alloys)

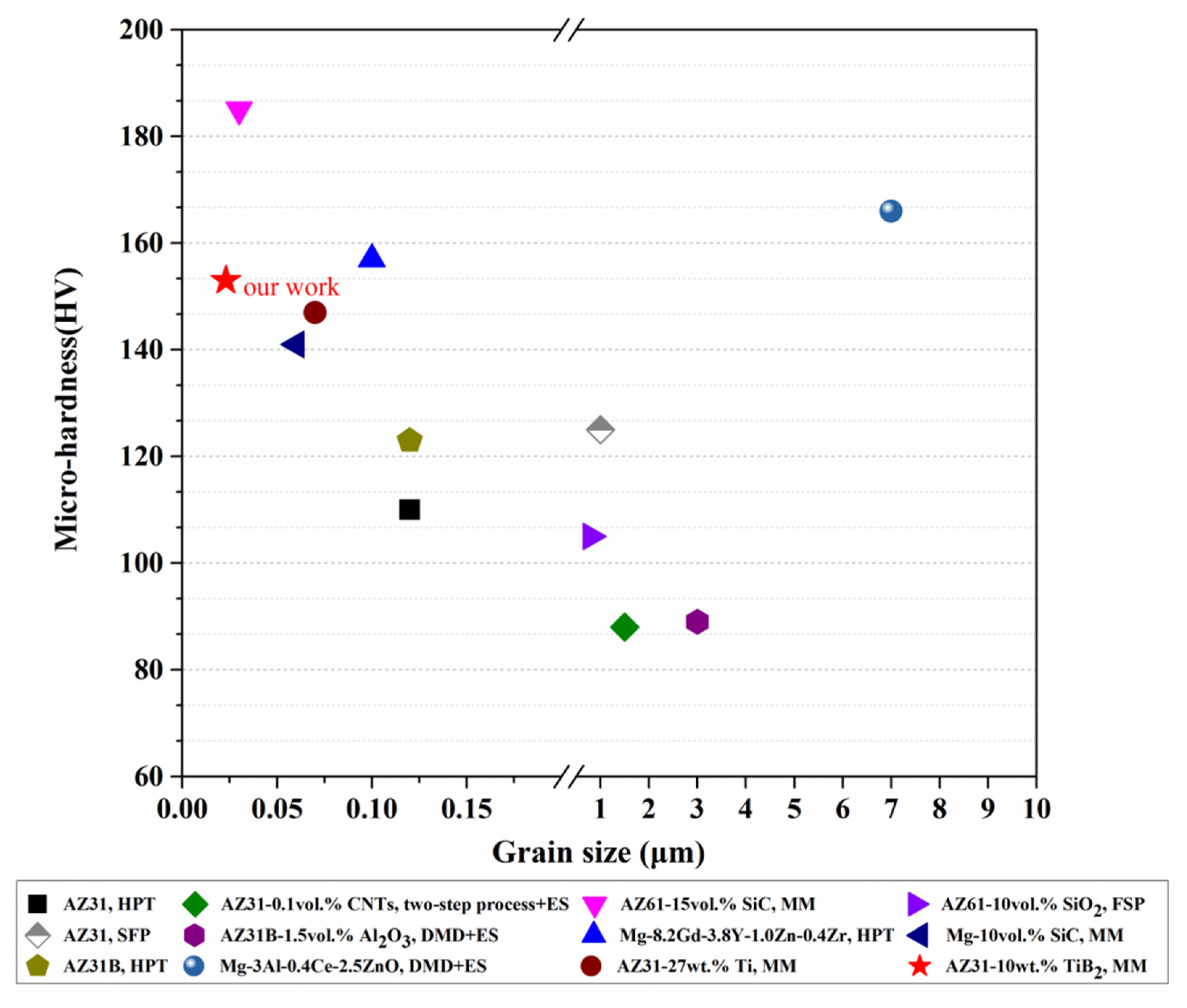

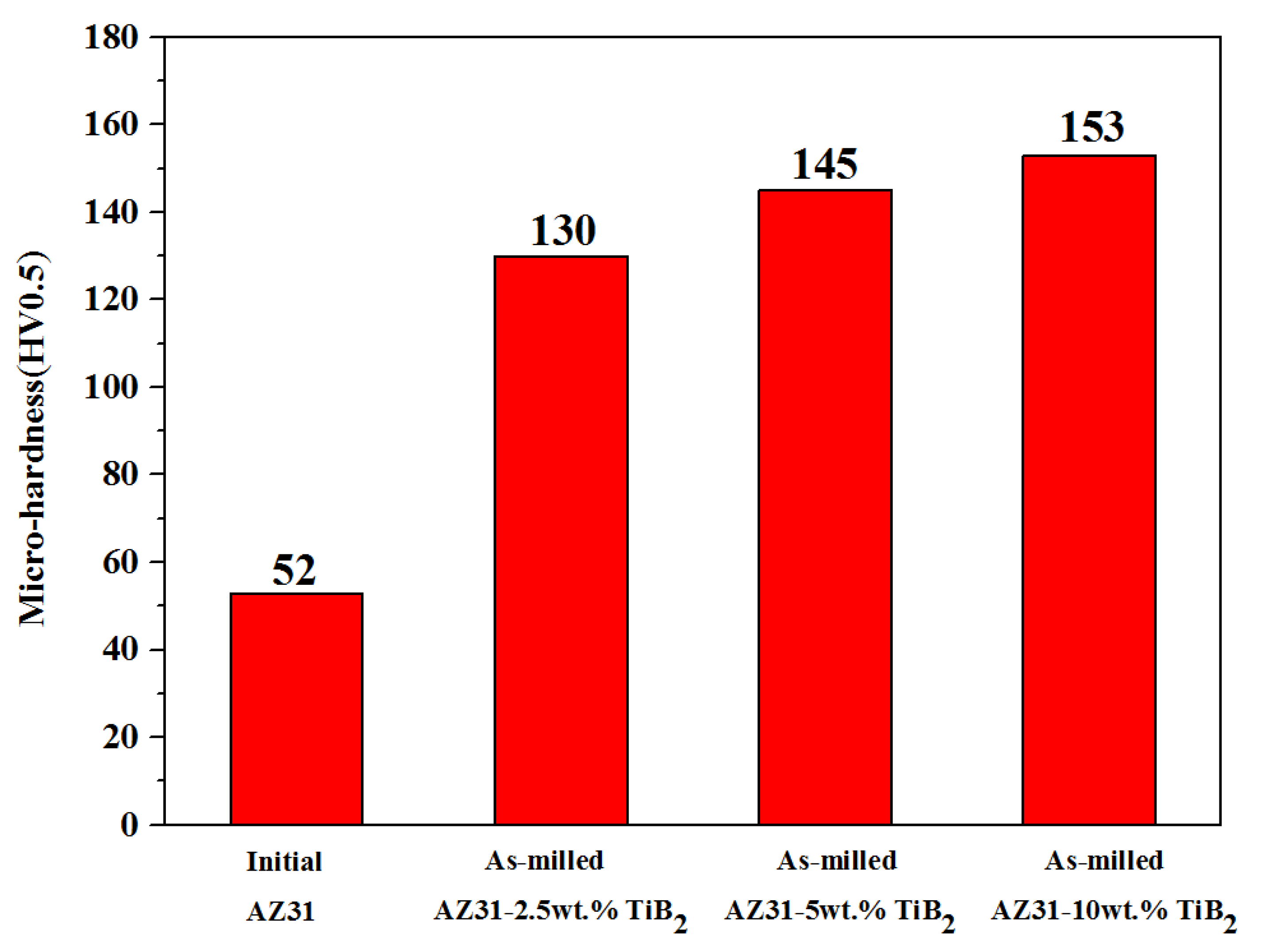

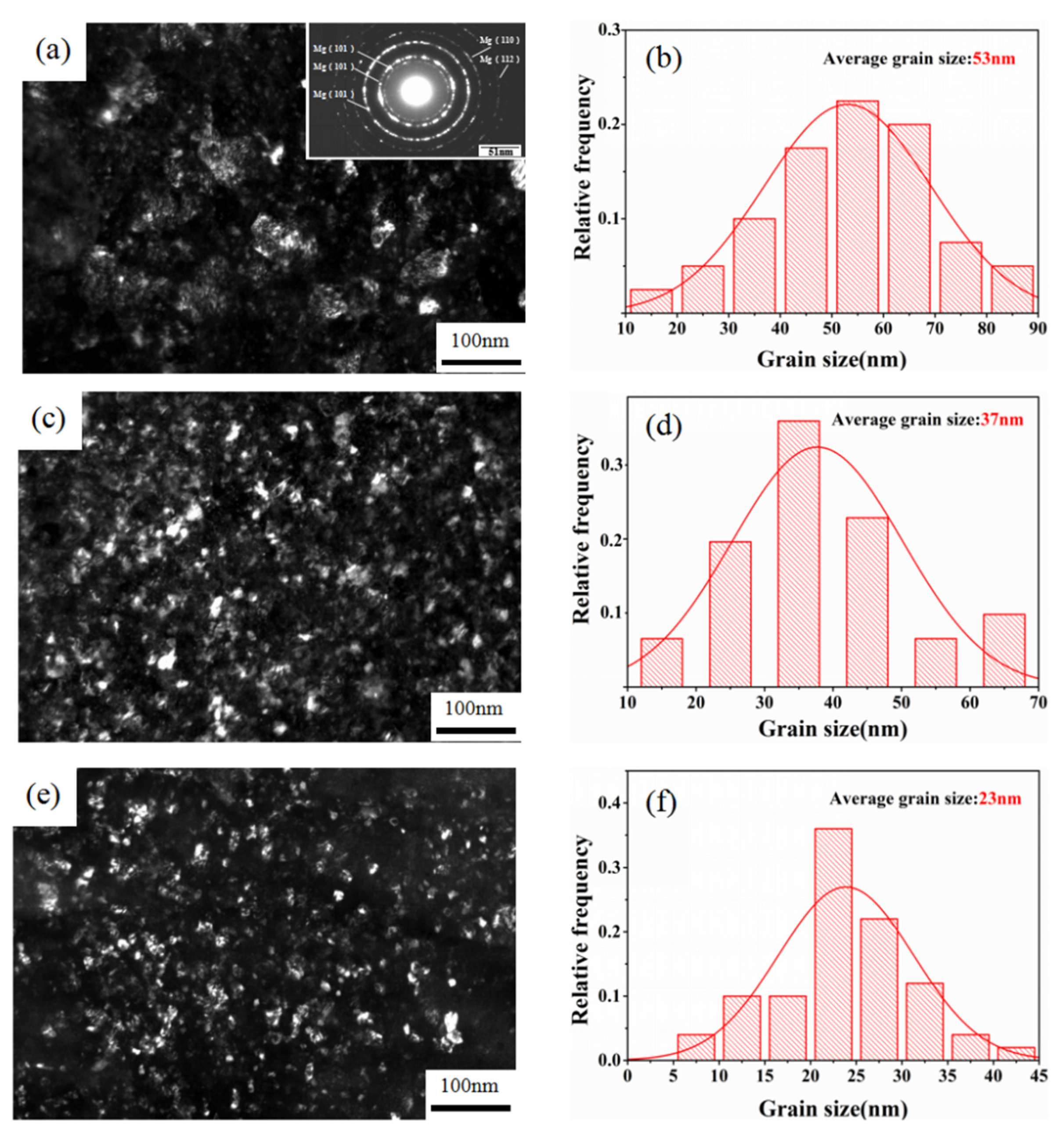

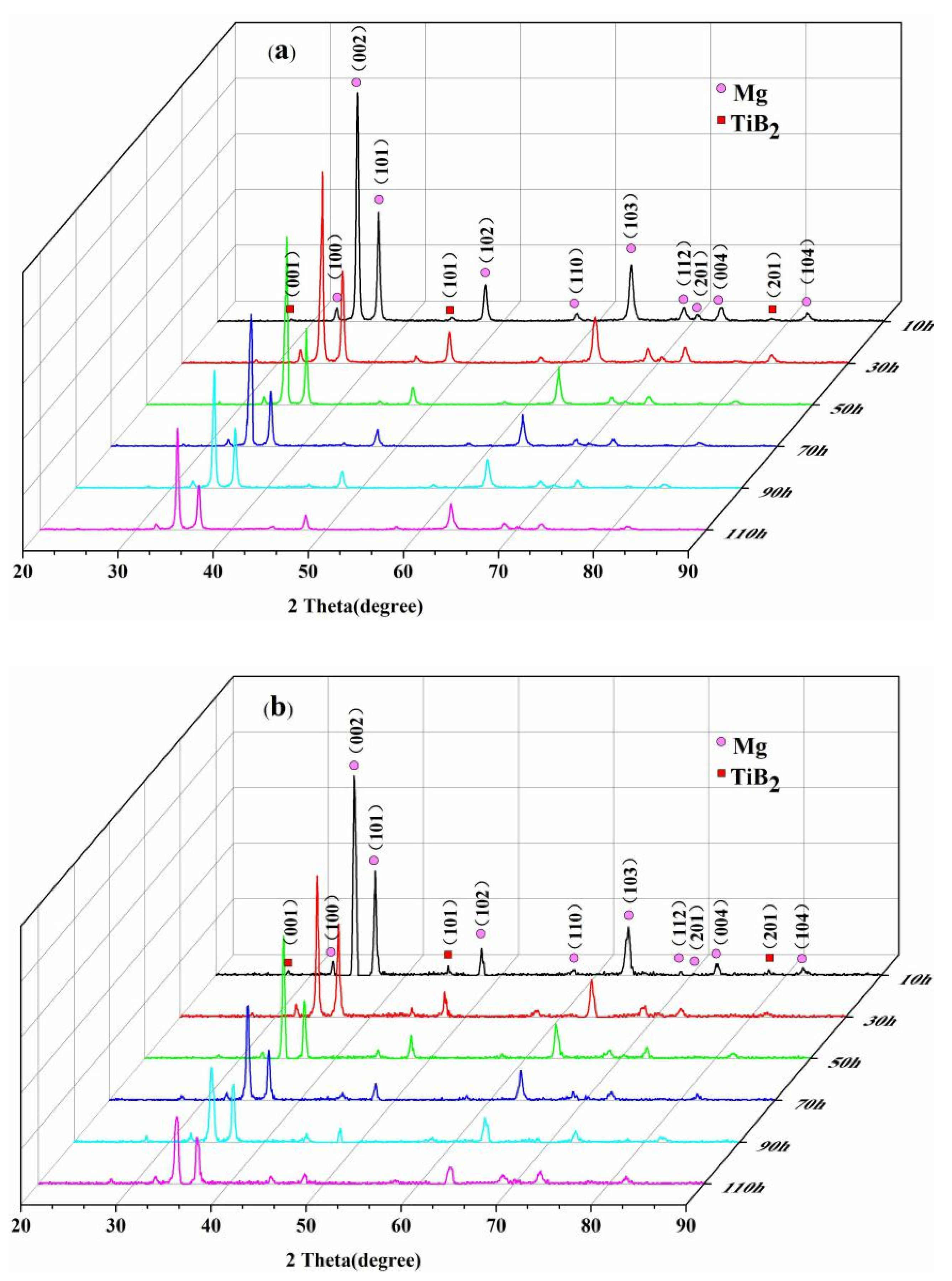

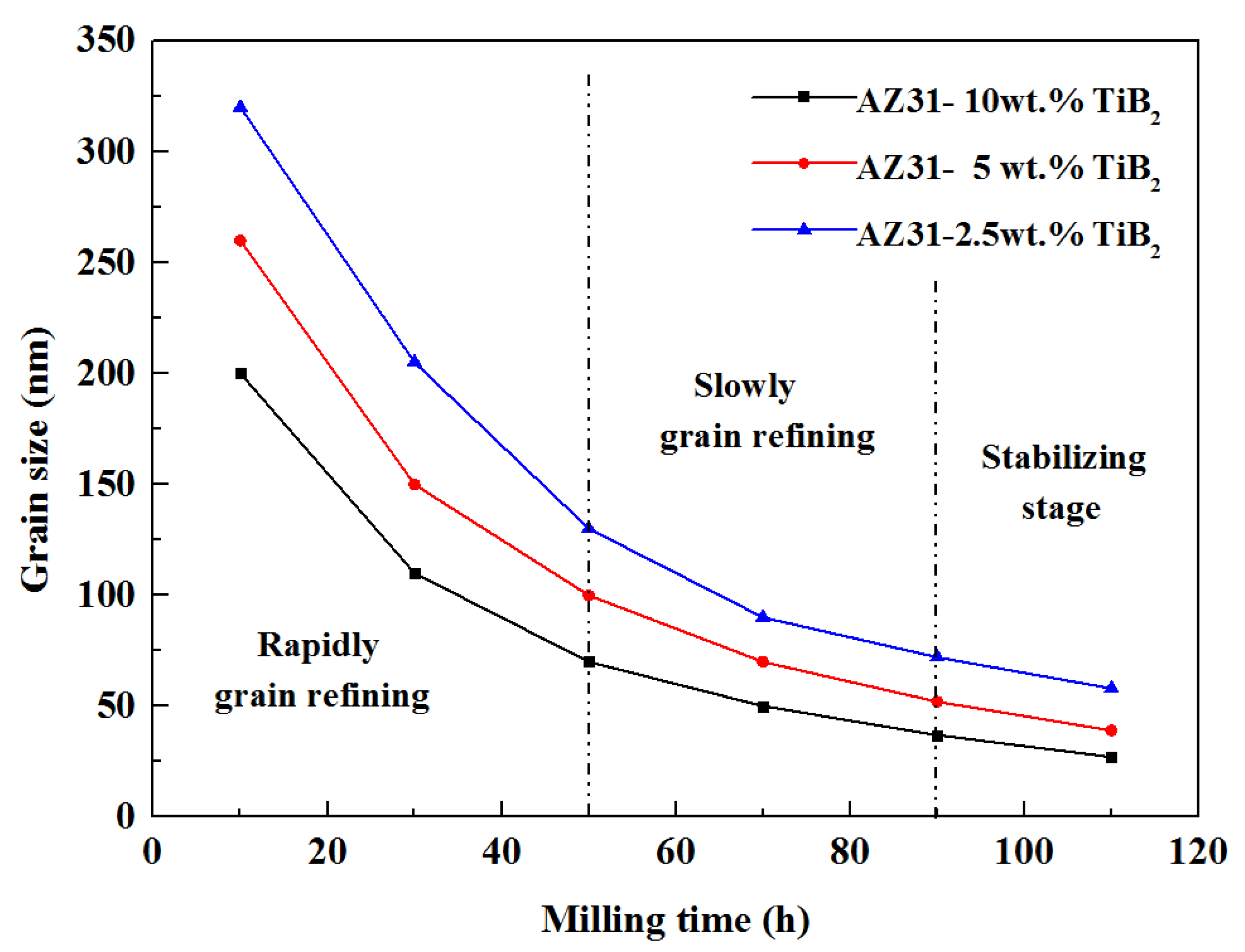

In this work, nanocrystalline AZ31 magnesium alloy powders, reinforced by submicron TiB2 particles, were prepared via mechanical milling. It was found that TiB2 particles stimulated the fracture and welding of AZ31/TiB2 powders, leading to the acceleration of the milling process. Meanwhile, the TiB2 particles were refined to submicron-scale size during the milling process, and their distribution was uniform in the Mg matrix. In addition, the matrix was significantly refined during the milling process, which was also accelerated by the TiB2 particles. The formation of grain boundary segregation layers also led to the weakened TiB2 peaks in the XRD patterns during the mechanical milling. The grain sizes of AZ31–2.5 wt % TiB2, AZ31–5 wt % TiB2 and AZ31–10 wt % TiB2 powders were refined to 53 nm, 37 nm and 23 nm, respectively, after milling for 110 h. Under the combined effect of the nanocrystalline matrix and the well-dispersed submicron TiB2 particles, the AZ31/TiB2 composites exhibited excellent micro-hardness. For the AZ31–10 wt % TiB2 composite, the micro-hardness was enhanced to 153 HV0.5. View Full-Text
Keywords: mechanical milling; magnesium powder; TiB2 particles; nanocrystalline; mechanical properties mechanical milling; magnesium powder; TiB2 particles; nanocrystalline; mechanical properties
Show Figures

Figure 1

MDPI and ACS Style

Zhou, H.; Zhang, C.; Han, B.; Qiu, J.; Qin, S.; Gao, K.; Liu, J.; Sun, S.; Zhang, H. Microstructures and Mechanical Properties of Nanocrystalline AZ31 Magnesium Alloy Powders with Submicron TiB2 Additions Prepared by Mechanical Milling. Crystals 2020, 10, 550.
