Next Article in Journal
Generalized Methodology for Inserting Metal Heteroatoms into the Layered Zeolite Precursor RUB-36 by Interlayer Expansion
Previous Article in Journal
Synthesis, Crystal Structures and Catalytic Activities of Two Copper Coordination Compounds Bearing an N,N’-Dibenzylethylenediamine Ligand
Previous Article in Special Issue
Effect of the Zr-Substitution on the Structural and Electrical Properties of LaFeO3: XRD, Raman Scattering, SEM, and Impedance Spectroscopy Study
Open AccessArticle

Characterization of Bioactive Glass Synthesized by Sol-Gel Process in Hot Water

1
Faculty of Chemical Engineering, Ho Chi Minh City University of Food Industry, Ho Chi Minh City 700000, Vietnam
2
Institute of Theoretical and Applied Research, Duy Tan University, Hanoi 100000, Vietnam
3
Faculty of Natural Sciences, Duy Tan University, Da Nang 550000, Vietnam
4
Faculty of Chemical Technologies, Kazan National Research Technological University, ul. K. Marksa 68, 420015 Kazan, Tatarstan, Russia
5
Faculty of Chemistry, Ho Chi Minh City University of Education, Ho Chi Minh City 700000, Vietnam
6
Faculty of Pedagogy in Natural Sciences, Sai Gon University, Ho Chi Minh City 700000, Vietnam
7
Department for Management of Science and Technology Development, Ton Duc Thang University, Ho Chi Minh City 700000, Vietnam
8
Faculty of Applied Sciences, Ton Duc Thang University, Ho Chi Minh City 700000, Vietnam
*
Author to whom correspondence should be addressed.
Crystals 2020, 10(6), 529; https://doi.org/10.3390/cryst10060529
Received: 2 June 2020 / Revised: 16 June 2020 / Accepted: 18 June 2020 / Published: 21 June 2020
(This article belongs to the Special Issue Sol-Gel Method Applied to Crystalline Materials)

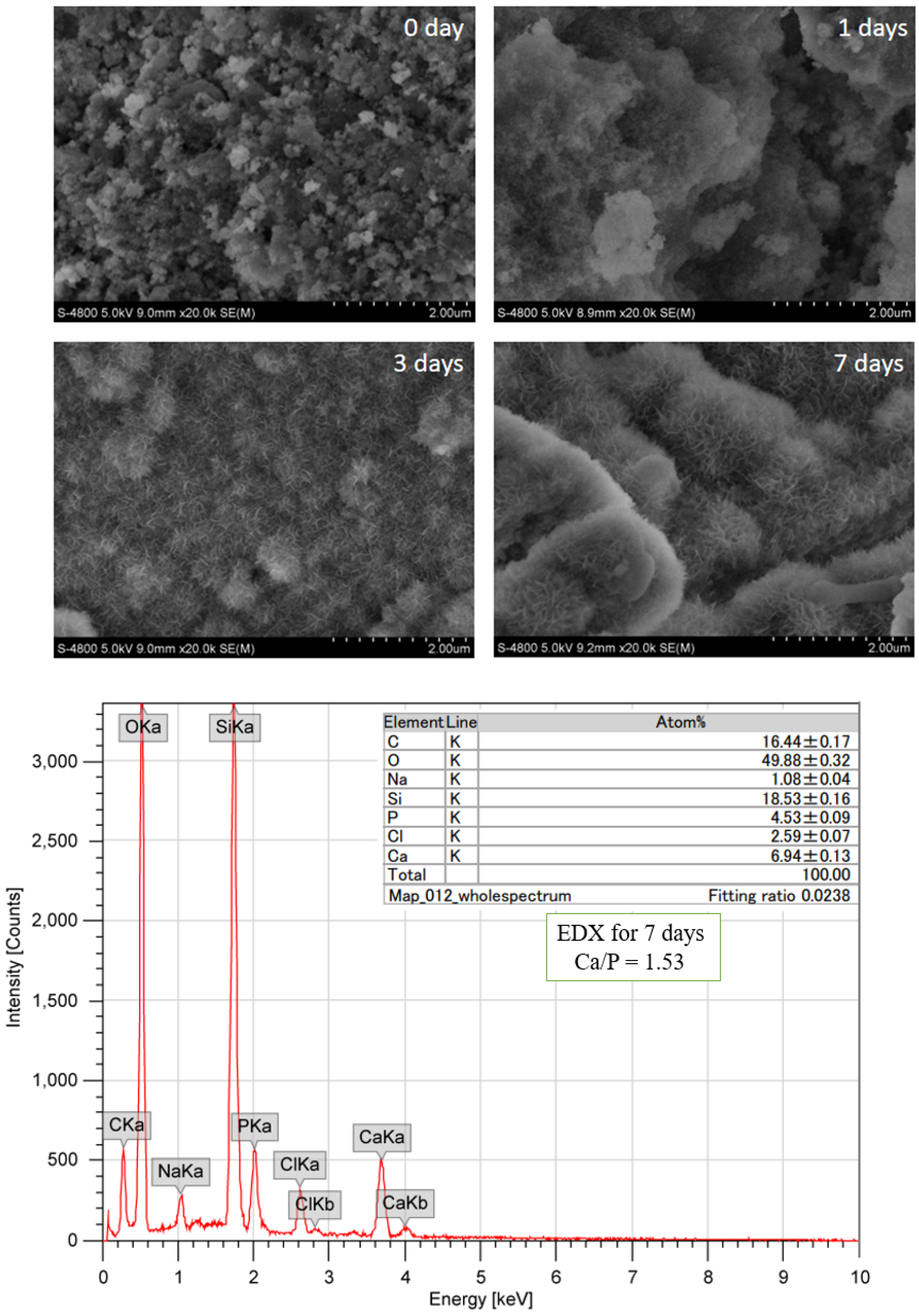

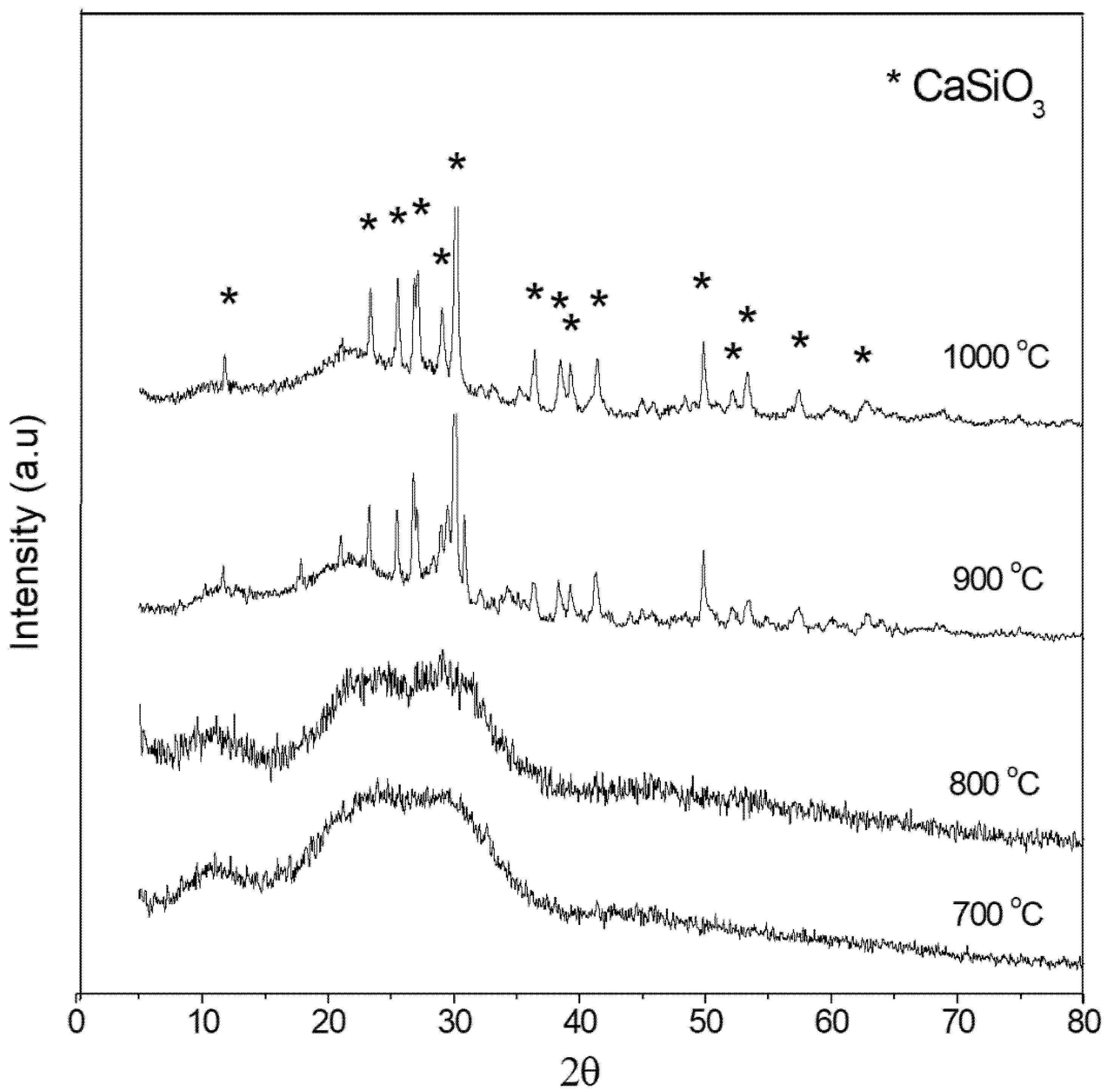

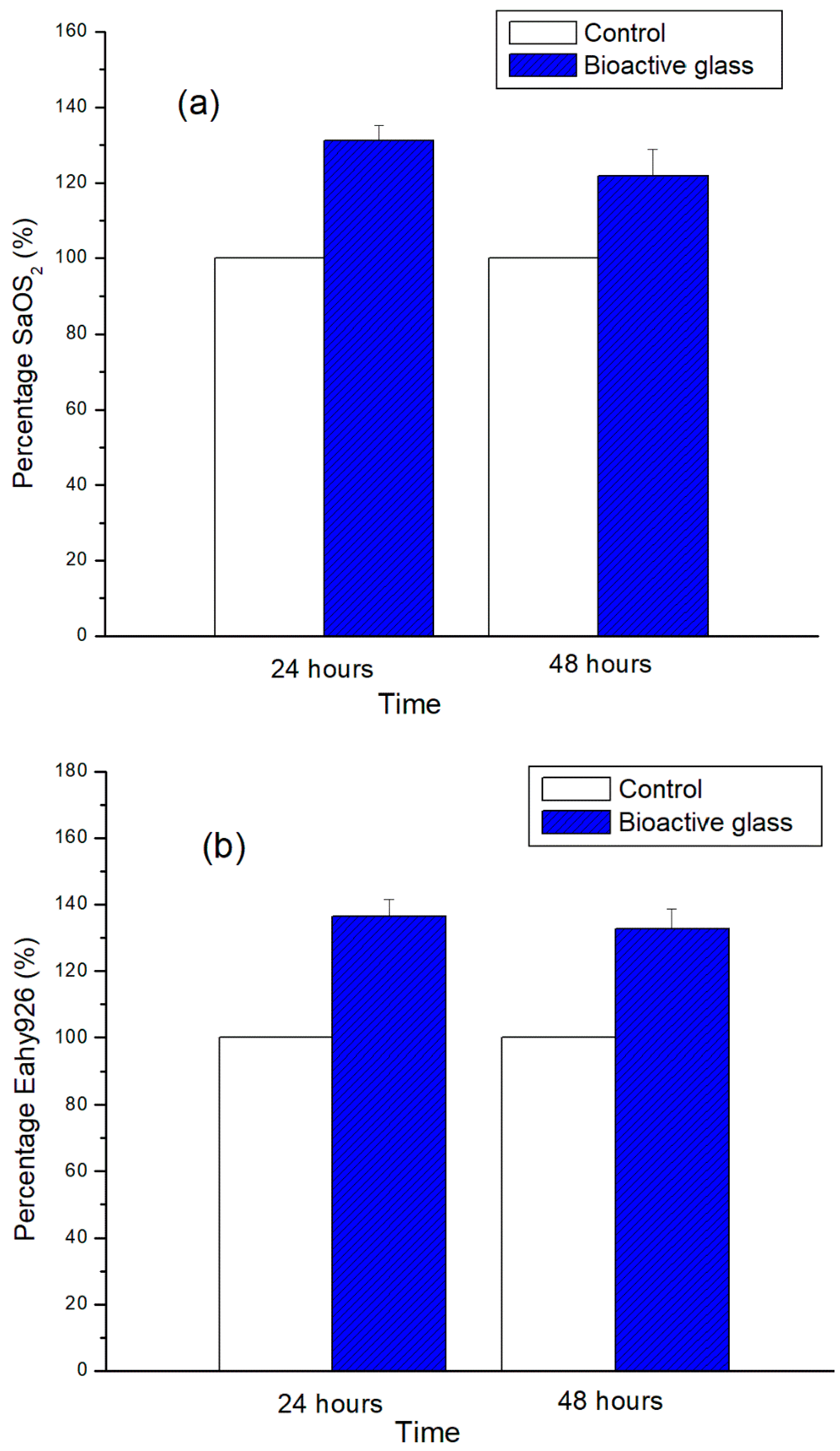

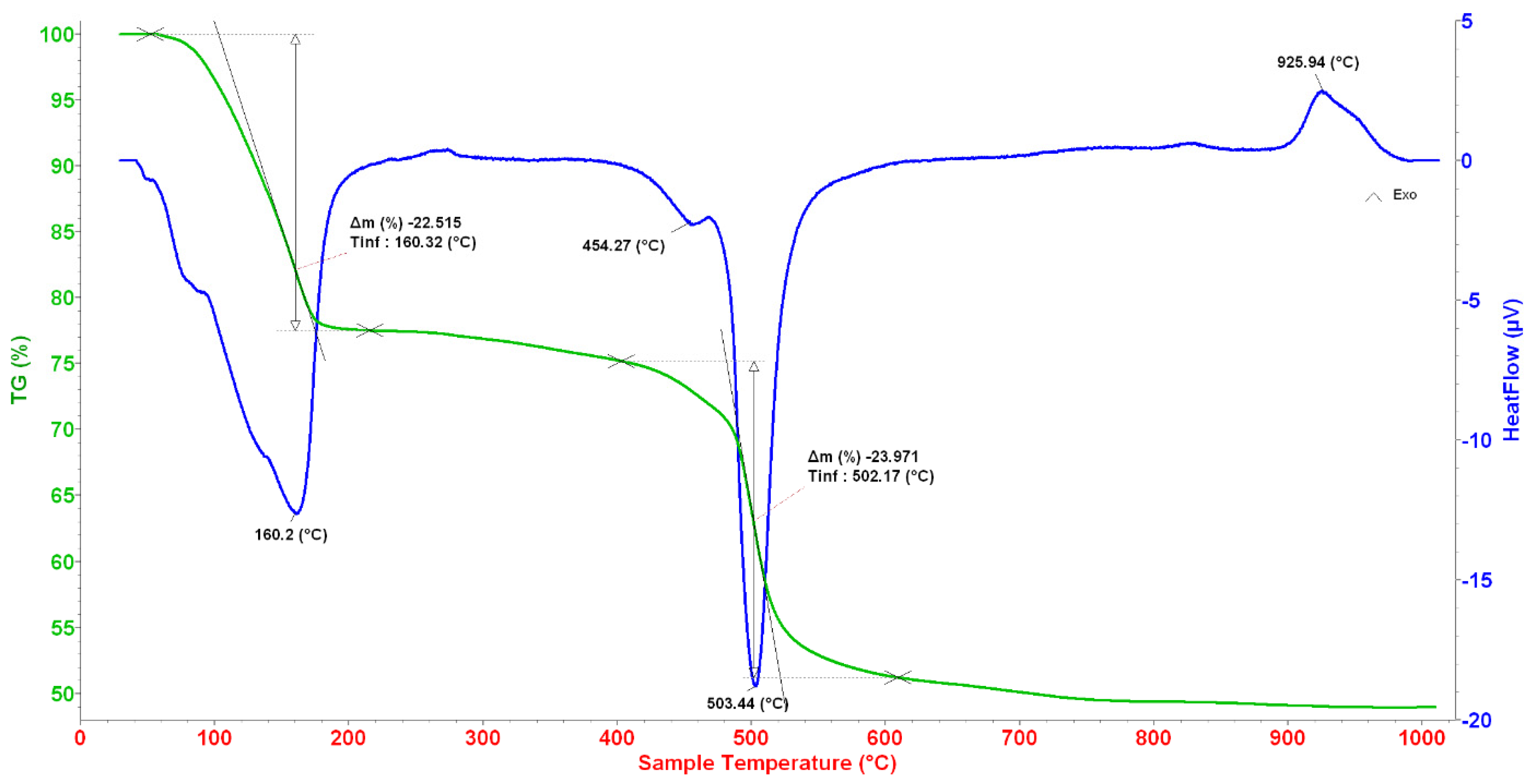

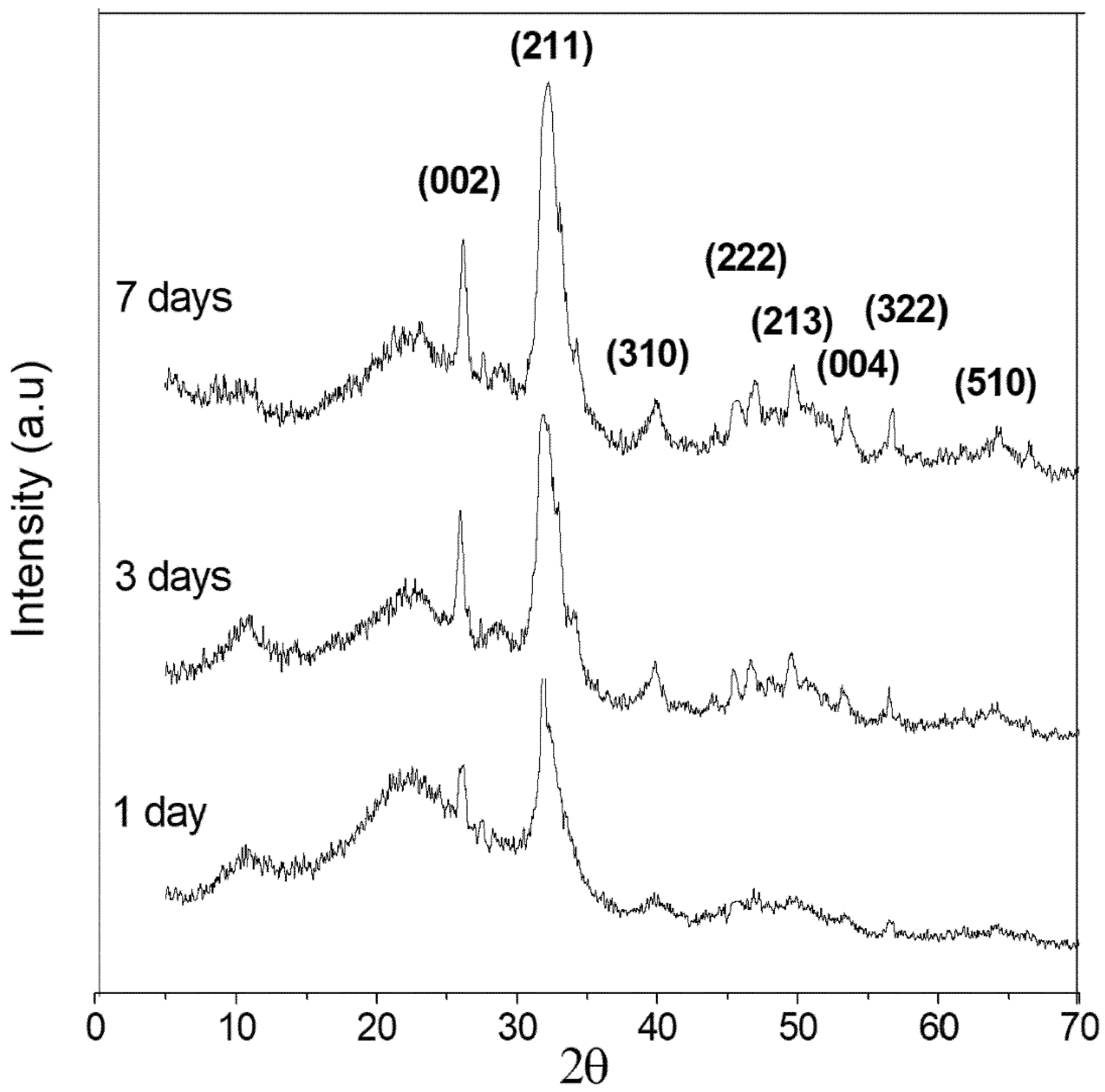

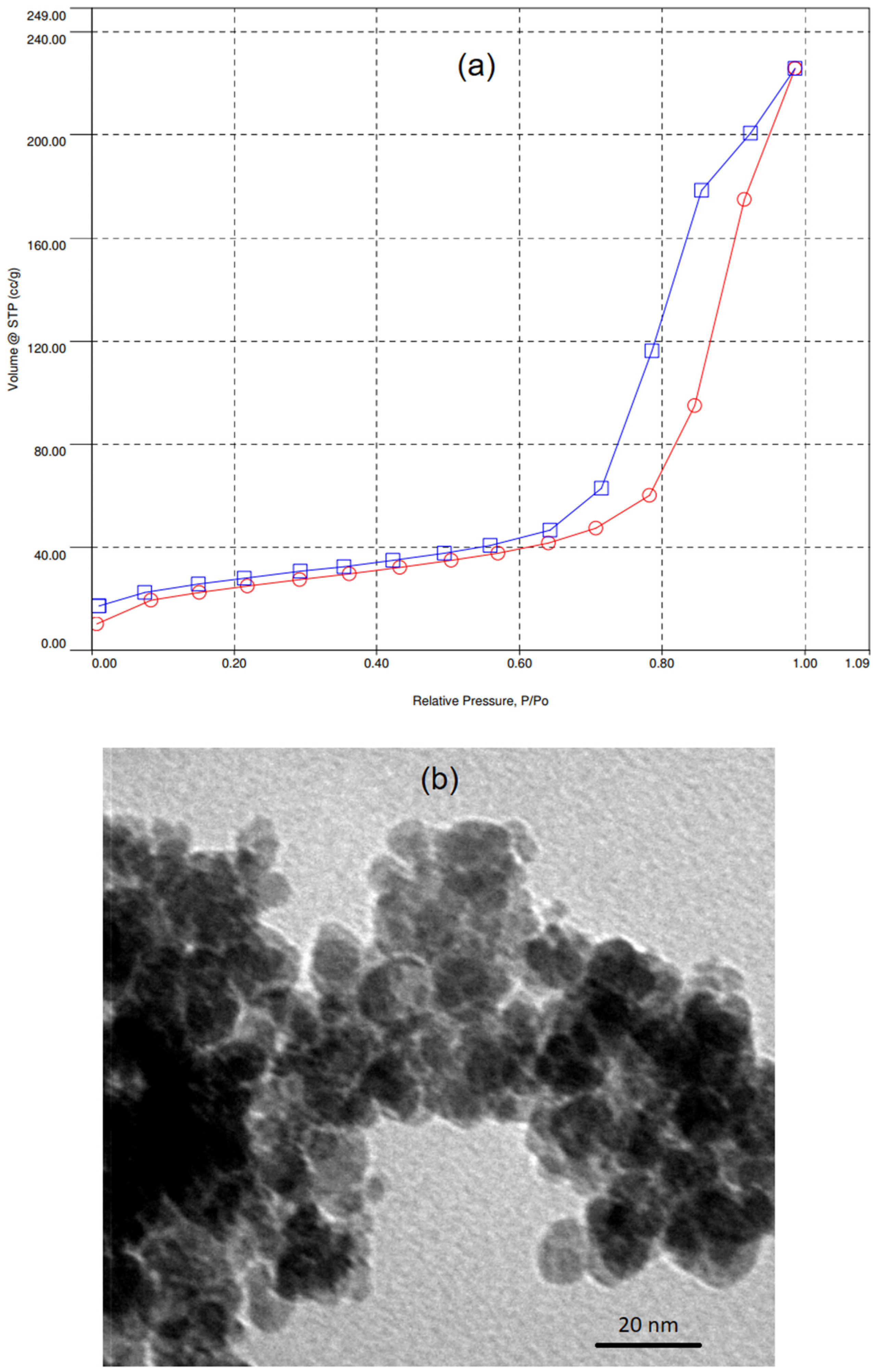

Bioactive glass 70SiO2-30CaO (mol.%) was successfully synthesized by modified sol–gel in hot water without using an acid catalyst. TG-DSC analysis showed that the amorphous glass could be synthesized by sintering the sample at 700 °C for three hours. The N2 adsorption/desorption and TEM investigations highlighted that the synthetic glass had a mesoporous structure, consisting of spherical particles with sizes in the range of 11–20 nm. The specific surface area, pore volume, and average pore diameter of synthetic glass were 150.13 m2/g, 0.37 cm3/g, and 11.84 nm, respectively. Moreover, synthetic bioactive glass presented interesting bioactivity and good biocompatibility after in vitro experiments in simulated body fluid (SBF) and in cellular medium. View Full-Text
Keywords: bioactive glass; sol-gel method; hot water; bioactivity; in vitro; cellular viability bioactive glass; sol-gel method; hot water; bioactivity; in vitro; cellular viability
Show Figures

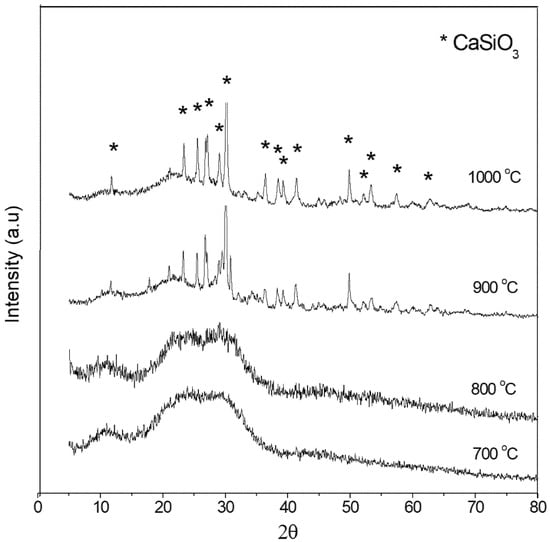

Figure 1

MDPI and ACS Style

Dang, T.H.; Bui, T.H.; Guseva, E.V.; Ta, A.T.; Nguyen, A.T.; Hoang, T.T.H.; Bui, X.V. Characterization of Bioactive Glass Synthesized by Sol-Gel Process in Hot Water. Crystals 2020, 10, 529.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
