Next Article in Journal
Microwave Liquid Crystal Enabling Technology for Electronically Steerable Antennas in SATCOM and 5G Millimeter-Wave Systems
Next Article in Special Issue
Effect of Modification on Microstructure and Properties of AZ91 Magnesium Alloy
Previous Article in Journal
Inverse Estimation Method of Material Randomness Using Observation
Previous Article in Special Issue
Stabilisation of a Segment of Autologous Vascularised Stomach as a Patch for Myocardial Reconstruction with Degradable Magnesium Alloy Scaffolds in a Swine Model
Open AccessArticle

Microstructure and Texture Evolution during Twin-Roll Casting and Annealing of a Mg–6.8Y2.5Zn–0.4Zr Alloy (WZ73)

Institute of Metal Forming, Technische Universität Bergakademie Freiberg, Bernhard-von-Cotta Straße 4, 09599 Freiberg, Germany
*
Author to whom correspondence should be addressed.
Crystals 2020, 10(6), 513; https://doi.org/10.3390/cryst10060513
Received: 8 May 2020 / Revised: 9 June 2020 / Accepted: 15 June 2020 / Published: 16 June 2020

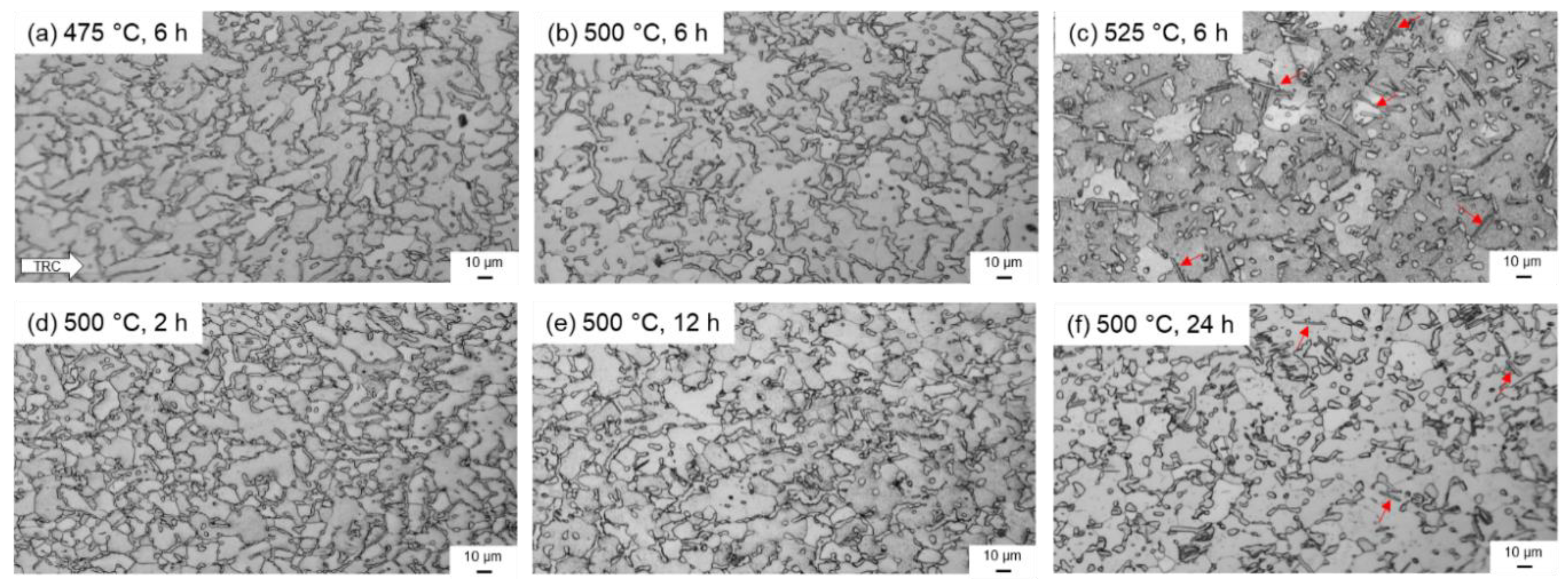

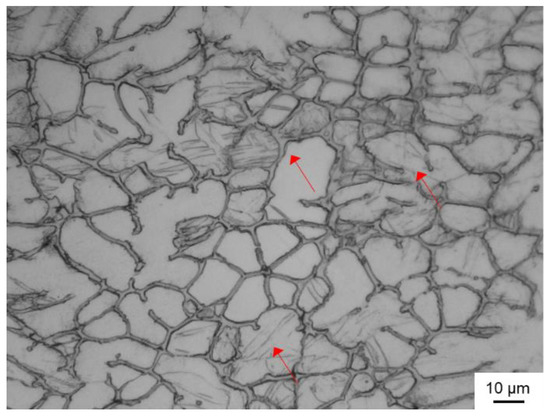

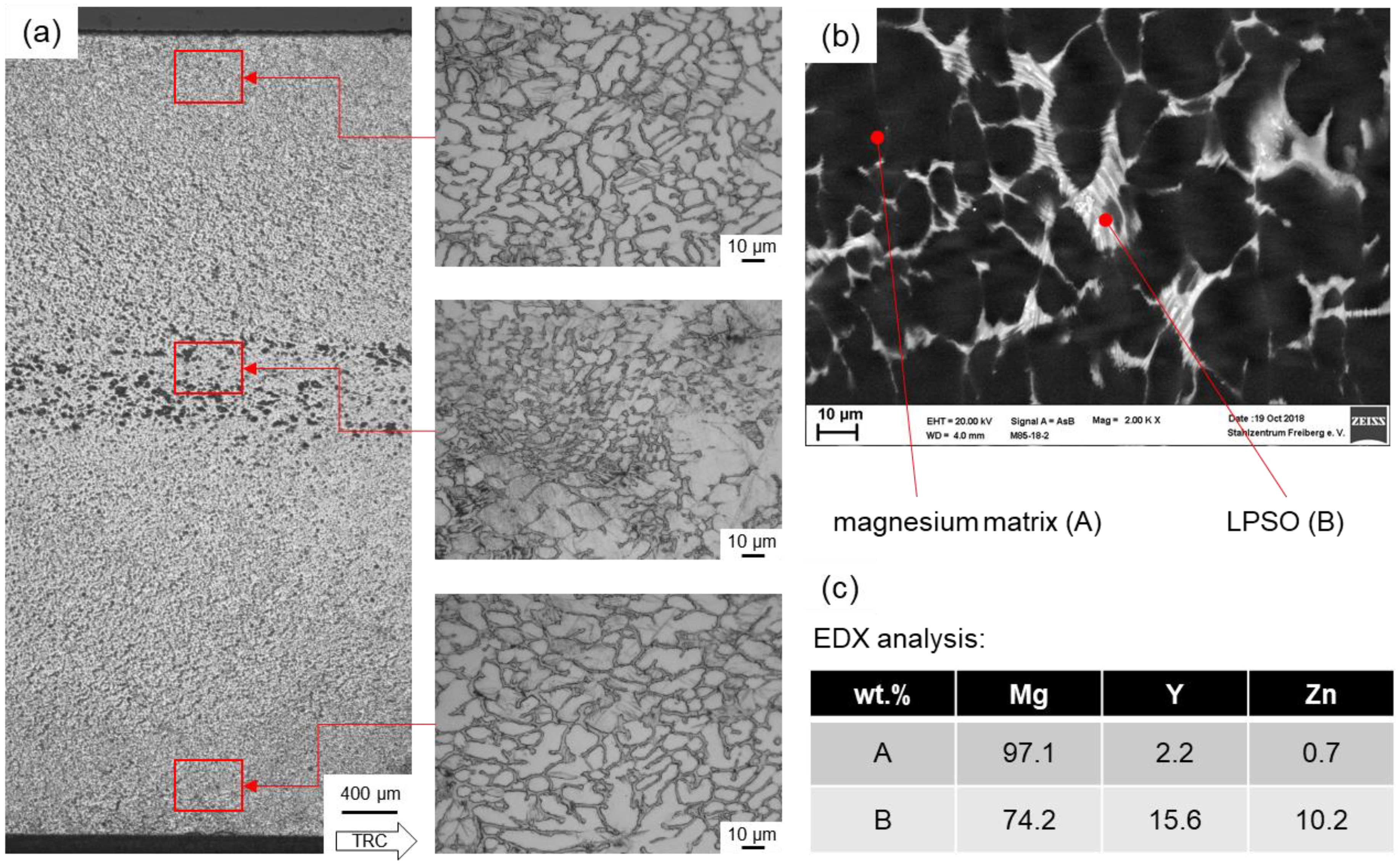

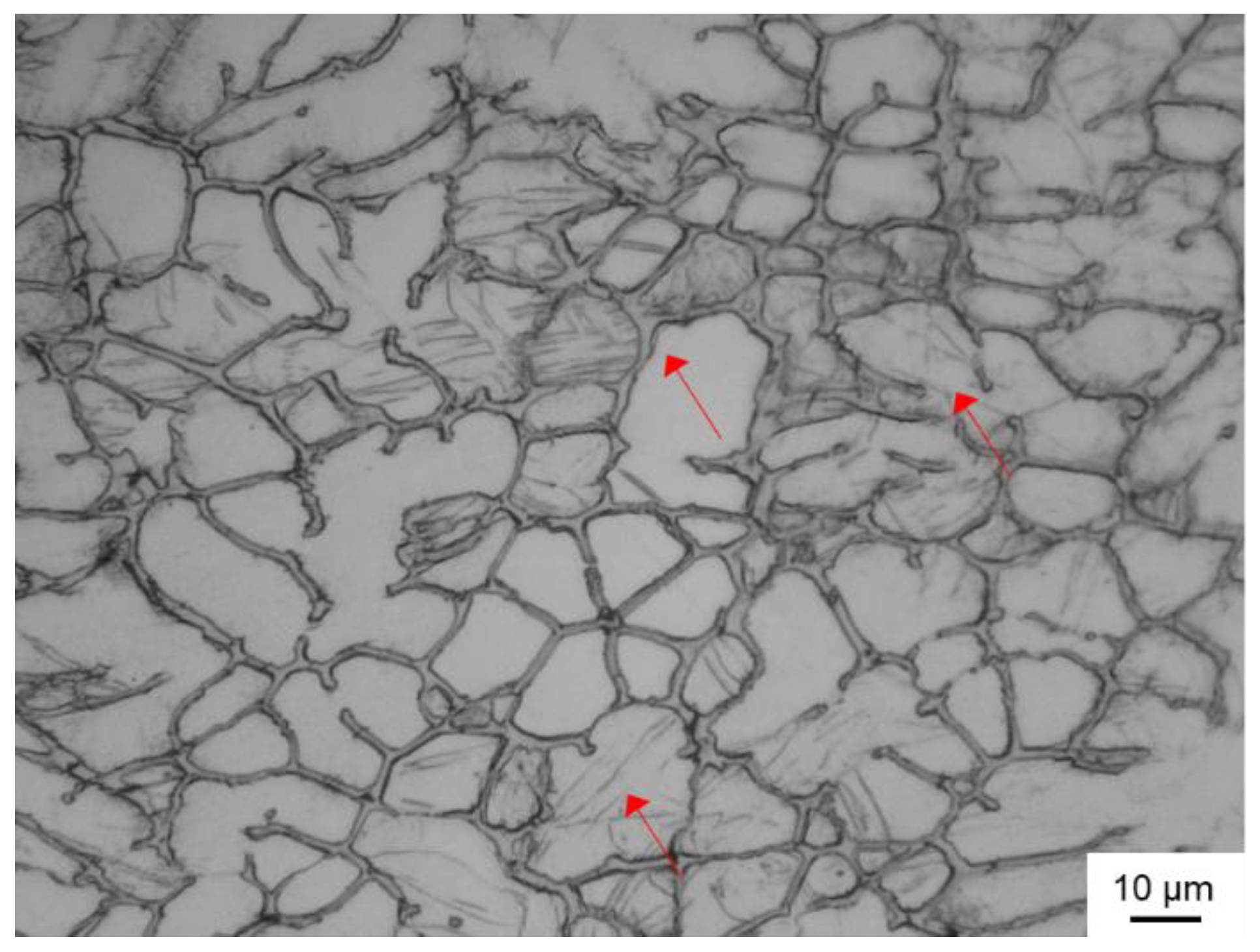

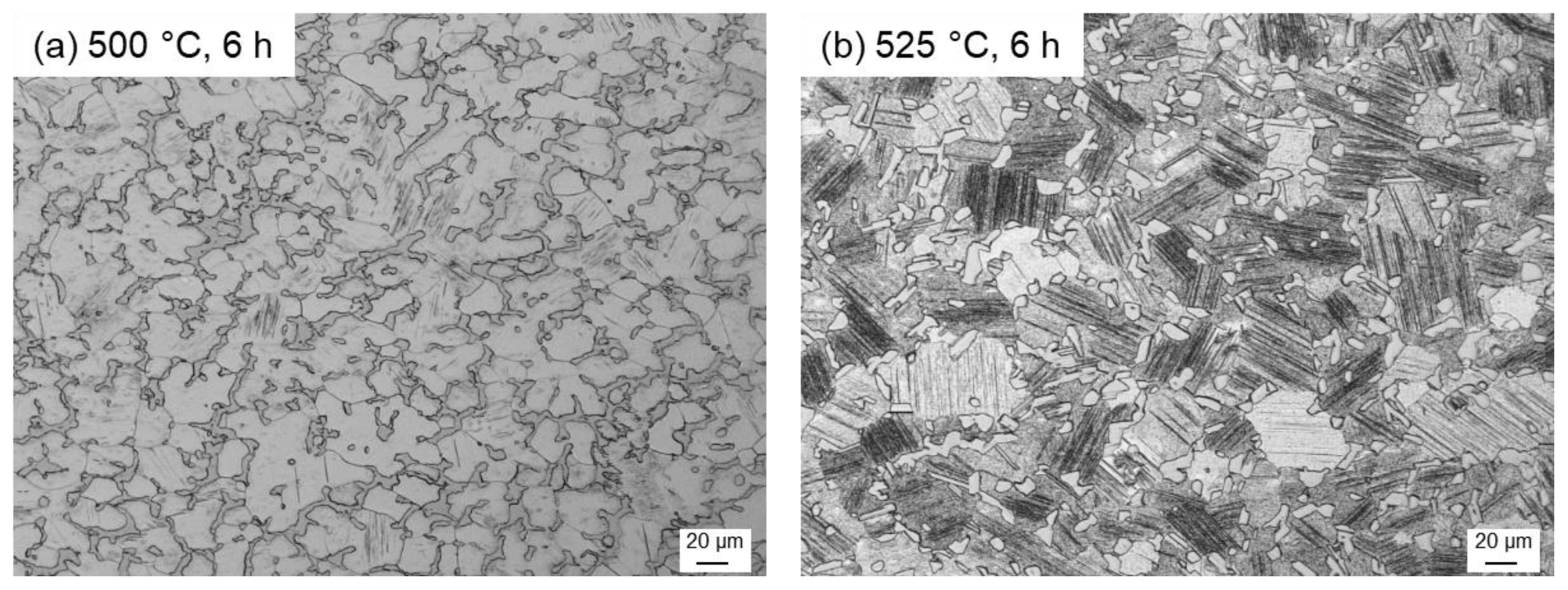

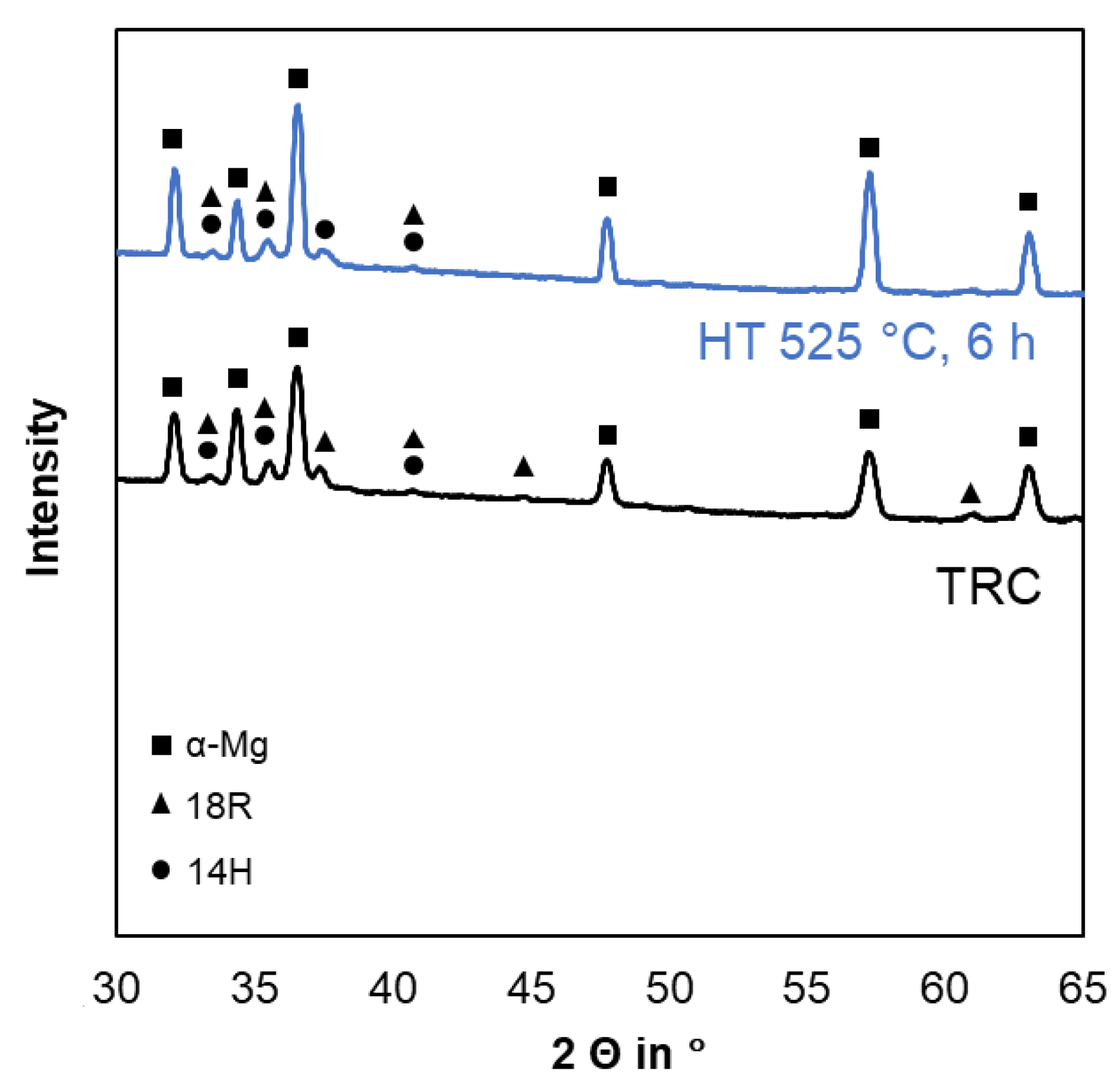

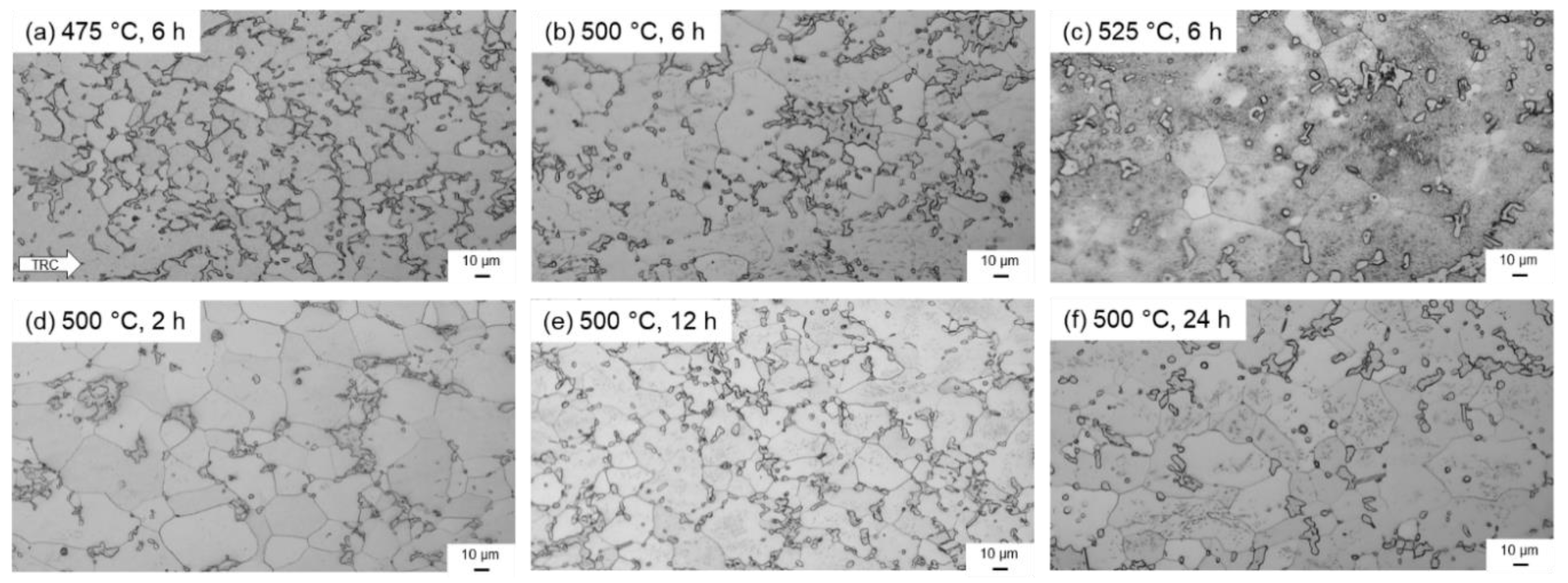

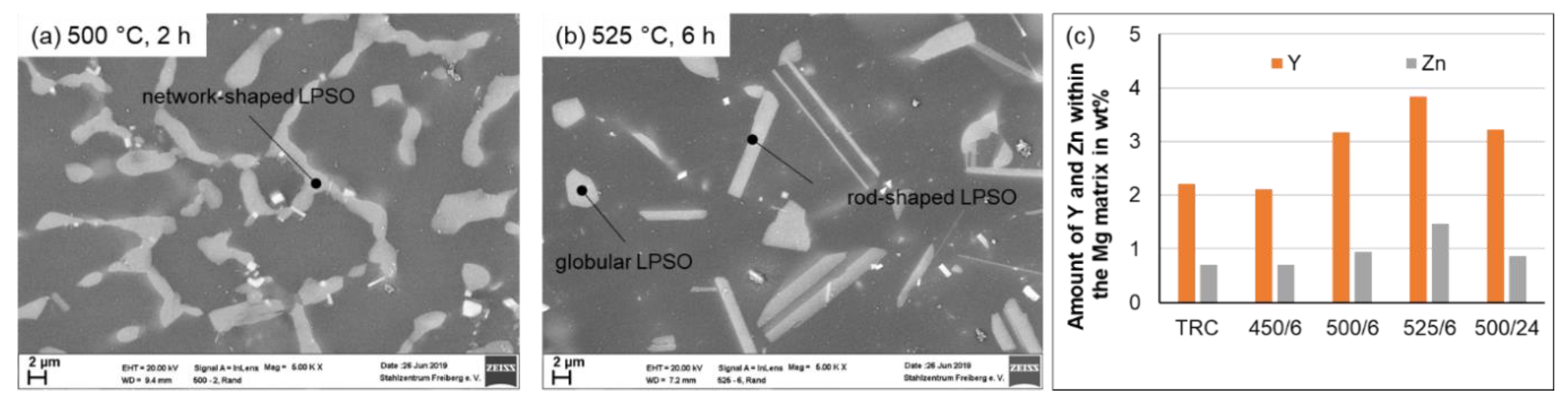

In the present work, the microstructure and texture of a Mg–6.8Y–2.5Zn–0.4Zr sheet manufactured by twin-roll casting were investigated. The twin-roll cast state consisted of two apparent phases: the α-Mg matrix, which was made up of dobulites with an average grain size of approximately 50 µm and the LPSO (long-period stacking ordered) phase, which formed network-like precipitates along the grain boundaries. After twin-roll casting, annealing was carried out under conditions of different temperatures ranging from 450 °C to 525 °C and holding times between 2 h and 24 h. It was found that heat treatment led to the formation of a microstructure in which grains were apparent. Furthermore, it could be observed that high temperatures > 500 °C led to changes in the morphology of the LPSO structures. On one hand, the network-like structure dissolved while, on the other hand, both rodlike and blocky LPSO phases precipitated predominantly at the grain boundaries of the α-Mg matrix. This process was fostered by high temperatures and long holding times. View Full-Text
Keywords: twin-roll casting; WZ73; LPSO; texture twin-roll casting; WZ73; LPSO; texture
Show Figures

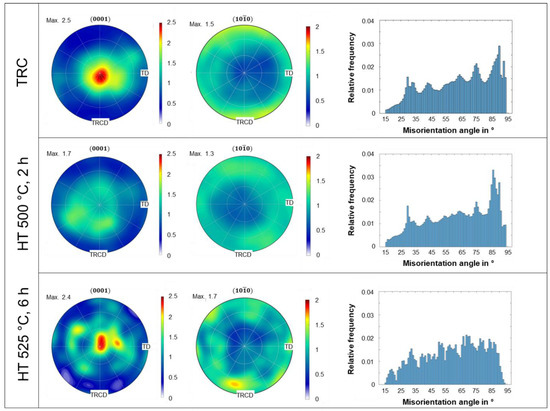

Figure 1

MDPI and ACS Style

Kittner, K.; Ullmann, M.; Arndt, F.; Kawalla, R.; Prahl, U. Microstructure and Texture Evolution during Twin-Roll Casting and Annealing of a Mg–6.8Y2.5Zn–0.4Zr Alloy (WZ73). Crystals 2020, 10, 513.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
