A Survey of Supramolecular Aggregation Based on Main Group Element⋯Selenium Secondary Bonding Interactions—A Survey of the Crystallographic Literature

by
Edward R. T. Tiekink
Research Centre for Crystalline Materials, School of Science and Technology, Sunway University, 47500 Bandar Sunway, Selangor Darul Ehsan, Malaysia
Crystals 2020, 10(6), 503; https://doi.org/10.3390/cryst10060503
Submission received: 30 May 2020 / Revised: 10 June 2020 / Accepted: 10 June 2020 / Published: 12 June 2020
(This article belongs to the Special Issue σ- and π-Hole Interactions)
Browse Figures
Versions Notes

Abstract

:
The results of a survey of the crystal structures of main group element compounds (M = tin, lead, arsenic, antimony, bismuth, and tellurium) for intermolecular M⋯Se secondary bonding interactions is presented. The identified M⋯Se interactions in 58 crystals can operate independent of conventional supramolecular synthons and can sustain zero-, one-, two, and, rarely, three-dimensional supramolecular architectures, which are shown to adopt a wide variety of topologies. The most popular architecture found in the crystals stabilized by M⋯Se interactions are one-dimensional chains, found in 50% of the structures, followed by zero-dimensional (38%). In the majority of structures, the metal center forms a single M⋯Se contact; however, examples having up to three M⋯Se contacts are evident. Up to about 25% of lead(II)-/selenium-containing crystals exhibit Pb⋯Se tetrel bonding, a percentage falling off to about 15% in bismuth analogs (that is, pnictogen bonding) and 10% or lower for the other cited elements.

Graphical Abstract

1. Introduction

The term “chalcogen bonding” has only relatively recently been incorporated in the crystallography lexicon [1] and refers to a non-covalent interaction featuring a Group VI element, for example and relevant to the present bibliographic survey, selenium, functioning as an electrophilic center [2,3,4]. The current use of the term “chalcogen bonding” notwithstanding, such interactions have long been recognized in the chemical crystallography community [5,6,7] but under the guise of “secondary bonding” [7]. Secondary bonding encompasses a range of bonding circumstances such as classic Lewis acid/Lewis base interactions occurring between a metal center, such as a main group element (or p-block element), acting as the acid, and a lone-pair of electrons residing on the Lewis base. The non-covalent binding between atoms under these circumstances, being electrostatic in nature, is in keeping with expectation, that is, opposites attract. More perplexing are those contacts occurring between two ostensibly electron-rich species such a low-valent main group element, that is, having a lone-pair of electrons interacting with an electron-rich element such as selenium. In the structural chemistry of selenium, a very early example of the discussion of the latter type of interaction, that is, an intermolecular Se⋯O contact between electron-rich species, and the description of the supramolecular assembly stabilized by this interaction, was reported in 1972 [8], and is now classified as a chalcogen bond. The rationale for the formation of chalcogen bonds and indeed, for example, allied tetrel, pnictogen and halogen bonding interactions in which a Group XIV, XV, and XVII element, respectively, functions as the electrophilic center, revolves around the concept of a polar cap or σ-hole [9,10,11,12,13,14]. Very briefly, a σ-hole refers to an electron-deficient region at the extension of a covalent bond or at the tip of a lone-pair of electrons, which is available, being a pseudo Lewis acidic site, for interaction with an electron-rich region, such as a lone-pair of electrons, of a participating species. Examples of both types of interaction scenarios between a main group element and selenium are found herein and, therefore, the generic term “secondary bonding” is employed throughout. However, the purpose of this present review of the relevant structural data is not to evaluate bonding considerations, rather to highlight the prevalence of M⋯Se secondary bonding and the supramolecular architectures they sustain. The present literature survey was conducted in continuation of a long-held interest in secondary bonding and the supramolecular patterns stabilized by these interactions [15,16,17,18,19,20,21,22,23], and is aimed at summarizing all of the known M⋯Se supramolecular contacts operating in the crystals of main group element species with M = tin, lead, arsenic, antimony, bismuth, and tellurium, and to provide comprehensive descriptions of the supramolecular aggregates arising from these in a consistent fashion.

2. Methods

In the present analysis of the crystallographic literature, the Cambridge Structural Database (CSD; version 5.41) [24] was searched employing ConQuest (version 2.0.4) [25] for M⋯Se contacts in crystals based on a distance criterion, that is, the separation between the respective main group element (M = tin, lead, arsenic, antimony, bismuth, and tellurium) and selenium had to be equal to or less than the sum of the respective van der Waals radii being 1.90 Å for selenium, 2.17 and 2.02 Å for tin and lead, 1.85, 2.00, 2.00 for arsenic, antimony, and bismuth, and 2.06 Å for tellurium [25]. In addition, general criteria were applied; structures with R > 0.100 were excluded along with disordered structures and polymeric species. All retrieved structures were manually evaluated to ensure that the putative M⋯Se interaction was operating independently of other supramolecular synthons, such as conventional hydrogen bonding. All crystallographic diagrams are original, being generated with DIAMOND [26].

3. Results

The following gives an outline of the supramolecular association formed between selenium and, in turn, the main group elements, M = tin, lead, arsenic, antimony, bismuth, and tellurium, as revealed by X-ray crystallography. Traditionally, when searching for structures with secondary bonding interactions [7], such as A-D⋯M in the present analysis where D = Se, contacts between the two elements occurring at distances longer than the assumed sum of the covalent radii but, less than the sum of the van der Waals radii are identified. In this scenario, the angle at the selenium atom might be expected to be close to 180°. However, this is an oversimplification for two key reasons. Firstly, if the donor is selenium(II), as in the majority of the structures described herein, there are two lone-pairs of electrons available for binding to M; for selenium(IV), there is one lone-pair. In addition, the selenium atom may be bound to two or more other atoms; for example, the interaction might be of the type A2Se⋯M, A3Se⋯M, and so on. In these ways, the A-D⋯M contact is distinct from a conventional hydrogen bonding interaction or an analogous halogen bonding interaction. In instances where the selenium-bound lone-pair of electrons is assumed to interact with the σ-hole of the main group element-bound lone-pair of electrons, as appears to be the case in most of the examples discussed in 3.1–3.6, the lone-pair may not necessarily be diagonally opposite to a covalent bond. It is for these reasons, that is, the influence of the bonding circumstances and the variable coordination geometries of the donor and acceptor atoms, angular information is not included in the descriptions of the structures. The identified M⋯Se contacts occur independently of other obvious supramolecular association such as hydrogen bonding interactions. The supramolecular aggregation patterns are discussed in the order zero-, one-, two-, and three-dimensional. Within each category, mononuclear species are described before binuclear species, etc.

3.1. Tin Compounds Featuring Sn⋯Se Interactions in their Crystals

There are 13 compounds featuring Sn⋯Se secondary bonding interactions in their crystals, 1–13, and the chemical structures for these are shown in Figure 1. The aggregation patterns involve both tin(II) and tin(IV) centers and encompass zero-, one- and, two, and three-dimensional architectures.
The first three structures to be discussed have rather complicated compositions, but the supramolecular association between the interacting species is relatively simple, leading to zero-dimensional aggregates in each case. In 1 [27], comprising interacting cations and anions, the former contains a central Sn3Se3 core capped by a μ3-Se atom forming bonds to the each of the three tin atoms of the core, and the counter-anion is [SnCl3]−. The tin(II) atom of the latter forms three Sn⋯Se interactions to the three μ2-Se atoms of the cyclic core of the cation to form the zero-dimensional aggregate illustrated in Figure 2a. The interacting species in 2 [28] is the [NaSn12O8Se6]3− tri-anion and this self-associates about a center of inversion to form a dimeric aggregate mediated by two Sn⋯Se interactions as shown in Figure 2b. A three-molecule aggregate is observed in ionic 3 [29], Figure 2c. The non-symmetric, di-cation comprises of two bridged Sn3Se4 cores, similar to that seen in 1, and again similar to 1; one μ2-Se atom of each core associates via a Sn⋯Se interaction with a tin(II) atom derived from a [SnCl3]− anion.
Seven of the tin compounds self-associate to form one-dimensional chains in their crystals, adopting varying topologies and numbers of Sn⋯Se interactions sustaining the chains. Compound 4 [30], the first example of a neutral compound and one containing a tin(IV) center, was investigated in terms of systematically varying the substitution pattern in molecules of the formula (2-MeSeC6H4CH2)Sn(Ph)3–nCln, and ascertaining supramolecular association patterns. In the case of 4, that is with n = 2, molecules self-associate into a helical chain (21 screw symmetry) via Sn⋯Se interactions, as shown in Figure 2d. The next two chains involve the association between tetra-anionic species, [Sn2(μ2-Se)2Se4]4−, but the Sn⋯Se interactions involve the non-charged μ2-Se atoms. The compositions of 5 [31], Figure 2e, and 6 ([32]; SEKYEN) differ in the nature of the counter-cations. The tetra-anion in 5 is disposed about a center of inversion and is connected to centrosymmetrically related aggregates via two Sn⋯Se interactions and {Sn⋯Se}2 synthons to form a linear, supramolecular tape. Essentially the same arrangement is observed in 6 where the Sn2Se2 core lies on a mirror plane and is disposed about a center of inversion; the Sn⋯Se separation is 4.02 Å. The neutral, cyclic compound 7 [33], is disposed about a center of inversion and also connects into a linear, supramolecular tape via Sn⋯Se interactions involving the μ2-Se atoms, Figure 2f. Binuclear 8 [34], where the tin(IV) atoms are bridged by a butyl chain, is disposed about a center of inversion and associates with inversion related molecules via {Sn⋯Se}2 synthons, Figure 2g. In 9 [35], designed as a volatile synthetic precursor for SnSe nanomaterials, the tin(IV) atom lies on a 2-fold axis of symmetry, a variation occurs in that the tin atom accepts two Sn⋯Se interactions from a symmetry related molecule also on the 2-fold axis to form a twisted chain, Figure 2h. The crystallographic asymmetric unit of 10 comprises of two independent five-membered (Me2Sn)3Se2 rings and these form distinct Sn⋯Se interactions [36]. For the first independent molecule, only two of the constituent tin(IV) atoms, that is, the two tin atoms bonded to each other each forms a Sn⋯Se interaction and one of the selenium atoms forms two contacts. In the second independent molecule, each of the tin(IV) atoms forms a single Sn⋯S interaction, one selenium atom forms one contact and the other selenium atom participates in two Sn⋯Se interactions. In the crystal, alternating independent molecules assemble into a chain, forming comparable Sn⋯Se interactions involving the bonded tin atoms connecting to the selenium atoms that form two Sn⋯Se contacts. Centrosymmetrically related chains associate via {Sn⋯Se}2 synthons involving the second independent molecule only. The resultant double-chain is illustrated in Figure 2i.
The remaining three tin structures assemble into higher-dimensional arrays. In binuclear and centrosymmetric 11 [37], designed as a precursor for the chemical vapor deposition of SnSe nanomaterials, each of the tin(II) atoms forms a single Sn⋯Se interaction as does one of the two independent selenium atoms. As these extend laterally, a two-dimensional array results with a corrugated topology, as seen in the views of Figure 3a. In binuclear 12 [38], the molecule is disposed about a 2-fold axis of symmetry and has a twisted, U-shape. Each of the tin(IV) and selenium atoms participates in a Sn⋯Se interaction to form the corrugated array of Figure 3b.
The cyclic, trinuclear molecule (Me2Sn)3Se3 in 13 [39] has one pair of the diagonally opposite tin(IV) and selenium atoms lying on a 2-fold axis of symmetry, with the ring-atoms not lying on the axis each participating in a single Sn⋯Se interaction. These interactions extend in three-dimensions to consolidate the molecular packing, Figure 3c.

3.2. Lead Compounds Featuring Pb⋯Se Interactions in Their Crystals

There are seven lead compounds satisfying the specified search criteria, 14–20, and the chemical diagrams for the interacting species in these are shown in Figure 4. The common feature of each structure is the +II oxidation state for the lead atom so all Pb⋯Se interactions can be classified as tetrel bonding interactions. Three of the molecules self-associate to form zero-dimensional aggregates and the remaining examples form one-dimensional chains in their crystals.
The first aggregate is the centrosymmetric dimer formed by 14 [40] which was developed as a precursor for the chemical vapor deposition (CVD) of PbSe nanoparticles. As shown in Figure 5a, molecules associate through two Pb⋯Se interactions via a {Pb–Se⋯}2 synthon. A similar {Pb–Se⋯}2 synthon is found in 15 [41], Figure 5b, but the dimeric aggregate has crystallographic 2-fold symmetry. The di-anion in 16 [42], which thermally decomposes to PbSe, associates about a center of inversion with each of the selenium atoms of one 2,2-dicyano-ethylene-1,1-diselenolate ligand forming Pb⋯Se interactions, Figure 5c. The remaining molecules in this section associate to form one-dimensional chains.
In 17 [43], developed as a synthetic precursor for PbSe nanomaterials, a selenium atom of each of the asymmetrically chelating diselenocarbamate ligands connects to the same symmetry related lead(II) atom; as a result, a zigzag chain is formed (glide symmetry), Figure 5d. One selenium atom of each of the asymmetrically coordinating diselenophosphinate ligands in 18 [44] also forms a Pb⋯Se interaction but with different centrosymmetrically related molecules, leading to the formation of a twisted supramolecular chain sustained by {Pb–Se⋯}2 synthons, Figure 5e. The compound was prepared in the context of investigating the mechanism of forming quantum dots from tertiary phosphine selenide sources. The lead(II) atom in 19 [45] lies on a 2-fold axis of symmetry and the coordinated selenium atoms associate with the same symmetry related lead(II) atom to form a twisted, supramolecular chain, Figure 5f. The structure of 20 [35] is isostructural with the tin(II) analog, 9, described as a twisted chain and illustrated in Figure 2h; 9 was investigated for its utility as a single source precursor for PbSe nanoparticles.

3.3. Arsenic Compounds Featuring As⋯Se Interactions in their Crystals

A relatively small number of compounds featuring As⋯Se interactions in their crystals are known and the chemical structures for the interacting species are shown in Figure 6, that is for 21–27, and, as demonstrated above, even though there is only a small number of examples, there is a great diversity in supramolecular architectures.
The first selenide included in this survey is noted in the crystal of 21 [46], where two distinct molecules associate via As⋯Se interactions, with the participating atoms being arsenic(III) and selenide-selenium atoms, indicative of a pnictogen interaction. Each of the molecules is located on a crystallographic 3-fold axis of symmetry and associate with a crystallographic site of symmetry 23. It can be noted from the Figure 7a that each phosphaneselenide atom forms three As⋯Se interactions with three different AsBr3 molecules so that a distorted As4Se4 cube, sustained by eight As⋯Se interactions, defines the core of the aggregate. The mono-anion in 22 [47] has the charge localized on the exocyclic selenium atom with the dimeric aggregate in the crystal shown in Figure 7b sustained by As⋯Se interactions between centrosymmetrically related anions.
There are four examples whereby one-dimensional chains are formed through As⋯Se interactions. In 23 [48], a mirror plane bisects the molecule with the selenium atom lying on the plane. The molecules are assembled into a linear chain via a single As⋯Se connection per molecule, Figure 7c. Similar connections are noted in the crystal of 24 [49], comprising a five-membered As3Se2 ring, whereby only one of the three potential arsenic(III) atoms and one of the two selenium atoms are engaged in As⋯Se interactions to form a chain with a helical topology being propagated by 21-screw symmetry, Figure 7d. A third topology for the chain is seen in the crystal of 25 [50] where the molecule is disposed about a 2-fold axis of symmetry. There are on average two As⋯Se interactions between the molecules and being propagated by glide symmetry; the chain has a zigzag topology, Figure 7e. The fourth one-dimensional architecture observed for 26 [51] reverts to a helical topology (21 screw symmetry), Figure 7f, but exhibits quite distinct features than for 24. In the crystal, two AsCl3 molecules are bridged by two selenium atoms to form a {As⋯Se}2 synthon. These are further connected by additional As⋯Se interactions (3.42 Å) to form the helical, supramolecular chain. In this scheme, the arsenic(III) center participates in three As⋯Se interactions as seen in 21 and in the next structure to be described, 27.
A two-dimensional architecture is constructed in the crystal of 27 [52] as a result of three distinct As⋯Se interactions. As is evident from the inset of Figure 7g, the mono-anion, formulated as As7Se4-, participates in eight As⋯Se interactions whereby four arsenic atoms form a single interaction, as do two of the selenium atoms with one selenium atom forming two As⋯Se contacts. Three of the contacts involve directly bonded arsenic and selenium atoms and occur around a center of inversion in each case; thus, there are three independent {As–Se⋯}2 synthons. The two remaining interactions occur between bonded arsenic atoms connecting to a single selenium atom, which thereby lead to the formation of a three-membered {⋯AsAs⋯Se} synthon. The result is the grid shown in Figure 7g, which define rather large voids that accommodate the tetraphenylphosphonium counter-cations.

3.4. Antimony Compounds Featuring Sb⋯Se Interactions in their Crystals

Eight crystals feature Sb⋯Se interactions leading to zero-, one-, and two-dimensional aggregation patterns. The chemical diagrams for the interacting species in these, that is, 28–35, are shown in Figure 8.
The supramolecular association in the crystal of 28 [53] is an illuminative example of cooperation between Sb⋯Se and Sb⋯Cl secondary bonding interactions. As evidenced from Figure 9a, there is a Sb⋯Se interaction between the SbCl3 molecule and one of the selenium atoms of the eight-membered ring of the 1,5-diselenacyclooctane molecule. These aggregates associate about a center of inversion via Sb⋯Cl interactions to form a four-molecule aggregate. The molecules in 29 [54], Figure 9b, 30 ([55]; KIMNEB; Sb⋯Se = 3.69 Å) and 31 ([56]; ISIPEG Sb⋯Se = 3.88 Å) are centrosymmetric dimers sustained by two Sb⋯Se interactions; 29 [54] was employed as a precursor for CVD of Sb2Se3 and aerosol-assisted chemical vapor deposition (AACVD) of Sb2Se3 thin films. The last zero-dimensional aggregate is found in the crystal of 32 ([46]; GEXSIN; 3.36 Å). This is centered about a distorted Sb4Se4 cube, sustained by eight Sb⋯Se interactions, as described above for isostructural 21 [46], Figure 7b.
Two one-dimensional chains are sustained by Sb⋯Se interactions. There is an average of one Sb⋯Se interaction per repeat unit in 33 [57] where the resulting topology is linear and where the interacting selenium atom approaches the antimony atom within the O2Se2 skewed-trapezoidal plane in the region between the two oxygen atoms, Figure 9c. The [Sb12Se20]4− Zintl ion in 34 [58] also self-associates into a linear chain whereby centrosymmetrically related tetra-anions are connected by a {Sb⋯Se}2 synthon, Figure 9d.
The last crystal in this section to be discussed features the smallest molecule in this category, that is, Sb(SeMe)3 in 35 [59]. Similar to that seen in 32, the antimony atom accepts three Sb⋯Se interactions as each selenium atom participates in one such contact. To a first approximation, the resultant two-dimensional array has the form of a square grid and displays a corrugated topology, as seen in the views of Figure 9e.

3.5. Bismuth Compounds Featuring Bi⋯Se Interactions in their Crystals

There are only six bismuth-/selenium-containing crystals featuring Bi⋯Se interactions and the chemical structures of the interacting species in these, that is, 36–41, are shown in Figure 10.
A simple dimeric aggregate sustained by two Bi⋯Se interactions and a {Bi–Se⋯}2 synthon is observed in the crystal of 36 [55]. While this has the appearance, at least to a first approximation, of several related species covered above (Figure 11a), the difference here is that the association is not through a center of inversion, as is usually observed. In this case, the contacts occur between two crystallographically independent molecules. The association in 37 ([46]; GEXSEJ; 3.35 Å), with a supramolecular Bi4Se4 core sustained by Bi⋯S interactions, is as described previously for 21, Figure 7b, and 32. An aesthetically pleasing Bi4 core is a key feature in the crystal of 38 [60], with each edge of the Bi3 triangle, which encompasses a central bismuth atom, being bridged by a sequence of Se–Ag–Se atoms. Centrosymmetrically related molecules associate through a center of inversion and are sustained by four Bi⋯Se interactions, as is apparent from the two views of Figure 11b.
The three remaining crystals feature one-dimensional chains. In 39 [61], of interest owing to a semi-conducting character and where a Bi–Se atom pair caps a Fe2(CO)6 unit, the presence of Bi⋯Se interactions lead to a helical, supramolecular chain; Figure 11c. A helical chain is also observed in 40 [62], Figure 11d, again sustained by, on average one Bi⋯Se interaction per repeat unit. When the two bismuth-bound phenyl groups of 40 are replaced by two phenylselenyl groups, leading to 41 [63], significantly more Bi⋯Se interactions are evident. The asymmetric unit of 41 comprises two independent molecules and each of these self-associates into a helical chain, as for 39 and 40, but, in this case, there are, on average, three Bi⋯Se interactions per repeat unit in each of the independent chains formed in the crystal, one of which is illustrated in Figure 11e; the Bi⋯Se separations for the second independent chain are 3.49 and 2 × 3.59 Å. This propensity to form Bi⋯Se interactions in Bi(SePh)3 (40) is not pervasive as the structure suggests. For example, the molecule highlighted in 38 co-crystallizes with one equivalent of Bi(SePh)3 as well as one equivalent of 1,2-dimethoxyethane (solvate). However, Bi(SePh)3 in 38 (and in the disordered chloride analog of 38) does not participate in Bi⋯Se interactions, instead the bismuth atom forms Bi⋯Br (Bi⋯Cl) secondary bonding interactions with the other bismuth-containing molecule.

3.6. Tellurium Compounds Featuring Te⋯Se Interactions in Their Crystals

The most numerous among the main group elements covered in the present survey are those having tellurium, with 17 examples. The chemical diagrams for 42–58 are given in Figure 12. As with the earlier series covered, herein a broad range of compounds and supramolecular motifs are noted.
Six of the compounds assemble into zero-dimensional motifs. In 42 [64], the tellurium and selenium atoms of one of the five-membered rings associate about a center of inversion to form the dimeric aggregate shown in Figure 13a. When 42 was cocrystallized with TCNQ (tetracyanoquinodimethane), highly conductive charge-transfer (CT) complexes were formed [64]. Similar centrosymmetric {Te–Se⋯}2 synthons are observed in each of 43 [65], Figure 13b, 44 ([66], MIVYIB; d(Te⋯Se) = 3.90 Å), and 45 ([66], MIVZAU; 3.93 Å). Again, a {Te–Se⋯}2 synthon is noted in 46 [67], Figure 13c, a compound that is particularly noteworthy for the relatively high number of potential iodide donors but, where Te⋯Se interactions prevail. The ion-pair in 47 [68] is formulated as [Ph3Te][N=C=S] with the closest association between the constituent species being Te⋯N contacts of 2.81 and 3.12 Å, represented as black dashed lines in Figure 13d, for the two independent ion-pairs comprising the asymmetric unit. In terms of Te⋯Se interactions, one of the two independent ion-pairs associates with a center of inversion via a {Te–Se⋯}2 synthon. Associated with this are two of the second independent ion-pairs (each separated by 3.43 Å) so a four-ion-pair aggregate is generated. A related ion-pair, [Me3Te][N=C=S], is seen in 48 [68], where, consistent with the replacement of the tellurium-bound phenyl substituents of 47 with (relatively) electropositive methyl substituents, the Te⋯N separation is elongated to 3.25 Å. The constituents of the ion-pair are connected into a supramolecular chain with a zigzag topology via Te⋯Se interactions, Figure 13e. When the weak Te⋯N interactions are taken into consideration, the aforementioned chains are connected into a two-dimensional array (not illustrated).
In cluster compound 49 [69], the osmium atoms of the Os3(CO)9 core are μ3-capped on either side by tellurium and selenium atoms, which associate in the crystal to form a linear, supramolecular chain with an average of one Te⋯Se interaction per repeat unit, Figure 13f. In isostructural 50 and 51 [70], constructed about M3O cores, M = Zr (50) and Hf (51), and featuring an unusual TeSe3 capping residue, molecules associate into helical chains (21 screw symmetry) via Te⋯Se interactions. Similar helical chains are observed in 52, Figure 13g, and 53 [71], which differ in the nature of the atom connecting the aromatic ring to the selenium atom bonded to the tellurium atom, the latter associate to form the chain. On average, there are two Te⋯Se interactions linking the repeat unit of 54 [72] where the tellurium is located on a center of inversion. The resulting chain has a linear topology, Figure 13h. Compound 55 [65] is closely related to that of 43 in that the methoxy substituents of the latter have replaced by ethoxycarboxyl groups; the central selenium atom in 55 lies in a 2-fold axis of symmetry. Whereas 43 self-associates into a dimer, Figure 13b, 55 self-associates into a linear, supramolecular chain as each selenium atom forms two Te⋯Se interactions with a translationally related molecule, Figure 13i.

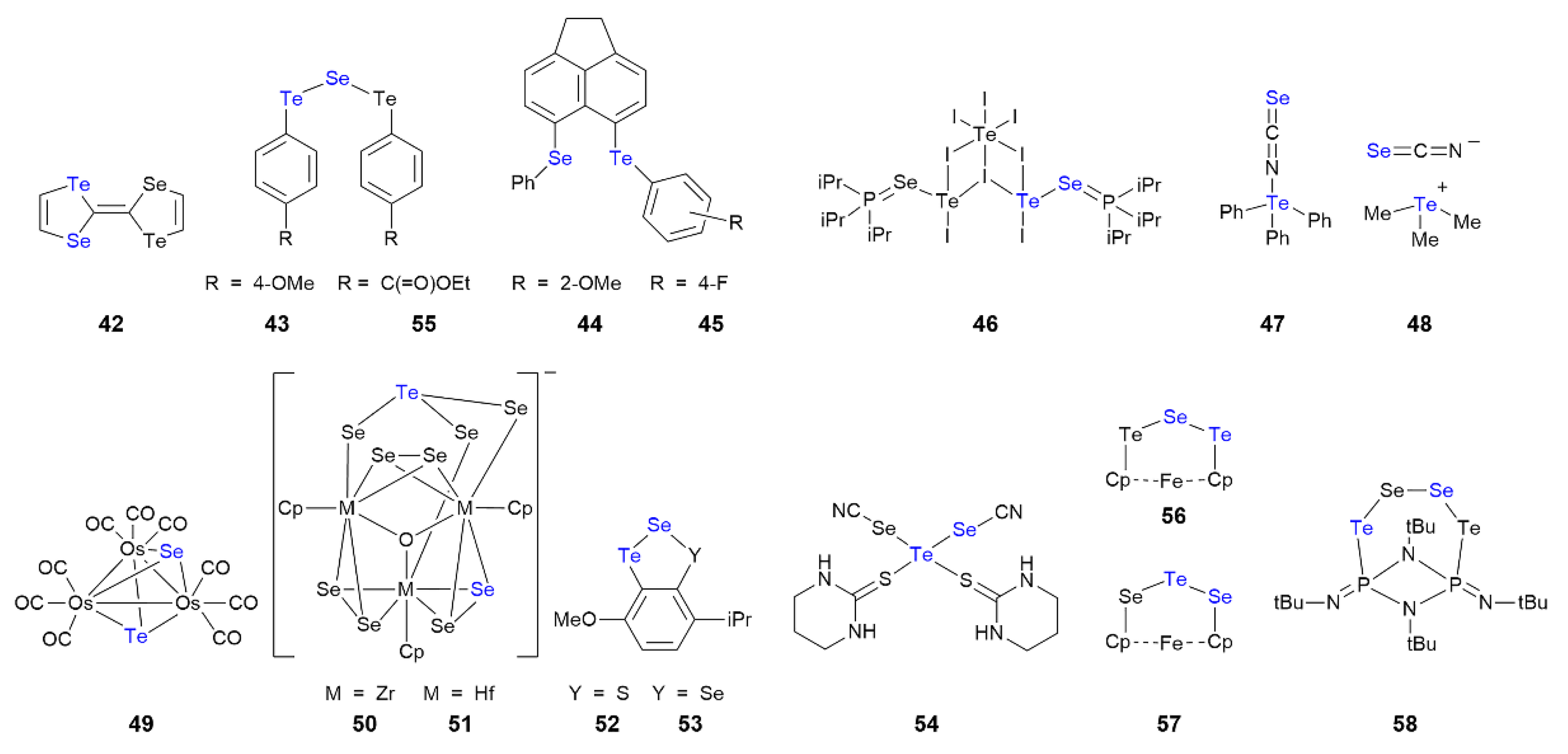

Compound 56 [73] self-associates into a supramolecular chain, Figure 14a. Two independent molecules comprise the asymmetric unit and these differ in the number of Te⋯Se interactions they form. For the first independent molecule, one tellurium and the selenium atom form a single Te⋯Se interaction each, whereas for the second molecule, the same situation pertains, except both participating atoms form two Te⋯Se interactions. The connections between the independent molecules lead to a linear, supramolecular chain. Centrosymmetrically chains are linked into a double-chain via additional Te⋯Se interactions formed by the second independent molecule. The molecule in 57 [74] is related to that in 56 in that there has been an exchange between selenium and tellurium atoms. This results in a distinct supramolecular assembly. Here, the central tellurium atom forms two Te⋯Se interactions with each of the selenium atoms forming a single Te⋯Se interaction. These extend laterally so a two-dimensional array eventuates, Figure 14b. A comparison of the simplified images in Figure 14a,b highlight the different modes of association between molecules. The energies associated with individual Te⋯Se contacts were calculated for each of 56 and 57, and for the latter, these were −10.8 and −11.8 kJ mol−1 [74]. The molecule in 58 [75] features a seven-membered ring containing a string of Te–Se–Se–Te atoms bridged by a P–N–P link, the latter being a part of a four-membered N2P2 ring. Each of the tellurium and selenium atoms forms a Te⋯Se interaction. Again, these extend laterally to form a two-dimensional array, Figure 14c.

4. Discussion and Outlook

The foregoing describes 58 crystals featuring M⋯Se secondary bonding interactions between main group elements (M) and selenium for M = Sn (13 examples), Pb (7), As (7), Sb (8), Bi (6), and Te (17). The percentage adoption of M⋯Se in the crystals varies considerably. For example, of the 27 crystals containing both lead and selenium, seven feature Pb⋯Se interactions, giving a percentage adoption of 26%. This falls off to 16% for bismuth to 10% for tellurium and then 6% (arsenic) and 5% (tin and antimony). One reason for the low adoption rates relates to the observation that secondary bonding interactions are extremely sensitive to steric hindrance—bulky groups present on the organometal center and/or ligands bound to the metal can preclude the formation of secondary bonding interactions [15,16,17,18,19,20,21,22,23]; steric considerations have been exploited for the rational design of coordination polymers in zinc and cadmium dithiolate chemistry [76]. In most of the crystals, the metal center forms a single M⋯Se contact with few examples of the metal forming two contacts and rarely, three M⋯Se contacts. With the formation of primarily one M⋯Se interaction, the supramolecular architectures sustained by these interactions are usually zero- or one-dimensional, being found in 38 and 50% of all crystals, respectively. Two-dimensional architectures sustained by M⋯Se interactions are found in 10% of the crystals and there is a single example of a three-dimensional architecture. A comment on the likely bonding responsible for the M⋯Se interactions is appropriate. For the Sn⋯S contacts, the majority features tin(IV) centers and so the interactions can be considered in terms of classic Lewis Acid/Lewis Base electrostatics. In contrast, all of the Pb⋯Se contacts can be rationalized in terms of tetrel bonding; the overwhelming majority of M⋯Se interactions formed by arsenic-triad arise from pnictogen bonding and the tellurium examples in terms of chalcogen bonding where σ-hole considerations come to the fore. Thus far, limited mention has been made of the energy of stabilization provided by M⋯Se interactions. This is because supporting computational chemistry is largely lacking for M⋯Se interactions with the exception of 56 and 57 [74]. However, in a recent commentary on supramolecular association involving metal centers, it was concluded that the energies of stabilization provided by various secondary bonding interactions was in the same range and often exceeded the energy of stabilization provided by conventional hydrogen bonding interactions [77]. This conclusion is emphasized in the very recently published analysis of a tetrel, C⋯O, bond formed between a sp3-carbon center and the oxygen atom of a tetrahydrofuran molecule, not an interaction that might be expected to be particularly notable, for which an energy of stabilization of about 11 kcal mol−1 was calculated [78]. In the context of the foregoing survey of M⋯Se interactions, with diverse bonding circumstances and supramolecular molecular aggregation patterns, clearly there is enormous scope for further experimental work supported by theoretical analysis.

Funding

Crystallographic research at Sunway University is supported by Sunway University Sdn Bhd (Grant no. STR-RCTR-RCCM-001-2019).

Conflicts of Interest

The author declares no conflict of interest.

References

  1. Minyaev, R.M.; Minkin, V.I. Theoretical study of O - > X (S, Se, Te) coordination in organic compounds. Can. J. Chem. 1998, 76, 776–778. [Google Scholar] [CrossRef]
  2. Wang, W.; Ji, B.; Zhang, Y. Chalcogen bond: A sister noncovalent bond to halogen bond. J. Phys. Chem. A 2009, 113, 8132–8135. [Google Scholar] [CrossRef] [PubMed]
  3. Aakeröy, C.B.; Bryce, D.L.; Desiraju, G.R.; Frontera, A.; Legon, A.C.; Nicotra, F.; Rissanen, K.; Scheiner, S.; Terraneo, G.; Metrangolo, P.; et al. Definition of the chalcogen bond (IUPAC Recommendations 2019). Pure Appl. Chem. 2019, 91, 1889–1892. [Google Scholar] [CrossRef]
  4. Alkorta, I.; Elguero, J.; Frontera, A. Not only hydrogen bonds: Other noncovalent interactions. Crystals 2020, 10, 180. [Google Scholar] [CrossRef] [Green Version]
  5. Bent, H.A. Structural chemistry of donor-acceptor interactions. Chem. Rev. 1968, 68, 587–648. [Google Scholar] [CrossRef]
  6. Hassel, O. Structural Aspects of interatomic charge-transfer bonding. Science 1970, 170, 497–502. [Google Scholar] [CrossRef]
  7. Alcock, N.W. Secondary bonding to nonmetallic elements. Adv. Inorg. Chem. Radiochem. 1972, 15, 1–58. [Google Scholar] [CrossRef]
  8. Llaguno, E.C.; Paul, I.C. Crystal structure of a [1,2,5]oxaselenazolo[2,3-b][1,2,5]oxaselenazole-7-SeIV: A molecule with ‘short’ intramolecular Se…O distances, or ‘long’ Se–O bonds. J. Chem. Soc. Perkin Trans. 1972, 2, 2001–2006. [Google Scholar] [CrossRef]
  9. Murray, J.S.; Lane, P.; Clark, T.; Politzer, P. σ-hole bonding: Molecules containing group VI atoms. J. Mol. Model. 2007, 13, 1033–1038. [Google Scholar] [CrossRef]
  10. Politzer, P.; Murray, J.S.; Clark, T. Halogen bonding: An electrostatically-driven highly directional noncovalent interaction. Phys. Chem. Chem. Phys. 2010, 12, 7748–7757. [Google Scholar] [CrossRef]
  11. Politzer, P.; Murray, J.S. Halogen bonding and other σ-hole interactions: A perspective. Phys. Chem. Chem. Phys. 2013, 15, 11178–11189. [Google Scholar] [CrossRef] [PubMed]
  12. Bauzá, A.; Mooibroek, T.J.; Frontera, A. The bright future of unconventional σ/π-hole interactions. ChemPhysChem 2015, 16, 2496–2517. [Google Scholar] [CrossRef] [PubMed]
  13. Kolar, M.H.; Hobza, P. Computer modeling of halogen bonds and other σ-hole interactions. Chem. Rev. 2016, 116, 5155–5187. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Politzer, P.; Murray, J.S. σ-Hole interactions: Perspectives and misconceptions. Crystals 2017, 7, 212. [Google Scholar] [CrossRef] [Green Version]
  15. Tiekink, E.R.T. Molecular architecture and supramolecular association in the zinc-triad 1,1-dithiolates. Steric control as a design element in crystal engineering? CrystEngComm 2003, 5, 101–113. [Google Scholar] [CrossRef]
  16. Lai, C.S.; Tiekink, E.R.T. Structural diversity in the mercury(II) bis(N,N-dialkyldithiocarbamate) compounds: An example of the importance of considering crystal structure when rationalising molecular structure. Z. Kristallogr. Cryst. Mater. 2007, 222, 532–538. [Google Scholar] [CrossRef]
  17. Tiekink, E.R.T. Exploring the topological landscape exhibited by binary zinc-triad 1,1-dithiolates. Crystals 2018, 8, 292. [Google Scholar] [CrossRef] [Green Version]
  18. Buntine, M.A.; Kosovel, F.J.; Tiekink, E.R.T. Supramolecular Sn⋯Cl associations in diorganotin dichlorides and their influence on molecular geometry as studied by ab initio molecular orbital calculations. CrystEngComm 2003, 5, 331–336. [Google Scholar] [CrossRef]
  19. Tiekink, E.R.T. Tin dithiocarbamates: Applications and structures. Appl. Organomet. Chem. 2008, 22, 533–550. [Google Scholar] [CrossRef]
  20. Liu, Y.; Tiekink, E.R.T. Supramolecular associations in binary antimony(III) dithiocarbamates: Influence of ligand steric bulk, influence on coordination geometry, and competition with hydrogenbonding. CrystEngComm 2005, 7, 20–27. [Google Scholar] [CrossRef]
  21. Tiekink, E.R.T. Aggregation patterns in the crystal structures of organometallic Group XV 1,1-dithiolates: The influence of the Lewis acidity of the central atom, metal- and ligand-bound steric bulk, and coordination potential of the 1,1-dithiolate ligands upon supramolecular architecture. CrystEngComm 2006, 8, 104–118. [Google Scholar] [CrossRef]
  22. Lee, S.M.; Heard, P.J.; Tiekink, E.R.T. Molecular and supramolecular chemistry of mono- and di-selenium analogues of metal dithiocarbamates. Coord. Chem. Rev. 2018, 375, 410–423. [Google Scholar] [CrossRef]
  23. Tiekink, E.R.T.; Zukerman-Schpector, J. Stereochemical activity of lone pairs of electrons and supramolecular aggregation patterns based on secondary interactions involving tellurium in its 1,1-dithiolate structures. Coord. Chem. Rev. 2010, 254, 46–76. [Google Scholar] [CrossRef]
  24. Taylor, R.; Wood, P.A. A million crystal structures: The whole is greater than the sum of its parts. Chem. Rev. 2019, 119, 9427–9477. [Google Scholar] [CrossRef]
  25. Bruno, I.J.; Cole, J.C.; Edgington, P.R.; Kessler, M.; Macrae, C.F.; McCabe, P.; Pearson, J.; Taylor, R. New software for searching the Cambridge Structural Database and visualizing crystal structures. Acta Crystallogr. Sect. B Struct. Sci. Cryst. Eng. Mater. 2002, 58, 389–397. [Google Scholar] [CrossRef]
  26. DIAMOND, Version 3.2k; K. Brandenburg & M. Berndt GbR: Bonn, Germany, 2006.
  27. Rinn, N.; Euβner, J.P.; Kaschuba, W.; Xie, X.; Dehnen, S. Formation and reactivity of organo-functionalized tin selenide clusters. Chem. Eur. J. 2016, 22, 3094–3104. [Google Scholar] [CrossRef]
  28. Krautscheid, H.; Schmidtke, M. [NaSn12O8Se6]3−—ein chalkogenostannatanion mit schalenförmigem Aufbau. Z. Anorg. Allg. Chem. 2002, 628, 913–914. [Google Scholar] [CrossRef]
  29. Dehnen, S.; Hanau, K.; Rinn, N.; Argentari, M. Organotin selenide clusters and hybrid capsules. Chem. Eur. J. 2018, 24, 11711–11716. [Google Scholar] [CrossRef]
  30. Metta-Magaña, A.J.; Lopez-Cardoso, M.; Vargas, G.; Pannell, K.H. Major distinctions in the molecular and supramolecular structures of selenium-containing organotins, (o-MeSe-C6H4CH2)SnPh3–nCln (n = 0, 1, 2). Z. Anorg. Allg. Chem. 2012, 638, 1677–1682. [Google Scholar] [CrossRef]
  31. Santner, S.; Sprenger, J.A.P.; Finze, M.; Dehnen, S. The role of [BF4]− and [B(CN)4]− anions in the ionothermal synthesis of chalcogenidometalates. Chem. Eur. J. 2018, 24, 3474–3480. [Google Scholar] [CrossRef]
  32. Kim, K.-W. DMF Solvothermal synthesis and structural characterization of [dabcoH]2[(CH3)2NH2]2[Sn2Se6] DMF. J. Korean Chem. Soc. 2005, 49, 603–608. [Google Scholar] [CrossRef] [Green Version]
  33. Block, E.; Dikarev, E.V.; Glass, R.S.; Jin, J.; Li, B.; Li, X.; Zhang, S.-Z. Synthesis, structure, and chemistry of new, mixed group 14 and 16 heterocycles:  Nucleophile-induced ring contraction of mesocyclic dications. J. Am. Chem. Soc. 2006, 128, 14949–14961. [Google Scholar] [CrossRef] [PubMed]
  34. Nayek, H.P.; Niedermeyer, H.; Dehnen, S. Preparation and conformation of organo-bridged bis[tris(arylchalcogenolato)tin] compounds–an experimental and quantum chemical study. Z. Anorg. Allg. Chem. 2008, 634, 2805–2810. [Google Scholar] [CrossRef]
  35. Holligan, K.; Rogler, P.; Rehe, D.; Pamula, M.; Kornienko, A.Y.; Emge, T.J.; Krogh-Jespersen, K.; Brennan, J.G. Copper, indium, tin, and lead complexes with fluorinated selenolate ligands: Precursors to MSex. Inorg. Chem. 2015, 54, 8896–8904. [Google Scholar] [CrossRef] [PubMed]
  36. Dräger, M.; Mathiasch, B. Kristallstrukturbestimmung und schwingungsanalyse von 2,2,4,4,5,5-hexamethyl-1,3-diselena-2,4,5-tristannolan Se2Sn3(CH3)6. Z. Anorg. Allg. Chem. 1980, 470, 45–58. [Google Scholar] [CrossRef]
  37. Cheng, Y.; Emge, T.J.; Brennan, J.G. Pyridineselenolate Complexes of tin and lead:  Sn(2-SeNC5H4)2, Sn(2-SeNC5H4)4, Pb(2-SeNC5H4)2, and Pb(3-Me3Si-2-SeNC5H3)2. Volatile CVD precursors to Group IV−Group VI semiconductors. Inorg. Chem. 1996, 35, 342–346. [Google Scholar] [CrossRef]
  38. Herzog, U.; Böhme, U.; Brendler, E.; Rheinwald, G. Group 14 chalcogenides featuring a bicyclo[3.3.0]octane skeleton. J. Organomet. Chem. 2001, 630, 139–148. [Google Scholar] [CrossRef]
  39. Dräger, M.; Blecher, A.; Jacobsen, H.-J.; Krebs, B. Molekül- und kristallstruktur von hexamethylcyclo-tristannaselenan [(CH3)2SnSe]3. J. Organomet. Chem. 1978, 161, 319–325. [Google Scholar] [CrossRef]
  40. Leung, W.-P.; Wan, C.-L.; Kan, K.-W.; Mak, T.C.W. Synthesis, structure, and reactivity of Group 14 bis(thiophosphinoyl) metal complexes. Organometallics 2010, 29, 814–820. [Google Scholar] [CrossRef]
  41. Ritch, J.S.; Chivers, T.; Ahmad, K.; Afzaal, M.; O’Brien, P. Synthesis, structures, and multinuclear NMR spectra of tin(II) and lead(II) complexes of tellurium-containing imidodiphosphinate ligands: Preparation of two morphologies of phase-pure PbTe from a single-source precursor. Inorg. Chem. 2010, 49, 1198–1205. [Google Scholar] [CrossRef]
  42. Hummel, H.-U.; Fischer, E.; Fischer, T.; Gruβ, D.; Franke, A.; Dietzsch, W. Synthesen, strukturen und thermische abbaureaktionen von TlI-, PbII- und SeII-komplexen mit 2,2-dicyanethylen-1,1-diselenolat. Chem. Ber. 1992, 125, 1565–1570. [Google Scholar] [CrossRef]
  43. Trindade, T.; Monteiro, O.C.; O’Brien, P.; Motevalli, N. Synthesis of PbSe nanocrystallites using a single-source method. The X-ray crystal structure of lead (II) diethyldiselenocarbamate. Polyhedron 1999, 18, 1171–1175. [Google Scholar] [CrossRef]
  44. Evans, C.M.; Evans, M.E.; Krauss, T.D. Mysteries of TOPSe revealed: Insights into quantum dot nucleation. J. Am. Chem. Soc. 2010, 132, 10973–10975. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Schuster, M.; Bensch, W. (Se,O)-Koordinierte komplexe niedervalenter hauptgruppenmetalle: Die kristallstruktur von bis(N,N-diethyl-N’-benzoylselenoureato)blei(II). Z. Naturforsch. B Chem. Sci. 1994, 49, 1615–1619. [Google Scholar] [CrossRef] [Green Version]
  46. Alhanash, F.B.; Barnes, N.A.; Brisdon, A.K.; Godfrey, S.M.; Pritchard, R.G. Formation of M4Se4 cuboids (M = As, Sb, Bi) via secondary pnictogen–chalcogen interactions in the co-crystals MX3·Se=P(p-FC6H4)3 (M = As, X = Br; M = Sb, X = Cl; M = Bi, X = Cl, Br). Dalton Trans. 2012, 41, 10211–10218. [Google Scholar] [CrossRef]
  47. Czado, W.; Müller, U. Cyclische polyselenidoarsenate(III) und -antimonate(III): PPh4[Se5AsSe], PPh4[AsSe6–xSx], (PPh4)2[As2Se6]·2CH3CN und (PPh4)2[Se6SbSe]2. Z. Anorg. Allg. Chem. 1998, 624, 239–243. [Google Scholar] [CrossRef]
  48. Kennard, O.; Wampler, D.L.; Coppola, J.C.; Motherwell, W.D.S.; Mann, F.G.; Watson, D.G.; MacGillavry, C.H.; Stam, C.H.; Benci, P. Crystal and molecular structure of 5,10-epoxy-, 5,10-epithio-, 5,10-episeleno-, and 5,10-epitelluro-5,10-dihydroarsanthren. J. Chem. Soc. C 1971, 1511–1515. [Google Scholar] [CrossRef]
  49. Thiele, G.; Rotter, H.W.; Lietz, M.; Ellermann, J. Chemistry of polyfunctional molecules, 80 [1] Crystal and molecular structures of the heteronoradamantanes 5-methyl-2.2.8.8-tetra-ethoxycarbonyl-1.3.7-triarsa-tricyclo[3.3.1.03,7]nonane and 5-methyl-1.3.7-triarsa-2.8-diselena-[3.3.1.03,7]nonane. Z. Naturforsch. B Chem. Sci. 1984, 39, 1344–1349. [Google Scholar] [CrossRef]
  50. Applegate, C.A.; Meyers, E.A.; Zingaro, R.A.; Merijanian, A. reactions of arsinic and arsonic acids with H2S and H2Se: Crystal structure of 1,4-diphenyl-1,4-diarsa-2,3,5-triselenacyclopentane. Phosphorus Sulfur Rel. Elements 1988, 35, 363–370. [Google Scholar] [CrossRef]
  51. Levason, W.; Maheshwari, S.; Ratnani, R.; Reid, G.; Webster, M.; Zhang, W. Structural diversity in supramolecular complexes of MCl3 (M = As, Sb, Bi) with constrained thio- and seleno-ether ligands. Inorg. Chem. 2010, 49, 9036–9048. [Google Scholar] [CrossRef]
  52. Angilella, V.; Mercier, H.; Belin, C.J. Heteroatomic polyanions of post-transition elements. Synthesis and structure of a salt containing the novel hybrid hepta-arsenic tetraselenate(1–) anion, As7Se4–. Chem. Soc. Chem. Commun 1989, 1654–1655. [Google Scholar] [CrossRef]
  53. Hill, N.J.; Levason, W.; Patel, R.; Reid, G.; Webster, M. Unusual structural trends in the [MCl3([8]aneSe2)] (M = As, Sb, Bi) adducts. Dalton Trans. 2004, 980–981. [Google Scholar] [CrossRef] [PubMed]
  54. Sharma, R.K.; Kedarnath, G.; Jain, V.K.; Wadawale, A.; Nalliath, M.; Pillai, C.G.S.; Vishwanadh, B. 2-Pyridyl selenolates of antimony and bismuth: Synthesis, characterization, structures and their use as single source molecular precursor for the preparation of metal selenidenanostructures and thin films. Dalton Trans. 2010, 39, 8779–8787. [Google Scholar] [CrossRef] [PubMed]
  55. Šimon, P.; Jambor, R.; Růžička, A.; Dostál, L. Oxidative addition of diphenyldichalcogenides PhEEPh (E = S, Se, Te) to low-valent CN- and NCN-chelated organoantimony and organobismuth compounds. Organometallics 2013, 32, 239–248. [Google Scholar] [CrossRef]
  56. Wagner, C.; Merzweiler, K. Neue [{Cp(CO)2Mo}2ESbCl]-cluster mit tetraedrischem Mo2SbE-Gerüst (E = S, Se). Z. Anorg. Allg. Chem. 2011, 637, 651–654. [Google Scholar] [CrossRef]
  57. Kimura, M.; Iwata, A.; Itoh, M.; Yamada, K.; Kimura, T.; Sugiura, N.; Ishida, M.; Kato, S. Synthesis, structures, and some reactions of [(thioacyl)thio]- and (acylseleno)antimony and -bismuth derivatives ((RCSS)xMR and (RCOSe)xMR with M = Sb, Bi and x = 1–3). Helv. Chim. Acta 2006, 89, 747–783. [Google Scholar] [CrossRef]
  58. Martin, T.M.; Wood, P.T.; Kolis, J.W. Synthesis and structure of an [Sb12Se20]4- salt: The largest molecular Zintl ion. Inorg. Chem. 1994, 33, 1587–1588. [Google Scholar] [CrossRef]
  59. Breunig, H.J.; Güleç, S.; Krebs, B.; Dartmann, M. Synthese und struktur von (MeSe)3Sb. Z. Naturforsch. B Chem. Sci. 1989, 44, 1351–1354. [Google Scholar] [CrossRef]
  60. Sommer, H.; Eichhöfer, A.; Drebov, N.; Ahlrichs, R.; Fenske, D. Preparation, Geometric and electronic structures of [Bi2Cu4(SPh)8(PPh3)4] with a Bi2 dumbbell, [Bi4Ag3(SePh)6Cl3(PPh3)3]2 and [Bi4Ag3(SePh)6X3(PPhiPr2)3]2 (X = Cl, Br) with a Bi4 unit. Eur. J. Inorg. Chem. 2008, 5138–5145. [Google Scholar] [CrossRef]
  61. Shieh, M.; Liu, Y.-H.; Huang, C.-Y.; Chen, S.-W.; Cheng, W.-K.; Chien, L.T. The first naked bismuth–chalcogen metal carbonyl clusters: Extraordinary nucleophilicity of the Bi atom and semiconducting characteristics. Inorg. Chem. 2019, 58, 6706–6721. [Google Scholar] [CrossRef]
  62. Calderazzo, F.; Morvillo, A.; Pelizzi, G.; Poli, R.; Ungari, F. Reactivity of molecules containing element-element bonds. 1. Nontransition elements. Inorg. Chem. 1988, 27, 3730–3733. [Google Scholar] [CrossRef]
  63. Sommer, H.; Eichhofer, A.; Fenske, D. Bismutchalkogenolate Bi(SC6H5)3, Bi(SeC6H5)3 und Bi(S-4-CH3C6H4)3. Z. Anorg. Allg. Chem. 2008, 634, 436–440. [Google Scholar] [CrossRef]
  64. Morikami, A.; Takimiya, K.; Aso, Y.; Otsubo, T. Novel tellurium containing fulvalene-type electron donors, triselenatellurafulvalene (TSTeF) and diselenaditellurafulvalene (DSDTeF); synthesis, conductivities and crystal structures of their TCNQ complexes. J. Mater. Chem. 2001, 11, 2431–2436. [Google Scholar] [CrossRef]
  65. Dereu, N.L.M.; Zingaro, R.A.; Meyers, E.A. Bis(4-methoxybenzenetellurenyl)selenide, C14H14O2SeTe2. Cryst. Struct. Commun. 1981, 10, 1345–1352. [Google Scholar]
  66. Stanford, M.W.; Knight, F.R.; Arachchige, K.S.A.; Camacho, P.S.; Ashbrook, S.E.; Bühl, M.; Slawin, A.M.Z.; Woollins, D.J. Probing interactions through space using spin–spin coupling. Dalton Trans. 2014, 43, 6548–6560. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Hrib, C.G.; Jeske, J.; Jones, P.G.; du Mont, W.-W. Telluroselenophosphonium ions: Their unusual soft–soft interactions with iodotellurate anions. Dalton Trans. 2007, 3483–3485. [Google Scholar] [CrossRef] [PubMed]
  68. Klapotke, T.M.; Krumm, B.; Mayer, P.; Piotrowski, H.; Schwab, I.; Vogt, M. Synthesis and structures of triorganotelluronium pseudohalides. Eur. J. Inorg. Chem. 2002, 2701–2709. [Google Scholar] [CrossRef]
  69. Mathur, P.; Payra, P.; Ghose, S.; Hossain, M.M.; Satyanarayana, C.V.V.; Chicote, F.O.; Chadha, R.K. Synthesis and characterisation of [Fe2M3(μ4-E)(μ3-E′)(CO)17] and [Os3(μ3-E)(μ3-E′)(CO)9] (M=Os or Ru; E=S, Se, Te; E′=Se, Te). J. Organomet. Chem. 2000, 606, 176–182. [Google Scholar] [CrossRef]
  70. Dibrov, S.M.; Ibers, J.A. [TeSe3]2– as a tridentate ligand: Syntheses and crystal structures of [PPh4][(CpM(μ2–Se2))3(μ3–O)(μ3–TeSe3)] (M = Zr, Hf). Comptes Rendus Chim. 2005, 8, 993–997. [Google Scholar] [CrossRef]
  71. Ogawa, S.; Yoshimura, S.; Nagahora, N.; Kawai, Y.; Mikata, Y.; Sato, R. Novel multi-chalcogen ring systems with three different chalcogen atoms: Synthesis, structure and redox property of five-membered trichalcogenaheterocycles. Chem. Commun. 2002, 1918–1919. [Google Scholar] [CrossRef]
  72. Åse, K.; Foss, O.; Roti, I. The crystal and molecular structures of trans square-planar complexes of tellurium diselenocyanate with trimethylenethiourea and tetramethylthiourea. Acta Chem. Scand. 1971, 25, 3808–3820. [Google Scholar] [CrossRef]
  73. Karjalainen, M.M.; Oilunkaniemi, R.; Laitinen, R.S. Chalcogen–chalcogen interactions in trichalcogenaferrocenophanes. Crystal structure of 2-selena-1,3-ditellura[3]ferrocenophane [Fe(C5H4Te)2Se]. Inorg. Chim. Acta 2012, 390, 79–82. [Google Scholar] [CrossRef]
  74. Karjalainen, M.M.; Sanchez-Perez, C.; Mikko Rautiainen, J.; Oilunkaniemi, R.; Laitinen, R.S. Chalcogen–chalcogen secondary bonding interactions in trichalcogenaferrocenophanes. CrystEngComm 2016, 18, 4538–4545. [Google Scholar] [CrossRef] [Green Version]
  75. Nordheider, A.; Hüll, K.; Prentis, J.K.D.; Arachchige, K.S.A.; Slawin, A.M.Z.; Woollins, D.J.; Chivers, T. Main group tellurium heterocycles anchored by a P2VN2 scaffold and their sulfur/selenium analogues. Inorg. Chem. 2015, 54, 3043–3054. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  76. Tiekink, E.R.T. Perplexing coordination behaviour of potentially bridging bipyridyl-type ligands in the coordination chemistry of zinc and cadmium 1,1-dithiolate compounds. Crystals 2018, 8, 18. [Google Scholar] [CrossRef] [Green Version]
  77. Tiekink, E.R.T. Supramolecular assembly based on “emerging” intermolecular interactions of particular interest to coordination chemists. Coord. Chem. Rev. 2017, 345, 209–228. [Google Scholar] [CrossRef] [Green Version]
  78. Heywood, V.L.; Alford, T.P.J.; Roeleveld, J.J.; Lekanne Deprez, S.J.; Verhoofstad, A.; van der Vlugt, J.I.; Domingos, S.R.; Melanie Schnell, M.; Davis, A.P.; Mooibroek, T.J. Observations of tetrel bonding between sp3-carbon and THF. Chem. Sci. 2020, 11, 5289–5293. [Google Scholar] [CrossRef]
Crystals 10 00503 g001 550

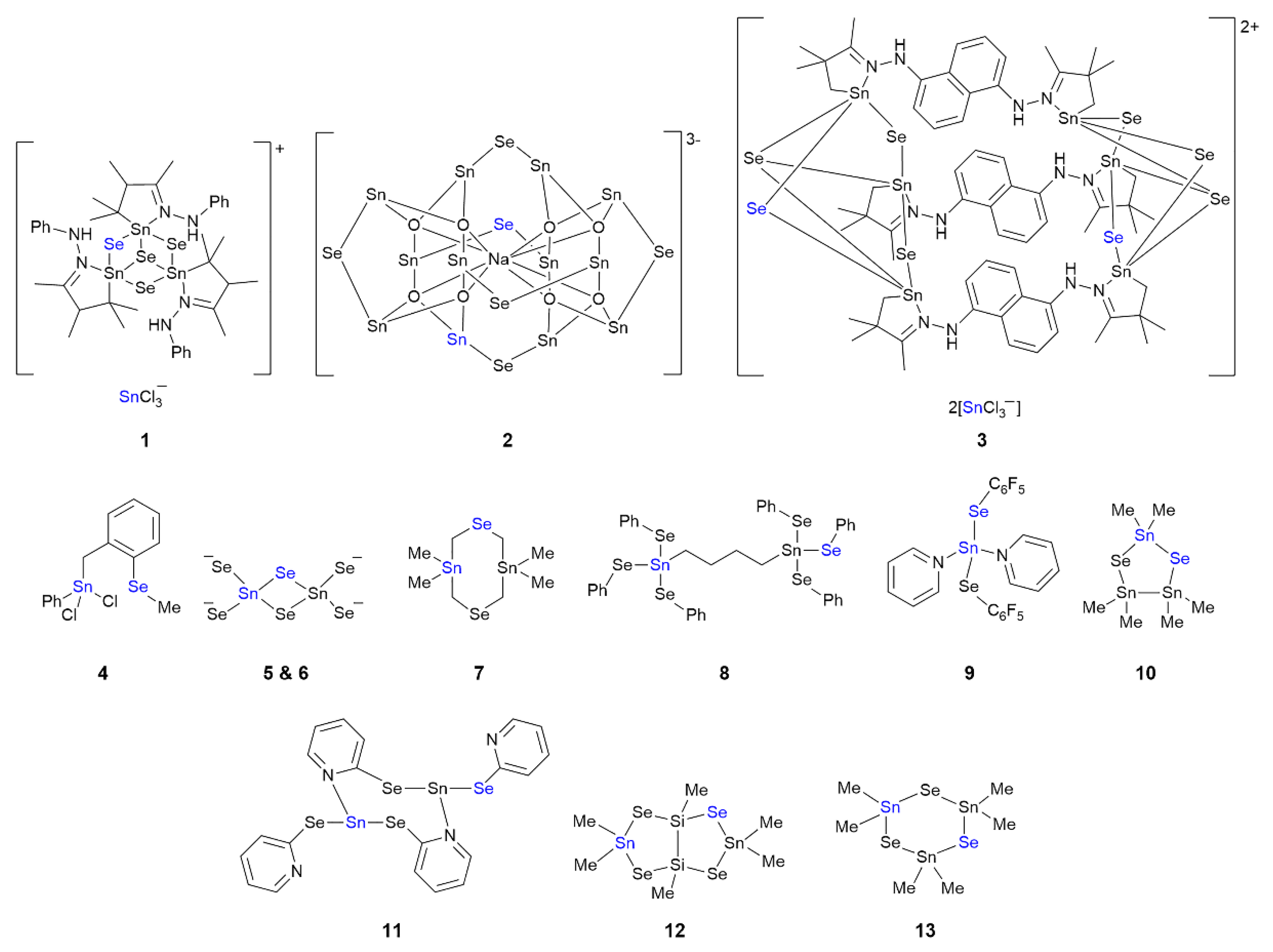

Figure 1. Chemical diagrams for tin compounds 1–13. The atoms participating in the Sn⋯Se interactions are highlighted in blue.
Figure 1. Chemical diagrams for tin compounds 1–13. The atoms participating in the Sn⋯Se interactions are highlighted in blue.
Crystals 10 00503 g001
Crystals 10 00503 g002 550
Figure 2. Supramolecular aggregation via Sn⋯Se secondary bonding in (a) 1 {UJAZIQ; d(Sn⋯Se) = 3.76, 3.79 & 3.90 Å}, (b) 2 {PUZCUI; 3.84 Å}, (c) 3 {BIFCAX; 3.64 & 3.81 Å}, (d) 4 {BELCUS; 3.65 Å}, (e) 5 {RESTER; 3.77 Å}, (f) 7 {LEVLEE; 3.88 Å}, (g) 8 {TORPOG; 3.86 Å}, (h) 9 {WUSWOY; 3.79 Å}, and (i) 10 {MESESN; 3.77 & 3.91 Å and 3.84, 3.93 & 3.98 Å}. Color code in this and subsequent diagrams: main group element, brown; selenium, orange; chloride, cyan; fluoride, plum; oxygen, red; nitrogen, blue; and carbon, gray.
Figure 2. Supramolecular aggregation via Sn⋯Se secondary bonding in (a) 1 {UJAZIQ; d(Sn⋯Se) = 3.76, 3.79 & 3.90 Å}, (b) 2 {PUZCUI; 3.84 Å}, (c) 3 {BIFCAX; 3.64 & 3.81 Å}, (d) 4 {BELCUS; 3.65 Å}, (e) 5 {RESTER; 3.77 Å}, (f) 7 {LEVLEE; 3.88 Å}, (g) 8 {TORPOG; 3.86 Å}, (h) 9 {WUSWOY; 3.79 Å}, and (i) 10 {MESESN; 3.77 & 3.91 Å and 3.84, 3.93 & 3.98 Å}. Color code in this and subsequent diagrams: main group element, brown; selenium, orange; chloride, cyan; fluoride, plum; oxygen, red; nitrogen, blue; and carbon, gray.
Crystals 10 00503 g002
Crystals 10 00503 g003 550

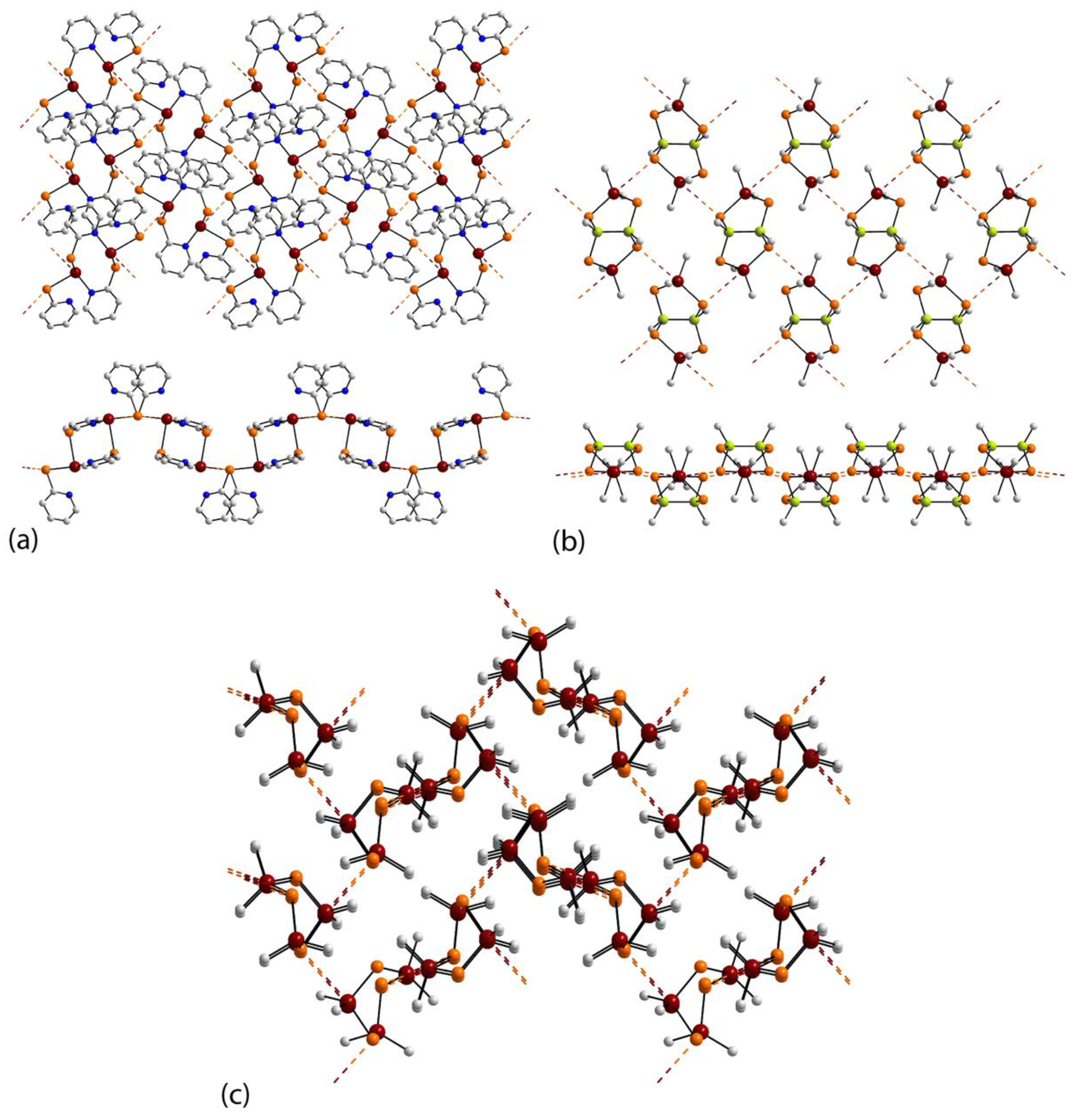

Figure 3. Supramolecular aggregation via Sn⋯Se secondary bonding in (a) 11 {ZOPWIK; d(Sn⋯Se) = 3.62 Å}, (b) 12 {UCOREJ; 4.01 Å}, and (c) 13 {HMCTSS; 4.01 Å}. Additional color code: silicon, olive-green.
Figure 3. Supramolecular aggregation via Sn⋯Se secondary bonding in (a) 11 {ZOPWIK; d(Sn⋯Se) = 3.62 Å}, (b) 12 {UCOREJ; 4.01 Å}, and (c) 13 {HMCTSS; 4.01 Å}. Additional color code: silicon, olive-green.
Crystals 10 00503 g003
Crystals 10 00503 g004 550
Figure 4. Chemical diagrams for lead compounds 14–20.
Figure 4. Chemical diagrams for lead compounds 14–20.
Crystals 10 00503 g004
Crystals 10 00503 g005 550

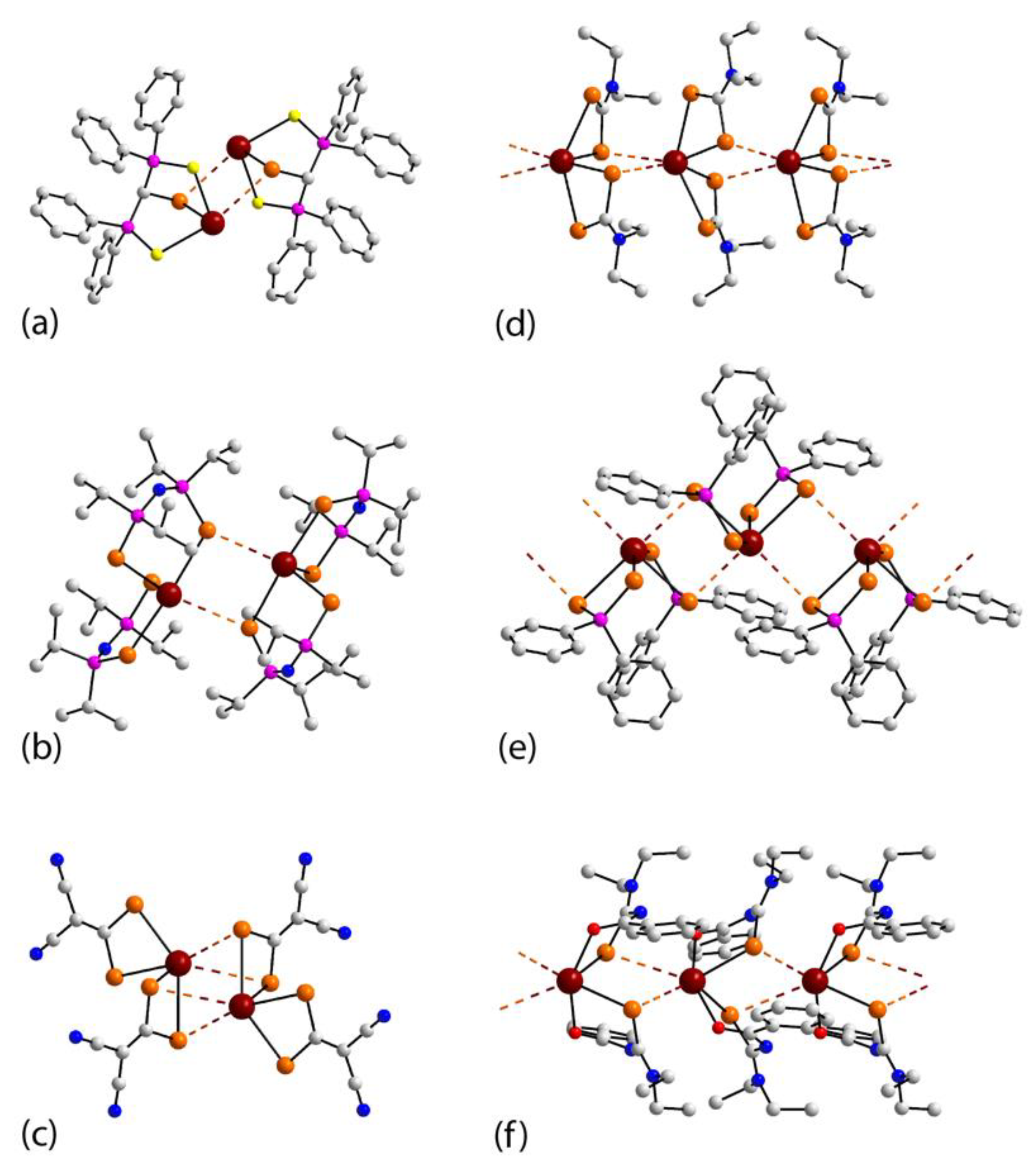

Figure 5. Supramolecular aggregation via Pb⋯Se secondary bonding in (a) 14 {UTAJUV; d(Pb⋯Se) = 3.41 Å}, (b) 15 {TAKLOI; 3.57 Å}, (c) 16 {KUHSAH; 3.49 & 3.72 Å}, (d) 17 {BOKMUJ; 3.47 & 3.62 Å}, (e) 18 {XUZTUI; 3.27 & 3.40 Å}, and (f) 19 {YIBHOG; 3.64 Å}. Additional color code: phosphorus, pink.
Figure 5. Supramolecular aggregation via Pb⋯Se secondary bonding in (a) 14 {UTAJUV; d(Pb⋯Se) = 3.41 Å}, (b) 15 {TAKLOI; 3.57 Å}, (c) 16 {KUHSAH; 3.49 & 3.72 Å}, (d) 17 {BOKMUJ; 3.47 & 3.62 Å}, (e) 18 {XUZTUI; 3.27 & 3.40 Å}, and (f) 19 {YIBHOG; 3.64 Å}. Additional color code: phosphorus, pink.
Crystals 10 00503 g005
Crystals 10 00503 g006 550
Figure 6. Chemical diagrams for arsenic compounds 21–27.
Figure 6. Chemical diagrams for arsenic compounds 21–27.
Crystals 10 00503 g006
Crystals 10 00503 g007 550
Figure 7. Supramolecular aggregation via As⋯Se secondary bonding in (a) 21 {GEXSOT; d(As⋯Se) = 3.37 Å}, (b) 22 {NEKJIW; 3.48 Å}, (c) 23 {ESEARS; 3.63 Å}, (d) 24 {COSDIX; 3.64 Å}, (e) 25 {SEDMAP; 3.53 Å}, (f) 26 {WAMCOE; 3.29, 3.42 & 3.60 Å}, and (g) 27 {KAXXUC; 3.60, 3.61, 3.64 & 3.72 Å}. Additional color code: bromide, olive-green.
Figure 7. Supramolecular aggregation via As⋯Se secondary bonding in (a) 21 {GEXSOT; d(As⋯Se) = 3.37 Å}, (b) 22 {NEKJIW; 3.48 Å}, (c) 23 {ESEARS; 3.63 Å}, (d) 24 {COSDIX; 3.64 Å}, (e) 25 {SEDMAP; 3.53 Å}, (f) 26 {WAMCOE; 3.29, 3.42 & 3.60 Å}, and (g) 27 {KAXXUC; 3.60, 3.61, 3.64 & 3.72 Å}. Additional color code: bromide, olive-green.
Crystals 10 00503 g007
Crystals 10 00503 g008 550
Figure 8. Chemical diagrams for antimony compounds 28–35; Cp is cyclopentadienyl.
Figure 8. Chemical diagrams for antimony compounds 28–35; Cp is cyclopentadienyl.
Crystals 10 00503 g008
Crystals 10 00503 g009 550
Figure 9. Supramolecular aggregation via Sb⋯Se secondary bonding in (a) 28 {EWIWAI; d(Sb⋯Se) = 3.29 Å}, (b) 29 {TAKSEF; 3.67 Å}, (c) 33 {ACUPAQ; 3.87 Å}, (d) 34 {HEFCOK; 3.61 Å}, and (e) 35 {JAZGIA; 3.55, 3.64 & 3.66 Å}.
Figure 9. Supramolecular aggregation via Sb⋯Se secondary bonding in (a) 28 {EWIWAI; d(Sb⋯Se) = 3.29 Å}, (b) 29 {TAKSEF; 3.67 Å}, (c) 33 {ACUPAQ; 3.87 Å}, (d) 34 {HEFCOK; 3.61 Å}, and (e) 35 {JAZGIA; 3.55, 3.64 & 3.66 Å}.
Crystals 10 00503 g009
Crystals 10 00503 g010 550
Figure 10. Chemical diagrams for bismuth compounds 36–41.
Figure 10. Chemical diagrams for bismuth compounds 36–41.
Crystals 10 00503 g010
Crystals 10 00503 g011 550
Figure 11. Supramolecular aggregation via Bi⋯Se secondary bonding in (a) 36 {KIMMEA; d(Bi⋯Se) = 3.51 & 3.55 Å}, (b) 38 {EGEPEM; 3.70 & 3.83 Å}, (c) 39 {COFGEM; 3.48 Å}, (d) 40 {GIPREC; 3.90 Å}, and (e) 41 {MIWFAA; 3.48, 3.50 & 3.57 Å}. Additional color code: silver and iron, dark-green.
Figure 11. Supramolecular aggregation via Bi⋯Se secondary bonding in (a) 36 {KIMMEA; d(Bi⋯Se) = 3.51 & 3.55 Å}, (b) 38 {EGEPEM; 3.70 & 3.83 Å}, (c) 39 {COFGEM; 3.48 Å}, (d) 40 {GIPREC; 3.90 Å}, and (e) 41 {MIWFAA; 3.48, 3.50 & 3.57 Å}. Additional color code: silver and iron, dark-green.
Crystals 10 00503 g011
Crystals 10 00503 g012 550
Figure 12. Chemical diagrams for tellurium compounds 42–58; Cp is cyclopentadienyl.
Figure 12. Chemical diagrams for tellurium compounds 42–58; Cp is cyclopentadienyl.
Crystals 10 00503 g012
Crystals 10 00503 g013 550
Figure 13. Supramolecular aggregation via Te⋯Se secondary bonding in (a) 42 {ECITEP; d(Te⋯Se) = 3.81 Å}, (b) 43 {BAWFUA; 3.68 Å}, (c) 46 {YIKFOO; 3.74 Å}, (d) 47 {ZZZAIJ01; 3.43, 3.44 & 3.54 Å}, (e) 48 {HUHCIW; 3.47 & 3.55 Å}, (f) 49 {QENRIK; 3.95 Å}, (g) 52 {XOTLUN; 3.48 Å}, (h) 54 {TRTUTE; 3.82 Å}, and (i) 55 {BAWGAH; 3.84 Å}. Additional color code: osmium, dark-green; sulfur, yellow.
Figure 13. Supramolecular aggregation via Te⋯Se secondary bonding in (a) 42 {ECITEP; d(Te⋯Se) = 3.81 Å}, (b) 43 {BAWFUA; 3.68 Å}, (c) 46 {YIKFOO; 3.74 Å}, (d) 47 {ZZZAIJ01; 3.43, 3.44 & 3.54 Å}, (e) 48 {HUHCIW; 3.47 & 3.55 Å}, (f) 49 {QENRIK; 3.95 Å}, (g) 52 {XOTLUN; 3.48 Å}, (h) 54 {TRTUTE; 3.82 Å}, and (i) 55 {BAWGAH; 3.84 Å}. Additional color code: osmium, dark-green; sulfur, yellow.
Crystals 10 00503 g013
Crystals 10 00503 g014 550
Figure 14. Supramolecular aggregation via Te⋯Se secondary bonding in (a) 56 {QAZGUV; d(Te⋯Se) = 3.70, 3.79 & 3.92 Å}, (b) 57 {OMIHAV; 3.62 & 3.69 Å}, and (c) 58 {ONEGIZ; 3.82 & 3.89 Å}. In the simplified views of (a) and (b), only the carbon atom bound to selenium/tellurium are shown, and in (c), the t-butyl groups are omitted.
Figure 14. Supramolecular aggregation via Te⋯Se secondary bonding in (a) 56 {QAZGUV; d(Te⋯Se) = 3.70, 3.79 & 3.92 Å}, (b) 57 {OMIHAV; 3.62 & 3.69 Å}, and (c) 58 {ONEGIZ; 3.82 & 3.89 Å}. In the simplified views of (a) and (b), only the carbon atom bound to selenium/tellurium are shown, and in (c), the t-butyl groups are omitted.
Crystals 10 00503 g014

Share and Cite

MDPI and ACS Style

Tiekink, E.R.T. A Survey of Supramolecular Aggregation Based on Main Group Element⋯Selenium Secondary Bonding Interactions—A Survey of the Crystallographic Literature. Crystals 2020, 10, 503. https://doi.org/10.3390/cryst10060503

AMA Style

Tiekink ERT. A Survey of Supramolecular Aggregation Based on Main Group Element⋯Selenium Secondary Bonding Interactions—A Survey of the Crystallographic Literature. Crystals. 2020; 10(6):503. https://doi.org/10.3390/cryst10060503

Chicago/Turabian Style

Tiekink, Edward R. T. 2020. "A Survey of Supramolecular Aggregation Based on Main Group Element⋯Selenium Secondary Bonding Interactions—A Survey of the Crystallographic Literature" Crystals 10, no. 6: 503. https://doi.org/10.3390/cryst10060503

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
