Next Article in Journal
(Ti,Cr)C-Based Cermets with Varied Nicr Binder Content via Elemental SHS for Perspective Cutting Tools
Previous Article in Journal
Magnetocaloric Effect, Magnetoresistance of Sc0.28Ti0.72Fe2, and Phase Diagrams of Sc0.28Ti0.72Fe2−xTx Alloys with T = Mn or Co
Previous Article in Special Issue
Plasticity through De-Twinning in Twinned BCC Nanowires
Open AccessArticle

Atomic Force Microscopy Study of Discrete Dislocation Pile-ups at Grain Boundaries in Bi-Crystalline Micro-Pillars

1
Université de Lorraine, CNRS, Arts et Métiers ParisTech, LEM3, F-57000 Metz, France
2
Department of Materials Science and Engineering, Saarland University, 66123 Saarbrücken, Germany
*
Author to whom correspondence should be addressed.
Crystals 2020, 10(5), 411; https://doi.org/10.3390/cryst10050411
Received: 20 April 2020 / Revised: 13 May 2020 / Accepted: 18 May 2020 / Published: 20 May 2020
(This article belongs to the Special Issue Crystal Plasticity at Micro- and Nano-scale Dimensions)

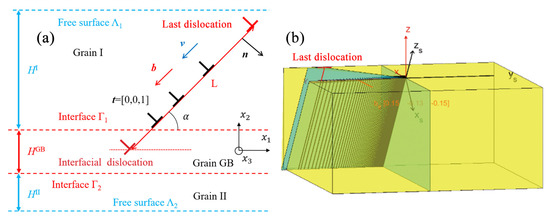

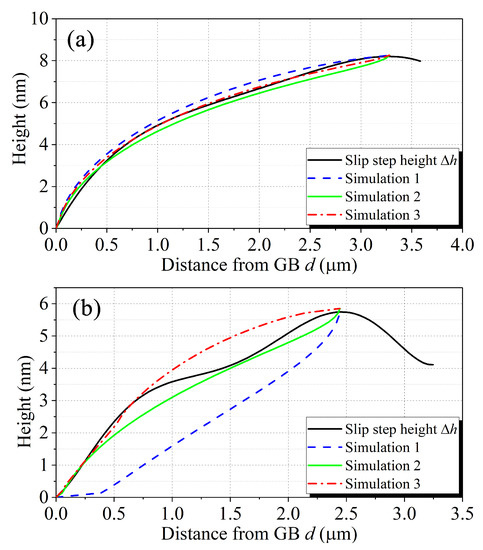

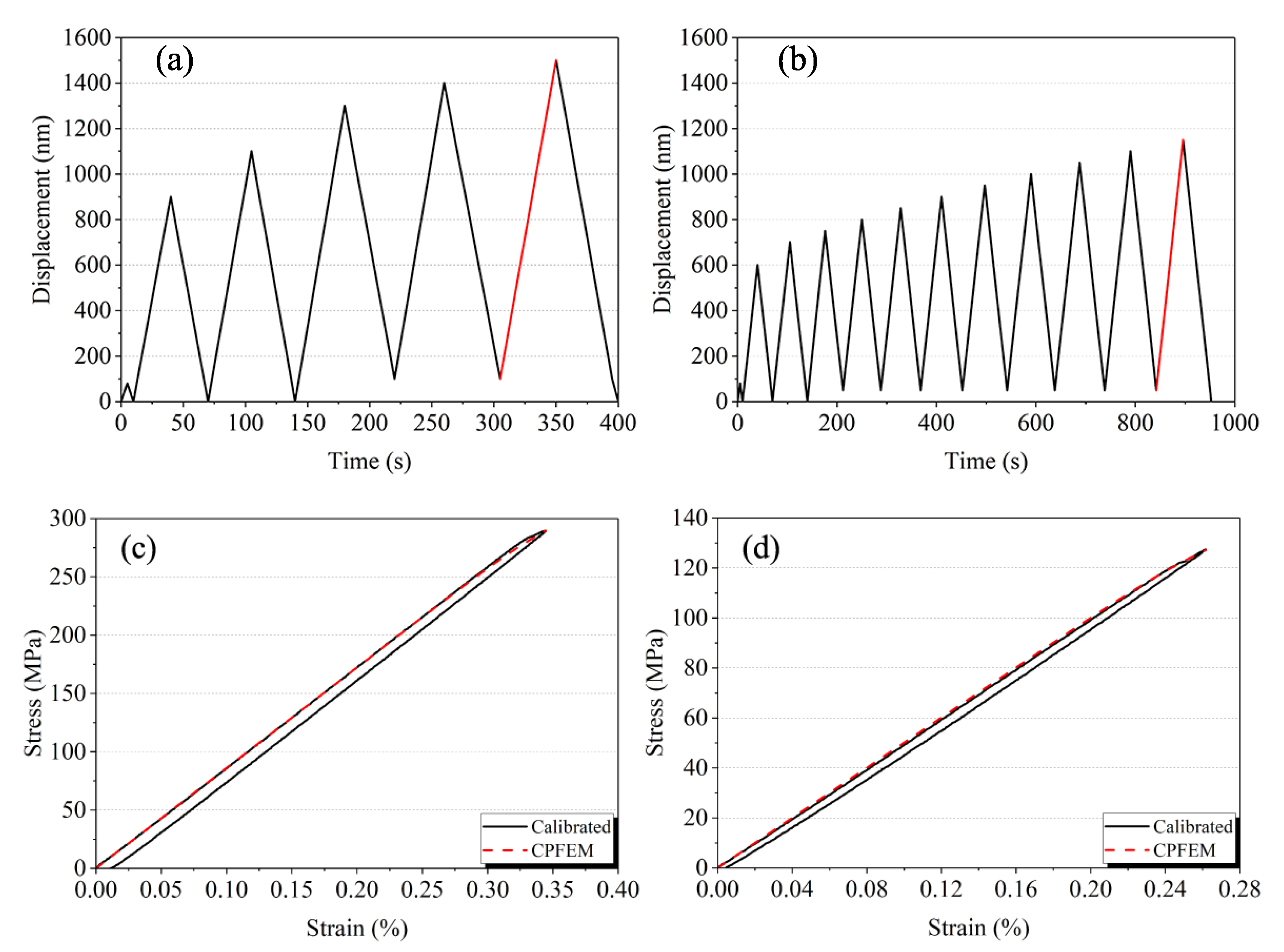

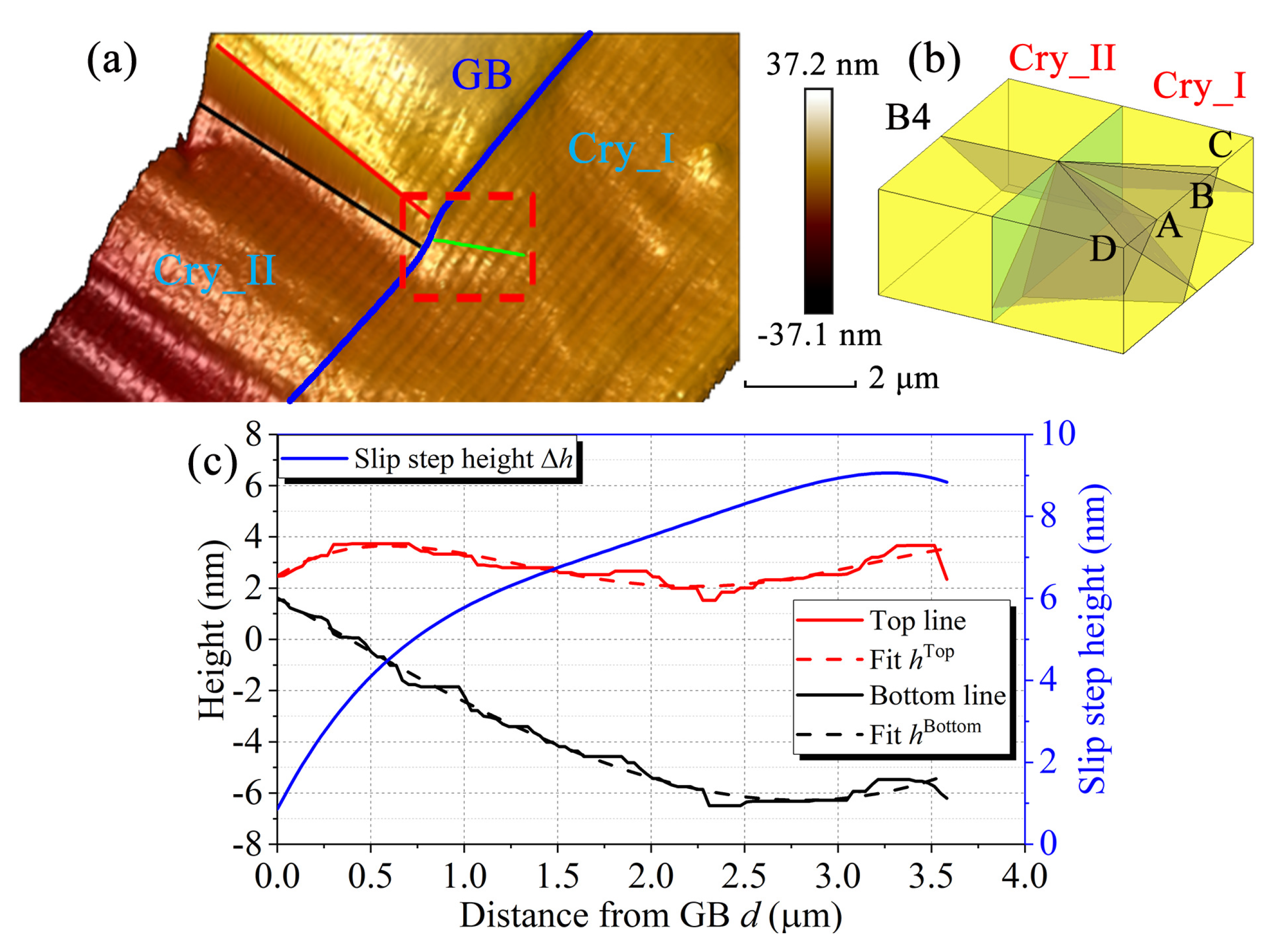

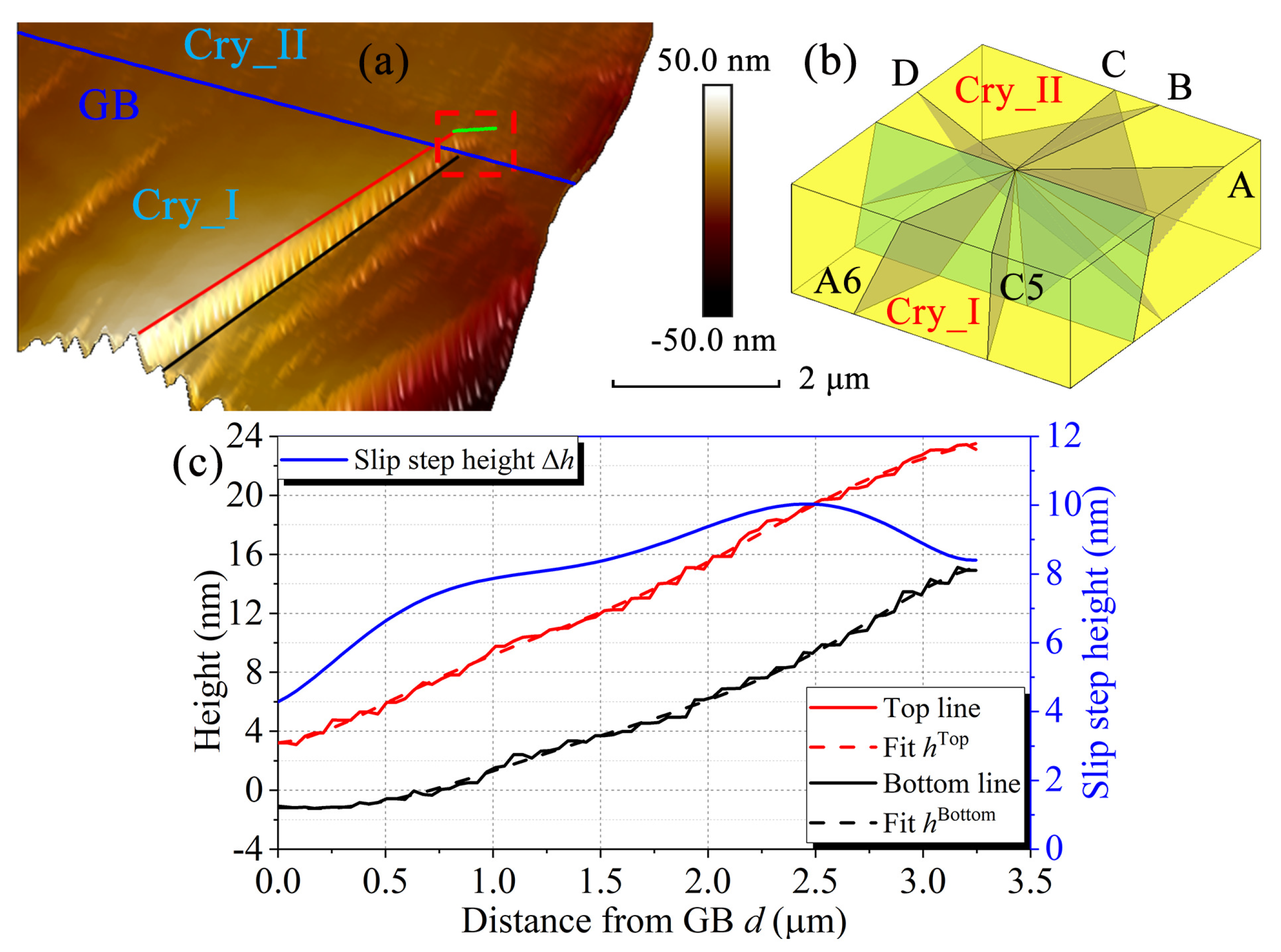

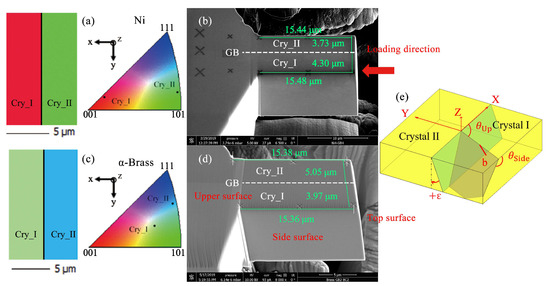

Compression tests at low strains were performed to theoretically analyze the effects of anisotropic elasticity, misorientation, grain boundary (GB) stiffness, interfacial dislocations, free surfaces, and critical force on dislocation pile-ups in micro-sized Face-Centered Cubic (FCC) Nickel (Ni) and α -Brass bi-crystals. The spatial variations of slip heights due to localized slip bands terminating at GB were measured by Atomic Force Microscopy (AFM) to determine the Burgers vector distributions in the dislocation pile-ups. These distributions were then simulated by discrete pile-up micromechanical calculations in anisotropic bi-crystals consistent with the experimentally measured material parameters. The computations were based on the image decomposition method considering the effects of interphase GB and free surfaces in multilayered materials. For Ni and α -Brass, it was found that the best predicted step height spatial profiles were obtained considering anisotropic elasticity, free surface effects, a homogeneous external stress and a certain critical force in the material to equilibrate the dislocation pile-ups. View Full-Text
Keywords: micromechanical testing; micro-pillar; bi-crystal; discrete dislocation pile-up; grain boundary; free surface; anisotropic elasticity; crystallographic slip micromechanical testing; micro-pillar; bi-crystal; discrete dislocation pile-up; grain boundary; free surface; anisotropic elasticity; crystallographic slip
Show Figures

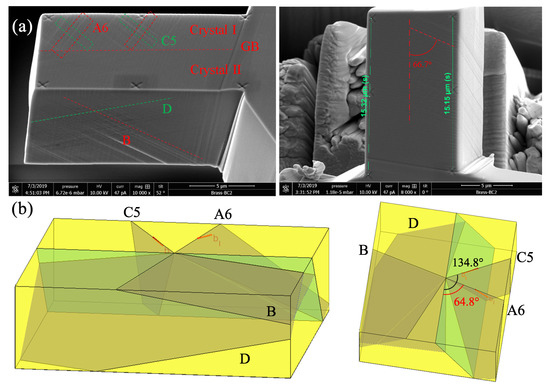

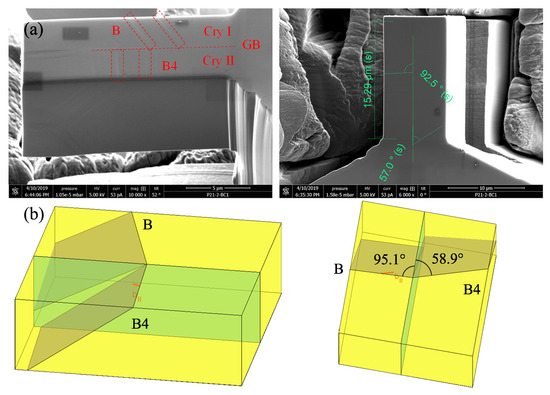

Figure 1

MDPI and ACS Style

Chen, X.; Richeton, T.; Motz, C.; Berbenni, S. Atomic Force Microscopy Study of Discrete Dislocation Pile-ups at Grain Boundaries in Bi-Crystalline Micro-Pillars. Crystals 2020, 10, 411.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
