Next Article in Journal
Analytical Modeling of Residual Stress in Laser Powder Bed Fusion Considering Part’s Boundary Condition
Next Article in Special Issue
Study of Bond Strength of Steel Bars in Basalt Fibre Reinforced High Performance Concrete
Previous Article in Journal
Microstructure, Texture, and Strength Development during High-Pressure Torsion of CrMnFeCoNi High-Entropy Alloy
Previous Article in Special Issue
Experimental Study on Unconfined Compression Strength of Polypropylene Fiber Reinforced Composite Cemented Clay
Open AccessArticle

Influence of Combined Action of Steel Fiber and MgO on Chloride Diffusion Resistance of Concrete

by Feifei Jiang 1,2,*, Min Deng 1, Liwu Mo 1 and Wenqing Wu 3
1
State Key Laboratory of Materials-Oriented Chemical Engineering, College of Materials Science and Engineering, Nanjing Tech University, Nanjing 211800, China
2
College of Naval Architecture Civil Engineering, Jiangsu University of Science and Technology, Zhangjiagang Campus, Suzhou 215600, China
3
School of Transportation, Southeast University, Nanjing 210089, China
*
Author to whom correspondence should be addressed.
Crystals 2020, 10(4), 338; https://doi.org/10.3390/cryst10040338
Received: 24 March 2020 / Revised: 22 April 2020 / Accepted: 22 April 2020 / Published: 24 April 2020

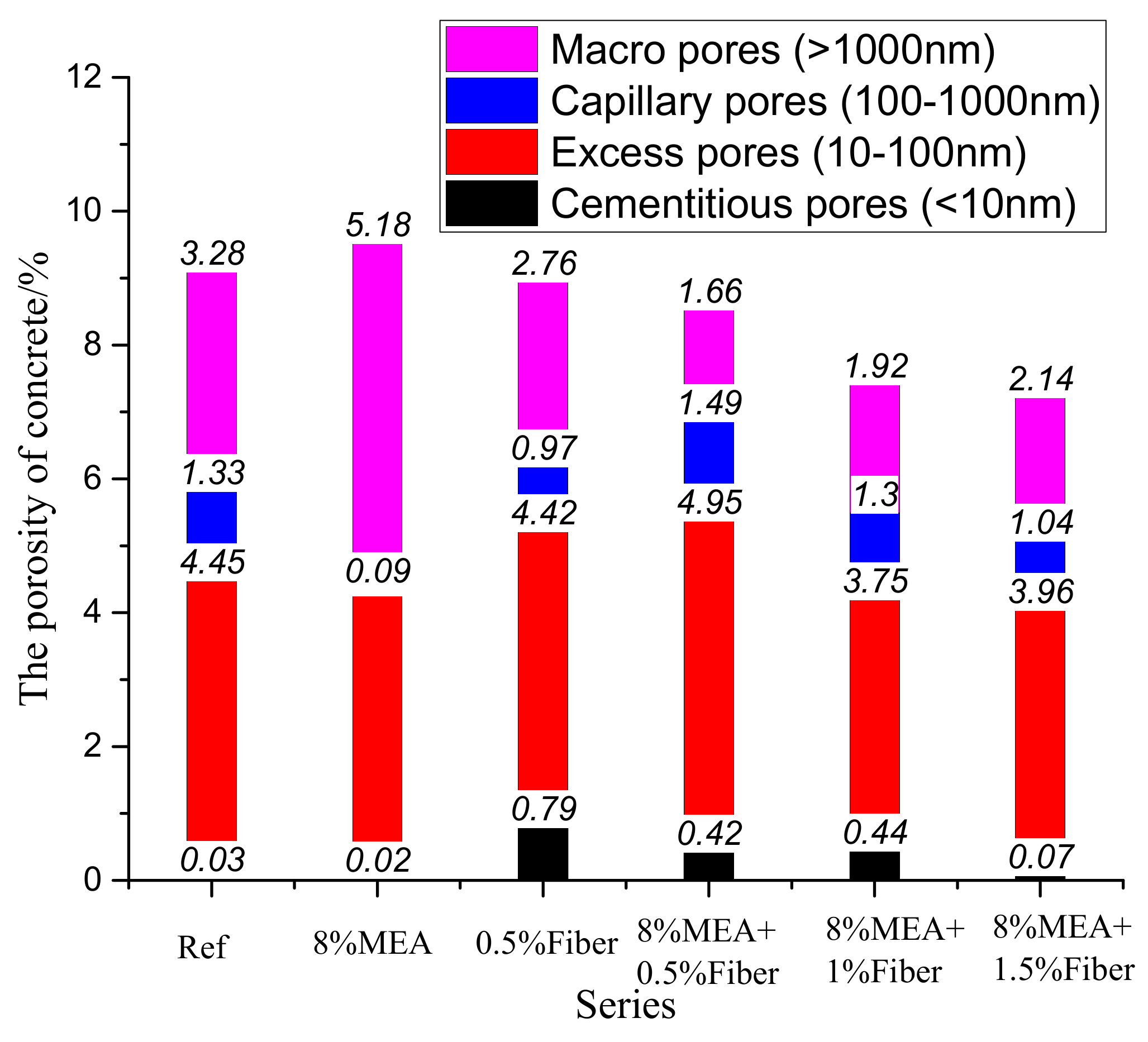

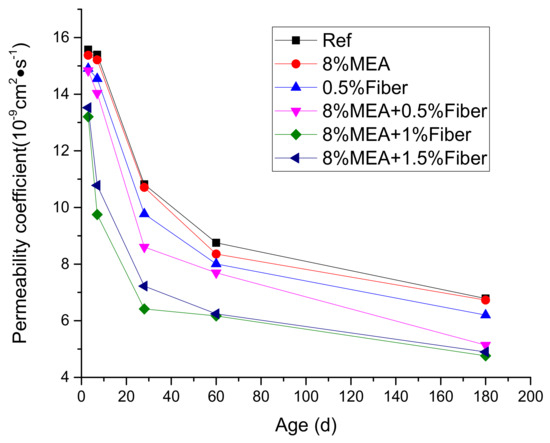

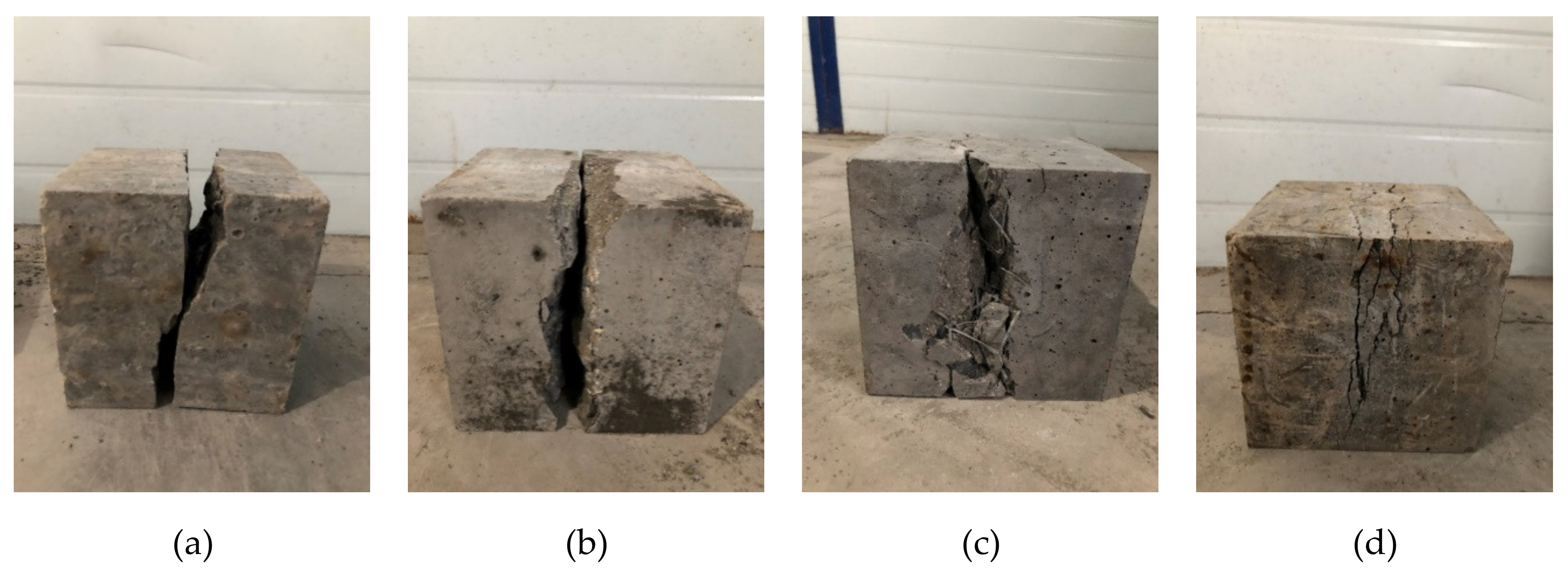

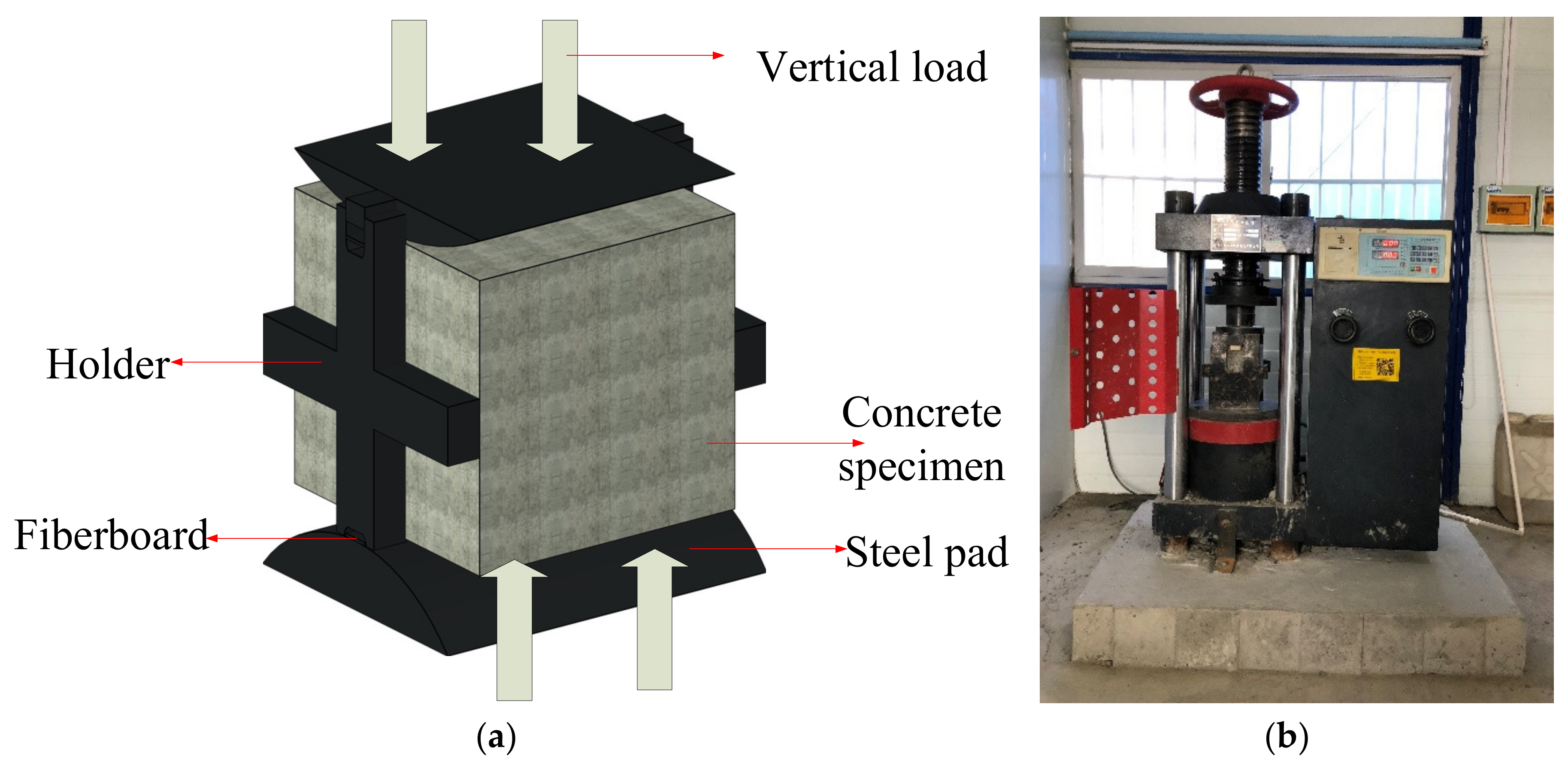

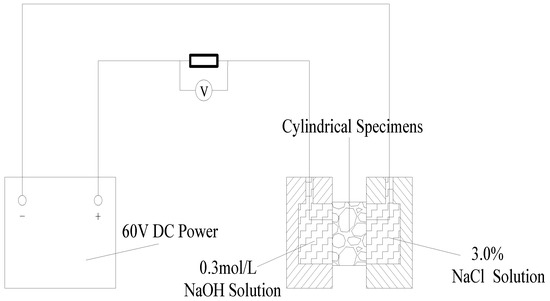

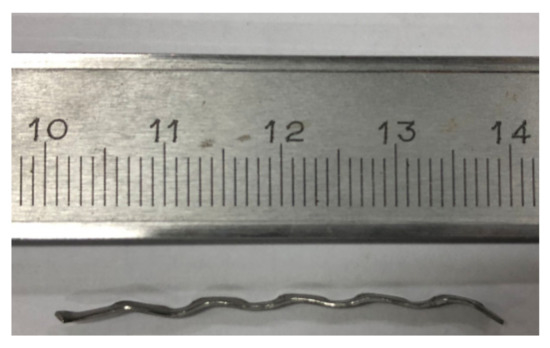

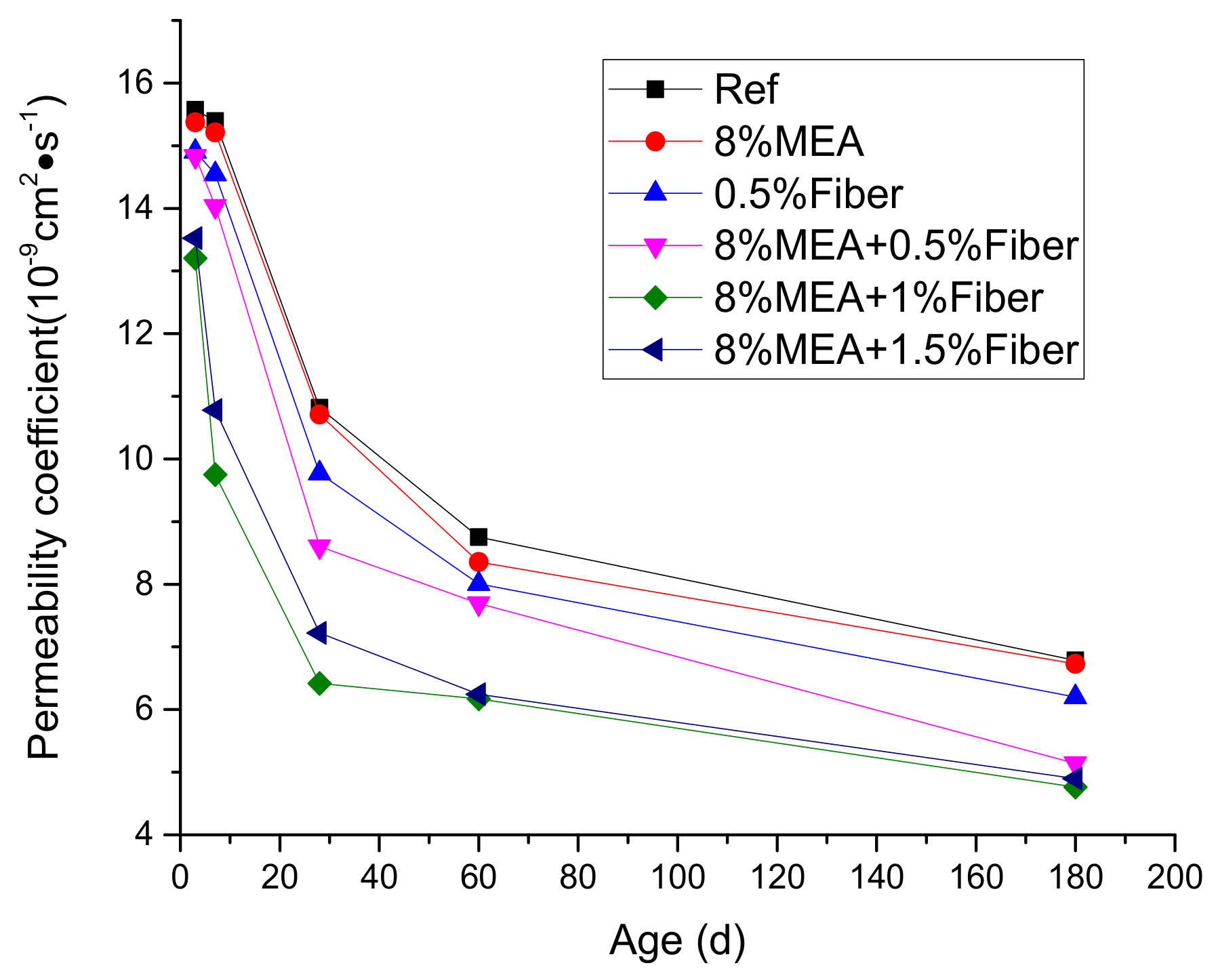

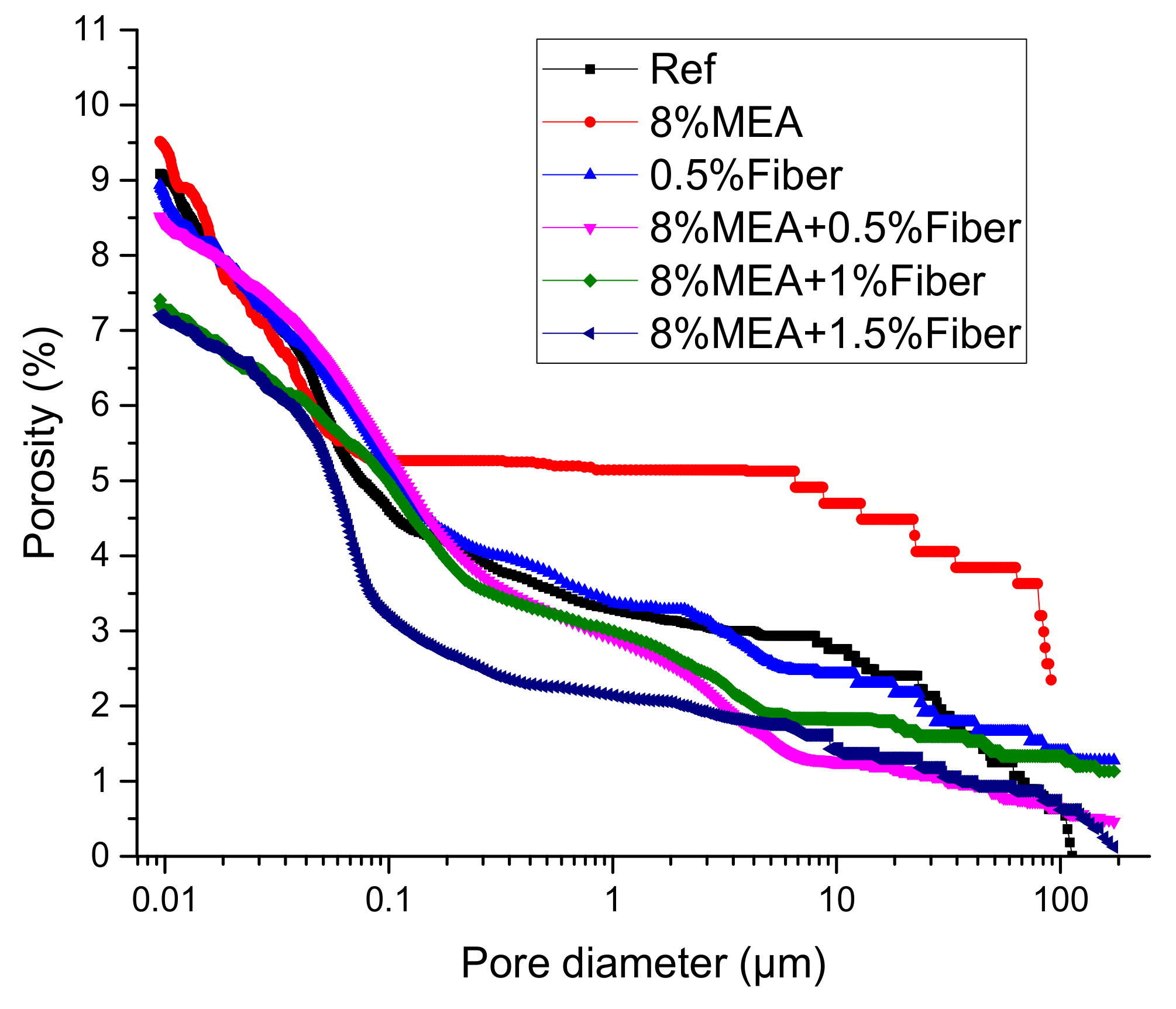

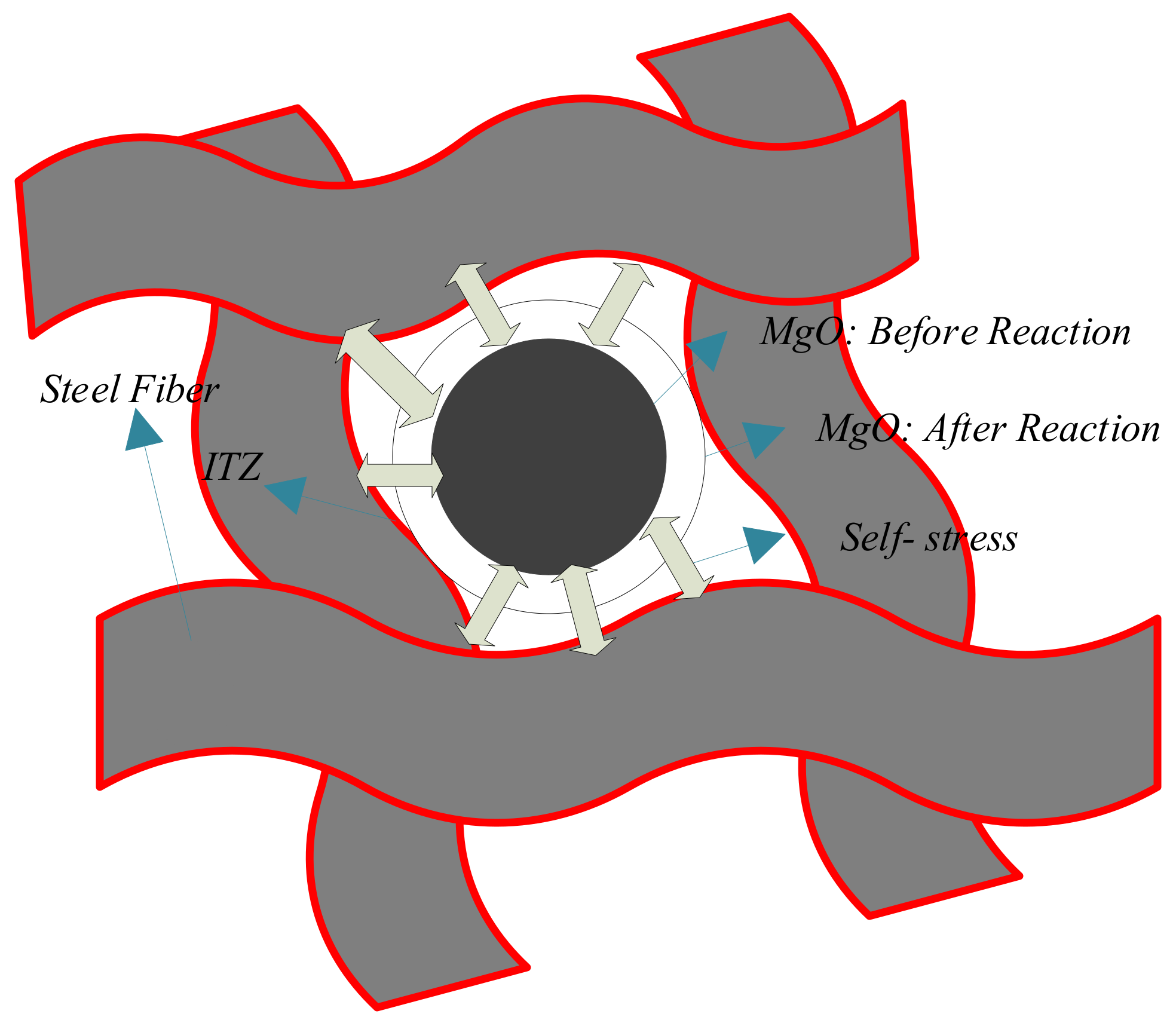

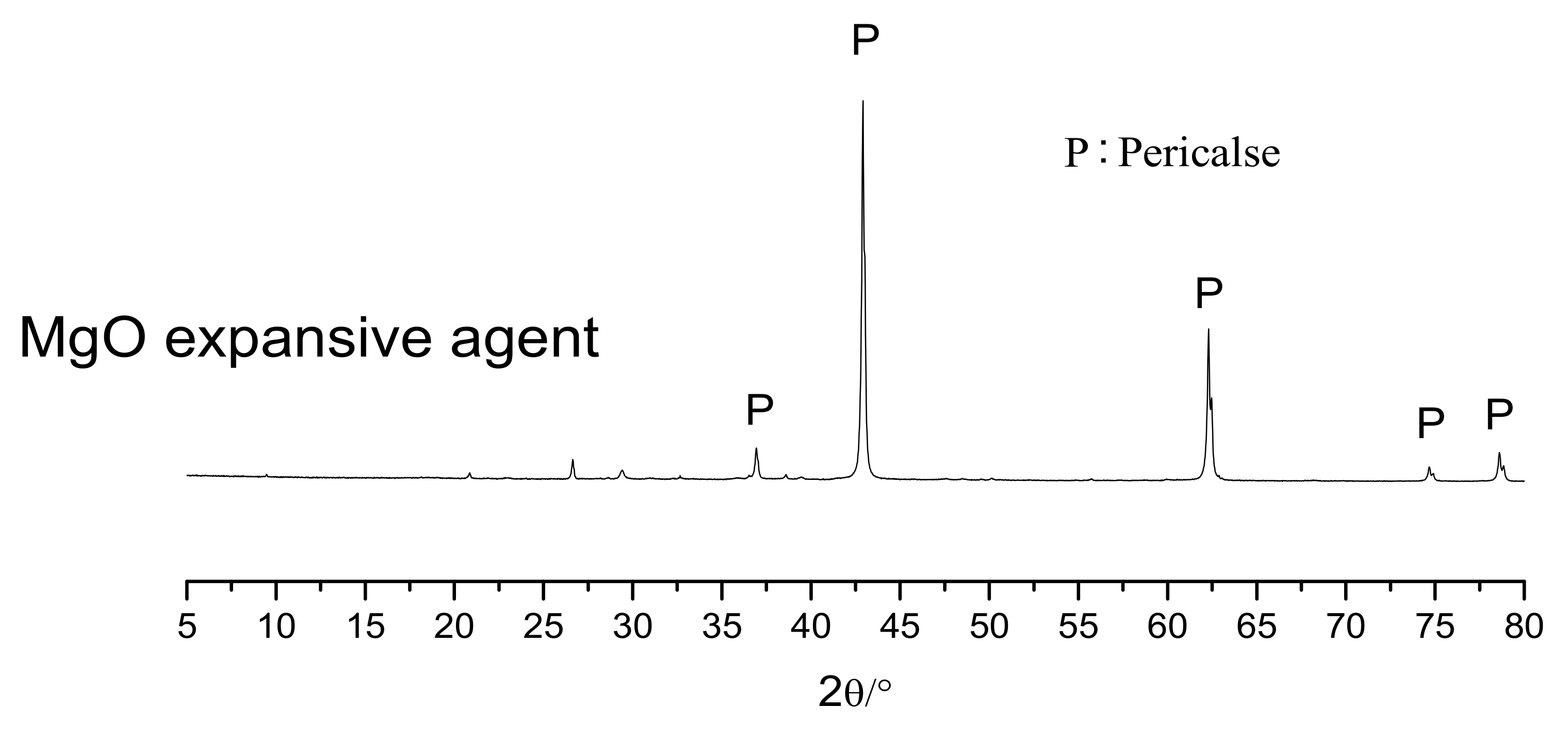

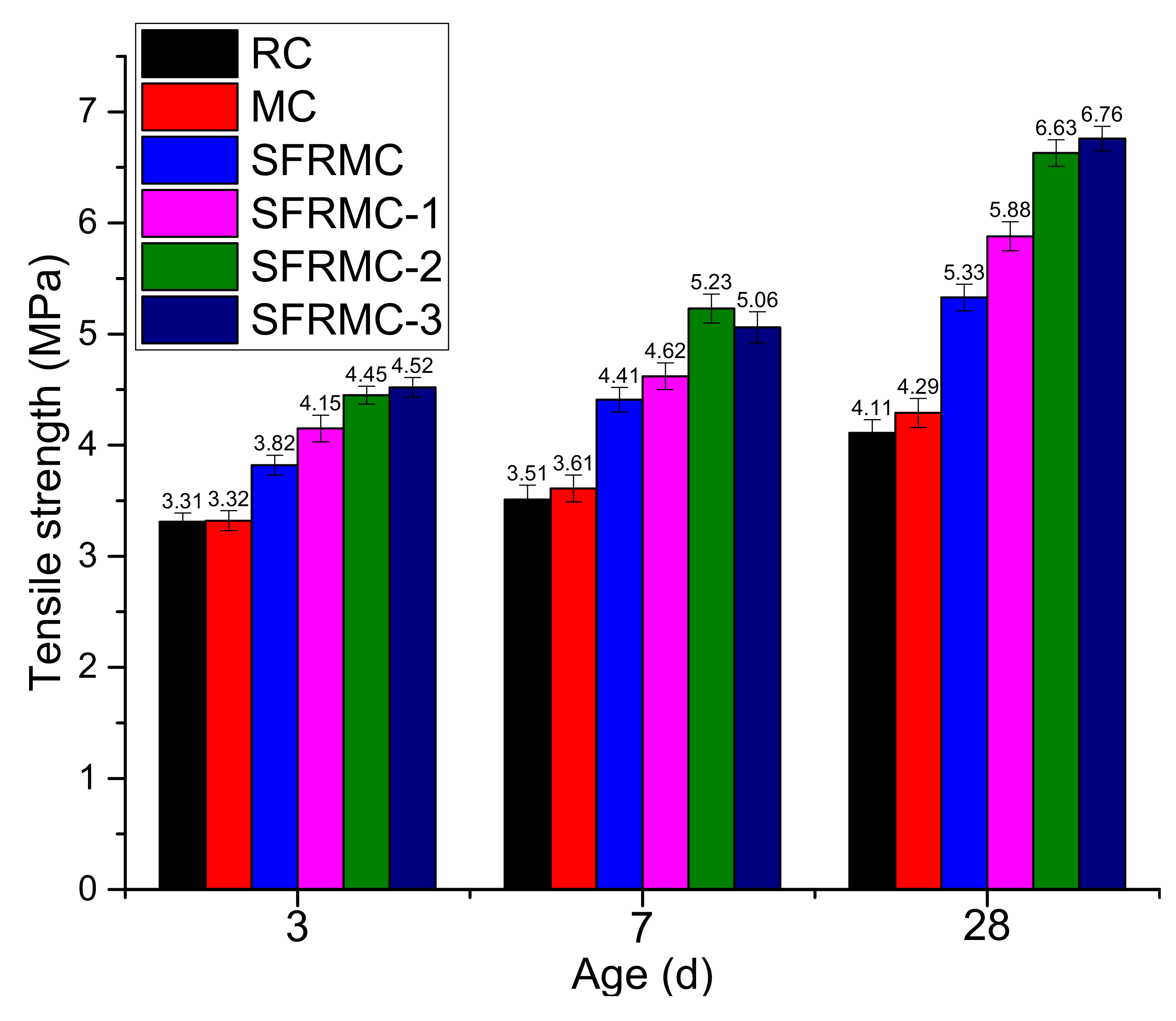

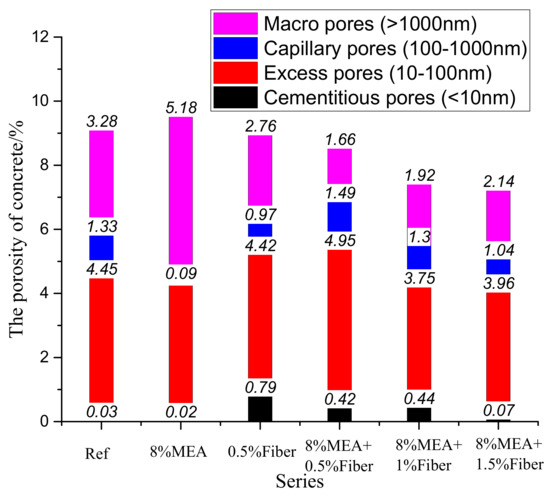

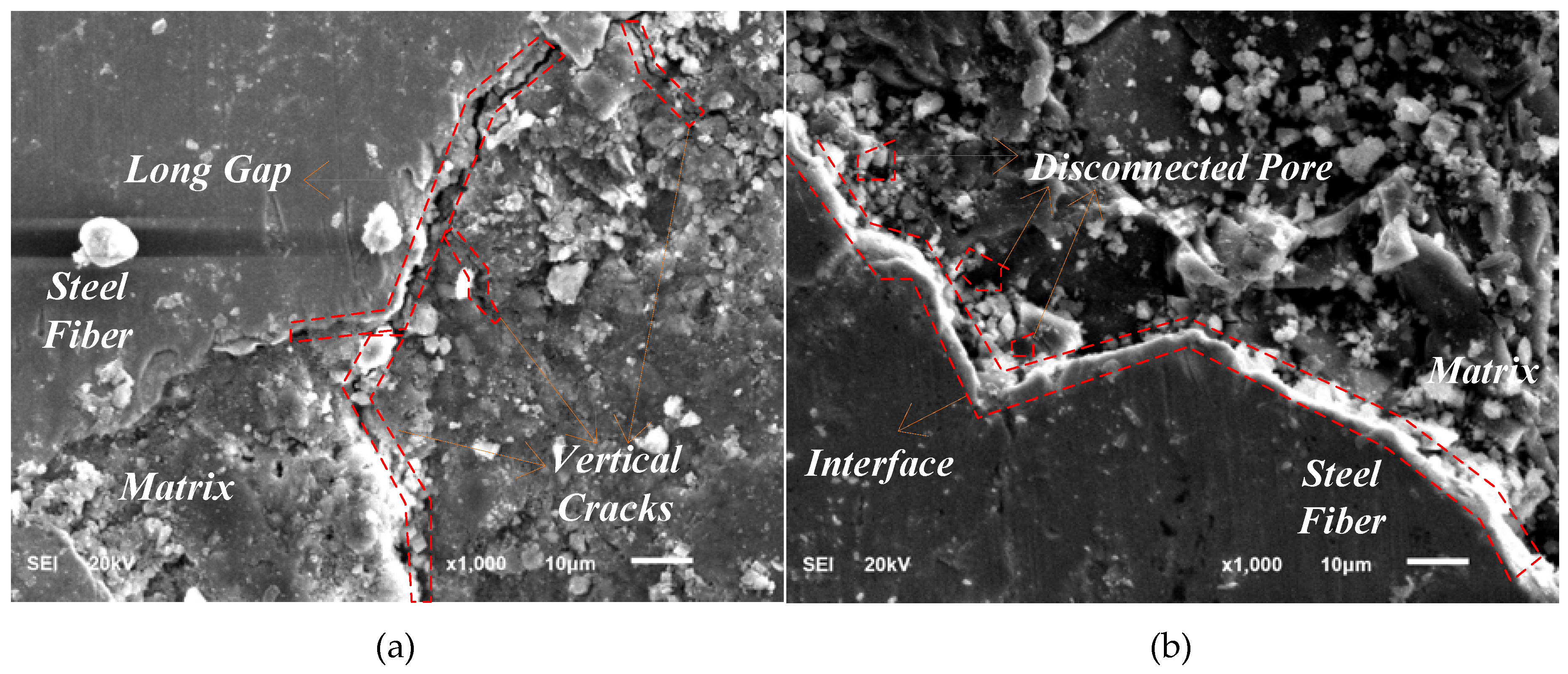

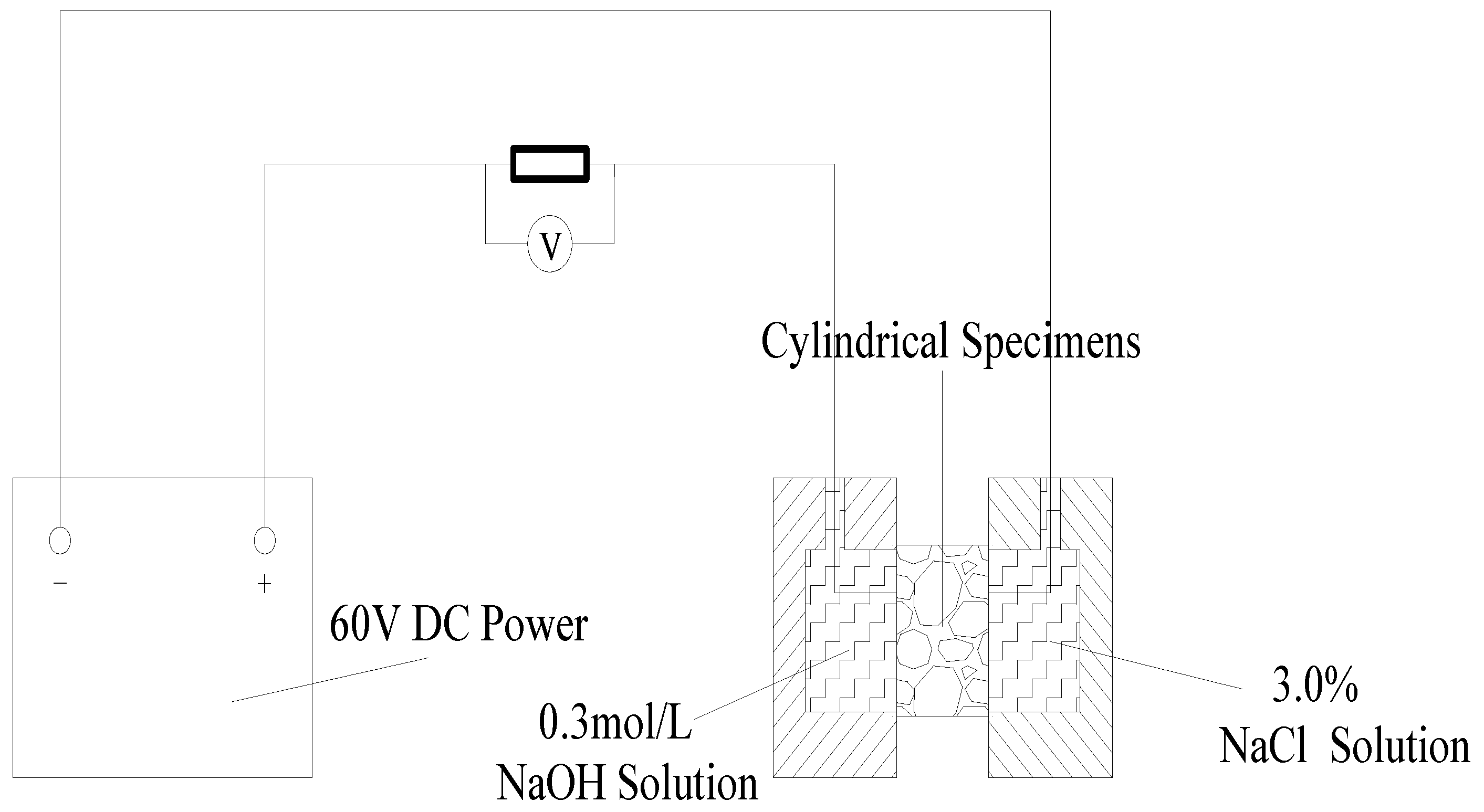

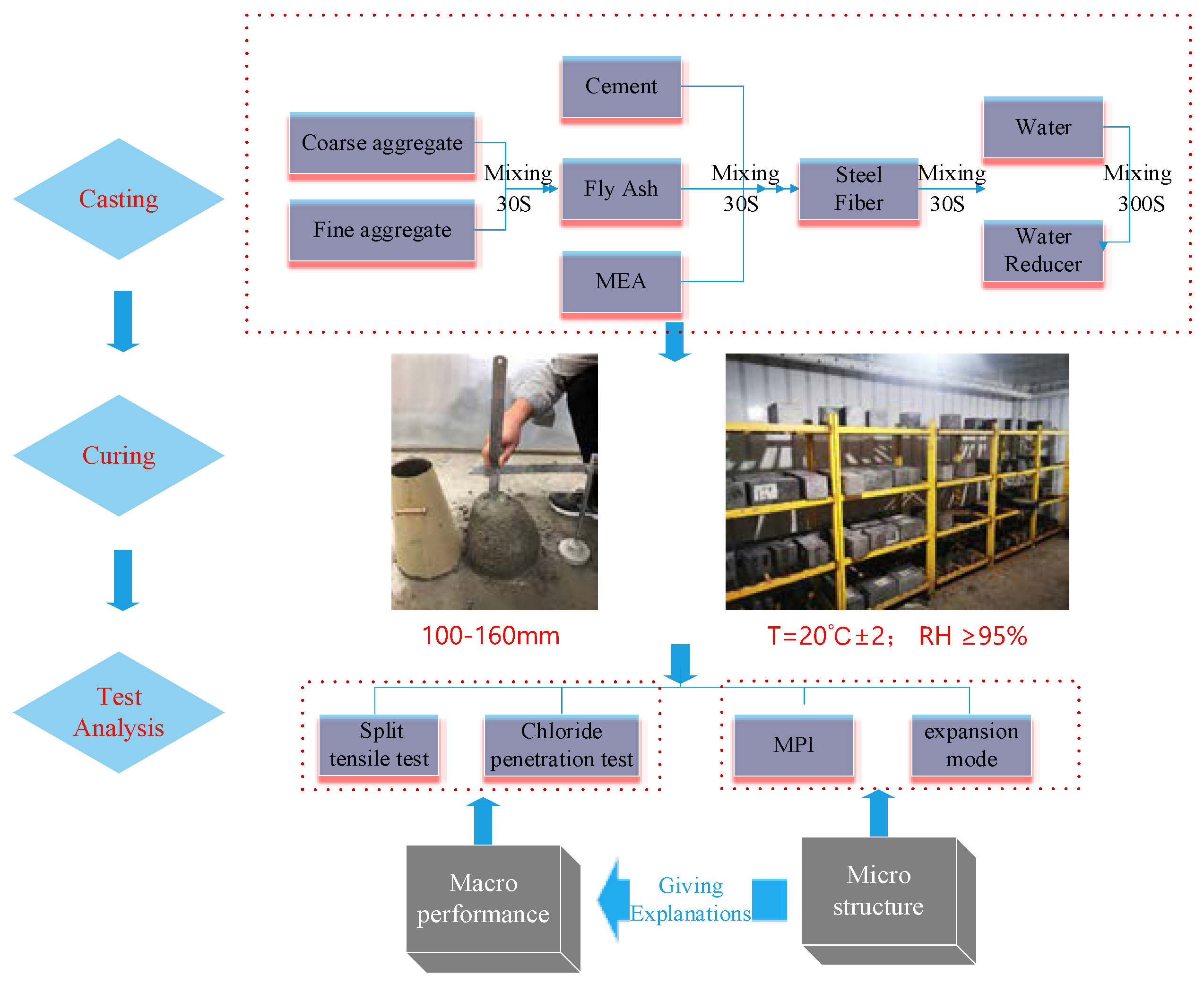

To improve the chloride diffusion resistance and durability of concrete, a new kind of steel fiber reinforced MgO concrete (SFRMC) was made by adding steel fiber and MgO to concrete simultaneously. With steel fiber for load bearing and expansion limiting, MgO as the expander, SFRMC has both the advantages of fiber reinforced concrete and expansion concrete. The influence of steel fiber and MgO on the strength and chloride diffusion resistance of concrete was evaluated by splitting tensile test and chloride diffusion test. Mercury intrusion porosimeter (MIP) and scanning electron microscopy (SEM) were used to study the microstructure of SFRMC. The results showed that the combined action of steel fiber and MgO reduced the porosity of concrete and the chloride diffusion coefficient (CDC), which could not be achieved by steel fiber and MgO separately. In the free state, the expansion energy produced by the hydration of MgO made the concrete expand outwards. However, under the constraint of steel fiber, the expansion energy was used to tension the fiber, resulting in self-stress. In this way, compared to reference concrete RC, the tensile strength of SFRMC-1, SFRMC-2, and SFRMC-3 increased by 3.1%, 61.3%, and 64.5%, CDC decreased by 8.8%, 36.7%, and 33.1%, and the porosity decreased by 6.2%, 18.4%, and 20.6%, respectively. In addition, the SEM observations demonstrated that the interfacial transition zone (ITZ) between fiber and matrix was denser in SFRMC, which contributed to reduce the diffusion of chloride ions in the concrete. View Full-Text
Keywords: steel fiber; MgO expansive agent; split tensile strength; chloride diffusion resistance; porosity; interfacial transition zone steel fiber; MgO expansive agent; split tensile strength; chloride diffusion resistance; porosity; interfacial transition zone
Show Figures

Figure 1

MDPI and ACS Style

Jiang, F.; Deng, M.; Mo, L.; Wu, W. Influence of Combined Action of Steel Fiber and MgO on Chloride Diffusion Resistance of Concrete. Crystals 2020, 10, 338.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
