Article

Polymeric Planar Microcavities Doped with a Europium Complex

1
Dipartimento di Chimica e Chimica Industriale, Università degli Studi di Genova, Via Dodecaneso 31, 16132 Genova, Italy
2
Department of Materials Science and Engineering and Department of Chemistry, İzmir Institute of Technology, Urla, 35430 İzmir, Turkey
*
Author to whom correspondence should be addressed.
Crystals 2020, 10(4), 287; https://doi.org/10.3390/cryst10040287
Submission received: 12 March 2020 / Revised: 1 April 2020 / Accepted: 7 April 2020 / Published: 10 April 2020
(This article belongs to the Special Issue Sonic and Photonic Crystals)

Abstract

:
Organo-metallic europium complex tetrakis (dibenzoyl methide) triethylammonium (EuD4TEA) shows a sharp emission spectrum, which makes it interesting for photonic applications. In this work, we embedded it into all-polymeric planar microcavities and investigated the effect of the photonic environment on its emission spectrum. To this end, submicron-sized EuD4TEA crystals were loaded into a blend of polystyrene and carboxylic terminated polystyrene matrix, which served to stabilize the emitter in the polymer and to make the composite processable. The new composite was then casted by spin-coating as a defect layer in a polymeric planar microcavity. Spectroscopic studies demonstrate that fine spectral tuning of the cavity mode on the sharp organometal luminescence is possible and produces spectral redistribution of the fluorophore emission, along with a remarkable cavity quality factor.

1. Introduction

Organometallic transition metal compounds are particularly attractive for the development of optical devices owing to their large quantum yield and chemical stability [1,2,3]. Among several of these compounds, europium tetrakis (dibenzoyl methide) triethylammonium (EuD4TEA) shows one of the most efficient emission processes [4,5,6]. EuD4TEA is indeed an organometallic triboluminescent [7] crystal showing an intense and sharp red emission, which is allowed by the europium complexation [8,9]. Indeed, its structure consists of four coordinated electron donating groups (1,3-diphenyl-1,3-propanedione), which function as light absorbers; one is triethylamine, which serves to stabilize the complex, and the complexed emissive metal [8,9] (Figure 1). As mentioned above, the material shows an intense and sharp near-band-edge exciton emission at 614 nm, where the triboluminescence also occurs [3,10,11]. In spite of its outstanding emissive properties, EuD4TEA applications are currently limited to the sensing of mechanical stimulations using the pristine material, or embedding the material into polymer matrices such as poly methyl methacrylate [10]. These applications are allowed by the triboluminescence process, which is the emission of photons resulting from chemical bond breakage within crystalline particles after the application of a mechanical force [12,13]. On the other hand, the sharp emission of EuD4TEA together with the crystal robustness makes this compound highly attractive for integration in plastic photonic crystals, a viable approach to produce devices with engineered fluorescence.
Since their first description in the 1980s [14,15], inorganic photonic crystals have been largely employed to enhance intensity and to obtain directional control of photoluminescence, as well as for lasing, switching, and sensing [16,17,18,19,20,21,22]. Only in the last decades, when polymers have entered the spotlight for photovoltaics and emitting devices [23,24,25], have these materials also become interesting for photonic applications [26,27,28,29,30,31,32]. Among polymer photonic structures, monodimensional multilayered photonic crystals, namely distributed Bragg reflectors (DBRs) and planar microcavities, are the simplest from a fabrication and modelling point of view [33]. Moreover, they are already fabricated industrially via melt processing [34,35]. In addition, these systems are highly versatile. Indeed, all-polymer structures have already been demonstrated in coupling with several kinds of emitters including, besides conjugated molecules and polymers [36,37,38], inorganic nanocrystals [39,40,41,42], J-aggregates [43] and perovskites [44,45].
In this work, as a proof of principle, we demonstrate polymer planar microcavities doped with EuD4TEA embedded into a blend of polystyrene (PS) and PS carboxi-terminated (PSCT). While the pristine PS serves to increase the viscosity of the starting solution to enhance its processability, PSCT serves to stabilize EuD4TEA through the -OH group of the carboxylic PS termination [10]. We study the EuD4TEA photoluminescence directional and spectral redistribution. Emission lifetime is also discussed to assess radiative enhancement effects.

2. Materials and Methods

The synthesis of EuD4TEA was carried out by the hot injection method [10]. An aliquot (50 mL) of the solution of 1,3-diphenyl-1,3-dipronedione (Sigma-Aldrich; 98%) in ethanol with a concentration of 58.2 mg/mL was heated until reflux. Subsequently, the preheated solution of Eu(NO3)3 (52.8 mg/mL) was injected into a vial under vigorous stirring. The 1.42 g (14 mmol) of triethylamine (Sigma-Aldrich, ≥99.5) was added to the boiling mixture and the reaction was maintained for 1 h. For the crystallization, the solution was first allowed to slowly cool down to room temperature. Afterwards, it was further crystallized at 4 ℃ for 24 h. The crystals were filtrated and washed with cold ethanol, thereafter dried for 24 h in a vacuum chamber at 40 ℃. Figure 1 displays the structure of EuD4TEA crystals. The colorless crystals of EuD4TEA were composed of an anionic europium complex and a protonated triethylammonium molecule. EuD4TEA crystallizes in the monoclinic crystal system with non-centrosymmetric space group P21. The structure of EuD4TEA has europium (III) with eight oxygen atoms coordinated to the 1,3-diphenyl-1,3-propanedianato ligands.
The polymer microcavities were fabricated on glass substrates by alternate spin-coating deposition of a toluene solution (35 mg/mL) of poly (N-vinylcarbazole) (PVK; Across Organic; MW = 136,600 g/mol; refractive index, n = 1.68) [43,46,47] and polyacrylic acid (PAA; Sigma-Aldrich; MW = 1800 g/mol; n = 1.44) [43] solubilized in 2-methyl-2-pentanol (28 mg/mL). The rotation speed was kept at 66 rounds per second. No thermal annealing was performed during the fabrication process. The microcavity layer was placed on 25 bilayers of the two polymers by spin-coating of EuD4TEA dissolved in a PS (20 mg/mL):PSCT (10 mg/mL) solution in toluene (PS, Sigma Aldrich, MW = 92 kg/mol; PSCT, Sigma-Aldrich MW = 200 kg/mol). The cavity layer was casted at 35 RPS. After the deposition of the photoactive material, the microcavity was completed with the deposition of the other 25 bilayers of PAA and PVK. The reference sample was instead fabricated under the same condition casting a layer of EuD4TEA:PS on a thin film of PAA.
Reflectance, transmittance and emission spectra were collected using setups based on optical fibers connected to a Charge-Coupled Device spectrometer (AvaSpec-2048, 200−1150 nm with resolution 1.4 nm from Avantes) Apeldoorn, Netherlands. Reflectance data were collected using an aluminum mirror as a reference. The light source employed for reflectance and transmittance measurements was a deuterium−halogen Micropak DH2000BAL (Ocean Insight, Largo, FL, USA), while emission spectra were collected by exciting the sample with a continuous wave laser, Oxxius 405 nm, with power 50 mW. Reflectance and angular resolved transmittance data were modelled by employing a transfer matrix method formalism as described in [33]. The layer thicknesses were employed as fitting parameter for the reflectance data, while the optical functions of PVK, PAA and PS were previously measured and reported in other publications [43,48]. The retrieved geometrical thicknesses and the refractive index just mentioned were then employed to model the angular dispersion of the microcavity transmittance spectrum and the local density of photonic states (LPDOS) as described in [49].
Photoluminescence decay was recorded with an angle-resolved setup coupled with a PicoQuant Time-Correlated Single-Photon Counting system (Time Harp 260 PICO board with a temporal resolution of 25 ps, a PMA Hybrid 40 detector, a response time of 250 ps, and a 405 nm LDH-P-C-405 laser driven (PicoQuant, Berlin, Germany) with a PDL 800B driver with a 5–80 MHz repetition rate as the excitation source) equipped with a Solar Laser Systems monochromator.

3. Results and Discussion

Figure 2a reports a schematic and the reflectance spectrum of a microcavity containing the EuD4TEA:PS composite. The photonic structure consists of two DBRs made of 25 alternating bilayers of PAA and PVK sandwiching a thin film of the emissive composite. The reflectance spectrum is characterized by an intense peak centered at 625 nm that is assigned to the photonic band gap (PBG) of the microcavity with a reflectance value approaching 100% and full width half maximum (FWHM) of 70 nm (marked with # in Figure 2b). These values agree with previous reports for polymeric microcavities [33,43]. The peak is characterized by a minimum positioned at 632 nm, which corresponds to the cavity mode (marked with * in Figure 2b). The spectrum background is instead characterized by a rather complex Fabry–Perot patter, which arises mainly from the constructive and disruptive light interference arising from beams partially reflected from sample external interfaces (marked with ° in Figure 2b). The presence of this fringe pattern, together with the large reflectance intensity and spectral width of the PBG, confirm the excellent optical quality of the structure. Indeed, these characteristics would not be detectable in the spectrum in the presence of scattering phenomena in the composite defect layer. The good quality of the microcavity is also testified by the good agreement between the experimental reflectance spectrum and the modelled data, reported as a black dotted line in Figure 2b (see experimental section). The calculation allowed us to retrieve geometrical thicknesses of 77 nm for PVK, 118 nm for PAA and 266 nm for the defect layer. Figure 2 also reports the calculated (panel b) and experimental (panel c) angular resolved transmittance spectra for the microcavity as contour plots. In these plots, the incidence angle for light is reported on the y-scale, while the x-scale shows the spectral wavelength. The intensity is instead reported in false colors so that larger transmittances appear in blue and green tones, while lower values appear in red tones. Note that the y-scales for the two plots are reported symmetrically. We note that the two plots are in good agreement. For both, at normal incidence (0°) the PBG and the cavity mode (marked respectively with # and * in Figure 2d) are observed at the same spectral wavelengths detected in the reflectance data of Figure 2b. Increasing the collection angle, the spectral position of the two features moves to the short wavelength side of the spectrum, in agreement with the band structure for planar photonic crystals [33].
The effect of the photonic crystals on the EuD4TEA emission spectrum was investigated trough measurements of steady-state photoluminescence exciting the emitter with a continuous wave laser source at 405 nm. Figure 3 compares the normalized emission of the bare EuD4TEA:PS composite casted on a PAA thin film on a glass substrate with the LPDOS and the microcavity emission (see experimental section). As mentioned in the introduction, the emission of the europium complex is sharp and centered in the red part of the visible spectrum. It is characterized by an intense peak at 615 nm with FWHM of 6 nm (Figure 3a). Other structures with much lower intensities are also detected at 582 nm, 595 nm and 703 nm. The calculated LPDOS of the microcavity shows two maxima positioned at 605 nm and 645 nm, which are assigned to the short wavelength edge of the PBG and to the cavity mode, respectively (Figure 3b). At the PBG frequencies (610–630 nm), the value of LPDOS is low, but, in agreement with the relatively low dielectric contrast typical of polymer multilayered structures, the density is larger than zero [50,51,52,53]. Then, suppression of the europium complex emission intensity is expected in this spectral region. In turn, the emission should be redistributed in the spectral regions where the LPDOS is larger. When observing the emission spectrum of the microcavity collected at normal incidence, it is clear that the photonic environment has a strong effect on the emission linewidth of the EuD4TEA (Figure 3c). In agreement with predictions, the main emission peak of the europium complex is suppressed and redistributed at 595 nm and 645 nm. These wavelengths correspond to the PBG edge and to the cavity mode, respectively (compare with panel b). At this angle, the cavity mode is indeed detuned with respect to the main EuD4TEA emission (compare with Figure 2b).
Figure 4 reports the angular characterization of the sample and compares the reference spectrum with those of the microcavity collected at 0° (panel a), 28° (panel b) and 40° (panel c). The behavior of the sample at normal incidence collection was described in Figure 3a and is reported here for comparison. Because the PBG spectral position is angularly dependent (photon momentum, see Figure 2c,d) at collection angles larger than 0°, the cavity mode is detected at shorter wavelengths with respect to lower collection angles. In agreement, at 28°, the europium emission is spectrally superimposed to the cavity mode (Figure 4b). In this case, the photoluminescence of the microcavity results centered at 613 nm, having a FWHM of 3.7 nm, which correspond to a twofold reduction and to a quality factor λ0/Δλ = 166, which agrees with previous reports for similar polymer systems [33]. For larger angles, the PBG is again detuned (Figure 4c) and the emission spectra of the reference and of the microcavity are very similar. The overall behavior is reported in Figure 4d, where the emission spectra of the cavity are stacked. At 0° (first spectrum from the bottom), we clearly notice three main features positioned at 595, 613 and 645 nm marked in the same order by a red dashed line (595 nm at 0°), a gray dotted line (613 nm at 0°) and a black dashed line (645 nm at 0°). As described above, the features detected at 595 nm correspond to the short wavelength PBG edge, the one at 613 to the emission peak of the Eu complex, while the one at 645 corresponds to the cavity mode (compare with Figure 3). In agreement with the angular dispersion of the PBG reported in Figure 2c, the spectral position of the peak and of the cavity mode moves toward the shorter wavelengths, and so do the two optical features assigned to the PBG edge and to the cavity mode. Then, increasing the collection angle, the PBG shifts, and suppresses almost entirely the emission of the EuD4TEA in the range between 8° and 24°. At 24°, the cavity mode is spectrally overlapped to the main emission peak. Indeed, the lines tracking the cavity mode and the peak position cross in this region in Figure 4d. At this point, a sharp peak arises at 613 nm (black spectrum, 28°), and blueshift increases the collection angle up to 32°. At larger angles, the emission peak of the Eu complex results overlap the long wavelength edge of the PBG and it is not affected anymore by the photonic environment. Moreover, starting from 38°, the spectral position of the cavity mode (black dashed line) overlaps the weak emission signal initially positioned at 595 nm. These peak results enhance in intensity with respect to a shorter collection angle. Increasing the angle, this signal is angularly redistributed. Indeed, it moves from about 605 nm in the spectrum collected at 32° to 581 nm in the spectrum collected at 44°. Then, at larger angles, the effect of the PBG on the emission fades and the emission profile of the microcavity results is similar to the one of the reference sample (see Figure 4c). To estimate the effect of the microcavity on the overall emission intensity, Figure 4e shows the values of the integrated intensities in the spectral range between 450 nm and 850 nm for collection angles ranging from 0° to 60°. The data show that in the entire angular range, the overall microcavity intensity is one order of magnitude larger than for the reference sample. This data confirms that the microcavity induces an overall intensity enhancement. On the other hand, it is not clear whether this effect arises from the modified LPDOS or from the better light extraction operated by the multilayered structure.
The larger emission intensity from the microcavity suggests that radiative rate enhancement of EuD4TEA might take place in the photonic structure. To evaluate the effects, we also registered its emission decay at a collection angle of 28°, where the cavity mode superimposes the main fluorescence peak of the complex. Indeed, theory foresees faster decay rates for radiative rate enhancement. Then, when the emission occurs within the cavity mode, where the density of photonic states is larger, the emission should be faster than for the reference, where the density of photonic states in unmodified [43,52,54,55]. Figure 5 shows the emission decays for the two samples collected at 615 nm (compare with Figure 4b). The experimental data (red dots for the microcavity and black dots for the reference sample) were fitted with a biexponential decay. The lifetimes retrieved were 1.2 ns and 8.9 nm for the reference sample, while for the microcavity sample we obtained 1.4 ns and 10.6 ns, respectively. While the difference between the two shorter lifetimes is not significant, as it is within the instrumental resolution, the difference observed for the two longer values is not negligible. The increase in emission lifetime is counterintuitive in a microcavity [43,56,57,58]. On the other hand, it has been demonstrated that the spontaneous lifetime can be increased by more than a factor of 10 if the emitter is placed in the antinode of the microcavity standing wave or in structures without guided modes [54,55]. Then, even though it is not possible to claim radiative rate enhancement without a knowledge of both radiative and non-radiative rates, this is the first report of such a variation in emission lifetime operated by polymer planar photonic crystals.

4. Conclusions

We demonstrated that EuD4TEA can be efficiently implemented into polystyrene matrices and employed as an emitting medium in polymeric planar microcavities. A characterization of the emission intensity enhancement generated by polymer microcavities demonstrated spectral and directional redistribution of EuD4TEA emission assigned to the diverse density of photonic states in the microcavity. The photoluminescence decay of the microcavity suggested that the microcavity plays an active role in the radiative processes occurring in the microcavity. On the other hand, further studies are necessary to investigate possible radiative rate enhancement processes.

Author Contributions

Synthesis, G.T.; diffraction, M.E.-E.; conceptualization, D.C; methodology, P.L.; formal analysis, P.L.; investigation, M.O., A.S.; data curation, P.L.; writing—original draft preparation, P.L.; writing—review and editing, P.L., D.C., M.O., A.S., G.T., M.M.D.; supervision, D.C. All authors have read and agreed to the published version of the manuscript.

Funding

The work at the University of Genova was funded by PRA 2018 and 2019.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Beer, P.D.; Hayes, E.J. Transition Metal and Organometallic Anion Complexation Agents. Coord. Chem. Rev. 2003, 240, 167–189. [Google Scholar] [CrossRef]
  2. Vogler, A.; Kunkely, H. Charge Transfer Excitation of Organometallic Compounds: Spectroscopy and Photochemistry. Coord. Chem. Rev. 2004, 248, 273–278. [Google Scholar] [CrossRef]
  3. İncel, A.; Varlikli, C.; McMillen, C.D.; Demir, M.M. Triboluminescent Electrospun Mats with Blue-Green Emission under Mechanical Force. J. Phys. Chem. C 2017, 121, 11709–11716. [Google Scholar] [CrossRef]
  4. Fontenot, R.S.; Bhat, K.N.; Hollerman, W.A.; Aggarwal, M.D.; Nguyen, K.M. Comparison of the Triboluminescent Yield and Decay Time for Europium Dibenzoylmethide Triethylammonium Synthesized Using Different Solvents. CrystEngComm 2012, 14, 1382. [Google Scholar] [CrossRef]
  5. Hurt, C.R.; McAvoy, N.; Bjorklund, S.; Filipescu, N. High Intensity Triboluminescence in Europium Tetrakis (Dibenzoylmethide)-triethylammonium. Nature 1966, 212, 179. [Google Scholar] [CrossRef]
  6. Xu, H.; Wang, J.; Wei, Y.; Xie, G.; Xue, Q.; Deng, Z.; Huang, W. A Unique White Electroluminescent One-Dimensional Europium(III) Coordination Polymer. J. Mater. Chem. C 2015, 3, 1893–1903. [Google Scholar] [CrossRef]
  7. Jin, X.; Deng, M.; Kaps, S.; Zhu, X.; Hölken, I.; Mess, K.; Adelung, R.; Mishra, Y.K. Study of Tetrapodal ZnO-PDMS Composites: A Comparison of Fillers Shapes in Stiffness and Hydrophobicity Improvements. PLoS ONE 2014, 9, e106991. [Google Scholar] [CrossRef]
  8. Fontenot, R.S.; Hollerman, W.A.; Bhat, K.N.; Aggarwal, M.D. Synthesis and Characterization of Highly Triboluminescent Doped Europium Tetrakis Compounds. J. Lumin. 2012, 132, 1812. [Google Scholar] [CrossRef]
  9. Sweeting, L.M.; Rheingold, A.L. Crystal Disorder and Triboluminescence—Triethylammonium Tetrakis(dibenzoylmethanato)europate. J. Am. Chem. Soc. 1987, 109, 2652. [Google Scholar] [CrossRef]
  10. İncel, A.; Emirdag-Eanes, M.; McMillen, C.D.; Demir, M.M. Integration of Triboluminescent EuD4TEA Crystals to Transparent Polymers: Impact Sensor Application. ACS Appl. Mater. Interfaces 2017, 9, 6488–6496. [Google Scholar] [CrossRef]
  11. İncel, A.; Reddy, S.M.; Demir, M.M. A New Method to Extend the Stress Response of Triboluminescent Crystals by Using Hydrogels. Mater. Lett. 2017, 186, 210. [Google Scholar] [CrossRef]
  12. Walton, A.J. Triboluminescence. Adv. Phys. 1977, 26, 887–948. [Google Scholar] [CrossRef]
  13. Hardy, G.E.; Kaska, W.C.; Chandra, B.P.; Zink, J.I. Triboluminescence-Structure Relationships in Polymorphs of Hexaphenylcarbodiphosphorane and Anthranilic Acid, Molecular Crystals, and Salts. JACS 1981, 103, 1074–1079. [Google Scholar] [CrossRef]
  14. Yablonovitch, E. Photonic Crystals: Semiconductors of Light. Sci. Am. 2001, 12, 47. [Google Scholar] [CrossRef]
  15. Sadrai, M.; Hadel, L.; Sauers, R.R.; Husain, S.; Krogh-Jespersen, K.; Westbrook, J.D.; Bird, G.R. Lasing Action in a Family of Perylene Derivatives: Singlet Absorption and Emission Spectra, Triplet Absorption and Oxygen Quenching Constants, and Molecular Mechanics and Semiempirical Molecular Orbital Calculations. J. Phys. Chem. 1992, 96, 7988–7996. [Google Scholar] [CrossRef]
  16. Paternò, G.M.; Iseppon, C.; D’Altri, A.; Fasanotti, C.; Merati, G.; Randi, M.; Desii, A.; Pogna, E.A.A.; Viola, D.; Cerullo, G.; et al. Solution Processable and Optically Switchable 1D Photonic Structures. Sci. Rep. 2018, 8, 3517. [Google Scholar] [CrossRef]
  17. Paternò, G.M.; Moscardi, L.; Donini, S.; Ariodanti, D.; Kriegel, I.; Zani, M.; Parisini, E.; Scotognella, F.; Lanzani, G. Hybrid One-Dimensional Plasmonic–Photonic Crystals for Optical Detection of Bacterial Contaminants. J. Phys. Chem. Lett. 2019, 10, 4980–4986. [Google Scholar] [CrossRef]
  18. Fenzl, C.; Hirsch, T.; Wolfbeis, O.S. Photonic Crystals for Chemical Sensing and Biosensing. Angew. Chem. Int. Ed. 2014, 53, 3318–3335. [Google Scholar] [CrossRef] [PubMed]
  19. von Freymann, G.; Kitaev, V.; Lotsch, B.V.; Ozin, G.A. Bottom-up Assembly of Photonic Crystals. Chem. Soc. Rev. 2013, 42, 2528–2554. [Google Scholar] [CrossRef] [Green Version]
  20. Ye, Z.; Park, J.-M.; Constant, K.; Kim, T.-G.; Ho, K.-M. Photonic Crystal: Energy-Related Applications. J. Photonics Energy 2012, 2, 021012–13. [Google Scholar] [CrossRef] [Green Version]
  21. David, A.; Benisty, H.; Weisbuch, C. Photonic Crystal Light-Emitting Sources. Rep. Prog. Phys. 2012, 75, 126501. [Google Scholar] [CrossRef] [PubMed]
  22. Ralf, B.W.; Johannes, Ü. 3D Photonic Crystals for Photon Management in Solar Cells. J. Opt. 2012, 14, 024003. [Google Scholar]
  23. Yin, J.; Migas, D.B.; Panahandeh-Fard, M.; Chen, S.; Wang, Z.; Lova, P.; Soci, C. Charge Redistribution at GaAs/P3HT Heterointerfaces with Different Surface Polarity. J. Phys. Chem. Lett. 2013, 4, 3303–3309. [Google Scholar] [CrossRef]
  24. Sprengard, R.; Bonrad, K.; Daeubler, T.K.; Frank, T.; Hagemann, V.; Köhler, I.; Pommerehne, J.; Ottermann, C.R.; Voges, F.; Vingerling, B. OLED Devices for Signage Applications: A Review of Recent Advances and Remaining Challenges. In Organic Light-Emitting Materials and Devices VIII; SPIE: Bellingham, WA, USA, 2004; Available online: https://www.spiedigitallibrary.org/conference-proceedings-of-spie/5519/0000/OLED-devices-for-signage-applications--a-review-of-recent/10.1117/12.567131.short?SSO=1 (accessed on 9 April 2020).
  25. Shah, A.; Torres, P.; Tscharner, R.; Wyrsch, N.; Keppner, H. Photovoltaic Technology: The Case for Thin-Film Solar Cells. Science 1999, 285, 692–698. [Google Scholar] [CrossRef] [Green Version]
  26. Appold, M.; Gallei, M. Bio-Inspired Structural Colors Based on Linear Ultrahigh Molecular Weight Block Copolymers. ACS Appl. Polym. Mater. 2019, 1, 239–250. [Google Scholar] [CrossRef]
  27. Kang, H.S.; Lee, J.; Cho, S.M.; Park, T.H.; Kim, M.J.; Park, C.; Lee, S.W.; Kim, K.L.; Ryu, D.Y.; Huh, J.; et al. Printable and Rewritable Full Block Copolymer Structural Color. Adv. Mater. 2017, 29, 1700084. [Google Scholar] [CrossRef]
  28. Nucara, L.; Piazza, V.; Greco, F.; Robbiano, V.; Cappello, V.; Gemmi, M.; Cacialli, F.; Mattoli, V. Ionic Strength Responsive Sulfonated Polystyrene Opals. ACS Appl. Mater. Interfaces 2017, 9, 4818–4827. [Google Scholar] [CrossRef] [Green Version]
  29. Mele, E.; Di Benedetto, F.; Persano, L.; Cingolani, R.; Pisignano, D. Multilevel, Room-Temperature Nanoimprint Lithography for Conjugated Polymer-Based Photonics. Nano Lett. 2005, 5, 1915–1919. [Google Scholar] [CrossRef]
  30. Giusto, P.; Lova, P.; Manfredi, G.; Gazzo, S.; Srinivasan, B.; Radice, S.V.; Comoretto, D. Colorimetric Detection of Perfluorinated Compounds by All-Polymer Photonic Transducers. ACS Omega 2018, 3, 7517–7522. [Google Scholar] [CrossRef]
  31. Lova, P. Selective Polymer Distributed Bragg Reflector Vapor Sensors. Polymers 2018, 10, 1161. [Google Scholar] [CrossRef] [Green Version]
  32. Lova, P.; Manfredi, G.; Bastianini, C.; Mennucci, C.; Buatier de Mongeot, F.; Servida, A.; Comoretto, D. Flory-Huggins Photonic Sensors for the Optical Assessment of Molecular Diffusion Coefficients in Polymers. ACS Appl. Mater. Interfaces 2019, 11, 16872–16880. [Google Scholar] [CrossRef] [PubMed]
  33. Lova, P.; Manfredi, G.; Comoretto, D. Advances in Functional Solution Processed Planar One-Dimensional Photonic Crystals. Adv. Opt. Mater. 2018, 6, 1800730. [Google Scholar] [CrossRef]
  34. Song, H.; Singer, K.; Wu, Y.; Zhou, J.; Lott, J.; Andrews, J.; Hiltner, A.; Baer, E.; Weder, C.; Bunch, R.; et al. Layered Polymeric Optical Systems Using Continuous Coextrusion. Proc. SPIE 2009, 7467, 74670A. [Google Scholar]
  35. Singer, K.D.; Kazmierczak, T.; Lott, J.; Song, H.; Wu, Y.; Andrews, J.; Baer, E.; Hiltner, A.; Weder, C. Melt-processed All-polymer Distributed Bragg Reflector Laser. Opt. Express 2008, 16, 10358–10363. [Google Scholar] [CrossRef] [PubMed]
  36. Palatnik, A.; Tischler, Y.R. Solid-state Rhodamine 6G Microcavity Laser. IEEE Photonics Technol. Lett. 2016, 28, 1823–1826. [Google Scholar] [CrossRef]
  37. Lee, T.-W.; Park, O.O.; Cho, H.N.; Kim, D.Y.; Kim, Y.C. Low-threshold Lasing in A Microcavity of Fluorene-Based Liquid-Crystalline Polymer Blends. J. Appl. Phys. 2003, 93, 1370. [Google Scholar] [CrossRef] [Green Version]
  38. Tessler, N.; Denton, G.J.; Friend, R.H. Lasing from Conjugated-Polymer Microcavities. Nature 1996, 382, 695–697. [Google Scholar] [CrossRef]
  39. Manfredi, G.; Lova, P.; Di Stasio, F.; Rastogi, P.; Krahne, R.; Comoretto, D. Lasing From Dot-in-Rod Nanocrystals in Planar Polymer Microcavities. RSC Adv. 2018, 8, 13026–13033. [Google Scholar] [CrossRef] [Green Version]
  40. Galfsky, T.; Sun, Z.; Considine, C.R.; Chou, C.-T.; Ko, W.-C.; Lee, Y.-H.; Narimanov, E.E.; Menon, V.M. Broadband Enhancement of Spontaneous Emission in Two-Dimensional Semiconductors Using Photonic Hypercrystals. Nano Lett. 2016, 16, 4940–4945. [Google Scholar] [CrossRef]
  41. Valappil, N.V.; Luberto, M.; Menon, V.M.; Zeylikovich, I.; Gayen, T.K.; Franco, J.; Das, B.B.; Alfano, R.R. Solution Processed Microcavity Structures with Embedded Quantum Dots. Photonics Nanostruct. Fundam. Appl. 2007, 5, 184–188. [Google Scholar] [CrossRef]
  42. Menon, V.M.; Luberto, M.; Valappil, N.V.; Chatterjee, S. Lasing from InGaP Quantum Dots in a Spin-Coated Flexible Microcavity. Opt. Express 2008, 16, 19535–19540. [Google Scholar] [CrossRef] [PubMed]
  43. Lova, P.; Grande, V.; Manfredi, G.; Patrin, M.; Herbst, S.; Würthner, F.; Comoretto, D. All-Polymer Photonic Microcavities Doped with Perylene Bisimide J-Aggregates. Adv. Opt. Mater. 2017, 5, 1700523. [Google Scholar] [CrossRef]
  44. Lova, P.; Giusto, P.; Stasio, F.D.; Manfredi, G.; Paternò, G.M.; Cortecchia, D.; Soci, C.; Comoretto, D. All-Polymer Methylammonium Lead Iodide Perovskite Microcavity. Nanoscale 2019, 11, 8978–8983. [Google Scholar] [CrossRef] [PubMed]
  45. Lova, P.; Cortecchia, D.; Soci, C.; Comoretto, D. Solution Processed Polymer-ABX4 Perovskite-Like Microcavities. Appl. Sci. 2019, 9, 5203. [Google Scholar] [CrossRef] [Green Version]
  46. Comoretto, D.; Cuniberti, C.; Musso, G.F.; Dellepiane, G.; Speroni, F.; Botta, C.; Luzzati, S. Optical Properties and Long-Lived Charged Photoexcitations in Polydiacetylenes. Phys. Rev. B 1994, 49, 8059–8066. [Google Scholar] [CrossRef] [PubMed]
  47. Moroni, L.; Salvi, P.R.; Gellini, C.; Dellepiane, G.; Comoretto, D.; Cuniberti, C. Two-photon Spectroscopy of Pi-Conjugated Polymers: The Case of Poly 1,6-Bis(3,6-Dihexadecyl-N-Carbazolyl)-2,4-Hexadiyne (Polydchd-Hs). J. Phys. Chem A 2001, 105, 7759–7764. [Google Scholar] [CrossRef]
  48. Frezza, L.; Patrini, M.; Liscidini, M.; Comoretto, D. Directional Enhancement of Spontaneous Emission in Polymer Flexible Microcavities. J. Phys. Chem. C 2011, 115, 19939–19946. [Google Scholar] [CrossRef]
  49. Rybin, M.V.; Zherzdev, A.V.; Feoktistov, N.A.; Pevtsov, A.B. Effect of photonic crystal stop-band on photoluminescence of a − Si1−xCx: H. Phys. Rev. B 2017, 95, 165118. [Google Scholar] [CrossRef] [Green Version]
  50. Berti, L.; Cucini, M.; Di Stasio, F.; Comoretto, D.; Galli, M.; Marabelli, F.; Manfredi, N.; Marinzi, C.; Abbotto, A. Spectroscopic Investigation of Artificial Opals Infiltrated with a Heteroaromatic Quadrupolar Dye. J. Phys. Chem. C 2010, 114, 2403–2413. [Google Scholar] [CrossRef]
  51. Morandi, V.; Marabelli, F.; Amendola, V.; Meneghetti, M.; Comoretto, D. Light Localization Effect on the Optical Properties of Opals Doped with Gold Nanoparticles. J. Phys. Chem. C 2008, 112, 6293–6298. [Google Scholar] [CrossRef] [Green Version]
  52. Barth, M.; Gruber, A.; Cichos, F. Spectral and Angular Redistribution of Photoluminescence near a Photonic Stop Band. Phys. Rev. B 2005, 72, 085129. [Google Scholar] [CrossRef]
  53. Hagler, T.W.; Pakbaz, K.; Voss, K.F.; Heeger, A.J. Enhanced Order and Electronic Delocalization in Conjugated Polymers Oriented by Gel Processing in Polyethylene. Phys. Rev. B 1991, 44, 8652–8666. [Google Scholar] [CrossRef] [PubMed]
  54. Björk, G.; Machida, S.; Yamamoto, Y.; Igeta, K. Modification of Spontaneous Emission Rate in Planar Dielectric Microcavity Structures. Phys. Rev. A 1991, 44, 669–681. [Google Scholar] [CrossRef]
  55. Björk, G. On the Spontaneous Lifetime Change in an Ideal Planar Microcavity—Transition from a Mode Continuuum to Quantized Modes. IEEE J. Quantum Electron. 1994, 30, 2314–2318. [Google Scholar] [CrossRef]
  56. Vos, W.L.; Sprik, R.; van Blaaderen, A.; Imhof, A.; Lagendijk, A.; Wegdam, G.H. Strong Effects of Photonic Band Structures on the Diffraction of Colloidal Crystals. Phys. Rev. B 1996, 53, 16231. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Baba, T.; Sano, D. Low-Threshold Lasing and Purcell Effect in Microdisk Lasers at Room Temperature. IEEE J. Sel. Top. Quantum Electron. 2003, 9, 1340–1346. [Google Scholar] [CrossRef]
  58. Gerard, J.M.; Gayral, B. Strong Purcell Effect for Inas Quantum Boxes in Three-Dimensional Solid-State Microcavities. J. Light. Technol. 1999, 17, 2089–2095. [Google Scholar] [CrossRef]

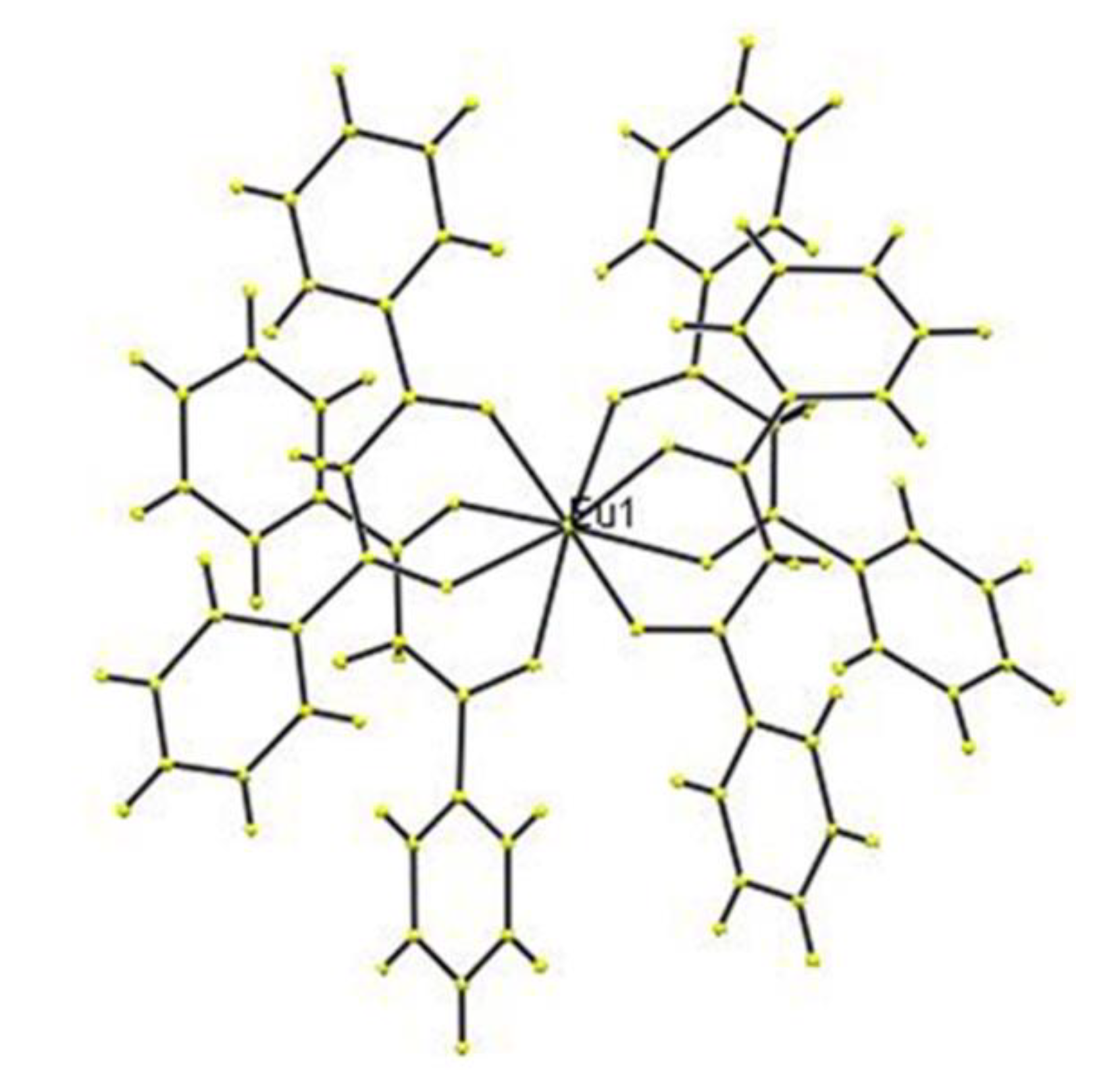

Figure 1. Structure of the europium tetrakis (dibenzoyl methide) triethylammonium (EuD4TEA) complex.
Figure 1. Structure of the europium tetrakis (dibenzoyl methide) triethylammonium (EuD4TEA) complex.
Crystals 10 00287 g001

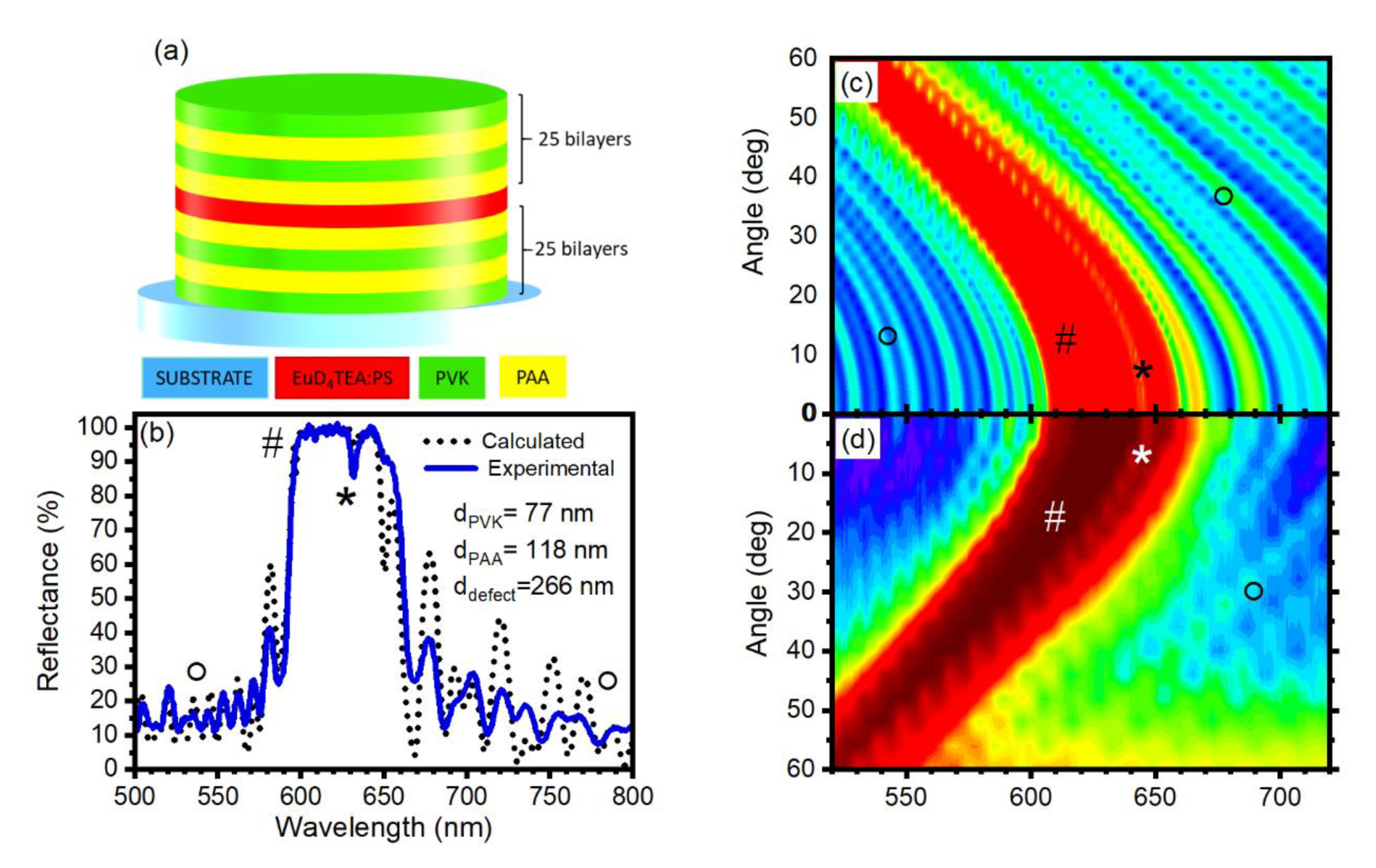

Figure 2. Schematic (a) and reflectance spectrum (b) of a europium tetrakis (dibenzoyl methide) triethylammonium polystyrene (EuD4TEA:PS) microcavity made of poly (N-vinylcarbazole) (PVK) and polyacrylic acid (PAA) as dielectric media. Calculated (c) and experimental (d) angular resolved transmittance spectra of the microcavity.
Figure 2. Schematic (a) and reflectance spectrum (b) of a europium tetrakis (dibenzoyl methide) triethylammonium polystyrene (EuD4TEA:PS) microcavity made of poly (N-vinylcarbazole) (PVK) and polyacrylic acid (PAA) as dielectric media. Calculated (c) and experimental (d) angular resolved transmittance spectra of the microcavity.
Crystals 10 00287 g002

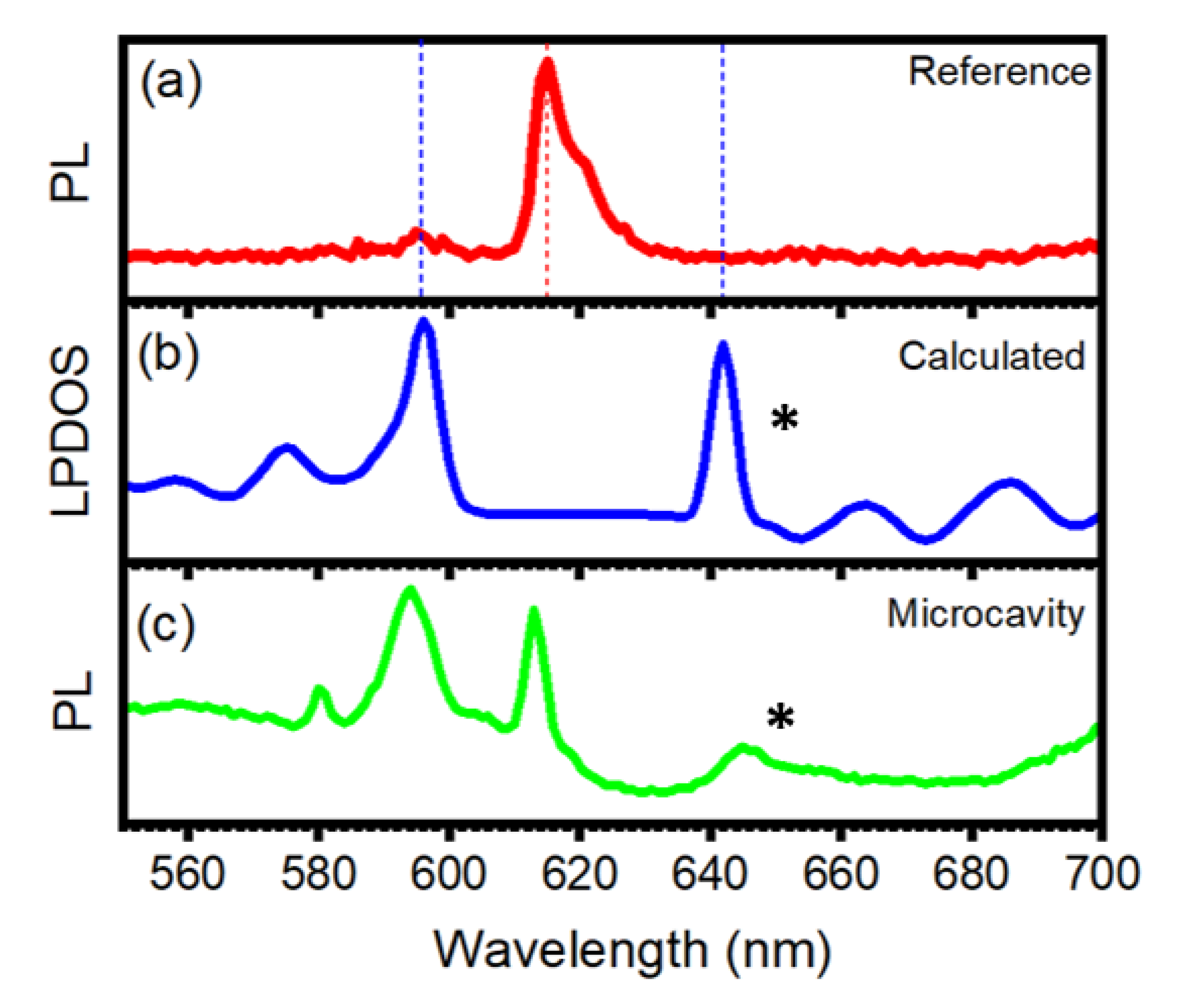

Figure 3. (a) EuD4TEA:PS reference emission spectrum, (b) calculated local density of photonic states (LPDOS) for the microcavity and (c) emission spectrum of the microcavity, the microcavity spectral position is marked with (*).
Figure 3. (a) EuD4TEA:PS reference emission spectrum, (b) calculated local density of photonic states (LPDOS) for the microcavity and (c) emission spectrum of the microcavity, the microcavity spectral position is marked with (*).
Crystals 10 00287 g003

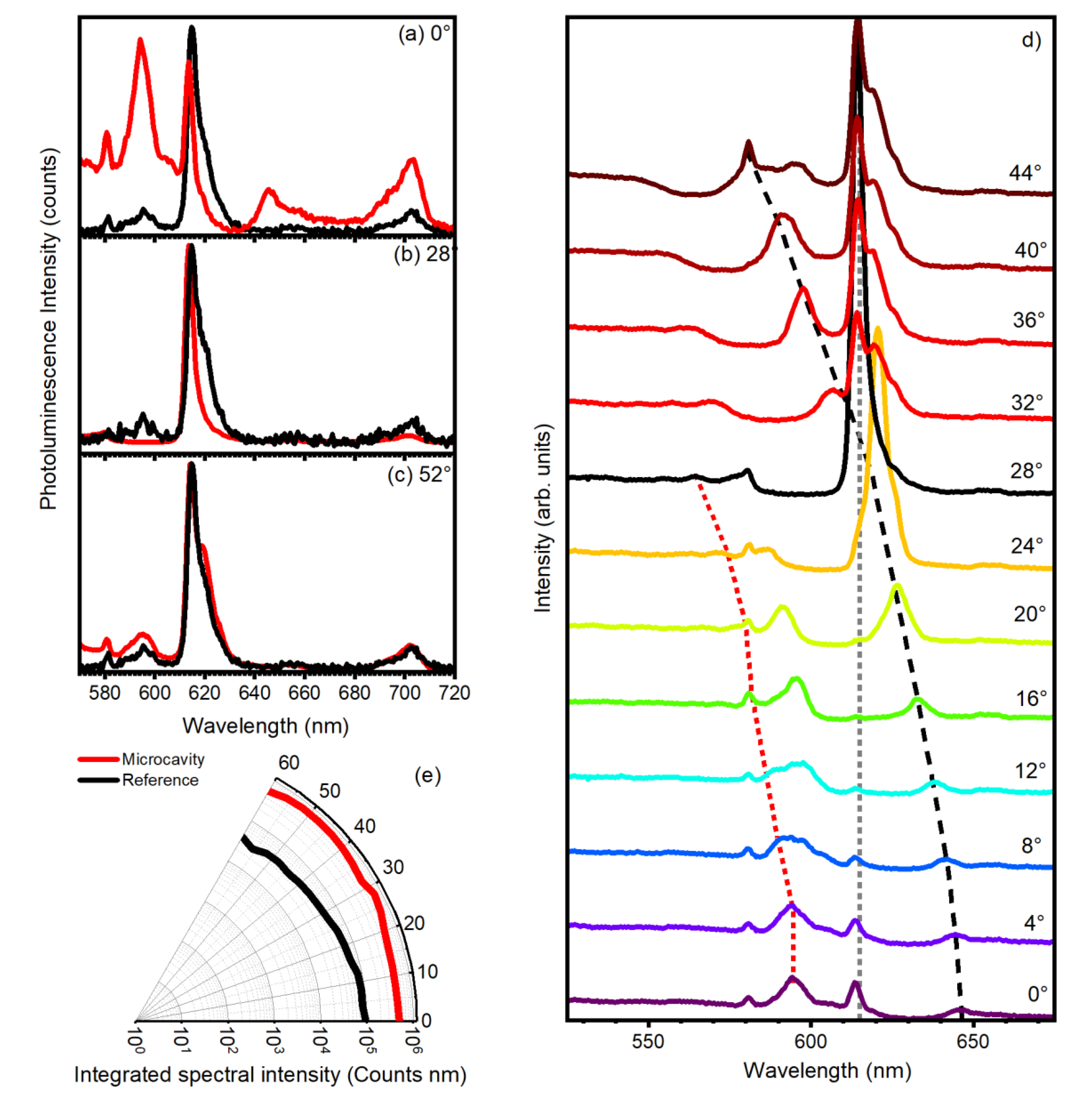

Figure 4. Normalized steady state emission spectra collected for the EuD4TEA microcavity (red line) and for the reference film (black line) collected at 0° (a), 28° (b) and 52° (c) with respect the normal incidence direction to the sample plane. (d) angular resolved emission spectra. (e) Angular resolved integrated spectral intensity for the reference and for the microcavity.
Figure 4. Normalized steady state emission spectra collected for the EuD4TEA microcavity (red line) and for the reference film (black line) collected at 0° (a), 28° (b) and 52° (c) with respect the normal incidence direction to the sample plane. (d) angular resolved emission spectra. (e) Angular resolved integrated spectral intensity for the reference and for the microcavity.
Crystals 10 00287 g004

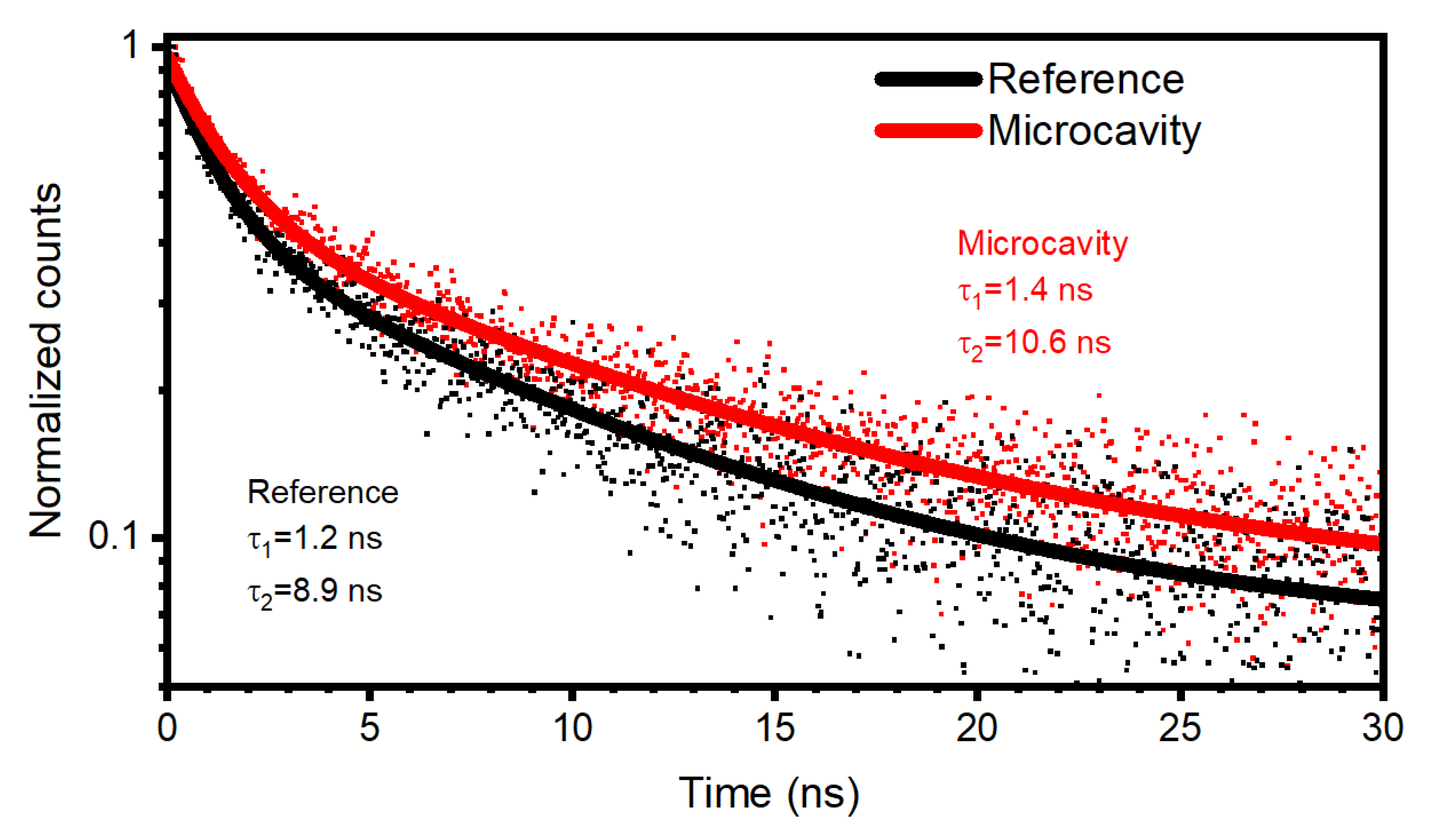

Figure 5. Emission decay collected at 615 nm for the reference sample (black lines) and for the microcavity (red line). All the data were collected at 28° from the normal incidence to the sample plane.
