The Temperature Dependence of the Magnetization Process of the Kondo Insulator YbB12
1
The Institute for Solid State Physics, The University of Tokyo, 5-1-5 Kashiwa, Chiba 277-8581, Japan
2
Institute of Quantum Beam Science, Ibaraki University, Mito 310-8512, Japan
*
Author to whom correspondence should be addressed.
Received: 20 November 2019 / Accepted: 31 December 2019 / Published: 7 January 2020

Abstract

:
The properties of the Kondo insulator in a strong magnetic field are one of the most intriguing subjects in condensed matter physics. The Kondo insulating state is expected to be suppressed by magnetic fields, which results in the dramatic change in the electronic state. We have studied the magnetization process of one of the prototypical Kondo insulators YbB 12 at several temperatures in magnetic fields of up to 80 T. The metamagnetism due to the insulator-metal (IM) transition seen around 50 T was found to become significantly broadened at approximately 30 K. This characteristic temperature T * 30 K in YbB 12 is an order of magnitude lower than the Kondo temperature T K = 240 K. Our results suggest that there is an energy scale smaller than the Kondo temperature that is important to understanding the nature of Kondo insulators.
Keywords:
Kondo insulator; insulator-metal transition; high magnetic field

1. Introduction

The Kondo insulator is a class of matter in which the Kondo effect is significant and the electrons are treated as quasiparticles termed heavy fermions [1]. The most striking feature of the Kondo insulator is that the energy gap opens at a low temperature and it becomes an insulator, in contrast to the fact that most of the materials experiencing the Kondo effect strongly are metal (so-called heavy fermion system). The Kondo effect is a typical quantum many-body correlation effect and induces non-trivial intriguing phenomena, such as exotic superconductors [2] and non-fermi liquid behaviors [3]. Two theoretical models for explaining formation of the energy gap in Kondo insulators have been proposed; namely, the c-f hybridization gap model [4,5] and the localized electron-hole bound model [6]. Although the localized model can explain the properties of the Kondo insulators with diluted f electron systems, such as La 1 x Yb x B 12 , the c-f hybridization gap model also reproduces the behavior of magnetic properties of the Kondo insulators well [6]. Because there have been no experimental findings that clarify which model is closer to the real mechanism of the gap opening of the Kondo insulator, further experimental studies are needed. One of the fundamental properties to be studied is the temperature dependence of the energy gap. This is because the Kondo effect becomes significant only at low temperatures and the temperature variation should give crucial information regarding the mechanism of the gap formation. In addition to the interest in the mechanism of the energy gap’s formation, YbB 12 has been collecting much attention because quantum oscillations have recently been observed in the insulating phase [7] and the origin is highly controversial; it could be due to the topological surface metallic state or bulk exotic quasi particles. Hence, understanding of the electronic states in YbB 12 has become one of the most intriguing issues to be urgently resolved.
We investigated the temperature dependence of the energy gap in a prototypical Kondo insulator YbB 12 . The energy gap opens around 100 K [8] and the evolution of the Kondo effect manifests itself in the temperature dependence of magnetic susceptibility ( χ T ). The broad maximum in the χ T curve around 80 K suggests that the Kondo temperature ( T K ) is around 240 K [9]. YbB 12 undergoes the magnetic-field-induced insulator-metal (IM) transition at around 50 T and the emergent metal phase has been proven to be in a heavy fermion (HF) state [10]. The closing of the energy gap occurs along with the metamagnetic transition, and the high-field HF state is expected to be suppressed in higher magnetic fields of around 100 T [11]. The temperature dependence of the energy gap has never been well understood in the Kondo insulator, although it is important to uncover its nature. In this study, the temperature dependence of the energy gap was investigated by measuring the metamagnetic transition at different temperatures. The transition magnetic field is a good measure of the energy gap through the Zeeman effect [11]. It was found that the energy gap slightly decreases with increasing temperature. It is more striking that the transition gets broadened when temperature becomes higher than around 30 K, suggesting that the characteristic temperature T * 30 K exists in addition to the Kondo temperature T K 240 K in YbB 12 .

2. Experimental Procedures

Magnetic fields are generated by the vertical-type single-turn coil magnetic field generator installed in The Institute for Solid State Physics, The University of Tokyo [12]. Ultrahigh pulsed magnetic fields of up to 200 T can be generated and used for several kinds of experiments of condensed-matter physics. The duration of the pulsed magnetic fields is around 6 μ s. The magnetization is measured using a pickup coil that consists of two small solenoids wound by copper wire of 60 μ m diameter. The two coils are used for compensation of the induction voltage of the pulsed magnetic fields [13]. They are arranged in parallel to each other and electrically connected in series so that the polarity of the induction voltage is opposite. The sample is inserted into one of the two solenoids so that the induction of the magnetization is only applied to one of the small solenoids. Note that the response time of the magnetization measurement system used in the present work is around 10 ns; that is short enough to follow the magnetization as a function of the μ s-duration magnetic field in many spin systems, such as SrCu 2 (BO 3 ) 2 [14]. If a material has a strong spin-lattice coupling such as solid oxygen [15] the magnetization response delays due to the intrinsic response time of the material. For such a case, we evaluated the dynamics using different sweep speed of the pulsed magnetic fields. A single crystalline sample of YbB 12 was grown by the traveling solvent floating zone method using a four-xenon-lamp image furnace [9]. Four xenon lamps are surrounded by ellipsoidal glass-mirrors coated with aluminum and cooled by blowers. The proportion of Yb to that of B in the solvent in a melting zone was set to be relatively a little less than that required for stoichiometric composition of YbB 12 . The temperature inhomogeneities with radial and circumferential directions were kept less than 50 °C at 2200 °C, which is important to grow a single crystal of YbB 12 [9]. The crystals used were characterized with X-ray diffraction experiments and magnetic susceptibility, and it was confirmed that the quality of the crystal was as same as that reported in the previous work [9,16]. The sample was powdered and mixed with epoxy resin to suppress the heating by eddy current due to the pulsed high magnetic field.

3. Results

The magnetization processes at different temperatures are shown in Figure 1. Only the field-ascending magnetization processes are shown because the magnetocaloric effect [10] becomes significant and the temperature can be changed in the field descending process. The magnetic field was generated up to 105 T. Because the induction voltage from the magnetization change becomes close to zero at near the top of pulsed field, the accuracy of the measurement becomes degraded. Here, only the measured magnetization curves with high reliability are plotted. Because the magnetization process of YbB 12 in the μ s duration pulsed magnetic fields was reported to be in good agreement with that measured in a ms-duration pulsed magnetic field [11], the magnetization measured here was expected to have intrinsic values without any time delay. The magnetization is almost linear to the magnetic field at low fields and changes the slope at around 50 T. This behavior is consistent with previous reports [11,16,17] and understood as the metamagnetism due to the IM transition. The transition was found to become broad with increasing temperature and obscured at 30 K.
The transition magnetic fields were evaluated with the curves of the derivatives of the magnetization (M) with respect to the magnetic fields (B) ( d M / d B ). The temperature variation of the d M / d B curve is shown in Figure 2a. At 4 and 10 K, the d M / d B curves exhibit clear peaks, indicating the abrupt change in the magnetization. The peak structure becomes broad and changes its shape to a sort of kink structure with increasing temperature.
The transition magnetic fields ( B c ) can be evaluated by the peak or kink structure. Two tangential lines were computed using data in the vicinity of the peak or the kink, and the B c was determined by the crossing point of the two lines, as shown in Figure 2b.
The obtained B c is plotted as a function of temperature in Figure 3. The temperature of starting the energy gap opening is reported to be around 100 K [8] and it is also plotted in the figure. Since error bars of B c at higher temperatures are large, it is difficult to discuss whether B c monotonously decreases with increasing temperature or has a slight increase at around 30 K.

4. Discussion

The temperature dependence of the energy gap has not been well understood in strongly correlated electron systems. In YbB 12 , it was reported that the magnitude of the energy pap ( E g ) is 15 meV at a low temperature [8,18], but the temperature variation of the energy gap has been unclear. Since it has been clarified that the magnetic-field-induced IM transition occurs by closing the energy gap due to the Zeeman shift of the energy levels [11], the transition magnetic field B c scales to the magnitude of the E g as follows.
g e f f μ B B c E g ,
where g e f f is given by calculation of the Zeeman shift of the crystal field energy levels of 4f electrons of Yb 3 + [11] and not a constant value. It should be noted that the Zeeman energy is given by the local magnetic moment of Yb 3 + and independent of temperature. Hence, the temperature variation of E g is straightforwardly measured by B c at different temperatures.
As shown in Figure 3, the temperature dependence of B c is not significant at temperatures up to 30 K, suggesting that the E g is also weakly temperature dependent. A weak temperature variation of E g at relatively low temperature region has been reported in other strongly correlated compounds, NdNiO 3 [19] and VO 2 [20]. The temperature variation of E g in NdNiO 3 is analyzed by the BCS gap function [19]. The BCS gap function can be approximately given by E g (T) E 0 tanh( 1.74 T c / T 1 ), where E 0 = E g ( T = 0 ) [21]. Although the origin of the formation of the energy gap is different between NdNiO 3 and YbB 12 , it is likely that the observed temperature dependence of the B c is in agreement with the relation B c (T) 55.2 tanh( 1.74 110 / T 1 ).
Another feature found in the temperature dependence of the magnetization process is that the phase transition becomes significantly broad and unclear at 30 K, which is several times lower than the corresponding temperature of the E g (174 K). If we simply evaluate the electron occupation ratio of the higher energy level at 30 K with E g / k B = 174 K; it is exp(–174/30) 3 × 10 3 . Hence, the effect of the thermal excitation is expected to be small; the significant temperature dependence of the sharpness of the d M / d B peak in Figure 2a cannot be accounted for by the thermal excitation.
Here, it is worth noting that the temperature of the sample can be changed due to eddy current heating (joule heating) and magnetocaloric effect. The temperature rise ( Δ T ) due to eddy current heating is proportional to the cross section of the sample at which B penetrates. Hence, it is an effective way to suppress the heating to make the sample small. The diameter of each grain of powdered sample was expected to be several tens of μ m, and to help reduce the eddy current heating. Moreover, because the smaller size sample has a large surface-to-volume ratio, a heat exchange between the sample and its environment was expected to be effective for the powdered sample and help to maintain the sample at constant temperature. As we have confirmed in previous work [11] the magnetization process at 4 K is in good agreement with that obtained with a slower (ms) pulsed magnet, suggesting the temperature change during the magnetization process is not significant. The temperature change due to the magnetocaloric effect is several Kelvin when initial temperature is 4 K [10].
There can be another smaller-energy-scale characteristic temperature T * 30 K than T K (240 K). Such a characteristic temperature lower than the Kondo temperature has been reported in a heavy fermion compound YbRh 2 Si 2 [22], and the spatial coherence of the Kondo effect is important in this case. On the other hand, a detailed study of element substitution effect of YbB 12 in Yb 1 x R x B 12 (R = Y, Lu, Sc) has also revealed that there can be another Kondo temperature of around 25 K in YbB 12 [23]. This temperature corresponds to the Kondo temperature in the hypothetical metallic YbB 12 and can be said to be a sort of hidden energy scale in the insulating phase of YbB 12 whose T K is 240 K. If we consider the IM transition as a transition from a local Kondo state to a Kondo metal state, it can be said that the local character is suppressed at T * , although the energy gap is still expected to be open. The Kondo lattice coherence temperature can be closely related to T * . The density of states (DOS) at the Fermi energy at the IM transition magnetic field is suggested to grow and makes the Kondo resonance peak [5]. The d M / d B can be understood as the magnetic susceptibility and is expected to be proportional to the DOS in the band magnetism. The diminishing of the d M / d B peak structure can suggest a suppression of the Kondo peak. Hence, one may expect that the Kondo coherence is disturbed at around T * . In Figure 3, we schematically show the temperature dependence of the DOS considering the theoretically calculated DOS [5] at the IM transition magnetic fields. However, there has been no report on other experimental evidences of the Kondo lattice coherence temperature of YbB 12 . Detailed temperature dependence of the electrical resistivity or spectroscopic experiments in high magnetic fields could help to solve this issue.

5. Conclusions

The E g of YbB 12 was evaluated at different temperatures by observing B c of the IM phase transition and it was found that E g is insensitive to temperature in the temperature range from 4 to 30 K. The IM transition becomes broad at around T * = 30 K; that is much lower than T K = 240 K. T * is close to the recently reported characteristic temperature of 25 K for the hypothetical metallic phase of YbB 12 . The hidden energy scale of T * in addition to T K would be important to understand the peculiar electronic states of the Kondo insulator.

Author Contributions

Y.H.M. and Y.K. performed the high-magnetic-field experiments and analyzed experimental data. F.I. performed crystal synthesis. Y.H.M. wrote the manuscript with input from F.I. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Riseborough, P.S. Heavy fermion semiconductors. Adv. Phys. 2000, 49, 257–320. [Google Scholar] [CrossRef]
  2. Steglich, F.; Aarts, J.; Bredl, C.D.; Lieke, W.; Meschede, D.; Franz, W.; Schafer, H. Superconductivity in the Presence of Strong Pauli Paramagnetism: CeCu2Si. Phys. Rev. Lett. 1979, 43, 1892–1895. [Google Scholar] [CrossRef]
  3. Si, Q.; Pixley, J.H.; Nica, E.; Yamamoto, S.J.; Goswami, P.; Yu, R.; Kirchner, S. Kondo Destruction and Quantum Criticality in Kondo Lattice Systems. J. Phys. Soc. Jpn. 2014, 83, 61005. [Google Scholar] [CrossRef]
  4. Saso, T.; Harima, H. Formation Mechanism of Hybridization Gap in Kondo Insulators based on a Realistic Band Model and Application to YbB12. J. Phys. Soc. Jpn. 2003, 72, 1131–1137. [Google Scholar] [CrossRef]
  5. Ohashi, T.; Koga, A.; Suga, S.; Kawakami, N. Field-induced phase transitions in a Kondo insulator. Phys. Rev. B 2004, 70, 245104. [Google Scholar] [CrossRef]
  6. Kasuya, T. Gap State in YbB12 and SmB6: Real Kondo Insulators. Europhys. Lett. 1994, 26, 277–281. [Google Scholar] [CrossRef]
  7. Xiang, Z.; Kasahara, Y.; Asaba, T.; Lawson, B.; Tinsman, C.; Chen, L.; Sugimoto, K.; Kawaguchi, S.; Sato, Y.; Li, G.; et al. Quantum oscillations of electrical resistivity in an insulator. Science 2018, 362, 65–69. [Google Scholar] [CrossRef]
  8. Okawa, M.; Ishida, Y.; Takahashi, M.; Shimada, T.; Iga, F.; Takabatake, T.; Saitoh, T.; Shin, S. Hybridization gap formation in the Kondo insulator YbB12 observed using time-resolved photoemission spectroscopy. Phys. Rev. B 2015, 92, 161108. [Google Scholar] [CrossRef]
  9. Iga, F.; Shimizu, N.; Takabatake, T. Single crystal growth and physical properties of Kondo insulator YbB12. J. Magn. Magn. Mater. 1998, 177–181, 337–338. [Google Scholar] [CrossRef]
  10. Terashima, T.T.; Matsuda, Y.H.; Kohama, Y.; Ikeda, A.; Kondo, A.; Kindo, K.; Iga, F. Magnetic-Field-Induced Kondo Metal Realized in YbB12. Phys. Rev. Lett. 2018, 120, 257206. [Google Scholar] [CrossRef]
  11. Terashima, T.T.; Ikeda, A.; Matsuda, Y.H.; Kondo, A.; Kindo, K.; Iga, F. Magnetization Process of the Kondo Insulator YbB12 in Ultrahigh Magnetic Fields. J. Phys. Soc. Jpn. 2017, 86, 054710. [Google Scholar] [CrossRef]
  12. Miura, N.; Osada, T.; Takeyama, S. Research in Super-High Pulsed Magnetic Fields at the Megagauss Laboratory of the University of Tokyo. J. Low Temp. Phys. 2003, 133, 139–158. [Google Scholar] [CrossRef]
  13. Takeyama, S.; Sakakura, R.; Matsuda, Y.H.; Miyata, A.; Tokunaga, M. Precise magnetization measurements by parallel self-compensated induction coils in a vertical single-turn coil up to 103 T. J. Phys. Soc. Jpn. 2012, 81, 14702. [Google Scholar] [CrossRef]
  14. Matsuda, Y.H.; Abe, N.; Takeyama, S.; Kageyama, H.; Corboz, P.; Honecker, A.; Manmana, S.R.; Foltin, G.R.; Schmidt, K.P.; Mila, F. Magnetization of SrCu2(BO3)2 in Ultrahigh Magnetic Fields up to 118 T. Phys. Rev. Lett. 2013, 111, 137204. [Google Scholar] [CrossRef]
  15. Nomura, T.; Matsuda, Y.H.; Takeyama, S.; Matsuo, A.; Kindo, K.; Her, J.L.; Kobayashi, T.C. Novel Phase of Solid Oxygen Induced by Ultrahigh Magnetic Fields. Phys. Rev. Lett. 2014, 112, 247201. [Google Scholar] [CrossRef]
  16. Iga, F.; Suga, K.; Takeda, K.; Michimura, S.; Murakami, K.; Takabatake, T.; Kindo, K. NAnisotropic magnetoresistance and collapse of the energy gap in Yb1−xLuxB12. J. Phys. Conf. Ser. 2009, 200, 012064. [Google Scholar] [CrossRef]
  17. Sugiyama, K.; Iga, F.; Kasaya, M.; Kasuya, T.; Date, M. Field-Induced Metallic State in YbB12 under High Magnetic Field. J. Phys. Soc. Jpn. 1988, 57, 3946–3953. [Google Scholar] [CrossRef]
  18. Okamura, H.; Michizawa, T.; Nanba, T.; Kimura, S.; Iga, F.; Takabatake, T. Indirect and Direct Energy Gaps in Kondo Semiconductor YbB12. J. Phys. Soc. Jpn. 2005, 74, 1954–1957. [Google Scholar] [CrossRef]
  19. Katsufuji, T.; Okimoto, Y.; Arima, T.; Tokura, Y.; Torrance, J.B. Optical spectroscopy of the metal-insulator transition in NdNiO3. Phys. Rev. B 1995, 51, 4830–4835. [Google Scholar] [CrossRef] [PubMed]
  20. Paquet, D.; Leroux-Hugon, P. Electron correlations and electron-lattice interactions in the metal-insulator, ferroelastic transition in VG2. A thermodynamical study. Phys. Rev. B 1980, 22, 5284–5301. [Google Scholar] [CrossRef]
  21. Tachiki, M.; Fujita, T. (Eds.) Science of High Temperature Superconductivity; Shokabo Co., Ltd.: Tokyo, Japan, 1999. [Google Scholar]
  22. Ernst, S.; Kirchner, S.; Krellner, C.; Geibel, C.; Zwicknagl, G.; Steglich, F.; Wirth, S. Emerging local Kondo screening and spatial coherence in the heavy-fermion metal YbRh2Si2. Nature 2011, 474, 362–366. [Google Scholar] [CrossRef] [PubMed]
  23. Iga, F.; Yokomichi, K.; Matsuhra, W.; Nakayama, H.; Kondo, A.; Kindo, K.; Yoshizawa, H. Non-magnetic element substitution effect in Kondo insulator YbB12 and exotic surface effect in this alloy system. AIP Adv. 2018, 8, 101335. [Google Scholar] [CrossRef]

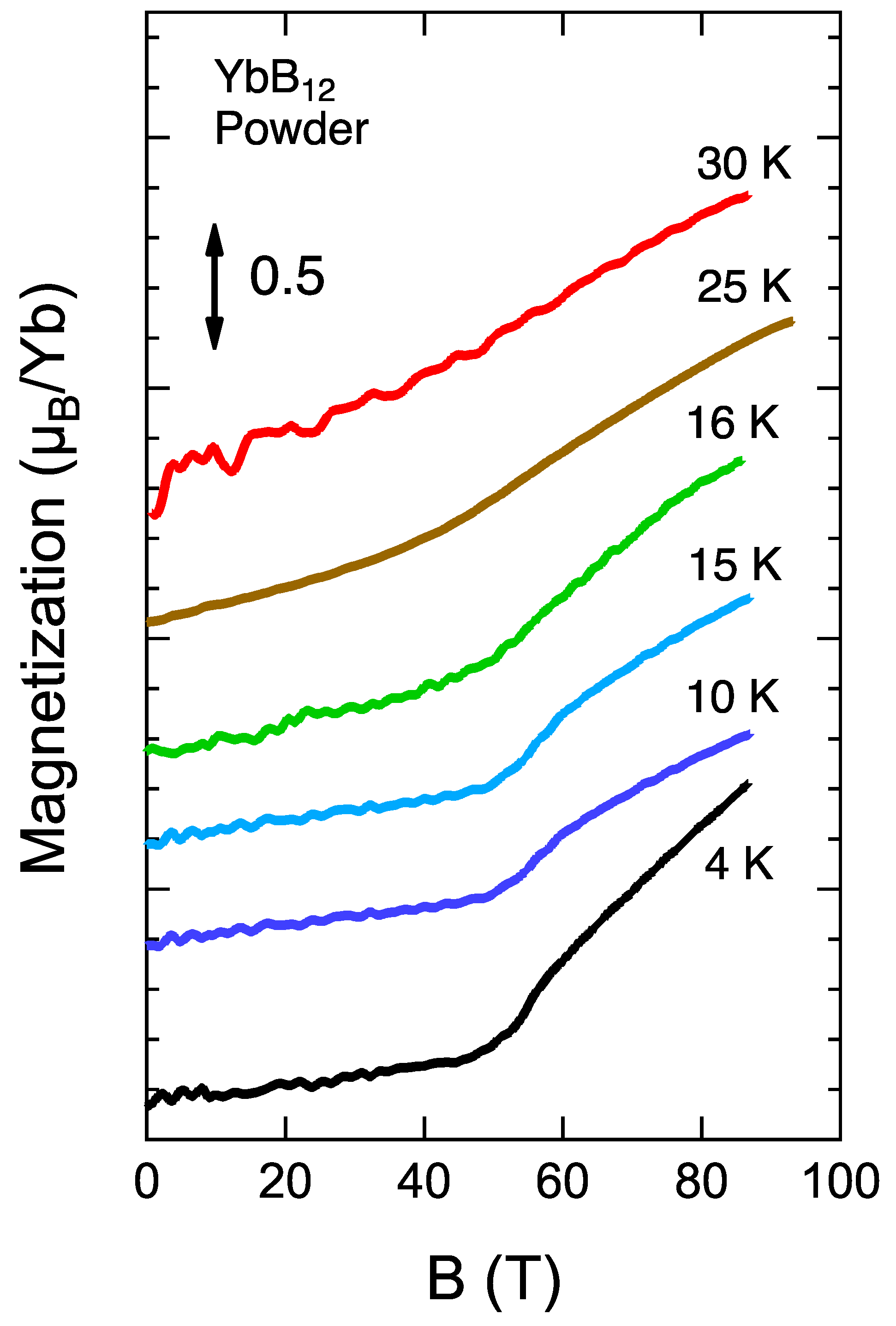

Figure 1. Magnetization processes of powdered samples of YbB 12 at different temperatures. The field-ascending processes are shown. Each curve was vertically shifted for better clarity.
Figure 1. Magnetization processes of powdered samples of YbB 12 at different temperatures. The field-ascending processes are shown. Each curve was vertically shifted for better clarity.
Crystals 10 00026 g001

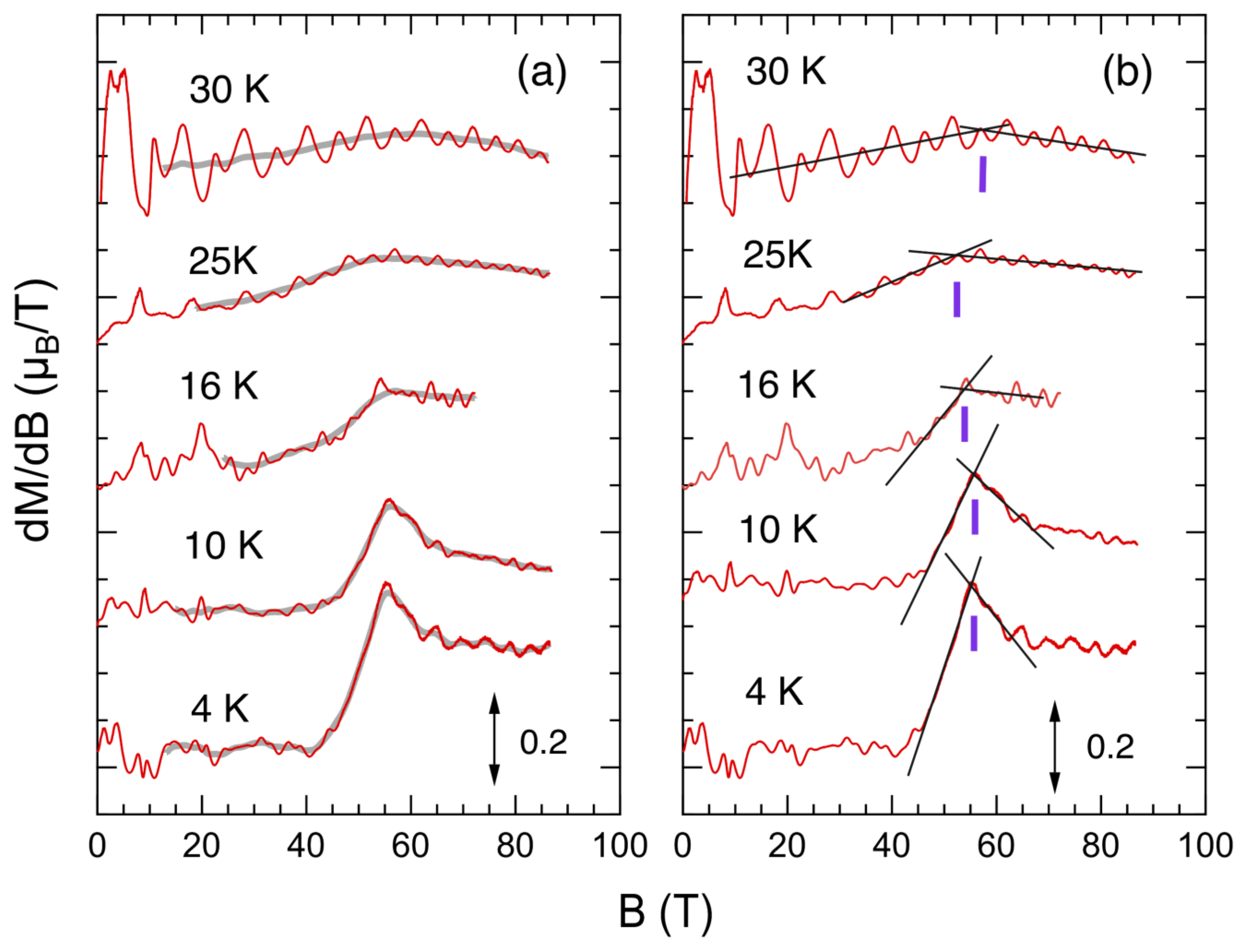

Figure 2. (a) Derivative of the magnetization with respect to the magnetic fields ( d M / d B ) at different temperatures. The thin light-gray curves are the d M / d B after a numerical smoothing process. (b) The method of determination of the transition magnetic fields. The lines are tangential lines in the vicinity of the peaks.
Figure 2. (a) Derivative of the magnetization with respect to the magnetic fields ( d M / d B ) at different temperatures. The thin light-gray curves are the d M / d B after a numerical smoothing process. (b) The method of determination of the transition magnetic fields. The lines are tangential lines in the vicinity of the peaks.
Crystals 10 00026 g002

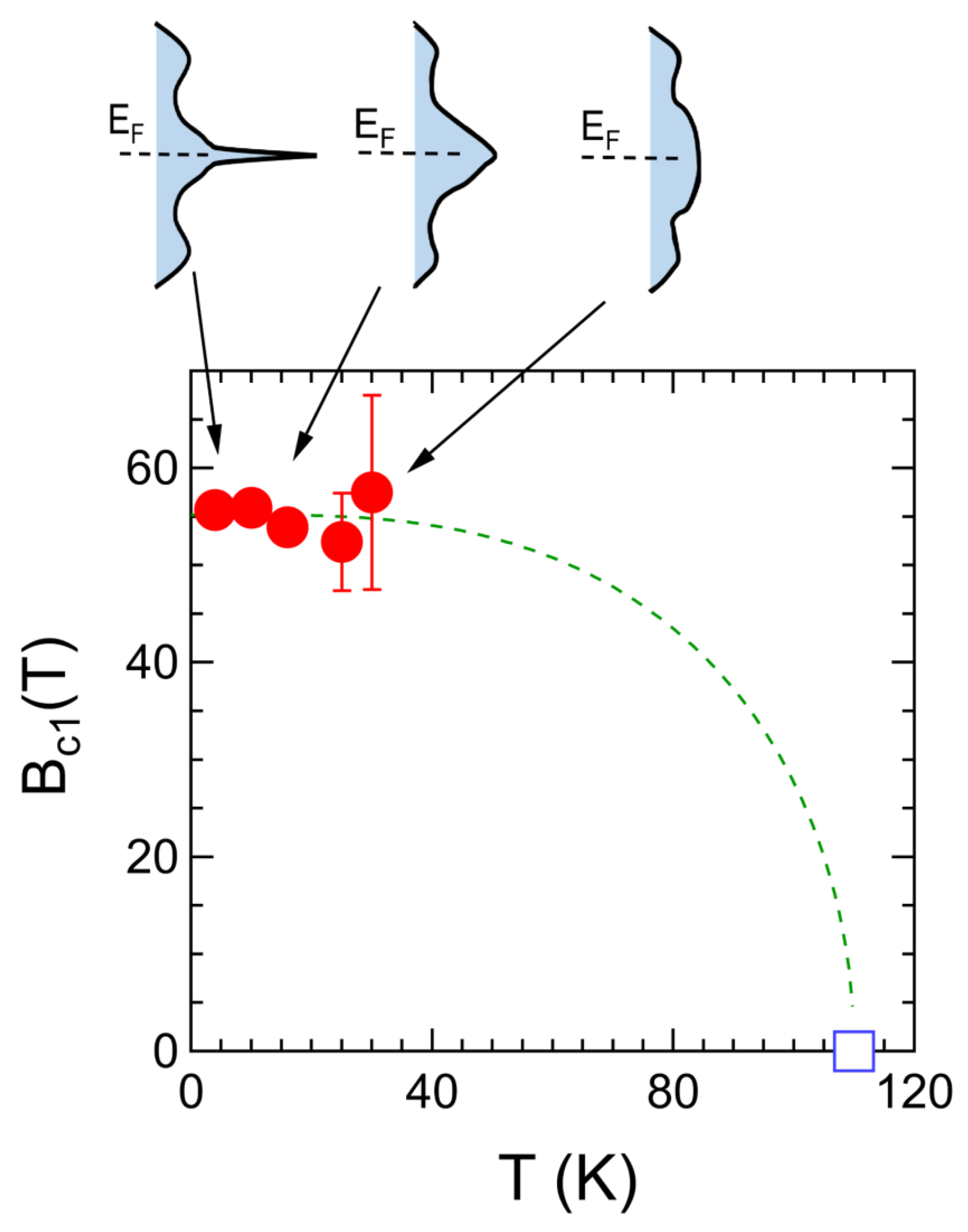

Figure 3. Temperature dependencies of B c evaluated from d M / d B curves are potted with filled circles. The critical temperature ( T c ) at zero fields reported is around 100 K (an open square) [8]. The DOSs at the transition magnetic fields at different temperatures are schematically shown in upper part of the figure. They are handwritten drawings based on the DOSs calculated theoretically at zero Kelvin [5].
