Article

Hydrotreating of Jatropha-derived Bio-oil over Mesoporous Sulfide Catalysts to Produce Drop-in Transportation Fuels

1
Research Institute of Energy Frontier (RIEF), Department of Energy and Environment, National Institute of Advanced Industrial Science and Technology (AIST), 16-1 Onogawa, Tsukuba, Ibaraki 305-8569, Japan
2
Materials for Energy Research Unit, National Metal and Materials Technology Center (MTEC), Pahonyothin Rd. Klong 1, Klong Luang Pathumtani 12120, Thailand
*
Author to whom correspondence should be addressed.
Catalysts 2019, 9(5), 392; https://doi.org/10.3390/catal9050392
Received: 29 March 2019 / Revised: 23 April 2019 / Accepted: 23 April 2019 / Published: 26 April 2019
(This article belongs to the Special Issue Catalytic Fast Pyrolysis)

Abstract

:
The bio-oil was largely produced by thermal pyrolysis of Jatropha-derived biomass wastes (denoted as Jatropha bio-oil) using a pilot plant with a capacity of 20 kg h-1 at Thailand Institute of Scientific and Technological Research (TISTR), Thailand. Jatropha bio-oil is an unconventional type of bio-oil, which is mostly composed of fatty acids, fatty acid methyl esters, fatty acid amides, and derivatives, and consequently, it contains large amounts of heteroatoms (oxygen ~20 wt.%, nitrogen ~ 5 wt.%, sulfur ~ 1000 ppm.). The heteroatoms, especially nitrogen, are highly poisonous to the metal or sulfide catalysts for upgrading of Jatropha bio-oil. To overcome this technical problem, we reported a stepwise strategy for hydrotreating of 100 wt.% Jatropha bio-oil over mesoporous sulfide catalysts (CoMo/γ-Al2O3 and NiMo/γ-Al2O3) to produce drop-in transport fuels, such as gasoline- and diesel-like fuels. This study is very different from our recent work on co-processing of Jatropha bio-oil (ca. 10 wt.%) with petroleum distillates to produce a hydrotreated oil as a diesel-like fuel. Jatropha bio-oil was pre-treated through a slurry-type high-pressure reactor under severe conditions, resulting in a pre-treated Jatropha bio-oil with relatively low amounts of heteroatoms (oxygen < 20 wt.%, nitrogen < 2 wt.%, sulfur < 500 ppm.). The light and middle distillates of pre-hydrotreated Jatropha bio-oil were then separated by distillation at a temperature below 240 °C, and a temperature of 240–360 °C. Deep hydrotreating of light distillates over sulfide CoMo/γ-Al2O3 catalyst was performed on a batch-type high-pressure reactor at 350 °C and 7 MPa of H2 gas for 5 h. The hydrotreated oil was a gasoline-like fuel, which contained 29.5 vol.% of n-paraffins, 14.4 vol.% of iso-paraffins, 4.5 vol.% of olefins, 21.4 vol.% of naphthene compounds and 29.6 wt.% of aromatic compounds, and little amounts of heteroatoms (nearly no oxygen and sulfur, and less than 50 ppm of nitrogen), corresponding to an octane number of 44, and it would be suitable for blending with petro-gasoline. The hydrotreating of middle distillates over sulfide NiMo/γ-Al2O3 catalyst using the same reaction condition produced a hydrotreating oil with diesel-like composition, low amounts of heteroatoms (no oxygen and less than 50 ppm of sulfur and nitrogen), and a cetane number of 60, which would be suitable for use in drop-in diesel fuel.

Graphical Abstract

1. Introduction

Biomass is one of the most abundant natural resources, which supplies around 10% of annual primary energy consumption corresponding to a capacity of 50 EJ globally in 2010 [1,2,3]. It is generally agreed that the chemicals and fuel with low carbon footprint can be synthesized by the conversion of biomass using various catalytic strategies, which contribute to the reduction of CO2 emission, and consequently, avert global warming [4,5,6,7,8,9,10]. For example, the biodiesel fuel (BDF), which is a so-called first-generation biofuel, can be synthesized by base-catalyzed transesterification of refined vegetable oils with methanol, and it has been extensively used in the transport sector, particularly in America, European Union and Association of South-East Asian Nations (ASEAN) counties [6,11,12,13,14,15,16]. However, it has caused a new environmental problem in waste biomass treatment, such as discarded kernel shells and husks, which are massively produced as byproducts in the BDF industry. Recent studies have focused on post-treatment and utilization of those biomass wastes into valuable products, such as gasification to produce syngas, liquification to produce chemicals and fuels, and chip production for thermal power generation [7,17]. Similar to biomass gasification and liquification, bio-oil can be synthesized by thermal conversion of biomass, especially the wastes, through the catalytic pyrolysis or non-catalytic pyrolysis technology, and therefore, it contains large amounts of heteroatom-containing hydrocarbons, oxygen, and especially sulfur, water and unwanted impurities which are highly associated with the feedstocks and the processing parameters used in the pyrolysis and condensation steps [18,19,20,21]. The subsequent upgrading of bio-oil through hydrotreating technology using metal catalysts, such as Pd/C, or sulfide catalysts, such as Co- or Ni-promoted MoS2/γ-Al2O3, is required to remove the heteroatoms, resulting in clean and drop-in biofuel with composition and fuel property closed to petro-fuels [22]. Unfortunately, the heteroatoms, water, and unwanted impurities, which are originally present in bio-oil, poison the active sites of metal and sulfide catalysts, causing serious catalyst deactivation, and consequently, reducing the quality of hydrotreated bio-oil [23,24,25,26,27,28,29,30]. Yoshimura et al. reported that the sulfide NiMo catalysts were deactivated by the oxygen-containing compounds due to the oxidation of active sites [23]. Laurent and Delmon showed that the deoxygenation of model compounds of bio-oils over CoMo and NiMo catalysts was strongly inhibited in the presence of water and ammonia [24]. There is still room for the development of innovative catalytic process using advanced catalysts with high resistance to heteroatoms, which can produce clean and drop-in fuel for direct formulating with petro-fuels.
Our recent study demonstrated that Jatropha bio-oil could be synthesized by thermal pyrolysis of waste Jatropha biomass (a mixture of kernel shell and husk) using a pilot plant with a capacity of ca. 20 kg/h at Thailand Institute of Scientific and Technological Research (TISTR), Thailand [19]. The Jatropha bio-oil is an unconventional bio-oil with a high concentration of nitrogen (ca. 5 wt%) and relatively low concentrations of oxygen (ca. 20 wt%) and sulfur (<1000 ppm), which is mostly consisted of fatty acids, fatty acid methyl esters, fatty acid amides, and their derivatives (>50 wt%) in addition to other light organic compounds incorporated with heteroatoms. It is different from conventional bio-oils with high oxygen content (ca. 20–40 wt%) and low sulfur and nitrogen contents (<1 wt%), which were derived from cedar or pine biomass waste, and mostly consisted of carbohydrates and phenolic compounds. In the upgrading process, the upgrading catalysts, as aforementioned, were immediately deactivated by a high concentration of nitrogen-containing compounds when Jatropha bio-oil was directly used as a feedstock (Scheme 1a). To prevent catalyst deactivation, our previous study demonstrated a co-processing method for the upgrading of Jatropha bio-oil co-fed with petroleum distillates over sulfide CoMo and NiMo catalysts under severe conditions (330–350 °C and 5–7 MPa of H2) [30]. The diesel-like fuel with nearly no heteroatoms (sulfur, oxygen, and nitrogen < 10 ppm) could be obtained by hydrotreating of oil feedstock containing ca. 10 wt% of Jatropha bio-oil and ca. 90 wt% of light gas oil. In this study, a stepwise strategy was reported for hydrotreating of 100 wt% Jatropha bio-oil over sulfide catalysts to produce drop-in transport fuels including gasoline- and diesel-like fuels (Scheme 1b). The Jatropha bio-oil was pre-treated by a slurry bed reactor at 400 °C and 7 MPa of H2 using waste NiMo/γ-Al2O3 catalyst, followed by distillation. The clean and drop-in transport fuels were then obtained by hydrotreating of pre-treated distillates over fresh CoMo/γ-Al2O3 or NiMo/γ-Al2O3 catalysts using a high-pressure stainless-steel batch-type reactor under severe conditions. The influence of catalysts and the processing parameters of the composition and fuel property of upgraded Jatropha bio-oils were reported.

2. Results

The sulfide CoMo/γ-Al2O3 or NiMo/γ-Al2O3 catalysts were prepared by the same procedures as reported in our previous study [30], and their structural properties were completely studied by X-ray diffraction and absorption techniques, physisorption and chemisorption, and electron microscopes [30,31,32,33]. It has found that the sulfide CoMo/γ-Al2O3 catalyst with relatively large amounts of acidic sites (NH3 uptake = 0.92 mmol g−1) and coordinatively unsaturated sites (NO uptake = 0.11 mmol g−1) was associated with small Co-incorporated MoS2-like slabs (4.5 ± 1.2 nm in length and 2.0 ± 0.53 nm in height) with a relatively high stacking number (3.8 ± 0.86) on the mesoporous alumina material. In contrast, the sulfide NiMo/γ-Al2O3 catalyst with relatively small amounts of acidic sites (NH3 uptake = 0.77 mmol g−1) and coordinatively unsaturated sites (NO uptake = 0.093 mmol g−1) was presumably due to large Ni-incorporated MoS2-like slabs (5.9 ± 1.2 nm in length and 1.5 ± 0.53 nm in height) with a relatively low stacking number (2.6 ± 0.71) on the mesoporous alumina material. In this study, the structural properties of sulfide CoMo/γ-Al2O3 or NiMo/γ-Al2O3 catalysts were examined again by the wide-angle XRD pattern (Figure 1A), nitrogen physisorption (Figure 1B), and high-resolution transmission electron microscope (HRTEM) images (Figure 2), in comparison to those of γ-Al2O3 as a supporting material. The XRD study shows that two diffraction peaks of Co- or Ni-incorporated MoS2-slabs are hardly observed at 2θ ~ 33° and 59°, indicating that their sizes are smaller than 5 nm, and the diffraction peaks of the mesoporous γ-Al2O3 framework are weakened by the impregnating. The N2 physisorption study shows that the H1 hysteresis loops of the type IV isotherms are reduced by the impregnation of Co- or Ni-incorporated MoS2-slabs on the mesoporous γ-Al2O3 framework. The nitrogen physisorption study shows that the supporting material of γ-Al2O3 has a surface area of 206 m2 g−1, a pore volume of 0.68 cm3 g−1 and pore size of 12 nm. The sulfide CoMo/γ-Al2O3 or NiMo/γ-Al2O3 catalysts have surface areas of 204–205 m2 g−1 and pore sizes of 12 nm, which are close to those of γ-Al2O3 supporting material, whereas their pore volumes are decreased to 0.38–0.41 cm3 g−1. It indicates that the Co- and Ni-incorporated MoS2-slabs were impregnated inside the pores of the mesoporous γ-Al2O3 framework. The HRTEM images clearly show that the sulfide CoMo/γ-Al2O3 or NiMo/γ-Al2O3 catalysts are composed of the Co- or Ni-incorporated MoS2-slabs and the mesostructured γ-Al2O3 particles. These results suggest that the sulfide CoMo/γ-Al2O3 or NiMo/γ-Al2O3 catalysts with well-dispersed Co- and Ni-incorporated MoS2-slabs on the mesoporous γ-Al2O3 framework were successfully prepared.
Jatropha bio-oil was largely produced by fast pyrolysis of waste Jatropha biomass at 500 °C using a pilot plant equipped with an electrostatic precipitator [19]. The yields of Jatropha bio-oil, water-soluble phase and gases were 21.3, 28.6, and 50.1 wt%, respectively. Conventional bio-oil.
Derived by fast pyrolysis of cedar or pine, biomass is mostly composed of lignin-derived phenolic compounds, and it consequently contains a high concentration of oxygen (>30 wt%) and low concentrations of sulfur (ca. 50 ppm) and nitrogen (ca. 0.1 wt%) [19,20]. However, Jatropha bio-oil is mostly composed of fatty acids, fatty acid methyl esters, fatty acid amides and derivatives, presumably due to that Jatropha oil is partly remained in the waste Jatropha biomass after the oil extraction. As a result, Jatropha bio-oil contains a high concentration of nitrogen (ca. 5 wt%), a relatively high concentration of sulfur (ca. 1000 ppm) and a relatively low concentration of oxygen (ca. 20 wt%).
The heteroatoms, especially nitrogen, are extremely poisonous to metal and sulfide catalysts used in the upgrading process. In Scheme 1a, the preliminary studies showed that direct hydrotreating of Jatropha bio-oil over sulfide and metal catalysts produced low-quality hydrotreated bio-oils with high heteroatoms, which was inapplicable for use in fuel oil blending, even if the severe conditions were used. In other words, the sulfide and metal catalysts were immediately deactivated by strong adsorption of heteroatoms on the catalytically active sites, especially nitrogen, in the upgrading process. To solve this technical problem, we proposed a stepwise strategy for the upgrading of Jatropha bio-oil over sulfide catalysts to produce drop-in biofuels (see Scheme 1b and Figure 3). Jatropha bio-oil was pre-treated through a slurry-type high pressure reactor at 400 °C and 7 MPa of H2 for 2 h using 1 wt% of waste NiMo catalyst, resulting in a pre-treated Jatropha bio-oil with relatively low concentrations of heteroatoms (oxygen < 20 wt.%, nitrogen < 2 wt.%, sulfur < 500 ppm.). The yield of pre-treated Jatropha bio-oil was around 65%. The pre-treated bio-oil was then divided into three fractions through distillation: (a) light distillates (21.0%, distillation temperature (Td) < 240 °C), (ii) middle distillates (59.3%, Td = 240–360 °C) and (iii) heavy distillates (19.7%, Td > 360 °C). We focused on deep hydrotreating of light distillates, whose composition was closed to gasoline, over sulfide CoMo/γ-Al2O3 catalyst (Figure 3a) and deep hydrotreating of middle distillates, whose composition was closed to diesel, over NiMo/γ-Al2O3 catalyst (Figure 3b). The results were discussed hereafter.
Deep hydrotreating of light distillates over the sulfide CoMo/γ-Al2O3 catalyst was performed on a stainless-steel batch-type reactor at 350 °C and 7 MPa of H2 for 5 h (Figure 3a). The hydrotreating oil was characterized by gas chromatography instrument equipped with a flame ionization detector (GC-FID) and elemental analysis. Figure 4 shows that the hydrotreating oil is a gasoline-like fuel, except a small portion of paraffins with carbon number higher than 10, corresponding to jet/diesel fuel range compounds. Table 1 shows that the hydrotreated oil contains 29.5 vol.% of n-paraffins, 14.4 vol.% of iso-paraffins, 4.5 vol.% of olefins, 21.4 vol.% of naphthene compounds, 29.6 wt.% of aromatic compounds and little amounts of heteroatoms (nearly no oxygen and sulfur, and ca. 50 ppm of nitrogen), corresponding to an octane number of 44. This result suggests that the hydrotreating oil would be suitable for blending with petro-gasoline. On the other hand, the paraffins with carbon number higher than 10 can be separated from the hydrotreating oil by further distillation, and it would be suitable for use in jet/diesel fuel [34].
Deep hydrotreating of middle distillates over sulfide NiMo/γ-Al2O3 catalyst was performed by a large-scale batch-type high pressure reactor under the same reaction condition. (Figure 3b). In a typical synthesis, 100 g of middle distillates were mixed with 40 g of sulfide NiMo/γ-Al2O3 catalyst under an atmosphere of H2, followed by heating to 350 °C in 1 h under a pressured atmosphere of H2 (7 MPa) and vigorously stirring. After 350 °C for 5 h, the hydrotreating oil was cooled to ambient condition and corrected by filtration. The yield of hydrotreating oil was 55.2%. The sulfur and nitrogen concentrations of hydrotreating oil were smaller than 10 and 50 ppm, respectively. In Figure 5, the GC analysis equipped with FID and mass detectors indicates that the composition of hydrotreating oil, produced by deep hydrotreating of middle distillates over sulfide NiMo/γ-Al2O3 catalyst, is similar to that of petro-diesel. The distillation curve of hydrotreating oil was analyzed by the procedures of JIS K2254 method (Figure 6). The results show that the temperatures for initial distillation, 50 vol% fraction and 95 vol.% fraction of hydrotreating oil are 116, 289, and 355 °C, respectively. According to the procedures of JIS K2249 and K2280-5 methods [35,36], the density and cetane number of hydrotreating oil are 0.8252 g cm−3 and 60.8, respectively. The fuel property of hydrotreating oil can meet with the international fuel standard. It indicates that the hydrotreating oil produced by deep hydrotreating of middle distillates over NiMo/γ-Al2O3 catalyst is a clean and drop-in diesel-like biofuel, which can be applicable for use in high blends.

3. Material and Methods

3.1. Preparation and Characterization of Sulfide Catalysts

The sulfide catalysts were prepared by incipient impregnation method. The cobalt- and nickel-promoted molybdenum aqueous solutions (denoted by CoMo(cit) and NiMo(cit), respectively) were freshly prepared by the procedures as described in our previous study [30]. For the preparation of freshly prepared CoMo(cit) and NiMo(cit) aqueous solution, the molybdenum oxide (Wako) was dispersed in hot deionized water (ca. 90 °C) for 12 h under stirring. Cobalt nitrate (or nickel nitrate) and citric acid were slowly added to this solution under heating and stirring conditions, resulting in freshly prepared CoMo(cit) or NiMo(cit) aqueous solution with a molar composition of 1 MoO3: 0.5 CoO (or NiO): 0.58 C6H8O7: 1.67 H2O. The extruded γ-Al2O3 particles as the supporting materials were dried at 120 °C for 6 h prior to the impregnation. For the preparation of sulfide catalysts, the CoMo(cit) and NiMo(cit) aqueous solutions were slowly dropped on the extruded γ-Al2O3 sample under low vacuum (ca. 0.1 torr). The as-made CoMo(cit) and NiMo(cit)-impregnated γ-Al2O3 samples were aged at the room temperature for 1 h under vacuum, followed by drying through microwave irradiation (1050W, 10Hz) for 10 min. The CoO (or NiO) and MoO3 loadings were 6.1 wt.% and 23.6 wt.%, respectively. The sulfidation was carried out in a quartz tube reactor using a 5 vol%H2S/H2 standard gas at 360 °C for 6 h. As a result, the sulfide CoMo/Al2O3 and NiMo/Al2O3 catalysts could be prepared. Characterizations were performed by XRD using a Rigaku Miniflex diffractometer (Akishima, Tokyo, Japan), N2 physisorption using a Belsorp instrument (Osaka, Japan) and HRTEM determined by a TOPCON EM002B instrument (Itabashi-ku, Tokyo, Japan) [30].

3.2. Stepwise Hydrotreating of Jatropha Bio-Oil

Jatropha bio-oil produced by thermal pyrolysis of waste Jatropha biomass was kindly supplied by TISTR, Thailand, using a pilot plant with a capacity of 20 Kg/h. The elemental analysis and composition of Jatropha residue were reported in the previous research [20]. The Jatropha derived bio-oil was corrected using an electrostatic precipitator after the condensation of the water phase [19,20]. The elemental and water analyses showed that Jatropha bio-oil contained 3.2 wt.% of water and 96.8 wt.% of heteroatom-containing hydrocarbon, whose composition was 66.5 wt.% of carbon, 8.80 wt.% of hydrogen, and 5.82 wt.% of nitrogen and 18.9 wt.% of oxygen. Scheme 1b shows a stepwise strategy for the upgrading of Jatropha bio-oil over sulfide catalysts under severe conditions. To reduce viscosity and partly deoxygenation, the pre-treatment of Jatropha bio-oil was performed in a slurry bed reactor using waste sulfide NiMo/γ-Al2O3 catalyst (1 wt.%) at 400 °C and 7 MPa of H2 for 2 h [37]. The pre-treated Jatropha bio-oil was distilled and separated into three fractions: (i) light distillates (<240 °C), (ii) middle distillates (240–360 °C) and (iii) heavy distillates (>360 °C) using a glass-type distillation instrument under vacuum (75 mmHg). The light and middle distillates can be classified as gasoline- and diesel-like compounds, which were corresponded to the compounds with boiling points of less than 160 °C and 160–280 °C under atmospheric pressure, respectively. The yield of light distillates which composition was closed to gasoline was 21 wt.%, and that of middle distillates which composition was closed to diesel was around 59 wt.%., In this study, we focused on the deep hydrotreating of light and middle distillates over sulfide CoMo/γ-Al2O3 or NiMo/γ-Al2O3 catalysts into clean and drop-in biofuels (Figure 3). The deep hydrotreating was performed on a high-pressure stainless-steel batch-type reactor at 350 °C and 7 MPa of H2 for 5 h using a catalyst/oil weight ratio of 0.4. The hydrotreated oils were analyzed by Agilent 6890 GC-FID (Santa Clara, CA, USA) instrument equipped with a mass detector, elemental analysis of carbon, nitrogen, hydrogen, sulfur, and the fuel property.

4. Conclusions

Jatropha bio-oil was mostly composed of fatty acids, fatty acid methyl esters, fatty acid amides, and derivatives, corresponding to high concentrations of heteroatoms, especially nitrogen. To overcome the catalyst deactivation by those heteroatoms, we had developed a stepwise strategy for hydrotreating of 100 wt.% Jatropha bio-oil over sulfide catalysts to produce clean and drop-in transport biofuels, such as gasoline- and diesel-like biofuels. This stepwise strategy included (i) pre-treatment of Jatropha bio-oil over waste NiMo/γ-Al2O3 catalyst (1 wt.%) using a slurry-type reactor under severe conditions (400 °C, 7 MPa of H2, 2 h), (ii) distillation of pre-treated Jatropha bio-oil into light distillates (Td < 240 °C) and middle distillates (Td = 240–360 °C), (iii) deep hydrotreating of light and middle distillates over sulfide CoMo/γ-Al2O3 and NiMo/γ-Al2O3 catalysts (40 wt.%) using a batch-type reactor under severe conditions (350 °C, 7 MPa of H2, 5 h) to produce clean and drop-in biofuels. Among the step (iii), we found that the hydrotreating oil with gasoline-like composition and an octane number of 44 could be synthesized by deep hydrotreating of light distillates over sulfide CoMo/γ-Al2O3 catalyst, and it would be suitable for partly blending with petro-gasoline. On the other hand, the hydrotreating oil with diesel-like composition and a cetane number of 60.8 could be produced by deep hydrotreating of middle distillates over sulfide NiMo/γ-Al2O3 catalyst, and it would be suitable for use in diesel engine directly. Moreover, the waste NiMo/γ-Al2O3 catalyst could be recycled and used again in the step (i) of this stepwise hydrotreatment, which significantly reduced the environmental pollution and production cost for eco-cost and environmentally friendly production of biofuel.

Author Contributions

S.-Y.C. conceived, designed and performed the experiments; M.N. assisted in manuscript editing; T.M., H.T., M.T., and Y.Y. provided suggestions; S.-Y.C. wrote the paper.

Funding

This research was partly funded by Japan Science and Technology Agency (JST)/Japan International Cooperation Agency (JICA) and the Science and Technology Research Partnership for Sustainable Development (SATREPS).

Acknowledgments

The authors would like to thank Suzuki Yoshizo and Sugimoto Yoshikazu of RIEF, AIST, and Thanes Utistham, Yoothana Thanmongkhon, and Wirachai Soontornrangson of the Energy Technology Department, Thailand Institute of Scientific and Technological Research (TISTR) for their kind assistance in the production and pretreatment of Jatropha bio-oil.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kohl, M.; Neupane, P.R.; Lotfiomran, N. The impact of tree age on biomass growth and carbon accumulation capacity: A retrospective analysis using tree ring data of three tropical tree species grown in natural forests of Suriname. PLoS ONE 2017, 12, e0181187. [Google Scholar] [CrossRef]
  2. 2010 Survey of Energy Resources. World Energy Council. Available online: https://www.worldenergy.org/wp-content/uploads/2012/09/ser_2010_report_1.pdf (accessed on 26 November 2010).
  3. Biomass First Results from an Integrated Assessment; Production, Supply, Uses and Flows in the European Union. JRC Science for Policy Report. Available online: http://publications.jrc.ec.europa.eu/repository/bitstream/JRC109869/jrc109869_biomass_report_final2pdf2.pdf (accessed on 21 February 2018).
  4. United Nations Framework Convention on Climate Change (UNFCCC). Adoption of the Paris Agreement. Available online: http://unfccc.int/resource/docs/2015/cop21/eng/l09r01.pdf (accessed on 21 February 2018).
  5. Schneier, T.; Kaul, C.M.; Pressel, K.G. Possible climate transitions from breakup of stratocumulus decks under greenhouse warming. Nature 2019, 12, 163–167. [Google Scholar]
  6. Lee, A.F.; Bennett, J.A.; Manayil, J.C.; Wilson, K. Heterogeneous catalysis for sustainable biodiesel production via esterification and transesterification. Chem. Soc. Rev. 2014, 43, 7887–7916. [Google Scholar] [CrossRef] [PubMed]
  7. Huber, G.W.; Iborra, S.; Corma, A. Synthesis of transportation fuels from biomass: Chemistry, catalysts, and engineering. Chem. Rev. 2006, 106, 4044–4098. [Google Scholar] [CrossRef]
  8. Serrano-Ruiz, J.C.; Dumesic, J.A. Catalytic routes for the conversion of biomass into liquid hydrocarbon transportation fuels. Energy Environ. Sci. 2011, 4, 83–99. [Google Scholar] [CrossRef]
  9. Carlson, T.R.; Vispute, T.P.; Huber, G.W. Green Gasoline by Catalytic Fast Pyrolysis of Solid Biomass Derived Compounds. ChemSusChem 2008, 1, 397–400. [Google Scholar] [CrossRef] [PubMed]
  10. Kabir, G.; Hameed, B.H. Recent progress on catalytic pyrolysis of lignocellulosic biomass to high-grade bio-oil and bio-chemicals. Renew. Sustain. Energy Rev. 2017, 70, 945–967. [Google Scholar] [CrossRef]
  11. Chen, S.Y.; Mochizuki, T.; Abe, Y.; Toba, M.; Yoshimura, Y. Ti-incorporated SBA-15 mesoporous silica as an efficient and robustLewis solid acid catalyst for the production of high-qualitybiodiesel fuels. Appl. Catal. B Environ. 2014, 148–149, 344–356. [Google Scholar] [CrossRef]
  12. Chen, S.Y.; Lao-ubol, S.; Mochizuki, T.; Abe, Y.; Toba, M.; Yoshimura, Y. Transformation of non-edible vegetable oils into biodiesel fuels catalyzed by unconventional sulfonic acid-functionalized SBA-15. Appl. Catal. A Gen. 2014, 485, 28–39. [Google Scholar] [CrossRef]
  13. Chen, S.Y.; Mochizuki, T.; Abe, Y.; Toba, M.; Yoshimura, Y.; Somwongsa, P.; Lau-ubol, S. Carbonaceous Ti-incorporated SBA-15 with enhanced activity and durability for high-quality biodiesel production: Synthesis and utilization of the P123 template as carbon source. Appl. Catal. B Environ. 2016, 181, 800–809. [Google Scholar] [CrossRef]
  14. Chen, S.Y.; Attanatho, L.; Chang, A.; Laosombut, T.; Nishi, M.; Mochizuki, T.; Takagi, H.; Yang, C.M.; Abe, Y.; Toba, M.; et al. Profiling and catalytic upgrading of commercial palm oil-derived biodiesel fuels for high-blend fuels. Catal. Today 2018, in press. [Google Scholar] [CrossRef]
  15. Mansir, N.; Taufiq-Yap, Y.H.; Rashid, U.; Lokman, I.M. Investigation of heterogeneous solid acid catalyst performance on low grade feedstocks for biodiesel production: A review. Energy Convers. Manag. 2017, 141, 171–182. [Google Scholar] [CrossRef]
  16. Masoumeh Hajjari, M.; Tabatabaei, M.; Aghbashlo, M.; Ghanavati, H. A review on the prospects of sustainable biodiesel production: A global scenario with an emphasis on waste-oil biodiesel utilization. Renew. Sustain. Energy Rev. 2017, 72, 445–464. [Google Scholar] [CrossRef]
  17. Luterbacher, J.S.; Alonso, D.M.; Dumesic, J.A. Targeted chemical upgrading of lignocellulosic biomass to platform molecules. Green Chem. 2014, 16, 4816–4838. [Google Scholar] [CrossRef]
  18. Mochizuki, T.; Toba, M.; Yoshimura, Y. Fast pyrolysis of Jatropha residues over zeolite catalysts. J. Jpn. Petrol. Inst. 2012, 55, 69–70. [Google Scholar] [CrossRef]
  19. Mochizuki, T.; Toba, M.; Yoshimura, Y. Effect of electrostatic precipitator on collection efficiency of bio-oil in fast pyrolysis of biomass. J. Jpn. Petrol. Inst. 2013, 56, 401–405. [Google Scholar] [CrossRef]
  20. Mochizuki, T.; Chen, S.Y.; Toba, M.; Yoshimura, Y. Pyrolyzer–GC/MS system-based analysis of the effects of zeolite catalysts on the fast pyrolysis of Jatropha husk. Appl. Catal. A Gen. 2013, 456, 174–181. [Google Scholar] [CrossRef]
  21. Mochizuki, T.; Chen, S.Y.; Toba, M.; Yoshimura, Y. Deoxygenation of guaiacol and woody tar over reduced catalysts. Appl. Catal. B Environ. 2014, 146, 237–243. [Google Scholar] [CrossRef]
  22. Mortensena, P.M.; Grunwaldt, J.D.; Jensena, P.A.; Knudsenc, K.G.; Jensena, A.D. A review of catalytic upgrading of bio-oil to engine fuels. Appl. Catal. A Gen. 2011, 407, 1–19. [Google Scholar] [CrossRef]
  23. Yoshimura, Y.; Sato, T.; Shimada, H.; Matsubayashi, N.; Nishijima, A. Influences of oxygen-containing substances on deactivation of sulfided molybdate catalysts. Appl. Catal. 1991, 73, 55–63. [Google Scholar] [CrossRef]
  24. Laurent, E.; Delmon, B. Study of the hydrodeoxygenation of carbonyl, carboxylic and guaiacyl groups over sulfide CoMo/γ-Al2O3 and NiMo/γ-Al2O3 catalyst. II. Influence of water, ammonia and hydrogen sulfide. Appl. Catal. A Gen. 1994, 109, 97–115. [Google Scholar] [CrossRef]
  25. Hrabar, A.; Hein, J.; Gutiérrez, O.Y.; Lercher, J.A. Selective poisoning of the direct denitrogenation route in o-propylaniline HDN by DBT on Mo and NiMo/γ-Al2O3 sulfide catalysts. J. Catal. 2011, 281, 325–338. [Google Scholar] [CrossRef]
  26. Prins, R.; Egorova, M.; Röthlisberger, A.; Zhao, Y.; Sivasankar, N.; Kukula, P. Mechanisms of hydrodesulfurization and hydrodenitrogenation. Catal. Today 2006, 111, 84–93. [Google Scholar] [CrossRef]
  27. Hiroshima, K.; Mochizuki, T.; Honma, T.; Shimizu, T.; Yamada, M. High HDS activity of Co-Mo/Al2O3 modified by some chelates and their surface fine structures. Appl. Sur. Sci. 1997, 121/122, 433–436. [Google Scholar] [CrossRef]
  28. Prins, R.; Zhao, Y.; Sivasankar, N.; Kukula, P. Mechanism of CN bond breaking in hydrodenitrogenation. J. Catal. 2005, 234, 509–512. [Google Scholar] [CrossRef]
  29. Egorova, M.; Prins, R. The role of Ni and Co promoters in the simultaneous HDS of dibenzothiophene and HDN of amines over Mo/γ-Al2O3 catalysts. J. Catal. 2006, 241, 162–172. [Google Scholar] [CrossRef]
  30. Chen, S.Y.; Nishi, M.; Mochizuki, T.; Takagi, H.; Takatsuki, A.; Roschat, W.; Toba, M.; Yoshimura, Y. Co-processing of Jatropha-derived bio-oil with petroleum distillates over mesoporous CoMo and NiMo sulfide catalysts. Catalysts 2018, 8, 59. [Google Scholar] [CrossRef]
  31. Toba, M.; Abe, Y.; Kuramochi, H.; Osako, M.; Mochizuki, T.; Yoshimura, Y. Hydrodeoxygenation of waste vegetable oil over sulfide catalysts. Catal. Today 2011, 164, 533–537. [Google Scholar] [CrossRef]
  32. Yoshimura, Y.; Matsubayashi, N.; Sato, T.; Shimada, H.; Nishijima, A. Molybdate catalysts prepared by a novel impregnation method: Effect of citric acid as a ligand on the catalytic activities. Appl. Catal. A. Gen. 1991, 79, 145–159. [Google Scholar] [CrossRef]
  33. Yoshimura, Y.; Toba, M.; Matsubayashi, N.; Matsui, T. Hydrotreating Catalyst of Catalytic Cracking Gasoline. U.S. Patent US7393807 B2, 1 July 2008. [Google Scholar]
  34. Kwon, D.; Ko, M.S.; Yang, J.S.; Kwon, M.J.; Lee, S.-W.; Lee, S. Identification of refined petroleum products in contaminated soils using an identification index for GC chromatograms. Environ. Sci. Pollut. Res. 2015, 22, 12029–12034. [Google Scholar] [CrossRef]
  35. The JIS K2249 Method, Petroleum Products—Determination of Distillation Characteristics. Available online: http://kikakurui.com/k2/K2254-2018-01.html (accessed on 12 December 2018).
  36. The K2280-5 Method, Petroleum Products—Fuels—Determination of Octane Number, Cetane Number and Calculation of Cetane Index. Available online: http://kikakurui.com/k2/K2280-5-2013-01.html (accessed on 20 November 2013).
  37. Kouzu, M.; Kuriki, Y.; Uchida, K.; Sakanishi, K.; Sugimoto, Y.; Saito, I.; Fujii, D.; Hirona, K. Catalytic hydrotreating of petroleum residue over carbon-supported nickel-molybdenum sulfides. Energy Fuels 2005, 19, 725–730. [Google Scholar] [CrossRef]

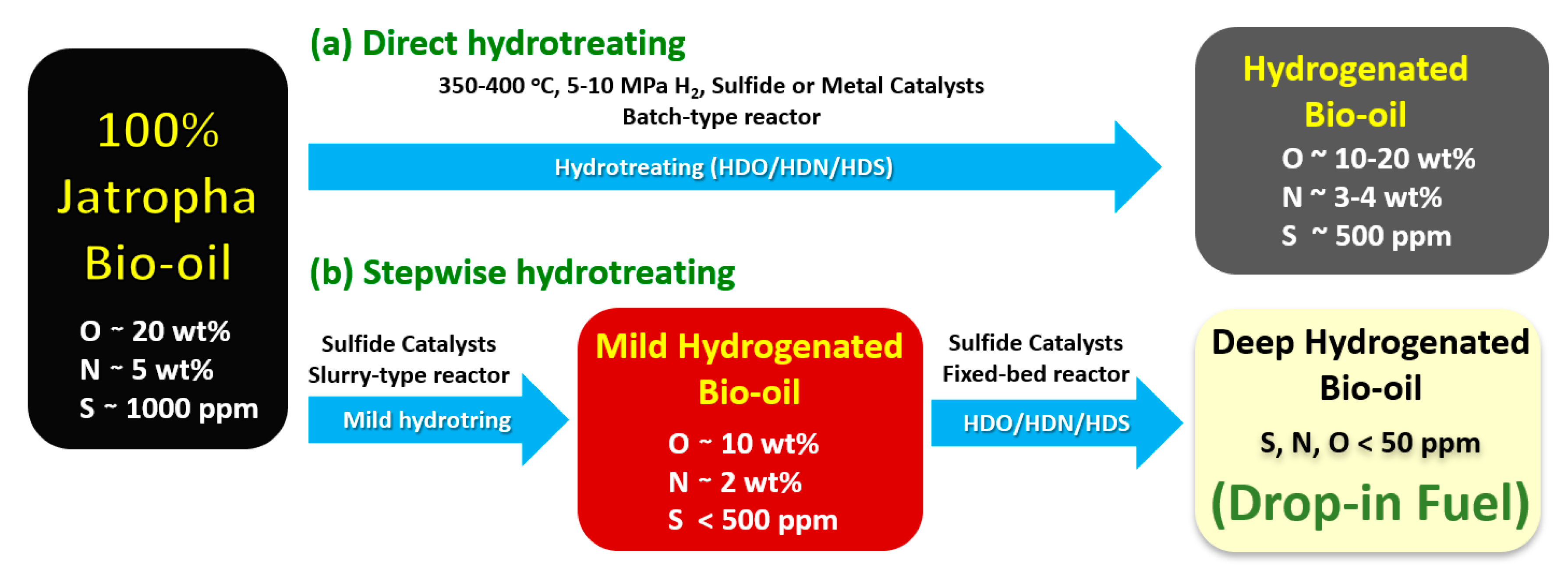

Scheme 1. (a) direct hydrotreating and (b) stepwise hydrotreating of the unconventional Jatropha bio-oil.
Scheme 1. (a) direct hydrotreating and (b) stepwise hydrotreating of the unconventional Jatropha bio-oil.
Catalysts 09 00392 sch001

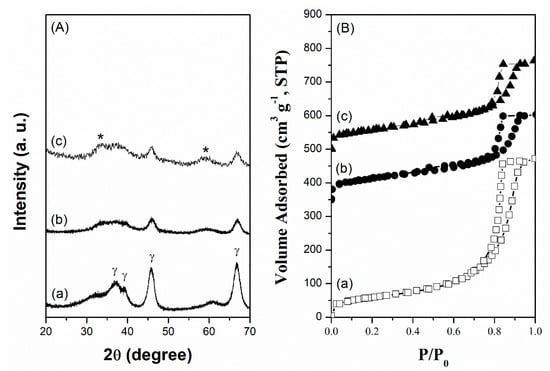

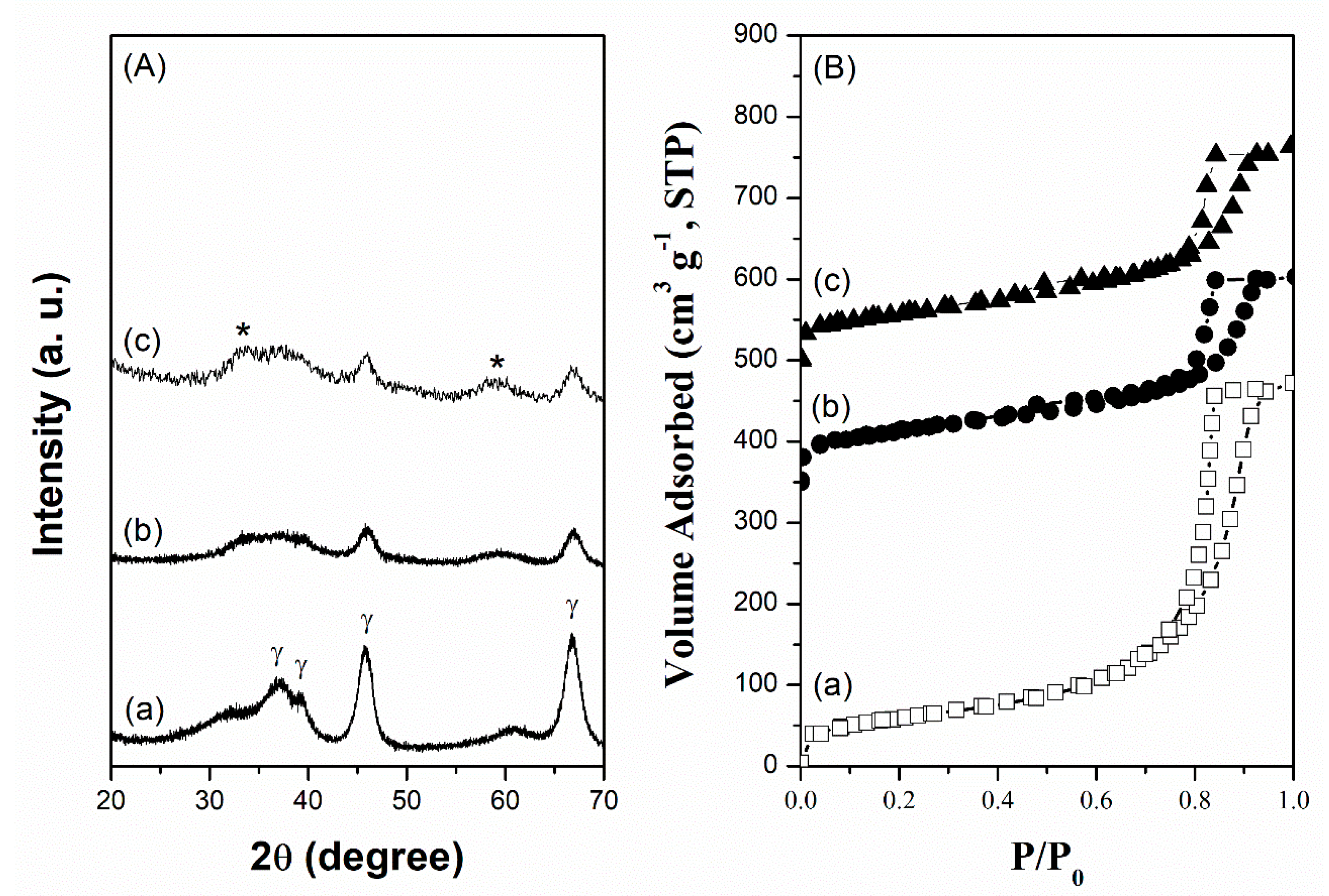

Figure 1. (A) powered XRD patterns, (B) N2 adsorption-desorption isotherms of mesoporous sulfide catalysts: (b) CoMo/γ-Al2O3, and (c) NiMo/γ-Al2O3 catalysts, in comparison to those of a supporting material: (a) γ-Al2O3. The asterisk and gamma (γ) represent the characteristic peaks of Co-incorporated MoS2-like slabs (or Ni-incorporated counterpart) and gamma-alumina framework, respectively.
Figure 1. (A) powered XRD patterns, (B) N2 adsorption-desorption isotherms of mesoporous sulfide catalysts: (b) CoMo/γ-Al2O3, and (c) NiMo/γ-Al2O3 catalysts, in comparison to those of a supporting material: (a) γ-Al2O3. The asterisk and gamma (γ) represent the characteristic peaks of Co-incorporated MoS2-like slabs (or Ni-incorporated counterpart) and gamma-alumina framework, respectively.
Catalysts 09 00392 g001
Figure 2. High-resolution transmission electron microscope (HRTEM) images of mesoporous sulfide catalysts: (a) CoMo/γ-Al2O3 and (b) NiMo/γ-Al2O3.
Figure 2. High-resolution transmission electron microscope (HRTEM) images of mesoporous sulfide catalysts: (a) CoMo/γ-Al2O3 and (b) NiMo/γ-Al2O3.
Catalysts 09 00392 g002

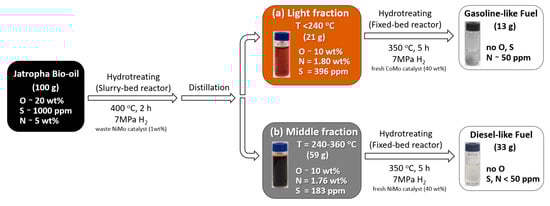

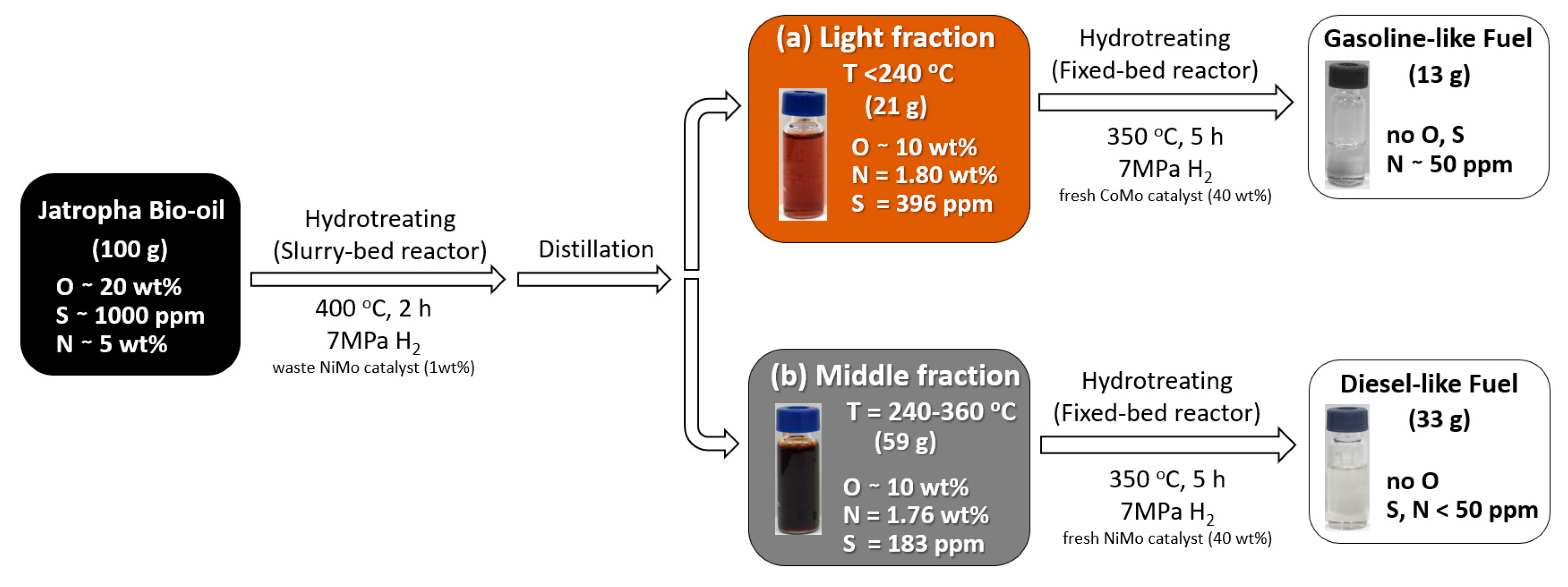

Figure 3. Stepwise hydrotreating of Jatropha bio-oil over sulfide catalysts to produce gasoline-like and diesel-like fuels (a) light fraction was obtained at the distillation temperature equal to or smaller than 240 °C under 75 mmHg; (b) middle fraction was obtained at the distillation temperature between 240 and 360 °C.
Figure 3. Stepwise hydrotreating of Jatropha bio-oil over sulfide catalysts to produce gasoline-like and diesel-like fuels (a) light fraction was obtained at the distillation temperature equal to or smaller than 240 °C under 75 mmHg; (b) middle fraction was obtained at the distillation temperature between 240 and 360 °C.
Catalysts 09 00392 g003

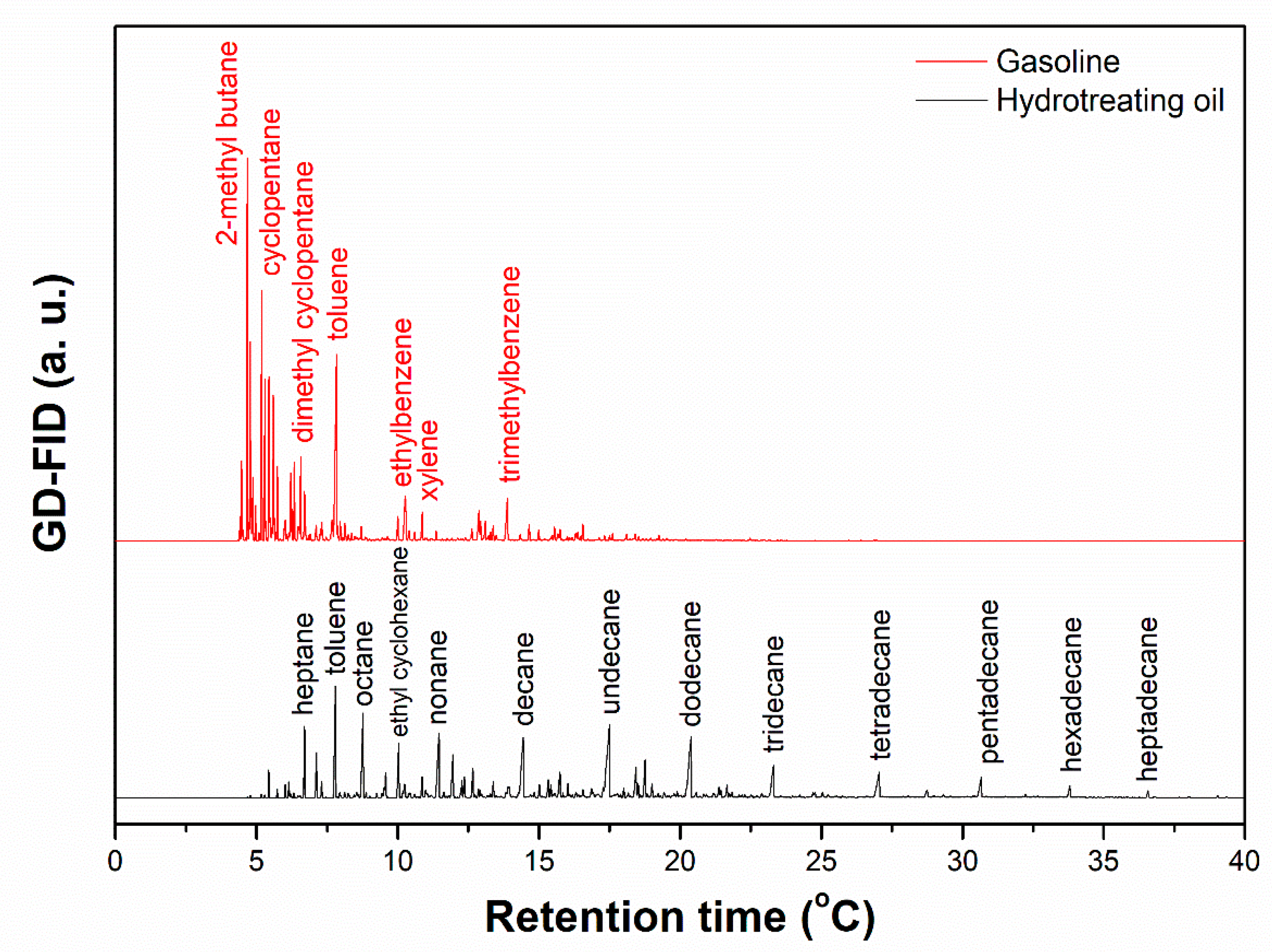

Figure 4. GC-FID profiles of gasoline and hydrotreating oil, which is produced by deep hydrotreating of light distillates over sulfide CoMo/γ-Al2O3 catalyst at 350 °C and 7 MPa of H2 for 5 h.
Figure 4. GC-FID profiles of gasoline and hydrotreating oil, which is produced by deep hydrotreating of light distillates over sulfide CoMo/γ-Al2O3 catalyst at 350 °C and 7 MPa of H2 for 5 h.
Catalysts 09 00392 g004

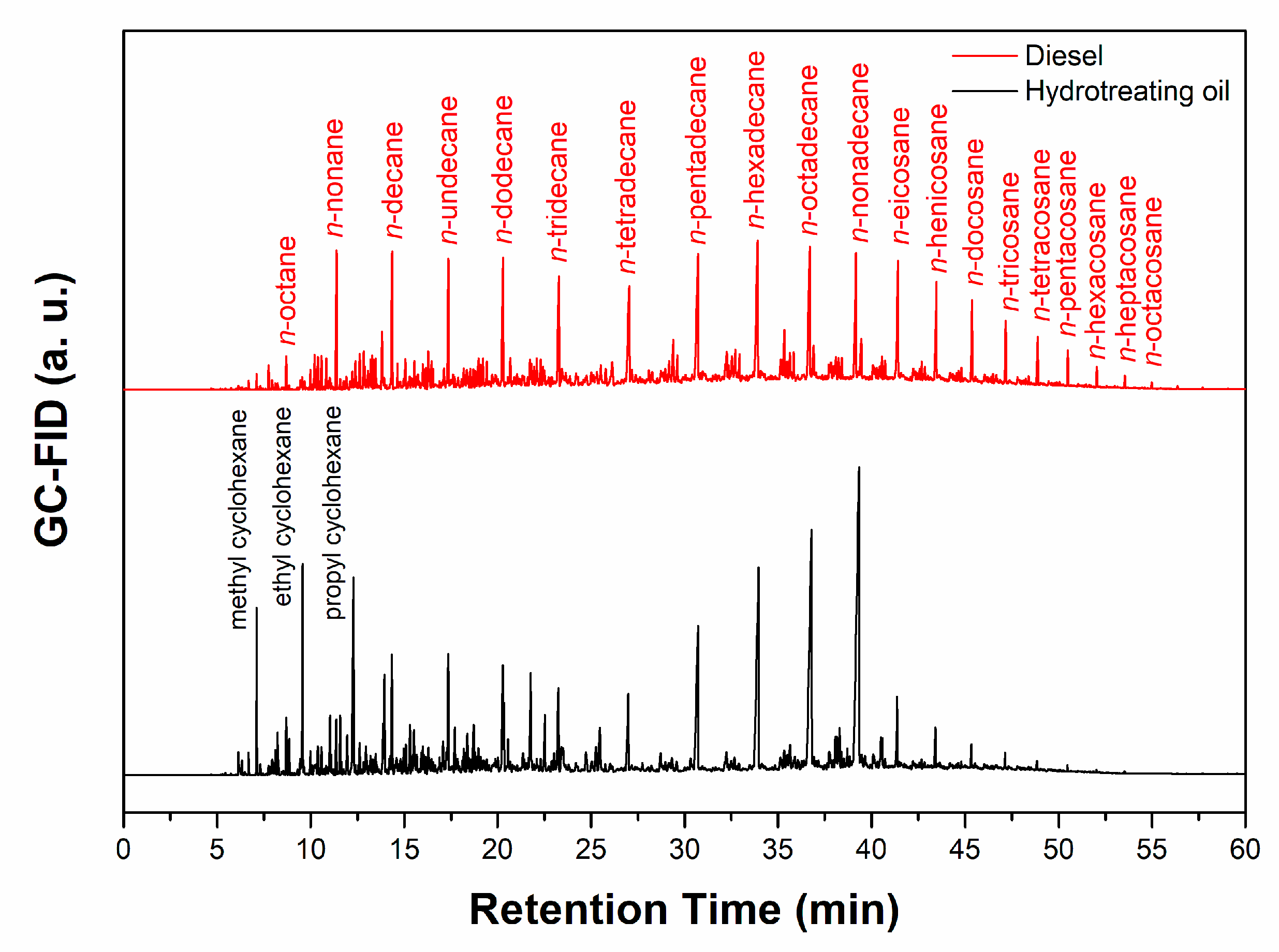

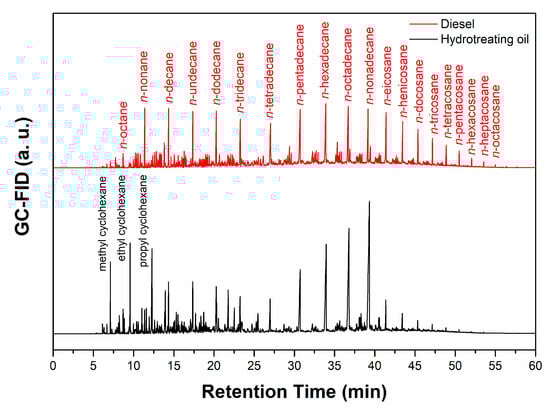

Figure 5. GC profiles of diesel and hydrotreating oil, which is produced by deep hydrotreating of middle distillates over sulfide NiMo/γ-Al2O3 catalyst at 350 °C and 7 MPa of H2 for 5 h.
Figure 5. GC profiles of diesel and hydrotreating oil, which is produced by deep hydrotreating of middle distillates over sulfide NiMo/γ-Al2O3 catalyst at 350 °C and 7 MPa of H2 for 5 h.
Catalysts 09 00392 g005

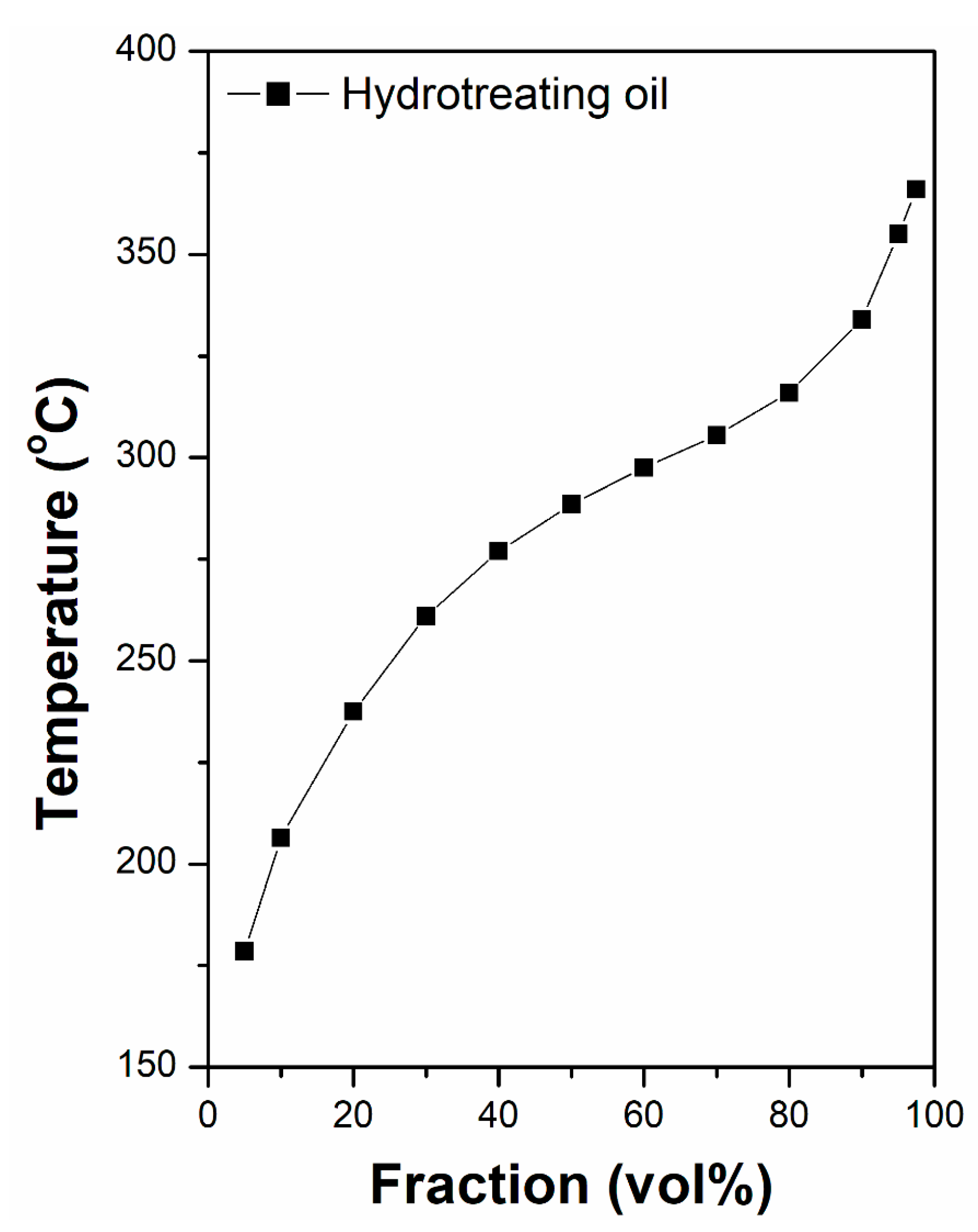

Figure 6. Distillation curve of hydrotreating oil, which is produced by deep hydrotreating of middle distillates over sulfide NiMo/γ-Al2O3 catalyst at 350 °C and 7 MPa of H2 for 5 h.
Figure 6. Distillation curve of hydrotreating oil, which is produced by deep hydrotreating of middle distillates over sulfide NiMo/γ-Al2O3 catalyst at 350 °C and 7 MPa of H2 for 5 h.
Catalysts 09 00392 g006
Table 1. The elemental analysis, composition and octane number of gasoline-like fuel a.
Table 1. The elemental analysis, composition and octane number of gasoline-like fuel a.
SamplesS
(ppm)
N
(ppm)
Octane
Number
H/CDensity
(g/cm3)
n-Paraffin
(vol.%)
iso-Paraffin
(vol.%)
Olefin
(vol.%)
Naphthene (vol.%)Aromatic
(vol.%)
This work04944.51.770.7129.514.44.9921.429.6
Gasoline bmax. 10-min. 89-max. 0.783----min. 1 c
a Synthesized by stepwise hydrogenation of Jatropha bio-oil over sulfide CoMo/γ-Al2O3 catalysts. The reaction condition for deep hydrogenation (Scheme 1b and Figure 3a): 350 °C, 5 h, 2 g of sulfided CoMo/γ-Al2O3 catalyst, 5 g of light distillate obtained by distillation of pre-treated Jatropha bio-oil at the temperature lower than 240 °C. The yield was 60 ± 5 wt.%. b Based on the Japanese fuel standard JIS K2202:2012. c Benzene is specified to less than 1 vol% in gasoline.
