Self-Templating Synthesis of 3D Hierarchical NiCo₂O₄@NiO Nanocage from Hydrotalcites for Toluene Oxidation

Abstract

Rational design LDHs (layered double hydroxides) with 3D hierarchical hollow structures have generated widespread interest for catalytic oxidation due to the high complexity in shell architecture and composition. Herein, we reported a handy two-step method to construct a 3D hierarchical NiCo₂O₄/NiO nanocage. This synthetic strategy contains a partial in situ transformation of ZIF-67 (zeolitic imidazolate framework-67) into Co-NiLDH yolk-shelled structures following ethanol etching, and a structure-preserved transformation from Co-NiLDH@ZIF-67 to a biphase nanocage following calcination. CoNi-yh-T (varied reaction time and calcination temperature) nanocages were investigated systematically by Brunauer–Emmett–Teller (BET), X-ray photoelectron spectroscopy (XPS), H₂- temperature-programmed reduction (TPR), NH₃-temperature-programmed desorption (TPD) and studied for toluene oxidation. The CoNi-6h-350 sample showed much higher activity with 90% toluene conversion (T₉₀) at 229 °C at a high space velocity (SV = 60,000 mL g⁻¹ h⁻¹) than other catalysts (T₉₀ >240 °C). Abundant surface high valence Co ions caused by the novel hierarchical nanostructures, together with adsorbed oxygen species and abundant medium-strength surface acid sites, played a key role for catalytic activities.

1. Introduction

Volatile organic compounds (VOCs), collectively composed by a lot of hazardous organics, not only directly affect environment and human health, but also cause photochemical ozone/smog pollution as precursors [1]. Benzene, toluene, ethylbenzene, and xylenes (BTEX), which are environmentally detrimental VOCs but indispensable chemicals, can corrode skin and irritate the respiratory system, and even affect the nervous system with prolonged exposures [2]. Catalytic oxidation is a promising technology to completely oxidize gas-phase VOCs to carbon dioxide and water with less byproduct [3]. The key point for breaking through the shackles and widely popularizing this technology is to successfully prepare an excellent and low-cost catalyst. Several recent works have demonstrated that transitional mixed metal oxides catalysts have excellent VOCs removal performance because of the merit of increased synergistic effect [4,5,6,7]. Besides, surface area, reducibility and adsorbed oxygen species are playing a key role in the design and fabrication of highly efficient mixed metal oxides catalysts for total VOCs oxidation [3,6,8].

Mixed metal oxides catalysts, derived from the calcination of layered double hydroxides (LDHs) precursors, have been widely studied for heterogeneous catalysis, like VOCs oxidation, for some advantages with high dispersion of active components and increased cooperative effect [7,9,10,11,12]. Our previous work indicated that mesoporous CoMnAl composited oxides catalysts derived from LDHs show improved benzene oxidation activity because of rich oxygen vacancies [7,13]. However, performance of simple typical structured LDHs is quite limited due to their relatively low surface area which could not adequately expose active sites.

Oxides designed for hierarchical hollow nanostructures with a large surface-to-volume ratio and interconnected pathways for both electrons and ions are of great significance for catalytic oxidation [14,15,16]. Wang reported template-free scalable synthesis of flower-like Co_3−xMn_xO₄ spinel catalysts for toluene oxidation due to rich surface oxygen species over a 3D flower-like structure [17]. Templating-engaged methods employing chemical etching are considered a facile approach, forming hollow structures through the controlled assembly of the desired shells on templates [18]. Porous metal-organic frameworks (MOFs) are normally considered as self-sacrificial templates to synthesize hollow hierarchical nanostrucrues with high surface area and chemical tenability [18,19]. Jiang first reported LDH nanocage synthesized with MOF templates for supercapacitors due to the novel hierarchical structures [20]. Hu designed synthesis of Co₃O₄/NiCo₂O₄ double-shelled nanocages through a MOF/LDH framework with better electrocatalytic activity because of the rational design of the hollow structure [14]. However, as we know, the dependence of the hierarchical nanocage catalysts from MOF/LDH for catalytic oxidation VOCs has not been developed.

Co based spinel catalysts with an AB₂O₄ composition and a defect-rich crystal structure, have been reported to be highly active for the catalytic oxidation of hydrocarbons [21]. Herein, Co-NiLDH hierarchical nanopolyhedra are synthesized with zeolitic imidazolate framework-67 (ZIF-67) nanocrystals as the sacrificial template. The reaction time of template etching and the thermal annealing temperature are investigated in detail for the induced textural properties of the as-prepared nanomaterials. Meanwhile, catalytic activities for the degradation of toluene were further investigated to evaluate the role of hierarchical structures.

2. Results and Discussion

2.1. Textural Analysis

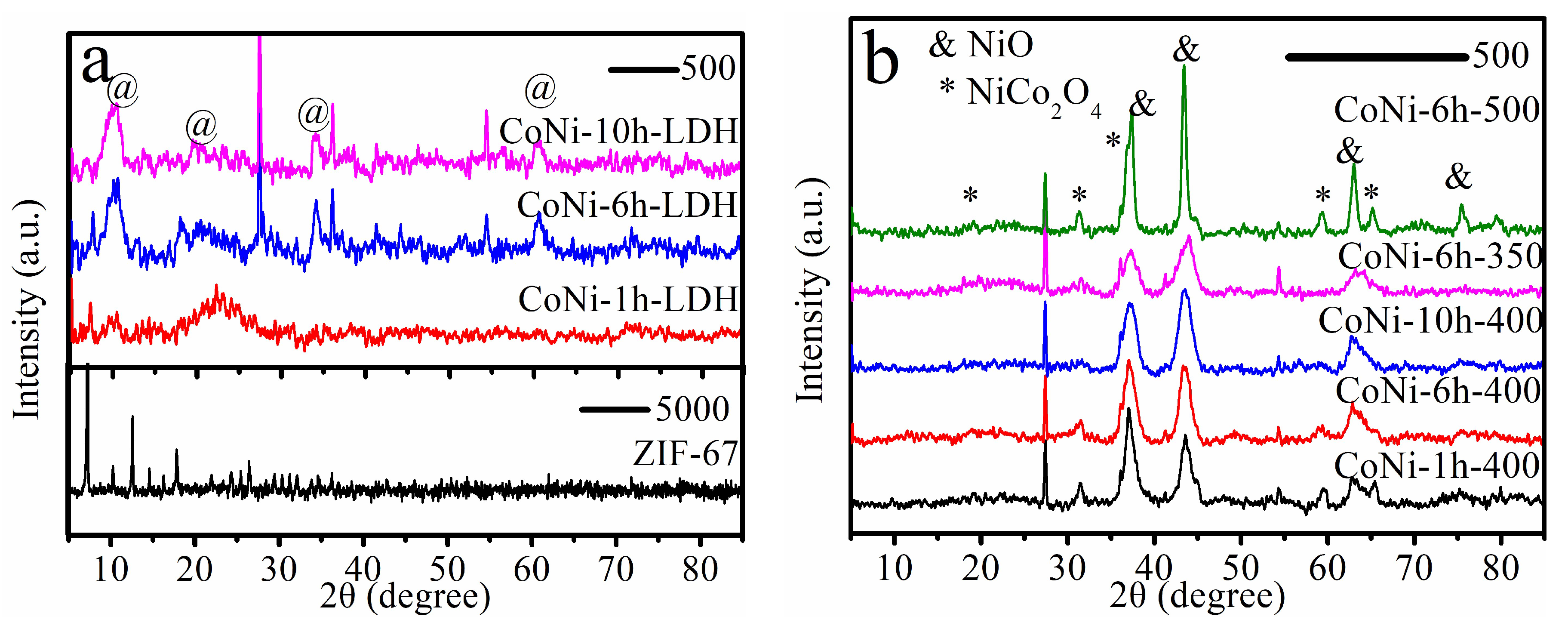

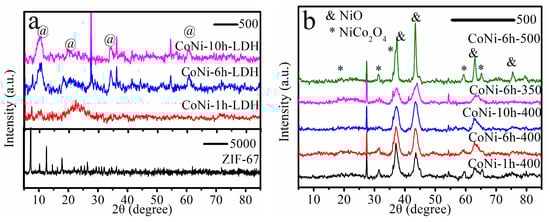

The X-ray diffraction (XRD) patterns of ZIF-67, LDH precursors and catalysts are shown in Figure 1. The ZIF-67 XRD pattern is in good agreement with the published result, certifying that we obtained satisfactory ZIF-67 templates [22]. It can be seen from Figure 1a that precursors exhibit a set of peaks (003), (006), (009) and (110), which are classified into hydrotalcite materials, manifest successfully prepared Co-NiLDH [9]. However, different reaction hours have a significant influence on the crystallinity of materials. For example, CoNi-1h-LDH has a low crystallinity, due to insufficient crystal growth time. In addition, we can find characteristic peaks of ZIF-67 (2θ = 7.3°, 18.0°, 26.7°, 36.3°) in Co-NiLDH precursors XRD patterns, which indicated that the constitution of rhombic dodecahedrons ZIF-67 had been retained. Furthermore, the remained ZIF-67 structure can be reconfirmed by precursor scanning electron microscope (SEM) and transmission electron microscope (TEM) images. Then, we calcined Co-NiLDH samples in air and obtained a series oxide samples with their XRD pattern show in Figure 1b. It can be observed that there are still small ZIF-67 characteristic peaks (27.2°) maintaining their existence in oxide catalysts. The diffraction reflections (2θ) at 37.3° (111), 43.4° (200), 63.0° (220) and 75.4° (311) belong to NiO phase (PDF 71-1179). Apart from the above peaks, the strongest reflection at 36.8° (311), together with peaks around 18.9°, 31.3°, 59.2°, and 65.1°, correspond to a NiCo₂O₄ spinel phase (PDF 20-0781). However, these peaks can also fit to another spinel oxide phases (Co₃O₄, PDF 42-1467), because there is a little difference between them in diffraction peak intensity and displacement. Fortunately, the real phases of the samples were determined by further analyzing the Raman data.

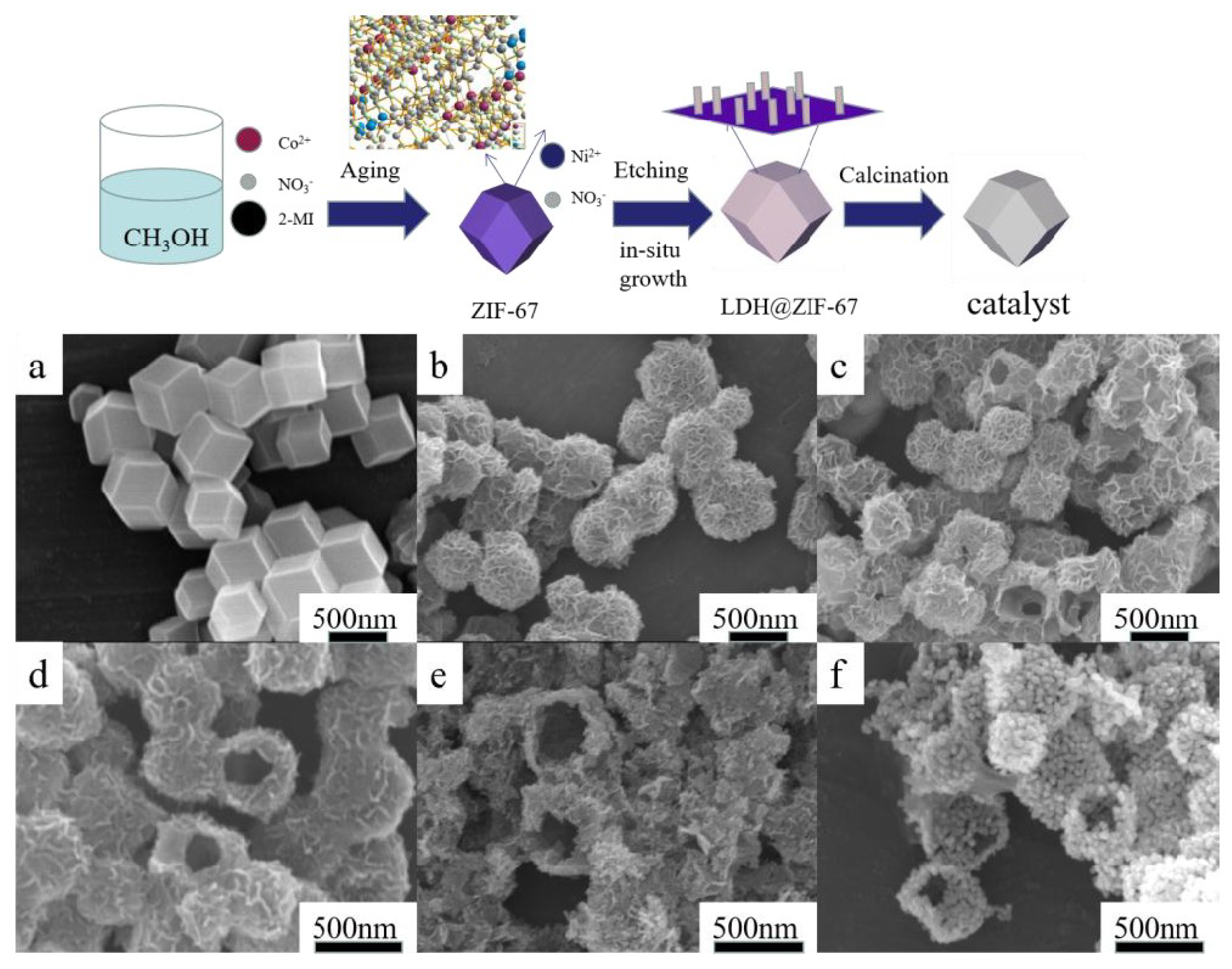

The reaction system is relatively simple (shown in Figure 2), under the heating and pressure condition, and absolute ethanol triggers Nickel nitrate hexahydrate hydrolysis and ZIF-67 disintegration. Then, Co²⁺, Co³⁺ and Ni²⁺ ions (O₂ and NO₃⁻ ions as oxidant participate the Co³⁺ ions formation) form CoNi-LDH nanosheets on the template by co-precipitation [14,20]. The longer heating time, the more the CoNi-LDH nanosheets generation; however, much ZIF-67 structure is simultaneously etched which may lead to hollow structure collapse. Therefore, it is necessary to make a series of heating times as an investigated factor. As illustrated in the Figure 2a SEM image, ZIF-67 single crystals (average size about 500 nm) show a hollow rhombic dodecahedron structure with a well-shaped surface. After hydrothermal treatment shown in Figure 2b,c), the obtained hierarchical Co-NiLDH were adhesively grafted on the ZIF-67 and inherited the polyhedral ZIF-67 structure well. The as-prepared Co-NiLDH, a special 3D hierarchical architecture, are uniformly distributed, nearly perpendicular to the ZIF-67 surface (about 20 nm thickness and several hundreds of nanometers width), and interconnected with each other to form a free-standing irregular mesh configuration. Notably, the ultrathin hollow structure in Figure 3a with plentiful secondary structures can furnish a double sided activity surface and numerous open spaces between neighboring nanosheets to create more catalytically active sites, and exhibit robust catalytic performance. The SEM-energy-dispersive X-ray spectroscopy (EDX) mapping in Figure 4 and

Table 1. Physical characterization, catalytic activities, and surface elemental compositions of the samples.

Sample	BET Surface Area (m2 g−1)	Total Pore Volume (cm3 g−1)	T90(°C)	Ni/Co		Oads/Olatt	Co3+/Co2+	Quantity of Oxygen Species Based on O2-TPD	Acidity Based on NH3-TPD
				EDX	XPS
CoNi-1h-400	85.5	0.66	> 300	2.1	1.1	1.04	0.61	1.095	2.062
CoNi-10h-400	126.3	0.95	259	2.7	2.1	0.90	0.67	1.011	1.730
CoNi-6h-400	98.4	0.67	240	2.0	1.8	1.01	0.82	1.183	1.750
CoNi-6h-350	141.6	0.91	229	2.5	1.9	1.32	1.05	1.185	1.876
CoNi-6h-500	64.9	0.30	244	2.8	1.6	1,30	0.56	0.830	1.343

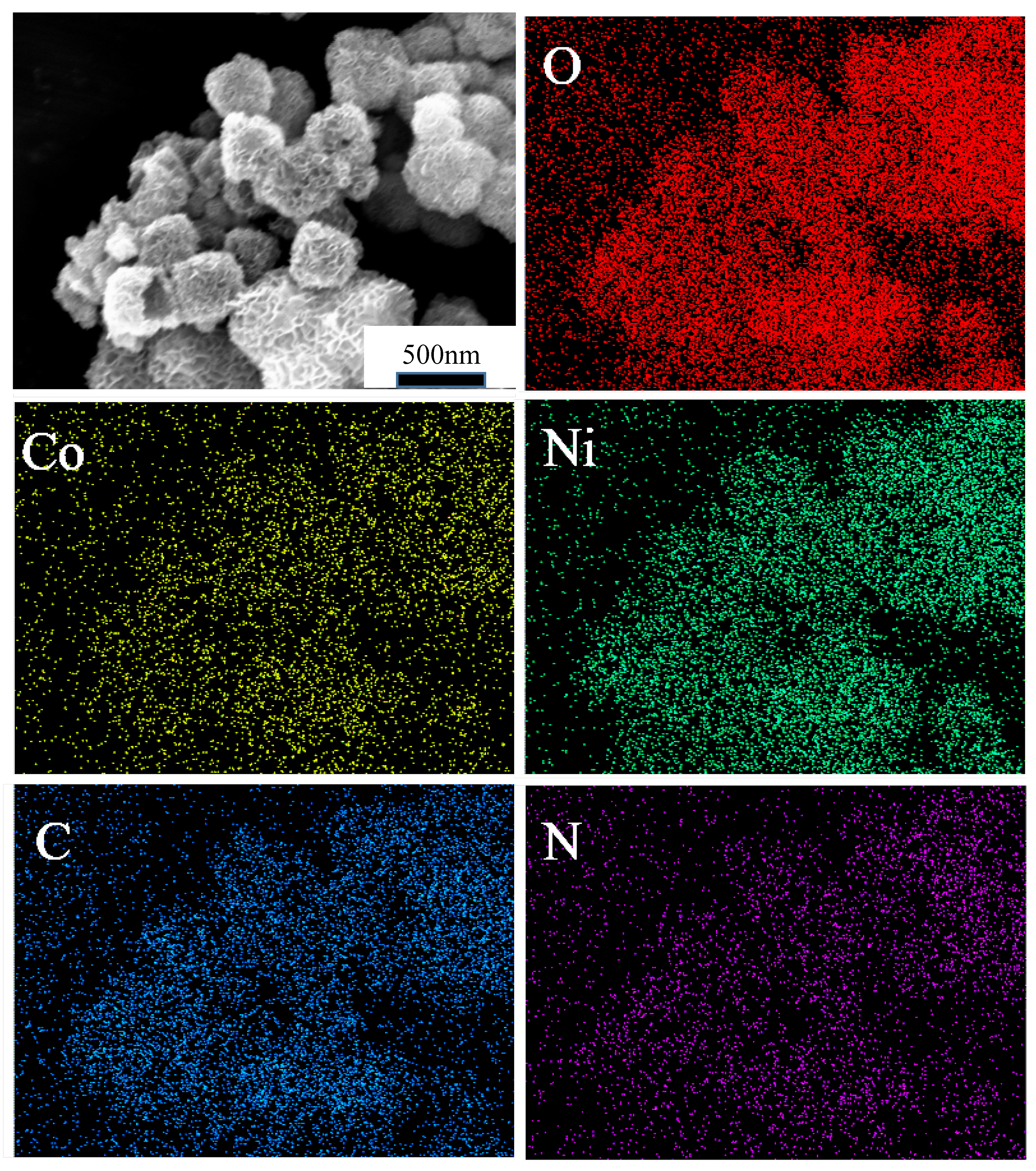

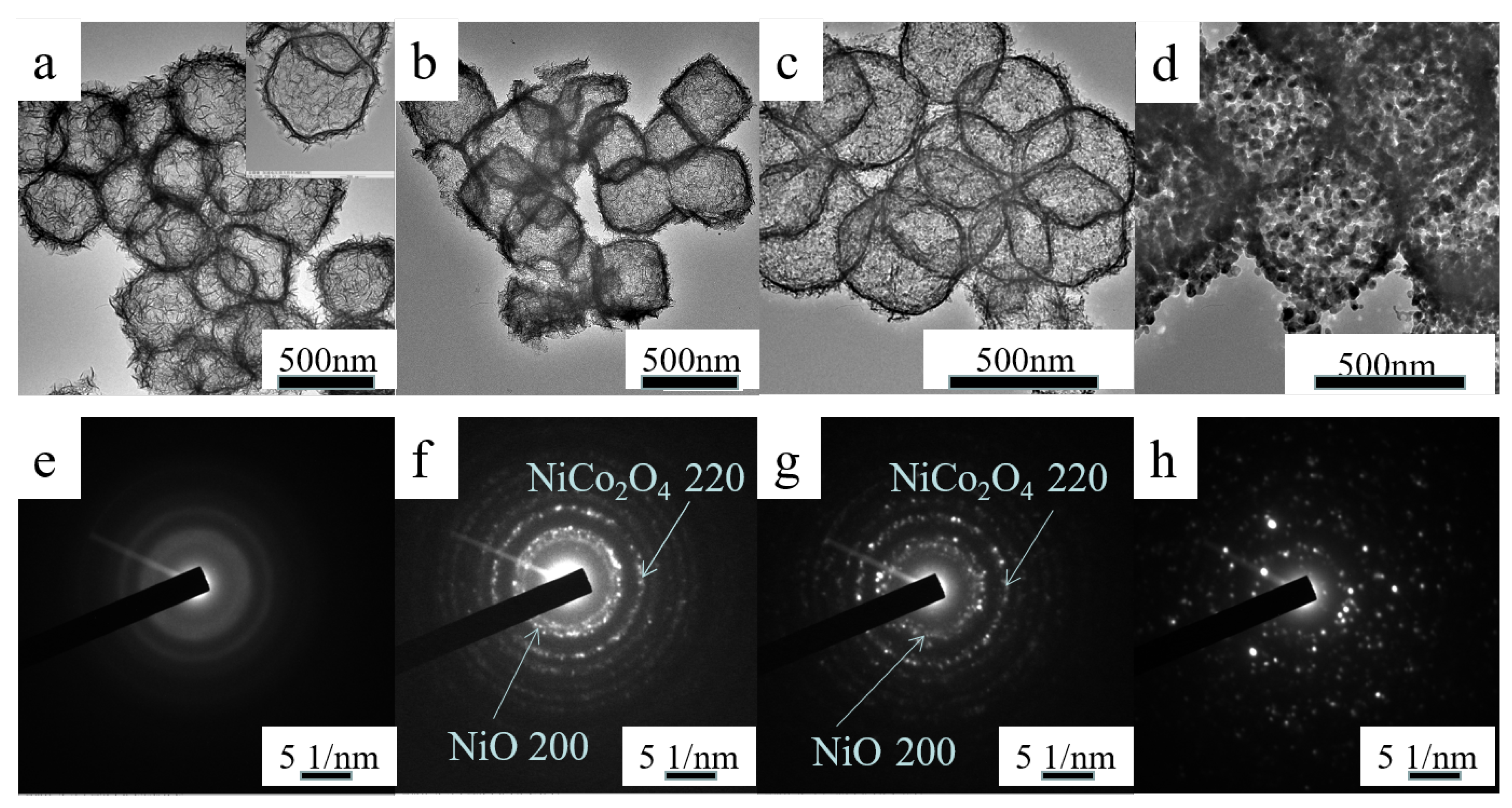

further indicates the homogeneous distributions of various elements (O, Ni and Co), which make active-element sites highly dispersed. Moreover, the chemical composition of Co-NiLDH determined from EDX is nearly at theoretical values from the initial precursor solutions. After calcination, as shown in Figure 2d–f and Figure 3b–d, the hollow interior and nanosheets structure of the precursor is retained except CoNi-6h-500 catalyst, which consists by a series of small sintered planet. The TEM images and some broken polyhedrons in SEM images clearly indicate the hollow interior of the catalysts. In the selected area electron diffraction (SAED) pattern (Figure 3f–h), the rings at 0.287 nm can be assigned to the (220) spacing of NiCo₂O₄, while 0.202 nm matches well with the spacing of the (200) plane of NiO, a further indication the formation of mixed oxide catalysts (NiCo₂O₄ and NiO).

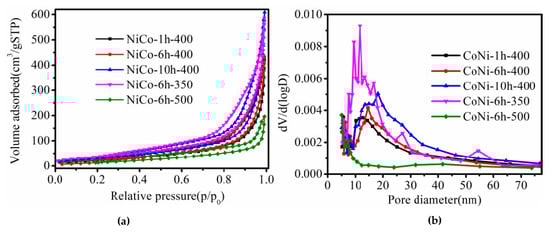

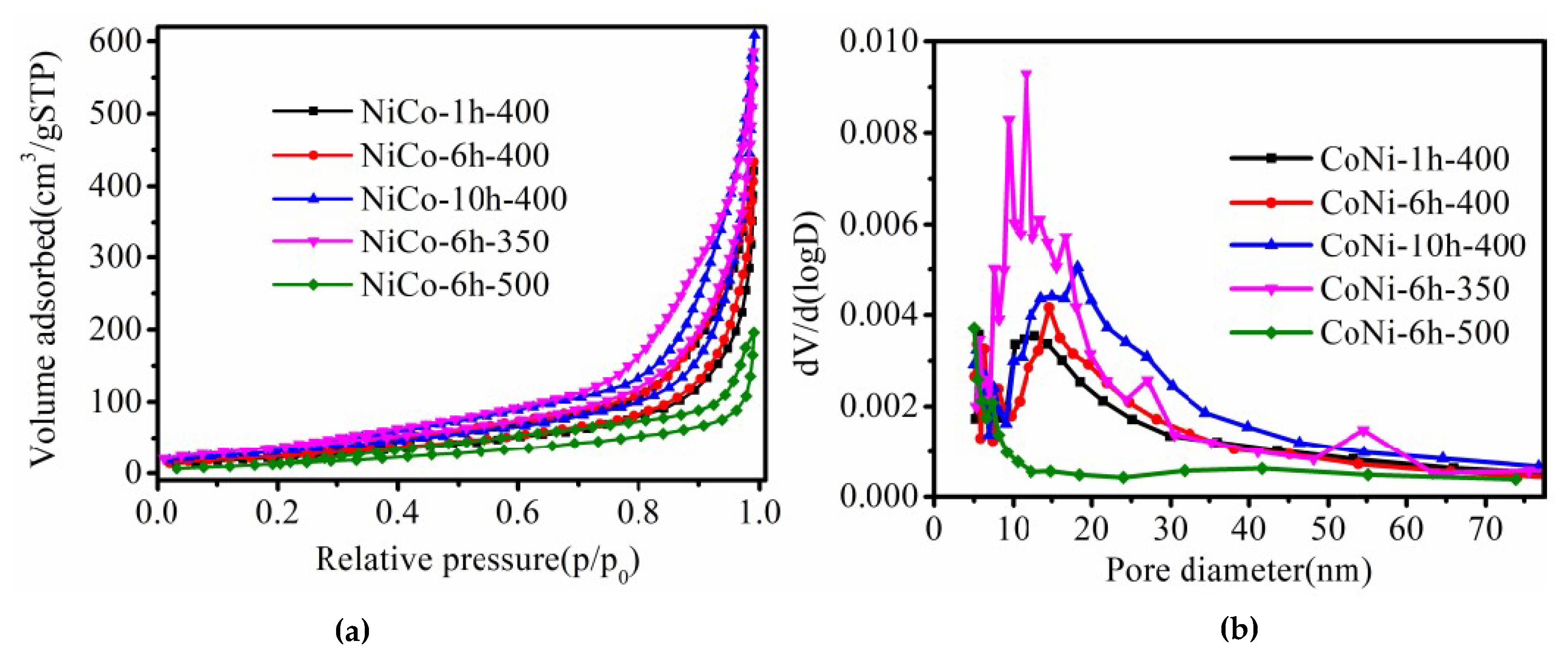

The N₂ adsorption/desorption isotherms and pore/size distribution patterns of all samples are shown in Figure 5. The catalyst’s surface area and pore volume data, which was obtained using the multipoint Brunauer–Emmett–Teller (BET) method, are shown in Table 1. High specific surface areas (85.5–141.6 m² g⁻¹) and rich mesopores structure can be observed, except for the CoNi-6h-500 sample (64.9 m² g⁻¹ and 0.3 cm³ g⁻¹). This result further indicated that the catalyst hollow structure was destroyed by high heating temperature. Furthermore, the CoNi-6h-350 sample exhibits a more abundant pore size distribution from 10 nm to 20 nm and the highest surface area (141.6 m² g⁻¹), totally provides more catalytically active sites in the toluene reaction.

2.2. X-ray Photoelectron Spectra (XPS), Raman, Temperature-Programmed Reduction (TPR) and Temperature-Programmed Desorption (TPD)

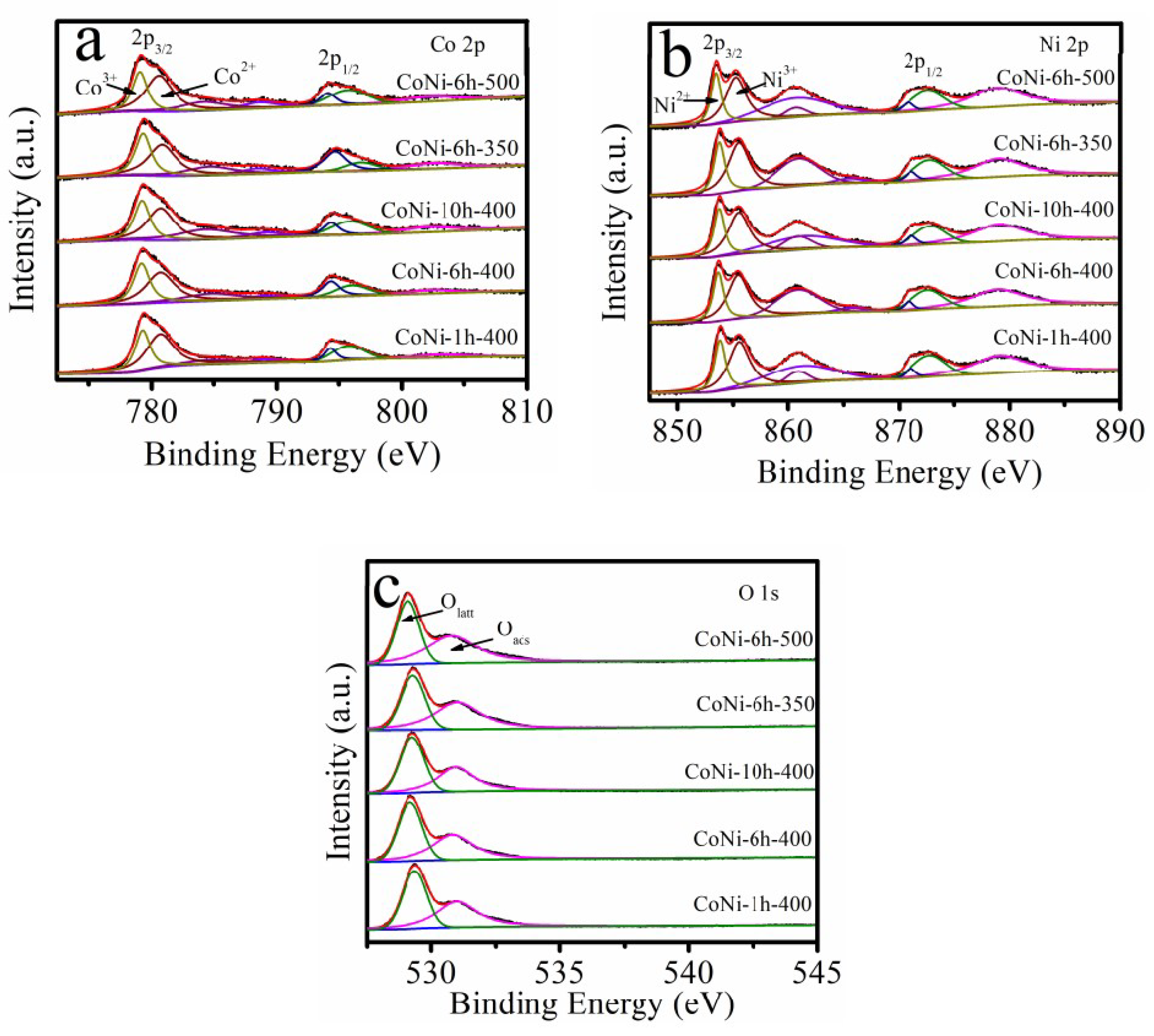

XPS data reflect the information of catalysts surface element compositions and chemical state, which is indispensable in a catalysis study. The corresponding spectral data were obtained and calibrated based on residual carbon (standard position at 284.6 eV), together with further analysis, and all the results are shown in Figure 6 and Table 1 [23]. The atomic ratio (Ni/Co) of all the samples determined from XPS analysis indicates a quite close ratio to the theoretical chemical composition; however, they are lower than SEM-EDX results to a different extent. The results above indicate that a higher Co species concentration in catalysts surface, which is beneficial for more a active site (Co ions combined with excess Ni ion) fully exposed [24]. In Figure 6a, Co 2p split into two main peaks within 15 eV (2p_3/2 at 779.6 eV, 2p_1/2 at 794.4 eV) and another two satellite peaks (788.6 eV and 802.6 eV) [25]. According to the Gaussian fitting method, the Co 2p spectrum data can be divided into Co³⁺ peaks, Co²⁺ peaks and three shakeup satellites. The fitting peaks at 779.0 eV, and 794.8 eV are indexed Co³⁺, and 780.8 eV, and 796.9 eV are ascribed to Co²⁺. In Figure 6b, Ni 2p spectra has two main peaks (2p_3/2 at 853.7 eV accompanied with a shoulder, 2p_1/2 at 871.8 eV), with two satellite peak at 860.8 eV, and 879.2 eV. After fitting, Ni²⁺ contains two peaks at 853.9 eV and 870.9 eV, and the peaks at 855.3 eV and 872.7 eV belonged to Ni³⁺, respectively [26]. The surface Co³⁺/Co²⁺ proportions are obtained by peak area integral, and the results are summarized in Table 1. Almost all the catalysts maintain a surface Co³⁺/Co²⁺ ratio of 0.5:0.9, except for CoNi-6h-350 with a ratio of 1.05. The existence of Ni³⁺ in NiCo₂O₄ and NiO mixture can be explained by follow mechanism. Ni²⁺ ions occupied the octahedral Co lattice sites, where Co³⁺ was initially present in the NiCo₂O₄, which leads to deficiency of positive charges and to maintain charge neutrality, Ni²⁺ transforms to Ni³⁺ [21,27,28]. According to this mechanism, CoNi-6h-350 with a higher Co³⁺/Co²⁺ ratio demonstrates a relatively intact NiCo₂O₄ structure, which is in accordance with the TEM-SEAD. Furthermore, when we increased the calcination temperature of catalysts, more Ni²⁺ ions occupied the octahedral Co lattice sites, and the spinel structure of catalyst destroyed. In Figure 6c, O 1s spectra can be fitted with two peaks: O_latt at 529.3 eV which is mainly metal–oxygen bonds, O_ads at 530.8 eV which may be surface species and defects, without any other satellite peak [29]. The surface O_ads/O_latt molar ratio of the CoNi-6h-350 catalyst is 1.32, which is much higher than other samples. This can be explained by the fact that much high valence Co³⁺ existed in CoNi-6h-350 catalyst, induce more surface oxygen vacancies, therefore O_ads/O_latt ratio higher than other samples. According to previously published studies, especially for the Mars–van Krevelen mechanism, oxygen vacancies (defect) can generate an electropositive catalyst surface, and the electropositive surface will absorb many opposite oxygen units to balance the charge. The electrophilic absorbed oxygen molecules are activated on catalysts surface, and reacts with nucleophilic toluene [30]. Activated adsorbed oxygen, the very beginning species of the benzoquinone reaction route, can totally increase catalyst activity [30,31].

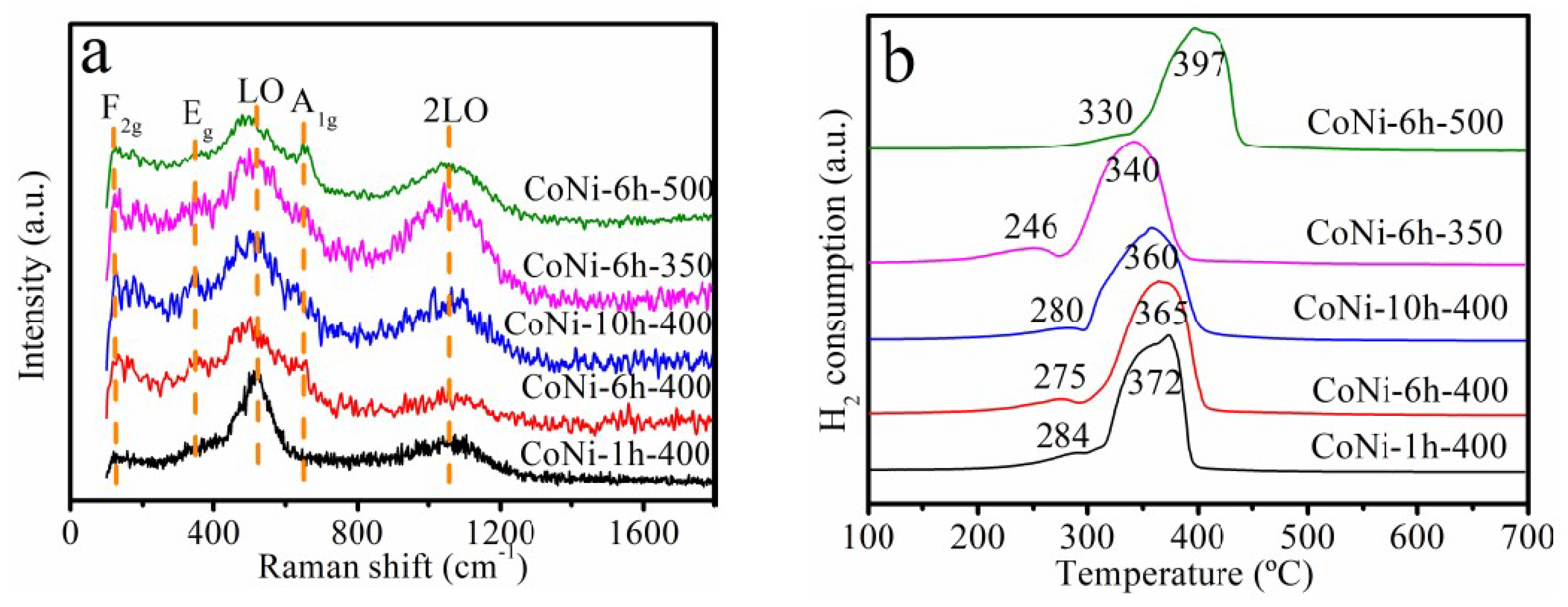

The Raman spectrum is a well-recognized, powerful tool for studying defects of nanocrystalline materials. Figure 7a illustrates the Raman spectra of the catalysts which were recorded in the range from 100 to 1800 cm⁻¹. The spectrum principally reveals five peaks located at 125, 348, 506, 651, and 1056 cm⁻¹. The peak at 506 cm⁻¹, which is caused by first-order phonon longitudinal vibration (LO), together with the peak at 1056 cm⁻¹ which is caused by second-order phonon longitudinal vibration (2LO), are attributed to NiO characteristic peaks. No observable lateral vibration NiO peaks exist [32]. As can be seen from the spectrum data, the 506 cm⁻¹ peak is stronger than 1056 cm⁻¹ peak, indicating the NiO structure has defects, because first-order phonon vibration excited by a nickel oxide edge defect but second-order phonon mainly come from the vibration of the complete crystal. NiCo₂O₄ is composed by cobalt trivalent, cobalt divalent, and nickel divalent, and has an inverse spinel structure [28,33,34]. Although the characteristic vibration of NiCo₂O₄ overlap to NiO at 506 cm⁻¹, the stretching vibration peaks observed at 125, 348 and 651 cm⁻¹ are known as NiCo₂O₄ vibration for F_2g, E_g and A_1g [34,35,36]. So, the Raman results can further identify the phase composition of the catalysts as both NiO and NiCo₂O₄, and not Co₃O₄, are included, which cannot be totally confirmed in XRD analysis. Furthermore, no hydroxyl group characteristic peak has been detected, indicating that there is no hydroxide residue after calcinations. The influence of heating hours and calcination temperature on the formation of nanoparticles can be implied from Raman spectrum: the Raman wavenumber values of CoNi-1h-400 are in agreement with NiO, however, NiCo₂O₄ are too weak to be correctly detected; CoNi-6h-350 shows more intense peaks than the other four curves. All these results above are in good agreement with the XRD and SEM results. The CoNi-6h-350 sample exhibit a red shift of about approximately 10 cm⁻¹ for LO mode and 5 cm⁻¹ for E_g mode, but F_2g, A_1g and 2LO modes are not affected in comparison with other samples. The red shift can cause by lattice distortion or nanosize effect of nanoparticle, which can induce the formation of oxygen vacancy and enhance the amount of absorbed oxygen species [9].

The H₂-TPR data showed in Figure 7b can reflect catalysts reducibility by analyzing at which temperature hydrogen is oxidized. For each sample, two peaks can been observed, one weak peak at 240–330 °C, another intense peak at 340‒400 °C, respectively. During the first peak, NiCo₂O₄ reacts with hydrogen and become NiCoO₂, the second peak is attributed to catalysts totally reduced to nickel and cobalt [37,38,39]. The first peak temperature is veritable to reflect catalyst reducibility, while the reaction process of the second peak will not happen in an actual toluene removal reaction. The CoNi-6h-350 catalyst, with a richer surface adsorbed oxygen species, has the first reduction temperature at 246 °C (shift to lower temperature at approximately 30 °C), which means it was much more reducible than other samples. Compared with pure Co₃O₄ whose characteristic peaks are at approximately 352 °C and 674 °C, and pure NiO whose characteristic peak is at approximately 338 °C, NiCo₂O₄ has a perfect reducibility at low temperature, which is a good argument for synergistic action.

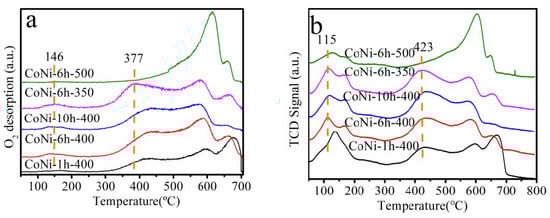

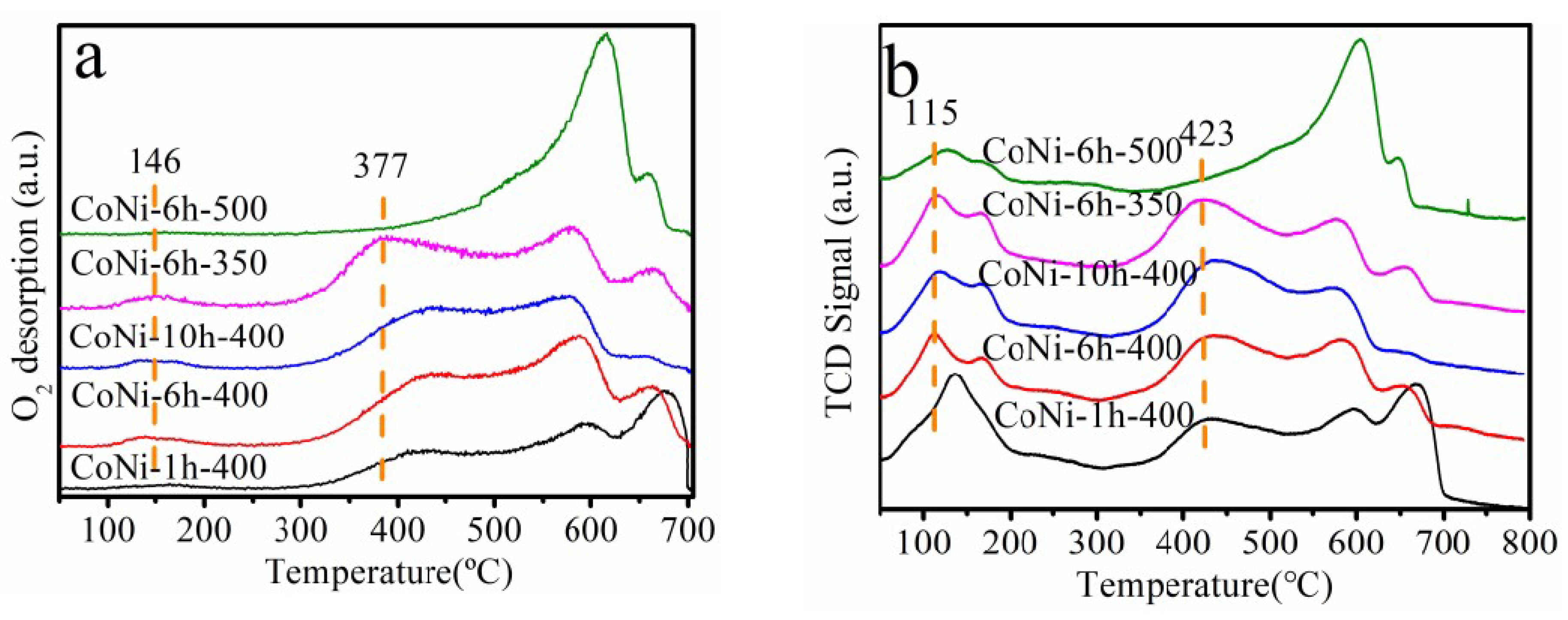

Figure 8a displays the O₂-TPD profile of the as-prepared catalysts samples below 700 °C. Three oxygen desorption peaks at different temperatures (145–165 °C, 376–430 °C and 573–700 °C) are observed. With the O₂-TPD experiment temperature enhanced, desorption species changed from weak absorbed active oxygen to strongly absorbed lattice oxygen species [21,40]. The desorption peaks at low temperature need to be paid indispensable attention, for active oxygen participates in the toluene removal reaction. However, lattice oxygen species contribute a little to catalytic reaction [29]. Moreover, the content of desorbed oxygen can be quantitatively calculated by integrating the spectrum, and these results can reflect the capacity of the catalysts to accommodate absorbed oxygen species [38,41]. CoNi-6h-350 catalyst has a lower desorption temperature (146 °C and 377 °C as the highest desorption peak) and higher O₂ desorption of 1.185 mmol/g than other samples (0.83 mmol/g for CoNi-6h-500), and all of these data are in agreement with the XPS analysis of its high surface adsorbed oxygen species.

To investigate the acid sites type and its concentration of the as-prepared samples, we use NH₃-TPD as an effective detecting method, and the data are displayed in Figure 8b. The NH₃ desorption peaks can been divided into three parts, below 200 °C corresponded to the weak acid site, and 200–500 °C belongs to the medium-strength acid site, above 500 °C belongs to strong acid site, owing to different NH₃ absorption energies on the samples [9,34]. According to the literature, the first peak (<200 °C) is formed by the desorption of physisorbed NH₃ and NH₄⁺ which weak-bonded to surface hydroxyls; the single peak approximately at 430 °C is the desorption of NH₃, which is ammonia absorbing on the Lewis acidic sites; the last broad peak above 500 °C with a shoulder can correspond to the desorption of NH₄⁺ which is formed from NH₃ and surface Brønsted acidic sites. Moreover, the concentration of desorbed NH₃ (mmol/g) can reflect well the amount of acid sites in the samples [34,42]. CoNi-6h-350 catalyst with total quantity NH₃ of 1.88 mmol/g and a higher medium-strength acid site at 423 °C may fully accelerate the toluene oxidation because of more capture of electrophilic oxygen molecules on acid site. CoNi-1h-400 sample has an acidity of 2.062, the high quantity can attribute to residual ZIF-67 structure.

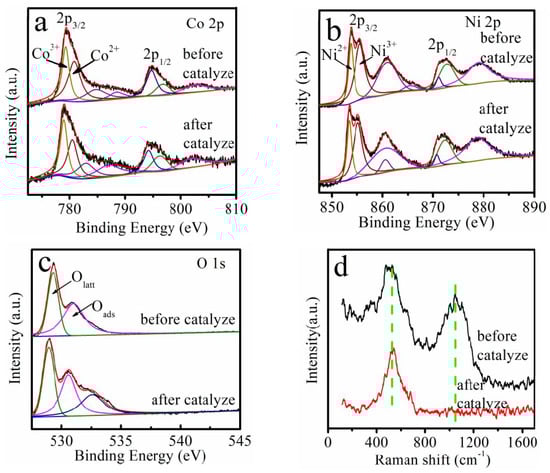

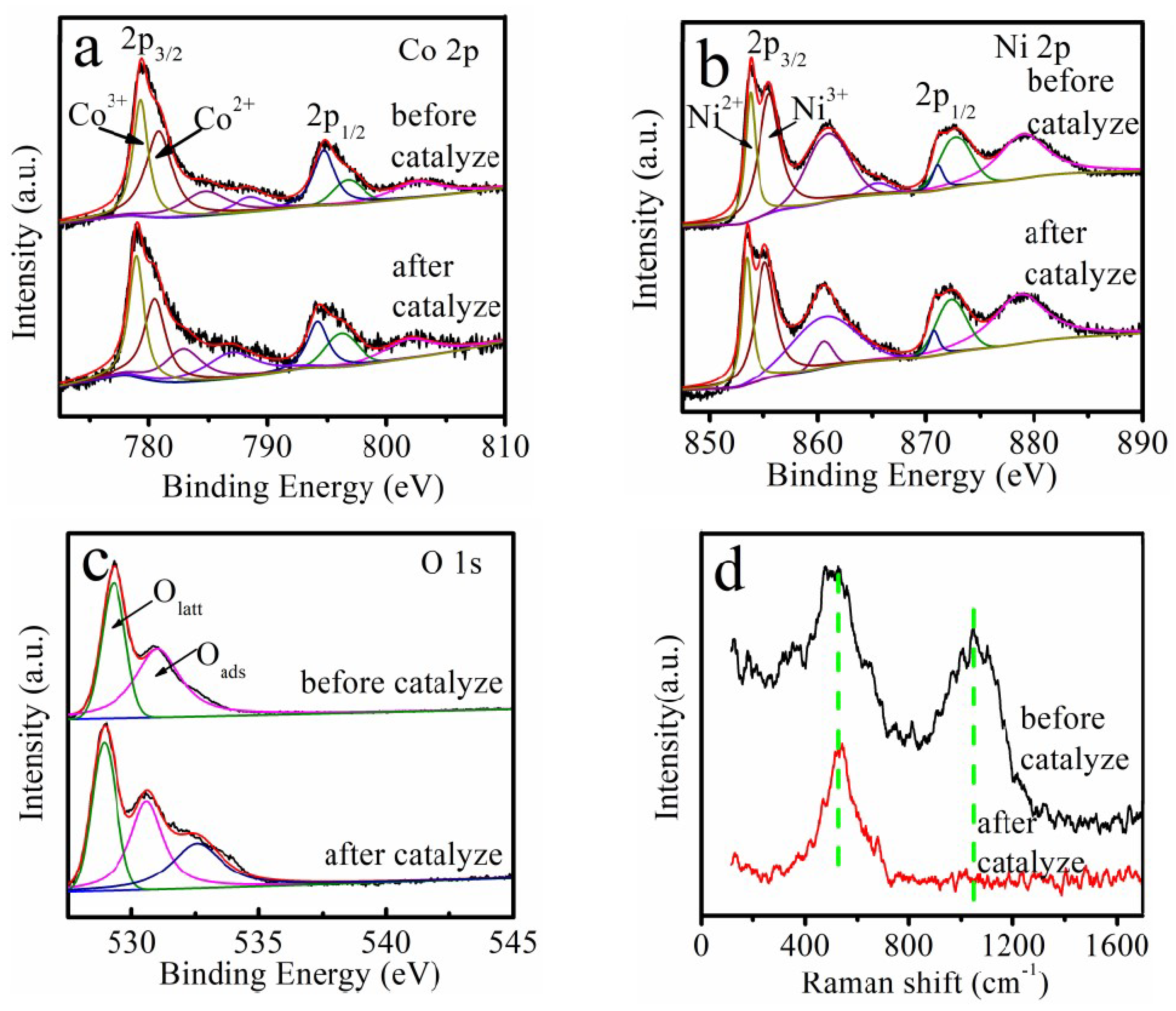

To further evaluate the texture of the as-prepared catalysts, the XPS spectra (Co 2p, Ni 2p and O 1s) peaks and Raman spectra of CoNi-6h-350 sample before and after the catalytic test are shown in Figure 9. By using a Gaussian fitting method for Figure 9a,b, the Co³⁺/Co²⁺ ratio decreased from 1.05 to 0.95, which manifests that partial Co³⁺ was reduced during the catalytic process (Co³⁺ to Co²⁺), while the Ni³⁺/Ni²⁺ ratio was no significant decline. This indicated that Co³⁺ has a higher activity in the toluene oxidation for the comparison with Ni ion. After the catalytic test, O 1s spectra deconvolve into three components, which is different from fresh catalyst, and the third peak at 533.7 eV is assignable to surface oxygen of hydroxyl species or adsorbed water species. In Figure 9d, Raman spectra shows that 1056 cm⁻¹ peak disappeared after the catalytic test; however, other peaks were maintained. The Raman and catalysis results indicating that the crystal texture of nickel oxide being destroyed after catalysis and NiO has a little influence in toluene oxidation, in other words, NiCo₂O₄ with synergistic effect provide a better catalytic capacity than NiO.

2.3. Evaluation of the Catalytic Behavior

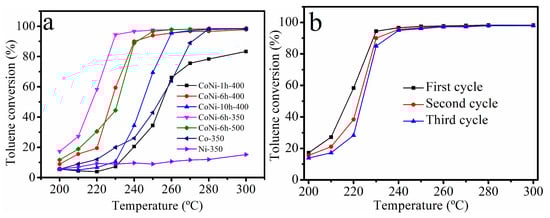

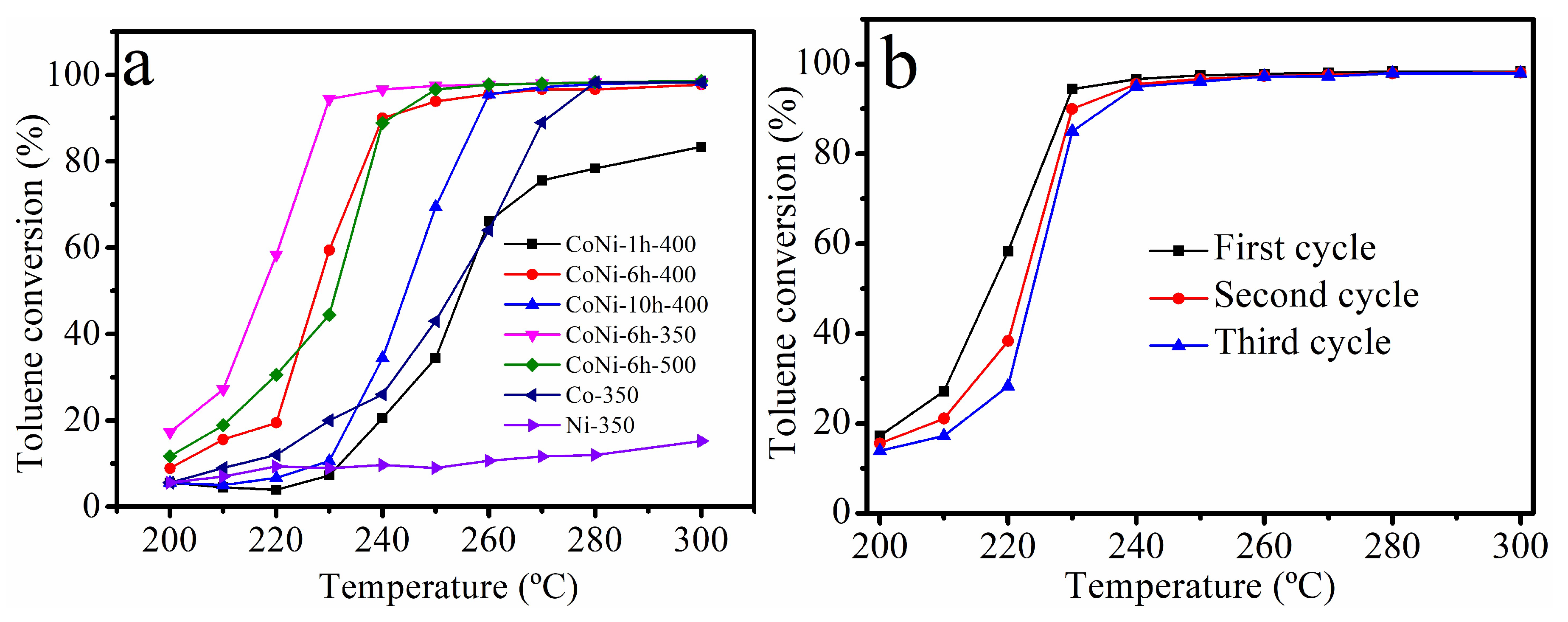

The catalytic ability of CoNi-yh-T samples for toluene oxidation were evaluated, and the results were shown in Figure 10a. The temperatures of 90% (T₉₀) toluene conversion are summarized in Table 1. The conversion of toluene increased with rising reaction temperature, however, the CO₂ yield has a hysteresis at the beginning of the oxide reaction because of the catalysts inheriting the polyhedral structure of the ZIF-67 template, which possesses a CO₂ adsorption capacity. With the reaction continued, the CO₂ output goes up and the carbon balance reaches 97%; no by-products formed except a minimal CO yield. In contrast with the Co-350 and Ni-350 samples, CoNi-yh-T samples have a better catalytic activity, which demonstrated that synergistic effect has a great effect on catalytic performance. Firstly, we investigated the influence of precursor hydrothermal hours in catalytic activity. The CoNi-6h-400 catalyst exhibited a much higher activity, compared to the CoNi-1h-400 catalyst and CoNi-10h-400; when the hydrothermal reaction time increased, the activity of catalysts first increases, then starts to decrease. Then, we investigated the influence of calcination temperatures. As can been seen, the CoNi-6h-350 sample shows excellent catalytic performance (T₅₀ = 220 °C and T₉₀ = 229 °C) for toluene combustion which were 37 °C and >50 °C lower than the worst sample CoNi-1h-400. The excellent activity on the CoNi-6h-350 catalyst can attributed to the retained hollow structure, the high surface area, the rich adsorbed oxygen species, the many medium-strength acid sites, and the low temperature reducibility result from intense synergistic effect, which have been proved by BET, XPS, NH₃-TPD and H₂-TPR, respectively. Moreover, we choose the CoNi-6h-350 sample to continuously catalyze toluene three times with the same experimental conditions to test the reproducibility of the catalysts. As can be seen from the data recorded in Figure 10b, the third cycle of the toluene conversion changes little with T₉₀ up to about 10 °C, confirming that it possesses a perfect reproducibility.

3. Materials and Methods

3.1. Raw Materials and Reagents

Cobalt nitrate hexahydrate (CAS: 10026-22-9), 2-methylimidazole (CAS: 693-98-1, 98%) were obtained from Aladdin. Nickel nitrate hexahydrate (CAS: 13478-00-7, >98%) were obtained from Xilong chemical Co., China. Absolute methanol (99.5%) and ethanol (99.7%) were obtained from Beijing chemical works, China. All these chemicals were used as obtained without further purification.

3.2. Synthesis of ZIF-67

Monodispersed ZIF-67 rhombic dodecahedron were synthesized by following steps: Dissolve 2.91 g Co(NO₃)₂·6H₂O and 3.28 g 2-Methylimidazole (2-MIM) in 200 mL anhydrous methanol, separately [19]. Then, 2-MIM solution was quickly added into violently stirred cobalt nitrate solution, and incubated 24 h at 25 °C. Finally, the obtained precipitate was washed with absolute methanol at least three times, and dried at 80 °C overnight.

3.3. Synthesis of Co-NiLDH@ZIF-67

The LDH precursor samples were obtained by the hydrothermal method with a series of different reaction hours. First, 48 mg nickel nitrate hexahydrate and 24 mg ZIF-67 were dissolved in 40 mL ethanol. Then, the mixture was transferred into a Teflon-lined autoclave and its temperature maintained at 120 °C for 1 h, 6 h or 10 h. After that, these samples were washed with absolute ethanol and dried at 80 °C. For the convenience of mark, the obtained samples were named as CoNi-yh-LDH, where y represents the reaction hours.

3.4. Synthesis of NiCo₂O₄@NiO Nanocage

CoNi-yh-400 samples were obtained from CoNi-yh-LDH precursors under an air atmosphere calcining process at 400 °C for 4 h (heating rate: 2 °C min⁻¹). Then we selected the best sample among the three CoNi-yh-400 catalysts to consider the influence of calcination temperatures on catalytic power, and obtained two samples denominated CoNi-6h-350, CoNi-6h-500, respectively).

3.5. Synthesis of Single Metal Oxide Catalysts (Co and Ni)

The Co-350 sample was obtained by directly calcining ZIF-67 at 350 °C for 4 h (air atmosphere, heating rate: 2 °C min⁻¹). Moreover, the Ni-350 sample was obtained by calcining nickel foam at same condition.

3.6. Characterization of the Precursors and Catalysts

The powder XRD results were obtained by using Cu-Ka radiation, within a range of scattering angle 2θ of 5–90° (scan rate: 10° min⁻¹). The morphology, microstructures and element distribution of all samples were characterized with a scanning electron microscope (SEM, JEOL JSM-6700F, Japan, 15 kV) and transmission electron microscope (TEM, JEOL JEM-2010F, 200 kV). An automatic surface analyzer (AS-1-C TCD, Quantachrome Cor., USA) and the Brunauer–Emmett–Teller (BET) and Barrett-Joyner-Halenda (BJH) methods were used in BET specific surface area and pore size distribution determination. Each sample had a degassing step at 150 °C for at least 5 h as preprocessing, and then the adsorption-desorption isotherm of N₂ at 77 K was obtained. By using a Renishaw RM2000 Raman Spectrometer, a series of spectrum data (testing rage from 100 to 1500 cm⁻¹) were obtained to further identify the catalysts’ structure. X-ray photoelectron spectroscopy (XPS) (XLESCALAB 250Xi electron spectrometer, VG Scientific Co.,) were used to characterize elements species and valence state of the catalysts samples (C 1s peaks at 284.6 eV as the norm of the binding energies of the element). Hydrogen temperature-programmed-reduction (H₂-TPR) results were obtained by using a Quantachrome chemBET pulsar TPR/TPD chemisorption analyzer. The testing processes are as follows: pretreat catalyst (0.03 g) at 150 °C for 0.5 h with helium flow, then cooling the sample to 25 °C, next heating it to 700 °C (heating rate: 10 °C min⁻¹) with 10.0 vol % hydrogen/argon flow at a rate of 30 mL every minute. The acid types and contents of the samples were tested by using a Micromeritics Instrument Corporation-AutoChem II 2920, which also with a thermal conductivity detector (TCD) and a mass quadrupole spectrometer. 60 mg catalyst was pre-treated at 400 °C with 5% Ammonia/Helium gas flow (50 mL min⁻¹) for 1 h, then cooling to 25 °C and reheating to 700 °C in pure He (50 mL min⁻¹). The temperature-programmed-desorption of oxygen (O₂-TPD) with 50 mg catalysts pretreatment in 5% oxygen/helium flow (50 mL min⁻¹) at 400 °C and keep 1 h, then cooling to 25 °C and reheated to 800 °C in pure helium (50 mL min⁻¹).

3.7. Catalytic Activity Measurement

The catalytic activities for totally remove toluene were evaluated in a continuous flow fixed-bed quartz microreactor (i.d. = 6 mm) from 200 to 300 °C with a highly space velocity (SV) at 60,000 mL g⁻¹ h⁻¹. For each test process, we add 50 mg catalyst and a little quartz wool into reactor. Toluene was introduced into the reactant flow with its concentration of 200 ppm, and balanced with air (20% O₂ + balance N₂) at a continuous flow 50 mL min⁻¹. In order to detect the concentration of toluene and CO₂, we use a gas chromatograph (Shimadzu GC-2014). Toluene could be detected directly, however, CO₂ can only be detected after it changed to CH₄. To evaluate the cycle stability of catalysis, one catalyst was measured at same condition for three times.

The conversion of toluene was calculated according to the following equation:

$$\eta \mathrm{toluene}=\frac{C\mathrm{toluene},\mathrm{in}-\mathrm{Ctoluene},\mathrm{out}}{C\mathrm{toluene},\mathrm{in}}\times 100,$$

(1)

$$\eta {\mathrm{CO}}_2=\frac{C{\mathrm{CO}}_2,\mathrm{out}}{7\times C\mathrm{toluene}}\times 100,$$

(2)

where C_toluene,in (ppm), C_toluene,out (ppm) and C_CO2,out (ppm) are the concentrations of toluene in the inlet and outlet gas, CO₂ in the outlet gas, respectively.

5. Conclusions

In summary, a series of hollow-structured catalysts with high surface area and small size have been successfully fabricated by layered double hydroxide@zeolitic imidazolate framework-67 (LDH@ZIF-67) precursors. In order to accurately control the balance between the rates of ZIF-67 template etching and CoNi-LDH formation, we took reaction time into consideration to attain perfect hollow dodecahedral structured precursors. The reaction time and calcination temperature will influence the textural and catalytic properties. The CoNi-6h-350 sample showed 90% toluene conversion (T₉₀) at 229 °C at a high space velocity (SV = 60,000 mL g⁻¹ h⁻¹), and possessed much higher activity than the CoNi-1h-400 catalyst (T₉₀ > 300 °C). The CoNi-6h-350 catalyst exhibited higher catalytic activity because it possessed the largest surface area of 141.6 m² g⁻¹, the lowest temperature reducibility, the most abundant surface Co³⁺ and adsorbed oxygen species, and the medium-strength acid site was derived from 3D hierarchical NiCo₂O₄@NiO nanocage structure.
