Catalysts 2019, 9(2), 184; https://doi.org/10.3390/catal9020184

Appraisal of Sulphonation Processes to Synthesize Palm Waste Biochar Catalysts for the Esterification of Palm Fatty Acid Distillate

1
Institute of Advanced Technology, Universiti Putra Malaysia, 43400 UPM Serdang, Selangor, Malaysia
2
Department of Chemical and Environmental Engineering, Faculty of Engineering, Universiti Putra Malaysia, 43300 UPM Serdang, Selangor, Malaysia
3
Catalysis Science and Technology Research Centre, Faculty of Science, Universiti Putra Malaysia, 43400 UPM Serdang, Selangor, Malaysia
*
Author to whom correspondence should be addressed.
Received: 27 December 2018 / Revised: 24 January 2019 / Accepted: 24 January 2019 / Published: 15 February 2019
(This article belongs to the Special Issue Sustainable Applications in Surface Chemistry and Catalysis)
Full-Text   |   PDF [2317 KB, uploaded 16 February 2019]   |

Abstract

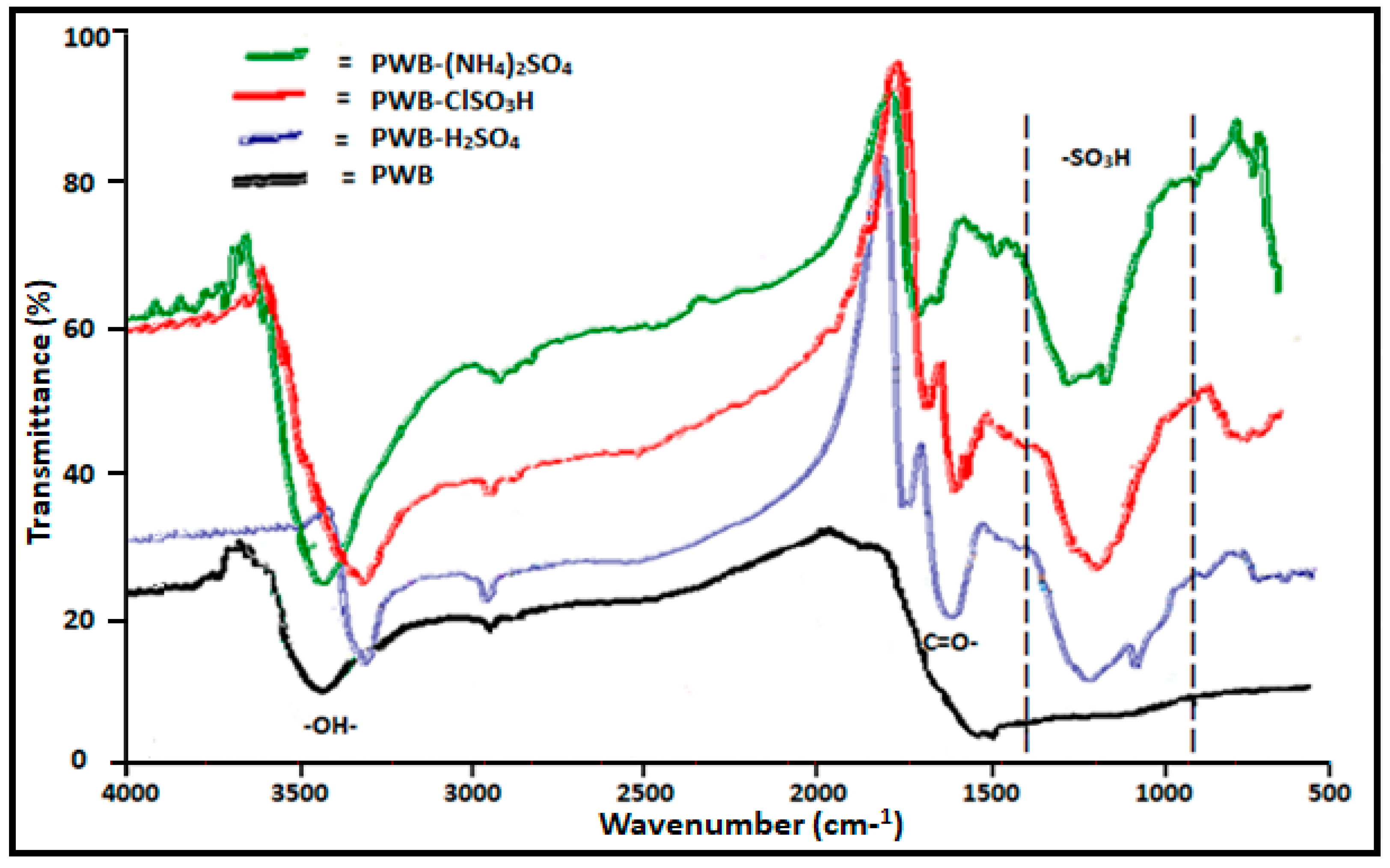

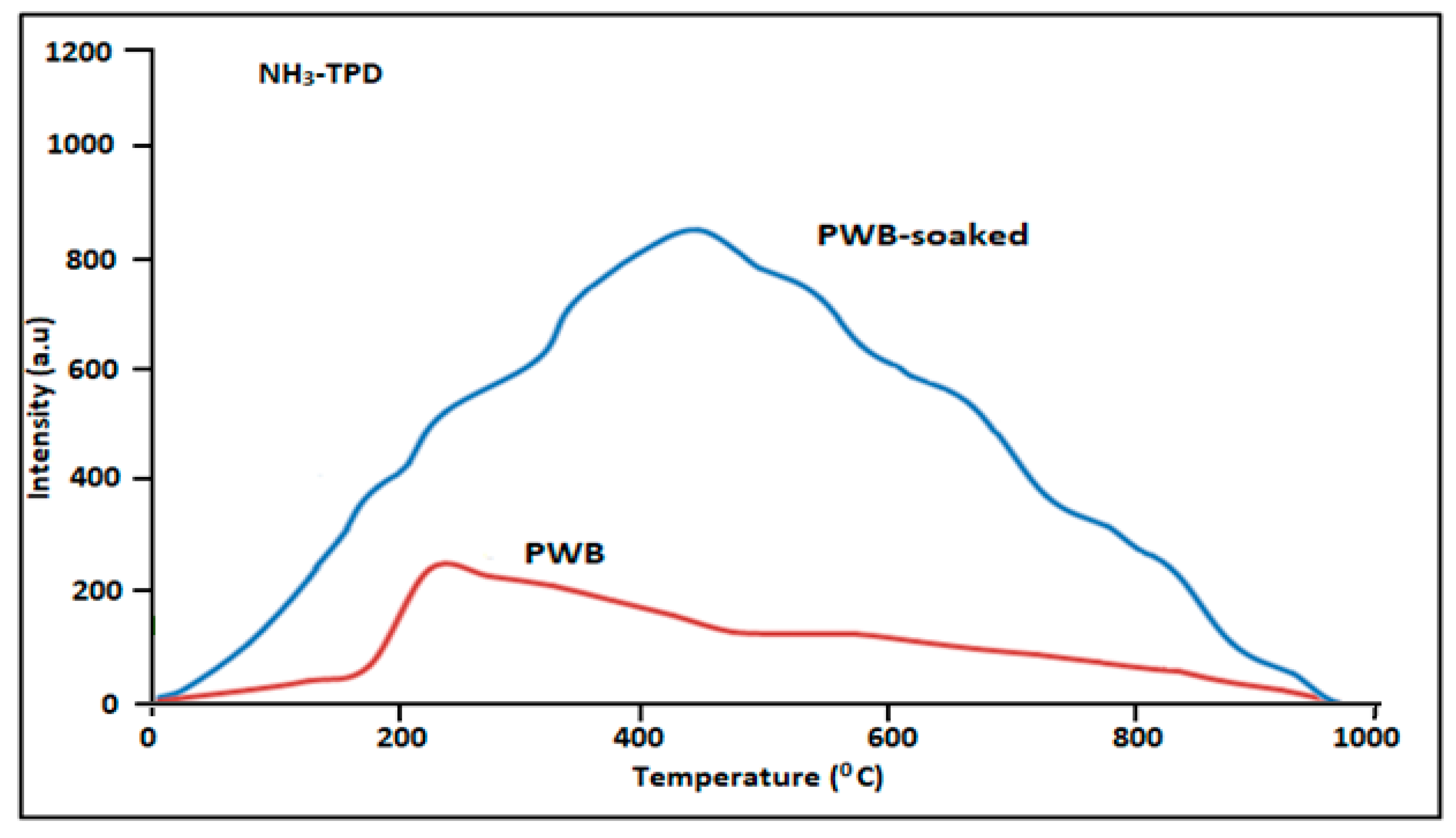

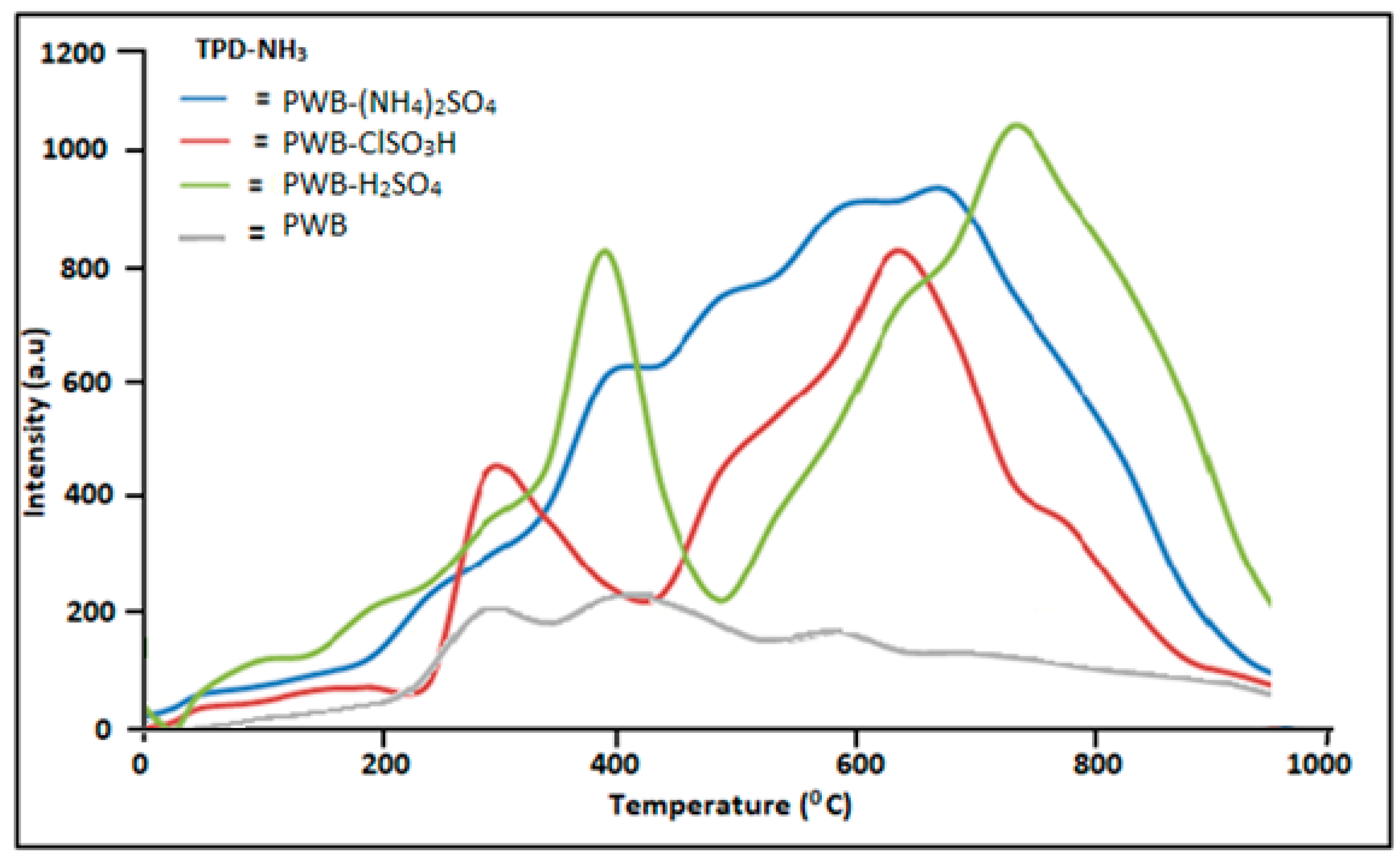

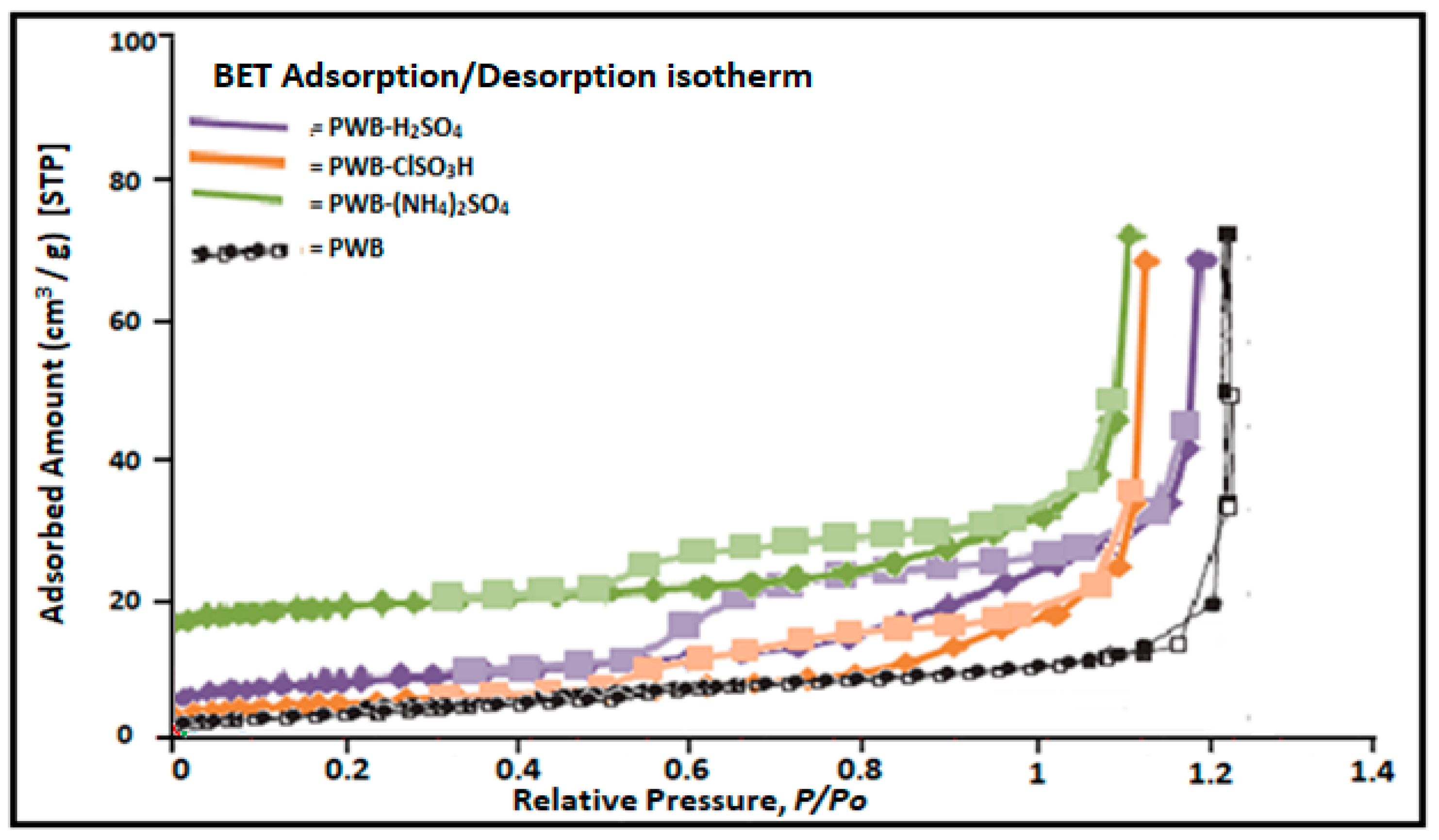

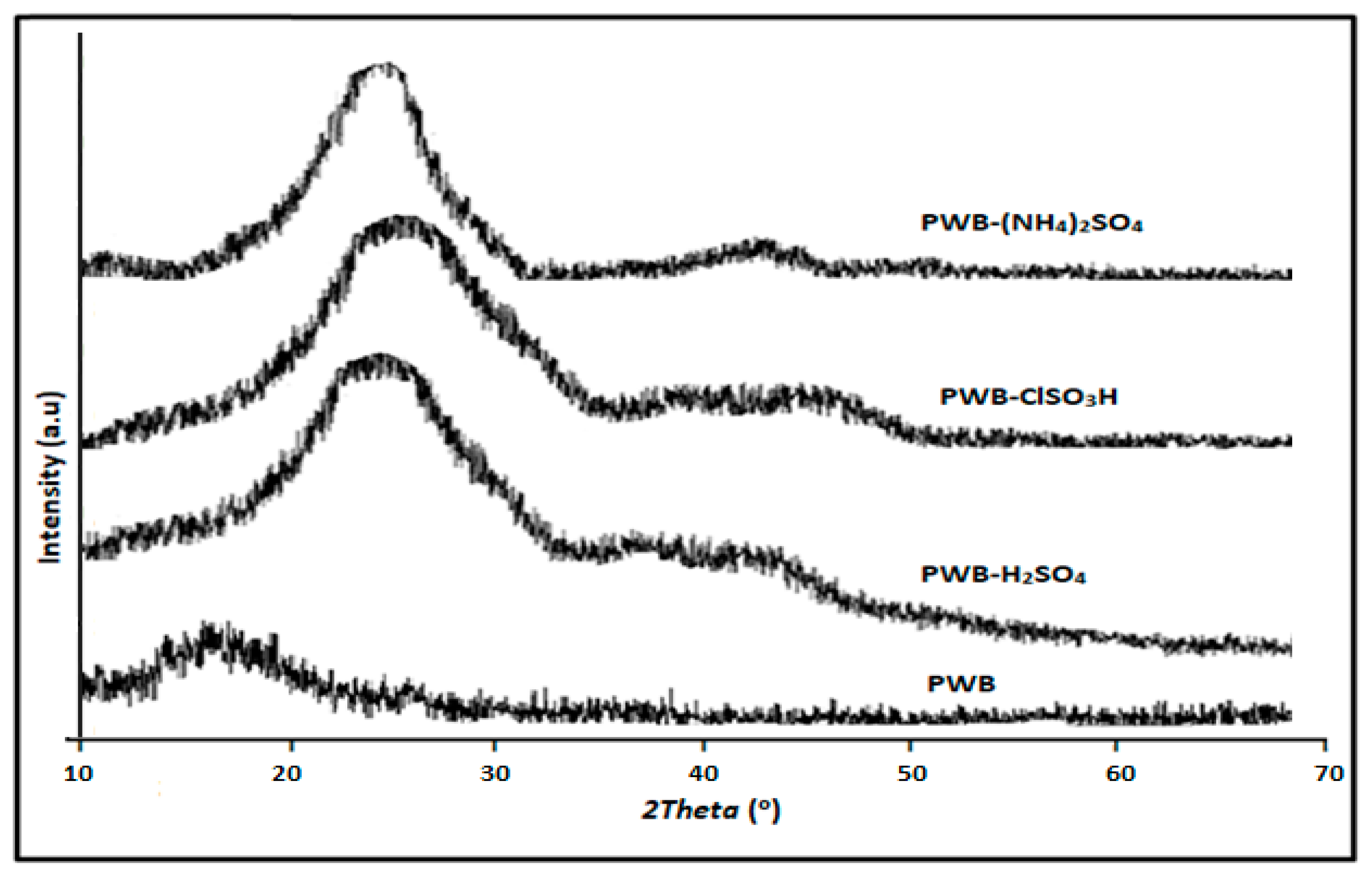

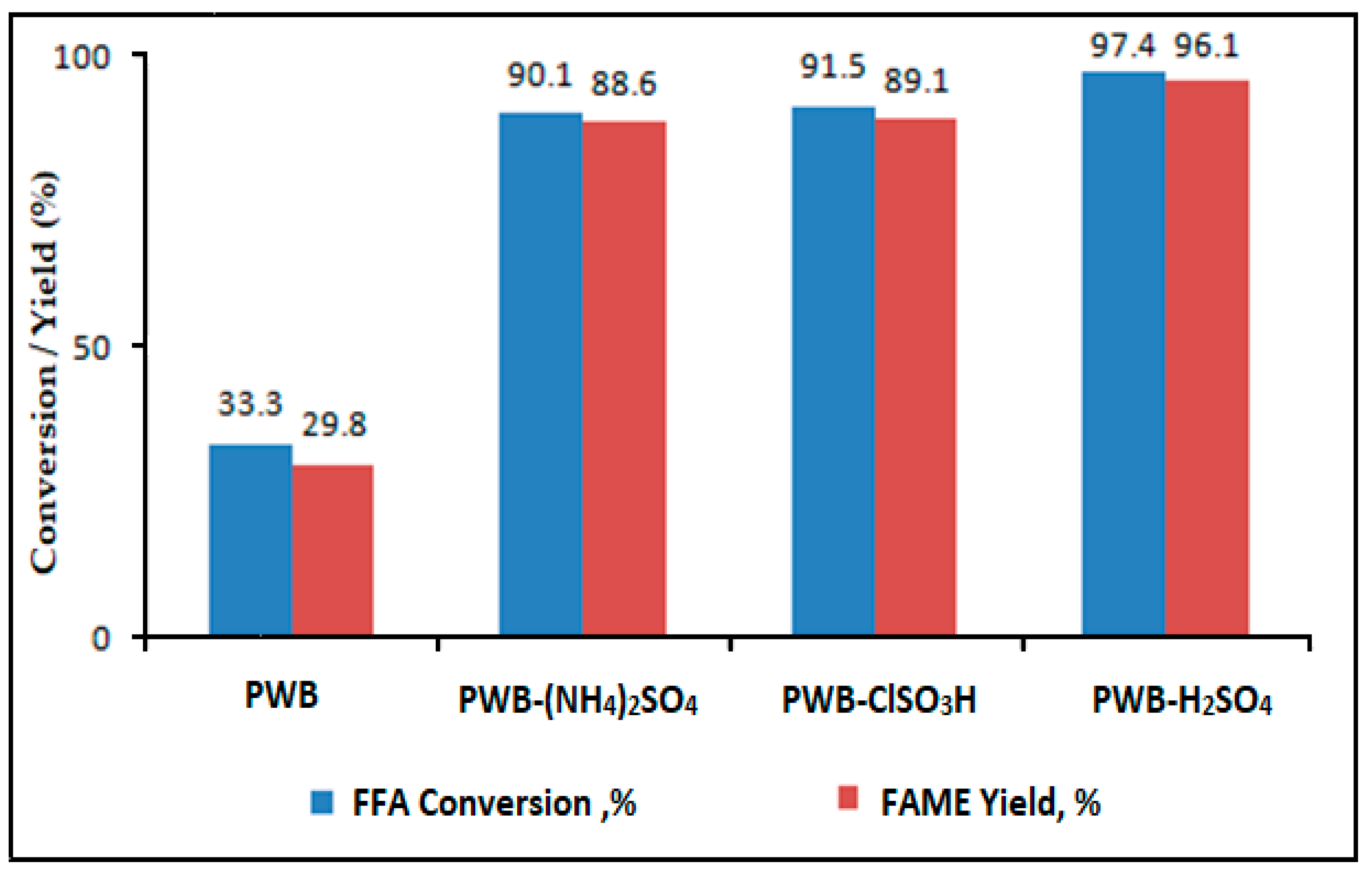

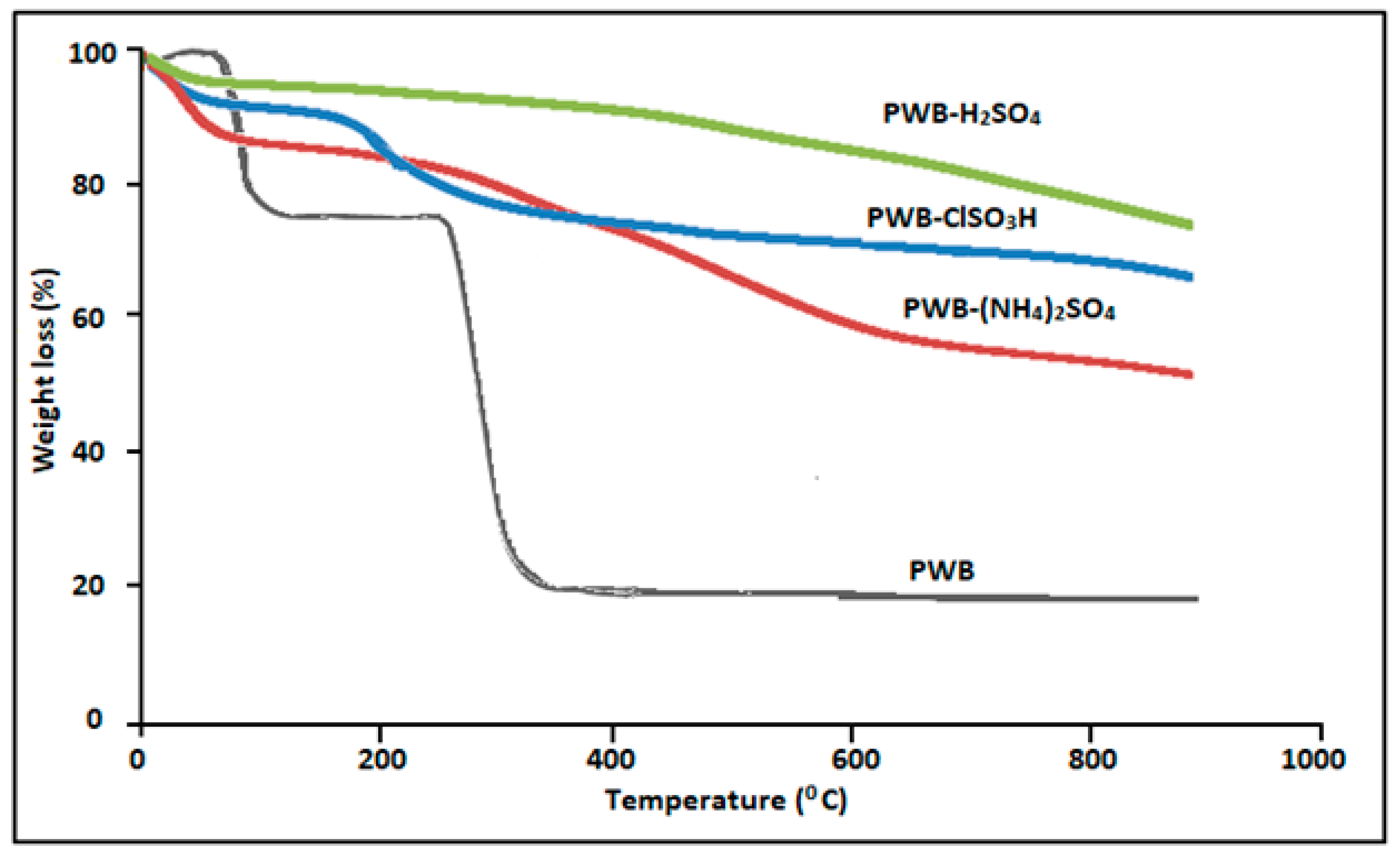

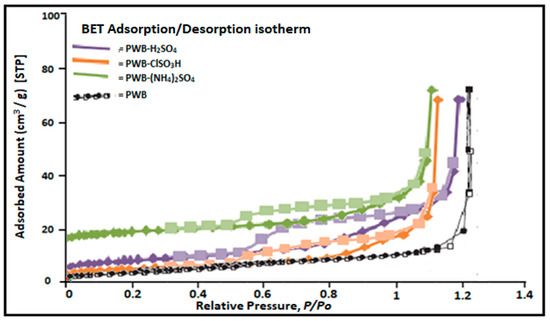

Palm waste biochar (PWB) catalysts were synthesized as bio-based catalysts using different sulphonation methods. (NH4)2SO4, ClSO3H, and H2SO4 were applied to functionalize PWB and appraise the discrepancies between the sulfonic agents, as they affect the esterification reaction in terms of fatty acid methyl ester (FAME) yield and conversion while using palm fatty acid distillate (PFAD) as feedstock. The PWB was first soaked in phosphoric acid (H3PO4) for 24 h and then pyrolized at 400 °C for 2 h in tube furnace. Afterwards, sulphonation was done with different sulfonic agents and characterized with thermo-gravimetric analysis (TGA), Brunauer-Emmett-Teller (BET), Fourier transform infrared (FT-IR), X-ray diffraction (XRD), field emission scanning electron microscopy (FESEM), energy-dispersive X-ray (EDX), and temperature programmed desorption–ammonia (TPD-NH3). The three synthesized catalysts showed high free fatty acid (FFA) conversions of 90.1% for palm waste biochar-ammonium sulfate (PWB-(NH4)2SO4), 91.5% for palm waste biochar-chlorosulfonic acid (PWB-ClSO3H), and 97.4% for palm waste biochar - sulphuric acid (PWB-H2SO4), whereas FAME yields were 88.6% (PWB-(NH4)2SO4), 89.1% (PWB-ClSO3H), and 96.1% (PWB-H2SO4). It was observed that PWB-H2SO4 has the best catalytic activity, which was directly linked to its high acid density (11.35 mmol/g), improved pore diameter (6.25 nm), and increased specific surface area (372.01 m2 g−1). PWB-H2SO4 was used for the reusability study, where it underwent eight reaction runs and was stable until the seventh run. PWB-H2SO4 has shown huge promise for biodiesel synthesis, owing to its easy synthetic process, recyclability, and high catalytic activity for waste oils and fats. View Full-Text
Keywords: palm waste biochar (PWB) catalyst; sulphonation; PFAD; esterification; FAME palm waste biochar (PWB) catalyst; sulphonation; PFAD; esterification; FAME
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Akinfalabi, S.-I.; Rashid, U.; Yunus, R.; Taufiq-Yap, Y.H. Appraisal of Sulphonation Processes to Synthesize Palm Waste Biochar Catalysts for the Esterification of Palm Fatty Acid Distillate. Catalysts 2019, 9, 184.
