The Role of NiO in Reactive Adsorption Desulfurization Over NiO/ZnO-Al₂O₃-SiO₂ Adsorbent

Abstract

The reactive adsorption desulfurization (RADS) of a model gasoline n-hexane containing thiophene was carried out with a NiO/ZnO-Al₂O₃-SiO₂ adsorbent in N₂ and H₂, respectively. A declining RADS trend has been observed in N₂, without the presence of H₂, indicating that NiO is sulfurized and exhibits activity for RADS. TPR and XPS results presented NiO in the adsorbent is hard to be reduced because of the powerful interaction between NiO and the support. The sulfurization of NiO into NiSx is a primary condition for the RADS process, the same as the presulfurization of hydrotreating catalyst, while metallic Ni is an intermediate reduction product of NiSx. Results of a low RADS temperature at 300 °C, much lower than the reduction temperature of NiO, suggest that NiO plays an important role. Based on assumption of NiO as the main active component, the RADS could reduce the reaction temperature and energy consumption significantly. The participation of hydrogen and n-hexane in pretreatment conducted at 420 °C contributes to the activation of adsorbent. Also, these methods of pretreatment improved the desulfurization performance under the reaction temperature of 300 °C.

1. Introduction

Stringent environmental regulations have forced refineries to develop new process for deep desulfurization of fossil oil [1]. The reactive adsorption desulfurization process (RADS) is an effective measure of ultradeep desulfurization of fossil fuel [2,3]. The S Zorb process, invented by Concoco Philips Petroleum Co., proposes an effective way for producing ultralow-sulfur diesel and gasoline at a comparably low H₂ pressure (0.7–2.1 MPa). The adsorbent used in the process consists of Ni/NiO and ZnO, which remove the sulfur atoms from organic compounds containing sulfur. Sulfur atoms from sulfur compounds are adsorbed into the adsorbent and react with the adsorbent, and the hydrocarbon part of the molecule is released back into the product stream [4,5,6,7].

Many publications discussed the mechanism of RADS over Ni/ZnO-based adsorbent [8,9,10,11,12,13]. Babich and Moulijin [14] first proposed a mechanism of RADS over Ni/ZnO-based adsorbent. They presented that NiO would be reduced to metallic Ni or Ni0 with the presence of H₂. Then, sulfur atoms will react with Ni⁰ atoms and lead to the formation of NiSx. The formed NiSx will be in situ reduced to Ni0. Meanwhile, released H₂S will react immediately with ZnO to form ZnS. Whether NiSx can be converted to Ni⁰ by H₂ determines the stability of the effect of sulfur removal of sorbents. Huang et al. [15] proposed a reaction mechanism of RADS processes carried out in different atmospheres and the role of H₂ in the desulfurization process over Ni/ZnO. They found that hydrogen can effectively stimulate the sulfur transfer during reactive adsorption desulfurization of oil product over Ni/ZnO. In the case of the RADS process, NiO could be sulfurized into Ni₃S₂ or NiSx although presulfurization is not employed. Bezverkhyy [16] found that, in the case of Ni/SiO₂, a relatively slower bulk transformation into Ni₃S₂ always follows after a rapid surface reaction. Okamoto claimed that Ni₃S₂ is a stable state of nickel sulfide [17]. The reason may be that Ni₃S₂ is favorable in the H₂ atmosphere. The formation of NiS can hardly happen before sulfur contained in the nickel sulfide is transmitted into ZnO. Ni₃S₂ is probably more stable than NiS under current circumstance [18]. In another publication of Bezverkhyy [19], their results indicated that surface ZnS layer was formed firstly, and the kinetics of sulfidation at different steps were dependent on the reaction conditions, and the first one is fast sulfur chemisorption. NiO/ZnO adsorbents can be spent in the RADS process of thiophene without reductive pretreatment by hydrogen [18]. It was also mentioned that hydrogen pretreatment hardly had effect on desulfurization. Tang et al. [13] studied the powerful metal–support interactions (SMSI) between nickel and zinc oxide particles of Ni/ZnO catalyst. They reduced NiO/ZnO catalyst in a temperature range from 350 °C to 500 °C, and found that the reduction peak of NiO in the NiO/ZnO sample shifted to 370 °C, which suggests that NiO in NiO/ZnO-Al₂O₃-SiO₂ adsorbent is hard to be reduced under lower reaction temperature.

From the review presented above, there is a good deal of conflict about the desulfurization mechanism of NiO based adsorbents. The hydrodesulfurization (HDS) catalysts are commonly sulfide Ni-Mo/Al₂O₃ and Co-Mo/Al₂O₃. Presulfurization is an essential process for activation of HDS catalyst in the oxidic form. In presulfurization, a sulfurizing agent such as organic polysulfide is used to sulfurize the pre-loaded catalyst in a reactor [20]. This rises a question whether NiO could act alone as the active component for RADS. The presulfurization process of hydrotreating catalyst showed that NiO could be sulfurized alone to form NiSx. Wang [21] compared a presulfurized NiO/γ-Al₂O₃ catalyst with NiSO₄/γ-Al₂O₃ catalysts with different nickel loadings, and found that NiSO₄ can be partially self-sulfided to NiSx by hydrogen. They considered that NiSx species was a real active component in the HDS reaction. This is very similar to the reaction of NiO with thiophene to form NiSx in RADS process.

In this work, the RADS of a model gasoline, n-hexane containing thiophene, was conducted over the NiO/ZnO-Al₂O₃-SiO₂ adsorbent in N₂ and H₂, respectively. The reduced and unreduced adsorbents were respectively characterized by XRD, TPR, and X-ray photoelectron spectroscopy (XPS). Desulfurization performance at lower temperature was also researched. After the evaluation of RADS experiments and characterization of adsorbents, various pretreatment experiments were conducted to study the activation of adsorbents and the effects of pretreatments on RADS process.

2. Results and Discussion

2.1. RADS Performance under Different Atmospheres

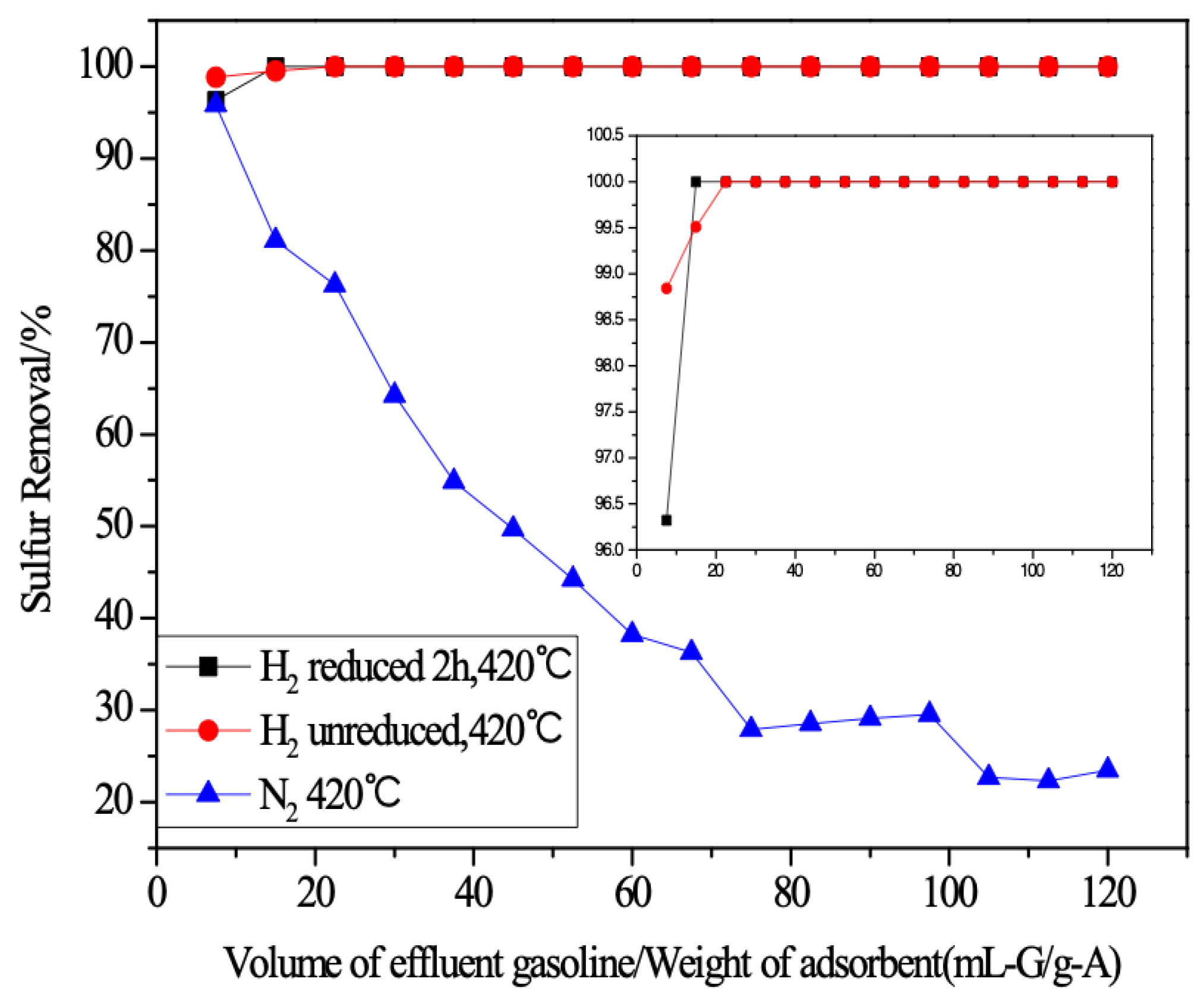

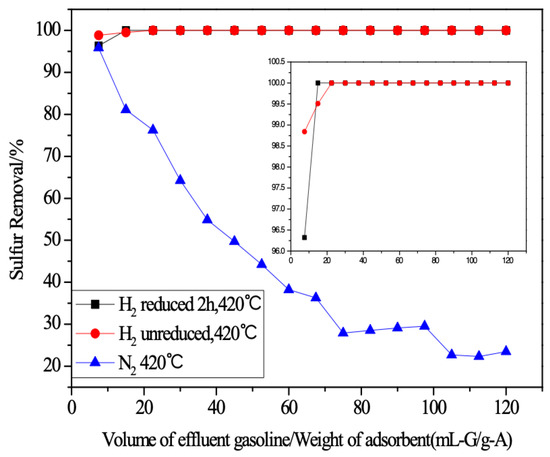

In a first approach, the adsorption performances of three conditions were shown in Figure 1. The H₂ reducing pretreatment method has a H₂ flow rate of 140 mL/min under 2.0MPa and a temperature of 440 °C for 2 h. The other two experiments did not employ the H₂ reducing pretreatment. H₂ or N₂, as carrier gas, was introduced into the reactor together with model gasoline, respectively. Experiments designed for this comparison were carried out with the same model components and reaction temperature. Under these conditions, the RADS performances, expressed as mL of gasoline per g of sorbent, are shown in Figure 1. From this figure, it is evident that samples in N₂ displayed a declining sulfur removal trend with the volume of effluent gasoline.

The declining trend using N₂ as carrier gas disclosed that the sulfurization of NiO could happen without the presence of H₂. In another word, the sulfur atom is captured from the thiophene molecule and is fixed by the sorbent without H₂. Small amount of hydrocarbons will form carbon deposit on the surface of the adsorbent, which is a reason of the drop of the sulfur removal. Figure 1 shows that the sulfur removal rate still keeps at 25% in nitrogen atmosphere after treating model gasoline about 120 mL-G/g-A. Though the sulfur removal rate is much lower compared to which in H₂ atmosphere, NiO shows considerable activity in the reaction with thiophene in N₂.

Figure 1 presents that the sulfur removal ratio in H₂ is much higher than that in N₂. However, the H₂ reduced adsorbent does not have any advantage over the unreduced adsorbent. This is in agreement with the observations by Huang [17]. There is no evidence of a breakthrough in H₂, even when the test is progressed to a volume of 120 mL-G/g-A. As H₂ can considerably improve the effect of desulfurization, desulfurization performance in H₂ is much better than that in N₂. The presence of hydrogen obviously reduces the formation of surface carbon deposits during the desulfurization process [22,23,24].

2.2. XRD Characterization

Figure 2 shows the XRD patterns of used adsorbents under different RADS conditions. According to the patterns, ZnS characteristic diffraction peaks appeared in all cases. The mobility of sulfur from NiSx to ZnO is the main reason of the formation of ZnS. The peaks of ZnS in N₂ cases also proved that the desulfurization process could happen in N₂. Another phenomenon is that Ni⁰ could not be detected by XRD in all cases. These results suggest that there should be another active component playing an important role in RADS besides Ni⁰.

Normally, NiO could be reduced at about 290 °C. Moreover, Shamskar et al. [25] found that the reduction temperature of NiO-Al₂O₃ catalyst would increase with the calcination temperature increasing. When calcination temperature is over 600 °C, the reduction temperature of NiO-Al₂O₃ catalyst is over 700 °C. For the adsorbent in this study, the temperature of calcination is 500 °C, indicating that the reduction temperature may be over 600 °C. Zielinski [26] attributed the peak existing between 300–500 °C to the reduction of nickel oxide which is not bound with the support, referring to it as “free” NiO, and the reduction peak existing between 500–800 °C to nickel that had already bound with the support forming NiAl₂O₄. In XRD patterns, the absence of SiO₂ or Al₂O₃ peaks indicate that both of them are in amorphous states in the sorbents. SiO₂ was used to dilute the effect of the formation of NiAl₂O₄. The reason behind this is possibly that SiO₂ has a dilution effect on the active sites of Al₂O₃. With an excess amount of SiO₂ loaded on the support, the acidity decreases as a result. This implies that SiO₂ could strengthen the adsorption of the sulfur compounds.

As is shown in Figure 2, Ni and Zn elements exist in the form of metallic oxides. The diffraction peaks (2θ = 43.2°, 75.5°) are attributed to NiO in fresh or reduced sorbents, confirming an existence of “free” nickel oxide. There is no evidence in the positions (2θ = 44.5°, 76.1°) where Ni locates.

According to this phenomenon, it seems that NiO may not be reduced to Ni under our experimental condition. Tang characterized reduced and unreduced NiO/ZnO sorbents by XRD in his survey and reached a similar conclusion [13]. Moreover, the result of Ryzhikov’s [18] research on the effect of hydrogen pretreatment on desulfurization shows that despite any improvement, such process of hydrogenation may lead to the formation of Ni-Zn alloys, which in some extend declines the sulfur removal ratio. Also, NiO should be considered as a probable active component.

2.3. EDS Results

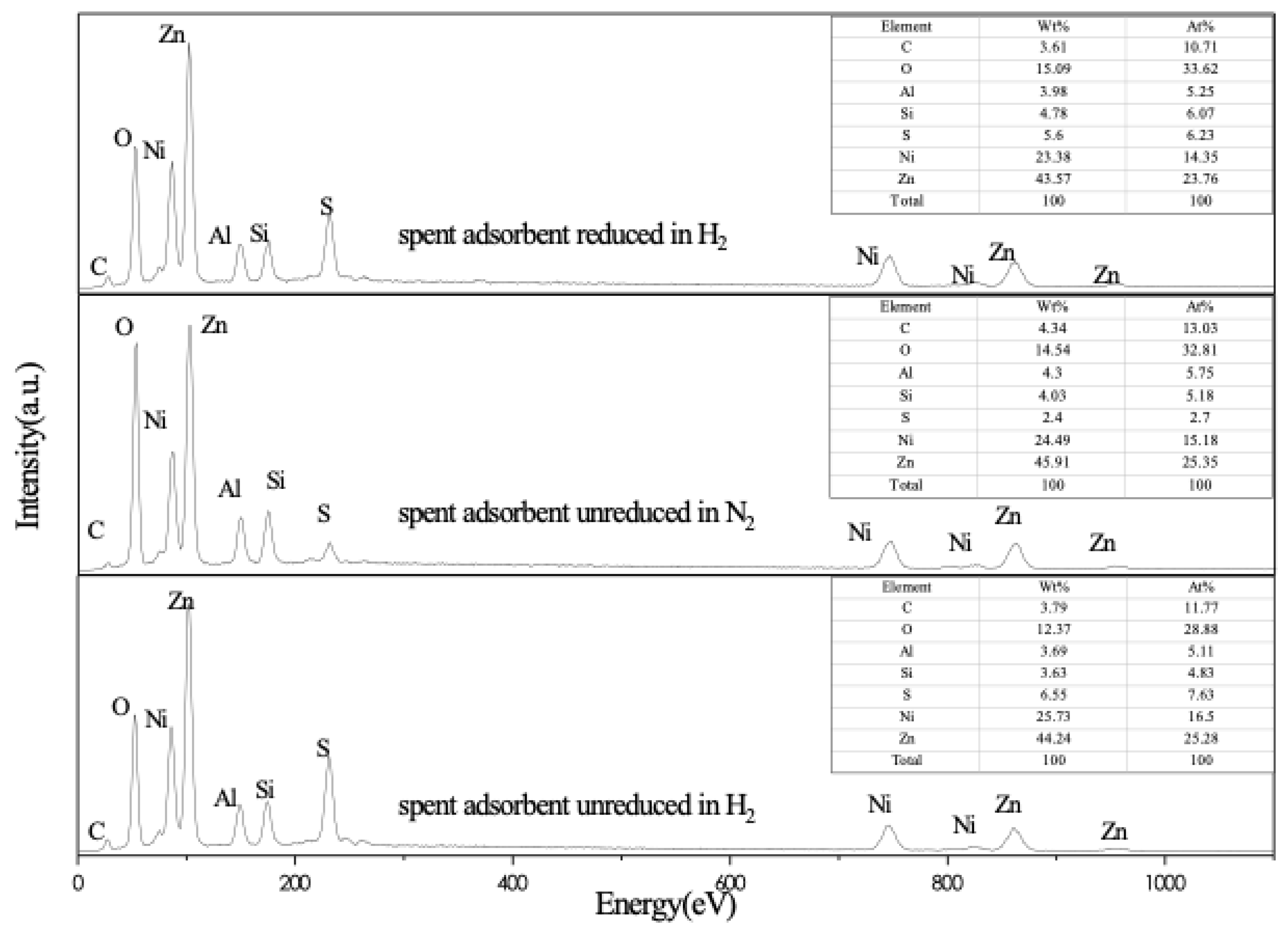

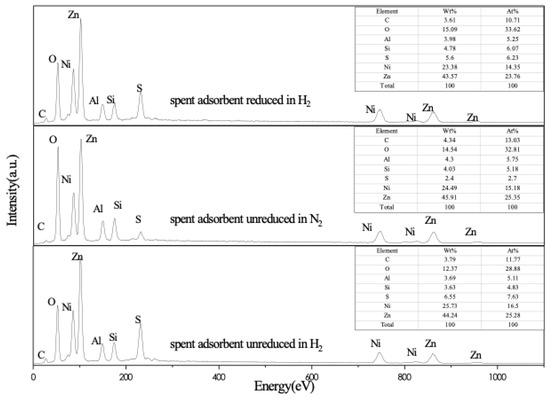

Figure 3 presents the EDS results by which we could investigate whether surface element distributions could be changed after reduction and desulfurization.

In Figure 3, the contents of sulfur increase by 6.55 wt% and 5.60 wt% on unreduced and reduced spent sorbents in hydrogen, respectively. Both of them are higher than that appeared of spent sorbent in nitrogen. This result matches well with the desulfurization effect shown in Figure 1. The contents of carbon increase by 4.34 wt% after the reaction on unreduced sorbents applied in N₂, slightly higher than 3.79 wt% and 3.61 wt% on unreduced and reduced sorbents in hydrogen. For one thing, this contrast means that hydrogen could obviously inhibit the formation of surface carbon. For another thing, hydrogen pretreatment may attribute nothing to promote the desulfurization ability of adsorbents.

2.4. H₂-Temperature Programmed Reduction (TPR) Characterization

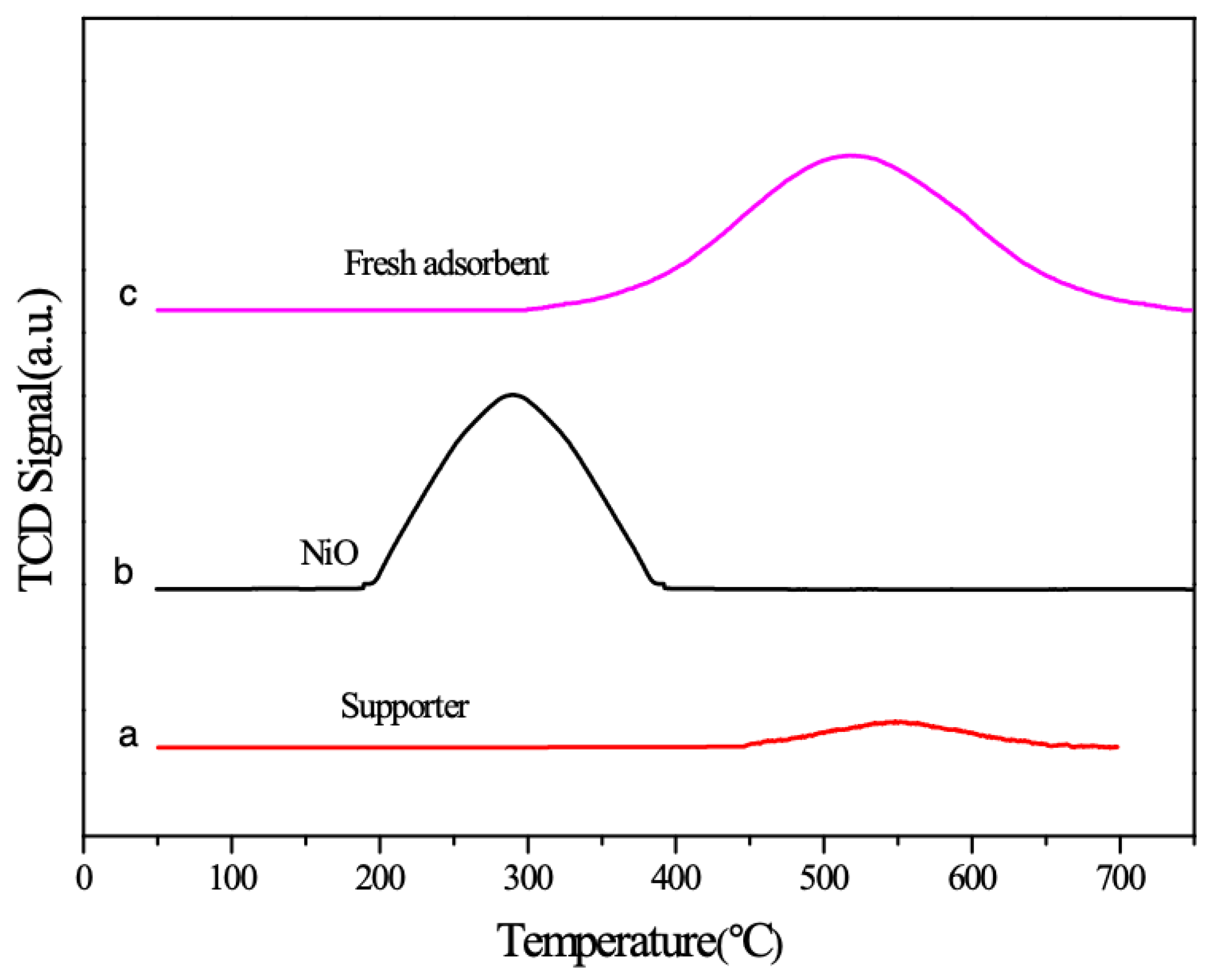

Figure 4 presents the H₂-TPR profiles of ZnO-Al₂O₃-SiO₂ support (a), NiO (b) and fresh adsorbent (c). The support has a very weak H₂ consumption signal at the temperature ranging from 450 to 650 °C. For NiO, there’s a sharp hydrogen consumption peak at about 290 °C. For the fresh adsorbent, the reduction peak of nickel oxide in NiO/ZnO-Al₂O₃-SiO₂ adsorbent is shifted to 520 °C. According to Tang’s research [13], the powerful metal–support interactions (SMSI) between nickel and zinc oxide particles of Ni/ZnO could raise the reduction temperature of nickel oxide in NiO/ZnO to 370 °C, implying that there is a powerful interaction between nickel oxide and the support. This probable interaction may make NiO much more difficult to be reduced. It can be inferred from the profiles that NiO contained in the fresh adsorbent seems unlikely to be reduced to Ni⁰ at 420 °C. Considering the excellent performance of desulfurization in our study, NiO may play the role of an active component in place of nickel.

2.5. X-Ray Photoelectron Spectroscopy (XPS) Characterization

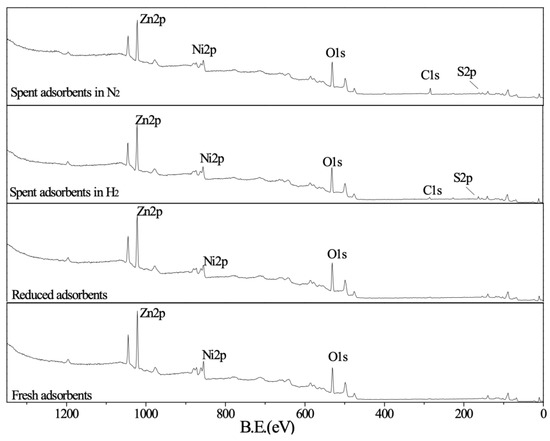

XPS spectra was adopted to characterize fresh, reduced and used adsorbents, shown in Figure 5. All XPS spectra were calibrated with the C1s peak at 285.4 eV [27]. According to Figure 5, zinc, nickel, and sulfur elements are at the 2p energy level. After the desulfurization, sulfur and carbon elements can be probed on the surface of adsorbents. It indicates that sulfur elements are adsorbed well and carbon deposits are generated on the surface of the adsorbents. For the adsorbents which have been used in nitrogen, the weak peak of sulfur shows the poor desulfurization performance in N₂.

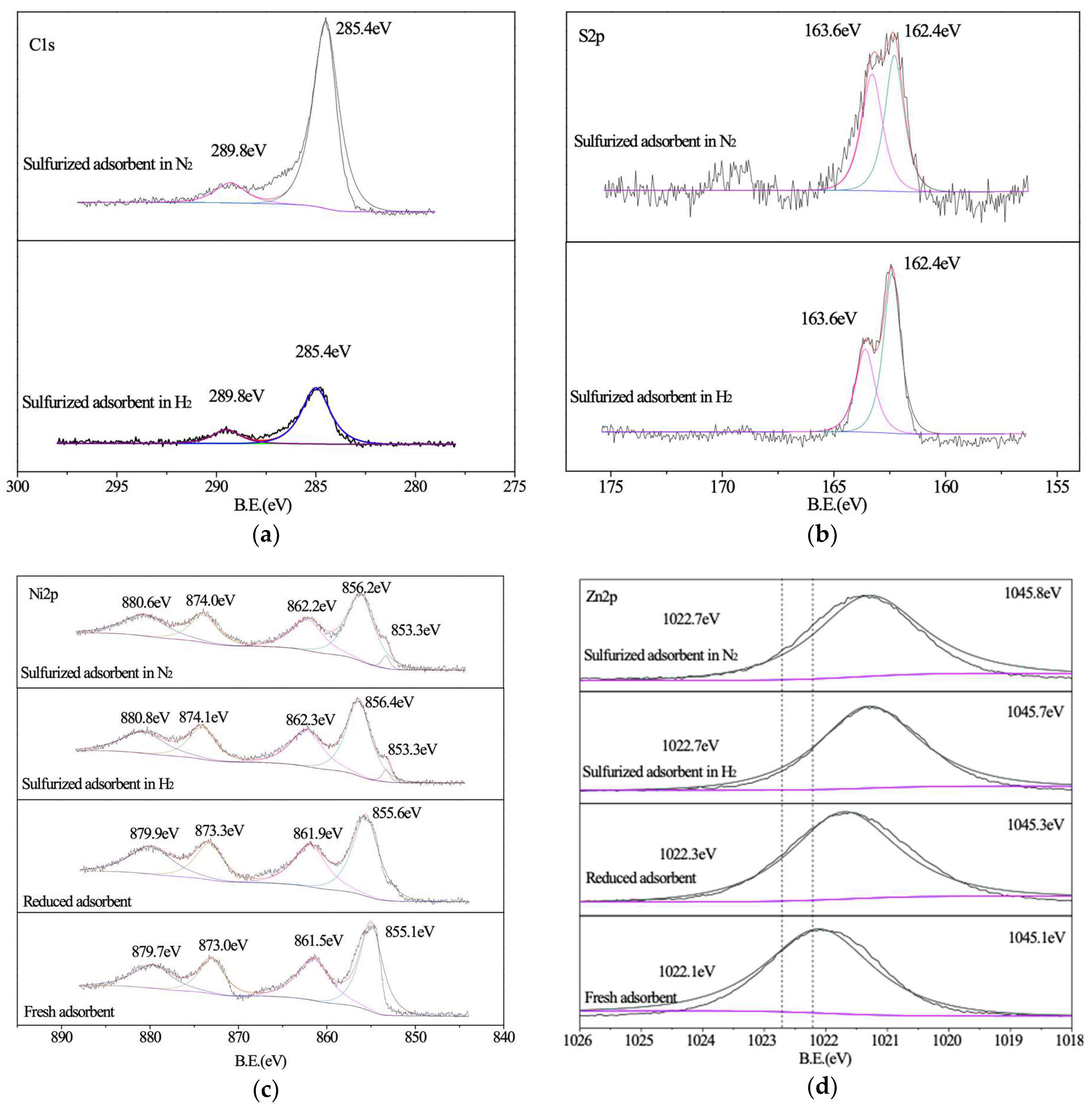

Narrow XPS spectra of sulfur, carbon, nickel, and zinc are shown in Figure 6. Figure 6a shows narrow XPS spectra of C1s. The C1s peaks of adsorbents after desulfurization are much stronger than the reduced adsorbent C1s peak, which indicates the formation of carbon deposits. However, compared with the peaks in Figure 5, the peak of C1s is not obvious. It means that there are not many carbon deposits on the surface, which is consistent with EDS results.

For Sulfur XPS spectra in Figure 6b, peaks of 162.4 eV and 163.6 eV are attributed to the peaks of S2p spectra of ZnS and NiS, respectively, which proves the existence of intermediate species NiSx [28,29]. According to Babich and Moulijin’s mechanism, the transient state NiSx will react with H₂ immediately, therefore, the peaks of NiSx cannot be detected in XRD results.

Normally, XPS spectra of Nickel-containing compounds consist of a main photo-peak as well as an associated satellite peak. The latter always locates at a binding energy which is 6 to 8 eV higher than the main peak. Figure 6c presents Ni2p3/2 photo-peaks of the Ni-containing compounds. In the figure, the Ni2p3/2 spectrum 852.5 (±0.2) eV of nickel metal is not detected for the four adsorbents [30]. This indicates that NiO is hard to be reduced by hydrogen. Peaks of 855.1 eV and 861.5 eV of the fresh adsorbents are attributed to the main peak and the satellite peak of the Ni2p3/2 spectra of NiO, respectively. The peaks centered at bind energy of 873.0 eV and 879.7 eV are attributed to Ni2p1/2 spectra of NiO [31]. In the XPS spectra of spent adsorbent, a peak at bind energy 853.3 eV appears after desulfurization in both nitrogen and hydrogen, corresponding to Ni in the sulfided form NiSx. Besides, small increments of binding energy of Ni2p3/2 photo-peaks are observed for the reduced and spent adsorbent. This suggests the enhancement of the chemical interaction between NiO and the support ZnO-Al₂O₃-SiO₂.

Figure 6d shows the Zn2p spectra of different adsorbents. The peak at bind energy of 1022.1 eV in fresh adsorbent is assigned to Zn2p3/2, and the peak at bind energy of 1045.25 eV is attributed to Zn2p1/2. After desulfurization, the bind energy of Zn 2p increases 1.2 eV, indicating that sulfur atom reacted with ZnO to form ZnS. Moreover, for S 2p spectra (Figure 5), the peak at 162.4 eV is attributed to ZnS group, also indicating sulfur atom transfers to ZnS from ZnO.

2.6. RADS Performance at Different Temperatures

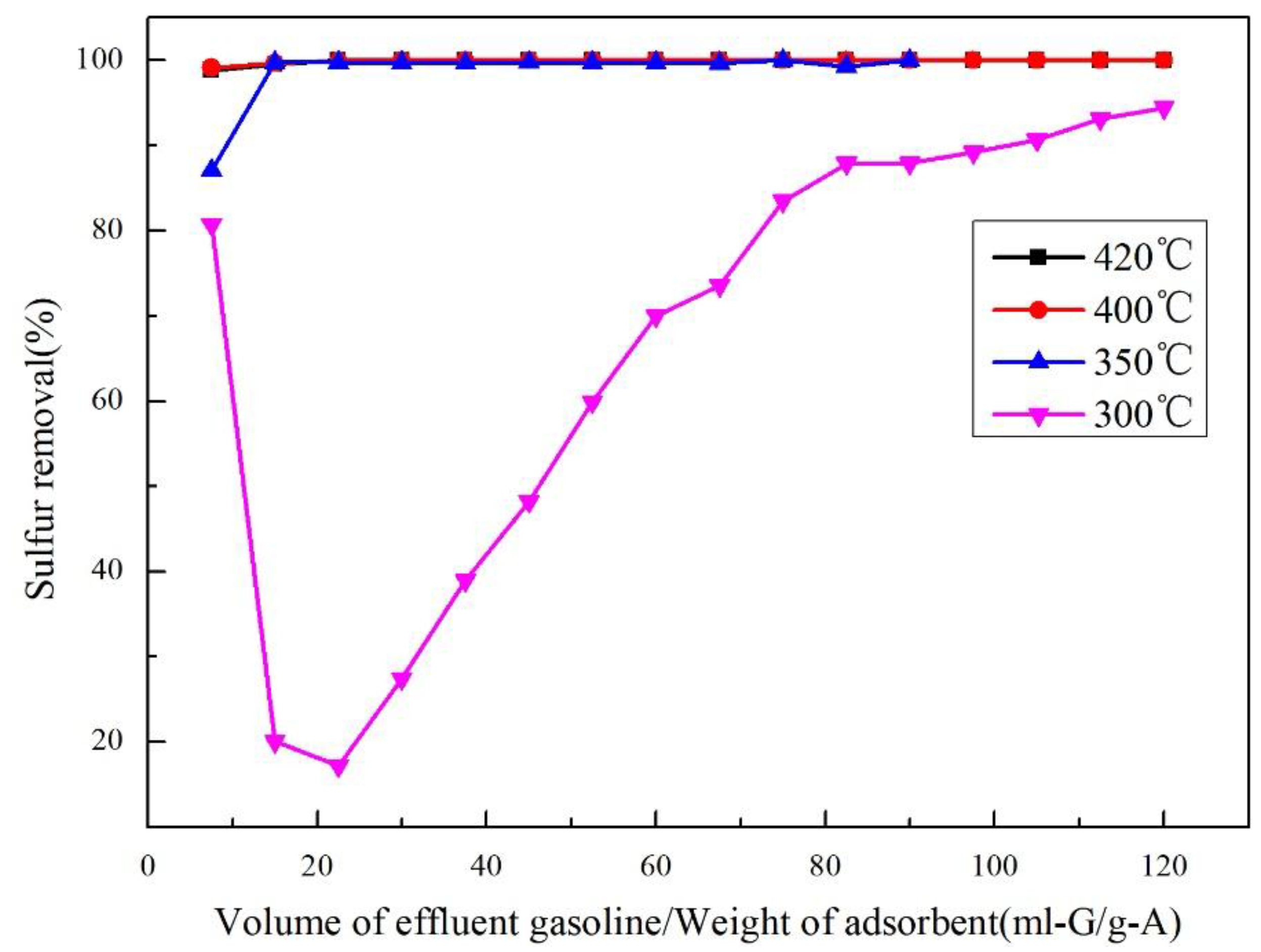

Figure 7 is a comparison of the desulfurization effects of unreduced adsorbents at 420 °C, 400 °C, 350 °C, and 300 °C. The former two reactions have little difference on sulfur removal rate from the beginning to the end, mainly because a 20 °C temperature difference does not impact RADS greatly. The reaction at 350 °C performs a reduction of sulfur removal at the beginning, and then keep a high sulfur removal rate as the former two reactions. It suggests that the reaction temperature may affect the activation of adsorbent at the beginning of RADS.

For the RADS process which happened at 300 °C, the curve decreases first and then increase. This special trend does not accord with the usual decreasing activity found in most of RADS processes. Especially, at 300 °C, the strong rising trend of desulfurization capacity is observed after the volume of feed reaching 22 mL-G/g-A. This phenomenon inspires us to design three experiments to pretreat the adsorbents used in the experiments at 300 °C.

2.7. Effects of Pretreatments on RADS Performance

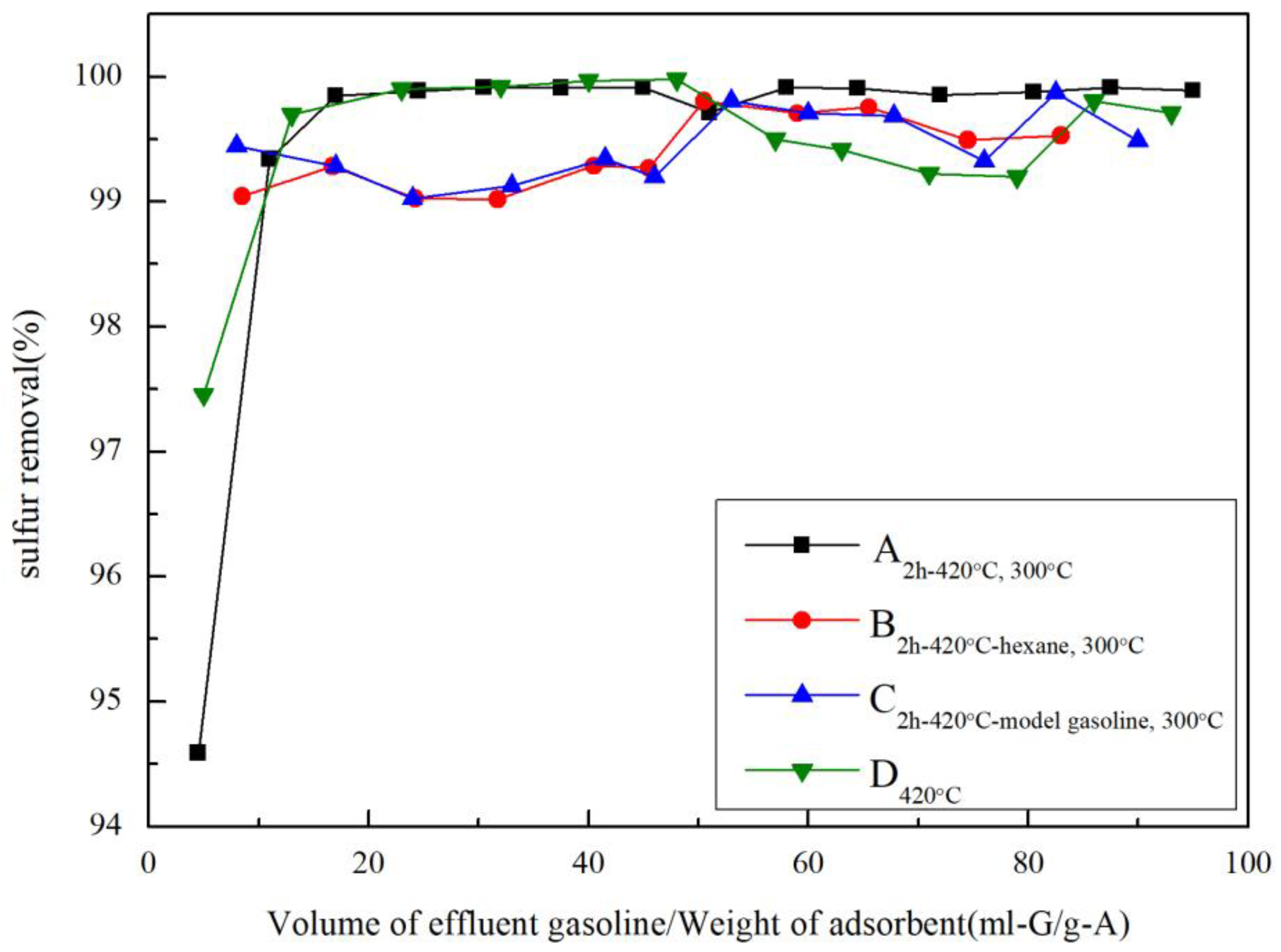

Figure 8 investigates the influence of different pretreatment methods of adsorbent on sulfur removal at 300 °C. Different pretreatment methods were compared to each other. For example, the black line (case A) presents the sulfur removal of the adsorbent pretreated in H₂ for 2 h at 420 °C in advance. The red line (case B) is the sulfur removal of the adsorbent pretreated in H₂ along with n-hexane at 420 °C for 2 h. The blue line (case C) means the adsorbent was pretreated for 2 h in H₂ along with model gasoline at 420 °C for 2 h.

In Figure 8, some differences on the initial sulfur removal of various pretreated adsorbents are observed. The process of reaction can be divided into two parts at the point 8 mL-G/g-A. During the part after this point, there seems no difference in the sulfur removal capacity between the pretreated adsorbents adopted in case A, B, C, and adsorbents without any pretreatment in case D. Compared the sulfur removal rate of adsorbents without pretreatment at 300 °C shown in Figure 7 with the desulfurization performance of case A at the same reaction temperature, a positive effect of pretreatment in hydrogen for 2 h on sulfur removal should be convincing. However, during the process before the feed reaching 10 mL-G/g-A, the sulfur removal rate indicated by the curve of case A is slightly lower compared with which of case D. Interestingly, with the participation of n-hexane during the process of pretreatment, the drop of sulfur removal at the beginning of RADS that occurs in case A disappears in case B and C. The function of n-hexane is considered while discussing the various results of different types of pretreatments in case A, B, and C at the beginning of the process. It is assumed that n-hexane reacts with the adsorbent, during which some carbon-metal bond is formed. This type of bond may promote the electric charge transfer on the surface of adsorbent. As a result, the desulfurization capacity of the adsorbent is enhanced regardless of the much lower reaction temperature.

From the analyses above, it can be concluded that the participation of hydrogen and n-hexane during the process of pretreatment conducted at 420 °C both contribute to the improvement on sulfur removal rate under the reaction temperature of 300 °C. The activation mechanism of the pretreatments on adsorbents will be researched in our future work.

3. Materials and Methods

3.1. Adsorbent Preparation and Feedstock Properties

All chemicals used for preparation of adsorbents are of analytical grade. In this study, the feedstock is prepared by adding thiophene to sulfur-free n-hexane with a sulfur concentration of 800 ppmw. The support ZnO-Al₂O₃-SiO₂ was prepared by the co-precipitation method. A mixed solution of Al(NO₃)₃·9H₂O and Zn(NO₃)₂·6H₂O is added into a mixed solution of Na₂SiO₃·9H₂O (0.2 mol/L) and Na₂CO₃ (0.2 mol/L) at a rate of 15 mL/min under 20 °C, followed by aging in the same environment for 2 h. In the first 50 min of the aging process, the supernatant is replaced with the same volume of water. After filtration treatment, about 3.5 L of deionized water is used to wash the precipitation until the pH of suspension ranges from 5.5 to 6.0. Then the residue will be dried at 120 °C in atmosphere for 12 h, followed by calcination at some temperature in a muffle roaster for 4 h. The preparation of support ZnO-Al₂O₃-SiO₂ is finished.

Solutions of Ni(NO₃)₂ were mixed with the above support and stirred for two hours. And then, a solution of anhydrous sodium (0.2 mol/L) was added into the mixed solution at a rate of 15 mL/min under 20 °C. Then an excessive dose of Na₂CO₃ was added into the solution which converted Ni²⁺ into corresponding deposits followed by a two-hour stirring. Next the emulsion was filtrated with deionized water until the filter liquid displayed as neutral. The filter cake left was dried at 120 °C before calcinated in a muffle oven at 500 °C for 2 h. After cooling to the normal temperature, the filter cake was ground to 120 mesh. Finally, the preparation of adsorbents was finished.

3.2. Characterization of Adsorbents

A Bruker D8 Advance X-ray diffractometer (Bruker, Karlsruhe, Germany) is used to characterize the crystalline structures of the adsorbents through X-ray diffraction (XRD) with a Cu Kα = 0.154 nm monochromatized radiation source, operating at 40 kV and 100 mA. Autochem II 2920 (Micromeritics, Norcross, GA, USA) is used to detect the Temperature programmed reduction (TPR) of adsorbents. And the multi-function photoelectron spectrometer (ESCALAB 250Xi) (Thermo Fisher Scientific, Waltham, MA, USA) is deployed to characterize the X-ray photoelectron spectroscopy (XPS). An EDXA energy dispersive spectrometer (EDS) (EDAX Inc., Mahwah, MA, USA) is used to characterize the elements distributions of adsorbents.

3.3. Sulfur Adsorption Experiments

The desulfurization experiments were carried out in a continuous micro fixed-bed reactor [22,23,24]. A total of 3 g of adsorbent in the oxidized form was loaded into the reactor per run. The sorbent was reduced by hydrogen at a flow rate of 140 mL/min under 2.0 MPa and 440 °C for 2 h followed by the pumping of the model fuel. The desulfurization products were collected periodically in a beaker to analyze sulfur content. The various experimental conditions are showed in

Table 1. Experimental conditions of desulfurization process.

Reduction		Temp. /°C	440
		Hydrogen pressure/MPa	2.0
		Reduction time/h	2
Adsoption desulfurization	In H2	Temp. /°C	300, 350, 400, 420
		Hydrogen pressure/MPa	2.9
		Weight hourly space velocity (WHSV)/h−1	9.9
		H2 volume/Gasoline weight (mL/g)	70
	In N2	Temp. /°C	420
		Nitrogen pressure/MPa	2.9
		Weight hourly space velocity (WHSV)/h−1	9.9
		N2 volume/Gasoline weight (mL/g)	70

.

The sulfur removal efficiency is defined as the following equation [32]:

$$R_{\mathrm{s}}(\%)=\frac{C_0-C_t}{C_0}\times 100$$

(1)

where R_s is the sulfur removal efficiency in the fuel (%), C₀ is the sulfur concentration of feedstock (μg/g), C_t is the sulfur content of product at any time (μg/g).

The sulfur concentrations of model gasoline are characterized by an Antek 9000 total sulfur analyzer (Antek, North Arlington, TX, USA).

4. Conclusions

The RADS process was conducted over the NiO/ZnO-Al₂O₃-SiO₂ sorbent, and the effect of reaction atmospheres are discussed and compared. The RADS process could happen in N₂ without the presence of H₂, which proves that NiO performs as an active RADS component. XRD, TPR, and XPS results showed that strong metal–support interactions between NiO and the support are formed. This makes NiO more difficult to be reduced. The desulfurization performance of the adsorbent at 300 °C indicated that NiO could also perform a good desulfurization ability, and the formation of NiSx may promote the desulfurization process on the surface of the adsorbent. At last, the activation performances of different pretreatment on RADS process were evaluated. The participation of hydrogen and n-hexane in pretreatment conducted at 420 °C could active the adsorbent in the beginning of RADS and improve the sulfur removal rate under the reaction temperature of 300 °C.
