Catalysts 2018, 8(3), 115; https://doi.org/10.3390/catal8030115

Article
Solvent-Free Mizoroki-Heck Reaction Applied to the Synthesis of Abscisic Acid and Some Derivatives
Institut de Chimie Organique et Analytique (ICOA), Université d’Orléans UMR CNRS 7311, BP 6759, rue de Chartres, 45067 Orleans CEDEX 2, France
*
Author to whom correspondence should be addressed.
Received: 28 February 2018 / Accepted: 13 March 2018 / Published: 15 March 2018

Abstract

:
Abscisic acid (ABA) is a natural product, which is a well-known phytohormone. However, this molecule has recently exhibited interesting biological activities, emphasizing the need for a simple and direct access to new analogues based on the ABA framework. Our strategy relies on a pallado-catalyzed Mizoroki-Heck cross-coupling as key reaction performed in solvent and ligand free conditions. After a careful optimization, we succeeded in accessing various (E/Z)-dienes and (E/E/Z)-trienes in moderate to good yields without isomerization and applied the same approach to the synthesis of ABA in an environmentally sound manner.
Keywords:
Mizoroki-Heck; abscisic acid; solvent-free

1. Introduction

Polyenic scaffolds constitute an important functionality among organic compounds and have a high synthetic interest since medicinally relevant molecules and natural products exhibit diene fragments (Figure 1) [1].
Several synthetic methods have therefore been developed to obtain these carotenoid moieties in iterative process or in convergent methods [2]. Traditionally, the olefination reaction was extensively used. However, it is often associated with the uncontrolled production of E and Z isomers which may require careful purification [3]. Then transition metal-catalyzed cross-coupling reactions galvanized the synthesis of these complex conjugated molecules. Catalysts such as ruthenium [4], zirconium [5,6,7], zinc [8] and nickel [9] were successfully used. The use of palladium has been widely reported with Negishi [10,11], Stille [12,13,14,15], Suzuki-Miyaura [16,17,18], Sonogashira [19], Kumada-Tamao [20] and Mizoroki-Heck [21,22,23,24,25] cross-coupling reactions [26,27,28]. Lately, the use of single unsaturated units as building blocks was promoted to respond to the challenging but crucial control of the configuration of the double bond generated [29,30,31,32,33]. In our effort to develop environmentally benign tools [34,35,36], we herein report the use of the Mizoroki-Heck reaction, which requires simple and directly accessible starting materials to build stereocontrolled dienes and trienes. Unlike other cross-coupling approaches, which may require several steps to install the pre-activated partners, the Mizoroki-Heck reaction enables the direct formation of dienes from terminal olefin substrates. The efficiency of our method was then evaluated in the synthesis of abscisic acid, an important phytohormone [37,38,39,40,41,42,43] which has been recently reported to have interesting biological effects [44,45].

2. Results and Discussion

2.1. Optimization of the Mizoroki-Heck Reaction

To achieve the optimized conditions, the cross-coupling reaction of 1-ethenyl-3-methylcyclohex-2-en-1-ol 1 with methyl (2Z)-3-iodobut-2-enoate 2 was selected as the model reaction under the standard conditions previously described by Cossy and co-workers (Table 1, entry 1) [46]. Surprisingly, only degradation was observed. Since conjugated products are prompted to make versatile rearrangement [47,48], the reaction was next performed in a flask protected from natural light. A small amount of the expected product 3a was isolated along with the side product 4 (entry 2). The formation of 4 can be explained by a 1,3-rearrangement of the allylic alcohol, a transformation previously described by Qu and co-workers under a thermal activation in water [48]. The use of acetonitrile moreover of an additional ligand induced no positive change (entries 3 and 4) [49]. However, a significant improvement was obtained by replacing silver acetate by silver carbonate and 1.5 equiv. of silver carbonate proved to be the optimized amount (entries 5–7). A moderate heating is recommended since the formation of 3a was significantly reduced at 80 °C.
Next, neat conditions were tried, and even if the reaction mixture was a thick paste, the expected product 3a was isolated in similar yield (63%) in a considerably shorter time (1 h vs. 17 h). To the best of our knowledge, this is the first example of neat Mizoroki-Heck reaction for the formation of dienes. The vinylation of acrylic substrates has been already reported in solvent-free conditions but it usually requires the use of a ligand, palladium supported catalyst, palladium nanocatalyst or microwave activation [50,51,52,53,54,55,56,57]. Finally, 2 was introduced in excess, in one portion or in sequential addition, without improving the yield (entries 10 and 11). Hence the optimized reaction conditions were as follows: in a flask protected from light, 1 (1.2 equiv.) and 2 (1 equiv.) in presence of Pd(OAc)2 (5 mol %) and Ag2CO3 (1.5 equiv.) at 50 °C for 1 h. It should be noted that working under an inert atmosphere did not improve the yield of the products 3a and 4 (entry 12).

2.2. Substrate Scope

A diversity of terminal olefin substrates was tested in the coupling reaction with methyl (2Z)-3-iodobut-2-enoate 2. The results are reported in Scheme 1. Various allylic cyclohexenols and cyclohexanols were examined and the expected dienes were obtained in moderate to good yields 3a3f. The presence of an unsaturation and/or different methyl substituents on the ring had little influence on the efficiency of the reaction. The variation of the yield observed was more substrate-dependent since 3c and 3d appeared to be very unstable and degraded spontaneously if not stored at low temperature in dark conditions. For these compounds, the reaction was tried at room temperature; however, the cross-coupling reaction failed completely. The stability issue was even more pronounced for 1-ethenylcyclopentan-1-ol, since its formation from cyclopentanone was difficult. The cross-coupling reaction was performed on the crude starting material, which could explain the low yield observed. Surprisingly, the resulting product 3g was completely bench stable. Satisfyingly, sterically hindered secondary alcohols 3h and sensitive tertiary alcohols (3a3g) were well tolerated under our optimized conditions. Even the volatile ethenylcyclohexane, which required working in a sealed tube, and the unstable styrene led to the corresponding dienes 3i and 3j in 42% and 78% yields. It is worth noting that all the coupling products were obtained as pure (E,Z)-dienes. The configuration of the diene was confirmed by 1H NMR (Supplementary Materials: Figure S1). The chemical shift of the hydrogen alpha to the ester moiety is in accordance with the values reported in the literature for a (E/Z)-diene, around 5.5 ppm (vs. 6.0 ppm for a E/E fragment) [58].
Finally, different vinylic iodides were submitted to our solvent-free Mizoroki-Heck conditions. (2Z)-3-iodobut-2-enenitrile 2a, Methyl (2Z)-3-iodoacrylate 2b, and 4-nitrophenyl(2Z)-3-iodobut-2-enoate 2c were successfully introduced on 1-ethenyl-3-methylcyclohex-2-en-1-ol 1 leading to expected compounds (3k3m). Compound 3k appeared to be more sensitive to degradation than 3a, but the (E,Z) configuration remained unchanged. The reaction conditions were then extended to the formation of (E,E,Z) tertiary trienol 3n, using Methyl (2Z,4E)-5-iodo-3-methylpenta-2,4-dienoate (2e), which was isolated in 56% yield.

2.3. Synthesis of ABA

Having a method to obtain the diene scaffold in hand, we focused on the synthesis of abscisic acid (ABA). Several syntheses have already been reported in the literature [59,60,61]. Most of them are based on the introduction of the carbon skeleton of the side chain via the corresponding alkyne in one step [62,63,64,65] or with trimethylsilylacetylene [66,67], which is then functionalized by a Sonogashira reaction (Scheme 2). Our strategy requires a reduction step to obtain the final (E,Z) diene fragment. Our approach is based on the introduction of the side chain with our solvent-free Mizoroki-Heck reaction between methyl (2Z)-3-iodobut-2-enoate 2 and 7. Our key cross-coupling precursor was straightforwardly obtained from the commercially available 2,6,6-trimethylcyclohex-2-ene-1,4-dione 5.
First, the mono protection of the diketone 5 was tried following the conditions described by Ferrer and co-workers (Scheme 3) [68]. (S,S)-hydrobenzoin, our chiral auxiliary, was heated in presence of a catalytic amount of pTsOH in benzene. However only the degradation of the hydrobenzoin into benzaldehyde was observed. We then decided to use pyridinium p-toluenesulfonate (PPTS), which is a milder acidic catalyst [69].
This time, in benzene the desired product 6 was isolated after 5 days in a promising 24% yield. A survey of different solvents was made and fortunately, the environmentally sound cyclohexane significantly improved the yield and the reaction time since 6 was obtained in 96% yield after 18 h. Next, the Grignard reaction with an excess of vinylmagnesium bromide gave quantitatively 7 as a mixture of inseparable diastereoisomers. The R/S ratio of the newly formed center was determined by HPLC. Disappointingly, working at a lower temperature (−20 °C or −78 °C) did not improve this ratio much while it considerably reduced the formation of 7. Nevertheless, our key step was performed on the mixture of both isomers and the expected (E/Z)-diene 8 was isolated in 96% yield without racemization, the R/S ratio remained unchanged during the formation of the diene 8. A saponification followed by an acidic treatment enabled the formation of abscisic acid with the same R/S ration and therefore enantiomerically enriched in its S isomer. The final product was synthetized in four steps from 5 in 54% global yields.

3. Conclusions

To conclude, we managed to develop an efficient, environmentally sound method to synthetize delicate dienes and trienes via a Mizoroki-Heck reaction. The configuration of the double bonds was controlled, and no isomerization was observed. The salient features of our approach are the association of simple terminal olefins with various vinylic iodides, palladium acetate under air without any ligand or solvent. Our optimized solvent-free Mizoroki-Heck reaction was next successfully applied to the synthesis of ABA. This method offers a short new pathway where solvents and reagents were chosen to give an environmentally friendlier alternative to the synthesis already available in the literature.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/8/3/115/s1, Figure S1: 1H NMR and 13C NMR Spectra of all compounds.

Acknowledgments

We acknowledge the Region Centre for financial support.

Author Contributions

Sabine Berteina-Raboin conceived and designed the experiments. Geoffrey Dumonteil performed the experiments. Geoffrey Dumonteil, Marie-Aude Hiebel and Sabine Berteina-Raboin analyzed the data and wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hopf, H.; Maas, G. Synthesis and Transformation of Radialenes. In The Chemistry of Dienes and Polyenes, Vol. 1; Rappoport, Z., Ed.; Wiley: Chichester, UK, 1997; ISBN 978-0-471-96512-1. [Google Scholar]
  2. De Paolis, M.; Chataigner, I.; Maddaluno, J. Recent advances in stereoselective synthesis of 1,3-dienes. Top. Curr. Chem. 2012, 327, 87–146. [Google Scholar] [CrossRef]
  3. Takeda, T. (Ed.) Modern Carbonyl Olefination: Methods and Applications; Wiley-VCH: Weinheim, Germany, 2004; ISBN 978-3-527-60538-5. [Google Scholar]
  4. Grubbs, R.H. (Ed.) Handbook of Metathesis, Vol. 1; Wiley-VCH: Weinheim, Germany, 2003; ISBN 978-3-527-30616-9. [Google Scholar]
  5. Van Horn, D.E.; Negishi, E. Selective carbon-carbon bond formation via transition metal catalysts. 8. Controlled carbometalation. Reaction of acetylenes with organoalane-zirconocene dichloride complexes as a route to stereo- and regio-defined trisubstituted olefins. J. Am. Chem. Soc. 1978, 100, 2252–2254. [Google Scholar] [CrossRef]
  6. Negishi, E. Bimetallic catalytic systems containing Ti, Zr, Ni, and Pd. Their applications to selective organic syntheses. Pure Appl. Chem. 1981, 53, 2333–2356. [Google Scholar] [CrossRef]
  7. Negishi, E.; Van Horn, D.E.; Yoshida, T. Controlled carbometalation. 20. Carbometalation reaction of alkynes with organoalene-zirconocene derivatives as a route to stereo-and regiodefined trisubstituted alkenes. J. Am. Chem. Soc. 1985, 107, 6639–6647. [Google Scholar] [CrossRef]
  8. Robinson, C.Y.; Brouilllette, W.J.; Muccio, D.D. Reactions of vinylogous phosphonate carbanions and Reformatskii reagents with a sterically hindered ketone and enone. J. Org. Chem. 1989, 54, 1992–1997. [Google Scholar] [CrossRef]
  9. Horie, H.; Kurahashi, T.; Matsubara, S. Selective synthesis of trienes and dienes via nickel-catalyzed intermolecular cotrimerization of acrylates and alkynes. Chem. Commun. 2010, 46, 7229–7231. [Google Scholar] [CrossRef] [PubMed]
  10. Negishi, E.; Okukado, N.; King, A.O.; Van Horn, D.E.; Spiegel, B.I. Selective carbon-carbon bond formation via transition metal catalysts. 9. Double metal catalysis in the cross-coupling reaction and its application to the stereo- and regioselective synthesis of trisubstituted olefins. J. Am. Chem. Soc. 1978, 100, 2254–2256. [Google Scholar] [CrossRef]
  11. Negishi, E.; Hu, Q.; Wang, Z.; Yin, N. The Chemistry of Organozinc Compounds; Rappoport, Z., Marek, I., Eds.; John Wiley & Sons, Ltd.: Chichester, UK, 2006; Chapter 11; p. 453. ISBN 978-0-470-09339-9. [Google Scholar]
  12. Stille, J.K.; Milstein, D. A general, selective, and facile method for ketone synthesis from acid chlorides and organotin compounds catalyzed by palladium. J. Am. Chem. Soc. 1978, 100, 3636–6638. [Google Scholar] [CrossRef]
  13. Stille, J.K. The Palladium-Catalyzed Cross-Coupling Reactions of Organotin Reagents with Organic Electrophiles. Angew. Chem. Int. Ed. Engl. 1986, 25, 508–524. [Google Scholar] [CrossRef]
  14. Farina, V. New perspectives in the cross-coupling reactions of organostannanes. Pure Appl. Chem. 1996, 68, 73–78. [Google Scholar] [CrossRef]
  15. Farina, V.; Krishnamurthy, V.; Scott, W.J. The Stille Reaction. Org. React. 1997, 50. [Google Scholar] [CrossRef]
  16. Miyaura, N.; Suzuki, A. Palladium-Catalyzed Cross-Coupling Reactions of Organoboron Compounds. Chem. Rev. 1995, 95, 2457–2483. [Google Scholar] [CrossRef]
  17. Stanforth, S.P. Catalytic cross-coupling reactions in biaryl synthesis. Tetrahedron 1998, 54, 263–303. [Google Scholar] [CrossRef]
  18. Suzuki, A. Recent advances in the cross-coupling reactions of organoboron derivatives with organic electrophiles 1995–1998. J. Organomet. Chem. 1999, 576, 147–168. [Google Scholar] [CrossRef]
  19. Kotovshchikov, Y.N.; Latyshev, G.V.; Lukashev, N.V.; Beletskaya, I.P. Alkynylation of steroids via Pd-free Sonogashira coupling. Org. Biomol. Chem. 2015, 13, 5542–5555. [Google Scholar] [CrossRef] [PubMed]
  20. Murahashi, S.-I. Palladium-catalyzed cross-coupling reaction of organic halides with Grignard reagents, organolithium compounds and heteroatom nucleophiles. J. Organomet. Chem. 2002, 653, 27–33. [Google Scholar] [CrossRef]
  21. Dounay, A.B.; Overman, L.E. The Asymmetric Intramolecular Heck Reaction in Natural Product Total Synthesis. Chem. Rev. 2003, 103, 2945–2964. [Google Scholar] [CrossRef] [PubMed]
  22. Bräse, S.; De Meijeren, F. Metal-Catalyzed Cross-Coupling Reactions; De Meijere, A., Diederich, F., Eds.; Wiley-VCH: New York, NY, USA, 2004; Chapter 5; ISBN 978-3-527-61953-5. [Google Scholar]
  23. Fayol, A.; Fang, Y.-Q.; Lautens, M. Synthesis of 2-Vinylic Indoles and Derivatives via a Pd-Catalyzed Tandem Coupling Reaction. Org. Lett. 2006, 8, 4203–4206. [Google Scholar] [CrossRef] [PubMed]
  24. Battace, A.; Zair, T.; Doucet, H.; Santelli, M. Heck Vinylations Using Vinyl Sulfide, Vinyl Sulfoxide, Vinyl Sulfone, or Vinyl Sulfonate Derivatives and Aryl Bromides Catalyzed by a Palladium Complex Derived from a Tetraphosphine. Synthesis 2006, 20, 3495–3505. [Google Scholar] [CrossRef]
  25. McConville, M.; Saidi, O.; Blacker, J.; Xiao, J. Regioselective Heck Vinylation of Electron-Rich Olefins with Vinyl Halides: Is the Neutral Pathway in Operation? J. Org. Chem. 2009, 74, 2692–2698. [Google Scholar] [CrossRef] [PubMed]
  26. Hartwig, J.F. Handbook of Organopalladium Chemistry for Organic Synthesis; Negishi, E., Ed.; Wiley: Chichester, UK, 2002; ISBN 978-0-47-121246-1. [Google Scholar]
  27. Beletskaya, I.P.; Cheprakov, A.V. Comprehensive Coordination Chemistry II; McCleverty, J.A., Meyer, T.J., Eds.; Wiley-VCH: Weinheim, UK, 2004; ISBN 978-0-080-91316-2. [Google Scholar]
  28. Wang, K.; Chen, S.; Zhang, H.; Xu, S.; Ye, F.; Zhanga, Y.; Wang, J. Pd(0)-catalyzed cross-coupling of allyl halides with α-diazocarbonyl compounds or N-mesylhydrazones: Synthesis of 1,3-diene compounds. Org. Biomol. Chem. 2016, 14, 3809–3820. [Google Scholar] [CrossRef] [PubMed]
  29. O’Nei, G.W.; Phillips, A.J. Total Synthesis of (−)-Dictyostatin. J. Am. Chem. Soc. 2006, 128, 5340–5341. [Google Scholar] [CrossRef] [PubMed]
  30. Negishi, E.; Wang, G.; Rao, H.; Xu, Z. Alkyne Elementometalation-Pd-Catalyzed Cross-Coupling. Toward Synthesis of All Conceivable Types of Acyclic Alkenes in High Yields, Efficiently, Selectively, Economically, and Safely: “Green” Way. J. Org. Chem. 2010, 75, 3151–3182. [Google Scholar] [CrossRef] [PubMed]
  31. Eto, K.; Yoshino, M.; Takahashi, K.; Ishihara, J.; Hatakeyama, S. Total Synthesis of Oxazolomycin A. Org. Lett. 2011, 13, 5398–5401. [Google Scholar] [CrossRef] [PubMed]
  32. Schmidt, B.; Kunz, O. One-Flask Tethered Ring Closing Metathesis–Electrocyclic Ring Opening for the Highly Stereoselective Synthesis of Conjugated Z/E-Dienes. Eur. J. Org. Chem. 2012, 5, 1008–1018. [Google Scholar] [CrossRef]
  33. Souris, C.; Frébault, F.; Patel, A.; Audisio, D.; Houk, K.N.; Maulide, N. Stereoselective Synthesis of Dienyl-Carboxylate Building Blocks: Formal Synthesis of Inthomycin C. Org. Lett. 2013, 15, 3242–3245. [Google Scholar] [CrossRef] [PubMed]
  34. Hiebel, M.-A.; Fall, Y.; Scherrmann, M.-C.; Berteina-Raboin, S. Straightforward Synthesis of Various 2,3-Diarylimidazo[1,2-a]pyridines in PEG400 Medium through One-Pot Condensation and C–H Arylation. Eur. J. Org. Chem. 2014, 21, 4643–4650. [Google Scholar] [CrossRef]
  35. Hiebel, M.-A.; Berteina-Raboin, S. Iodine-catalyzed regioselective sulfenylation of imidazoheterocycles in PEG400. Green Chem. 2015, 17, 937–944. [Google Scholar] [CrossRef]
  36. Tber, Z.; Hiebel, M.-A.; Akssira, M.; Guillaumet, G.; Berteina-Raboin, S. Use of Ligand-Free Iron/Copper Cocatalyst for Nitrogen and Sulfur Cross-Coupling Reaction with 6-Iodoimidazo[1,2-a]pyridine. Synthesis 2015, 47, 1780–1790. [Google Scholar] [CrossRef]
  37. Addicott, F.T.; Carns, H.R. Abscisic Acids; Addicott, F.T., Ed.; Praeger: New York, NY, USA, 1983; Chapter 1. [Google Scholar]
  38. Finkelstein, R.F.; Tenbarge, K.M.; Shumway, J.E.; Crunch, M.L. Role of ABA in Maturation of Rapeseed Embryos. Plant Physiol. 1985, 78, 630–636. [Google Scholar] [CrossRef] [PubMed]
  39. Léon-Kloosterziel, K.M.; Van de Bunt, G.A.; Zeevaart, J.A.D.; Koornneef, M. Arabidopsis Mutants with a Reduced Seed Dormancy. Plant Physiol. 1996, 110, 233–240. [Google Scholar] [CrossRef] [PubMed]
  40. Shinozaki, K.; Yamaguchi-Shinozaki, K. Molecular responses to dehydration and low temperature: Differences and cross-talk between two stress signaling pathways. Curr. Opin. Plant. Biol. 2000, 3, 217–223. [Google Scholar] [CrossRef]
  41. Himmelbach, A.; Yang, Y.; Grill, E. Relay and control of abscisic acid signaling. Curr. Opin. Plant. Biol. 2003, 6, 470–479. [Google Scholar] [CrossRef]
  42. Nambara, E.; Marion-Poll, A. Abscisic acid biosynthesis and catabolism. Annu. Rev. Plant. Biol. 2005, 56, 165–186. [Google Scholar] [CrossRef] [PubMed]
  43. Todoroki, Y.; Narita, K.; Muramatsu, T.; Shimamura, H.; Ohnishi, T.; Mizutani, M.; Ueno, K.; Hirai, N. Synthesis and biological activity of amino acid conjugates of abscisic acid. Bioorg. Med. Chem. 2011, 19, 1743–1750. [Google Scholar] [CrossRef] [PubMed]
  44. Guri, A.J.; Hontecillas, R.; Si, H.; Liu, D.; Bassaganya-Riera, J. Dietary abscisic acid ameliorates glucose tolerance and obesity-related inflammation in db/db mice fed high-fat diets. Clin. Nutr. 2007, 26, 107–116. [Google Scholar] [CrossRef] [PubMed]
  45. Bellotti, M.; Salis, A.; Grozio, A.; Damonte, G.; Vigliarolo, T.; Galatini, A.; Zocchi, E.; Benatti, U.; Millo, E. Synthesis, structural characterization and effect on human granulocyte intracellular cAMP levels of abscisic acid analogs. Bioorg. Med. Chem. 2015, 23, 22–32. [Google Scholar] [CrossRef] [PubMed]
  46. Brandt, D.; Bellosta, V.; Cossy, J. Stereoselective Synthesis of Conjugated Trienols from Allylic Alcohols and 1-Iodo-1,3-dienes. Org. Lett. 2012, 14, 5594–5597. [Google Scholar] [CrossRef] [PubMed]
  47. McCubbin, J.A.; Voth, S.; Krokhin, O.V. Mild and Tunable Benzoic Acid Catalysts for Rearrangement Reactions of Allylic Alcohols. J. Org. Chem. 2011, 76, 8537–8542. [Google Scholar] [CrossRef] [PubMed]
  48. Li, P.-F.; Wang, H.-L.; Qu, J. 1,n-Rearrangement of Allylic Alcohols Promoted by Hot Water: Application to the Synthesis of Navenone B, a Polyene Natural Product. J. Org. Chem. 2014, 79, 3955–3962. [Google Scholar] [CrossRef] [PubMed]
  49. Knowles, J.P.; O’Connor, V.E.; Whiting, A. Studies towards the synthesis of the northern polyene of viridenomycin and synthesis of Z-double bond analogues. Org. Biomol. Chem. 2011, 9, 1876–1886. [Google Scholar] [CrossRef] [PubMed]
  50. Diaz-Ortiz, A.; Prieto, P.; Vazquez, E. Heck Reactions under Microwave Irradiation in Solvent-Free Conditions. Synlett 1997, 3, 269–270. [Google Scholar] [CrossRef]
  51. Leadbeater, N.E.; Williams, V.A.; Barnard, T.M.; Collins, M.J., Jr. Solvent-Free, Open-Vessel Microwave-Promoted Heck Couplings: From the mmol to the mol Scale. Synlett 2006, 18, 2953–2958. [Google Scholar] [CrossRef]
  52. Du, L.-H.; Wang, Y.-G. Microwave-Promoted Heck Reaction Using Pd(OAc)2 as Catalyst under Ligand-Free and Solvent-Free Conditions. Synth. Commun. 2007, 37, 217–222. [Google Scholar] [CrossRef]
  53. Liu, G.; Hou, M.; Song, J.; Jiang, T.; Fan, H.; Zhang, Z.; Han, B. Immobilization of Pd nanoparticles with functional ionic liquid grafted onto cross-linked polymer for solvent-free Heck reaction. Green Chem. 2010, 12, 65–69. [Google Scholar] [CrossRef]
  54. Firouzabadi, H.; Iranpoor, N.; Kazemi, F.; Gholinejad, M. Palladium nano-particles supported on agarose as efficient catalyst and bioorganic ligand for CC bond formation via solventless Mizoroki–Heck reaction and Sonogashira–Hagihara reaction in polyethylene glycol (PEG 400). J. Mol. Catal. A Chem. 2012, 357, 154–161. [Google Scholar] [CrossRef]
  55. Khazaei, A.; Rahmati, S.; Hekmatian, Z.; Saeednia, S. A green approach for the synthesis of palladium nanoparticles supported on pectin: Application as a catalyst for solvent-free Mizoroki–Heck reaction. J. Mol. Catal. A Chem. 2013, 372, 160–166. [Google Scholar] [CrossRef]
  56. Zolfigol, M.A.; Azadbakht, T.; Khakyzadeh, V.; Nejatyami, R.; Perrin, D.M. C(sp2)-C(sp2) cross coupling reactions catalyzed by an active and highly stable magnetically separable Pd-nanocatalyst in aqueous media. RSC Adv. 2014, 4, 40036–40042. [Google Scholar] [CrossRef]
  57. Khazaei, A.; Khazaei, M.; Rahmati, S. A green method for the synthesis of gelatin/pectin stabilized palladium nano-particles as efficient heterogeneous catalyst for solvent-free Mizoroki–Heck reaction. J. Mol. Catal. A Chem. 2015, 398, 241–247. [Google Scholar] [CrossRef]
  58. Trost, B.M.; Conway, W.P.; Strege, P.E.; Dietsche, T.J. New Synthetic reactions. Alkylative elimination. J. Am. Chem. Soc. 1974, 96, 7165–7167. [Google Scholar] [CrossRef]
  59. Roberts, D.L.; Heckmann, R.A.; Hege, B.P.; Bellin, S.A. Synthesis of (RS)-abscisic acid. J. Org. Chem. 1968, 33, 3566–3569. [Google Scholar] [CrossRef]
  60. Constantino, M.G.; Losco, P. A novel synthesis of (±)-abscisic acid. J. Org. Chem. 1989, 54, 681–683. [Google Scholar] [CrossRef]
  61. Cornforth, J.; Hawes, J.E.; Mallaby, R. A Stereospecific Synthesis of (±)-Abscisic Acid. Aust. J. Chem. 1992, 45, 179–185. [Google Scholar] [CrossRef]
  62. Mayer, H.J.; Rigassi, N.; Schwieter, U.; Weedon, B.C.L. Synthesis of Abscisic Acid. Helv. Chim. Acta 1976, 59, 1424–1427. [Google Scholar] [CrossRef]
  63. Kienzle, F.; Mayer, H.; Minder, R.E.; Thommen, H. Synthese von optisch aktiven, natürlichen Carotinoiden und strukturell verwandten Verbindungen. III. Synthese von (+)-Abscisinsäure, (−)-Xanthoxin, (−)-Loliolid, (−)-Actinidiolid und (−)-Dihydroactinidiolid. Helv. Chim. Acta 1978, 61, 2616–2627. [Google Scholar] [CrossRef]
  64. Constantino, M.G.; Donate, P.M.; Petragnani, N. An efficient synthesis of (±)-abscisic acid. J. Org. Chem. 1986, 51, 253–254. [Google Scholar] [CrossRef]
  65. Rose, P.A.; Abrams, S.R.; Shaw, A.C. Synthesis of chiral acetylenic analogs of the plant hormone abscisic acid. Tetrahedron Asymmetry 1992, 3, 443–450. [Google Scholar] [CrossRef]
  66. Hanson, J.R.; Uyanik, C. An efficient synthesis of the plant hormone abscisic acid. J. Chem. Res. 2003, 7, 426–427. [Google Scholar] [CrossRef]
  67. Smith, T.R.; Clark, A.J.; Clarkson, G.J.; Taylor, P.C.; Marsh, A. Concise enantioselective synthesis of abscisic acid and a new analogue. Org. Biomol. Chem. 2006, 4, 4186–4192. [Google Scholar] [CrossRef] [PubMed]
  68. Ferrer, E.; Alibés, R.; Busqué, F.; Figueredo, M.; Font, J.; De March, P. Enantiodivergent Synthesis of Cyclohexenyl Nucleosides. J. Org. Chem. 2009, 74, 2425–2432. [Google Scholar] [CrossRef] [PubMed]
  69. Mash, E.A.; Torok, D.S. Homochiral ketals in organic synthesis. Diastereoselective cyclopropanation of alpha beta-unsaturated ketals derived from (S,S)-(−)-hydrobenzoin. J. Org. Chem. 1989, 54, 250–253. [Google Scholar] [CrossRef]

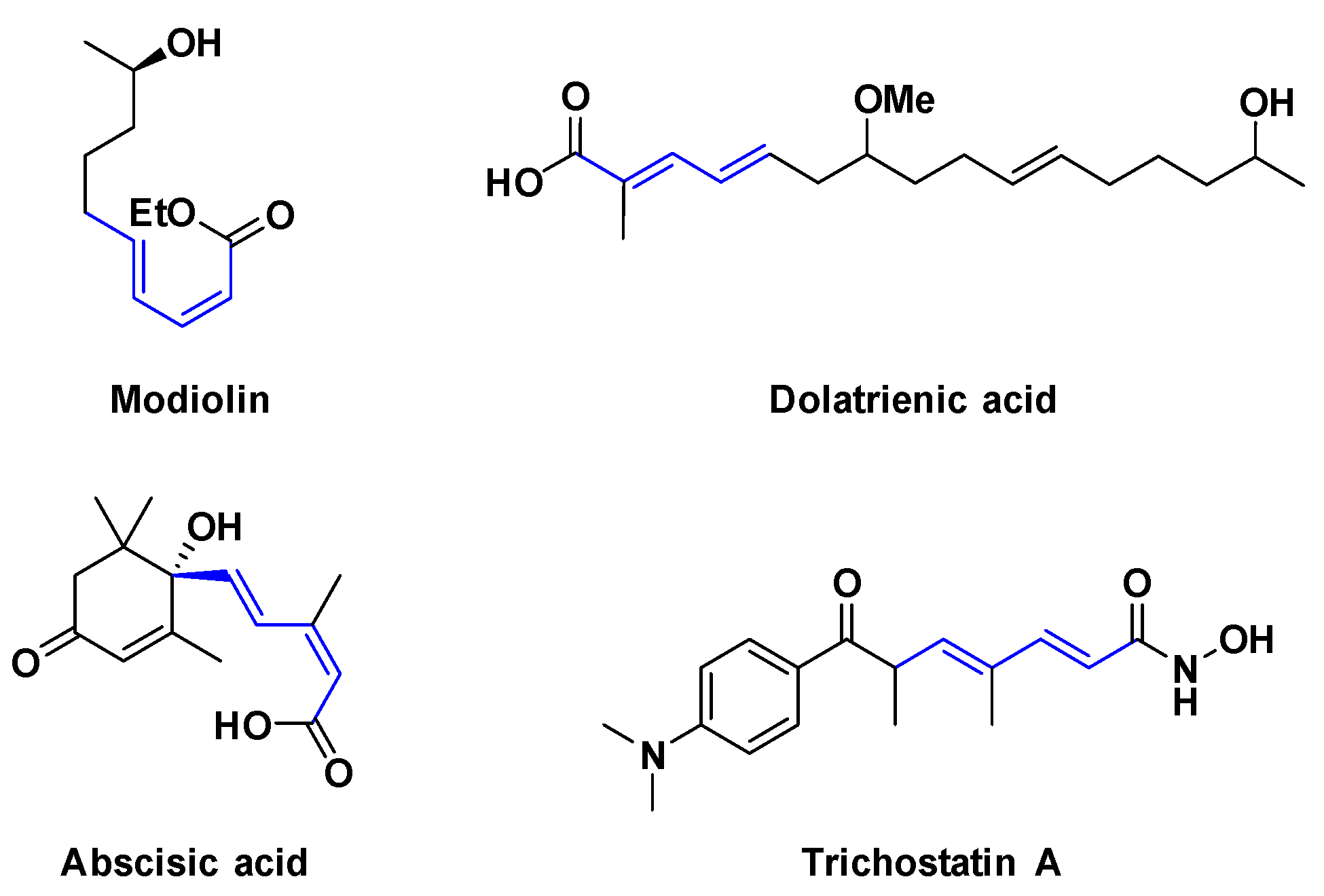

Figure 1. Examples of biologically active natural products containing diene moieties.
Figure 1. Examples of biologically active natural products containing diene moieties.
Catalysts 08 00115 g001

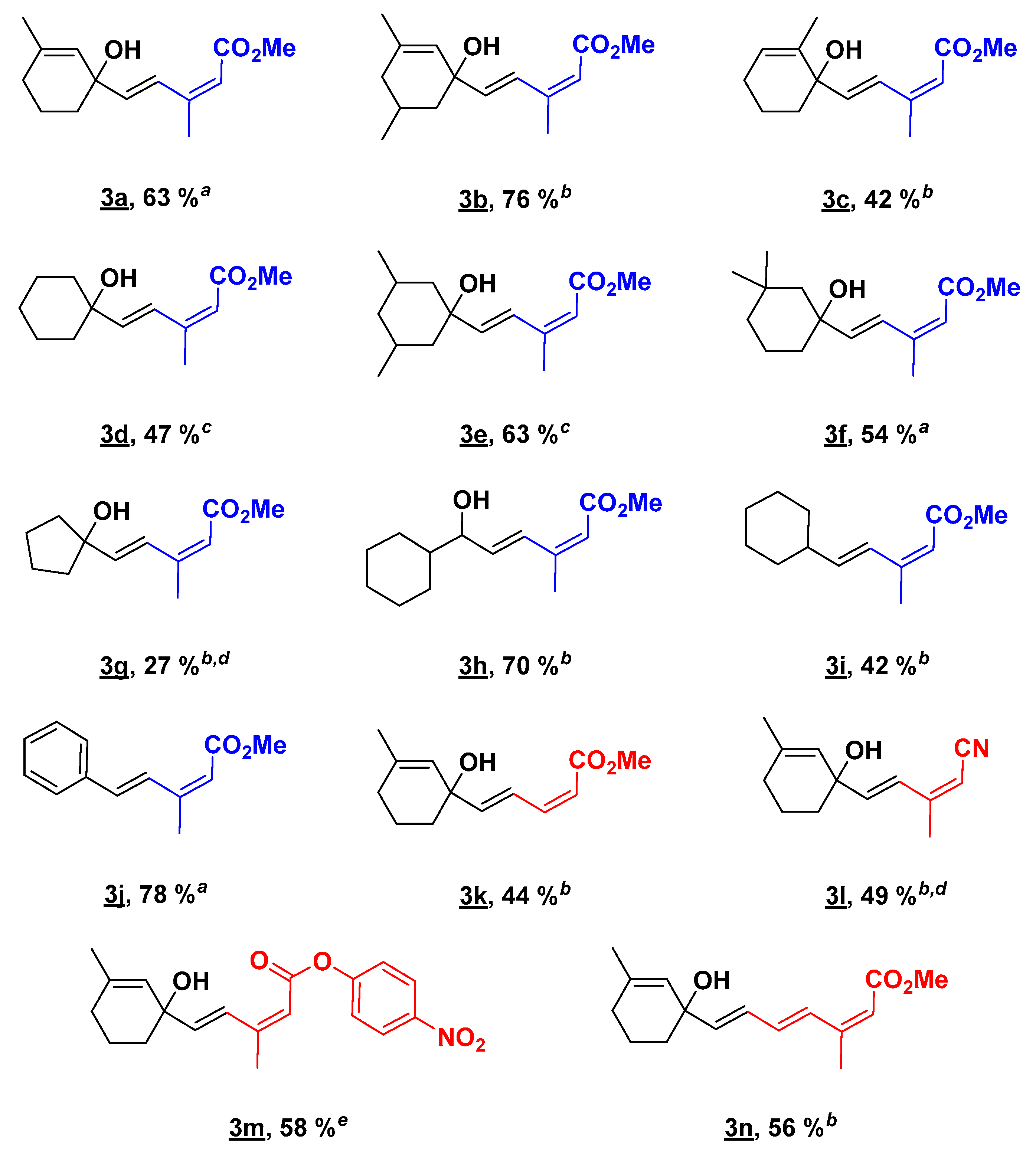

Scheme 1. Scope of substrates. a 1 h of reaction time. b 2 h of reaction time. c 1 h 40 min was required for the reaction time. d sealed tube. e 40 min of reaction time.
Scheme 1. Scope of substrates. a 1 h of reaction time. b 2 h of reaction time. c 1 h 40 min was required for the reaction time. d sealed tube. e 40 min of reaction time.
Catalysts 08 00115 sch001

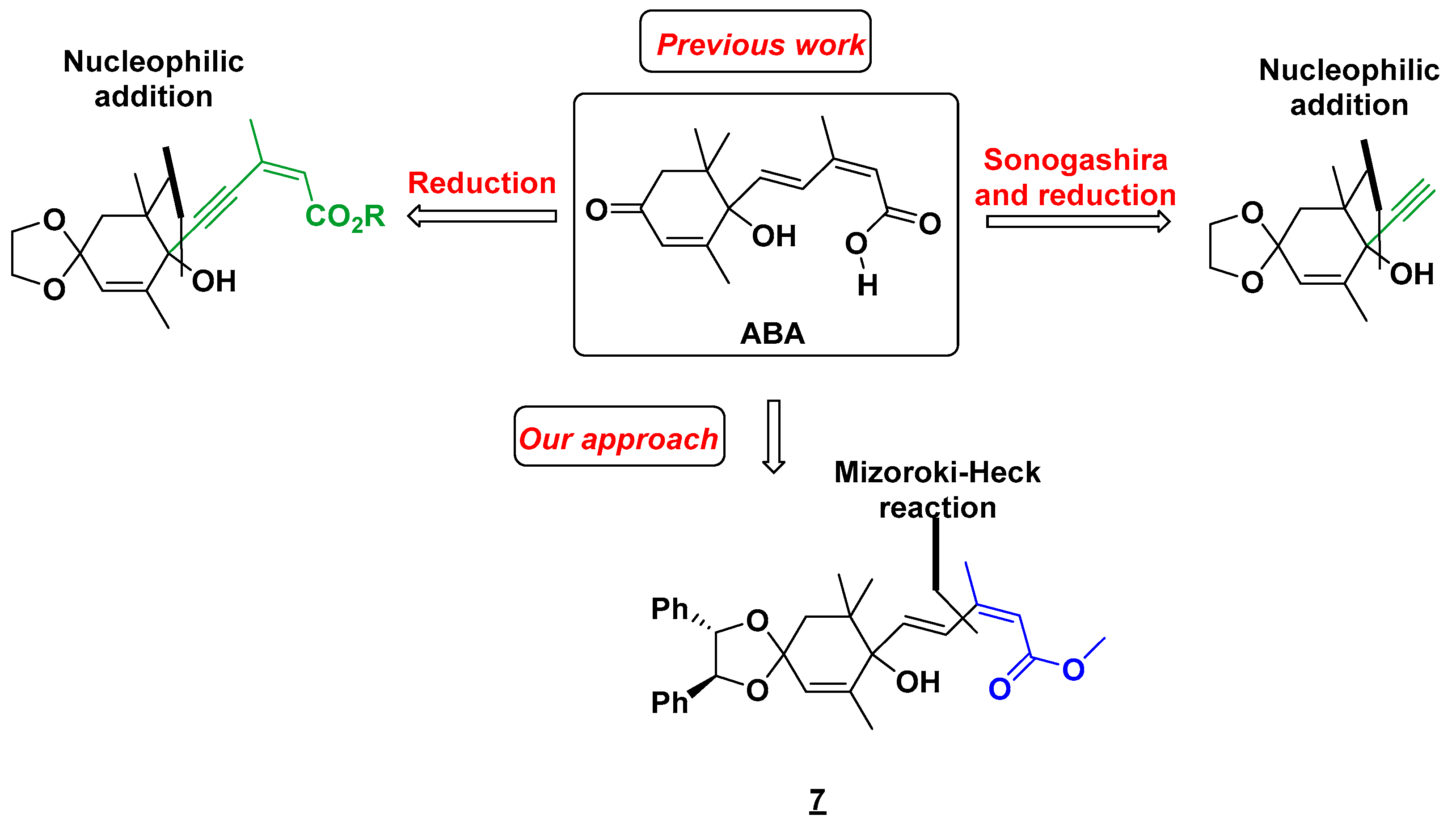

Scheme 2. Retrosynthetic approaches for the synthesis of ABA.
Scheme 2. Retrosynthetic approaches for the synthesis of ABA.
Catalysts 08 00115 sch002

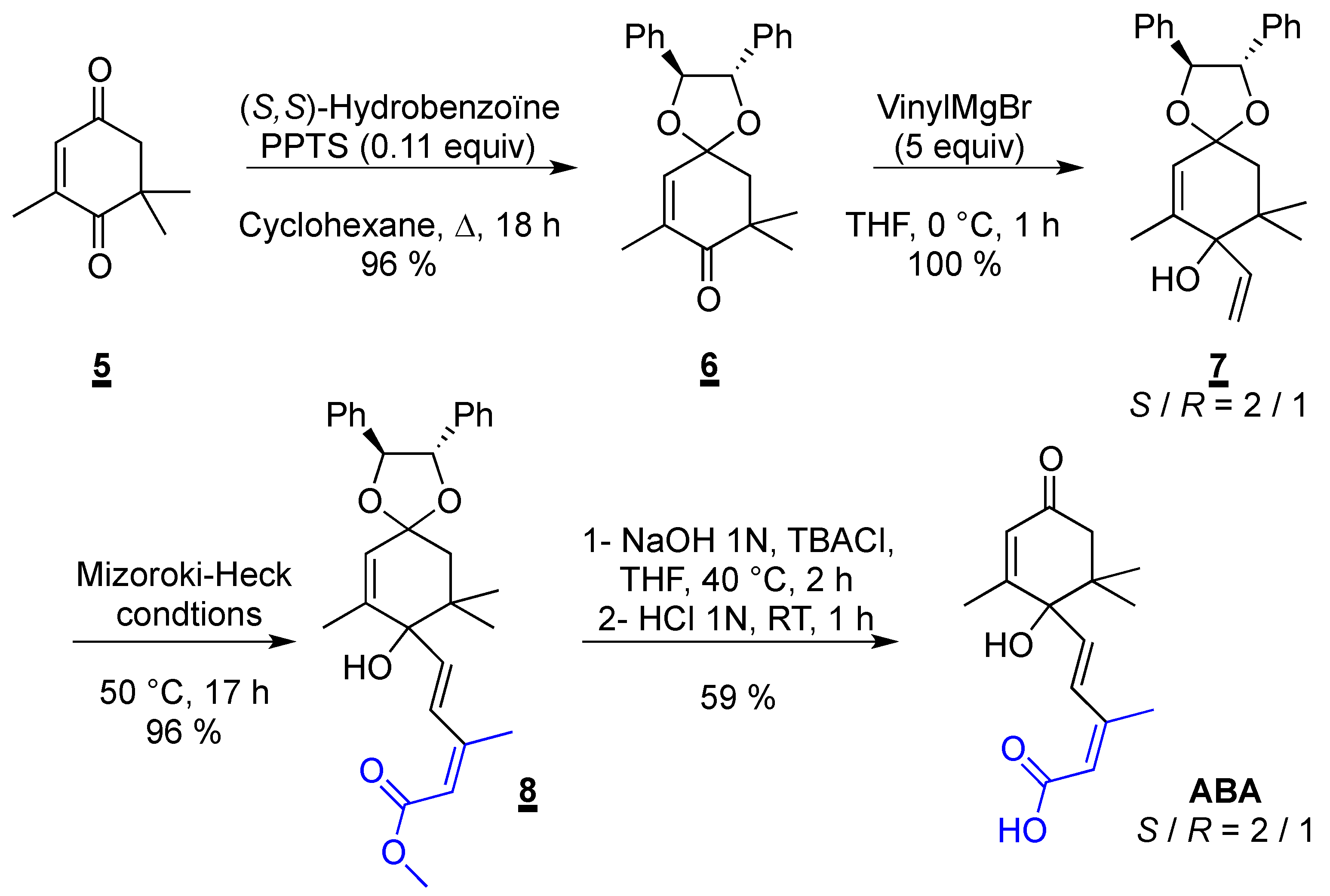

Scheme 3. Synthesis of ABA.
Scheme 3. Synthesis of ABA.
Catalysts 08 00115 sch003

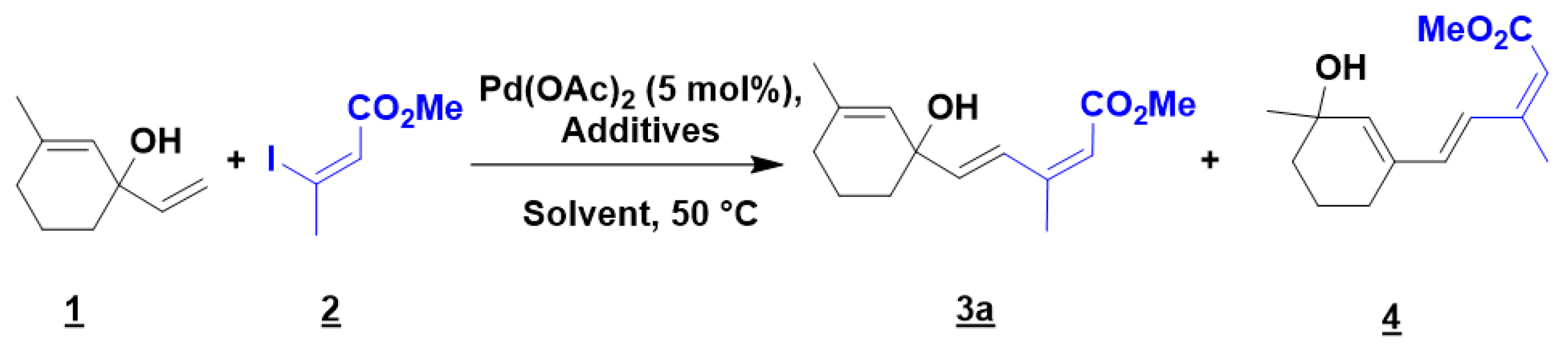

Table 1. Optimization of the Mizoroki-Heck reaction between 1 and 2.
Table 1. Optimization of the Mizoroki-Heck reaction between 1 and 2.
Catalysts 08 00115 i001
Entry1
(equiv.)
2
(equiv.)
Additive
(equiv.)
SolventTime
(h)
Yield
3:4 (%)
11.21AgOAc (1.1)DMF170:0 a
21.21AgOAc (1.1)DMF175:4 b
31.21AgOAc (1.1)MeCN179:0 b
41.21AgOAc (1.1) P(oTol)3 (0.1)MeCN179:20 b
51.21Ag2CO3 (1.5)MeCN1763:0 b,c
61.21Ag2CO3 (2)MeCN1763:0 b,c
71.21Ag2CO3 (1.1)MeCN1754:0 b,c
81.21Ag2CO3 (1.5)MeCN1710:0 b,c,d
91.21Ag2CO3 (1.5)none163:0 b,c
1012Ag2CO3 (1.5)none160:0 b,c
1111 + 1Ag2CO3 (1.5)none150:0 b,c
121.21Ag2CO3 (1.5)none162:0 b,d
a The reaction was performed under natural light. b Reaction performed protected from natural light. c Reaction performed under air. d The reaction temperature was set at 80 °C. e Reaction performed under inert atmosphere.
