Review

Application of BiOX Photocatalysts in Remediation of Persistent Organic Pollutants

by
Robert B. Arthur
1,
John C. Ahern
1,2 and
Howard H. Patterson
1,*
1
Department of Chemistry, University of Maine, Orono, ME 04469, USA
2
Materials Recovery & Recycle Group (AMPP-4) Actinide Materials Processing & Power Division, Los Alamos National Laboratory, Los Alamos, NM 87545, USA
*
Author to whom correspondence should be addressed.
Catalysts 2018, 8(12), 604; https://doi.org/10.3390/catal8120604
Submission received: 31 October 2018 / Revised: 20 November 2018 / Accepted: 28 November 2018 / Published: 2 December 2018
(This article belongs to the Section Photocatalysis)
Browse Figures
Versions Notes

Abstract

:
Bismuth oxyhalides have recently gained attention for their promise as photocatalysts. Due to their layered structure, these materials present fascinating and highly desirable physicochemical properties including visible light photocatalytic capability and improved charge separation. While bismuth oxyhalides have been rigorously evaluated for the photocatalytic degradation of dyes and many synthesis strategies have been employed to enhance this property, relatively little work has been done to test them against pharmaceuticals and pesticides. These persistent organic pollutants are identified as emerging concerns by the EPA and effective strategies must be developed to combat them. Here, we review recent work directed at characterizing the nature of the interactions between bismuth oxyhalides and persistent organic pollutants using techniques including LC-MS/MS for the determination of photocatalytic degradation intermediates and radical scavenging to determine active species during photocatalytic degradation. The reported investigations indicate that the high activity of bismuth oxyhalides for the breakdown of persistent organic pollutants from water can be largely attributed to the strong oxidizing power of electron holes in the valence band. Unlike conventional catalysts like TiO2, these catalysts can also function in ambient solar conditions. This suggests a much wider potential use for these materials as green catalysts for industrial photocatalytic transformation, particularly in flow chemistry applications.

1. Introduction

As a result of modern industrial development, nearly 9000 compounds are currently in use worldwide for pharmaceutical applications [1]. In addition to pharmaceuticals, many other biologically active chemicals including Persistent Organic Pollutants (POPs) have well-established routes of entry to water supplies and can cause long-term contamination [2,3,4,5]. Since these molecules do not interact appreciably with water, their rate of hydrolysis and subsequent removal proceeds very slowly, meaning that these compounds have long half-lives and will slowly build up in water supplies [6,7].
Current wastewater treatment processes have been shown to be insufficient in removing POPs from drinking water [2]. Additionally, traditional techniques such as chlorination, while efficient at removing bacteria, have shown the potential to chemically generate more toxic versions of POPs including trihalomethanes [8]. Alternative options to traditional methods must be explored to combat this emerging issue. Photocatalysis was first demonstrated by Fujishimi and Honda in 1972 where they showed that irradiating single crystal rutile titanium dioxide (TiO2) with ultraviolet light enabled the production of H2 and O2 via photolysis of water [9]. This landmark study was followed in 1976 by Carey et al., who showed that aqueous suspensions of TiO2 in the presence of organic pollutants was able to photocatalytically degrade the organic compounds [10]. These studies have sparked intense interest in the development of photocatalysts for environmental remediation applications.
Heterogeneous photocatalytic semiconductors work by absorbing light of an appropriate wavelength to promote electrons from its valence band to its conduction band. This process generates excited electrons in the conduction band and effective “electron holes” in the valence band. The electron-hole pairs are then able to move to the surface of the semiconductor where reactions can occur, or thermally recombine. Recombination is detrimental to the overall activity of a catalytic system since recombined electron-hole pairs are not able to participate in the intended reaction. The surface reactions that take place in semiconductor photocatalysis consist of either oxidation by electron holes in the valence band, or reduction by excited electrons in the conduction band.
TiO2 has received the most attention in photocatalysis research as it was the first photocatalyst discovered and is still one of the most widely-utilized materials [9]. TiO2 has been applied in such diverse applications as self-cleaning surfaces and dye-sensitized solar cells [11]. However, TiO2 has the drawback of possessing a large band gap of 3.2 eV which prevents it from being applied in solar photocatalytic applications [12]. Using ambient solar light in an outdoor treatment facility can reduce the cost of photocatalysis-based water treatment vs. using lamps over tanks at a typical indoor water treatment plant. Various strategies have been employed to develop robust photocatalysts capable of functioning under ambient solar light. Investigators have tried to imbue visible-light activity to TiO2, including metal and non-metal doping including nanoparticles and heterojunction formation [13,14,15]. However, these systems are inherently more complicated to synthesize and more expensive to produce [13,14,15]. A novel semiconductor system is required that is capable of utilizing visible light, while also maintaining low rates of recombination. Bismuth oxyhalides are an alternative to TiO2 with high photocatalytic degradation rates for organic compounds in water and potential functionality in ambient conditions [12].
In this review, the unique properties of BiOX compounds that allow for their high photocatalytic activity are discussed in detail. Previous research focusing on synthesis strategies and applications of BiOX as photocatalysts with elucidation of structure-activity relationships is briefly summarized. Finally, we focus on recent applications of BiOX to the degradation of persistent organic pollutants and implications of the mechanistic aspects of these reactions for both photocatalytic degradation.

2. Properties of Bismuth Oxyhalide Compounds and Development of Their Use as Photocatalysts for Water Remediation

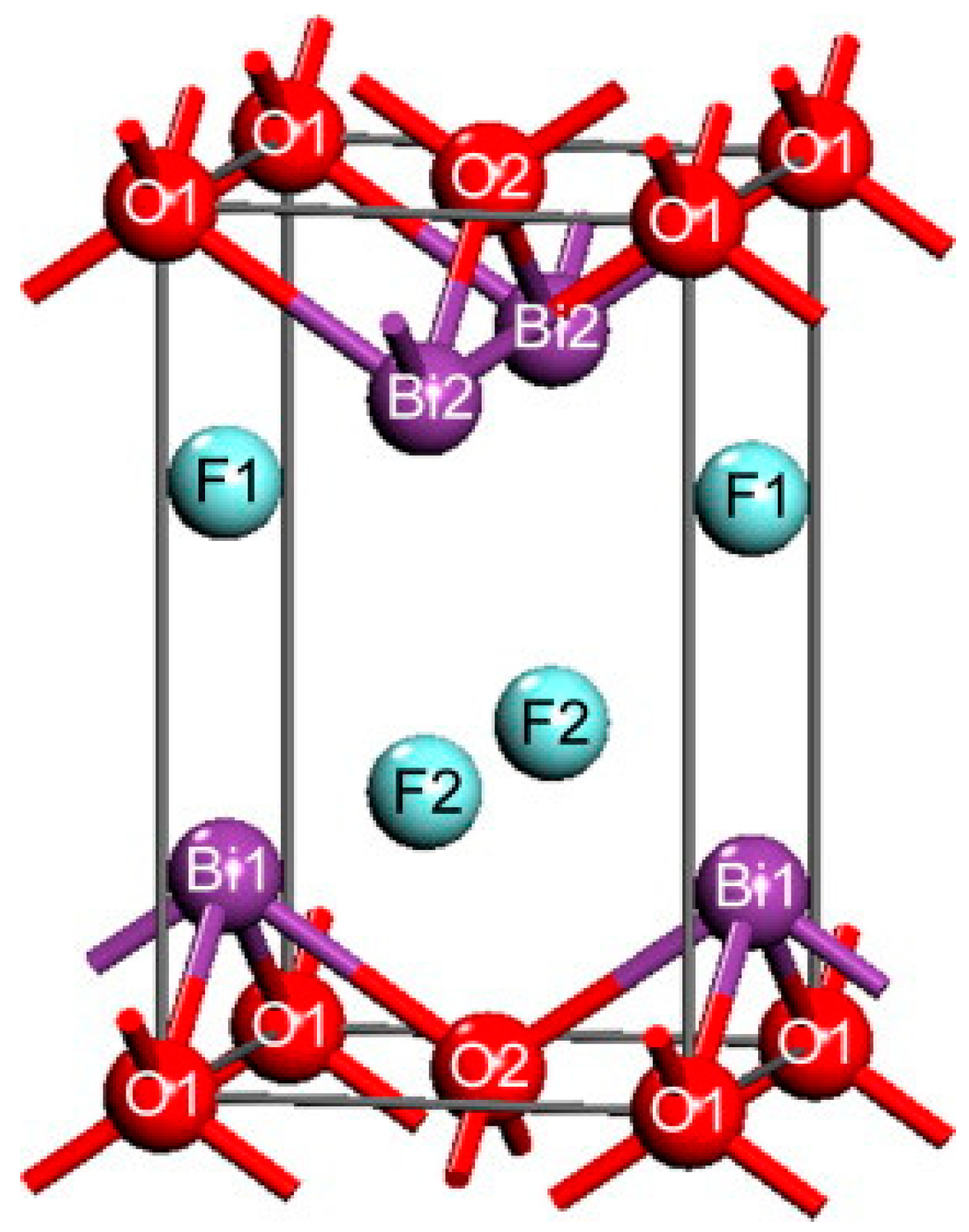

Compounds of the bismuth oxyhalide series (BiOX) exhibit interesting optical and semiconducting properties. The tetragonal structure of BiOX was first determined by Bannister in 1935 [16] and consists of covalently bonded layers of [X-Bi-O-Bi-X]. These layers are stacked on top of each other and are held together by Van der Waals interactions between the halides. This structure results in the presence of an internal electric field which can be modulated by carefully controlling which facets of the crystal are exposed. The general crystal structure for BiOX is given in Figure 1.
Bismuth oxychloride (BiOCl) was the first BiOX compound to be tested for photocatalytic properties by Zhang et al. in 2006 [18]. After this initial study, many other reports have followed further establishing the capabilities and potential of BiOX compounds as photocatalysts. Many researchers have undertaken attempts to improve the photocatalytic activity of BiOX compounds in order to enable their use in industrial applications. Two primary approaches have been undertaken toward this goal: (1) the development of synthetic methods directed at novel BiOX structures, and (2) the modulation of BiOX using various dopants. Since the properties of a material are derived from structure, synthetic methods such as crystal facet engineering [19,20,21,22,23,24,25,26,27,28,29,30,31,32], production of ultrathin nanosheets [33,34,35], and synthesizing hollow and porous nanostructures [36,37,38,39,40,41,42] have been developed to access novel morphologies. Doping strategies include metal-doping [43,44,45,46,47,48], nonmetal-doping [49,50], introduction of structural defects [25,26,31,51,52,53,54], use of dye-sensitizers [55,56], and inclusion in heterojunctions with other semiconductors [47,48,54,57,58,59,60,61,62,63,64,65,66,67]. For in-depth discussion of the diverse approaches to BiOX synthesis see reviews by Di et al. [68] and Yang et al. [69].
Bismuth oxyhalide compounds are not as widely used in industry as TiO2. While BiOX compounds are relatively affordable [12]. BiOX compounds can become the preferred option of photocatalytic degradation of water-borne organic contaminants. This is due largely to the fact bismuth oxyhalide compounds such as BiOI (Eg = 1.7 eV) possess narrow bandgaps compared to TiO2 (Eg = 3.2 eV) [12] and therefore can function under lower-energy irradiation including visible light [12,70]. Numerous other groups have also shown BiOX catalysts present high photocatalytic activity under visible light irradiation [71,72,73,74]. This is a tremendous advantage of using BiOX catalysts since water can be treated in outdoor facilities vs. storing it in tanks or channels at a wastewater treatment facility with continuously running UV lights. Being able to treat water with ambient sunlight reduces logistical difficulties with treating the water and saves the cost of additional wastewater treatment plant space and electricity for operating UV lamps.
BiOX photocatalysts have been previously used in applications including water splitting [19,62,65], solar cells [75], photoreduction of CO2 [21,31,76], N2 fixation [77,78], bacterial disinfection [79], removal of air contaminants [80,81,82,83,84], oxidation of heavy metal pollutants [85,86,87,88,89,90], and photodynamic therapy [44]. As mentioned in the introduction, this review will highlight studies of BiOX photocatalytic degradation of persistent organic pollutants. Previous studies on application of BiOX to the degradation of organic pollutants have focused on pollutants such as dyes, pharmaceuticals, and industrial effluents [47,53,58,91,92,93,94,95,96,97]. The primary active species responsible for the high photocatalytic degradation properties of BiOX have been identified to be electron holes and superoxide radicals [47,95,96]. However, the mechanism of photocatalytic degradation of persistent organic pollutants have not been studied in detail. The following sections will particularly focus on the mechanisms through which BiOX reacts directly with pollutants to break them down.

3. Characterization of BiOX Compounds Used for the Photocatalytic Degradation of Water-Borne Endocrine Disrupting Compounds

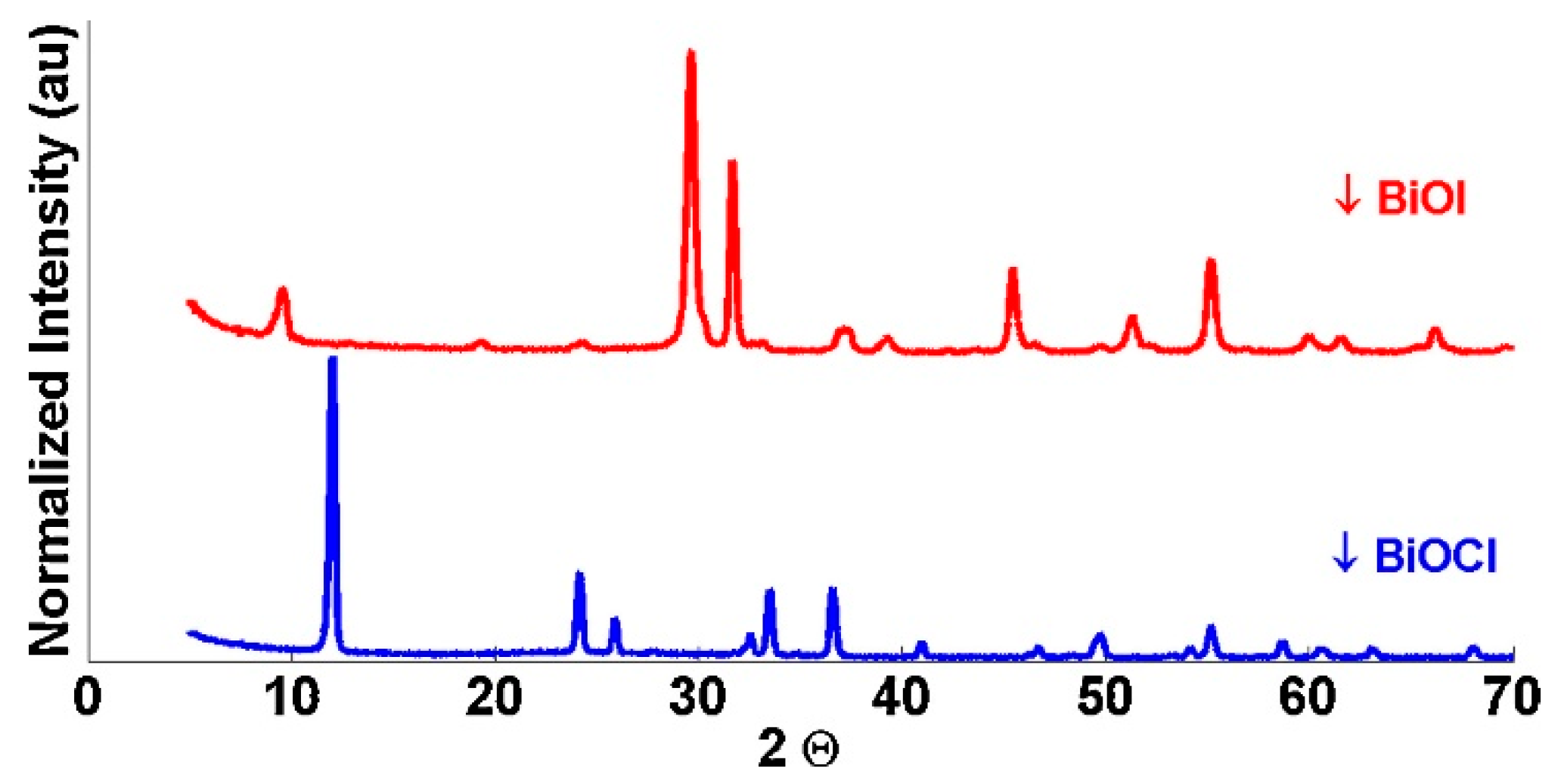

Patterson et al. previously reported the use of BiOX catalysts for the photocatalysis of synthetic estrogen 17 α-ethinyl estradiol (EE2) and the estrogen estriol in water [12]. This was the first report of photodecomposition of estrogenic materials using such catalysts. The BiOX catalysts exhibited greater photodecomposition of the chosen POPs than the tested TiO2 alternative here.
EE2 and estriol were chosen as model endocrine disrupting compounds (EDCs). EE2 was chosen since it is used by millions of women as a contraceptive every day in the U.S. alone [98]. EE2 and other synthetic estrogens are designed to mimic natural estrogens and are able to bind to estrogen receptors. EDCs such as EE2 have an adverse effect on organisms at even low concentrations [98,99]. Aquatic species including fish and amphibians are especially at risk to such EDCs, in part because these compounds bioaccumulate in tissues and biomagnify up the food chain [99,100,101]. Food chains for aquatic environments tend to have more trophic levels than their terrestrial counterparts, so there is more opportunity for biomagnification of pollutants in aquatic environments. The problem is compounded further since these compounds and their metabolites are persistent enough in waterways to survive transport across thousands of miles and can be detected in nearly any major waterway [102,103,104,105]. Certain aquatic species can experience infertility after exposure to ng-level doses of EE2 [98]. EE2 and related EDCs have been identified as contaminants of emerging concern by the EPA and other environmental protection agencies [98,106,107,108,109,110,111].

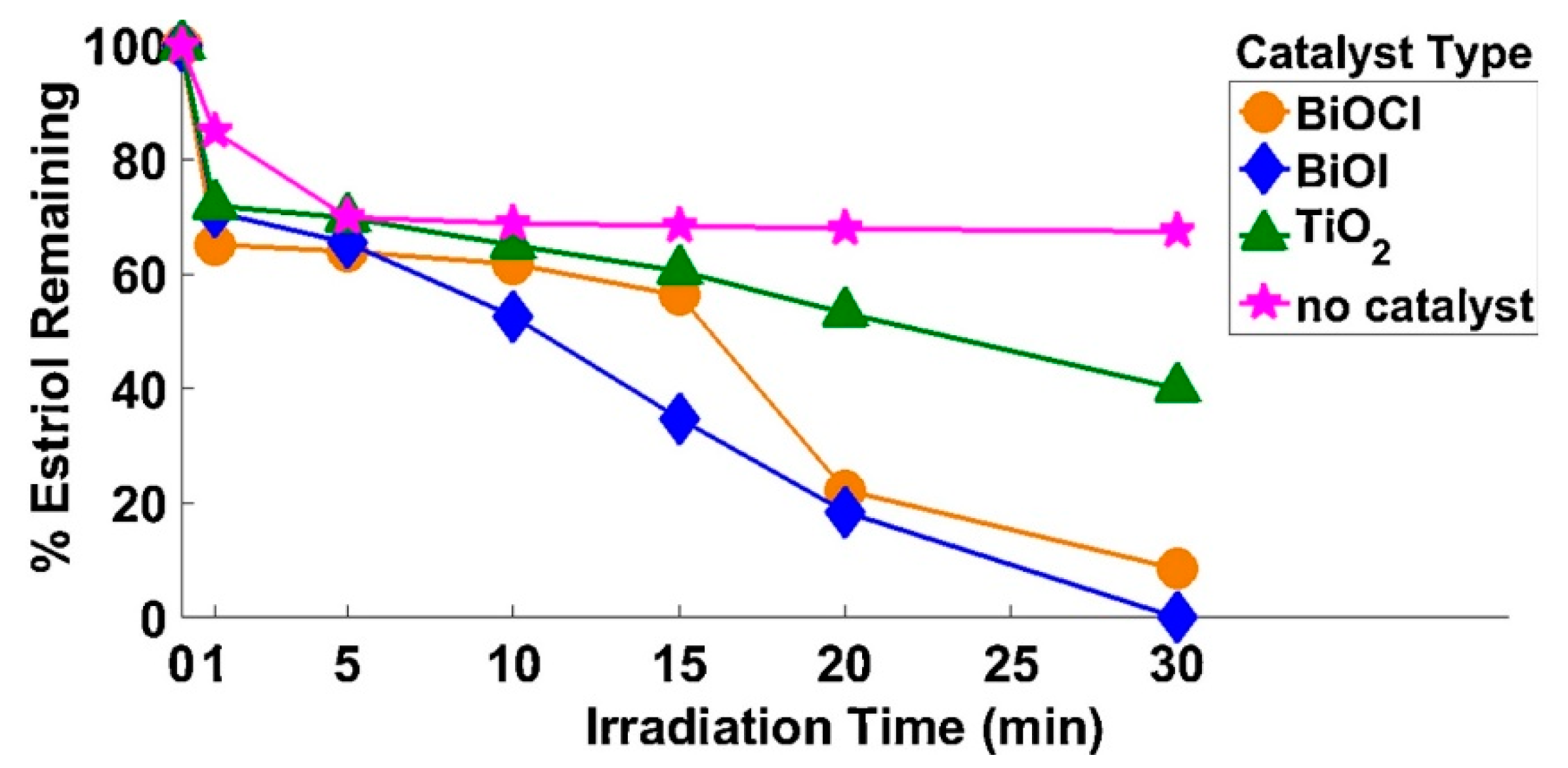

The BiOCl and BiOI catalysts were compared against TiO2 by dispersing each catalyst type in separate quartz flasks filled with mg/L EDC-doped deionized water under continuous stirring [12]. These flasks were placed one-at-a-time in a chamber ringed with either 254 nm or 350 nm bulbs. Aliquots were taken from the flasks at given time intervals. These aliquots were each examined via luminescence spectroscopy and LC-MS/MS for EDC concentration. Catalysts were ranked based on the concentration of EDC remaining in the tested aliquots, where the less EDC there was left, the better the photocatalyst. BiOI was the most effective catalyst tested using the 350 nm light source and BiOCl was the preferred catalyst using the 254 nm light source. The difference between BiOX and TiO2 in degrading EE2 and estriol was most pronounced when using a lower-energy light source (350 nm) as seen in Table 1 and Figure 2. This lends credence to the idea that these catalysts can function in natural-light conditions where much of the spectrum is in the visible or low-energy UV range. Using a catalyst capable of working in natural solar-light can reduce the cost of pollution remediation in wastewater treatment facilities since the water can be treated in outdoor facilities versus being processed in tanks with UV lamps.

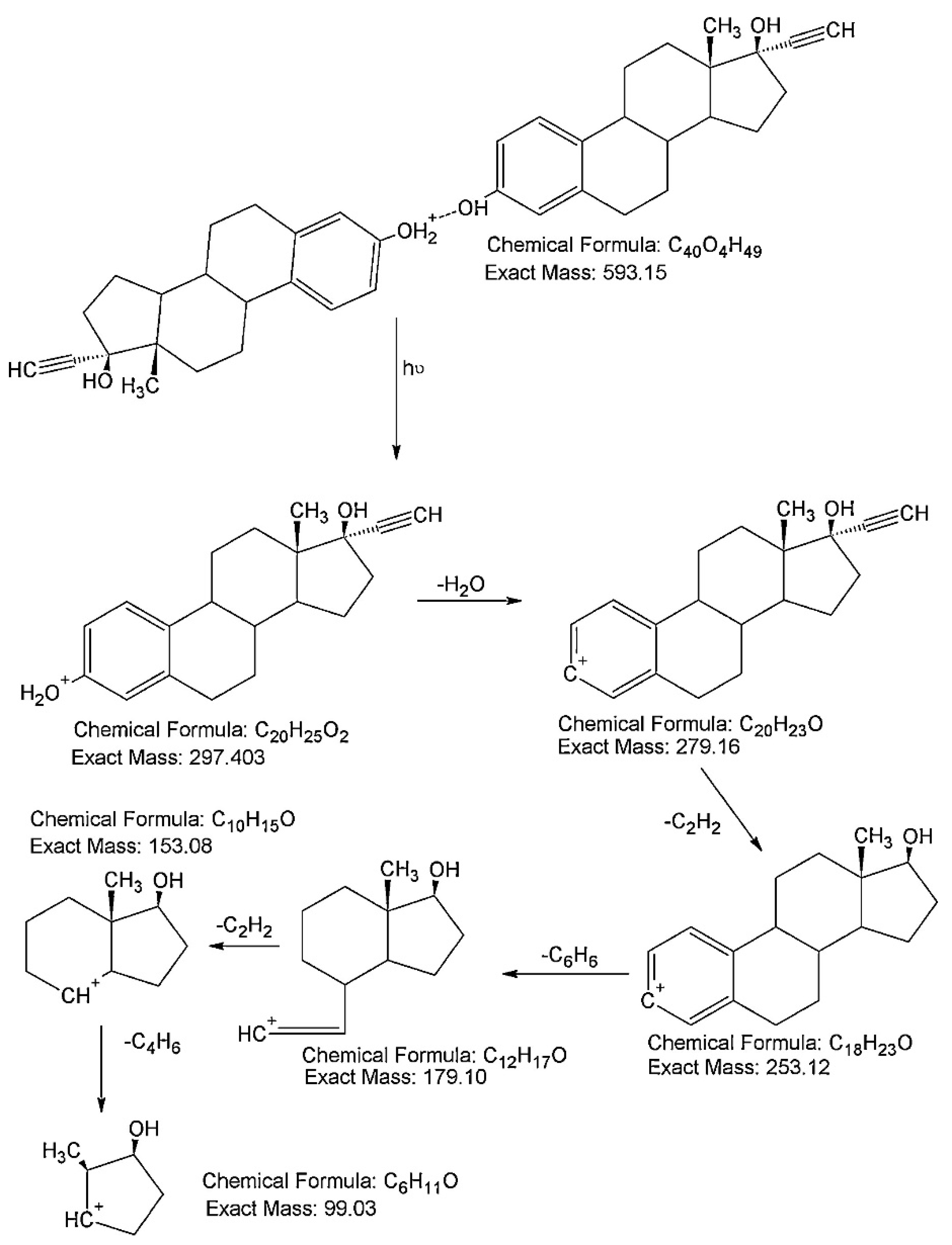

Ionized fragments identified by LC-MS/MS were also used to derive mechanisms for degradation of both EE2 and estriol as pictured in Figure 3. There was no apparent difference in mechanism based on catalyst type [12].
The catalysts were tested for re-use capability and showed effective degradation of the EDCs for at least 8 uses without any post-treatment. This reusability is superior to TiO2-based catalysts which could only be used twice before fouling of the surface rendered the TiO2 ineffective. The useful lifespan of the BiOX catalysts could be further increased if the fouling was removed from the catalyst surfaces by recycling methods such as washing and/or heat treatment. The catalysts were also tested for their physical and photophysical properties via scanning Electron Microscopy Energy Dispersive X-ray Spectroscopy (SEM-EDS), X-ray Diffraction (XRD), Brunauer Emmet Teller (BET) analysis and Dynamic Light Scattering Spectroscopy (DLS). Figure 4 shows the SEM images of the BiOCl and BiOI catalysts. The EDS results confirmed the elemental compositions of the samples as BiOCl and BiOI. The narrow peaks in the XRD spectra of Figure 5 indicate a single phase and were in agreement with previously published works on BiOX compounds [112,113]. BET analysis revealed that the BiOX catalysts had lower surface area than TiO2 as pictured in Table 2. The higher photocatalytic activity of the BiOX catalysts despite their lower surface area lends credence to the argument that the lower band gap of the BiOX catalysts allows for superior activity vs. TiO2, especially given the lower-energy 350 nm irradiation. DLS analysis showed no significant difference in particle size distribution before vs. after UV exposure.

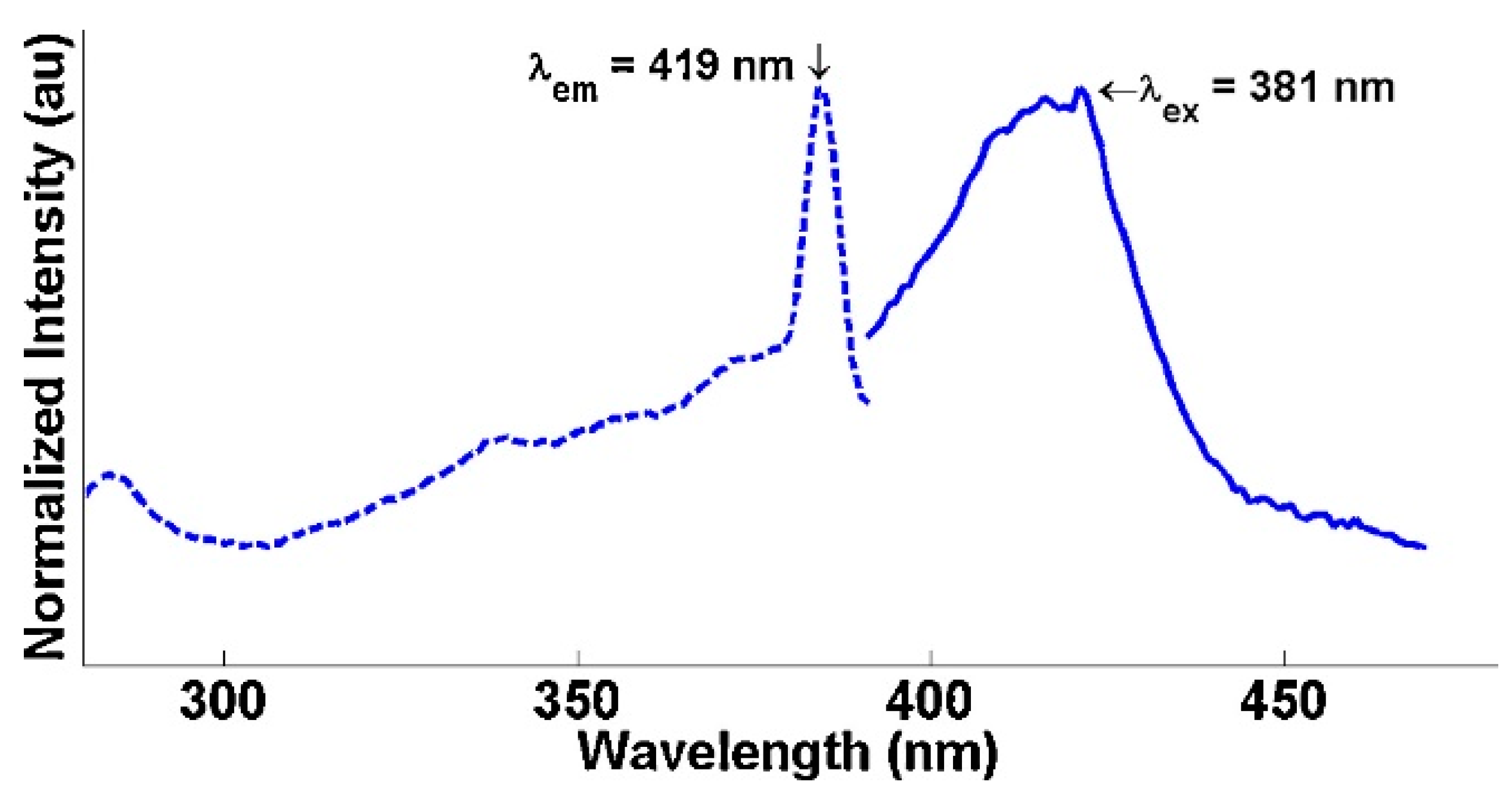

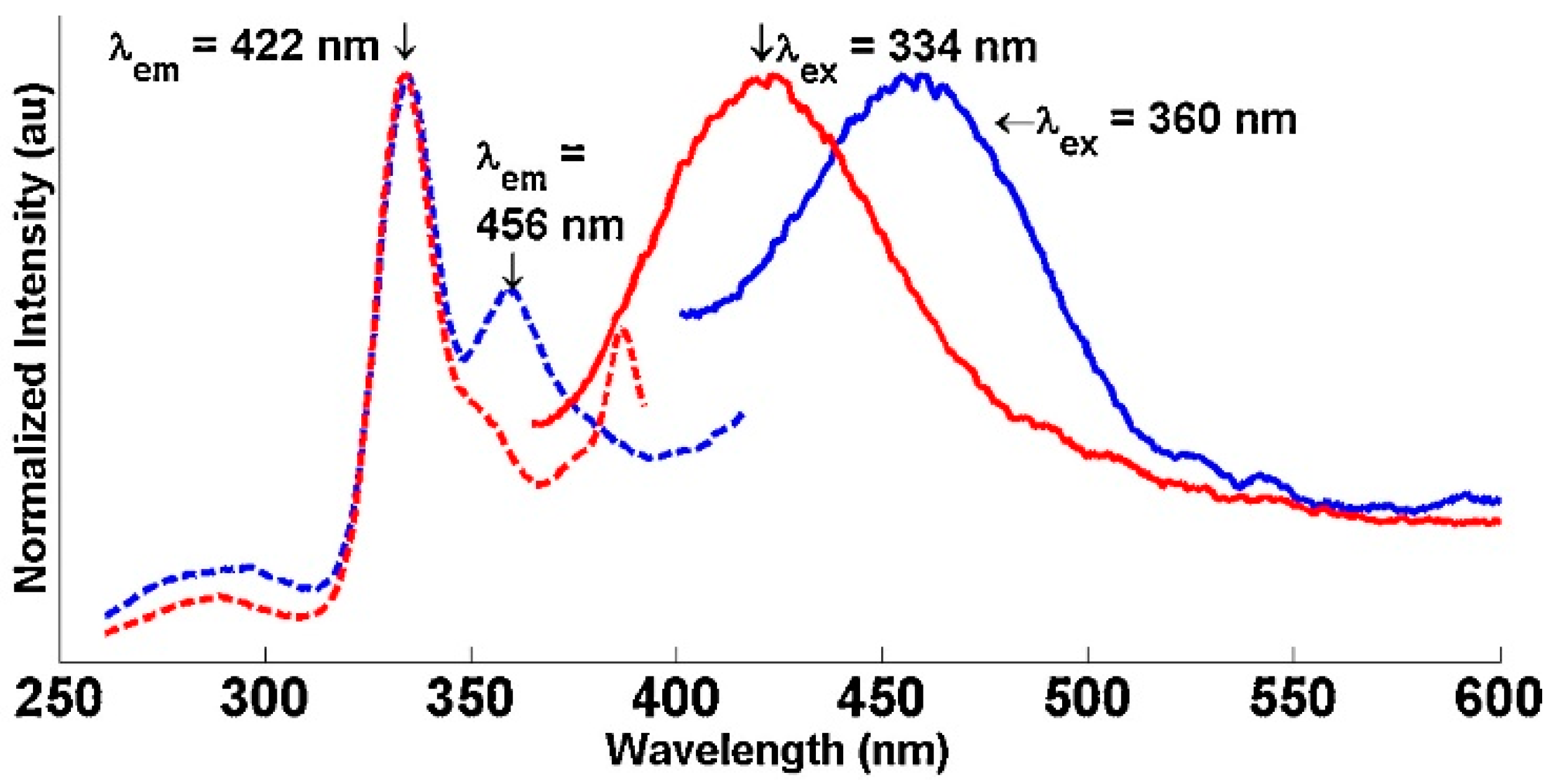

Solid-state luminescence provided further evidence of photoactivation in the UV range similar to the lamps used in the photocatalysis chamber as seen in Figure 6 and Figure 7. The excitation peaks were matched with their corresponding emission peaks as indicated by the arrow annotations above the spectra. The BiOI had a single excitation peak at 381 nm corresponding with a broad emission band centered at 419 nm. The BiOCl had an emission peak at 422 nm and another at 456 nm corresponding with excitations of 344 nm and 360 nm, respectively [32,114]. These electronic transitions for both BiOX catalysts are thought to be from photo-excitation of the lattice and subsequent relaxation via phonon-phonon interactions resulting in the observed emissions [32,114]. These solid-state studies support the notion that electron holes are generated by the photo-excited Bi. These electron holes can then degrade the organics directly or react with OH− or O2 in aqueous solution to form highly reactive radicals which can likewise degrade the organics [115].

4. Investigation of BiOX-Based Catalysts for Degradation of Phenolic Compounds under Visible Light Conditions

One of the major advantages of BiOX and select other bismuth-based catalysts are their narrow bandgaps relative to TiO2 [12,54,116]. Sun et al. recently reported the visible-light degradation of phenolic compounds using bismuth oxybromide/oxyiodide compounds of the form (Bi4O5BrxI2−x) [116]. The photocatalytic degradation mechanism of resorcinol under these conditions was further investigated through radical trapping experiments as well as via identification of intermediates by LC-MS analysis. The activity of these catalysts in visible light conditions shows potential for BiOX-based catalysts to be used as commercial photocatalysts.
These catalysts were easily synthesized by adding Bi(NO3)3·5H2O to a solution of ethylene glycol and then adding different ratios of KBr and KI [116]. The solution was then combined with an ammonia solution and the solid catalysts were allowed to precipitate out. The surface chemical composition and state were confirmed via SEM-EDS and X-ray photoelectron spectroscopy (XPS) [116]. The catalysts were confirmed to be of a single phase via XRD [116]. The catalysts were then separated from the solution and dried at 80 °C. UV-Vis diffuse reflectance spectroscopy (DRS) conducted on these catalysts showed that the band gap could be tuned based on the Br:I ratio [116]. In general, the band absorption edge of Bi4O5BrxI2−x samples redshifted as x decreased, with Bi4O5I2 absorption extending to 560 nm. This indicates the visible-light-active photocatalytic potential of these materials. The collected DRS spectra and calculated band-gap energies are shown in Figure 8A,B respectively. The bandgap energies were calculated using the following formula: αhv = A(hv − Eg)n/2 where A = absorbance and n = 4 [116].

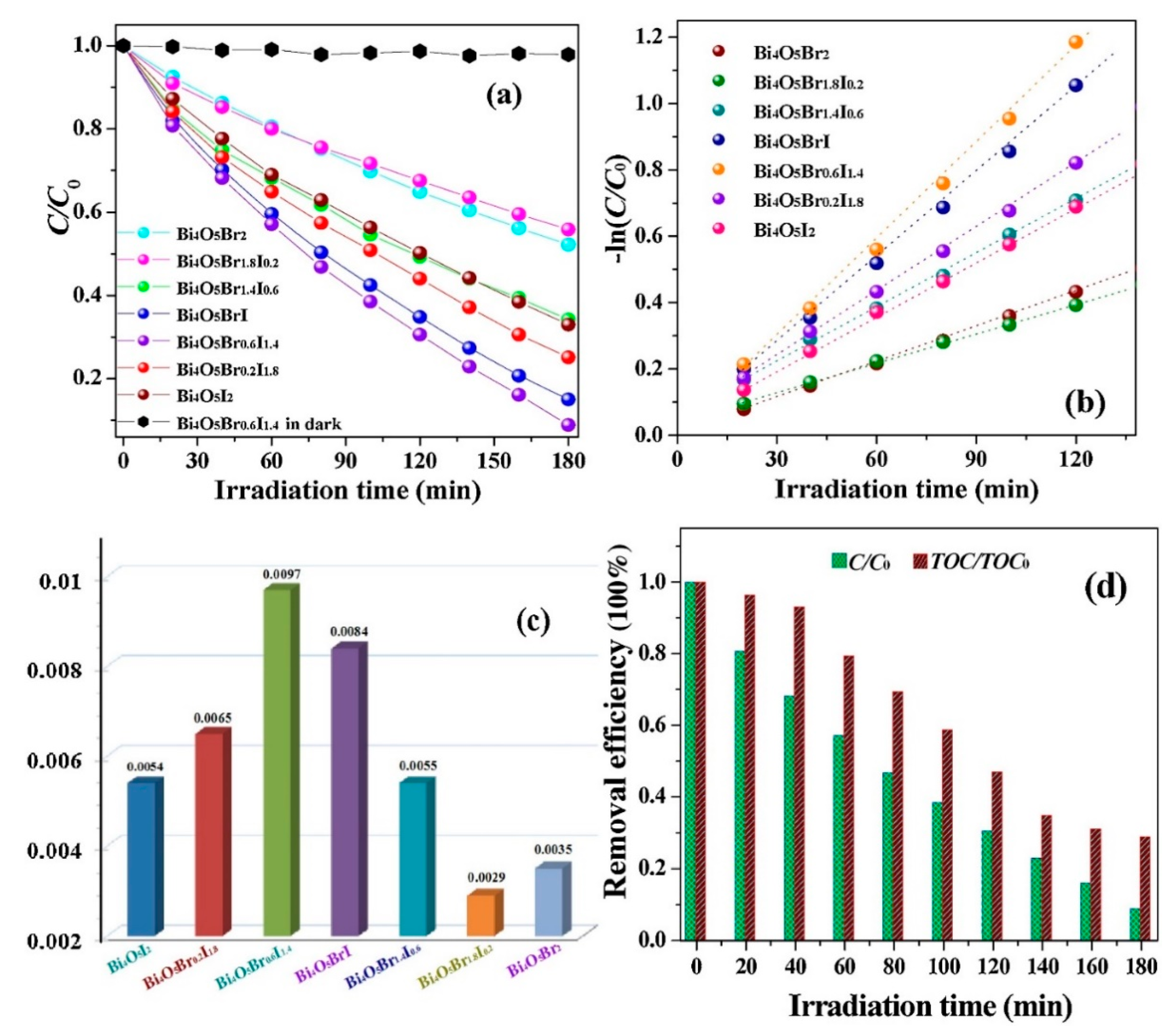

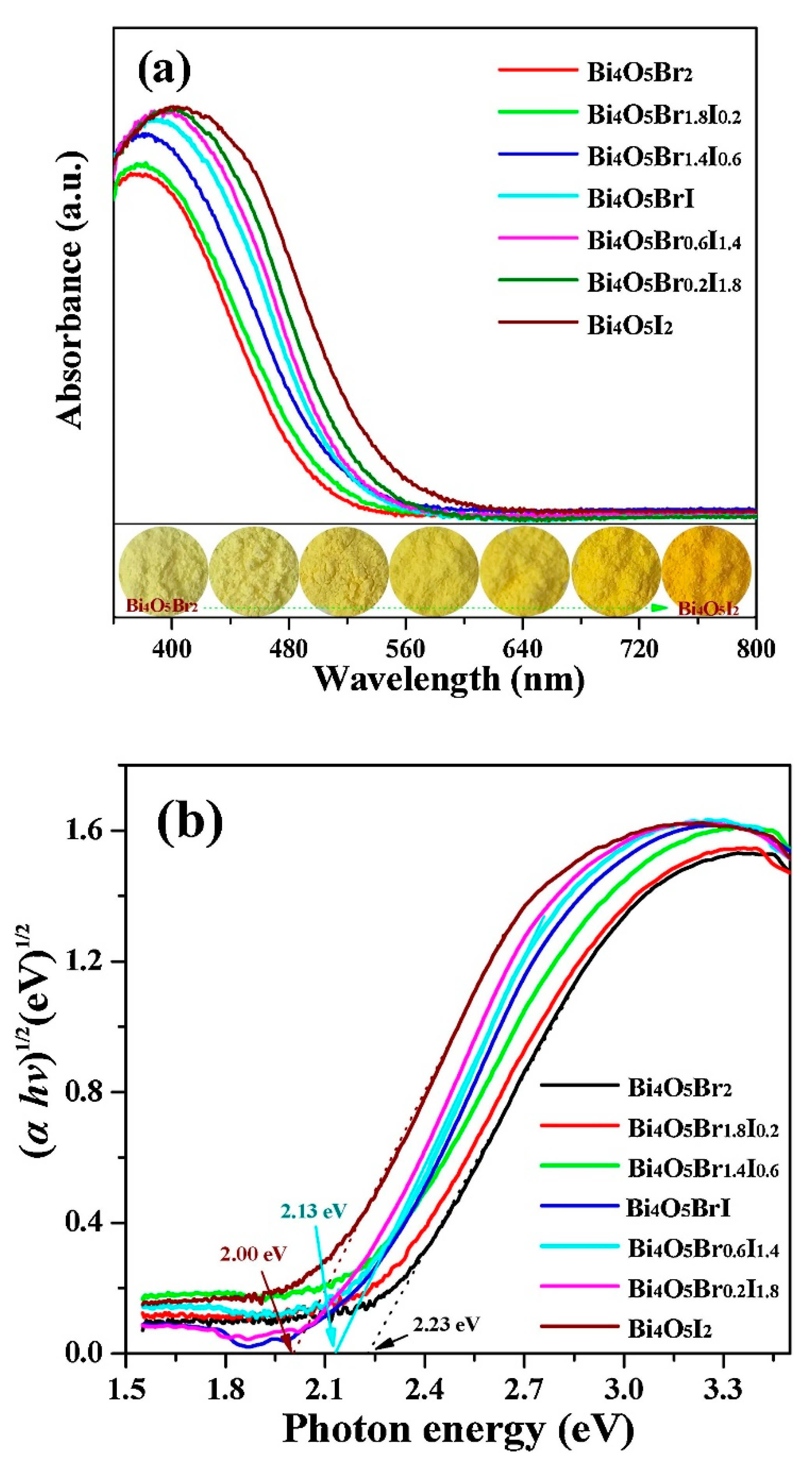

The photocatalytic potential under visible light for these catalysts was evaluated by exposing them to an aqueous solution of 30 mg/L phenolic compounds under a 500 W halogen lamp with a filter that cut-off wavelengths below 420 nm. The catalyst Bi4O5Br0.6I1.4 was the most effective at degrading the selected phenolic compounds including resorcinol, o-phenylphenol (OPP) and 4-tert-butylphenol (PTBP) [116]. These trials established the high degradation potential for phenolic pollutants under these conditions and the results are summarized in Figure 9. The reusability of Bi4O5Br0.6I1.4 was studied over four trials and minimal loss in photocatalytic activity was observed (Figure 10A) [116]. This indicates that the degradation of phenolic pollutants under visible light by Bi4O5Br0.6I1.4 does not deactivate the photocatalyst. Further analysis of Bi4O5Br0.6I1.4 using XRD before and after exposure to phenolic pollutants and visible light revealed no observable changes in the structure (Figure 10B) [116].

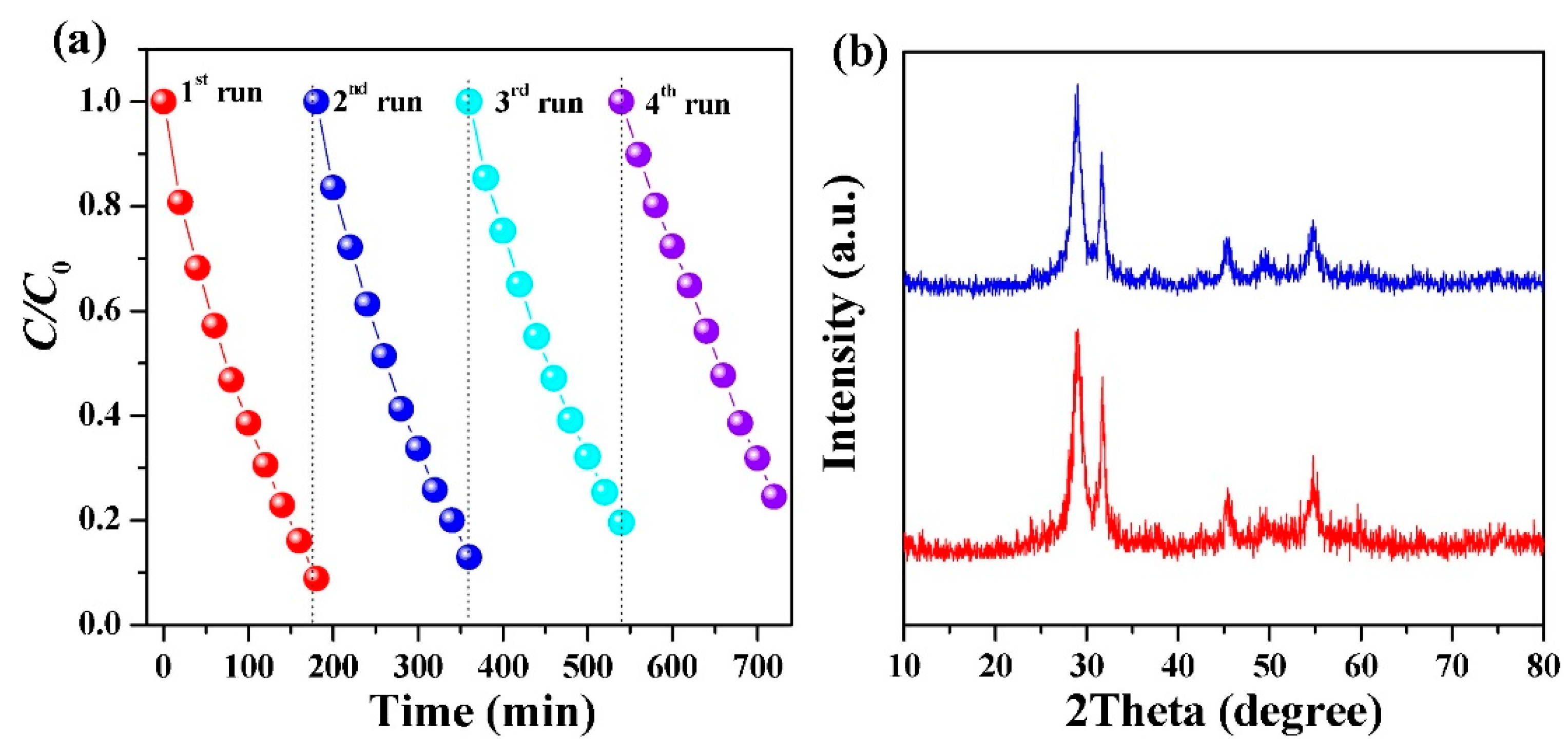

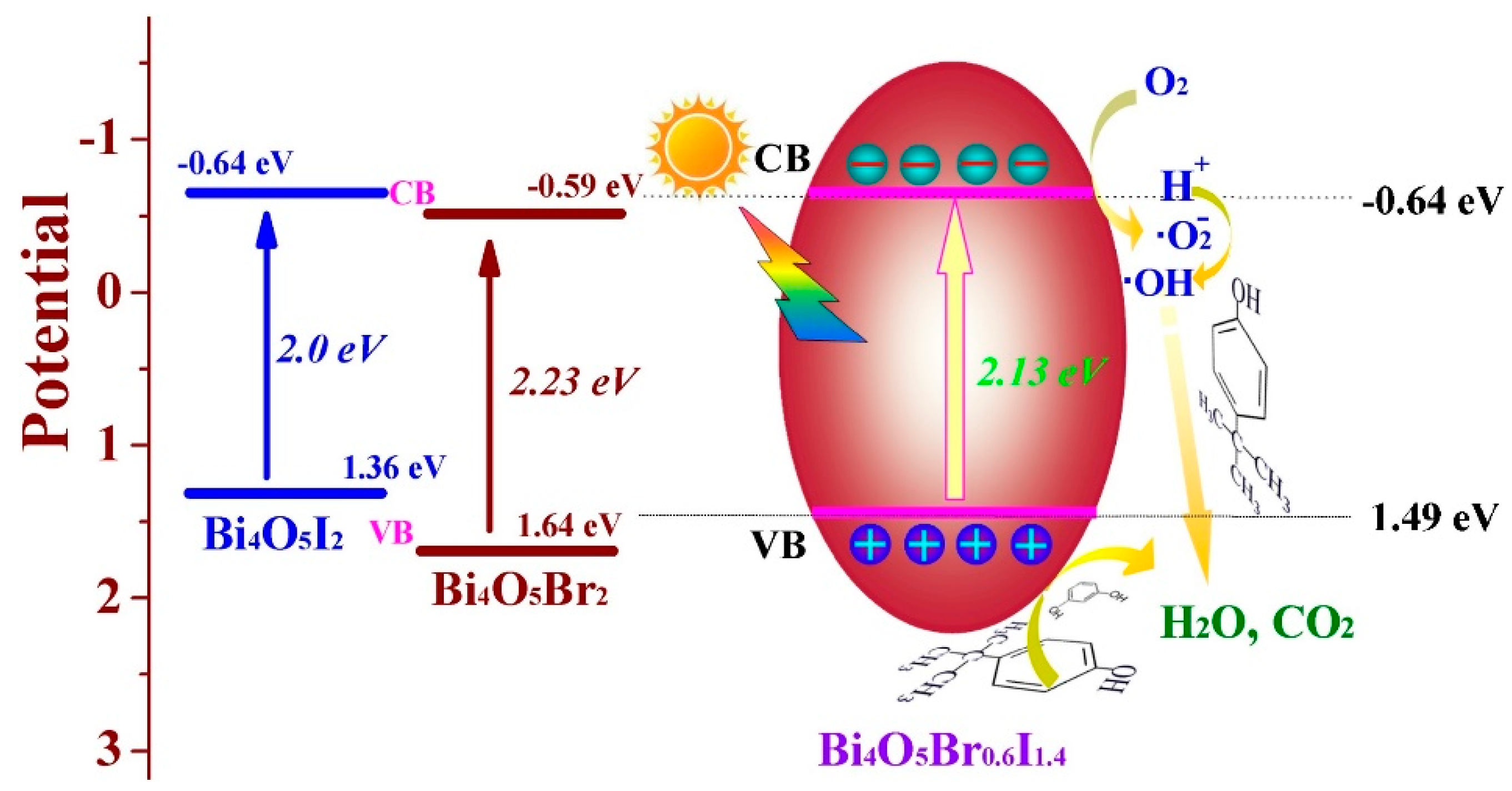

After initial experiments directed at characterizing the synthesized Bi4O5BrxI2−x samples and their potential for visible light photocatalytic activity, the researchers turned their attention toward investigating the pathways responsible for the degradation of resorcinol. The band potentials for Bi4O5Br0.6I1.4 were first calculated using the Mott-Schottky equation. The calculated values suggest that the conduction band potential (ECB = −0.64 eV) is sufficient to activate molecular O2, while the valence band potential (EVB = 1.49 eV) is not expected to be able to generate hydroxyl radicals [116]. This information was used to propose the photocatalytic mechanism for Bi4O5Br0.6I1.4 and is shown in Figure 11. Radical scavenging experiments were then performed to further confirm the major active species during visible light photocatalytic degradation of resorcinol. These results are displayed in Figure 12 and show that when tert-butanol (•OH scavenger) is added to the solution, minimal change in degradation rate is observed. However, p-benzoquinone (•O2− scavenger) or ammonium oxalate (h+ scavenger) present significate attenuation of the degradation rate when added to solution [116]. These results agree with the photocatalytic mechanism developed based on band position calculations.

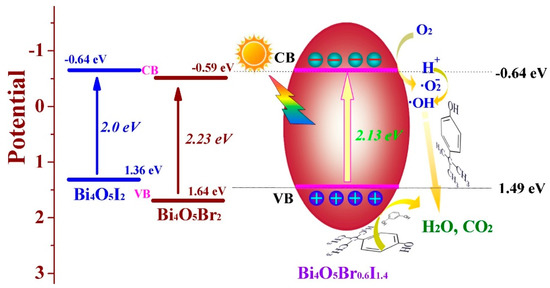

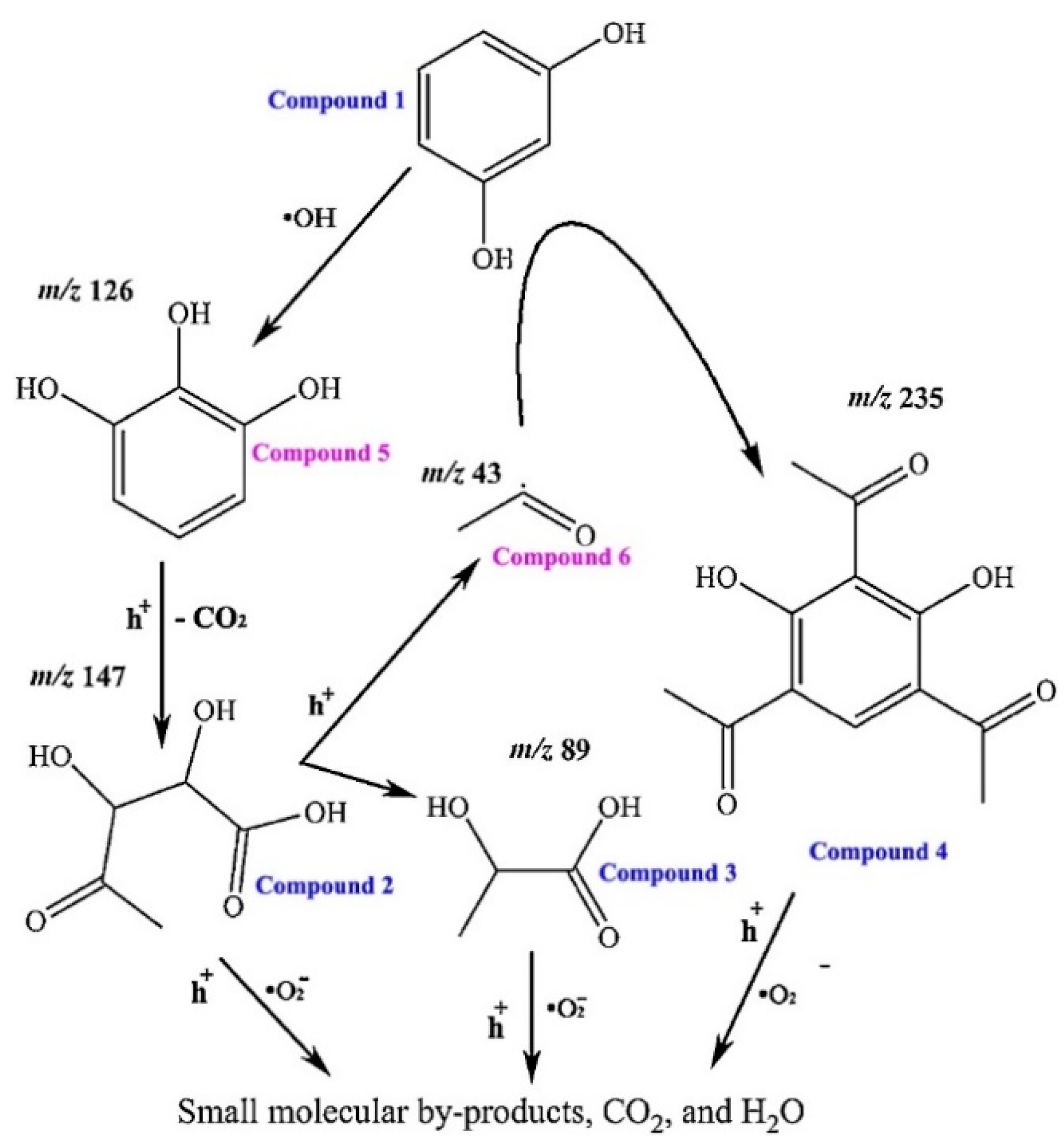

Finally, the mechanistic results were combined with LC-MS data to propose a possible photocatalytic degradation pathway for resorcinol in the presence of Bi4O5Br0.6I1.4 under visible light irradiation. In mass spectra collected for degradation samples, fragment ions with m/z = 89, 109, 147, and 239 were detected. The m/z = 109 fragment was identified as resorcinol, while the remaining fragments were attributed to the production of degradation intermediates [116]. The identified intermediates were used to propose the degradation pathway for resorcinol shown in Figure 13. Compounds 1–4 were identified as the intermediates by LC-MS and compounds 5 and 6 were included based on previous work on resorcinol degradation [117]. The proposed degradation pathway suggests that •OH plays an important role in initiating the removal of resorcinol, while the more prevalent •O2− and h+ species in this system act primarily to further break down degradation intermediates.

5. Investigation of BiOCl Photocatalytic Degradation Mechanism via Identification of Intermediates by LC-MS/MS

Further investigation of BiOX photocatalysts for degradation of POPs was undertaken using ibuprofen as a model aqueous pharmaceutical pollutant [118]. While the photocatalytic degradation of ibuprofen (IBP) has been previously investigated, this was the first study to determine the mechanism of its removal by BiOX degradation using LC-MS/MS to characterize the production of intermediates throughout the process. Previous studies indicated that both BiOCl and BiOBr dramatically reduced observable IBP levels, and that this reduction consisted primarily of IBP adsorption to BiOCl or BiOBr [119,120]. However, several photodegradation products were identified via LC-MS/MS analysis of IBP samples photodegraded by BiOCl [118].
IBP was chosen as a model pollutant for this study due to its widespread availability as an over-the-counter Non-Steroidal Anti-inflammatory Drug (NSAID). IBP has been established as a potential public health risk [121] which has led to concern over the photochemical fate of the drug [6,7]. Removal of these and similar pollutants in low concentrations from water supplies is a vital challenge to maintaining high public health standards. The degradation of IBP in aqueous solutions has been studied under a wide variety of photolytic [7,122,123,124,125,126,127,128] and photocatalytic [129,130,131] conditions, with the general conclusion that complete mineralization is not achieved, and that the photoproducts have similar toxicity to IBP. This establishes a clear need to develop advanced photocatalytic materials capable of complete removal of IBP from aqueous solutions.
IBP photodegradation trials were conducted by first dissolving IBP in a minimal amount of methanol, before diluting with water to form a 100 ppm (100 mg/L) IBP stock solution. This stock solution was transferred into a quartz flask and diluted 1:10 with water to form a 10 ppm sample solution. To this solution, 25 mg of BiOCl was added and the mixture was allowed to stir for 15 min in the dark to achieve adsorption/desorption equilibrium. Aliquots taken from the reaction mixture were subjected to High Performance Liquid Chromatography with Diode-Array Detection (HPLC-DAD) in order to quantify IBP removal as well as LC-MS/MS to characterize the evolution of intermediates throughout the photocatalytic process. HPLC-DAD results indicate that two primary processes contribute to the complete photocatalytic degradation of IBP: (1) the “primary” degradation process in which IBP is decarboxylated and converted to 4-isobutylacetophenone (IBAP) and 1-(4-isobutylphenyl)ethanol (IBPE); and (2) the “secondary” degradation process where IBAP reacts further with hydroxyl radicals. Figure 14A shows the progression of the primary degradation process as monitored by HPLC-DAD. IBP is shown to be completely removed from the solution within 20 min, while IBPE and IBAP are produced at similar rates. After initial production, both IBPE and IBAP are found to slowly degrade as well, with IBAP degradation proceeding at a faster rate than IBPE.

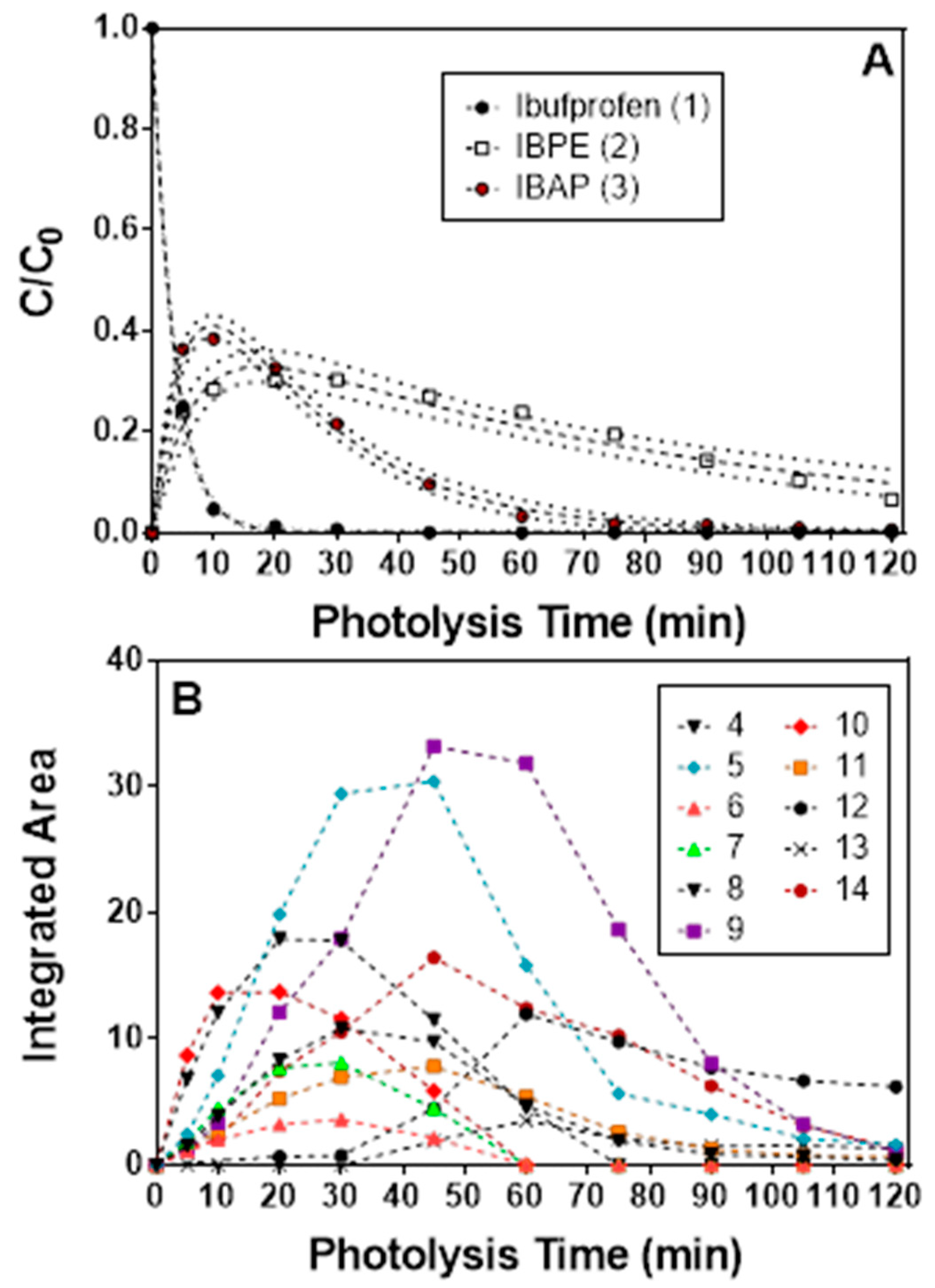

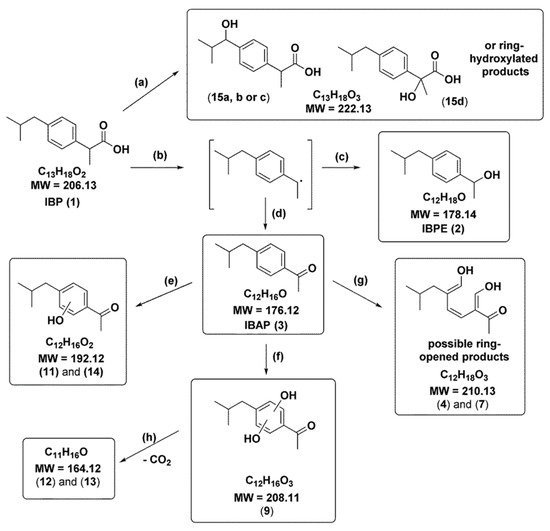

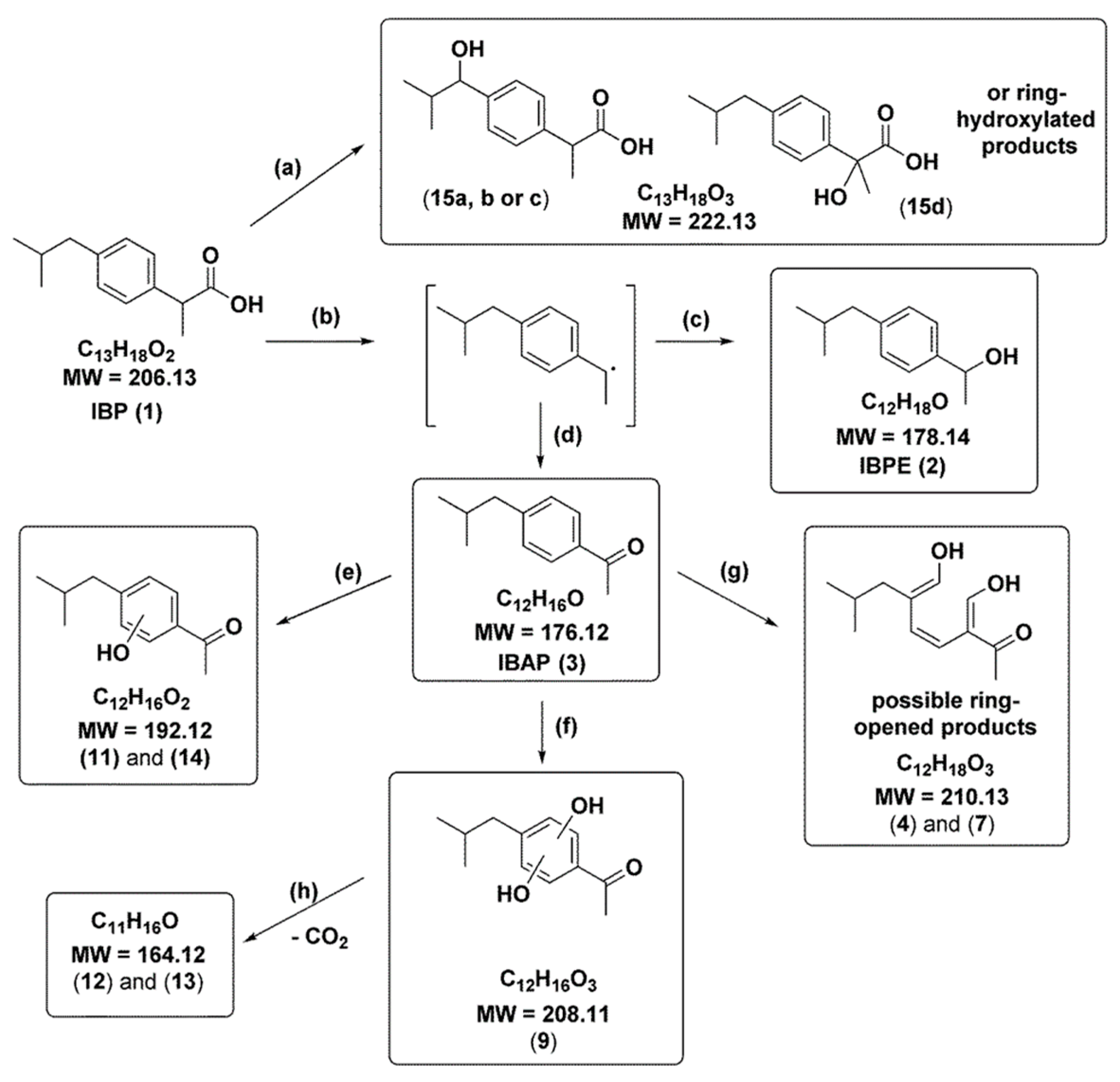

HPLC-DAD was used to detect 11 total secondary photoproducts 4–14 (Figure 14B). In order to structurally characterize these photoproducts, samples from photocatalytic degradation trials of IBP using BiOCl as a photocatalyst were analyzed via reversed-phase, positive-ion nanoelectrospray ionization LC-MS/MS. This analysis allows for determination of molecular formulas of the photocatalytic degradation products. These results including ions detected and molecular formula are summarized in Table 3.
Isomeric hydroxylated forms of IBP have been reported in previous studies (pathway a, Figure 15) under IBP degradation conditions including direct photolysis [125], TiO2 photocatalysis [123,132], sonophotocatalysis [133], and pulse radiolysis [134]. Patterson et al. reported that after treatment with BiOCl and limited light exposure the signals for hydroxylated IBP isomers were very low in intensity (pathway a, Figure 15) [118]. In contrast, strong evidence was found that TiO2 photocatalysis and direct photolysis are responsible for the production of these hydroxylated IBPs [118]. Thus, the researchers determined that pathway a (Figure 15) does not play a major role in BiOCl photocatalytic degradation of IBP. It was proposed that this observation is a potential consequence of relatively low rates of hydroxyl radical production typically observed for BiOCl, combined with rapid decarboxylation of IBP [135,136].
This report showed that BiOCl presents high activity for photocatalytic degradation and removal of IBP from aqueous solutions. This also demonstrates that adsorption is not the primary mechanism through which BiOCl nanosheets employed in this study remove IBP from water [118]. The photodegradation pathway proposed is initiated through decarboxylation of IBP via oxidation by electron holes (h+) in the valence band of BiOCl. This decarboxylation leads to formation of benzyl radicals (pathway b, Figure 15), which are converted to both IBPE (pathway c, Figure 15) as well as IBAP (pathway d, Figure 15). Further photocatalytic degradation experiments indicated that only IBAP reacts further under these conditions to yield 11 secondary photocatalytic degradation products. Photodegradation of IBAP was proposed to be initiated by the hydroxyl radicals attacking IBAP on the aromatic ring via pathways d–f (Figure 15). This attack results in the production of the observed hydroxyl-substituted IBAP derivatives [118]. Overall the results support that initially, IBAP is formed via decarbaoxylation by BiOCl before subsequent degradation of IBAP by radical oxidation on the aromatic ring of IBAP. Structurally similar pharmaceuticals, such as naproxen, benoxaprofen and ketoprofen may also be activated by BiOCl photocatalysis and should be targeted for future work. The structural alterations to pollutants during photocatalytic are shown to impact photocatalytic degradation rates and should be taken under consideration when designing any photodegradation process.

6. Cu(II)-Doped BiOCl for Photocatalytic Degradation of Atrazine with Radical Scavenging

A recently published study demonstrates how Cu-doped BiOCl compounds interact with atrazine to facilitate photodegradation, with an emphasis on identification of key radical species produced during the process [137]. Doping of photocatalysts has been a popular method to increase light utilization and efficiency. Effective use of photocatalysts relies on increased degradation of pollutants and photochemical reactivity to a variety of wavelengths. One way that improvement of photocatalytic activity is approached is through photocatalyst doping with metal ions that act as electron traps thereby preventing the recombination of electron holes (h+) and excited-state electrons (e−) [14,138]. Previous reports have shown that photocatalytic degradation rates of metal-doped photocatalysts can increase compared to the unaltered material. In particular, the addition of copper (II) ions have shown significant improvement in photocatalytic degradation rates as a result of reduced recombination [139]. Excited-state transfer of electrons to the metal dopant from the conduction band of bismuth oxyhalide facilitates the prevention of recombination and extends the lifetime of excited state electrons, allowing more photocatalytic reactions to occur [50,140].
Cu-BiOCl has been used to photocatalytically degrade atrazine [137]. Active species trapping experiments demonstrate the pathways through which Cu-BiOCl acts to remove organic pollutants from water. Dark adsorption trials indicated that atrazine was not significantly adsorbed onto the surface of either BiOCl nor Cu-BiOCl. This shows that reactive species are active during the photocatalytic process and that atrazine removal is not due to adsorption. UV-Vis analysis of aliquots from photocatalytic degradation trials indicate that 65% of the original atrazine concentration remain after 30 min. of BiOCl photocatalysis, while 71% of atrazine remains after Cu-BiOCl photocatalysis. The photocatalytic degradation rates of Cu-BiOCl and BiOCl are qualitatively similar, suggesting that prevention of recombination is not the only factor affecting the rate. To further probe this observation, trials were performed with radical scavengers present to determine the origin of photocatalytic reactivity for this system.

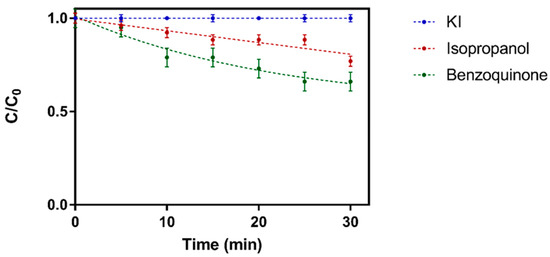

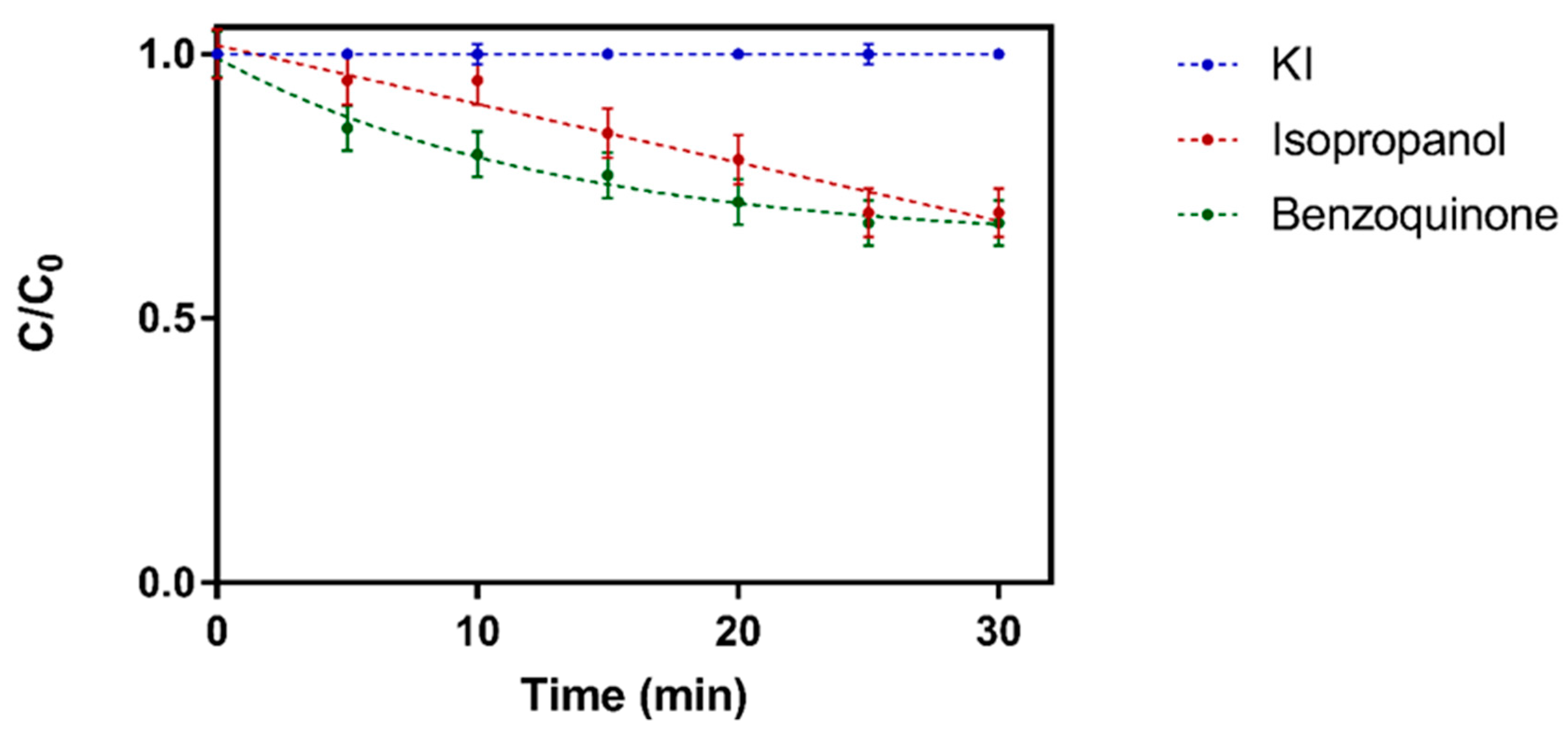

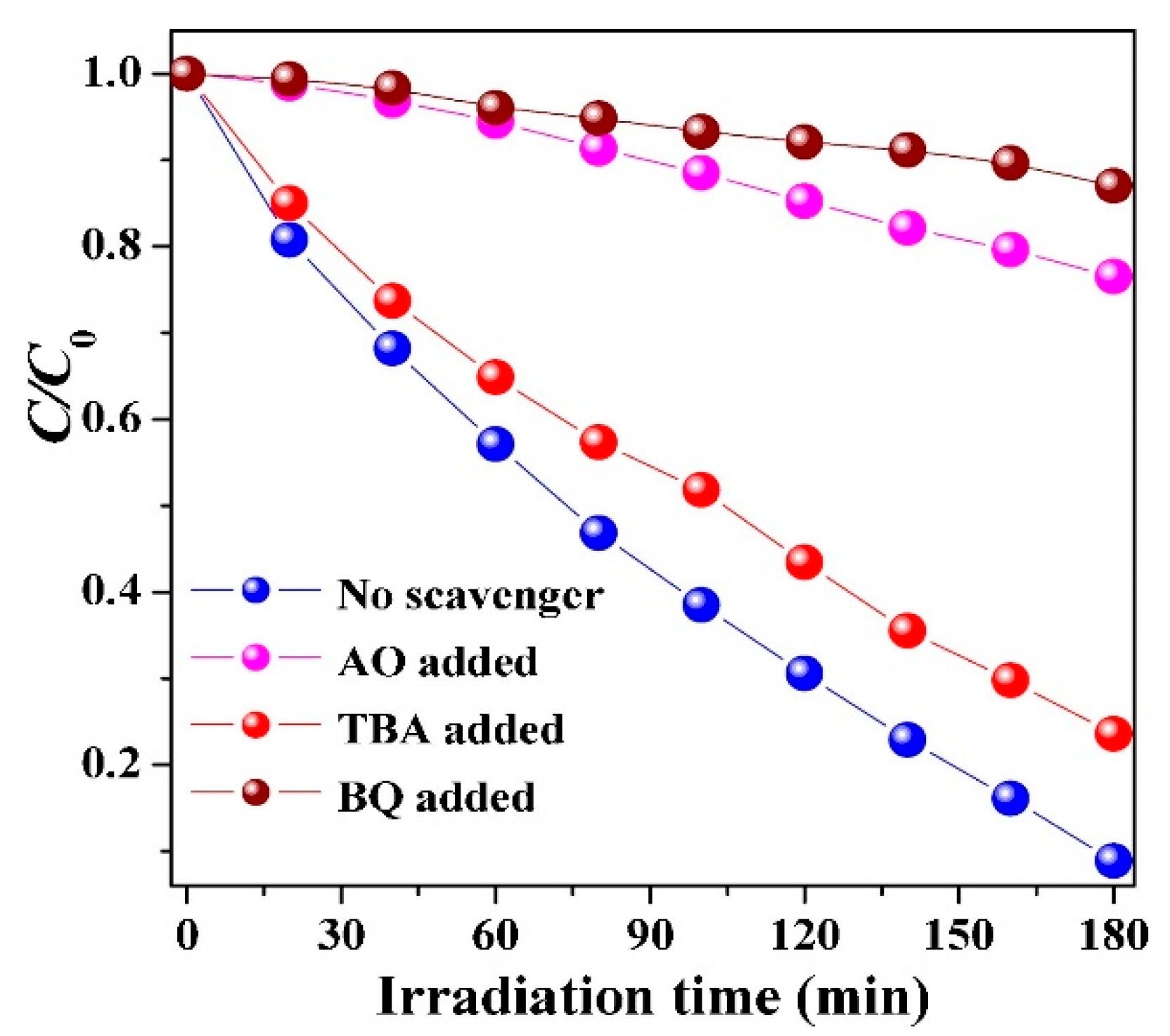

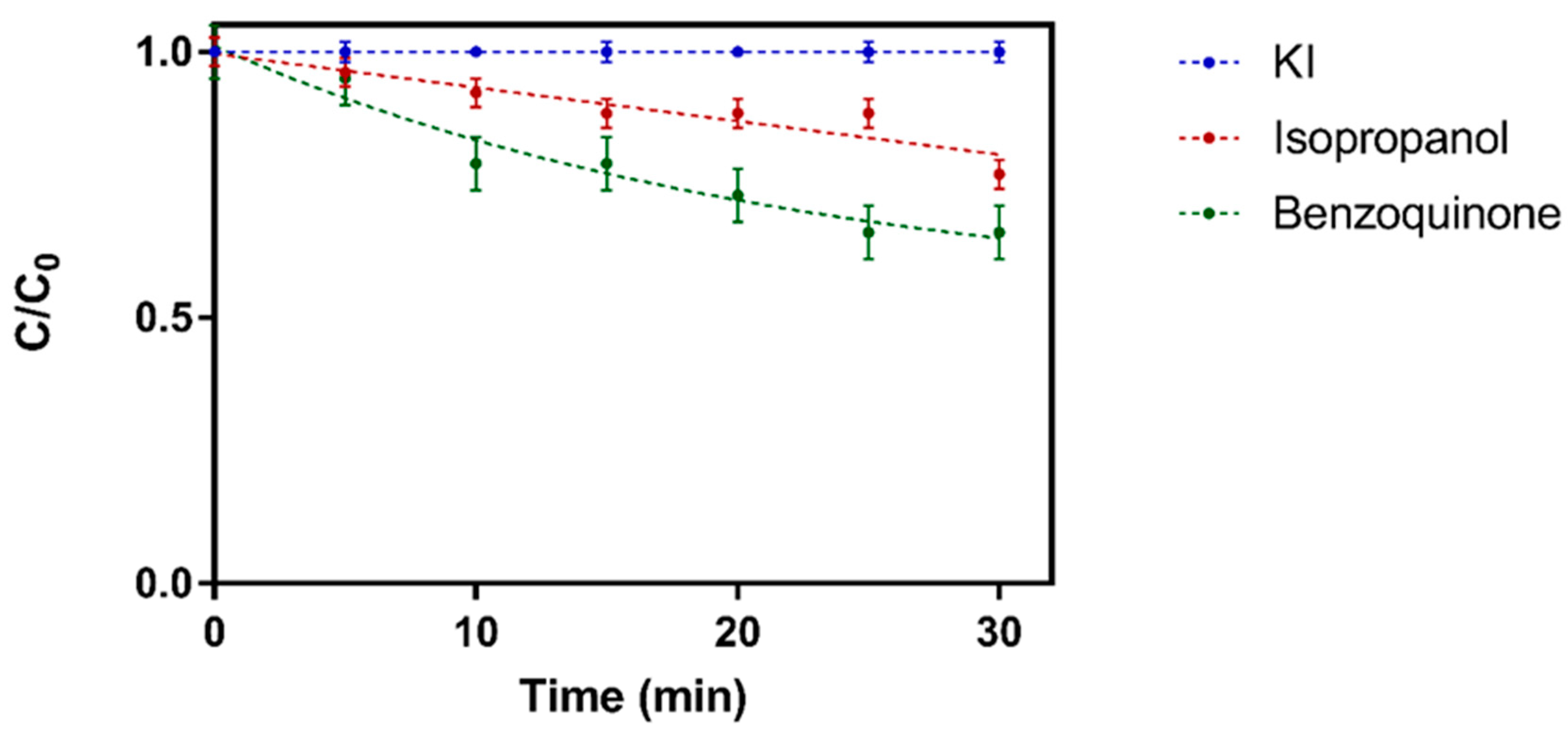

The results of radical scavenging experiments for Cu-BiOCl and BiOCl are shown in Figure 16 and Figure 17, respectively [137]. Based on these results, it is clear that for BiOCl, hydroxyl radicals and h+ feature prominently in photocatalytic degradation of atrazine, while superoxide radicals play only a minor role. Interestingly, radical scavenging experiments with Cu-BiOCl exhibit a similar trend, with normal degradation behavior observed upon addition of IPA or BQ, while atrazine removal is completely quenched by the addition of KI [137]. Atrazine removal percentages The major difference noted for these trials was that hydroxyl radical activity was more pronounced for BiOCl than for Cu-BiOCl, suggesting that production of hydroxyl radicals may have been reduced through the addition of copper ions.
Results from radical scavenging and photocatalytic degradation trials were used to formulate a proposed mechanistic pathway for photodegradation of atrazine with Cu-BiOCl. Initially, absorption of irradiation (hν) by BiOCl results in the excitation of an electron to the conduction band from the valence band of BiOCl (Equation (1)). This process leads to the generation of an electron hole (h+) and an excited electron (e−). Equations (2) and (3) show that photo-induced separation of e− and h+ occur in Cu-BiOCl occur upon photoirradiation through electron-transfer reducuction of Cu(II) species on the surface of BiOCl to Cu(I) and subsequent oxidation by molecular oxygen. It is proposed that the introduction of a source of molecular oxygen to this system would result in greater production of superoxide radicals, as well as reduced rates of electron-hole recombination. This electron transfer has been previously shown to be assisted by the presence of Cu(II) ions aligned with the conduction band of BiOCl [141].
BiOCl + hν → e− + h+
Cu2+ + e− → Cu+
Cu+ +O2 → Cu2+ + O2−
O2− + ATZ → Degradation Products
ATZ + h+ → ATZ+
ATZ+ → Degradation Products
Since radical scavenging trials indicate that hydroxyl radicals do not play a significant role in photocatalytic degradation of atrazine with BiOCl, this is not suggested as a primary reactive pathway. Production of hydroxyl radicals is even less emphasized during photocatalytic degradation of atrazine with Cu-BiOCl. The formation of degradation products is proposed to originate through two major mechanisms. First, the reaction of superoxide radicals generated at the conduction band of BiOCl during the photocatalytic process react with atrazine forming degradation products (Equation (4)). This pathway may be suppressed in our results due to the transfer of excited state electrons from the conduction band of BiOCl to the copper ions. More importantly, direct interaction of atrazine with electron holes in the valence band of BiOCl were the major degradation pathway indicated for photocatalytic degradation of atrazine. It is proposed that this reaction proceeds via electron transfer to the valence band of BiOCl directly from atrazine thereby generating electron-deficent ATZ+ (Equation (5)) [137]. Subsequent degradation reactions of ATZ+ occur due to this species’ inherent instability forming further degradation products (Equation (6)).

7. Summary and Conclusions

Photocatalysis is an important emerging technology that has seen intense interest in recent years. It has been used in applications including generation of solar fuels and remediation of environmental pollutants. Bismuth oxyhalides are a new class of photocatalysts that possess unique properties that have been shown to result in improved photocatalytic activity compared to traditional photocatalysts. Numerous articles have been published that focus on synthesis and doping strategies of BiOX to further improve their photocatalytic activity. While BiOX compounds have been previously shown to be useful in degradation of persistent organic pollutants, detailed studies of the photocatalytic degradation mechanism have been largely neglected. This review discusses the high activity that bismuth oxyhalide photocatalysts present for the degradation of pharmaceuticals and pesticides as well as the photocatalytic degradation mechanisms associated with them. The degradation mechanisms discussed are investigated through LC-MS/MS characterization of photocatalytic degradation intermediates as well as through radical scavenging experiments. These studies demonstrate that bismuth oxyhalides do not simply act to adsorb persistent organic pollutants, but that they directly react with pollutant molecules to initiate the photodegradation process. It has been shown that bismuth oxyhalides can react quickly, directly, and selectively with organic moieties such as sterols, carboxylic acids, and amines. In future work, these properties should be further investigated and exploited in order to expand the application of these materials to photocatalytic remediation of additional organic pollutants as well as the synthesis of fine chemicals.

Funding

This research received no external funding.

Conflicts of Interest

Los Alamos National Laboratory strongly supports academic freedom and a researcher’s right to publish; as an institution, however, the Laboratory does not endorse the viewpoint of a publication or guarantee its technical correctness.
