Review

Ag-Based Catalysts in Heterogeneous Selective Oxidation of Alcohols: A Review

by
Viktoriia V. Torbina
1,
Andrei A. Vodyankin
1,
Sergey Ten
1,
Grigory V. Mamontov
1,
Mikhail A. Salaev
1,
Vladimir I. Sobolev
2 and
Olga V. Vodyankina
1,*
1
Laboratory of catalytic research, Tomsk State University, 36, Lenin Ave., Tomsk 634050, Russia
2
Boreskov Institute of Catalysis, Russian Academy of Sciences, Pr. Akademika Lavrentieva, 5, Novosibirsk 630090, Russia
*
Author to whom correspondence should be addressed.
Catalysts 2018, 8(10), 447; https://doi.org/10.3390/catal8100447
Submission received: 16 September 2018 / Revised: 1 October 2018 / Accepted: 8 October 2018 / Published: 11 October 2018

Abstract

:
Alcohols (bioalcohols) is a class of chemicals that are used as a feedstock for the manufacturing of a large number of valuable intermediates in industrially important processes. Currently, sustainable technologies for selective conversion of alcohols utilize “green” oxidants, mainly, ambient air or oxygen. Due to the high affinity of oxygen towards silver, the latter serves as an active component of supported heterogeneous catalysts. In this review, we consider Ag-based catalysts that participate in gas- or liquid-phase oxidation of alcohols. Oxidation of methanol, ethanol, ethylene glycol, propylene glycol, glycerol, benzyl and allyl alcohols is mostly considered. A particular attention is paid to selective photooxidation of alcohols over Ag-based catalysts. We discuss the catalyst composition in terms of (1) the state of the active component, (2) the nature of the substrate, (3) support nature, and (4) the strength of the metal–support interactions.

1. Introduction

Mono- and polyalcohols (including such important bioalcohols as ethanol, glycerol, etc.) are important platform molecules for industrial manufacturing of a large number of value-added products, including but not limited to aldehydes, ketones, ethers, molecular hydrogen, etc. Catalytic oxidation with ambient oxygen or “green” oxidants (H2O2, tert-butyl hydroperoxide) through gas- or liquid-phase processes is considered the most promising, sustainable and economically feasible way to convert the alcohols. For the last 10 years, a stable interest in alcohol oxidation is observed (Figure 1).
Many effective catalytic composites were proposed for selective oxidation of alcohols [1,2,3,4], including those based on individual noble metals (Au [5,6,7], Pd [7], Pt [8], Ru [9], Cu [9], Ir [9], etc.) and bimetallic compositions (e.g., [7]). The nature of the support, a concentration of surface functional groups, the distribution of the active component along the support surface, the presence of impurities, thermal conductivity and stability, physical-mechanical properties, etc. are considered important challenges in developing a new generation of highly effective catalysts for alcohol oxidation.

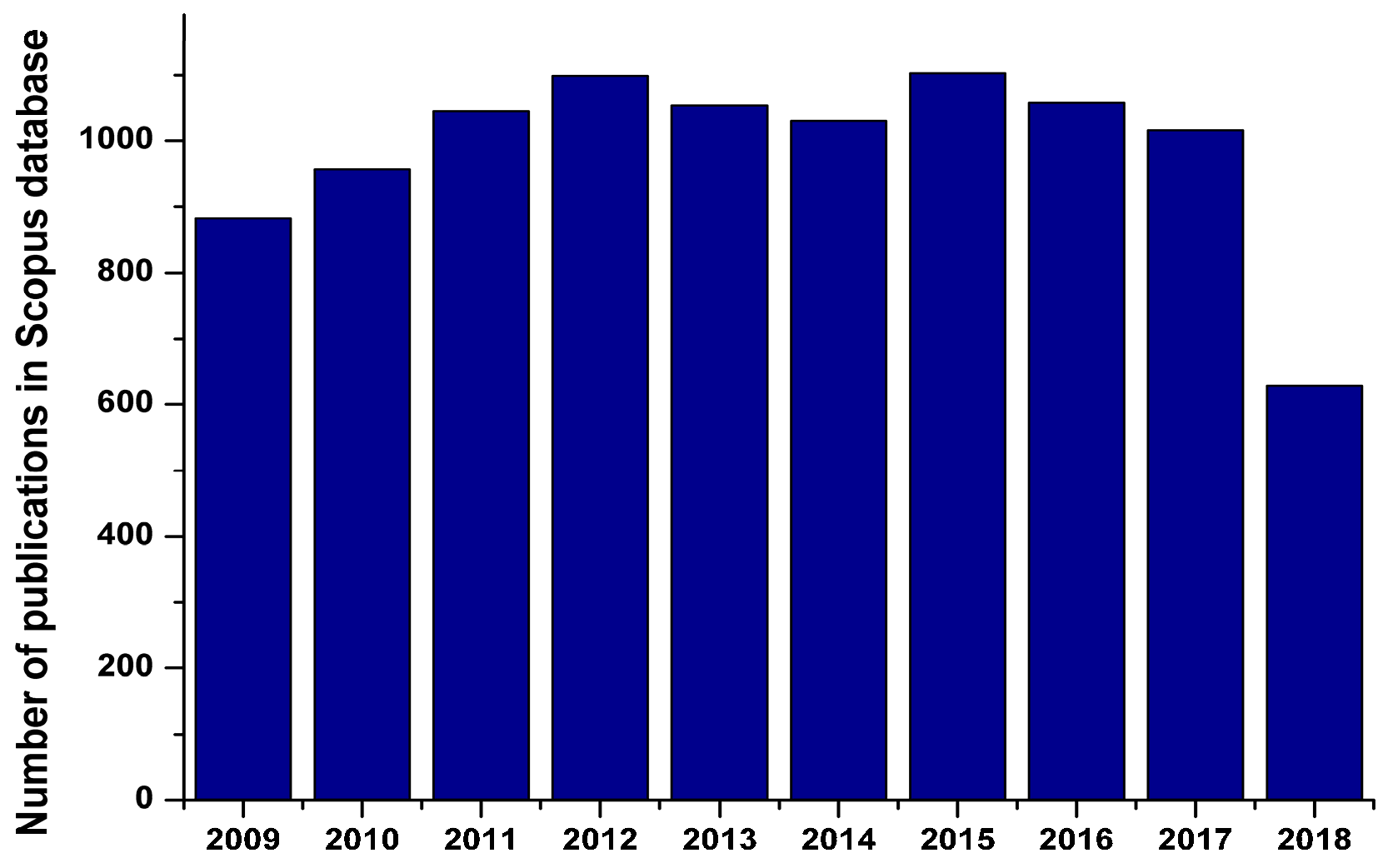

Silver-based catalysts bring about a special interest [10,11,12,13,14] due to a number of valuable features of the metal. These include its ability to activate molecular oxygen, homogeneous distribution of metal particles/clusters over various supports [e.g., SiO2, CeO2, MnxOy, Si3N4, TiO2, etc.] and a synergistic action with a large number of promoters and modifiers (noble metals, transition metal oxides, halogen-containing compounds, P2O5, etc.). These features became a ground for the application of the Ag-based catalysts in the industrial gas-phase oxidation of methanol to formaldehyde and ethylene glycol to glyoxal.
In this review, we survey a current state of the Ag-based heterogeneous catalysts for gas- and liquid-phase heterogeneous selective oxidation of alcohols. The processes are discussed in terms of (1) catalyst composition, including the state of the active component, (2) nature of the substrate, (3) support nature, and (4) strength of the metal–support interactions.

2. Heterogeneous Gas-Phase Selective Oxidation

In this chapter, we elucidate the reactions of heterogeneous gas-phase selective oxidation of alcohols. The catalysts and reactions of monoalcohols (methanol, ethanol, benzyl alcohol (BA)), polyols (ethylene glycol (EG), propylene glycol (PG), glycerol (GLY)), and unsaturated alcohols (allylic alcohol) are considered. The gas-phase oxidation of alcohols is usually realized in a wide temperature range (from 150 °C for ethanol and other C2+ monoatomic alcohols to up to 550–650 °C for methanol and EG). Water is usually used to prepare the alcohol–water mixtures (especially for EG and GLY) and lightens the evaporation of the alcohol. In a number of cases, high catalyst selectivity is achieved by applying the dilution of the reaction mixture with inert gas (usually, nitrogen).

2.1. Monoalcohols

2.1.1. Methanol

Methanol is known as an intermediate in the production of a number of value-added products, including, but not limited to formaldehyde [10], methyl formate (MF) [15], hydrogen [16,17], etc. Gas-phase methanol oxidation is one of the most important industrial processes to manufacture formaldehyde, and is carried out over polycrystalline or supported Ag [18] (under alcohol-rich conditions and adiabatic mode) or Fe-Mo-O [19,20] (under alcohol-lean conditions) catalysts. For Ag-based catalysts, the process is carried out over bulk (550–600 °C) and supported (650–700 °C) materials in adiabatic mode at alcohol/oxygen molar ratio of 0.35–0.42. For supported catalyst up to 30% of water is added to prepare an initial methanol solution. An incomplete methanol conversion occurs. The selectivity (85–90%) is usually higher for polycrystalline catalysts than for supported materials. In comparison with Fe-Mo oxide catalysts, the Ag catalyst productivity is higher, while contact times are lower. Despite thorough investigation of the process mechanism [21,22,23,24,25], surface chemistry [26,27] as well as the process modeling [28,29], the selective methanol oxidation over Ag-based catalysts still attracts a vivid research interest. Table 1 summarizes the most recent experimental findings.
In case selective oxidation of methanol to formaldehyde, the researchers explore the opportunities to develop new catalytic systems utilizing those supports that are not traditionally used in the process. Thus, Aouat et al. proposed a hybrid catalyst representing thermally activated Congo-red (CR) nanoparticles (NPs) entrapped within Ag deposited on titania nanofibers (nf) [30] (Table 1). TiO2 nanofibers were shown to boost the catalyst performance in comparison with unsupported CR@Ag powder and supported undoped Ag/TiO2-nf catalysts. This was assumed to be caused by structural-morphological benefits provided by titania. The same group showed earlier [31] that the role of organic dopant molecules in such systems is to prevent the formation of large aggregates, which result in a higher specific surface and porous morphology. The CR residues are located within the silver agglomerates and serve as a barrier for Ag sintering.
Halperin et al. tested the uniform Ag fiber mats and composite Ag/C fibers synthesized by electrospinning in the selective oxidation of methanol to formaldehyde [32] (Table 1). The results obtained show better catalyst performance for the Ag/C composite fibers as compared to Ag fibers and powder analogues. The carbon near the silver grains was assumed to participate in the process under consideration via the “adsorb and shuttle” of “spillover” mechanisms.
Sobczak and Dembowiak used mesostructured cellular foams (MCF) and NbMCF as supports for Au–Ag bimetallic catalysts [33] (Table 1). The samples were prepared by loading of the metals (Au/Ag atomic ratios were 0.5 and 2) on 3-aminopropyl-trimethoxysilane grafted supports followed by reduction by NaBH4 prior to calcination at 773 K. An Au–Ag alloy was shown to form on the surface of AuAg-MCF and AuAg-NbMCF samples. The pretreatment conditions determined the composition of the Au–Ag alloy that was enriched in silver partially by treatment with Ar flow and substantially by a reduction in H2 flow as well as the alloy particle size. The presence of Au–Ag alloy on the MCF surface caused a synergistic effect between metal species and was responsible for high activity of the catalysts. Nb species in the MCF support were assumed to influence on both the catalytic activity and the selectivity towards formaldehyde.
Wisniewska et al. [34] used MCF, NbMCF and TaMCF as supports for Ag and/or Pt catalysts. The bimetallic catalysts were prepared by grafting of metal species on the supports functionalized with APTMS and MPTMS, and the functionalizing agents influenced significantly on the dispersion of metals, the nature of the bimetallic species formed and the strength of Nb/Ta interaction with Pt/Ag. The promoting effects of Nb and Ta were connected with the changing of the oxidation state of silver due to silver-Nb/Ta interaction. This determined the observed catalytic activity. Wisniewska and Ziolek pointed out that MCFs help to preserve the Pt–Ag alloy (and the active phases formed) after activation under argon [35]. For bimetallic samples, the partial segregation of Ag and Pt in the alloy occurred.
The most recent theoretical findings show [36] that under process relevant conditions, oxygen on the silver surface is present in low concentrations, while playing an important role by promoting the activation of OH bond in methanol, which results in methoxy species further yielding formaldehyde. Earlier work [37] showed that surface oxygen may promote the formaldehyde destruction through the formation of CH2O2 further decomposing to CHO2 and then to carbon dioxide and hydrogen. Montoya and Haynes [38] found that a subsurface oxygen stabilizes the adsorbed phases by increasing the binding energy of Ag(111) and has less dramatic impact on the scission of O–H and C–H bonds as compared to surface-bound oxygen species.
Shirman et al. prepared bimetallic Ag-Au NPs with controlled bimetallic nanoparticle size and composition as well as well-defined structural hierarchy embedded in a porous silica matrix (SiO2–AgxAuy) [39]. The composites were synthesized by a decoration of polymeric colloids with the bimetallic NPs followed by an assembly into a colloidal crystal backfilled with the matrix precursor and a subsequent removal of the polymeric template. The performance of these catalysts in selective oxidation of both methanol and ethanol to esters was superior to nanoporous dilute Ag3Au97 alloy catalysts. The proposed approach was assumed to provide the fine control over the composition, morphology, size, distribution, and availability of the supported NPs.
Thus, despite a long history of the development of new generations of the Ag-based catalysts for selective oxidation of methanol to formaldehyde, the studies are in progress. The main reasons for the increased attention of the researchers are connected with the process realization at elevated temperatures that causes a number of serious challenges (e.g., catalyst deactivation due to sintering, the loss of active component, etc.). Recent trends are connected with (1) the transition to the hierarchical porous composite fibrous materials having high hydrodynamic permeability [34], (2) the use of the nanosized Ag particles fixed on the surface of MCFs modified by Nb or Ta [31]. In the latter case the effect of methanol interaction with the reduced sites of Nb having their own activity is also discussed.
It is noteworthy that a significant reduction of the process temperature for Ag catalysts without the addition of the second metal (e.g., Pt) was not yet achieved, which is connected with a weak adsorption of methanol over the silver surface and difficulties in the C–H bond cleavage in the methanol molecule as compared to other alcohols. Addition of Pt into the composition of PtAg/NbMCF-M catalyst provided the highest selectivity towards formaldehyde (53%) at 85% methanol conversion (200 °C), i.e., the impact of total oxidation of alcohol is high [31,32].
The use of Au–Ag alloy as NPs supported on the MCF with and without addition of Nb under mild conditions changes the direction of methanol transformation towards formation of methyl formate. At an Au/Ag ratio of 2 in the presence of NbMCF, formaldehyde is formed with a 48% selectivity at 250 °C. However, the selectivity towards CO2 is also high (45%) [35]. The role of Nb lies in the significant changing of the selectivity towards formaldehyde that opens wide prospects for further development of such materials.

2.1.2. Ethanol

A catalytic conversion of ethanol is of high importance for the synthesis of acetaldehyde [40], butadiene [41,42], acetone [43] and other compounds. A growing interest in ethanol conversion is mainly attributed to the application of bioethanol, which is a cheap raw compound for organic synthesis [44]. The application of different catalysts is widely discussed in the literature for ethanol oxidation: Ag and Au supported on ceria [45,46], Au−Ir catalysts [47], vanadium oxides [48], etc. The main challenge is connected with the controlling of the activity at relatively low temperatures with maintaining of the selectivity towards the desired products. Among the catalytic compositions, the catalysts based on group 11 metals deserve special attention due to a high selectivity in the oxidation of alcohols into carbonyls.
Thus, Silbaugh et al. [49] carried out a comparison of Ag, Cu and Au supported on Li2O/γ-Al2O3 in ethanol oxidation. Ethanol dehydration into diethyl ether was found to take place over the γ-Al2O3 support. The formation of acetaldehyde (S ≈ 85%) and diethyl ether and ethyl acetate (S ≈ 10%) occurred over the Li2O/γ-Al2O3 support with the ethanol conversion of 45% at 400 °C. This indicated a surface coverage of alumina support by Li2O accompanied by the blocking of strong acid sites. The highest activity in ethanol oxidation was achieved over the Ag-Li2O/γ-Al2O3 catalyst: 100% conversion of ethanol at 350 °C with the selectivity towards acetaldehyde up to 100% at 100–300 °C and 88–95% at 325–400 °C. The Ag catalysts were more active and selective in ethanol oxidation into acetaldehyde as compared to Au- or Cu-based catalysts. Ethylene oxide did not form for all catalysts as opposed to results by Lippits et al. who observed the ethylene oxide formation in ethanol oxidation over Au/Al2O3 [50] and Ag/Al2O3 [51] catalysts doped with CeOx and Li2O.
Janlamool and Jongsomjit studied ethanol oxidative dehydrogenation over Ag/Li-Al2O3 catalysts [52]. The authors studied the role of a phase of alumina support, and a pure γ, pure χ and equally mixed phases of alumina were used as supports. The highest activity of Ag-Li catalyst supported on the mixed γ-χ alumina support was found. The increased amounts of weak basic sites (CO2-TPD) and Agnδ+ clusters (UV-Vis spectroscopy) enhanced the catalytic activity. The TPR data showed that the phase of alumina support affected the interaction with Ag+ species, and a weaker interaction led to a facilitated reduction of Ag+ species into Agnδ+ clusters that according to authors’ opinion are more active in dehydrogenation in comparison with Ag+ and Ag0 species.

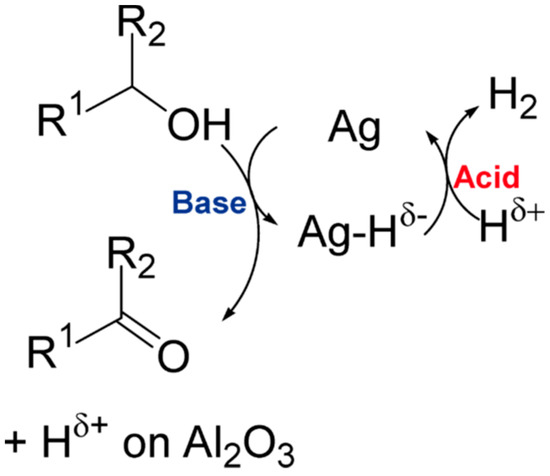

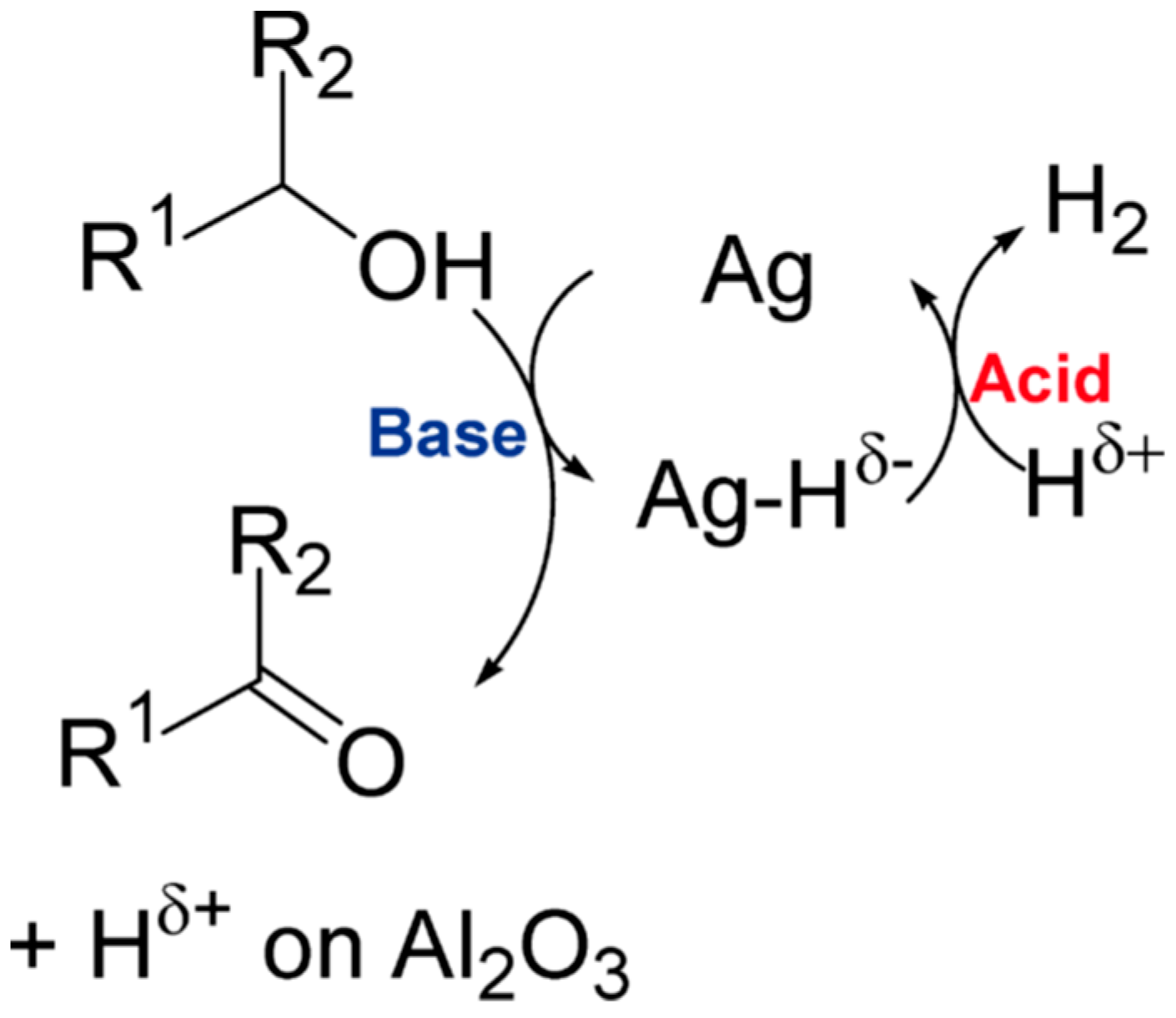

Shimizu and Satsuma studied oxidant-free dehydrogenation of alcohol over small silver clusters supported on Al2O3 [53]. The authors emphasize an important role of basic and acid sites of the support in the cooperative dehydrogenation of alcohols into carbonyl compounds (Figure 2). The active basic and acidic sites of the support participate in both stabilization of silver clusters [54] and alcohol activation.
Xu et al. [55] studied the oxidative dehydrogenation of ethanol into acetaldehyde over Ag/hydroxyapatite. A high activity (a turnover frequency (TOF) = 1.38 s−1) was achieved over the hydroxyapatite-supported highly dispersed Ag NPs. The selectivity of ∼100% was observed at ethanol conversion of ∼17% at 277 °C. The high selectivity was attributed to a low activation energy of acetaldehyde formation (38.6 kJ/mol) over the Ag(111) (density functional theory (DFT) calculations) in comparison with the CO2 formation (126.4 kJ/mol). The DFT calculations and results of temperature-programmed surface reaction (TPSR) allowed concluding that the ethanol oxidation predominantly occurred on a terrace surface of silver. The role of hydroxyapatite support consisted in stabilization of the highly dispersed Ag particles, while the authors did not discuss the possibility of ethanol adsorption over the support.
The nature of the materials used as supports for the preparation of the supported Ag catalysts as well as their properties play an important role during both the preparation stage and catalytic process. Taking into account that the oxidation processes are exothermal, a heat exchange between the reagent flow and the catalyst surface as well as between the active species (Ag NPs) and the support influences significantly on the state of active surface and the ratio between selective and nonselective stages. Blokhina et al. [56] studied the ethanol oxidation over the Si3N4-supported silver catalyst with a low specific surface area and unique thermal conductivity. The Ag NPs with sizes below 30 nm were uniformly distributed over the surface of Si3N4 after calcination of the catalysts at 500 °C in air. The silver particles were formed due to decomposition of silver trifluoroacetate and were mostly located in hollows and in places of contact between the coalesced support particles. The supported Ag NPs in the catalytic process show high stability that was attributed to the epitaxial bonding of silver with the support.
Moreover, a chemical composition of the support surface including functional groups of different nature (acid-base or redox) can also influence on the state of active component. In our previous work [57] we showed that the impurities of Fe in the Si3N4 support, which was prepared by self-propagating high-temperature synthesis from Fe-Si alloy, influence on the surface redox properties of Ag/Si3N4 and are a part of bifunctional active species in selective oxidation of ethanol. Thus, both redox and acid-base properties of the support affect the catalytic properties of the supported silver NPs.
Dutov et al. [58] studied silver supported on manganese oxides (OMS-2) with pronounced acid (Lewis acid sites) and redox (transition Mn4+↔Mn3+↔Mn2+) properties. It was shown that a modification of OMS-2 by silver improved the redox properties of the catalysts and increased their activity in ethanol oxidation. However, a high activity of the active sites in Ag/MnOx catalysts promotes the non-selective reactions, mainly, deep oxidation of ethanol into carbon oxides. The authors also compared the synthesized Ag/MnOx with other Ag catalysts (Table 2).
Mamontov et al. [63] studied the dehydrogenation and oxidative dehydrogenation of ethanol over Ag/SiO2 catalyst doped with CeO2. It was shown that a high activity and selectivity towards acetaldehyde in a wide temperature range can be achieved over the Ag/SiO2 catalyst as compared to Au/SiO2 counterpart (where SiO2 is MCM-41, SBA-15 and unordered mesoporous silica) [64] in both oxidative and non-oxidative dehydrogenation of ethanol. The addition of CeO2 in the Ag/SiO2 catalysts was shown to promote the activity in ethanol oxidation (Figure 3). It was proposed that the growth of the activity in oxidative dehydrogenation of ethanol was associated with a spillover of active oxygen from ceria to silver NPs increasing the total amount of the oxidative sites. The growth of the activity in non-oxidative dehydrogenation of ethanol may be a result of a cooperation of active Ag species and ceria on the Ag–CeO2 interface. To reveal an influence of the Ag–CeO2 interfacial interaction on the activity of Ag–CeO2/SiO2 catalysts, the series of catalysts with a controllable distribution of silver and ceria were synthesized [65]. It was shown that an increasing Ag–CeO2 interfacial interaction in the catalyst prepared by the impregnation of the pre-reduced CeO2/SiO2 support with AgNO3 aqueous solution led to the growth of activity in oxidative dehydrogenation of ethanol into acetaldehyde with maintaining of high selectivity towards acetaldehyde.
Grabchenko et al. [66] studied the oxidative dehydrogenation of ethanol into acetaldehyde over Ag/CeO2 catalysts. At 85–130 °C ethanol predominantly converted into acetaldehyde, and CO2 formation as the major by-product was observed at temperatures above 130 °C. The process conditions (temperature, contact time, features of the oxidant (water or ethanol) and oxidant/substrate ratio) determined the routes of ethanol conversion over Ag/CeO2. Acetaldehyde may be obtained over the Ag/CeO2 as the first intermediate of ethanol conversion only in a narrow range of conditions. A total oxidation of ethanol into CO2 is observed over the Ag/CeO2 catalyst at relatively low temperatures of 130–200 °C, when oxygen is used as an oxidant.
Acetone is another valuable product for organic synthesis, which is generally produced by dehydrogenation of isopropanol, while Rodrigues et al. [67] carried out an acetone synthesis from ethanol. The authors also showed the opportunity to carry out the ethanol conversion with water vapor into acetone (ethanol/water molar ratio was 1/8) without oxygen over Ag/CeO2 catalysts [68]. Acetone formation was also observed at 400 °C in our previous work [66], when water was used as a mild oxidant. The role of silver was attributed to an increase of the reducibility of CeO2 that led to higher selectivity towards acetone (up to 66% at 400 °C) and a lower selectivity towards ethylene (~5%). According to the mechanism proposed by Rodrigues et al. [67] the ethanol conversion into acetaldehyde takes place over the oxidative species of ceria. The main role of silver is to promote the oxidation of acetaldehyde into acetate species increasing the selectivity towards acetone.
Thus, the selective oxidation of ethanol is an important process for the manufacturing of valuable organic compounds. The Ag-containing materials are promising catalysts for selective oxidation of ethanol into acetaldehyde, acetone and other compounds due to higher selectivity in comparison with Au, Cu and other catalysts. The activity of silver catalysts significantly depends on the redox and acid-base properties of the support due to a cooperation of the active silver sites and the support at the Ag–support/modifier interfaces [57,63]. The control of this interfacial interaction can be used to enhance the catalyst performance.
Thus, the recent progress in the field of development of highly effective Ag catalysts for selective oxidation of ethanol is mainly connected with the use of Ag as isolated ions, in cluster state and in the form of small nanosized particles [52,54,55]. The acid-base properties of the support surface play an important role. The controlling of the acid-base properties of γ-Al2O3 by introduction of Li2O allowed achieving a 100% conversion of ethanol at 350 °C with the selectivity towards acetaldehyde of up to 100% [49,51]. Gold and copper-containing catalysts cedes the Ag composites in terms of activity. The main reason is the formation of Agn clusters on the surface of Li-modified alumina. The use of hydroxyapatite as a support for Ag NPs leads to significant decrease of the conversion (below 20% at 277 °C) with maintaining of a 100% selectivity towards acetaldehyde. Thus, it is necessary to optimize the acid-base properties of the support to achieve the maximal effectiveness.
The next important approach to increase the effectiveness of Ag-based catalysts is the use of transition metal oxides (CeO2, MnO2, Fe2O3, etc.) as supports, modifiers and/or matrixes for distribution of isolated Ag+ cations [58]. The strong metal–support interaction plays a crucial role in the growth of the catalyst activity in oxidative dehydrogenation of ethanol into acetaldehyde at high selectivity [63]. Thus, to create the highly effective catalysts a balance is required between redox and acid-base properties. This provides the distribution of active component as nanosized clusters and/or isolated ions in the close contact with the oxide modifier possessing redox properties.

2.1.3. Benzyl Alcohol

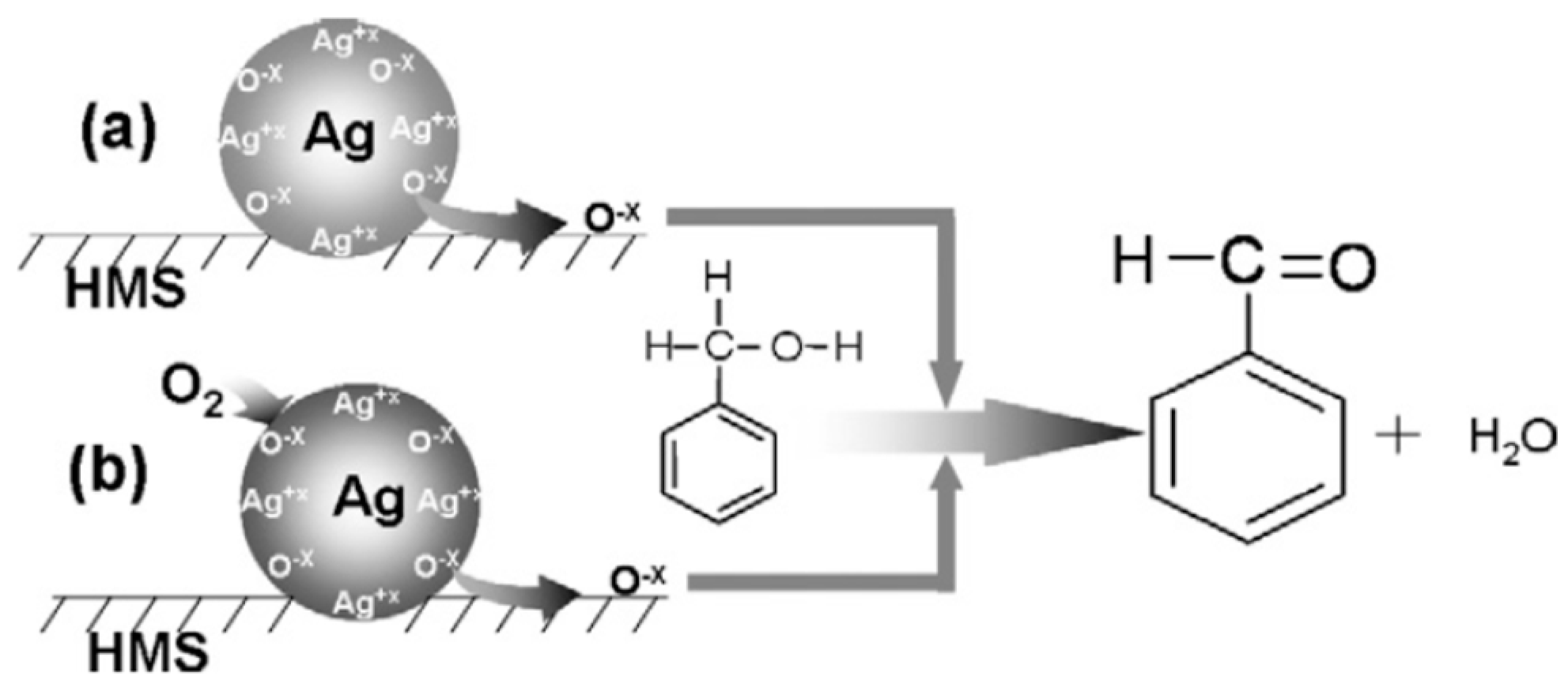

Gas-phase selective oxidation of benzyl alcohol (BA) over Ag-based catalysts is extensively studied. Different supports are used in the BA partial oxidation over Ag-based catalysts (Table 3) including materials based on SiO2 with amorphous [69] and mesoporous ordered structure such as HMS [70], SBA-15 [71], Na-ZSMs [69], alkali-earth metal oxide CaO and MgO [69], Al2O3 [72], and heat conductivity materials Ni-fibers [73] and SiC [74,75].
Ordered mesoporous SiO2 materials are also actively studied as supports for silver catalysts in the gas-phase selective oxidation of BA to benzaldehyde (BAld). Jia et al. [70] synthesized silver-containing hexagonal mesoporous silica (Ag-HMS) catalysts with different Si/Ag ratios using a one-pot hydrothermal method. The Ag-HMS catalysts with different Ag loadings (0.55–3.50 wt.%) and Ag particle sizes (5–32 nm) showed similar catalyst performance due to close Ag surface area. These catalysts exhibited the catalytic properties superior to those of other M-HMS catalysts (M = Co, Ce, La, Cu, Sr, Cd, Ni, Mn, V, and Fe) and the enhanced catalytic activity was assumed to be caused by the oxygen spillover yielding Ag surface oxygen species (Figure 4).
Ma et al. [71] prepared the Ag/SBA-15 catalysts with different Ag content by an impregnation method. A nano-confinement effect caused silver incorporation into the channels of the mesoporous SBA-15 structure as well as Ag dispersion over the support surface. This increased the specific surface area and provided a uniform pore size. Oxygen spillover of nucleophilic oxygen species from the silver NPs to the support enhanced the catalytic activity. The developed composites also showed high thermal gradient stability.

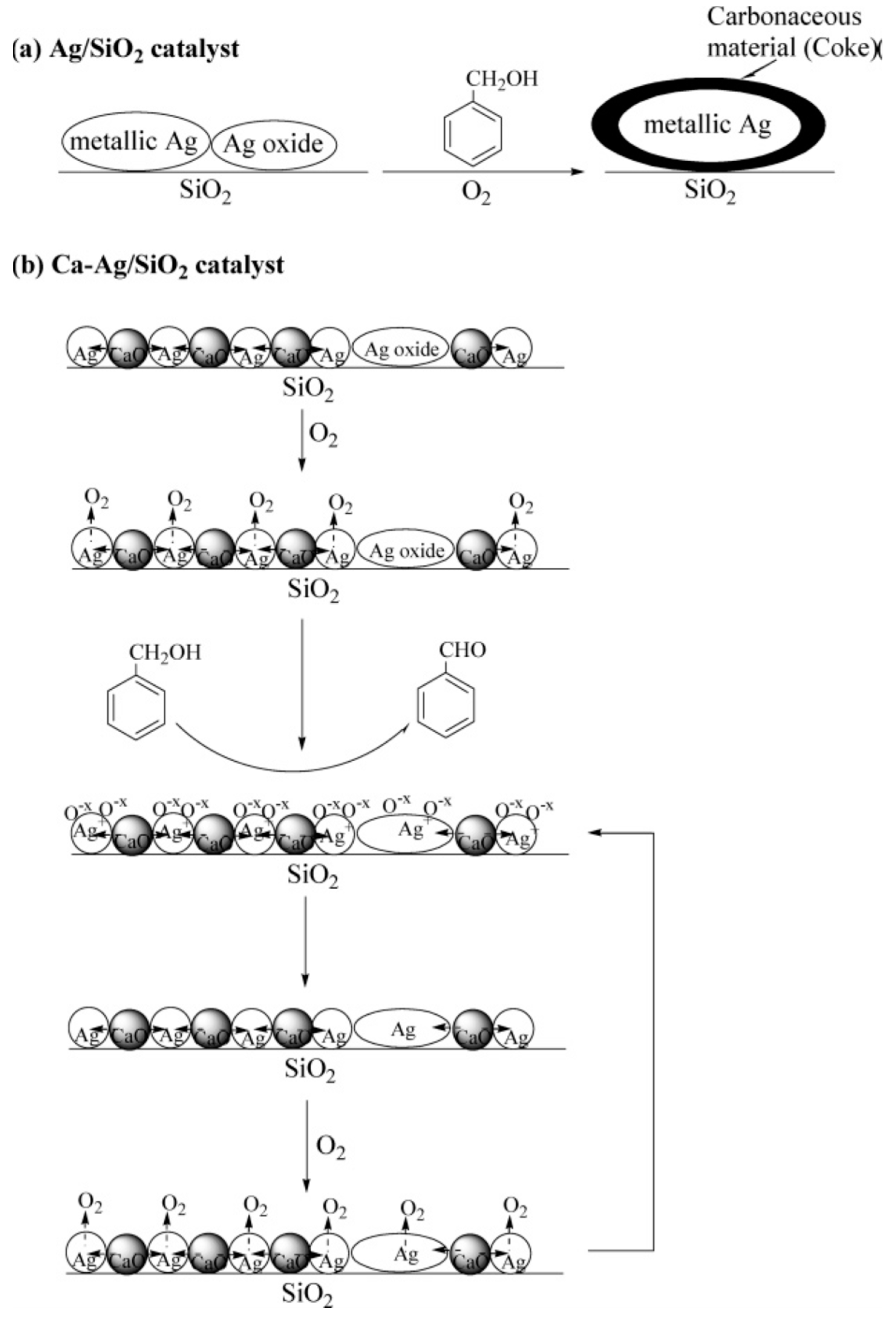

The promotion of Ag-based catalysts by alkali or alkali earth metal compounds is also studied. Thus, Yamamoto et al. [69] used the unpromoted and K-promoted silica-supported Ag catalysts for BAld production as well as CaO-supported samples. The promotion by K was shown to enhance the Ag/SiO2 performance. The highest BAld yield was observed in the range of 553–593 K. An increase of the calcination temperature influenced positively on the selective oxidation activity. A combination of high calcination temperature, a basic support, and the alkali promotion lightened the reduction of supported oxidized Ag species to metallic ones. Sawayama et al. [76] considered the alkaline earth metal-promoted Ag/SiO2 catalysts for BA oxidation into BAld. Ca, Sr and Ba promoters were used. The alkaline earth metals promoted the catalytic activity, inhibited the formation of carbonaceous materials and facilitated the dispersion of metallic Ag and oxygen adsorption over the silver surface to yield the oxygenated Ag surface species active in the BA partial oxidation (Figure 5).

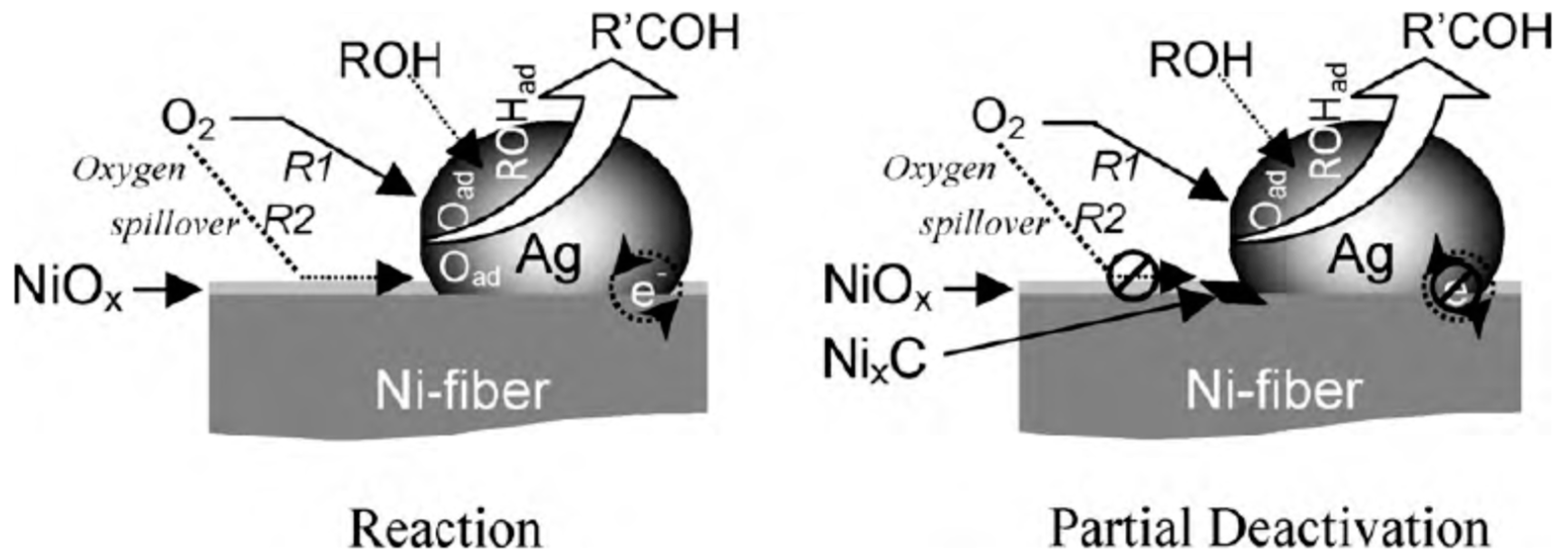

Recently, Ni fiber-based supports attracted a growing interest. Mao et al. [72] prepared a non-woven microfibrous thin-sheet support with 5 vol% 8 μm diameter nickel fibers using a wet-lay papermaking and sintering processes. Incipient wetness impregnation allowed supporting of silver. The fresh Ag/Ni-fiber catalysts exhibited an enhanced catalytic activity in BAld production and showed an increased steady-state volumetric reaction rate at a relatively low Ag content as compared to pure electrolytic silver and Ag/α-Al2O3 catalysts. Deng et al. [73] showed that water pre-wetting and overnight drying treatment processes significantly improved the wettability of the Ni-fiber support. As a result, higher amount of Ag cations and oxygen species were formed (Ag/Ni-fiber-M) as compared to the catalyst prepared over the untreated support (Ag/Ni-fiber). The differences in morphology and particle size of silver resulted in higher activity/selectivity for the Ag/Ni-fiber-M catalyst at a lower temperature. Both direct oxygen activation route and a spillover of oxygen of NiOx were the main routes of BA selective oxidation. A NixC phase was shown to be formed and hamper the latter reaction route leading to partial catalyst deactivation (Figure 6). A restoration of the spent catalyst activity was achieved at 400 °C.
Silicon carbide is also used as a support for the Ag-based catalysts for selective oxidation of BA and other alcohols (e.g., 1-phenylethanol, 2-octanol, cyclohexanol, PG). Zhao et al. [74] synthesized the bimetallic AgCu/SiC-powder catalysts with prolonged catalytic activity. A formation of Ag–Cu2O ensembles after the pre-activation process caused high activity and stability, with Cu2O species playing a crucial role in the selective oxidation of BA (Figure 7).
Liu et al. [75] proposed Ag-Mn/SiC catalyst. The formation of highly active Ag0-Mn3O4 species formed from Ag2O and MnO2 under the process conditions was assumed to cause an enhanced catalytic activity of the samples. The 34 nm Ag and 5.5 nm Mn3O4 NPs provided a synergistic effect.
Thus, the attempts are made to use the highly heat-conducting materials as supports (Ni fibers or SiC). However, it seems that the surface of such materials lacks of functional sites. This requires, for instance, partial oxidation of the surface of metallic Ni fibers. To increase the functional properties of silicon carbide, the additives based on transition metal oxides (e.g., manganese) are used. At the same time, the use of mesoporous ordered silicates as supports for Ag NPs allows achieving quite high performance of the catalysts in BA selective oxidation even without application of modified additives. It is noteworthy that for such catalysts the oxidation is carried out at elevated temperatures.
Thus, in the field of development of highly effective catalysts for BA selective oxidation the main advantages are connected with the use of highly heat-conducting supports [73,74], such as Ni fibers, SiC that are characterized by low specific surface area and practically complete absence of functional groups. A synergistic effect between the particles of Ag0 and Mn2O3 allowed a significant increasing of the effectiveness of the composites as compared to individual components and their mechanical mixtures [75]. The results for Ag2Mn5 composite showed that the heat conductivity of the supports is a key factor to provide the high efficiency of the catalyst with time. Nevertheless, a long-time test for the Ag2Mn5/SiC catalyst showed that a periodic regeneration of the catalyst is required, which is connected with accumulation of carbon-containing products in time as well as with reoxidation of MnO particles into Mn2O3. Hence, under the chosen process conditions (T = 280 °C, O2/alcohol = 0.6) a reoxidation of the catalyst surface is complicated, i.e., it is necessary to increase the partial pressure of O2 in the mixture that can result in a significant reduction of selectivity.
For 5.3Ag/SBA-15 catalyst that contains Ag distributed inside the channels of the ordered mesoporous silicate a periodic regeneration in air at 550 °C is also required. The productivity of the catalyst decreases after 40 h run at 240 °C in the reaction mixture (WHSV = 8 h−1) as a result of agglomeration of Ag NPs to up to plugging of the channels in the support. One can conclude that further development of catalytic systems for gas-phase selective oxidation of BA will be connected with a search for the composites that allow balancing the processes of oxidation-reduction of active phases distributed on the surfaces of highly heat-conducting supports.

2.1.4. Allyl Alcohol

The bulk alloyed and supported Ag catalysts were used in oxidative dehydrogenation of allyl alcohol to acrolein [77]. High activity and selectivity towards acrolein were achieved in the range of 340–380 °C. Alloying of silver with Au or Cu was shown to improve the catalyst activity, but reduced its selectivity leading to low acrolein yields. The supports comprising LaPO4, carbon nanotubes, TiO2, Al2O3 and SiO2 were prepared by the impregnation method. Ag/SiO2 composite showed the highest acrolein yield at 360 °C (alcohol conversion reached 89.2% at 96% selectivity towards acrolein; Ag mass was 3.1 mg, alcohol flow was 0.0214 mol/h; air flow was 20 ml/min, alcohol/oxygen ratio was 2.0).

2.2. Polyalcohols

2.2.1. Ethylene Glycol

Selective vapor-phase oxidation of ethylene glycol (EG) into glyoxal (GO) over the Ag catalysts in the alcohol-rich adiabatic mode at 500–650 °C is one of the most important industrial processes to produce GO [78]. Bulk and supported Ag catalysts are usually considered. Polycrystalline silver is used as a catalyst for GO production [79,80]. However, the high-temperature conditions of the process lead to sintering of an active surface of Ag crystals as well as a deposition of the carbon-containing products [81], and the GO yield is reduced in time. An introduction of volatile promoters to the reaction mixture and/or addition of modifying components on the catalyst surface allows decreasing the negative effects preventing the formation of carbon deposits on the catalyst surface and sintering. Two main approaches are widely used to address these challenges with a keeping of high activity and selectivity towards GO. The first approach is an introduction of phosphorous-containing volatile organic compounds such as mono-, di-, and trialcyl phosphate into the reaction mixture [82]. The second approach is connected with the addition of phosphoric acid onto the Ag crystal surface [83,84]. The authors [84] found that the phosphate-containing compounds were distributed on the Ag catalyst surface forming the phosphorous-containing promoter layer with a thickness of about 35–45 Å (Figure 8).
Metallic silver can be dissolved in this layer and distributed along the subsurface region as isolated ions and metal clusters under the action of oxygen at high temperature. According to Auger-spectroscopy data, the reverse transformation of the metal-ionic Ag states depending on the oxygen and temperature treatments was observed. The formation of the AgxOy oxidized particles inside the polyphosphate layer occurred during the interaction with the gas-phase oxygen. A destruction of these oxidized AgxOy species led to an oxygen release as a single TPD peak at temperatures above 500 °C (Figure 9) that indicated an increase of strengths of oxygen–silver bond.
Thus, the introduction of the phosphate-containing compounds onto polycrystalline Ag catalyst allowed increasing the GO yield by 15–20% due to the selectivity growth. The authors concluded that the oxygen-containing clusters distributed in the promoter layer were the active surface species on the P-containing polycrystalline Ag catalyst.
The next generation of the catalysts for the selective EG oxidation is connected with the development of the idea about the application of Ag clusters/NPs as active species able to adsorb oxygen in a strongly bounded form. Such an approach was implemented in our previous works [85,86,87,88,89], where the Ag-containing materials (5 wt%) were applied as catalysts instead of polycrystalline Ag. The active component in the form of Ag NPs was distributed in the mesoporous space of the silica matrix (Figure 10) together with the polyphosphate modifier. The sizes of Ag NPs were below 30 nm with a maximum of particle size distribution at 4–8 nm that was in a good correlation with the XRD data.

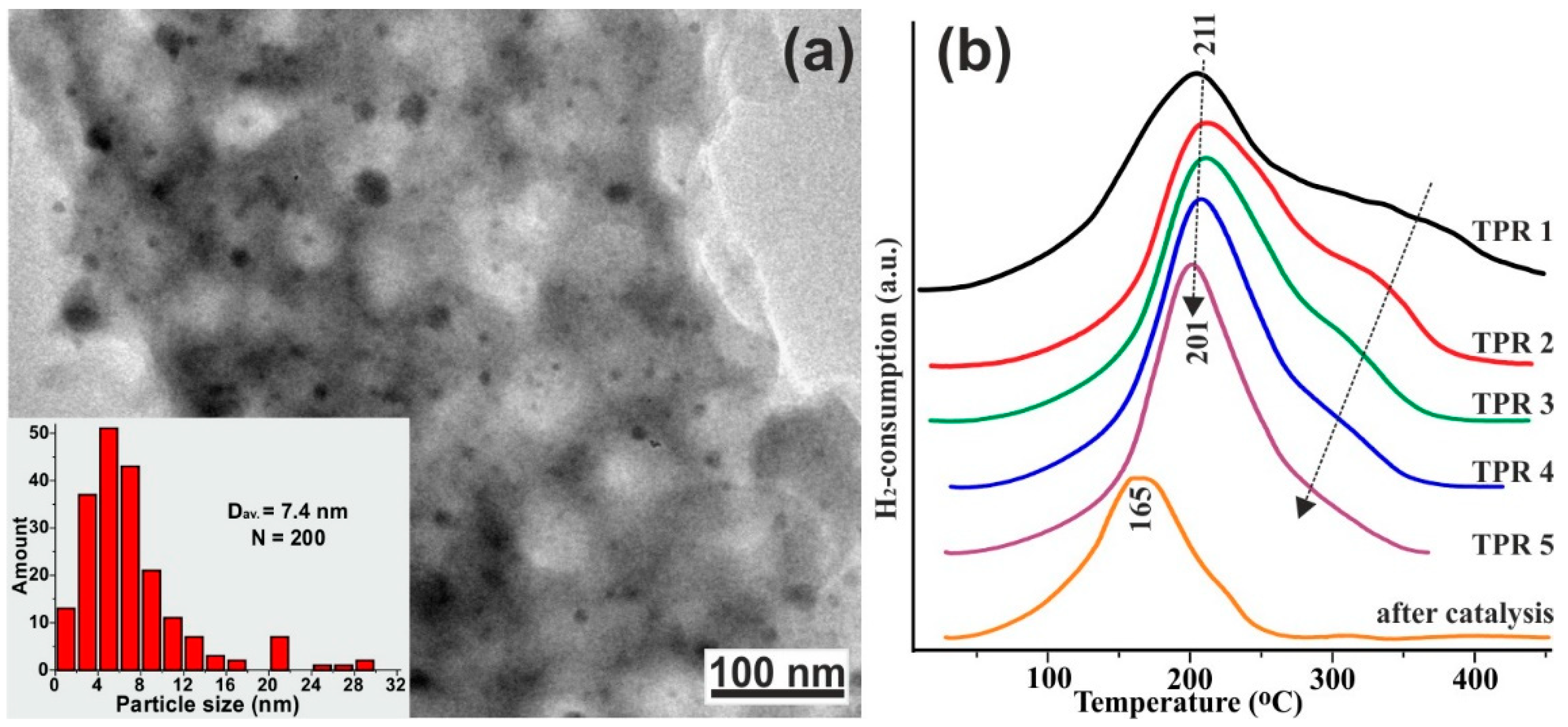

We studied a dynamic behavior of the Ag NPs under the cyclic action of redox TPR/TPO treatment (Figure 10b). During the five cycles of reversible oxidation-reduction, the TPR peak of H2 consumption insignificantly shifted to a low-temperature region and became more intensive and narrow. Thus, under the action of redox treatment, the redistribution of the Ag NPs occurred from the bulk to the subsurface region. Similar TPR profile was obtained during the long operation under the catalytic conditions.
Interactions between the silica surface, polyphosphate modifier and Ag was studied in our previous works [87,90,91]. Based on the TPR, UV-vis DRS, and IR spectroscopy data, we suggested a mechanism for active species organization (highly dispersed silver particles) on the surface of the investigated Ag-containing materials. An introducing of phosphorous acid into silica at the stage of synthesis was shown to result in the formation of a phosphate-containing layer on the walls of pores of the silica matrix. Under the temperature treatment, a formation of chemical P–O–Si bonds between the phosphate and silicate components along with the free (unbound) polyphosphate acids were observed [91]. It was established [90] that silver was distributed in the pores of amorphous silica in metallic NPs/clusters/ions, which were able to adsorb oxygen to yield several types of oxygen-containing species. An introduction of the polyphosphate to the Ag/SiO2 catalyst led to changing of the silver state due to the predominant coordination of the Ag ions by phosphate groups. An increase of the phosphate content to up to 50 %wt. in the catalyst composition allowed transforming all silver into ionic state participating in the reversible redox process. It is noteworthy that silver coordinated by the polyphosphate was not able to participate in the deep oxidation of EG [87]. In Figure 11 the TPR profiles for Ag/SiO2 and Ag/P2O5/SiO2 catalysts in CO/He mixture are presented.

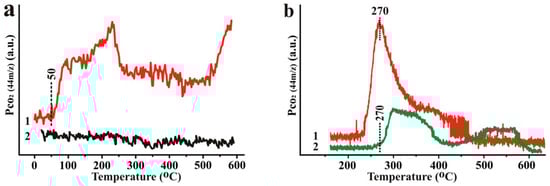

No CO2 formation occurred in the whole temperature range for the Ag/5-P2O5/SiO2 catalyst, while for the Ag/SiO2 sample the CO2 formation was observed starting from 50 °C. Moreover, during the subsequent TPR-H2 experiment for the Ag/5-P2O5/SiO2 catalyst, the CO evolution from 280 to up to 340 °C was observed along with the H2 consumption. This indicated a CO adsorption on the Ag+ species without further oxidation. Thus, the introduction of the phosphate modifier prevented the participation of the Ag-containing active species in CO oxidation. For Cu/30_P2O5/SiO2 catalyst, a similar experiment showed CO2 release during the CO TPR (Figure 11b). It was pointed out that the ability to CO oxidation into CO2 retained in the presence of polyphosphate (30 wt.%) in the catalyst composition. A comparison of Ag- and Cu-containing catalysts showed that under oxidative conditions the Ag2O forming upon the interaction with oxygen instantly transforms into silver phosphate without further participation in the total oxidation, while CuO is presented on the surface. Thus, the catalytic activity of the Cu/P2O5/SiO2 catalysts was lower than that of Ag-containing catalysts due to the formation of the copper oxide on the catalyst surface.
One of the widely used approaches in the field of Ag-containing catalysts for selective oxidation of alcohols is a distribution of the active component along the support surface. Challenges related to support are connected with nature and concentration of functional groups, presence of impurities, thermal conductivity and stability, mechanical strength, etc. For the process of selective EG oxidation, a number of materials was studied as supports, including SiC [82], alumosilicate [79], silicon nitride [57], zirconium phosphate [92,93].
The advantages of the ceramic materials based on silicon nitride (Si3N4) are high thermal conductivity, enhanced hardness and strength compared to traditional oxide supports such as silica, alumina and their mixtures. Silicon nitride is also a chemically inert material with low specific surface are and practically unfunctionalized surface. All these features are useful for catalysts used in the high-temperature adiabatic conditions. We proposed the Si3N4-supported Ag catalysts (unmodified and modified with Al and Zr compounds) [57] and prepared them by deposition method from toluene solution using CF3COOAg as a precursor. An application of deposition from organic solution allowed distributing the Ag particles uniformly with a maximum of Ag particle sizes of 65–85 nm. A selectivity towards GO exceeded 50% at 87% EG conversion. Glycolic aldehyde (GlyAld) was obtained as the main by-product and glycolic (GlycA) and glyoxalic (GOA) acids were detected in the reaction product mixture. It was proposed that the presence of Fe-containing impurities on the silicon nitride surface was the main reason for the decreasing of the selectivity towards GO. The appearance of the Fe-containing impurities was connected with the method of preparation of Si3N4 grains, when the nitriding of Fe–Si alloy was carried out by a self-propagating high-temperature synthesis (SHS). The final product of the SHS contained the metallic Fe particles surrounded by small Si3N4 crystals.
The use of the support able to facilitate the formation of highly dispersed Ag particles on its surface allows increasing the conversion of alcohols and selectivity towards the corresponding carbonyl compounds. Brik et al. [94] and Arsalane et al. [95] studied the catalytic activity of silver- and copper-containing phosphates of elements of group 4 in 2-butanol transformations. The advantageous feature of the double phosphate of the element of group 4 is an ion conductivity for ns1 metal cations. A specific ionic conductivity of the double phosphates allows forming the Ag (or Cu) particles with small sizes on the matrix surface and providing their stability in the catalytic process. Dorofeeva et al. [92] studied the selective oxidation of EG over zirconium and silver–zirconium phosphate catalysts. The Ag-containing zirconium phosphate catalysts were prepared by co-precipitation method (CP), sol-gel method (SG) and method of ion-exchange of Na+ cations to Ag+ (IE). It was established that the using of CP method led to maximal Ag loss in the mother solution due to the formation of impurity ZrP2O7 and Zr2.25(PO4)3 phases along with AgZr2(PO4)3 phase. The catalytic properties of silver-containing zirconium phosphates prereduced in H2 flow were studied in EG oxidation into GO. The EG conversion for Ag-containing catalysts increased simultaneously with oxygen content in the feed and at O2/EG = 1 it achieved 95%. However, CO and CO2 yields also increased. The maximal selectivity towards GO for CP and SG catalysts were 53% and 41%, respectively, at a lower molar ratio of O2/EG = 0.6. The maximal selectivity towards GO for IE sample (53%) at 93% EG conversion was observed at O2/EG = 1.0. The main reason for a relatively low selectivity of Ag-containing zirconium phosphate catalysts was associated with the irreversible destruction of AgZr2(PO4)3 phase to yield ZrP2O7 and Zr3(PO4)4 phases under the action of reducing agent (H2) accumulating in the reaction mixture. Thus, in its turn, the formation of the oxide-like Ag-containing species occurred, and the selectivity towards COx product increased.
The mechanism of selective EG oxidation was actively studied [88,96,97]. To determine the role of phosphate and silicate functional groups in the composition of the Ag-containing catalyst of new generation, Mamontov et al. [88] compared the EG adsorption on the surfaces of Ag/SiO2 and Ag/P2O5/SiO2 catalysts before and after oxygen treatment using in-situ IR-spectroscopy. The nature and a concentration of the active species on the catalyst surface were determined by the low-temperature CO adsorption. According to the spectra for the oxidized Ag/P2O5/SiO2 and Ag/SiO2 catalysts, the absorption bands at 2172–2175 cm−1 identified as acid sites were represented as Ag+ in the concentrations of 115 μmol/g (4.11 μmol/m2) and 77 μmol/g (0.82 μmol/m2), respectively. The isolated OH groups (νCO = 2150 cm−1) were obtained on the surface of reduced Ag/P2O5/SiO2 catalyst. A concentration of the isolated OH groups on the reduced Ag/SiO2 catalyst was greater as compared to the one on the oxidized catalyst that confirmed their participation in coordination of the charged silver species. An incomplete reduction of silver on the surface of the reduced Ag/P2O5/SiO2 was observed. Based on the data on the temperature dependence of EG adsorption it was shown that EG is predominantly adsorbed on the catalyst surface with the participation of the phosphate groups (Figure 12).
The kinetics of EG interaction with oxygen was investigated at 300 °C [88]. The adsorbed complexes of EG with silver ions and H-bonded complexes slowly decomposed in the presence of oxygen (for 5 min) on the oxidized Ag/P2O5/SiO2 catalyst. However, carbon dioxide was detected in the products. On the reduced Ag/P2O5/SiO2 samples, CO2 and water were also formed, while weak absorption bands due to vibrations of C=O (1690 cm−1) and carboxyl –COOH (1825–1850 cm−1) groups were detected in the spectra.

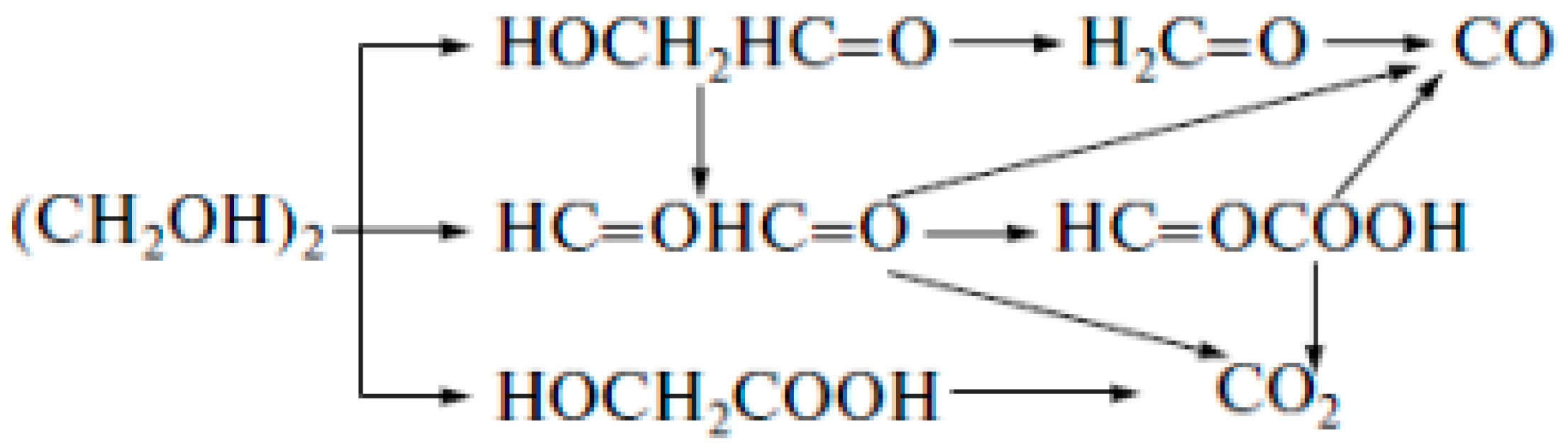

Based on the experimental kinetic data, a scheme of EG transformation steps was proposed (Figure 13).
EG was able to adsorb reversibly on the reduced surface of Ag yielding a bidentately bound intermediate compound [97]. After the preliminary adsorption of oxygen on the surface of silver a 1,2-ethanedioxide cyclic intermediate was formed. Then two β-C–H bonds in the intermediate were destroyed to form GO. An increase of the surface coverage of adsorbed oxygen led to the C–C bond scission in a bidentately bonded intermediate to yield formaldehyde and CO2. The formation of a monodentately bound intermediate compound with its subsequent transformation into GlyAld under the testing conditions did not occur. An increase in the contact time and/or temperature led to the appearance of GO, which was formed as a result of a simultaneous scission of two β-C–H bonds in the cyclic intermediate. The formation of cyclic intermediate occurred only with an increasing of the temperature to up to 450–500 °C, when a parallel reaction route made a significant contribution (to up to 30%).
A detailed investigation of the mechanism of EG oxidation over Ag4 silver cluster was carried out at B3LYP/DGDZVP level of theory in our previous work [96]. The results were obtained for all species involved within a common approach. The reaction profiles reflecting the processes of EG partial oxidation to GO and its deep oxidation to CO2 were generated. Bridge sites were preferable for atomic oxygen adsorption and participated in EG activation. Hollow sites were involved in deep oxidation processes. This correlated well with known assumptions on different forms of oxygen on the surface of Ag-containing catalysts and their roles in oxidation processes over Ag-containing catalysts. Ethylenedioxy and 2-oxyethoxy species were revealed as the most important reaction intermediates transforming into major reaction products.

2.2.2. Propylene Glycol

Partial oxidation of propylene glycol (PG) under gas-phase conditions is studied in a lesser extent than EG, while a large number of valuable chemicals can be produced on the basis thereof (e.g., hydroxyacetone (HA), methyl glyoxal (MeGO), lactaldehyde (LAld), acetol (Ac), lactic acid (LA), etc. [98,99]). Various catalytic systems were proposed for partial oxidation of PG, including bimetallic NPs on the basis of Au and Pt subgroup metals [100,101], oxide Fe–Mo catalysts [102], supported FePO4/SiO2 catalysts [103], etc.
Shen et al. [104,105] prepared a catalyst comprising Ag NPs supported on a zeolite film coated copper grid (ZFC) by combining an in situ electrolytic method to produce highly dispersed Ag NPs with the seed-film method to prepare an ultrathin zeolite film. Compared to conventional bulk electrolytic silver catalyst, the obtained catalysts (7 wt% Ag) showed higher activity in the oxidation of monoalcohols (3,5,5-trimethylhexanal, 2-ethyl hexanol) at moderate temperature 320–360 °C and higher selectivity towards ketonic aldehydes in the oxidation of dialcohols (1,2-butylene glycol, 2,3-butylene glycol, PG). High catalytic performance was attributed to the highly dispersed Ag NPs containing a large amount of Ag+ ions and Agnδ+ clusters, while zeolite film prevented their sintering.
Mao et al. [106] prepared an Ag catalyst supported on a sinter-locked three-dimensional microfibrous network made up of Ni or stainless steel (SS) fibers and studied the catalyst in the gas-phase selective oxidation of mono-, di- and aromatic alcohols. The authors used papermaking/sintering processes to prepare the supports and the incipient wetness impregnation method to deposit silver. Silver amount was 20 wt% for Ag/Ni-fiber and Ag/SS-fiber catalysts. High catalytic activity was achieved at 380 °C, with the activity of Ag/Ni-fiber being superior to the one of the Ag/SS-fiber. The conversion of PG and selectivity towards MeGO for the Ag/Ni-fiber and the electrolytic silver were 99% and 83% at 330 °C and 90% and 42% at 450 °C, respectively. A synergistic effect caused by the interaction of Ag–Ni particles enhanced the performance of active and selective Ag ions/charged clusters and facilitated their low-temperature reducibility and ability to activate oxygen. The samples were characterized by a large void volume, open structure, high thermal conductivity and permeability. The authors did not present the alcohol content in the reaction mixture. No data on the durability of the desired catalysts, their characteristics after catalytic experiment were presented as well.
Shen et al. [107] prepared Ag/ZrO2 catalysts by impregnation technique and tested them in partial oxidation of PG to MeGO. The alcohol conversion was 95.7% at a selectivity towards MeGO of 55.3%. The enhanced activity as compared to electrolytic Ag was shown to be caused by the large amount of partially charged Agδ+ species. Yang et al. [108] showed that the Ag/ZrO2 catalysts can be prepared by a green and facile microwave-assisted biosynthesis method using the leaf extract of Cinnamomum camphoraas a reducing and capping agent to produce Ag NPs. At 340 °C, the catalyst shows the alcohol conversion of 96% at 79% selectivity towards the desired aldehyde. The catalyst sample with 5 wt% of silver shows the highest catalyst performance during the 50 h of assessment. The authors concluded that small and uniform sizes of the Ag NPs as well as their dispersity are of importance to achieve the high catalyst performance. The role of the support in the above-described catalysts is not clear.
Thus, the authors of abovementioned publications share the opinion that the main approach to achieve high activity of Ag-containing catalysts for the gas-phase PG oxidation into MeGO is the use of silver NPs and/or clusters. To achieve the enhanced catalyst performance, the use of the supports with good thermal conductivity (such as Ni- or SS fibers or Cu grid) was proposed [106], while another way is to control the sizes of the Ag NPs at the stage of the catalyst preparation [107]. Unfortunately, the majority of the described publications do not contain a sufficient description of the conditions of PG oxidation that hinders the detailed comparison of the activity of various Ag-containing catalysts in this process. Nevertheless, the application of silver to develop the highly efficient catalysts for selective oxidation of diols is a promising approach. A comparison of the results obtained for EG and PG (e.g., [84,86] and [105,106]) shows that the temperature of PG oxidation is lower that is connected with higher reaction ability of the secondary OH group towards its oxidation into ketone. The common feature for oxidation of both diols is an enhancement of the catalyst activity, when Ag NPs are used as active sites.

2.2.3. Glycerol

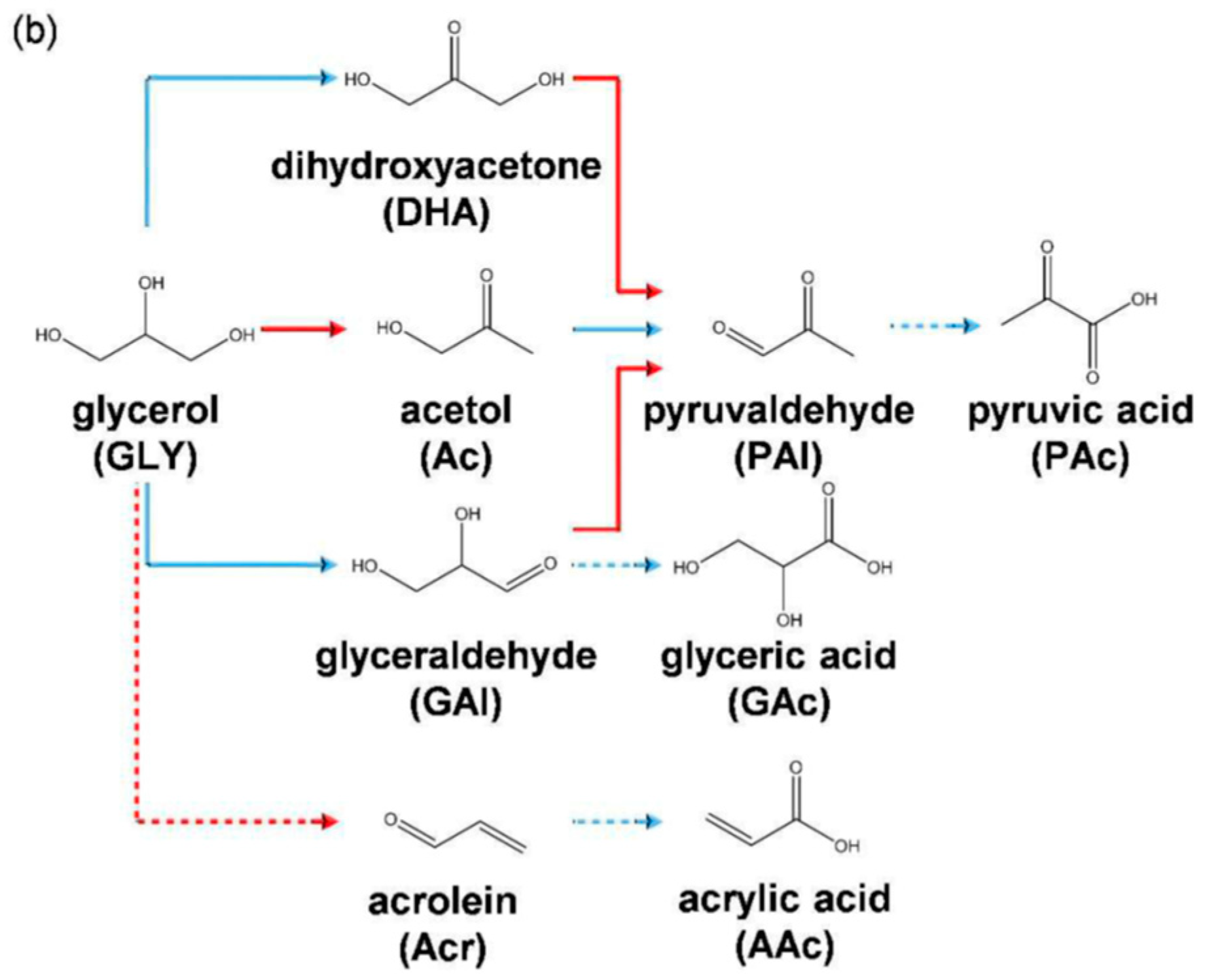

Glycerol (GLY) is known to be a source of a number of value-added products [109]. Although several different catalytic systems were proposed for gas-phase selective oxidation of GLY [110,111,112], Ag based catalysts have recently attracted an interest. Thus, Lari et al. [113] developed the Ag/Al2O3 catalysts (Ag loading of 5 wt%, SBET = 74 m2/g) for oxidehydration of GLY to MeGO. The authors showed superior performance of the synthesized materials as compared to other M/Al2O3 catalysts (M = V, Ni, Fe, Sn, Cu, Ru, Pd, Pt, Au), which was connected with optimal redox potential of silver and higher concentration of Lewis acid sites accompanied by the limited Brønsted acidity of the support. Tuning the reaction conditions allowed increasing the MeGO yield (80%) and maintaining it in a 24-h test. Using DFT it was shown that the oxidation of Ac intermediate is both kinetically and thermodynamically favorable over the partially oxidized silver surface as compared to metallic or completely oxidized ones (Figure 14).
Thus, oxidation of polyalcohols into valuable carbonyl compounds over Ag-based catalysts attracts a vivid interest in the field of processing of biorenewable sources, namely, PG and GLY. The advantage of selective oxidation of these alcohols in the gas phase over the supported Ag catalysts is the opportunity to obtain the rather concentrated solutions of MeGO without its further transformation into lactic acid.

3. Heterogeneous Liquid-Phase Selective Oxidation

In comparison with the gas phase processes, the liquid-phase oxidation of alcohols requires lower reaction temperatures, energy consumption and allows synthesizing the products that cannot be obtained in a vapor-phase reaction. At the same time, boiling of some substrates with decomposition and leaching of the active component are crucial issues for practical application of liquid-phase heterogeneous catalytic processes, especially for polar oxygen-containing substrates and products [114]. The noble metal-based composites (M = Pt, Pd, Au, Ru) are currently widely used as heterogeneous catalysts for liquid-phase oxidative transformations of alcohols [13,115]. However, these materials demonstrate low activity in the oxidation of non-activated substrates. Their large-scale application is still limited due to high costs, toxicity and low selectivity towards carbonyl compounds caused by overoxidation. It is noteworthy also that platinum group metals tend to deactivate quickly [116].
Although silver-based catalysts are widely used in gas-phase oxidation there are few publications reporting the catalytic activity of silver in the liquid-phase alcohol oxidation, while a number of articles demonstrate its high potential to be used in such reactions [117,118,119,120,121]. A recent review by Kolobova et al. [117] considers the state of the art in a liquid-phase Ag-catalyzed oxidation of alkyl- and halogen derivatives of monoalcohols (methanol, ethanol, BA, etc.), cyclic and macrocyclic alcohols (cyclohexanol, cyclododecanol), polyalcohols (GLY), unsaturated alcohols (cinnamyl alcohol, crotyl alcohol, allylcarbinol, 2-cyclohexenol) and fatty alcohols (e.g., 1-octanol). Thus, in the present review we will focus mostly on the selective liquid-phase oxidation of BA and biomass-derived polyols (PG and GLY).

3.1. Benzyl Alcohol

L.F. Liotta and co-authors added silver to palladium supported on pumice in order to improve the lifetime and catalytic performance of the catalyst in liquid-phase selective oxidation of BA [122]. Addition of silver led to a 10-times decrease of the rate constant, but the selectivity towards BAld enhanced from 95% to 100% at a complete BA conversion. The activity of a physical mixture of monometallic catalysts was found higher than the one for individual monometallic component showing a certain synergism between the uncharged Ag and Pd active species (Table 4). The authors proposed the role of Pd to be connected with an activation of the substrate, whereas highly dispersed Ag is important for the activation of molecular oxygen.
M.J. Beier et al. explored the activity of the Ag-based catalysts promoted by the presence of ceria as catalysts for aerobic oxidation of various primary and secondary alcohols [119]. Although the Ag/SiO2 and CeO2 NPs were almost inactive, their physical mixture was found extremely catalytically active and selective towards the formation of the corresponding carbonyl compounds (Table 4). A soluble cerium source did not increase the activity of the catalytic system. Both higher Ag and CeO2 loading improved the selectivity towards aldehyde in oxidation of BA as a model substrate (Figure 15). The authors supposed that the role of CeO2 may be connected with the reversibly storing oxygen. The calcination temperature played an important role due to the formation of the oxidized silver species on mostly metallic silver. Low concentration of both active components was found in filtrate after the catalysis, but the hot catalyst filtration test confirmed the heterogeneous nature of catalysis.
Huang et al. investigated the kinetics of aerobic oxidation of BA over the colloidal Au–Ag alloy NPs with various Ag/Au molar ratios [123]. They found that the addition of silver not only significantly enhanced the reaction rate, but also increased the apparent activation energy in comparison with the monometallic Au NPs. The apparent reaction orders decreased with the increase in the Ag/Au molar ratio. The charge transfer between the Au and Ag produced a synergetic effect, resulting in a different reaction mechanism. The electron-poorer Au atoms with higher electron-accepting ability caused an increase of the deprotonation rate of adsorbed alcohol species. During the subsequent research, Huang and co-workers investigated the activity of the Au–Ag NPs in aerobic oxidation of BA in the presence of Na2CO3 (Table 4) [124]. The reaction rate in this case increased with an increase of an Ag molar content to up to 10%, after that it began to decline. The authors proposed that the reason lies in a decrease of the Au active sites and the change in the coordination environments of the Au atoms on the surface. The colloidal Au0.95Ag0.05 alloy NPs were investigated in aerobic oxidation of various kinds of alcohols. Although the selective oxidation of aliphatic alcohols with molecular oxygen is a more demanding transformation than that for BA and the majority of known catalysts had a poor activity the P123-stabilized Au–Ag NPs showed an excellent catalytic activity in the oxidation of aliphatic and cycloaliphatic alcohols under the presented conditions.
Zahed et al. investigated the support effect of three different forms of graphene oxide on the catalytic performance of the supported Ag NPs in aerobic oxidation of BA in the presence of N-hydroxyphthalimide (NHPI) as a radical activator [125]. The Ag NPs are believed to play the role of a generator of N-oxyl radicals from the NHPI by electron transfer, which initiated the radical chain oxidation process. Nanocomposites of the Ag NPs with the reduced graphene oxide (Ag/rGO), partially reduced graphene oxide (Ag/GO) and thiolated partially reduced graphene oxide (Ag/GOSH) were synthesized and characterized by IR, UV-Vis and Raman spectroscopy, ICP, X-ray diffraction, SEM and TEM methods. Despite the smallest size of the Ag NPs and the highest metal content (Table 4) the Ag/rGO catalyst showed the lowest activity. The authors explained this phenomenon by the loss of a wrinkled morphology. Moreover, because of the weak interaction between the silver NPs and a reduced graphene oxide with a low content of oxygen-containing groups Ag leached after the first catalytic cycle. Ag/GOSH catalyst showed higher activity and selectivity towards BAld compared with both Ag/GO and Ag/rGO. The strong adhesion between the GOSH and Ag NPs inhibited the aggregation of silver during the catalytic reaction and resulted in high activity and stability to obtain the materials in at least five cycles.

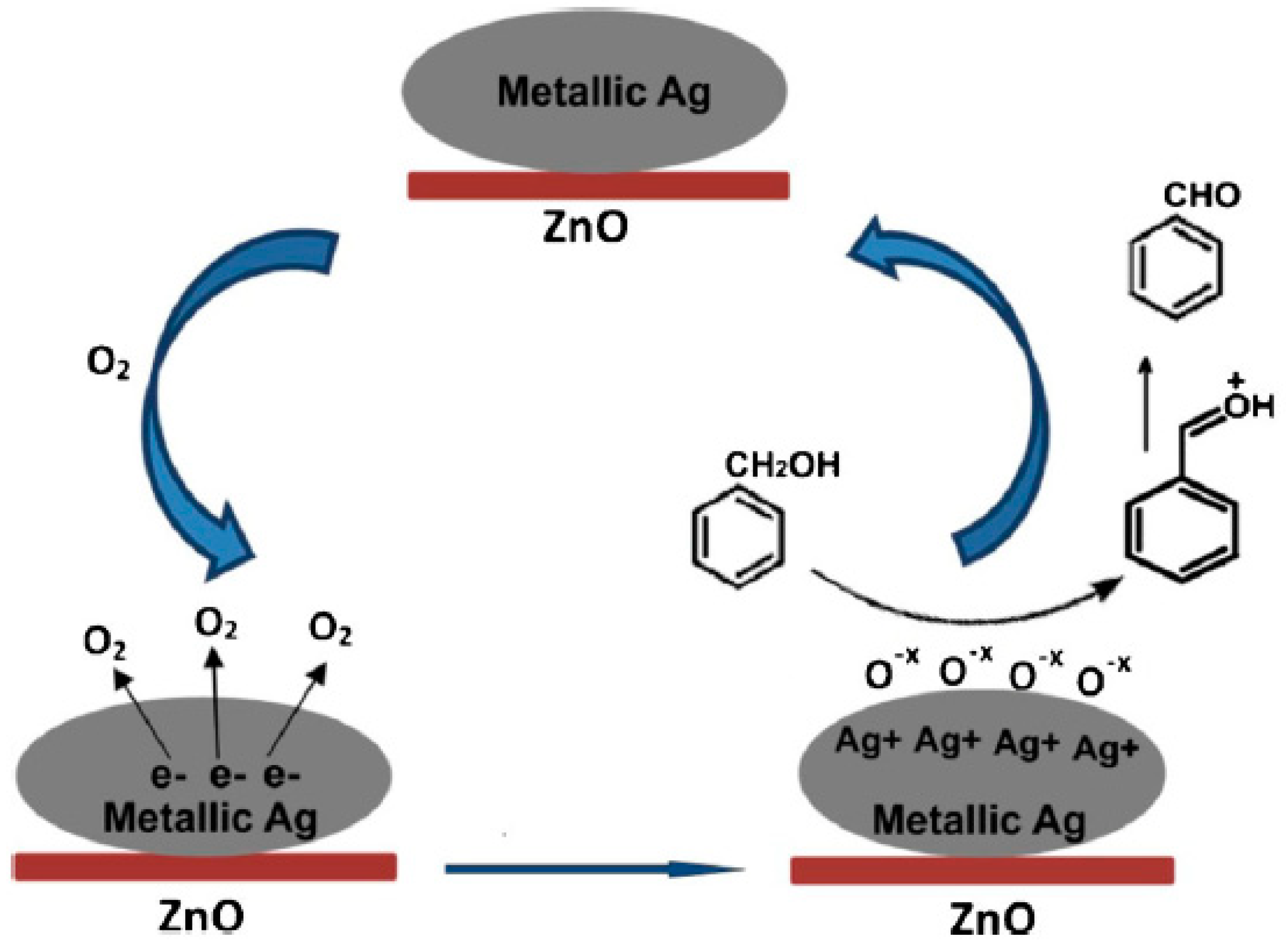

The oxidation of BA and its derivatives into corresponding aldehydes with high conversion and selectivity (yield > 70%) was performed by Adil et al. [126] over the nanosilver-doped manganese oxide. It was observed that the calcination temperature affected significantly the Mn-containing phase distribution, surface area and as a consequence the catalytic activity of the obtained materials. The catalysts containing β-MnO2 gave the best catalytic activity. The TEM data showed a good dispersion of spherical silver NPs in MnO2.
Alabbad et al. compared the activity of gold and silver NPs supported on manganese oxide calcined at different temperatures in the oxidation of BA with molecular oxygen [127]. The increase in calcination temperature led to an increasing in average particle sizes from ~3 nm to 4.4 nm. At the same time, BET surface area changed in a more difficult way. The catalyst calcined at 400 °C was found to possess the highest SBET (86.9 m2/g) compared to those calcined at 300 and 500 °C (26.82 and 48.95 m2/g, respectively). It was observed that the catalyst calcined at 300 and 500 °C displayed lower catalytic activity than those calcined at 400 °C (Table 4).
Recently, Assal et al. used highly reduced graphene (HRG) as a dopant to enhance the catalytic activity of Ag2O-doped MnO2 in aerobic oxidation of alcohols [128]. The effect of dopant amount was examined. The enhancement of the HRG weight percentage to up to 5% led to a significant increase in the specific activity and yielded a complete conversion within 35 min (Table 4). Further increase of the HRG amount in catalyst resulted in a slight reduction of the catalytic activity, which is attributed to the blocking of the active sites. The authors claimed that the role of graphene doping was connected with the adsorption of the aromatic alcohols on the catalyst surface through the π-π interaction. Furthermore, the existence of carbon defects and oxygen carrying functional groups on the HRG plane facilitated the anchoring of the Ag2O NPs. The temperature of the calcination treatment affected significantly the phase composition, surface area and catalytic activity of the obtained materials (Table 4). Both aromatic and aliphatic alcohols were converted completely into corresponding aldehydes with almost 100% selectivity under mild reaction conditions. The catalyst showed good reusability during five reaction cycles, however, the possible leaching of the active components was not investigated. Ag2O NPs-doped manganese immobilized on graphene nanocomposites were also successfully employed for aerobic oxidation of various kinds of secondary alcohols [129].

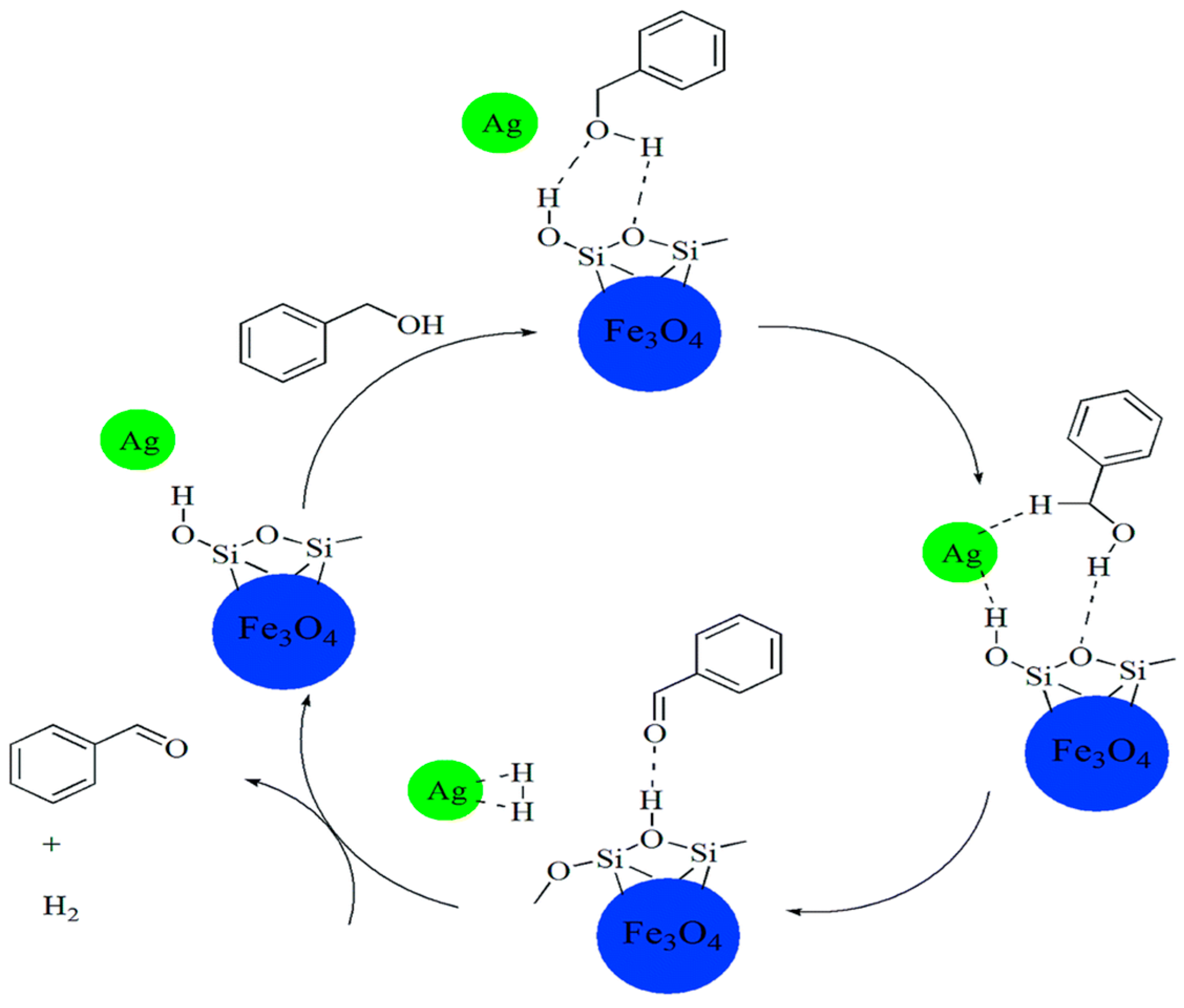

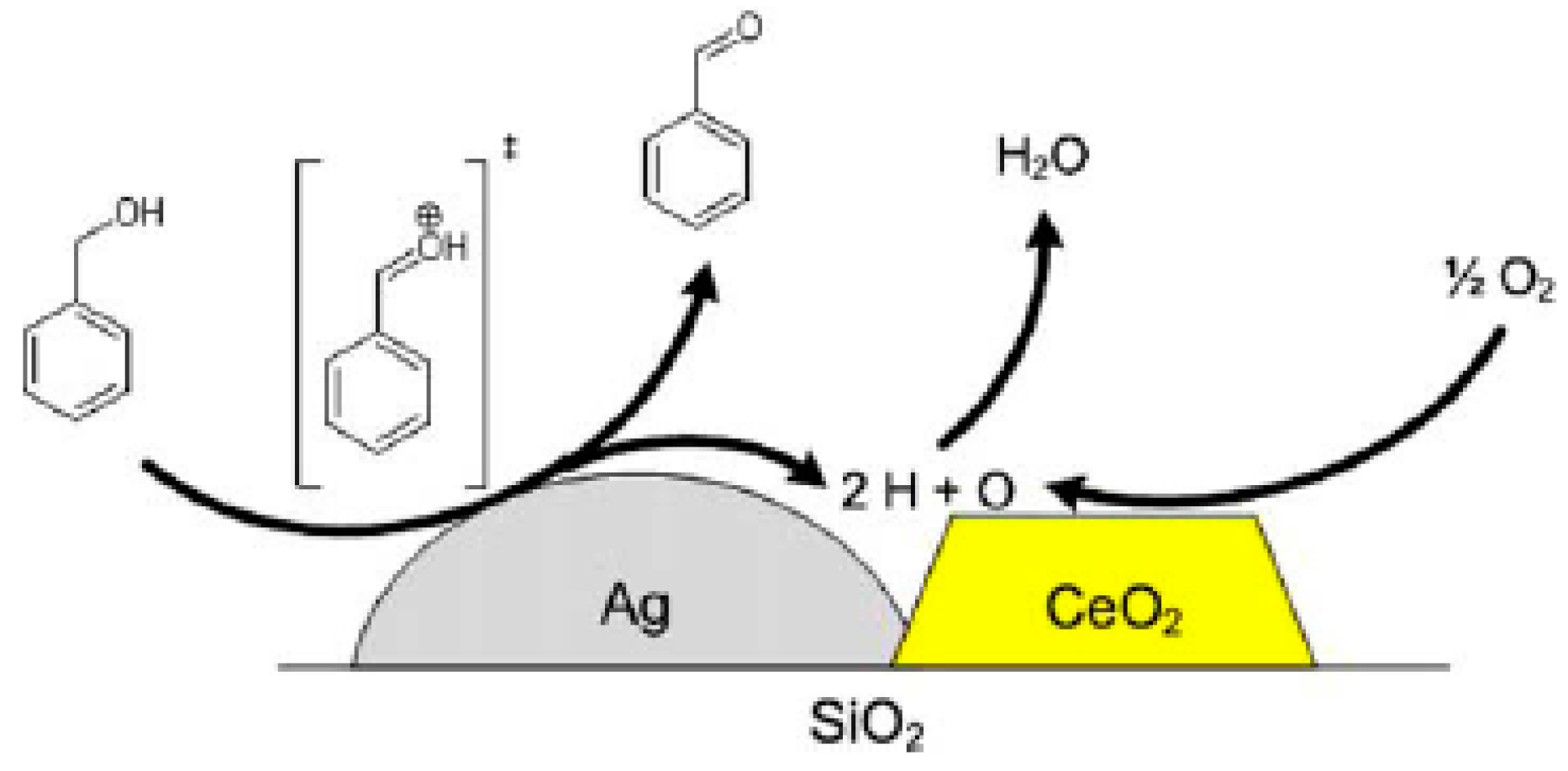

The oxidant-free alcohol dehydrogenation in the liquid phase over hydrotalcite- [130] and silica-coated ferrite-supported [131] silver NPs was found to be highly atom-efficient and reusable. Over Ag/hydrotalcite catalyst, the selectivity towards the corresponding carbonyl compounds for different types of alcohols was above 90% [130]. Generally, the conversion was also close to 100%. Only aliphatic alcohols such as 1-octanol were not dehydrogenated efficiently over such system. The use of magnetic silica-coated ferrite as a support for Ag NPs enabled the catalyst separation process from the reaction mixture and its reuse [131]. The proposed reaction mechanism in the case of BA dehydrogenation over Fe3O4@SiO2–Ag catalyst is presented in Figure 16. The alcohol molecule adsorbed on the silica surface through the hydrogen bond interaction with Si–OH groups and the Ag NPs are responsible for hydrogen abstraction and H2 formation. Qi et al. [132] also investigated the magnetic Ag-containing catalysts in BA oxidation. The Ag/Fe2O3 catalyst was prepared by the solvent thermal reduction method. However, in this case hydrogen peroxide was used as an oxidant. The dependence of BA conversion on the Ag content in the catalyst had a volcano-type shape, while the selectivity towards BAld slightly decreased with the increase of silver content. The highest BAld yield was observed for the catalyst with 2% Ag (mol). The authors assumed that the reason was the agglomeration of silver and the increase in particles size. The catalytic activity of Ag/Fe2O3 in oxidation of BA with H2O2 tended to reduce gradually in each cycle.
Bhuyan et al. [133] used biosynthesized silver NPs dispersed in a water extract of fly ash (WEFA) for green oxidant-free dehydrogenation of BA under mild conditions. Fly ash is a coal combustion residue predominantly consisting of Si, Al, Ca, Fe, Mg, K and Na oxides. The high concentration of SiO2 stabilizes the Ag NPs. The as-prepared NPs are polydispersed and consistently spherical with a size in the range of 10–20 nm. A uniform dispersion of the Ag NPs in the WEFA was observed. The effect of the reaction conditions (the amount of Ag@WEFA, reaction time and temperature) was studied in the dehydrogenation of 4-methylbenzyl alcohol as a model substrate. Under the optimized reaction conditions, the dehydrogenative oxidation of a wide range of BA bearing electron-withdrawing and electron-donating groups over Ag@WEFA catalytic system proceeded with an excellent yield of the desired product within a very short reaction time. Despite the attractive reaction conditions and utilization of the waste for production of carbonyl compounds with high yield there are some difficulties with the industrial application of that kind of materials, reproducibility of results and debating issues in the understanding of reaction mechanism due to an incompletely clear variable composition of fly ash.
Yadav G.D. and Yadav A.K. [134] investigated the oxidation of various secondary aliphatic and aromatic alcohols to ketones with tert-butylhydroperoxide over nano-fibrous silver-containing cryptomelane type octahedral molecular sieve type 2 (Ag-OMS-2). The samples were synthesized by the precipitation method with manganese acetate, silver nitrate and KMnO4. The synergistic effect of Ag, Mn and K is believed to be responsible for the high catalytic activity of the catalysts. The effect of solvent on the oxidation of 1-phenylethanol was examined. No clear dependence of the substrate conversion on the solvent polarity and protic/aprotic properties was found, and acetonitrile was the best solvent under the optimized reaction conditions. Other oxidants such as hydrogen peroxide and molecular oxygen did not give any conversion of alcohols. Similar solvent and oxidant effect was demonstrated for alcohol oxidation over Ag-doped ZnO composite for BA oxidation (Table 4) [135]. The presence of induction period in BA oxidation over Ag/ZnO allowed the authors to assume that the metallic silver particles are required to activate the dissociation of adsorbed oxygen molecules with the formation of charged Ag species (Ag+). The atomic oxygen species such as O ad x has a nucleophilic character and activates the C–H and O–H bonds in BA to produce the corresponding aldehyde (Figure 17). However, the authors emphasize that the ZnO support also plays an important role in alcohol oxidation. If metal and support are separated from each other, the transportation of oxygen species is inhibited.
Kolobova et al. [136] studied several silver-promoted titania catalysts with or without the addition of Ce, Fe and Mg oxides in selective oxidation of n-octanol and betulin. The highest conversion value of n-octanol of 12% after 6 h experiment was reached over the Ag/CeO2/TiO2 system. According to the authors, caprylic aldehyde was the main product of the reaction, with the selectivity above 90% for most of the samples. Still, octanoic acid and octyloctanoate appeared at longer reaction times, with Ag/TiO2 reaching a selectivity of 11–12% towards the ester after 6 h of the reaction. An investigation of betulin oxidation was carried out with the use of Ag/TiO2 and Ag/CeO2/TiO2, with resulting conversions of 11% and 27%, respectively. Betulone was the main product of the reaction, with the selectivity over 60% in all 6 h experiments. For Ag/TiO2, the largest secondary products were betulinic aldehyde (6%) and betulinic acid (7%), while in the case of the modified catalyst, the betulinic aldehyde (22%) and betulonic aldehyde (8%) were detected. The authors emphasize Ag+ ions as the active sites for the liquid-phase oxidation. It should be noted that the authors did not provide a comparison with unmodified TiO2 in any of the described reactions.
Nagaraiju et al. [137] investigated the selective oxidation of allylic alcohols catalyzed by silver exchanged molybdovanado phosphoric acid (MPA) catalyst with molecular oxygen. Not only does the exchange by silver change the catalytic properties of the MPA, but also make the catalyst insoluble in organic solvents. The Ag- and V-modified MPA showed a substantially enhanced activity in the oxidation of cinnamyl alcohol in comparison with pure MPA and the one modified with only V or Ag. The authors proposed that the formation of Lewis acid-base silver species and vanadium hydroperoxide species may be a reason for high activity and selectivity. The cinnamaldehyde yield reached 93% versus 15–36% in much shorter reaction time. The choice of the solvent was found to significantly influence on the oxidation process. Different primary and secondary allylic alcohols were converted into the corresponding carbonyl compounds with high yield. However, the prolonged reaction time was needed for oxidation of the aliphatic alcohols. A negligible leaching of the active components was observed. The catalyst preserved its catalytic activity after the third cycle.

3.2. Propylene Glycol

Oxidation of polyols is more challenging than the oxidation of monatomic alcohols due to difficulties in controlling of the reaction regioselectivity, a formation of a wide range of products and their high affinity to C–C bond cleavage. In this section we survey the recent results in the field of oxidation of important biorenewable polyols (PG and GLY) over silver-containing catalysts. Various catalytic materials were proposed for the selective oxidation of PG [101,138]. Xue et al. [98,139,140] explored the PG oxidation over unsupported and hydroxyapatite-supported silver and silver-palladium NPs as catalysts and molecular oxygen as an oxidant. According to the literature, the PG oxidation proceeds through two parallel mechanisms: (1) oxidation of the primary hydroxyl group of PG to LAld, which further rapidly transforms into LA; (2) oxidation of the secondary hydroxyl group of PG to yield HA, which can be further oxidized into MeGO or converted into LAld through tautomeric equilibration in alkaline media. The obtained MeGO is highly susceptible to C–C bond cleavage to yield acetic (AcA) and formic (FA) acids [139], CO and CO2 [140] or can be converted to LA through the Canizzarro reaction in alkaline media. The possible ways of PG transformation under oxidative conditions are presented in Figure 18.

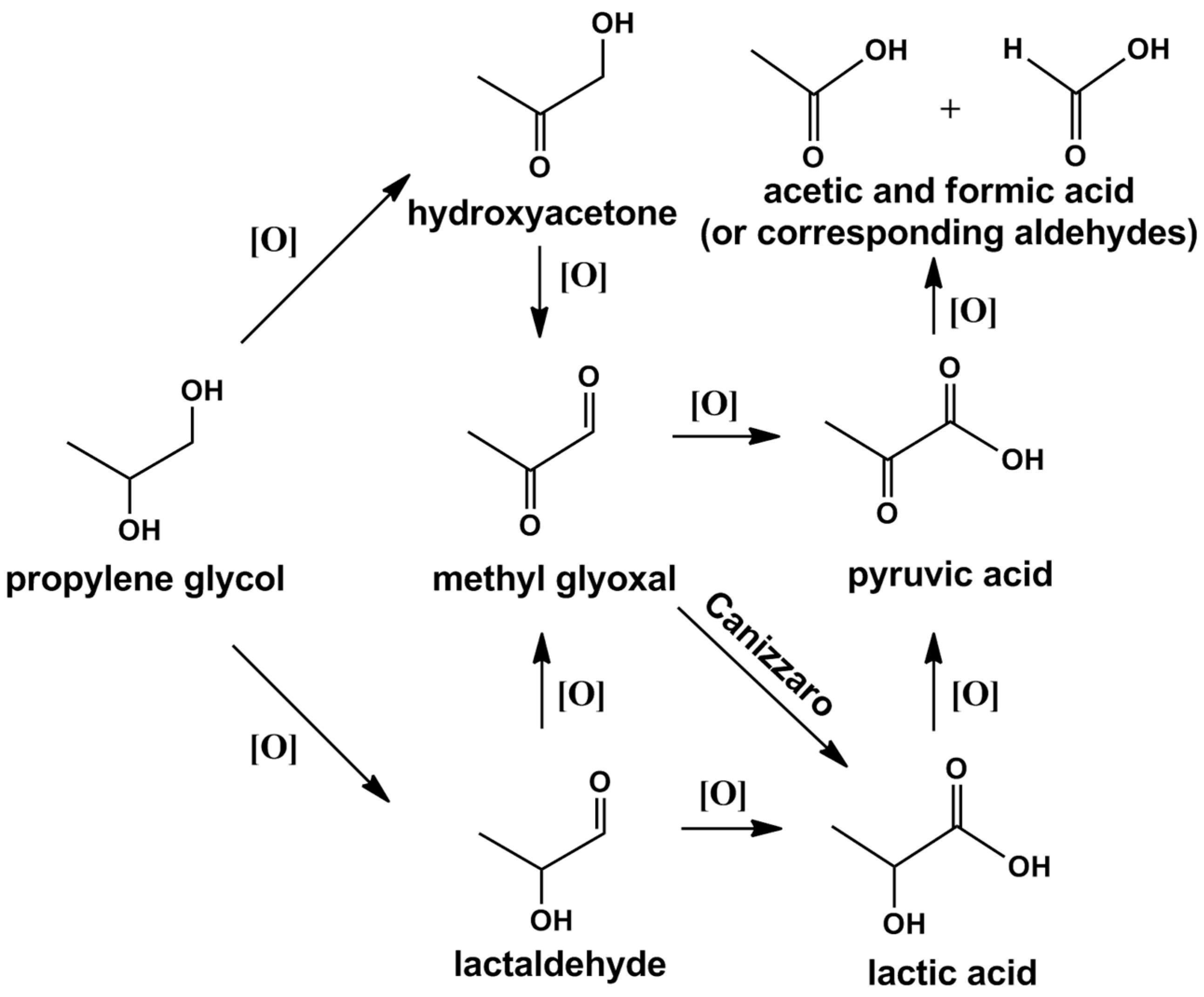

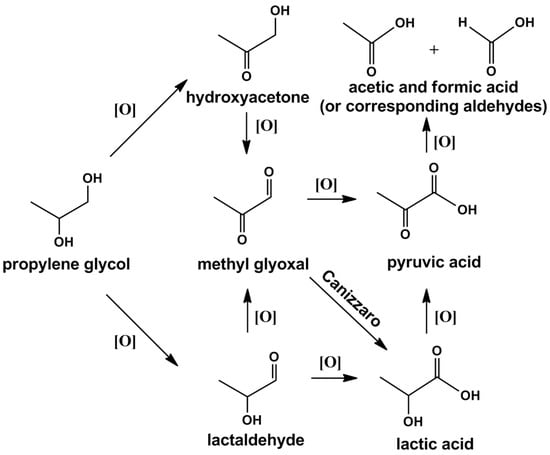

The first example of PG oxidation over Ag catalysts to produce LA, FA and AcA was published by Feng and coworkers [98]. Generally, all catalysts were prepared by wet chemical reduction method in the presence of different organic modifiers such as tween-80 (Tween), polyvinylpyrrolidone (PVP, K90), sodiumdodecyl-benaenesulfonate (SDBS), d-sorbitol (DS) and citric acid (CA). Typically, a small amount of organic modifier and silver nitrate were dissolved in the distilled water by ultrasonic treatment. Then hydrazine hydrate was added to the reaction mixture dropwise at 30°C. The obtained silver NPs were isolated by centrifugation and washed three times with an anhydrous ethanol. The size of the prepared NPs was shown to depend on the organic modifier. The samples prepared with citric acid had an average particle size about 15 nm, with tween—25 nm, polyvinylpyrrolidone—44 nm. The catalytic tests demonstrated the increase of TOF and the PG conversion with the average silver particle size decrease, but the correlation between the average particle size and oxidation product selectivity was not observed. The sample prepared with organic modifier Tween (AgTween) demonstrated the highest selectivity towards LA (Table 5). The optimal particle size was about 25 nm. The decreasing or increasing of the size of silver NPs led to the preferable formation of the C–C bond cleavage products. The highest selectivities towards FA and AcA were obtained over the sample prepared with citric acid as an organic modifier (AgCA). The AgTween was chosen to study the effect of catalytic reaction conditions on the activity of the silver catalyst. The increase of the temperature from 80 °C to 120 °C led to an increasing of the PG conversion and LA selectivity and reduction of the selectivity towards AcA and FA. The enhancement of PG concentration from 0.14 M to 0.56 M reduced the substrate conversion, but led to the selective LA formation. The increase of oxygen pressure led to oxidative C–C bond cleavage. The use of NaOH in the PG oxidation over unsupported silver is an important point. In the absence of base, the PG conversion was less than 1.5% and no LA, FA and AcA were obtained. The addition of NaOH in a molar ratio NaOH/PG = 1 led to a substrate conversion of 58.3% and a formation of LA, FA and AcA with the selectivities of 31, 25% and 44%, respectively. The increase of the NaOH/PG molar ratio to up to 2 was favorable for the LA production. However, a further increase of NaOH concentration did not affect the PG oxidation process. The recycling test of AgTween and AgCA catalysts in the PG oxidation demonstrated a slight activity loss after five catalytic cycles. Only LA, FA and AcA were detected as products of PG oxidation. Carbon mass balance was 100% in all catalytic tests.

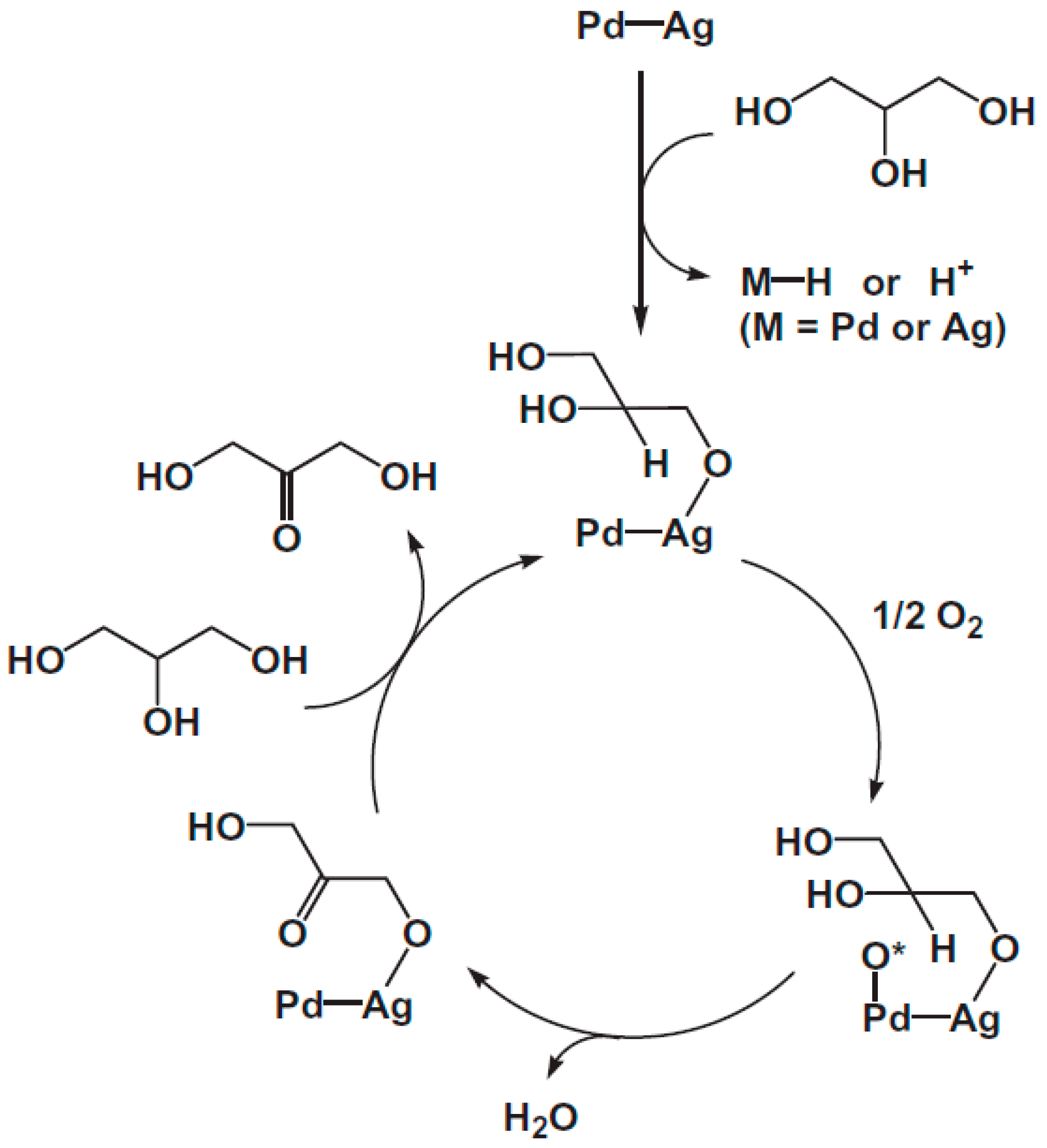

Unsupported silver–palladium NPs and those supported on hydroxyapatite (HAP) as the catalyst of PG selective oxidation were investigated in by Xue et al. [139] and Feng et al. [140]. Supported catalysts were prepared by sol-immobilization method. In general, the calculated amount of silver nitrate added to ascorbic acid (AA) and PVP aqueous solution under vigorous stirring at 60 °C. Than the PVP, AA and KBr were added to freshly prepared Ag colloid and preheated at 60 °C. Then the aqueous solution of PdCl2 was added dropwise under vigorous stirring. After cooling to room temperature the Ag–Pd colloid was immobilized by the addition of HAP nanorods under stirring for 2 h. The as-prepared samples were filtrated and washed with distilled water. The HAP-supported bimetallic AgPd (Ag2/HAP, Ag1.2Pd0.8/HAP, Ag1.5Pd0.5/HAP, Ag1Pd1/HAP, Pd2/HAP, an index is a metal to HAP weight ratio) catalysts with different metal content were prepared. The XRD patterns of the Ag1.5Pd0.5/HAP and Ag1Pd1/HAP samples indicate the formation of bimetallic NPs.
The unsupported samples were prepared by a wet chemical reduction method. Typically, the calculated amounts of metal nitrates were dissolved in 100 mL 0.05% Tween aqueous solution by ultrasonication. Then the aqueous solution of hydrazine hydrate was added dropwise during 2 h under stirring. The obtained NPs were collected by centrifugation and washed with anhydrous ethanol prior to their use in the catalytic tests or characterization. The AgxPdy (x,y denoted the metal molar ratio) NPs were prepared via wet chemical reduction method.
All bimetallic silver–palladium NPs (unsupported and HAP-supported) showed the higher catalytic activity than the monometallic samples. A synergistic effect of silver–palladium catalysts in PG oxidation was proposed to be caused by a strong interaction (electrons transfer) between the coalesced Pd and Ag bimetallic NPs. An increase of NaOH/PG molar ratio to up to 1 for AgxPdy/HAP and up to 2 for unsupported AgxPdy led to rising of the substrate conversion and LA selectivity. Further increasing of the base concentration had only minor effect on PG selective oxidation process. The effect of reaction temperature and substrate concentration was similar to that for monometallic silver NPs [98]. The effect of the O2 amount in the catalytic system was explored by variation of O2 pressure in the case of AgxPdy/HAP samples and by variation of O2 flow rate in the case of unsupported AgxPdy catalyst. An increasing of O2 pressure or flow rate gave a great boost to the catalytic activity of all bimetallic catalysts until the saturation of the catalyst surface with molecular oxygen was achieved. Further increase of O2 flow rate or pressure practically had no effect on the oxidation process.
When the bimetallic Pd–Ag/HAP samples were used for the catalytic oxidation of PG, both substrate conversion and LA selectivity increased with the increase of the Pd content (Table 5). The results indicated that high Pd loading favored the PG oxidation with selective formation of LA. Only LA, AcA and FA were detected in the reaction mixture after all catalytic tests. For the unsupported bimetallic catalysts, the dependence of the catalytic activity and product distribution on the Ag/Pd molar ratio revealed different character. The addition of Pd to Ag-rich catalyst improved the catalytic activity, but the dependence of LA selectivity on the Pd content had a volcano-shape type. The highest LA selectivity was obtained over the catalyst with 85% Ag and 15% Pd. For this type of catalysts, the formation of a small amount of HA was demonstrated over samples with low palladium content (up to 0.15 Pd/Ag weight ratio).
Xue et al. [140] carried out a study of reaction kinetics of PG oxidation over monometallic and bimetallic catalysts. The activation energy over Pd1Ag1/HAP was found to be lower than those over Pd/HAP and Ag/HAP (20.8 versus 24.1 and 30.8 kJ/mol, respectively). Lower reaction order over the bimetallic catalyst in comparison with both monometallic is proposed to result from stronger PG adsorption over Ag1Pd1/HAP. For the unsupported catalysts, both activation energies and the reaction orders with respect to PG concentration were also affected by the content of Pd and Ag in the bimetallic catalyst [139]. With increasing of the Pd content to up to molar ratio Ag/Pd = 0.5, the reaction kinetics was close to that over the Pd monometallic catalyst indicating that in this case Pd NPs in Ag–Pd catalyst predominantly catalyzed the PG oxidation with molecular oxygen.
It is noteworthy that despite the thorough investigations in the field of PG oxidation with O2 there are many opened questions. The sum of LA, FA and AcA in Xue’s group research is 100% in both catalytic tests. If only three kinds of products are formed (LA, FA and AcA), the selectivities to FA and AcA must be equal, because FA and AcA can be formed from one PG molecule. Moreover, it is not completely clear how they prevented pyruvic acid formation by LA oxidation. It was reported that pyruvic acid can be formed through HA oxidation in an alkaline medium [141]. According to the literature, silver and silver-palladium particles have a great catalytic activity in the dehydrogenation of FA under similar conditions [142,143]. However, the authors claim that the mass balance in all catalytic tests is close to 100%, and no formation of carbon oxides was detected. Variation of reaction temperature, catalyst loading, substrate and NaOH concentration, O2 pressure or flow rate had no effect on the carbon mass balance. It is not clear how the FA dehydrogenation was prevented, while so many reaction parameters were changed.
Thus, the catalytic activity of Ag NPs was studied at a variation of the sizes of metal particles in selective oxidation of PG is the aqueous solution. The main reaction product is LA, and the transformation is accompanied by the formation of the products of destructive oxidation, namely, AcA and FA. A key role of NaOH in the formation of LA at a NaOH/PG molar ratio of 2 was shown [98,139].
The use of Ag–Pd alloys as unsupported and hydroxyapatite-supported NPs allowed increasing the rate of PG oxidation in aqueous solution. Introduction of Pd into the composition of Pd1Ag1 NPs results in decreasing of the activation energy of direct oxidation of the terminal hydroxyl group with the formation of LA [140]. The supporting of the bimetallic particles of active component on the hydroxyapatite allows reducing the content of NaOH in the aqueous solution.
Thus, a trend in the selective oxidation of PG into LA is connected with the achieving of the basic properties of the supports used that influences on the state of metal NPs. This allows reducing the concentration of alkali agent in the reaction mixture. The effective oxidation of PG is carried out at a relatively low oxygen pressure (0.5 MPa) and a temperature of 100 °C.

3.3. Glycerol

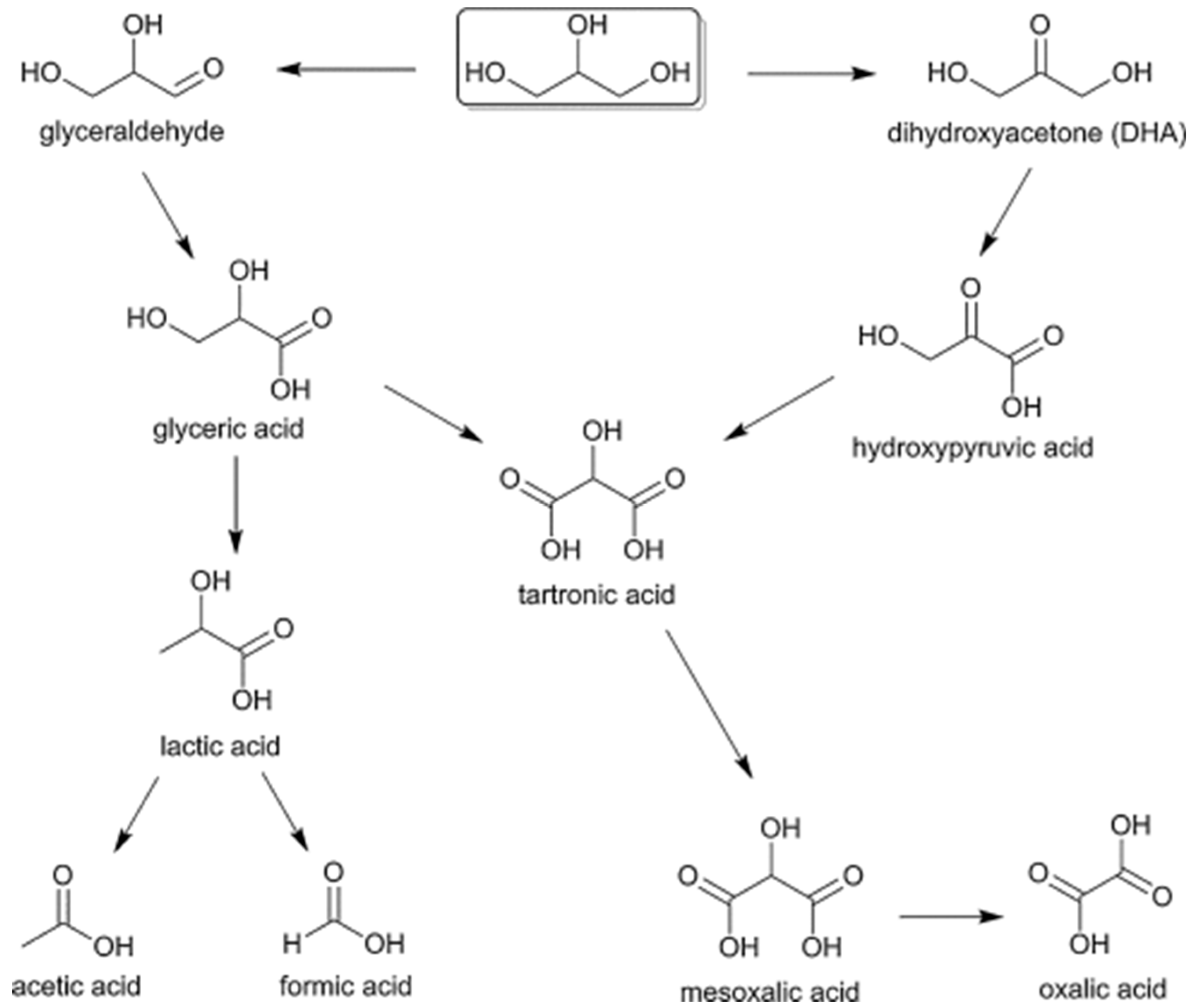

Glycerol (GLY) is included in the top 10 value-added chemicals from biomass [144]. Its oxidation over Ag-based catalysts has been studied more extensively compared to PG. The GLY oxidation leads to the formation of a large number of products (Figure 19) [145]. Oxidation of primary hydroxyl group gives GlyAld and GlyA, while when secondary groups are oxidized, dihydroxyacetone (DHA) is formed. Further oxidation leads to the formation of a number of C1–C3 acids, with DHA being one of these important products due to its application in cosmetics. Currently, no catalytic method of DHA manufacturing was applied in industry. Another important product is LA used as a top platform molecule for polymers, solvents, etc. The selectivity of GLY transformation depends on the catalytic composition and reaction conditions.

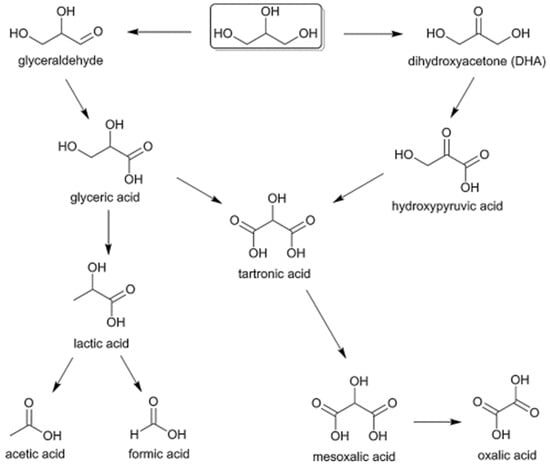

Hirasawa et al. [146] reported the GLY oxidation over Ag-containing catalysts. The Pd–Ag alloy catalyst was found effective for selective aerobic oxidation of GLY to DHA without addition of alkali agent into the reaction mixture. Monometallic Ag/C showed higher selectivity than Pd/C, while much lower activity was observed. The activity of a physical mixture of Ag/C and Pd/C was much lower than that of alloy catalyst indicating the synergetic effect of two metals in contact. Prolongation of the reaction time and oxidative pretreatment of Pd–Ag/C led to a more selective formation of DHA than at the initial stage (Table 6). The authors also mentioned that Pd–Ag catalysts on oxide support were also active, but less selective. After optimization of the reaction conditions and catalyst composition, the authors managed to obtain DHA with the selectivity of 85% at a conversion of 52%. The activity of the catalyst slightly decreased in each cycle, however, the selectivity almost did not change. Only minor leaching of Pd and Ag (0.1% and 0.5%, respectively) was detected by the ICP analysis of the filtrate. A poisoning by the produced glycolic (GlycA) and propionic acids was found to be a reason for the catalyst deactivation. The TEM measurements showed that particles with sizes of 3–4 nm were predominated. After the catalysis, a slight shift to larger sizes was observed in the distribution. The characterization results indicated that the uniform crystalline phase of the Pd–Ag alloy was formed and can be responsible for the selective DHA formation.

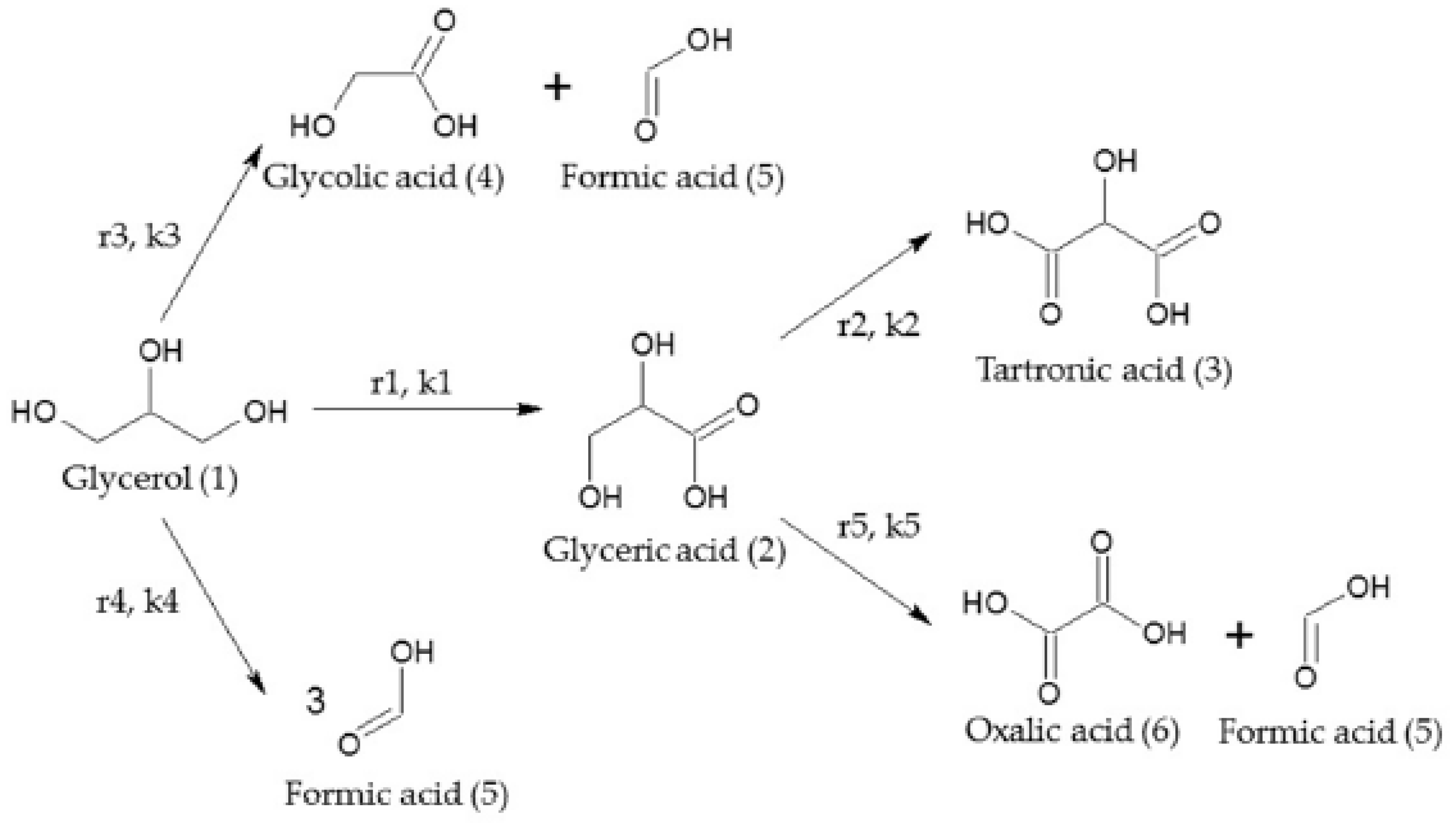

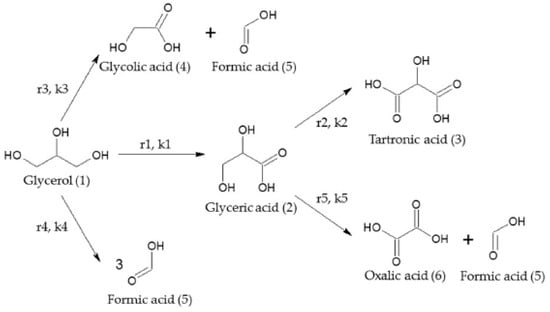

The same group further investigated the reaction mechanism and kinetics of oxidation of GLY and other alcohols over Ag–Pd catalysts with various structure and types of the support [147]. The authors also compared the performance of Pd–M/C catalysts with Ag, Ti, Mn, Ni, Re, Ir, Au, and Bi. However, Pd–Ag/C showed the highest GLY conversion and DHA selectivity (Table 6). The DHA yield over Pd–Ag catalysts with various supports decreased in the following order: carbon > SiO2 > Al2O3 > ZrO2 > TiO2 > CeO2. The catalysts with higher Ag content tended to be more selective towards the DHA formation, while Pd-rich catalysts were more active. Although the initial reaction rate over Ag–Pd/SiO2 was comparable to that over Ag-Pd/C, the latter revealed an induction period. The authors speculated that the active structure of Ag–Pd/SiO2 is easily formed by the reduction. The heterogeneity of catalysis in GLY oxidation over Ag–Pd/C was proved by a “hot catalyst filtration test”. A kinetic study of the reaction indicated that the addition of Ag to Pd improved the interaction between the substrate and the catalyst surface and the involving of oxygen species is the rate-determining step. The proposed reaction mechanism is the dehydrogenation route, where both substrate and oxygen are activated on the catalyst surface (Figure 20). The main factor of the deactivation of Pd–Ag/C in GLY oxidation is a strong adsorption of GlyA on the Pd followed by blocking the sites for oxygen activation.
Skrzyńska et al. oxidized the “crude GLY”, a cheap dirty waste by-produced with biodiesel, over four different supported noble metals (Au, Pd, Pt, Ag) at NaOH/GLY molar ratio of 4 [148]. The Au/Al2O3 catalyst was the most active in pure GLY oxidation (Table 6). The main detected products at the beginning of the reaction were GlyA (60% selectivity), GlycA (~20% selectivity) and FA (10–12% selectivity). Pt- and Pd-based catalysts were less active but more selective towards GlyA (74 and 85.8% at 30% conversion, respectively). However, the Ag/Al2O3 showed different activity concerning the distribution of the main products. The highest selectivity was observed for GlycA (about 45%). The initial selectivity towards GlyA was 34% and decreased after a few minutes of reaction to up to 23–26%. The authors explained such a big difference between the activities of the catalysts by the metallic particle distribution on the catalyst surface. The main particle diameter increased in the order: Pd/Al2O3 (3.5 ± 1.5 nm) < Pt/Al2O3 (4.2 ± 2.5 nm) < Au/Al2O3 (4.7 ± 2.6 nm) < Ag/Al2O3 (21.2 ± 18.6 nm). The supported silver catalyst with the highest average diameter and the widest particle size distribution was the least active in the pure GLY oxidation, but very high selectivity towards GlyA was characteristic for this metal. Application of crude GLY blocked the activity of all catalysts. The highest resistance to GLY impurities was exhibited by both Pd and Ag particles with the highest and lowest average diameter. In the case of Ag/Al2O3, the selectivities towards C1 and C2 products decreased, while the selectivity towards GlyA was enhanced from 27.8 to 49.5%. Thus, the authors concluded that the impurities in the crude GLY blocked the sites responsible for the oxidative C–C bond cleavage of GLY, keeping active the sites responsible for the non-destructive oxidation of hydroxyl groups. The experiments with the addition of single impurities showed a different activity of the catalysts depending on the crude GLY composition.
Skrzyńska et al. [149] reported the effect of preparation method and reaction conditions on the catalytic performance of Ag/Al2O3 in aerobic oxidation of GLY to GlycA. A thorough study of this type of catalyst is caused by the lack of known metallic catalytic systems able to transform GLY to GlycA. A large number of catalysts prepared by different methods of reduction and the type of reducing agent and support used were tested (Table 6). The catalysts prepared in methanol solution were more active than those prepared with water, whereas the changing of the support altered the oxidation state and the mean diameter of silver NPs and, as a consequence, their catalytic performance in GLY oxidation. Despite a wide range of samples with similar mean particle size prepared by different techniques and using different supports, a clear relationship between the particle diameter and GLY conversion and catalyst selectivity was not observed. However, the results obtained for the series of catalysts prepared by the same method, but with different concentrations of reducer (NaBH4), showed that the highest activity and selectivity to GlycA was observed over the catalyst with the biggest mean particle diameter, while the smallest particles were the least active. The selectivity to FA was generally comparable. The authors explained this phenomenon by the base-dependent character of the oxidative C–C bond cleavage of GLY to FA. A decreasing of NaOH/GLY molar ratio during the reaction rather than the catalyst deactivation caused an incomplete GLY conversion. The addition of fresh NaOH to the reaction mixture rebooted the reaction. It is noteworthy that the high concentration of the base at high reaction temperatures (i.e., 100 °C) led to a GLY conversion in the absence of any metal catalyst [150]. At the same time, the presence of base was required for the initial activation of GLY molecule, and silver-based catalysts were practically inactive in the absence of the base. The selectivity towards GlyA increased significantly with the increase of the metal loading. The selected catalyst was shown to be able to run in a continuous process without any alteration of the conversion and the selectivity to GlyA (43–44% and 52–53%, respectively).
Zaid et al. investigated the ceria-supported silver-based catalysts promoted by noble metal (Au, Pd or Pt) for GLY oxidation with molecular oxygen at NaOH/GLY ratio of 4/1 mol/mol [151]. GlyA was the main oxidation product, and the catalyst selectivity was not affected by the nature of promoter (Table 6). The presence of silver in the catalyst and the basic conditions directed the C–C bond cleavage with selective formation of GlycA. The catalytic activity in terms of GLY conversion decreased in the following row: Ag–Pt (54.2%) > Ag–Au (43.8%) > Ag–Pd (37.1%). The initial reaction rate over Ag–Pt was twice higher than in other bimetallic systems. However, the increasing of the amount of Pt in the Ag–Pt/CeO2 catalyst generally decreased the GLY conversion and GlycA yield. In the catalysts with high platinum content, Pt dominates the activity of silver by changing the mechanism and directing the reaction towards the formation of GlyA. The authors explained a plateau at low GLY conversions in this case by deactivation of Pt under high O2 pressure. This phenomenon is well known for aerobic oxidation of alcohols [116,152].
Taking into account the outstanding behavior of Ag as catalytically active components in aerobic oxidation of GLY in comparison with other noble metals, Diaz et al. developed the kinetic model of this reaction over M/Al2O3 (M = Ag, Pt, Au) in order to provide the comparative information and find the reason for higher selectivity of Ag towards GlycA [153]. A power-law kinetic model was developed. The reaction pathways included in the kinetic models are shown in Figure 21. DHA and GlyAld were not observed in the reaction mixture in all cases due to their low stability in the presence of the base [150]. It was found that FA can be obtained from the direct GLY decomposition. Due to high average metal particle size in Ag/Al2O3 (21.2 versus 2.95 and 4.7 nm for Pt and Au, respectively), the share of active sites was much lower than over the other catalysts leading to lower catalytic activity. A temperature dependence of product selectivities and the initial reaction rates for Au differed from that for Pt and Ag-based catalysts. Under reaction conditions, unlike Au and Ag, Pt was able to dissociate O2 [154] and catalyze the initial step of GLY oxidation, namely the proton abstraction from the substrate molecule [116]. The Pt-based catalyst was the most active, while showing the highest activation energies. The authors connected this fact with the adsorption phenomena. Moreover, based on the deactivation parameters the Pt/Al2O3 and Au- and Ag-containing catalysts were considered more resistant to deactivation. The latter two catalysts cannot oxidize GLY under base-free conditions and prone to produce C–C bond cleavage step, especially Ag. The authors assumed the ability of these active phases to catalyze the direct synthesis of H2O2, which plays a key role in C–C cleavage bond process leading to the formation of GlycA. The r3/r1 ratio (see Figure 21) in the proposed kinetic model was higher for Ag (2.5) than those of Pt (0.16) and Au (0.54) supporting the high selectivity of this system towards GlycA.

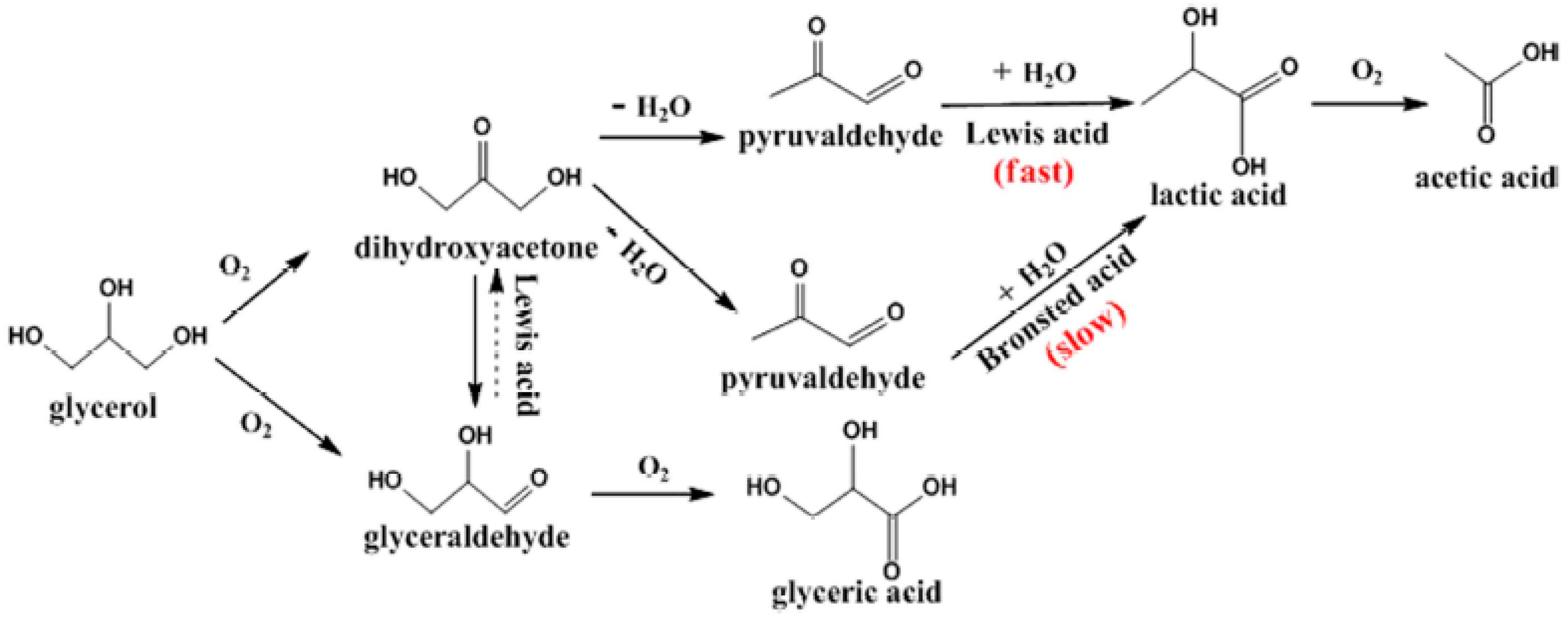

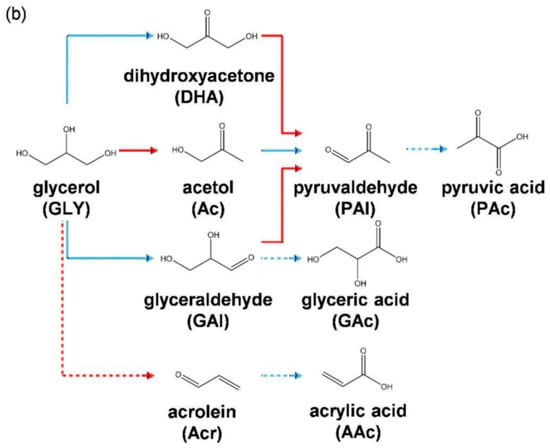

Another valuable product of GLY oxidation is LA. The production of LA from GLY generally requires the oxidation followed by dehydration/rehydration steps (Figure 22). Tao et al. developed a bifunctional catalyst by introducing silver to polyoxometalates (POMs) [155]. The authors confirmed that Ag could enhance both the redox potentials for H3PMo12O40 to be suitable to oxidize GLY to DHA rather than GlyAld, and Lewis acid sites favor further dehydration reaction pathway to LA. The reason why the undesired cascade oxidation of LA was hindered was explained by the hydrophobic surface characteristics of the catalyst. As soon as the LA was formed, the hydrophobic AgxPMo expelled the LA molecules from their catalytic sites diffusing to the liquid phase, and further oxidation was avoided. After the optimization of the reaction conditions, they managed to obtain LA with a 93% selectivity at a 99% GLY conversion (Table 6).
Kaskow et al. compared the effect of copper and silver on the catalytic activity of gold-based catalysts in GLY oxidation [156]. It was shown that the Cu- and Ag-doped Au/ZnO catalysts have different structure (Figure 23). CuO/Cu2O are in the vicinity of metallic gold and CuO/Cu2O patches on the surface of metallic Au particles. Ag2O in the vicinity of metallic gold and AuAg alloy (with low Ag content) decorated with a discontinuous Ag2O layer. The addition of copper to Au/ZnO caused a significant increase in GLY conversion in comparison with monometallic catalyst (Table 6). At the same time, the presence of silver revealed the opposite effect. Ag/ZnO with a domination of cationic silver was almost inactive. XPS studies showed that both Cu and Ag changed the electronic state of gold on ZnO due to strong Au-Cu and Au–Ag interactions. The amount of electrons surrounding the gold metallic particles is important for effective chemisorptions of oxygen. Metallic gold with the lowest negative charge on the surface of AuCu/ZnO as found to be the most active as centers for oxygen chemisorptions. On the contrary, highly negatively charged Au particles on the surface of AuAg/ZnO were not active in oxygen chemisorption. The chemical composition of active phase also influences on selectivity due to different adsorption and desorption rates of GlyA.
For the liquid-phase oxidation over all discussed catalytic composites, the addition of alkali agent is required, and almost no transformation of substrates occurs. Thus, in the liquid-phase oxidation, the mechanism of direct oxidation of primary hydroxyl into the carboxylic group is the predominant one. To increase the effectiveness, the addition of Pd is used due to the necessity to change the electronic properties of active Ag site.

4. Selective Photooxidation of Alcohols

Selective photooxidation of alcohols has received special attention from research groups in the recent years due to economical feasibility (no heating is applied) and ecofriendliness. A variety of studies dedicated to partial oxidation of aromatic alcohols features titania-based systems with such modifiers (or combination thereof) as CdS [157], ZnO [158], WO3 [159], CeO2 [160], Fe3+ [161], vanadyl species [162], Ag [163], AgBr [164,165], Au [166], Pt, Rh or Ir [167]. A selection of recent works on the subject also mention gold catalysts on different supports such as hydrotalcite [168], niobium oxide perovskites [169], zeolites [170] or CeO2 [171]. Some other composite catalysts are also mentioned such as Pt/Bi2WO6 [172] or separate various bromide compounds [173,174]. Apart from that, Ag3PO4 is also featured [175].
Other recently mentioned substrates are methanol, being selectively photooxidized on Au/WO3 [176], Au- and/or Ag-modified TiO2 [177], Ag-modified TiO2 and SiO2 [178], vanadia systems [179], 2-propanol, with a study featuring Au/TiO2 [180]. A few other works discuss the same process for carbohydrates like glucose in the presence of Fe3+ ions on TiO2 [181] or undoped sol-gel TiO2 [182].
Selective oxidation of BA was carried out with the use of a sandwich-like TiO2@Me@ZnO photocatalyst [158]. Amongst Au, Pt, Ag, and Pd, silver-doped systems proven to be the most effective in the production of BAld, with the conversion value of 86.2% and selectivity of 51.1% for the said compound, with BAc being also produced with the selectivity of 33% (Table 7). Higher BAld selectivities of 84.9% and 81.3% were demonstrated by the TiO2@Pd@ZnO and unmodified TiO2@ZnO systems, but the conversion values were shown to be only 49% and 30.2%, respectively. Concerning BAc, TiO2@Au@ZnO turned to be the most effective photocatalyst, with the selectivity of 56.1% and a total BA conversion of 82.5%. Still, BAld was also formed in the discussed reaction with a selectivity of 43.9%. No data on unmodified TiO2 or commercial TiO2 for this experiment are presented in the study. The authors emphasize the increased amount of hydroxyl radicals and superoxide anions detected via EPR in the media during the involvement of the Ag-based catalyst compared to the others in the work. During the additional experiment of photoreduction of Cr(VI) species, TiO2@Ag@ZnO photocatalyst proved to be the most effective in comparison with unmodified TiO2, commercial TiO2 P25, and TiO2@ZnO@Ag hollow sphere. The authors also state that metal NPs are removed easily from the catalyst surface if stationed either inside or outside the spherical structure of the composite. According to the data provided by electrochemical measurements, the TiO2@Ag@ZnO catalyst shows generally a better ability to separate holes and electrons, and displays a minimal charge transfer resistance in comparison with the other composites described in the study. No additional explanations concerning the reaction mechanism or difference in activity/selectivity between the discussed TiO2@Me@ZnO composites are given except the note that Au and Ag NPs might be responsible for the increased light absorption efficiency compared to the other systems.

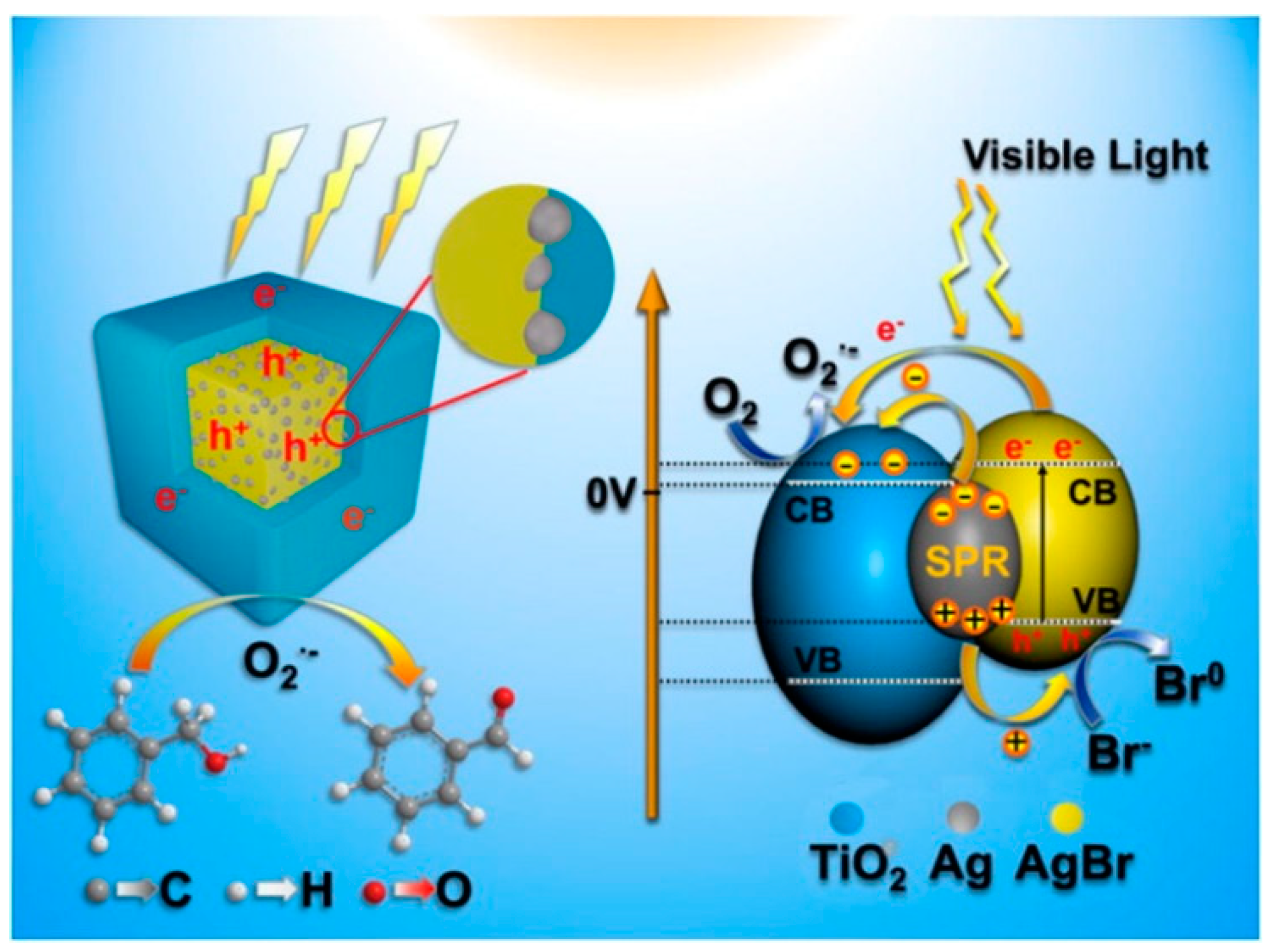

Another work described the same process with the involvement of core-shell AgBr@Ag@TiO2 systems [165]. AgBr-based series were prepared with the varied TiO2 shell thickness. Metallic silver was generated in the structure of the catalysts via photoreduction of Ag+ ions. According to the results of photocatalytic measurements carried out in acetonitrile media, a conversion of 89.2% and BAld selectivity of 97.3% was reached by AgBr@Ag@TiO2-0.35 photocatalyst having 70 nm TiO2 shell thickness, being the most active from the discussed series (Table 7). It was noted that the photoactivity increases with the growth of the outer TiO2 shell from 30 nm up to 70 nm, with unmodified TiO2 or AgBr@Ag also being inferior to all of the core-shell structured composites. With the further increase in the shell thickness over 70 nm, a rapid decline in activity was observed. The authors explain this phenomenon with the difficulties for the light to be absorbed as well as the inability of the substrate to effectively reach the AgBr core through a thicker shell of titania. It was stated that both Ag NPs and AgBr core are responsible for the absorption of light and subsequent generation of the electron–hole pairs, while the interaction between AgBr core and TiO2 shell favors a more effective charge separation (Figure 24).
An additional experiment employing AgBr@Ag@TiO2-0.325 having a 50 nm shell thickness was carried out several times with different solvents and atmosphere. It was demonstrated that O2 atmosphere is more beneficial than air or N2, with the largest conversion of 91% obtained with the use of benzotrifluoride as the solvent. The selectivity in the experiment reached 95%. CH3CN as another solvent also demonstrated similar conversion of 90% and selectivity of 95%, with the investigated AgBr@Ag@TiO2-0.325 sample being second in activity to the AgBr@Ag@TiO2-0.35 sample described above. Acetonitrile was also used in experiments employing air or pure nitrogen atmospheres, with conversions of 56% and 6%, respectively. BAld selectivities were determined as 98% for both cases. Apart from that, additional experiment employing O2 atmosphere and being carried out in water provided different results, with the conversion value of 38% and selectivity of 47%. It was also shown that BAld did not decompose in the blank experiment despite the oxygen atmosphere. The authors note the crucial role of O2 in the catalytic process. It is also stated that acetonitrile as a solvent favors the selectivity towards BAld due to the formation of h+ and O2 species, contrary to the additional presence of hydroxyl radicals and hydrogen peroxide generated in water during the course of the experiment, and leading to a wider distribution of products.
Finally, the same study features another series of experiments, which were carried out with the use of AgBr@Ag@TiO2-0.325 sample in acetonitrile media, but the irradiation time was reduced from 8 h to 6 h. The substrates investigated include BA and a selection of nitro-substituted aromatic alcohols, with the corresponding aldehydes being detected and their selectivity measured. It was shown that the largest conversion of 98% was attributed to m-nitrobenzyl alcohol, having a selectivity of 93%. The aldehyde selectivities for all of the other substrates surpassed 93%. The lowest conversion value of 68% was detected for p-methoxy benzyl alcohol. No additional explanation is provided for the difference between conversions.

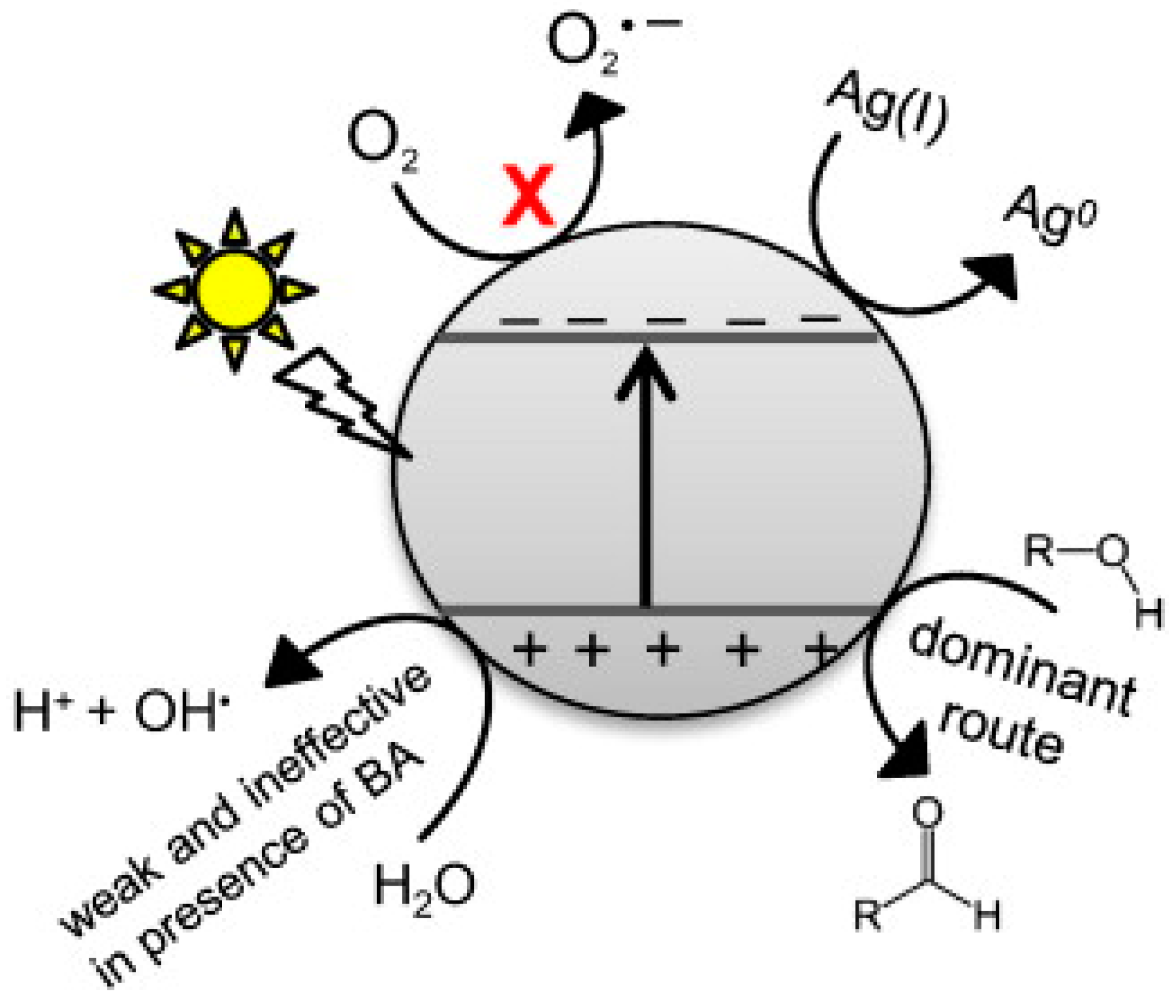

One more study featured selective photooxidation of BA with the use of AgBr@TiO2/GO microspheres, with GO standing for graphene oxide [164]. It was shown that the highest BAld yield of 78% is demonstrated by the actual composite catalyst (AgBr:TiO2 = 2:1, mGO = 18 mg) compared to AgBr/GO, AgBr@TiO2, AgBr, and mechanical mixture of AgBr, TiO2, and GO, all being mentioned from the largest to the lowest activity, respectively. The lowest activity of the mixture is explained by the inability of the charge carriers to be effectively separated, and it is stated that mechanical mixing does not promote the activity in any way (Table 7). Additionally, an influence of AgBr to TiO2 ratio was investigated. According to the presented data, the ratio of 2:1 was shown to be the most effective and optimal (yield 78% mentioned above), with the increasing amount of AgBr being detrimental for the activity, and with the ratio of 1:1 being the least effective of the whole series at the same time (with the yield slightly above 40%). This effect is explained by the limited ability of TiO2 to favor charge separation: while the further increase of AgBr leads to a generation of more electron-hole pairs, the amount of titania in the composite keeps decreasing, thus leading to a decrease in activity. Finally, an influence of graphene oxide amount on the photocatalytic activity was investigated. Amongst the 4.5 mg, 9 mg, 18 mg, and 36 mg of GO, the sample containing 18 mg was shown to be the most effective, with the catalyst containing only 4.5 mg being the most inferior in yield. The authors note that despite GO favors the charge separation and promotes the activity upon being added to the structure of the composite, further increase of GO amount from 18 mg to 36 mg blocks the access of light to AgBr core, thus leading to a decrease in BAld yield.
A solvent-free oxidation of BA to BAld in UV light was investigated in the presence of various Me/TiO2 catalysts, including Ir/TiO2 and Ag/TiO2 [167]. According to the presented data, Ag/TiO2 system was the least active, showing a conversion of 2.4%, and being superior only to unmodified TiO2 with the conversion of 0.2%. The largest conversion of 8.9% was shown by the Ir/TiO2 photocatalyst, also demonstrating a 92% BAld selectivity (Table 7). Generally, all other catalysts save for unmodified TiO2 showed BAld selectivity over 80%, including the silver-based sample. Although it is stated that the photogenerated electrons tend to migrate from the surface of TiO2 to noble metal clusters, no additional explanation of Ag/TiO2 being the least active amongst the series is given.
A study on selective photooxidation of 4-methoxybenzyl alcohol (4-MBA) to the corresponding aldehyde was carried by Yurdakal et. al. [163], with titania-based catalysts employed. The experiment was carried out with pH values of 1, 7 and 13. It was shown that almost every catalyst of the discussed Au, Pd, Ag, and Pt series achieved the selectivity towards aldehydes of 100% with pH = 1, with the metal-loaded catalysts performing better than unloaded TiO2 (Table 7). Note that all selectivities were correlated to the half-reaction time. With this, under neutral pH conditions Ag-TiO2-0.5%-100 and Ag-TiO2-1%-100 samples showed the selectivities of 15% and 13%, respectively. Under basic conditions of pH =13, the same samples provided selectivity values of 12% for Ag-TiO2-0.5%-100 and 21.5% for Ag-TiO2-1%-100. With this, the unmodified TiO2 Degussa support showed a 15% selectivity under pH = 7 and a 27% selectivity under pH = 13. The authors note the electron donor/acceptor characteristics of the substituent groups of aromatic alcohols being responsible for the difference in activity/selectivity under various pH conditions. They also mention the influence of the basic media on the formation of hydroxyl radicals participating in the reaction, and possible benefit of the hydrophobic nature of the catalyst surface for the degradation of aromatic alcohols.
BA, 4-MBA and cinnamyl alcohol were photooxidized to their respective aldehydes with the use of Ag3PO4 [175]. The determined conversion values were 85%, 85%, and 90% for each aromatic alcohol, respectively. According to the obtained data, BAld and p-anisaldehyde were produced with the selectivity over 99% (Table 7). In the case of cinnamaldehyde, however, the selectivity value was 90% with the detected traces of BAld and benzene acetaldehyde as secondary products in that experiment. The authors note poor physical adsorption of BA or BAld on the surface of Ag3PO4 being partially responsible for the displayed selectivity in photooxidation of BA. In the same experiment, it was shown that an excess of molecular oxygen did not influence on the activity in any way, which was explained by the difference between the redox potential of O2/O2−∙ and electrode potential of Ag3PO4. Also, it was stated that the process was carried out with the involvement of the holes of the valence band in that particular case. It should be mentioned that during the photoactivation process of the catalyst, silver ions were likely to form metallic Ag on the surface of Ag3PO4, which was confirmed by the XRD and gravimetrical analysis, with the amount of Ag increasing during the course of irradiation time. The authors state the forming conduction band electrons responsible for this process (Figure 25). Additionally, the presence of BA was shown to be detrimental for the formation of hydroxyl radicals from water oxidation. Finally, it is of utmost importance to note that the formation of BAld during the selective photooxidation of BA is notably suppressed in repeated cycles of the experiment, with the decrease in conversion of 12%, 28%, and 48% for the first, second, and third repeated cycle, respectively. The authors conclude that this effect is caused by the irreversible photoreduction of silver ions described above.
Apart from aromatic alcohol photooxidation, several other substrates were also investigated recently, such as photosynthesis of MF from methanol with the use of Au–Ag alloy NPs [177]. According to the presented data, AuAgTiO2 sample (Au:Ag = 1:1) showed the largest conversion (75–90%), MF production rate, and selectivity (80–85%) in 15–45 °C temperature range, surpassing the samples with the ratios of 3:1, and 1:3, as well as single metal catalysts and unmodified TiO2 with the latter being the least active and selective towards MF (Table 7). This was attributed by the authors to specific properties of the samples such as electronic structure and spd hybridization, the formation of Schottky barriers, and interaction between metal and titania leading to electron transfer. Also, it is emphasized that the amount of O2 in the gas flow is crucial for the activity and selectivity in MF production, with the optimal conditions of methanol to oxygen ratio of 1:2 under the temperature range of 15–30 °C. The authors also note that under higher temperatures of 30–45 °C, an increased amount of oxygen provides a comparable activity level. In short, the partial pressure of oxygen was noted to influence most remarkably on the reaction rate and distribution of the reaction products (Figure 26). Also, the photo-excitation of the sample was not considered as a rate-determining step by the authors, with conversion/selectivity increasing in a non-linear fashion with the increase in light intensity. In addition, it was also stated that localized surface plasma resonance effect under visible light irradiation does not provide any help in MF production. With this, the partial pressure of oxygen is stated to be the major factor for the efficiency of the selective photooxidation, with the dissociation of oxygen on the metal surface to be the rate-determining step.

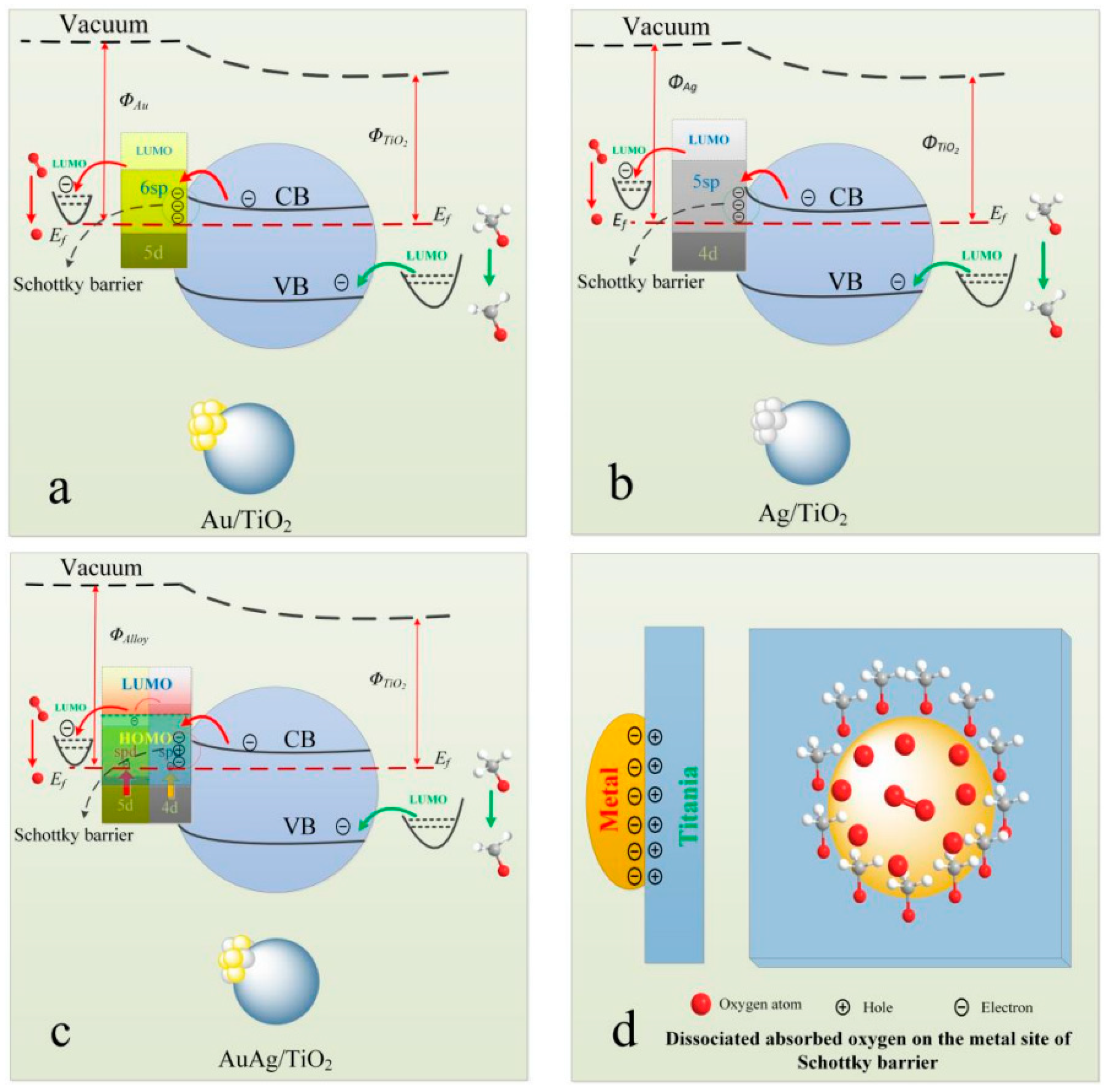

Yang et al. [178] reported the photosynthesis of MF from methanol with the use of Ag/TiO2 catalysts (Table 7). The largest MF formation rates of almost 22 mmol∙g−1∙h−1 and 23.46 mmol∙g−1∙h−1 for 3% Ag/TiO2 and 3% Ag/SiO2, respectively. With this, pure TiO2 P25 and silica are stated to be even less efficient than simple UV irradiation of methanol due to the hole–electron recombination of titania and a general inability of silica to absorb UV light. The authors also suggest another reason for a further decrease in the activity related to the adsorption of MF on the surface of titania and/or silica. It is noted that the addition of silver forms a Schottky barrier as a result of silver–titania interaction. It is also noted that upon the addition of silver, the modified silica becomes sensitive to UV light due to surface plasmon resonance, with the photooxidation of methanol promoted at the hole-saturated locations, and the reduction of oxygen on the electron-rich ends of the dipoles taking place at the same time. With this, visible light was found to be useless for both Ag/TiO2 and Ag/SiO2 catalysts due to the inability of visible irradiation to excite an electron transition.
The only work discussing silver for selective photooxidation of cellobiose to glucose [183] featured a sheer comparison of Ag/TiO2 and Au/TiO2 systems prepared via different methods, with gold catalysts being generally superior in conversion of cellobiose (31% vs. 24% for 6 h of the experiment, with 2% vs. 0% of glucose yield, respectively), but not able to compete effectively with commercial Degussa P25 (57% conversion, 3% selectivity) (Table 7). At the same time, pure TiO2 anatase showed 28% conversion, 5% selectivity. Combined Au/Ag systems prepared on different TiO2 supports also did not go past these numbers, with the top conversion of 36% and selectivity of 1%. Adding small amounts of silver to gold-promoted catalysts resulted in silver acting like a poison, with the same effect for gold in an opposite situation.
A study on selective photocatalytic oxidation of 2-propanol was presented by Colmenares et al. [184], where the selectivity of acetone product reached 97% as with many other dopants studied, and Ag presence in the sol-gel-derived systems actually increased the selectivity from approximately 34–38% to up to 38–40% after promotion (Table 7). Commercial TiO2 P25 sample showed a superior conversion of 46% with the same acetone selectivity.

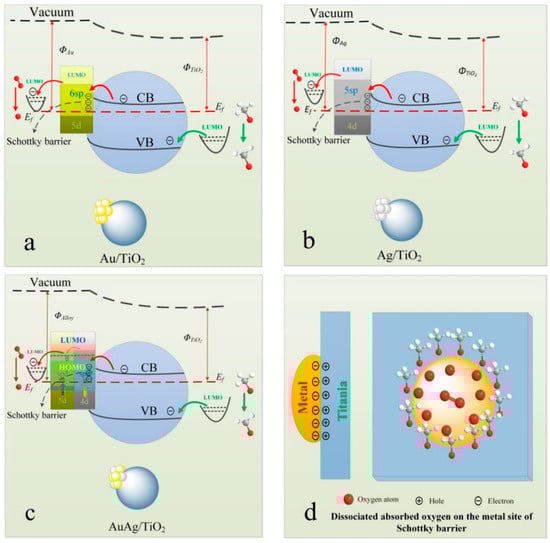

Ag/TiO2 catalysts were also featured in partial oxidation of cycloalkanols [185] to cycloalkanones and compared to some other metal-TiO2 systems. According to the authors, the addition of metal ions significantly reduced the amounts of cycloalkanol yield, with nanosized Ag and metallic Au being the most influential on the decrease in the activity, and nanosized Pd being relatively less poisonous in comparison, still being less selective than bare TiO2 (Table 7). Generally, the authors state that the nature of the substrate as well as TiO2 and metal co-catalyst particle size are crucially important for the activity.

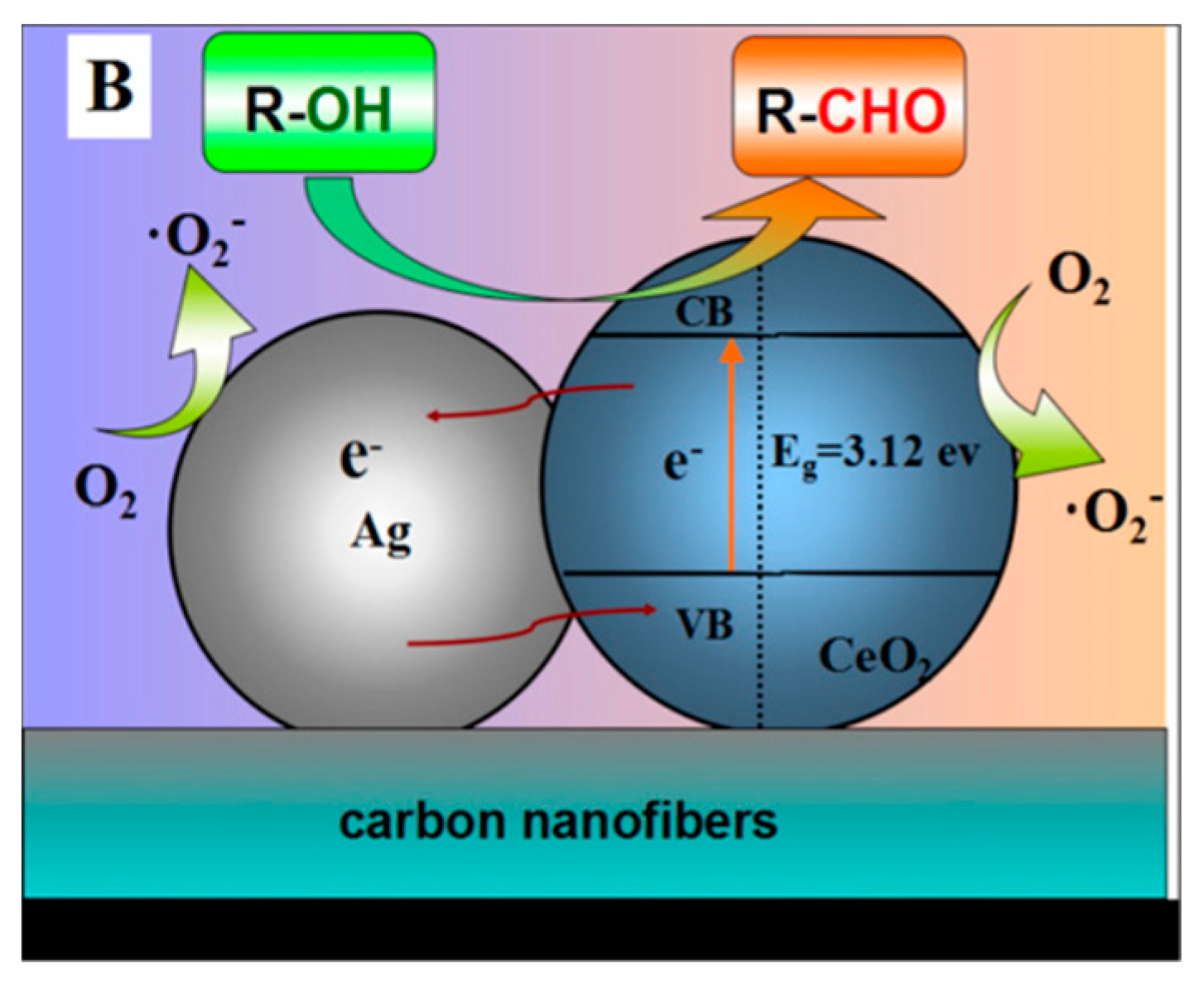

Liu et al. [186] prepared the electrospun CeO2/Ag@carbon nanofiber hybrids using a combination of electrospinning and carbonization techniques. The as-prepared nanofiber hybrids showed high mechanical properties, high efficiency, recovery and cyclic utilization properties. The hybrids were found to keep their initial membranous structure after the reaction, and the selectivities towards BAld and benzylic acid were 69.04% and 5.87%, respectively, at 96.25% conversion. The tentative reaction mechanism is represented in Figure 27.
Under the visible light irradiation, the Ag NPs through their surface plasmon resonance absorbed the photons, and the generated electrons were injected into the ceria. The electrons excited from valence band to conduction band of ceria formed the electron–hole pairs that participate in electron transfer process.
Thus, the detailed analysis shows the prospects of application of Ag-containing composite catalysts in selective photooxidation of alcohols. The presence of silver salts (such as AgX (X = Cl, Br), Ag3PO4) [164,165,175] in the catalyst composition results in appearance of metallic silver clusters/NPs under the influence of UV irradiation or, as in the case of Ag3PO4, when the Ag ions are reduced by electrons generated as a result of excitation by the visible light. The stability of photocatalytic action of composite catalysts in selective oxidation of alcohols also depends on the opportunity of reverse transition of Ag0 into the ionic form that does not take place over Ag3PO4 without the addition of co-catalyst. Molecular oxygen transforms into superoxide radical with the participation of Ag NPs, and silver captures the electron from the conduction zone of AgBr or ZnO and holds it due to Schottky barrier formation. The O2−• species participate in selective oxidation of BA into aldehyde [177].
Photocatalysts based on Ag/TiO2 and Ag/SiO2 are active in selective oxidation of alcohols due to the presence of “dipole plasmon resonance”, and, thus, methanol is oxidized over the hole-saturated ends of dipoles, while oxygen molecules are reduced to up to peroxide over electron-saturated ends of dipoles [178].
Formation of active sites of the hole nature over the composites such as AgBr@TiO2@GO proceeds over AgBr, while the superoxide oxygen anions are mainly concentrated over graphene oxide with the participation of electrons [164]. Both types of sites are able to facilitate in selective oxidation of alcohols.

5. Conclusions and Outlook

In the present review we have summarized the recent advances and trends in the field of development of the Ag-based catalysts for selective oxidation of alcohols in both gas- and liquid-phase processes as well as for photocatalytic applications. The Ag-based catalysts still bring about a vivid interest of researchers that pay more attention to revealing the factors that can be used to tune the Ag–support interaction, to provide synergistic effects of the active metal with the promoters and/or modifiers, and, thus, to control the catalyst performance in a wide range of process conditions. New materials, including highly heat-conductive composites and natural feedstock, are introduced as the supports. The state of silver in the catalysts determines the preferable reaction mechanism and can be controlled by the application of proper supports and modifiers. The use of the supports allows simultaneously addressing several important challenges:
(1)
the stabilization of the Ag-containing species (ultrasmall nanoparticles, clusters, ions) over the support surface due to balancing of its redox and acid-base properties,
(2)
the creating of the required “optimal” chemical surrounding for the metal site able to participate in the adsorption of the substrates, while the molecular oxygen is activated over the metal site,
(3)
the reducing of the process temperature, while keeping both high activity and selectivity of the catalysts, preventing the undesired processes (e.g., sintering, formation of carbon deposits, etc.),
(4)
the formation of surface oxygen species that promote the activation and transformation of the alcohol molecule, including the formation of O2−• species in photocatalytic applications.
The role of the support is as important as the role of the active component. A systematic control of the chemical surrounding of the active site will allow implementing the stereosensitive transformations more effectively.
It is noteworthy that even small amounts of silver used as a promoter or component of bimetallic alloys both in gas- and liquid-phase reactions of selective oxidation of alcohols may significantly enhance the catalyst performance. A combination of this feature with the unique characteristics of ordered mesostructured supports and metal-organic frameworks may open a new direction of research focused on designing of highly effective heterogeneous catalysts for selective oxidation of alcohols due to their own redox sites that are able to participate in the activation of molecular oxygen and/or alcohol molecule.

Acknowledgments

This research was financially supported by “The Tomsk State University competitiveness improvement programme” (grant No. 8.2.03.2018).

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

Acacetol
AcAacetic acid
BAbenzoic acid
BAcbenzoic acid
BAldbenzaldehyde
BBbenzyl benzoate
DHAdihydroxyacetone
EGethylene glycol
FAformic acid
GLYglycerol
GlyAglyceric acid
GlyAlglyceraldehydes
GlyAldglycolic aldehyde
GlycAglycolic acid
GOglyoxal
GOAglyoxalic acid
HAhydroxyacetone
LAlactic acid
LAldlactaldehyde
MCFmesostructured cellular foams
MFmethyl formate
MeGOmethyl glyoxal
NPsnanoparticles
PGpropylene glycol
PVPpolyvinyl pyrrolidone
SSstainless steel
ZFCzeolite film coated copper grid

References

  1. Kopylovich, M.N.; Ribeiro, A.P.C.; Alegria, E.C.B.A.; Martins, N.M.R.; Martins, L.M.D.R.S.; Pombeiro, A.J.L. Chapter Three—Catalytic Oxidation of Alcohols: Recent Advances. Adv. Organomet. Chem. 2015, 63, 91–174. [Google Scholar] [CrossRef]
  2. Mobley, J.K.; Crocker, M. Catalytic oxidation of alcohols to carbonyl compounds over hydrotalcite and hydrotalcite-supported catalysts. RSC Adv. 2015, 5, 65780–65797. [Google Scholar] [CrossRef]
  3. Ciriminna, R.; Pandarus, V.; Béland, F.; Xu, Y.-J.; Pagliaro, M. Heterogeneously Catalyzed Alcohol Oxidation for the Fine Chemical Industry. Org. Process. Res. Dev. 2015, 19, 1554–1558. [Google Scholar] [CrossRef]
  4. Xu, C.; Zhang, C.; Li, H.; Zhao, X.; Song, L.; Li, X. An Overview of Selective Oxidation of Alcohols: Catalysts, Oxidants and Reaction Mechanisms. Catal. Surv. Asia 2016, 20, 13–22. [Google Scholar] [CrossRef]
  5. Sharma, A.; Kaur, H.; Shah, D. Selective Oxidation of Alcohols by Supported Gold Nanoparticles: Recent Advances. RSC Adv. 2016, 6, 28688–28727. [Google Scholar] [CrossRef]
  6. Hussain, M.A.; Joseph, N.; Kang, O.; Cho, Y.-H.; Um, B.-H.; Kim, J.W. Supported Metal Nanoparticles: Their Catalytic Applications to Selective Alcohol Oxidation. Appl. Chem. Eng. 2016, 27, 227–238. [Google Scholar] [CrossRef] [Green Version]
  7. Vinod, C.P.; Wilson, K.; Lee, A.F. Recent advances in the heterogeneously catalysed aerobic selective oxidation of alcohols. J. Chem. Technol. Biotechnol. 2011, 86, 161–171. [Google Scholar] [CrossRef]
  8. Liu, F.; Wang, H.; Sapi, A.; Tatsumi, H.; Zherebetskyy, D.; Han, H.-L.; Carl, L.M.; Somorjai, G.A. Molecular orientations change reaction kinetics and mechanism: A review on catalytic alcohol oxidation in gas phase and liquid phase on size-controlled Pt nanoparticles. Catalysts 2018, 8, 226. [Google Scholar] [CrossRef]
  9. Parmeggiani, C.; Cardona, F. Transition metal based catalysts in the aerobic oxidation of alcohols. Green Chem. 2012, 14, 547–564. [Google Scholar] [CrossRef]
  10. Ochoa, J.V.; Cavani, F. Gas-phase oxidation of alcohols: Innovation in industrial technologies and recent developments. RSC Green Chem. 2015, 28, 203–230. [Google Scholar] [CrossRef]
  11. Dong, X.-Y.; Gao, Z.-W.; Yang, K.-F.; Zhang, W.-Q.; Xu, L.-W. Nanosilver as a new generation of silver catalysts in organic transformations for efficient synthesis of fine chemicals. Catal. Sci. Technol. 2015, 5, 2554–2574. [Google Scholar] [CrossRef]
  12. Wen, C.; Yin, A.; Dai, W.-L. Recent advances in silver-based heterogeneous catalysts for green chemistry processes. Appl. Catal. B 2014, 160–161, 730–741. [Google Scholar] [CrossRef]
  13. Davis, S.E.; Ide, M.S.; Davis, R.J. Selective oxidation of alcohols and aldehydes over supported metal nanoparticles. Green Chem. 2013, 15, 17–45. [Google Scholar] [CrossRef]
  14. Vodyankina, O.V.; Mamontov, G.V.; Dutov, V.V.; Kharlamova, T.S.; Salaev, M.A. Ag-containing nanomaterials in heterogeneous catalysis: Advances and Recent Trends. In Advanced Nanomaterials for Catalysis and Energy: Synthesis, Characterization and Applications, 1st ed.; Sadykov, V., Ed.; Elsevier: New York, NY, USA, 2019; pp. 145–175. [Google Scholar]
  15. Wisniewska, J.; Yang, C.-M.; Ziolek, M. Changes in bimetallic silver—Platinum catalysts during activation and oxidation of methanol and propene. Catal. Today 2018, in press. [Google Scholar] [CrossRef]
  16. Abdel Dayem, H.M.; Al-Shihry, S.S.; Hassan, S.A. Selective Methanol Oxidation to Hydrogen over Ag/ZnO Catalysts Doped with Mono- and Bi-Rare Earth Oxides. Ind. Eng. Chem. Res. 2014, 53, 19884–19894. [Google Scholar] [CrossRef]
  17. Ferrizz, R.M.; Wong, G.S.; Egami, T.; Vohs, J.M. Structure Sensitivity of the Reaction of Methanol on Ceria. Langmuir 2001, 17, 2464–2470. [Google Scholar] [CrossRef]
  18. Bahmanpour, A.M.; Hoadley, A.; Tanksale, A. Critical review and exergy analysis of formaldehyde production processes. Rev. Chem. Eng. 2014, 30, 583–604. [Google Scholar] [CrossRef]
  19. Brookes, C.; Bowker, M.; Wells, P.P. Catalysts for the Selective Oxidation of Methanol. Catalysts 2016, 6, 92. [Google Scholar] [CrossRef]
  20. Ghahraloud, H.; Farsi, M. Modeling and optimization of methanol oxidation over metal oxide catalyst in an industrial fixed bed reactor. J. Taiwan Inst. Chem. Eng. 2017, 81, 95–103. [Google Scholar] [CrossRef]
  21. Qian, M.; Liauw, M.A.; Emig, G. Formaldehyde synthesis from methanol over silver catalysts. Appl. Catal. A 2003, 238, 211–222. [Google Scholar] [CrossRef]
  22. Waterhouse, G.I.N.; Bowmaker, G.A.; Metson, J.B. Mechanism and active sites for the partial oxidation of methanol to formaldehyde over an electrolytic silver catalyst. Appl. Catal. A 2004, 265, 85–101. [Google Scholar] [CrossRef]
  23. Millar, G.J.; Collins, M. Industrial Production of Formaldehyde Using Polycrystalline Silver Catalyst. Ind. Eng. Chem. Res. 2017, 56, 9247–9265. [Google Scholar] [CrossRef]
  24. Pestryakov, A.N. Modification of silver catalysts for oxidation of methanol to formaldehyde. Catal. Today 1996, 28, 239–244. [Google Scholar] [CrossRef]
  25. Bartholomew, C.H.; Farrauto, R.J. Fundamentals of Industrial Catalytic Processes, 2nd ed.; John Wiley and Sons: Hoboken, NJ, USA, 2010; pp. 1–966. [Google Scholar]
  26. Millar, G.J.; Metson, J.B.; Bowmaker, G.A.; Cooney, R.P. Characterization of the Active Site for the Selective Oxidation of Methanol to Formaldehyde on Polycrystalline Silver Catalyst. J. Chem. Soc. Chem. Commun. 1994, 1717–1718. [Google Scholar] [CrossRef]
  27. Huang, W.; Sun, G.; Cao, T. Surface chemistry of group IB metals and related oxides. Chem. Soc. Rev. 2017, 46, 1977–2000. [Google Scholar] [CrossRef] [PubMed]
  28. Galvanin, F.; Cao, E.; Al-Rifai, N.; Dua, V.; Gavriilidis, A. Optimal design of experiments for the identification of kinetic models of methanol oxidation over silver catalyst. Chim. Oggi-Chem. Today 2015, 33, 51–56. [Google Scholar]
  29. Filho, A.C.P.; Filho, R.M. Hybrid training approach for artificial neural networks using genetic algorithms for rate of reaction estimation: Application to industrial methanol oxidation to formaldehyde on silver catalyst. Chem. Eng. J. 2010, 157, 501–508. [Google Scholar] [CrossRef]
  30. Aouat, Y.; Marom, G.; Avnir, D.; Gelman, V.; Shter, G.E.; Grader, G.S. Organically Doped Silver Nanoparticles Deposited on Titania Nanofibers: Enhanced Catalytic Methanol Oxidation. J. Phys. Chem. C 2013, 117, 22325–22330. [Google Scholar] [CrossRef]
  31. Binyamin, Y.; Shter, G.E.; Gelman, V.; Avnir, D.; Grader, G.S. Activated organically doped silver: Enhanced catalysis of methanol oxidation. Catal. Sci. Technol. 2011, 1, 1593–1599. [Google Scholar] [CrossRef]
  32. Halperin, V.; Shter, G.E.; Gelman, V.; Peselev, D.M.; Mann-Lahav, M.; Grader, G.S. Catalytic activity of electrospun Ag and Ag/carbon composite fibres in partial methanol oxidation. Catal. Sci. Technol. 2015, 5, 1153–1162. [Google Scholar] [CrossRef]
  33. Sobczak, I.; Dembowiak, E. The effect of AuAg-MCF and AuAg-NbMCF catalysts pretreatment on the gold-silver alloy formation and the catalytic behavior in selective methanol oxidation with oxygen. J. Mol. Catal. A 2015, 409, 137–148. [Google Scholar] [CrossRef]
  34. Wisniewska, J.; Ziolek, M. Formation of Pt-Ag alloy on different silicas-surface properties and catalytic activity in oxidation of methanol. RSC Adv. 2017, 7, 9534–9544. [Google Scholar] [CrossRef]
  35. Wisniewska, J.; Ziolek, M.; Artioli, N.; Daturi, M. The effect of niobium and tantalum on physicochemical and catalytic properties of silver and platinum catalysts based on MCF mesoporous cellular foams. J. Catal. 2016, 336, 58–75. [Google Scholar] [CrossRef]
  36. Aljama, H.; Yoo, J.S.; Nørskov, J.K.; Abild-Pedersen, F.; Studt, F. Methanol partial oxidation on Ag(111) from first principles. ChemCatChem. 2016, 8, 3621–3625. [Google Scholar] [CrossRef]
  37. Montoya, A.; Haynes, B.S. Methanol and Methoxide Decomposition on Silver. J. Phys. Chem. C 2007, 111, 9867–9876. [Google Scholar] [CrossRef]
  38. Montoya, A.; Haynes, B.S. DFT analysis of the reaction paths of formaldehyde decomposition on silver. J. Phys. Chem. A 2009, 113, 8125–8131. [Google Scholar] [CrossRef] [PubMed]
  39. Shirman, T.; Lattimer, J.; Luneau, M.; Shirman, E.; Reece, C.; Aizenberg, M.; Madix, R.J.; Aizenberg, J.; Friend, C.M. New Architectures for Designed Catalysts: Selective Oxidation using AgAu Nanoparticles on Colloid-Templated Silica. Chem. Eur. J. 2018, 24, 1833–1837. [Google Scholar] [CrossRef] [PubMed]
  40. Nadeema, M.A.; Idriss, H. Photo-thermal reactions of ethanol over Ag/TiO2 catalysts. The role of silver plasmon resonance in the reaction kinetics. Chem. Commun. 2018, 54, 5197–5200. [Google Scholar] [CrossRef] [PubMed]
  41. Pomalaza, G.; Capron, M.; Ordomsky, V.; Dumeignil, F. Recent Break throughs in the Conversion of Ethanol to Butadiene. Catalysts 2016, 6, 203. [Google Scholar] [CrossRef]
  42. Sushkevich, V.L.; Ivanova, I.I.; Ordomsky, V.V.; Taarning, E. Design of a metal-promoted oxide catalyst for the selective synthesis of butadiene from ethanol. ChemSusChem 2014, 7, 2527–2536. [Google Scholar] [CrossRef] [PubMed]
  43. Rodrigues, C.P.; da Costa Zonetti, P.; Appel, L.G. Chemicals from ethanol: The acetone synthesis from ethanol employing Ce0.75Zr0.25O2, ZrO2 and Cu/ZnO/Al2O3. Chem. Cent. J. 2017, 11, 30. [Google Scholar] [CrossRef] [PubMed]
  44. Aditiya, H.B.; Mahlia, T.M.I.; Chong, W.T.; Nur, H.; Sebayang, A.H. Second generation bioethanol production: A critical review. Renew. Sustain. Energy Rev. 2016, 66, 631–653. [Google Scholar] [CrossRef]
  45. Rana, P.H.; Parikh, P.A. Bioethanol selective oxidation to acetaldehyde over Ag-CeO2: Role of metal-support interactions. New J. Chem. 2017, 41, 2636–2641. [Google Scholar] [CrossRef]
  46. Rana, P.H.; Parikh, P.A. Bioethanol valorization via its gas phase oxidation over Au &/or Ag supported on various oxides. J. Ind. Eng. Chem. 2017, 47, 228–235. [Google Scholar] [CrossRef]
  47. Guan, Y.; Hensen, E.J.M. Selective oxidation of ethanol to acetaldehyde by Au−Ir catalysts. J. Catal. 2013, 305, 135–145. [Google Scholar] [CrossRef]
  48. Sobolev, V.I.; Danilevich, E.V.; Koltunov, K.Y. Role of vanadium species in the selective oxidation of ethanol on V2O5/TiO2 catalysts. Kinet. Catal. 2013, 54, 730–734. [Google Scholar] [CrossRef]
  49. Silbaugh, T.L.; Devlaminck, P.; Sofranko, J.A.; Barteau, M.A. Selective oxidation of ethanol over Ag, Cu and Au nanoparticles supported on Li2O/γ-Al2O3. J. Catal. 2018, 364, 40–47. [Google Scholar] [CrossRef]
  50. Lippits, M.J.; Nieuwenhuys, B.E. Direct conversion of ethanol into ethylene oxide on gold-based catalysts: Effect of CeOx and Li2O addition on the selectivity. J. Catal. 2010, 274, 142–149. [Google Scholar] [CrossRef]
  51. Lippits, M.J.; Nieuwenhuys, B.E. Direct conversion of ethanol into ethylene oxide on copper and silver nanoparticles: Effect of addition of CeOx and Li2O. Catal. Today 2010, 154, 127–132. [Google Scholar] [CrossRef]
  52. Janlamool, J.; Jongsomjit, B. Oxidative dehydrogenation of ethanol over AgLi–Al2O3 catalysts containing different phases of alumina. Catal. Commun. 2015, 70, 49–52. [Google Scholar] [CrossRef]
  53. Shimizu, K.-I.; Satsuma, A. Silver Cluster Catalysts for Green Organic Synthesis. J. Jpn. Petrol. Inst. 2011, 54, 347–360. [Google Scholar] [CrossRef] [Green Version]
  54. Kolobova, E.; Pestryakov, A.; Mamontov, G.; Kotolevich, Y.; Bogdanchikova, N.; Farias, M.; Vosmerikov, A.; Vosmerikova, L.; Cortes Corberan, V. Low-temperature CO oxidation on Ag/ZSM-5 catalysts: Influence of Si/Al ratio and redox pretreatments on formation of silver active sites. Fuel 2017, 188, 121–131. [Google Scholar] [CrossRef]
  55. Xu, J.; Xu, X.-C.; Yang, X.-J.; Han, Y.-F. Silver/hydroxyapatite foam as a highly selective catalyst for acetaldehyde production via ethanol oxidation. Catal. Today 2016, 276, 19–27. [Google Scholar] [CrossRef]
  56. Blokhina, A.S.; Kurzina, I.A.; Sobolev, V.I.; Koltunov, K.Y.; Mamontov, G.V.; Vodyankina, O.V. Selective Oxidation of Alcohols over Si3N4 Supported Silver Catalysts. Kinet. Catal. 2012, 53, 477–481. [Google Scholar] [CrossRef]
  57. Vodyankina, O.V.; Blokhina, A.S.; Kurzina, I.A.; Sobolev, V.I.; Koltunov, K.Y.; Chukhlomina, L.N.; Dvilis, E.S. Selective oxidation of alcohols over Ag-containing Si3N4 catalysts. Catal. Today 2013, 203, 127–132. [Google Scholar] [CrossRef]
  58. Dutov, V.V.; Mamontov, G.V.; Sobolev, V.I.; Vodyankina, O.V. Silica-supported silver-containing OMS-2 catalysts for ethanol oxidative dehydrogenation. Catal. Today 2016, 278, 164–173. [Google Scholar] [CrossRef]
  59. Chen, J.; Li, J.; Liu, Q.; Huang, X.; Shen, W. Facile Synthesis of Ag-Hollandite Nanofibers and Their Catalytic Activity for Ethanol Selective Oxidation. Chin. J. Catal. 2007, 28, 1034–1036. [Google Scholar] [CrossRef]
  60. Chen, J.; Tang, X.; Liu, J.; Zhan, E.; Li, J.; Huang, X.; Shen, W. Synthesis and Characterization of Ag−Hollandite Nanofibers and Its Catalytic Application in Ethanol Oxidation. Chem. Mater. 2007, 19, 4292–4299. [Google Scholar] [CrossRef]
  61. Li, Z.; Xu, J.; Gu, X.; Wang, K.; Wang, W.; Zhang, X.; Zhang, Z.; Ding, Y. Selective Gas-Phase Oxidation of Alcohols over Nanoporous Silver. ChemCatChem 2013, 5, 1705–1708. [Google Scholar] [CrossRef]
  62. Liu, P.; Zhu, X.; Yang, S.; Li, T.; Hensen, E.J.M. On the metal–support synergy for selective gas-phase ethanol oxidation over MgCuCr2O4 supported metal nanoparticle catalysts. J. Catal. 2015, 331, 138–146. [Google Scholar] [CrossRef]
  63. Mamontov, G.V.; Grabchenko, M.V.; Sobolev, V.I.; Zaikovskii, V.I.; Vodyankina, O.V. Ethanol dehydrogenation over Ag-CeO2/SiO2 catalyst: Role of Ag-CeO2 interface. Appl. Catal. A 2016, 528, 161–167. [Google Scholar] [CrossRef]
  64. Guan, Y.; Hensen, E.J.M. Ethanol dehydrogenation by gold catalysts: The effect of the gold particle size and the presence of oxygen. Appl. Catal. A Gen. 2009, 361, 49–56. [Google Scholar] [CrossRef]
  65. Grabchenko, M.V.; Mamontov, G.V.; Zaikovskii, V.I.; La Parola, V.; Liotta, L.F.; Vodyankina, O.V. Design of Ag-CeO2/SiO2 catalyst for oxidative dehydrogenation of ethanol: Control of Ag–CeO2 interfacial interaction. Catal. Today 2018, in press. [Google Scholar] [CrossRef]
  66. Grabchenko, M.V.; Mamontov, G.V.; Zaikovskii, V.I.; Vodyankina, O.V. Effect of the metal—Support interaction in Ag/CeO2 catalysts on their activity in ethanol oxidation. Kinet. Catal. 2017, 58, 642–648. [Google Scholar] [CrossRef]
  67. Rodrigues, C.P.; Zonetti, P.C.; Silva, C.G.; Gaspar, A.B.; Appel, L.G. Chemicals from ethanol—The acetone one-pot synthesis. Appl. Catal. A 2013, 458, 111–118. [Google Scholar] [CrossRef]
  68. De Lima, A.F.F.; Zonetti, P.C.; Rodrigues, C.P.; Appel, L.G. The first step of the propylene generation from renewable raw material: Acetone from ethanol employing CeO2 doped by Ag. Catal. Today 2017, 279, 252–259. [Google Scholar] [CrossRef]
  69. Yamamoto, R.; Sawayama, Y.; Shibahara, H.; Ichihashi, Y.; Nishiyam, S.; Tsuruy, S. Promoted partial oxidation activity of supported Ag catalysts in the gas-phase catalytic oxidation of benzyl alcohol. J. Catal. 2005, 234, 308–317. [Google Scholar] [CrossRef]
  70. Jia, L.; Zhang, S.; Gu, F.; Ping, Y.; Guo, X.; Zhong, Z.; Su, F. Highly selective gas-phase oxidation of benzyl alcohol to benzaldehyde over silver-containing hexagonal mesoporous silica. Microporous Mesoporous Mater. 2012, 149, 158–165. [Google Scholar] [CrossRef]
  71. Ma, L.; Jia, L.; Guo, X.; Xiang, L. Catalytic activity of Ag/SBA-15 for low-temperature gas-phase selective oxidation of benzyl alcohol to benzaldehyde. Chin. J. Catal. 2014, 35, 108–119. [Google Scholar] [CrossRef]
  72. Mao, J.; Deng, M.; Xue, Q.; Chen, L.; Lu, Y. Thin-sheet Ag/Ni-fiber catalyst for gas-phase selective oxidation of benzyl alcohol with molecular oxygen. Catal. Commun. 2009, 10, 1376–1379. [Google Scholar] [CrossRef]
  73. Deng, M.; Zhao, G.; Xue, Q.; Chen, L.; Lu, Y. Microfibrous-structured silver catalyst for low-temperature gas-phase selective oxidation of benzyl alcohol. Appl. Catal. B 2010, 99, 222–228. [Google Scholar] [CrossRef]
  74. Zhao, L.; Kong, L.; Liu, C.; Wang, Y.; Dai, L. AgCu/SiC-powder: A highly stable and active catalyst for gas-phase selective oxidation of alcohols. Catal. Commun. 2017, 98, 1–4. [Google Scholar] [CrossRef]
  75. Liu, K.; Qin, T.; Sun, Y.; Hou, C.; Cao, X.; Jiang, S. Synergistic effect between Ag and Mn3O4 in the gas phase oxidation of alcohols. Catal. Commun. 2018, 113, 15–18. [Google Scholar] [CrossRef]
  76. Sawayama, Y.; Shibahara, H.; Ichihashi, Y.; Nishiyama, S.; Tsuruya, S. Promoting Effect and Role of Alkaline Earth Metal Added to Supported Ag Catalysts in the Gas-Phase Catalytic Oxidation of Benzyl Alcohol. Ind. Eng. Chem. Res. 2006, 45, 8837–8845. [Google Scholar] [CrossRef]
  77. Nguyen, T.T.N.; Huchede, M.; Blanco, E.; Morfin, F.; Rousset, J.L.; Massin, L.; Aouine, M.; Bellière-Baca, V.; Millet, J.M.M. An attempt to improve Ag-based catalysts for allyl alcohol oxidative dehydrogenation to acrolein. Appl. Catal. A 2018, 549, 170–178. [Google Scholar] [CrossRef]
  78. Yue, H.; Zhao, Y.; Ma, X.; Gong, J. Ethylene glycol: Properties, synthesis, and applications. Chem. Soc. Rev. 2012, 41, 4218–4244. [Google Scholar] [CrossRef] [PubMed]
  79. Vodyankina, O.V.; Kurina, L.N.; Boronin, A.I.; Salanov, A.N. Glyoxal Synthesis by Vapour-Phase Ethylene Glycol Oxidation on a Silver and Copper Catalysts. Stud. Surf. Sci. Catal. B 2000, 130, 1775–1780. [Google Scholar] [CrossRef]
  80. Xu, H.; Yin, G.; Deng, Z.; Yan, H.; Qin, F.; Shen, W. Method for Synthesizing Low-Impurity Content Glyoxal through Gas Phase Oxidation. Patent CN103,772,169A, 27 May 2015. [Google Scholar]
  81. Vodyankina, O.V.; Koscheev, S.V.; Yakushko, V.T.; Salanov, A.N.; Boronin, A.I.; Kurina, L.N. Physicochemical investigation of the copper and silver catalysts of the ethylene glycol oxidation. J. Mol. Catal. A Chem. 2000, 158, 381–387. [Google Scholar] [CrossRef]
  82. Gallezot, P.; Tretjak, S.; Christidis, Y.; Mattioda, G.; Schouteenten, A. Oxidative dehydrogenation of ethylene glycol into glyoxal: Effect of diethylphosphite on SiC-supported silver catalysts. J. Catal. 1993, 142, 729–734. [Google Scholar] [CrossRef]
  83. Deng, J.F.; Wang, J.; Xu, X. Oxidative dehydrogenation of glycol to glyoxal on a P-modified electrolytic silver catalyst. Catal. Lett. 1996, 36, 207–214. [Google Scholar] [CrossRef]
  84. Magaev, O.V.; Knyazev, A.S.; Vodyankina, O.V.; Dorofeeva, N.V.; Salanov, A.N.; Boronin, A.I. Active surface formation and catalytic activity of phosphorous-promoted electrolytic silver in the selective oxidation of ethylene glycol to glyoxal. Appl. Catal. A 2008, 344, 142–149. [Google Scholar] [CrossRef]
  85. Method for Continuous Industrial Production of Glyoxal. RU2,599,247 (C1), 2016.
  86. Salaev, M.A.; Krejker, A.A.; Magaev, O.V.; Malkov, V.S.; Knyazev, A.S.; Borisova, E.S.; Khanaev, V.M.; Vodyankina, O.V.; Kurina, L.N. Ethylene glycol oxidation over supported catalyst in tubular reactor. Chem. Eng. J. 2011, 172, 399–409. [Google Scholar] [CrossRef]
  87. Mamontov, G.V.; Magaev, O.V.; Knyazev, A.S.; Vodyankina, O.V. Influence of phosphate addition on activity of Ag and Cu catalysts for partial oxidation of alcohols. Catal. Today 2013, 203, 122–126. [Google Scholar] [CrossRef]
  88. Mamontov, G.V.; Knyazev, A.S.; Paukshtis, E.A.; Vodyankina, O.V. Adsorption and conversion of ethylene glycol on the surface of Ag-containing catalyst modified with phosphate. Kinet. Catal. 2013, 54, 735–743. [Google Scholar] [CrossRef]
  89. Knyazev, A.S.; Magaev, O.V.; Krejker, A.A.; Mamontov, G.V.; Knyazeva, E.M.; Dahnavi, E.M.; Vodyankina, O.V. Self-Organized nanostructured Ag/P2O5/SiO2 material as a catalyst for high-temperature selective oxidation of alcohols. Key Eng. Mater. 2015, 670, 126–132. [Google Scholar] [CrossRef]
  90. Mamontov, G.V.; Izaak, T.I.; Magaev, O.V.; Knyazev, A.S.; Vodyankina, O.V. Reversible Oxidation/Reduction of Silver Supported on Silica Aerogel: Influence of the Addition of Phosphate. Russ. J. Phys. Chem. A 2011, 85, 1540–1545. [Google Scholar] [CrossRef]
  91. Epiphanova, A.; Magaev, O.; Vodyankina, O. Formation and characterization of phosphate-modified silicate materials derived from sol-gel process. J. Sol-Gel Sci. Technol. 2012, 61, 509–517. [Google Scholar] [CrossRef]
  92. Dorofeeva, N.V.; Vodyankina, O.V.; Pavlova, O.S.; Mamontov, G.V. Synthesis of mixed zirconium-silver phosphates and formation of active catalyst surface for the ethylene glycol oxidation process. Stud. Surf. Sci. Catal. 2010, 175, 759–762. [Google Scholar] [CrossRef]
  93. Dorofeeva, N.V.; Vodyankina, O.V.; Sobolev, V.I.; Koltunov, K.Y.; Zaykovskii, V.I. Main routes of ethanol conversion under aerobic/anaerobic conditions over Ag-containing zirconium phosphate catalyst. Curr. Org. Synth. 2017, 14, 389–393. [Google Scholar] [CrossRef]
  94. Brik, Y.; Kacimi, M.; Bozon-Verduraz, F.; Ziyad, M. Characterization of active sites on AgHf2(PO4)3 inbutan-2-ol conversion. Microporous Mesoporous Mater. 2001, 43, 103–112. [Google Scholar] [CrossRef]
  95. Arsalane, S.; Ziyad, M.; Coudurier, G.; Védrine, J.C. Silver-cluster formation on AgZr2(PO4)3 and catalytic decomposition of butan-2-ol. J. Catal. 1996, 159, 162–169. [Google Scholar] [CrossRef]
  96. Salaev, M.A.; Poleshchuk, O.K.; Vodyankina, O.V. Ethylene glycol oxidation over Ag-containing catalysts: A theoretical study. J. Mol. Catal. A Chem. 2015, 396, 61–67. [Google Scholar] [CrossRef]
  97. Capote, A.J.; Madix, R.J. O-H and C-H Bond Activation in Ethylene Glycol by Atomic Oxygen on Ag(110): Heterometallacycle Formation and Selective Dehydrogenation to Glyoxal. J. Am. Chem. Soc. 1989, 111, 3570–3577. [Google Scholar] [CrossRef]
  98. Feng, Y.; Yin, H.; Wang, A.; Xue, W. Selectively catalytic oxidation of 1,2-propanediol to lactic, formic, and acetic acids over Ag nanoparticles under mild reaction conditions. J. Catal. 2015, 326, 26–37. [Google Scholar] [CrossRef]
  99. Salaev, M.A.; Poleshchuk, O.K.; Vodyankina, O.V. Propylene glycol oxidation over silver catalysts: A theoretical study. J. Mol. Catal. A Chem. 2016, 417, 36–42. [Google Scholar] [CrossRef]
  100. Xue, W.; Yin, H.; Lu, Z.; Feng, Y.; Wang, A.; Liu, S.; Shen, L.; Jia, X. Catalytic Oxidation of 1,2-Propanediol over Bimetallic Cu@Au Core/Shell Nanoparticles. Catal. Lett. 2016, 146, 1139–1152. [Google Scholar] [CrossRef]
  101. Griffin, M.B.; Rodriguez, A.A.; Montemore, M.M.; Monnier, J.R.; Williams, C.T.; Will Medlin, J. The selective oxidation of ethylene glycol and 1,2-propanediol on Au, Pd, and Au–Pd bimetallic catalysts. J. Catal. 2013, 307, 111–120. [Google Scholar] [CrossRef]
  102. Ebert, D.Y.; Dorofeeva, N.V.; Savel’eva, A.S.; Kharlamova, T.S.; Salaev, M.A.; Svetlichnyi, V.A.; Magaev, O.V.; Vodyankina, O.V. Silica-supported Fe-Mo-O catalysts for selective oxidation of propylene glycol. Catal. Today 2018, in press. [Google Scholar] [CrossRef]
  103. Ebert, D.Y.; Savel’eva, A.S.; Dorofeeva, N.V.; Vodyankina, O.V. FePO4/SiO2 Catalysts for Propylene Glycol Oxidation. Kinet. Catal. 2017, 58, 720–725. [Google Scholar] [CrossRef]
  104. Shen, J.; Shan, W.; Zhang, Y.; Du, J.; Xu, H.; Fan, K.; Shen, W.; Tang, Y. A novel catalyst with high activity for polyhydric alcohol oxidation: Nanosilver/zeolite film. Chem. Commun. 2004, 2880–2881. [Google Scholar] [CrossRef] [PubMed]
  105. Shen, J.; Shan, W.; Zhang, Y.; Du, J.; Xu, H.; Fan, K.; Shen, W.; Tang, Y. Gas-phase selective oxidation of alcohols: In situ electrolytic nano-silver/zeolite film/copper grid catalyst. J. Catal. 2006, 237, 94–101. [Google Scholar] [CrossRef]
  106. Mao, J.; Deng, M.; Chen, L.; Liu, Y.; Lu, Y. Novel Microfibrous-Structured Silver Catalyst for High Efficiency Gas-Phase Oxidation of Alcohols. AIChE J. 2010, 56, 1545–1556. [Google Scholar] [CrossRef]
  107. Shen, J.; Du, J.-M.; Huang, J.-J.; Yang, X.-Y.; Shen, W.; Xu, H.-L.; Fan, K.-N. Gas-phase selective oxidation of 1, 2-propylene glycol over Ag/ZrO2 catalyst. Acta Chim. Sin. 2007, 65, 403–408. [Google Scholar]
  108. Yang, F.; Jing, X.; Huang, J.; Sun, D.; Li, Q. Microwave-Assisted Biosynthesis of Ag/ZrO2 Catalyst with Excellent Activity toward Selective Oxidation of 1,2-Propanediol. Ind. Eng. Chem. Res. 2015, 54, 5373–5380. [Google Scholar] [CrossRef]
  109. Pagliaro, M.; Ciriminna, R.; Kimura, H.; Rossi, M.; Della Pina, C. From Glycerol to Value-Added Products. Angew. Chem. Int. Ed. 2007, 46, 4434–4440. [Google Scholar] [CrossRef] [PubMed]
  110. Dodekatos, G.; Schünemann, S.; Tüysüz, H. Recent Advances in Thermo-, Photo-, and Electrocatalytic Glycerol Oxidation. ACS Catal. 2018, 8, 6301–6333. [Google Scholar] [CrossRef]
  111. Lari, G.M.; Mondelli, C.; Pérez-Ramírez, J. Gas-Phase Oxidation of Glycerol to Dihydroxyacetone over Tailored Iron Zeolites. ACS Catal. 2015, 5, 1453–1461. [Google Scholar] [CrossRef]
  112. Zhang, J.; Sun, M.; Han, Y. Selective oxidation of glycerol to formic acid in highly concentrated aqueous solutions with molecular oxygen using V-substituted phosphomolybdic acids. RSC Adv. 2014, 4, 35463–35466. [Google Scholar] [CrossRef]
  113. Lari, G.M.; García-Muelas, R.; Mondelli, C.; López, N.; Pérez-Ramírez, J. Glycerol oxidehydration to pyruvaldehyde over silver-based catalysts for improved lactic acid production. Green Chem. 2016, 18, 4682–4692. [Google Scholar] [CrossRef]
  114. Sheldon, R.A.; Wallau, M.; Arends, I.W.C.E.; Schuchardt, U. Heterogeneous catalysts for liquid-phase oxidations: Philosophers’ stones or Trojan Horses? Acc. Chem. Res. 1998, 31, 485–493. [Google Scholar] [CrossRef]
  115. Cortes Corberan, V.; Gonzalez-Perez, M.E.; Martinez-Gonzalez, S.; Gomez-Aviles, A. Green oxidation of fatty alcohols: Challenges and opportunities. Appl. Catal. A 2014, 474, 211–223. [Google Scholar] [CrossRef]
  116. Mallat, T.; Baiker, A. Oxidation of alcohols with molecular oxygen on platinum metal catalysts in aqueous solutions. Catal. Today 1994, 19, 247–283. [Google Scholar] [CrossRef]
  117. Kolobova, E.N.; Pestryakov, A.N.; Bogdanchikova, N.; Cortés Corberán, V. Silver catalysts for liquid-phase oxidation of alcohols in green chemistry: Challenges and outlook. Catal. Today 2018, in press. [Google Scholar] [CrossRef]
  118. Yang, Z.; Li, J.; Yang, X.; Xie, X.; Wu, Y. Gas-phase oxidation of alcohols over silver: The extension of catalytic cycles of oxidation of alcohols in liquid-phase. J. Mol. Catal. A 2005, 241, 15–22. [Google Scholar] [CrossRef]
  119. Beier, M.J.; Hansen, T.W.; Grunwaldt, J.-D. Selective liquid-phase oxidation of alcohols catalyzed by a silver-based catalyst promoted by the presence of ceria. J. Catal. 2009, 266, 320–330. [Google Scholar] [CrossRef]
  120. Olenin, A.Y.; Mingalev, P.G.; Lisichkin, G.V. Partial Catalytic Oxidation of Alcohols: Catalysts Based on Metals and Metal Coordination Compounds (a Review). Pet. Chem. 2018, 58, 577–592. [Google Scholar] [CrossRef]
  121. Park, Y.; Na, Y.; Pradhan, D.; Sohn, Y. Liquid-phase ethanol oxidation and gas-phase CO oxidation reactions over M doped (M = Ag, Au, Pd, and Ni) and MM’ codoped CeO2 nanoparticles. J. Chem. 2016, 2176576. [Google Scholar] [CrossRef]
  122. Liotta, L.F.; Venezia, A.M.; Deganello, G.; Longo, A.; Martorana, A.; Schay, Z.; Guczi, L. Liquid phase selective oxidation of benzyl alcohol over Pd-Ag catalysts supported on pumice. Catal. Today 2011, 66, 271–276. [Google Scholar] [CrossRef]
  123. Huang, X.; Wang, X.; Wang, X.; Wang, X.; Tan, M.; Ding, W.; Lu, X. P123-stabilized Au–Ag alloy nanoparticles for kinetics of aerobic oxidation of benzyl alcohol in aqueous solution. J. Catal. 2013, 301, 217–226. [Google Scholar] [CrossRef]
  124. Huang, X.; Wang, X.; Tan, M.; Zou, X.; Ding, W.; Lu, X. Selective oxidation of alcohols on P123-stabilized Au–Ag Alloy nanoparticles in aqueous solution with molecular oxygen. Appl. Catal. A 2013, 467, 407–413. [Google Scholar] [CrossRef]
  125. Zahed, B.; Hosseini-Monfared, H. A comparative study of silver-graphene oxide nanocomposites as a recyclable catalyst for the aerobic oxidation of benzyl alcohol: Support effect. Appl. Surf. Sci. 2015, 328, 536–547. [Google Scholar] [CrossRef]
  126. Adil, S.F.; Assal, M.E.; Khan, M.; Al-Warthan, A.; Rafiq, H.; Siddiqui, M. Nano silver-doped manganese oxide as catalyst for oxidation of benzyl alcohol and its derivatives: Synthesis, characterization, thermal study and evaluation of catalytic properties. Oxid. Commun. 2013, 36, 778–791. [Google Scholar]
  127. Alabbad, S.; Adil, S.F.; Assal, M.E.; Khan, M.; Alwarthan, A.; Siddiqui, M.R.H. Gold & silver nanoparticles supported on manganese oxide: Synthesis, characterization and catalytic studies for selective oxidation of benzyl alcohol. Arab. J. Chem. 2014, 7, 1192–1198. [Google Scholar] [CrossRef]
  128. Assal, M.E.; Shaik, M.R.; Kuniyil, M.; Khan, M.; Al-Warthan, A.; Alharthi, A.I.; Varala, R.; Siddiqui, M.R.H.; Adil, S.F. Ag2O nanoparticles/MnCO3, -MnO2 or –Mn2O3/highly reduced graphene oxide composites as an efficient and recyclable oxidation catalyst. Arab. J. Chem. 2018, in press. [Google Scholar] [CrossRef]
  129. Assal, M.E.; Shaik, M.R.; Kuniyil, M.; Khan, M.; Al-Warthan, A.; Siddiqui, M.R.H.; Adil, S.F. Ag2O nanoparticles-doped manganese immobilized on graphene nanocomposites for aeral oxidation of secondary alcohols. Metals 2018, 8, 468. [Google Scholar] [CrossRef]
  130. Mitsudome, T.; Mikami, Y.; Funai, H.; Mizugaki, T.; Jitsukawa, K.; Kaneda, K. Oxidant-free alcohol dehydrogenation using a reusable hydrolactite-supported silver nanoparticle catalyst. Angew. Chem. Int. Ed. 2008, 120, 140–147. [Google Scholar] [CrossRef]
  131. Bayat, A.; Shakourian-Fard, M.; Ehyaei, N.; Hashemi, M.M. Silver nanoparticles supported on silica-coated ferrite as magnetically and reusable catalyst for oxidant-free alcohol dehydrogenation. RSC Adv. 2015, 5, 22503–22509. [Google Scholar] [CrossRef]
  132. Qi, G.; Zhang, W.; Dai, Y. Selective catalysis for synthesis of benzaldehyde by magnetic Ag/Fe2O3. Asian J. Chem. 2014, 26, 6383–6386. [Google Scholar] [CrossRef]
  133. Bhuyan, B.; Paul, A.; Devi, M.; Dhar, S.S. A silver NP-dispersed water extract of fly ash as a green and efficient medium for oxidant-free dehydrogenation of benzyl alcohols. RSC Adv. 2018, 8, 1313–1319. [Google Scholar] [CrossRef] [Green Version]
  134. Yadav, G.D.; Yadav, A.K. Selective liquid phase oxidation of secondary alcohols into ketones by tert-butyl hydroperoxide on nano-fibrous Ag-OMS-2 catalyst. J. Mol. Catal. A Chem. 2013, 380, 70–77. [Google Scholar] [CrossRef]
  135. Shojaei, A.F.; Tabatabaeian, K.; Zanjanchi, M.A.; Moafi, H.F.; Modirpanah, N. Synthesis, characterization and study of catalytic activity of silver doped ZnO nanocomposite as an efficient catalyst for selective oxidation of benzyl alcohol. J. Chem. Sci. 2015, 127, 481–491. [Google Scholar] [CrossRef]
  136. Kolobova, E.; Kotolevich, Y.; Pakrieva, E.; Mamontov, G.; Farias, M.H.; Cortés Corberán, V.; Bogdanchikova, N.; Hemming, J.; Smeds, A.; Mäki-Arvela, P.; et al. Modified Ag/TiO2 systems: Promising catalysts for liquid-phase oxidation of alcohols. Fuel 2018, 234, 110–119. [Google Scholar] [CrossRef]
  137. Nagaraiju, P.; Balaraju, M.; Mohan Reddy, K.; Sai Prasad, P.S.; Lingaiah, N. Selective oxidation of allylic alcohols catalyzed by silver exchanged molybdovanado phosphoric acid catalyst in the presence of molecular oxygen. Catal. Commun. 2008, 9, 1389–1393. [Google Scholar] [CrossRef]
  138. Torbina, V.V.; Ivanchikova, I.D.; Kholdeeva, O.A.; Skobelev, I.Y.; Vodyankina, O.V. Propylene glycol oxidation with tert-butyl hydroperoxide over Cr-containing metal-organic frameworks MIL-101 and MIL-100. Catal. Today 2016, 278, 97–103. [Google Scholar] [CrossRef]
  139. Xue, W.; Feng, Y.; Yin, H.; Liu, S.; Wang, A.; Shen, L. Catalytic Oxidation of 1,2-Propanediol to Lactic Acid with O2 Under Atmospheric Pressure Over Pd–Ag Bimetallic Nanoparticles and Reaction Kinetics. J. Nanosci. Nanotechnol. 2016, 16, 9621–9633. [Google Scholar] [CrossRef]
  140. Feng, Y.; Xue, W.; Yin, H.; Meng, M.; Wang, A.; Liu, S. Selective oxidation of 1,2-propanediol to lactic acid catalyzed by hydroxyapatite-supported Pd and Pd–Ag nanoparticles. RSC Adv. 2015, 5, 106918–106929. [Google Scholar] [CrossRef]
  141. Albuquerque, E.M.; Borges, L.E.P.; Fraga, M.A. Lactic acid production from aqueous-phase selective oxidation of hydroxyacetone. J. Mol. Catal. A Chem. 2015, 400, 64–70. [Google Scholar] [CrossRef]
  142. Song, F. Zh.; Zhu, Q.L.; Yang, X.; Zhan, W.W.; Pachfule, P.; Tsumori, N.; Xu, Q. Metal–Organic Framework Templated Porous Carbon-Metal Oxide/Reduced Graphene Oxide as Superior Support of Bimetallic Nanoparticles for Efficient Hydrogen Generation from Formic Acid. Adv. Energy Mater. 2017, 1701416. [Google Scholar] [CrossRef]
  143. Liu, H.; Liu, X.; Yu, Y.; Yang, W.; Li, J.; Feng, M.; Li, H. Bifunctional Networked Ag/AgPd Core/Shell Nanowires for Highly Efficient Dehydrogenation of Formic Acid and Subsequent Reduction of Nitrate and Nitrite in Water. J. Mater. Chem. A 2018, 6, 4611–4616. [Google Scholar] [CrossRef]
  144. Bozell, J.; Petersen, G.R. Technology development for the production of biobased products from biorefinery carbohydrates—The US department of Energy’s “Top 10” revisited. Green Chem. 2010, 12, 539–554. [Google Scholar] [CrossRef]
  145. Crottia, C.; Farnetti, E. Selective oxidation of glycerol catalyzed by iron complexes. J. Mol. Catal. A 2015, 396, 353–359. [Google Scholar] [CrossRef]
  146. Hirasawa, S.; Nakagawa, Y.; Tomishige, K. Selective oxidation of glycerol to dihydroxyacetone over Pd-Ag catalyst. Catal. Sci. Technol. 2012, 2, 1150–1152. [Google Scholar] [CrossRef]
  147. Hirasawa, S.; Watanabe, H.; Tokushi, K.; Nakagawa, Y.; Tomishige, K. Performance, structure and mechanism of Pd-Ag alloy catalyst for selective oxidation of glycerol to dihydroxyacetone. J. Catal. 2013, 300, 205–216. [Google Scholar] [CrossRef]
  148. Skrzyńska, E.; Zaid, S.; Girardon, J.-S.; Capron, M.; Dumeignil, F. Catalytic behavior of four different supported noble metals in the crude glycerol oxidation. Appl. Catal. A 2015, 499, 89–100. [Google Scholar] [CrossRef]
  149. Skrzyńska, E.; Zaid, S.; Addad, A.; Girardon, J.-S.; Capron, M.; Dumeignil, F. Performance of Ag/Al2O3 catalysts in the liquid phase oxidation of glycerol—Effect of preparation method and reaction conditions. Catal. Sci. Technol. 2016, 6, 3182–3196. [Google Scholar] [CrossRef]
  150. Skrzyńska, E.; Ftouni, J.; Girardon, J.-S.; Capron, M.; Jalowiecki-Duhamel, L.; Paul, J.-F.; Dumeignil, F. Quasi-homogeneous oxidation of glycerol by unsupported gold nanoparticles in the liquid phase. ChemSusChem 2012, 5, 2065–2078. [Google Scholar] [CrossRef] [PubMed]
  151. Zaid, E.; Skrzyńska, E.; Addad, A.; Nandi, S.; Jalowiecki-Duhamel, L.; Girardon, J.-S.; Capron, M.; Dumeignil, F. Development of Silver Based Catalysts Promoted by Noble Metal M (M = Au, Pd or Pt) for Glycerol Oxidation in Liquid Phase. Top Catal. 2017, 60, 1072–1081. [Google Scholar] [CrossRef]
  152. Besson, M.; Gallezot, P. Selective oxidation of alcohols and aldehydes on metal catalysts. Catal. Today 2000, 57, 127–141. [Google Scholar] [CrossRef]
  153. Diaz, J.A.; Skrzyńska, E.; Zaid, S.; Girardon, J.-S.; Capron, M.; Dumeignil, F.; Fongarland, P. Kinetic modeling of the glycerol oxidation in the liquid phase: Comparison of Pt, Au and Ag as active phases. J. Chem. Technol. Biotechnol. 2017, 92, 2267–2275. [Google Scholar] [CrossRef]
  154. Zope, B.N.; Hibbitts, D.D.; Neurock, M.; Davis, R.J. Reactivity of the gold/water interface during selective oxidation catalysis. Science 2007, 44, 307–317. [Google Scholar] [CrossRef] [PubMed]
  155. Tao, M.; Zhang, D.; Guan, H.; Huang, G.; Wang, X. Designation of highly efficient catalysts for one pot conversion of glycerol to lactic acid. Sci. Rep. 2016, 6, 29840. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  156. Kaskow, I.; Decyk, P.; Sobczak, I. The effect of copper and silver on the properties of Au-ZnO catalysts and its activity in glycerol oxidation. Appl. Surf. Sci. 2018, 444, 197–207. [Google Scholar] [CrossRef]
  157. Tamiolakis, I.; Lykakis, I.; Armatas, S. Mesoporous CdS-sensitized TiO2 nanoparticle assemblies with enhanced photocatalytic properties: Selective aerobic oxidation of benzyl alcohols. Catal. Today 2015, 250, 180–186. [Google Scholar] [CrossRef]
  158. Li, S.; Cai, J.; Wu, X.; Zheng, F. Sandwich-like TiO2@ZnO-based noble metal (Ag, Au, Pt, or Pd) for better photo-oxidation performance: Synergistic effect between noble metal and metal oxide phases. Appl. Surf. Sci. 2018, 443, 603–612. [Google Scholar] [CrossRef]
  159. Safaei, I.; Mohebbi, S.; Irani, M. Selective aerobic photocatalytic oxidation of benzyl alcohol over spherical structured WO3/TiO2 nanocomposite under visible light irradiation. J. Sol-Gel. Sci. Technol. 2018, 87, 170–182. [Google Scholar] [CrossRef]
  160. Li, S.; Cai, J.; Wu, X.; Liu, B.; Chen, Q.; Li, Y.; Zheng, F. TiO2@Pt@CeO2 nanocomposite as a bifunctional catalyst for enhancing photo-reduction of Cr(VI) and photo-oxidation of benzyl alcohol. J. Hazard. Mater. 2018, 346, 52–61. [Google Scholar] [CrossRef] [PubMed]
  161. Magdziarz, A.; Colmenares, J.C.; Chernyayeva, O.; Lisovytskiy, D.; Grzonka, J.; Kurzydłowski, K.; Freindl, K.; Korecki, J. Insight into the synthesis procedure of Fe3+/TiO2-based photocatalyst applied in the selective photo-oxidation of benzyl alcohol under sun-imitating lamp. Ultrason. Sonochem. 2017, 38, 189–196. [Google Scholar] [CrossRef] [PubMed]
  162. Amadelli, R.; Samiolo, L.; Maldotti, A.; Molinari, A.; Gazzoli, D. Selective Photooxidation and Photoreduction Processes at Surface-Modified by Grafted Vanadyl. Int. J. Photoenergy 2011, 1–10. [Google Scholar] [CrossRef]
  163. Yurdakal, S.; Tek, B.S.; Değirmenci, Ç.; Palmisano, G. Selective photocatalytic oxidation of aromatic alcohols in solar-irradiated aqueous suspensions of Pt, Au, Pd and Ag loaded TiO2 catalysts. Catal. Today 2017, 281, 53–59. [Google Scholar] [CrossRef]
  164. Si, J.; Liu, Y.; Chang, S.; Wu, D.; Tian, B.; Zhang, J. AgBr@TiO2/GO ternary composites with enhanced photocatalytic activity for oxidation of benzyl alcohol to benzaldehyde. Res. Chem. Intermed. 2016, 43, 2067–2080. [Google Scholar] [CrossRef]
  165. Zhang, P.; Wu, P.; Bao, S.; Wang, Z.; Tian, B.; Zhang, J. Synthesis of sandwich-structured AgBr@Ag@TiO2 composite photocatalyst and study of its photocatalytic performance for the oxidation of benzyl alcohols to benzaldehydes. Chem. Eng. J. 2016, 306, 1151–1161. [Google Scholar] [CrossRef]
  166. Chen, Y.; Li, W.; Wang, J.; Yang, Q.; Hou, Q.; Ju, M. Gold nanoparticles-modified TiO2/SBA-15 nanocomposites as active plasmonic photocatalysts for the selective oxidation of aromatic alcohols. RSC Adv. 2016, 6, 70352–70363. [Google Scholar] [CrossRef]
  167. Feng, W.; Wu, G.; Li, L.; Guan, N. Solvent-free selective photocatalytic oxidation of benzyl alcohol over modified TiO2. Green Chem. 2011, 13, 3265–3272. [Google Scholar] [CrossRef]
  168. Yu, J.; Li, J.; Wei, H.; Zheng, J.; Su, H.; Wang, X. Hydrotalcite-supported gold catalysts for a selective aerobic oxidation of benzyl alcohol driven by visible light. J. Mol. Catal. A 2014, 395, 128–136. [Google Scholar] [CrossRef]
  169. Chassé, M.; Hallett-Tapley, G.L. Gold nanoparticle-functionalized niobium oxide perovskites as photocatalysts for visible light-induced aromatic alcohol oxidations. Can. J. Chem. 2018, 96, 664–671. [Google Scholar] [CrossRef]
  170. Zhang, X.; Ke, X.; Zhu, H. Zeolite-Supported Gold Nanoparticles for Selective Photooxidation of Aromatic Alcohols under Visible-Light Irradiation. Chem. Eur. J. 2012, 18, 8048–8056. [Google Scholar] [CrossRef] [PubMed]
  171. Chen, B.; Li, X.; Zheng, R.; Chen, R.; Sun, X. Bimetallic (Au–Cu core)@(Ceria shell) nanotubes for photocatalytic oxidation of benzyl alcohol: Improved reactivity by Cu. J. Mater. Chem. A 2017, 5, 13382–13391. [Google Scholar] [CrossRef]
  172. Qamar, M.; Elsayed, R.B.; Alhooshani, K.R.; Ahmed, M.I.; Bahnemann, D.W. Highly Efficient and Selective Oxidation of Aromatic Alcohols Photocatalyzed by Nanoporous Hierarchical Pt/Bi2WO6 in Organic Solvent-Free Environment. ACS Appl. Mater. Interfaces 2015, 7, 1257–1269. [Google Scholar] [CrossRef] [PubMed]
  173. Moriyama, K.; Takemura, M.; Togo, H. Direct and Selective Benzylic Oxidation of Alkylarenes via C–H Abstraction Using Alkali Metal Bromides. Org. Lett. 2012, 14, 2414–2417. [Google Scholar] [CrossRef] [PubMed]
  174. Gazi, S.; Ananthakrishnan, R. Bromodimethylsulfonium bromide as a potential candidate for photocatalytic selective oxidation of benzylic alcohols using oxygen and visible light. RSC Adv. 2012, 2, 7781–7787. [Google Scholar] [CrossRef]
  175. Qamar, M.; Elsayed, R.B.; Alhooshani, K.R.; Ahmed, M.I.; Bahnemann, D.W. Chemoselective and highly efficient conversion of aromatic alcohols into aldehydes photo-catalyzed by Ag3PO4 in aqueous suspension under simulated sunlight. Catal. Commun. 2015, 58, 34–39. [Google Scholar] [CrossRef]
  176. DePuccio, D.P.; Landry, C.C. Photocatalytic oxidation of methanol using porous Au/WO3 and visible light. Catal. Sci. Technol. 2016, 6, 7512–7520. [Google Scholar] [CrossRef]
  177. Han, C.; Yang, X.; Gao, G.; Wang, J.; Lu, H.; Liu, J.; Tong, M.; Liang, X. Selective oxidation of methanol to methyl formate on catalysts of Au–Ag alloy nanoparticles supported on titania under UV irradiation. Green Chem. 2014, 16, 3603–3615. [Google Scholar] [CrossRef]
  178. Yang, X.; Zhang, A.; Gao, G.; Han, D.; Han, C.; Wang, J.; Liu, J.; Tong, M. Photocatalytic oxidation of methanol to methyl formate in liquid phase over supported silver catalysts. Catal. Commun. 2014, 43, 192–196. [Google Scholar] [CrossRef]
  179. El-Roz, M.; Lakiss, L.; Telegeiev, I.; Lebedev, O.I.; Bazin, P.; Vicente, A.; Fernandez, C.; Valtchev, V. High-Visible-Light Photoactivity of Plasma-Promoted Vanadium Clusters on Nanozeolites for Partial Photooxidation of Methanol. ACS Appl. Mater. Interfaces 2017, 9, 17846–17855. [Google Scholar] [CrossRef] [PubMed]
  180. Lüken, A.; Muhler, M.; Strunk, J. On the role of gold nanoparticles in the selective photooxidation of 2-propanol over Au/TiO2. Phys. Chem. Chem. Phys. 2015, 17, 10391–10397. [Google Scholar] [CrossRef] [PubMed]
  181. Colmenares, J.C.; Magdziarz, A.; Chernyayeva, O.; Lisovytskiy, D.; Kurzydłowski, K.; Grzonka, J. Sonication-Assisted Low-Temperature Routes for the Synthesis of Supported Fe-TiO2 Econanomaterials: Partial Photooxidation of Glucose and Phenol Aqueous Degradation. ChemCatChem 2013, 5, 2270–2277. [Google Scholar] [CrossRef]
  182. Colmenares, J.C.; Magdziarz, A.; Bielejewska, A. High-value chemicals obtained from selective photo-oxidation of glucose in the presence of nanostructured titanium photocatalysts. Bioresour. Technol. 2011, 102, 11254–11257. [Google Scholar] [CrossRef] [PubMed]
  183. Lombardi, E. Selective Photo-Oxidation of Cellobiose with TiO2-Supported Metal Nanoparticles. Master’s Thesis, Università di Bologna, Bologna, Italy, 2013. [Google Scholar]
  184. Colmenares, J.C.; Aramendía, M.A.; Marinas, A.; Marinas, J.M.; Urbano, F.J. Synthesis, characterization and photocatalytic activity of different metal-doped titania systems. Appl. Catal. A 2006, 306, 120–127. [Google Scholar] [CrossRef]
  185. Gupta, N.; Bansal, P.; Pal, B. Metal ion-TiO2 nanocomposites for the selective photooxidation of benzene to phenol and cycloalkanol to cycloalkanone. J. Exp. Nanosci. 2013, 10, 148–160. [Google Scholar] [CrossRef]
  186. Liu, Y.; Jiang, G.; Li, L.; Chen, H.; Huang, Q.; Du, X.; Tong, Z. Electrospun CeO2/Ag@carbon nanofiber hybrids for selective oxidation of alcohols. Powder Technol. 2017, 305, 597–601. [Google Scholar] [CrossRef]
Figure 1. The number of publications in Scopus database (keywords “alcohol oxidation”, as of September 2018).
Figure 1. The number of publications in Scopus database (keywords “alcohol oxidation”, as of September 2018).
Catalysts 08 00447 g001
Figure 2. Proposed mechanism for oxidant-free dehydrogenation of alcohol. Reprinted with permission from reference [53]. Copyright 2011 Japan Petroleum Institute.
Figure 2. Proposed mechanism for oxidant-free dehydrogenation of alcohol. Reprinted with permission from reference [53]. Copyright 2011 Japan Petroleum Institute.
Catalysts 08 00447 g002
Figure 3. The contact of Ag and CeO2 on the surface of SiO2 and corresponding growth of activity in ethanol dehydrogenation. Reprinted with permission from reference [63]. Copyright 2018 Elsevier.
Figure 3. The contact of Ag and CeO2 on the surface of SiO2 and corresponding growth of activity in ethanol dehydrogenation. Reprinted with permission from reference [63]. Copyright 2018 Elsevier.
Catalysts 08 00447 g003
Figure 4. Catalytic mechanism illustration for selective oxidation of benzyl alcohol to benzaldehyde on Ag-HMS catalyst. Reproduced from Ref. with permission from the Elsevier. Reprinted with permission from reference [70]. Copyright 2012 Elsevier.
Figure 4. Catalytic mechanism illustration for selective oxidation of benzyl alcohol to benzaldehyde on Ag-HMS catalyst. Reproduced from Ref. with permission from the Elsevier. Reprinted with permission from reference [70]. Copyright 2012 Elsevier.
Catalysts 08 00447 g004
Figure 5. Reprinted with permission from reference [76]. Copyright 2006 Elsevier.
Figure 5. Reprinted with permission from reference [76]. Copyright 2006 Elsevier.
Catalysts 08 00447 g005
Figure 6. Possible reaction and partial deactivation schemes for the gas-phase selective oxidation of benzyl alcohol over the Ni-microfibrous-structure supported silver catalysts. Note: R1, direct O2 activation route; R2, NiOx-participating O2 spillover route. Reprinted with permission from reference [73]. Copyright 2010 Elsevier.
Figure 6. Possible reaction and partial deactivation schemes for the gas-phase selective oxidation of benzyl alcohol over the Ni-microfibrous-structure supported silver catalysts. Note: R1, direct O2 activation route; R2, NiOx-participating O2 spillover route. Reprinted with permission from reference [73]. Copyright 2010 Elsevier.
Catalysts 08 00447 g006
Figure 7. The catalytic mechanism of pre-activated Ag2.5Cu5/SiC for the gas-phase selective oxidation of benzyl alcohol. Reprinted with permission from reference [74]. Copyright 2017 Elsevier.
Figure 7. The catalytic mechanism of pre-activated Ag2.5Cu5/SiC for the gas-phase selective oxidation of benzyl alcohol. Reprinted with permission from reference [74]. Copyright 2017 Elsevier.
Catalysts 08 00447 g007
Figure 8. SEM images of the electrolytic silver catalysts before (ac) and after (df) the catalytic experiments (at 550 °C for 60 min): (a) unpromoted Ag catalyst; (b) after promoting by phosphoric acid; (c) P-containing catalyst after annealing at T = 650 °C for 3 h in the air; (d,e) unpromoted Ag catalyst after catalytic reaction; (f,g) P-containing Ag catalyst after catalytic reaction. Reprinted with permission from reference [84]. Copyright 2008 Elsevier.
Figure 8. SEM images of the electrolytic silver catalysts before (ac) and after (df) the catalytic experiments (at 550 °C for 60 min): (a) unpromoted Ag catalyst; (b) after promoting by phosphoric acid; (c) P-containing catalyst after annealing at T = 650 °C for 3 h in the air; (d,e) unpromoted Ag catalyst after catalytic reaction; (f,g) P-containing Ag catalyst after catalytic reaction. Reprinted with permission from reference [84]. Copyright 2008 Elsevier.
Catalysts 08 00447 g008
Figure 9. TPD spectra of oxygen taken from the surface of (a) the unpromoted Ag foil (Po2 = 400 Pa at 400 °C for 30 min) and (b) P-containing Ag foil (Po2 = 400 Pa at 400 °C for 10 h). Reprinted with permission from reference [84]. Copyright 2008 Elsevier.
Figure 9. TPD spectra of oxygen taken from the surface of (a) the unpromoted Ag foil (Po2 = 400 Pa at 400 °C for 30 min) and (b) P-containing Ag foil (Po2 = 400 Pa at 400 °C for 10 h). Reprinted with permission from reference [84]. Copyright 2008 Elsevier.
Catalysts 08 00447 g009
Figure 10. TEM image and silver particle size distribution of as-prepared Ag/P2O5/SiO2 catalyst (a) and TPR profiles of the catalyst during a series of cyclic TPO/TPR treatments and after catalysis (b). Reprinted with permission from reference [89]. Copyright 2015 Trans. Tech. Publications.
Figure 10. TEM image and silver particle size distribution of as-prepared Ag/P2O5/SiO2 catalyst (a) and TPR profiles of the catalyst during a series of cyclic TPO/TPR treatments and after catalysis (b). Reprinted with permission from reference [89]. Copyright 2015 Trans. Tech. Publications.
Catalysts 08 00447 g010
Figure 11. CO TPR profiles for the Ag- (a) (1—Ag/SiO2, 2—Ag/5_P2O5/SiO2) and Cu-containing (b) (1—Cu/SiO2, 2—Cu/30_P2O5/SiO2) model systems. Reprinted with permission from reference [87]. Copyright 2013 Elsevier.
Figure 11. CO TPR profiles for the Ag- (a) (1—Ag/SiO2, 2—Ag/5_P2O5/SiO2) and Cu-containing (b) (1—Cu/SiO2, 2—Cu/30_P2O5/SiO2) model systems. Reprinted with permission from reference [87]. Copyright 2013 Elsevier.
Catalysts 08 00447 g011
Figure 12. The temperature dependence of the stability of ethylene glycol complexes adsorbed on the reduced Ag/P2O5/SiO2: (1) catalyst: (1) H-bonded POH groups (3500–3600 cm−1), (2) H-bonded OH groups of ethylene glycol (3220 cm−1), (3) CH groups of ethylene glycol (2960 cm−1), and (4) free OH groups (3735 cm−1). Reprinted with permission from reference [88]. Copyright 2013 Springer.
Figure 12. The temperature dependence of the stability of ethylene glycol complexes adsorbed on the reduced Ag/P2O5/SiO2: (1) catalyst: (1) H-bonded POH groups (3500–3600 cm−1), (2) H-bonded OH groups of ethylene glycol (3220 cm−1), (3) CH groups of ethylene glycol (2960 cm−1), and (4) free OH groups (3735 cm−1). Reprinted with permission from reference [88]. Copyright 2013 Springer.
Catalysts 08 00447 g012
Figure 13. Base directions of EG transformation. Reprinted with permission from reference [88]. Copyright 2013 Springer.
Figure 13. Base directions of EG transformation. Reprinted with permission from reference [88]. Copyright 2013 Springer.
Catalysts 08 00447 g013
Figure 14. Reaction network envisaged for the gas-phase conversion of glycerol to pyruvaldehyde. The dashed arrows identify competitive oxidative and dehydrative pathways. Reprinted with permission from reference [113]. Copyright 2016 Royal Society of Chemistry.
Figure 14. Reaction network envisaged for the gas-phase conversion of glycerol to pyruvaldehyde. The dashed arrows identify competitive oxidative and dehydrative pathways. Reprinted with permission from reference [113]. Copyright 2016 Royal Society of Chemistry.
Catalysts 08 00447 g014
Figure 15. Schematic and simplified reaction mechanism of benzyl alcohol oxidation with O2 over Ag/SiO2 in presence of ceria. Benzyl alcohol oxidation occurs via adsorption of substrate on silver surface, dehydrogenation followed by desorption of benzaldehyde. Hydrogen is removed from the silver surface by means of atomic oxygen provided by the CeO2-Ag interface.Reprinted with permission from reference [119]. Copyright 2009 Elsevier.
Figure 15. Schematic and simplified reaction mechanism of benzyl alcohol oxidation with O2 over Ag/SiO2 in presence of ceria. Benzyl alcohol oxidation occurs via adsorption of substrate on silver surface, dehydrogenation followed by desorption of benzaldehyde. Hydrogen is removed from the silver surface by means of atomic oxygen provided by the CeO2-Ag interface.Reprinted with permission from reference [119]. Copyright 2009 Elsevier.
Catalysts 08 00447 g015
Figure 16. Mechanism of benzyl alcohol dehydrogenation by Fe3O4@SiO2-Ag catalyst. Reprinted with permission from reference [131]. Copyright 2014 Asian Publication Corporation.
Figure 16. Mechanism of benzyl alcohol dehydrogenation by Fe3O4@SiO2-Ag catalyst. Reprinted with permission from reference [131]. Copyright 2014 Asian Publication Corporation.
Catalysts 08 00447 g016
Figure 17. Schematic reaction mechanism of benzyl alcohol oxidation over Ag/ZnO nanocomposite. Reprinted with permission from reference [135]. Copyright 2015 Hindawi publishers.
Figure 17. Schematic reaction mechanism of benzyl alcohol oxidation over Ag/ZnO nanocomposite. Reprinted with permission from reference [135]. Copyright 2015 Hindawi publishers.
Catalysts 08 00447 g017
Figure 18. Oxidative transformations of PG. Reprinted with permission from reference [138]. Copyright 2016 Elsevier.
Figure 18. Oxidative transformations of PG. Reprinted with permission from reference [138]. Copyright 2016 Elsevier.
Catalysts 08 00447 g018
Figure 19. Products of the glycerol oxidation. Reprinted with permission from reference [145]. Copyright 2015 Elsevier.
Figure 19. Products of the glycerol oxidation. Reprinted with permission from reference [145]. Copyright 2015 Elsevier.
Catalysts 08 00447 g019
Figure 20. Proposed mechanism of glycerol oxidation over Pd–Ag/C. Reprinted with permission from reference [147]. Copyright 2013 Elsevier.
Figure 20. Proposed mechanism of glycerol oxidation over Pd–Ag/C. Reprinted with permission from reference [147]. Copyright 2013 Elsevier.
Catalysts 08 00447 g020
Figure 21. Proposed reaction pathways of glycerol oxidation. Reprinted with permission from reference [153]. Copyright 2017 Wiley.
Figure 21. Proposed reaction pathways of glycerol oxidation. Reprinted with permission from reference [153]. Copyright 2017 Wiley.
Catalysts 08 00447 g021
Figure 22. Proposed tandem reaction pathways for the selective oxidation of glycerol to lactic acid over AgxPMo catalysts. Reprinted with permission from reference [155]. Copyright 2016 Nature Publishing Group.
Figure 22. Proposed tandem reaction pathways for the selective oxidation of glycerol to lactic acid over AgxPMo catalysts. Reprinted with permission from reference [155]. Copyright 2016 Nature Publishing Group.
Catalysts 08 00447 g022

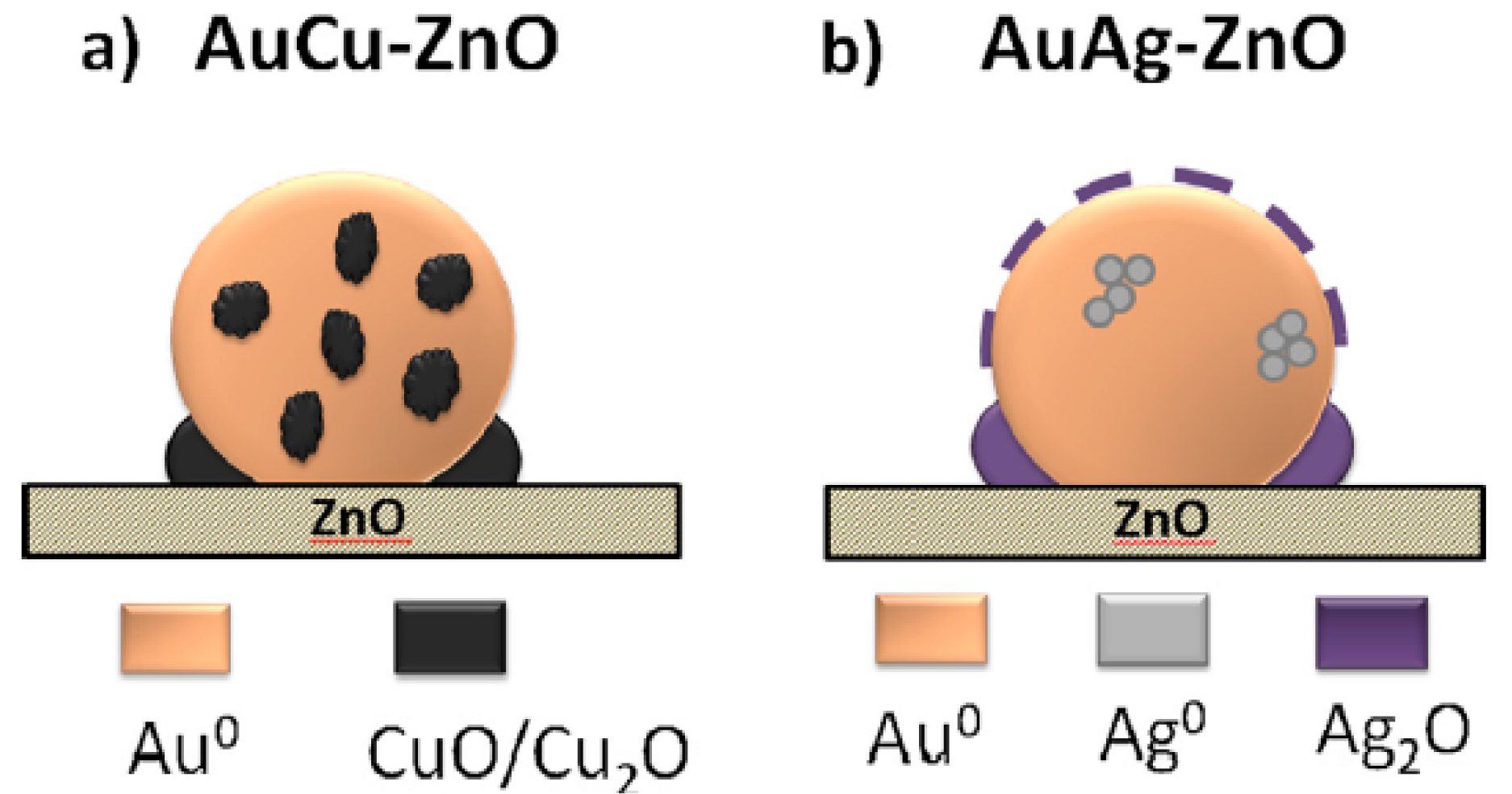

Figure 23. AuCu and AuAg structures in bimetallic catalysts loaded on ZnO. Reprinted with permission from reference [156]. Copyright 2018 Elsevier.
Figure 23. AuCu and AuAg structures in bimetallic catalysts loaded on ZnO. Reprinted with permission from reference [156]. Copyright 2018 Elsevier.
Catalysts 08 00447 g023
Figure 24. Proposed reaction mechanism from benzyl alcohol to benzaldehyde over the sandwich structured AgBr@Ag@TiO2 under visible light irradiation. Reprinted with permission from reference [165]. Copyright 2016 Elsevier.
Figure 24. Proposed reaction mechanism from benzyl alcohol to benzaldehyde over the sandwich structured AgBr@Ag@TiO2 under visible light irradiation. Reprinted with permission from reference [165]. Copyright 2016 Elsevier.
Catalysts 08 00447 g024
Figure 25. Schematic showing involvement of O2−•, OH and holes in the selective photocatalytic oxidation of alcohols. R = aryl group. Reprinted with permission from reference [175]. Copyright 2015 Elsevier.
Figure 25. Schematic showing involvement of O2−•, OH and holes in the selective photocatalytic oxidation of alcohols. R = aryl group. Reprinted with permission from reference [175]. Copyright 2015 Elsevier.
Catalysts 08 00447 g025
Figure 26. Schematic profile showing the formation of the Schottky barrier, the band bending, the electron transfer under UV irradiation and the oxygen dissociation on the metal surface near the perimeter. (ac) Under UV irradiation, the excited electron from the valence band to the conduction band ejects to the metal, together with the excited electrons from the intraband and interband transition of the metal, making the metal surface more negative. The negative charge attracts oxygen and induces oxygen dissociation on the surface of the metal. The hole on the surface of titania captures electrons from the coordinated methoxy to give rise to the coordinated formaldehyde due to the higher redox potential of the hole. (d) Oxygen is dissociatively chemisorbed at the perimeter of the metal due to the negative charge in the metal site of the Schottky barrier. Methanol is dissociatively chemisorbed on the positively charged perimeter of the titania sites. Reprinted with permission from reference [177]. Copyright 2014 Royal society of chemistry.
Figure 26. Schematic profile showing the formation of the Schottky barrier, the band bending, the electron transfer under UV irradiation and the oxygen dissociation on the metal surface near the perimeter. (ac) Under UV irradiation, the excited electron from the valence band to the conduction band ejects to the metal, together with the excited electrons from the intraband and interband transition of the metal, making the metal surface more negative. The negative charge attracts oxygen and induces oxygen dissociation on the surface of the metal. The hole on the surface of titania captures electrons from the coordinated methoxy to give rise to the coordinated formaldehyde due to the higher redox potential of the hole. (d) Oxygen is dissociatively chemisorbed at the perimeter of the metal due to the negative charge in the metal site of the Schottky barrier. Methanol is dissociatively chemisorbed on the positively charged perimeter of the titania sites. Reprinted with permission from reference [177]. Copyright 2014 Royal society of chemistry.
Catalysts 08 00447 g026
Figure 27. Schematic view of the proposed reaction mechanism over the CeO2/Ag@carbon nanofiber hybrids catalysts under visible light irradiation. Reprinted with permission from reference [186]. Copyright 2017 Elsevier.
Figure 27. Schematic view of the proposed reaction mechanism over the CeO2/Ag@carbon nanofiber hybrids catalysts under visible light irradiation. Reprinted with permission from reference [186]. Copyright 2017 Elsevier.
Catalysts 08 00447 g027
Table 1. Catalysts for selective oxidation of methanol.
Table 1. Catalysts for selective oxidation of methanol.
Catalyst CompositionProductReaction ConditionsS, %X, %Ag, %wt.SBET, m2/gMean Particle Size, nmRef.
CR@Ag/TiO2-nf (thermally activated Congo-red (CR)
entrapped within silver deposited on TiO2 nanofibers)
formaldehyde550–200 °C, “methanol ballast process”, WHSV = 140–335 gmeth*gAg−1*h−1, methanol volume concentration = 0.5 g/L65 (550 °C)94 (550 °C)Ag: Initial: 9.4; after oxidation: 44.9[30]
Ag/TiO2-nf60 (550 °C)74 (550 °C)Initial: 5.2; after oxidation: 58.8
Metallic Ag fibersformaldehydetemperature range: 550 to 150 °C, methanol ballast process, weight of Ag fiber mats = 45–70 g, CH3OH
concentration = 500 mg/L, total pressure = 1.5 bar, feed gas mixture flow rate = 8.35 L/h,
WHSV in the range of 60–90 h−1,
82.494.2100Uniform mats, containing fibres with 300–600 nm[32]
Ag/C84.195.870 in the “green” Electrospun fibers~50
AuAg(0.5)–NbMCFformaldehyde0.02 g of the catalyst of the size diameter of 0.5 < d < 1 mm
Supply rate of 40 cm3 min−1
99420.53936.7[33]
Table 2. Comparison of various Ag-containing catalysts for gas-phase ethanol oxidation. Reprinted with permission from reference [58]. Copyright 2016 Elsevier.
Table 2. Comparison of various Ag-containing catalysts for gas-phase ethanol oxidation. Reprinted with permission from reference [58]. Copyright 2016 Elsevier.
CatalystAg, wt. %Activity × 10−2, mol-Et/g-kat*hTOF a, h−1Reaction ConditionsSAc, %STY b, h−1Ref.
GHSV, ml/g*hT, oCEt/O2 c
Ag/Fe-Si3N44.90.5812.772002831/9964.9[57]
OMS-2-0.43-72001701/998-[58]
Ag/OMS-2-CP3.70.6619.3977.7[58]
Ag/OMS-2-Impr50.6413.8965.3[58]
Ag/OMS-2-CP3.71.4141.336,000200589.8[58]
Ag/OMS-2/SiO2-CP0.951.91217.62308575.4[58]
OMS-2/SiO2-0.15-720017098-[58]
Ag/OMS-2/SiO2-CI5.390.234.6981.81[58]
Ag/OMS-2/SiO2-CP0.950.2832.1 9812.8[58]
Ag/OMS-2-1.25-36,0001901/298-[59]
Ag/OMS-2-5.52-36,0002301/29526[60]
rous Ag10046.350133,3332502/19521[61]
Ag/MgCuCr2O40.891.23149.2100,0002251/39965[62]
a TOF were calculated as the amount of ethanol (in mol) converted per mol of silver in the catalyst per hour (mol-Et*mol−1Ag*h−1); b Space-time-yield, galdehyde*g−1silver*h−1; c Ethanol-to-oxygen molar ratio in the reaction mixture; GHSV is gas hour space velocity.
Table 3. Comparison of various Ag-containing catalysts for gas-phase BA oxidation.
Table 3. Comparison of various Ag-containing catalysts for gas-phase BA oxidation.
Catalyst CompositionReaction ConditionsT, °CS, %Y, %Ag Loading, %wt.SBET, m2/gMean Particle Size, nmRef.
Ag(1.0)/SiO2continuous-flow
fixed-bed reactor (Pyrex, 15 mm i.d.
0.2 g of catalyst
total flow rate = 0.023 mol/min
N2:O2:BA = 32:3:1
Temperature range: 227–377 K
240Close to 100%49.91.019076 (Ag)[69]
CaO22.01.0
MgO14.01.0
SiO23.61.0
NaZSM-52.31.0
MCM-410.361.0
NaY0.271.0
Ag-HMS-250.5 g catalyst
purified N2 (38 mL min−1), purified O2 (13 mL min−1), BA (0.10 mL min−1)
total flow rate of 3.24 mmol min−1,
O2/alcohol molar ratio = 0.6
57596.096.0Si/Ag ratio = 25:160523[70]
HMS724859.0
SBA-15catalyst (0.8 g) was sieved to 40–60 mesh powders and pretreated (O2:N2 volume ratio of 3:7, flow rate was 50 mL/min) at 550 °C for 2 h before testing
purified N2 (35 mL/min), purified O2,
WHSV = 4.7–12.5 h−1 vaporized at 220 °C
24060.51.21676[71]
4.1%Ag/SBA-1585.263.74.15415.5
5.3%Ag/SBA-1596.991.05.35466.4
8.1%Ag/SBA-1596.090.48.147610.2
16.5%Ag/SBA-1591.588.416.541117.4
Ag/Ni-fiber0.3 g for the Ag/Ni-fiber, 1.0 g for both the electrolytic silver and Ag/α-Al2O3
Calcination temperature: 400–700 °C
O2/ol = 0.6, WHSV = 25 h−1 for Ag/Ni-fiber, O2/ol = 0.6,
T = 500 °C and WHSV = 8 h−1 for the electrolytic silver and Ag/α-Al2O3
3809080.110.2~2.0[72]
Electrolytic silver7944.2100
Ag/α-Al2O37460.7
Ag/Ni-fiber-MWHSV = 20 h−1
Calcination temperature: 300–600 °C
30097.094.19.9∼10 nm thick by ∼100 nm width[73]
Ag/Ni-fiber38087.0809.7200–300
Ag2.5/SiCreaction temperature = 280 °C O2/hydroxyl = 0.6
WHSV = 10 h−1
28099.91.90.830–70[74]
Ag2.5Cu5/SiC99.698.90.20
Ag2.5/SiC& Cu5/SiC98.962.1
Ag2.5Fe5/SiC99.855.7
SiC0.3 g (200–300 mesh)
WHSV = 20 h−1
alcohol/O2/N2 is 1/0.6/2.4
280972.90.15[75]
Ag1/SiC9810.80.96
Ag2/SiC9914.91.8836
Ag3/SiC9829.42.78
Mn5/SiC987.8
Ag1Mn5/SiC9880.40.82
Ag2Mn5/SiC9892.11.9334
Ag3Mn5/SiC9793.12.90
Ag4Mn5/SiC9893.13.65
Ag5Mn5/SiC9693.14.66
Ag2/SiC&
Mn5/SiC
9724.3
Nanoporous Ag9997
Ag/SiO2continuous-flow fixed-bed reactor (Pyrex, 15 mm i.d.), 0.2 g of catalyst
total flow rate = 0.023 mol/min
N2:O2:BA = 32:3:1
Temperature range: 500–650 K
24097.41.51.0160–260[76]
Ag/SiO2 + Ca/SiO296.54.61.0
Ca–Ag/SiO299.666.71.0
Table 4. Benzyl alcohol oxidation over silver containing catalysts.
Table 4. Benzyl alcohol oxidation over silver containing catalysts.
Catalystω(Ag), %(wt)OxidantT, °Ct, hSolventX, %Selectivity, %Ref.
BAldBABB
Ag/pumice0.6O275 CH3CN4.5 a100 [122]
Ag/SiO2 + CeO210O2reflux2xylene9895 [119]
Ag/MnO21O21002toluene100>99 [126]
Ag2O-MnO21 bO21000.6toluene67.0>99 [128]
Ag2O-MnO2/1%HRG1 bO21000.6toluene70.6>99 [128]
Ag2O-MnO2/3%HRG1 bO21000.6toluene84.0>99 [128]
Ag2O-MnO2/5%HRG1 bO21000.6toluene100.0>99 [128]
Ag2O-MnO2/7%HRG1 bO21000.6toluene96.0>99 [128]
Ag2O-MnO2/5%HRG c1 bO21000.6toluene95>99 [128]
Ag2O-MnO2/5%HRG d1 bO21000.6toluene100>99 [128]
Ag2O-MnO2/5%HRG e1 bO21000.6toluene44>99 [128]
Ag5%Au/MnO2 c5O21001.5toluene69.51>99 [127]
Ag5%Au/MnO2 d5O21001.5toluene100>99 [127]
Ag5%Au/MnO2 e5O21001.5toluene19.90>99 [127]
Ag/GOSH9.58O28024MeCN7193645[125]
Ag/GOSH+NHPI9.58O28024MeCN61581329[125]
Ag/GO+NHPI5.41O28024MeCN33551827[125]
Ag/rGO+NHPI15.14O28024MeCN1282567[125]
Ag/ZnO3TBHPreflux0.25CH3CN90 [135]
Ag/ZnO3TBHPreflux0.25C2H5OH40 [135]
Ag/ZnO3TBHPreflux0.25CH2Cl230 [135]
Ag/ZnO3H2O2reflux1CH3CN30 [135]
0.005% Ag/HT0.005- f13016p-xylene>99>99 [130]
Fe3O4@SiO2-Ag3.2- freflux24toluene9899 [131]
Ag/Fe2O32(mol)H2O28012 ~69~90 [132]
Ag@WEFA--f 4- 96 g [133]
Au O2302P123-H2O50215028[124]
Au0.99Ag0.01 O2302P123-H2O65165727[124]
Au0.98Ag0.02 O2302P123-H2O74106525[124]
Au0.95Ag0.05 O2302P123-H2O8296724[124]
Au0.90Ag0.10 O2302P123-H2O77106525[124]
Au0.85Ag0.15 O2302P123-H2O63125929[124]
BAld—benzaldehyde, BA—benzoic acid, BB—benzyl benzoate. a—specific rate constant k (mol h−1 g−1) instead of conversion; b—mass weight of Ag2O instead of Ag; c—calcination temperature was 300 °C; d—calcination temperature was 400 °C; e—calcination temperature was 500 °C; f—oxidant-free dehydrogenation. Inert atmosphere; g—BAld yield.
Table 5. Propylene glycol oxidation over silver-containing catalysts.
Table 5. Propylene glycol oxidation over silver-containing catalysts.
CatalystP(O2), bar T, °Ct, hNaOH/PGX, %Selectivity, %Ref.
LAHAFAAcA
AgCA10120421006.3-30.563.2[98]
AgSDBS101204281.948.1-17.635.3[98]
AgTween101204265.662.0-13.824.2[98]
AgDS101204258.827.4-23.848.8[98]
AgPVP101204242.622.1-22.142.5[98]
AgTween10804228.041.0-2039[98]
Ag2/HAP101002215.757.2-14.428.4[140]
Ag1.8Pd0.2/HAP101002222.669.4-9.820.8[140]
Ag1.5Pd0.5/HAP101002264.385.0-4.510.5[140]
Ag1Pd1/HAP101002286.388.8-3.18.1[140]
Ag1Pd1/HAP10802262.391.0-3.15.9[140]
Ag185428.673.27.15.714.4[139]
Ag0.95Pd0.051854231.287.45.82.24.6[139]
Ag0.85Pd0.151854261.893.33.11.322.3[139]
Ag0.7Pd0.31854288.278.406.415.2[139]
Ag0.5Pd0.51854299.876.008.615.5[139]
Ag0.85Pd0.151954273.296.201.22.6[139]
PG—propylene glycol, LA—lactic acid, HA—hydroxyacetone, FA—formic acid, AcA—acetic acid.
Table 6. Oxidation of glycerol over Ag-containing catalysts.
Table 6. Oxidation of glycerol over Ag-containing catalysts.
CatalystP(O2), BarT, °CNaOH/GLYt, hX, %Selectivity, %Ref.
DHAGlyAlGlyAGlycAFALA
Pd/C+Ag/C380041.870.718.87.12.2--[146]
AgPd/C380046.774.614.67.21.4--[146]
Ag/C3800240.384.05.011.0<0.1--[146]
AgPd/C38002424.579.13.611.25.8--[146]
Pretreated 1Ag2Pd/C38002410.977.78.69.62.7--[146]
Pretreated 1Ag1Pd/C38002420.082.24.68.03.4--[146]
Pretreated 2Ag1Pd/C38002416.4854.65.42.2--[146]
1Ag2Pd/SiO2380047.076.413.56.91.4--[147]
1Ag1Pd/SiO2380044.986.68.02.71.2--[147]
2Ag1Pd/SiO2380044.091.64.81.61.7--[147]
1Ag1Pd/TiO2380041.790.05.92.90.7--[147]
1Ag1Pd/Al2O3380046.886.47.33.40.6--[147]
1Ag1Pd/ZrO2380043.291.36.22.10.2--[147]
1Ag1Pd/CeO2380040.382.34.15.93.4--[147]
Au/Al2O35604----59.8 a
60.4 b
19.7 a
20.7 b
10.2 a
12.5 b
-[148]
Pd/Al2O35604----91.7 a
85.8 b
2.8 a
2.6 b
0 a
1.0 b
-[148]
Pt/Al2O35604----75.6 a
74.0 b
10.7 a
9.9 b
11.0 a
8.1 b
-[148]
Ag/Al2O35604----27.8 a
27.2 b
35.9 a
44.8 b
35.3 a
28.0 b
-[148]
Ag/Al2O3 c5604----49.5 a27.0 a17.6 a-[148]
Ag/Al2O3 calcination51001242.6--13.051.433.5-[149]
0.7% Ag/Al2O3
HCHO-MeOH
51001219.9--24.939.434.2-[149]
1.1% Ag/Al2O3
HCHO-MeOH
51001248.3--9.751.632.4-[149]
2.3% Ag/Al2O3
HCHO-MeOH
51001248.6--9.454.132.6-[149]
3.6% Ag/Al2O3
HCHO-MeOH
51001248.8--7.656.033.3-[149]
Ag/Al2O3
N2H4-H2O
51001232.8--15.844.832.3-[149]
Ag/Al2O3
N2H4-MeOH
51001248.5--10.050.631.7-[149]
Ag/Al2O3
NaBH4-H2O
51001241.2--14.444.330.8-[149]
Ag/Al2O3
NaBH4-MeOH
51001247.6--10.750.632.0-[149]
95Ag5Au/CeO25604543.8--23.346.225.2-[151]
95Ag5Pt/CeO25604554.2--18.951.027.4-[151]
95Ag5Pd/CeO25604537.1--25.844.924.5-[151]
90Ag10Pt/CeO25604543.1--19.250.727.9-[151]
50Ag50Pt/CeO25604520.0--48.328.420.6-[151]
H3PMo12O405600583334--72[155]
Ag3PMo12O405600589623--81[155]
Ag2HPMo12O405600587533--78[155]
Ag1H2PMo12O405600585534--75[155]
2%Au/ZnO6602550--612110-[156]
2%Au2%Ag/ZnO6602510--7787-[156]
2%Au1%Cu/ZnO6602595--591712-[156]
X—GLY conversion, DHA—dihydroxyacetone, GlyAl—glyceraldehydes, GlyA—glyceric acid, GlycA- glycolic acid, FA—formic acid, LA—lactic acid. a—Selectivity at 10% conversion: b—Selectivity at 30% conversion: c—Crude GLY was used.
Table 7. A selection of Ag-containing photocatalysts for alcohol oxidation.
Table 7. A selection of Ag-containing photocatalysts for alcohol oxidation.
SubstrateProductsLamp PropertiesCatalystPreparation TechniqueEfficiencyRef.
BABAld
BAc
300 W Xe arc lampTiO2@Ag@ZnO
TiO2@Au@ZnO
TiO2@Pt@ZnO
TiO2@Pd@ZnO
Sol-gel (support)
Simple preparation (metal NPs)
TiO2@Ag@ZnO
86.2% conversion
51.1% BAld selectivity
33% BAc selectivity
[158]
BABAld
BAc
300 W Xe arc lamp
λmax ≥ 420 nm
cut-off filter
AgBr@TiO2
AgBr@Ag@TiO2
Double-jet precipitation (AgBr@TiO2)
Photodeposition (Ag)
O2 atmosphere
AgBr@Ag@TiO2-0.325
In acetonitrile:
90% conversion, 95% selectivity
In water:
38% conversion, 47% selectivity
[165]
BABAld300 W Xe arc lamp
λmax ≥ 420 nm
cut-off filter
AgBr@TiO2/GOHummers method
(GO support)
Hydrothermal method
(core-shell structured catalyst)
78% yield of BAld for AgBr@TiO2/GO[164]
4-methoxybenzyl alcohol (MBA)4-methoxybenzyl aldehyde1500 W solar simulator
(Xe lamp)
Ag/TiO2, Pt/TiO2, Au/TiO2, Pd/TiO2PhotodepositionAldehyde selectivity:
pH = 1
100% for most catalysts
pH = 7
30% for Pd-TiO2-0.5%-100
30% for Pt-TiO2-0.5%-100
15% for Ag-TiO2-0.5%-100
13% for Ag-TiO2-1%-100
pH = 13
32% for Au-TiO2-0.5%-100
33% for Pt-TiO2-0.5%-100
12% for Ag-TiO2-0.5%-100
21.5% for Ag-TiO2-1%-100
[164]
BA
4-MBA
Cinnamyl alcohol
BAldSunlight simulatorAg3PO4PrecipitationBAld:
>85% conversion
>99% selectivity
~85% yield
p-Anisaldehyde
>85% conversion
>99% selectivity
~85% yield
Cinnamyl alcohol
~90% conversion
>90% selectivity
~81% yield
[175]
Cyclohexanol
Cycloheptanol
Cyclohexanone
Cycloheptanone
&others
125 W Hg lamp
10.4 mW/cm2
0.5–20% wt. Ag/TiO2
&others
Chemical reduction by NaBH475 mmol of product vs. 375 mmol for TiO2 P25[185]
MethanolMethyl formate
Formaldehyde
CO2
500 W Hg lampAu/TiO2
Ag/TiO2
AuAgTiO2
Chemical reduction by NaBH4AuAgTiO2
82% conversion
84% selectivity
[177]
MethanolMethyl formate500 W Hg lampAg/TiO2
Ag/SiO2
Chemical reduction by NaBH4~22 mmol∙g−1∙h−1 for 3% Ag/TiO2
~22 mmol∙g−1∙h−1 for 3% Ag/SiO2
[178]
CellobioseGlucoseMod. LZC-4, Luzchem Research Inc. ON, CAN
14 UVB (84 lx) or Vis (19,900 lx) lamps
Ag/TiO2, Au/TiO2, AgAu/TiO2Wetness impregnation; Colloidal methods36% conversion, 2% glucose selectivity
vs.
57% conversion, 3% glucose selectivity for TiO2 P25
[183]
BABAld
BAc
Benzylbenzoate
CO2
&others
250 W Hg lamp
λmax = 365 nm
Ag/TiO2
Au/TiO2
Pt/TiO2
Pd/TiO2
Rh/TiO2
Ir/TiO2
Photodeposition81% BAld selectivity for Ag/TiO2
92% BAld selectivity for Ir/TiO2
[167]
2-propanolAcetone
CO2
λmax = 365 nm
3.25 W/cm2
Ag0.01Ti0.99O2Sol-gel
+
Magnetic stirring or
ultrasound treatment
38–40% conversion
97% acetone selectivity
vs. sol-gel TiO2:
34–38% conversion
97% acetone selectivity
vs. TiO2 P25:
46% conversion
97% acetone selectivity
[184]

Share and Cite

MDPI and ACS Style

Torbina, V.V.; Vodyankin, A.A.; Ten, S.; Mamontov, G.V.; Salaev, M.A.; Sobolev, V.I.; Vodyankina, O.V. Ag-Based Catalysts in Heterogeneous Selective Oxidation of Alcohols: A Review. Catalysts 2018, 8, 447. https://doi.org/10.3390/catal8100447

AMA Style

Torbina VV, Vodyankin AA, Ten S, Mamontov GV, Salaev MA, Sobolev VI, Vodyankina OV. Ag-Based Catalysts in Heterogeneous Selective Oxidation of Alcohols: A Review. Catalysts. 2018; 8(10):447. https://doi.org/10.3390/catal8100447

Chicago/Turabian Style

Torbina, Viktoriia V., Andrei A. Vodyankin, Sergey Ten, Grigory V. Mamontov, Mikhail A. Salaev, Vladimir I. Sobolev, and Olga V. Vodyankina. 2018. "Ag-Based Catalysts in Heterogeneous Selective Oxidation of Alcohols: A Review" Catalysts 8, no. 10: 447. https://doi.org/10.3390/catal8100447

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
