Efficient Catalytic Upgrading of Levulinic Acid into Alkyl Levulinates by Resin-Supported Acids and Flow Reactors

Abstract

Biomass-derived levulinic acid (LA) is an excellent substrate to obtain high-value esters that can be used as second-generation biofuels and biofuel additives. The present study focuses on the identification and definition of the key parameters crucial for the development of chemically and environmentally efficient protocols operating in continuous-flow for the preparation of structurally diverse alkyl levulinates via the esterification of LA. We have focused on the use of solid acid catalysts consisting of sulfonated cation exchange resins and considered different aliphatic alcohols to prepare levulinates 3 and 11–17 regioselectively, and in good to high yields (50–92%). Direct correlations between several reaction parameters and catalyst activity have been investigated and discussed to set proper flow reactors that allow minimal waste production during the workup procedure, enabling Environmental factor (E-factor) values as low as ca. 0.3, full recoverability and reusability of the catalysts, and the production of levulinates up to ca. 5 gxh⁻¹ scale.

1. Introduction

Levulinic acid (LA) has been recognized by the US Department of Energy as one of the top biomass-derived platform molecules, owing to its exceptional reactivity and to the fact that it can be produced at relatively low cost from lignocellulose waste [1,2,3].

The catalytic upgrading of such a platform molecule into second-generation biofuels and biofuel additives is currently of great interest [4,5,6]. Particularly, fuel additives based on LA exhibit characteristics that make them appropriate for replacing current cold flow improvers in diesel. They may also be employed as gasoline and diesel oxygenated additives, which help to achieve appropriate lubricity, flash point stability, and cleaner burning fuels. Finally, such derivatives offer the advantage of possessing lower blending volatility than the commonly used ethanol. For instance, LA can be converted into 2-methyl-tetrahydrofuran, a fuel extender and component of the P-series renewable fuels [7,8].

Furthermore, LA derivative γ-valerolactone can be hydrogenated to valeric acid and subsequently esterified to yield valerates. Gasoline blended with up to 20% of ethyl valerate is demonstrated to exhibit enhanced properties, including an increase in octane number and a lowering of the content of olefins, aromatics, and sulfur. Longer hydrocarbon chain esters exhibit volatility, polarity, and ignition properties that are suitable for diesel [9,10,11].

Alkyl esters of LA have significant potential as blend components in diesel formulations [12,13,14,15,16]. Such esters are structurally related to the biodiesel fatty acid esters that are used in some low-sulfur diesel formulations, but they do not have their principal drawbacks, i.e., poor oxidative stability, poor low temperature properties, and a tendency towards gum formation. The addition of alkyl levulinates to biodiesel is therefore expected to address these issues. The most studied is a formulation for low-smoke diesel developed by Biofine and Texaco [17] that uses ethyl levulinate as an oxygenated additive. Additionally, ethyl levulinate has been tested as an additive for transportation fuels to improve emissions of nitrogen oxides in high compression diesel engines [18,19,20]. Also, technological initiatives are being taken to use ethyl levulinate as a 100% biodegradable neat fuel in the near future [21]. Notably, levulinates are currently in the focus of multiple R&D initiatives in the field, due to their straightforward accessibility from levulinic acid.

Besides, levulinic acid esters may find an application as alternative green solvents, polymer plasticizers, and fragrances [22].

Consequently, the development of new routes for the production of levulinates from bio-based platform molecules have attracted ever more attention [22,23].

The direct esterification of LA with alcohols, which is typically acid catalyzed by homogeneous catalysts, (e.g., sulfuric acid, phosphoric acid) still remains the most frequently utilized approach [22]. A variety of robust and industrially more benign heterogeneous acid catalysts have been used since recent times for the esterification of levulinic acid (mostly with ethanol), including supported heteropolyacids [24,25,26], zeolites [27,28], hybrid catalysts [29,30,31,32], carbon-based materials functionalized with sulfonic groups [33,34,35,36], sulfated metal oxides [37,38,39], and silicas [40,41,42].

In this context, it should be noted that organic polymer-supported acid catalysts and, particularly, polystyrene sulfonic acid resins are among the most important heterogeneous acids in industry and have been widely used in reactions such as esterification, etherification, alkylation of phenols, and hydration of olefins [43,44,45]. In particular, the development of efficient, highly functional, group-tolerant, controlled, and living polymerization methods has allowed for diverse ranges of structures and the tuning of the density of catalyst sites along polymers, as well as the easy incorporation of the catalytic center into polymer structures [43,44,45]. Yet, there have been only sporadic attempts at the production of alkyl levulinates by esterification of LA with resin-supported acid catalysts [40,41,42,46]. The only report to date focusing exclusively on such a topic has been very recently published by M.A. Tejero et al. [47], who demonstrated the potential of a range of acidic ion-exchange resins in promoting the esterification of LA with 1-butanol, selectively obtaining LA conversion into butyl levulinate in the range 64–94%.

The present paper is focused on the development of a sustainable approach to alkyl levulinates from LA by using heterogeneous catalysis, safe media and flow conditions aimed at demonstrating how crucial this approach is to access chemically and environmentally efficient protocols [48,49,50,51] Notably, to the best of our knowledge, this is the first report on the preparation of levulinates under these conditions.

To this end, a set of acidic resins with different morphologies has been investigated, i.e., Amberlyst 15^® (A-15) and polystyrene-supported p-toluensulfonic acid (PS-pTsOH), both available in the market, as well as perfluorosulfonic polymer Aquivion^® PFSA in the form of micronized pellets (Aquivion mP98) from Solvay Specialty Polymers S.p.A., which has not yet become commercially available. It is well-known in fact that the morphology of polymer-supported catalysts is a critical parameter from the point of view of their use under flow conditions [52].

Thus, A-15 and PS-pTsOH are nearly spherical beads of sulfonated co-polymers of styrene (S) and divinylbenzene (DVB). More specifically, they are classified as macroporous (macroreticular) resins, i.e., a degree of permanent porosity is induced into the resin beads so that a high amount of the acidic sites, although distributed through the bulk of the resin, may be accessible to non-swelling solvents and reactants. Macroreticular resins are macroporous, typically showing a high cross-linking ratio. In this case, swelling does not usually produce a noticeable change of the overall resin volume. The permanent porous structure on the resins facilitates, in principle, the flow through the beads of the solvents/reactants, and, therefore, the accessibility of the catalytic sites. However, a high cross-linking degree may limit the access to the sites embedded in the inner polymer matrix regions, since it precludes proper swelling of those regions. On the other hand, Aquivion mP98 is a co-polymer of tetrafluoroethylene and sulfonylfluoride vinyl ether which, after hydrolysis of the sulfonyl fluoride, yields the strongly acidic terminal -CF₂CF₂SO₃H groups. It has no porosity in the dry state and, as such, depends on being swollen by the reaction medium, giving rise to a porous structure and therefore enabling the diffusion of reactants through the polymer matrix. From the point of view of flow application, it is important to bear in mind that swelling leads to a variation in the overall non-porous resin volume that can be significant. This needs to be taken into account when configuring the flow reactors to avoid, e.g., overpressures. It should also be noted here that the micronized form of Aquivion PFSA (Aquivion mP98) exhibits an average particle size which is smaller than the commercially available Aquivion pellets P98 counterpart (about 0.7 vs. 2.5 mm), and this likely makes it more useful as catalytic material. In fact, due to the smaller dimension of the pellets, the stirring of the reactants and the isolation of the product become easier under conventional batch conditions. Also, this form of Aquivion PFSA is expected to be more useful in view of our final set of a flow procedure [53].

The catalyst screening is therefore carried out in the direction of identifying robust and stable organic polymer-based solid acid catalysts, suitable for flow processes, to contribute to improving significantly the overall efficiency of valuable fuel esters’ large scale production. Our results demonstrate that a large panel of levulinates can be regioselectively obtained in high yields and isolated, avoiding the need for chromatography with efficient waste-minimization, as confirmed by representative green metrics calculations. The role of various reaction parameters, including the molar ratio of the reactants, the catalyst amount, the temperature, and time is discussed, along with the catalyst recoverability/reusability issue. It will be seen that flow technique may be successfully exploited to improve the efficiency of the process. In fact, we demonstrate here that the employment of flow conditions may help in enlarging the scale of a batch protocol and, besides this, allow to avoid the breakdown to “fines” of the heterogeneous catalyst under stirring in the batch mode, thereby improving its reusability. Further, since in flow systems the substrate is actually forced into intimate contact with an excess of the catalyst [52], higher conversions were achieved (93–99%).

2. Results and Discussion

Table 1. Key properties of the tested catalysts.

Catalyst Name	Particle Size (mm)	Surface Area (m2/g)	Pore Volume (cm3/g)	Matrix 1	Swelling Volume 2 (%)	Acid Loading 3 (mmol/g)
A-15	<0.3 1	45 1	0.4 1	Styrene/DVB (macroreticular)	10	4.7
PS-pTsOH	0.25–0.59 1	3.26	0.0036	Styrene/DVB (macroporous)	50	2.9
Aquivion mP98	~0.70	-	-	Tetrafluoroethylene/sulfonylfluoride vinyl ether (non-porous)	400	1.02

¹ Data provided by the manufacturer. ² 1-Pentanol, r.t. ³ Determined by elemental analysis.

summarizes key catalysts properties, in terms of particle size, porosity, morphology, and acid density, along with their acronyms.

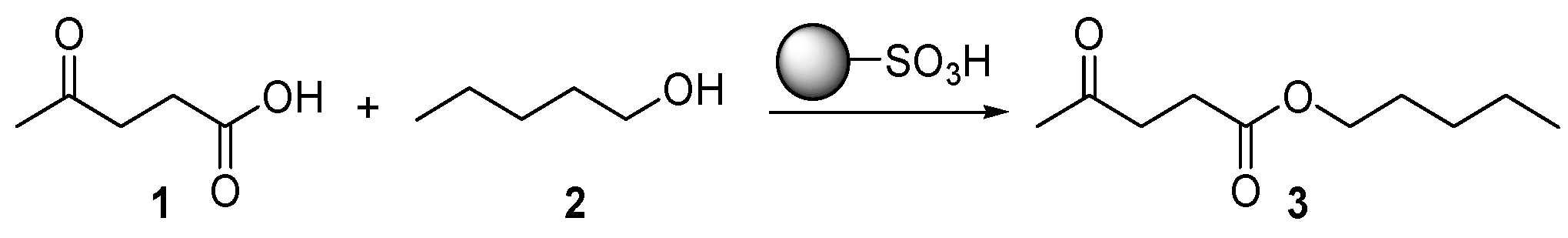

The efficiency of A-15, PS-pTsOH, and Aquivion mP98 in the esterification reaction of levulinic acid (LA, 1) has been tested first by employing 1-pentanol (2) as a reference alcohol substrate (Scheme 1). Taking into account the earlier discussion, the swelling behavior of the three different resins after contact with 1-pentanol has been also evaluated. In this regard, the increase in volume produced by swelling for the resins featuring very low to no-porosity in the dry state can reach values of up to 400% (Table 1 and Figure S1, Supplementary Materials, SM).

The most significant data collected from the batch runs are summarized in

Table 2. Esterification reaction of Levulinic Acid (LA) 1 with 1-pentanol (2) catalyzed by Aquivion mP98.

Entry	Catalyst (mol %) 1	LA/1-Pentanol	T (°C)	t (h)	C (%) 2
1	4.3	1:5	70	5	45
2	8				62
3	10				64
4	4.3			12	46
5	8				66
6	10				67
7	4.3			24	53
8	8				70
9	10				72
10	4.3	1:5	90	5	50
11	8				68
12	10				70
13	4.3			12	53
14	8				69
15	10				73
16	4.3			24	62
17	8				73
18	10				76 (73) 3
19	4.3	1:10	70	5	47
20	8				58
21	10				59
22	4.3			12	49
23	8				75
24	10				77
25	4.3			24	60
26	8				82
27	10				86
28	4.3	1:10	90	5	50
29	8				63
30	10				68
31	4.3			12	58
32	8				76
33	10				86
34	4.3			24	66
35	8				78
36	10				92 (88) 3,4

¹ Referred to the amount of immobilized -SO₃H moieties. ² LA conversion to pentyl levulinate 3, determined by ¹H-NMR analysis, using 4-bromoanisole as internal standard; the remaining material was the unreacted mixture of 1 and 2. ³ Isolated yield in parenthesis. ⁴ Complete conversion of 1 into 3 was achieved after 36 h.

,

Table 3. Esterification reaction of LA 1 with 1-pentanol (2), catalyzed by A-15.

Entry	Catalyst (mol %) 1	LA/1-Pentanol	T (°C)	t (h)	C (%) 2
1	4.3	1:5	70	5	29
2	8				43
3	10				50
4	4.3			12	32
5	8				51
6	10				57
7	4.3			24	53
8	8				64
9	10				65 (62) 3
10	4.3	1:5	90	5	22
11	8				38
12	10				46
13	4.3			12	33
14	8				39
15	10				52
16	4.3			24	43
17	8				46
18	10				58
19	4.3	1:10	70	5	50
20	8				51
21	10				56
22	4.3			12	55
23	8				60
24	10				64
25	4.3			24	66
26	8				70
27	10				76 (73) 3
28	4.3	1:10	90	5	38
29	8				41
30	10				44
31	4.3			12	50
32	8				52
33	10				54
34	4.3			24	58
35	8				60
36	10				67

¹ Referred to the amount of immobilized -SO₃H moieties. ² LA conversion to pentyl levulinate 3, determined by ¹H-NMR analysis, using 4-bromoanisole as internal standard; the remaining material was the unreacted mixture of 1 and 2. ³ Isolated yield in parenthesis.

and

Table 4. Esterification reaction of LA 1 with 1-pentanol (2) catalyzed by PS-pTsOH.

Entry	Catalyst (mol %) 1	LA/1-Pentanol	T (°C)	t (h)	C (%) 2
1	4.3	1:5	70	5	32
2	8				44
3	10				58
4	4.3			12	54
5	8				60
6	10				62
7	4.3			24	55
8	8				65
9	10				68 (64) 3
10	4.3	1:5	90	5	25
11	8				50
12	10				56
13	4.3			12	50
14	8				65
15	10				67
16	4.3			24	50
17	8				69
18	10				68
19	4.3	1:10	70	5	43
20	8				50
21	10				56
22	4.3			12	50
23	8				65
24	10				70
25	4.3			24	55
26	8				73
27	10				80
28	4.3	1:10	90	5	50
29	8				50
30	10				51
31	4.3			12	55
32	8				58
33	10				72
34	4.3			24	60
35	8				65
36	10				83 (78) 3

¹ Referred to the amount of immobilized -SO₃H moieties. ² LA conversion to pentyl levulinate 3, determined by ¹H-NMR analysis, using 4-bromoanisole as internal standard; the remaining material was the unreacted mixture of 1 and 2. ³ Isolated yield in parenthesis.

. The blank reaction experiment, in the absence of a catalyst, gave a LA conversion of ~4% after 24 h of reaction time (Table S1, entry 1, SM), thereby indicating a negligible extent of the esterification of levulinic acid by auto-catalysis under the tested reaction conditions.

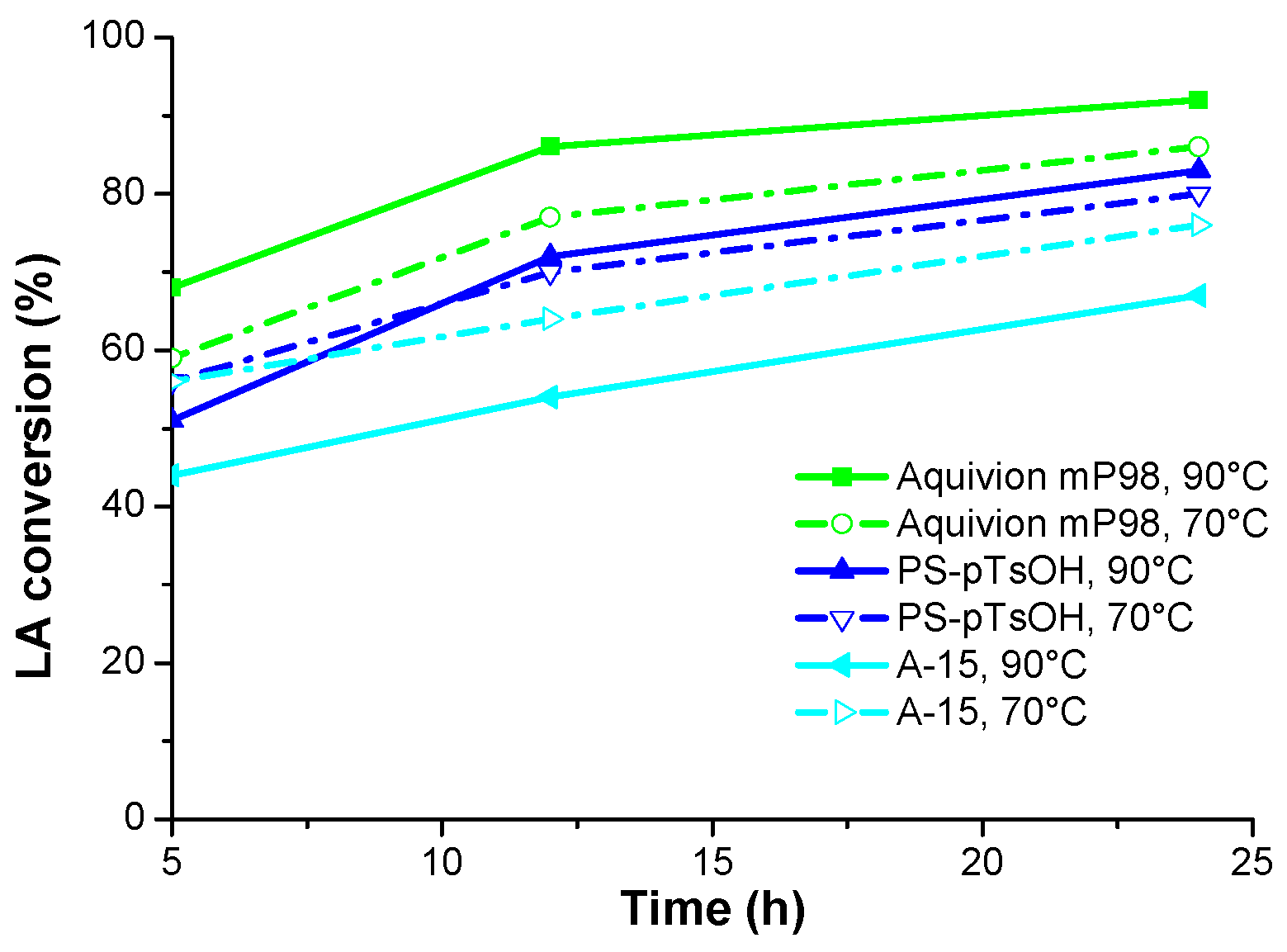

Aquivion mP98 was found to be the most efficient catalyst, selectively providing up to 92% LA conversion towards the target product 3 after 24 h at 90 °C (Table 2, entry 36). Moreover, the product was isolated in high yield (88%) and purity (>98%) by a simple work up procedure (see Section 3). Notably, unreacted 1-pentanol could be nearly quantitatively recovered (96%) by distillation at 75 °C under vacuum (80 mmHg) for later reuse. Additionally, complete conversion of 1 into 3 was achieved under the same optimal conditions after 36 h.

Amberlyst-15 (10 mol %) allowed the lowest conversion at 90 °C when employing a 1:10 LA/alcohol molar ratio (Table 3, entry 36). Notably, the temperature increase led to a ~10% decrease in Amberlyst-15 activity [54] (Table 3, entry 27 vs. entry 36). The effect of temperature increase on catalytic efficiency was greater for Aquivion mP98 than for PS-pTsOH (Table 2, entries 27 and 36 vs. Table 4, entries 27 and 36). Finally, Aquivion mP98 and PS-pTsOH (10 mol %, 1:10 LA/alcohol molar ratio) allowed a higher conversion increase in the range 5–12 h with respect to Amberlyst-15, at 70 °C as well as at 90 °C. This is exemplified by Table 4, entries 30 and 33 vs. Table 2, entries 30 and 33 vs. Table 3, entries 30 and 33. The influence of the reaction temperature on the efficiency of the catalysts is also represented in Figure 1 and Figure 2.

The catalyst amount varied over a range of 4.3–10 mol %. Conversion of levulinic acid was found to generally increase proportionally with the catalyst amount, as the number of catalytic sites for the reaction increased. This is exemplified in Figure S2 (SM) for Aquivion mP98 (1:10 molar ratio, 90 °C). Also, the LA to 1-pentanol molar ratio was investigated at 1:5 and 1:10, and it was generally observed that the LA conversion into pentyl levulinate increased with an increasing molar ratio, as exemplified in Figure S3, SM.

Within each set of reaction conditions, the catalysts activity generally tracks the progression Aquivion mP98 > PS-pTsOH > A-15. This might be, at least partially, explained by considering the porous structure of A-15 vs. the low to non-porous structure of PS-pTsOH and Aquivion mP98, respectively. Indeed, in the case of A-15, the water produced during the esterification may limit the accessibility of reactants to the fraction of the acid sites located inside the pores, due to the fill up of the latter with water itself. Conversely, PS-pTsOH and Aquivion mP98 (nearly) hamper the adsorption of water on the outer/inner surface, which ensures the maintenance of their performance for a longer amount of time [55]. In other words, the increase in surface area, due to the presence of the pores (Table 1), seems to inhibit the esterification process under the investigated conditions. This is not uncommon behavior [55,56,57,58].

For comparison purposes, the reaction over commercially available Nafion NR50, a fluorinated congener of Aquivion mP98, has been also performed (Table S1, entry 2, SM) in optimal conditions (i.e., 1:10 LA/alcohol molar ratio, 10 mol % catalyst, 90 °C, 24 h). The lowest conversion value was achieved (60%), and a progressive marked increase of the catalyst pellets’ size was observed, which, ultimately, was responsible for a badly efficient stirring of the reaction mixture. FTIR analysis (Figure S4) of Nafion NR50 after the esterification process suggested the LA and/or pentyl levulinate adsorption on the catalytic system, although there was repeated washing.

Furthermore, the esterification reaction over a homogeneous reference catalyst, i.e., p-toluensulfonic acid (pTsOH), gave a LA conversion value lower than that achieved by Aquivion mP98 under the optimal experimental conditions (Table S1, entry 3 and Table 2, entry 36, respectively). Similar results were obtained by comparing the PS-pTsOH catalyzed esterification process (Table 4, entry 36) carried out under identical conditions. On the other hand, Amberlyst 15 (Table 3, entry 36) gave lower LA conversions, thereby indicating the presence of diffusional limitations and/or catalyst instability at the temperature conditions of 90 °C [54].

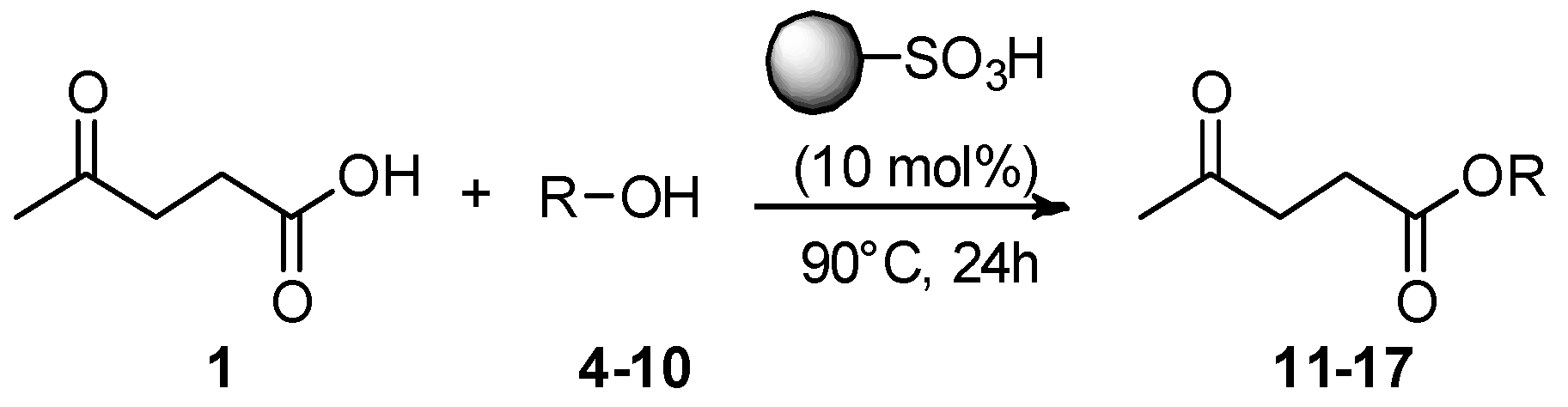

To broaden the substrate scope, a range of aliphatic alcohols 4–10 with short, moderate, and branched chains were reacted with LA using the optimized batch conditions for each catalyst to give the corresponding alkyl levulinates 11–17 (Scheme 2,

Table 5. Esterification reaction of LA with various alcohols ¹.

Entry	Alcohol	Catalyst Type	T (°C)	C (%) 2
1		Aquivion mP98	90	58
2		PS-p-TsOH	90	58
3		A-15	70	60
4		Aquivion mP98	90	55
5		PS-p-TsOH	90	50
6		A-15	70	65
7		Aquivion mP98	90	75
8		PS-p-TsOH	90	26
9		A-15	70	70
10		Aquivion mP98	90	76
11		PS-p-TsOH	90	58
12		A-15	70	58
13		Aquivion mP98	90	84
14		PS-p-TsOH	90	62
15		A-15	70	80
16		Aquivion mP98	90	50
17		PS-p-TsOH	90	32
18		A-15	70	12
19		Aquivion mP98	90	56
20		PS-p-TsOH	90	25
21		A-15	70	10

¹ Reaction conditions: 1:10 LA/alcohol molar ratio, 10 mol % catalyst, 90 °C, 24 h. ² LA conversion to alkyl levulinates 11–17, determined by ¹H-NMR analysis, using 4-bromoanisole as internal standard; the remaining material was the unreacted mixture of 1 and 4–10.

).

Aquivion mP98 revealed good versatility, giving a good to high conversion (50–84%) with all of the alcohols under investigation. Notably, it was effective with branched-chain alcohols (entries 16 and 19, Table 2). This is particularly attractive since skeletally branched chain esters are considered more effective [59] as additives and diluents to improve, e.g., the cold-flow properties of biodiesel.

Additionally, no byproducts coming from the inter-/intramolecular dehydration of the different alcohols were observed under the tested reaction conditions.

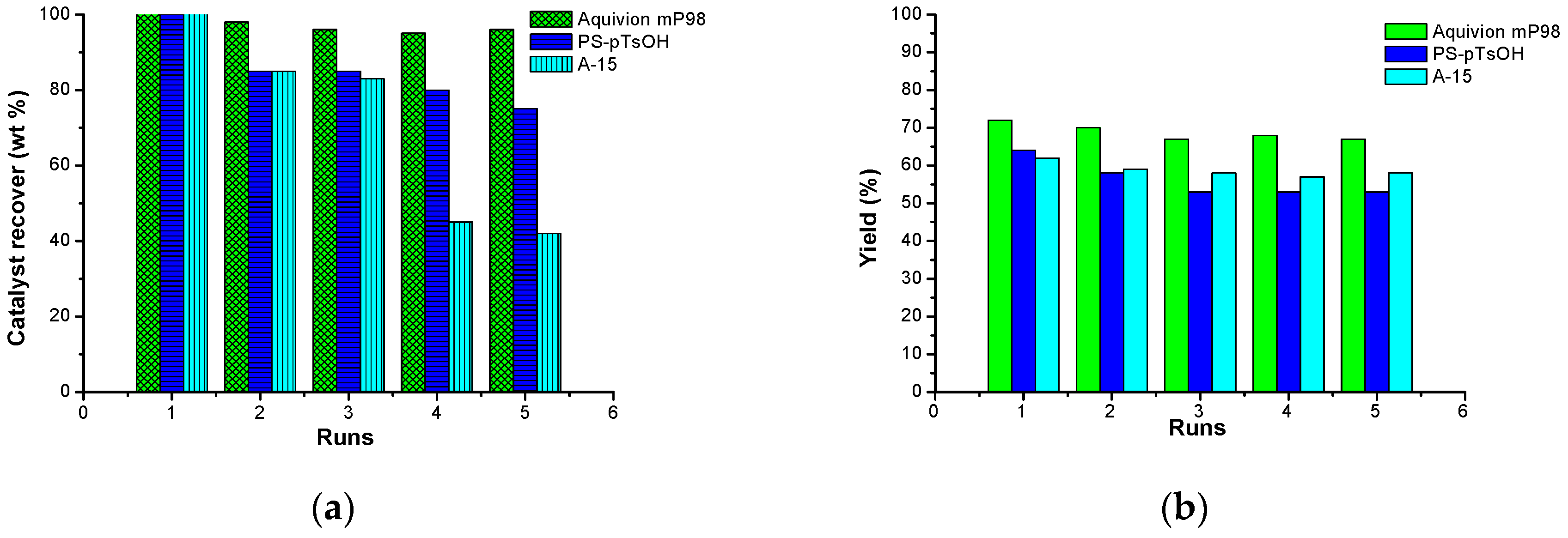

The recovery and reuse of the three catalysts have been investigated, and the results reported for the reaction of LA with pentyl levulinate carried out at 70 °C (1:5 molar ratio, 10 mol % catalyst, 24 h). After the reaction was completed, the catalyst used was recovered by filtration. The recovered catalyst was then washed with a minimum amount of ethyl acetate, dried, and subsequently reused. All the three catalysts substantially retained their activity, even after five consecutive runs (Table S2 and Figure 3). FTIR analyses indicated that there is LA or pentyl levulinate adsorption to some extent on all resins washed, except Aquivion mP98 (Figures S4–S7, SM).

The loss of catalysts has been also evaluated. Aquivion mP98 mass was fully recovered even after five consecutive runs (~5% weight loss), whereas PS-pTsOH was ~80% recovered, and Amberlyst-15 loss was as high as ~40% (Table S2 and Figure 3). The losses were due to the mechanical disintegration of the catalyst particles, which made their recovery difficult. Indeed, the low to no-porosity of PS-pTsOH and Aquivion mP98, respectively, guaranteed their superior mechanical strength.

To confirm that there was no leaching of the catalyst -SO₃H groups at the reaction temperature, a hot filtration test was carried out. Esterification of levulinic acid was therefore performed at 90 °C, using the three investigated catalysts. Then, after 30 min, the catalyst was filtered off and the reaction mixture was allowed to react further. We found that no significant further reaction occurred after this hot filtration procedure, which suggests there is no significant -SO₃H leaching from the catalysts during the reaction progress (Figure S8).

To evaluate the efficiency of our synthetic strategy, we calculated the Environmental factor (E-factor, kg waste per kg product) [60]. Values in the range of 0.4–0.9 were obtained, which includes the recovery (and reuse) of catalysts, as well as that of unreacted 1-pentanol—the optimized esterification process employing Aquivion mP98 (Table 2, entry 36) giving the minimal production of waste.

Unfortunately, it was not possible to compare the efficiency of our synthetic strategy to those of already published protocols, since essential experimental details to properly calculate the metrics are missing in these latter. As a reference, we therefore calculated the E-factor for the homogeneous p-TsOH catalyzed protocol, which showed a value of 76.36, with a consequent reduction of waste for our protocol greater than 99% (see Section 3 and SM).

To overcome the issue of the catalysts recoverability, we decided to apply the flow technology. We have therefore defined a flow protocol by charging catalysts in a PTFE or glass reactor, on the basis of the estimated volume change that follows the swelling of the polymer with the medium to be used for the process (vide supra), while the reactants’ solution was charged in a tank acting as a reservoir. All the equipment was connected by using the appropriate tubes and valves, connected to a HPLC pump and installed into a thermostatic box. After setting the temperature at 90 °C, the reaction mixture was pumped through the column of appropriate length at a given flow rate (see also SM).

As shown in

Table 6. Reusability of catalysts in flow reactor for representative reaction to 1-pentanol ¹.

Entry	Catalyst Type	Cycle	C (%) 2	gxh−1	TON 3	TOF (h−1) 4
1	A-15	1	93	0.93	11.5	0.88
2		2	93	0.93
3	PS-p-TsOH	1	98	4.73	47.8	4.30
4		2	98	4.73
5	Aquivion mP98	1	>99	4.8	37.4	4.68
6		2	>99	4.8

¹ 1:10 LA/1-pentanol molar ratio, 90 °C. ² LA conversion to pentyl levulinate 3, determined by ¹H-NMR analysis, using 4-bromoanisole as internal standard; the remaining material was the unreacted mixture of 1 and 2. ³ Turnover Number = total number of moles of pentyl levulinate produced per mole of catalyst. ⁴ Turnover frequency = number of substrate molecules reacted at each available catalytic site per unit time.

, entry 1, in the first run, at a flow rate of 0.1 mL/min, up to 65 mmol of pentyl levulinate 3 over A-15 was obtained (93% conversion), which corresponded to a production of 0.93 g per hour (Turnover Number, TON: 11.5; Turnover Frequency, TOF: 0.88 h⁻¹). On the other hand, much better results were obtained when using PS-p-TsOH and Aquivion mP98 (Figure S9, SM). In fact, at a flow rate of 0.55 mL/min, the former (Table 6, entry 3) enabled the preparation of 280 mmol of the target product (98% conversion), i.e., 4.73 g per hour (TON: 47.8, TOF: 4.3 h⁻¹). Similarly, 210 mmol of 3 were prepared over Aquivion mP98 (Table 6, entry 5) at a reaction mixture flow rate of 0.44 mL/min (>99% conversion), which corresponded to 4.8 g h⁻¹ (TON 37.4, TOF 4.68 h⁻¹).

The column was then dried at 120 °C (3 h) by air flow to remove the water produced during the reaction and, subsequently, a second batch of reactants was charged into the reservoir, and the activity of all resins proved to remain unchanged (Table 6, entries 2, 4, 6, and SM).

3. Materials and Methods

3.1. General Remarks

All reagents were purchased from commercial sources and used without further purification, unless otherwise noted. Commercial Amberlyst-15^® (4.7 mmol SO₃H/g, particle size < 0.3 mm), polystyrene-bound p-toluensulfonic acid (PS-pTsOH; 2.9 mmol SO₃H/g, particle size: 0.25–0.59 mm), and Nafion^® NR50 (0.8 mmol SO₃H/g, particle size ~ 3.5 mm) were purchased at Sigma-Aldrich, Si Milan, Italy. Aquivion mP98 (1.2 mmol SO₃H/g, particle size ~ 0.7 mm) was provided by Solvay Specialty Polymers S.p.A. Elemental microanalyses were performed using a Fison’s EA1106CHN analyzer using atropine, 2,5-bis-2-(5-tertbutylbenzoxazol-yl)-thiophene (BBOT), and phenanthrene as a reference standard, with an accuracy of ca. 2 µmol g⁻¹. NMR spectra were recorded on a Bruker DRX-ADVANCE 400 MHz (¹H at 400 MHz and ¹³C at 100.6 MHz) in CDCl₃, using TMS as an internal standard. Fourier Transformed Infrared (FTIR) spectra were recorded on a VERTEX 70 Bruker Optics Instrument (Billerica, MA, USA), with a spectral range of 4000–400 cm⁻¹ and a resolution of 4 cm⁻¹, equipped with a single reflection diamond ATR cell.

3.2. Representative Experimental Batch Procedure for the Preparation of Pentyllevulinate 3 over Heterogeneous Acid Catalysts

In a round-bottomed flask capped with a PTFE stopper and equipped with a magnetic stirrer, levulinic acid (1 g, 8.6 mmol), 1-pentanol (9.35 mL, 86 mmol) and Aquivion mP98 catalyst (10 mol % 0.7 g) were consecutively added. The mixture was left under stirring at 90 °C for 24 h. Then the reaction mixture was cooled down to room temperature and the catalyst filtered off and washed with ethyl acetate (80 mL). The filtrate was concentrated by removing solvent and unreacted 1-pentanol was recovered (96%) by distillation at 75 °C under vacuum (80 mmHg). Subsequent filtration using a basic Al₂O₃ pad (0.15 g) to remove the residual LA gave pentyl levulinate 3 as a pale yellow oil (1.43 g, 7.57 mmol, 88% yield). ¹H-NMR δ (ppm) 3.9 (t, 2H); 2.6 (m, 2H); 2.4 (m, 2H); 2.1 (s, 3H); 1.5 (m, 2H); 1.2 (m, 4H); 0.81 (m, 3H). E-factor: [1 g (LA) + 7.6 g (1-pentanol) + 0.2 g (Al2O3) − 1.63 g (pentyl levulinate 3) − 6.5 g (96% recovered 1-pentanol)]/1.63 g (pentyl levulinate 3) = 0.4.

The Aquivion mP98 catalyst was not considered in the calculation due to its complete recovery.

3.3. Esterification Reaction to Pentyllevulinate 3 over Homogeneous p-TsOH Catalyst

In a round-bottomed flask capped with a PTFE stopper and equipped with a magnetic stirrer, levulinic acid (0.8 g, 6.8 mmol), 1-pentanol (7.37 mL, 68 mmol) and p-toluen sulfonic acid (pTsOH, 10 mol %, 0.12 g) were consecutively added. The mixture was left under stirring at 90 °C for 24 h. Then, the reaction mixture was cooled down to room temperature, diluted with ethyl acetate (10 mL), washed with NaHCO₃ saturated solution (20 mL × 3), dried over Na₂SO₄, filtered, and concentrated to remove solvent. Next, 90% of unreacted 1-pentanol was recovered by distillation at 75 °C under vacuum (80 mmHg). Pentyl levulinate 3 was obtained as a pale yellow oil (0.98 g, 5.3 mmol, 78% yield). E-factor: 0.8 g (LA) + 0.12 g (pTsOH) + 6 g (1-pentanol)+ 8.9 g (ethyl acetate) + 5.4 g (NaHCO₃) + 60 g H₂O − 0.98 g (pentyllevulinate 3) − 5.4 g (90% recovered 1-pentanol)/0.98 g (pentyl levulinate 3) = 76.37.

This doesn’t account for the drying agent.

4. Conclusions

Three members of the acidic resins family featuring different morphologies, namely non-porous micronized Aquivion^® PFSA (Aquivion mP98), macroreticular Amberlyst-15^®, and macroporous polystyrene-supported p-toluensulfonic acid (PS-pTsOH), were active catalysts in the esterification reaction of levulinic acid with 1-pentanol, both under conventional batch conditions and in flow. The activity generally tracked the progression Aquivion mP98 > PS-pTsOH > A-15, which was tentatively explained on the basis of the different porous structure of the catalytic systems. Particularly, non-porous Aquivion mP98 (10 mol %) allowed the highest levulinic acid conversion (92%) into pentyl levulinate under conventional batch conditions at 90 °C when employing a 1:10 LA/alcohol molar ratio (24 h). Moreover, the reaction was completely selective and the product was isolated (88% yield) by a straightforward procedure, encompassing the almost complete recovery (96%) of unreacted 1-pentanol by distillation, for later reuse. The protocol could be extended to aliphatic alcohols with short, moderate, and branched chains, leading to the preparation of levulinates in good-to-high yields (50–92%). Moreover, no byproducts coming from inter-/intramolecular dehydration of the different alcohols were observed under the tested reaction conditions.

Recovery and reuse of all the three catalysts have been investigated. Notably, non-porous Aquivion mP98 substantially retained its activity even after five consecutive runs, while being fully recoverable (~5% weight loss).

Calculation of the E-factors confirmed that our approach is very efficient for waste reduction, especially in the case of the flow conditions (E-factor as low as ca. 0.3). Importantly, the flow technique proved to be an efficient solution to maintain the physical integrity of the catalysts and also to allow for its easy recovery and recycling. Additionally, flow conditions enabled the production of levulinates on a g per hour scale when employing the low- to non-porous catalysts PS-pTsOH and Aquivion mP98, respectively.

Further investigations are due in due course to demonstrate that resin-supported acid catalysts can improve substantially the overall efficiency of valuable fuel esters production.
