Hydrogenation of Phenol over Pt/CNTs: The Effects of Pt Loading and Reaction Solvents

by
Feng Li
1,2,
Bo Cao
1,
Wenxi Zhu
1,
Hua Song
1,
Keliang Wang
2 and
Cuiqin Li
1,*
1
Provincial Key Laboratory of Oil & Gas Chemical Technology, College of Chemistry & Chemical Engineering, Northeast Petroleum University, Daqing 163318, China
2
Key Laboratory of Enhanced Oil & Gas Recovery of Education Ministry, College of Petroleum Engineering, Northeast Petroleum University, Daqing 163318, China
*
Author to whom correspondence should be addressed.
Catalysts 2017, 7(5), 145; https://doi.org/10.3390/catal7050145
Submission received: 20 March 2017 / Revised: 25 April 2017 / Accepted: 3 May 2017 / Published: 8 May 2017
Browse Figures
Versions Notes

Abstract

Carbon nanotubes (CNTs)-supported Pt nanoparticles were prepared with selective deposition of Pt nanoparticles inside and outside CNTs (Pt–in/CNTs and Pt–out/CNTs). The effects of Pt loading and reaction solvents on phenol hydrogenation were investigated. The Pt nanoparticles in Pt–in/CNTs versus Pt–out/CNTs are smaller and better dispersed. The catalytic activity and reuse stability toward phenol hydrogenation both improved markedly. The dichloromethane–water mixture as the reaction solvent, compared with either pure medium, decreased the catalytic activity toward phenol hydrogenation and selectivity of cyclohexanone over Pt–in/CNTs, but significantly improved the catalytic activity toward phenol hydrogenation and selectivity of cyclohexanone over Pt–out/CNTs.

Graphical Abstract

1. Introduction

Hydrogenation of phenol to cyclohexanone or cyclohexanol is an important chemical reaction in the production of nylon and polyamide resins [1]. It is widely accepted that the hydrogenation of phenol mainly occurs between the phenol chemisorbed on the support and the hydrogen activated on metal nanoparticles. Thus, the support and active particle size play important roles in these supported catalysts for hydrogenation.
To date, varieties of catalysts, including noble metal (Pd [2,3,4,5], Pt [6], Ru [7], and Rh [8]) and non-noble metal (Ni [4,9] and Mo [10]) catalysts, have been developed for this reaction. Among them, noble-metal catalysts are highly active in phenol hydrogenation under mild conditions. The industrially preferred Pd/C catalyst has been well studied, including solvents, supports, and various reaction parameters [2,3,4,5], but the results of cyclohexanone selectivity are in consistent and even controversial [5]. As is well known, Pt-based catalysts exhibit excellent properties in many hydrogenation reactions. Yang et al. [6] reported the high catalytic activity and cyclohexane selectivity of Pt/titanate nanotubes in phenol hydrogenation, even at 327 K. However, the application of Pt-based catalysts in phenol hydrogenation is still rarely reported.
Carbon nanotubes (CNTs) has been widely studied as a support of metal catalysts [11,12,13]. Surface modification of CNTs with oxygenated groups (e.g., carboxylic or hydroxyl) can be simplified by the pretreatment with HNO3, which has been reported as an effective method to optimize the performance of CNT-supported metal catalysts as well as purify and open the tips of CNTs [2]. Matos et al. [14] reported that the phenol hydrogenation produces cyclohexanone over a polar TiO2–C-supported Pd catalyst, while it produces cyclohexanol over a hydrophobic TiO2–C-supported catalyst. Makowski et al. [15] reported that the hydrophilic carbon-supported Pd catalyst showed very high cyclohexanone selectivity in phenol hydrogenation. These results suggest that the hydrophilicity/hydrophobicity of CNTs could affect the catalytic properties of CNTs-supported metal catalysts for phenol hydrogenation.
The catalysts with active particles loaded inside and outside CNTs exhibit distinctly different catalytic performances. Research has shown that metal particles (i.e., Ru, Co, and Fe) encapsulated inside CNTs exhibit superior catalytic performance compared with those loaded outside CNTs in hydrogenation [16], oxygen reduction [17], Fischer-Tropsch synthesis [18,19], and polymerization [20]. This superior catalytic performance can be attributed to the unique “confinement effect” of CNTs [21,22,23,24].
On the basis of research by Tessonnier et al. [25], here we prepared Pt/CNTs catalysts through selective deposition of Pt nanoparticles inside and outside CNTs (Pt–in/CNTs and Pt–out/CNTs). For comparison, CNTs-supported Pt was also prepared via incipient wetness impregnation (Pt–imp/CNTs). Hydrogenation of phenol over different Pt/CNTs catalysts under mild conditions was evaluated to investigate how Pt loading affected catalytic performances. In addition, by considering the hydrophilicity/hydrophobicity of CNTs, reactants, and products, we studied the effect of a dichloromethane–water mixed solvent on Pt/CNTs catalysts toward phenol hydrogenation.

2. Results and Discussion

Figure 1 shows the transmission electron microscopy (TEM) and Pt particle size distribution of the catalysts prepared from different loading methods. Clearly, the Pt particles in Pt–in/CNTs are well dispersed inside CNTs (Figure 1a). The Pt particle distribution is fairly uniform in Pt–in/CNTs and complete on the outer surface of Pt–out/CNTs (Figure 1c), but is random at both inside and outside Pt–imp/CNTs (Figure 1b). The Pt particle sizes in Pt–out/CNTs (10.3 nm) and Pt–imp/CNTs (5.5 nm) are both significantly larger than Pt–in/CNTs (2.4 nm), indicating that the nano-space in CNTs can effectively inhibit the aggregation of Pt particles.
Figure 2 show the N2 adsorption–desorption isotherms and pore size distributions of different catalysts. Clearly, all catalysts have similar Type III isotherms and have an obvious hysteresis loop at relatively high pressures, which is due to the typical capillary condensation caused by the mesopore or accumulated pores in the catalysts.
The specific surface areas, pore volumes, and average pore diameters of both CNTs and catalysts are summarized in Table 1. The texture parameters of the CNTs improved after pretreatment with HNO3, which was due to the end opening of the CNTs and the removal of impurities [28]. Compared with acid-treated CNTs, the specific surface areas of the catalysts decreased, but only slightly, because of the low load of Pt (3 wt %). It is noticed that the pore volumes and average pore diameters of the catalysts all increase slightly, which may be due to the decomposition of carbon oxygen compounds during the catalyst synthesis. The Pt dispersion degree in Pt–in/CNTs is higher that that in Pt–out/CNTs and Pt–imp/CNTs.
The X-ray diffraction (XRD) patterns of CNTs and catalysts are shown in Figure 3. The strong diffraction peaks at 26.1° and 42.9° are attributed to the hexagonal graphite structure (002) and (100), which suggests CNTs have a hexagonal graphite structure [29]. The Pt–out/CNTs show three diffraction peaks at 39.7°, 46.2° and 67.4°, which are attributed to the Pt (111), (200), and (220) peaks, respectively, indicating the presence of Pt in a face-centered cubic (fcc) structure. The Pt (111) crystal plane is more evident in Pt–out/CNTs, and its intensity is obviously stronger than in Pt–in/CNTs and Pt–imp/CNTs. The decrease in peak intensity under the same Pt load indicates that the Pt nanoparticles are small and highly dispersed, which is consistent with TEM spectra.
The reducibility of the catalysts in H2 atmosphere determined by temperature programmed reduction (TPR) experiments is presented in Figure 4. For Pt–in/CNTs, H2 reduction was initiated at 390 K and the peak appeared at 466 K. This TPR peak can be ascribed to the continual multi-step single-electron reduction of Ptn+ [30]. The peaks at the temperature above 573 K can be attributed to the decomposition of the oxygen-containing groups on the surfaces of the CNTs (about 573–973 K) [31] and to the gasification of graphene (about 873 K) [32]. The occurrence temperature of reduction peakschange as follows: Pt–out/CNTs > Pt–imp/CNTs > Pt–in/CNTs. The higher temperature of the Pt4+-to-Pt0 reduction indicates the relatively poor dispersion of metal salt precursors. Pt4+ confined inside CNTs can be easily reduced because of the confinement [16,17,33] and hydrogen spill-over functional groups [34]. This phenomenon can also be explained by electronic effects. Chen et al. [16] reported that the reduction of Fe2O3 encapsulated in CNTs were facilitated compared with Fe2O3 encapsulated out of CNTs and thought the π electron density of graphene layers shifted from the inner to the outer surface of CNTs, which resulted in the electron deficiency inside CNTs. Thus, the interaction of Fe2O3 with the interior CNTs walls is different from that with the exterior walls. This interaction with the encapsulated Fe2O3, which can destabilize Fe2O3, can at least partially compensate the electron density loss within the channels.
As shown in Figure 5, the Pt4f spectra of the catalysts could be deconvoluted into two pairs of doublets attributed to Pt0 and Pt2+, respectively. The binding energy and relative concentration of Pt species are summarized in Table 2. For Pt–in/CNTs, the doublet at 71.3 and 74.6 eV is attributed to Pt0, and the doublet at 72.0 and 75.7 eV is assigned to Pt2+. By evaluating the compositions of different Pt species, we find that the percentage of Pt0/(Pt0+Pt2+) is 52.5% (Table 1), which indicates the Pt precursor (H2PtCl6) was reduced mostly to Pt0 and slightly to Pt2+ [35]. In the cases of Pt–imp/CNTs and Pt–out/CNTs, the percentages of Pt0/(Pt0+Pt2+) are 35.0% and 31.3%, respectively, indicating that internal loading can promote the reduction of Pt4+ and the formation of Pt0. Chen et al. [16] studied how the confinement in CNTs would affect the activity of Fischer–Tropsch iron catalysts and found that the iron species encapsulated inside CNTs tended to exist in a more reduced state, forming more iron carbides. As for Pt–in/CNTs, the peak of Pt0 (72.0 eV) shifts positively by 0.9 eV compared to pure Pt (71.1 eV). As for Pt–imp/CNTs and Pt–out/CNTs, the Pt0 peaks for Pt4f7/2 appear at 71.9 and 71.7 eV, respectively, and the Pt4f7/2 signal shifts positively by 0.8 and 0.6 eV with respect to pure Pt. The positive shift of the Pt0 peak should be attributed to the presence of small nanoparticles [36,37], which agrees well with the TEM spectra in Figure 1.
Table 2 shows the phenol hydrogenation performances of Pt–in/CNTs, Pt–imp/CNTs, and Pt–out/CNTs. Catalytic activity of phenol hydrogenation over the CNTs-supported Pt catalysts ranks as follows: Pt–in/CNTs > Pt–imp/CNTs > Pt–out/CNTs. The activities of phenol hydrogenation are different among the three catalysts with the same Pt load, which can be attributed to the different dispersions. Regarding the structural properties of the CNTs, their nanoscale tubular structure endows them with a unique confinement effect. Given the components with catalytic activity, TEM (Figure 1) and XPS (Figure 5) both show that intratubal loading versus extratubal loading can first effectively inhibit the growth and aggregation of Pt particles, providing larger active specific surfaces under the same Pt load, and secondly help to increase the concentration of active Pt0 in the catalyst. With regard to catalytic reactions, the phenol hydrogenation occurs inside of Pt–in/CNTs and outside of Pt–out/CNTs. Compared with the outer spaces, the internal nanospaces of CNTs act as a nanoreactor for phenol hydrogenation. Guan et al. [38] reported that the CNTs as a nanoreactor function not only to enrich the molecules inside the channels, but also to stabilize the higher oxidative state of Pt.
Since the reuse performance of the supported noble metal catalysts is one major factor in practical application, we also examined the catalytic performances of the recycled catalysts (Table 3). After four consecutive cycles, the phenol conversion of Pt–in/CNTs, dropped from 97.3% to 95.4%, while that of Pt–out/CNTs reduced from 11.6% to 7.4%, indicating that Pt–in/CNTs had higher reusability than Pt–out/CNTs. On one hand, inductive coupled plasma emission spectra (ICP) analysis (Table 3) showed that the Pt load decreased from 3.02 wt % to 2.95 wt % in Pt–in/CNTs, and from 3.01 wt % to 2.54 wt % in Pt–out/CNTs. These changes indicate that the loss of Pt particles can be effectively suppressed by intratubal loading more so than extratubal loading. On the other hand, the intratubal space of CNTs can restrict the aggregation of Pt particles. Therefore, the Pt–in/CNTs showed good reuse performance. It should also be noted that the selectivity of cyclohexanone increased from 77.5% to 83.4% after four consecutive cycles, whereas the conversion was approximately the same.
After treatment by HNO3, the oxygen-containing groups endowed the CNTs with stronger hydrophilicity, which was unfavorable for catalyst dispersion in dichloromethane. However, in the reaction medium of pure water, the phenol conversion of Pt–imp/CNTs was only 8.8% (Table 4). In pure water, the phenol conversion of both Pt–in/CNTs and Pt–out/CNTs dropped, and the corresponding selectivity of cyclohexanol both increased. The use of the dichloromethane–water solvent efficiently improved the phenol hydrogenation activity of Pt–imp/CNTs. Compared with pure dichloromethane, when the mixed medium contained 10 wt % water, the phenol conversion of Pt–imp/CNTs increased from 33.8% to 86.0%, and the corresponding selectivity of cyclohexanone rose from 75.3% to 99.4%. When the water concentration further rose to 15 wt %, the phenol conversion rose to 89.6%, but the selectivity of cyclohexanone dropped to 94.3%. As for Pt–out/CNTs, when the water concentration was 10 wt %, the phenol conversion increased from 11.6% to 75.3%, while the selectivity of cyclohexanone rose from 72.3% to 93.1%. Unlike Pt–imp/CNTs or Pt–out/CNTs, the phenol conversion of Pt–in/CNTs declined from 97.3% to 72.5%, while the selectivity of cyclohexanone dropped from 77.5% to 48.9%.
The mechanism of phenol hydrogenation over Pt–in/CNTs and Pt–out/CNTs are shown in Figure 6. Under high-speed stirring, the dichloromethane–water mixed system reached a latex phase, where the water phase was dispersed in the form of nuclei, while the hydrophilicity of CNTs improved the catalyst dispersity in water. Upon the dichloromethane/water interfaces, the interaction between the hydroxyl groups of phenol and the hydroxyl groups of CNTs enhanced the phenol absorbability onto the catalyst. Under the action of extratubally loaded Pt, the cyclohexanone resulting from hydrogenation became less water-soluble, but dissolved more in the dichloromethane. Thus, under the stirring condition, the cyclohexanone migrated to the dichloromethane, which reduced further hydrogenation and improved the cyclohexanone selectivity. For the intratubally loaded Pt, however, the hydrophilicity of CNTs and the low water solubility of phenol (reaction at 323 K) inhibited the contact between active component and phenol. Moreover, the cyclohexanone resulting from phenol hydrogenation could not spread to the dichloromethane in time, but instead was adsorbed intratubally into the nanoscale structures of CNTs, further promoting the hydrogenation to form cyclohexanol. Immediately after its formation, hydroxyl groups of cyclohexanol further reacted with the hydroxyl groups of CNTs to form hydrogen bonds, which led to a competitive catalyst surface adsorption between cyclohexanol and phenol. As the reactions proceeded, the amount of cyclohexanol formed in the catalyst increased, and the amount of adsorbed phenol declined, leading to a decline of phenol conversion and an increase in cyclohexanol selectivity. These changes also account for the low phenol conversion and the high cyclohexanol selectivity in pure water.

3. Experimental

3.1. Chemicals

CNTs were purchased from Shenzhen Nanotech Port Co., Ltd. (Shenzhen, China) H2PtCl6 were purchased from Shenyang Jinke Reagent Company (Shenyang, China) and CH2Cl2 from Shenyang Huadong Reagent Company (Shenyang, China). Ethanol, phenol and HNO3 were purchased from Haerbin chemical Reagent Company (Harbin, China). All the chemicals were analytical grade with no further treatment. Deionized water was used for solution preparation.

3.2. Catalyst Preparation

Based on the difference in the interface energies of ethanol and water with the CNTs surface, Pt particles were selectively deposited inside and outside CNTs, which were denoted as Pt–in/CNTs and Pt–out/CNTs. Prior to impregnation, pristine CNTs were treated with HNO3 reflux at 398 K for 6 h. ForPt–in/CNTs, 0.1 g of CNTs were impregnated with 0.35 mL of H2PtCl6 ethanol solution (about 2/3 of CNTs saturated water absorption rate (5.23 mL/g)) at 293 K, followed by adding of 0.26 mL of H2O. After being dried, the samples were treated in H2 at 573 K for 3 h to reduce the Pt precursors into Pt metal. For Pt–out/CNTs, 0.1 g of CNTs were impregnated with 0.52 mL of ethanol, followed by an addition of 0.35 mL of H2PtCl6 aqueous solution. The drying and reducing process were performed the same as for Pt–in/CNTs. For comparison, CNTs-supported Pt was also prepared by incipient wetness impregnation with an H2PtCl6 aqueous solution, which was denoted as Pt–imp/CNTs. The Pt theoretical load was 3 wt %.

3.3. Catalyst Characterization

TEM was performed on a JEOL JEM–4000EX microscope (JEOL, Tokyo, Japan). N2 physisorption measurements were carried out using a TristarII 3020 surface area and porosity analyzer (Micromeritic, Atlanta, GA, USA). Pore size distributions were obtained from the isotherm adsorption branch, using the Barrett–Joyner–Halenda model. The Pt dispersion, expressed in terms of CO chemisorbed/Pttotal, was calculated by assuming a CO-to-surface Pt atom ratio of 1:1 [26]. XRD was performed on a Rigaku D/max–2200PC diffractometer (Rigaku, Tokyo, Japan) using CuKα radiation. TPR was performed on a Chem BET 3000 chemical adsorption instrument (Quantachrome, Boynton Beach, FL, USA) by heating the sample from ambient temperature to 1073 K at 10 K/min in a stream of 5 vol % H2/N2 mixture (40 mL/min). XPS spectra were attained with a Thermofisher Scientific K–Alpha instrument (Thermofisher, New York, NY, USA). The Pt load (wt %) was analyzed by means of an ICPS-7510 inductively coupled plasma spectrometer (Shimadzu, Tokyo, Japan).

3.4. Catalytic Hydrogenation Activity Test

Hydrogenation of phenol was carried out in a 50 mL stainless steel autoclave with a Teflon inner layer. Twenty milli grams of catalyst was dispersed in a 10 mL dichloromethane (or dichloromethane–water mixture) solution of 0.5 g of phenol. The reactor was sealed and purged with H2 six times. Then, the reaction was carried out at 323 K for 30 min with 0.5 MPa H2 at a stirring speed of 700 rpm. After cooling to ambient temperature, the liquid reactants were analyzed by gas chromatogram (GC–14, Shimadzu, Tokyo, Japan) with a 30 m capillary column (DB–WAX) using a flame ionization detector, and were identified by gas chromatography/mass spectrometry (GC/MS, Agilent 5890, Santa Clara, CA, USA).

4. Conclusions

Pt/CNTs catalysts, with selective deposition of Pt nanoparticles inside and outside CNTs, were prepared based on the difference in the interface energies of ethanol and water with the CNTs surface. Intratubal loading, compared to extratubal loading, features a smaller Pt particle size, a greater dispersity, greater phenol hydrogenation activity, greater cyclohexanone selectivity, and more effectively inhibited the loss of active components and increased catalyst stability. For Pt/CNTs prepared by extratubal loading, using the dichloromethane–water mixture as the reaction solvent significantly improved the catalytic activity for phenol hydrogenation and selectivity of cyclohexanone. The phenol hydrogenation activity and cyclohexanone selectivity of the Pt/CNTs prepared from incipient wetness impregnation were significantly improved by the dichloromethane–water mixture containing 10 wt % water.

Acknowledgments

The authors acknowledge the financial supports from the China Petroleum and Chemical Industry Federation (2016-09-01).

Author Contributions

Feng Li, Cuiqin Li, and Hua Song conceived and designed the experiments; Feng Li, Bo Cao, and Wenxi Zhu performed the experiments; Keliang Wang and Cuiqin Li analyzed the data; Feng Li contributed reagents/materials/analysis tools; Feng Li and Cuiqin Li wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nie, R.; Miao, M.; Du, W.; Shi, J.; Liu, Y.; Hou, Z. Selective hydrogenation of C=C bond over N–doped reduced graphene oxides supported Pd catalyst. Appl. Catal. B Environ. 2016, 180, 607–613. [Google Scholar] [CrossRef] [Scilit]
  2. Zhang, L.; Wang, B.; Ding, Y.; Wen, G.; Hamid, S.B.A.; Su, D. Disintefrative activation of Pd nanoparticles on carbon nanotubes for catalytic phenol hydrogenation. Catal. Sci. Technol. 2016, 6, 1003–1006. [Google Scholar] [CrossRef] [Scilit]
  3. Chen, J.; Zhang, W.; Chen, L.; Ma, L.; Gao, H.; Wang, T. Direct selective hydrogenation of phenol and derivatives over polyaniline-functionalized carbon-nanotube-supported palladium. ChemPlusChem 2013, 78, 142–148. [Google Scholar] [CrossRef] [Scilit]
  4. Xiang, Y.; Kong, L.; Xie, P.; Xu, T.; Wang, J.; Li, X. Carbon nanotubes and activated carbons supported catalysts for phenol in situ hydrogenation: Hydrophobic/hydrophilic effect. Ind. Eng. Chem. Res. 2014, 53, 2197–2203. [Google Scholar] [CrossRef] [Scilit]
  5. Xu, T.; Zhang, Q.; Cen, J.; Xiang, Y.; Li, X. Selectivity tailoring of Pd/CNTs in phenol hydrogenation by surface modification: Role of C–O oxygen species. Appl. Surf. Sci. 2015, 324, 634–639. [Google Scholar] [CrossRef] [Scilit]
  6. Yang, X.; Yu, X.; Long, L.; Wang, T.; Ma, L.; Wu, L.; Bai, Y.; Li, X.; Liao, S. Pt nanoparticles entrapped in titanate nanotubes (TNT) for phenol hydrogenation: The confinement effect of TNT. Chem. Commun. 2014, 50, 2794–2796. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  7. Ertas, I.E.; Gulcan, M.; Bulut, A.; Yurderi, M.; Zahmakiran, M. Metal–organic framework (MIL–101) stabilized ruthenium nanoparticles: Highly efficient catalytic material in the phenol hydrogenation. Microporous Mesoporous Mater. 2016, 226, 94–103. [Google Scholar] [CrossRef] [Scilit]
  8. Kuklin, S.; Maximov, A.; Zolotukhina, A.; Karakhanov, E. New approach for highly selective hydrogenation of phenol to cyclohexanone: Combination of rhodium nanoparticles and cyclodextrins. Catal. Commun. 2016, 73, 63–68. [Google Scholar] [CrossRef] [Scilit]
  9. Zhang, Q.; Li, H.; Gao, P.; Wang, L. PVP–NiB amorphous catalyst for selective hydrogenation of phenol and its derivatives. Chin. J. Catal. 2014, 35, 1793–1799. [Google Scholar] [CrossRef] [Scilit]
  10. Boullosa–Eiras, S.; Lødeng, R.; Bergem, H.; Stöcker, M.; Hannevold, L.; Blekkan, E.A. Catalytic hydrodeoxygenation (HDO) of phenol over supported molybdenum carbide, nitride, phosphide and oxide catalysts. Catal. Today 2014, 223, 44–53. [Google Scholar] [CrossRef] [Scilit]
  11. Melchionna, M.; Marchesan, S.; Prato, M.; Fornasiero, P. Carbon nanotubes and catalysis: The many facets of a successful marriage. Catal. Sci. Technol. 2015, 46, 3859–3875. [Google Scholar] [CrossRef] [Scilit]
  12. Wildgoose, G.G.; Banks, C.E.; Compton, R.G. Metal nanoparticles and related materials supported on carbon nanotubes: Methods and applications. Small 2006, 2, 182–193. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  13. Melchionna, M.; Prato, M. Functionalizing carbon nanotubes: An indispensible step towards applications. ECSJ. Solid State Sci. Technol. 2013, 2, M3040–M3045. [Google Scholar] [CrossRef] [Scilit]
  14. Matos, J.; Corma, A. Selective phenol hydrogenation in aqueous phase on Pd-based catalysts supported on hybrid TiO2-carbon materials. Appl. Catal. A Gen. 2011, 404, 103–112. [Google Scholar] [CrossRef] [Scilit]
  15. Makowski, P.; Cakan, R.D.; Antonietti, M.; Goettmann, F.; Titirici, M.M. Selective partial hydrogenation of hydroxy aromatic derivatives with palladium nanoparticles supported on hydrophilic carbon. Chem. Commun. 2008, 8, 999–1001. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  16. Li, F.; Ma, R.; Cao, B.; Liang, J.; Ren, Q.; Song, H. Effect of Co-B supporting methods on the hydrogenation of m-chloronitrobenzene over Co-B/CNTs amorphous alloy catalysts. Appl. Catal. A Gen. 2016, 514, 248–252. [Google Scholar] [CrossRef] [Scilit]
  17. Deng, D.; Yu, L.; Chen, X.; Wang, G.; Jin, L.; Pan, X.; Deng, J.; Sun, G.; Bao, X. Iron encapsulated within pod-like carbon nanotubes for oxygen reduction reaction. Angew. Chem. Int. Ed. 2013, 52, 371–375. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  18. Chen, W.; Fan, Z.; Pan, X.; Bao, X. Effect of confinement in carbon nanotubes on the activity of Fischer−Tropsch iron Catalyst. J. Am. Chem. Soc. 2008, 130, 9414–9419. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  19. Tavasoli, A.; Trépanier, M.; Dalai, A.K.; Abatzoglou, N. Effect of confinement in carbon nanotubes on the activity, selectivity, and lifetime of Fischer-Tropsch Co/carbon nanotube catalysts. J. Chem. Eng. Data 2010, 55, 2757–2763. [Google Scholar] [CrossRef] [Scilit]
  20. Li, X.; Zhang, L.; Tan, R.P.; Fazzini, P.F.; Hungria, T.; Durand, J.; Lachaize, S.; Sun, W.H.; Respaud, M.; Soulantica, K.; Serp, P. Isoprene polymerization on iron nanoparticles confined in carbon nanotubes. Chem. Eur. J. 2015, 21, 17437–17444. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  21. Castillejos, E.; Debouttière, P.J.; Roiban, L.; Solhy, A.; Martinez, V.; Kihn, Y.; Ersen, O.; Philippot, K.; Chaudret, B.; Serp, P. An efficient strategy to drive nanoparticles into carbon nanotubes and the remarkable effect of confinement on their catalytic performance. Angew. Chem. Int. Ed. 2009, 48, 2529–2533. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  22. Ha, K.S.; Kwak, G.; Jun, K.W.; Hwang, J.; Lee, J. Ordered mesoporous carbon nanochannel reactors for high–performance Fischer–Tropsch synthesis. Chem. Commun. 2013, 49, 5141–5143. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  23. Lemus–Yegres, L.J.; Román–Martínez, M.C.; Such–Basáñez, I.; Lecea, C.S.M. Effects of confinement in hybrid diamine–Rh complex–carbon catalysts used for hydrogenation reactions. Microporous Mesoporous Mater. 2008, 109, 305–316. [Google Scholar] [CrossRef] [Scilit]
  24. Xiao, J.; Pan, X.; Guo, S.; Ren, P.; Bao, X. Toward fundamentals of confined catalysis in carbon nanotubes. J. Am. Chem. Soc. 2015, 137, 477–482. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  25. Tessonnier, J.P.; Ersen, O.; Weinberg, G.; Pham–Huu, C.; Su, D.S.; Schlögl, R. Selective deposition of metal nanoparticles inside or outside multiwalled carbon nanotubes. ACS Nano 2009, 3, 2081–2089. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  26. Haneda, M.; Watanabe, T.; Kamiuchi, N.; Ozawa, M. Effect of platinum dispersion on the catalytic activity of Pt/Al2O3 for the oxidation of carbon monoxide and propene. Appl. Catal. B Environ. 2013, 142–143, 8–14. [Google Scholar] [CrossRef] [Scilit]
  27. Hu, C.; Creaser, D.; Fouladvand, S.; Grönbeck, H.; Skoglundh, M. Methyl crotonate hydrogenation over Pt: Effects of support and metal dispersion. Appl. Catal. A Gen. 2016, 511, 106–116. [Google Scholar] [CrossRef] [Scilit]
  28. Shi, L.; Chu, W.; Deng, S. Catalytic properties of Cu-Co catalysts supported on HNO3-pretreated CNTs for higher-alcohol synthesis. J. Nat. Gas Chem. 2011, 20, 48–52. [Google Scholar] [CrossRef] [Scilit]
  29. Arciniega Cano, O.; Rodríguez González, C.A.; Hernández Paz, J.F.; Amezaga Madrid, P.; García Casillas, P.E.; Martínez Hernández, A.L.; Martínez Pérez, C.A. Catalytic activity of palladium nanocubes/multiwalled carbon nanotubes structures for methyl orange dye removal. Catal. Today 2017, 282, 168–173. [Google Scholar] [CrossRef] [Scilit]
  30. Yang, L.; Lin, G.D.; Zhang, H.B. Highly efficient Pd–ZnO catalyst doubly promoted by CNTs and Sc2O3 for methanol steam reforming. Appl. Catal. A Gen. 2013, 455, 137–144. [Google Scholar] [CrossRef] [Scilit]
  31. Li, C.; Shao, Z.; Pang, M.; Williams, C.T.; Liang, C. Carbon nanotubes supported Pt catalysts for phenylacetylene hydrogenation: Effects of oxygen containing surface groups on Pt dispersion and catalytic performance. Catal. Today 2012, 186, 69–75. [Google Scholar] [CrossRef] [Scilit]
  32. Qu, P.F.; Chen, J.G.; Song, Y.H.; Liu, Z.T.; Liu, Z.W.; Li, Y.; Lu, J.; Jiang, J. Effect of Fe(III) on hydrogenation of citral over Pt supported multiwalled carbon nanotube. Catal. Commun. 2015, 68, 105–109. [Google Scholar] [CrossRef] [Scilit]
  33. Zhang, Y.; Liu, Y.; Yang, G.; Endo, Y.; Tsubaki, N. The solvent effects during preparation of Fischer–Tropsch synthesis catalysts: Improvement of reducibility, dispersion of supported cobalt and stability of catalyst. Catal. Today 2009, 142, 85–89. [Google Scholar] [CrossRef] [Scilit]
  34. Davari, M.; Karimi, S.; Tavasoli, A.; Karimi, A. CNTs-supported cobalt catalyst in Fischer–Tropsch via CNTs functionalization. Appl. Catal. A Gen. 2014, 485, 133–142. [Google Scholar] [CrossRef] [Scilit]
  35. Peng, R.; Sun, X.; Li, S.; Chen, L.; Fu, M.; Wu, J.; Ye, D. Shape effect of Pt/CeO2 catalysts on the catalytic oxidation of toluene. Chem. Eng. J. 2016, 306, 1234–1246. [Google Scholar] [CrossRef] [Scilit]
  36. Zhang, C.; Wang, T.; Liu, X.; Ding, Y. Cu-promoted Pt/activated carbon catalyst for glycerol oxidation to lactic acid. J. Mol. Catal. A Chem. 2016, 424, 91–97. [Google Scholar] [CrossRef] [Scilit]
  37. Ryabenkoca, Y.; He, Q.; Miedziak, P.J.; Dummer, N.F.; Taylor, S.H.; Carley, A.F.; Morgan, D.J.; Dimitratos, N.; Willock, D.J.; Bethell, D. The selective oxidation of 1,2-propanediol to lactic acid using mild conditions and gold-based nanoparticulate catalysts. Catal. Today 2013, 203, 139–145. [Google Scholar] [CrossRef] [Scilit]
  38. Guan, Z.; Lu, S.; Li, C. Highly oxidized Pt species stabilized inside carbon nanotubes for asymmetric hydrogenation. Chin. J. Catal. 2015, 36, 1535–1542. [Google Scholar] [CrossRef] [Scilit]
Catalysts 07 00145 g001

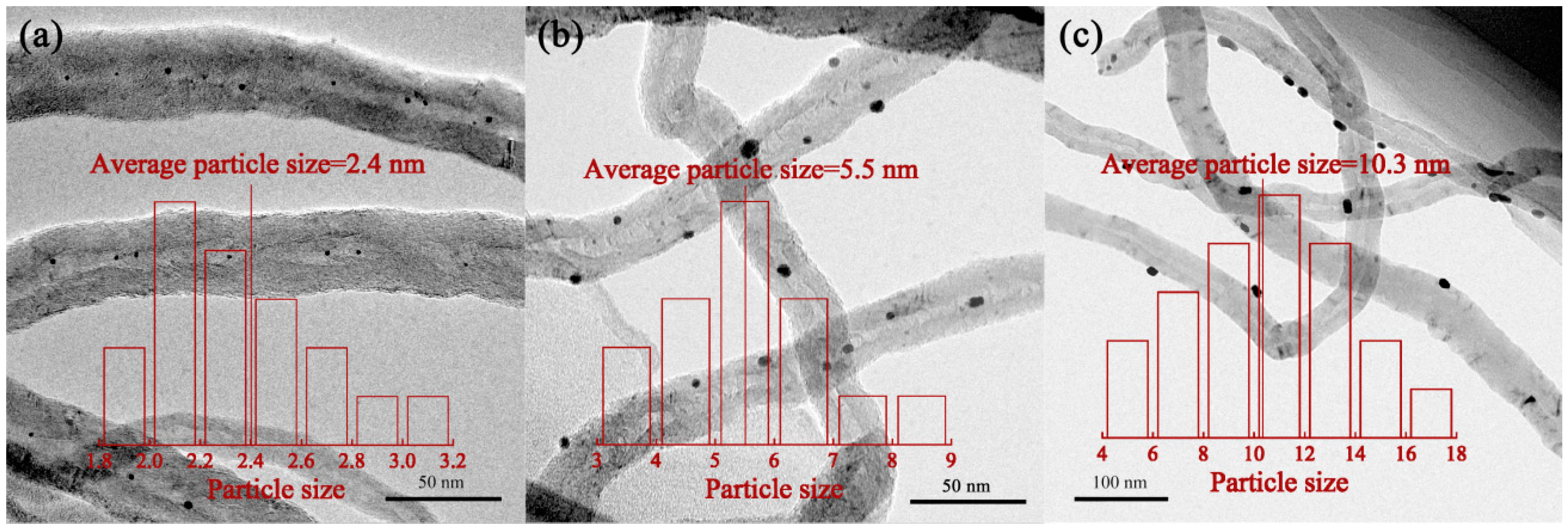

Figure 1. Transmission electron microscopy (TEM) images and particle size distribution of (a) Pt nanoparticles inside carbon nanotubes (CNTs) (Pt–in/CNTs); (b) Pt nanoparticles prepared via incipient wetness impregnation (Pt–imp/CNTs); (c) Pt nanoparticles outside CNTs (Pt–out/CNTs).
Figure 1. Transmission electron microscopy (TEM) images and particle size distribution of (a) Pt nanoparticles inside carbon nanotubes (CNTs) (Pt–in/CNTs); (b) Pt nanoparticles prepared via incipient wetness impregnation (Pt–imp/CNTs); (c) Pt nanoparticles outside CNTs (Pt–out/CNTs).
Catalysts 07 00145 g001
Catalysts 07 00145 g002

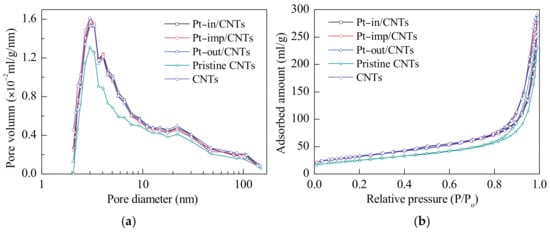

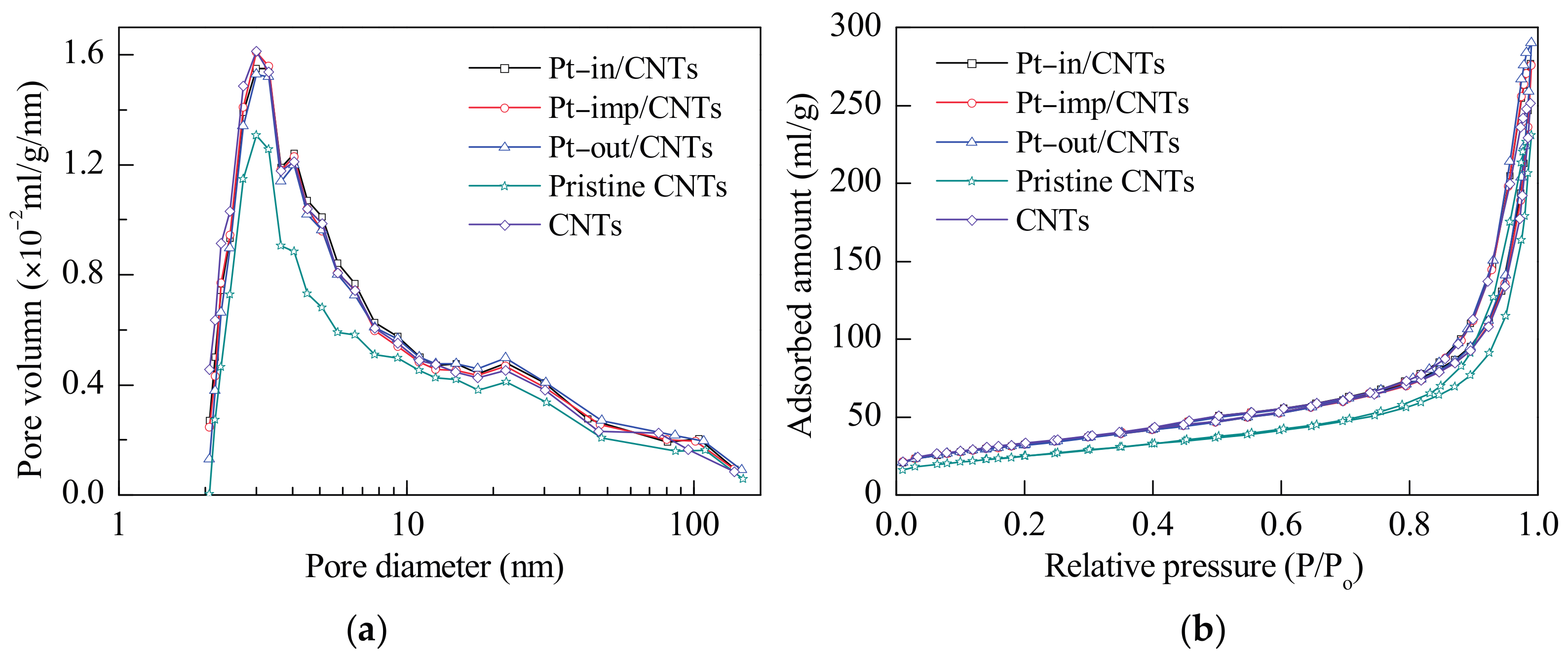

Figure 2. (a) N2 adsorption–desorption isotherms and (b) pore size distribution curves of Pt–in/CNTs, Pt–imp/CNTs, Pt–out/CNTs, pristine CNTs, and CNTs by acid treatment.
Figure 2. (a) N2 adsorption–desorption isotherms and (b) pore size distribution curves of Pt–in/CNTs, Pt–imp/CNTs, Pt–out/CNTs, pristine CNTs, and CNTs by acid treatment.
Catalysts 07 00145 g002
Catalysts 07 00145 g003

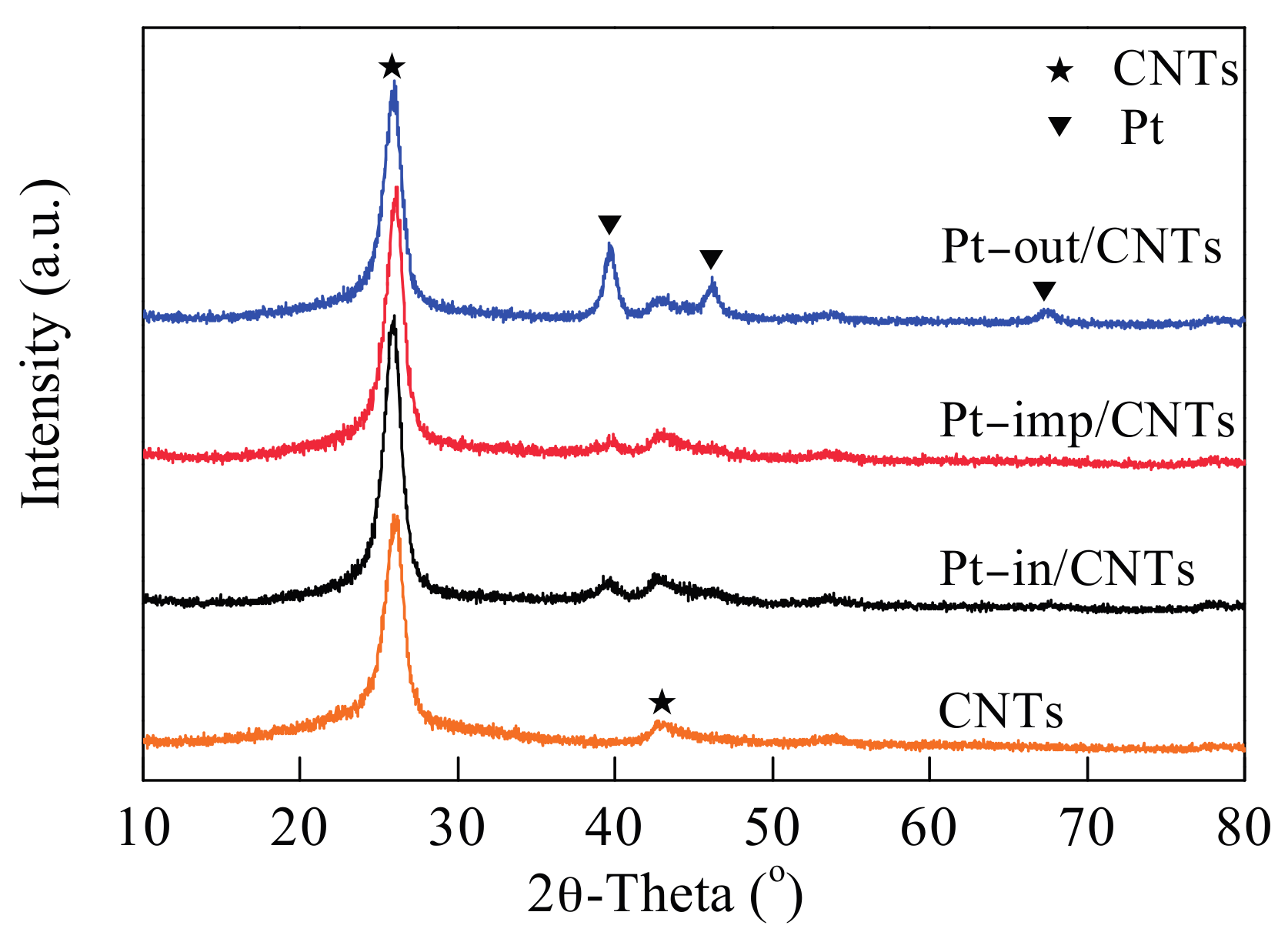

Figure 3. XRD patterns of CNTs, Pt–in/CNTs, Pt–imp/CNTs, and Pt–out/CNTs.
Figure 3. XRD patterns of CNTs, Pt–in/CNTs, Pt–imp/CNTs, and Pt–out/CNTs.
Catalysts 07 00145 g003
Catalysts 07 00145 g004

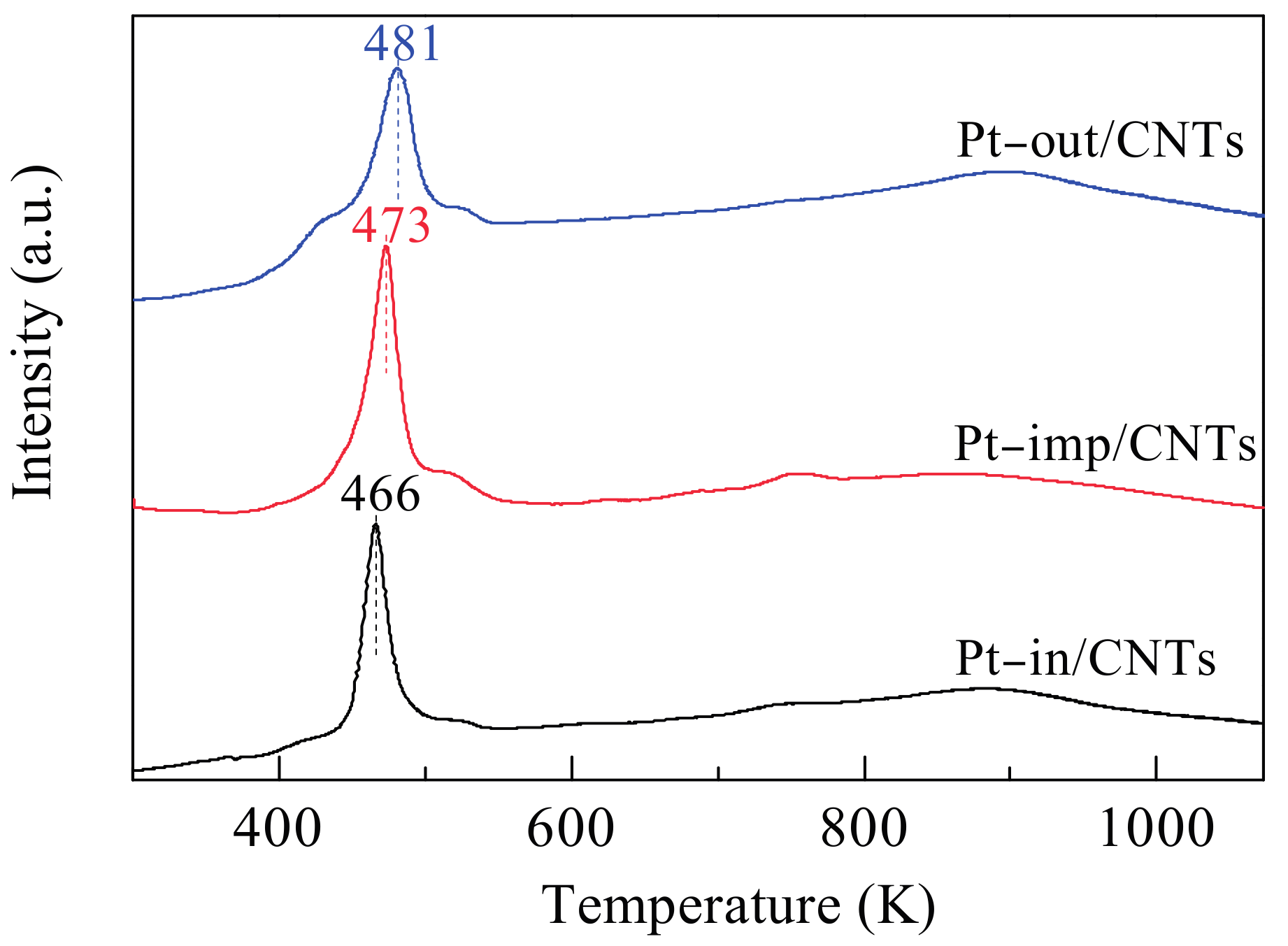

Figure 4. H2–TPR (temperature programmed reduction) profiles of Pt–in/CNTs, Pt–imp/CNTs, and Pt–out/CNTs.
Figure 4. H2–TPR (temperature programmed reduction) profiles of Pt–in/CNTs, Pt–imp/CNTs, and Pt–out/CNTs.
Catalysts 07 00145 g004
Catalysts 07 00145 g005

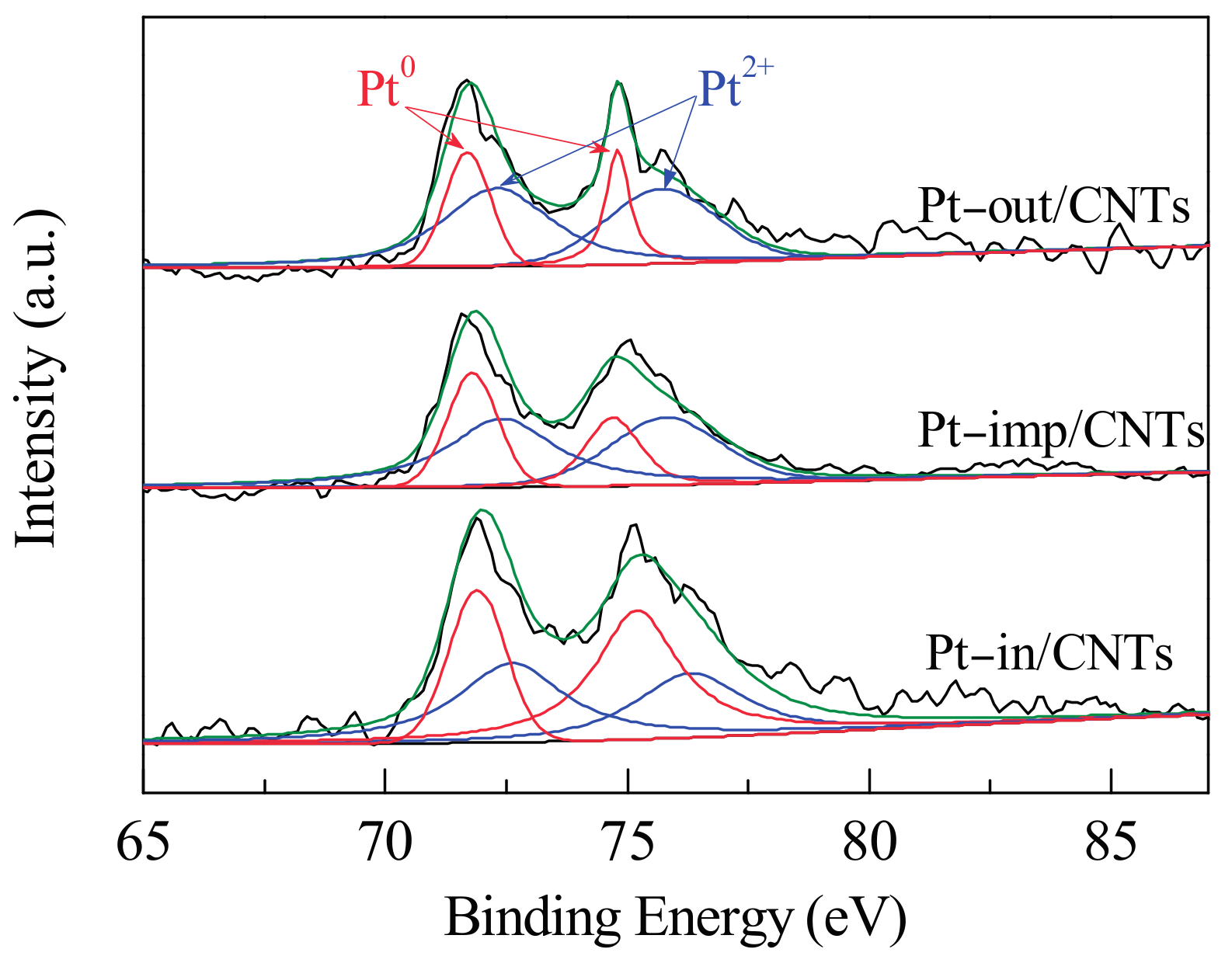

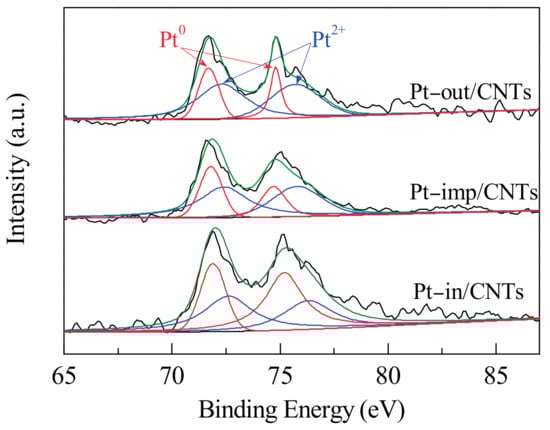

Figure 5. XPS spectra of Pt–in/CNTs, Pt–imp/CNTs, and Pt–out/CNTs.
Figure 5. XPS spectra of Pt–in/CNTs, Pt–imp/CNTs, and Pt–out/CNTs.
Catalysts 07 00145 g005
Catalysts 07 00145 g006

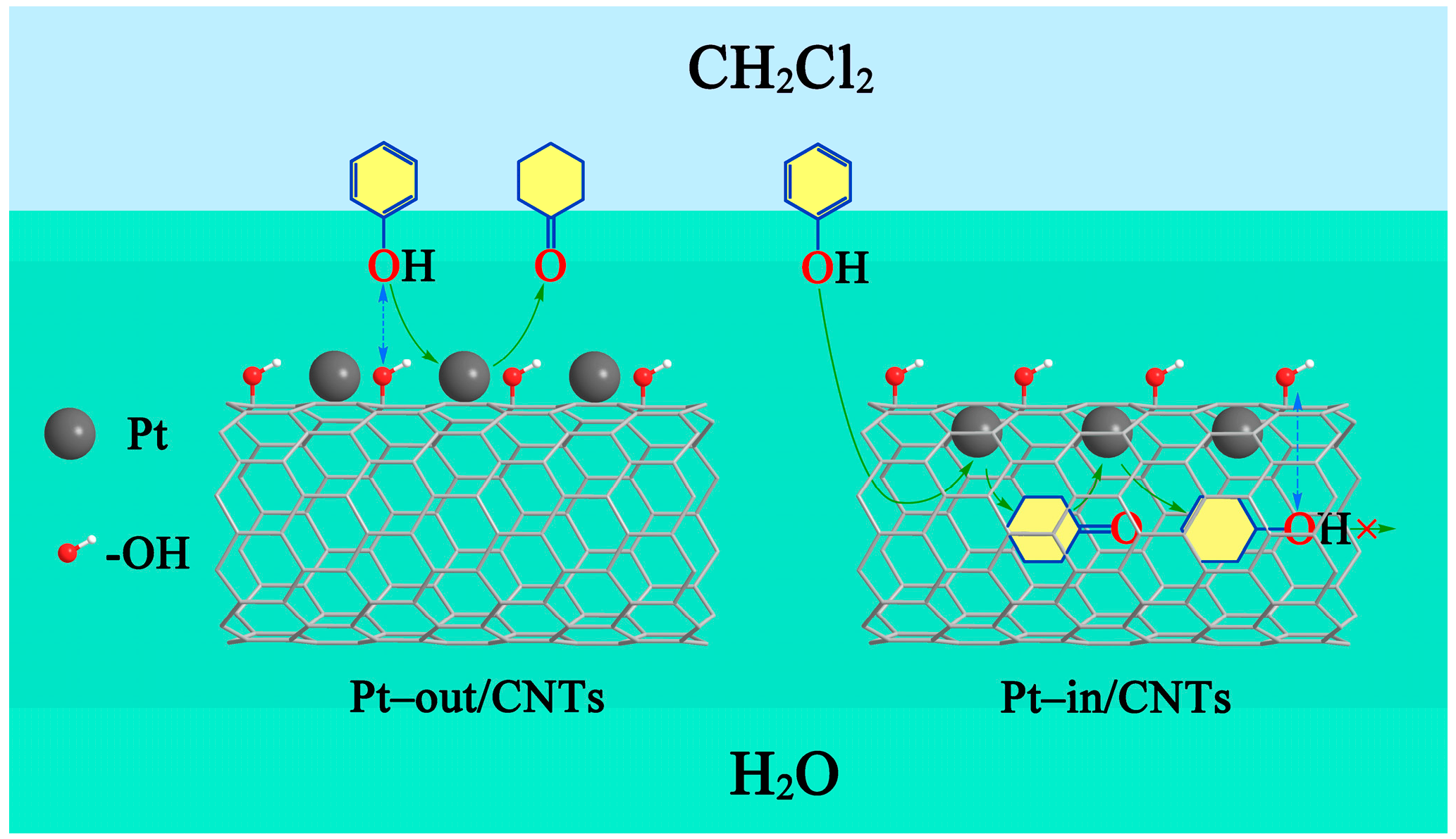

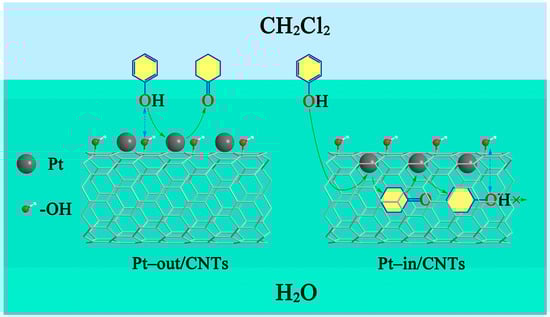

Figure 6. Mechanism of phenol hydrogenation over Pt–in/CNTs and Pt–out/CNTs.
