Catalysts 2017, 7(4), 104; https://doi.org/10.3390/catal7040104

Article
Methanation of Carbon Dioxide over Ni–Ce–Zr Oxides Prepared by One-Pot Hydrolysis of Metal Nitrates with Ammonium Carbonate
1
State Key Laboratory of Advanced Special Steel, Shanghai 200072, China
2
Shanghai Key Laboratory of Advanced Ferrometallurgy, School of Materials Science and Engineering, Shanghai University, Shanghai 200072, China
*
Authors to whom correspondence should be addressed.
Academic Editors: Benoît Louis, Qiang Wang and Marcelo Maciel Pereira
Received: 6 March 2017 / Accepted: 29 March 2017 / Published: 31 March 2017

Abstract

:
Ni–Ce–Zr mixed oxides were prepared through one-pot hydrolysis of mixed metal nitrates with ammonium carbonate for CO2 methanation. The effects of Ce/Zr molar ratio and Ni content on catalysts’ physical and chemical properties, reduction degree of Ni2+, and catalytic properties were systematically investigated. The results showed that Zr could lower metallic Ni particle sizes and alter interaction between Ni and supports, resulting in enhancements in the catalytic activity for CO2 methanation. The Ni–Ce–Zr catalyst containing 40 wt % Ni and Ce/Zr molar ratio of 9:1 exhibited the optimal catalytic properties, with 96.2% CO2 conversion and almost 100% CH4 selectivity at a low temperature of 275 °C. During the tested period of 500 h, CO2 conversion and CH4 selectivity over Ni–Ce–Zr catalyst kept constant under 300 °C.
Keywords:
carbon dioxide; methanation; Ce–Zr oxide; nickel catalyst

1. Introduction

The increasing emissions of CO2 have caused global warming and climate change, affecting human life and the ecological environment, due to the ‘greenhouse effect’. Therefore, CO2 fixation has attracted much interest in achieving a low carbon economy and society. Among the viable solutions to mitigate CO2 emissions, many studies focused on two strategies: (i) CO2 capture and sequestration; and (ii) CO2 conversion to biofuels and high-value chemicals [1,2,3]. With regards to upcoming energy challenges, CO2 conversion seems to be a more attractive and promising approach [2,3]. Considering that the consumption of fuels is two orders of magnitude higher than that of chemicals, CO2 has to be mainly converted into energy carriers such as methane, methanol, and so on [4,5,6,7,8,9].
CO2 methanation, also called the Sabatier reaction (CO2 + 4H2 ↔ CH4 + 2H2O, ∆H298K = −164.7 kJ/mol) [6], presents substantial advantages over CO2 conversion to other fuels because methane can be injected directly into existing natural gas pipelines, or be used as a raw material for production of chemicals. For a reversible exothermic reaction, CO2 methanation is required to perform at lower temperatures in order to obtain methane yield as high as possible. However, low temperature is favorable for CO disproportionation (2CO ↔ CO2 + C, ∆H298K = −172.4 kJ/mol), resulting in coke deposition. Therefore, it is still a great challenge to develop a highly active and coke-resistant catalyst for CO2 methanation.
Ni and noble metals like Ru, Pd and Rh, are reported to be the effective towards CO2 methanation [10,11,12,13,14,15,16,17,18,19,20,21,22,23,24]. Ni-based catalysts are preferred as promising catalysts for this reaction due to their high intrinsic activity and low cost [14,15,16,17,18,19,20,21,22,23,24]. However, supported Ni catalysts frequently suffer from severe deactivation due to particle sintering, interaction of metal particles with carbon monoxide, formation of mobile nickel subcarbonyls, and coke deposition [23]. Numerous investigations have been directed toward catalyst composition and support properties, which strongly influence the activity, stability and coke resistance of Ni catalysts [25,26].
In recent years, nickel-mixed oxides, especially Ni–Ce–Zr mixed oxides, have been believed to be among the potential catalysts for CO2 methanation due to their high oxygen storage capacity and properties to activate CO2 [21,22,23,24]. Nevertheless, these catalysts showed poor catalytic activity and stability under lower temperatures. It has been demonstrated that the catalytic properties of Ni-based catalysts can be improved by modifying catalyst supports, optimizing catalyst compositions, and improving catalyst preparation routes, etc. [25,26,27,28]. Ni–Ce–Zr mixed oxides were reported to prepare through citric sol–gel method [21,22], hydrothermal crystallization method [29] and co-precipitation method [30], etc. However, due to the addition of additional ligand, employing refluxed processing system and washing with distilled hot water, the preparation processes were complex and in high cost. Hence, there is still a great deal of interest in developing a simple one-step approach to fabrication of highly catalytic performance of Ni–Ce–Zr mixed oxides for CO2 methanation.
In this paper, Ni–Ce–Zr mixed oxides were prepared through one-pot hydrolysis of mixed metal nitrates with ammonium carbonate. Effects of Ce/Zr molar ratio and Ni content on catalysts’ physical and chemical properties, and reduction degree of Ni2+ were systematically investigated by XRD, N2 adsorption, H2-TPR. Their catalytic behavior for CO2 methanation with H2 in the range of 150–350 °C was intensively investigated to design an effective catalyst for CO2 methanation.

2. Results and Discussion

2.1. Physicochemical Properties of Ni–Ce1−xZrxO2

The BET specific surface areas (SBET) of the samples were summarized in Table 1. Compared with CeO2, the addition of Ni and/or Zr to CeO2 increased, which was consistent with literature reports [31]. The prepared yNi–Ce1−xZrxO2 (except 40Ni–ZrO2) samples by one-pot method, which contained redundant CeO2, had specific surface areas of ca. 40–70 m2 g−1. The addition amounts of Ni and/or Zr did not change the SBET, likely due to nickel or zirconium species does not significantly change the catalysts accessibility respect to CeO2 [32].
Figure 1 presents the XRD patterns of the 40Ni–Ce1−xZrxO2 (x = 0, 0.05, 0.1, 0.2, 0.3, 1) samples, together with those of CeO2 and Ce0.9Zr0.1O2 for comparison. CeO2 sample showed a typical cubic fluorite structure [21,22,23]. With the addition of Zr, the slight shifts to higher angles of four strong CeO2 diffraction peaks around 2θ = 28.6°, 33.1°, 47.5° and 56.4° and no reflections of ZrO2 phase were observed in Ce0.9Zr0.1O2 sample. The comparison of the XRD patterns for CeO2 and Ce0.9Zr0.1O2 revealed that Ce–Zr solid solution had been formed in the Ce0.9Zr0.1O2 support [27,28]. Compared with CeO2, NiO phase (2θ = 37.2°, 43.3° and 62.9°, corresponding to the (111), (200) and (220)) was observed and the diffraction peaks of CeO2 had no shift of 40Ni–CeO2 sample, implying that nickel was at least partially present as NiO species outside the fluorite structure. With the increasing of Zr, CeO2 diffraction peaks shifted to higher angles of 40Ni–Ce1−xZrxO2 (x = 0.05, 0.1, 0.2, 0.3, 1) samples, attributing to Zr incorporating into the lattice of ceria to form a homogeneous Ce–Zr solid solution [27,28]. For low content of Zr, it was difficult to unequivocally identify formation of a solid solution, as a consequence of the expected slightly shifts to higher angles of CeO2 diffraction peaks. And that, the introduction of higher amounts of Zr into the lattice reduced the observed d-spacing for the catalysts, and hence the diffraction peaks of CeO2 shifted to higher angles distinctly. Furthermore, it was noted that the full width at half maximum (FWHM) of NiO (200) in 40Ni–Ce1−xZrxO2 (x = 0.05, 0.1, 0.2, 0.3) samples became widen than that of 40Ni–CeO2, implying that Zr addition to 40Ni–CeO2 decreased the NiO crystallites sizes.
In order to analyze the effect of Ni content on the structure of yNi–Ce1−xZrxO2 catalysts, the XRD patterns of yNi–Ce0.9Zr0.1O2 (y = 10, 20, 30, 50) catalysts were also analyzed and shown in Figure 2. All the samples showed similar XRD patterns to the corresponding Ce0.9Zr0.1O2 supports except that the yNi–Ce0.9Zr0.1O2 (y = 10, 20, 30, 40, 50) catalysts exhibited NiO crystallites phase (2θ = 37.2°, 43.3° and 62.9°) with different relative intensity. The relative intensity of NiO diffraction peaks was enhanced with increasing Ni contents. No shifts of the diffraction peaks of CeO2 were observed, meaning that the addition of Ni could not change the support structure, in accordance with the XRD results of 40Ni–Ce1−xZrxO2 samples. The result further confirmed that nickel was at least partially present as NiO species outside the fluorite structure.
TPR profiles of pure CeO2, and 40Ni–Ce1−xZrxO2 (x = 0, 0.05, 0.1, 0.2, 0.3 and 1) samples calcined at 500 °C, were displayed in Figure 3. Pure CeO2 and 40Ni–Ce1−xZrxO2 (x = 0, 0.05, 0.1, 0.2, 0.3) samples showed a predominating reduction profile and a weak reduction peak, the maximum values of which were positioned in the temperature ranges of 300–500 °C and 760–950 °C, respectively. The former was ascribed to crystallized NiO on the support surface, and the latter is related to the reduction of CeO2 supports. The single reduction band of NiO species represented a homogeneous metal–support interaction. Compared with 40Ni–CeO2 sample, the reduction peak temperatures for NiO species in TPR profiles increased with increasing Zr contents, implying that Zr addition resulted in strengthening of metal-support interaction. In terms of the 40Ni–ZrO2 sample, the H2-TPR profile showed two reductive peaks centered at ca. 405 °C and 603 °C, respectively. The former was ascribed to the reduction of free NiO particles and the latter was related to the reduction of crystallized NiO which had a strong interaction with the ZrO2 support, implying heterogeneous metal-support interaction. From these observations in combination with XRD patterns in Figure 1, we could reasonably infer that the addition of Zr to Ni–CeO2 could form Ce–Zr solid solution and meanwhile alter the interaction between Ni and Ce1−xZrxO2 support.
The TPR profiles of yNi–Ce0.9Zr0.1O2 (y = 10, 20, 30, 50) catalysts were also shown in Figure 4. All the yNi–Ce0.9Zr0.1O2 samples showed a H2 consumption peak positioned in the temperature range of 350–550 °C, corresponding to the reduction of crystallized NiO which had an interaction with the Ce0.9Zr0.1O2 support. The H2 consumption peak of NiO had no discernible shift and the peak intensity increase in Ni content. The hydrogen consumptions obtained by the integration of the peak areas increased in proportion to Ni content. These results implied the metal-support interaction had no change with increasing Ni content in accordance with the XRD results in Figure 1. NiO could be almost reduced to metallic Ni under the reduction conditions.
It was well known that metallic Ni atoms were active sites for CO2 methanation and Ni-based catalysts should be pre-reduced to form metallic Ni before the methanation reaction. Ni crystallite sizes had close relationships with the activity, the stability, and the resistance to carbon deposition of the catalysts for CO2 methanation. The preliminary results showed that 40Ni–Ce1−xZrxO2 catalysts reduced at 500 °C for two hours had the optimum catalytic performance for CO2 reforming. Herein the XRD patterns of the 40Ni–Ce1−xZrxO2 (x = 0, 0.05, 0.1, 0.2, 0.3, 1) catalysts, together with those of CeO2 and Ce0.9Zr0.1O2 samples reduced at 500 °C in a H2 flow were displayed in Figure 5. It could be seen that the XRD patterns of the CeO2 and Ce0.9Zr0.1O2 samples reduced were almost the same as the corresponding calcined samples. In case of 40Ni–Ce1−xZrxO2, there were three new diffraction peaks at 44.5°, 51.8° and 76.4° corresponding to Ni (111), (200) and (220) reflections, respectively. Correspondingly, the peaks of NiO phase disappeared, indicating that NiO were nearly reduced to metallic Ni, as the TPR results. The Ni diffraction peaks width increased with the addition of Zr, implying that the reduction of the Ni crystallite sizes decreased. As a result, the apparent Ni crystallite sizes estimated from broadening of the Ni (1 1 1) reflection using the Scherrer formula were listed in Table 1. The 40Ni–CeO2 catalyst had an average Ni crystallite size of 27 nm, larger than that of 20 nm for 40Ni–Ce0.95Zr0.05O2, and then the Ni crystallite sizes slightly decreased from 20 to 18 nm with raising Zr molar fraction from 0.05 to 0.1 in the 40Ni–Ce1−xZrxO2 catalysts. With the further increasing Zr content, Ni crystallite sizes slightly increased. These results indicated that addition of Zr could improve the dispersion of Ni species on the catalyst surface as reported in the literatures [27]. yNi–Ce0.9Zr0.1O2 (y = 10, 20, 30, 50) catalysts with different Ni content were reduced under the present conditions and the XRD patterns were shown in Figure 6. Ni crystallite sizes of yNi–Ce0.9Zr0.1O2 (y = 10, 20, 30, 50) catalysts estimated using the Scherrer formula were also displayed in Table 1. Ni crystallite sizes decreased from 23 to 18 nm when the Ni content was raised from 10 to 40%, and then Ni crystallite sizes increased to 21 nm with further increasing Ni content to 50%. These results indicate that if the nickel content was excessively high, a portion of the Ni particles agglomerate instead of interacting with the support. As a whole, Ni crystallite sizes had no obvious aggregation and growth with the increasing Ni content, indicating that the preparation method was suitable for preparing high-loaded Ni-based catalysts with acceptable Ni crystallite sizes.

2.2. Catalysis Reaction

The catalytic performance of the prepared catalysts was investigated for CO2 methanation. For all tested catalyst, the CH4 selectivities were found to be >99.9%. Therefore, only CO2 conversions were shown to evaluate the catalytic performance.
In order to study the effect of the preparation method, 40Ni–Ce0.9Zr0.1O2, 40Ni–Ce0.9Zr0.1O2-SC, 40Ni–Ce0.9Zr0.1O2-SH, 40Ni–Ce0.9Zr0.1O2-AH, and 40Ni–Ce0.9Zr0.1O2-imp were firstly investigated for CO2 methanation with a H2 to CO2 molar ratio of four and GHSV of 3000 mL gcat−1 h−1 under 150–350 °C. Figure 7 presented CO2 conversion versus temperature. 40Ni–Ce0.9Zr0.1O2 prepared through one-pot hydrolysis of mixed metal nitrates with ammonium carbonate exhibited the highest catalytic activity in comparison to other preparation methods in all tested reaction temperature range. Moreover, it was found that the maximal levels of CO2 conversion in the presence of the 40Ni–Ce0.9Zr0.1O2 catalyst was 97.0% at 275 °C, which reached chemical equilibrium value. In the case of the 40Ni–Ce0.9Zr0.1O2-SC, 40Ni–Ce0.9Zr0.1O2-SH, 40Ni–Ce0.9Zr0.1O2-AH, and 40Ni–Ce0.9Zr0.1O2-imp catalysts, however, the highest CO2 conversion (ca. 92.0%) were obtained under 350 °C.
The yNi–Ce1−xZrxO2 catalysts prepared through one-pot hydrolysis of mixed metal nitrates with ammonium carbonate were investigated in detail. The effect of catalyst composition on the performance of CO2 methanation was investigated and the results were presented in Figure 8. CO2 conversion rapidly increased with elevating the reaction temperature and reached the highest value at 275 °C on all tested catalysts. However, if the reaction temperature was further increased to 350 °C, the catalytic activity started to decline. It was generally known that the CO2 conversion would decrease at unnecessarily high temperatures because of the endothermic and reverse reaction. In Figure 8a, it could be seen that 40Ni–CeO2 showed 88.0% CO2 conversion at 250 °C. With raising Zr molar fraction to 0.1, CO2 conversion increased to 95.0%, very close to chemical equilibrium value (~97.5%). As the Zr molar fraction was further increased to 0.3, the catalytic activity was almost kept unchanged. The enhancement of catalytic activity with Zr content was likely responsible for smaller metallic Ni particle sizes and the interaction of Ni with supports on 40Ni–Ce1−xZrxO2 (x = 0.05, 0.1, 0.2, 0.3) catalysts. The effect of Ni content on catalytic performance of the yNi–Ce0.9Zr0.1O2 catalysts for CO2 methanation was shown in Figure 8b. CO2 conversion increased with increasing Ni content from 10 to 40%. Further increasing Ni content to 50%, CO2 conversion slightly decreased. These results were well consistent with the crystallite sizes of metallic Ni.
In order to further analyze the interrelation between the catalytic properties and Ni active sites over yNi–Ce1−xZrxO2 for CO2 methanation, turnover frequencies (TOFs), which reflect the intrinsic activity of the active sites in the catalyst, were carried out at a high GHSV to obtain a low CO2 conversion (≤10%), where the possibility of either the external or internal diffusion limitations were almost completely eliminated. Table 1 summarized the corresponding TOFs over the yNi–Ce1−xZrxO2 catalysts for the CO2 methanation. For 40Ni–Ce1−xZrxO2 (x = 0.05, 0.1, 0.2, 0.3) catalysts, it could be seen that the TOF was higher than that of 40Ni–CeO2 catalyst. It could be seen that the TOFs gradually increased from 0.18 h−1 to 0.31 h−1 with the increase in the Zr molar fraction from 0.05 to 0.1. With further increasing Zr molar fraction to 0.3, the TOFs slightly decreased from 0.31 h−1 to 0.28 h−1. The TOFs showed a reverse trend from the Ni crystallite size. However, in the case of 40Ni–ZrO2 showing smaller Ni crystallite size than 40Ni–Ce0.9Zr0.1O2 catalysts, the TOF was found lower than that of 40Ni–Ce0.9Zr0.1O2. Combated with the TPR result, it could be speculated that the intrinsic rates for the CO2 methanation over the 40Ni–Ce1−xZrxO2 not only depended on the Ni crystallite sizes, but also had a strong correlation with interaction of Ni with supports. Moreover, for yNi–Ce0.9Zr0.1O2 catalysts, Ni contents could not alter the interaction of Ni and Ce0.9Zr0.1O2 support and the TOFs matched well with the metallic Ni particle sizes. It was speculated that Zr could improve lower metallic Ni particle sizes and alter the interaction between Ni and supports, resulting in enhancements in the activity and stability for CO2 methanation.
The stability tests were carried out for the CO2 methanation at 300 °C and GHSV = 28,000 mL gcat−1 h−1 with a H2 to CO2 molar ratio of four over 40Ni–Ce0.9Zr0.1O2 catalyst. Figure 9 showed the catalytic performance as a function of reaction time. It could be seen that 40Ni–Ce0.9Zr0.1O2 catalyst exhibited good stability under the operating conditions. During the tested period of 500 h, the CO2 conversion and CH4 selectivity were constant at ca. 87% and 100% respectively. To the best of our knowledge, this was the first example of Ni-based catalyst, which showed not only high activity but also superior long-term stability at 300 °C.
It has been established that carbon deposition is mainly responsible for the deactivation of Ni-based catalysts. Thus, the amount of carbon deposition on the used catalyst was investigated by TG (not shown). Only trace amounts of carbon were deposited on the catalyst. The percentage of the deposited carbon was less than 0.01 mg gcat−1 h−1. XRD analysis was carried out over the 40Ni–Ce0.9Zr0.1O2 catalyst for CO2 methanation at 300 °C after a reaction time of 500 h (not shown). Compared with before the reaction, the XRD patterns of the used 40Ni–Ce0.9Zr0.1O2 almost remained unchanged and no growth of Ni particle sizes was observed, which was also confirmed by TEM result shown in Figure 10. These results demonstrated that the 40Ni–Ce0.9Zr0.1O2 catalyst possessed a stable structure and the Ni particle sizes were retained during the reaction process.

3. Materials and Methods

3.1. Material Preparation

Ni–Ce–Zr mixed oxides were prepared via one-pot hydrolysis of mixed metal nitrates with ammonium carbonate ((NH4)2CO3). In a typical synthesis, 50 mL of a mixed aqueous solution of metal nitrates with a total metal [Ce + Zr] ion concentration of 0.2 mol L−1 and a required Ni ion concentration was heated to 80 °C. 100 mL of 2 mol L−1 (NH4)2CO3 aqueous solution was directly poured into the mixed aqueous solution of metal nitrates with vigorous magnetic stirring, and at this time, the pH value of the mixture was measured at 8.8–9.0. The mixture was continuously stirred at 80 °C until the water was evaporated out. The obtained solid was dried at 100 °C overnight, and calcined at 500 °C for 5 h in air. The prepared catalysts were denoted as yNi–Ce1−xZrxO2, where x represented Zr molar fraction of the total molar of Ce and Zr, and y represented the content of Ni in wt %.
In order to carry out a comparison study, 40% Ni supported on Ce0.9Zr0.1O2 were synthesized via one-pot hydrolysis of mixed metal nitrates with three other hydrolysis agents (sodium carbonate, sodium hydroxide and ammonium hydroxide). In detail, 50 mL of a mixed aqueous solution with 0.009 mol Ce(NO3)3·6H2O, 0.001 mol Zr(NO3)4·5H2O and 0.0189 mol Ni(NO3)2·6H2O was heated to 80 °C. 2 mol L−1 hydrolysis agent (sodium carbonate, sodium hydroxide, ammonium hydroxide) aqueous solution was respectively dropped into the aqueous solution of inorganic salts with vigorous magnetic stirring until the pH value of the mixture was measured in the range of 8.8–9.0. The resulted precipitate, prepared with sodium carbonate and sodium hydroxide, was filtered and washed with distilled water, then dried at 100 °C overnight, and finally calcined at 500 °C for 5 h in air, which was denoted as 40Ni–Ce0.9Zr0.1O2-SC and 40Ni–Ce0.9Zr0.1O2-SH respectively. The resulted precipitate prepared with ammonium hydroxide was continuously stirred at 80 °C until the water was evaporated out. The obtained solid was dried at 100 °C overnight, and finally calcined at 500 °C for 5 h in air. The prepared catalysts were denoted as 40Ni–Ce0.9Zr0.1O2-AH.
The other sample containing 40 wt % Ni, denoted 40Ni–Ce0.9Zr0.1O2-imp catalyst was prepared by an incipient impregnation method. Ce0.9Zr0.1O2 powder prepared via one-pot hydrolysis of mixed metal nitrates with (NH4)2CO3 was added into an aqueous solution of Ni(NO3)2 under stirring and kept at ambient temperature for 2 h. The mixture was evaporated out 80 °C and then dried at 100 °C overnight, and finally calcined at 500 °C for 5 h in air.

3.2. Material Characterization

BET surface areas of the catalysts were measured by N2 adsorption–desorption using a Micromeritics ASAP 2020 Sorptometer (Micromeritics Instrument Corp., Norcross, GA, USA) at liquid nitrogen temperature (−196 °C). Before the measurement, each sample was degassed to eliminate volatile adsorbents on the surface at 300 °C for 6 h.
Powder X-ray diffraction (XRD) was performed with a D/Max-2550 diffractometer (Rigaku, Tokyo, Japan) using Cu Kα radiation (40 kV, 200 mA). The crystallite sizes of metallic Ni were estimated using the full-widths at half maximum (FWHM) of the Ni (111) peak through the Scherrer equation, as reported in our previous work [33,34].
Temperature-programmed reduction with H2 (H2-TPR) was performed on a homemade equipment to observe the reducibility of the catalysts. TPR measurements were carried out with 0.1 g of catalyst, placed in a quartz reactor and first pretreated in an Ar stream (30 mL min−1) at 300 °C for 0.5 h to remove moisture and other absorbed impurities, and then cooled to 200 °C. The temperature was raised to 1000 °C at a heating rate of 10 °C min−1. The amount of H2 uptake was measured with a thermal conductivity detector (TCD) (Shanghai Kechuang Chromatograph Instruments Co., Ltd., Shanghai, China).
The amount of carbon deposition on the used samples was determined with a thermogravimetric analyzer (TG) (Netzsch STA 4449 F3) (Netzsch Scientific Instruments Trading, Sedanstraße, Germany). The used catalysts were pre-treated at 50 °C for 30 min and then heated up to 800 °C with a rate of 10 °C min−1 in an air flow of 30 mL min−1.
Transmission electron microscope (TEM) micrographs were obtained with a JEM-2010F (JEOL Ltd., Kyoto, Japan) field emission microscope operating at 200 kV. The sample was prepared by placing a drop of the ethanol solution of a well-ground catalyst powder on a carbon-coated copper grid (300 mesh), followed by evaporation of the ethanol.

3.3. Catalytic Test

CO2 methanation was performed in a vertical continuous-flow fixed-bed reactor (inner diameter of 8 mm and a length of 800 mm) at atmospheric pressure. The reaction gases were controlled using mass flow controllers. The actual temperature of the catalyst was monitored using a thermocouple placed in the middle of the catalyst bed. Two hundred milligrams of catalyst diluted with 800 mg of quartz particles (60–80 mesh) was placed between two layers of quartz wool in the center of the reactor. Prior to the reaction, the catalyst was first reduced in situ at 500 °C at a heating rate of 10 °C min−1 under a 20 mL min−1 flow of H2 for 2 h and then cooled to the set reaction temperature (150–350 °C). The effluent gas was cooled in a condenser at room temperature and passed a diorite bed to remove all water. Finally, the dried gas products were analyzed using an on-line GC-TCD chromatograph using TDX-01 and Molecular Sieve 5A packed column (Shanghai Kechuang Chromatograph Instruments Co., Ltd., Shanghai, China). The flow rate of the outlet gas was measured by a soap flow meter. The overall mass balance was more than 98% on the basis of carbon in the starting reactants.
On the basis of the carbon balance in the effluent gas under assumption of no carbon deposition, the conversion of CO2 was defined as the percentage of the total molar flow rate of CH4 and CO in the exit gas to the molar flow rate of CO2 in the feed gas. The selectivity of the CH4 (or CO) was designated as the percentage of the molar of CH4 (or CO) in the total molar of the CH4 and CO.
The turnover frequencies (TOFs) of the yNi–Ce1−xZrxO2 catalysts for the CO2 methanation are defined as the number of converted CO2 molecules per metal Ni atom and hour. In order to precisely determine the intrinsic reaction rate on the metal active sites, the TOFs of the yNi–Ce1−xZrxO2 catalysts were carried out at a high gas hourly space velocity (GHSV) to obtain a low CO2 conversion (≤10%). For this, a 50 mg catalyst powder diluted with 200 mg of quartz powder was used for the reaction with GHSV of 28,000 mL gcat−1 h−1 under 200 °C.
On the assumption that all Ni ions were completely reduced into metallic Ni atoms and formed spherical particles with a diameter (dXRD) determined by the Scherrer equation to the Ni (111) diffraction peaks, and the distance between metal atoms in Ni crystallites was assumed to be 0.249 nm. TOF was calculated by the equation as follows:
TOF = ( N CO 2 , in N Ni × X CO 2 ) × ( d XRD 3 d XRD 3 ( d XRD 0 . 498 ) 3 ) h 1
where NCO2: the flow rate of CO2 in mol h−1 in the feed; NNi: the mole number of Ni in 50 mg catalyst.

4. Conclusions

yNi–Ce1−xZrxO2 catalysts were successfully prepared through the one-pot hydrolysis of mixed metal nitrates with (NH4)2CO3 method. The catalysts showed excellent low-temperature activity and stability in CO2 methanation in the temperature range of 150–350 °C. The catalytic performance not only depended on the Ni crystallite sizes, but also had a strong correlation with interaction of Ni with supports. Zr addition to Ni–CeO2 affected reducibility of Ni2+ ions, the Ni crystallite sizes formed, and interaction between Ni and supports, resulting in excellent catalytic activity, stability and anti-coking ability. The 40Ni–Ce0.9Zr0.1O2 catalyst exhibited optimal catalytic properties. The stability test showed that 40Ni–Ce0.9Zr0.1O2 retained long-term stability without deterioration during the 500 h reaction period. These results will be helpful to develop highly effective Ni-based catalysts for low temperature CO2 methanation.

Acknowledgments

This research was supported by Innovation Program of Shanghai Municipal Education Commission, the Major State Basic Research Development Program of China (No. 2014CB643403), National Science Fund for Distinguished Young Scholars (No. 51225401) and Basic Major Research Program of Science and Technology Commission Foundation of Shanghai (No. 14JC1491400).

Author Contributions

Xueguang Wang and Xiujing Zou conceived and designed the experiments; Wangxin Nie performed the experiments; Xueguang Wang, Xiujing Zou, Weizhong Ding and Xionggang Lu interpreted and analyzed the data; Wangxin Nie and Chenju Chen contributed reagents/materials/analysis tools; Xiujing Zou wrote the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ferey, G.; Serr, C.; Devic, T.; Maurin, G.; Jobic, H.; Llewellyn, P.L.; De Weireld, G.; Vimont, A.; Daturi, M.; Chang, J.S. Why hybrid porous solids capture greenhouse gases? Chem. Soc. Rev. 2011, 40, 550–562. [Google Scholar] [CrossRef] [PubMed]
  2. Hunt, A J.; Sin, E.H.K.; Marriott, R.; Clark, J.H. Generation, capture, and utilization of industrial carbon dioxide. ChemSusChem 2010, 3, 306–322. [Google Scholar] [CrossRef] [PubMed]
  3. Mikkelsen, M.; Jorgensen, M.; Krebs, F.C. The teraton challenge. A review of fixation and transformation of carbon dioxide. Energy Environ. Sci. 2010, 3, 43–81. [Google Scholar] [CrossRef]
  4. Porosoff, M.D.; Yan, B.H.; Chen, J.G. Catalytic reduction of CO2 by H2 for synthesis of CO, methanol and hydrocarbons: Challenges and opportunities. Energy Environ. Sci. 2016, 9, 62–73. [Google Scholar] [CrossRef]
  5. Wang, W.; Wang, S.P.; Ma, X.B.; Gong, J.L. Recent advances in catalytic hydrogenation of carbon dioxide. Chem. Soc. Rev. 2011, 40, 3703–3727. [Google Scholar] [CrossRef] [PubMed]
  6. Gao, J.J.; Liu, Q.; Gu, F.N.; Liu, B.; Zhong, Z.Y.; Su, F.B. Recent advances in methanation catalysts for the production of synthetic natural gas. RSC Adv. 2015, 5, 22759–22776. [Google Scholar] [CrossRef]
  7. Aziz, M.A.A.; Jalil, A.A.; Triwahyono, S.; Ahmad, A. CO2 methanation over heterogeneous catalysts: Recent progress and future prospects. Green Chem. 2015, 17, 2647–2663. [Google Scholar] [CrossRef]
  8. Frontera, P.; Macario, A.; Ferraro, M.; Antonucci, P. Supported catalysts for CO2 methanation: A review. Catalysts 2017, 7, 59. [Google Scholar] [CrossRef]
  9. Fechete, I.; Vedrine, J.C. Nanoporous materials as new engineered catalysts for the synthesis of green fuels. Molecules 2015, 20, 5638–5666. [Google Scholar] [CrossRef] [PubMed]
  10. Abe, T.; Tanizawa, M.; Watanabe, K.; Taguchi, A. CO2 methanation property of Ru nanoparticle-loaded TiO2 prepared by a polygonal barrel-sputtering method. Energy Environ. Sci. 2009, 2, 315–321. [Google Scholar] [CrossRef]
  11. Karelovic, A.; Ruiz, P. CO2 hydrogenation at low temperature over Rh/γ-Al2O3 catalysts: Effect of the metal particle size on catalytic performances and reaction mechanism. Appl. Catal. B 2012, 113–114, 237–249. [Google Scholar] [CrossRef]
  12. Jacquemin, M.; Beuls, A.; Ruiz, P. Catalytic production of methane from CO2 and H2 at low temperature: Insight on the reaction mechanism. Catal. Today 2010, 157, 462–466. [Google Scholar] [CrossRef]
  13. Zhu, Y.; Zhang, S.; Ye, Y.; Zhang, X.; Wang, L.; Zhu, W.; Cheng, F.; Tao, F. Catalytic conversion of carbon dioxide to methane on ruthenium–cobalt bimetallic nanocatalysts and correlation between surface chemistry of catalysts under reaction conditions and catalytic performances. ACS Catal. 2012, 2, 2403–2408. [Google Scholar] [CrossRef]
  14. Yan, Y.; Dai, Y H.; He, H.; Yu, Y.B.; Yang, Y.H. A novel W-doped Ni-Mg mixed oxide catalyst for CO2 methanation. Appl. Catal. B Environ. 2016, 196, 108–116. [Google Scholar] [CrossRef]
  15. Wierzbicki, D.; Debek, R.; Motak, M.; Grzybek, T.; Gálvez, M.E.; Da Costa, P. Novel Ni-La-hydrotalcite derived catalysts for CO2 methanation. Catal. Commun. 2016, 83, 5–8. [Google Scholar] [CrossRef]
  16. Xu, L.L.; Wang, F.G.; Chen, M.D.; Zhang, J.K.; Yuan, D.; Wang, L.J.; Wu, K.; Xu, G.Q.; Chen, W. CO2 methanation over a Ni based ordered mesoporous catalyst for the production of synthetic natural gas. RSC Adv. 2016, 6, 28489–28499. [Google Scholar] [CrossRef]
  17. Du, G.A.; Lim, S.; Yang, Y.H.; Wang, C.; Pfefferle, L.; Haller, G.L. Methanation of carbon dioxide on Ni-incorporated MCM-41 catalysts: The influence of catalyst pretreatment and study of steady-state reaction. J. Catal. 2007, 249, 370–379. [Google Scholar] [CrossRef]
  18. Zhi, G.J.; Guo, X.N.; Wang, Y.Y.; Jin, G.Q.; Guo, X.Y. Effect of La2O3 modification on the catalytic performance of Ni/SiC for methanation of carbon dioxide. Catal. Commun. 2011, 16, 56–59. [Google Scholar] [CrossRef]
  19. Graca, I.; Gonzalez, L.V.; Bacariza, M.C.; Fernandes, A.; Henriques, C.; Lopes, J.M.; Ribeiro, M.F. CO2 hydrogenation into CH4 on NiHNaUSY zeolites. Appl. Catal. B Environ. 2014, 147, 101–110. [Google Scholar] [CrossRef]
  20. Abello, S.; Berrueco, C.; Montane, D. High-loaded nickel-alumina catalyst for direct CO2 hydrogenation into synthetic natural gas (SNG). Fuel 2013, 113, 598–609. [Google Scholar] [CrossRef]
  21. Ocampo, F.; Louis, B.; Kiwi-Minsker, L.; Roger, A.C. Effect of Ce/Zr composition and noble metal promotion on nickel based CexZr1−xO2 catalysts for carbon dioxide methanation. Appl. Catal. A Gen. 2011, 392, 36–44. [Google Scholar] [CrossRef]
  22. Ocampo, F.; Louis, B.; Roger, A.C. Methanation of carbon dioxide over nickel-based Ce0.72Zr0.28O2 mixed oxide catalysts prepared by sol-gel method. Appl. Catal. A Gen. 2009, 369, 90–99. [Google Scholar] [CrossRef]
  23. Cai, W.; Zhong, Q.; Zhao, Y.X. Fractional-hydrolysis-driven formation of non-uniform dopant concentration catalyst nanoparticles of Ni/CexZr1−xO2 and its catalysis in methanation of CO2. Catal. Commun. 2013, 39, 30–34. [Google Scholar] [CrossRef]
  24. Pan, Q.; Peng, J.; Sun, T.; Gao, D.; Wang, S.; Wang, S. CO2 methanation on Ni/Ce0.5Zr0.5O2 catalysts for the production of synthetic natural gas. Fuel Process. Technol. 2014, 123, 166–171. [Google Scholar] [CrossRef]
  25. Muroyama, H.; Tsuda, Y.; Asakoshi, T.; Masitah, H.; Okanishi, T.; Matsui, T.; Eguchi, K. Carbon dioxide methanation over Ni catalysts supported on various metal oxides. J. Catal. 2016, 343, 178–184. [Google Scholar] [CrossRef]
  26. Du, Y.L.; Wu, X.; Cheng, Q.; Huang, Y.L.; Huang, W. Development of Ni-based catalysts derived from hydrotalcite-like compounds precursors for synthesis gas production via methane or ethanol reforming. Catalysts 2017, 7, 70. [Google Scholar] [CrossRef]
  27. Zhang, Y.; Wang, R.; Lin, X.; Wang, Z.; Liu, J.; Zhou, J.; Cen, K. Effects of Ce/Zr composition on nickel based Ce(1−x)ZrxO2 catalysts for hydrogen production in sulfur-iodine cycle. Int. J. Hydrog. Energy 2014, 39, 10853–10860. [Google Scholar] [CrossRef]
  28. Kramer, M.; Stowe, K.; Duisberg, M.; Muller, F.; Reiser, M.; Sticher, S.; Maier, W.F. The impact of dopants on the activity and selectivity of a Ni-based methanation catalyst. Appl. Catal. A Gen. 2009, 369, 42–52. [Google Scholar] [CrossRef]
  29. Feng, S.; Pan, D.; Wang, Z. Facile synthesis of cubic fluorite nano-Ce1-xZrxO2 via hydrothermal crystallization method. Adv. Powder Technol. 2011, 22, 678–681. [Google Scholar] [CrossRef]
  30. Xu, S.; Wang, X. Highly active and coking resistant Ni/CeO2–ZrO2 catalyst for partial oxidation of methane. Fuel 2005, 84, 563–567. [Google Scholar] [CrossRef]
  31. Roh, H.S.; Eum, I.H.; Jeong, D.W. Low temperature steam reforming of methane over Ni–Ce(1−x)ZrxO2 catalysts under severe conditions. Renew. Energy 2012, 42, 212–216. [Google Scholar] [CrossRef]
  32. Sánchez-Sánchez, M.C.; Navarro, R.M.; Fierro, J.L.G. Ethanol steam reforming over Ni/MxOy–Al2O3 (M = Ce, La, Zr and Mg) catalysts: Influence of support on the hydrogen production. Int. J. Hydrog. Energy 2010, 32, 1462–1471. [Google Scholar] [CrossRef]
  33. Tan, M.W.; Wang, X.G.; Shang, X.F.; Zou, X.J.; Lu, X.G.; Ding, W.Z. Template-free synthesis of mesoporous γ-alumina-supported Ni-Mg oxides and their catalytic properties for pre-reforming liquefied petroleum gas. J. Catal. 2014, 314, 117–131. [Google Scholar] [CrossRef]
  34. Zou, X.J.; Wang, X.G.; Li, L.; Shen, K.; Lu, X.G.; Ding, W.Z. Development of highly effective supported nickel catalysts for pre-reforming of liquefied petroleum gas under low steam to carbon molar ratios. Int. J. Hydrog. Energy 2010, 35, 13191–13200. [Google Scholar] [CrossRef]

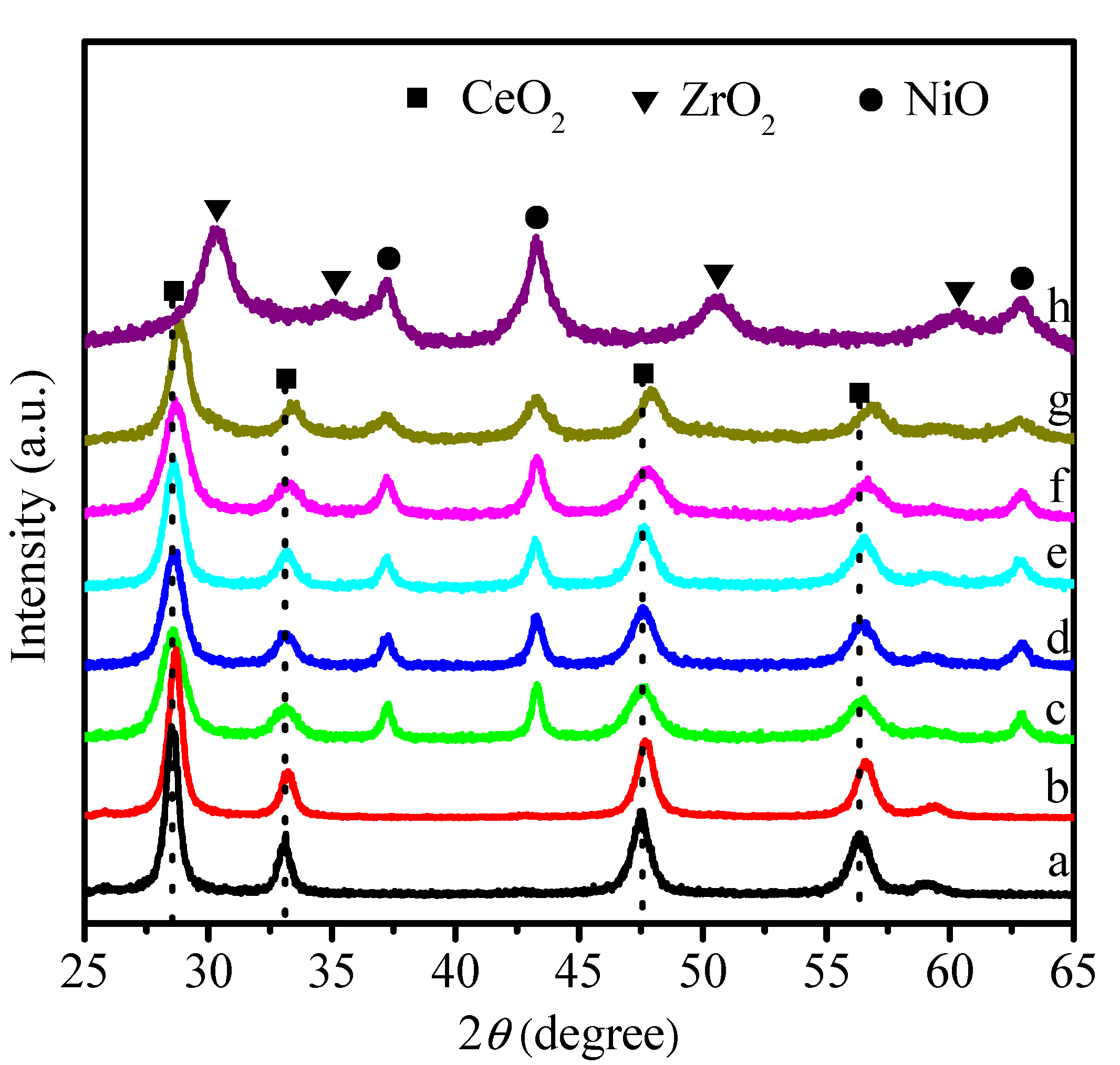

Figure 1. XRD patterns of the prepared samples calcined at 500 °C. (a) CeO2; (b) Ce0.9Zr0.1O2; 40Ni–Ce1−xZrxO2 with (c) x = 0; (d) x = 0.05; (e) x = 0.1; (f) x = 0.2; (g) x = 0.3 and (h) x = 1.
Figure 1. XRD patterns of the prepared samples calcined at 500 °C. (a) CeO2; (b) Ce0.9Zr0.1O2; 40Ni–Ce1−xZrxO2 with (c) x = 0; (d) x = 0.05; (e) x = 0.1; (f) x = 0.2; (g) x = 0.3 and (h) x = 1.
Catalysts 07 00104 g001

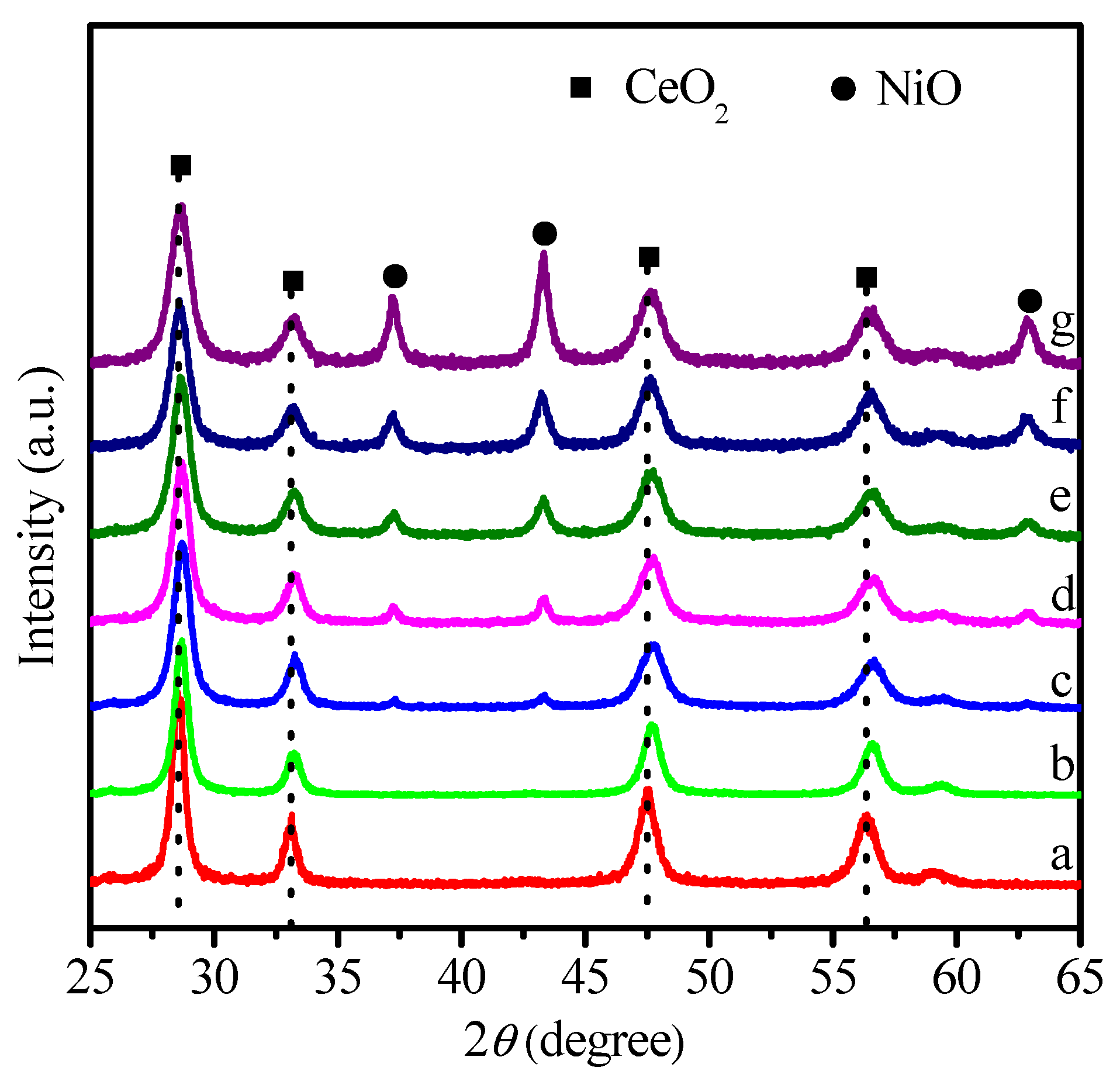

Figure 2. XRD patterns of the prepared samples calcined at 500 °C. (a) CeO2; yNi–Ce0.9Zr0.1O2 with (b) y = 0; (c) y = 10; (d) y = 20; (e) y = 30; (f) y = 40; (g) y = 50.
Figure 2. XRD patterns of the prepared samples calcined at 500 °C. (a) CeO2; yNi–Ce0.9Zr0.1O2 with (b) y = 0; (c) y = 10; (d) y = 20; (e) y = 30; (f) y = 40; (g) y = 50.
Catalysts 07 00104 g002

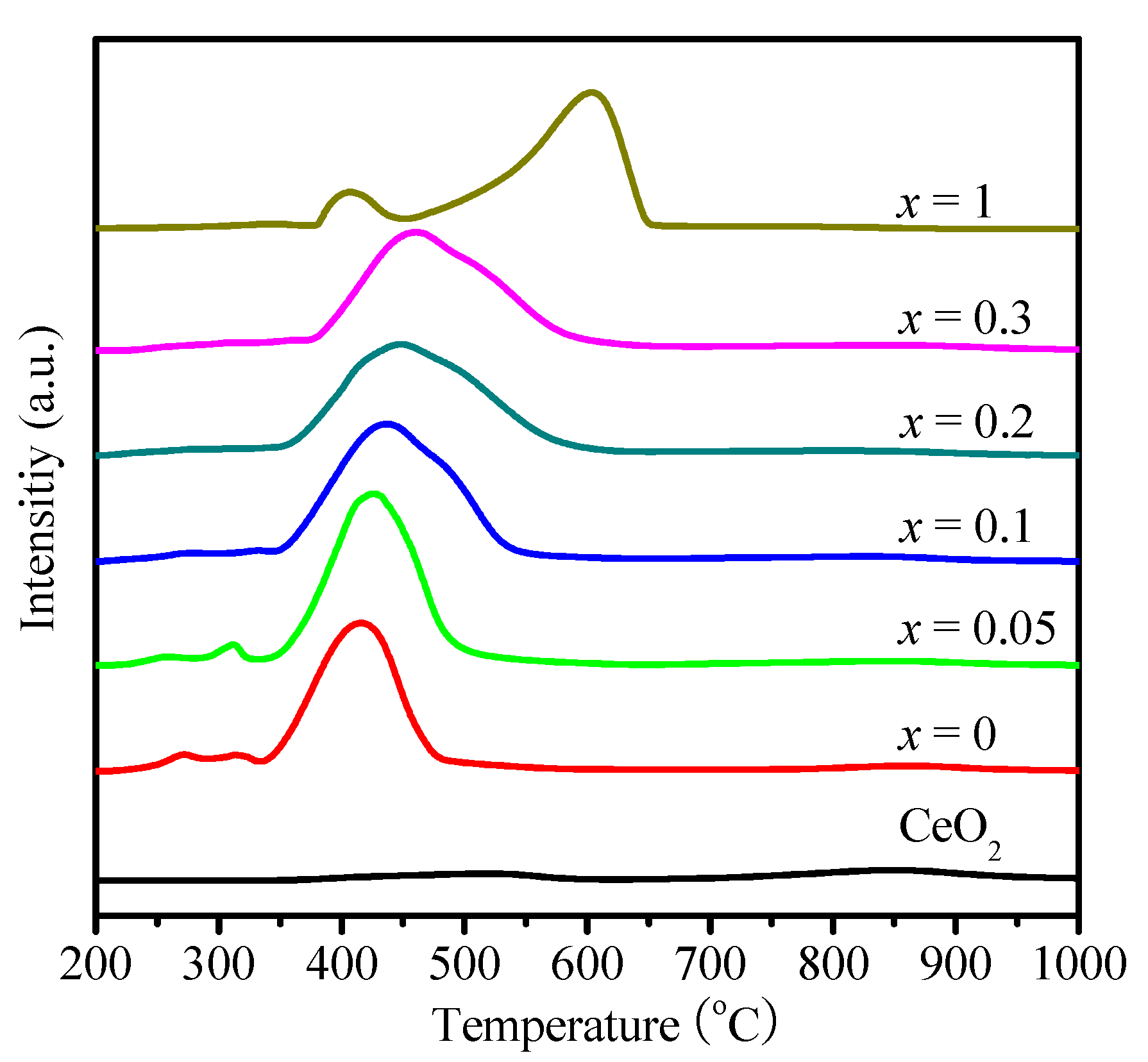

Figure 3. H2-TPR profiles of CeO2 and 40Ni–Ce1−xZrxO2 samples.
Figure 3. H2-TPR profiles of CeO2 and 40Ni–Ce1−xZrxO2 samples.
Catalysts 07 00104 g003

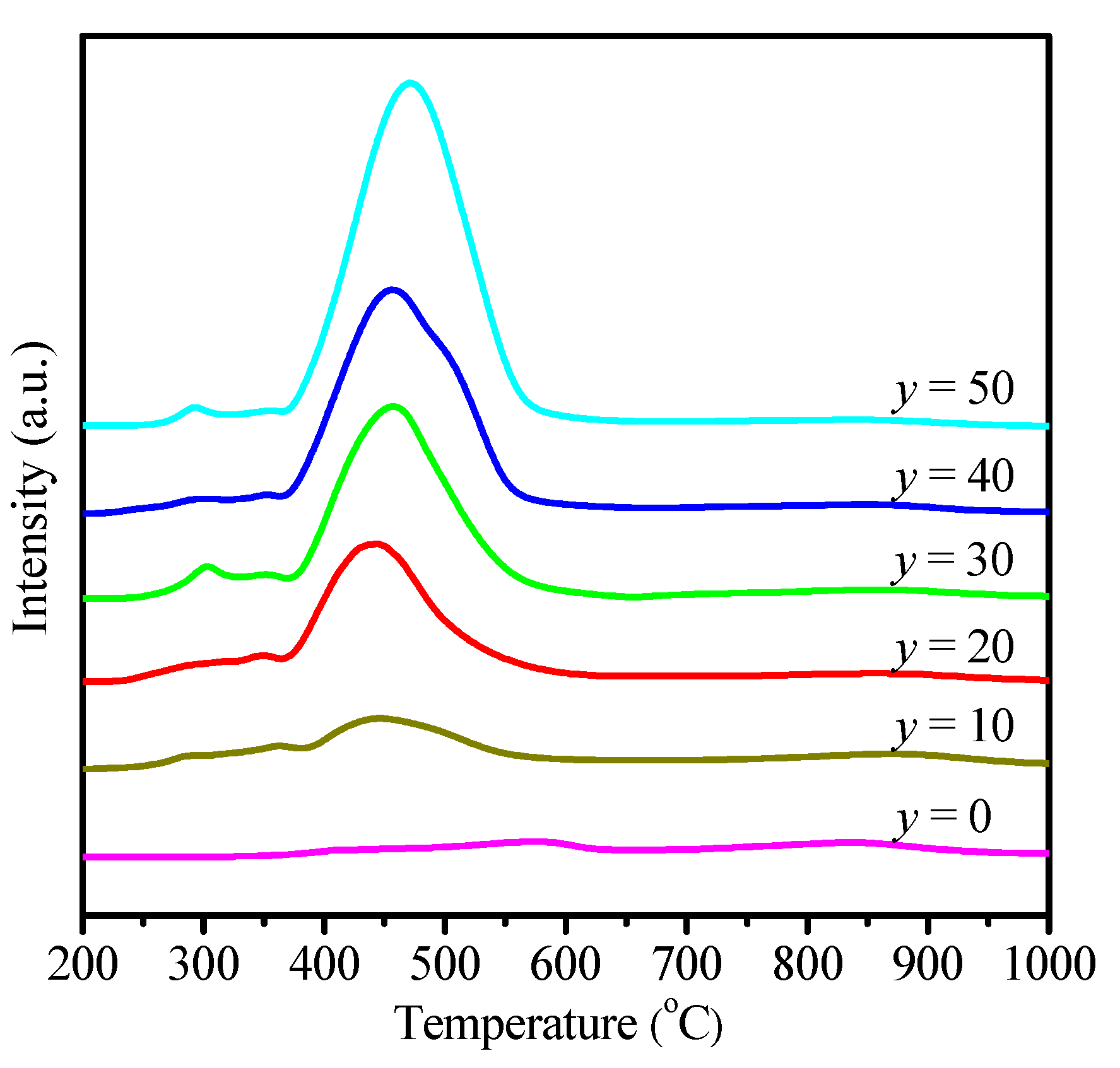

Figure 4. H2-TPR profiles of the yNi–Ce0.9Zr0.1O2 samples.
Figure 4. H2-TPR profiles of the yNi–Ce0.9Zr0.1O2 samples.
Catalysts 07 00104 g004

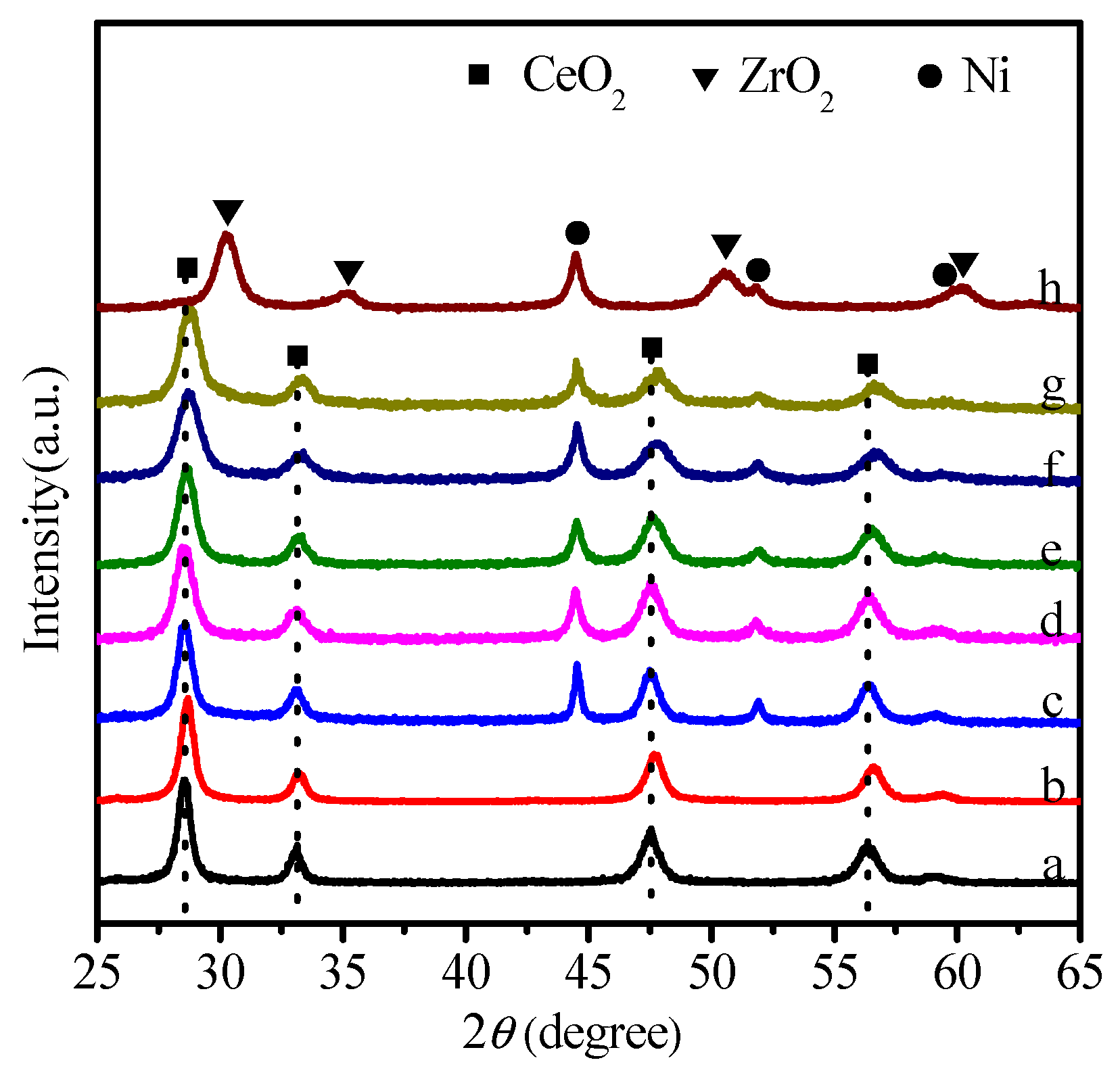

Figure 5. XRD patterns of the prepared samples reduced at 500 °C. (a) CeO2; (b) Ce0.9Zr0.1O2; 40Ni–Ce1−xZrxO2 with (c) x = 0; (d) x = 0.05; (e) x = 0.1; (f) x = 0.2; (g) x = 0.3 and (h) x = 1.
Figure 5. XRD patterns of the prepared samples reduced at 500 °C. (a) CeO2; (b) Ce0.9Zr0.1O2; 40Ni–Ce1−xZrxO2 with (c) x = 0; (d) x = 0.05; (e) x = 0.1; (f) x = 0.2; (g) x = 0.3 and (h) x = 1.
Catalysts 07 00104 g005

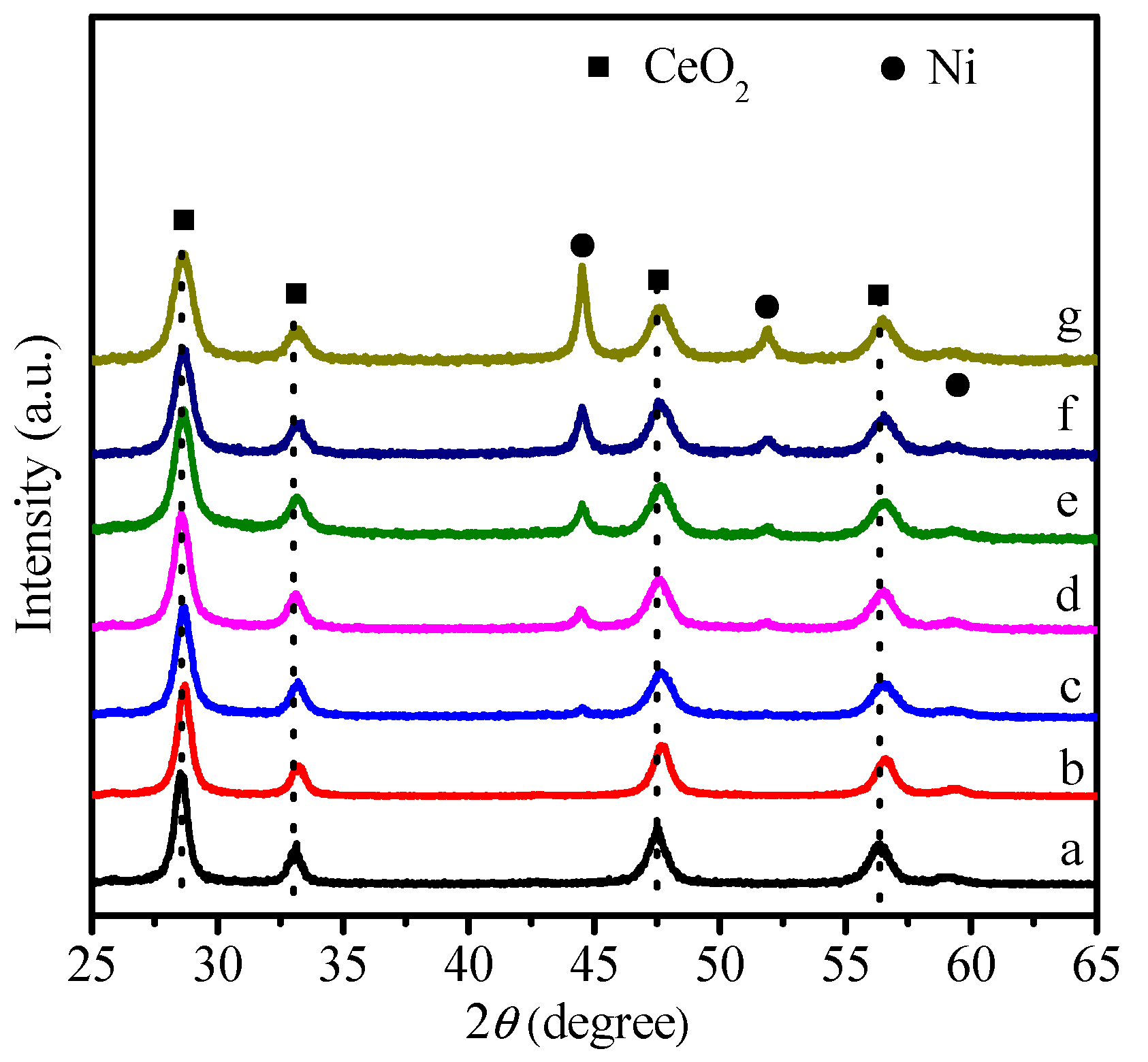

Figure 6. XRD patterns of the prepared samples reduced at 500 °C. (a) CeO2; yNi–Ce0.9Zr0.1O2 with (b) y = 0; (c) y = 10; (d) y = 20; (e) y = 30; (f) y = 40; (g) y = 50.
Figure 6. XRD patterns of the prepared samples reduced at 500 °C. (a) CeO2; yNi–Ce0.9Zr0.1O2 with (b) y = 0; (c) y = 10; (d) y = 20; (e) y = 30; (f) y = 40; (g) y = 50.
Catalysts 07 00104 g006

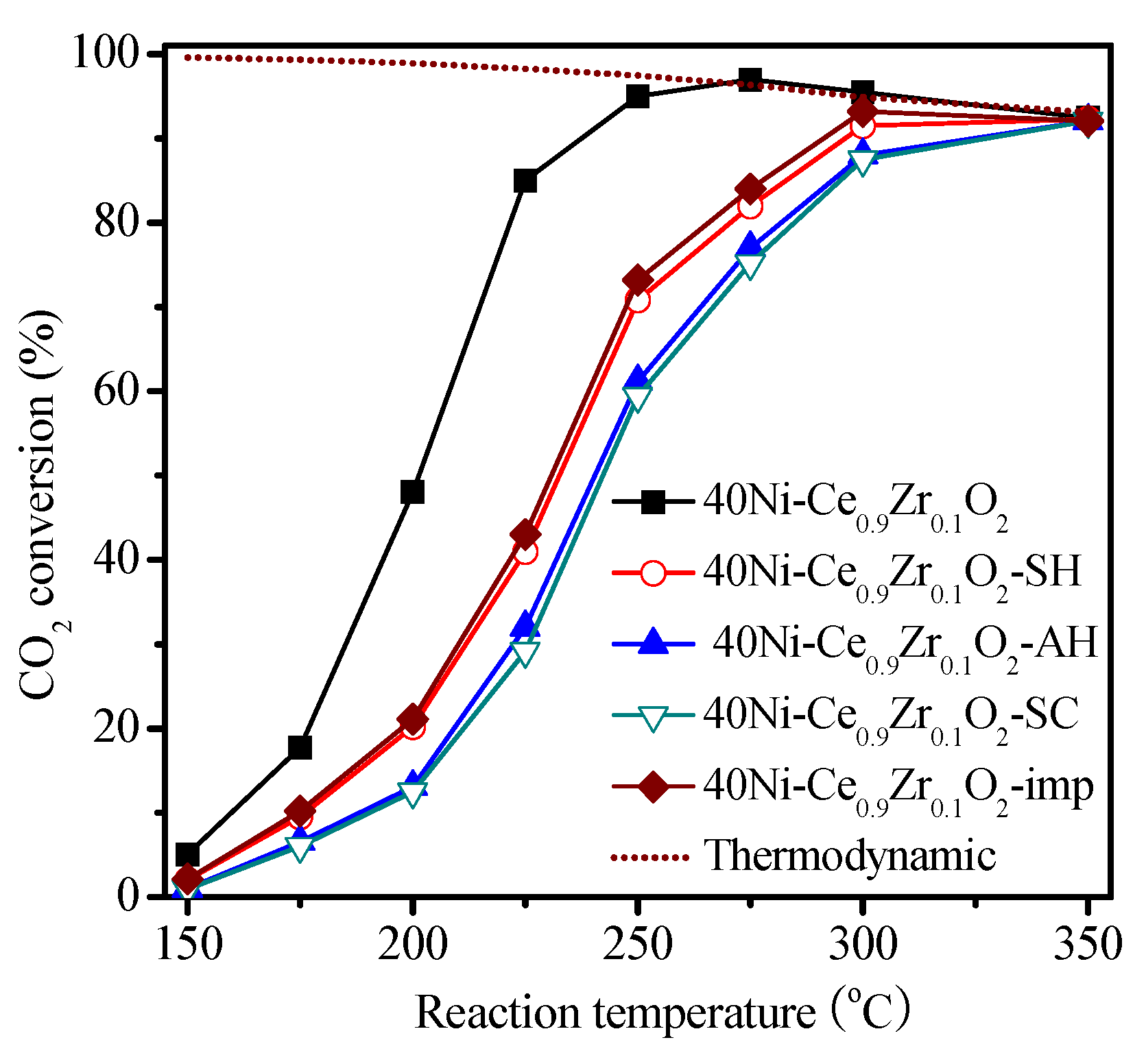

Figure 7. Catalytic performance of the 40Ni–Ce0.9Zr0.1O2 catalysts prepared by different methods for CO2 methanation. Reaction conditions: GHSV, 3000 mL gcat−1 h−1; H2/CO2, 4.
Figure 7. Catalytic performance of the 40Ni–Ce0.9Zr0.1O2 catalysts prepared by different methods for CO2 methanation. Reaction conditions: GHSV, 3000 mL gcat−1 h−1; H2/CO2, 4.
Catalysts 07 00104 g007
Figure 8. Catalytic performance of (a) 40Ni–Ce0.9Zr0.1O2 and (b) yNi–Ce0.9Zr0.1O2 catalysts for CO2 methanation. Reaction conditions: GHSV, 3000 mL gcat−1 h−1; H2/CO2, 4.
Figure 8. Catalytic performance of (a) 40Ni–Ce0.9Zr0.1O2 and (b) yNi–Ce0.9Zr0.1O2 catalysts for CO2 methanation. Reaction conditions: GHSV, 3000 mL gcat−1 h−1; H2/CO2, 4.
Catalysts 07 00104 g008
Figure 9. Stability of the prepared 40Ni–Ce0.9Zr0.1O2 catalysts for CO2 methanation. Reaction conditions: GHSV, 28,000 mL gcat−1 h−1; H2/CO2, 4; reaction temperature, 300 °C.
Figure 9. Stability of the prepared 40Ni–Ce0.9Zr0.1O2 catalysts for CO2 methanation. Reaction conditions: GHSV, 28,000 mL gcat−1 h−1; H2/CO2, 4; reaction temperature, 300 °C.
Catalysts 07 00104 g009
Figure 10. TEM image of the 40Ni–Ce0.9Zr0.1O2 catalyst. (a) Reduced at 600 °C for two hours; (b) after 500 h reaction at 300 °C.
Figure 10. TEM image of the 40Ni–Ce0.9Zr0.1O2 catalyst. (a) Reduced at 600 °C for two hours; (b) after 500 h reaction at 300 °C.
Catalysts 07 00104 g010
Table 1. Physical properties of yNi–Ce1−xZrxO2 catalysts and reaction results of CO2 methanation.
Table 1. Physical properties of yNi–Ce1−xZrxO2 catalysts and reaction results of CO2 methanation.
CatalystsSBET (m2 g−1)Ni Crystallite Size (nm) aXCO2 (%) bTOF (h−1)
CeO227---
40Ni–CeO264274.20.08
40Ni–Ce0.95Zr0.05O253217.10.18
40Ni–Ce0.9Zr0.1O2461810.30.31
40Ni–Ce0.8Zr0.2O2681810.50.30
40Ni–Ce0.7Zr0.3O2561910.80.28
40Ni–ZrO278168.20.27
Ce0.9Zr0.1O243---
10Ni–Ce0.9Zr0.1O250233.30.08
20Ni–Ce0.9Zr0.1O246224.60.11
30Ni–Ce0.9Zr0.1O255197.80.22
50Ni–Ce0.9Zr0.1O2522110.10.26
a The catalysts were reduced at 800 °C for five and Ni crystallite size were estimated by XRD patterns; b Reaction conditions: GHSV, 28,000 mL gcat−1 h−1; H2/CO2, 4; reaction temperature, 200 °C; reaction time one hour.
