Next Article in Journal
Electrochemical Removal of NOx on Ceria-Based Catalyst-Electrodes
Next Article in Special Issue
Novel Synthesis of Plasmonic Ag/[email protected]2 Continues Fibers with Enhanced Broadband Photocatalytic Performance
Previous Article in Journal
Time Resolved Operando X-ray Techniques in Catalysis, a Case Study: CO Oxidation by O2 over Pt Surfaces and Alumina Supported Pt Catalysts
Open AccessArticle

Photocatalytic TiO2 Nanorod Spheres and Arrays Compatible with Flexible Applications

i3N/CENIMAT, Department of Materials Science, Faculty of Sciences and Technology, Universidade NOVA de Lisboa and CEMOP/UNINOVA, 2829-516 Campus de Caparica, Caparica, Portugal
Authors to whom correspondence should be addressed.
Academic Editors: Vladimiro Dal Santo and Alberto Naldoni
Catalysts 2017, 7(2), 60;
Received: 29 December 2016 / Revised: 31 January 2017 / Accepted: 7 February 2017 / Published: 14 February 2017
(This article belongs to the Special Issue Titanium Dioxide Photocatalysis)
PDF [9697 KB, uploaded 17 February 2017]

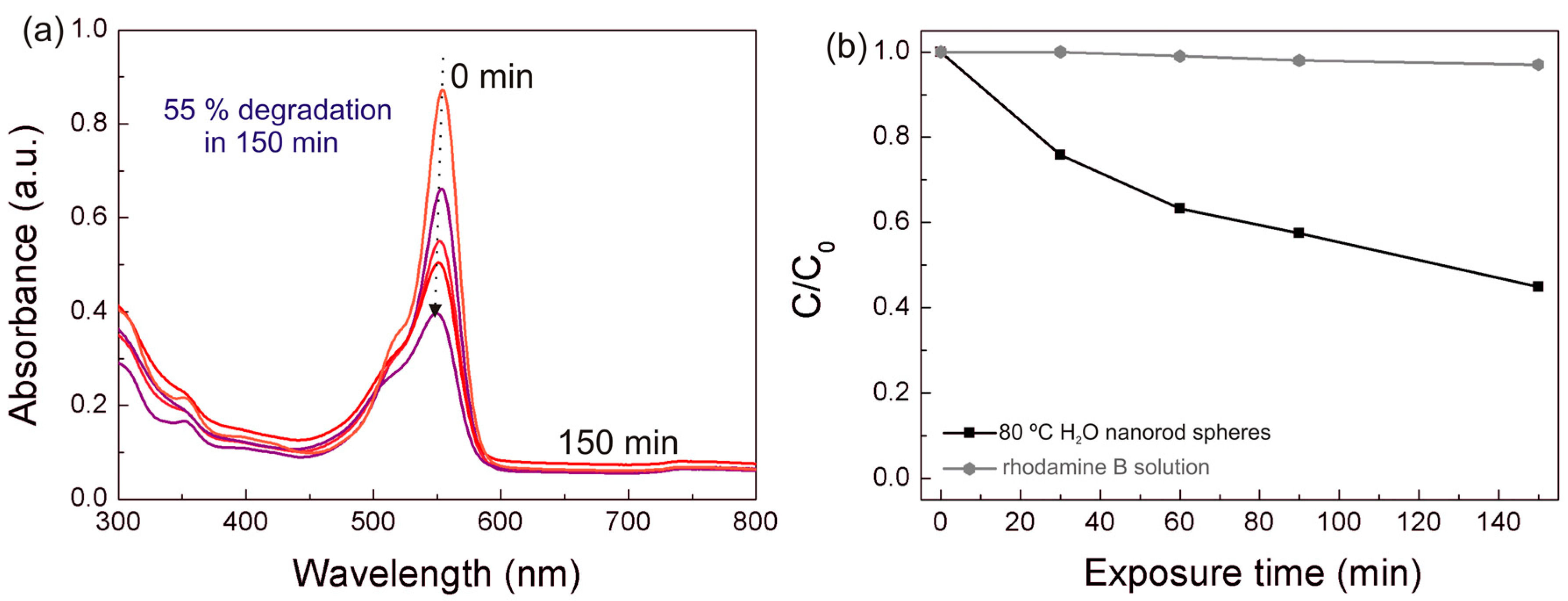

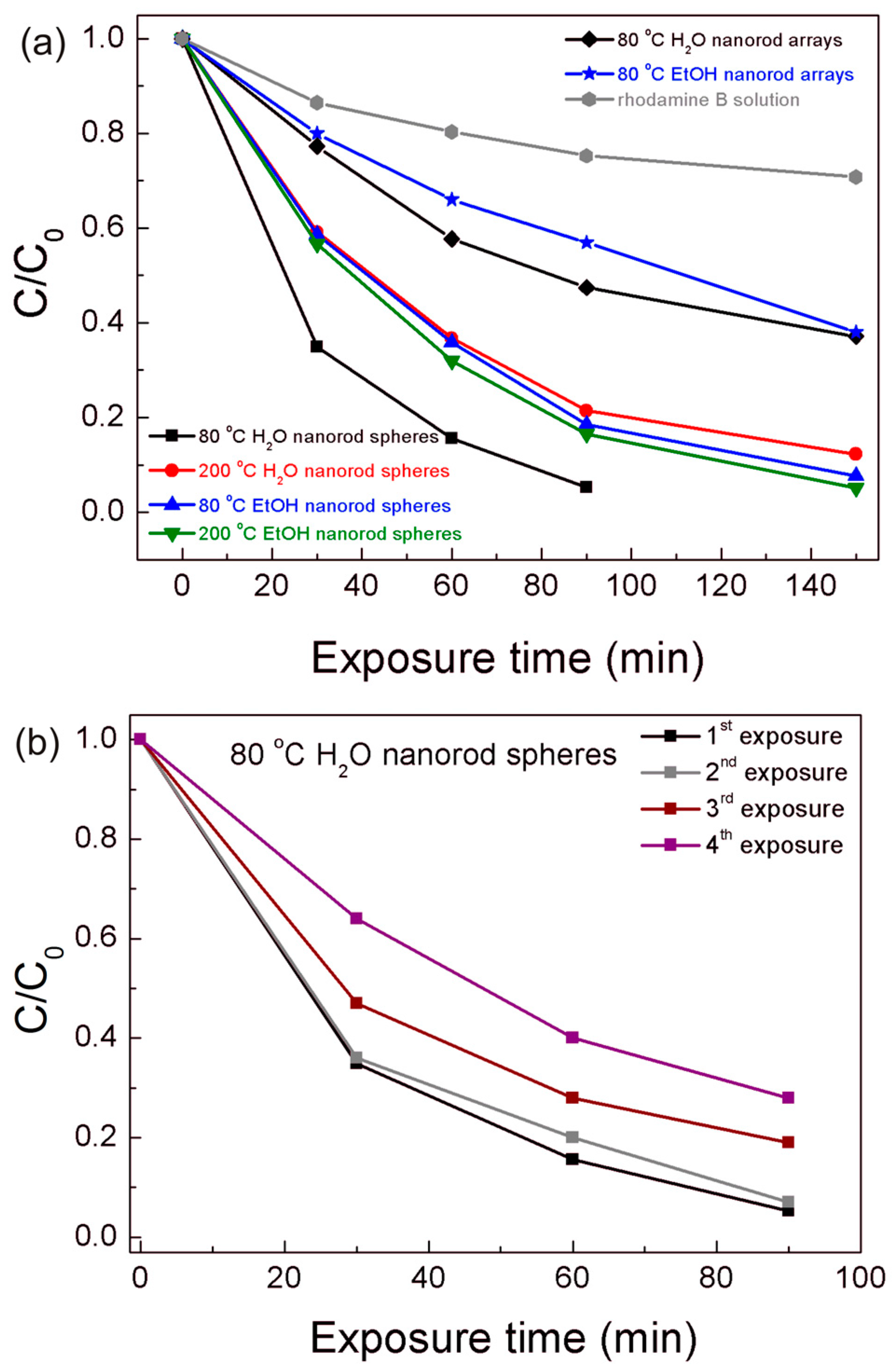

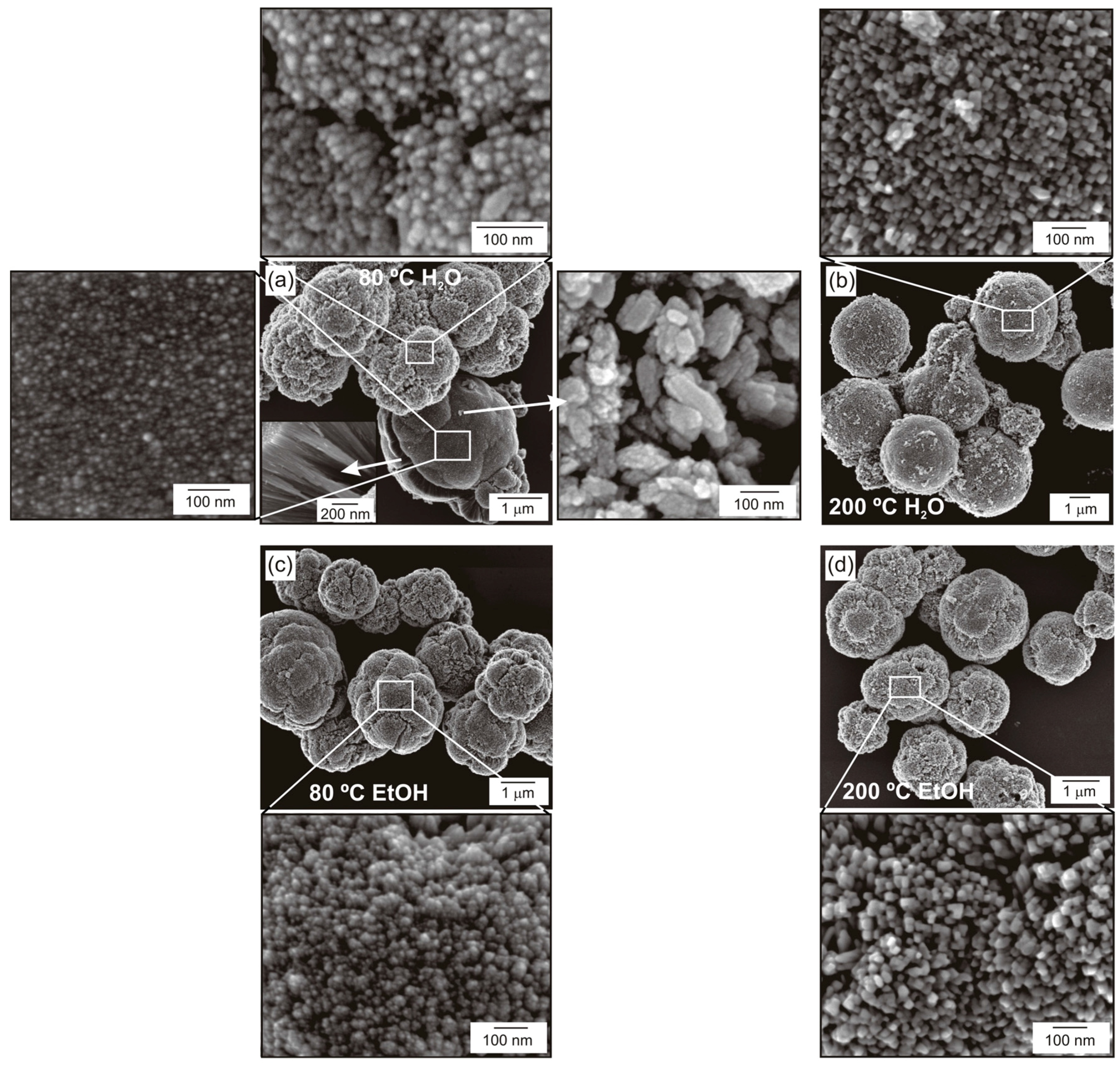

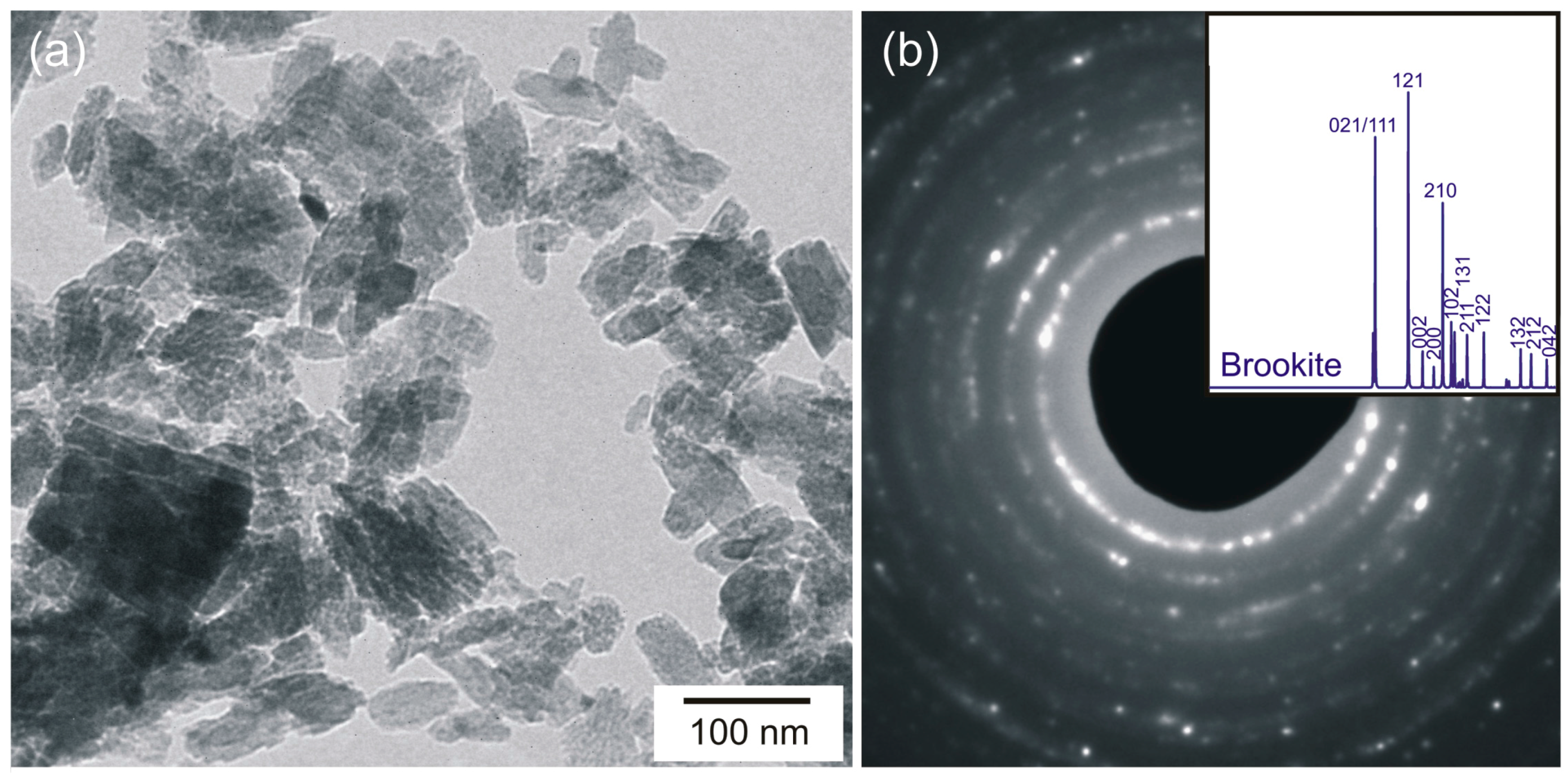

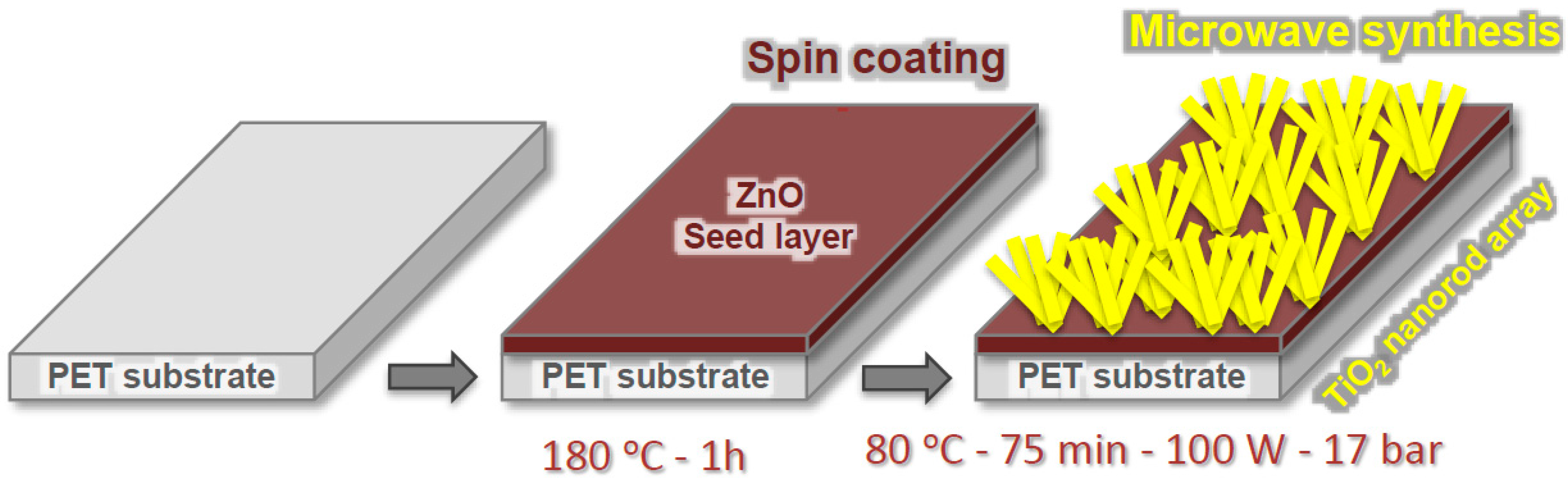

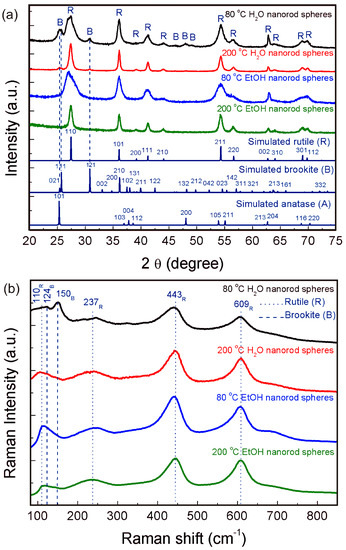

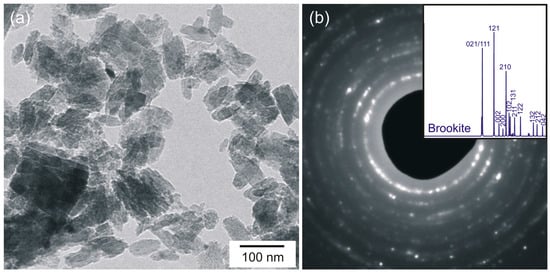

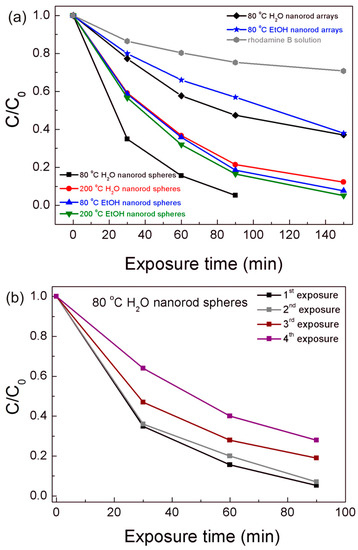

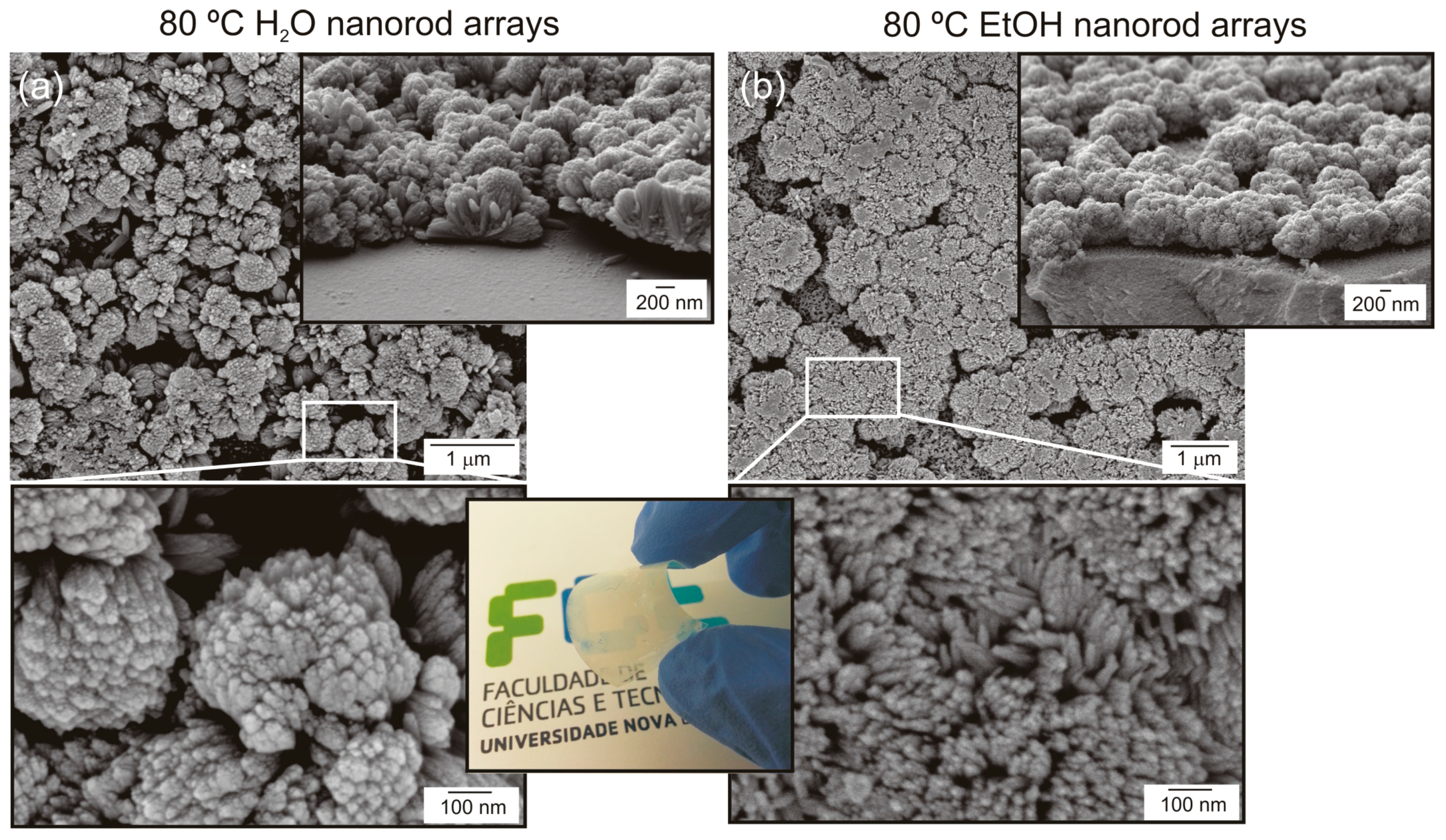

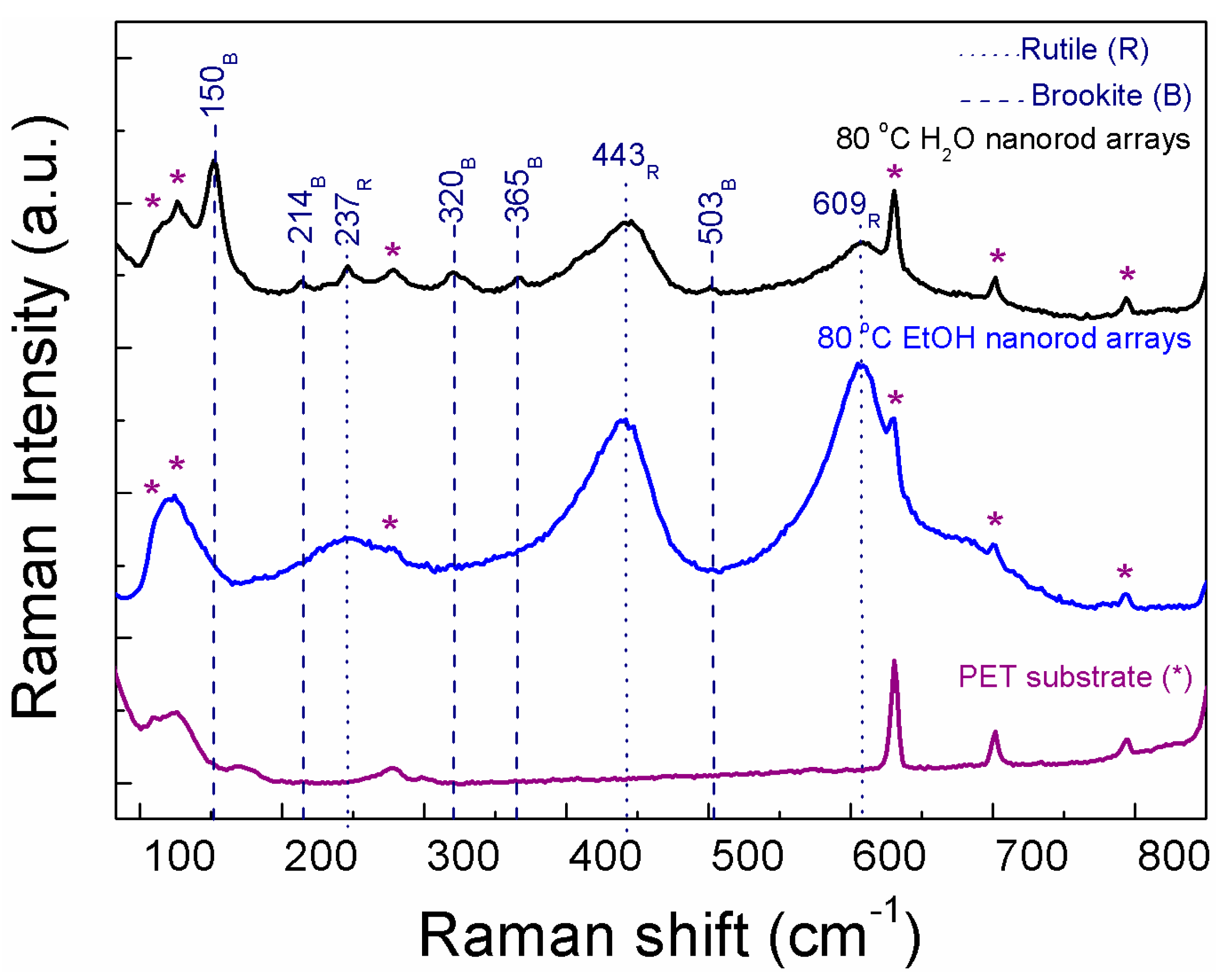

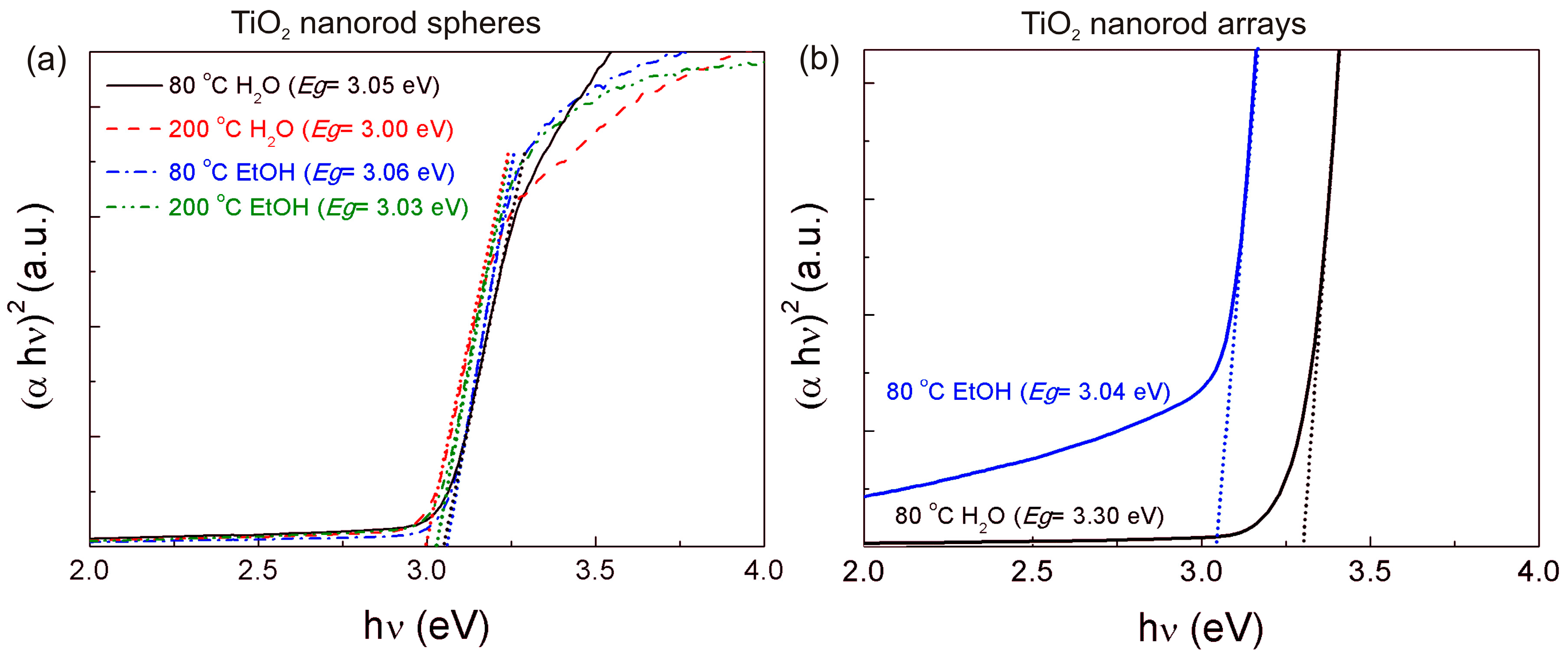

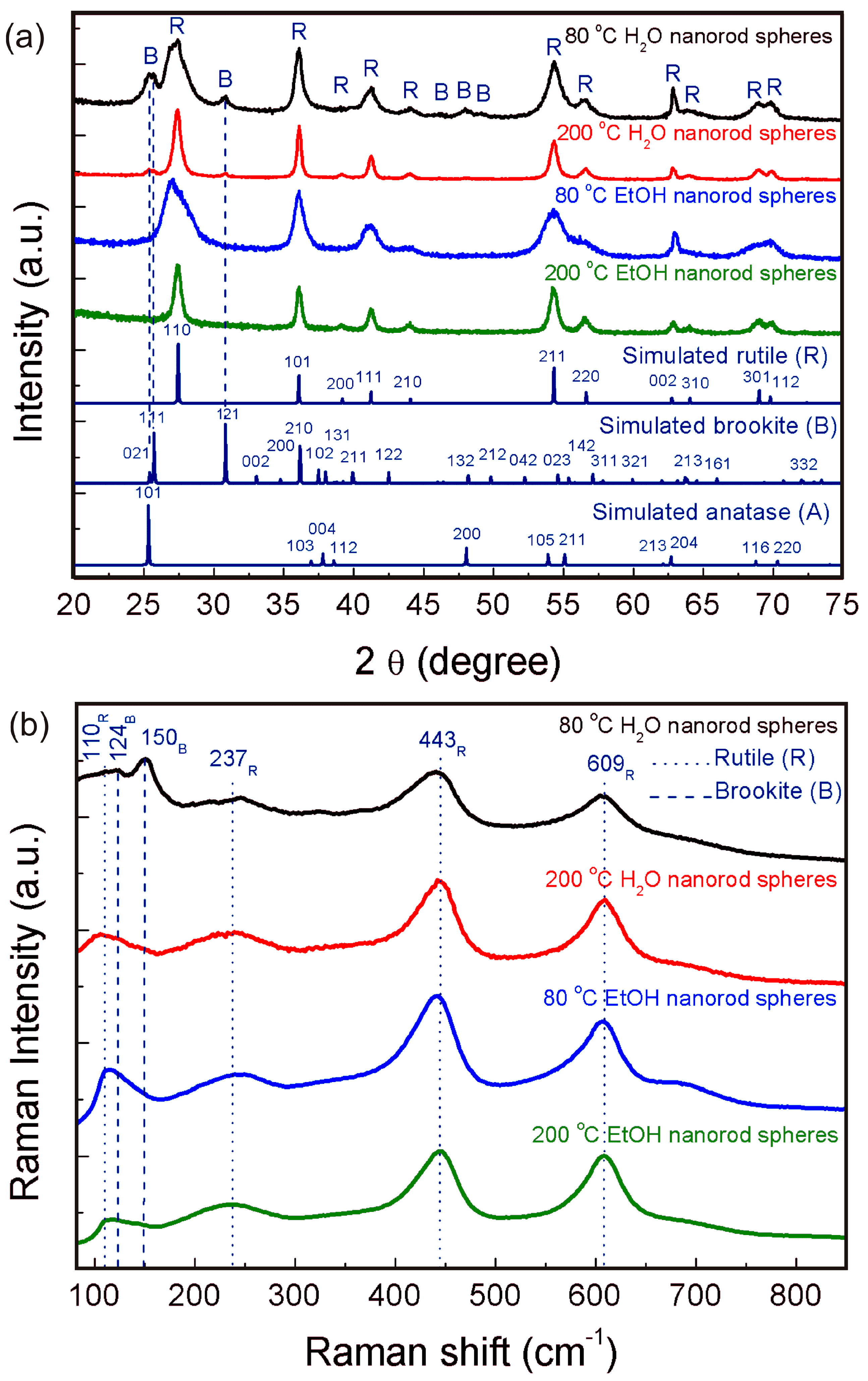

In the present study, titanium dioxide nanostructures were synthesized through microwave irradiation. In a typical microwave synthesis, nanorod spheres in the powder form were simultaneously produced with nanorod arrays grown on polyethylene terephthalate (PET) substrates. The syntheses were performed in water or ethanol with limited temperature at 80 °C and 200 °C. A simple and low-cost approach was used for the arrays growth, which involved a PET substrate with a zinc oxide seed layer deposited by spin-coating. X-ray diffraction (XRD) and Raman spectroscopy revealed that synthesis in water result in a mixture of brookite and rutile phases, while using ethanol as solvent it was only observed the rutile phase. Scanning electron microscopy (SEM) showed that the synthesized spheres were in the micrometer range appearing as aggregates of fine nanorods. The arrays maintained the sphere nanorod aggregate structures and the synthesis totally covered the flexible substrates. Transmission electron microscopy (TEM) was used to identify the brookite structure. The optical band gaps of all materials have been determined from diffuse reflectance spectroscopy. Photocatalytic activity was assessed from rhodamine B degradation with remarkable degradability performance under ultraviolet (UV) radiation. Reusability experiments were carried out for the best photocatalyst, which also revealed notable photocatalytic activity under solar radiation. The present study is an interesting and competitive alternative for the photocatalysts existing nowadays, as it simultaneously results in highly photoactive powders and flexible materials produced with low-cost synthesis routes such as microwave irradiation. View Full-Text
Keywords: TiO2; nanorod spheres; nanorod arrays; flexible substrates; microwave irradiation; photocatalysis TiO2; nanorod spheres; nanorod arrays; flexible substrates; microwave irradiation; photocatalysis

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material

Printed Edition Available!
A printed edition of this Special Issue is available here.

Share & Cite This Article

MDPI and ACS Style

Nunes, D.; Pimentel, A.; Santos, L.; Barquinha, P.; Fortunato, E.; Martins, R. Photocatalytic TiO2 Nanorod Spheres and Arrays Compatible with Flexible Applications. Catalysts 2017, 7, 60.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Catalysts EISSN 2073-4344 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
