Catalysts 2016, 6(6), 86; https://doi.org/10.3390/catal6060086

Article
Oxygen Reduction Electrocatalysts Based on Coupled Iron Nitride Nanoparticles with Nitrogen-Doped Carbon
1
Fuel Cell Research Center, Korea Institute of Science and Technology, Seongbuk-gu, Seoul 02792, Korea
2
Department of Energy and Environmental Engineering, Korea University of Science and Technology, Daejeon 34113, Korea
3
Computational Science Research Center, Korea Institute of Science and Technology (KIST), Seongbuk-gu, Seoul 02792, Korea
4
Department of Clean Energy and Chemical Engineering, Korea University of Science and Technology, Daejeon 34113, Korea
5
Green School, Korea University, 145, Anam-ro, Seongbuk-gu, Seoul 136-701, Korea
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Academic Editors: Vincenzo Baglio and David Sebastián
Received: 14 April 2016 / Accepted: 6 June 2016 / Published: 15 June 2016

Abstract

:
Aimed at developing a highly active and stable non-precious metal electrocatalyst for oxygen reduction reaction (ORR), a novel FexNy/NC nanocomposite—that is composed of highly dispersed iron nitride nanoparticles supported on nitrogen-doped carbon (NC)—was prepared by pyrolyzing carbon black with an iron-containing precursor in an NH3 atmosphere. The influence of the various synthetic parameters such as the Fe precursor, Fe content, pyrolysis temperature and pyrolysis time on ORR performance of the prepared iron nitride nanoparticles was investigated. The formed phases were determined by experimental and simulated X-ray diffraction (XRD) of numerous iron nitride species. We found that Fe3N phase creates superactive non-metallic catalytic sites for ORR that are more active than those of the constituents. The optimized Fe3N/NC nanocomposite exhibited excellent ORR activity and a direct four-electron pathway in alkaline solution. Furthermore, the hybrid material showed outstanding catalytic durability in alkaline electrolyte, even after 4,000 potential cycles.
Keywords:
oxygen reduction reaction; non-precious metal electrocatalysts; Iron nitride; nitrogen-doped carbon

1. Introduction

Over the last few decades, low temperature polymer electrolyte membrane fuel cells (PEMFCs) have been recognized as a promising substitute to the current fossil fuel based power generation system [1,2]. Despite extensive efforts to improve performance of PEMFCs, enhancement of sluggish kinetics of oxygen reduction reaction (ORR) has remained a major challenge. Thus far, Pt derived materials have been considered state of the art electrocatalysts for ORR. [3,4] Nevertheless, the high price and instability of Pt catalysts in various fuel cell operation conditions limit practical applications of PEMFCs.
Development of efficient non-precious metal electrocatalysts is thus a topic of great interest in order to commercialize PEMFCs. However, although performance of such catalysts is continuously increasing, the active species responsible for the activation and reduction of adsorbed oxygen molecules are not fully understood yet.
In recent years, it is suggested that that novel materials substituting for Pt are non-precious Fe or Co metals embedded within an N-doped carbon (NC) matrix. Inexpensive Fe and/or Co constitute the catalytically active center, while NC materials provide enhanced electron mobility and oxygen adsorption capacity, which in turn, improve electrocatalytic activity as well as durability [5]. Iron carbide (FexCy) [6,7,8,9], iron oxide (FexOy) [10,11], and iron bonded with multiple nitrogen atoms [12] have been suggested as plausible active structures for ORR. However, the complexities of creating the desired bond configuration and characterization of the specific Fe species, has resulted in difficulties improving the materials overall catalytic activity in the electrocatalysts.
Herein, we report a facile, one-step synthetic route that leads to a novel precious-metal-free ORR electrocatalyst composed of iron nitride (FexNy) nanoparticles supported on NC (FexNy/NC). Various analytical techniques were employed to elucidate catalytically active sites responsible for the ORR performance. The strong correlation between the FexNy phases and ORR activity was proven by experimental and theoretical studies. For electrocatalytic performance, we show that Fe3N/NC hybrid material exhibits a high ORR activity (half-wave potential ~0.77 V) and low HO2 (<5%) yield in alkaline medium. The prepared electrocatalysts exhibited a direct four-electron ORR pathway and superior stability in an alkaline medium. The proposed synthetic route is low-cost and scalable, providing a feasible method for the development of highly efficient non-precious metal electrocatalysts.

2. Results and Discussions

The FexNy/NC catalyst was synthesized through high-temperature pyrolysis of the precursor containing the mixture of the Fe salt and carbon black in an NH3 atmosphere (Scheme 1). The catalyst structure contains a few ten nanometer-sized FexNy nanoparticles and NCs with sizes in the range of hundreds of nanometers. Most of the FexNy nanoparticles are well dispersed on the NCs. Importantly, the composites showed high inertness under harsh electrochemical conditions, as well as high surface area (1110 m2g−1) and electrical conductivity (0.112 S·cm−1), which are comparable to those of commercial carbon black products (surface area: 1350 m2g−1, and electrical conductivity: 0.092 S·cm−1) and beneficial for a number of electrochemical applications. Moreover, the synthetic approach allowed for the low-cost, large-scale production of FexNy/NC electrocatalysts. The structural phase of FexNy prepared by heat-treatment has been reported to depend on preparation conditions. [13,14,15] Therefore, in order to characterize high-performance FexNy/NC electrocatalysts, a series of synthetic parameters that could influence the ORR activity, including the types of Fe salts used, Fe content, heat-treatment temperature, and pyrolysis time were investigated. ORR behaviors of all the catalysts prepared under varying synthetic parameters were compared in 0.1 M KOH solution (Figure 1).
For the standard synthesis, Fe(acac)3 and carbon black mixture were pyrolyzed at 900 °C for 2 h to give 5 wt. % Fe contents of the catalyst. To test the influence of the aforementioned parameters of the FexNy/NC catalysts, synthetic conditions were altered one by one from the standard condition. The catalysts without Fe and/or nitrogen were also prepared for the comparison. The counter anion of Fe precursors prominently influenced the ORR activity of the final catalysts (Figure 1a). The catalyst synthesized using Fe(acac)3 showed the highest ORR activity among the five Fe precursors tested. The higher catalytic performance of the catalyst prepared using Fe(acac)3, as opposed to Fe(acac)2, indicates that Fe(III) is a more suitable starting material for the catalyst preparation compared to Fe(II). Half-wave potential reached to 0.77 V which is comparable to the most active non-noble metal based ORR catalysts so far [16,17], as well as commercially available Pt/C catalysts [18] The carbon itself did not show good ORR activity and waving curve indicates 2 electron reduction is dominant (Figure S1, black curve). The catalyst without Fe followed 4 electron pathway, but half-wave potential and limiting current were far lower than Fe-N-C catalyst (Figure S1, blue curve).
It was found that proper amounts of Fe in the catalysts are also a critical factor affecting catalyst performance. Catalytic activity initially increased as the amount of Fe increased, possibly due to the increase of active site density, however the activity significantly diminished when Fe was employed over 5 wt. % (Figure 1b).
Likewise, there was an optimal temperature for heat-treatment. Pyrolysis temperature has been well understood to be a key factor to achieve proper ORR catalysts in several reports [19,20]. In these attempts, pyrolysis at 900 °C yielded a superior ORR catalyst than any other pyrolysis temperature, and both higher and lower temperatures were detrimental to catalytic activity (Figure 1c). Furthermore, an extended heat-treatment time of 4 h was found to be harmful (Figure 1d). These observations indicate that optimal temperature and duration upon heating considerably affect the formation of active catalytic species in FexNy/NC electrocatalysts.
To determine the cause of activity difference of the FexNy/NC electrocatalysts obtained under the studied synthetic conditions, X-ray diffraction (XRD) analysis was performed for every catalyst tested. Interestingly, distinct XRD patterns were observed from the catalysts (Figure 2). The characteristic XRD peaks of Fe3N phase [21] centered at 42.8° (sharp peak), 40.7°, 37.4°, 56.5°, 67.6°, and 75.6° appeared in the catalysts synthesized using Fe(acac)3 or Fe(acac)2 under the standard preparation conditions, i.e., 5 wt. % Fe and pyrolysis at 900 °C for 2 h. Theoretical calculation of several FexNy complexes were carried out to identify the most probable structure with the lowest energy (Figure S2). Of the various phases of FexNy, the only stable phases obtained were those of FeN (F4-3m) and Fe3N (P6322). All the others phases were metastable, and decomposed to FeN and Fe3N. A similar trend from the theoretical calculation of the XRD-spectra was observed [22]. Selecting the most optimized structures of FeN, Fe2N, Fe3N and Fe4N, their XRD spectra were simulated and compared with the experimental results as shown in Figure 3.
With regard to the FexNy/NC composites, the combined ORR electrocatalytic test results and XRD analysis revealed that the best-performing active sites contain an Fe3N (P6322) phase on the NCs. The Fe3N phase was not formed in the catalysts prepared using FeCl3, FeSO4, or ferrocene (Figure 2a), which showed lower ORR activity. These results signify that the Fe3N phase coupled with NC is the principle structure responsible for efficient ORR in this catalytic system. Analogous results appeared as well in other catalysts prepared under control of other parameters, such as weight percent of Fe, pyrolysis temperature, and time. All the less active catalysts contained less pronounced, or did not contain any, Fe3N XRD structure in their respective XRD spectra (Figure 2b–d). The catalysts with lower amounts of Fe (i.e., less than 5% in this study) did not show distinct XRD peaks, indicating that the Fe species were present in an amorphous phase (Figure 2b). In addition, higher amounts (i.e., higher than 5% in this study) of Fe contents resulted in the formation of yet another crystal phase that corresponded to metallic Fe (Figure 2b, green).
The effect of pyrolysis temperature the catalysts ORR activity can also be explained by the presence, or lack thereof, of the Fe3N phase. The Fe3N crystal phase was only found in the catalysts treated at 900 °C. There were both Fe3N and metallic Fe species in the catalysts heated at 800 °C, and Fe4N and metallic Fe species appeared in the catalysts pyrolyzed at 850 °C and 950 °C, respectively (Figure 2c). Interestingly, the catalyst containing higher Fe contents of 7.5 wt. % and prepared at the higher temperature of 950 °C, possessed an identical metallic Fe species. It is assumed that higher amounts of Fe, combined with high heating temperature, induce an aggregation of Fe nanoparticles to give less active, metallic Fe. Longer reaction time also induced the phase changes of Fe3N to the mixture of Fe4N and metallic Fe (Figure 2d). The strong correlation between the existence of Fe3N phase and ORR performance show that Fe3N is the essential active species for superior ORR performance of iron nitride electrocatalysts.
The presence of Fe3N was likewise observed in transmission electron microscope (TEM) analysis, which showed the characteristic d-spacing (2.05 nm) of <111> peak of Fe3N phase matched with the experimental d-spacing (2.10 nm) observed from HRTEM images (Figure 4a). Nanoparticles with an average size of 23.7 nm were supported on the NC support (Figure 4b). The nanoparticles were determined to be Fe3N by the length of 0.21 nm of the lattice distance and strong ring pattern corresponding to the (111) phase of Fe3N in a selected area electron diffraction (SAED) (Figure 4c,d).
In addition, fine distribution of N atoms over the carbon support was evident by EDS mapping (Figure 5). Along with well dispersed N over the carbon support, a higher population of N atoms near Fe atoms was observed, which again showed the favorable bonding between N and Fe to form active catalytic components.
The measured value of the Tafel slope of the single phase Fe3N on NC catalyst obtained from pyrolysis at 900 °C was much lower than the corresponding values of the samples containing other iron nitride phases prepared at other conditions: 850 °C (61 mV), 950 °C (65 mV) and 800 °C (69 mV) (Figure 6a). This attests to the effect of the Fe3N species as showing better catalytic performance. Further, the catalytic activity of ORR is closely related to electron transfer mechanism during the reaction [23,24,25]. Thus, the number of electrons transferred per one mole of oxygen and yield of HO2 byproduct were determined by rotational ring disk electrode (RRDE) measurement using the most active FexNy/NC catalyst. The number of transferred electrons was determined to be higher than 3.9 throughout the whole potential range (Figure 6b). This selective and efficient catalytic process supports the high activity of our Fe3N/NC catalyst. Formation of HO2 was also well inhibited and the amounts did not exceed 5%. Accelerated durability test (ADT) demonstrated the superior stability of the iron nitride catalyst that showed slight negative shift after 4,000 repeated potential cycles (Figure 6c).

3. Experimental

3.1. Synthesis of FexNy/NC Catalyst

All of the chemicals were purchased from Sigma-Aldrich (St. Louis, MO, USA) and used without further purification throughout the entire synthetic procedure. A mixture of Carbon black (Ketjen, Chicago, IL, USA) and Fe salt (iron(III) acetylacetonate, Fe(acac)3, 5 wt. %, Sigma-Aldrich, St. Louis, MO, USA) was ground in a mortar. For the other Fe sources, desired amounts of Fe salts such as iron(II) acetylacetonate (Fe(acac)2, Sigma-Aldrich, St. Louis, MO, USA), Iron(III) chloride hexahydrate (FeCl3·6H2O, 97%, Sigma-Aldrich, St. Louis, MO, USA), Iron(II) sulfate heptahydrate (FeSO4·7H2O, 99%, Sigma-Aldrich, St. Louis, MO, USA), and ferrocene (Fe(C5H5)2, 98%, Sigma-Aldrich, St. Louis, MO, USA) were employed, instead of Fe(acac)3. The nominal amount was kept at 5.0 wt. % theoretical loading. Subsequently, the powder was annealed at 900 °C for 2 h with a ramping rate of 5 °C·min−1 under NH3 atmosphere. Fe loading, reaction temperature, and pyrolysis time were altered for the optimization of synthetic conditions.

3.2. Characterization of Catalysts

Morphology of the as-synthesized catalyst was characterized by high resolution transmission electron microscope (HRTEM, FEI Tecnai F20, FEI, Hillsboro, OR, USA) and high angle annular dark field-scanning transmission electron microscope (HAADF-STEM, FEI Titan at 200 Kv, FEI, Hillsboro, OR, USA). Energy dispersive spectrum (EDS) mapping was carried out using a Talos TEM (FEI; Talos F200X 80-200, FEI, Hillsboro, OR, USA) microscope equipped with X-FEG and super-X EDS system with four silicon drift detectors (SDDs) (Bruker, Bermen, Germany) to determine atomic distribution of each element.

3.3. Electrochemical Measurements

An Autolab PGSTAT20 potentiostat (Metrohm Autolab B.V., Kanaalweg, Utrecht, The Netherlands) was used to carry out all electrochemical measurements. The experiments were conducted in a standard three-electrode cell and a rotating disk electrode (RDE) system (Eco Chemie B.V., Utrecht, Utrecht, The Netherlands). A saturated calomel electrode (SCE) and Pt wire were selected as the reference and counter electrode, respectively. All potentials were calibrated using a reversible hydrogen electrode (RHE) and reported with respect to the RHE. A glassy carbon (GC) RDE (5 mm in diameter) acted as the working electrode. A rotating ring-disk electrode (RRDE, 5.61 mm in diameter) was conducted using an AFMSRCE advanced electrochemical system (Pine Instrument Co., Grove City, PA, USA). A three-electrode cell system was employed incorporating a rotating GC disk (disk area: 0.2475 cm2) and a Pt ring electrode (ring area: 0.1886 cm2) after loading the electrocatalyst as the working electrode. The suspension of the catalytic ink was prepared by ultrasonically dispersing Fe-N-C catalyst in a mixture of Nafion (5 wt. %, Sigma-Aldrich, St. Louis, MO, USA) and 2-propanol. Then, the amount of the ink slurry 0.464 mg∙cm−2geo of Fe-N-C was loaded onto the GC electrode followed by air-drying. To measure the current of the ORR, linear sweep voltammetry (LSV) was conducted in an O2 saturated 0.1 M KOH solution with a potential range of 0.05 to 1.1 V (vs. RHE) and positive scanning rate of 5 mV∙s−1 at 1600 rpm. The durability of the prepared catalyst was examined by repeating 4,000 potential cycles of cyclic voltammetry (CV) between 0.6 V and 1.0 V (vs. RHE) at a scan rate of 100 mV∙s−1 in O2-saturated 0.1 M KOH solution. The peroxide percentage (%HO2) and electron transfer number (n) were evaluated based on the following equations:
n =   4 × I D I D + I R N
% H O 2   =   200 × I R N ( I R N ) + I D
In equation (1), n is the number of electrons transferred per oxygen molecule; IR and ID are the ring and disk current, respectively. The manufacturer’s value of N (ring collection efficiency) is 37%.
The electrochemical measurements on RDE and RRDE greatly depend on the electrode conditions such as the structure, porosity, and geometry of the catalyst layer [26,27,28,29]. We tried to minimize those effects by strictly maintaining the standard procedure for electrode preparation. Thus, we suppose that those effects do not alter our catalytic activity comparison.

4. Conclusion

We reported the essential role of Fe3N as the active site for ORR in FexNy/NC catalysts. Several synthetic variables were optimized to obtain a highly active ORR catalyst, and to reveal the relationship between ORR activity and the density of Fe3N sites. The identical patterns in simulated XRD and measured XRD patterns verified the presence of Fe3N phase in the active catalysts. TEM images and SAED patterns further demonstrated the existence of small sized Fe3N nanoparticles on the N doped carbon material. Numerous parameters such as the type of Fe precursor, Fe contents in the catalyst, pyrolysis temperature, and pyrolysis time affected the formation of the Fe3N nanoparticles. ORR activity of FexNy/NC catalyst was proven to be closely related to the Fe3N phase. The optimized catalyst exhibited excellent ORR activity and durability in alkaline solution. Our effort to identify the active species of iron nitride catalyst for ORR may bring a new opportunity to develop more efficient electrocatalysts and establish a PEMFC based power generation system as well.

Supplementary Materials

The following are available online at www.mdpi.com/2073-4344/6/6/86/s1, Figure S1. Linear sweep Voltammetry curves of ORR in 0.1 M KOH catalyzed by Fe-N-C, C, and N-C., Figure S2. Calculated formation energy for different FexNy compounds.

Acknowledgments

This research was supported by the Technology Development Program to Solve Climate Changes of the Natinal Research Foundation (NRF) funded by the Ministry of Science, ICT, & Future Planning (NRF-2015M1A2A2056690). This work was supported by the Korean Government through the New and Renewable Energy Core Technology Program of the Korea Institute of Energy Technology Evaluation and Planning (KETEP) funded by MOTIE (No.20133030011320), and the National Research Foundation of Korea Grant funded by MSIP (2016, University-Institute cooperation program). This work was also financially supported by KIST through Institutional Project (2E25411).

Author Contributions

Min Jung Park and Jin Hee Lee contributed equally to this work. They prepared the catalysts and evaluated the electrocatalytic activity of the catalysts. K. P. S. S. Hembram and Sang Soo Han carried out the theoretical calculations and analysis of FexNy compounds. Chang Won Yoon and Suk-Woo Nam contributed the interpretation of the analytical data and writing the manuscript. Jin Young Kim provided the concept of this research and managed all the experimental and writing process as the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Brian, C.H.S.; Angelika, H. Materials for fuel-cell technologies. Nature 2001, 414, 345–352. [Google Scholar]
  2. Perry, M.L.; Fuller, T.F. A historical perspective of fuel cell technology in the 20th century. J. Electrochem. Soc. 2002, 149, S59–S67. [Google Scholar] [CrossRef]
  3. Nie, Y.; Li, L.; Wei, Z. Recent advancements in Pt and Pt-free catalysts for oxygen reduction reaction. Chem. Soc. Rev. 2015, 44, 2168–2201. [Google Scholar] [CrossRef] [PubMed]
  4. Wang, Y.J.; Zhao, N.; Fang, B.; Li, H.; Bi, X.T.; Wang, H. Carbon-supported Pt-based alloy electrocatalysts for the oxygen reduction reaction in polymer electrolyte membrane fuel cells: Particle size, shape, and composition manipulation and their impact to activity. Chem. Rev. 2015, 115, 3433–3467. [Google Scholar] [CrossRef] [PubMed]
  5. Proietti, E.; Jaouen, F.; Lefevre, M.; Larouche, N.; Tian, J.; Herranz, J.; Dodelet, J.P. Iron-based cathode catalyst with enhanced power density in polymer electrolyte membrane fuel cells. Nat. Commun. 2011, 2, 416. [Google Scholar] [CrossRef] [PubMed]
  6. Hu, Y.; Jensen, J.O.; Zhang, W.; Cleemann, L.N.; Xing, W.; Bjerrum, N.J.; Li, Q. Hollow spheres of iron carbide nanoparticles encased in graphitic layers as oxygen reduction catalysts. Angew. Chem. Int. Ed. 2014, 53, 3675–3679. [Google Scholar] [CrossRef] [PubMed]
  7. Jang-Soo, L.; Gi, S.P.; Sun, T.K.; Meilin, L.; Jaephil, C. A highly efficient electrocatalyst for the oxygen reduction reaction; n-doped ketjenblack incorporated into Fe/Fe3C-functionalized melamine foam. Angew. Chem. Int. Ed. 2013, 52, 1026–1030. [Google Scholar]
  8. Wen, Z.; Ci, S.; Zhang, F.; Feng, X.; Cui, S.; Mao, S.; Luo, S.; He, Z.; Chen, J. Nitrogen-enriched core-shell structured Fe/Fe3C-C nanorods as advanced electrocatalysts for oxygen reduction reaction. Adv. Mater. 2012, 24, 1399–1404. [Google Scholar] [CrossRef] [PubMed]
  9. Xiao, M.; Zhu, J.; Feng, L.; Liu, C.; Xing, W. Meso/macroporous nitrogen-doped carbon architectures with iron carbide encapsulated in graphitic layers as an efficient and robust catalyst for the oxygen reduction reaction in both acidic and alkaline solutions. Adv. Mater. 2015, 27, 2521–2527. [Google Scholar] [CrossRef] [PubMed]
  10. Jang, B.; Bong, S.; Woo, S.; Park, S.K.; Ha, J.; Choi, E.; Piao, Y. Facile synthesis of one-dimensional iron-oxide/carbon hybrid nanostructures as electrocatalysts for oxygen reduction reaction in alkaline media. J. Nanosci. Nanotechnolo. 2014, 14, 8852–8857. [Google Scholar] [CrossRef]
  11. Ma, Y.; Wang, H.; Key, J.; Linkov, V.; Ji, S.; Mao, X.; Wang, Q.; Wang, R. Ultrafine iron oxide nanoparticles supported on n-doped carbon black as an oxygen reduction reaction catalyst. Int. J. Hydrogen Energy 2014, 39, 14777–14782. [Google Scholar] [CrossRef]
  12. Tylus, U.; Jia, Q.; Strickland, K.; Ramaswamy, N.; Serov, A.; Atanassov, P.; Mukerjee, S. Elucidating oxygen reduction active sites in pyrolyzed metal-nitrogen coordinated non-precious-metal electrocatalyst systems. J. Phys. Chem. C 2014, 118, 8999–9008. [Google Scholar] [CrossRef] [PubMed]
  13. Palaniselvam, T.; Kannan, R.; Kurungot, S. Facile construction of non-precious iron nitride-doped carbon nanofibers as cathode electrocatalysts for proton exchange membrane fuel cells. Chem. Commun. 2011, 47, 2910–2912. [Google Scholar] [CrossRef] [PubMed]
  14. Yin, H.; Zhang, C.; Liu, F.; Hou, Y. Hybrid of iron nitride and nitrogen-doped graphene aerogel as synergistic catalyst for oxygen reduction reaction. Adv. Funct. Mater. 2014, 24, 2930–2937. [Google Scholar] [CrossRef]
  15. Zhang, J.; He, D.; Su, H.; Chen, X.; Pan, M.; Mu, S. Porous polyaniline-derived FeNxC/C catalysts with high activity and stability towards oxygen reduction reaction using ferric chloride both as an oxidant and iron source. J. Mater. Chem. A 2014, 2, 1242–1246. [Google Scholar] [CrossRef]
  16. Michel, L.; Eric, P.; Frédéric, J.; Jean-Pol, D. Iron-based catalysts with improved oxygen reduction activity in polymer electrolyte fuel cells. Science 2009, 324, 71–74. [Google Scholar]
  17. Wu, G.; More, K.L.; Johnston, C.M.; Zelenay, P. High-performance electrocatalysts for oxygen reduction derived from polyaniline, iron, and cobalt. Science 2011, 332, 443–447. [Google Scholar] [CrossRef] [PubMed]
  18. Ganesan, S.; Leonard, N.; Barton, S.C. Impact of transition metal on nitrogen retention and activity of iron-nitrogen-carbon oxygen reduction catalysts. Phys. Chem. Chem. Phys. 2014, 16, 4576–4585. [Google Scholar] [CrossRef] [PubMed]
  19. Hung, T.F.; Tu, M.H.; Tsai, C.W.; Chen, C.J.; Liu, R.S.; Liu, W.R.; Lo, M.Y. Influence of pyrolysis temperature on oxygen reduction reaction activity of carbon-incorporating iron nitride/nitrogen-doped graphene nanosheets catalyst. Int. J. Hydrogen Energy 2013, 38, 3956–3962. [Google Scholar] [CrossRef]
  20. Peng, H.; Mo, Z.; Liao, S.; Liang, H.; Yang, L.; Luo, F.; Song, H.; Zhong, Y.; Zhang, B. High performance Fe- and n-doped carbon catalyst with graphene structure for oxygen reduction. Sci. Rep. 2013. [Google Scholar] [CrossRef]
  21. Schnepp, Z.; Thomas, M.; Glatzel, S.; Schlichte, K.; Palkovits, R.; Giordano, C. One pot route to sponge-like Fe3N nanostructures. J. Mater. Chem. 2011, 21, 17760–17764. [Google Scholar] [CrossRef]
  22. Jain, A.; Ong, S.P.; Hautier, G.; Chen, W.; Richards, W.D.; Dacek, S.; Cholia, S.; Gunter, D.; Skinner, D.; Ceder, G.; et al. Commentary: The materials project: A materials genome approach to accelerating materials innovation. APL Mater. 2013, 1, 011002. [Google Scholar] [CrossRef]
  23. Kattel, S.; Atanassov, P.; Kiefer, B. A density functional theory study of oxygen reduction reaction on non-PGM Fe-Nx-C electrocatalysts. Phys. Chem. Chem. Phys. 2014, 16, 13800–13806. [Google Scholar] [CrossRef] [PubMed]
  24. Kramm, U.I.; Herranz, J.; Larouche, N.; Arruda, T.M.; Lefevre, M.; Jaouen, F.; Bogdanoff, P.; Fiechter, S.; Abs-Wurmbach, I.; Mukerjee, S.; et al. Structure of the catalytic sites in Fe/N/C-catalysts for O2-reduction in PEM fuel cells. Phys. Chem. Chem. Phys. 2012, 14, 11673–11688. [Google Scholar] [CrossRef] [PubMed]
  25. Szakacs, C.E.; Lefevre, M.; Kramm, U.I.; Dodelet, J.P.; Vidal, F. A density functional theory study of catalytic sites for oxygen reduction in Fe/N/C catalysts used in H2/O2 fuel cells. Phys. Chem. Chem. Phys. 2014, 16, 13654–13661. [Google Scholar] [CrossRef] [PubMed]
  26. Masa, J.; Batchelor-McAuley, C.; Schuhmann, W.; Compton, R.G. Koutecky-levich analysis applied to nanoparticle modified rotating disk electrodes: Electrocatalysis or misinterpretation. Nano. Res. 2013, 7, 71–78. [Google Scholar] [CrossRef]
  27. Ward, K.R.; Gara, M.; Lawrence, N.S.; Hartshorne, R.S.; Compton, R.G. Nanoparticle modified electrodes can show an apparent increase in electrode kinetics due solely to altered surface geometry: The effective electrochemical rate constant for non-flat and non-uniform electrode surfaces. J. Electroanal. Chem. 2013, 695, 1–9. [Google Scholar] [CrossRef]
  28. Gara, M.; Ward, K.R.; Compton, R.G. Nanomaterial modified electrodes: Evaluating oxygen reduction catalysts. Nanoscale 2013, 5, 7304–7311. [Google Scholar] [CrossRef] [PubMed]
  29. Ward, K.R.; Compton, R.G. Quantifying the apparent ‘catalytic’ effect of porous electrode surfaces. J. Electroanal. Chem. 2014, 724, 43–47. [Google Scholar] [CrossRef]

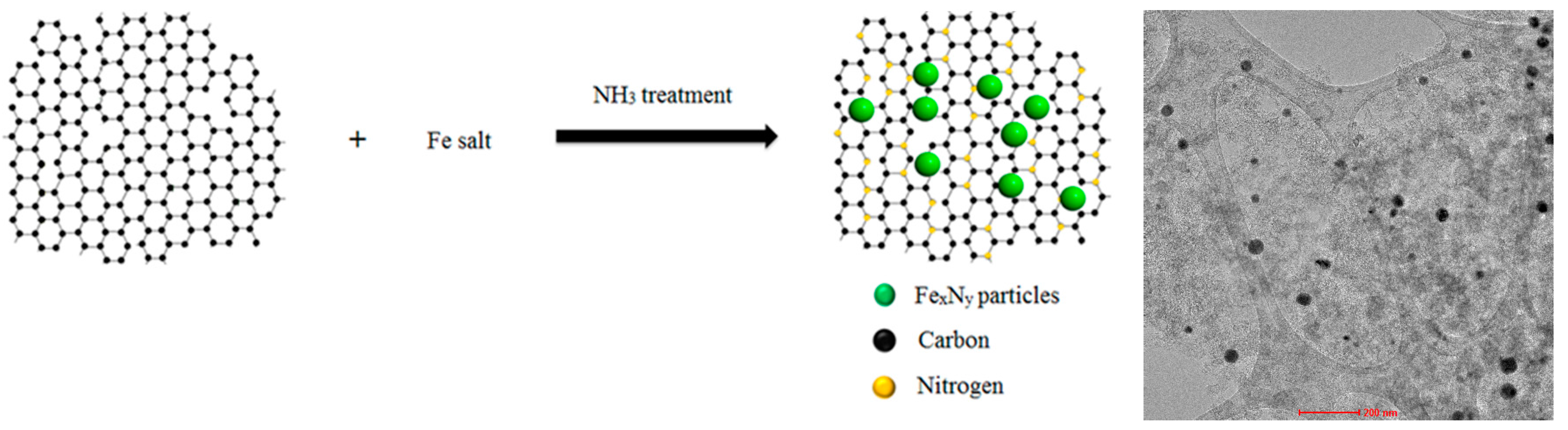

Scheme 1. Illustration of FexNy/nanocomposite (NC) synthesis.
Scheme 1. Illustration of FexNy/nanocomposite (NC) synthesis.
Catalysts 06 00086 sch001

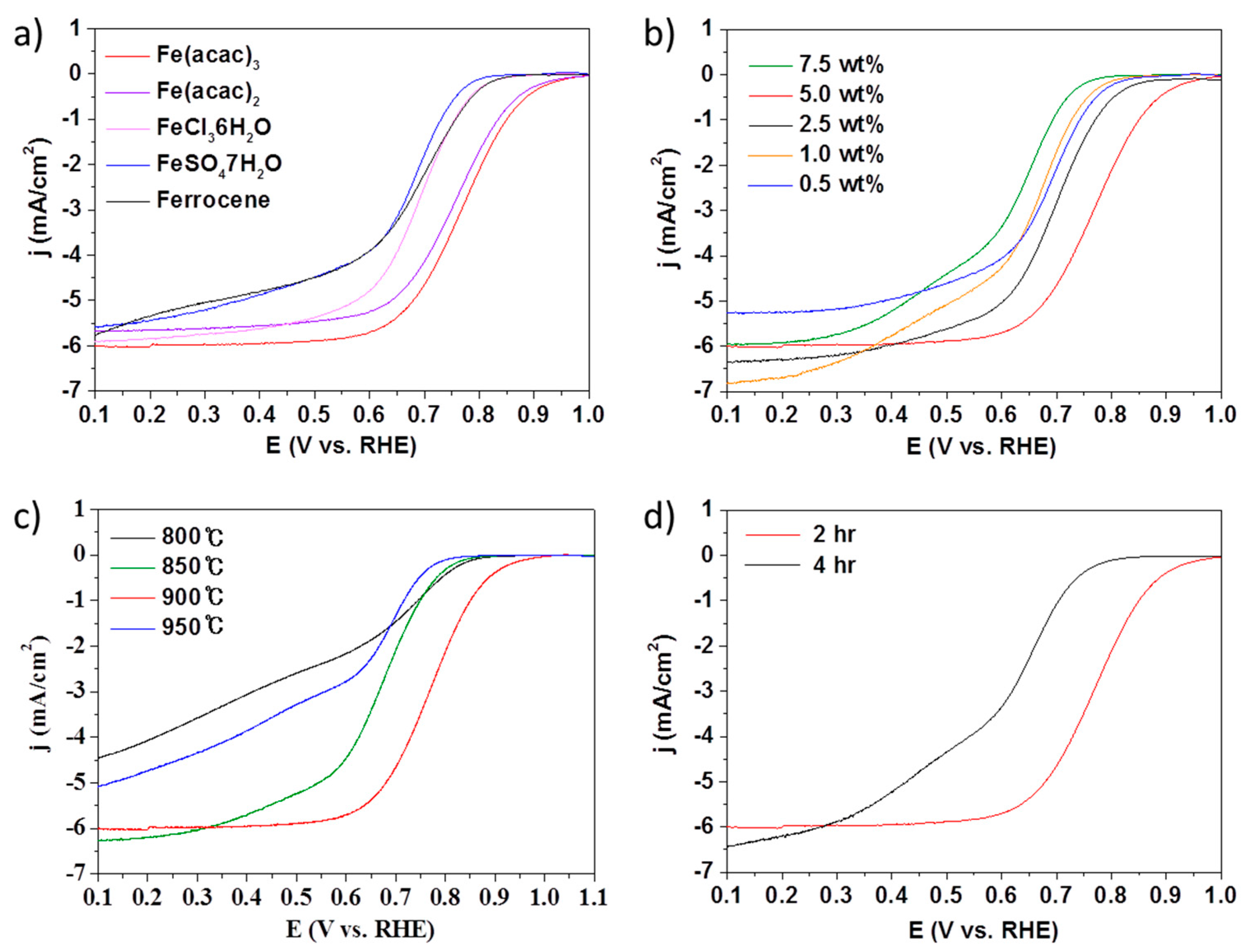

Figure 1. Linear sweep voltammetry curves of oxygen reduction reaction (ORR) in 0.1 M KOH catalyzed by FexNy/NC prepared by altering synthetic conditions. (a) Fe source, (b) Fe contents, (c) pyrolysis temperature, and (d) pyrolysis time.
Figure 1. Linear sweep voltammetry curves of oxygen reduction reaction (ORR) in 0.1 M KOH catalyzed by FexNy/NC prepared by altering synthetic conditions. (a) Fe source, (b) Fe contents, (c) pyrolysis temperature, and (d) pyrolysis time.
Catalysts 06 00086 g001

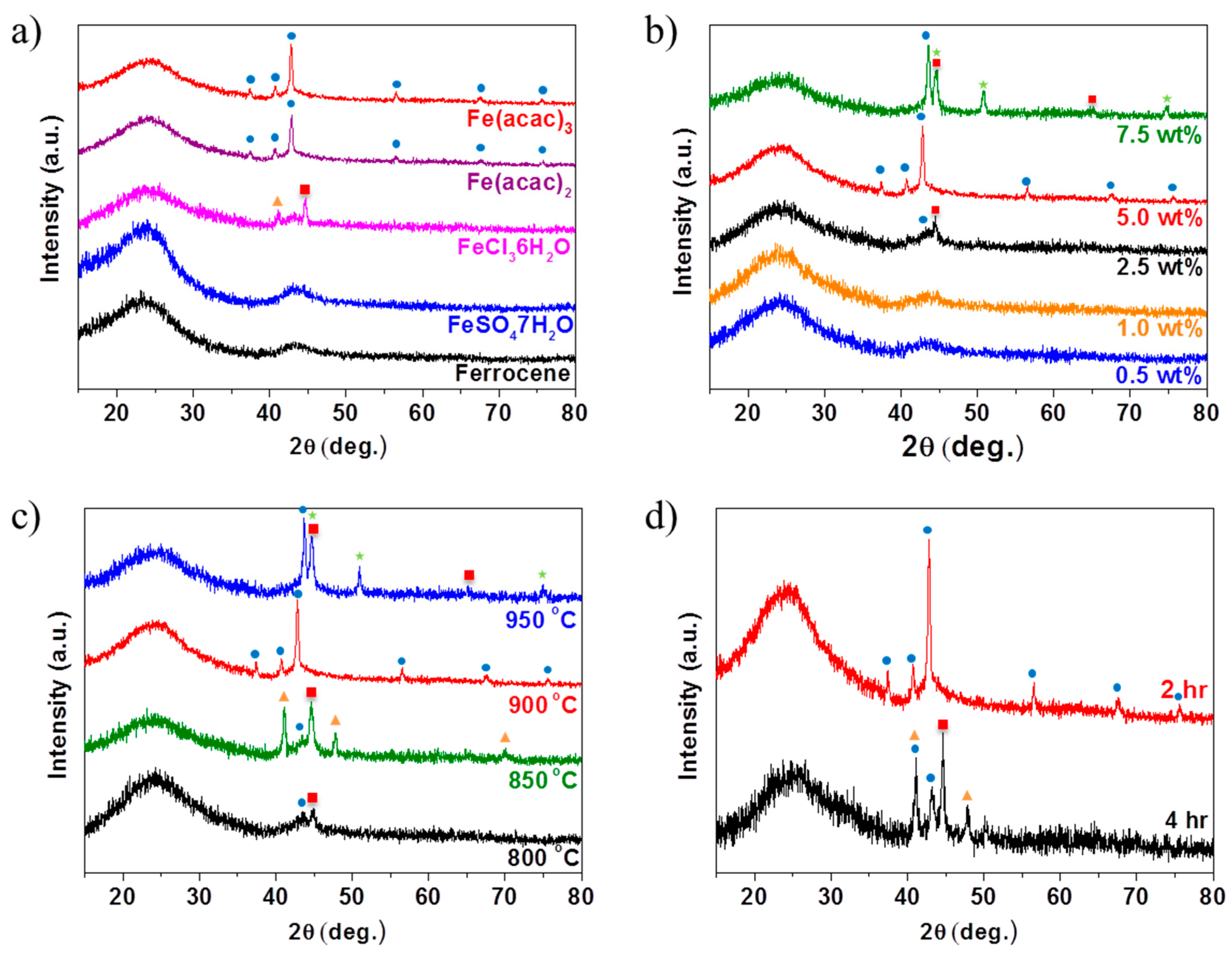

Figure 2. X-ray diffraction (XRD) spectra of Fe-N-C catalysts prepared by altering synthetic conditions. (a) Fe source, (b) Fe contents, (c) pyrolysis temperature, and (d) pyrolysis time. The symbols denote specific Fe species. Catalysts 06 00086 i001 denotes metallic Fe (JCPDS # 87-0722), Catalysts 06 00086 i002 denotes FeN (JCPDS # 50-1087), Catalysts 06 00086 i003 denotes Fe3N (JCPDS # 86-0232), and Catalysts 06 00086 i004 denotes Fe4N (JCPDS # 86-0231).
Figure 2. X-ray diffraction (XRD) spectra of Fe-N-C catalysts prepared by altering synthetic conditions. (a) Fe source, (b) Fe contents, (c) pyrolysis temperature, and (d) pyrolysis time. The symbols denote specific Fe species. Catalysts 06 00086 i001 denotes metallic Fe (JCPDS # 87-0722), Catalysts 06 00086 i002 denotes FeN (JCPDS # 50-1087), Catalysts 06 00086 i003 denotes Fe3N (JCPDS # 86-0232), and Catalysts 06 00086 i004 denotes Fe4N (JCPDS # 86-0231).
Catalysts 06 00086 g002

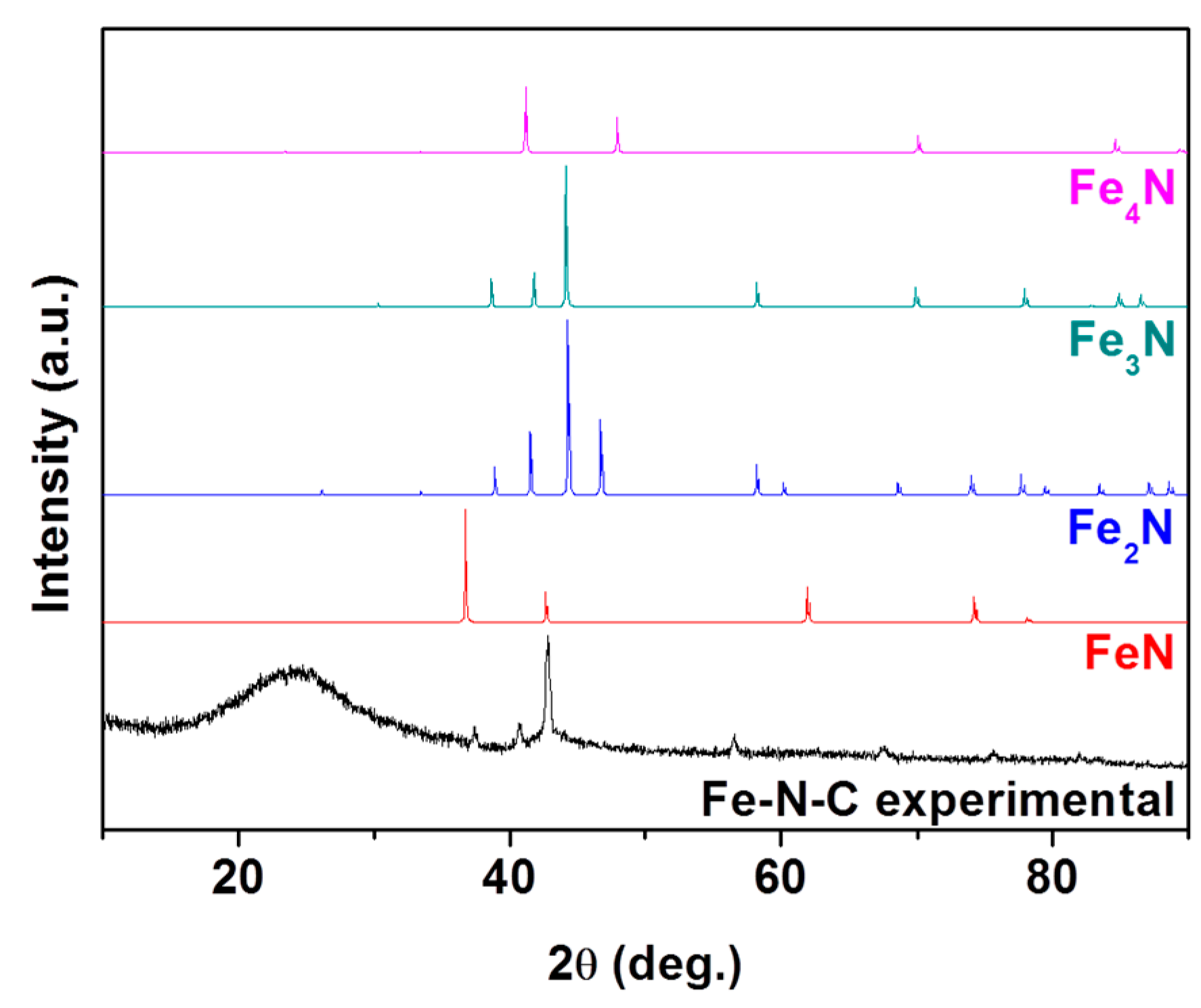

Figure 3. XRD patterns from the experiment compared with the theoretical generated pattern.
Figure 3. XRD patterns from the experiment compared with the theoretical generated pattern.
Catalysts 06 00086 g003
Figure 4. (a) Transmission electron microscope (TEM) image of Fe-N-C catalyst, (b) particle size distribution of Fe3N nanoparticles in Fe-N-C catalyst, (c) high resolution (HR)-TEM image of Fe3N nanoparticle, and (d) selected area electron diffraction (SAED) image of Fe-N-C catalyst.
Figure 4. (a) Transmission electron microscope (TEM) image of Fe-N-C catalyst, (b) particle size distribution of Fe3N nanoparticles in Fe-N-C catalyst, (c) high resolution (HR)-TEM image of Fe3N nanoparticle, and (d) selected area electron diffraction (SAED) image of Fe-N-C catalyst.
Catalysts 06 00086 g004
Figure 5. (a) High angle annular dark field-scanning transmission electron microscope (HAADF-STEM) image of Fe-N-C catalyst, electron energy loss spectroscopy (EELS) mapping images of Fe-N-C catalyst (b) Fe, (c) N, and (d) C.
Figure 5. (a) High angle annular dark field-scanning transmission electron microscope (HAADF-STEM) image of Fe-N-C catalyst, electron energy loss spectroscopy (EELS) mapping images of Fe-N-C catalyst (b) Fe, (c) N, and (d) C.
Catalysts 06 00086 g005

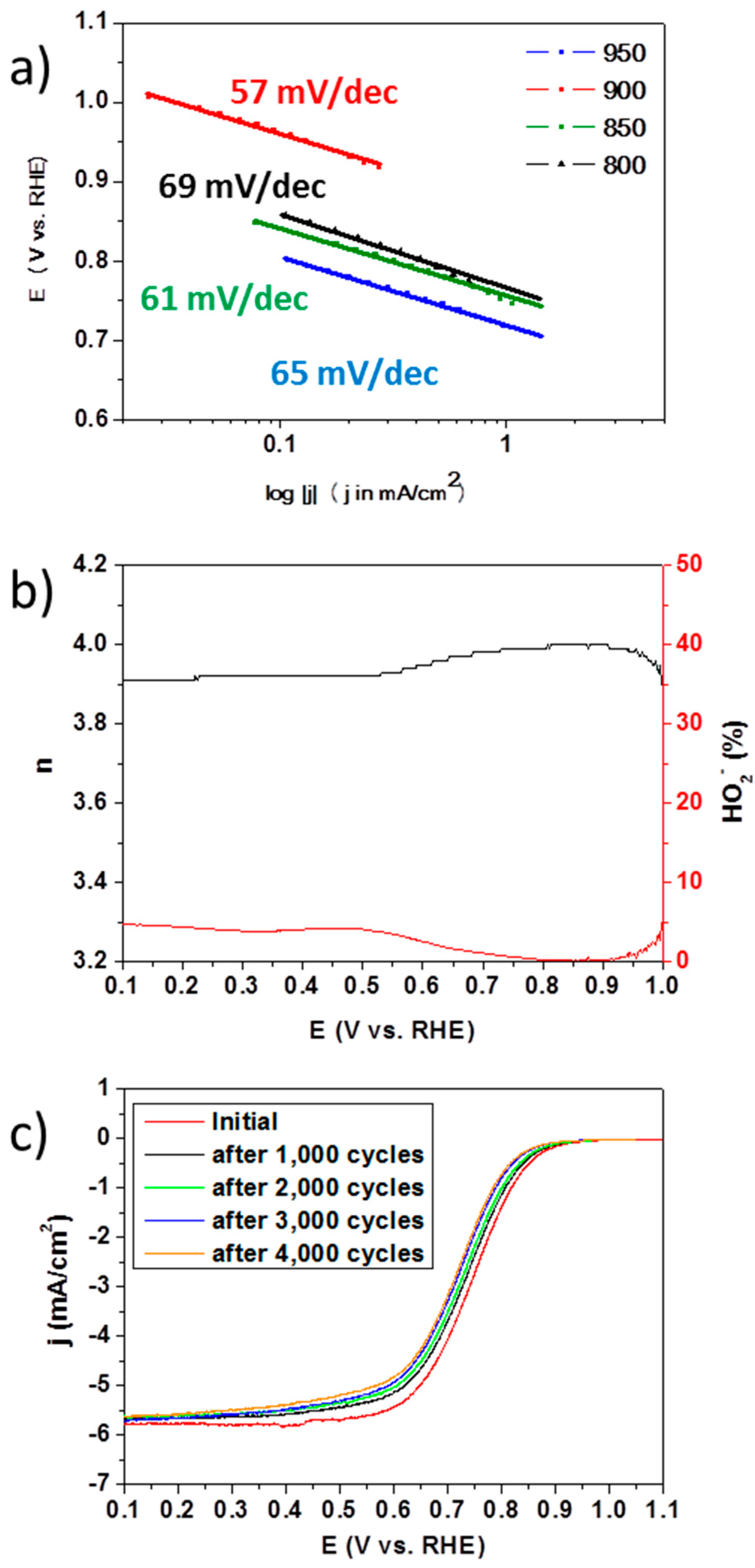

Figure 6. (a) Tafel slopes of the Fe-N-C catalysts prepared by different pyrolysis temperature, (b) number of electron transferred and HO2 yield during the ORR catalyzed by Fe-N-C and (c) accelerated durability testing (ADT) of Fe-N-C; initial, after 1,000, 2,000, 3,000, and 4,000 potential cycles in O2-saturated 0.1 M KOH.
