Hydrogenation of Levulinic Acid over Nickel Catalysts Supported on Aluminum Oxide to Prepare γ-Valerolactone

Key Laboratory of Biomass Chemical Engineering of Ministry of Education, College of Chemical and Biological Engineering, Zhejiang University, Hangzhou 310027, China
*
Author to whom correspondence should be addressed.
Catalysts 2016, 6(1), 6; https://doi.org/10.3390/catal6010006
Received: 19 October 2015 / Revised: 22 December 2015 / Accepted: 23 December 2015 / Published: 30 December 2015
(This article belongs to the Special Issue Catalytic Conversion of Biomass)

Abstract

:
Four types of nickel catalysts supported on aluminum oxide (Ni/Al2O3) with different nickel loadings were synthesized using the co-precipitation method and were used for the hydrogenation of levulinic acid (LA) to prepare γ-valerolactone (GVL). The synthesized Ni/Al2O3 catalysts exhibited excellent catalytic activity in dioxane, and the activity of the catalysts was excellent even after being used four times in dioxane. The catalytic activity in dioxane as a solvent was found to be superior to the activity in water. Nitrogen physisorption, X-ray diffraction, and transmission electron microscopy were employed to characterize the fresh and used catalysts. The effects of the nickel loading, temperature, hydrogen pressure, and substrate/catalyst ratio on the catalytic activity were investigated.

1. Introduction

Due to decreasing fossil reserves and the increasing demand for chemicals and fuels as a result of economic development, considerable attention has been focused on the utilization of renewable resources [1,2]. Biomass is a promising raw material for satisfying societal requirements for chemicals and fuels because it is abundant, inexpensive, and renewable [3]. Cellulose, an important biomass feedstock, has been investigated for producing many platform chemicals, such as 5-hydroxymethylfurfural (HMF) [4], levulinic acid (LA) [5], and γ-valerolactone (GVL) [6]. The GVL produced from this process can be used as a solvent, as a food additive, or as a key intermediate for producing other value-added chemicals [7]. The importance of GVL has recently increased because it has been used as a bridge between biomass and liquid fuels [8,9].
γ-Valerolactone can be synthesized through the hydrogenation of LA, another renewable platform chemical produced from biomass. It is a typical procedure for hydrogenation of carboxylic acids, whereby some heterogeneous catalysts are successfully applied for the hydrogenation of a carboxylic acid to the corresponding product [10]. The first step in producing GVL is hydrogenation of LA to form an intermediate, followed by an intramolecular cyclization reaction. At present, high temperatures, organic solvents, additives, complex separation procedures, and managing relatively high hydrogen pressures are often required for efficiently producing GVL, which together entail substantial energy inputs and the generation of large amounts of waste [11]. Many noble metal catalysts, such as Ru, Ir, Rh, and Pt, have been investigated for the hydrogenation of LA [12,13,14,15,16,17,18]. Luo et al. [19] reported that metal nano-alloys exert beneficial effects on the catalytic hydrogenation of LA to GVL. Although some noble metal catalysts exhibit excellent catalytic activity, the high price of noble metals hinders their application in industry. Copper-based catalysts, such as Cu/ZrO2 [20,21], Cu/SiO2 [22], Cu-Cr [23], and Cu-Fe [24], have been reported to be effective for producing GVL from LA, although a high temperature or long reaction time was required to achieve a high conversion of LA. Moreover, the reusability of these catalysts in such reactions has not received much attention.
Nickel-based catalysts, which are another choice of non-noble metal catalysts, may provide potential for easy recycling due to the strong magnetic properties of nickel-based catalysts. Recently, Ni/Al2O3 and Ni-Cu/Al2O3 were prepared for the hydrogenation of LA using wet impregnation and sol-gel methods. The high reaction temperature (250 °C) and hydrogen pressure (6.5 MPa), however, limit the industrial applications of these catalysts [25]. Shimizu et al. [26] reported that Ni-MoOx/C is the first noble metal-free catalyst with a TON of 4950, which is comparable to the state-of-the-art Ru catalyst for the hydrogenation of LA to GVL at 250 °C. Grunwaldt et al. [27] reported a solvent-free method that obtained a 92% GVL yield for the synthesis of γ-valerolactone via the hydrogenation of LA over Ni/Al2O3; however, reuse of the Ni catalysts resulted in a significant decrease in activity. Kamaraju Seetha Rama Rao et al. [28] demonstrated that Ni/SiO2 prepared using the wet impregnation method provided a GVL yield of approximately 90% at 250 °C, and Ni/SiO2 retained almost the same activity after 25 h. Rong et al. [29] reported that the highest selectivity (93.3%) and productivity (0.32 molGVL·gmetal1·h1) of GVL were obtained under conditions of 150 °C and 1.0 MPa for 2 h. However, the activity of this catalyst could not be well maintained after recycling. In addition, the use of water as a solvent led to catalytic activity loss.
Palkovits [15] demonstrated that the choice of solvent has a strong influence on the hydrogenation catalytic system. Dioxane, a green and inexpensive solvent, was used in this study and could facilitate the reaction. Four nickel catalysts supported on aluminum oxide (Ni/Al2O3) with different nickel loadings were prepared using the co-precipitation method and were evaluated for the hydrogenation of LA to produce GVL in dioxane and water. Nitrogen physisorption, X-ray diffraction, transmission electron microscopy, and thermogravimetric analysis were used to characterize the fresh and used catalysts. The effects of temperature, hydrogen pressure, and substrate/catalyst ratio on the catalytic activity were also investigated.

2. Results and Discussion

2.1. Catalyst Characterization

Prior to characterization, the catalysts were reduced using hydrogen in a tube furnace (flow rate of 100 mL/min) at 650 °C for 3 h.
Nickel-based catalysts, with various nickel loadings from 10% to 40%, were prepared using the co-precipitation method. The N2 physisorption results of the prepared catalysts are presented in Table 1. The 10% Ni/Al2O3 catalyst had the largest surface area (181.3 m2/g), pore volume (0.483 cm³/g), and pore size (9.8 nm). As the nickel loading increased, the surface area of the corresponding catalyst decreased from 168.8 to 133.7 m2/g. Moreover, the pore volume of the catalyst decreased with increasing nickel loading. The pore size of the catalyst also decreased as the nickel loading increased, except for the 30% Ni/Al2O3 catalyst. These results indicate that the loaded nickel particles occupied a certain amount of the surface area and pore volume.
X-ray diffraction measurements were performed to determine the crystal phases in the structure of the catalysts and to calculate the average crystalline sizes. The XRD patterns of the catalysts are presented in Figure 1. Diffraction peaks assigned to metallic Ni were observed at 2θ angles of 44.3°, 51.7°, and 76.3°. As the nickel loading in the catalyst increased, the intensity of the diffraction peaks corresponding to metallic Ni increased. Mild diffraction peaks corresponding to the NiAl2O4 phase were also observed at angles of 37.5°, 45.7°, and 67.0°. As shown in Table 1, the average crystalline size of metallic Ni also increased with increasing nickel loading. Notably, the average crystalline size of metallic Ni in the 20% Ni/Al2O3 catalyst was found to be considerably larger than that in the 10% Ni/Al2O3 catalyst.
Table 1. Nitrogen physisorption and X-ray diffraction results of the catalysts.
Table 1. Nitrogen physisorption and X-ray diffraction results of the catalysts.
CatalystBET Surface Area (m2/g)Pore Volume a (cm³/g)Pore Size b (nm)Average Crystalline Size of Metallic Ni c (nm)
10% Ni/Al2O3181.30.4839.808
20% Ni/Al2O3168.80.4268.5214.7
30% Ni/Al2O3145.70.3778.8617.7
40% Ni/Al2O3133.70.3278.3219.3
40% Ni/Al2O3 (used 4 times)133.10.2757.5019.1
a BJH adsorption cumulative volume of pores between 1.70 nm and 300.00 nm in diameter; b BJH adsorption average pore diameter (4 V/A); c Average crystalline sizes determined by X-ray line broadening analysis (XLBA) using the diffraction peak at 2θ = 44.3° for metallic Ni.

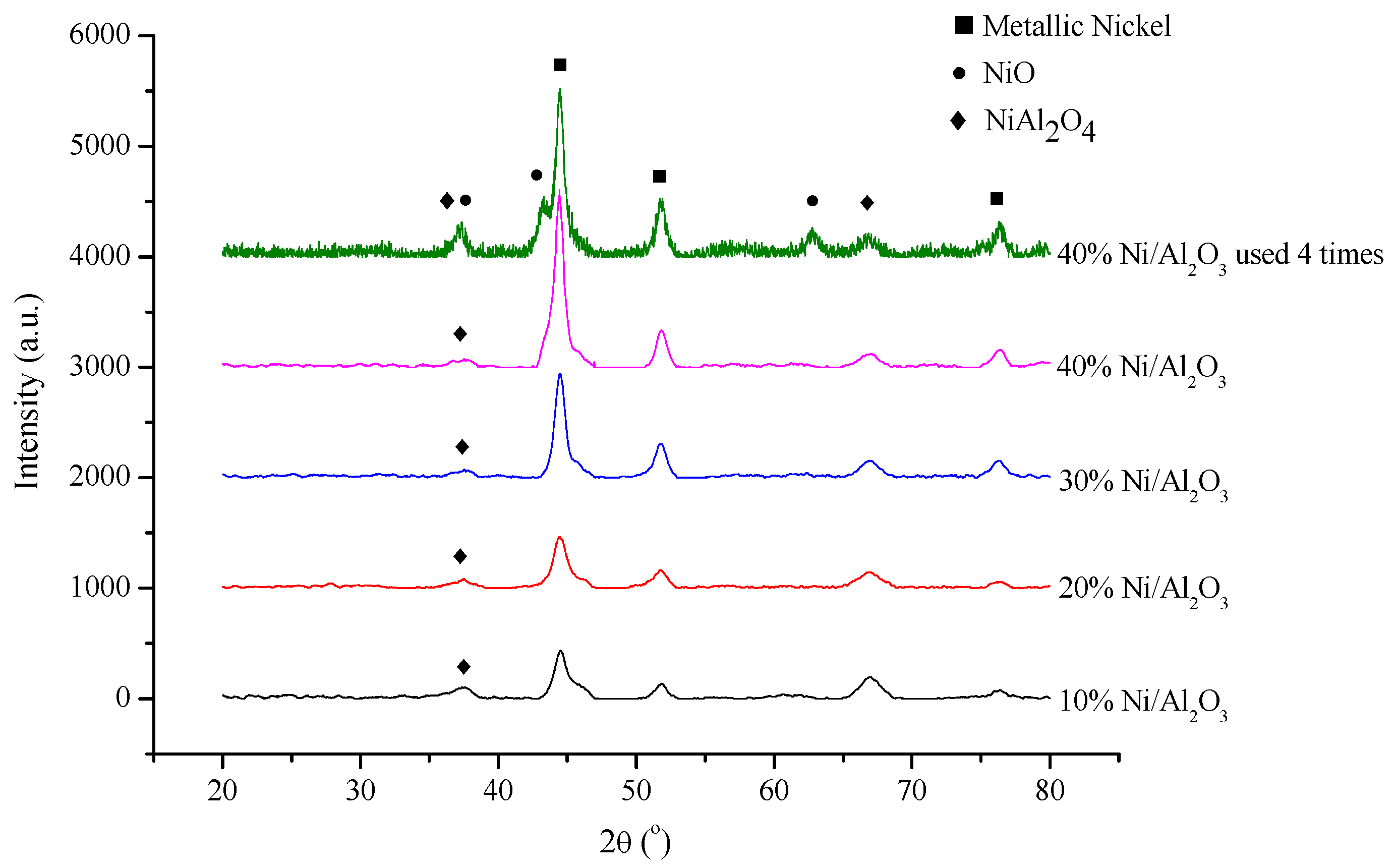

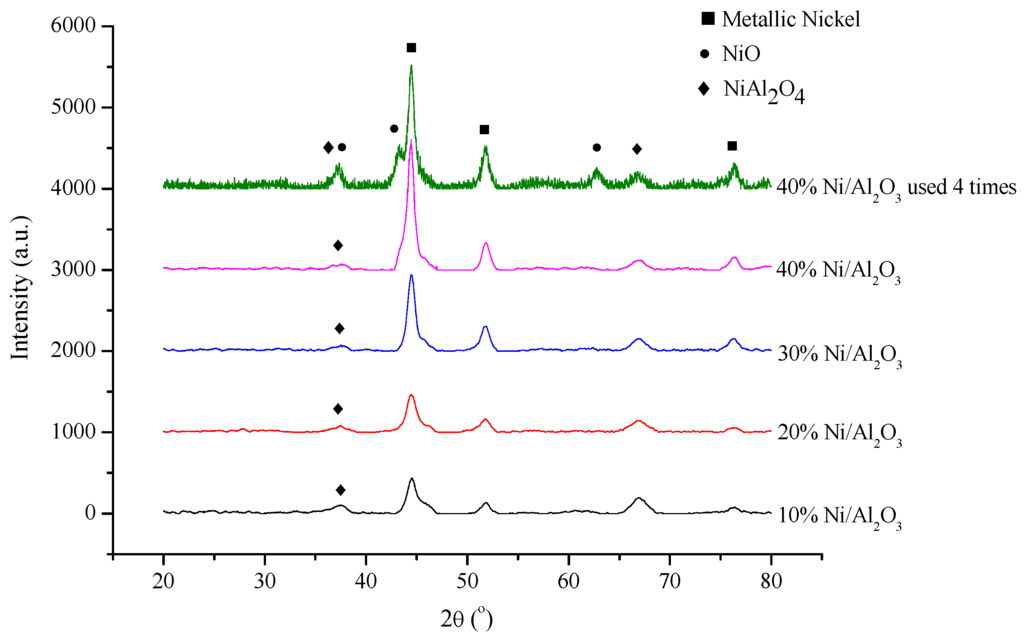

Figure 1. X-ray diffraction (XRD) patterns of Ni/Al2O3 with different nickel loadings (JCPDS Cards: Metallic nickel: PDF65-0243; NiO: PDF22-1189; and NiAl2O4: PDF01-1299).
Figure 1. X-ray diffraction (XRD) patterns of Ni/Al2O3 with different nickel loadings (JCPDS Cards: Metallic nickel: PDF65-0243; NiO: PDF22-1189; and NiAl2O4: PDF01-1299).
Catalysts 06 00006 g001
Transmission electron microscopy (TEM) images of the 40% Ni/Al2O3 catalyst and the used 40% Ni/Al2O3 catalyst are shown in Figure 2. As shown in Figure 2a,b, the nickel particles (black spots) were well dispersed on the Al2O3 support, and the average size of the particles was 12.5 nm, which is smaller than the size of 19.3 nm determined from the XRD analysis. This result was reasonable because the crystalline size obtained from XRD was the average size for all the nickel particles, whereas that obtained from TEM only represented the size of some parts of the catalyst. As shown in Figure 2c,d, the average particle size of the used 40% Ni/Al2O3 catalyst was 11.7 nm, which was not significantly different from that of the fresh 40% Ni/Al2O3 catalyst. This result indicates that no catalyst agglomeration occurred after recycling of the catalyst.
Figure 2. Transmission electron microscopy (TEM) images of fresh 40% Ni/Al2O3 (a,b) and used 40% Ni/Al2O3 (c,d), and the particle size distribution of fresh 40% Ni/Al2O3 (e) and used 40% Ni/Al2O3 (f).
Figure 2. Transmission electron microscopy (TEM) images of fresh 40% Ni/Al2O3 (a,b) and used 40% Ni/Al2O3 (c,d), and the particle size distribution of fresh 40% Ni/Al2O3 (e) and used 40% Ni/Al2O3 (f).
Catalysts 06 00006 g002

2.2. Catalytic Activity and Stability

The activities of the synthesized catalysts for the hydrogenation of LA were evaluated in dioxane and water as solvents (Table 2). The reaction temperature was 180 °C in dioxane and 200 °C in water, and the hydrogen pressure was maintained constant at 3 MPa. For 10% Ni/Al2O3, a LA conversion of 28.8% and GVL selectivity of 92.2% were achieved within 3 h in water, compared to a conversion of 68.6% and selectivity of 96.5% within 2 h in dioxane. For the other Ni/Al2O3 catalysts, higher conversions and selectivities were always achieved with shorter reaction times and lower temperatures in dioxane rather than water as the solvent. Hence, dioxane was favorable for the hydrogenation of LA over Ni/Al2O3 catalysts. According to the similarity principle [30], the solubility of hydrogen in dioxane should be higher than that in water. However, the literature reports that there are no significant differences between the solubilities of hydrogen in water and dioxane [31,32]. It has been reported that the properties of some types of catalysts change significantly in the presence of water. Holmen et al. [33] reported that both Co/Al2O3 and Co/Re/Al2O3 exhibited deactivation when exposed to water vapor during the Fischer-Tropsch synthesis. In our work, Ni/Al2O3 might be deactivated in aqueous solution following the deactivation mechanisms of Co/Al2O3 and Co/Re/Al2O3 in Holmen’s work, which may contribute to the better performance for the hydrogenation of levulinic acid in dioxane than in water.
Table 2. Levulinic acid (LA) conversion, γ-valerolactone (GVL) yield, and selectivity in dioxane and water over Ni/Al2O3 catalysts (LA loading = 1 g, catalyst loading = 0.1 g).
Table 2. Levulinic acid (LA) conversion, γ-valerolactone (GVL) yield, and selectivity in dioxane and water over Ni/Al2O3 catalysts (LA loading = 1 g, catalyst loading = 0.1 g).
CatalystSolventT/°CH2 P/MPaTime/hConversion/%Yield/%Selectivity/%
10%Ni/Al2O3water2003328.826.592.2
20%Ni/Al2O3water2003394.088.093.6
30%Ni/Al2O3water2003396.286.990.3
40%Ni/Al2O3water2003398.293.495.1
10%Ni/Al2O3dioxane1803268.666.296.5
20%Ni/Al2O3dioxane1803296.094.898.8
30%Ni/Al2O3dioxane18032100.098.398.3
40%Ni/Al2O3dioxane18032100.099.299.2
10%Ni/Al2O3dioxane1803140.739.797.5
20%Ni/Al2O3dioxane1803157.355.296.3
30%Ni/Al2O3dioxane1803177.274.896.9
40%Ni/Al2O3dioxane1803182.280.798.2
To investigate the effect of nickel loading on the catalytic activities of the Ni/Al2O3 catalysts, LA conversion was performed at 180 °C for 1 h, and the results are presented in Table 2. The activity of each catalyst with different nickel loadings for LA conversion was also calculated and followed the order of 40.3 gLA·gcatalyst1·h1 (10% Ni/Al2O3) > 28.7 gLA·kgcatalyst1·h1 (20% Ni/Al2O3) > 25.7 gLA·gcatalyst1·h1 (30% Ni/Al2O3) > 22.1 gLA·gcatalyst1·h1 (40% Ni/Al2O3). The 40% Ni/Al2O3 catalyst has the lowest activity, which could also be explained by this catalyst possessing the smallest surface area and largest average crystalline size of metallic nickel, as shown in Table 1. The nickel loading played a critical role in the catalytic activity for the hydrogenation reaction of LA to form GVL.

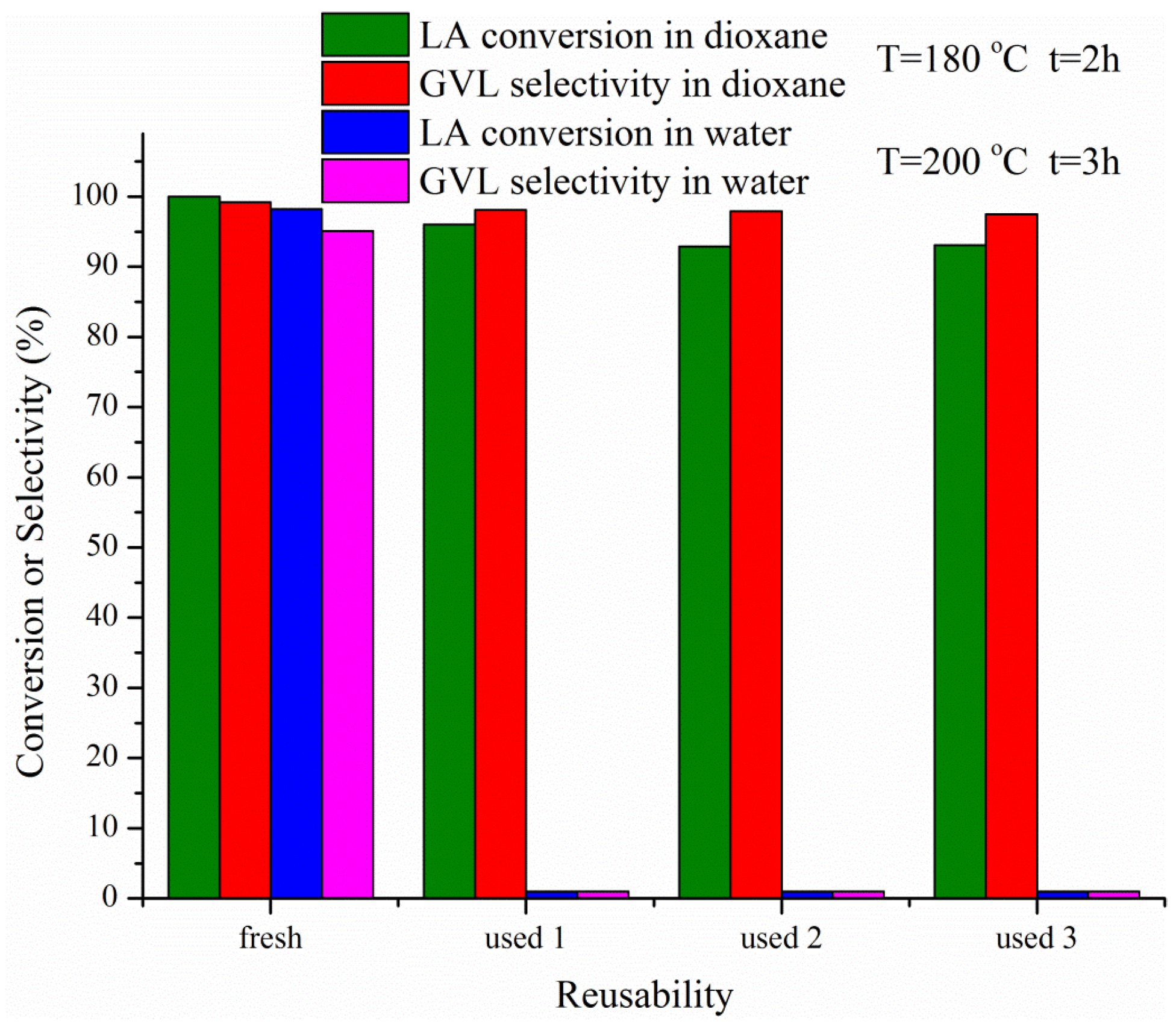

Figure 3. Reusability of the 40% Ni/Al2O3 catalyst in dioxane and water. Dioxane (40 mL) as the solvent: reaction temperature = 180 °C, H2 pressure = 3 MPa, reaction time = 2 h, LA loading = 1 g, and catalyst loading = 0.1 g; Water as the solvent: reaction temperature = 200 °C, H2 pressure = 3 MPa, reaction time = 3 h, LA loading = 1 g, and catalyst loading = 0.1 g.
Figure 3. Reusability of the 40% Ni/Al2O3 catalyst in dioxane and water. Dioxane (40 mL) as the solvent: reaction temperature = 180 °C, H2 pressure = 3 MPa, reaction time = 2 h, LA loading = 1 g, and catalyst loading = 0.1 g; Water as the solvent: reaction temperature = 200 °C, H2 pressure = 3 MPa, reaction time = 3 h, LA loading = 1 g, and catalyst loading = 0.1 g.
Catalysts 06 00006 g003
The reusability of the 40% Ni/Al2O3 catalyst was tested, as shown in Figure 3. The used catalyst was recycled after the hydrogenation reaction by washing with water in an ultrasonic cleaner and drying in a vacuum oven at 60 °C without hydrogen reduction. The catalyst retained very similar activity for the hydrogenation of LA even after it was used four times in dioxane. In comparison, the catalyst lost activity for the hydrogenation of LA in water after it was used once, indicating that dioxane was favorable for the stability of the catalyst. The characterization results of the used 40% Ni/Al2O3 catalyst are shown in Table 1 and in Figure 1 and Figure 2. The pore volume and pore size of the used 40% Ni/Al2O3 catalyst were smaller than those of the fresh 40% Ni/Al2O3 catalyst, whereas the surface areas of the two catalysts were almost identical. Strong diffraction peaks corresponding to the NiO phase appeared at 37.2°, 43.2°, and 62.8° in the used 40% Ni/Al2O3 catalyst, which indicates that the catalyst was oxidized to a certain extent. The slight decrease in LA conversion over the used catalyst compared to that over the fresh catalyst might have been caused by slight oxidation of the catalyst. The average crystalline size of metallic Ni in the 40% Ni/Al2O3 catalyst remained almost unchanged even after it was used four times. The TEM images of the used 40% Ni/Al2O3 catalyst are shown in Figure 2c,d. Metallic nickel was still well dispersed on the Al2O3 support, and its size was in the range of 10 to 20 nm, which contributed to the stability of the catalyst.

2.3. Effects of Temperature, Hydrogen Pressure, and Substrate/Catalyst Ratio

To investigate the effects of the reaction temperature, hydrogen pressure, and substrate-to-catalyst ratio (S/C), a series of hydrogenation experiments were conducted over 40% Ni/Al2O3 as the catalyst. The results are shown in Figure 4. The conversion of LA increased as the reaction temperature increased from 150 to 180 °C, while the GVL selectivity remained high. The hydrogen pressure had a strong effect on the conversion of LA when the hydrogen pressure increased from 1 MPa to 2 MPa, whereas the effect was not prominent when the hydrogen pressure increased from 2 MPa to 3 MPa. When the hydrogen pressure was greater than 3 MPa, it did not affect the reaction. The conversion of LA rapidly decreased when the S/C ratio increased from 10 to 100, which indicated that the catalyst dosage significantly influenced the hydrogenation reaction.

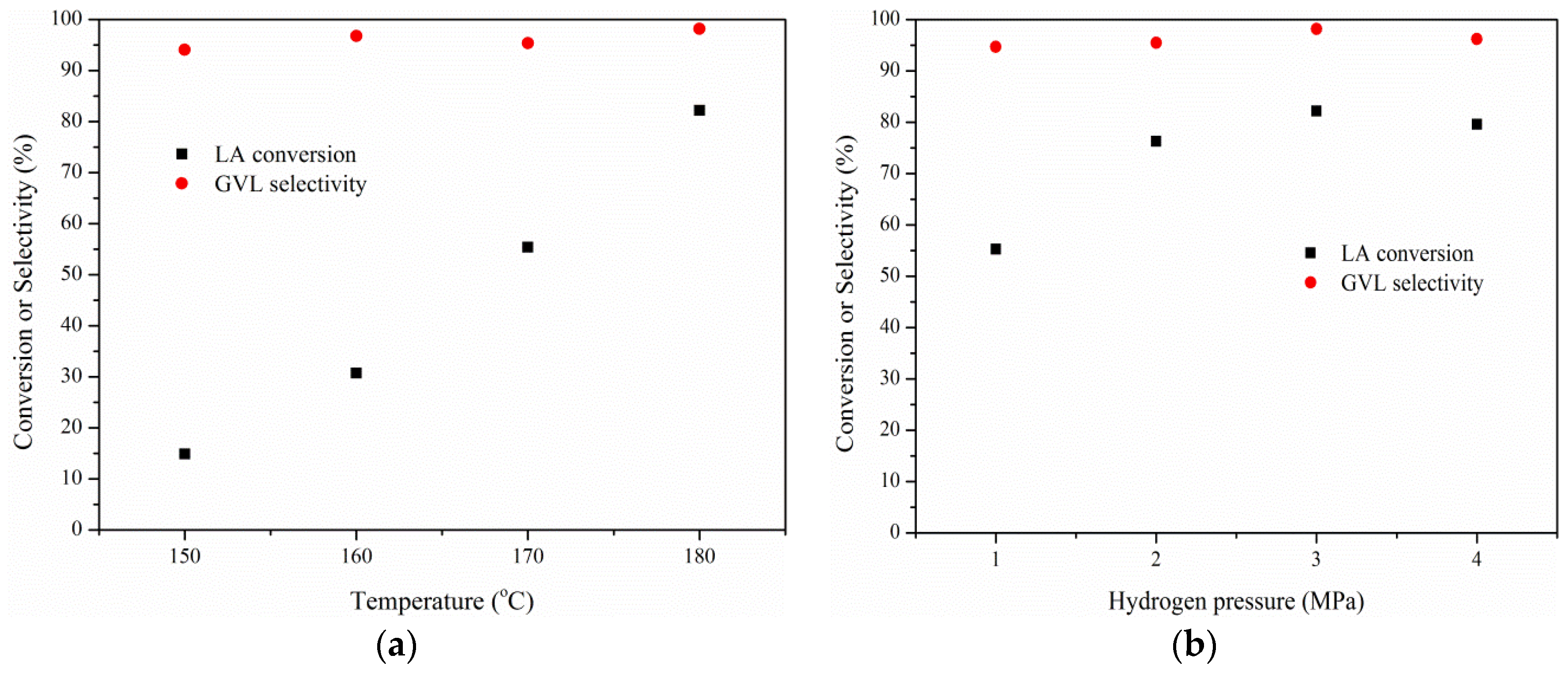

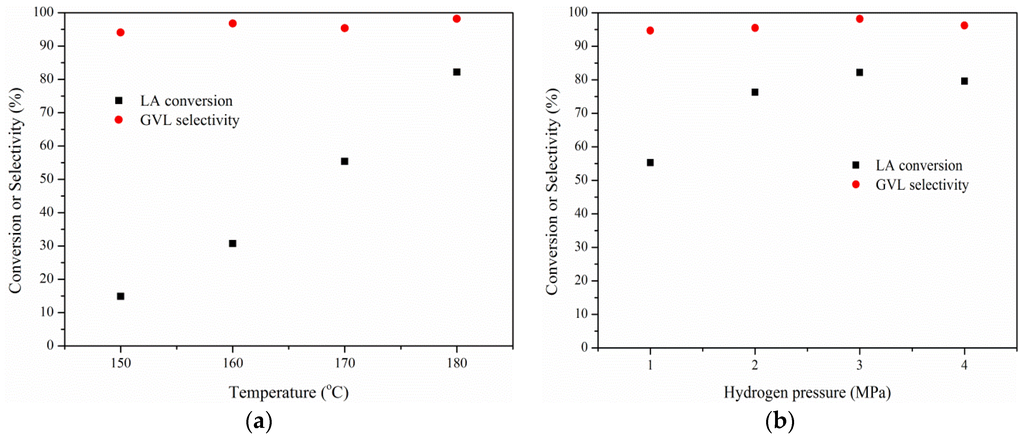

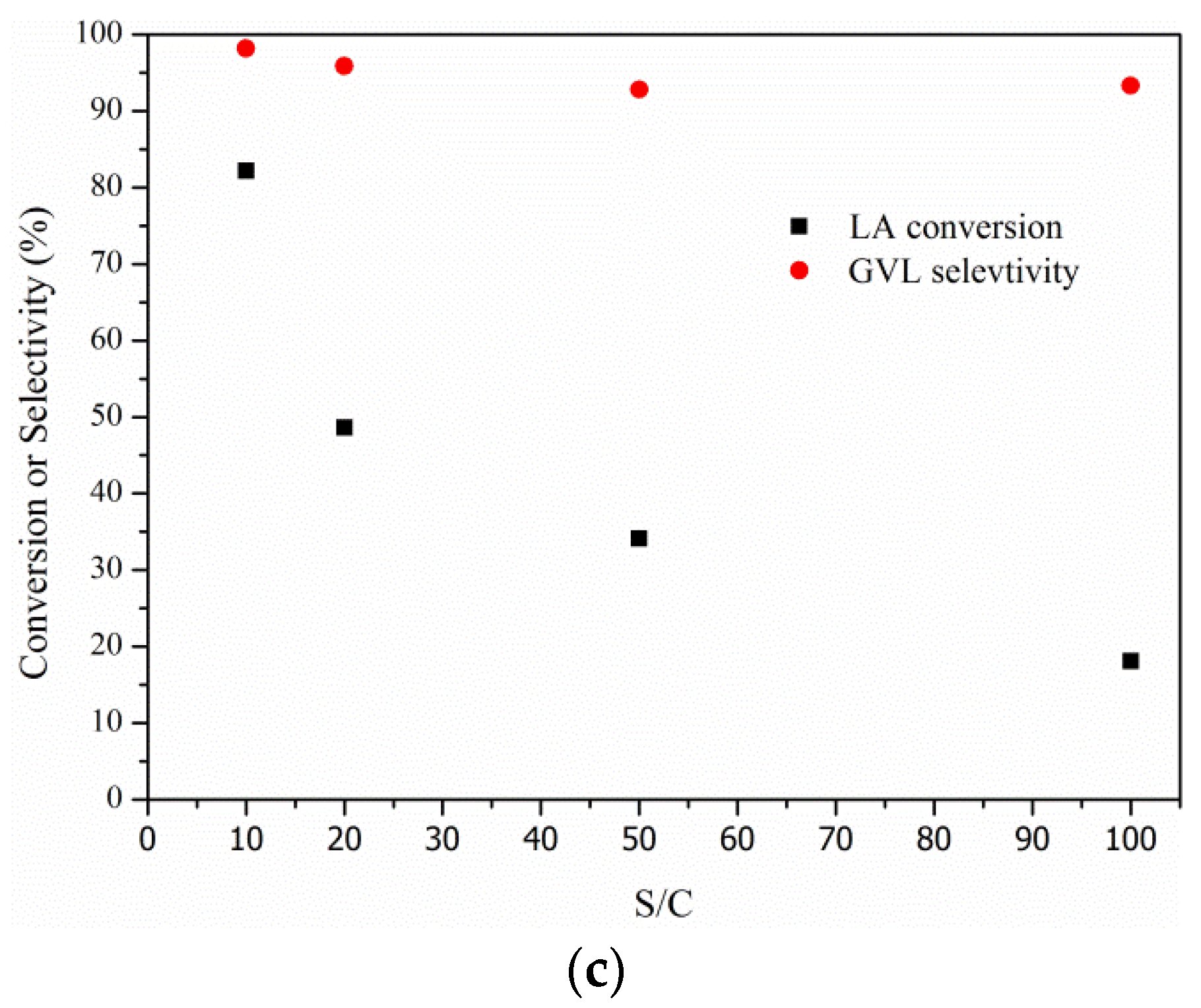

Figure 4. Effects of reaction temperature, hydrogen pressure, and substrate-to-catalyst ratio (S/C). (a) Effect of temperature: H2 pressure = 3 MPa, reaction time = 1 h, LA loading = 1 g, and catalyst loading = 0.1 g; (b) effect of hydrogen pressure: reaction temperature = 180 °C, reaction time = 1 h, LA loading = 1 g, and catalyst loading = 0.1 g; and (c) effect of S/C: reaction temperature = 180 °C, H2 pressure = 3 MPa, reaction time = 1 h, and LA loading = 1 g.
Figure 4. Effects of reaction temperature, hydrogen pressure, and substrate-to-catalyst ratio (S/C). (a) Effect of temperature: H2 pressure = 3 MPa, reaction time = 1 h, LA loading = 1 g, and catalyst loading = 0.1 g; (b) effect of hydrogen pressure: reaction temperature = 180 °C, reaction time = 1 h, LA loading = 1 g, and catalyst loading = 0.1 g; and (c) effect of S/C: reaction temperature = 180 °C, H2 pressure = 3 MPa, reaction time = 1 h, and LA loading = 1 g.
Catalysts 06 00006 g004aCatalysts 06 00006 g004b

3. Experimental Section

3.1. Materials

Nickel nitrate hexahydrate (98%) and aluminum nitrate hydrate (99%) were purchased from the Aladdin Industrial Corporation, Shanghai, China. Levulinic acid (99%) was purchased from J & K, Beijing, China. γ-Valerolactone (99%) was purchased from Sigma-Aldrich (Louis, MO, USA). Dioxane (99.5%) was purchased from the Sinopharm Chemical Reagent Co., Ltd., Shanghai, China. Deionized water was prepared in house.

3.2. Catalyst Preparation

Nickel-based catalysts, Ni/Al2O3, were prepared using the co-precipitation method. Nickel nitrate hexahydrate (Ni(NO3)2·6H2O) and aluminum nitrate hydrate (Al(NO3)3·9H2O) were dispersed in 250 mL of deionized water in desired molar ratios and precipitated with approximately 250 mL of 0.2 M aqueous potassium carbonate at 30 °C. The precipitate was further aged for approximately 6 h at 30 °C. Then, the precipitate was collected by filtration and washed three times with deionized water to remove excess potassium salt. The precipitate was then dried in a forced air oven at 110 °C for 12 h, followed by calcination at 450 °C for 4 h. Prior to the reaction, the calcined catalyst was subjected to a reduction reaction using hydrogen in a tube furnace (flow rate of 100 mL/min) at 650 °C for 3 h. The used catalyst was recycled after the hydrogenation reaction by washing with water in an ultrasonic cleaner and drying for 12 h in a vacuum oven at 60 °C without hydrogen reduction.

3.3. Catalyst Characterization

Nitrogen physisorption measurements: Surface areas and pore size distributions were measured using nitrogen as a sorbate gas at 77 K in a static volumetric apparatus (Micromeritics ASAP2020, Norcross, GA, USA). Prior to the measurements, the samples were degassed at 300 °C for 16 h. The specific surface areas were calculated using the Brunauer-Emmett-Teller (BET) equation, and the pore sizes and pore volumes were calculated following the method of Barret-Joyner-Halenda (BJH) according to an implemented software routine using the Halsey thickness equation for relating the thickness of the adsorbed layer to the relative pressure. All calculations were based on the adsorption model.
X-ray diffraction (XRD): X-ray diffraction measurements were performed to identify the metal phases in the synthesized samples and for calculating the crystal sizes using the Scherrer equation. XRD patterns were recorded on a PANalytical Empyrean 200,895, using Ni-filtered Cu Kα radiation (λ = 0.154 nm) as the X-ray source (current intensity, 30 mA; voltage, 40 kV) and an X’Celerator detector. The samples were scanned in the 2θ range of 20° to 80°.
Transmission electron microscopy (TEM): The particle sizes and morphologies were investigated using transmission electron microscopy (JEM-2010). A small amount of solid sample was sonicated in acetone for 1 min. Then, a drop of the prepared suspension was deposited onto a Cu grid coated with a layer of carbon. The grid was dried at room temperature prior to analysis. An electron gun operating at an accelerating voltage of 200 kV was used for the collection of all images.
Thermogravimetric analysis (TGA): The TGA curves were obtained using a thermogravimetric analyzer (TA-Q500). The temperature was scanned from 40 to 850 °C under a N2 atmosphere with a scan rate of 20 °C/min.

3.4. Experimental Procedure

The hydrogenation of LA was performed in a 100 mL batch reactor at a stirring speed of 1000 rpm. The typical reaction conditions were as follows: a temperature of 180 °C, a hydrogen pressure of 3 MPa (initially, the 100 mL batch reactor is filled with 3 MPa hydrogen and the hydrogen is released; then, the previous operation is repeated 3 times; and finally, the 100 mL batch reactor is filled with 3 MPa hydrogen), a dioxane volume of 40 mL, an LA loading of 1 g, and a catalyst loading of 0.1 g. After the reaction, the reaction mixture was filtered, washed, and diluted with deionized water to approximately 250 mL. The compositions of the diluted samples were quantitatively determined using an HPLC (Agilent 1100, Santa Clara, CA, USA) equipped with a refractive index detector. A 20 μL sample was loaded into a Phenomenex Gemini 5 µm C18 110A column (250 × 4.60 mm, 5 micron) and eluted with a mixture (0.1 mM hydrochloric acid: acetonitrile = 99:1) at a flow rate of 0.6 mL/min. The column was maintained at 35 °C, and the calibration was performed using commercially available standards.

4. Conclusions

Four nickel catalysts supported on aluminum oxide with different nickel loadings were prepared for the hydrogenation of LA to produce GVL using the co-precipitation method. The nickel particles were well dispersed on Al2O3, and the surface area, pore volume, and pore size decreased as the nickel loading increased. The synthesized Ni/Al2O3 catalysts exhibited excellent catalytic activity and stability in dioxane. An LA conversion of 100% and a GVL yield of 99.2% were achieved at 180 °C after 2 h, and the catalyst retained excellent activity even after it was used four times in dioxane. Furthermore, the catalytic activity in dioxane was superior to that in water. The catalyst suffered a certain degree of oxidation during the hydrogenation process, as shown in Figure 1. The conversion of LA increased as the nickel loading increased. A high temperature, high hydrogen pressure, and small S/C ratio were favorable for obtaining a high LA conversion.

Acknowledgments

This work was supported by the National Natural Science Foundation of China (No. 21306165, 21436007), the Zhejiang Provincial Natural Science Foundation of China (No. LQ13B060001), and the Specialized Research Fund for the Doctoral Program of Higher Education of China (No. 20130101120110).

Author Contributions

Xiuyang Lu suggested and supervised the work. Jie Fu wrote the main manuscript with input from all authors. Dong Sheng performed all of the experiments and prepared all the figures and tables. All authors reviewed the manuscript.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Huber, G.W.; Iborra, S.; Corma, A. Synthesis of transportation fuels from biomass: Chemistry catalysts and engineering. Chem. Rev. 2006, 106, 4044–4098. [Google Scholar] [CrossRef] [PubMed]
  2. Serrano-Ruiz, J.C.; West, R.M.; Dumesic, J.A. Catalytic conversion of renewable biomass resources to fuels and chemicals. Annu. Rev. Chem. Biomol. Eng. 2010, 1, 79–100. [Google Scholar] [CrossRef] [PubMed]
  3. Ragauskas, A.J.; Williams, C.K.; Davison, B.H.; Britovsek, G.; Cairney, J.; Eckert, C.A.; Frederick, W.J.; Hallett, J.P.; Leak, D.J.; Liotta, C.L.; et al. The path forward for biofuels and biomaterials. Science 2006, 311, 484–489. [Google Scholar] [CrossRef] [PubMed]
  4. Jing, Q.; Lü, X. Kinetics of non-catalyzed decomposition of glucose in high-temperature liquid Water. Chin. J. Chem. Eng. 2008, 16, 890–894. [Google Scholar] [CrossRef]
  5. Yang, F.; Fu, J.; Mo, J.; Lu, X. Synergy of Lewis and Brønsted acids on catalytic hydrothermal decomposition of hexose to levulinic acid. Energy Fuels 2013, 27, 6973–6978. [Google Scholar] [CrossRef]
  6. Bui, L.; Luo, H.; Gunther, W.R.; Román-Leshkov, Y. Domino reaction catalyzed by zeolites with Bronsted and Lewis acid sites for the production of gamma-valerolactone from furfural. Angew. Chem. Int. Ed. 2013, 52, 8022–8025. [Google Scholar] [CrossRef] [PubMed]
  7. Horváth, I.T.; Mehdi, H.; Fábos, V.; Boda, L.; Mika, L.T. γ-Valerolactone—A sustainable liquid for energy and carbon-based chemicals. Green Chem. 2008, 10, 238–242. [Google Scholar] [CrossRef]
  8. Bozell, J.J. Connecting biomass and petroleum processing with a chemical bridge. Science 2010, 329, 522–523. [Google Scholar] [CrossRef] [PubMed]
  9. Bond, J.Q.; Alonso, D.M.; Wang, D.; West, R.M.; Dumesic, J.A. Integrated catalytic conversion of γ-valerolactone to liquid alkenes for transportation fuels. Science 2010, 327, 1110–1114. [Google Scholar] [CrossRef] [PubMed]
  10. Pritchard, J.; Filonenko, G.A.; van Putten, R.; Hensen, E.J.; Pidko, E.A. Heterogeneous and homogeneous catalysis for the hydrogenation of carboxylic acid derivatives: History, advances and future directions. Chem. Soc. Rev. 2015, 44, 3808–3833. [Google Scholar] [CrossRef] [PubMed]
  11. Liguori, F.; Moreno-Marrodan, C.; Barbaro, P. Environmentally friendly synthesis of γ-valerolactone by direct catalytic conversion of renewable sources. ACS Catal. 2015, 5, 1882–1894. [Google Scholar] [CrossRef]
  12. Upare, P.P.; Lee, J.; Hwang, D.W.; Halligudi, S.B.; Hwang, Y.K.; Chang, J. Selective hydrogenation of levulinic acid to γ-valerolactone over carbon-supported noble metal catalysts. J. Ind. Eng. Chem. 2011, 17, 287–292. [Google Scholar] [CrossRef]
  13. Manzer, L.E. Catalytic synthesis of α-methylene-γ-valerolactone: A biomass-derived acrylic monomer. Appl. Catal. A 2004, 272, 249–256. [Google Scholar] [CrossRef]
  14. Yan, Z.; Lin, L.; Liu, S. Synthesis of gamma-valerolactone by hydrogenation of biomass-derived levulinic acid over RU/C catalyst. Energy Fuels 2009, 23, 3853–3858. [Google Scholar] [CrossRef]
  15. Al-Shaal, M.G.; Wright, W.R.H.; Palkovits, R. Exploring the ruthenium catalysed synthesis of γ-valerolactone in alcohols and utilisation of mild solvent-free reaction conditions. Green Chem. 2012, 14, 1260–1263. [Google Scholar] [CrossRef]
  16. Galletti, A.M.R.; Antonetti, C.; De Luise, V.; Martinelli, M. A sustainable process for the production of γ-valerolactone by hydrogenation of biomass-derived levulinic acid. Green Chem. 2012, 14, 688–694. [Google Scholar] [CrossRef]
  17. Ortiz-Cervantes, C.; García, J.J. Hydrogenation of levulinic acid to γ-valerolactone using ruthenium nanoparticles. Inorg. Chim. Acta 2013, 397, 124–128. [Google Scholar] [CrossRef]
  18. Du, X.; Liu, Y.; Wang, J.; Cao, Y.; Fan, K. Catalytic conversion of biomass-derived levulinic acid into γ-valerolactone using iridium nanoparticles supported on carbon nanotubes. Chin. J. Catal. 2013, 34, 993–1001. [Google Scholar] [CrossRef]
  19. Luo, W.; Sankar, M.; Beale, A.M.; He, Q.; Kiely, C.J.; Bruijnincx, P.C.A.; Weckhuysen, B.M. High performing and stable supported nano-alloys for the catalytic hydrogenation of levulinic acid to γ-valerolactone. Nat. Commun. 2015, 6. [Google Scholar] [CrossRef] [PubMed]
  20. Hengne, A.M.; Rode, C.V. Cu-ZrO2 nanocomposite catalyst for selective hydrogenation of levulinic acid and its ester to γ-valerolactone. Green Chem. 2012, 14, 1064–1072. [Google Scholar] [CrossRef]
  21. Yuan, J.; Li, S.; Yu, L.; Liu, Y.; Cao, Y.; He, H.; Fan, K. Copper-based catalysts for the efficient conversion of carbohydrate biomass into γ-valerolactone in the absence of externally added hydrogen. Energy Environ. Sci. 2013, 6, 3308–3313. [Google Scholar] [CrossRef]
  22. Upare, P.P.; Lee, J.; Hwang, Y.K.; Hwang, D.W.; Lee, J.; Halligudi, S.B.; Hwang, J.; Chang, J. Direct hydrocyclization of biomass-derived levulinic acid to 2-methyltetrahydrofuran over nanocomposite copper/silica catalysts. ChemSusChem 2011, 4, 1749–1752. [Google Scholar] [CrossRef] [PubMed]
  23. Yan, K.; Chen, A. Efficient hydrogenation of biomass-derived furfural and levulinic acid on the facilely synthesized noble-metal-free Cu-Cr catalyst. Energy 2013, 58, 357–363. [Google Scholar] [CrossRef]
  24. Yan, K.; Chen, A. Selective hydrogenation of furfural and levulinic acid to biofuels on the ecofriendly Cu-Fe catalyst. Fuel 2014, 115, 101–108. [Google Scholar] [CrossRef]
  25. Obregón, I.; Corro, E.; Izquierdo, U.; Requies, J.; Arias, P.L. Levulinic acid hydrogenolysis on Al2O3-based Ni-Cu bimetallic catalysts. Chin. J. Catal. 2014, 35, 656–662. [Google Scholar] [CrossRef]
  26. Shimizu, K.; Kanno, S.; Kon, K. Hydrogenation of levulinic acid to γ-valerolactone by Ni and MoOx co-loaded carbon catalysts. Green Chem. 2014, 16, 3899–3903. [Google Scholar] [CrossRef]
  27. Hengst, K.; Schubert, M.; Carvalho, H.W.P.; Lu, C.; Kleist, W.; Grunwaldt, J. Synthesis of γ-valerolactone by hydrogenation of levulinic acid over supported nickel catalysts. Appl. Catal. A 2015, 502, 18–26. [Google Scholar] [CrossRef]
  28. Mohan, V.; Venkateshwarlu, V.; Pramod, C.V.; Raju, B.D.; Rao, K.S.R. Vapour phase hydrocyclisation of levulinic acid to γ-valerolactone over supported in catalysts. Catal. Sci. Technol. 2014, 4, 1253–1259. [Google Scholar] [CrossRef]
  29. Lv, J.; Rong, Z.; Wang, Y.; Xiu, J.; Wang, Y.; Qu, J. Highly efficient conversion of biomass-derived levulinic acid into γ-valerolactone over Ni/MgO catalyst. RSC Adv. 2015, 5, 72037–72045. [Google Scholar] [CrossRef]
  30. Wypych, G. Handbook of Solvents; ChemTec. Publishing: New York, NY, USA, 2001; pp. 754–757. [Google Scholar]
  31. Crozier, T.E.; Yamamoto, S. Solubility of hydrogen in water, sea water, and sodium chloride solutions. J. Chem. Eng. Data 1974, 19, 242–244. [Google Scholar] [CrossRef]
  32. Brunner, E. Solubility of hydrogen in 10 organic solvents at 298.15, 323.15, and 373.15 K. J. Chem. Eng. Data 1985, 30, 269–273. [Google Scholar] [CrossRef]
  33. Rothaemel, M.; Hanssen, K.F.; Blekkan, E.A.; Schanke, D.; Holmen, A. The effect of water on cobalt Fischer-Tropsch catalysts studied by steady-state isotopic transient kinetic analysis (SSITKA). Catal. Today 1997, 38, 79–84. [Google Scholar] [CrossRef]
