Catalysts 2015, 5(1), 406-423; https://doi.org/10.3390/catal5010406

Article
Structural Evolution of Molybdenum Carbides in Hot Aqueous Environments and Impact on Low-Temperature Hydroprocessing of Acetic Acid
1
Oak Ridge National Laboratory, 1 Bethel Valley Road, Oak Ridge, TN 37831, USA
2
University of Kentucky Center for Applied Energy Research, 2540 Research Park Drive, Lexington KY 40511, USA
*
Author to whom correspondence should be addressed.
Academic Editor: Keith Hohn
Received: 8 January 2015 / Accepted: 6 March 2015 / Published: 13 March 2015

Abstract

:
We investigated the structural evolution of molybdenum carbides subjected to hot aqueous environments and their catalytic performance in low-temperature hydroprocessing of acetic acid. While bulk structures of Mo carbides were maintained after aging in hot liquid water, a portion of carbidic Mo sites were converted to oxidic sites. Water aging also induced changes to the non-carbidic carbon deposited during carbide synthesis and increased surface roughness, which in turn affected carbide pore volume and surface area. The extent of these structural changes was sensitive to the initial carbide structure and was lower under actual hydroprocessing conditions indicating the possibility of further improving the hydrothermal stability of Mo carbides by optimizing catalyst structure and operating conditions. Mo carbides were active in acetic acid conversion in the presence of liquid water, their activity being comparable to that of Ru/C. The results suggest that effective and inexpensive bio-oil hydroprocessing catalysts could be designed based on Mo carbides, although a more detailed understanding of the structure-performance relationships is needed, especially in upgrading of more complex reaction mixtures or real bio-oils.
Keywords:
molybdenum carbide; Mo2C; biomass; bio-oil; pyrolysis oil; hydroprocessing; acetic acid hydrogenation; heterogeneous catalysis

1. Introduction

Fast pyrolysis is an efficient and inexpensive method to produce liquids from lignocellulosic biomass. However, the liquid products (so-called bio-oils) are not suitable for direct application as fuels in internal combustion engines due to their high content of oxygen (35–40 wt.%, dry basis) and water (15–30 wt.%) [1]. For instance, various oxygenated hydrocarbon species present in raw bio-oils make these liquids unstable for long-term storage, corrosive, low in heating value, and poorly miscible with conventional hydrocarbon fuels. In particular, bio-oils can contain a large amount of formic and acetic acids which must be converted to less corrosive species to improve the overall compatibility of the liquid with the current petroleum-based transportation fuel infrastructure [2].
The quality of bio-oils can be improved by eliminating oxygenated functionalities, hydroprocessing being one of the most promising upgrading strategies. Hydroprocessing is a well-established and widely employed operation in current petroleum refineries [3]. A major advantage of applying hydroprocessing to bio-oils is the relatively high yield of liquid fuels and a high degree of carbon atom retention [4,5]. Much of the research done thus far has involved well-established petroleum refinery catalysts, such as alumina-supported CoMo or NiMo sulfides [6]. However, extrapolating the use of sulfides to bio-oils has proven challenging due to the instability of sulfides under bio-oil upgrading conditions. Indeed, given the low sulfur content of bio-oils, the addition of sulfiding agents to the bio-oil feed is necessary to maintain active sulfide phases, a practice that risks contaminating the products with sulfur. Hydrothermal aging – which can cause phase changes in catalyst supports [7]—is another potential deactivation route as water represents a major byproduct of hydrodeoxygenation and raw bio-oils contain a significant amount of water (~25%).
Due to highly reactive oxygenated species present in raw bio-oils—such as olefins, aldehydes and ketones—extensive polymerization occurs at typical hydroprocessing temperatures (370–400 °C) leading to rapid coking and fouling of catalyst beds [8]. To circumvent this problem, the current state of the art (at various R&D stages) generally employs multiple sequential hydroprocessing steps. A common practice is to stabilize bio-oils at low temperatures (150–200 °C) over an efficient hydrogenation catalyst (e.g., Ru/C) followed by high temperature (370–400 °C) deep deoxygenation and hydrocracking over sulfided CoMo or NiMo catalysts [9,10]. Despite the relatively good activity of Ru/C in the low-temperature hydrogenation (stabilization) of bio-oils, Ru catalysts tend to generate fully hydrogenated compounds, as well as gasification products consuming excessive amounts of H2 [11]. High cost of Ru metal utilization is another issue. Hence, despite the progress made to date, it is desirable to design novel catalysts tailored specifically to bio-oils, with an emphasis on avoiding the use of precious metals and improving durability vis-à-vis state-of-the-art catalysts.
Transition-metal carbides (TMCs) have been investigated extensively as potential substitutes for precious metal catalysts, since early studies found that TMCs manifest catalytic behaviors typically observed with Pt-group metal catalysts in several hydrocarbon conversion reactions [12,13,14]. For example, Mo2C is often compared with Ru in hydrogenation reactions [14,15,16]. As Mo carbides can be prepared with high-surface area [17,18], they can be deployed as “bulk” catalysts without using support materials. This simple catalyst design could in turn be advantageous when one tries to further enhance the structural stability of catalysts. By contrast, for supported catalysts such as Ru/C, the stability of the various components (active phases, supports and interfaces) needs to be considered.
Based on these considerations, Mo2C appears to be a good candidate as a low-cost alternative to Ru/C catalysts for the low-temperature hydroprocessing of bio-oils. While there are recent studies focused on evaluating Mo carbides as catalysts for biomass upgrading [19,20,21,22], little has been done to investigate Mo2C in the context of bio-oil low-temperature hydroprocessing, particularly in terms of their hydrothermal stability. In this work, the main focus was placed on evaluating the hydrothermal stability of the carbide catalysts. To this end, we prepared and compared two Mo2C samples exposed to hot aqueous environments, probing if and how differences in initial structure affected their hydrothermal stability and intrinsic catalyst activity in the aqueous-phase hydroprocessing of acetic acid. Initial results are promising, suggesting that it is possible to design robust and active catalysts for low-temperature bio-oil hydroprocessing using inexpensive Mo carbides.

2. Results and Discussion

2.1. Synthesis and Characterization of Mo Carbides

Ammonium heptamolybdate is a precursor widely used for Mo carbide synthesis [22,23]. Effluent gas analysis performed with a mass spectrometer (Figure S1A) afforded gas concentration profiles typical of carburization processes involving this type of Mo precursor: reduction to MoO2 mainly by H2, followed by simultaneous O removal and C insertion at higher temperatures [16,18,23]. As expected, the carburization product, which we denote here as Mo2C-A, presented a hexagonal close packed (hcp) Mo2C structure (Figure 1).
The Mo2C-B was prepared under the same conditions as the Mo2C-A, but using an oxide precursor synthesized with a block copolymer templating method. The reason for using this unconventional precursor was to obtain a Mo2C with a structure distinct from that of Mo2C-A and thus help understand if structural differences could affect the catalyst performance in hot aqueous environments. This precursor was unconventional in that even though the ratio of O/Mo (2.8) was close to the theoretical value for MoO3 (see XPS results in Table S1), the precursor contained a large amount of carbon and exhibited a crystallographically amorphous structure (Figure S2). The reduction-carburization behavior of this precursor was unique as well, with considerable C involvement (likely from the precursor) during the low temperature reduction period (see CO, CO2 formation in Figure S1B). The resulting crystallographic structure of Mo2C-B differed somewhat from that of Mo2C-A even though the overall structure was hcp for both samples (Figure 1). Indeed, when crystallite sizes were estimated from peak broadening (using the Scherrer equation), the values for the two major planes (101) and (110) of Mo2C-A were close to one another (11 nm, Table 1), while for Mo2C-B, values of 13 and 19 nm were obtained, respectively, for (101) and (110) planes. It appears, therefore, that the crystallite shape of Mo2C-B differed from what is commonly observed for "conventional" Mo2C such as Mo2C-A [18].

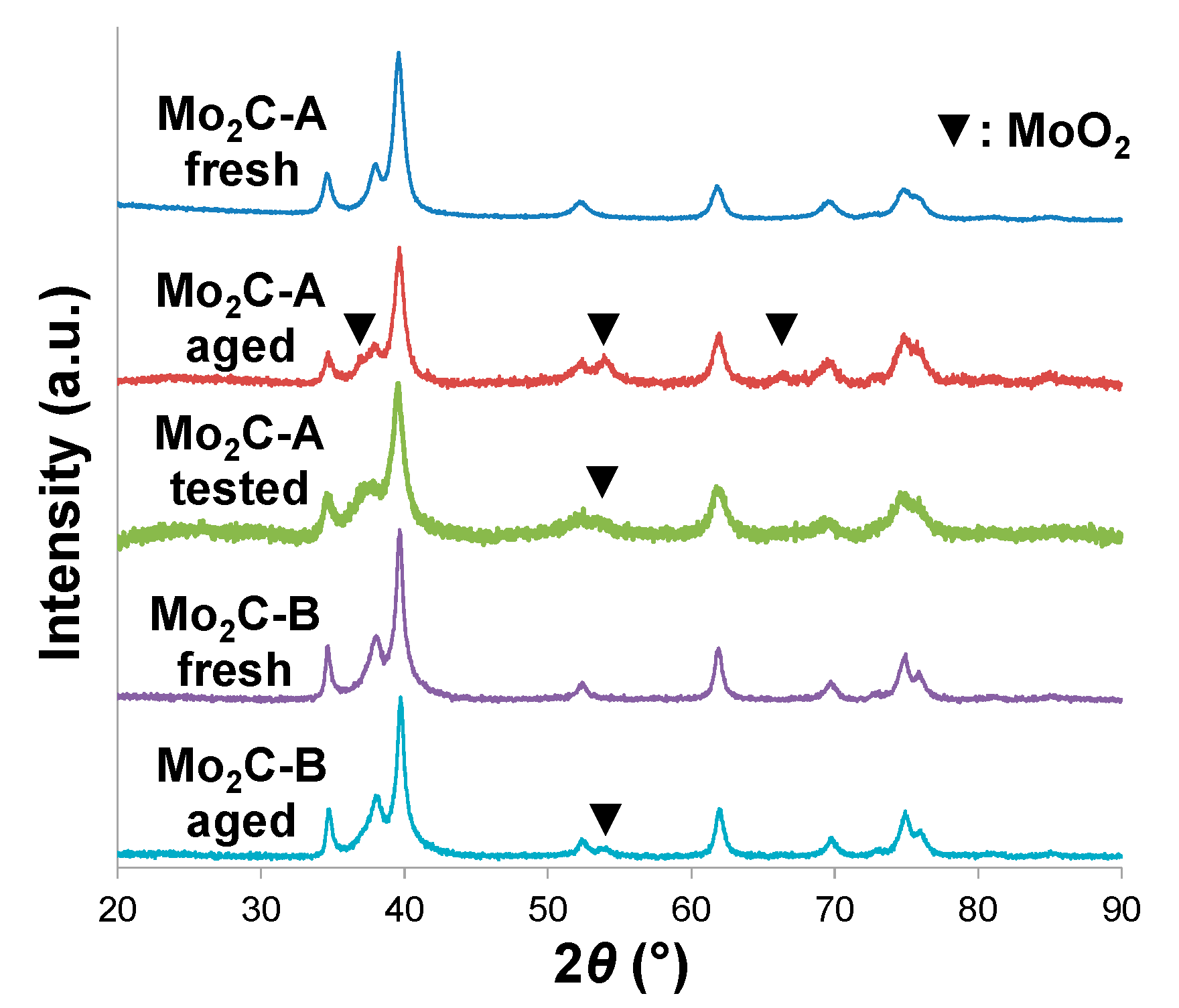

Figure 1. XRD patterns of two Mo2C samples (A and B) before and after aging for 48 h in hot liquid water. The pattern for Mo2C-A obtained after a 48 h aqueous-phase hydroprocessing run (10% guaiacol in water as feed) is also presented for comparison (Mo2C-A tested).
Figure 1. XRD patterns of two Mo2C samples (A and B) before and after aging for 48 h in hot liquid water. The pattern for Mo2C-A obtained after a 48 h aqueous-phase hydroprocessing run (10% guaiacol in water as feed) is also presented for comparison (Mo2C-A tested).
Catalysts 05 00406 g001
Previous studies have shown that the primary particles of Mo2C prepared under carburization conditions similar to those employed in the present work, are single crystals [16,18]. Consequently, crystallite sizes determined using XRD data are close to the particle sizes estimated from BET surface area as long as access to the primary particle surface is not blocked by bulk carbon deposited during the carburization. As both Mo2C-A and Mo2C-B in fresh state presented larger particle sizes than the calculated crystallite sizes in the present work (Table 1), it can be concluded that there was significant bulk carbon deposition during the carbide synthesis which prevented the passage of the N2 probe molecules through the micropores during BET measurements. The presence of non-carbidic C was confirmed by XPS analysis (see Ccont. in Table 2 and Figure S3), but the impact of the bulk carbon deposition was especially important for Mo2C-B, which presented significantly smaller BET surface (i.e., larger estimated particle sizes) and pore volume than Mo2C-A, in spite of the comparable crystallite sizes.
Structural differences between the two Mo2C samples can be found at the grain level as well. The SEM images in Figure 2 reveal that each carbide inherited a distinct grain morphology from its oxide precursor. For example, Mo2C-B grains had sharper edges and corners and were significantly flatter than those of Mo2C-A. Higher magnification imaging showed similar morphological differences for smaller particles (Figure 3), which seems to be consistent with the anisotropic XRD peak broadening discussed above.
Another catalytically relevant carbide property worth discussing is the density of active sites determined from CO uptake and BET surface area measurements (Table 1). The site density determined in this way is generally higher when residual oxygen is minimized and carbidic carbon insertion is more complete while bulk carbon deposition is prevented [16,18]. The fact that Mo2C-B had an inferior site density despite the higher extent of carburization (inferred from C/Mo of carbide phases in Table 2) indicates that a larger portion of active sites were likely blocked by non-carbidic C. Despite the relatively comparable Ccont. content (Table 2), greater blockage of both pores and active sites apparently occurred over Mo2C-B than Mo2C-A. One possible explanation is differences in type and shape of the non-carbidic C species deposited on the two carbides.
Table 1. BET surface area, pore volume, pore size, CO uptake, density of sites, particle size and crystallite size of the catalysts studied.
Table 1. BET surface area, pore volume, pore size, CO uptake, density of sites, particle size and crystallite size of the catalysts studied.
CatalystBET surface area, Sg/m2 g−1Pore volume /cm3 g−1Pore size /nmCO uptake /µmol g−1Site density a /×1015 cm−2Particle size, Dp b /nmCrystallite size, Dc c /nm
Mo2C-A fresh360.0881860.311811/11
Mo2C-A aged640.5036260.021010/11
Mo2C-A tested220.0241860.51308/10
Mo2C-B fresh60.032350.0511013/19
Mo2C-B aged150.024120.054412/16
Ru/C fresh815NM dNM dNA e0.04 f1.1 gNA e
Ru/C aged765NM dNM dNA e0.01 f2.0 gNA e
a CO uptake normalized to BET surface area; b Estimated from BET surface area; c Estimated from XRD peak broadening: (101) plane/(110) plane; d Not measured; e Not applicable; f Number of exposed Ru atoms (estimated from particle sizes) normalized to BET surface area; g Measured by TEM.
Table 2. Surface composition of Mo2C catalysts analyzed by XPS a.
Table 2. Surface composition of Mo2C catalysts analyzed by XPS a.
CatalystMocarb b /at.%Mooxid c /at.%Ccarb b /at.%Ccont d /at.%Ooxid c /at.%Ocont d /at.%C/Mo eO/Mo f
Mo2C-A fresh31.5 6.4 9.916.225.710.50.31 4.03
Mo2C-A aged8.324.11.44.434.827.0 0.171.44
Mo2C-A tested13.214.64.431.822.313.80.331.53
Mo2C-B fresh40.0 4.815.713.514.511.50.393.02
Mo2C-B aged17.7 9.54.815.328.823.90.273.03
a Measurements done after Ar sputtering; b Carbides; c Oxides; d Contaminants, meaning that elements are not associated with carbide or oxide phases; e C/Mo ratio of surface carbide phases (theoretical value for bulk Mo2C is 0.5); f O/Mo ratio of surface oxide phases.
Figure 2. SEM images of the two Mo oxide precursors and resulting carbide samples before and after 48 h aging at 250 °C in liquid water.
Figure 2. SEM images of the two Mo oxide precursors and resulting carbide samples before and after 48 h aging at 250 °C in liquid water.
Catalysts 05 00406 g002
Figure 3. SEM images of two Mo2C samples in the fresh state and after 48 h aging at 250 °C in liquid water; smaller particles taken at high magnification.
Figure 3. SEM images of two Mo2C samples in the fresh state and after 48 h aging at 250 °C in liquid water; smaller particles taken at high magnification.
Catalysts 05 00406 g003

2.2. Structural Evaluation of Mo Carbides Subjected to Hot Aqueous Environments

An important technical challenge facing the development of catalysts for biomass conversion processes is the hydrothermal instability of conventional catalytic materials. For instance, γ-Al2O3, a popular support used in petroleum refineries for metal sulfide and precious metal catalysts, is rapidly hydrated and converted to boehmite in hot liquid water [7,24]. For the two Mo carbide samples studied in this work, despite the extended exposure to hydrothermally challenging environments (liquid water, 250 °C, 48 h), the overall bulk structure was maintained (e.g., hcp crystallographic structure and grain morphology as shown in Figure 1 and Figure 2, respectively). This is an encouraging observation in view of the aforementioned necessity of novel catalytic materials for biomass conversion processes. Detailed characterization, however, revealed that some significant structural changes occurred on both Mo2C-A and Mo2C-B samples. For instance, a portion of the carbide phases were converted into MoO2 phases as detected by XRD (Figure 1). The high oxygen affinity of Mo carbides is well documented in the literature [25], and our present results show that liquid-phase H2O can also oxidize Mo carbides.
The fact that a considerable fraction of the carbidic (MoCx) sites on the surface of both samples were converted into oxidic (MoOx) sites was confirmed by XPS (Table 2). Interestingly, the number of carbidic sites (in terms of at.%) not only decreased, but the remaining carbidic sites also lost some of their C neighbors and instead gained O—as suggested by the fact that the C/Mo ratio of the carbide phases within Mo2C-A, for instance, decreased from 0.31 to 0.17 while the content of O contaminant (i.e., O not related to Mo oxides) increased from 25.7 to 34.8 at.%.
As mentioned above, it is well known that the composition of Mo sites plays a critical role in determining the surface reactivity of Mo carbides as measured by CO chemisorption [16,26]. It is thus unsurprising that the surface oxidation of Mo2C-A led to decreased CO uptake and site density (Table 2). Given that Mo2C-B also suffered surface oxidation, one would expect to see a similar trend. Instead, CO uptake on Mo2C-B actually increased. This discrepancy might be related to the fact that only a fraction of “active” sites were exposed (i.e., able to adsorb CO) over the fresh Mo2C-B due to non-carbidic C deposition as discussed above. As the surface morphology changed considerably due to hydrothermal aging, it seems reasonable to conjecture that the number of exposed active sites slightly increased. Despite the increase, one should note that the CO uptake by Mo2C-B was still much lower than those typically observed for Mo carbides prepared under similar conditions, including Mo2C-A. Moreover, the extent of surface oxidation was relatively small for the Mo2C-B sample. Another intriguing difference is that the surface Ccont. increased for Mo2C-B, meaning that a portion of the C removed from MoCx sites (Ccarb.) was retained on the surface as non-carbidic C species (Ccont.). The retention of C might have helped maintain surface hydrophobicity, which would in turn have mitigated oxidation by H2O.
The BET surface area increased after water aging for both samples (Table 1). In the case of Mo2C-A, the concomitant increase in pore size and volume and decrease in Ccont. (Table 2) indicates that bulk (non-carbidic) C deposits blocking carbide pores were removed during hot water aging. This interpretation is supported by the fact that—after aging—the particle size estimated from BET surface area matched the crystallite size obtained from XRD data (Table 1). Again, Mo2C-B appears to have responded differently to hydrothermal aging, as the increased surface area was not accompanied by an increase in porosity. Instead, the pore volume of this sample decreased, which is consistent with the gain in Ccont. (Table 2), meaning that more bulk C (Ccont.) was involved in pore blocking. The FIB-SEM images in Figure 4 seem to agree with this interpretation. The intra-grain images confirm that the aging increased pore openings for Mo2C-A, while it decreased those for Mo2C-B (in terms of both number and size).
Figure 4. FIB-SEM images of the two Mo2C samples (A and B) before and after aging for 48 h in hot liquid water. The image for Mo2C-A obtained after a 48 h aqueous-phase hydroprocessing run (10% guaiacol in water as feed) is also presented for comparison (Mo2C-A tested).
Figure 4. FIB-SEM images of the two Mo2C samples (A and B) before and after aging for 48 h in hot liquid water. The image for Mo2C-A obtained after a 48 h aqueous-phase hydroprocessing run (10% guaiacol in water as feed) is also presented for comparison (Mo2C-A tested).
Catalysts 05 00406 g004
When Mo2C-A was tested for 48 h at the same temperature (250 °C) but under actual hydroprocessing conditions (10% guaiacol in water + H2), both pore opening and BET surface area decreased, likely due to increased Ccont. as in the case of Mo2C-B (see Figure 4 and Table 1 and Table 2). Despite the BET surface area loss due to pore blocking, Mo2C-A maintained the same degree of CO uptake after testing (Table 1). As mentioned above, the number of metallic sites measured for Mo2C-B also did not degrade with aging and actually increased. The C from guaiacol molecules and non-carbidic C thus appear to have had similar effects with respect to mitigating H2O-induced bulk oxidation of Mo2C-A and Mo2C-B, respectively (see lower bulk MoO2 detected by XRD in Figure 1). Similar beneficial effects, i.e., preventing hydration and metal particle agglomeration, have been reported for carbonaceous surface species derived from biomass compounds dissolved in liquid water over alumina catalysts [27].
Figure 5. TEM images of Mo carbides in the fresh state and after 48 h aging at 250 °C in liquid water; the yellow boxes highlight increased surface roughness due to the formation of elliptically shaped particles.
Figure 5. TEM images of Mo carbides in the fresh state and after 48 h aging at 250 °C in liquid water; the yellow boxes highlight increased surface roughness due to the formation of elliptically shaped particles.
Catalysts 05 00406 g005
The surface area increase of Mo2C-B despite the pore blocking could be explained by increased surface roughness. Liquid water aging developed nanoparticles of elliptical shape on the surface of both carbide samples (Figure 5 and S4). These small particles were mainly Mo oxides in agreement with the XPS data (Table 2). Since Mo2C-B sample initially had a lower surface area than Mo2C-A sample (36 vs. 6 m2/g) and experienced pore blocking during aging, the impact of the increased roughness on BET surface area might be discernible. In contrast, the pore opening due to water aging led to a dramatic increase in surface area for Mo2C-A (36 to 64 m2/g), masking the relatively small contribution of the roughness-induced surface area increase.
In summary, Mo carbides maintained overall bulk structures under hydrothermally harsh environments, but can undergo H2O-induced oxidation. An important lesson that can be learned from these results is that the extent of oxidation can be minimized by controlling Mo carbide structure. The superior oxidation resistance of the Mo2C-B structure compared to Mo2C-A is further confirmed by TGA performed in air (Figure 6), in which Mo2C-B exhibited oxidation onset temperatures (i.e., temperatures at which significant weight gain started) at least 100 °C higher than Mo2C-A.

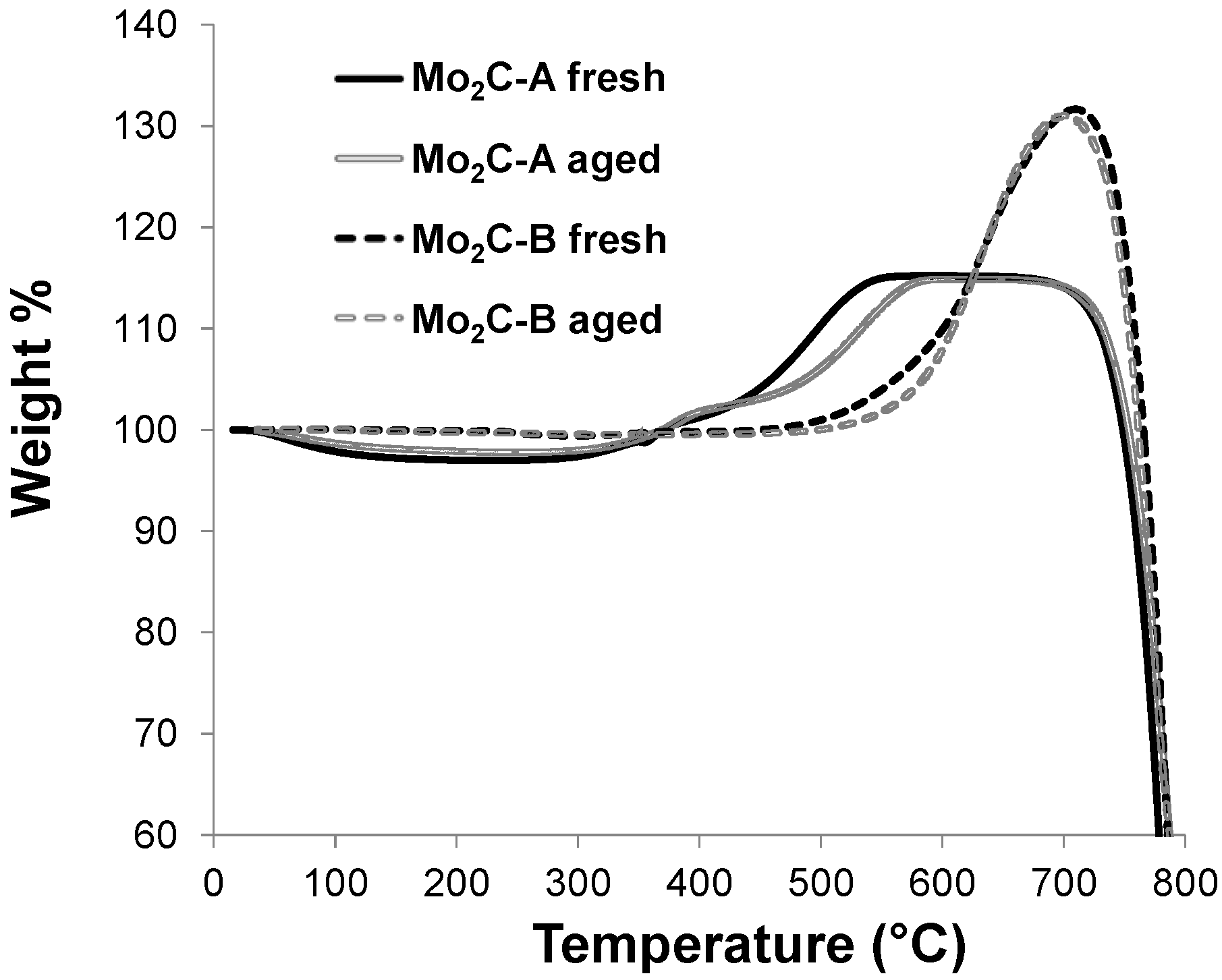

Figure 6. TGA profiles of two Mo2C samples in the fresh state and after 48 h aging at 250 °C in liquid water. Temperature increased from room temperature to 800 °C at 10 °C/min in air (25 mL/min). The solid and dashed lines correspond to the relative weight change of Mo2C-A and Mo2C-B samples, respectively.
Figure 6. TGA profiles of two Mo2C samples in the fresh state and after 48 h aging at 250 °C in liquid water. Temperature increased from room temperature to 800 °C at 10 °C/min in air (25 mL/min). The solid and dashed lines correspond to the relative weight change of Mo2C-A and Mo2C-B samples, respectively.
Catalysts 05 00406 g006

2.3. Catalytic Performance in Aqueous-Phase Hydroprocessing of Acetic Acid

To assess the catalytic effectiveness of Mo carbides in converting oxygenates in liquid water, Mo2C-A and Mo2C-B were evaluated using a 10 wt.% solution of acetic acid in water. This model reaction was chosen considering the fact that pyrolysis oils can contain a large amount of organic acids including acetic acid [2], and this type of model compound testing has been used previously to study the hydroprocessing performance of Ru/C and Pd/C (catalysts commonly used to stabilize bio-oils via low temperature hydroprocessing) [11]. A commercial 5% Ru/C was also evaluated before and after a 48 h water aging for comparison purposes. Carbon supports are widely studied in the context of water-based catalytic processes due to their relative hydrothermal stability [28] and Ru is one of the best catalysts known for acetic acid hydrogenation [29,30] and low-temperature processing (stabilization) of bio-oil [6,9]. Some catalytically relevant properties of the 5% Ru/C reference catalyst are reported in Table 1 and Table S2, and Figure S5. Briefly, the surface area of Ru/C decreased slightly during hydrothermal aging, while the average particle size doubled. Based on XPS, the surface Ru content decreased from 4.2 to 1.9 at.% likely due to metal leaching. This result further highlights the challenging nature of catalyst development for biomass conversion. Conversion values as well as average rates obtained in the present study are compiled in Table 3. Note that the product analysis was done only at the end of each 4 h run, therefore the conversion rate represents the apparent average activity of a catalyst. It is possible that some other deactivation mechanisms (e.g., coking during 4 h hydroprocessing) contributed to the average conversion rates. Further research using steady state flow reactor experiments could help obtain more accurate activity data and comparison among different catalysts. Another parameter which could have influenced the activity measurements is the possible effect of internal mass transfer, as the catalysts studied in this work presented significantly different particle sizes (Table 1). Olcay et al. calculated the Weisz Modulus for an aqueous-phase hydrogenation of acetic acid over a Ru/C catalyst; the obtained 10−15 was well below the limit value of 0.15 (that is, the kinetic measurements were done in the absence of mass transport limitation) [29]. Considering that our reaction conditions were quite similar to those used in [29], we could estimate that our Ru/C catalyst was evaluated also without mass transport limitation. More detailed and rigorous kinetic experiments and catalyst morphology characterization are needed to address this question for Mo carbides.
All of the catalysts were active in acetic acid conversion at 200 and 250 °C (Table 3). The Ru/C catalyst converted more molecules of acetic acid per catalyst mass than Mo2C. However, if the comparison is done on the intrinsic activity basis (i.e., number of converted acetic acid molecules per surface area), the activity of Mo2C-B was comparable to that of Ru/C. Considering that the Mo2C-B sample had a relatively low BET surface area for a carbide prepared via a temperature programmed method, one could envision that the performance (mass basis) of Mo2C could be significantly improved by increasing total surface area while maintaining the properties of the catalytic surface. In comparison, the metal dispersion of the Ru/C (over 80%) was already quite close to the theoretical maximum. Between the two Mo carbides, the intrinsic activity of fresh Mo2C-B was 3–4 times higher than that of fresh Mo2C-A. The Mo/C of carbide phases (determined by XPS: degree of carburization) could have resulted in such performance differences between the two carbide catalysts. It is well known that the precious-metal-like character (e.g., high hydrogenation activity) of Mo2C catalysts increases with more complete carburization [16,26,31].
Despite the significant structural changes described earlier, the negative impact of hydrothermal aging on acetic acid conversion was minor. In fact, in the case of Mo2C-B, the conversion at 250 °C actually doubled from 26 to 50% (Table 3). The intrinsic activity of Mo2C-B degraded by 20%, but given that the BET surface area of Mo2C-B increased upon aging, the net effect was that the rate per unit mass increased. For Ru/C the degradation in performance with aging seems to be mainly due to the loss in metallic surface area (i.e., 50% decrease in dispersion + leaching), which attenuated the impact of the increased intrinsic rate.
Since the main objective of this reactor study was to determine if Mo carbides are catalytically active in the presence of liquid water and whether this activity are affected by hydrothermal aging, our discussion here is mainly focused on comparing the acetic acid conversion activity among different catalyst samples. We could, nonetheless, observe that ethanol was the major liquid product and that ethanol yield decreased with conversion and temperature. Consistent with the literature data [27,29], the formation of ethyl acetate (the product of an esterification reaction between ethanol and acetic acid) was low over Ru/C. In contrast, the formation of ethyl acetate was substantial over Mo2C-B and did not change when conversion increased from 26 to 50%. The reason for this uniquely high selectivity to ethyl acetate over Mo2C-B is not clear at this time, but could be explained in part by the surface bifunctionality of this catalyst (i.e., the fact that MoCx and MoOx are both present). Indeed, it has been recently shown that combining Ru and acidic supports can significantly influence the carboxylic acid conversion chemistry [32], and metal oxide species created on carbide surfaces can act as acidic sites [33,34,35,36,37].
A large fraction of the acetic acid feed was apparently converted to gas products and CH4 was qualitatively observed as a major product especially at high conversion (quantification was precluded by the instrumental limitations described in the Experimental section). High CH4 formation over Ru/C catalysts at similar temperatures is well known and indicates C-C bond hydrogenolysis [28,29,30]. The aged Ru/C produced little liquid-phase product, suggesting the sensitivity of these acetic acid conversion reactions to Ru particle size. To better assess the potential of Mo carbides in hydroprocessing bio-oils, the catalysts will need to be compared with Ru/C in converting more complex feedstock such as multi-compound models or real bio-oils. In addition, more complete product identification and quantification is necessary.
Table 3. Catalyst performance in aqueous-phase hydroprocessing of acetic acid; catalyst loading: 0.25 g, reaction mixture: 25 g of 10% (w/w) solution of acetic acid in water, reaction pressure: 2000 psig, stirring speed: 1000 rpm, reaction duration: 4 h.
Table 3. Catalyst performance in aqueous-phase hydroprocessing of acetic acid; catalyst loading: 0.25 g, reaction mixture: 25 g of 10% (w/w) solution of acetic acid in water, reaction pressure: 2000 psig, stirring speed: 1000 rpm, reaction duration: 4 h.
CatalystReaction temperature/°CAcetic acid conversion/%Selectivity to ethanol/%Selectivity to ethyl acetate/%Average rate of acetic acid conversion (areal) a /µmol m−2
Mo2C-A fresh20037NM bNM b0.12
Mo2C-A fresh25044NM bNM b0.14
Mo2C-A aged25040NM bNM b0.07
Mo2C-B fresh2502670120.50
Mo2C-B aged2505018140.39
Ru/C fresh200612840.39
Ru/C fresh250771020.49
Ru/C aged25068101.58
a Rates normalized to BET surface area for Mo2C and to metallic surface area estimated from TEM-measured particle size for Ru/C (for the aged Ru/C, ca. 55% loss of Ru due to leaching was taken into account based on XPS data shown in Table S2); b Not measured due to catalyst dissolution during the storage period between reactor evaluation and catalyst filtration.

3. Experimental Section

3.1. Catalysts

A standard temperature-programmed carburization method [18,37] was applied for the synthesis of Mo carbides. Ammonium heptamolybdate (Alfa Aesar, Heysham, UK) and a MoO3 synthesized via a block copolymer templating method were used as precursors (the respective carburization products being denoted as Mo2C-A and Mo2C-B), while 15% CH4/H2 was used as the carburizing gas. After the synthesis (temperature ramping rate: 1 °C/min, final temperature: 700 °C, soak time: 1 h), the samples were passivated at room temperature in a 0.3% O2/He flow. The block copolymer templating procedure used to prepare the MoO3 precursor was adapted from a synthesis reported by Stucky and co-workers [38]. Briefly, 1 g of structure-directing copolymer Pluronic® P-123 (Aldrich, Steinheim, Germany) was dissolved in 10 g of anhydrous ethanol (99.5%, Acros Organics, Geel, Belgium). 0.01 moles of anhydrous MoCl5 (99.6%, Alfa Aesar, Ward Hill, MA, USA) were then added to the resulting solution while the latter was vigorously stirred. The resulting mixture was subsequently allowed to age in a Petri dish at 60 °C for 15 days. Finally, the solids produced were calcined under static air at 300 °C for 2 h. 5 wt.% Ru/C (Alfa Aesar, Heysham, UK) was purchased and used as received for comparison purposes.

3.2. Hydrothermal Aging

Mo2C and Ru/C samples were hydrothermally aged in a mechanically stirred 300 mL alloy C-276 batch reactor (Parr Instrument Co.). 2 g of sample was combined with 100 g of distilled water in the reactor. The air in the head space, as well as that dissolved in the water feed, was removed by evacuation and purging with N2. The reactor was then filled with 95 psi of N2 and heated to 250 °C under constant stirring at 1200 rpm. The final total pressure was approximately 690 psi at the aging temperature of 250 °C. After aging for 48 h, the solids were filtered and dried in air first at room temperature, then at 110 °C overnight.

3.3. Characterization

X-ray diffraction patterns were recorded on a powder X-ray diffractometer (X’Pert PRO, PANalytical, Almelo, The Netherlands) operated at 45 kV and 40 mA using CuKα radiation (Kα = 0.154178 nm). The crystallite sizes (Dc) were estimated from the Scherrer equation using commercial software (HighScore Plus). The full width at half maximum (FWHM) and position of the peaks were calculated by profile fitting. Before the fitting, background and Kα2 of XRD peaks were removed and the peak broadening effect was adjusted using LaB6 as a standard sample. FWHM values of (101) and (110) planes and a shape factor of 0.94 were used.
Microscopic imaging of Mo samples was performed using a Hitachi HF3300 high-resolution transmission-scanning transmission electron microscope (TEM/STEM), which was operated at 300 kV. This instrument was also equipped with a secondary electron detector (SE) and a Bruker X-Flash silicon drift detector (SDD) for energy dispersive spectrometry (EDS). A Hitachi S-4800 Field Emission-Scanning Electron Microscope (FE-SEM) was used to collect micrographs of the Mo2C samples at grain level. The internal powder microstructure was visualized using a Hitachi NB-5000 FIB-SEM (Focused Ion Beam-Scanning Electron Microscope). A high-milling-rate Ga ion beam was used to cut microscopic samples out of the powder grain revealing the interior porosity. Prior to milling, the region was locally coated with tungsten in order to protect the sample from the milling process. For the Ru/C catalyst, a JEOL 2200FS-AC Aberration-corrected STEM/TEM was used to measure the distribution of Ru particle sizes (more than 100 particles analyzed) before and after the hydrothermal aging. The calculated average particle sizes were then used to estimate Ru dispersion using a simple formula, dispersion = 0.9/Dp (Dp in nm) [39].
The specific surface area and porosity of catalyst samples were determined by measuring N2 adsorption isotherms using an automatic volumetric adsorption apparatus (Quantachrome, Autosorb-1-C). Average particle sizes of Mo2C catalysts were estimated from the equation Dp = f/(ρSg) [39], where f is a shape factor and ρ is the density of Mo2C (9.098 g/cc). A shape factor of 6 was applied assuming spherical or cubic Mo2C particles [18].
Pulsed CO chemisorption was performed in a tubular fixed bed reactor (AMI-200, Altamira Instruments, Inc.) to measure the amount of irreversibly chemisorbed CO on Mo2C. Before the measurements, passivated carbide samples were reduced in a flow of H2 at 500 °C for 1 h, then cooled down to the chemisorption temperature (room temperature) in flowing Ar. A stoichiometry of Mo:CO = 1:1 (i.e., 1 molecule of CO per active site) was used to estimate the total number of active sites [18,40,41].
X-ray photoelectron spectroscopy was performed using a Thermo Scientific K-Alpha XPS instrument. The K-Alpha uses Al-Ka x-rays focused to a spot 400 microns in diameter. Emitted photoelectrons were energy analyzed using a 180° double focusing hemispherical analyzer with a 128-channel detector. Survey data were collected at a pass energy of 200 eV and an energy resolution of 1 eV/step, while core level data were collected at 50 eV pass energy and 0.1 eV/step energy resolution. Sample charging was eliminated by using the K-Alpha’s dual-beam charge compensation source, which uses both low energy Ar-ion and low energy electrons. An Ar-ion gun (operated at 2 kv) was used for in-situ cleaning of the sample surface. Data were collected and analyzed using the Avantage data system (v.4.61, Thermo Fisher Scientific, Waltham, MA, USA).
Thermogravimetric analysis (TGA) was carried out with a TA Instruments Q5000. The temperature was increased from room temperature to 800 °C at 10 °C/min in air (25 mL/min).

3.4. Reactor Evaluation

Catalyst performance was evaluated in a mechanically stirred 50 mL stainless-steel batch reactor. The catalyst (0.25 g) was reduced in situ at 250 °C under 50 psi of flowing H2 for 2 h. After allowing the system to cool to room temperature, a vacuum was drawn on the reactor and 25 g of a 10% (w/w) solution of acetic acid in water was pulled into the reactor vessel. After purging with argon, the system was pressurized with H2 to 1000 psig and heated to the reaction temperature while stirring the reaction mixture at 1000 rpm. Upon reaching the reaction temperature, which typically took ~15 min, the pressure was adjusted to 2000 psig and kept at this value throughout the experiment in order to replenish any hydrogen consumed by the reaction. After 4 h at the reaction temperature, the hydrogen line feeding the reactor was closed and the system was cooled to 35 °C prior to taking a gas sample for analysis. The system was then opened and its solid and liquid contents were collected. Only qualitative information could be obtained from gas analysis due to the fact that hydrogen (which was present in overwhelming excess) swamped the detector and precluded the quantification of gaseous products. The solids and liquids recovered were separated via gravimetric filtration prior to mixing a 1 g aliquot of the recovered liquid with 0.2 g of 2-butanol, which served as the internal standard. 0.2 µL of the resulting solution were then analyzed on an Agilent 7890 GC equipped with a multimode inlet, a DB-Wax column (30 m × 530 µm × 0.5 µm) and a FID detector. Both the inlet and the FID were kept at a constant temperature of 240 °C, while the oven housing the column was programmed with a temperature ramp (10 °C/min) from 35 to 240 °C followed by an isotherm at the latter temperature lasting 9.5 min. The column was operated with a constant flow of 26 mL/min. Quantitative data were acquired using a 3-point calibration curve created using standards of ethanol and ethyl acetate. The linear calibration curve for each individual compound had an R2 value of ≥0.99. Acetic acid was quantified using CE (capillary electrophoresis, HP 1600).

4. Conclusions

We studied the structure of molybdenum carbides subjected to hot aqueous environments and their catalytic performance in aqueous-phase hydroprocessing of acetic acid. The results suggest that Mo carbides have potential to be developed as hydrothermally stable catalysts, especially suitable for the low-temperature hydroprocessing of bio-oils, which is generally carried out using Ru/C-type catalysts. Key findings of the present study were:
Bulk structures of Mo2C were maintained after 48 h aging at 250 °C in liquid water;
Carbide surfaces underwent significant structural changes during hydrothermal aging, particularly oxidation of carbidic Mo sites to oxidic sites, transformation of non-carbidic carbon species deposited during the carbide synthesis, and increased surface roughness;
The removal of pore-blocking non-carbidic carbon and increased surface roughness during aging led to increased BET surface area;
The extent of the structural changes observed during aging was sensitive to the initial carbide structure and was less severe under actual hydroprocessing conditions;
Mo carbides showed excellent performance in the aqueous-phase hydroprocessing of acetic acid showing an intrinsic conversion activity comparable to that of Ru/C;
The intrinsic activity of Mo carbides was shown to be sensitive to the carbide structure;
Further investigation of carbide structures and performance in complex model or real bio-oil feedstock is needed to design robust, active, and inexpensive Mo carbide catalysts for bio-oil hydroprocessing.

Acknowledgments

This research was financially supported by the U.S. Department of Energy Bioenergy Technologies Office, the Laboratory Directed Research and Development Program of the Oak Ridge National Laboratory, and the University of Kentucky (Office of the Vice President for Research). A portion of this research was conducted at ORNL’s Center for Nanophase Materials Sciences, which is a DOE Office of Science User Facility. The authors thank D. C. Elliott and T. R Hart at the Pacific Northwest National Laboratory for the useful discussion on the aqueous-phase aging and bio-oil evaluation approaches used in this study. Kevin Perrin, Jaime Shoup and Tonya Morgan at the University of Kentucky are thanked for their technical assistance.

Author Contributions

J.-S.C., V.S., E.S.-J. and M.C. conceived the research program and designed the experiments; V.S., E.S.-J., and J.-S.C. performed the catalyst synthesis and characterization; E.S.-J., S.A.L., and J.-S.C. carried out the reactor study of the catalysts including aging, acetic acid hydroprocessing and product analysis; M.J.L. and K.L.M. performed the microscopy; HMM performed the XPS; All contributed to the writing of the paper.

Conflicts of Interest

The authors declare no conflict of interest.
