Application of Photocatalysts and LED Light Sources in Drinking Water Treatment

by
Maryam Izadifard
1,
Gopal Achari
2 and
Cooper H. Langford
1,*
1
Departments of Chemistry, University of Calgary, 2500 University Dr. NW, Calgary, AB, T2N 1N4, Canada
2
Department of Civil Engineering, University of Calgary, 2500 University Dr. NW, Calgary, AB, T2N 1N4, Canada
*
Author to whom correspondence should be addressed.
Catalysts 2013, 3(3), 726-743; https://doi.org/10.3390/catal3030726
Submission received: 15 June 2013 / Revised: 20 August 2013 / Accepted: 28 August 2013 / Published: 12 September 2013
(This article belongs to the Special Issue Photocatalysts)
Browse Figures
Versions Notes

Abstract

: This study investigates a cross-section of TiO2 compositions for which existing evidence suggests the prospect of improved performance compared to standard Degussa P25. In the context of a program aimed toward a 365 nm LED based photo-reactor, the question is whether a distinctly superior photocatalyst composition for drinking water treatment is now available that would shape design choices. An answer was sought by synthesizing several photocatalysts with reported high reactivity in some context in the literature, and by performing photocatalysts reactivity tests using common pollutants of water system including Natural Organic Matter (NOM) and Emerging Contaminants (ECs) from the pesticide and pharmaceutical classes. 365 nm Light Emitting Diodes (LEDs) were used as the irradiation source. Since LEDs are now available in the UV, we did not examine the TiO2 modifications that bring band gap excitation into the region beyond 400 nm. The results suggest that the choice of the photocatalyst should be best made to fit the reactor design and photocatalyst mounting constraints such as mass transport, reactive surface, and light field. No photocatalyst composition overall, superior for all classes emerged.

1. Introduction

There is lively current interest in the prospects for implementation of Advanced Oxidation Processes (AOPs) for water treatment [1,2]. AOPs refer to processes like electrochemical, ultrasound, UV/O3, UV/H2O2, Fenton and photo Fenton processes, photocatalysis, etc. The focus of this study is on moving towards TiO2 photocatalysts with UV- LED light sources. LED light sources, beyond being a reliable and continuous source (unlike solar), are inexpensive and promise high current-to-light conversion efficiency, with little heating (more efficient than many conventional mercury discharge lamps). DC operation could also be readily adapted to solar photovoltaic battery off-grid power.

Along with demonstrating UVA (as found in current LED light sources) this work is aimed at selecting among well characterized and readily prepared photocatalysts of reported high reactivity in at least one context (Table 1 in the Appendix lists some of the synthesized photocatalysts reported in the literature - mostly rare earth doped TiO2- and the model compounds used for the reactivity test). The results and discussion section opens with an account of selection of candidate photocatalysts.

So far, UV LED light sources along with TiO2 photocatalysts (mostly Degussa P25) have been successfully used for degradation of dyes like Methylene Blue, Rhodamine B and Congo Red in aqueous medium [3,4,5,6]. Degradation of airborne 2-propanol, trichloroethylene, dimethyl sulfide and perchloroethylene has also been studied in gas phase [7,8,9,10]. Ghosh et al. in 2009 used visible LEDs (436 nm) for sensitized degradation of 4-chlolophenol (4-CP) using cumorine dye along with TiO2 nanofibers, tin-doped TiO2 nanofibers as well as Degussa P25 [11,12].

This work is a precursor to design a reactor for small and/or remote water systems. One typical requirement for the small systems is simplicity, with a minimum number of treatment steps. Photocatalysis with TiO2 is a broad gage treatment technique. Especially in the case of small systems, a single barrier approach is used and simple chlorination deals only with pathogens and creates a DBP problem. The broad applicability of UV photocatalysis offers hope for more comprehensive treatment. There is a growing literature on UVA-LED photocatalysis, but little of it has addressed environmental applications. Therefore, a contemporary statement of the problem faced by small systems would focus on three issues in the common order of priority: pathogens, disinfection by products (DPBs), and emerging micro-pollutants (arising from pesticides, pharmaceutical and personal care products). The first two are already being regulated and ECs may soon be regulated. Literature reviews document the broad spectrum capability of TiO2 photocatalysis to destroy microbes [13,14]. Thus, in this paper, representatives from the DBPs precursor Natural Organic Matter (Suwannee River Fulvic Acids- SRFA) and from ECs (4-CP & sulfamethoxazole) were selected.

2. Results and Discussion

2.1. Selection of Potential Photocatalyst Compositions and Reactivity Evaluation

Selection of appropriate photocatalyst compositions requires one to consider factors influencing the performance of photocatalysts. These factors are subtle and complex, but in broad terms they can be divided into (a) issues of efficient delivery of the targets to the photocatalyst’s surface and (b) target species reactivity on the surface. A key factor in delivery to the surface is adsorption on the surface, which relates to some specific interaction possibilities (e.g., chemisorption), point of zero charge and surface areas. Increasing the surface area of the photocatalysts results in increased both equilibrium and dynamic rates [15]. This calls for inclusion of preparations of nanotubes and wires or to mesoporous structures, all affording a high surface area. Another factor in reactivity on the surface is hole-electron recombination. It is argued that the success of P25 arises from the effect of the mixture of anatase and rutile phases, which reduces the recombination rate [16]. Recent research on nanoparticles of second oxides on TiO2 shows efficient separation of the hole and electron and delay of recombination. This even allows post-irradiation energy storage [17,18]. Existence of anatase and rutile phases, primary particle size and secondary particle size are other physical and structural properties, which affect the photocatalytic activities [19].

A review of literature suggested the following photocatalysts reported to have advantages such as outperforming Degussa P25 in at least one case: (a) mesoporous TiO2 and TiO2 nanofibers, which are reported to have large surface area [20,21]; (b) rare earths doped TiO2, to increases the separation efficiencies of electron and hole pairs and modifying the microstructure of the photocatalyst [22], and (c) photocatalysts with energy storage capability (WO3/TiO2 and Ni(OH)2/TiO2). The electron storage capability of WO3/TiO2 extends lifetimes and as a consequence improves the interfacial transfer yield [18]. In contrast, surface coating with amorphous Ni(OH)2, which is a hole trap, can enhance the substrate adsorption as well [17]. All tests were also performed using Degussa P25 as a reference. In so far as the major factors in choice of a photocatalyst preparation can be captured by taking surface area as a surrogate for delivery of substrate to the surface and modeling charge separation by modification of the structure or creating opportunity for electron (WO3) or hole (Ni(OH)2) inter phase transfer, this set should provide a reasonable guide to the issues (since the reaction in case of WO3/TiO2 was efficient at pH around 3, this photocatalyst was not tested in this paper).

In the selection process, we also considered opportunities for immobilization, because there are considerable simplifications of reactor design if the photocatalyst is on a robust fixed bed. In this case, photocatalyst particle separation is not required. We have tested mesoporous TiO2, which could be representatives of mesosponge TiO2 prepared by anodization of titanium [5,23] and TiO2 nanofibers, which can also be obtained by anodization and could also represent nanofibers grown on a surface such as glass [24].

Since water may contain several classes of contaminants, the reactivity of the photocatalysts was tested on models of priority classes of water pollutants. Three main issues in drinking water treatment systems are pathogens, disinfection by products (DPBs), and emerging micro-pollutants, for which the potential of TiO2 photocatalysis (an alternate AOP) is especially promising. With respect to AOPs based on photocatalysis, an extensive literature on TiO2 demonstrates that oxidation with holes or hydroxyl radical equivalents on the TiO2 surface is an extremely powerful and versatile method of disinfection that has been recently reviewed [25,26]. Thus, we will not focus on testing a variety of catalysts over a variety of indicator organisms at this stage of UVA photocatalyst selection. The selection begins with the evaluation of candidate photocatalysts for degradation of the NOM model. NOM oxidation offers protection from DPB formation on the chlorination needed for the distribution system. Choices passing this test can then be evaluated for degradation of 4-CP as a challenging recalcitrant pesticide model and finally for sulfamethoxazole as an example of emerging pharmaceutical contaminants in water. This is consistent with Ryu and Choi’s suggestion [27] to perform multiple reactivity tests for a specific photocatalyst, since a single activity test shows only a limited part of the variable activity.

It should be mentioned that for the reactivity tests, though the best loading for each photocatalyst was verified, the same loading of photocatalysts was used for the comparison purposes. This was not necessarily the optimized loading for each case, but reflects the expectation that a treatment system would not be altered for each contaminant. The 2.5 g/L of photocatalysts used in this study was in the acceptable range for P25, TiO2 nanofibers and Ni(OH)2/TiO2 but 5 g/L was the best loading for mesoporous TiO2. The UV irradiation source is 365 nm LEDs.

2.2. Reduction of Natural Organic Matter (NOM) by UVA

In North America, almost universally, small systems rely on chlorine disinfection and residual chlorine for distribution system protection. Many do not include coagulation or filtration or NOM removal. Thus, DBPs (trihalomethanes or THMs and haloacetic acids or HAAs) formation (increasingly regulated) stands out. DBPs are the result of reactions between NOM and chlorine. Removal of the NOM before chlorination is a desirable barrier. There are two photocatalytic options for degradation of NOMs: degradation by “self sensitization” under visible light irradiation or degradation under UV irradiation. A detailed and comprehensive study on NOM self sensitization using Degussa P25 has been pursued in this laboratory [28,29], which provides the proof of concept of applicability of this method for degradation of FAs and NOM, leading to inhibition of formation of DBPs. We report UV degradation of FAs in this paper since UV will be required for the other contaminants.

As it was mentioned in the introduction, SRFA in raw water model was used as the NOM model. Reactivity of the following photocatalysts was tested for degradation of SRFA (by following the characteristic fluorescence under 350 nm excitation as a function of time) in solution: Nd and Eu doped TiO2, Degussa P25, TiO2 nanofibers, Ni(OH)2/TiO2 WO3/TiO2 and mesoporous TiO2. Upon band gap irradiation of the photocatalysts, electrons are excited to the conduction bands of TiO2 and leave highly oxidizing holes in valance band. In presence of NOM, these take part in a series of oxidative-reductive reactions, which includes electrons forming O2.− and the powerful hole oxidant.

One of the critical factors in degradation of Fulvic Acids (FAs) is adsorption of FAs on the surface of the photocatalysts. Adsorption on the surface is strongly pH dependent with the optimum pH depending on surface properties, and the reactivity on the surface shows some pH dependence. Though the efficiency is higher at lower pHs, our goal here was to use the synthesized photocatalysts at natural water pH. Figure 1 shows dark adsorption of FAs on the chosen catalysts at pH around 6.7. For the same loading of photocatalysts (not necessarily optimal), mesoporous TiO2 and Ni(OH)2/TiO2 are the best candidates. P25, TiO2 nanofibers and Nd doped TiO2 showed similar, lesser, adsorption efficiencies. The results for WO3/TiO2 are not reported here, because adsorption of FAs on the surface was not efficient, unless the pH was reduced to near 3. The narrow band near 400 nm in this and all fluorescence spectra below is a water Raman band with constant intensity serving as an internal intensity standard.

Catalysts 03 00726 g001 1024

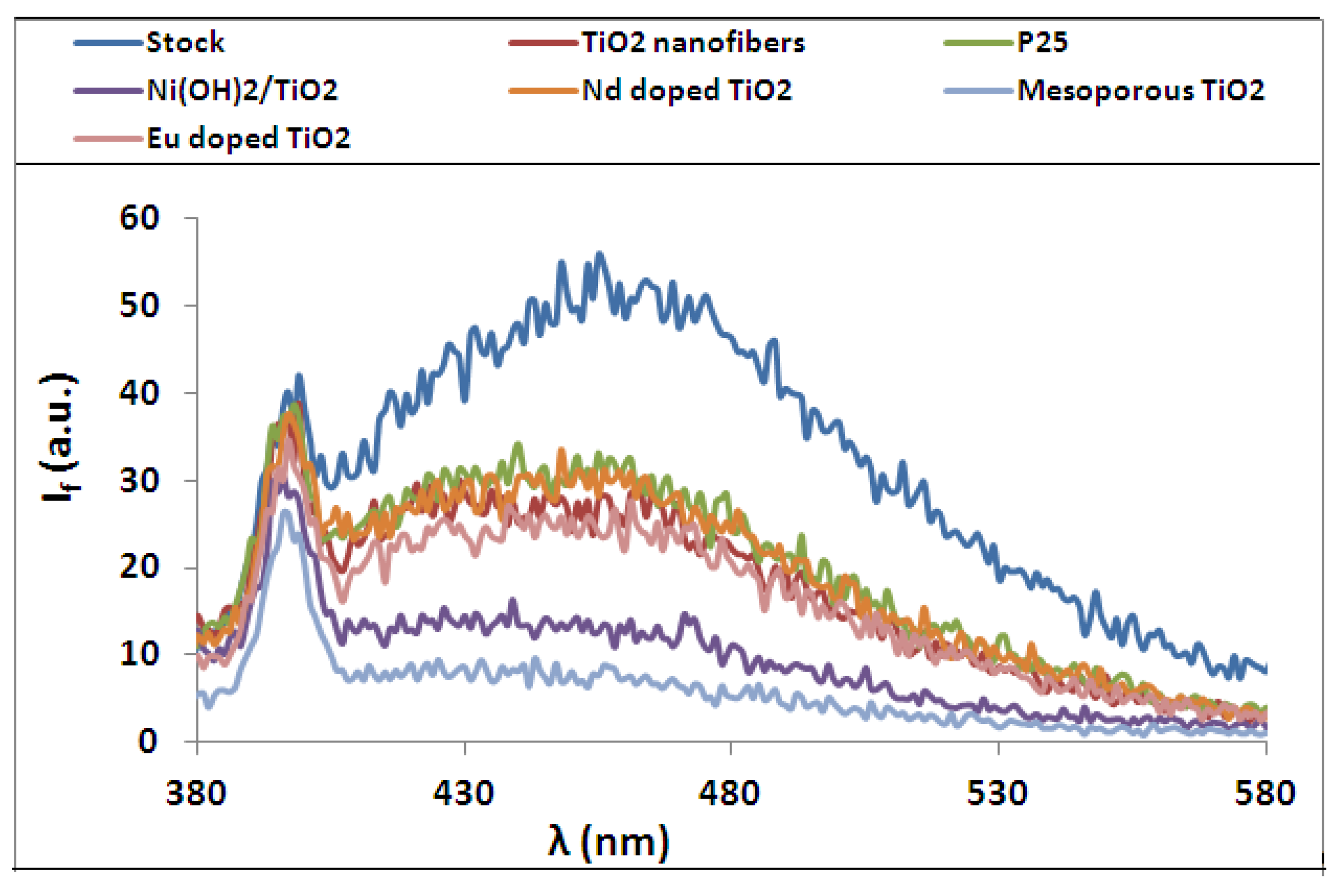

Figure 1. Dark adsorption of fulvic acids (FAs) (3 times diluted samples) on the surface of the selected photocatalysts (2.5 g/L) at pH = 6.7, indicated by reduction in fluorescence intensity. Fluorescence spectra were recorded for λ excitation = 350 nm (3 times diluted samples).
Figure 1. Dark adsorption of fulvic acids (FAs) (3 times diluted samples) on the surface of the selected photocatalysts (2.5 g/L) at pH = 6.7, indicated by reduction in fluorescence intensity. Fluorescence spectra were recorded for λ excitation = 350 nm (3 times diluted samples).
Catalysts 03 00726 g001 1024

Figure 2 presents a typical result upon irradiation in 365 nm LED reactor using TiO2 nanofibres.

Catalysts 03 00726 g002 1024

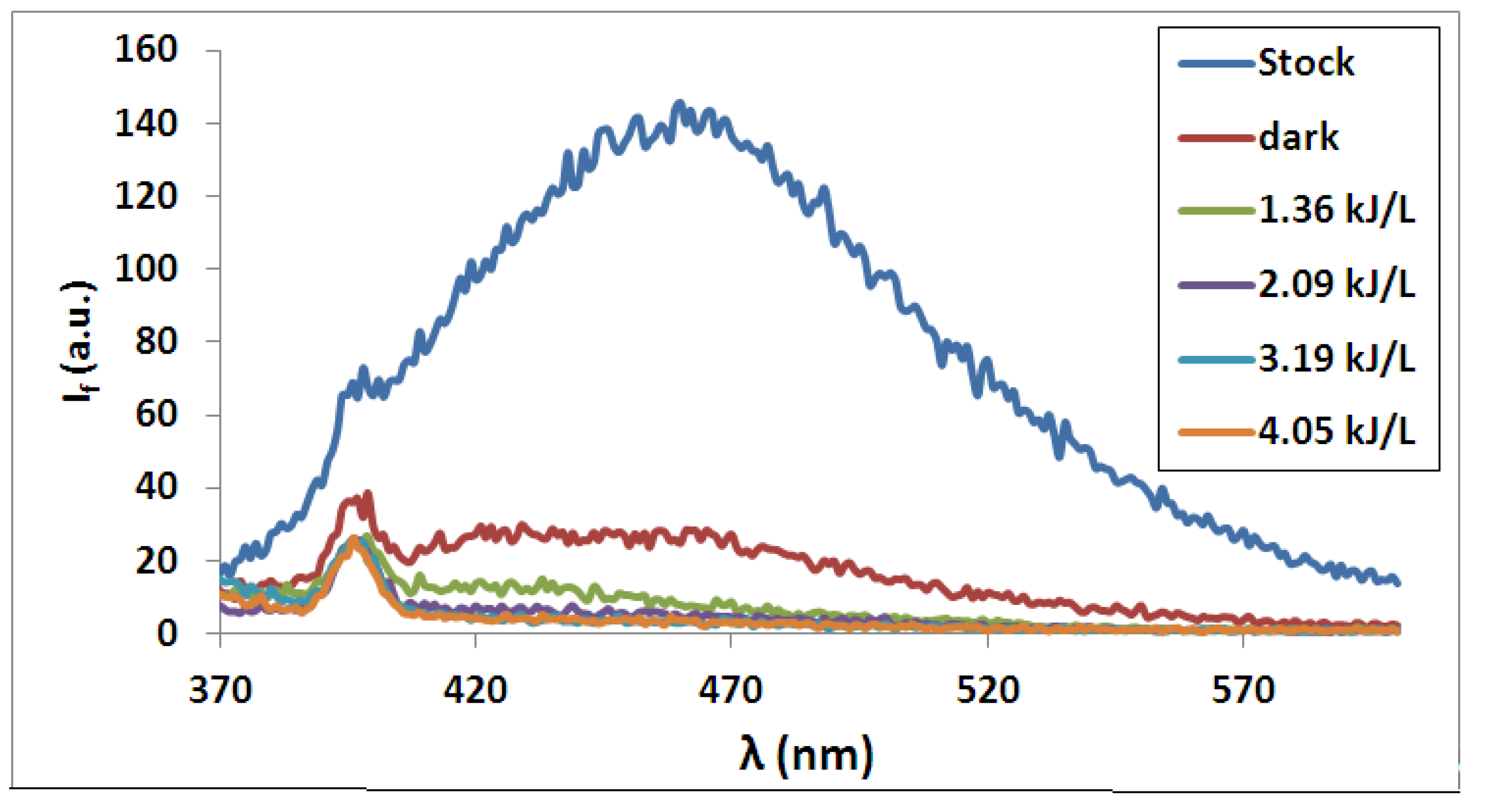

Figure 2. Degradation of FA (10 ppm) using TiO2 nanofibers (2.5 g/L) in the 365 nm LED reactor, the fluorescence spectra were recorded for λexcitation = 350 nm at different irradiation times. Irradiation times are converted to required energy per volume in (kJ/L) for the corresponding removal of FA shown on the Y axis.
Figure 2. Degradation of FA (10 ppm) using TiO2 nanofibers (2.5 g/L) in the 365 nm LED reactor, the fluorescence spectra were recorded for λexcitation = 350 nm at different irradiation times. Irradiation times are converted to required energy per volume in (kJ/L) for the corresponding removal of FA shown on the Y axis.
Catalysts 03 00726 g002 1024
Catalysts 03 00726 g003 1024
Figure 3. Final fluorescence spectra (3 times diluted samples) for λexcitation = 350 nm of 10 ppm FA solutions using 2.5 g/L of each photocatalyst after a light dose of 4.05 kJ/L (1 h) for runs in the 365 nm LED reactor (in case of Degussa P25, 2.25 kJ/L (0.5 h) was applied).
Figure 3. Final fluorescence spectra (3 times diluted samples) for λexcitation = 350 nm of 10 ppm FA solutions using 2.5 g/L of each photocatalyst after a light dose of 4.05 kJ/L (1 h) for runs in the 365 nm LED reactor (in case of Degussa P25, 2.25 kJ/L (0.5 h) was applied).
Catalysts 03 00726 g003 1024

Figure 3 collects the final fluorescent spectra after a light dose of 4.05 kJ/L (2.25 kJ/L in case of Degussa P25) for a solution of 10 ppm FA after each individual of the seven photocatalysts was used for irradiation in the 365 nm LED reactor. The final curves imply essentially complete reaction to non-fluorescent products, except in the cases of Nd and Eu doped TiO2, which show some remnant fluorescent photoproducts observed, even though the adsorption on the surface for rare earth doped TiO2 is similar to that for P25 and TiO2 nanofibers. It is possible that not all of the FA complex mixture’s relevant components and oxidation intermediates are adsorbed on these surfaces. Also in the case of rare earth doped TiO2, particle sizes are so small that recorded absorption spectra of the photocatalysts were as if the slurry was a homogeneous solution. Below the critical size, surface recombination becomes dominant, reducing efficiency [30]. Alternatively, it could be related to electron trapping properties of the dopants, if the energy level is too low to transfer electron efficiently and rapidly to oxygen [30].

2.3. Photocatalytic Degradation of Model Pesticide 4-CP under UVA Irradiation

Literature suggests that 4-CP is among the most recalcitrant pesticide related structures with respect to oxidation [31]. Mesoporous TiO2, TiO2 nanofibers, Ni(OH)2/TiO2 as well as P25 were compared for degradation of 4-CP in 365 nm LED reactor. The results are shown in Figure 4A. The first point in all graphs is the based on the concentration after 30 min dark time. Adsorption of 4-CP on photocatalysts surfaces was determined to be negligible except for Ni(OH)2/P25, which was about 5%. Nd doped TiO2, which is reported in the literature as the most efficient rare earth doped TiO2 photocatalysts [32,33], was also tested for degradation of 4-CP under similar circumstances. The reaction rate was very close to that of TiO2 nanofibers, but considering its poor performance on degradation of FA no more experiments were performed with this photocatalyst. In order to increase the efficiency of electron capture for the reactions, the photocatalysts were also tested under bubbling O2 for degradation of 4-CP. O2 is the electron acceptor and, increase of concentration may reduce hole and electron recombination. The positive effect of O2 bubbling is shown in Figure 4B by shortening the overall degradation time. In both cases P25 was the most efficient photocatalyst followed by Ni(OH)2/P25, TiO2 nanofibers and mesoporous TiO2. Rate constants in both cases are listed in Table 2, where k values are approximated by a pseudo first-order rate law.

Catalysts 03 00726 g004 1024

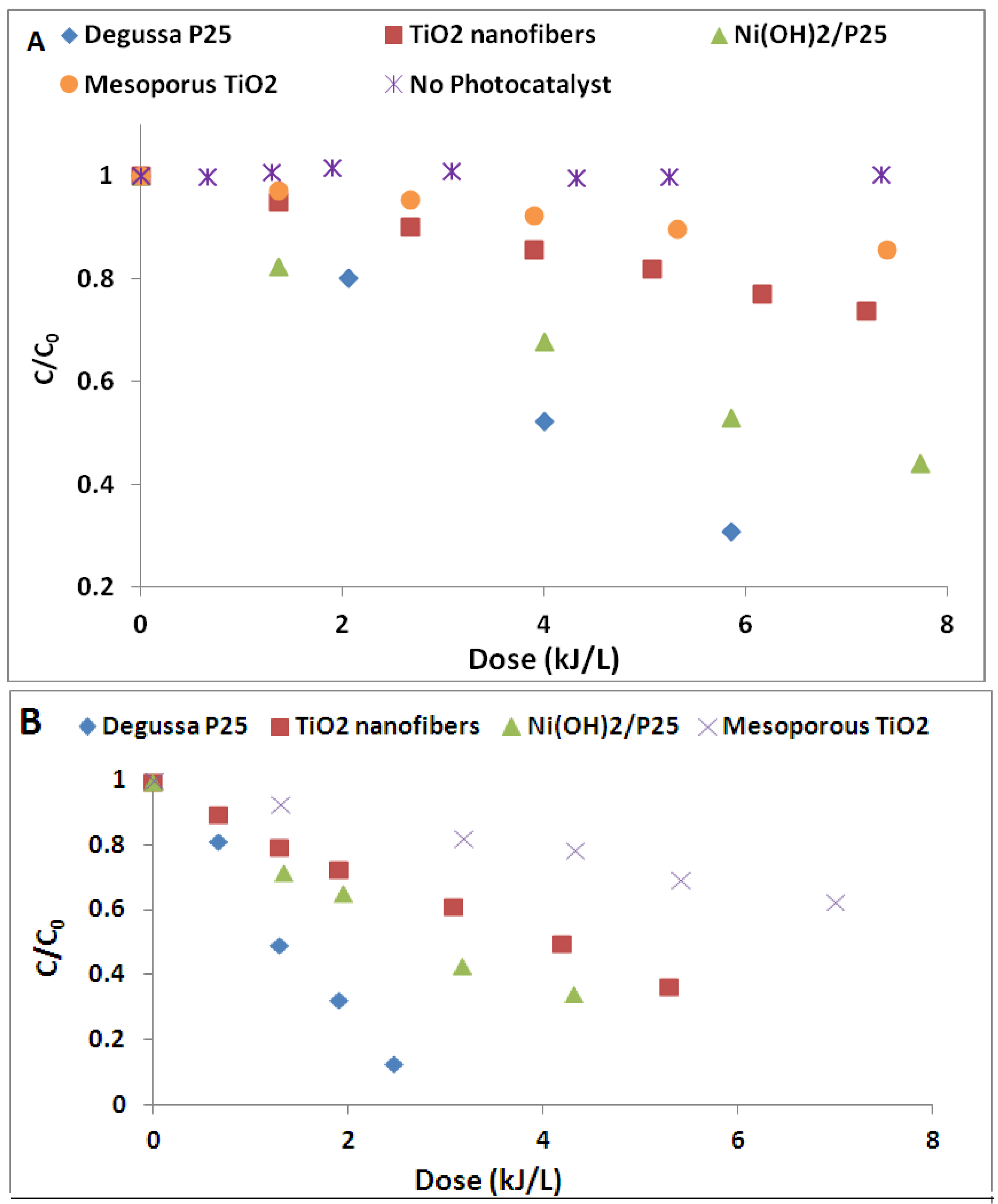

Figure 4. Degradation of 4-CP (33 ppm) irradiated in 365 nm LED reactor using Degussa P25, TiO2 nanofibers, Ni(OH)2/TiO2 and mesoporous TiO2 without (A) and with O2 bubbling (B). Absorbance at 246 nm was monitored. Irradiation times are converted to required energy per volume in (kJ/L) for the corresponding removal of 4-CP shown on the Y axis.
Figure 4. Degradation of 4-CP (33 ppm) irradiated in 365 nm LED reactor using Degussa P25, TiO2 nanofibers, Ni(OH)2/TiO2 and mesoporous TiO2 without (A) and with O2 bubbling (B). Absorbance at 246 nm was monitored. Irradiation times are converted to required energy per volume in (kJ/L) for the corresponding removal of 4-CP shown on the Y axis.
Catalysts 03 00726 g004 1024

2.4. Degradation of Sulfamethoxazole Using UVA (365 nm) Irradiation

Degradation of sulfamethoxazole (SMX), which is one of the most commonly used antibiotics and one of the ECs [34], was also evaluated in the 365 nm LED reactor using Ni(OH)2/TiO2, TiO2 nanofibers, mesoporous TiO2 and P25. Figure 5 compares the results, where the first point corresponds to the normalized concentration after dark period. Adsorption of SMX on photocatalysts surfaces was determined to be negligible in all cases. Again the most efficient photocatalyst was P25 followed by Ni(OH)2/P25. TiO2 nanofibers and mesoporous TiO2 showed similar reactivity towards degradation of SMX. Rate constants listed in Table 1 are approximated by a pseudo first-order rate law.

Catalysts 03 00726 g005 1024

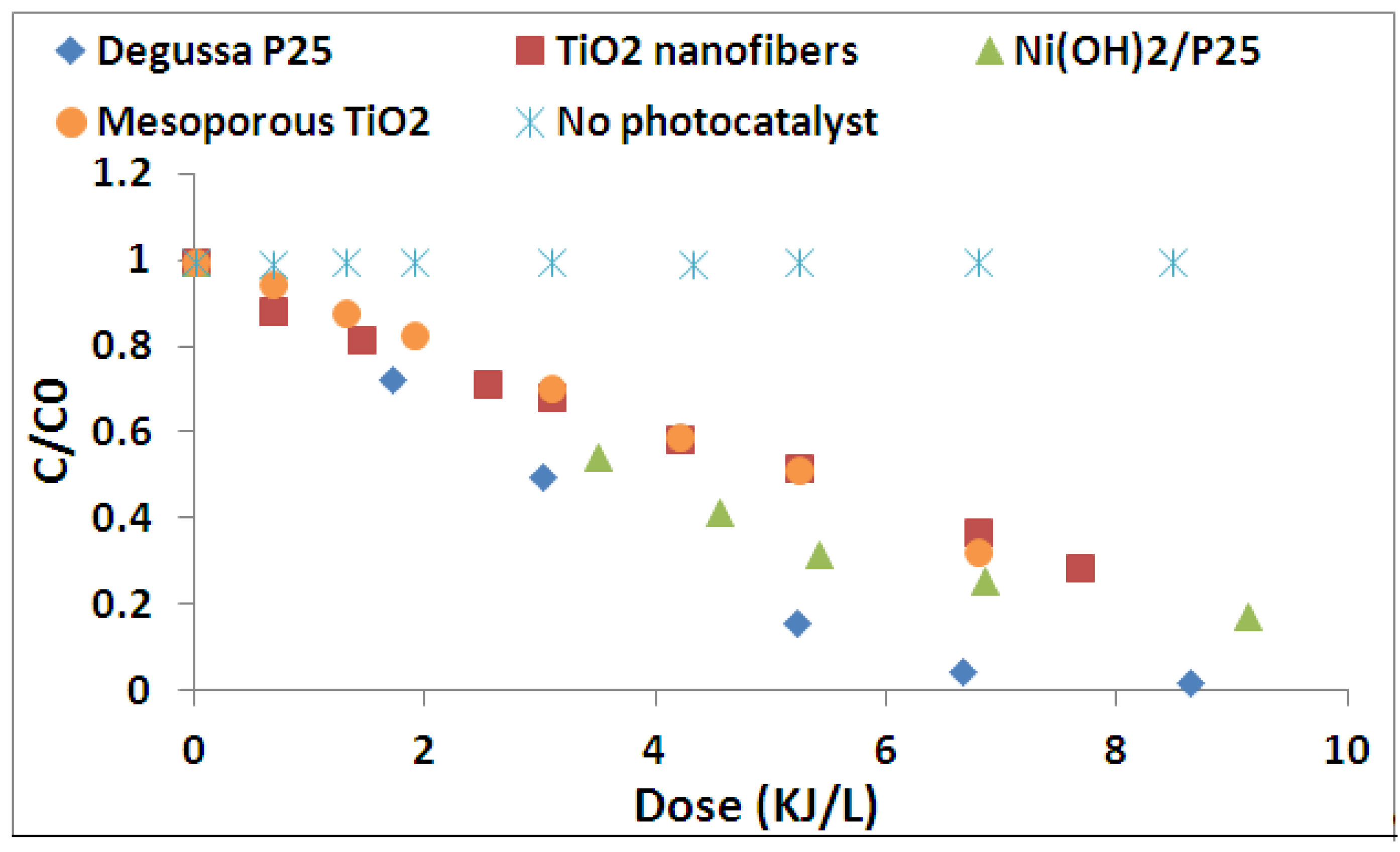

Figure 5. Degradation of SMX (33 ppm) irradiated in 365 nm LED reactor using Degussa P25, TiO2 nanofibers and Ni(OH)2/TiO2. Absorbance at 266 nm was monitored. Irradiation times are converted to required energy per volume in (kJ/L) for the corresponding removal of SMX shown on the Y axis.
Figure 5. Degradation of SMX (33 ppm) irradiated in 365 nm LED reactor using Degussa P25, TiO2 nanofibers and Ni(OH)2/TiO2. Absorbance at 266 nm was monitored. Irradiation times are converted to required energy per volume in (kJ/L) for the corresponding removal of SMX shown on the Y axis.
Catalysts 03 00726 g005 1024

Introducing a superior photocatalyst requires that a given candidate exhibits higher levels of photocatalytic activity for several reactions with different reaction conditions. P25 was the most efficient photocatalyst for degradation of the candidate pollutant at pH 6-7 (balanced properties of P25: surface are of 50 m2g−1, primary particle size of 30 nm and combination of anatase and rutile structures makes P25 one of the best photocatalysts known up to date [19]) but for a real water sample with pH of 8, Ni(OH)2/P25 was more efficient than P25 in degrading FAs.

Table
Table 1. Pseudo first order rate constants and R2 for 4-CP (with and without O2 bubbling) and SMX.
Table 1. Pseudo first order rate constants and R2 for 4-CP (with and without O2 bubbling) and SMX.
CompoundPhotocatalyst
Degussa P25Ni(OH)2/P25TiO2 nanofibersMesoporous TiO2
4-CPk = 0.0132 min−1
R2 = 0.9702		k = 0.0066 min−1
R2= 0.9924		k = 0.0026 min−1
R2 = 0.9994		k = 0.0013 min−1
R2 = 0.9968
4-CP, O2k = 0.0503 min−1
R2 = 0.9425		k = 0. 0156 min−1
R2 = 0.9900		k = 0.0106 min−1
R2 = 0.9929		k = 0.0039 min−1
R2 = 0.9911
SMXk = 0.0283 min−1
R2 = 0.9739		k = 0.0119 min−1
R2 = 0.9886		k = 0.0083 min−1
R2 = 0.9850		k = 0.0089 min−1
R2 = 0.9727

2.5. Choosing Appropriate Photocatalysts for Water Treatment Purposes

The first step for photocatalytic treatment of water is to define characteristics of the water to be treated in terms of water composition and pH. Normally we are faced with three basic types of source water: ground water, ground water affected by surface water (GUDI) and surface water. NOM is present in surface water but rarely in ground water unless it is contaminated from surface water. So based on the presence or absence of NOM (FAs as representatives of humic substances) the following options (Scheme 1) are available:

Catalysts 03 00726 006 1024
Scheme 1. Photocatalytic degradation of water pollutants and side reactions in presence or absence of NOM under UV or Visible irradiation. * Passive NOM sensitization is the case, where TiO2 is not directly excited by UV light. NOM absorb visible light to start the reaction.
Scheme 1. Photocatalytic degradation of water pollutants and side reactions in presence or absence of NOM under UV or Visible irradiation. * Passive NOM sensitization is the case, where TiO2 is not directly excited by UV light. NOM absorb visible light to start the reaction.
Catalysts 03 00726 006 1024

Degradation of ECs has been shown to be efficient when UV light sources are used. FAs-photosensitized degradation of ECs was also verified for degradation of 4-CP and it was efficient [29]. However, the NOM sensitized processes will vary greatly with the NOM composition and concentration.

Reviewing the reactivity tests performed using candidate photocatalysts, P25 was the most effective for degradation of 4-CP and SMX. If FAs (NOM) are present Ni(OH)2/P25 and mesoporous TiO2 are specifically good because of the very efficient adsorption of FAs (NOM) on the surface. Ni(OH)2/P25 has been shown to be applicable at high pHs (around 8), where P25 is not efficient. Another advantage of this photocatalyst is, its easy separation compared to other photocatalyst. If a slurry is to be made using mixed photocatalysts (e.g., Ni(OH)2/TiO2 and P25) then one can take advantage of both photocatalysts. TiO2 nanofibers and mesoporous TiO2 are interesting candidates if a fixed bed reactor is to be used. There are different reported methods for growing TiO2 nanofibers on a surface [24] or to form mesoporous structure on a surface. An example is mesosponge TiO2 formed on Ti foil surface by anodization [23]. However, what is perhaps the most interesting conclusion is that despite the fact that the present results illustrate the need to compare photocatalysts by exploring a range of substrates [27], differences seen here are in the main not large and there will be little incentive to develop reactors with a photocatalyst choice dedicated to a single target substrate.

3. Materials and Methods

3.1. Materials

The following chemicals were used in the experiments: europium (III) oxide (99.9%) provided by REaction/Alfa Aesar (Ward Hill, MA, USA); neodymium (III) oxide (99.9%) ; phosphotungstic acid (reagent grade) and nickel(II) nitrate hexahydrate (99.999%) supplied by Sigma-Aldrich (St. Louis, MO, USA); Sulfamethoxazole by Fluka (St. Louis, MO, USA); Pluronic P-123 (a triblock copolymer: Poly(ethylene glycol)-block-poly(propylene glycol)-block-poly(ethylene glycol) by Sigma- Aldrich (St. Louis, MO, USA); isopropyl alcohol (99.99%) by EMD (OmniSolv) (Gibbstown, NJ, USA); 4-chlorophenol by Aldrich and Suwannee river fulvic acid (a reference sample widely studied) from the International Humic Substance Society (IHSS) (St. Paul, MN, USA). Distilled deionized water was used as required in the experiments.

3.2. Preparation of the Photocatalysts

TiO2 nanofiber, which was kindly provided by Ghosh et al. [12], was prepared by the following procedure outlined by Sui et al., in which a mixture of heptane, acetic acid and titanium isopropoxide was heated to 60 °C until a gel was formed [20]. The gel was aged for 5 days, then dried at 80 °C and finally calcined at 400 °C for 2 h.

A sol gel method described by Xu et al. was used to prepare the Eu and Nd doped photocatalysts [22]. Diluted titanium isopropoxide with isopropanol was added to the aqueous solution of Eu or Nd oxides with pH of 1.5. The mixture was kept refluxing at 75 °C for 24 h and then the precipitate was dried at 60 °C. Ni(OH)2 cluster-modified TiO2 (Ni(OH)2/TiO2 nanocomposite) was fabricated using a precipitation method presented by Yu et al. using Degussa P25 as support and Ni(NO3)2 as precursor. Degussa P25 was dispersed in 1.0 M NaOH aqueous solution, to which was added Ni(NO3)2 aqueous solution. The mixed solutions were stirred for 24 h at room temperature. After that, the precipitates were collected and washed with distilled water and alcohol respectively and dried at 80 °C for 24 h [17]. WO3/TiO2 nanohybrid was also prepared by a sol gel method with titanium isopropoxide and phosphotungstic acid (H3PW12O40) as precursors. Titanium isopropoxide dissolved in isopropanol was added to a solution of H3PW12O40 deionized water. The mixture was aged for 2 h, the gel was dried at 100 °C and sintered at 500 °C for 5 h. The powder was washed thoroughly with water and then dried at 80 °C [18].

Finally mesoporous TiO2 was prepared by a method suggested by Calleja et al.: Pluronic P-123 was first dissolved in a mixture of 2-propanol and HCl in water [21]. The resulting solution was stirred for 4 h and then it was added to a solution of titanium isopropoxide and 2-propanol under vigorous stirring at 40 °C, obtained sol was kept under stirring until a gel appeared (molar ratio H2O/Ti = 6 and grams of P-123 per 0.01 mol of Ti = 1). The gel was aged at 40 °C and dried under ambient conditions. Finally, to extract the surfactant, the solid product was refluxed with ethanol for 24 h.

Table 2 lists the physical properties of the synthesized photocatalysts reported in the original papers. It should be noted that the band gap for the synthesized photocatalyst is at least 3.2, which is the intrinsic band gap of anatase. In contrast to all of the others, in case of Eu and Nd doped TiO2, there is a shift to lower energies (longer wavelengths), which is not fully characterized.

Table
Table 2. Physical properties of the synthesized photocatalysts
Table 2. Physical properties of the synthesized photocatalysts
PhotocatalystCrystalline structureAverage particle size (nm)composition
TiO2 nanofibers [20]Anatase13 -
Ni(OH)2/TiO2 [17]Anatase and Rutile24 (Anatase), 46 (Rutile)Ni(OH)/Ni(OH)2+ P25 = 0.1
WO3/TiO2 [18]Anatase9.5–10W/Ti(mole ratio) = 0.04
Mesoporous TiO2 [21]Anatase2.8 (pore size)-
Eu doped TiO2 [22]Anatase with a little brookite5.5Eu2O3/Ti(OiPr)4 (mole ratio) = 0.01

Successful preparation of the chosen photocatalysts was selectively confirmed by SEM/EDS: Scanning Electron Microscopy with X-ray microanalysis (Figure A1 in the Appendix). An extensive set of figures is not included here since the cited literature was confirmed.

3.3. Reactivity Evaluation

Suwannee river fulvic acids (FAs), representing NOM; 4-CP representing pesticide type molecules, and Sulfamethoxazole (SMX) representing pharmaceuticals, were chosen as model compounds to test the reactivity of the synthesized photocatalysts. 4-CP solution and SMX (33 ppm) were prepared by dissolving 4-CP or SMX in Milli- Q water without changing the pH. FAs samples were model “natural water samples”, which were prepared using the following recipe: 0.020 g. of Suwannee river FA, 0.117 g of calcium chloride and 0.181 g of sodium bicarbonate was added to 2 L of boiling Milli-Q water. The pH of the solution was then adjusted between 7.1–7.3. The solution had about 10 ppm of FA. Reactivity tests were performed using 0.25% (w/v—2.5 g/L) photocatalysts slurries (see discussion for more detail). The slurries were agitated in dark for 30 min using a magnetic stirrer prior to irradiation.

The solutions were then subjected to irradiation for appropriate periods in a compact circular bench scale reactor equipped with 365 nm LED lamps [35]. The inside diameter and depth of the reactor are 9 and 7 cm respectively and it is equipped with 90 LED 3 mW output lamps (NSHU5518), which are evenly distributed in 15 rows (Figure A2 in the Appendix). The number of photons absorbed by the solutions was determined by chemical actinometry using potassium ferrioxalate [36]. Incident photon flux, measured under exactly the same conditions as in the photocatalytic experiments, was evaluated to be 4.3 ± 0.2 × 1016 photos/s for the LED reactor. This light intensity was used to calculate energy dosage. Energy dosage is calculated using the following equation:

E = I × t × hc⁄1000λ
where E is energy dosage delivered into the sample (in kJ), I is light intensity (photons/s), t is irradiation time(s), h is Planck’s constant (Js), c is velocity of light in vacuum (m/s) and λ is wavelength of photon in m.

At predetermined time intervals, slurry samples were withdrawn, centrifuged and filtered through 0.45 μ filters. For the nanoparticles, addition of NaOH made the separation of the photocatalyst much easier and faster. In case of using Ni(OH)2/TiO2 as the photocatalyst , separation of the particles was easy and there was no need to modify the pH.

The concentrations of 4-CP and SMX in the filtrates were determined by measuring the absorbance (at ~246 nm and 266 nm respectively) at different irradiation times using a UV-Vis spectrophotometer (HP 8452-A diode array spectrophotometer).

FAs samples were analyzed by studying changes in fluorescence spectra using an excitation wavelength of 350 nm. The efficiency of the photocatalysts was compared based on the physical adsorption of FAs on the surface and based on the disappearance of the fluorescent components of SRFA. No fluorescence detected after a certain irradiation time, does not mean complete degradation of SRFA or total mineralization. Longer irradiation times may be required to get the point of >95% mineralization, but our experience with SRFA suggests that fluorescence is a good measure, which is sensitive to changes in composition as the mixture reacts. Fluorescence could also provide mechanistic insights if band are observed to shift [28]. A Varian Cary Eclipse fluorescence spectrophotometer was used. The slit-widths were adjusted at 5 nm for both excitation and emission and the photomultiplier was set to operate at 1000 volts. To study the effect of O2 concentration on the reaction, O2 was bubbled through the solutions during photocatalytic degradation.

4. Conclusions

This study was undertaken as a part of a program aimed at evaluation of the opportunities for photocatalytic water treatment created by the emergence of LED light sources. At visible wavelengths, LEDs are already the most efficient converters of electrical energy to light and progress into the UV is proceeding on a learning curve parallel to that of visible counterparts. If solar energy use is desirable, as in remote locations, DC operated LEDs can be powered from a photovoltaic array. In this study, we selected a cross-section of TiO2 compositions for investigations for superior performance as a candidate for application for water treatment. The main conclusion is that, of the photocatalysts investigated, none were outstandingly superior or totally inferior to Degussa P25 TiO2. This then leads us to conclude that the choice of a particular photocatalyst for a reactor will depend primarily on photoreactor design issues. Some candidates appear to require slurry use, whereas others are obvious candidates are best for fixed beds. At this stage, it is difficult to nominate a substitute for inexpensive, commercial Degussa P25 as a broad spectrum photocatalyst for such reactors.

Appendix

This Appendix includes a list of TiO2 photocatalysts reported in the literature, mostly rare earth doped, and their relative reactivities for specific model compounds compared to corresponding undoped catalysts and/or P25 (Table A1) and, Scanning Electron Microscopy with X-ray microanalysis SEM/EDS results for WO3/TiO2, Mesoporous TiO2 and Eu doped TiO2 (Figure A1).

Table
Table A1. Some of the synthesized photocatalysts reported in the literature, chosen model compounds for the reactivity test, light source and their relative reactivities compared to corresponding undoped catalysts and P25.
Table A1. Some of the synthesized photocatalysts reported in the literature, chosen model compounds for the reactivity test, light source and their relative reactivities compared to corresponding undoped catalysts and P25.
PhotocatalystLight sourceModel compoundReactivity compared to P25 or un-doped TiO2 Reference
Sm, N co-doped TiO2 nanoparticlesTungsten lamp with cut off filter 420 nmSalycilic acidNot reported[37]
Lanthana-doped mesoporous TiO2 nanoparticlesblack lampsRhodamine B Better than both[38]
Tb, Eu and Sm doped TiO2 nanoparticlesXenon arc lampRemazol Red RB-133Not reported[39]
Eu, Pr, YbXe (Hg) lampp-Nitrobenzoic acid , p-chlorophenoxyacetic acid, aniline, salicylic acid and trans-cinnamic acidNot reported[40]
Eu, Pr, YbXe(Hg) lampSalicylic acid and t-cinnamic acidNot reported[41]
La,Pr, Nd, Sm, Eu, Gd , Yb doped TiO2medium pressure mercury lampRhodamine BNot reported[42]
Sm doped TiO2halogen tungsten lamp with a UV and IR cut-off filterMethylene BlueNot reported[43]
Sm doped TiO2sunlightMethylene BlueBetter than both[44]
(Sm3+, Nd3+, Ce3+ and Pr3+) doped titania-silicasunlightMethylene BlueBetter than undoped titania-silica[45]
Ce, Co, Eu, Sm, W and Yb doped TiO2mediumpressure Hg lamp 4-NitrophenolSm and W doped TiO2, better than P25[46]
Eu, NHalogen lamp with 400 nm cut off filterReactivebrilliantred X-3BBetter than both under visible light irradiation[22]
La, Ce, Pr, Nd, Sm, Eu, Dy, Gd doped TiO2254, 365 and 400 nmOrange II dyeNd highest reactivity, better than both at all wavelengths for Ce & Nd doped TiO2[32]
La, Nd and Pr doped TiO2Solar irradiationMethylene BlueBetter than undoped[47]
ABO3-type :A) Y, La, Nd, Sm, Eu, Gd, Dy, Yb; B) Al, InXenon arc lampTolueneNot reported[48]
Catalysts 03 00726 g007 1024

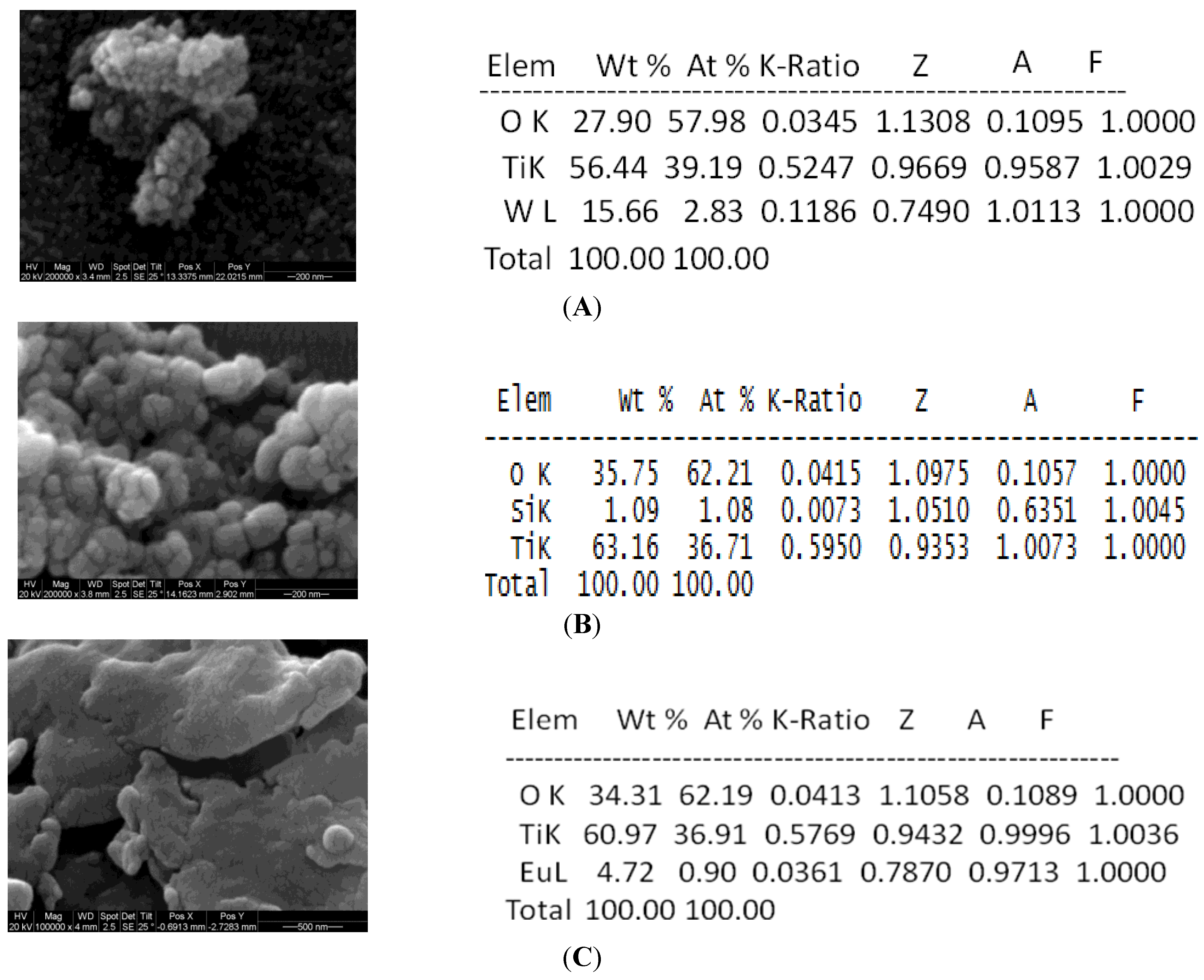

Figure A1. Scanning electron microscopy with X-ray microanalysis SEM/EDS was performed using a LEO 1530 (SEM images were taken with previous gold-coating) for: (A) WO3/TiO2; (B) Mesoporous TiO2; (C) Eu doped TiO2.
Figure A1. Scanning electron microscopy with X-ray microanalysis SEM/EDS was performed using a LEO 1530 (SEM images were taken with previous gold-coating) for: (A) WO3/TiO2; (B) Mesoporous TiO2; (C) Eu doped TiO2.
Catalysts 03 00726 g007 1024

Other samples:

  • Ni(OH)2 coated on P-25;

  • Nanofibre TiO2 was supplied by the authors of reference [12]. Full characterization is found there.

Catalysts 03 00726 g008 1024
Figure A2. Top view of 365 nm LED rector: (a) lights on (b) lights off, Adapted from reference [35].
Figure A2. Top view of 365 nm LED rector: (a) lights on (b) lights off, Adapted from reference [35].
Catalysts 03 00726 g008 1024

Acknowledgements

We gratefully acknowledge the financial support of NSERC through RES’EAU WaterNet.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Parsons, S. Advanced Oxidation Processes for Water and Waste Water Treatment; IWA: London, UK, 2004. [Google Scholar]
  2. Comninellis, C.; Kapalka, A.; Malato, S.; Parsons, S.A.; Poulios, I.; Mantzavinos, D. Perspective advanced oxidation processes for water treatment: advances and trends for R&D. J. Chem. Technol. Biotechnol. 2008, 83, 769–776. [Google Scholar] [CrossRef]
  3. Tayade, R.J.; Natarajan, T.S.; Bajaj, H.C. Photocatalytic degradation of methylene blue dye using ultraviolet light emitting diodes. Ind. Eng. Chem. Res. 2009, 48, 10262–10267. [Google Scholar] [CrossRef]
  4. Natarajan, T.S.; Thomas, M.; Natarajan, K.; Bajaj, H.C.; Tayade, R.J. Study on UV-LED/TiO2 process for degradation of Rhodamine B dye. Chem. Eng. J. 2011, 169, 126–113. [Google Scholar] [CrossRef]
  5. Natarajan, T.S.; Natarajan, K.; Bajaj, H.C.; Tayade, R.J. Energy efficient UV-LED source and TiO2 nanotube array-based reactor for photocatalytic application. Ind. Eng. Chem. Res. 2011, 50, 7753–7762. [Google Scholar] [CrossRef]
  6. Dai, K.; Lu, L.; Dawson, G. Development of UV-LED/TiO2 device and their application for photocatalytic degradation of methylene blue. J. Mater. Eng. Perform. 2013, 22, 1035–1040. [Google Scholar] [CrossRef]
  7. Jo, W.K. Photocatalytic oxidation of low-level airborne 2-propanol and trichloroethylene over titania irradiated with bulb-type light-emitting diodes. Materials 2013, 6, 265–278. [Google Scholar] [CrossRef]
  8. Wang, Z.; Liu, J.; Dai, Y.; Dong, W.; Zhang, S.; Chen, J. CFD modeling of a UV-LED photocatalytic odor abatement process in a continuous reactor. J. Hazard. Mater. 2012, 215–216, 25–31. [Google Scholar] [CrossRef]
  9. Jo, W.K.; Eun, S.S.; Shin, S.H. Feasibility of light-emitting diode uses for annular reactor inner-coated with TiO2 or nitrogen-doped TiO2 for control of dimethyl sulfide (Degussa P25). Photochem. Photobiol. 2011, 87, 1016–1023. [Google Scholar] [CrossRef]
  10. Sharmin, R.; Ray, M.B. Application of ultraviolet light-emitting diode photocatalysis to remove volatile organic compounds from indoor air. J. Air Waste Manag. Assoc. 2012, 62, 1032–1039. [Google Scholar] [CrossRef]
  11. Ghosh, J.P.; Langford, C.H.; Achari, G. Characterization of an LED based photoreactor to degrade 4-Chlorophenol in an aqueous medium using coumarin (C-343) sensitized TiO2. J. Phys. Chem. A 2008, 112, 10310–10314. [Google Scholar] [CrossRef]
  12. Ghosh, J.P.; Sui, R.; Langford, C.H.; Achari, G.; Berlinguette, C.P. A comparison of several nanoscale photocatalysts in the degradation of a common pollutant using LEDs and conventional UV light. Water Res. 2009, 43, 4499–4506. [Google Scholar] [CrossRef]
  13. Chong, M.N.; Jin, B.; Chow, W.K.; Saint, C. Recent development in photocatalytic water treatment technology: A review. Water Res. 2010, 44, 2997–3027. [Google Scholar] [CrossRef]
  14. Byrne, J.A.; Fernandez-Ibañez, P.A.; Dunlop, P.S.M.; Alrousan, D.M.A.; Hamilton, J.W.J. Photocatalytic enhancement for solar disinfection of Water: A Review. Int. J. Photoenergy 2011, 798051:1–798051:12. [Google Scholar]
  15. Ohtani, B. Photocatalysis A to Z- what we know and what we do not know in a scientific sense. J. Photochem. Photobiol. C 2012, 12, 157–178. [Google Scholar]
  16. Hurum, D.C.; Agrios, A.G.; Gray, K.A. Explaining the enhanced photocatalytic activity of Degussa P25 mixed-phase TiO2 using EPR. J. Phys. Chem. B 2003, 107, 4545–4549. [Google Scholar] [CrossRef]
  17. Yu, J.; Hai, Y.; Cheng, B. Enhanced photocatalytic H2-production activity of TiO2 by Ni(OH)2 cluster modification. J. Phys. Chem. C 2011, 115, 4953–4958. [Google Scholar] [CrossRef]
  18. Zhao, D.; Chen, C.; Yu, C.; Ma, W.; Zhao, J. Photoinduced electron storage in WO3/TiO2 nano hybride material in the presence of oxygen and post irradiated reduction of heavy metal ions. J. Phys. Chem. C 2009, 113, 13160–13165. [Google Scholar] [CrossRef]
  19. Pichat, P. Photocatalysis and Water Purification. From Fundamentals to Recent Applications; Wiley-VCH: Weinheim, Germany, 2013. [Google Scholar]
  20. Sui, R.; Thangadurai, V.; Berlinguette, C.P. Simple protocol for generating TiO2 nanofibers in organic media. Chem. Mater. 2008, 20, 7022–7030. [Google Scholar] [CrossRef]
  21. Calleja, G.; Serrano, D.; Sanz, R.; Pizarro, P.; García, A. Study on the synthesis of high-surface-area mesoporous TiO2 in the presence of nonionic surfactants. Ind. Eng. Chem. Res. 2004, 43, 2485–2492. [Google Scholar] [CrossRef]
  22. Xu, J.; Ao, Y.; Yuana, D.C. A simple route for the preparation of Eu, N-codoped TiO2 nanoparticles with enhanced visible light-induced photocatalytic activity. J. Colloid Interf. Sci. 2008, 328, 447–451. [Google Scholar] [CrossRef]
  23. Lee, K.; Kim, D.; Roy, P.; Paramasivam, I.; Birajdar, B.I.; Spiecker, E.; Schmuli, P. Anodic formation of thick anatase TiO2 mesospounge layers for high efficiency photocatalysis. J. Am. Chem. Soc. 2010, 132, 1478–1479. [Google Scholar]
  24. Sedach, P.A.; Gordon, T.J.; Sayed, S.Y.; Furstenhaupt, T.; Sui, R.; Baumgartner, T.; Berlinguette, C.P. Solution growth of anatase TiO2 nanowires from transparent conducting glass substrates. J. Mater. Chem. 2010, 20, 5063–5069. [Google Scholar] [CrossRef]
  25. Pelaez, M.; Nolan, N.T.; Pillai, S.C.; Seery, M.K.; Falaras, P.; Kontos, A.G.; Dunlop, P.S.M.; Hamilton, J.W.J.; Byrne, J.A.; O’Shea, K.; et al. A review on the visible light active titanium dioxide photocatalysts for environmental applications. Appl. Catal. B 2012, 125, 331–349. [Google Scholar] [CrossRef]
  26. Mccullagh, C.; Robertson, J.M.C.; Bahnemann, D.W.; Robertson, P.K.J. The application of TiO2 photocatalysis for disinfection of water contaminated with pathogenic micro-organisms: A review. Res. Chem. Intermediat. 2007, 33, 359–375. [Google Scholar] [CrossRef]
  27. Ryu, J.; Choi, Y.W. Substrate specific photocatalytic activities of TiO2 and multi-reactivity test for water treatment application. Environ. Sci. Technol. 2008, 42, 294–300. [Google Scholar] [CrossRef]
  28. Chamoli, U.; Achari, G.; Langford, C.H. Self-sensitized degradation of Natural Organic Matter (NOM) using TiO2 photocatalysis with visible light. Water Res. 2013. submitted for publication. [Google Scholar]
  29. Chamoli, U.; Izadifard, M.; Achari, G.; Langford, C.H. Coliform inhibition by Natural Organic Matter (NOM) sensitized photocatalysis under visible light. J. Water Health. 2013. submitted for publication. [Google Scholar]
  30. Shah, S.I.; Li, W.; Huang, C.P.; Jung, O.N.C. Study of Nd3+, Pd2+, Pt4+ and Fe3+ dopant effect on photoreactivity of TiO2 nanoparticles. Proc. Natl. Acad. Sci. USA 2002, 99, 6482–6486. [Google Scholar] [CrossRef]
  31. Xiong, Z.; Xu, Y. Photosensitized oxidation of substituted phenols on aluminum phthalocyanine intercalated organoclay. Environ. Sci. Technol. 2005, 39, 651–657. [Google Scholar] [CrossRef]
  32. Stengl, V.; Bakardjiev, S.; Murafa, N. Preparation of photocatalytic activity of rare earth doped TiO2 nanoparticles. Mater. Chem. Phys. 2009, 114, 217–226. [Google Scholar] [CrossRef]
  33. Barakat, M.A.; Schaeffer, H.; Hayes, G.; Ismat-Shah, S. Photocatalytic degradation of 2-chlorophenol by Co-doped TiO2 nanoparticles. Appl. Catal. B 2004, 57, 23–30. [Google Scholar]
  34. Hirsch, R.; Ternes, T.A.; Haberer, K.; Mehlich, A.; Ballwanz, F.; Kratz, K.L. Determination of antibiotics in different water compartments via liquid chromatography—Electrospray tandem mass spectrometry. J. Chromatogr. A 1998, 815, 213–223. [Google Scholar] [CrossRef]
  35. Yu, L.; Achari, G.; Langford, C.H. Photocatalytic degradation of 2,4-D with a LED based photoreactor. In Proceedings of 12th International Environmental Specialty Conference, Edmonton, Canada, 12–16 March 2012.
  36. Hatchard, C.; Parker, C.A. A new sensitive chemical actinometer. II. potassium ferrioxalate as a standard chemical actinometer. Proc. R. Soc. Lond. A 1956, 235, 518–536. [Google Scholar] [CrossRef]
  37. Ma, Y.; Zhang, J.; Tian, B.; Chen, F.; Wang, L. Synthesis and characterization of thermally stable Sm, N co-doped TiO2 with highly visible light activity. J. Hazard. Mater. 2010, 182, 386–393. [Google Scholar] [CrossRef]
  38. Peng, T.; Zhao, D.; Song, H.; Yan, C. Preparation of lanthana-doped titania nanoparticles with anatase mesoporous walls and high photocatalytic activity. J. Mol. Catal. A 2005, 236, 119–126. [Google Scholar] [CrossRef]
  39. Saif, M.; Abdel-Mottaleb, M.S.A. Titanium dioxide nanomaterial doped with trivalent lanthanide ions of Tb, Eu and Sm: Preparation, characterization and potential applications. Inorg. Chem. Acta 2007, 360, 2863–2874. [Google Scholar] [CrossRef]
  40. Ranjit, K.T.; Cohen, H.; Willner, I.; Bossmann, S.; Braun, A.M. Lanthanide oxide-doped titanium dioxide: Effective photocatalysts for the degradation of organic pollutants. J. Mater. Sci. 1999, 34, 5273–5280. [Google Scholar] [CrossRef]
  41. Ranjit, K.T.; Willner, I.; Bossmann, S.H.; Braun, A.M. Lanthanide oxide doped titanium dioxide photocatalysts: Effective photocatalysts for the enhanced degradation of salicylic acid and t-cinnamic acid. J. Catal. 2001, 204, 305–313. [Google Scholar] [CrossRef]
  42. Quan, X.; Zhao, Q.; Tan, H.; Sang, X.; Wang, F.; Dai, Y. Comparative study of lanthanide oxide doped titanium dioxide photocatalysts prepared by co-precipitation and sol–gel process. Mater. Sci. Phys. 2009, 114, 90–98. [Google Scholar]
  43. Xiao, Q.; Si, Z.; Yu, Z.; Qiu, G. Sol–gel auto-combustion synthesis of samarium-doped TiO2 nanoparticles and their photocatalytic activity under visible light irradiation. Mater. Sci. Eng. B 2007, 137, 189–194. [Google Scholar] [CrossRef]
  44. Thomas, J.; Kumar, K.P.; Mathew, S. Hydrothermal synthesis of samarium doped nanotitania as highly efficient solar photocatalyst. Sci. Adv. Mater. 2012, 2, 481–488. [Google Scholar] [CrossRef]
  45. Zhu, J.; Xie, J.; Chen, M.; Jiang, D.; Wu, D. Temperature synthesis of anatase rare earth doped titania-silica photocatalyst and its photocatalytic activity under solar-light. Colloids Surf. A 2010, 355, 178–182. [Google Scholar] [CrossRef]
  46. Bellardita, M.; Addamo, M.; di Paola, A.; Palmisano, L. Photocatalytic behavior of metal-loaded TiO2 aqueous dispersions and films. Chem. Phys. 2007, 339, 94–103. [Google Scholar] [CrossRef]
  47. Parida, K.M.; Sahu, N. Visible light induced photocatalytic activity of rare earth titania nanocomposites. J. Mol. Catal. A 2008, 287, 151–158. [Google Scholar] [CrossRef]
  48. Ding, J.; Bao, J.; Sun, S.; Luo, Z.; Gao, C. Combinatorial discovery of visible-light driven photocatalysts based on the ABO3-type (A = Y, La, Nd, Sm, Eu, Gd, Dy, Yb, B = Al and In) Binary Oxides. J. Comb. Chem. 2009, 11, 523–526. [Google Scholar] [CrossRef]

Share and Cite

MDPI and ACS Style

Izadifard, M.; Achari, G.; Langford, C.H. Application of Photocatalysts and LED Light Sources in Drinking Water Treatment. Catalysts 2013, 3, 726-743. https://doi.org/10.3390/catal3030726

AMA Style

Izadifard M, Achari G, Langford CH. Application of Photocatalysts and LED Light Sources in Drinking Water Treatment. Catalysts. 2013; 3(3):726-743. https://doi.org/10.3390/catal3030726

Chicago/Turabian Style

Izadifard, Maryam, Gopal Achari, and Cooper H. Langford. 2013. "Application of Photocatalysts and LED Light Sources in Drinking Water Treatment" Catalysts 3, no. 3: 726-743. https://doi.org/10.3390/catal3030726

APA Style

Izadifard, M., Achari, G., & Langford, C. H. (2013). Application of Photocatalysts and LED Light Sources in Drinking Water Treatment. Catalysts, 3(3), 726-743. https://doi.org/10.3390/catal3030726

Article Metrics

Back to TopTop
