Generation of Free OH_aq Radicals by Black Light Illumination of Degussa (Evonik) P25 TiO₂ Aqueous Suspensions

Abstract

This work demonstrates how formation of strongly chemiluminescent 3-hydroxyphthalic hydrazide by hydroxylation of non-chemiluminescent phthalic hydrazide can be applied as a selective reaction probe to obtain information on authentic hydroxyl radical, i.e., ^•OH_aq, formation, in black light illuminated Degussa P25 TiO₂ aerated suspensions in the pH range from 3 to 11. The ^•OH_aq formation was found to be strongly pH dependent. At alkaline pH, the apparent quantum efficiency of ^•OH_aq formation was estimated to be at the ~10⁻² level whereas at acidic pH it was near zero. Addition of phosphate and fluoride ions substantially enhanced the ^•OH_aq production in the acidic pH range. It is suggested that ^•OH_aq-radical formation in TiO₂ photocatalysis can occur by oxidation of hydroxyl ions in the water layer adsorbed on TiO₂ surfaces.

1. Introduction

In semiconductor materials, absorption of photons with energy greater than the band gap between the valence and conduction bands leads to the formation of valence band holes (h_VB⁺) and conduction band electrons (e_CB⁻). Usually, an electron-hole pair has only transient existence and is rapidly eliminated by recombination resulting in heat or light emission, but in some large band gap materials the lifetime is long enough to allow a fraction of hole-electron pairs to be manifested on the material surface by inducing red-ox reactions in the surrounding medium. Materials displaying these characteristics are called photocatalysts [1]. Amongst different materials showing photocatalytic properties, Titania, TiO₂, has been identified as the most interesting due to its otherwise inert and environmentally friendly properties. In the last two decades, photocatalysis utilizing TiO₂ has been gaining increasing popularity as an attractive advanced oxidation technique for treatment of industrial, potable and natural waters by removing chemical and microbiological hazards without addition of (toxic) chemicals [2,3,4,5,6].

Titania exists in three crystalline polymorphs; anatase, rutile and brookite. Of these, only anatase and rutile show substantial photocatalytic activity. Many studies have confirmed that anatase presents better photocatalytic properties than rutile due to a lower intrinsic recombination rate of photogenerated hole-electron pairs. However, mixed phase titania such as Degussa P25 containing nanoclusters of rutile in anatase crystallites shows even better photo activity than pure phase anatase and has been used in most photocatalytic studies [7]. The material is also easily available and was chosen for this study.

Anatase TiO₂ has a band gap of ~3.2 eV with the valence band edge +2.6 V vs. NHE, and the conduction band edge −0.6 V vs. NHE at pH 7 [8,9] Thus, absorption of photons at wavelengths <390 nm in this material leads to the generation of electron hole pairs. Following this initial step, conduction band electrons (e_CB⁻) and valence band holes (h_VB⁺) must be trapped at the surface to allow chemical transformations in the surrounding medium.

The trapping of conduction band electrons (e_CB⁻) may chemically be associated with formation of ≡Ti[III]^•-centers and/or partially hydrated electrons (e_hyd.⁻) on the particle surface [10,11]. In air saturated aqueous solutions, it is likely that oxygen adsorbed on TiO₂ surfaces will react with partially hydrated electrons (e_hyd.⁻) and ≡Ti[III]^•-centers on the surface by initial formation of reduced oxygen species (ROS), Figure 1.

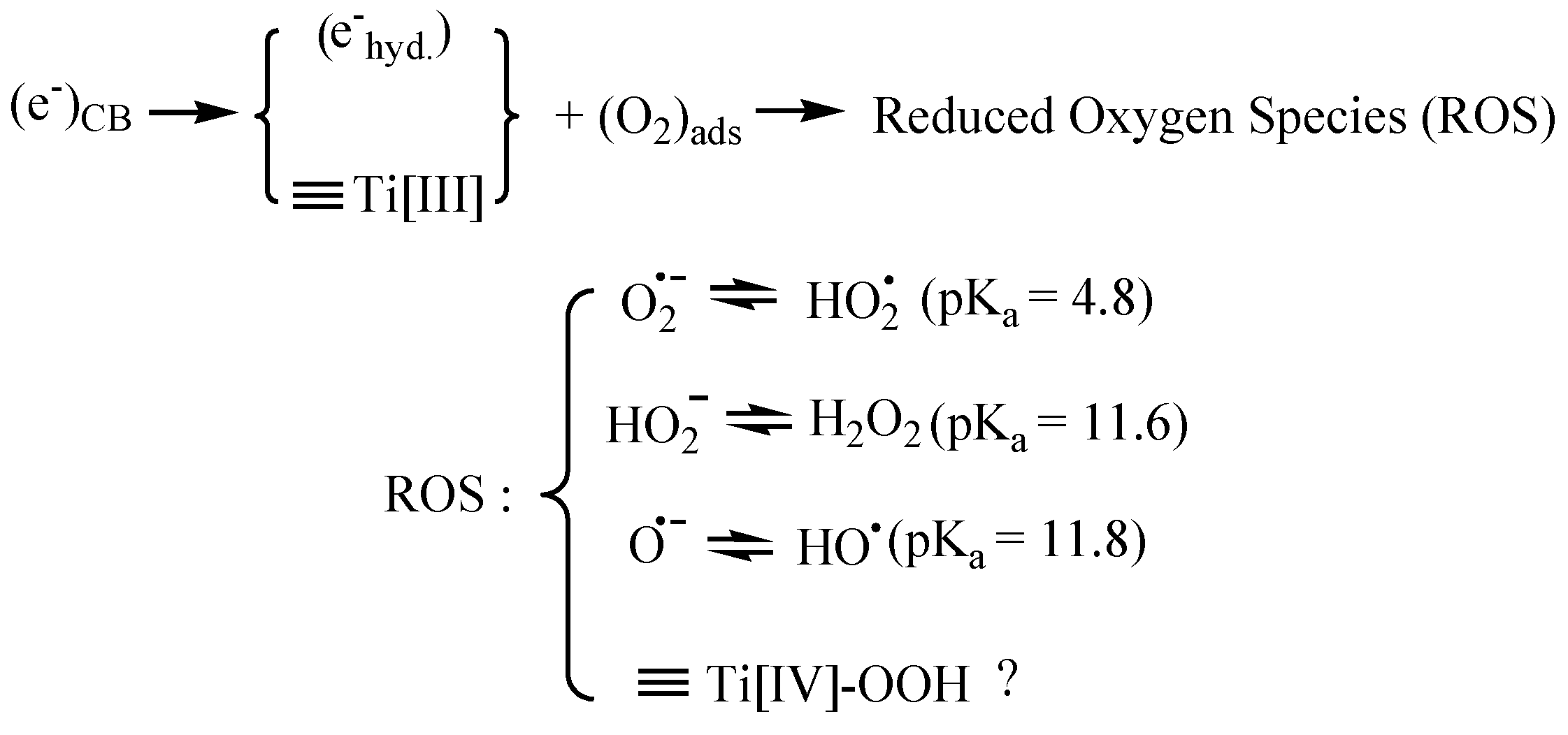

Figure 1. Reduction of adsorbed oxygen and formation of ROS (pKa-values [12]). When the TiO₂ surface is coated in places with nano-dots of a noble metal such as Pt, conduction band electrons (e_CB⁻) can be directly trapped by Pt nano-particles on a TiO₂ surface, i.e., (e_CB⁻) + Pt → (e_Pt⁻) [13]. (e_Pt⁻) may be more reducing than (e_hyd.⁻) (vide infra). Formation of hydroperoxides in TiO₂ photocatalysis was shown by Nakamura et al. [14] using multiple internal reflection infrared microscopy. Hydroxyl radicals are probably formed by catalyzed cleavage of hydrogen peroxide.

Figure 1. Reduction of adsorbed oxygen and formation of ROS (pKa-values [12]). When the TiO₂ surface is coated in places with nano-dots of a noble metal such as Pt, conduction band electrons (e_CB⁻) can be directly trapped by Pt nano-particles on a TiO₂ surface, i.e., (e_CB⁻) + Pt → (e_Pt⁻) [13]. (e_Pt⁻) may be more reducing than (e_hyd.⁻) (vide infra). Formation of hydroperoxides in TiO₂ photocatalysis was shown by Nakamura et al. [14] using multiple internal reflection infrared microscopy. Hydroxyl radicals are probably formed by catalyzed cleavage of hydrogen peroxide.

Depending on the reaction environment, pH and ion composition, radicals and hydrogen peroxide may be preferentially bound to the surface or released to the surrounding aqueous solution.

It is reasonable to assume that valence band holes (h_VB⁺) reaching the TiO₂ surface can be chemically associated with oxygen-centered radicals generated from surface hydroxyls [7,15], and lattice oxygen anions [10]. The specific nature of these initially formed oxygen centered surface radicals will depend on pH. Based on chemical reactivity, they are usually described as surface bound hydroxyl radicals, ^•OH_surface. However, this designation is problematic as it leads the mind to consider ^•OH_surface as an authentic hydroxyl radical trapped on the TiO₂ surface. This is not correct. In this context it is important to note that diffusion of free hydroxyl radicals from UV-irradiated water saturated TiO₂-surfaces to the gas phase has been shown by laser-induced excitation spectroscopy [16]. Thus, direct physical evidence strongly supports that UV-irradiation of TiO₂ can in fact also release free hydroxyl radicals to the surrounding medium, i.e., formation of ^•OH_aq. Since ^•OH_aq reacts exceedingly fast with most solutes it will only diffuse a very short distance from the surface, typically <50 nm, before it is consumed. For this reason, it may seem unimportant to discriminate between ^•OH_surface and ^•OH_aq. However, only the latter can be expected to behave completely as authentic free hydroxyl radicals generated by, e.g., radiolysis of water [12]:

(1)

where (H₂O^•+)* denotes an excited state due to a Frank-Condon transition

There is still a controversy about whether valence band holes (h_VB⁺), are involved in the formation of ^•OH_aq radicals in TiO₂ photocatalysis [17,18,19,20,21]. Formation of ^•OH_aq can also proceed by homolytic and/or reductive cleavage of accumulated hydrogen peroxide formed by oxygen reduction initiated by conduction band electrons (e_CB⁻), cf. Figure 1. In fact, most investigators seem to prefer this reaction model.

(2)

(3)

Reaction (2) is efficient in the UVC (200~280 nm) range, where the absorption by hydrogen peroxide is significant [22]. Reaction (3) may occur by way of surface excess electrons, e.g., trapped on Pt nano-particles:

(4)

Accumulation of reduced oxygen species on the TiO₂ surface may also cause back-reactions that impair the formation of hydroxyl radicals, e.g.,

(5)

(6)

and perhaps most importantly:

(7)

(O₂ formed in Reactions (6) and (7) may be singlet excited and chemically reactive).

These back reactions can be considered as delayed recombinations of valence band holes (h_VB⁺) and conduction band electrons (e_CB⁻). As both direct and delayed recombinations of hole-electron pairs follow second order kinetics, they will gain in importance with increasing light intensity.

The formation of hydroxyl radicals in TiO₂ photocatalysis has also been studied with various chemical reaction probes, e.g., formation of formaldehyde by oxidation of methanol [23] or TRIS [24], hydroxylation of aromatic compounds [19,25,26], and formation of hydroxyl radical spin-trap adducts [27]. However, these reaction probes can generally not discriminate between reactions involving ^•OH_surface and ^•OH_aq radicals. Moreover, one-electron oxidation and hydration of the intermediate radical cation, e.g., formed by a direct hole (h_VB⁺) induced oxidation on the TiO₂ surface, can give the same reaction product as with authentic hydroxyl radicals. Evidently, adsorption of the reaction probe can profoundly alter the result of measurement.

The present investigation is an attempt to investigate the formation of ^•OH_aq radicals in TiO₂ photocatalysis using a selective chemical reaction probe based on hydroxylation of non-chemiluminescent phthalic hydrazide (concentration ≤ 0.5 mM) to give the strongly chemiluminescent 3-hydroxyphthalic hydrazide (iso-electronic to luminol). At selected time intervals, a small sample aliquot of the reaction liquor is transferred to a luminometer where chemiluminescence is developed by oxidation of the accumulated 3-hydroxyphthalic hydrazide to the corresponding phthalic acid [28,29]. Using this method it was possible to follow the formation and reactions of hydroxyl radicals during oxygen and hydrogen peroxide bleaching of paper pulp [28,30] as well as in metabolic processes associated with fungal growth in wood shavings [31,32], and in natural systems [33].

Possible reaction pathways during photocatalytic oxidation of phthalic hydrazide are shown in Figure 2. The phthalic hydrazide radical cation has an estimated oxidation potential of about 1.5 V vs. NHE [29], so the positive hole formed in TiO₂ photocatalysis can in all probability oxidize adsorbed phthalic hydrazide to its radical cation. However, since the radical cation is a strong acid (est. pKa ≤ −3 [29]) a proton is immediately eliminated from the hydrazide moiety leaving an N-centered radical that eventually results in formation of phthalic acid. Thus, the back door for formation of chemiluminescent 3-hydroxyphthalic hydrazide by addition of water to the radical cation is closed. In fact, strong chemiluminescence was only obtained when authentic hydroxyl radicals were generated by γ-irradiation, whereas no chemiluminescence could be detected when phthalic hydrazide reacted with strong one-electron oxidants such as Ce⁴⁺, Co³⁺, N₃^•, HO₂^•, CO₃^•−, Br₂^•− or SO₄^•− [29]. The selectivity for the hydroxyl radical also excludes the oxyl radical anion, O^•−, since virtually no chemiluminescence was observed at pH > 12. (pKa of HO^• = 11.9 [12]).

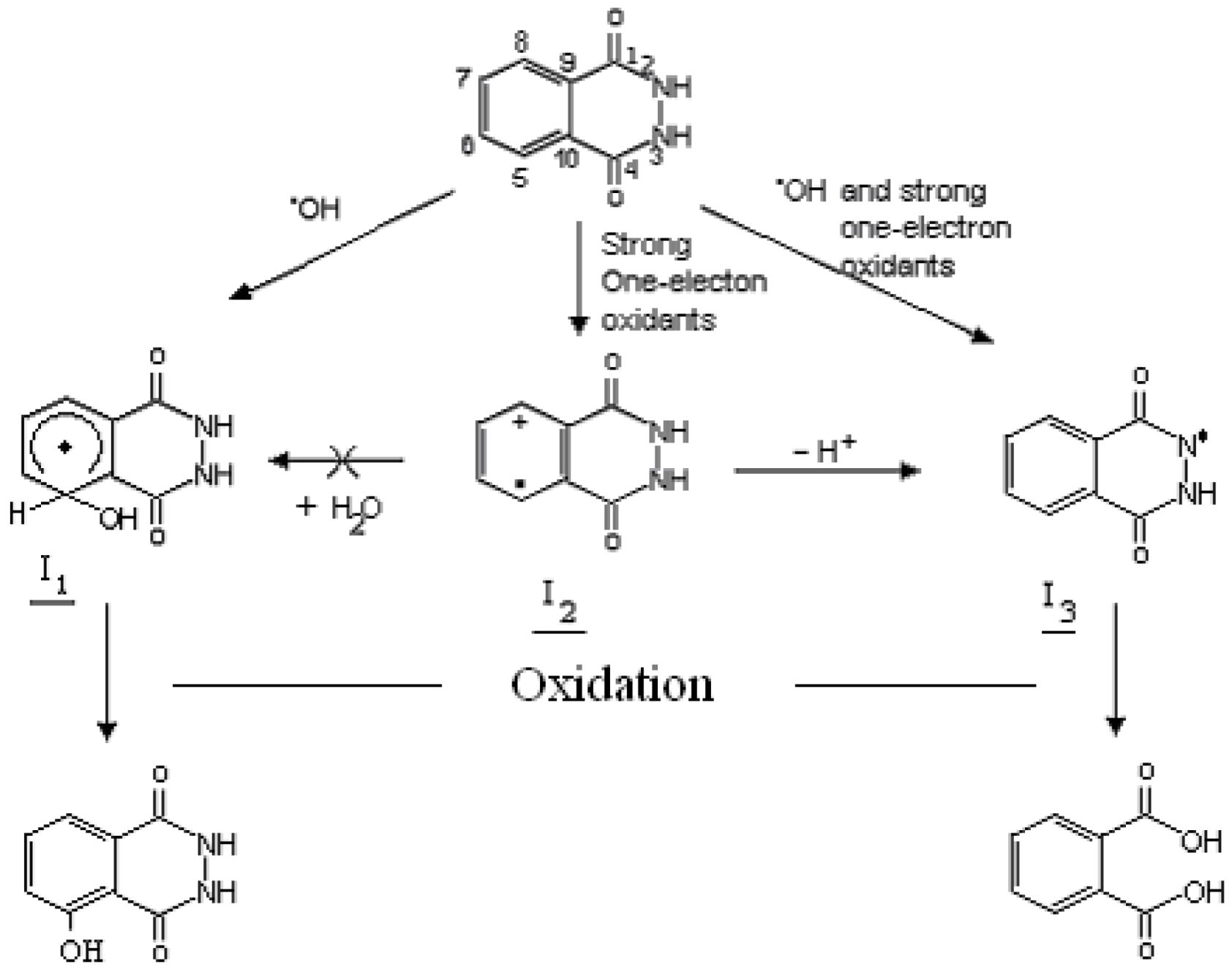

Figure 2. Reactions occurring when phthalic hydrazide reacts with hydroxyl radicals or strong one-electron oxidants. About 50% of hydroxyl radicals react by addition to the aromatic ring, the remainder attacks the hydrazide moiety [29]. Oxidation of I₁ and I₃ occurs spontaneously by dissolved oxygen in the reaction system.

Figure 2. Reactions occurring when phthalic hydrazide reacts with hydroxyl radicals or strong one-electron oxidants. About 50% of hydroxyl radicals react by addition to the aromatic ring, the remainder attacks the hydrazide moiety [29]. Oxidation of I₁ and I₃ occurs spontaneously by dissolved oxygen in the reaction system.

This pH restriction also bears on other chemical reaction probes based on hydroxylation of aromatic compounds since only ^•OH_aq radicals can amalgamate with π-electrons in an aromatic ring to form cyclohexadienyl adducts that after oxidation result in aromatic ring hydroxylation. What is generally not considered is that this oxidation is rather slow with molecular oxygen due to the reversible addition of oxygen to a hydroxycyclohexadienyl adduct [34]. At pH > 6 the self-termination of superoxide is entirely proton controlled so the concentration of superoxide may become significant in alkaline solution [35]. The reaction with oxygen may then be challenged by superoxide at high pH as its reaction with a hydroxycyclohexadienyl adduct should be non-reversible and the reaction rate close to diffusion controlled (cf. reaction of superoxide with phenoxyl-type radicals [36]). If so, a range of alternative reaction pathways are possible and the yield of aromatic ring hydroxylation could be much reduced. To summerize, the use of chemical reaction probes based on hydroxylation of aromatic compounds must be well researched at high pH to allow reliable conclusions.

In strongly acidic solution, pH < 3, the reaction I₁ + H⁺ → H₂O + I₂ → H⁺ + I₃ becomes important. The recommended pH range for ^•OH_aq radical detection by the phthalic hydrazide method thus lies between 3 and 11. As demonstrated by γ-radiolysis of phthalic hydrazide solutions [28], the chemiluminescence response is linear with the ^•OH_aq radical production (up to about 20% of conversion of the initial phthalic hydrazide concentration). Also when chemiluminescence was measured vs. the amount of authentic 3-hydroxyphthalic hydrazide (10 pmol–10 nmol) a linear response was obtained, Figure 3.

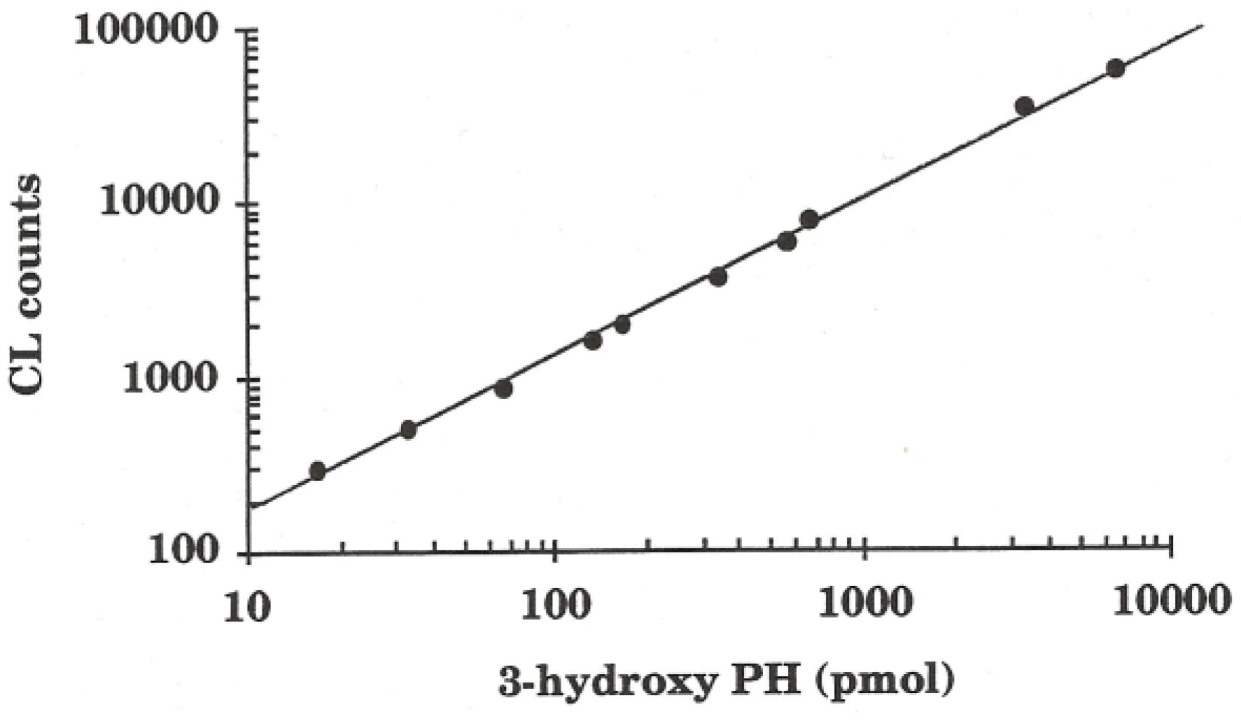

Figure 3. Chemiluminescence response vs. the amount of authentic 3-hydroxyphthalic hydrazide (2,3-dihydro-1,4-phthalazinedione) synthesized according to Drew and Pearman [37]. Mean values of five measurements with a standard deviation <5% are presented in the figure.

Figure 3. Chemiluminescence response vs. the amount of authentic 3-hydroxyphthalic hydrazide (2,3-dihydro-1,4-phthalazinedione) synthesized according to Drew and Pearman [37]. Mean values of five measurements with a standard deviation <5% are presented in the figure.

Similarly, a linear chemiluminescence response and λ_max at ~440 nm is reported for solutions containing 3-hydroxyphthalic hydrazide (0–50 μM) [38].

Moreover, since the hydrazide moiety of the phthalic hydrazide molecule can be linked to hydroxyl groups on the TiO₂ surface by strong hydrogen bonds it is likely that any surface bound oxidant will only cause oxidation according to the right side pathway in Figure 2. For this reason, chemiluminescence may only be observed if ^•OH_aq radicals are formed in TiO₂ photocatalysis.

In this study, we have investigated the generation of ^•OH_aq radicals by black light illumination (345–385 nm) of Degussa P25 TiO₂ aqueous suspensions in the pH-range 3–11 by the selective phthalic hydrazide chemiluminescence method. The sensitivity of the method is extremely high allowing accurate measurements at very small radiation doses. This prevents accumulation of hydrogen peroxide which is an efficient hydroxyl radical precursor in TiO₂-photocatalysis [22]. The lower energy by the black light also reduces possible complications due to photo-ionization and photo-induced secondary reactions.

2. Results and Discussion

2.1. Gamma Radiolysis

The initial interaction of high energy γ-radiation with molecules in a mixture follows from their electron fractions [12]. In dilute aqueous solutions it can thus be safely assumed that all energy is absorbed by water molecules (55 M) and not by solutes (<0.1 M). As shown by Equation (1), this energy allows generation of ^•OH_aq radicals by direct water oxidation, i.e., without loading the reaction system with additives as required by other methods to produce hydroxyl radicals, e.g., Fenton chemistry, peroxynitrite, photolytic cleavage of hydrogen peroxide. Knowing the radiation dose by dosimetery, quantitative calibration of radical yields can be obtained. In fact, a γ-irradiation source can be considered as a radical titration apparatus, e.g., for ^•OH_aq.

In this study, all irradiations were performed in the same vessel containing 40 mL solution. The γ-dose rate in this volume was determined by Fricke dosimetry [12] to be 9.5 Gy/min. This translates to a radiolytic ^•OH_aq production rate of 2.70 μM/min [12].

When dilute aqueous solutions are exposed to γ-irradiation, hydroxyl radicals (^•OH_aq) and solvated electrons (e_aq⁻) are produced with identical yields [12], cf. Equation (1). In air saturated solutions, solvated electrons are rapidly scavenged by dissolved oxygen to give superoxide O₂^•−. If solutions contain dinitrous oxide, N₂O, formation of superoxide is substituted by additional formation of hydroxyl radicals [12]:

(8)

In the experiments with N₂O present, phthalic hydrazide solutions were saturated with a N₂O/O₂ mixture (20% O₂) before the irradiation. Due to a much higher solubility of N₂O over O₂ (The Henry constant for O₂ is 1.3 × 10⁻³ M/atm, and for N₂O is 2.5 × 10⁻² M/atm [39]), practically all solvated electrons are scavenged by N₂O in this case. Comparisons of the chemiluminescence yields by gamma-irradiation of solutions saturated with air and with a gas mixture containing N₂O and O₂ should reflect the conversion of e_aq⁻ to ^•OH_aq according to reaction (8), Figure 4.

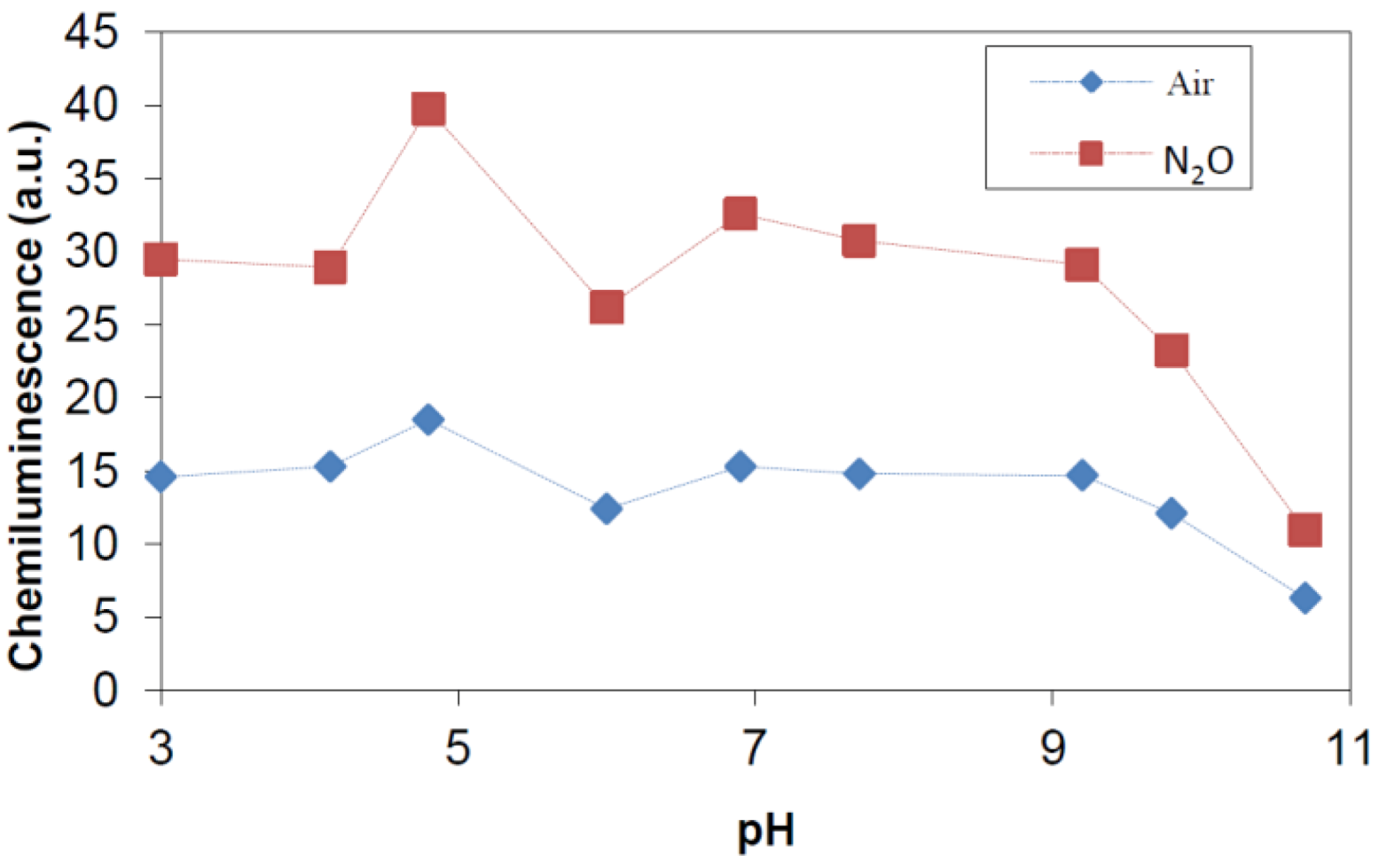

Figure 4. Chemiluminescence (CL) intensity (a.u.) determined at different pH by γ-irradiation of 0.5 mM phthalic hydrazide solutions saturated with air and with a gas mixture of 20% O₂ in N₂O.

Figure 4. Chemiluminescence (CL) intensity (a.u.) determined at different pH by γ-irradiation of 0.5 mM phthalic hydrazide solutions saturated with air and with a gas mixture of 20% O₂ in N₂O.

As can be seen in Figure 5, saturation with the N₂O/O₂ gas mixture results in a 2.0 times stronger signal in the pH-range 3–11 as expected by Reactions (1) and (8). Another conclusion from this study is that substitution of superoxide with an additional formation of hydroxyl radicals through Reaction (8) caused no superoxide related effect, i.e., in the investigated pH-range superoxide is unimportant in the chemistry of phthalic hydrazide hydroxylation.

In presence of Br⁻ ions hydroxyl radicals will be scavenged by formation of bromidyl radicals, Br₂^•−: one-electron reduction potential 1.66 V [40])Since these only oxidize the hydrazide moiety, cf. Figure 2, the chemiluminescence yield will be reduced by competition between the reactions:

(9)

and

(10)

(PH: phthalic hydrazide; CL: chemiluminescence yield measured in the luminometer).

This reaction scheme translates to the equation:

(11)

where CL₀ is the chemiluminescence yield in absence of Br⁻.

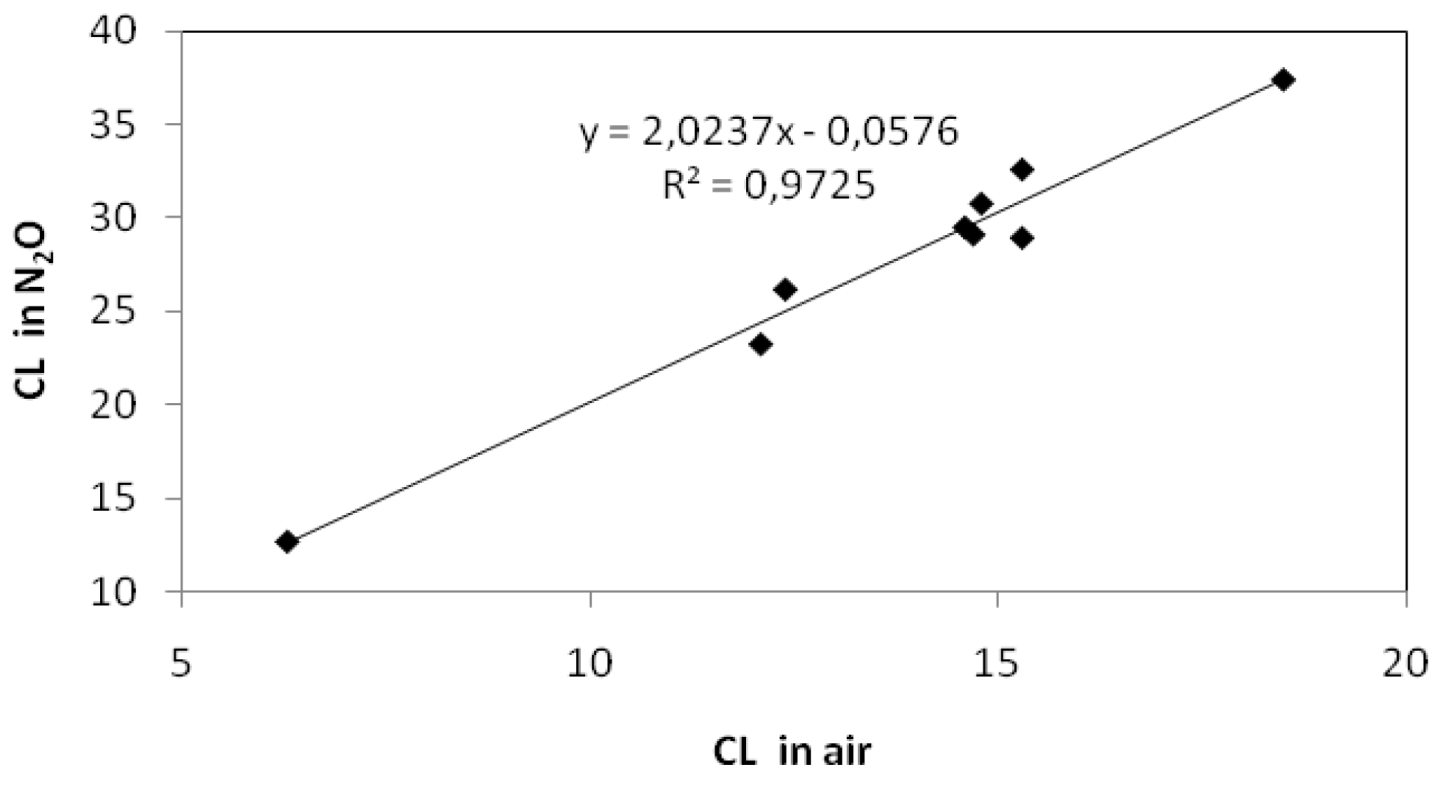

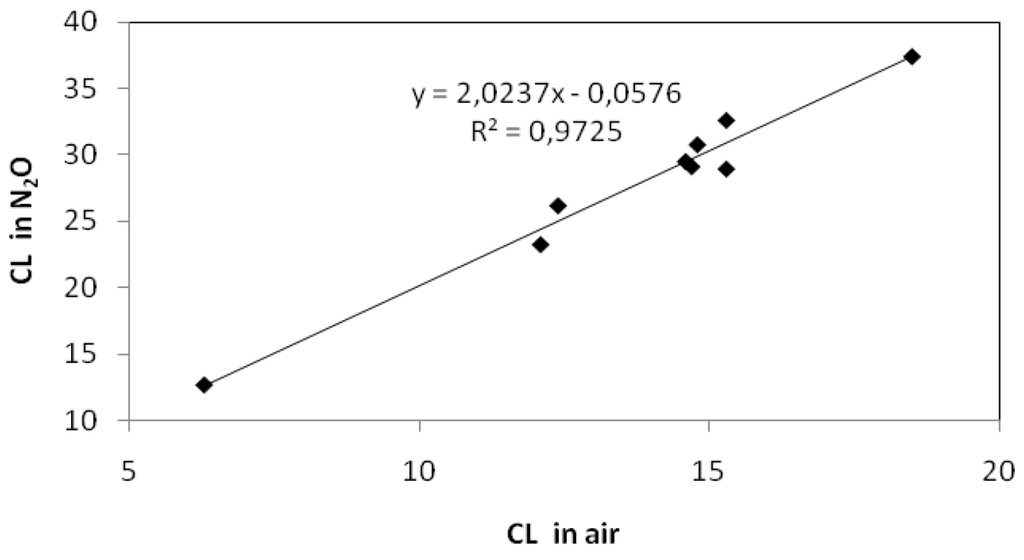

Figure 5. Data from Figure 3 plotted as CL intensity obtained with a gas mixture of 20% O₂ in N₂O vs. the CL intensity obtained with air saturation at corresponding pH-values.

Figure 5. Data from Figure 3 plotted as CL intensity obtained with a gas mixture of 20% O₂ in N₂O vs. the CL intensity obtained with air saturation at corresponding pH-values.

An experimental verification of equation 11 is shown in Figure 6 below:

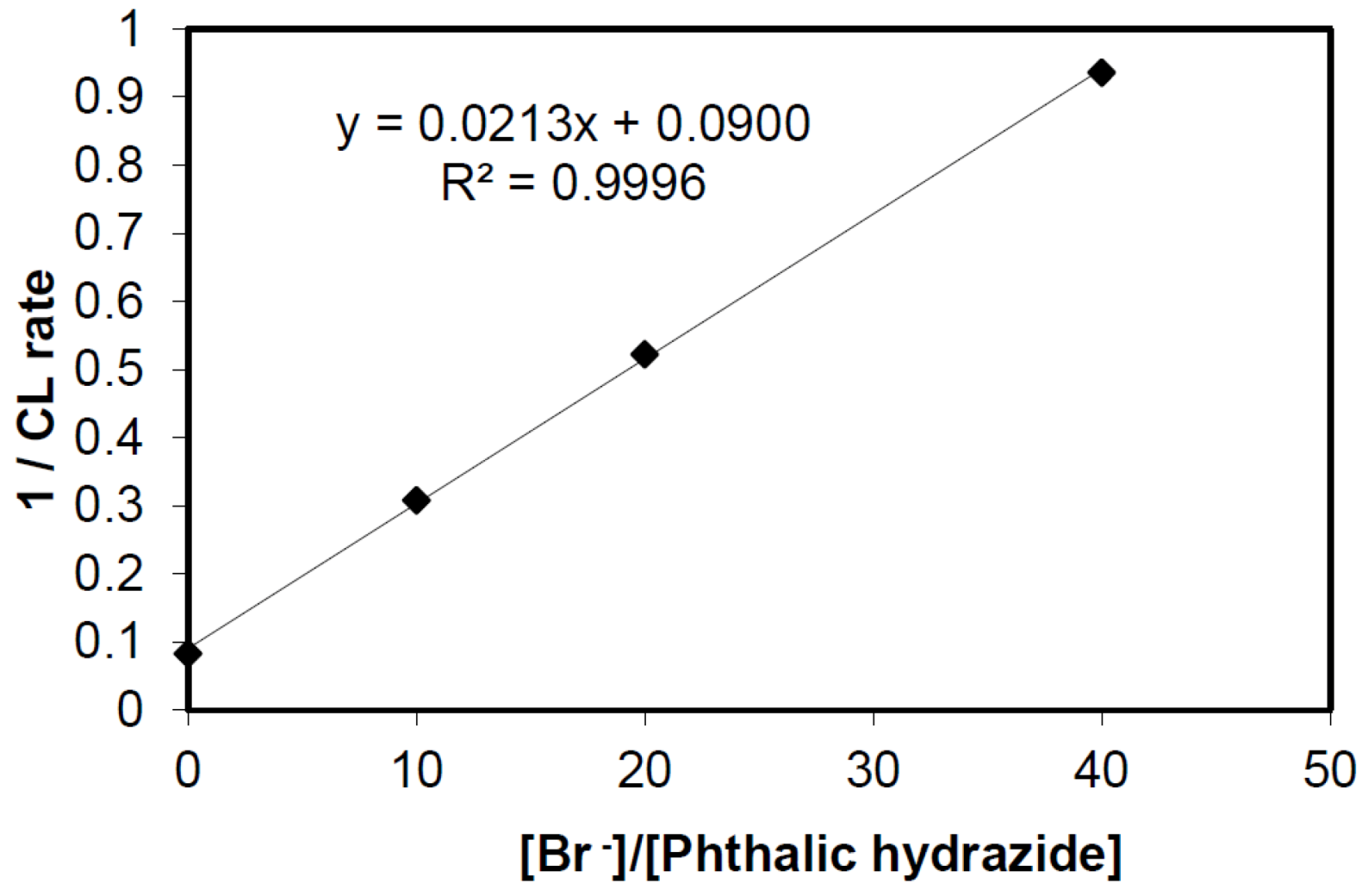

Figure 6. Competition plot of 1/CL vs. [Br⁻]/[PH] in borate buffer at pH = 10.

Figure 6. Competition plot of 1/CL vs. [Br⁻]/[PH] in borate buffer at pH = 10.

From the plot in Figure 6, we obtain k’/k” = 0.0213/0.09 = 0.237. Since k’ is reported to be 8.0 × 10⁸/M·s at pH 10 [41], we obtain k” = 3.4 × 10⁹/M·s. This is in excellent agreement with previously determined values which range between (3 ± 1) × 10⁹/M·s [29,42]. This demonstrates that the simple competition kinetics described in Reactions (9) and (10) is valid for authentic hydroxyl radicals, i.e., ^•OH_aq. Later in the discussion, Section 2.2.3, we will come back to the same experiment repeated with hydroxyl radicals generated by photocatalysis.

Lawless et al. [21] performed a pulse radiolysis study on colloidal 13 nm TiO₂ particles at pH about 3 and reported a diffusion-controlled rate constant for the reaction of the ^•OH_aq radical with these particles. This report prompted us to investigate the influence of Degussa P25 TiO₂ powder suspensions on the formation of chemiluminescence in the pH range 3–11 by comparing the chemiluminescence obtained by γ irradiation of 0.5 mM phthalic hydrazide solutions with and without addition of 100 ppm TiO₂.

Results presented in Figure 7 show, apart from a possible irregularity at pH 6, no noticeable effects under the experimental conditions. This demonstrates that free hydroxyl radicals being generated in the reaction liquor by γ irradiation are not scavenged by 100 ppm P25 TiO₂-particles to any significant degree in competition with 0.5 mM phthalic hydrazide. Moreover, there is no indication of a selective adsorption of formed 3-hydroxyphthalic hydrazide on TiO₂ particles.

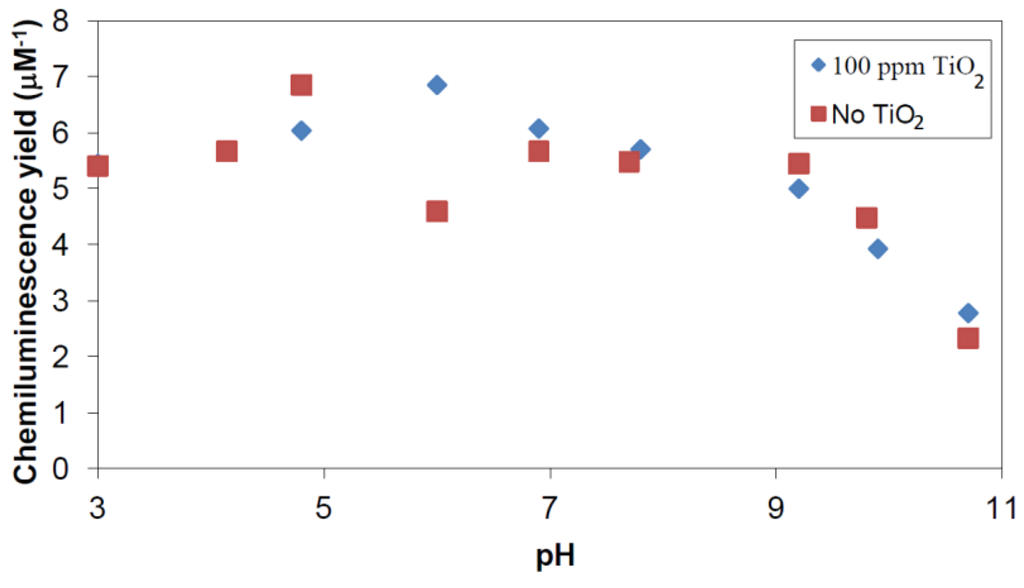

Figure 7. CL intensity obtained by γ irradiation of 0.5 mM phthalic hydrazide solutions with and without addition of 100 ppm TiO₂.

Figure 7. CL intensity obtained by γ irradiation of 0.5 mM phthalic hydrazide solutions with and without addition of 100 ppm TiO₂.

2.2. Photocatalysis

As is clearly seen in Figure 8, the chemiluminescence obtained by photo-irradiation of TiO₂-suspensions containing 100 ppm TiO₂ and 0.5 mM phthalic hydrazide shows a vastly different pH-behavior from that obtained by γ irradiation of the same reaction system, see Figure 7. Only at pH > 7 there is a significant chemiluminescence yield which at pH > 8.5 follows the trend seen in Figure 7.

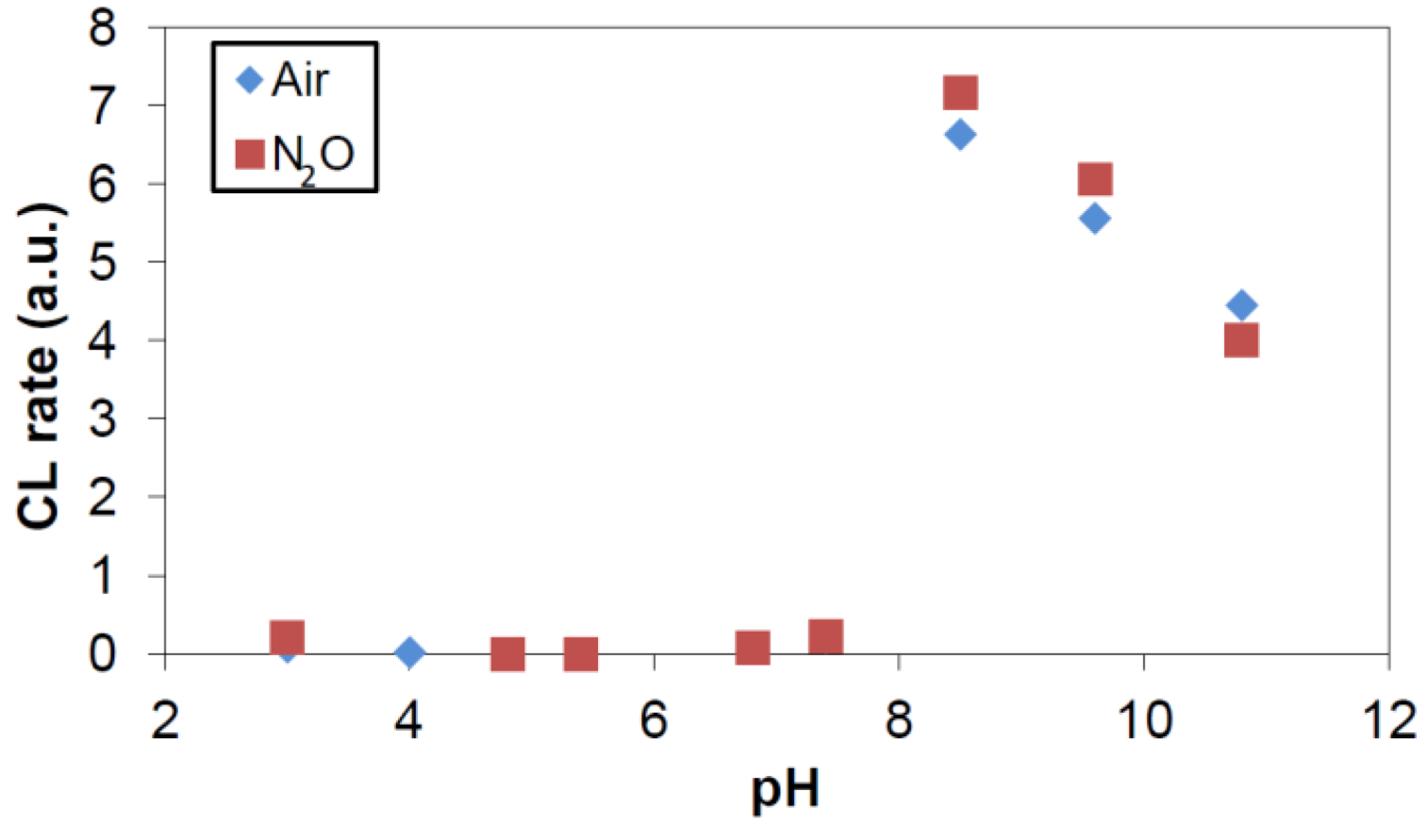

Figure 8. CL intensity as function of pH obtained by black-light irradiation of TiO₂-suspensions containing 100 ppm TiO₂ and 0.5 mM phthalic hydrazide solutions saturated with air or with a gas mixture of 20% O₂ in N₂O. pH was adjusted only by addition of NaOH or HClO₄.

Figure 8. CL intensity as function of pH obtained by black-light irradiation of TiO₂-suspensions containing 100 ppm TiO₂ and 0.5 mM phthalic hydrazide solutions saturated with air or with a gas mixture of 20% O₂ in N₂O. pH was adjusted only by addition of NaOH or HClO₄.

As can be seen in Figure 9, addition of 5 mM borate buffer can profoundly increase the chemiluminescence signal at pH > 6. This demonstrates that presence of buffer can affect the measurement. This aspect is further discussed in Section 2.2.4.

Figure 9. CL intensity as function of pH obtained by black-light irradiation of TiO₂-suspensions containing 100 ppm TiO₂ and 0.5 mM phthalic hydrazide solutions saturated with air or with a gas mixture of 20% O₂ in N₂O. pH was adjusted by addition of 5 mM borate buffer and NaOH or HClO₄.

Figure 9. CL intensity as function of pH obtained by black-light irradiation of TiO₂-suspensions containing 100 ppm TiO₂ and 0.5 mM phthalic hydrazide solutions saturated with air or with a gas mixture of 20% O₂ in N₂O. pH was adjusted by addition of 5 mM borate buffer and NaOH or HClO₄.

It was shown by Jaesang Lee et al. [13] that partially hydrated electrons available on platinized TiO₂ are reducing enough to allow reductive cleavage of N₂O, i.e., by analogy with Reaction (8):

(12)

Apparently Figure 8, Figure 9 show no effect of N₂O in photo-irradiation of TiO₂-suspensions. This observation lends support to the suggestion, caption Figure 1, that (e_Pt⁻)_aq is significantly more reducing than (e_hyd.⁻). In non-platinized Degussa P25, conduction band electrons trapped at the surface may be chemically associated with (e_hyd.⁻) and ≡Ti[III]^•-centers. Exposing the latter to N₂O may result in formation of ≡Ti[IV]–O^• sites, cf. Shultz et al. [43]:

(13)

Since the concentration of N₂O is much higher than that of O₂ in solutions saturated with a gas mixture of 20% O₂ in N₂O (The Henry constant for O₂ is 1.3 × 10⁻³ M/atm, and for N₂O is 2.5 × 10⁻² M/atm [39]), Reaction (13) would compete successfully with formation of reduced oxygen species, Figure 1. Hence, the lack of an N₂O effect also implies that ≡Ti[IV]–O^• sites cannot act as precursors of ^•OH_aq.

This conclusion bears on the results reported by Lawless et al. [21]. They studied acidic aqueous solutions (pH ~3) containing colloidal 13 nm TiO₂ particles by pulse radiolysis and reported a diffusion-controlled rate constant for the trapping of ^•OH_aq radicals by these particles. The resulting surface bound oxidant was described as a surface trapped hydroxyl radical, ^•OH_surface. Since colloidal TiO₂ particles prepared by hydrolysis of, e.g., Ti[IV]Cl₄, should contain a large fraction of ≡Ti[IV]–OH sites on the surface these would react with ^•OH_aq by:

(14)

The reduction potential of ^•OH_surface was assessed to be in the range 1.5–1.7 V vs. NHE. This is significantly lower than the reduction potential of the ·OH/⁻OH pair at about 1.9 V [40]. Hence, thermodynamics would exclude that surface trapped hydroxyl radicals (≡Ti[IV]–O^• sites), are precursors of ^•OH_aq, i.e., Reaction (14) is not reversible at any pH.

2.2.1. Adsorption of Phthalic Hydrazide to TiO₂

The chemiluminescence observed may be controlled by the amount of phthalic hydrazide being adsorbed on the TiO₂ particle surfaces.

The adsorption of phthalic hydrazide to TiO₂ at different pH values was checked by measuring the spectral absorption difference at 310 nm in 500 μM phthalic hydrazide solutions before and after the addition of 100 ppm TiO₂. Suspensions containing TiO₂ were filtered through a 0.2 μm membrane filter before measurement. Results are shown below, Figure 10.

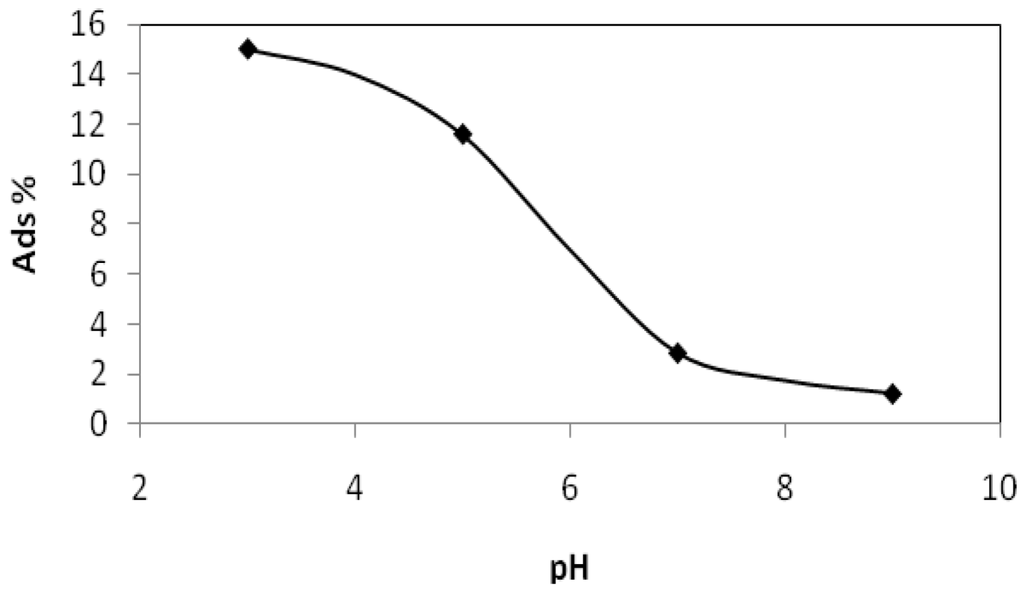

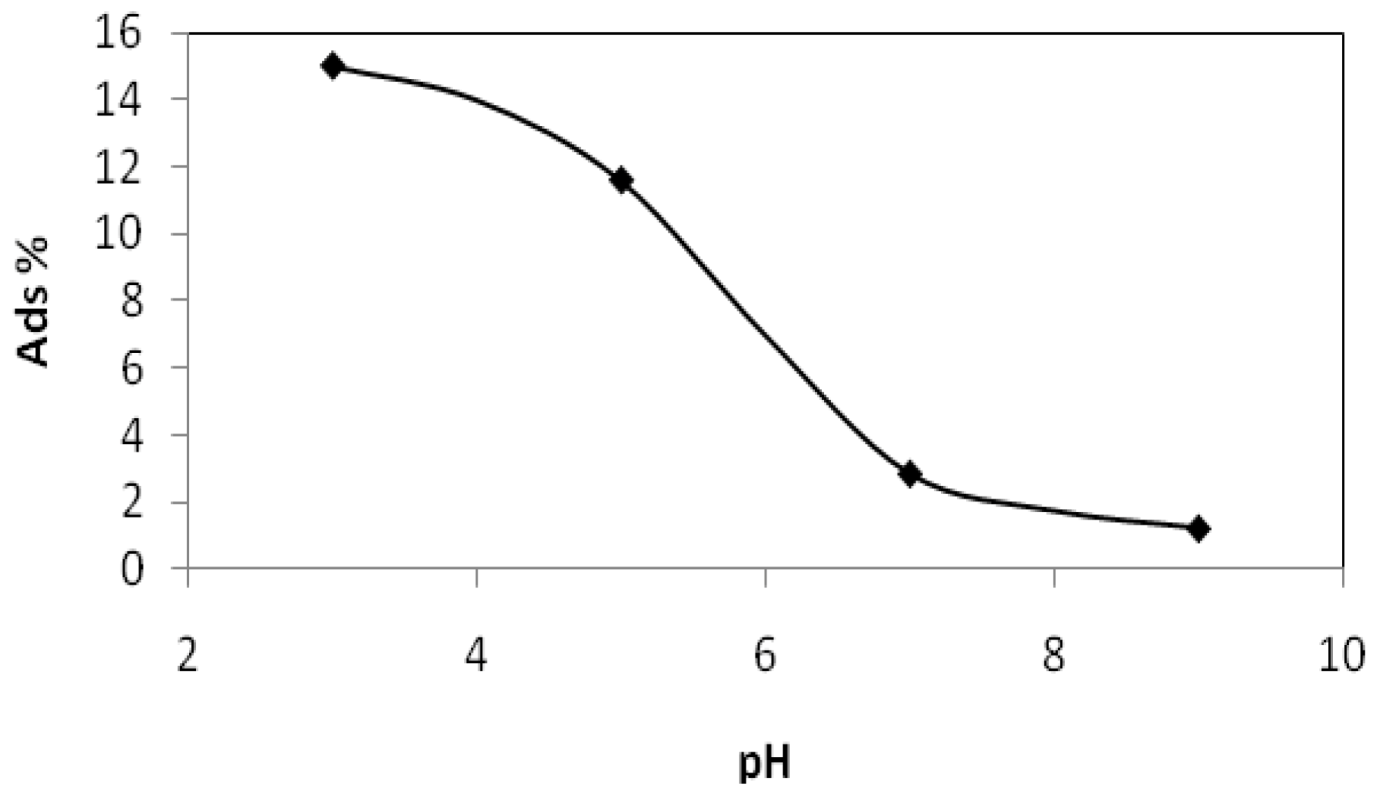

Figure 10. Adsorption of phthalic hydrazide to TiO₂ vs. pH measured as the absorption difference at 310 nm in 500 μM phthalic hydrazide solutions before and after the addition of 100 ppm TiO₂. When required, pH was adjusted by addition of NaOH or HClO₄.

Figure 10. Adsorption of phthalic hydrazide to TiO₂ vs. pH measured as the absorption difference at 310 nm in 500 μM phthalic hydrazide solutions before and after the addition of 100 ppm TiO₂. When required, pH was adjusted by addition of NaOH or HClO₄.

The absorption of phthalic hydrazide at pH 3 corresponds to a density of adsorbed phthalic hydrazide on the TiO₂ surface of about 8 molecules per nm², which equals to the hydroxyl density (5 to 15 OH groups per nm²) on TiO₂ surfaces [7,8].

Depending on its thermal history, TiO₂ preparations contain hydroxyl groups, both terminal and bridged, to varying extent [44]. In presence of water these are involved in acid-based equilibria resulting in a pH-dependent surface charge. At sufficiently low pH the surface is protonated giving a positive charge whereas at high pH the surface is deprotonated leaving the surface negatively charged. At an intermediate pH the surface has zero charge. This is the isoelectric point or the point of zero charge, pzc. For Degussa P25 pzc occurs at pH ~6.3.

Deprotonation of both phthalic hydrazide (pKa = 5.87 [29]) and hydroxyl groups on the TiO₂ surface occurs at pH > pzc. This creates repulsive conditions and less adsorption is expected. This is clearly seen in Figure 10 and the lack of chemiluminescence signal at pH < 6 seen in Figure 8, Figure 9 can, partly at least, be ascribed adsorption of phthalic hydrazide on TiO₂ particles.

Since phthalic hydrazide can be adsorbed on TiO₂ surfaces, one may expect a higher chemiluminescence signal when the concentration of phthalic hydrazide is reduced. This was tested in unbuffered solutions at pH 3, 7 and 9. It was found that at pH 9, the concentration of phthalic hydrazide has only little effect, whereas at pH 7, 50 μM phthalic hydrazide gave rise to about 10 times higher chemiluminescence signal than that obtained by 500 μM phthalic hydrazide. Hence, it looks like adsorption of phthalic hydrazide to TiO₂ blocks the release of hydroxyl radicals at pH < 9, whereas at pH ≥ 9 hydroxyl radicals are able to diffuse from the TiO₂ surface and can be detected as free species, i.e., ^•OH_aq, through their reactions with phthalic hydrazide. Results for pH 3 and 7 are shown in Figure 11.

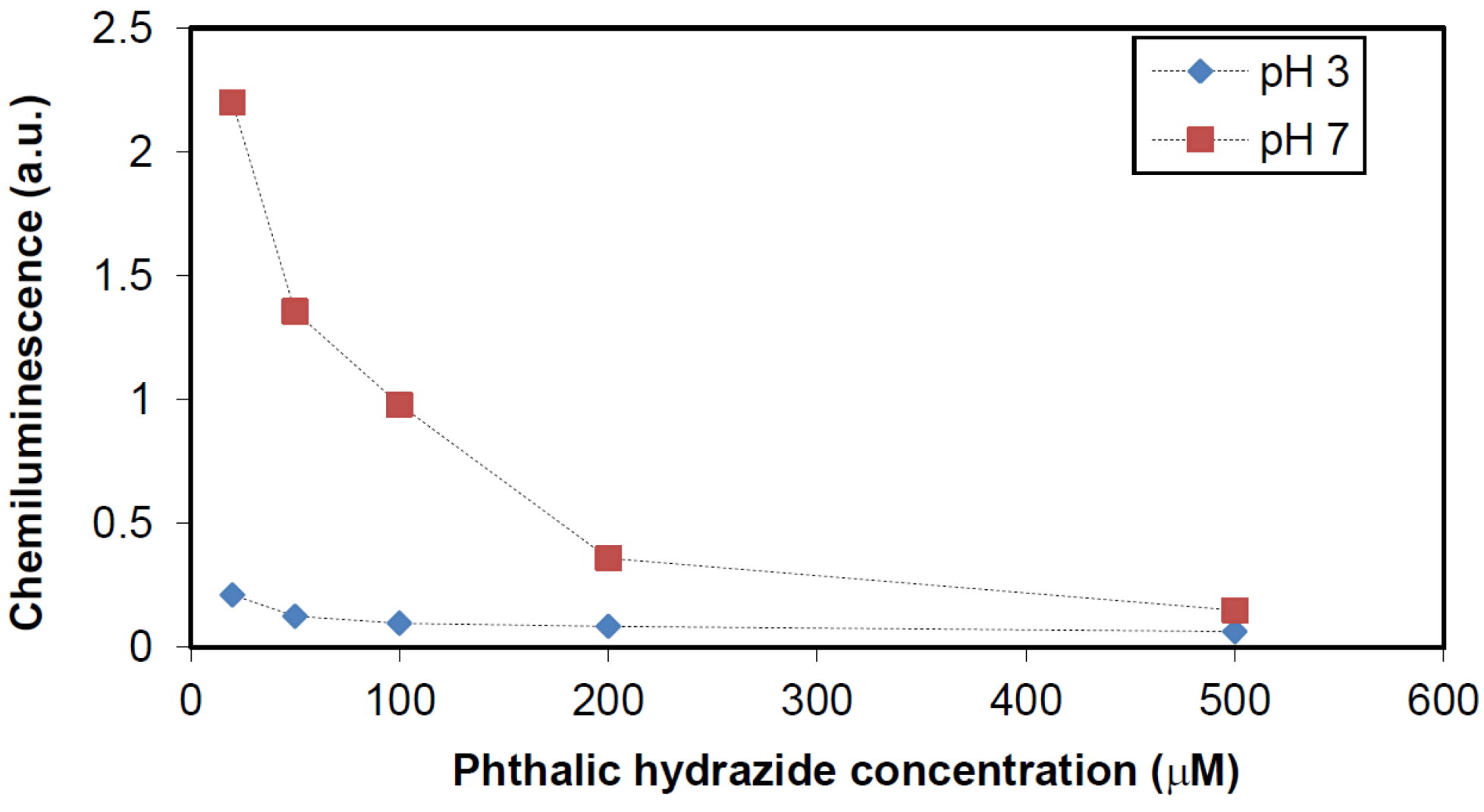

Figure 11. Effect of phthalic hydrazide concentration on luminescence.

Figure 11. Effect of phthalic hydrazide concentration on luminescence.

For analysis of the results we assume following competing reactions (PH = phthalic hydrazide):

(15)

Under quasi-stationary conditions a solution of this reaction system is:

(16)

where CL₀ is the chemiluminescence obtained when [PH]_ads → 0, and K is a collective constant at given reaction conditions.

Suppose the adsorption of phthalic hydrazide (PH) follows a Langmuir isotherm [8,18], then the surface density of phthalic hydrazide, [PH]_ads, can be expressed as follows:

(17)

where, [PH]_aq is the bulk concentration of phthalic hydrazide, α is a Langmuir adsorption constant, and [PH]^*_ads is the maximum possible phthalic hydrazide surface density on TiO₂, and should be a constant. Combining Equation (16) with Equation (17) gives:

(18)

It is reasonable to assume that the [PH]_ads is far from saturation at [PH]_aq < 500 μM, i.e., α[PH]_aq << 1. With this simplification we obtain:

(19)

The relation of reciprocal chemiluminescence and concentration of phthalic hydrazide is plotted in Figure 12.

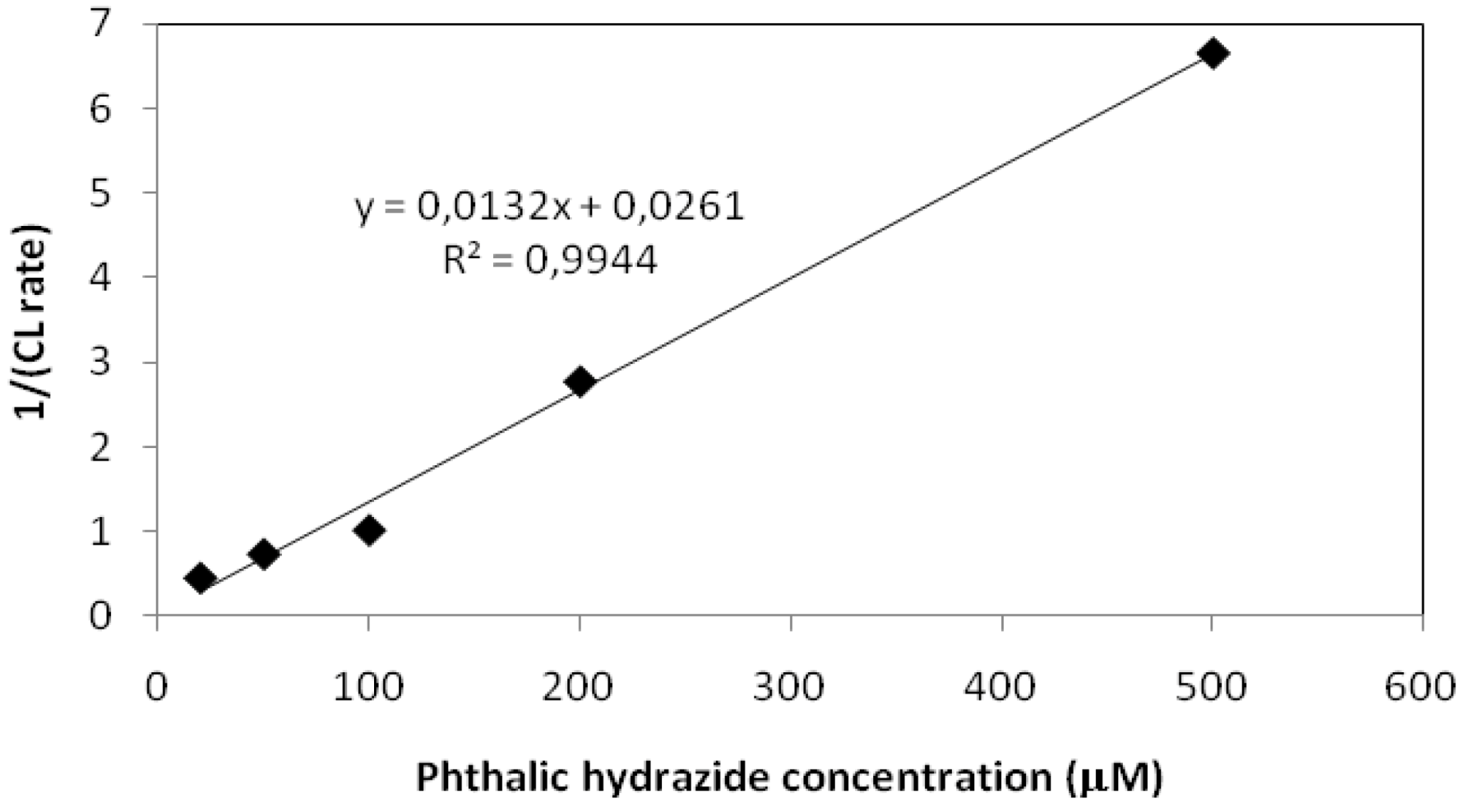

Figure 12. 1/CL plotted vs. phthalic hydrazide concentration at pH 7.

Figure 12. 1/CL plotted vs. phthalic hydrazide concentration at pH 7.

Evidently, Equation (19) is corroborated by the experimental result. This also lends support to the underlying mechanistic model proposed in Equation (15).

This study clearly demonstrates that adsorption of the reaction probe, in this case phthalic hydrazide, governs the result obtained regarding photocatalytic efficiency of TiO₂. Specific for phthalic hydrazide is that this adsorption engages the hydrazide moiety, which can be hydrogen bonded to OH-groups on the surface. Thus, as shown in Figure 2, any surface bound oxidant will only cause oxidation of the hydrazide ring, and no chemiluminescence will be observed. For this reason, we conclude that chemiluminescence can only be observed when ^•OH_aq radicals are released from the TiO₂-surface.

Another important conclusion from this experiment is that in the unperturbed system at pH ~7 free hydroxyl radicals, ^•OH_aq, can be released from TiO₂ at least to the same rate as obtained with borate buffer at pH 9, see Figure 9. In contrast, at pH 3 there is only a vestige of the dilution effect observed at pH ~7. This suggests that increasing protonation of the TiO₂ surface at pH < pzc (point of zero charge) ≈ 6.3, also blocks the formation of ^•OH_aq whereas at pH > pzc the measured yield of ^•OH_aq is entirely governed by the adsorption of phthalic hydrazide.

2.2.2. Effects of Added Hydrogen Peroxide

As shown in Reactions (2–7) addition of hydrogen peroxide may both increase and impair the formation of hydroxyl radicals by TiO₂ photocatalysis in aqueous solutions. The effects should be governed by actual reaction conditions such as pH, ionic composition and the concentration of hydrogen peroxide. Reaction (2) is efficient in the UVC range, where the absorption by hydrogen peroxide is significant [21]. At 365 nm, the peak wavelength of the black light lamp used in this investigation, the absorption of hydrogen peroxide is very weak but Reaction (4) may still give a small contribution to the formation of hydroxyl radicals.

To elucidate some aspects of hydrogen peroxide on the yield of hydroxyl radical formation the experiments in Table 1 were performed (PH = phthalic hydrazide):

Table 1. Effects of added hydrogen peroxide.

Item	PH	CLrate (a.u.)
A. No pH adjustment, 1 mM H2O2, 100 ppm TiO2, 50 μM PH	4.6	0.853
B. No pH adjustment, 1 mM H2O2, 50 μM PH	6.1	0.255
C. 1 mM HClO4, 1 mM H2O2, 100 ppm TiO2, 50 μM PH	2.7	3.17
D. 1 mM HClO4,1 mM H2O2, 50 μM PH	2.7	0.324
E. 1 mM HClO4, 100 ppm TiO2, 50 μM PH	2.7	0.126

Table 1. Effects of added hydrogen peroxide.

Item	PH	CLrate (a.u.)
A. No pH adjustment, 1 mM H2O2, 100 ppm TiO2, 50 μM PH	4.6	0.853
B. No pH adjustment, 1 mM H2O2, 50 μM PH	6.1	0.255
C. 1 mM HClO4, 1 mM H2O2, 100 ppm TiO2, 50 μM PH	2.7	3.17
D. 1 mM HClO4,1 mM H2O2, 50 μM PH	2.7	0.324
E. 1 mM HClO4, 100 ppm TiO2, 50 μM PH	2.7	0.126

From Table 1 the following conclusions can be drawn:

• Comparisons between items E, D and B show that a small yield of ^•OH_aq can be obtained by photolysis of H₂O₂ at 365 nm. However, considering the absorbance of 365 nm UV light by TiO₂ (~2.0 at 100 ppm), the contribution from direct photolysis of H₂O₂ can be neglected in the photocatalytic case;
• Comparisons between items E, C and A show that a significant yield of ^•OH_aq can be obtained by reductive cleavage of H₂O₂ at 365 nm;
• Comparisons between items C and A show that of ^•OH_aq by reductive cleavage of H₂O₂ at 365 nm depends on pH, and low pH promotes a higher yield. This trend is in accordance with the reaction suggested in Equation (3).

A crucial question is whether hydroxyl radical formation in TiO₂-photocatalysis can be preferentially assigned to oxidative or reductive reaction pathways. Judging from the pH-behaviour observed with added hydrogen peroxide and taking into consideration that the amount of hydrogen peroxide that may accumulate in the photocatalytic experiments is <0.1 mM, it seems difficult to ascribe the reductive pathway a significant role in the present study. Moreover, it would be difficult to explain how adsorption of phthalic hydrazide on TiO₂ surfaces could completely block the release of ^•OH_aq radicals, cf. Figure 8, if they were formed from hydrogen peroxide by the reductive reaction route. In contrast, the oxidative route involves surface oxidants that can react directly with adsorbed phthalic hydrazide and this would efficiently block the formation of ^•OH_aq radicals.

2.2.3. Effects of Br⁻ as ^•OH Scavenger

Effects of bromide ions on chemiluminescence in TiO₂-photocatalysis were studied, at pH 10 in 5 mM borate buffer. In contrast to the simple competition obtained by γ-radiolysis, Figure 6, the plot, Figure 13, indicates a complex multi-step competition.

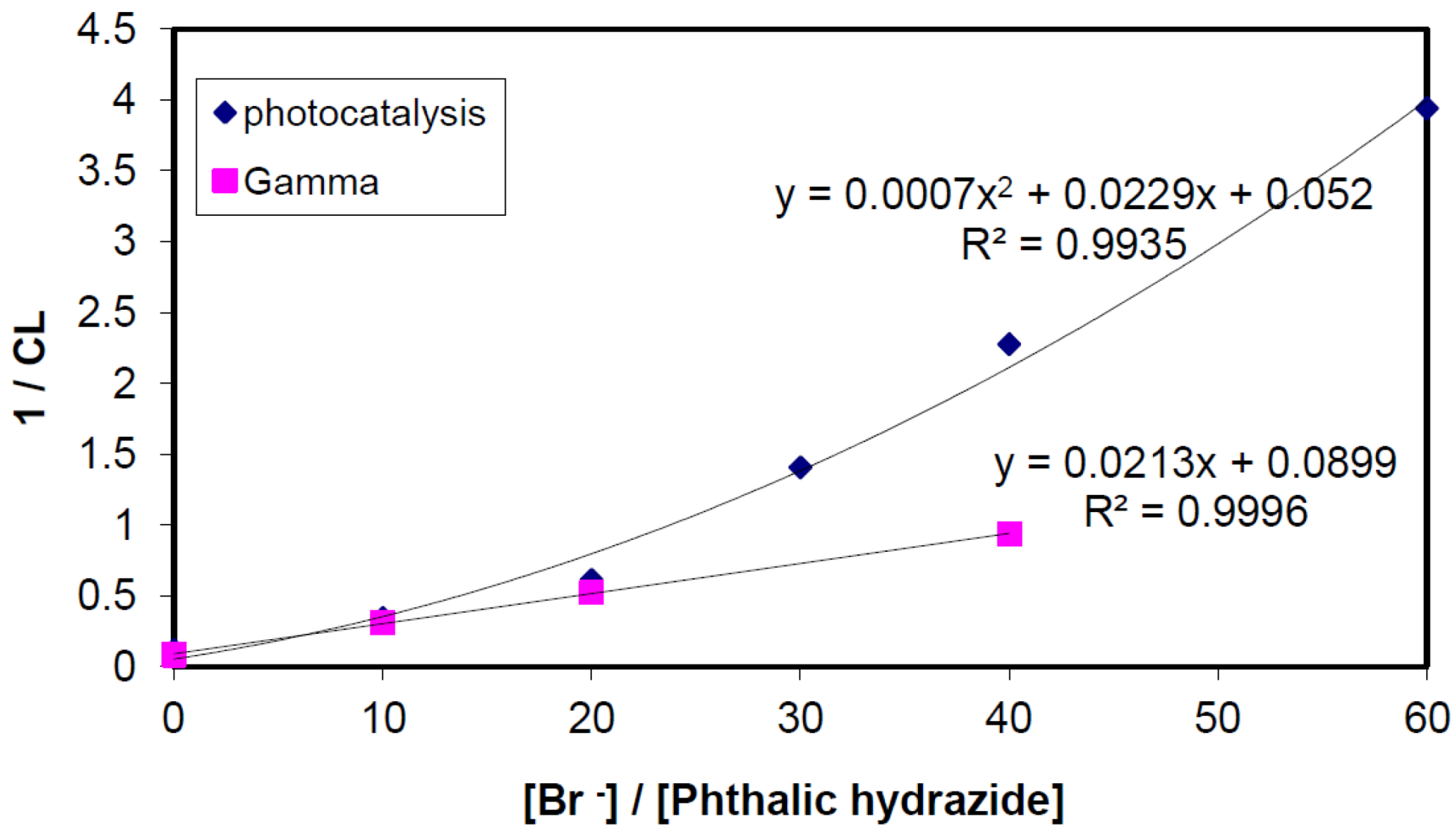

Figure 13. Competition plots obtained by photolysis and γ-radiolysis of 5 mM borate buffer solutions at pH 10 containing NaBr (0–30 mM), phthalic hydrazide (500 μM) and 100 ppm TiO_2.

Figure 13. Competition plots obtained by photolysis and γ-radiolysis of 5 mM borate buffer solutions at pH 10 containing NaBr (0–30 mM), phthalic hydrazide (500 μM) and 100 ppm TiO_2.

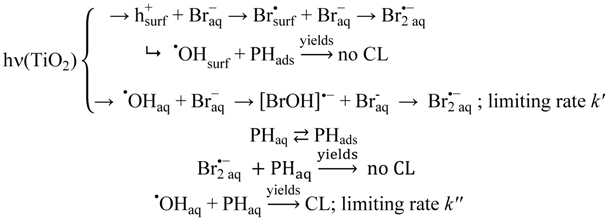

Because HBr is a very strong acid, bromide ions show no preference to form hydrogen bonds with OH-groups on a TiO₂ surface over linking with water molecules, and no significant adsorption of bromide ions on the TiO₂-surface is expected to occur. For analysis of the data we assume the following competing reactions:

(20)

These reactions translate to:

(21)

where the last term mimics Equation (19)

The general form of Equation (21) can be represented as:

(22)

where A and B are constants.

The curve drawn in Figure 13 is fitted to Equation (22). Apparently, there is a good correspondence between experimental points and Equation (22). For the sake of comparison, the same reaction system was also exposed to γ-radiolysis and the chemiluminescence data were analysed according to the reaction mechanism suggested in Equations (11–13). The initial slopes in the two graphs are very close corroborating our reaction model.

Another aspect related to the suggested reaction model (20), is that formation of dibromidyl radicals, Br₂^•−, on the TiO₂ surface proceeds by:

(23)

The first step in Reaction (23) is an outer sphere electron transfer process and it would require that the oxidizing specie formed on the TiO₂ surface, here denoted h⁺_surf, is oxidizing enough to allow formation of Br^•_surf. Since the reduction potential of Br^•_aq is reported to be about 1.9 V vs. NHE [40], the reduction potential of h⁺_surf should be at the same level. The reduction potential of ≡Ti[IV]–O^• sites was assessed to be in the range 1.5–1.7 V vs. NHE [21]. We thus conclude that h⁺_surf cannot be ascribed to ≡Ti[IV]–O^• sites for energetic reasons. Valence band holes (h_VB⁺) reaching the TiO₂ surface can be chemically associated with oxygen-centered radicals generated from surface hydroxyls [7,15], and lattice oxygen anions [10]. Only the latter can then be assigned h⁺_surf.

2.2.4. Effects of Added Phosphate and Fluoride Anions

It is known that anions such as phosphate show a strong tendency to be bound on TiO₂ surfaces [45]. When adsorption of phthalic hydrazide to TiO₂ at different pH values was measured in presence of 5 mM phosphate by the spectrophotometric method described in 3.2.1, no significant adsorption could be detected. Thus, addition of phosphate can be used not only to attain pH-buffering but also to control the adsorption of other molecules to a TiO₂ surface. The Reaction (24) is an attempt to explain how this can be. Both phthalic hydrazide, by its hydrazide moiety, and phosphate ions can be linked to OH-groups on the surface by hydrogen bonds. At sufficient high concentration of phosphate there will be no free OH-groups available for phthalic hydrazide and its adsorption to the TiO₂ surface is blocked.

(24)

Free hydroxyl radicals do not react with fluoride ions and their reaction rate with phosphate ions (HPO₄²⁻/H₂PO₄⁻) is reported to be 2.0 × 10⁴/M·s [46]. Far smaller compared with the above determined reaction rate of hydroxyl radicals with phthalic hydrazide, 3.4 × 10⁹/M·s. Thus, in a solution containing 5.0 × 10⁻⁴ M phthalic hydrazide, 0.1 M phosphate can be added before a noticeable scavenging of free hydroxyl radicals by phosphate is reached. However, since phosphate ions are adsorbed at the TiO₂ surface, where hydroxyl radicals occur, the local concentration of phosphate ions is probably much higher and the scavenging of hydroxyl radicals may become important at considerably lower bulk concentrations than 0.1 M phosphate.

Since addition of phosphate ions can block the adsorption of phthalic hydrazide to TiO₂ particles increased chemiluminescence can be expected if the phosphate complex on the TiO₂ surface also allows diffusion of hydroxyl radicals. Recently, additions of fluoride and phosphate ions were also shown to result in increased photocatalytic activities [45,47,48].

The effect of phosphate and fluoride anions on the chemiluminescence yield at pH 3 and 4 is seen in Figure 14.

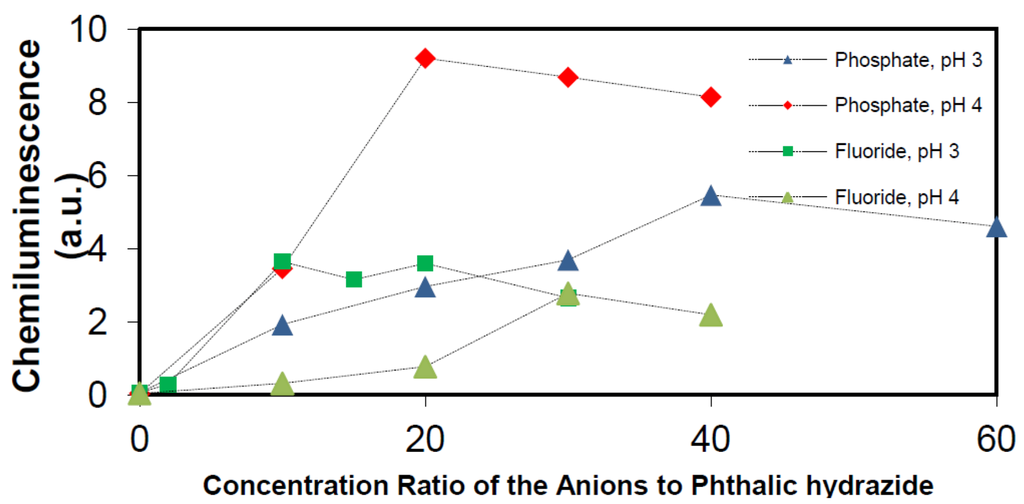

Figure 14. Effect of phosphate and fluoride anions on the chemiluminescence at pH 3 and 4, phthalic hydrazide (500 μM) and 100 ppm TiO₂.

Figure 14. Effect of phosphate and fluoride anions on the chemiluminescence at pH 3 and 4, phthalic hydrazide (500 μM) and 100 ppm TiO₂.

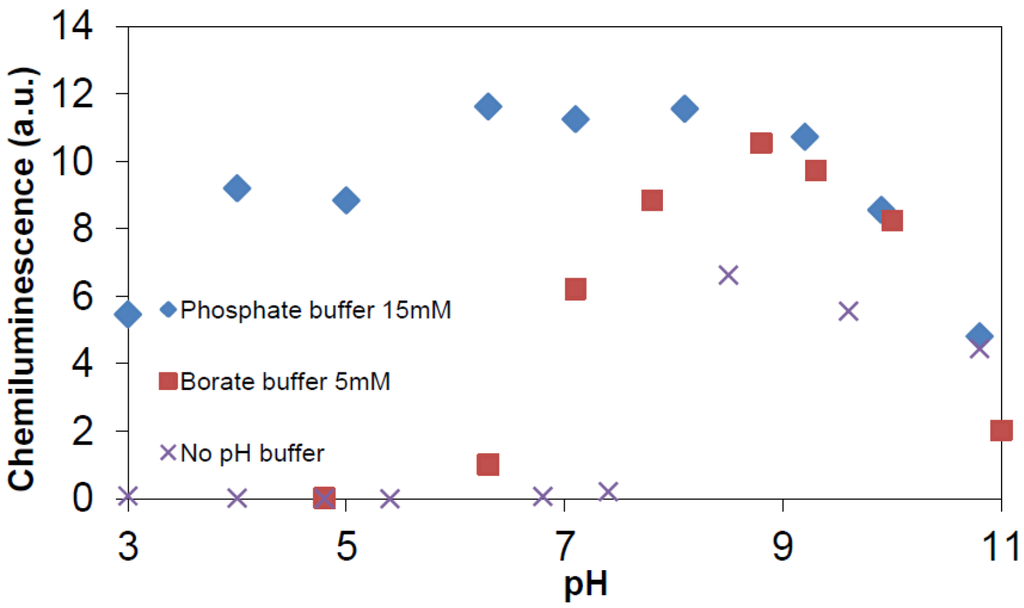

Figure 15. Chemiluminescence yield (a.u.) by photocatalysis of TiO₂ vs. pH. Conditions: TiO₂ 100 ppm; phthalic hydrazide 0.5 mM; 365 nm photon flux 2.6 × 10⁻⁶ Einstein/min; water volume 40 mL.

Figure 15. Chemiluminescence yield (a.u.) by photocatalysis of TiO₂ vs. pH. Conditions: TiO₂ 100 ppm; phthalic hydrazide 0.5 mM; 365 nm photon flux 2.6 × 10⁻⁶ Einstein/min; water volume 40 mL.

Figure 14 shows that addition of these two ions can substantially increase the chemiluminescence. The enhancement by addition of phosphate ions is higher than that by addition of fluoride ions. When the study was extended, it was found that addition of fluoride ions was only effective at pH < 5, (pKa value of HF is about 3.18 [49]), whereas addition of phosphate ions showed an effect in the whole pH-range. Figure 14 also reveals that there is an optimal chemiluminescence yield at a certain concentration of added anions. For the addition of phosphate, this optimum concentration corresponds to about 15 mM under present conditions. Hence, the full potential of ^•OH_aq. radical production in the TiO₂ photocatalytic system, may be achieved by addition of 15 mM phosphate ions. The resulting chemiluminescence is shown in Figure 15, where also the above already reported results obtained with borate (Figure 9) and no buffer (Figure 8) are included.

Evidently, the chemiluminescence obtained with 15 mM phosphate buffer closely resembles that in Figure 7, where authentic hydroxyl radicals were produced by γ-irradiation at a rate of 2.7 μM/min. As all chemiluminescence measurements have been performed in a standardized manner, we can now assess the hydroxyl radical production rate in photocatalysis from:

(25)

The result of this calibration is shown in Figure 16.

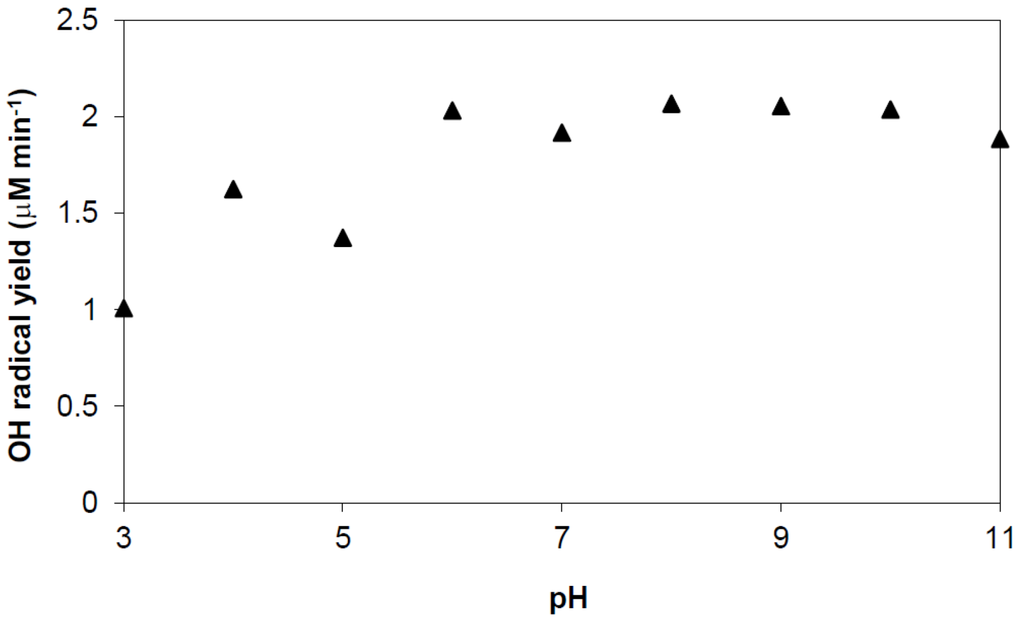

Figure 16. Production rate of ^•OH_aq-radicals by TiO₂ photocatalysis vs. pH. Conditions: TiO₂ 100 ppm; phthalic hydrazide 0.5 mM; phosphate buffer 15 mM; 365 nm photon flux 2.6 × 10⁻⁶ Einstein/min; water volume 40 mL.

Figure 16. Production rate of ^•OH_aq-radicals by TiO₂ photocatalysis vs. pH. Conditions: TiO₂ 100 ppm; phthalic hydrazide 0.5 mM; phosphate buffer 15 mM; 365 nm photon flux 2.6 × 10⁻⁶ Einstein/min; water volume 40 mL.

Figure 16 shows a nearly constant ^•OH_aq radical production rate in the studied pH range with a slight decreasing at pH < pzc. The top ^•OH_aq radical yield is ~2.1 μM/min, which would correspond to an “apparent quantum efficiency” of about 3.2% (Determination of quantum efficiency is not straightforward. The problem comes in measuring the optical absorption efficiency of a particular TiO₂ sample because of complications associated with light scattering and penetration. Often the ratio of detected events per incident photon is reported as “apparent quantum efficiency”. However, what one would like to know is the ratio of detected events per incident absorbed photon. Comparisons of “apparent quantum efficiencies” are only meaningful if effects due to light scattering and penetration are comparable.) The pH trend and the “apparent quantum efficiency” obtained in this study is similar to what has been reported in previously published works [50,51], where methanol was used as general OH radical probe with a very low tendency to be adsorbed on TiO₂ surfaces. However, our “apparent quantum efficiency” is at variance with the much smaller value reported by Hirakawa et al. [26]. These authors have used a generically similar method to ours, i.e., it is based on transformation of an original molecule by aromatic hydroxylation into a hydroxylated analogue that can be detected by emission of photons. In their case detection is by fluorescence and the original molecule is terephthalic acid (TPA). Both methods are selective and very sensitive. Compared with our chemiluminescence method the TPA fluorescence method is probably more easily adapted and may also allow continuous measurement. However, in the cited work by Hirakawa et al. [26], the method has been applied beyond its perimeters. At the chosen wavelength 385 nm, the extinction of Degussa P25 TiO₂ suspensions is almost entirely due to scattering, absorption is virtually zero [52]. The chosen pH, pH ~12, is also too high. At this pH, hydroxyl radicals are to a large extent deprotonated (pKa ^•OH = 11.9 at 25 °C [53]).The anionic form, the oxyl radical anion, O^•− displays properties distinctly different from those of the hydroxyl radical; nucleophilic addition, hydrogen atom abstraction but no tendency to add to aromatic rings [53]. It is a very reactive radical and will attack TPA, e.g., by nucleophilic elimination of carboxylic groups. Only electrophilic ^•OH_aq radicals can amalgamate with π-electrons in an aromatic ring to form cyclohexadienyl adducts that after oxidation result in aromatic ring hydroxylation products. In the TPA system this oxidation is very slow with molecular oxygen due to the reversible addition of oxygen to a TPA-hydroxycyclohexadienyl adduct [54]. This allows a range of alternative reaction pathways, particularly at high pH, and significant reduction in formation of fluorescent 2-OH-TPA.

2.2.5. Formation of ^•OH_aq Radicals

We have already concluded that ^•OH_aq radicals under prevailing conditions must arise predominantly by the oxidative route, i.e., by transformations originating in the formation of valence band holes (h_VB⁺). However, albeit that from thermodynamic point of view these sites can oxidize water to produce ^•OH_aq, Salvador [20] has calculated that the highest energy levels of adsorbed water species on TiO₂ are well below the valence band edge of TiO₂. This would thus exclude that ^•OH_aq can be formed by the oxidative route as we have found. A possible solution of this dilemma is offered by a Cheng and Selloni [55] who have done extensive first principles molecular dynamics simulations for a hydrated hydroxide ion on a TiO₂ anatase (101) surface. They found that, due to thermal fluctuations, hydroxyl ion energy levels can occur above the valence band edge of anatase TiO₂ and thus allow formation of ^•OH_aq radicals. We interpret their result as:

(26)

where [⁻OH]_ads is an ⁻OH ion in the water layer associated with the TiO₂ surface, and [h⁺_surf^…−OH]_ads is a charge transfer complex at the TiO₂ surface.

As demonstrated in Figure 10, the unperturbed system at pH ~7 can release free hydroxyl radicals, ·OH_aq, from TiO₂ at least to the same rate as obtained by addition of 15 mM phosphate buffer. This implies that at pH ≥ pzc (≈6) oxidation stable bases, such as H₂PO₄⁻, HPO₄²⁻, and HB₄O₇⁻, adsorbed on the TiO₂ surface, enhances the measured yield of ^•OH_aq merely by blocking the adsorption of phatalic hydrazide, but they are not directly involved in the formation of ^•OH_aq. At pH ≤ pzc, oxidation stable bases, such as H₂PO₄⁻ and F⁻, may also be involved in the formation of ^•OH_aq by “neutralizing” protons on the TiO₂ surface and enhancing the presence of hydroxide ions in the water layer associated with the TiO₂ surface. Combined with Equation (26) we thus suggest that formation of ^•OH_aq by the oxidative route can be summarized by the mechanism:

(27)

where B⁻ is an oxidation stable base, e.g., H₂PO₄⁻ and F⁻.

3. Experimental Section

3.1. Materials and Preparations

All chemicals used were of analytical grade or higher and used as received from commercial sources (Sigma-Aldrich Sweden AB, Degussa, Germany). Millipore Mill-Q filtered water was used in all experiments. TiO₂ powder used in this study was Degussa P25 with a reported average primary particle size of 21 nm and a specific surface area of 50 ± 15 m²/g (BET) according to the manufacturer. However, the actual diameter of formed aggregates in Millipore water was found to be about 500 nm when measured by a Brookhaven 90 Plus laser scattering particle size analyzer.

Phthalic hydrazide (2,3-dihydro-1,4-phthalazinedione) is a weak acid (pKa₁ = 5.87 and pKa₂ = 14.75 [29]). At room temperature and at near neutral pH the solubility is about 0.6 mM. In most experiments, the concentration of phthalic hydrazide was 0.5 mM. 3-Hydroxyphthalic hydrazide (2,3-dihydro-5-hydroxy-1,4-phthalazinedione) was synthesized as described by Drew and Pearman [37].

pH was adjusted either directly by NaOH and HClO₄ or by phosphate or borate pH buffers. The actual pH value was measured with a Metrohm 713 pH meter, calibrated against standard buffers.

3.2. Irradiations

Gamma irradiations were carried out in a Cesium-137 source (Gammacell 1000 Elite, Best Theratronics, Ottawa, Canada). All irradiations were performed in the same vessel containing 40 mL solution. The dose rate in this volume was determined by Fricke dosimetry [12] to be 9.5 Gy/min. This translates to an OH-radical production rate of 2.70 μM/min [12]

Photocatalytic experiments were performed under two Blacklight blue, BLB, lamps (Philips TL-D 15 W, Philips AB Stockholm, Sweden). Spectrum of this type of BLB lamp, extinction spectrum of 100 ppm Degussa TiO₂, and absorption spectra of 500 μM phthalic hydrzide at different pH values are shown in the figure below, Figure 17.

The wavelength range and peak wavelength were determined (Hamamatsu PMA-12 spectrometer) to be 345–385 and 365 nm, respectively, with an average intensity of 0.2 mW/cm² at the irradiation distance (International Light ILT1400 radiometer). All samples to be irradiated were placed in a blackened Petri dish (glass) of 9.5 cm inner diameter. The irradiated volume was 40 mL. The samples were stirred by a magnetic Teflon coated stirrer to obtain a homogenous mixing of the TiO₂ suspension. The absorbed 365 nm photon flux is thus 6.5 × 10⁻⁵ Einstein/L·min in the irradiated volume based on the average photon intensity.

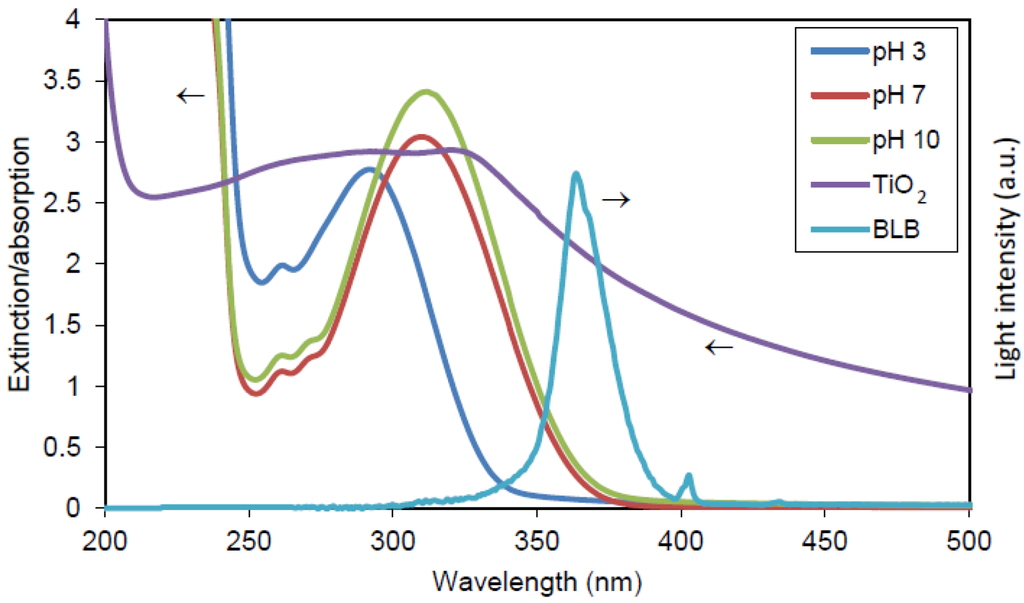

Figure 17. Extinction spectrum of 100 ppm Degussa TiO₂, absorption spectra of 500 μM phthalic hydrzide in Millipore water at pH 3,7,10, and the radiation spectrum of black light blue lamp (BLB).

Figure 17. Extinction spectrum of 100 ppm Degussa TiO₂, absorption spectra of 500 μM phthalic hydrzide in Millipore water at pH 3,7,10, and the radiation spectrum of black light blue lamp (BLB).

3.3. Chemiluminescence Measurements

Figure 18 presents the chemiluminescence measurement process. At appropriate time intervals a sample (about 2 mL) of the reaction mixture was withdrawn with a syringe and filtered through a 0.2 μm membrane filter (Whatman OE 66, Sigma-Aldrich, Stockholm, Sweden). One hundred microliters of the filtered solution was mixed with 1 mL 1M Na₂CO₃ containing 1 mM diethylene triamine pentaacetic acid (DTPA), 100 μL 0.1 M (NH₄)₂S₂O₈ and 100 μL 0.1 M H₂O₂ in an optical cuvette. The cuvette was agitated for about one minute in a shaking apparatus and then transferred to a luminometer (Bioorbit, 1250 with PC interface and software), and the CL signal was measured.

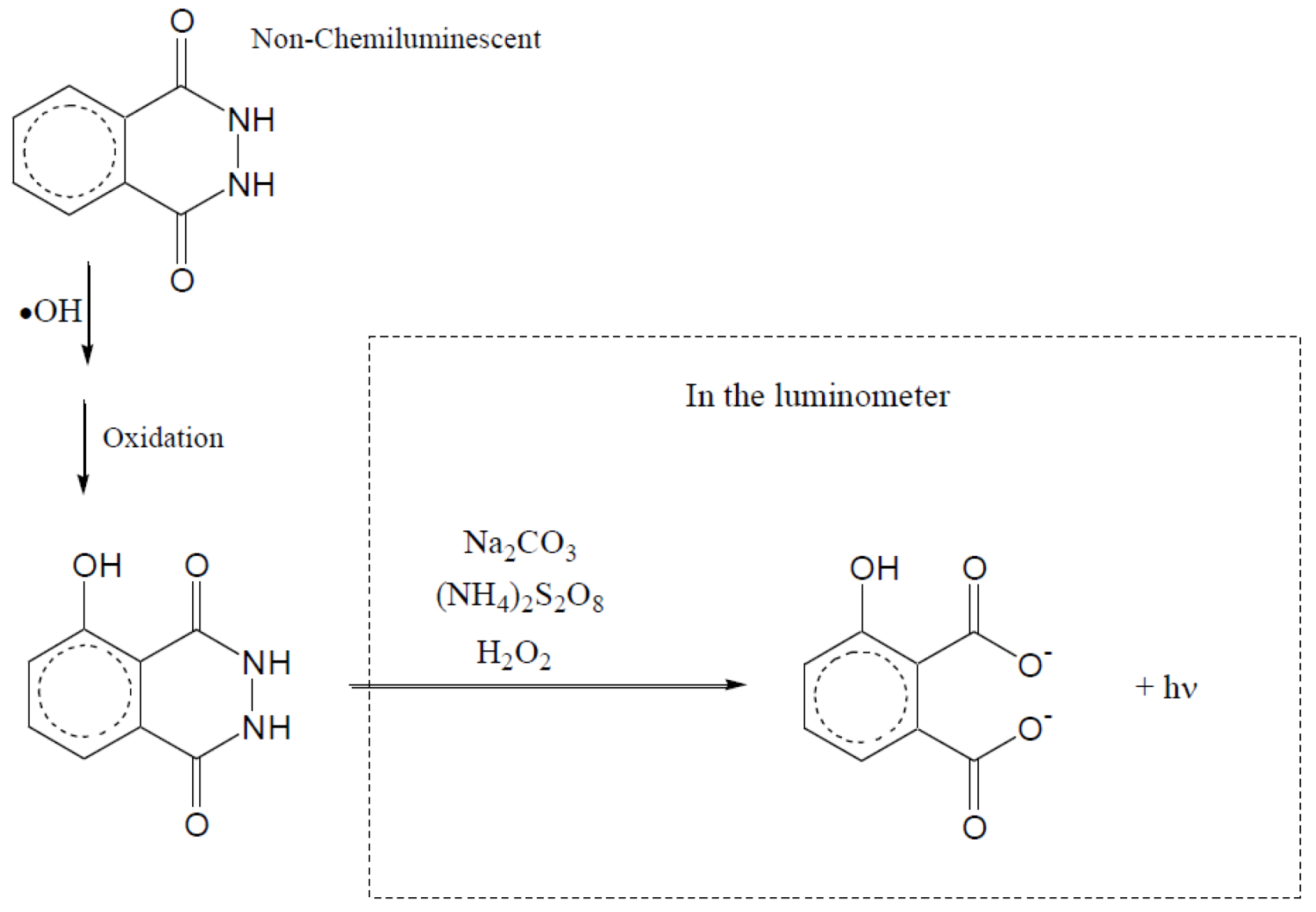

Figure 18. Chemiluminescence method to detect the formation of hydroxyl radicals. A small amount of phthalic hydrazide is added to the reaction system. At selected intervals, samples are removed from the reaction liquor for analysis in a luminometer.

Figure 18. Chemiluminescence method to detect the formation of hydroxyl radicals. A small amount of phthalic hydrazide is added to the reaction system. At selected intervals, samples are removed from the reaction liquor for analysis in a luminometer.

Using this procedure, phthalic hydrazides are slowly oxidized by persulfate to the corresponding azaquinones, which are nucleophilicly attacked by peroxide anions [56]. The chemiluminescence obtained in this way is fairly stable for several minutes and the signal is read as the height of the trace above the background level. A low background is obtained when the development of the chemiluminescence is performed in 1 M Na₂CO₃ solutions containing a complexing agent such as DTPA [28,29]. A high concentration of carbonate offers pH-buffer capacity, and scavenging of adventitious hydroxyl radicals that may arise in the mixing of the reagents:

(28)

The carbonate radical is a one-electron oxidant [40] that will only oxidize the hydrazide moiety to the corresponding phthalic acid.

All studies were performed in temporal stages and the linear increase in chemiluminescence was measured as . The total conversion of added phthalic hydrazide was controlled to be no more than 10%.

4. Conclusions

This work demonstrates how formation of strongly chemiluminescent 3-hydroxyphthalic hydrazide by hydroxylation of non-chemiluminescent phthalic hydrazide can be applied as a selective reaction probe to obtain information on authentic hydroxyl radical, i.e., ^•OH_aq, formation, in black light illuminated Degussa P25 TiO₂ aerated suspensions.

At pH ≥ pzc(~6.3), it was found that oxidation stable bases, such as H₂PO₄⁻, HPO₄²⁻, and HB₄O₇⁻, adsorbed on the TiO₂ surface, enhances the measured yield of ^•OH_aq merely by blocking the adsorption of phatalic hydrazide, but they are not directly involved in the formation of ^•OH_aq. At pH ≤ pzc, oxidation stable bases, such as H₂PO₄⁻ and F⁻, adsorbed on the TiO₂ surface may also be involved in the formation of ^•OH_aq by enhancing the presence of hydroxide ions at the TiO₂ surface. Under most optimized conditions in our experimental tests (addition of optimized concentration of appropriate oxidation stables bases), the ^•OH_aq radical production rate in the pH range 7–11 was nearly constant (“apparent quantum efficiency” ~3.2% under prevailing conditions) but decreased slightly at pH < pzc.

We suggest that the formation of ^•OH_aq by the oxidative route can be summarized by the mechanism:

where [⁻OH]_ads is an ⁻OH ion in the water layer associated with the TiO₂ surface, [h⁺_surf^…−OH]_ads is a charge transfer complex at the TiO₂ surface, and B⁻ is an oxidation stable base, e.g., H₂PO₄⁻ and F⁻.
