Production of Methanol by CO₂ Hydrogenation Using a Membrane Reactor

Abstract

The use of e-fuels, such as methanol (MeOH), is considered an alternative for the reduction of carbon emissions. MeOH can be produced from captured CO₂ and green H₂, with the exothermic (equilibrium-limited) reaction favoured at low temperatures and high pressures. However, CO₂ is a very stable molecule and requires high temperature (>200 °C) to overcome the slow activation kinetics. In this study, MeOH was synthesized from CO₂ and H₂ in a packed-bed membrane reactor (PBMR) using a commercial Cu/ZnO/Al₂O₃ catalyst and a tubular-supported, water-selective composite alumina–carbon molecular sieve membrane (Al-CMSM) immersed in the catalytic bed. A mixture of H₂/CO₂ (3/1) was fed into both sides of the membrane to increase the driving force of the gases produced by the reaction. The effect of the temperature of reaction (200, 220, and 240 °C), pressure difference (0 and 3 bar), and the sweep gas/reacting gas ratio (SW = 1, 3, 5) in the CO₂ conversion and products yield was studied. For comparison, the reactions were also carried out in a packed-bed reactor (PBR) configuration where the tubular membrane was replaced by a metallic tube of the same size. CO₂ conversion and MeOH yield are much higher in PBMR than in PBR configuration, showing the benefit of using the water-selective membrane. In PBMR, MeOH yield increases with SW and slightly decreases with the temperature, overcoming the limitation imposed by the thermodynamics.

1. Introduction

The production of CO₂ from the combustion of fossil fuels is considered the main cause of anthropogenic carbon emissions and the resulting climate changes. In 2023, EU countries approved a ban on the registration of new vehicles with internal combustion engines starting in 2035 with an exception for “vehicles running exclusively on CO₂-neutral fuels” [1]. Carbon-neutral fuels can be grouped into biofuels, which are derived directly or indirectly from biomass, and synthetic fuels, which are produced by chemical hydrogenation of CO₂. They could not only reduce the concentration of CO₂ in the atmosphere but also produce valuable products such as methane, alcohols, olefins, and aromatics [2]. E-fuels (i.e., CH₄, methane (CH₄), MeOH, dimethyl ether (DME), and kerosene) [3] are obtained mostly from green hydrogen, produced by electrolysis of water using renewable electricity, and CO₂ through carbon capture, utilization, and storage (CCUS) technology [3,4]. E-methanol is a liquid fuel with a high-octane number and low ignition properties, and can be used in road, aviation, and marine transport without changing the actual infrastructure. Methanol has a low carbon-to-hydrogen ratio, high oxygen content, and does not have the carbon-carbon bond, improving the combustion and reducing the exhaust emissions [5]. Differently than e-CH₄, e-MeOH is liquid at room temperature and pressure and has a lower risk of climate impact since CH₄ is a potent greenhouse gas. DME is more difficult to store and transport because its boiling point is −24 °C, and the production process is more difficult and requires more energy. In addition, MeOH can be used in the production of many other important products [6,7].

The MeOH synthesis takes place both directly via CO₂ hydrogenation (Equation (1)) and indirectly via CO hydrogenation (Equation (3)). CO is produced by the reverse water–gas shift reaction (RWGS) (Equation (2)). As such, the overall process is limited by the thermodynamic equilibrium. MeOH synthesis is thus favoured at low temperatures and at high pressures. CO₂ is referred to as an inert gas because of its very low reactivity. To increase the rate of reaction, temperatures of more than 240 °C are usually required [8,9].

CO₂ + 3H₂ ↔ CH₃OH + H₂O                  ΔH₀ = −49.5 kJ mol⁻¹

(1)

CO₂ + H₂ ↔ CO + H₂O                            ΔH₀ = +41.2 kJ mol⁻¹

(2)

CO + 2H₂ ↔ CH₃OH                               ΔH₀ = −90.5 kJ mol⁻¹

(3)

Cu/ZnO/Al₂O₃ is a catalyst widely used in various industrial processes, including methanol synthesis and the water–gas shift reaction [10]. However, a major disadvantage of this catalyst is that the active metallic copper nanoparticles are prone to sintering due to the low Tammann temperature (407 °C). Water generated in Equations (1) and (2) deactivates the catalyst, causing speciation of the Cu active phase and phase separation, crystallization of ZnO and Cu particles, and the adsorption on and blocking of active sites [9,11].

In addition, a large amount of water produced accumulates in the reaction environment, limiting the equilibrium. In situ removal of water from the reaction zone by hydrophilic membranes can overcome the limitations of the thermodynamic equilibrium, promoting higher conversion rates, improving methanol yields, and enhancing catalyst stability [12,13,14,15,16].

Zeolite membranes have a well-defined pore structure; the incorporation of heteroatoms, such as Al, results in a more hydrophilic material but one that is less stable in the presence of steam [17]. Carbon molecular sieve membranes (CMSM) have emerged as a promising material for gas separation at high temperatures where polymeric membranes are not stable (200–400 °C) [18]. The gas permeation mechanism in CMSM is the combination of molecular sieving (size discrimination, where gases smaller than the pore size will permeate) and adsorption diffusion based on the preferential adsorption of the gases with the pores; the gas with more adsorption will pass preferentially, blocking at the same time the passage of other gases [19]. Supported composite alumina–carbon molecular sieve membranes (Al-CMSM) were prepared by the one dip-dry carbonization method of novolac phenolic resin loaded with various concentrations of hydrophilic boehmite (γ-AlO(OH)) nanosheets in the dipping solution [20]. The gas permeation properties of several gases (H₂O, H₂, CO₂, N₂, CO, and CH₄) at the range of 150 to 240 °C were studied; in all the cases, water was the most permeable gas [21]. The experimental investigation, techno-economic assessment, and study of the mass and heat transport phenomena of a PBMR for the direct conversion of CO₂ to DME using CuO-ZnO-Al₂O₃/HZM-5 bifunctional catalyst and Al-CMSM water-selective membrane prepared from a dipping solution containing 0.8% of boehmite were reported by Poto et al. [22]; the results demonstrate that the PBMR outperforms the packed-bed reactor (PBR) in most of the experimental conditions.

The results reported by Poto et al. on DME have shown that the CMSMs can be effectively used in enhancing the conversion of reactions at temperatures higher than 200 °C. As such, these membranes could also be used for methanol production to increase the conversion per pass, thus reducing the recycle compression costs in the methanol synthesis loop.

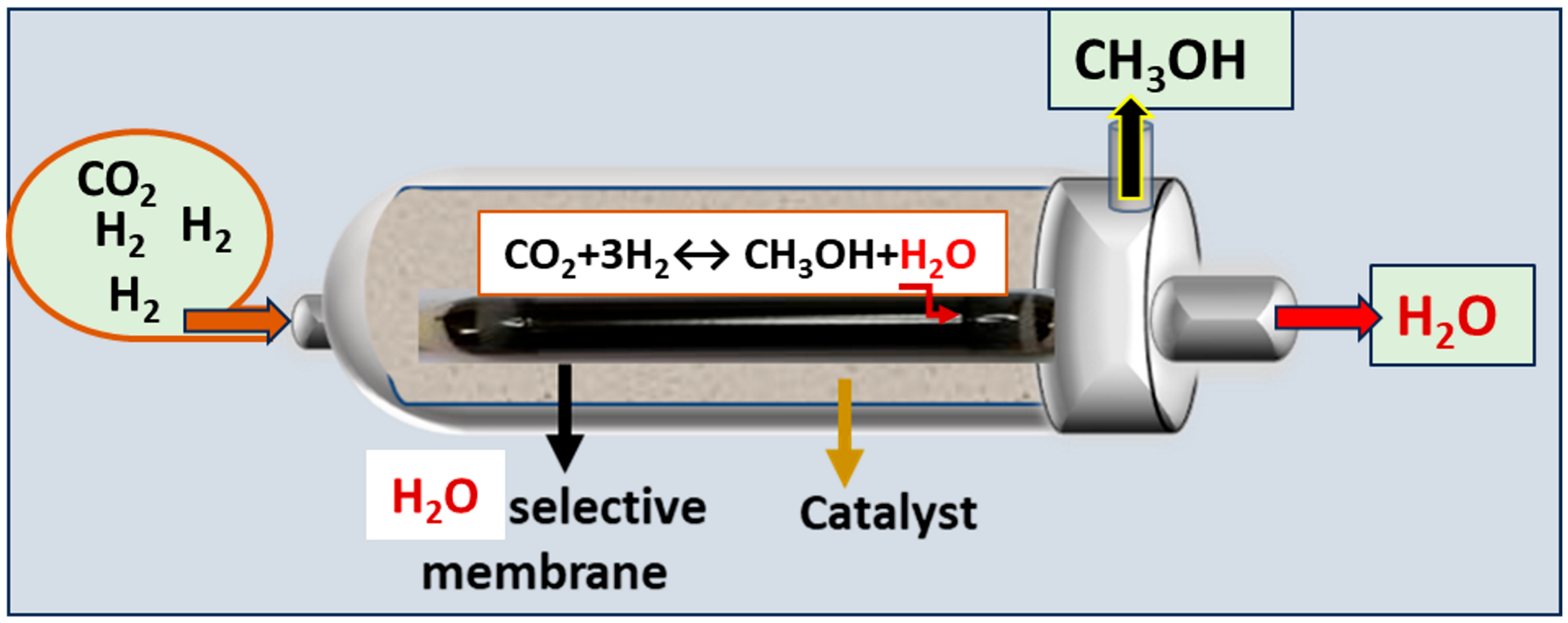

In this study, the synthesis of MeOH using a packed-bed membrane reactor with CuO-ZnO-Al₂O₃ as a catalyst and an Al-CMSM as a membrane is reported for the first time.

The effect of the temperature of reaction, pressure difference, and the sweep gas/reacting gas ratio on the CO₂ conversion and product yield was studied. To investigate the effect of the removal of water by the selective membrane, reactions were also carried out in a packed-bed reactor (PBR) configuration where the membrane was replaced by a tube of the same shape.

2. Results and Discussion

As the membrane reactor has both permeate and retentate sides, the definition of conversion and yields should be modified. To evaluate the performance of the reactor, the selectivity, conversion, and yield have been calculated according to the following equation. The formula takes into account the possible loss or cofeeding of reactants (i.e., through back-permeation of sweep gas in the reaction zone).

$X_{{CO}_2}={\displaystyle \frac{F_{{CO}_{2}0}^R-F_{{CO}_2}^R+F_{{CO}_2,tmb}}{F_{{CO}_2,0}^R+F_{{CO}_2,tmb}^{\ast }}}$
$Y_i={\displaystyle \frac{N_{c,i}\left(F_i^R+F_i^P\right)}{F_{{CO}_{2,}0}^R+F_{{CO}_2,tmb}^{\ast }}}$
$S_i={\displaystyle \frac{Y_i}{X_{{CO}_2}}}$
$F_{{CO}_2,tmb}=F_{{CO}_{2,}0}^P-F_{{CO}_2}^P$	CO2 transmembrane flow
$F_{{CO}_2,tmb}^{\ast }=0$	$\mathrm{if} F_{{CO}_2,tmb}\le 0$	Reactant loss
$F_{{CO}_2,tmb}^{\ast }=F_{{CO}_2,tmb}$	$\mathrm{if} F_{{CO}_2,tmb}>0$	Reactant cofeeding
$WR={\displaystyle \frac{F_{H_{2}O}^P}{F_{H_{2}O}^P+F_{H_{2}O}^R}}$

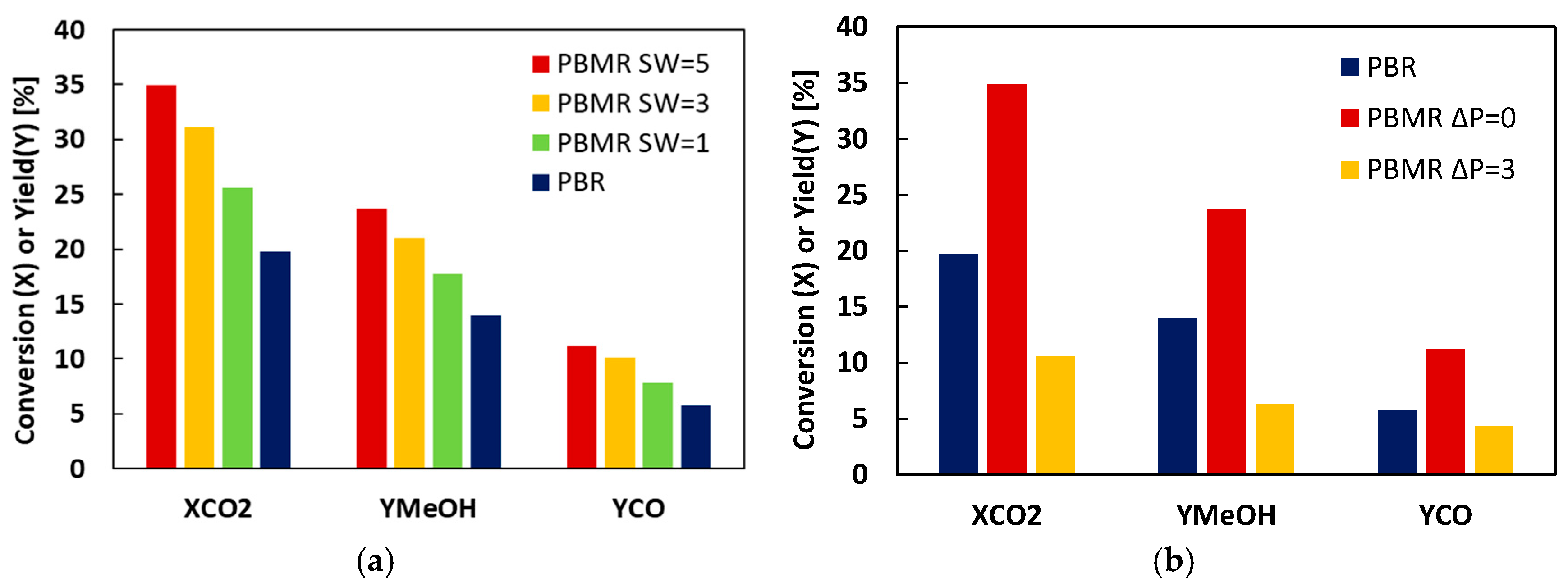

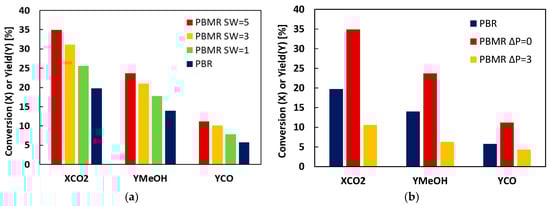

The effect of the ratio of sweep gas to reacting gas (SW) on CO₂ conversion (XCO₂) and MeOH CO yields (YMeOH and YCO) in the PBMR is shown in Figure 1a. The conversion and yields in PBMR are higher than in PR configuration, indicating the positive effect of the removal of water by the Al-CMSM. With increasing SW, XCO₂, YMeOH, and YCO increase because the partial pressure of the gases in the permeate drops as the flow of the sweep gas increases. A strong decrease in all relevant parameters is detectable when introducing a pressure difference between retentate and permeate, as can be seen from Figure 1b; the passage of all the gases increases, losing reactants decreasing at the same time the partial pressure difference in the products.

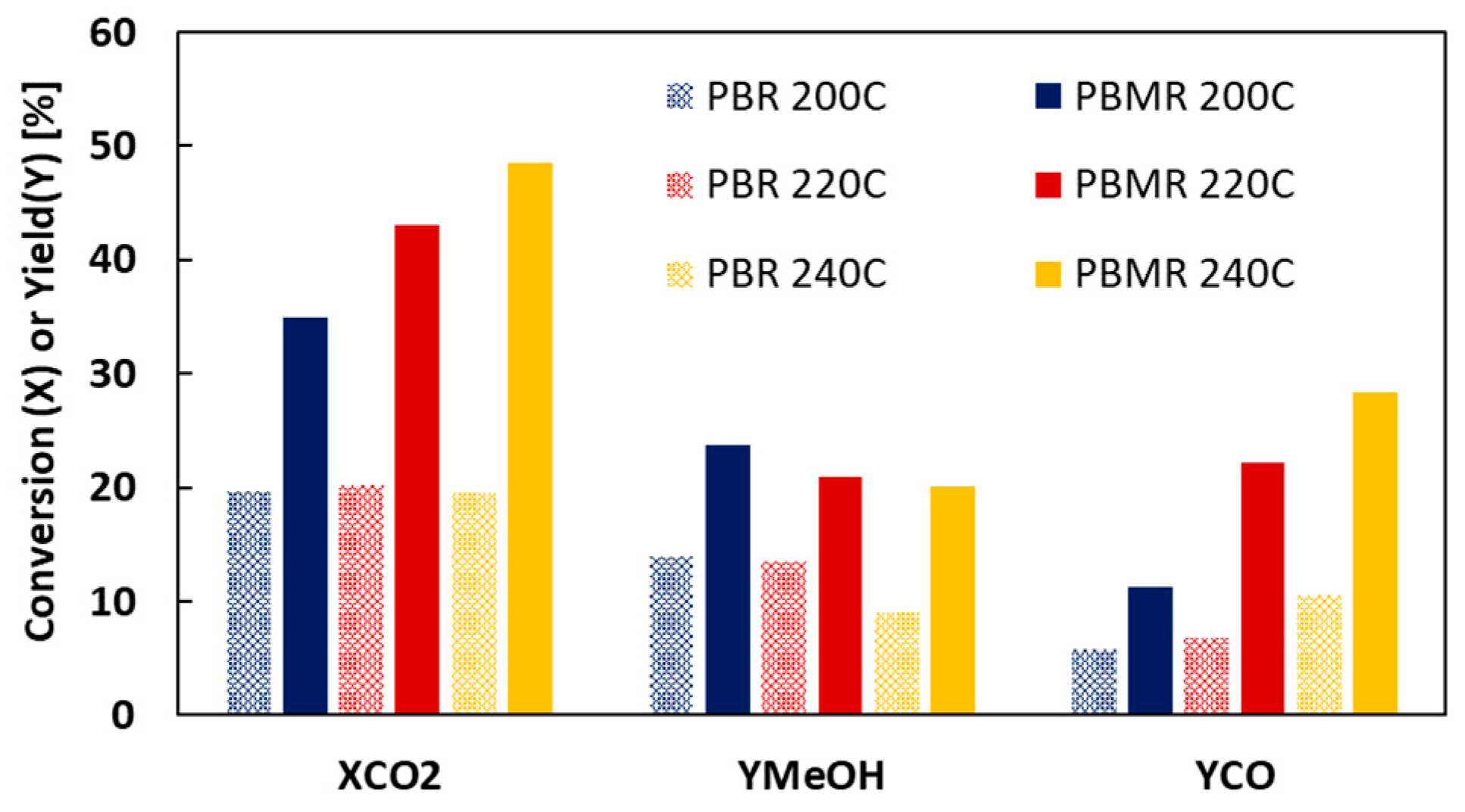

The effect of the temperature reaction on the MeOH synthesis in PBR (without membrane) and PBMR (with Al-CMSM) is presented in Figure 2 and

Table A1. CO₂ conversion and product yield for PBR and PBMR MeOH synthesis at various reaction conditions.

	Parameters			Conversion CO2 [%]		Yield MeOH [%]		Yield CO [%]
	Sweep/Reacting Gases SW [-]	Pressure Difference ΔP [bar]	Temperature [°C]	PBR	PBMR	PBR	PBMR	PBR	PBMR
MR1	1	0	200	19.7	5.6	14.0	17.7	5.7	7.9
MR6	3	0	200	19.7	31.1	14.0	21.0	5.7	10.1
MR2	5	0	200	19.7	34.9	14.0	23.7	5.7	11.2
MR5	5	3	200	19.7	10.6	14.0	6.3	5.7	4.3
MR3	5	0	220	20.2	43.1	13.5	21	6.7	22.1
MR4	5	0	240	19.5	48.5	9.0	20.1	10.6	28.4

. The kinetics of CO₂ conversion are enhanced with the temperature; more water is produced and removed by the membrane, shifting the equilibrium to the product. In the PBR configuration, the change in conversion is very small because water is not removed. In both types of reactors, MeOH yield decreases, and CO yield increases with the temperature; the production of MeOH by CO₂ hydrogenation is exothermic (Equation (1)); therefore, the reaction is favoured at lower temperatures. CO is produced by the endothermic RWGS (Equation (2)); thus, the CO yield increases with the temperature; the increase is more marked in PBMR because of the removal of water.

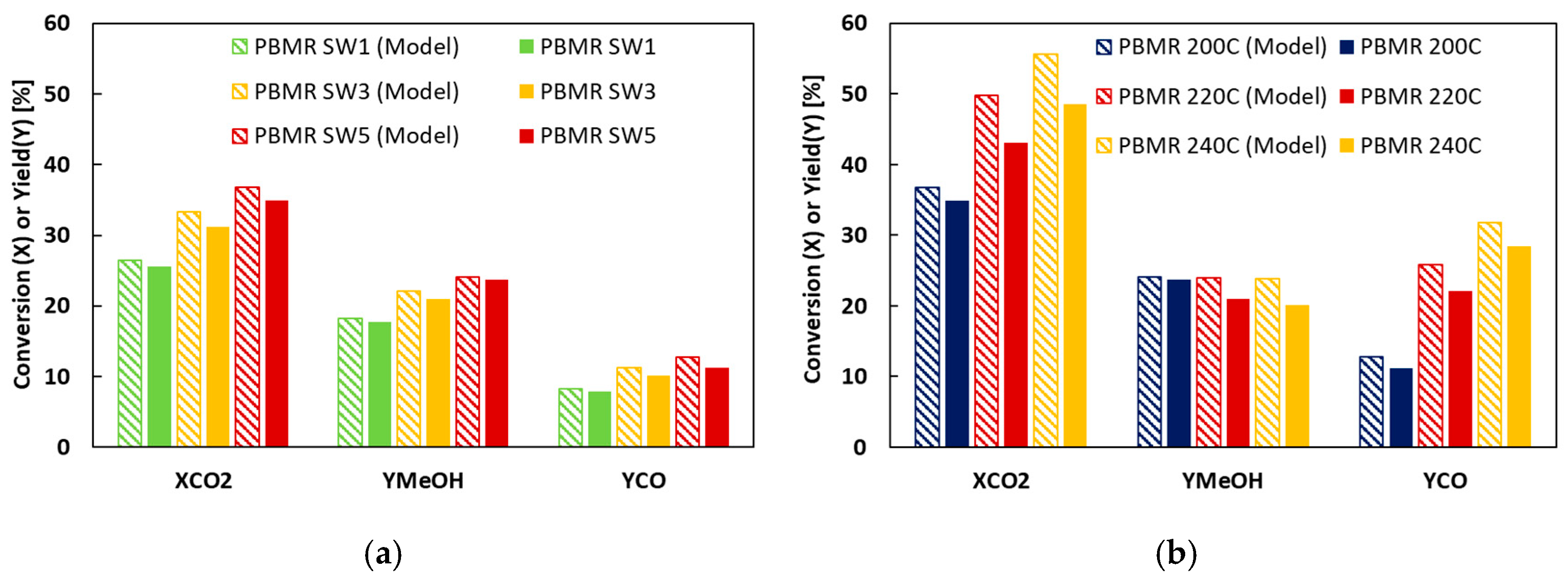

Alongside these experiments, a 1D model of the PBMR has been developed. The model is based on the CO₂ hydrogenation (Equation (1)), RWGS (Equation (2)), and CO hydrogenation (Equation (3)). All relevant kinetic and permeation parameters, alongside an explanation of the governing equations of the model, have been reported in the Appendix; the main difference from the reference literature is the absence of the DME reaction, simplifying the reaction system. With the developed model programme, the CO₂ conversion and the product yield were calculated; the values obtained (Model) and compared with those obtained experimentally. The comparison of the calculated (Model) and experimental values obtained by the PBMR MeOH synthesis is shown in Figure 3. For SW and temperature, the model can predict the results obtained experimentally. The discrepancies in the predicted and experimental values are because the model considers the reaction zone as consisting only of the catalyst, whereas the experimental bed is diluted with SiC.

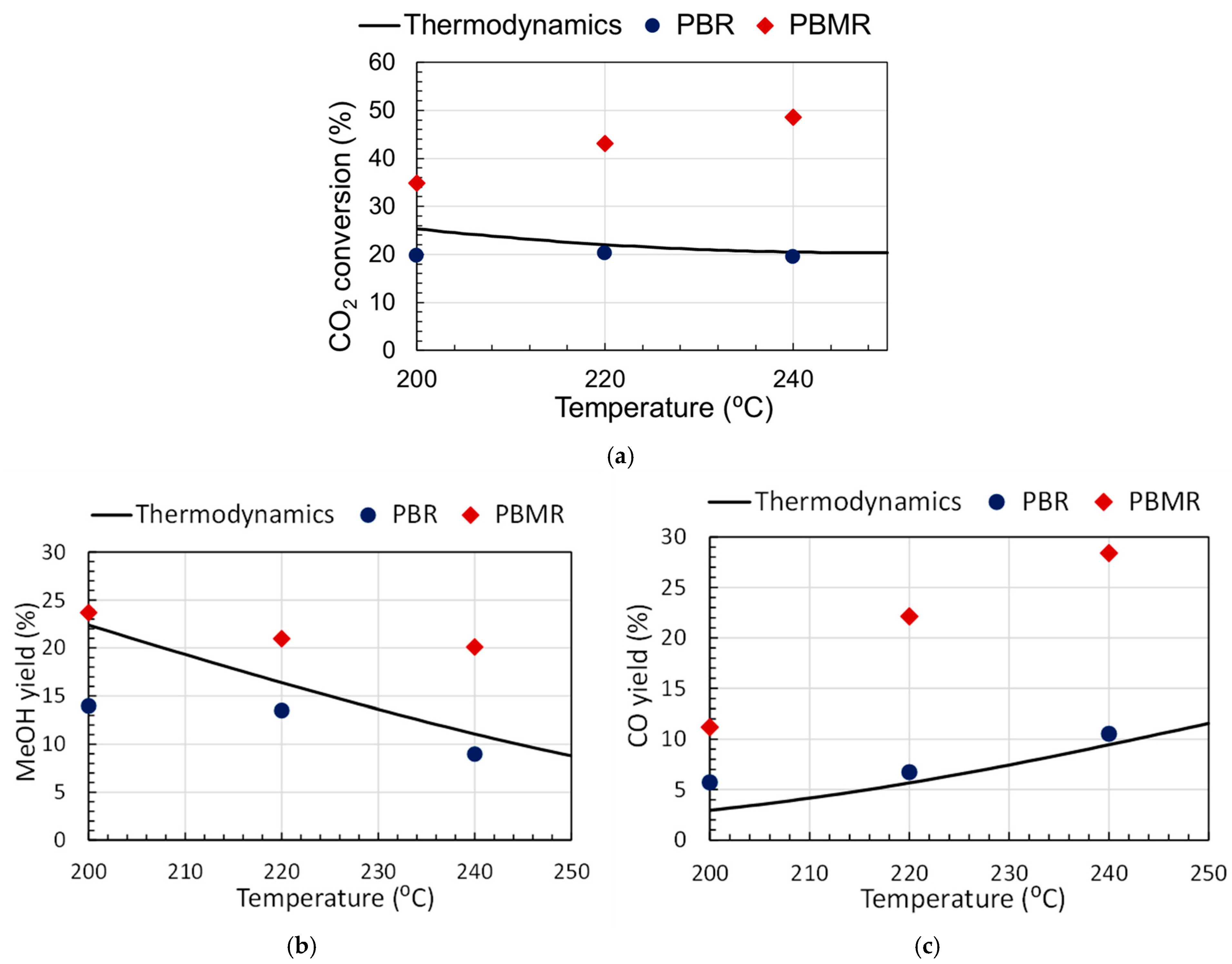

The effect of the temperature on the reaction performance in PBR and PMBR modes is depicted in Figure 4a. In the temperature range studied, the PBMR performance is well above the PBR and the thermodynamic limit. The MeOH yield slightly decreases with the temperature due to the exothermicity of the reaction (Equation (1)). The CO yield increases with the temperature because the RWGS reaction is endothermic (Equation (2)), Figure 4b. The observed enhancement of CO₂ conversion with the temperature is due to the increase in CO production (Figure 4c). Therefore, to increase the production and MeOH selectivity in PBMR, the reaction should be carried out at around 200 °C.

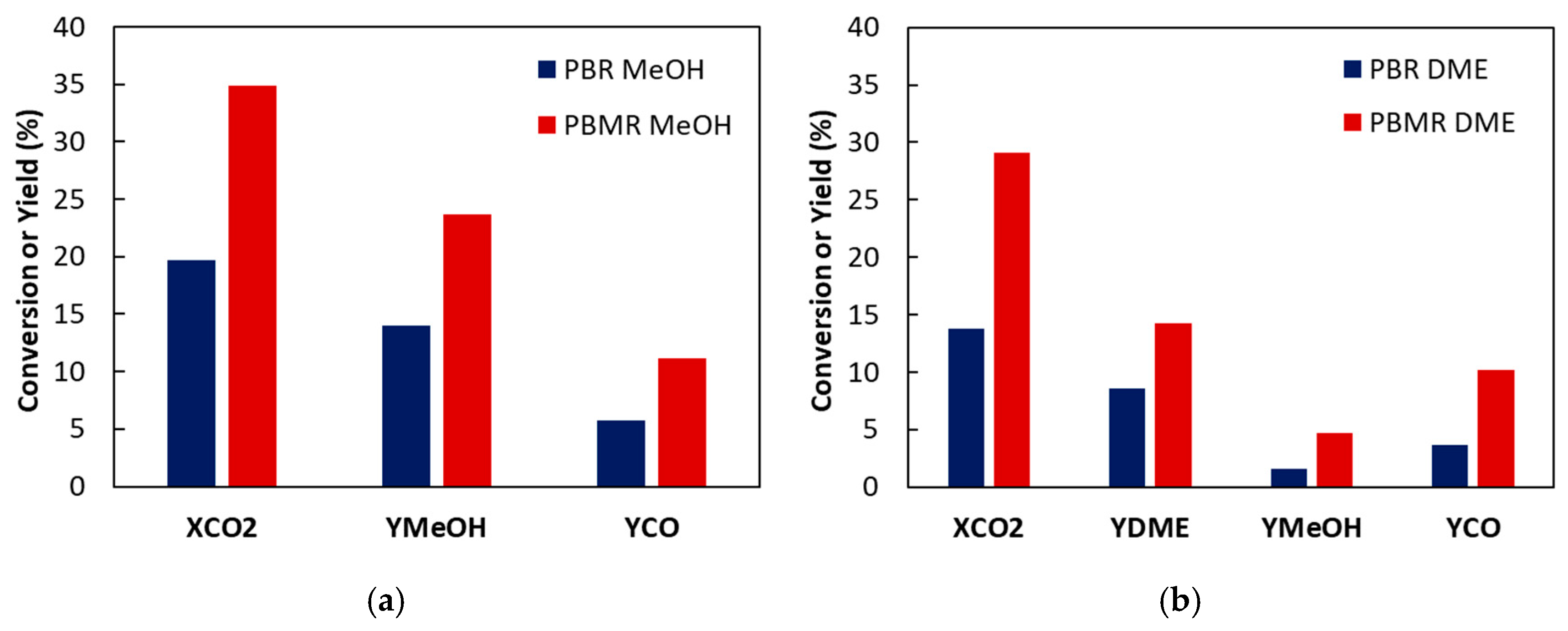

The conversion and product yield for PBR and PBMR synthesis of MeOH and DME are shown in Figure 5 and

Table A2. CO₂ conversion and product yield for PBR and PBMR MeOH synthesis at various reaction temperatures obtained experimentally and thermodynamically (Therm).

Temperature [°C]	CO2 Conversion [%]			MeOH Yield [%]			CO Yield [%]
	PBR	PBMR	Therm	PBR	PBMR	Therm	PBR	PBMR	Therm
200	19.7	34.9	25.4	14.0	23.7	22.4	5.7	11.2	3.0
220	20.2	43.1	22.1	13.5	21.0	16.4	6.7	22.1	5.7
240	19.5	48.5	20.5	9.0	20.1	11.1	10.6	28.4	9.4

and

Table A3. CO₂ conversion and product yield for PBR, PBMR for DME synthesis are reported in a previous work.

Temperature [°C]	CO2 Conversion [%]		MeOH Yield [%]		CO Yield [%]		DME Yield [%]
	PBR	PBMR	PBR	PBMR	PBR	PBMR	PBR	PBMR
200	13.7	29.1	1.6	4.7	3.6	10.2	8.6	14.3

, respectively. Since the same membrane, reactor, and conditions were used in both cases, the results can be compared. For both reactions, CO₂ conversions are higher for PBMR than PBR. CO₂ conversion for MeOH synthesis is higher than for DME. A higher yield of the desired product is obtained for MeOH (23.7%) than for DME (14.3%) because fewer reactions are involved, and MeOH is an intermediate in the reaction.

3. Experimental Methods

3.1. Al-CMSM Preparation

Supported tubular composite alumina–carbon molecular sieves membranes (Al-CMSM) were prepared by the one-dip dry carbonization step method as described before [20]. The supports used are asymmetric α-Al₂O₃ tubes with ID: 7 mm, OD: 10 mm, and 100 nm average pore size on the surface, provided by Inopor^® (Scheßlitz, Germany). A solution was prepared by dissolving Novolac phenolic resin (as a source of carbon, 13%), ethylenediamine (0.6%), and formaldehyde (2.4%) in NMP (N-methyl-2-pyrrolidone (NMP). Next, the solution was heated at 90 °C for 90 min for polymerization (curing). Then, an aqueous solution containing boehmite nanoparticles with a particle size of 8–20 nm (alumisol provided by Kawaken Fine Chemicals, Singapore) was added (0.8%).

The support was dipped into the solution and dried at 90 °C overnight under continuous rotation. The coated support was carbonized under N₂ inert atmosphere (i.e., 200 mL·min⁻¹ of nitrogen) at 600 °C for 2 h using a heating rate of 1 °C·min⁻¹). The carbonized Al-CMSM selective layer was detached from the support due to the high viscosity of the dipping solution; therefore, the solution was diluted by adding NMP in a 1:1 ratio. After carbonization, a supported Al-CMSM without defect was obtained (N₂ permeance at room temperature 0.8 × 10⁻¹⁰ mol·m²·s⁻¹·Pa⁻¹)

Permeation Results

The membrane properties in terms of water permeance (${\wp }_{H_{2}O}$) and perm-selectivity ($S_{H_{2}O/i}$) measured at 200 °C are reported in

Table 1. Properties of the membrane of this work. All membrane properties are reported at 200 °C.

Membrane Property	CMSM Tested
${\wp }_{H_{2}O}$ (mol·Pa−1·m−2·s−1)	1.39 × 10−6
$S_{H_{2}O/H_2}$ (-)	2.06
$S_{H_{2}O/{CO}_2}$ (-)	2.37
$S_{H_{2}O/CO}$ (-)	3.99
$S_{H_{2}O/MeOH}$ (-)	2.39
$S_{H_{2}O/DME}$ (-)	2.61

.

The membrane prepared in this work generally has a very high permeance (i.e., ${\wp }_{H_{2}O}$ of the order of 10⁻⁶) and a lower $S_{H_{2}O/i}$, especially for the H₂O/CO₂, H₂O/CO, and H₂O/MeOH pairs. This is clearly due to the thinner carbon layer obtained due to the dilution of the polymeric precursor.

In particular, $S_{H_{2}O/H_2}$ is the smallest perm-selectivity, due to the very similar size of the two molecules. Indeed, despite capillary condensation phenomena, H₂O and H₂ are believed to compete for their access to the molecular sieving pores. Furthermore, $S_{H_{2}O/CO}$ is always greater than $S_{H_{2}O/{CO}_2}$, since CO₂ shows significant affinity to the membrane surface, such that, for some membranes, adsorption diffusion dominates over molecular sieving. On the other hand, $S_{H_{2}O/CO}$ and $S_{H_{2}O/MeOH}$ show the expected behaviour, achieving the target in most cases.

DME permeance through CMSM was measured and is reported, but the catalyst did not show any activity towards DME production, so the data is less interesting.

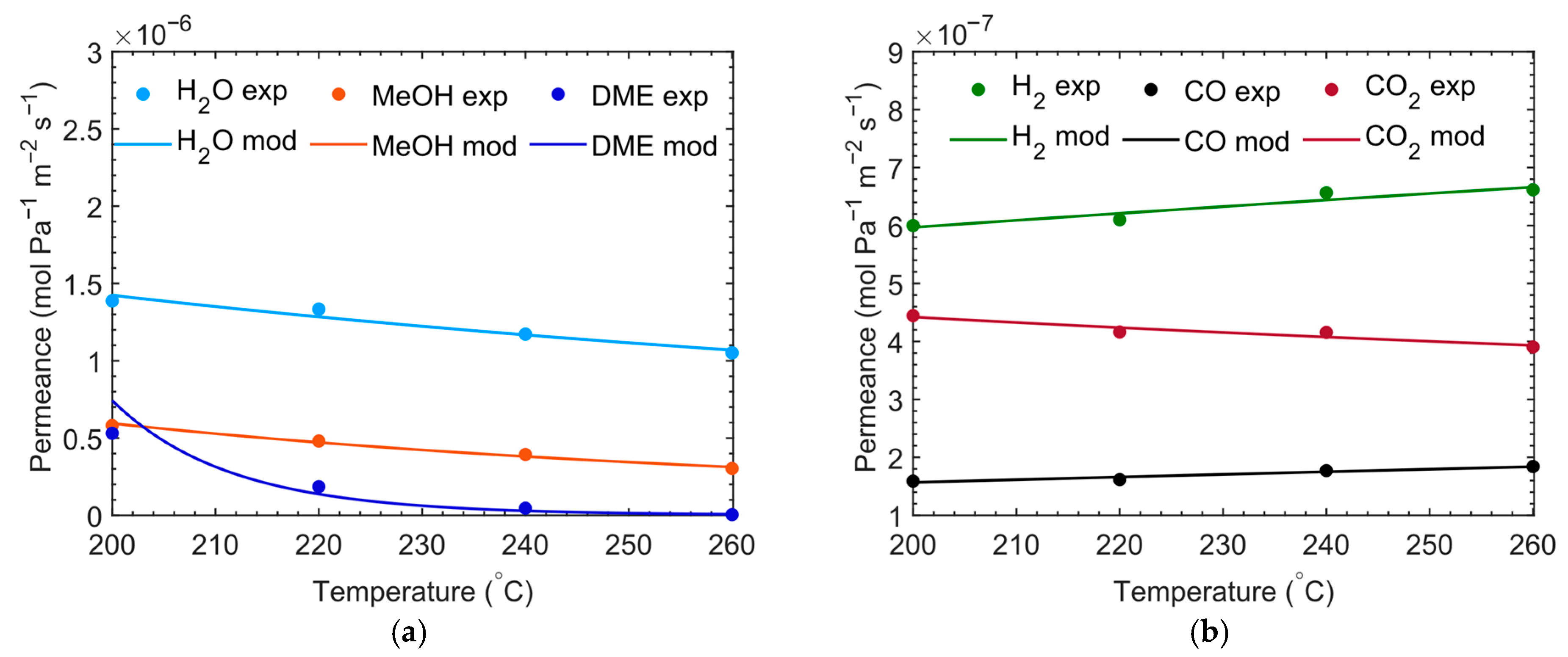

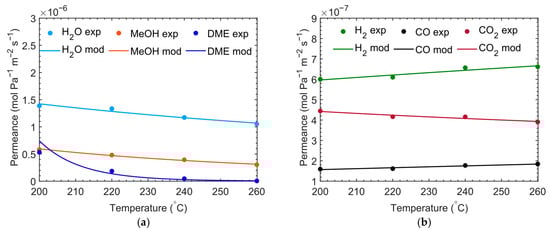

The membrane was also tested at different temperatures, and the results of permeation as a function of temperature are reported below (see Figure 6).

3.2. Methanol Synthesis

3.2.1. Catalyst

A commercial copper-based low-temperature water gas shift HiFUEL^® W220 Thermo Fisher Scientific (Eindhoven, The Netherlands) cylindrical pellets (5.4 × 3.6 mm) (CuZA), with a composition of CuO(52)/ZnO(30)/Al₂O₃(17) (wt%) (CuZA), were used as a catalyst. The catalyst was crushed and sieved; the 50–125 µm fraction was used. Detailed information on the characteristics of the catalyst was reported in our previous paper.

3.2.2. Packed-Bed Membrane Reactor (PBMR)

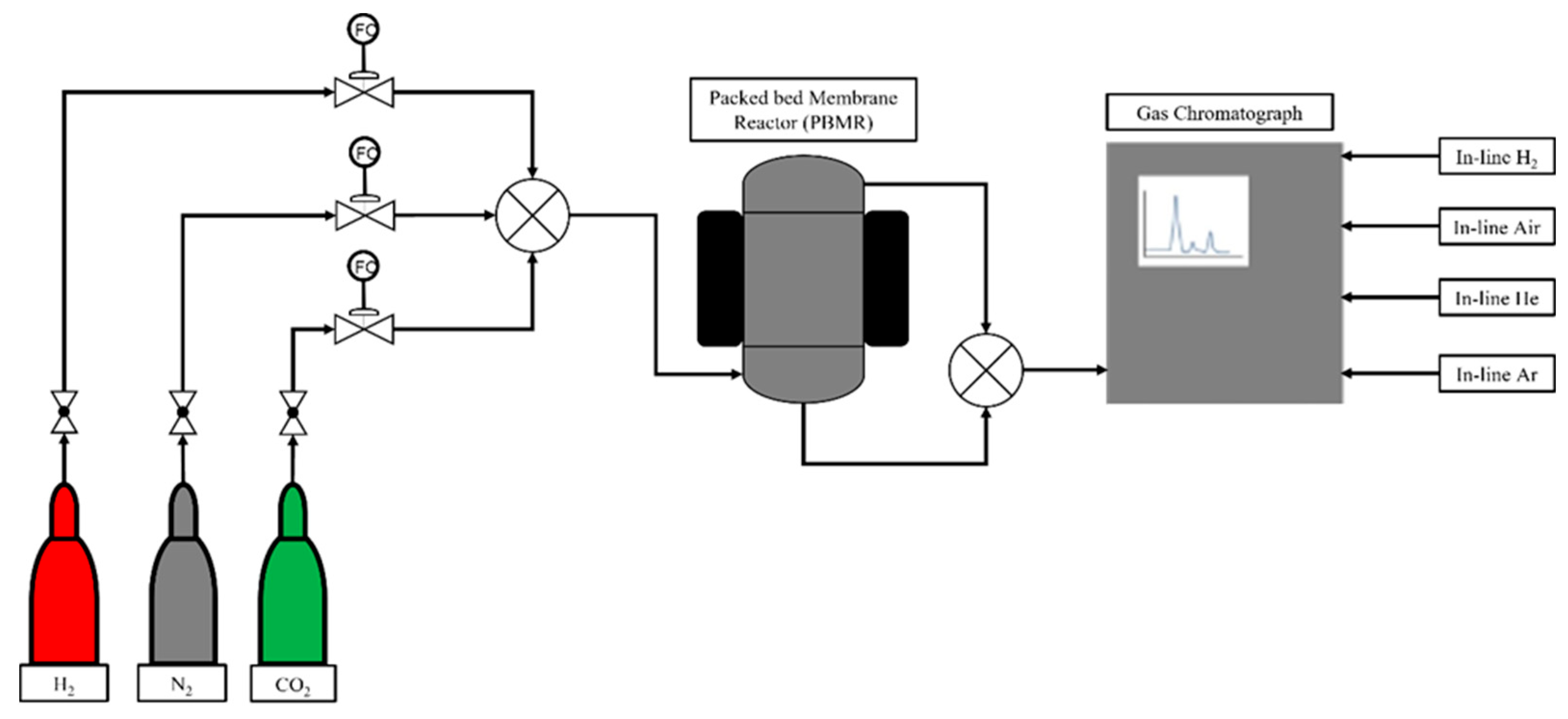

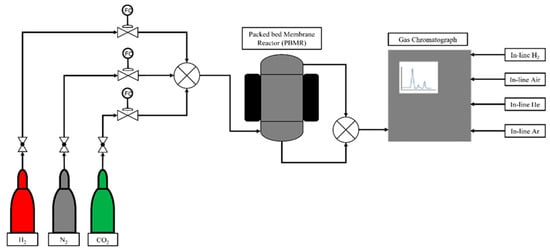

The schematic representation of the PBMR setup used for the reaction test is shown in Figure 7; the setup used is a modified version of that used for the direct synthesis of DME. The membrane reactor is a stainless-steel vessel (OD: 28.5 mm, L: 150 mm) with a top flange for the connection of the membrane tube. Both a sweep gas and a permeate line are connected to the inner side of the membrane via the top flange. The catalyst bed is placed in the outer space. Prior to the reaction test, (H₂, N₂, CO₂) single gas permeation tests were performed to compare the results obtained one year before for the DME synthesis. Before the reaction experiments, the catalyst was reduced in situ at 280 °C for 4 h by flowing a 50% H₂/N₂ mixture. N₂ is fed only during the reduction in the catalyst. The reactor is heated via an external jacket, and the temperature is controlled digitally through in situ controllers. While the packed bed covers the whole length of the membrane, the CuZA catalyst is in contact only with the membrane active layer. SiC was added to dilute the catalyst to avoid hot spot formation inside the reactor and achieve the desired catalytic bed ratio.

For all the methanol synthesis reactions, two separate feed lines were used, one for the reaction feed and one for the sweep gas feed. The following parameters were kept constant: (a) H₂/CO₂ molar ratio of 3, both in the feed to the reaction zone and inside the tube as sweep gas; (b) retentate pressure of 27 bars; and (c) GHSV (gas hourly space velocity) of 400 NL/hg_cat⁻¹. The variable parameters were (a) ratio of sweep gas to reacting gas flows (SW) 1, 3, 5, (b) pressure difference between retentate and permeate side (ΔP 0, 3 bar), and (c) reaction temperature (T) (200, 220, 240 °C). The operating conditions of the PBMR are shown in

Table 2. PBMR experiments with the corresponding operating conditions.

	Sweep Gas/Reacting Gas SW [-]	Pressure Difference ΔP [bar]	Temperature T [°C]
MR1	1	0	200
MR2	5	0	200
MR3	5	0	220
MR4	5	0	240
MR5	5	3	200
MR6	3	0	200

. The reaction performance in terms of CO₂ conversion (XCO₂), methanol, and CO yield (YMeOH and YCO, respectively) was calculated using the modelling methodology reported before.

3.2.3. Packed-Bed Reactor (PBR)

To study the effect of the removal of water by the Al-CMSM, the membrane was replaced by a metallic tube of the same size, thus preventing permeation.

4. Conclusions

The conversion and yields in PBMR are higher than in PR configuration, indicating the positive effect of the removal of water by the Al-CMSM. By increasing SW, XCO2, YMeOH, and YCO increase because the partial pressure of the gases in the permeated drops as the flow of the sweep gas increases.

As the temperature of reaction increases: (a) CO₂ conversion is enhanced because of the increase in the kinetic of reaction; the CO formation by RWGS increases due to endothermicity of the reaction, and MeOH is reduced because the CO₂ hydrogenation is exothermic.

CO₂ conversion and product yield are well above the thermodynamic limit, reflecting the concept of the PBMR with the removal of water. A model for MeOH synthesis was developed; the values obtained by modelling are similar to those obtained experimentally.

An extension of this work requires a dedicated techno-economic analysis to assess the influence of the sweep gas separation and recompression on the total economics of the process.
