Article

A Novel MoS2/TiO2/Graphene Nanohybrid for Enhanced Photocatalytic Hydrogen Evolution under Visible Light Irradiation

by
Tsung-Mo Tien
* and
Edward L. Chen
*
Coastal Water and Environment Center, College of Hydrosphere Science, National Kaohsiung University of Science and Technology, Kaohsiung City 81157, Taiwan
*
Authors to whom correspondence should be addressed.
Catalysts 2023, 13(8), 1152; https://doi.org/10.3390/catal13081152
Submission received: 13 June 2023 / Revised: 14 July 2023 / Accepted: 21 July 2023 / Published: 26 July 2023
(This article belongs to the Special Issue Noble-Metal Nanocatalysis: State of the Art and Future Challenges)
Browse Figures
Review Reports Versions Notes

Abstract

:
Graphene is regarded as a potential co-photocatalyst for photocatalytic hydrogen (H2) evolution, but its great photocatalytic ability requires tuning the band gap structure or design morphology of composites. In this study, MoS2/TiO2/graphene (MTG) nanohybrids were fabricated at varied ratios of graphene and served as co-photocatalysts for H2 evolution. The results exhibited that the H2 evolution of MTG-10 obtained is much better than others. The amount of hydrogen evolution was high, which was found to be 4122 μmol g−1 of H2 in 5 h with photocatalytic systems, which is almost 7.5~13.4 times greater than that of previous pristine MoS2 (548 μmol g−1) and TiO2 (307 μmol g−1) samples, respectively. This is significantly attributed to the graphene as a bridge of MoS2/TiO2 and the incorporation of graphene, suggesting the synergistic effect of the rapid electron-transferring of photoinduced electrons and holes and the powerful electron-collecting of graphene, suppressing the charge recombination rate.

1. Introduction

The important environmental pollution and energy problem generated through fossil fuels has received a lot of attention recently. A photocatalytic activity system can employ reusable solar energy to create pure H2 energy and cause environmental remediation [1], which is a favorable process in figuring out environmental and energy issues [2]. As a clean substitute energy, H2 has attracted more attention because of its excellent energy content and environmental friendliness. Many studies have been performed on the improvement of better powerful semiconductor photocatalysts for H2 evolution [3]. Owing to a suitable band gap structure and distinctive chemical and thermal stability, graphene is considered to be a good co-photocatalyst when it merges with other materials to form heterojunctions [4,5]. A heterostructure’s photocatalytic is usually expressed as the operation in which reactions occur when a photocatalyst (like a semiconductor) absorbs enough solar energy to produce oxidative and reductive species, without the photocatalyst being consumed [6]. In the field of photocatalysts, the build-up of economical and useful photocatalytic samples for clean energy generation and environmental remediation has become one of the most significant issues. In particular, photocatalysts have issues of poor charge carrier separation rates and fast recombination efficiency. Now, solar H2 serves as a potentially clean and renewable energy source of the future, owing to its good combustion capability, its high energy density, its non-toxicity combustion by-products, and the ease of switching to varied kinds of energy [7]. The promotion of capable photocatalysts has attracted expanded attention for their significant utilization in H2 evolution through water splitting with visible light irradiation [8]. Previously, photoinduced electrons and hole pairs have been found to diffuse to the photocatalyst surface, where they contribute to the oxidation and reduction reactions of water (H2O) molecules [9,10]. During photocatalytic operation, the H2O decomposition step is carried out via solar energy, which assists in the separation of charge carriers [11]. Therefore, these processes merge the benefits of photocatalytic and solar energy. Using photocatalysts in the form of nanohybrids further avoids the obstacles associated with the purification and separation of photocatalysts [12].
As a normal molybdenum disulfide, MoS2, with a sandwich configuration of three stacked atomic layers (S-Mo-S), has been proven to be a superior photocatalyst towards H2 evolution [13]. Pristine MoS2, as a photocatalyst, has two existing faults: poor intrinsic conductivity and few active sites. Furthermore, titanium dioxide (TiO2) has been the photocatalyst with the most potential due to it being not harmful and inexpensive and having a great photocatalytic capability and good chemical stability [14]. In addition, whereas TiO2 prohibits band widths that are too vast and conducts quick charge carriers recombination [15], it is not enough for the efficient and quick evolution of H2 in practical utilizations. Consequently, how to enhance the solar light harvest efficiency of TiO2 and the separation performance of photo-response charge carriers is of interest to researchers. Recently, the carbon-based photocatalyst graphene, with excellent electron transport and reception capacity, has been broadly affected in the photocatalytic activity owing to the conjugated π structure of the carbon structure [16]. The introduction of graphene can improve the photocatalytic efficiency of photocatalysts and the application of visible light energy [17]. Graphene also has photosensitization, which can enhance electrons in the conduction band of the photocatalyst, improving the electron–hole density, forming valid electrons and a holes separation rate, and making graphene play a positive role in heterojunction photocatalysts [18,19]. Recently, several works about the suitable and useful photo-assisted deposition process for building an MoS2/TiO2 heterojunction have been published [20], illustrating the great photocatalytic efficiency of MB and 2-CP removal with visible light [21]. Hence, the main topic is to investigate high-performance nanohybrids with proper band gap energy and a low carriers recombination efficiency of photo-response electron–hole pairs.
In this work, the graphene-added MoS2/TiO2 heterojunction samples have been fabricated successfully for the first time via facile hydrothermal technology. In addition, the photocatalytic of the H2 evolution efficiency of the synthesized MoS2/TiO2/graphene (MTG) nanohybrids was enhanced in relation to MoS2 and TiO2. The Z-scheme of MTG nanohybrids with tense interfaces enhanced the charge carrier separation capability and possessed the great reduction efficiency of photoinduced electrons. Finally, the MTG nanohybrids exhibited an excellent photocatalytic hydrogen production rate (HER), with light illumination and clean energy harvesting applications.

2. Results

2.1. Microstructure Characterization

X-ray diffraction pattern (XRD) tests were collected to check the crystal structure of the MoS2, TiO2, and MoS2/TiO2/graphene (MTG) nanohybrids. As displayed in Figure 1a, the diffracted peaks at 14.4°, 32.7°, 39.5°, 44.2°, 49.8°, and 60.2° corresponding to the (002), (100), (103), (006), (105), and (110) crystal plane for all samples, exhibit the MoS2 with a hexagonal structure (PDF 73-1503) [22]. The secondary peaks at 25.3°, 37.7°, 47.9°, 53.9°, 55.1°, and 62.9°, corresponding to the (101), (004), (200), (105), (211), and (204) crystal plane in the MTG nanohybrids photocatalysts, were obtained for the anatase structure TiO2 phase (PDF 21-1272) loading on the surface of MoS2 as the first heterostructure (Figure 1a) [23]. As exhibited in Figure 1a, the diffraction peaks of the graphene were located at 25.5° of the XRD pattern [24]. Afterwards, the diffracted peaks did not appear in the XRD analysis of the MTG nanohybrids. This is caused by the dose of graphene loaded on the surface of the MoS2/TiO2 nanohybrid being lower than the detection limit of the XRD pattern. The UV–vis spectrum was studied for the MTG-2, MTG-5, MTG-10, and MTG-20 samples (Figure 1b). The absorbance of the MTG-20 nanohybrid, compared to that of MTG-2, MTG-5, and MTG-10, was significantly improved by adding the graphene. These optical properties in the MTG-20 nanohybrid displayed more visible light absorbance than those of the MTG-2, MTG-5, and MTG-10, causing an improved dose of photoinduced electron and hole pairs while enhancing the charge carriers’ mobility [25,26]. The optical absorption edge of the MTG-20 nanohybrid is 525 nm. The deposition of graphene as a co-photocatalyst with a narrow band gap onto MoS2/TiO2 significantly enhanced the absorption of solar light owing to the heterostructure development of graphene with MoS2/TiO2. Adding graphene also improved the absorption of solar light owing to the construction of a double heterostructure of graphene with MoS2 and TiO2. The band structures of the samples were estimated by the Kubelka–Munk (M-K) equation [27], αhv = A(hv − Eg)1/2, and acquired the corresponding band gap energy (Eg), as exhibited in Figure 1c, in which α, hv, A, and Eg are the absorption coefficient, photon energy, a constant, and the direct band gap (eV), respectively. The band gap values of the as-fabricated heterojunction that were calculated by the UV–vis absorption edges via the M-K equation exhibited that 2.41 eV of MTG-2 was decreased to 2.26 eV of MTG-20 after increasing with graphene. Therefore, it is indicated that MTG nanohybrid photocatalysts possess favorable band gap energy for absorbing solar light and approaching the transition from H+ to H2.
The morphology of fabricated photocatalysts was received via SEM tests. As displayed in Figure 2a, the MoS2 photocatalyst shows large sheets with a relatively flat surface and an average dimension of several micrometers. The morphology of TiO2 photocatalysts has developed particles with an average dimension of 2~3 μm, which have been contained within the spheres in Figure 2b. The morphology of the MTG-10 nanohybrid exhibits only alike nanoparticles in Figure 2c. Hence, the obtained photocatalyst in the MTG-10 nanohybrid structure could be referred to the MoS2 and TiO2. TEM images are recorded to study the specific structure of the fabricated nano-scale structures and their composites. Figure 2d displays the TEM tests of the MTG-10 nanohybrid. Fabricated MTG-10 nanohybrids are uniform in the sizes of the nanoparticles (~15–18 nm). Figure 2e exhibits a histogram of the diameter of nanohybrids received from the TEM microscopy test. The samples distribution histogram was achieved via 200 samples from the TEM micrograph. The results referred to the log–normal distribution fit with an average particle size of 17 nm and a standard deviation of 0.24. The elemental composition distribution of MTG-10 nanohybrids was studied through energy dispersive spectra (EDS) element mapping tests in Figure 2f–k. The results implied the presence of Mo, S, Ti, O, and C elements in the MTG-10 nanohybrids, and it is apparent that the elements were distributed uniformly. The height coincidence of elemental distribution could be obtained in the Mo element and Ti element, which verifies the preparation of MTG nanohybrids. Then, the height coincidence was observed for the S element and the C element, mostly referring to the graphene added. Despite the pronounced height coincidence, however, an evident diverse area could be noted through comparing the S element with the C element, which was certainly consistent with the distribution distinction between the Mo element and the Ti element at the same location. Furthermore, the well-fabricated MTG nanohybrids were regularly anchored all over the heterojunction interface and onto the surface of the nanohybrid itself, establishing the construction of the nanohybrid interface [28]. The Fourier Transform Infrared (FT-IR) curves of the MoS2, TiO2, and MTG-10 samples are characterized to check the interaction in the heterostructures in Figure 2l. The total patterns of samples are similar, suggesting that the presence of graphene formation in the MTG-10 samples does not significantly affect the basis construction of the MoS2 and TiO2. The feature peak of the aromatic ring plane vibration could be noted from 1150 cm−1 to 1800 cm−1.
We used the X-ray photoelectron spectroscopy (XPS) to study the structure and surface element composition of different catalysts in Figure 3. The Mo 3d, S 2p, Ti 2p, O 1s, and C 1s binding energies were related to the C 1s peak at 284.9 eV. From the survey spectra in Figure 3a, the binding energies of the electrons of the Mo, S, Ti, O, and C elements could be obtained. The feature peaks assigned at 229.46 eV and 232.65 eV correspond to the Mo 3d5/2 and Mo 3d3/2 [29], respectively, as exhibited in the high-resolution XPS spectrum of Mo 3d in Figure 3b. In addition, Figure 3c reveals the deconvolution of the high-resolution S 2p spectra in the nanohybrid. It displayed two major feature peaks at 162.37 and 163.49 eV, referring to S 2p 3/2 and S 2p 1/2, respectively [29]. Furthermore, the XPS spectrum of Ti represents two peaks at 459.68 and 464.95 eV, referring to Ti 2p 3/2 and Ti 2p 1/2 of the MTG-10 sample (Figure 3d), respectively [30]. The Gaussian peak fitting of O 1s in the nanohybrid exhibited three varied peaks at 530.98, 531.92, and 532.76 eV (Figure 3e) and adsorbed oxygenated species, respectively. The high-resolution spectra of C 1s in the MTG-10 photocatalyst (Figure 3f) reveal three feature peaks at 284.18, 284.95, and 285.61 eV, respectively [31].

2.2. Photoelectrochemical Behavior

The separation and transport of photo-response charge carriers in photocatalysts are of intense significance [32]. Mainly, photocatalysts with better photocatalytic efficiency are normally practical for the valid transfer and separation of photo-response charge carriers. Primarily, photoluminescence spectrum (PL) and EIS tests were performed to explore the separation and recombination behavior of photo-response electrons in semiconductors. The peak intensity in the PL spectrum reflects the recombination capability of photo-response electrons and holes. As expected, the PL intensities order was MTG-2 > MTG-5 > MTG-20 > MTG-10, implying that the recombination ability of electron–hole pairs diminished gradually. The lesser the PL intensity, the lesser the recombination rate and, therefore, the greater the separation performance [32,33]. Figure 4a shows that the primary PL feature peak for MTG-10 is located at nearly 500 nm, which refers to the transition between its states of the band gap and reveals an excellent electron–hole recombination efficiency. Compared with MTG-2, MTG-5, and MTG-20, the PL feature peak intensity of MTG-10 decreases obviously. Especially, the PL feature peak intensity of MTG-10 is the lowest. These PL spectrum analyses verify that the MTG-10 nanohybrid can practically transfer photo-response charge carriers to inhibit their recombination rate. The transportation of photo-response charge carriers has been studied via electrochemical impedance spectroscopy (EIS). In Figure 4b, the Nyquist semicircle radius of the MTG-10 nanohybrid is obviously smaller than that of MTG-2, MTG-5, and MTG-20, suggesting that the transmission resistance of photo-response charge carriers in the MTG-10 sample is the smallest among these photocatalysts. The results demonstrate that the formed nanohybrid can enhance transport photo-response electron–hole pairs, which is very efficient in promoting the photocatalytic efficiency of the photocatalysts [34,35]. The photocatalytic efficiency of the MTG nanohybrid was studied via measuring the photocurrent responses at 0 V in Figure 4c [36]. It is clear that the jointing of graphene to MoS2/TiO2 improved the photocatalytic efficiency, and the MTG nanohybrid exhibited the best photocurrent density value of 37.5 μA cm−2 compared to the others. This suggests its improved photocatalytic capability. Otherwise, MTG-2 displayed an insignificant photocurrent signal, which confirms its lower photocatalytic activity in Figure 4c. As for the transient photocurrent response tests results, the photocurrent intensities of the as-fabricated samples exhibited the order of MTG-2 <MTG-5 < MTG-20 < MTG-10. The photocurrent density value of MTG-10 is 3.24-fold that of the MTG-2 sample, 2.35-fold that of the MTG-5 sample, and 1.04-fold that of the MTG-20 sample. Stability is a critical factor for using a material as a photocatalyst. Figure 4d describes the variety of photocurrent responses of the MTG-10 nanohybrid with the visible light irradiation time. Particularly, the photocurrent density exhibited no apparent decrease from its initial value after irradiation with visible light for 800 s. This suggests the improved photostability of the nanohybrid. All of the above results obviously verify that the photo-response charge carriers in the MTG-10 nanohybrid could be successfully transferred and separated.
To research the active radicals under the photocatalytic reaction system, the electron paramagnetic resonate (EPR) spectrum of the MTG-10 nanohybrids was recorded with visible light with various illumination times, and the results are shown in Figure 5. No feature signal could be obtained with dark conditions. During the visible light response, four sets of antisymmetric feature signals with intensities of 1:2:2:1 of MTG-10 nanohybrids could be received. The four signals are the feature peaks of the DMPO-•OH adducts. With an extended irradiation time, the feature peak intensities of MTG-10 nanohybrids display an insignificant increase, which suggests that the number of •O2− radicals generated has enhanced [37]. The EPR results indicate that •OH radicals are the major active species of the MTG-10 nanohybrid in the photooxidation activity with the visible light response. The feature peak intensity of the MTG-10 nanohybrid is much stronger than that of the sample with the increase in irradiation time, which demonstrates that more •OH radicals could be generated with 60 s than with 10 s under the same conditions, and this is assigned to the photoinduced electron migration performance of the as-fabricated MTG-10 nanohybrid. The feature peak of DMPO–•O2− can roughly be received, which indicates that •OH is the dominant active radical of this photocatalytic system. With the prolongation of the visible light irradiation time, the signal intensities of EPR gradually enhance, while the signal intensities of •OH gradually increase, suggesting that the MTG sample can oxidize water (H2O) and also convert it to •OH radicals. Owing to the better redox efficiency of •O2− radicals and •OH radicals, H2O decomposition and H2 production could be achieved. Based on the above results, a nanohybrid is developed between graphene and MoS2/TiO2 in the MTG-10 sample. The addition of graphene can improve the photo-response charge carriers’ transfer ability in the heterostructure and extend the photo-response electron lifetime to enhance the separation performance of the photoinduced electron–hole pairs [38]. Graphene in the MTG-10 heterojunction forms a stable Z-type system, which enhances the visible light operation performance [39].

2.3. Hydrogen (H2) Evolution Behavior

The photocatalytic H2 evolution effect of MoS2, TiO2, and MTG nanohybrids was performed with visible light, with triethanolamine (TEOA) as the sacrificial reagent. As exhibited in Figure 6a, the H2 production efficiency of MTG-10 improves by 7.6 and 13.5 times compared to those of the MoS2 and TiO2 samples, respectively. Furthermore, the trend in the H2 evolution efficiency of the MTG nanohybrids exhibits a ‘‘sharp” form, implying that graphene influences the photocatalytic capability of the MTG nanohybrids (Figure 6b). When the addition of graphene was excessive, the graphene aggregated on the surface of the sphere-like MTG nanohybrids, suggesting an increase in the surface ruggedness of MTG nanohybrids and hence prohibiting the internal diffusion of the sacrificial reagent [40]. Excessive graphene may develop recombination centers for photoinduced charge carriers and then decrease the photocatalytic activity. Further, a slight amount of graphene will produce the interface between the MoS2 and TiO2, limited to migrating and separating the photo-response electron–hole pairs, which cannot efficiently suppress the recombination rate of photo-response charge carriers. Afterward, we studied the performance of MTG-10 in relation to TEOA at various pH values. The H2 production in the TEOA solution at pH = 7, 8, 9, 10, 11, and 12 is exhibited in Figure 6c. As the solution alters from pH 7 to pH 12, the efficiency of H2 production further presents a ‘‘sharp” mode. The H2 production is the best at pH 9. This is caused by the diminished concentration of H+ in the solution being negative to H2 production in terms of thermodynamic kinetics and the electrostatic repulsion between the reaction solution and graphene added [41]. In the photocatalytic activity, graphene is adsorbed on the surface of the nanohybrids so that this graphene can contribute to the photocatalytic system. Therefore, it is required to explore the optimal amount of the photocatalyst included in the photocatalytic process. As exhibited in Figure 6d, with the addition of photocatalysts, the efficiency of H2 production enhances gradually until the amount of the photocatalyst approaches 40 mg. After that, the H2 production reaction is gradually suppressed with an increasing photocatalyst amount. This suggests that it is usefully applied when the amount of the photocatalyst is suitable. Once the amount of the photocatalyst exceeds 40 mg, excess photocatalyst collects in the system, forbidding the photon adsorption and practical electron migration of the sample and then reducing the number of photons on the surface of the sample, implying reduced H2 evolution operation [42]. To investigate the stability of photocatalysts, an H2 production cycle experiment was achieved. As exhibited in Figure 6e, the efficiency of H2 evolution in the fifth cycle test was slightly decreased compared with that in the first cycle. Figure 6f shows when the sacrificial agent was methanol and ethanol, the hydrogen production activity significantly decreased, with methanol resulting in the highest hydrogen production activity of only 384.3 μmol g−1 h−1, indicating that these alcohols had inferior hole-capture abilities compared with TEOA. The H2 evolution rate over the MTG-10 photocatalyst in methanol, ethanol, and TEOA aqueous solutions were 384.3, 327.6, and 824.6 μmol g−1 h−1, respectively. The H2 production performance of MTG-10 with 3.0 wt.% and 1.0 wt.% Pt as cocatalysts was 382.3 and 484.5 μmol g−1 h−1, as shown in Figure 6g. For MTG-10 with 1.0 wt.% Pt, the H2 production performance was better than that of MTG-10 with 3.0 wt.% Pt as a cocatalyst. In addition, the H2 production performance of MTG-10 without a Pt of 824.6 μmol g−1 h−1 was approached. It is implied that MTG-10 indicates the optimal efficiency, and the suggested H2 production performance of MTG-10 is 2.2- and 1.7-fold better than that of MTG-10 with 3.0 wt.% Pt and MTG-10 with 1.0 wt.% Pt, respectively. At the end (fifth) of the cycle experiment, the XRD analysis of the nanohybrid was performed again. As exhibited in Figure 6h, the positions of the XRD feature signals before and after cycling do not obviously alter, suggesting that the photocatalyst has superior cycle stability during this system.
According to the abovementioned results, a possible photocatalytic H2 production mechanism can be proposed (Figure 7). During the visible light activity, photoexcited electrons in both TiO2 and MoS2 are induced from VB to their CB, respectively, with holes moved on their VB. In addition, donated through the vigorous interface conjugation between TiO2 and MoS2, the electrons transport from the CB of TiO2 to the VB of MoS2 and suppress the photoexcited holes because of a Z-scheme charge carriers transport process. Additionally, owing to the low Fermi level of graphene, the formed Schottky junction between MoS2 and TiO2 could further accelerate the charge transfer and inhibit the electron–hole recombination rate. Consequently, these photoinduced charges can be transferred to the surface and conduct the H2 production more successfully. The interfacial graphene, which acts as an interfacial bridge, can remarkably accelerate the separation of photoexcited electrons and holes, resulting in a higher charge transfer efficiency between TiO2 and MoS2. In this work, we indicated that graphene, as a conductive “bridge”, can improve the valid charge carriers separation efficiency and be a useful interfacial charge transfer path [43]. This result provides a basis for the realization of the design of photocatalysts for H2 production and for enhancing the stability of the heterojunction to photocorrosion.

3. Materials and Methods

3.1. Preparation of Photocatalysts

All reagents were purchased from Sigma Aldrich (St. Louis, MO, USA), with no subsequent decontamination. Sodium dihydromyldimolate (Na2MoO4 2H2O), L-cysteine (C3H7NO2S), titanium butoxide (Ti(OBu)4, 98%), 2-propanol, tetrabutylammonium hydroxide (TBA), and graphene were supplied from Sigma Aldrich.

3.2. Synthesis

The fabrication of nanohybrids and the hydrothermal process are illustrated in Scheme 1. Briefly, 1.2 mmol of Na2MoO4 2H2O was mixed with 20 mL of DI water, with vigorous stirring for 40 min (Precursor A solution). TiO2 nanoparticles were fabricated, adopting the hydrothermal route [44]. In this work, a 0.5 M titanium butoxide (Ti(OBu)4) solution in 2-propanol was mixed in DI water, with magnetic stirring for 50 min (Precursor B solution). The received residue was filtered to obtain the TiO2 product. The TiO2 product was added in tetrabutylammonium hydroxide (TBA) and dilute HNO3 solutions and heated at 80 °C for 30 min with magnetic stirring. Subsequently, 2.4 mmol of L-cysteine and 2.2 mmol of TiO2 were delivered to 30 mL of DI water for 30 min, with magnetic stirring (Precursor C solution). Also, HCl (0.1 mL) and varied dosages (2, 5, 10, and 20 mg) of graphene were removed from the abovementioned two solutions with fixed stirring to obtain various ratios of MoS2/TiO2/graphene (MTG) (Precursor D solution). Next, the mixed suspension was transferred to a 50 mL Teflon-lined stainless-steel autoclave for hydrothermal treatment at 180 °C for 16 h. The obtained products were expressed as MTG-2, MTG-5, MTG-10, and MTG-20, respectively, based on the sum of graphene.

3.3. Characterization

The crystal structure of the samples was studied by X-ray diffraction (XRD) Bruker D8 Advanced (Billerica, MA, USA) with Cu Kα radiation. The microstructures and morphologies of the samples were checked by a scanning electron microscope (SEM, ZEISS AURIGA, Oberkochen, Germany) and transmission electron microscope (TEM, JEOL JEM-2100F, Tokyo, Japan). Electron paramagnetic resonance (EPR, Munich, Germany) was used as the trapping agent to trap the hydroxyl radical (∙OH) or the superoxide radical (∙O2–) on Bruker A300 under visible light. The UV–vis absorption spectra were recorded by a UV–vis spectrometer (Hitachi UV-4100, Tokyo, Japan). X-ray photoelectron spectroscopy (XPS) was used on a Thermo ESCALAB spectrometer (XPS, Thermo Fisher Scientific, Waltham, MA, USA) with an Al Kα source.

3.4. Photocatalytic Hydrogen Evolution Tests

The photocatalytic H2-generated activity of the as-obtained nanohybrid was further measured by GC 7890 gas chromatography with a TCD detector from an aqueous solution. The types and concentrations of the sacrificial agent are 10 vol% triethanolamine (TEOA) and the equimolar amount of organic alcohol, including methanol and ethanol. Mostly, the photocatalytic H2 production reactions of the nanohybrids were achieved in a photocatalytic system composed of a double-walled quartz reaction vessel combined with a close gas rotation. Subsequently, a Xe lamp of 350 W with simulated solar irradiation AM 1.5 G (100 mW/cm2) was used as a light source. Visible light (410 < λ < 790 nm) was used as an irradiation source, which was achieved by using both a 790 nm cutoff filter (short-wave-pass) and a 410 nm cutoff filter (longwave-pass). In all cases, the reaction temperature was contained at 12 °C by flowing cold water, adopting a flowing water jack. A total of 20 mg of the sample was spread in a mixture of 100 mL of water and 10 mL of methanol. During this photocatalytic activity, argon gas as the carrier gas was used through the reaction merger under the dark to eliminate oxygen and ensure the anaerobic status. After the removal of air with a highly pure argon gas, the light was turned on for 60 min without photocatalysts. It is properly stated that the reaction vessel was not vacuumed. Stability tests were performed under the same situation.

3.5. Photoelectrochemical (PEC) Analysis

The photoelectrochemical (PEC) tests of the samples were recorded by PEC workstations, consisting of electrochemical impedance spectroscopy (EIS) and a transient photocurrent response. The PEC measurement was analyzed on a three-electrode electrochemical workstation, where the reference electrode was a saturated calomel electrode, a Pt electrode was the counter electrode, and the working electrode was composed of a conductive glass substrate (FTO) coated with photocatalysts. The preparation process for the working electrode is as follows: 10 mg of the sample was added in a mixture solution of 1 mL of alcohol and 0.1 mL of Nafion. The mixture solution was then coated on an FTO substrate with an effective area of 1.5 × 1.5 cm2 and dried for 10 h in the air. EIS was recorded at a voltage extent of 10 mV. The photocurrent response was performed within 600 s under a 350 W xenon lamp as the visible light source, and the wavelength was arranged to above 420 nm via a filter.

4. Conclusions

In summary, the MoS2/TiO2/graphene (MTG) nanohybrids with heterojunction interfacial contact were built via a facile hydrothermal process. We established the visible light irradiation activity and the higher contribution to the H2 production of MTG nanohybrids. The charge carriers with high-energy photon excitation can be utilized via the surface defects of the MTG nanohybrid, which is achieved as the photocatalytic central and accelerates the H2 production process. Therefore, the H2 production efficiency of the MTG nanohybrids was obviously enhanced to 824.6 μmol g−1 h−1 with visible light irradiation, which was 13.5-fold and 7.6-fold greater than that of pristine TiO2 (61.4 μmol g−1 h−1) and MoS2 (109.6 μmol g−1 h−1), respectively. The matched energy band structure between graphene and MoS2/TiO2 enhances the separation ability of photo-induced charge carriers and restrains the recombination of hole–electron pairs. This is significantly attributed to the graphene as a bridge of MoS2/TiO2 and the incorporation of graphene, suggesting the synergistic effect of the rapid electron-transferring of photoinduced electrons and holes and the powerful electron-collecting of graphene, suppressing the charge recombination rate. The current work not only provides insight into a graphene-bridged heterojunction photocatalytic for H2 evolution but also motivates people to actively explore novel heterojunctions with various photocatalysts towards various applications.

Author Contributions

Writing—original draft, Methodology, T.-M.T.; Writing—review and editing, E.L.C.; Data curation, Formal analysis, T.-M.T.; Funding acquisition, T.-M.T.; Writing— review and editing, T.-M.T.; Validation, E.L.C.; Resources, T.-M.T.; Formal analysis, Data collection, E.L.C.; Conceptualization, Writing—review and editing, E.L.C.; Supervision, Investigation, E.L.C.; Supervision, Project administration, T.-M.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The MOST and the NKUST are gratefully acknowledged for their general support. The authors gratefully acknowledge the use of HRTEM equipment belonging to the Instrument Center of National Cheng Kung University.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Jang, D.; Choi, S.; Kwon, N.H.; Jang, K.Y.; Lee, S.; Lee, T.W.; Hwang, S.J.; Kim, H.; Kim, J.; Park, S. Water-Assisted Formation of Amine-Bridged Carbon Nitride: A Structural Insight into the Photocatalytic Performance for H2 Evolution under Visible Light. Appl. Catal. B Environ. 2022, 310, 121313. [Google Scholar] [CrossRef]
  2. Zou, Y.; Yang, B.; Liu, Y.; Ren, Y.; Ma, J.; Zhou, X.; Cheng, X.; Deng, Y. Controllable Interface-Induced Co-Assembly toward Highly Ordered Mesoporous Pt@TiO2/g-C3N4 Heterojunctions with Enhanced Photocatalytic Performance. Adv. Funct. Mater. 2018, 28, 1806214. [Google Scholar] [CrossRef]
  3. Hayat, A.; Sohail, M.; Jery, A.E.; Al-Zaydi, K.M.; Raza, S.; Ali, H.; Al-Hadeethi, Y.; Taha, T.A.; Din, I.U.; Khan, M.A.; et al. Recent advances in ground-breaking conjugated microporous polymers-based materials, their synthesis, modification and potential applications. Mater. Today 2023, 64, 180. [Google Scholar] [CrossRef]
  4. Samaniego-Benitez, J.E.; Jimenez-Rangel, K.; Lartundo-Rojas, L.; García-García, A.; Mantilla, A. Enhanced Photocatalytic H2 Production over g-C3N4/NiS Hybrid Photocatalyst. Mater. Lett. 2021, 290, 129476. [Google Scholar] [CrossRef]
  5. Chen, L.J.; Chuang, Y.J. Directly electrospinning growth of single crystal Cu2ZnSnS4 nanowires film for high performance thin film solar cell. J. Power Sources 2013, 241, 259. [Google Scholar] [CrossRef]
  6. Shen, L.; Qi, S.; Jin, Y.; Li, C.; Cheng, J.; Wang, H.; Ma, H.; Li, L. α-NiS-β-NiS Growth on Cd0.5Zn0.5S Formed Schottky Heterojunctions for Enhanced Photocatalytic Hydrogen Production. New J. Chem. 2022, 46, 17469–17478. [Google Scholar] [CrossRef]
  7. Mo, Z.; Xu, H.; Chen, Z.; She, X.; Song, Y.; Lian, J.; Zhu, X.; Yan, P.; Lei, Y.; Yuan, S.; et al. Construction of MnO2/Monolayer g-C3N4 with Mn Vacancies for Z-Scheme Overall Water Splitting. Appl. Catal. B Environ. 2019, 241, 452–460. [Google Scholar] [CrossRef]
  8. Wang, Y.; Wang, L.; Xiao, Z.; Liu, S.; Hu, J.; Long, X.; Wu, L.; Sun, C.; Chen, K.; Jiao, F. Construction of Z-Scheme Heterojunction of (BiO)2CO3/ZnFe-LDH for Enhanced Photocatalytic Degradation of Tetracycline. J. Alloys Compd. 2022, 900, 163450. [Google Scholar] [CrossRef]
  9. Liu, H.Y.; Niu, C.G.; Guo, H.; Liang, C.; Huang, D.W.; Zhang, L.; Yang, Y.Y.; Li, L. In Suit Constructing 2D/1D MgIn2S4/CdS Heterojunction System with Enhanced Photocatalytic Activity towards Treatment of Wastewater and H2 Production. J. Colloid Interface Sci. 2020, 576, 264–279. [Google Scholar] [CrossRef]
  10. Chen, L.J.; Chuang, Y.J.; Chen, C. Surface passivation assisted lasing emission in the quantum dots doped cholesteric liquid crystal resonating cavity with polymer template. RSC Adv. 2014, 4, 18600. [Google Scholar] [CrossRef]
  11. Qiu, Y.P.; Shi, Q.; Zhou, L.L.; Chen, M.H.; Chen, C.; Tang, P.P.; Walker, G.S.; Wang, P. Ni Pt Nanoparticles Anchored onto Hierarchical Nanoporous N-Doped Carbon as an Efficient Catalyst for Hydrogen Generation from Hydrazine Monohydrate. ACS Appl. Mater. Interfaces 2020, 12, 18617–18624. [Google Scholar] [CrossRef]
  12. Jiang, K.; Xu, K.; Zou, S.; Cai, W.B. B-doped Pd catalyst: Boosting room-temperature hydrogen production from formic acidformate solutions. J. Am. Chem. Soc. 2014, 136, 4861–4864. [Google Scholar] [CrossRef]
  13. Li, Y.; Wang, H.; Xie, L.; Liang, Y.Y.; Hong, G.S.; Dai, H.J. MoS2 Nanoparticles Grown on Graphene: An Advanced Catalyst for the Hydrogen Evolution Reaction. J. Am. Chem. Soc. 2011, 133, 7296–7299. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Hayat, A.; Sohail, M.; Jery, A.E.; Al-Zaydi, K.M.; Raza, S.; Ali, H.; Ajmal, Z.; Zada, A.; Taha, T.A.; Din, I.; et al. Recent advances, properties, fabrication and opportunities in two-dimensional materials for their potential sustainable applications. Energy Storage Mater. 2023, 59, 102780. [Google Scholar] [CrossRef]
  15. Singh, R.; Dutta, S. A review on H2 production through photocatalytic reactions using TiO2/TiO2-assisted catalysts. Fuel 2018, 220, 607. [Google Scholar] [CrossRef]
  16. Shaikh, Z.A.; Laghari, A.A.; Litvishko, O.; Litvishko, V.; Kalmykova, T.; Meynkhard, A. Liquid-Phase Deposition Synthesis of ZIF-67-Derived Synthesis of Co3O4@TiO2 Composite for Efficient Electrochemical Water Splitting. Metals 2021, 11, 420. [Google Scholar] [CrossRef]
  17. Li, X.Y.; Shao, J.; Li, J.; Zhang, L.; Qu, Q.T.; Zheng, H.H. Ordered mesoporous MoO2 as a high-performance anode material for aqueous supercapacitors. J. Power Sources 2013, 237, 80–83. [Google Scholar] [CrossRef]
  18. Ghodke, N.P.; Rayaprol, S.; Bhoraskar, S.V.; Mathe, V.L. Catalytic hydrolysis of sodium borohydride solution for hydrogen production using thermal plasma synthesized nickel nanoparticles. Int. J. Hydrog. Energy 2020, 45, 16591–16605. [Google Scholar] [CrossRef]
  19. Chen, L.J.; Lee, C.R.; Chuang, Y.J.; Wu, Z.H.; Chen, C. Synthesis and Optical Properties of Lead-Free Cesium Tin Halide Perovskite Quantum Rods with High-Performance Solar Cell Application. J. Phys. Chem. Lett. 2016, 7, 5028. [Google Scholar] [CrossRef]
  20. Teng, W.; Wang, Y.M.; Lin, Q.; Zhu, H.; Tang, Y.B.; Li, X.Y. Synthesis of MoS2/TiO2 nanophotocatalyst and its enhanced visible light driven photocatalytic performance. J. Nanosci. Nanotechnol. 2019, 19, 3519. [Google Scholar] [CrossRef]
  21. Zhu, Y.Y.; Ling, Q.; Liu, Y.F.; Wang, H.; Zhu, Y.F. Photocatalytic H2 evolution on MoS2-TiO2 catalysts synthesized mechanochemistry. Phys. Chem. Chem. Phys. 2014, 2, 933. [Google Scholar] [CrossRef]
  22. Tien, T.M.; Chen, E.L. S-Scheme System of MoS2/Co3O4 Nanocomposites for Enhanced Photocatalytic Hydrogen Evolution and Methyl Violet Dye Removal under Visible Light Irradiation. Coatings 2023, 13, 80. [Google Scholar] [CrossRef]
  23. Xiang, Q.; Yu, J.; Jaroniec, M. Synergetic effect of MoS2 and graphene as cocatalysts for enhanced photocatalytic H2 production activity of TiO2 nanoparticles. J. Am. Chem. Soc. 2012, 134, 6575–6578. [Google Scholar] [CrossRef] [PubMed]
  24. Hu, M.; Yao, Z.; Wang, X. Graphene-based nanomaterials for catalysis. Ind. Eng. Chem. Res. 2017, 56, 3477–3502. [Google Scholar] [CrossRef]
  25. Chen, L.J.; Lee, C.R.; Chuang, Y.J.; Chen, C. Compositionally controlled band gap and photoluminescence of ZnSSe nanofibers by electrospinning. CrystEngComm 2015, 17, 4434. [Google Scholar] [CrossRef]
  26. Chen, L.J. Tunable photoluminescence emission from Cadmium Tellurium nanorods with ethylenediamine template-assistance at a low temperature. Mater. Lett. 2013, 101, 83. [Google Scholar] [CrossRef]
  27. Tien, T.M.; Chuang, Y.; Chen, E.L. Z-scheme driven of MoS2/Co3O4 nano-heterojunction for efficient photocatalysis hydrogen evolution and Rhodamine B degradation. J. Photochem. Photobiol. A Chem. 2023, 444, 114986. [Google Scholar] [CrossRef]
  28. Shaybanizadeh, S.; Chermahini, A.N.; Luque, R. Boron nitride nanosheets supported highly homogeneous bimetallic AuPd alloy nanoparticles catalyst for hydrogen production from formic acid. Nanotechnology 2022, 33, 27. [Google Scholar] [CrossRef] [PubMed]
  29. Jun, S.E.; Hong, S.; Choi, S.; Kim, C.; Ji, S.G.; Lee, S.A.; Yang, J.E.; Lee, T.H.; Sohn, W.; Kim, J.Y.; et al. Boosting unassisted alkaline solar water splitting using silicon photocathode with TiO2 nanorods decorated by edge-rich MoS2 nanoplates. Small 2021, 17, e2103457. [Google Scholar] [CrossRef]
  30. Tien, T.M.; Chung, Y.J.; Huang, C.T.; Chen, E.L. WSSe Nanocomposites for Enhanced Photocatalytic Hydrogen Evolution and Methylene Blue Removal under Visible-Light Irradiation. Materials 2022, 15, 5616. [Google Scholar] [CrossRef]
  31. Chen, Y.; Wang, Y.; Li, W.; Yang, Q.; Hou, Q.; Wei, L.; Liu, L.; Huang, F.; Ju, M. Enhancement of photocatalytic performance with the use of noble-metal-decorated TiO2 nanocrystals as highly active catalysts for aerobic oxidation under visible-light irradiation. Appl. Catal. B 2017, 210, 352–367. [Google Scholar] [CrossRef]
  32. Adnan, R.H.; Madridejos, J.M.L.; Alotabi, A.S.; Metha, G.F.; Andersson, G.G. A review of state of the art in phosphine ligated gold clusters and application in catalysis. Adv. Sci. 2022, 9, 2105692. [Google Scholar] [CrossRef] [PubMed]
  33. Chen, L.J.; Chuang, Y.J. Quaternary Semiconductor Derived and formation mechanism by non-vacuum Route from Solvothermal Nanostructures for High-Performance application. Mater. Lett. 2013, 91, 372. [Google Scholar] [CrossRef]
  34. Zhong, W.; Gao, D.; Yu, H.; Fan, J.; Yu, J. Novel amorphous nicus H2 -evolution cocatalyst: Optimizing surface hydrogen desorption for efficient photocatalytic activity. Chem. Eng. J. 2021, 419, 129652. [Google Scholar] [CrossRef]
  35. Chuang, Y.J.; Liao, J.D.; Chen, L.J. Polyvinylbutyral-assisted synthesis and characterization of mesoporous silica nanofibers by electrospinning route. J. Compos. Mater. 2012, 46, 227. [Google Scholar] [CrossRef]
  36. Chen, L.J.; Chuang, Y.J. Hydrothermal Synthesis and Characterization of Hexagonal Zinc Oxide Nanorods with a Hexamethylenetetramine (HMTA) Template-assisted at a Low Temperature. Mater. Lett. 2012, 68, 460–462. [Google Scholar] [CrossRef]
  37. Kadam, S.R.; Enyashin, A.N.; Houben, L.; Bar-Ziv, R.; Bar-Sadan, M. Ni-WSe2 nanostructures as efficient catalysts for electrochemical hydrogen evolution reaction (HER) in acidic and alkaline media. J. Mater. Chem. A 2020, 8, 1403–1416. [Google Scholar] [CrossRef]
  38. Guan, X.; Zong, S.; Tian, L.; Zhang, Y.; Shi, J. Construction of SrTiO3-LaCrO3 solid solutions with consecutive band structures for photocatalytic H2 evolution under visible light irradiation. Catalysts 2022, 12, 1123. [Google Scholar] [CrossRef]
  39. Wang, C.; Li, N.; Wang, Q.; Tang, Z. Hybrid nanomaterials based on graphene and gold nanoclusters for efficient electrocatalytic reduction of oxygen. Nanoscale Res. Lett. 2016, 11, 336. [Google Scholar] [CrossRef] [Green Version]
  40. Luo, J.; Li, D.; Yang, Y.; Liu, H.; Chen, J.; Wang, H. Preparation of Au/reduced graphene oxide/hydrogenated TiO2 nanotube arrays ternary composites for visible-light-driven photoelectrochemical water splitting. J. Alloys Compd. 2016, 661, 380–388. [Google Scholar] [CrossRef]
  41. Si, J.; Yu, L.; Wang, Y.; Huang, Z.; Homewood, K.; Gao, Y. Colour centre controlled formation of stable sub-nanometer transition metal clusters on TiO2 nanosheet for high efficient H2 production. Appl. Surf. Sci. 2020, 511, 145577. [Google Scholar] [CrossRef]
  42. Mondal, A.; Prabhakaran, A.; Gupta, S.; Subramanian, V.R. Boosting photocatalytic activity using reduced graphene oxide (rGO)/semiconductor nanocomposites: Issues and future scope. ACS Omega 2021, 6, 8734–8743. [Google Scholar] [CrossRef]
  43. Chen, L.J. Synthesis and optical properties of lead-free cesium germanium halide perovskite quantum rods. RSC Adv. 2018, 18, 18396. [Google Scholar] [CrossRef] [PubMed]
  44. Ruan, X.; Cui, X.; Cui, Y.; Fan, X.; Li, Z.; Ba, K.; Jia, G.; Zhang, H.; Zhang, H. Favorable energy band alignment of TiO2 anatase/rutile heterophase homojunctions yields photocatalytic hydrogen evolution with quantum efficiency exceeding 45.6%. Adv. Energy Mater. 2022, 12, 2200298. [Google Scholar] [CrossRef]
Catalysts 13 01152 g001 550

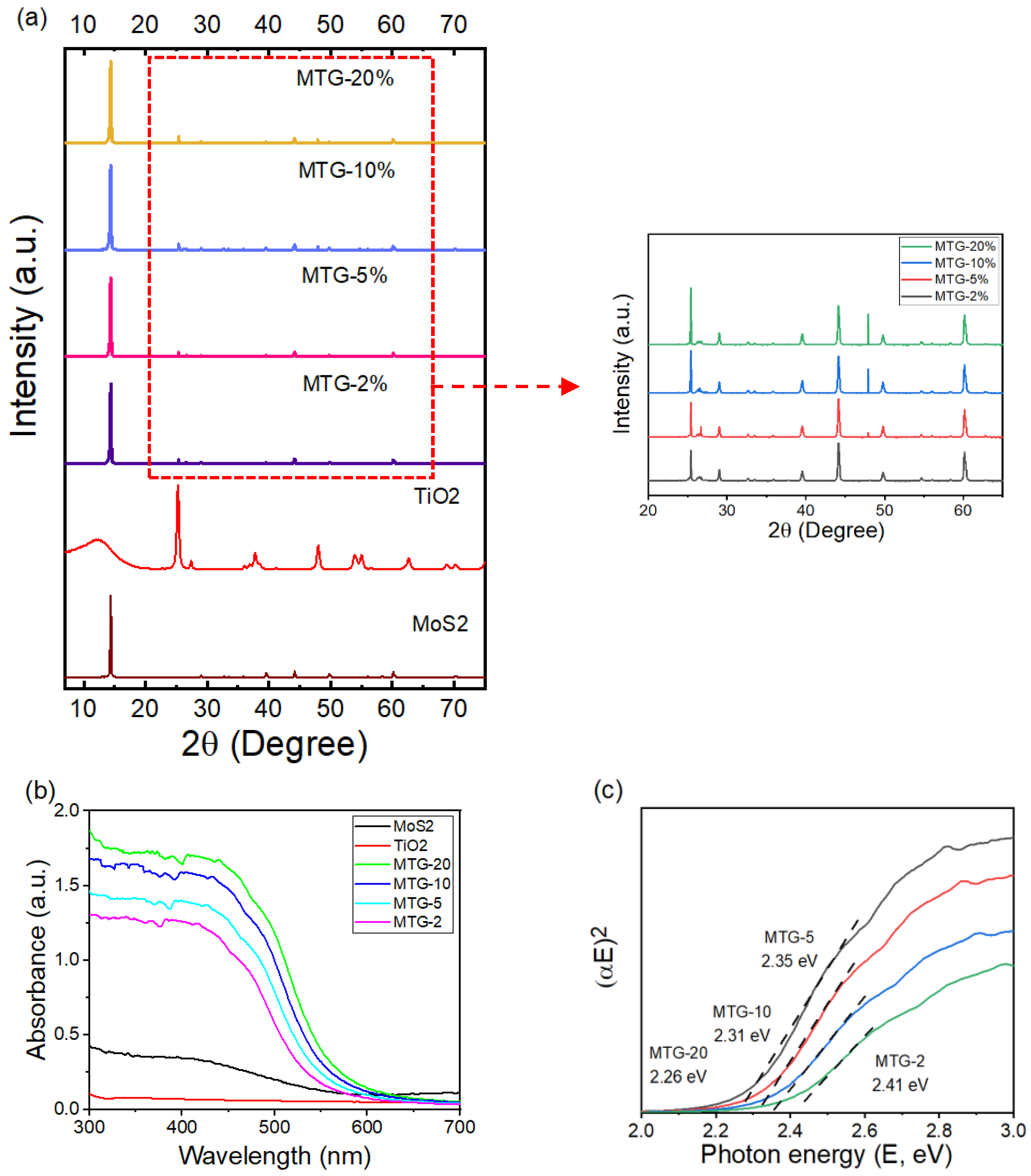

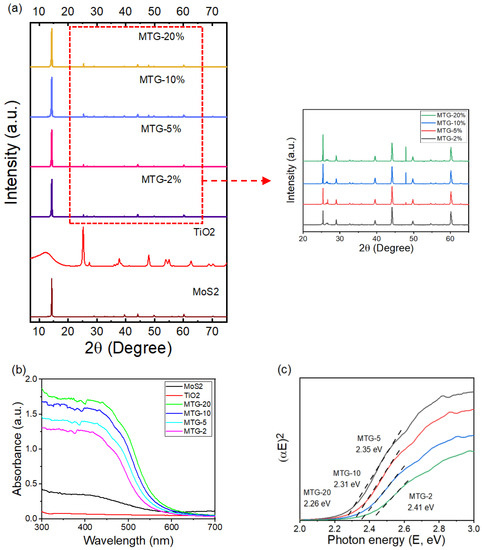

Figure 1. (a) X-ray diffraction test and (b) UV–vis absorbance of the samples; (c) Band gap plot of as-synthesized MTG nanohybrid photocatalysts with different amounts of graphene.
Figure 1. (a) X-ray diffraction test and (b) UV–vis absorbance of the samples; (c) Band gap plot of as-synthesized MTG nanohybrid photocatalysts with different amounts of graphene.
Catalysts 13 01152 g001
Catalysts 13 01152 g002 550

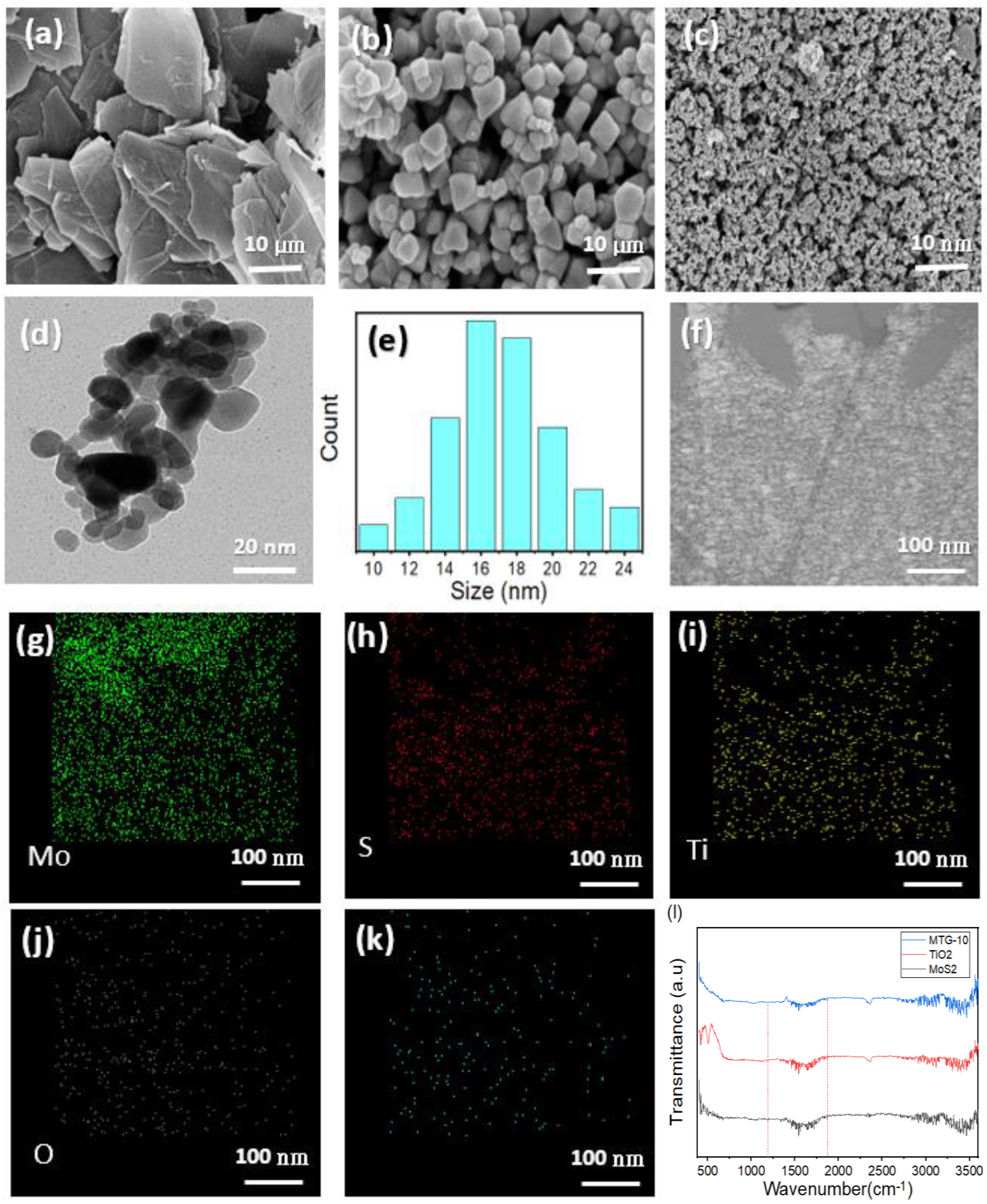

Figure 2. SEM images of (a) MoS2, (b)TiO2, (c) MTG−10; TEM images of (d) MTG−10; (e) average particle size obtained by the histogram image; element mapping images (f–k) of MTG−10; (l) FT−IR of samples.
Figure 2. SEM images of (a) MoS2, (b)TiO2, (c) MTG−10; TEM images of (d) MTG−10; (e) average particle size obtained by the histogram image; element mapping images (f–k) of MTG−10; (l) FT−IR of samples.
Catalysts 13 01152 g002
Catalysts 13 01152 g003 550

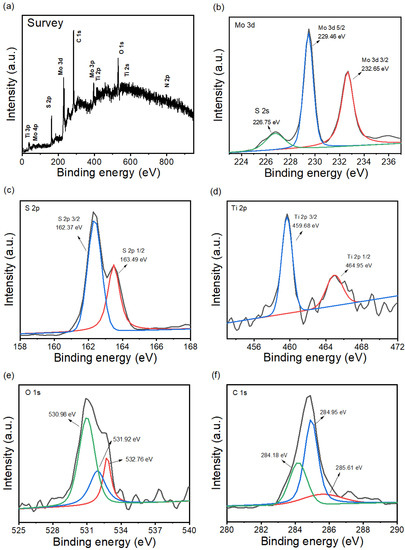

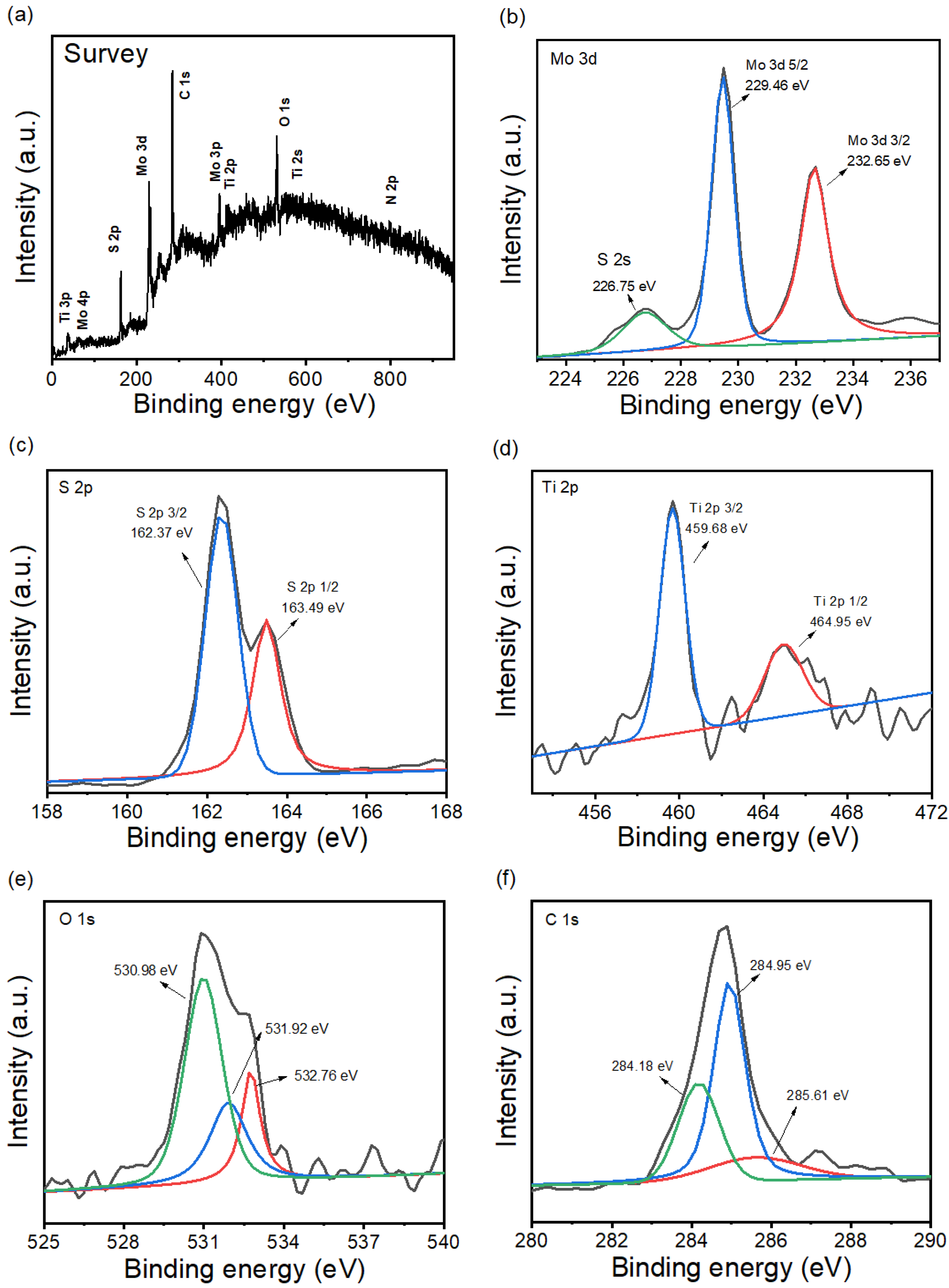

Figure 3. XPS patterns of MTG-10. (a) Survey XPS spectrum; (b–f) The high-resolution XPS spectrum of Mo2p, S2p, Ti2p, O 1s, and C1s.
Figure 3. XPS patterns of MTG-10. (a) Survey XPS spectrum; (b–f) The high-resolution XPS spectrum of Mo2p, S2p, Ti2p, O 1s, and C1s.
Catalysts 13 01152 g003
Catalysts 13 01152 g004a 550Catalysts 13 01152 g004b 550

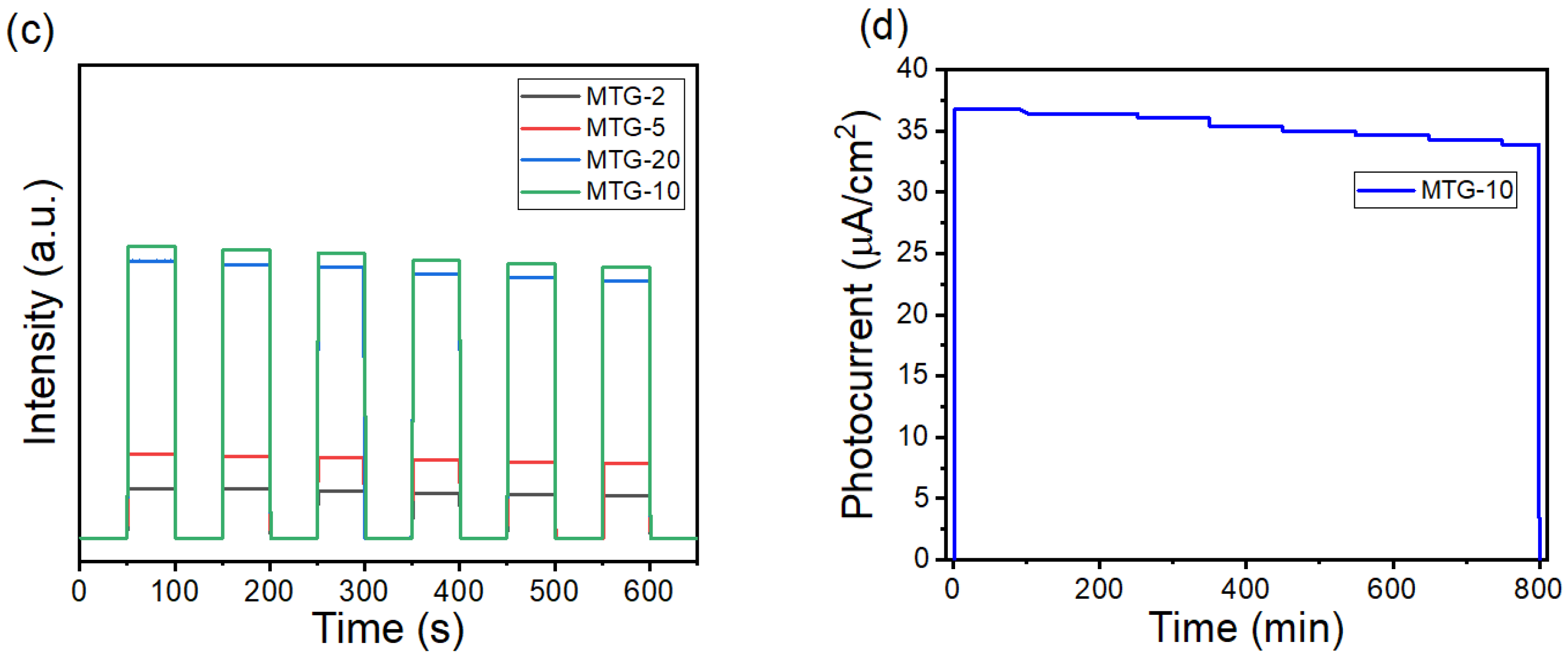

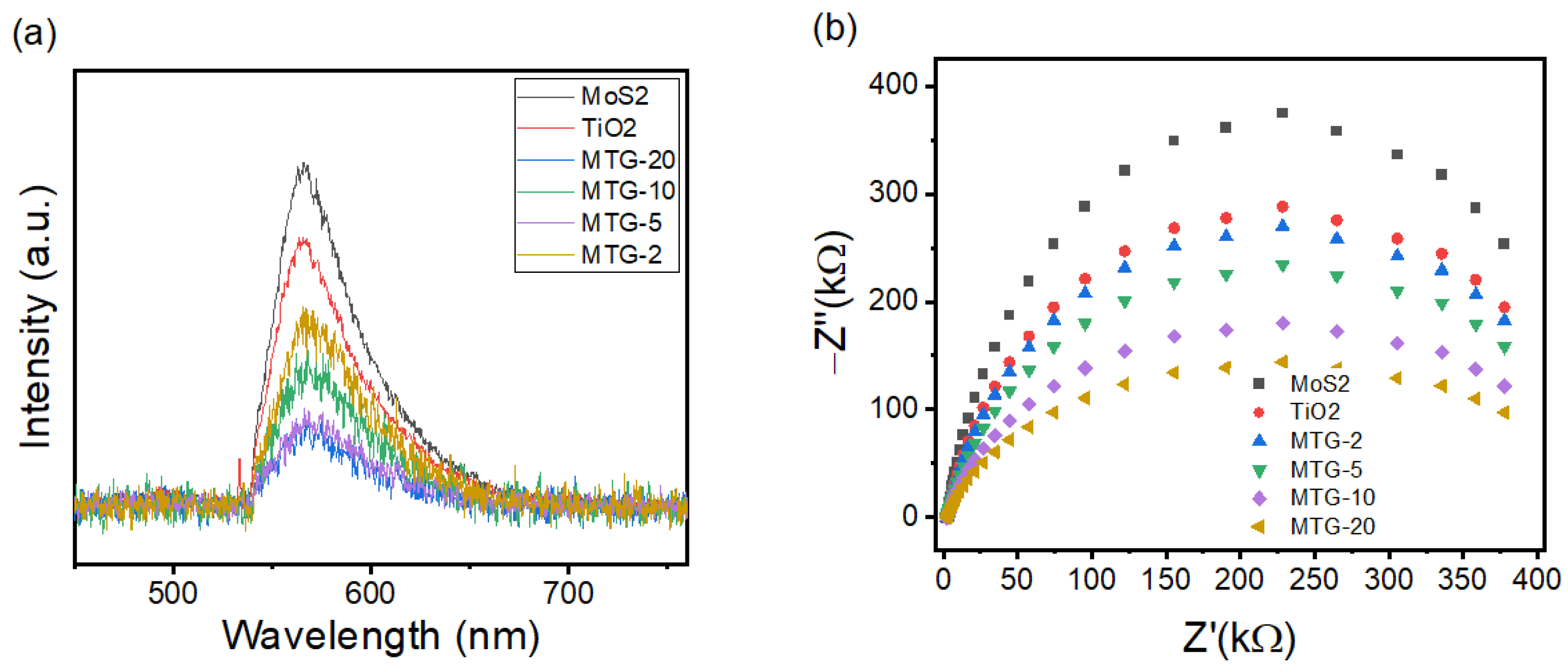

Figure 4. (a) Photoluminescence (PL) spectra, (b) electrochemical impedance spectroscopy (EIS), (c) transient photocurrent response, and (d) the photocurrent stability of the as-fabricated photocatalysts.
Figure 4. (a) Photoluminescence (PL) spectra, (b) electrochemical impedance spectroscopy (EIS), (c) transient photocurrent response, and (d) the photocurrent stability of the as-fabricated photocatalysts.
Catalysts 13 01152 g004aCatalysts 13 01152 g004b
Catalysts 13 01152 g005 550

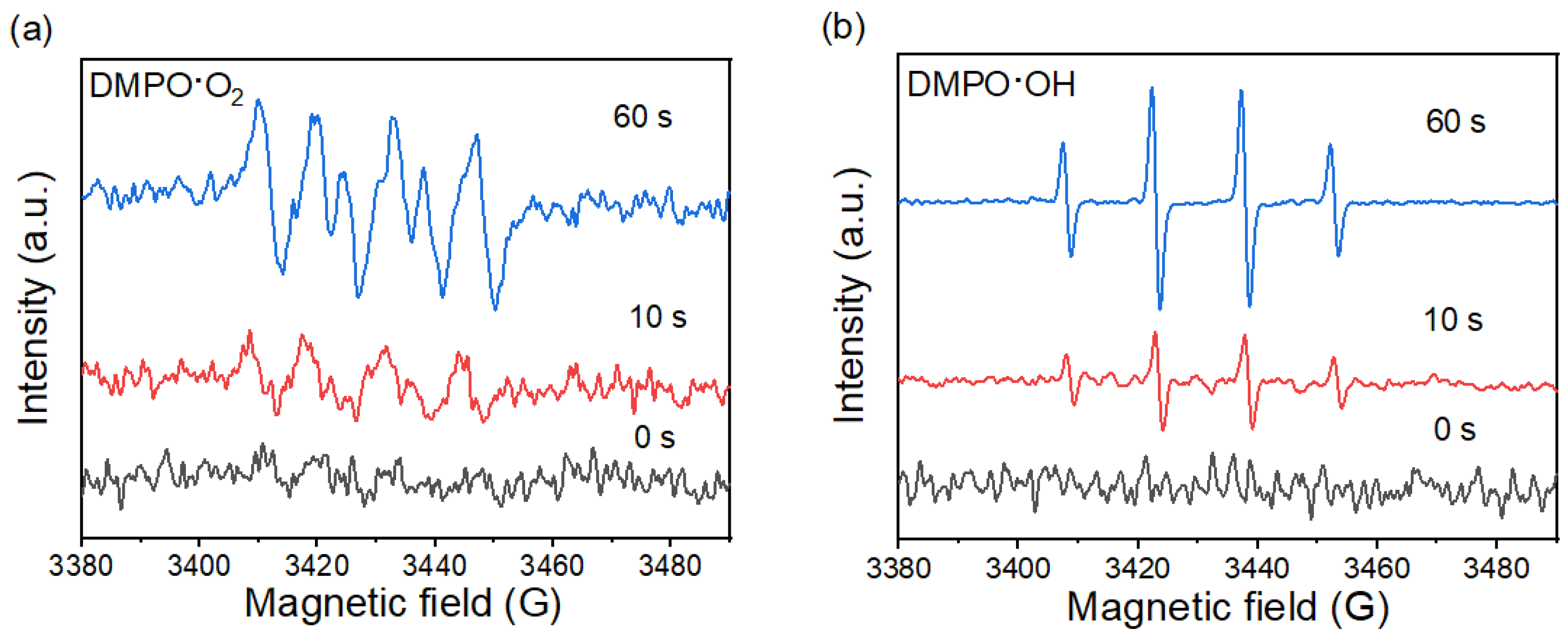

Figure 5. EPR spectrum of the radical adducts DMPO-•O2− (a) and DMPO-•OH (b) in MTG-10 nanohybrids under dark and visible light activity with different times at room temperature.
Figure 5. EPR spectrum of the radical adducts DMPO-•O2− (a) and DMPO-•OH (b) in MTG-10 nanohybrids under dark and visible light activity with different times at room temperature.
Catalysts 13 01152 g005
Catalysts 13 01152 g006a 550Catalysts 13 01152 g006b 550

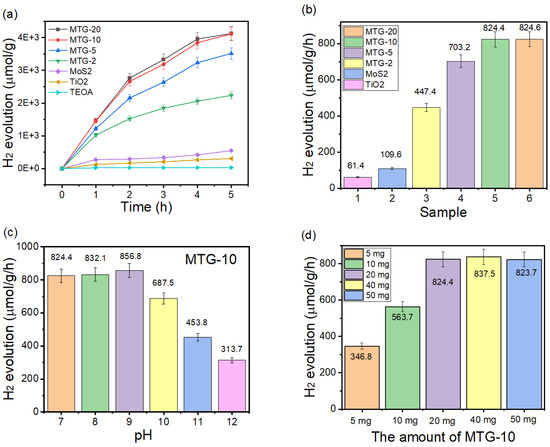

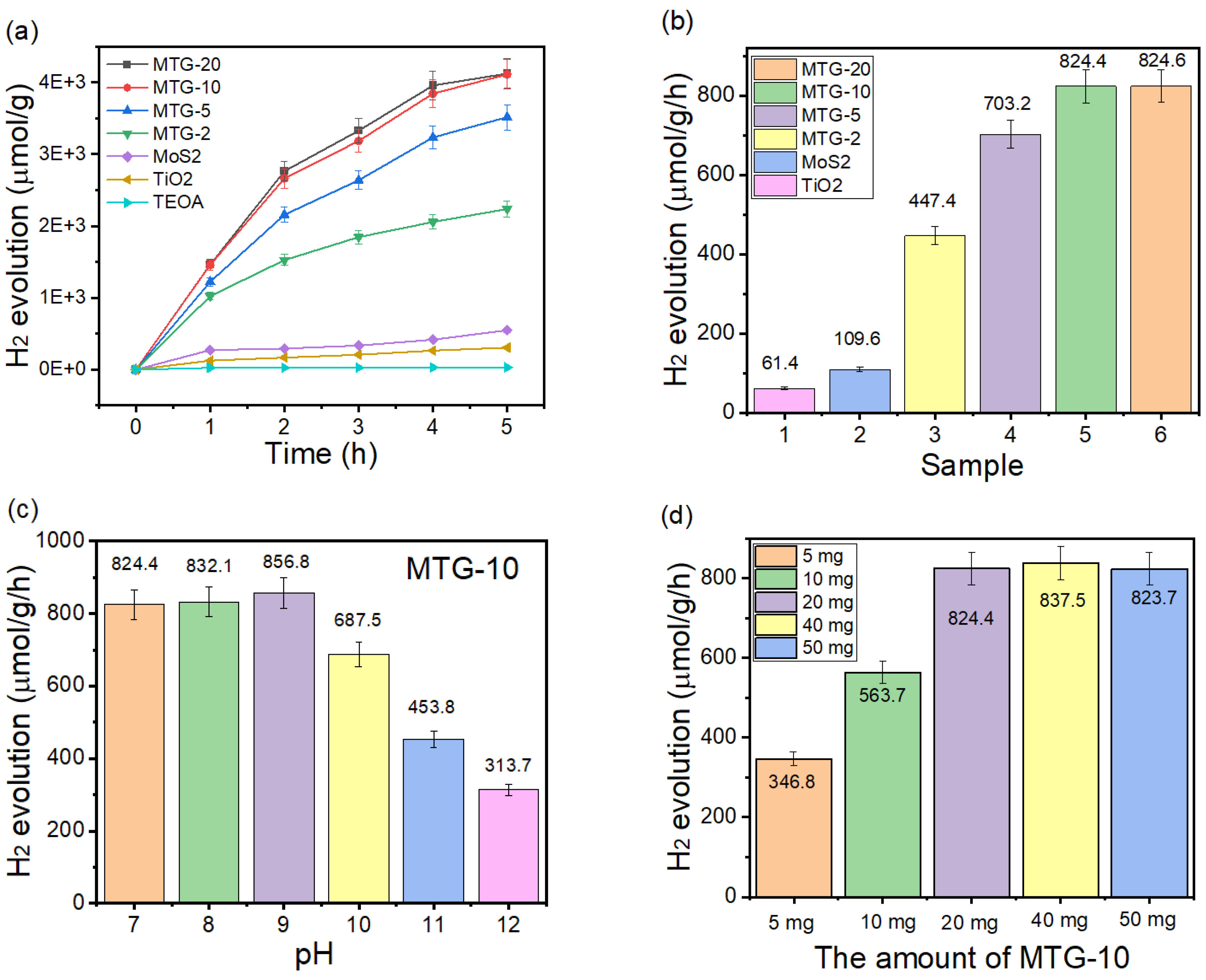

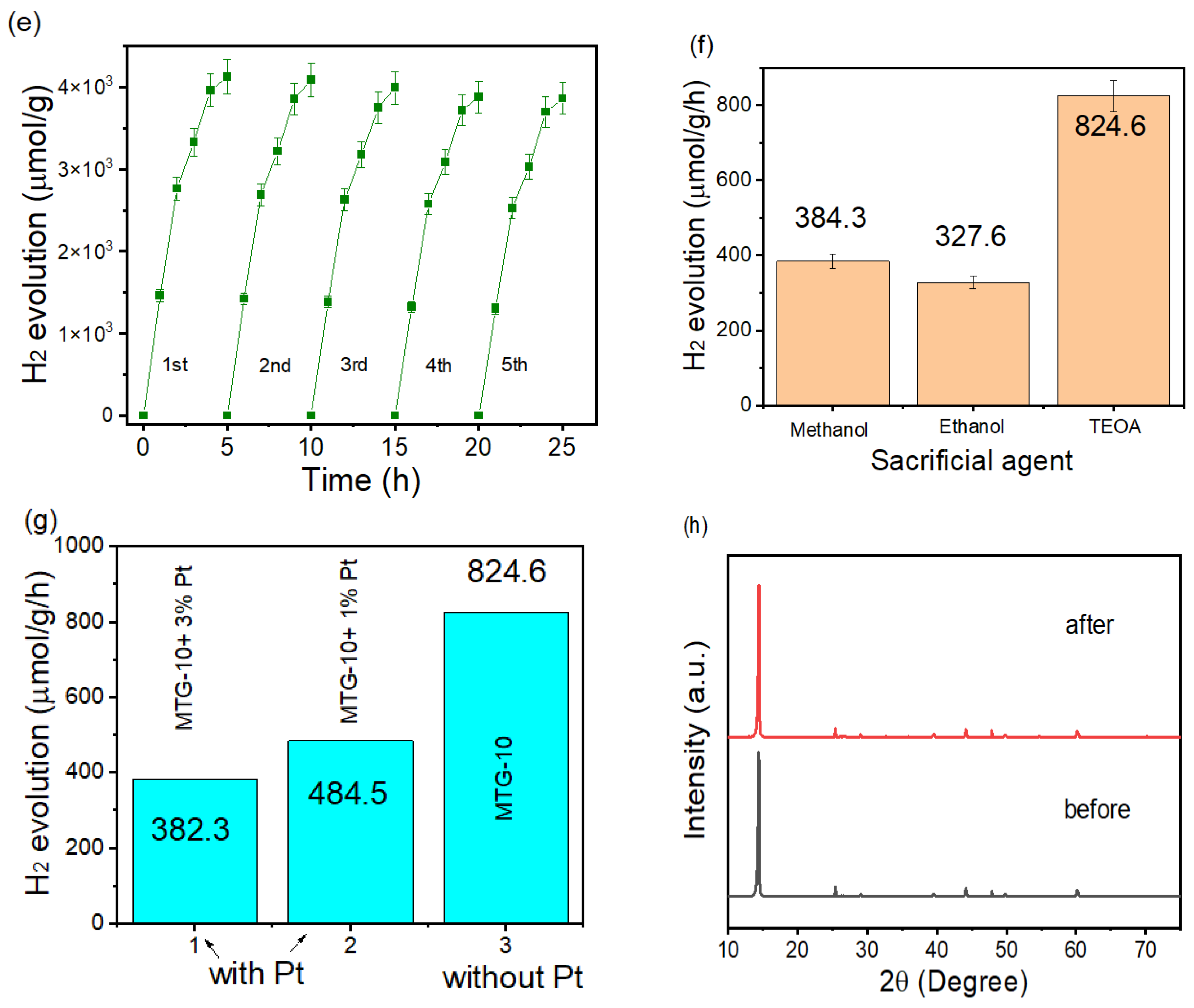

Figure 6. H2 production of (a,b) MoS2, TiO2, and MTG nanohybrids (MTG-2, MTG-5, MTG-10, and MTG-20). (c) H2 production of MTG-10 in TEOA with various pH values in three repeated tests. (d) H2 production with various amounts of MTG-10. (e) H2 production of the cycling experiment. (f) Photocatalytic H2 production activity over different sacrificial agents. (g) H2 evolution efficiency of MTG-10 with and without Pt. (h) XRD analysis of MTG -10 after and before the H2 production test.
Figure 6. H2 production of (a,b) MoS2, TiO2, and MTG nanohybrids (MTG-2, MTG-5, MTG-10, and MTG-20). (c) H2 production of MTG-10 in TEOA with various pH values in three repeated tests. (d) H2 production with various amounts of MTG-10. (e) H2 production of the cycling experiment. (f) Photocatalytic H2 production activity over different sacrificial agents. (g) H2 evolution efficiency of MTG-10 with and without Pt. (h) XRD analysis of MTG -10 after and before the H2 production test.
Catalysts 13 01152 g006aCatalysts 13 01152 g006b
Catalysts 13 01152 g007 550

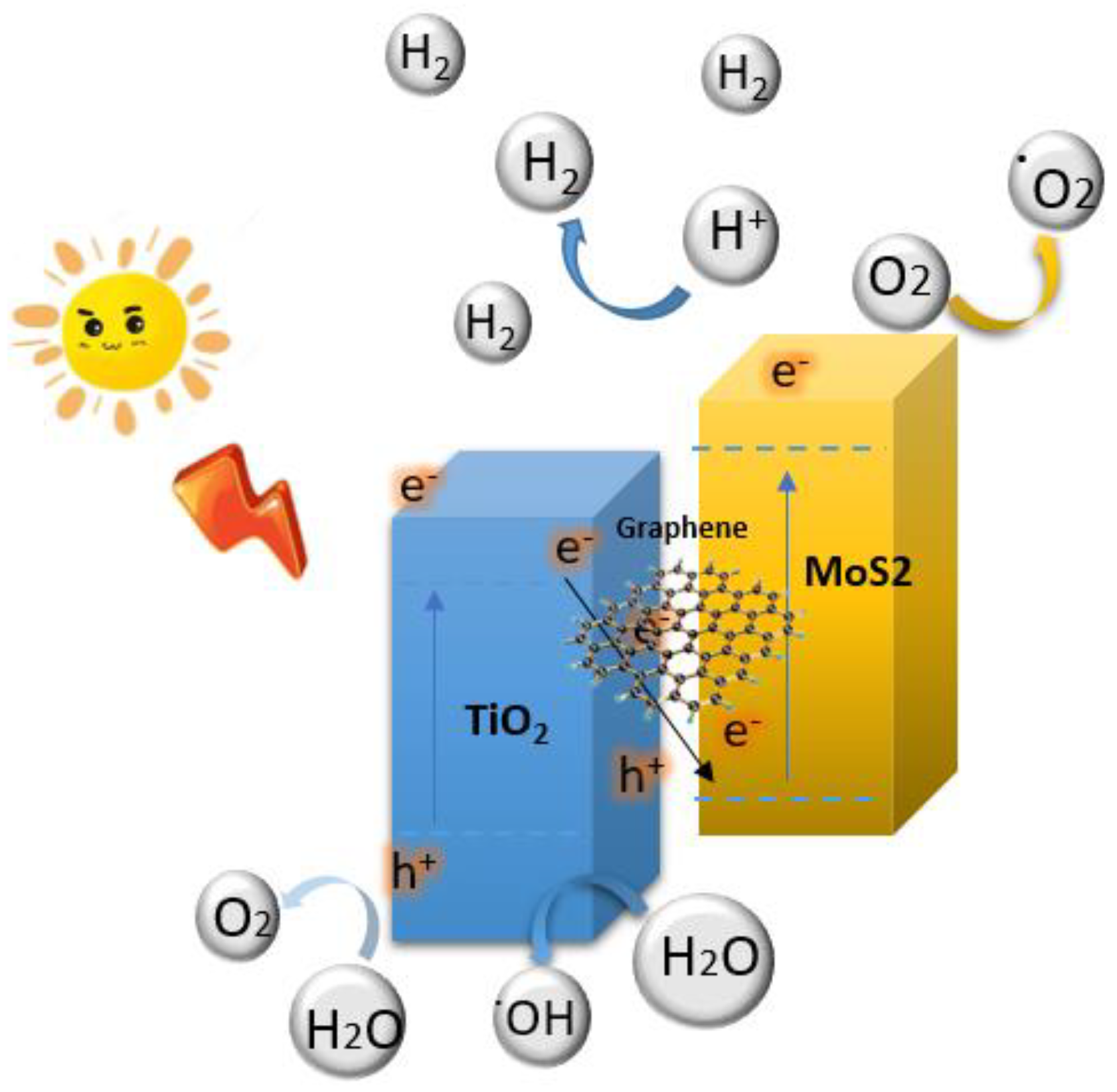

Figure 7. Illustration of the charge transfer and H2 precipitation process in MTG nanohybrids under light irradiation.
Figure 7. Illustration of the charge transfer and H2 precipitation process in MTG nanohybrids under light irradiation.
Catalysts 13 01152 g007
Catalysts 13 01152 sch001 550

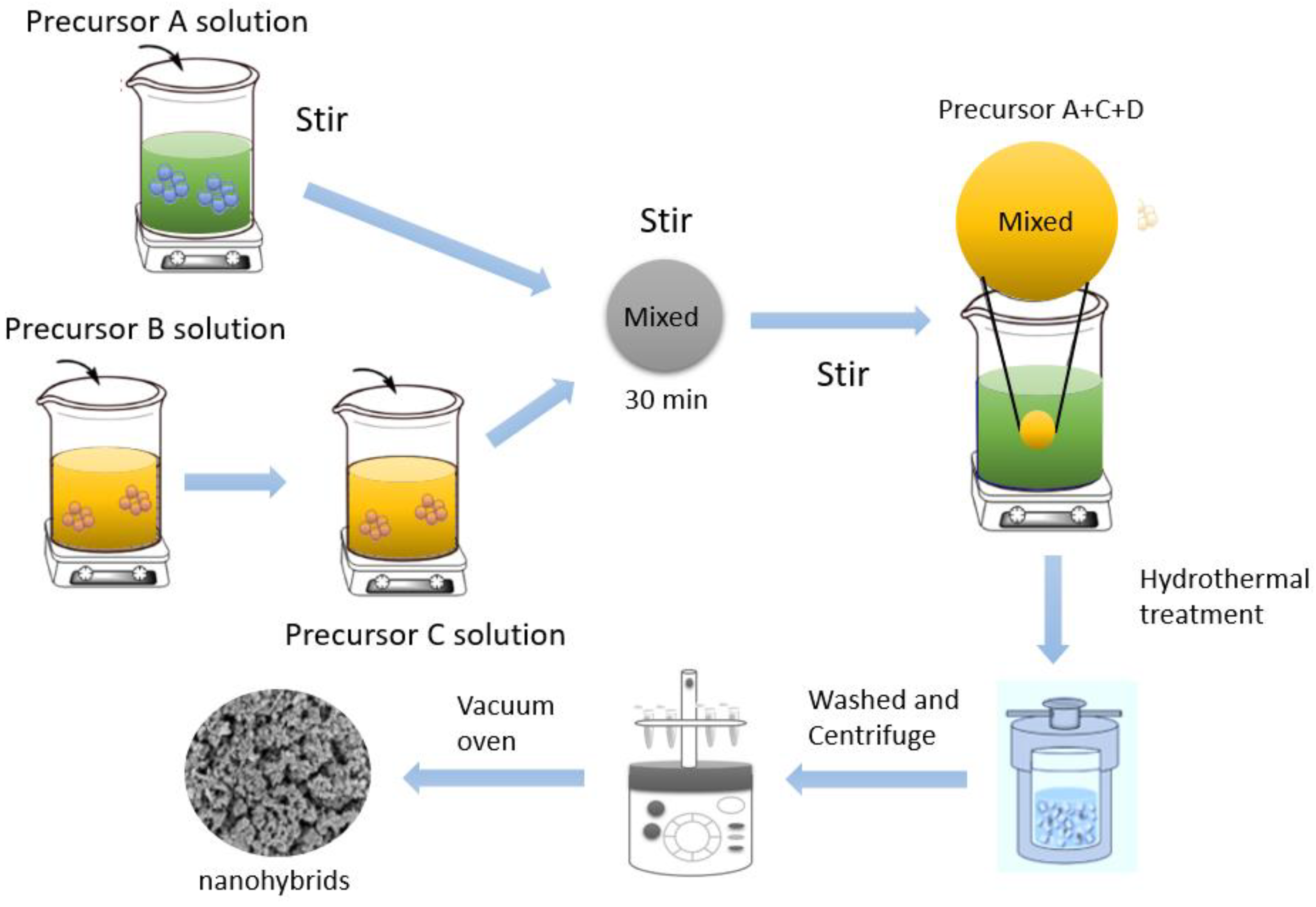

Scheme 1. The schematic illustration of the synthesis process of photocatalysts.
Scheme 1. The schematic illustration of the synthesis process of photocatalysts.
Catalysts 13 01152 sch001
