Skip to Content
MDPIMDPI
CatalystsCatalysts
PDF
  • Feature Paper
  • Editor’s Choice
  • Article
  • Open Access

25 May 2023

Fabrication of New TiO2 Photocatalyst for Removing Organic Dyes and Hazardous VOCs in Air Purifier System

,
,
and
1
Department of Chemistry, Sungkyunkwan University, Suwon 16419, Republic of Korea
2
Institute of Basic Science, Sungkyunkwan University, Suwon 16419, Republic of Korea
3
Dokyeung21 Co., Ltd., Suwon 13631, Republic of Korea
*
Author to whom correspondence should be addressed.
Catalysts2023, 13(6), 935;https://doi.org/10.3390/catal13060935
This article belongs to the Special Issue Exclusive Papers of the Editorial Board Members and Topical Advisory Panel Members of Catalysts in Section "Catalytic Materials"
Version Notes
Order Reprints

Abstract

We synthesized an amorphous Ti-based hydroperoxo complex (ATPC) using a facile method involvingonly titanium hydride (TiH2) and H2O2 under mild conditions. We chose TiH2 as the precursor because it has more reactive sites than metal oxides such as TiO2. Qualitative and quantitative optical measurements showed that our synthesized ATPC photocatalysts contained many hydroperoxo groups and various oxidation states of Ti (Ti2+, Ti3+, and Ti4+). Thus, the synthesized ATPC exhibits excellent photocatalytic properties with very fast rates of organic decolorization compared to other conventional visiblelight catalysts. The presence of many hydroperoxo complexes increases the formation of active radicals, which can degrade VOCs such as acetaldehyde in a gas phase. To test the application of the synthesized ATPC, we fabricated a filter system in an air purifier using ATPC coating layers and successfully removed the VOCs. We also proposed a possible photocatalytic oxidation mechanism with ATPC based on this study. It is important to conduct application tests as well as commercialization in photocatalytic experiments.

1. Introduction

Recently, industrialization-oriented societies and the reckless use of chemical fuels have caused various environmental problems such as air and water pollution. To solve these issues, ecofriendly studies are being conducted. Among many environmental problems, air pollutants contained in industrial and car emissions, which are the major cause of global warming, are being addressed first. Volatile organic compounds (VOCs) are oneof the representative air pollutants that are harmful to both human health and the environment [1,2]. VOCs areharmful compoundsand can also cause photochemical reactions with other air pollutants, producing secondary pollutants such as ozone [3,4]. Formaldehyde, acetaldehyde (ACT), and benzene, for example, can cause headaches, vomiting, and dizziness if they come into contact with the skin or enter the respiratory tract [5,6]. These environmental problems need to be urgently resolved because they can cause damage to the nervous system when exposed to high concentrations. Recently, many studies have been conducted to effectively and rapidly remove VOCs, such as adsorption, thermal oxidation, photocatalytic oxidation, and biofiltration [7,8,9]. Among them, photocatalysts have been widely studied because they are environmentally friendly and produce water (H2O) and carbon dioxide (CO2) as final byproducts [10,11,12]. In addition, photocatalytic materials have the advantage of being activated with only solar energy. Resolving energy shortages and environmental pollution problems has become the most urgent challenge nowadays. Using a catalyst as one of the many solutions can lower the activation energy of the reaction, producing more energy for us to use. Among the various catalysts, photocatalysts, which are more environmentally friendly and utilize light sources, have been extensively studied. There are three main reasons why many studies on photocatalysts have been conducted. First, photocatalysts can be active even at room temperature, unlike other catalysts that require high temperatures. Second, the photocatalytic reaction can be induced by utilizing sunlight, which is an infinite resource. Third, the photocatalytic reaction can be stopped at a desired point in time by blocking the supply of sunlight. Therefore, photocatalysts can play an important role in solving future environmental issues such as energy conservation and global warming.
Titanium dioxide (TiO2) is a well-known semiconductor material and is widely used as a photocatalytic material owing to its strong oxidizing power and excellent durability [13]. TiO2 is also utilized for solar energy conversion applications such as solar cells by utilizing its inherent bandgap [14]. However, TiO2 has a bandgap of ~3.0–3.2 eV, which only allows it to absorb UVlight, making bandgap engineering necessary for the effective utilization of light sources. The development of a photocatalyst with visible lightactivity is crucial as most of the sunlight energy is in the visiblelight region. Many studies have been performed to overcome this problem, and a typical method of bandgap engineering is achieved by either metal doping or nonmetal doping to TiO2 [15] as well as by coupling with a semiconductor with a narrow bandgap [16]. Although such photocatalytic materials have visiblelight activities, they also have several disadvantages. For example, the process of making narrow bandgaps by doping or coupling is complicated and requires high temperature and pressure [17], and these materials have low photocatalytic efficiency in visiblelight. Recently, extensive effort has been devoted to forming peroxo groups (Ti–OOH, –Ti–O–O–Ti–, and –O–Ti–O–) by oxidizing metal oxide surfaces with H2O2 [18]. The hydroperoxo photocatalysts have visiblelight activity and can cause electron transfer into the conduction band (CB) of metal oxide, forming a superoxide anion. Generating metal oxides with a peroxo (or hydroperoxo) surface is a relatively simple process, and such metal oxides with a hydroperoxo surface have excellent visiblelight photocatalytic efficiency that can be applied to various fields. Therefore, another study was conducted to synthesize photocatalysts that have visiblelight activity by intentionally creating oxygen vacancies in the TiO2 lattice. For example, hydrogenated TiO2 with an oxygen vacancy can be synthesized by adding a strong reducing agent such as NaBH4 to TiO2 [19]. Studies have also been conducted on the synthesis of Ti3+ self-doped TiO2through the hydrothermal method using TiCl3 and (NH4)2TiF6 as the precursor of Ti3+ and Ti4+, respectively [20]. These photocatalysts achieve visiblelight activity owing to the oxygen defects in the synthesized titania-based photocatalysts, ultimately allowingthe absorption of visiblelight by forming a new donor level in the band structure.
Herein, we synthesized an amorphous Ti-based hydroperoxo complex (ATPC) using only titanium hydride (metallic Ti) and H2O2undermild conditions through a facile method. Polymerization was used to generate the ATPC without annealing through an exothermic reaction. To investigate how the peroxo groups and oxygen vacancy of ATPC affect the visiblelight catalyst, the decolorization of Rhodamine B (RhB) dye was performed under visiblelight irradiation. Next, we tested the abilityof the ATPC to remove acetaldehyde (ACT), one of the VOCs in the gas phase. Finally, we tested the application of ATPC as a filter system in an air purifier.

2. Results and Discussion

2.1. Photocatalytic Activity Test with Amorphous Ti-Based Hydroperoxo Complex (ATPC)

To test the photocatalytic activity of the synthesized ATPC, we dissolved the ATPC powder in water and performed spin coating on a glass substrate. Two samples were prepared with different coating numbers to determine the thickness of the thin film showing appropriate catalytic characteristics. Figure 1c,d showed that a one-time coated layer yielded a thin film with a thickness of ~180 nm, while atwo-time coated layer yieldeda thin film with ~320 nm thickness. The surface shown in Figure 1b is rougher than that shown in Figure 1a, indicating different surface area. To measure the specific surface area of two different films, BET analysis was performed with a nitrogen gas adsorption–desorption isotherm. The thin films with thickness of 180 and 320 nm had the specific surface area of 129.9 and 166.5 m2/g, respectively. This suggests thatthicker film will show more high catalytic activity than thinner film owing to a larger surface area. Therefore, the surface area strongly depends on the coating number. However, in our case if the film was thicker than 320 nm, the catalytic activity decreased, indicating that the catalytic reaction mainly occurred on the surface region rather than in the bulk area. Therefore, an optimized thickness of a photocatalyst is required to obtainthe maximum catalytic activity.

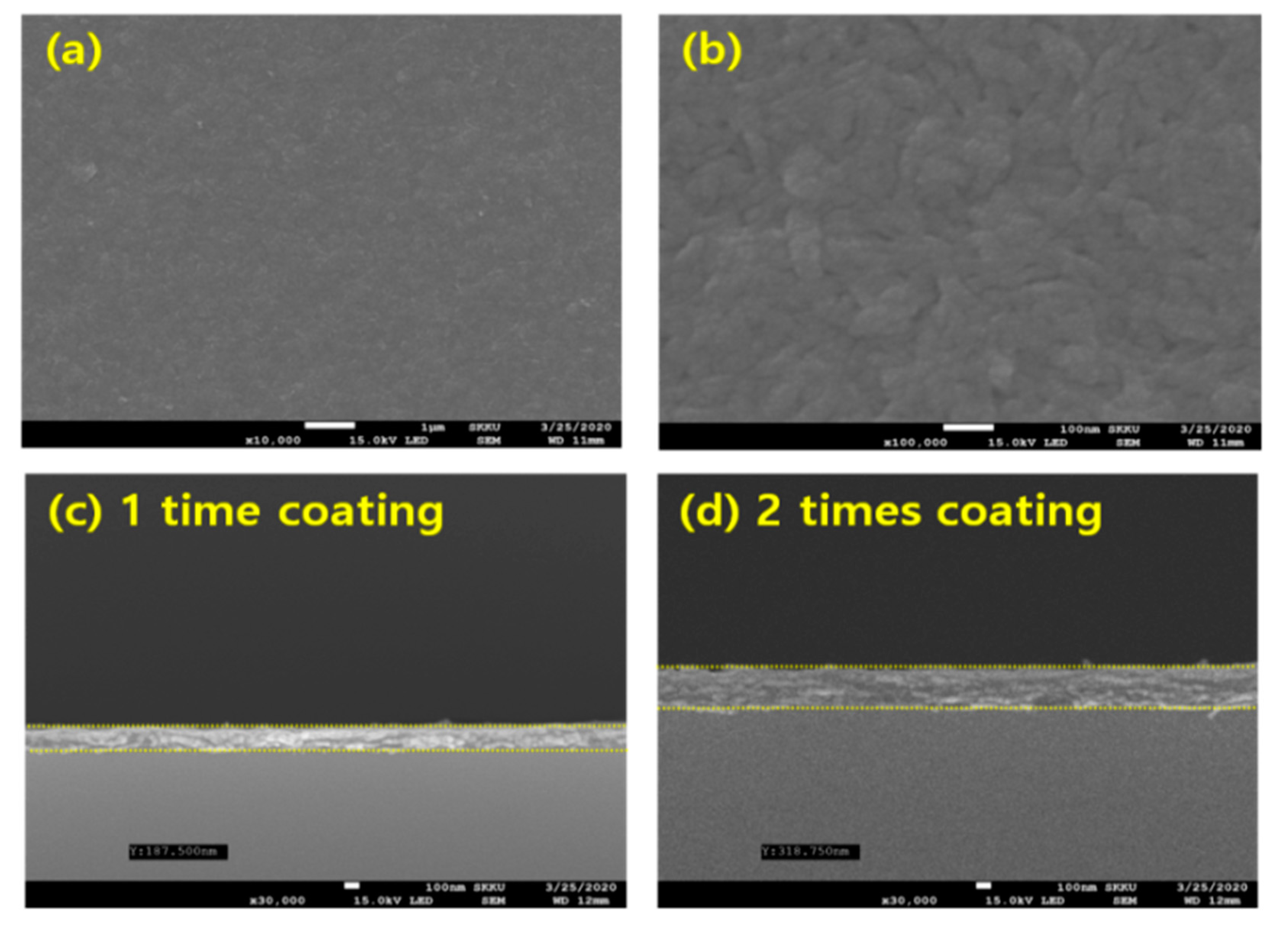

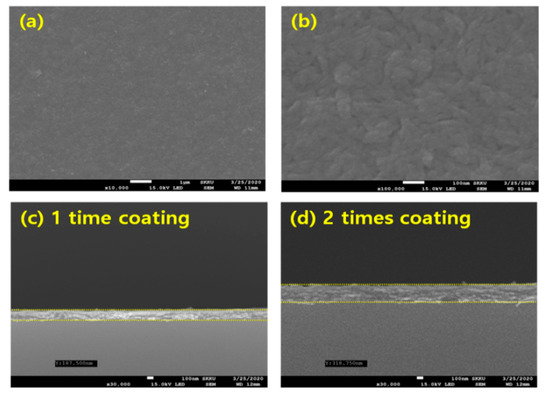

Figure 1. FE-SEM images of (a) one-time ATPC coated sample and (b) two-time APTC coated sample. (c,d) show their cross-sectional images, respectively.
We performed the decolorization of the RhB dye under visiblelight irradiation to confirm how the peroxo group and oxygen vacancy of ATPC surface affected the visiblelight catalyst (see also Section 3). Our synthesized ATPC photocatalysts showed very fast organic decolorization ratesowing to the formation of many active radicals such as OH radicals. We added 20 mg of samples to a concentration of RhB solution and stirred it in a dark room for 30 min to establish an adsorption–desorption equilibrium. We used a 200 W blue LED lamp as the light source, and the total irradiation time of each sample was 2 h. After 2 h, we separated the RhB mixture from the sample usingcentrifugation and measured the absorbance usinga UV–Visible spectrophotometer. Figure 2 shows that the two-time coated sample (Figure 2b) decomposed more RhB dye in the same time than the one-time coated sample (Figure 2a), reflecting thickness and surface area differences as well as peroxo groups on the ATPC surface. We also found that there was no considerable difference when coating two or more times. Therefore, we used the same sample of two-time coating with a thickness of ~320 nm to check the photocatalytic activities for other VOCs such as ACT in a gas phase.

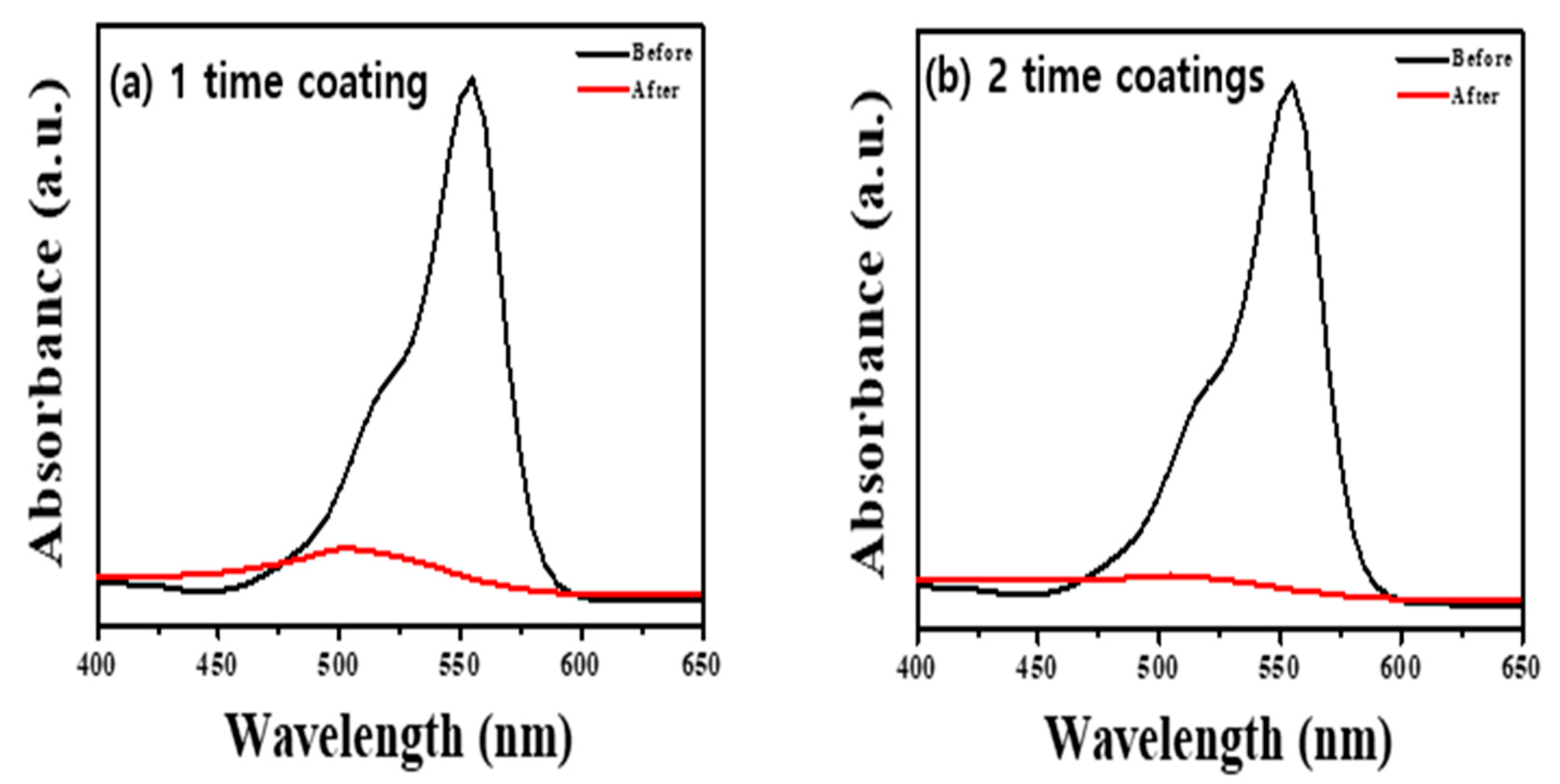

Figure 2. UV–Visible absorption spectra obtained before and after decolorization of RhB dye with (a) one-time ATPC coated sample and (b) two-time APTC coated sample.
The experiment involved the degradation of acetaldehyde (ACT) in a gas phase using a flow-type reactor equipped with an online gas chromatography (GC, HP 6890, HEWLETT PACKARD). The stationary phase and detector of the GC were the HP-PLOT Q column and the flame ionization detector, respectively. The synthesized ATPC powder (500 mg) in a quartz boat was placed at the center of the quartz tube. A gas mixture containing 107.7 ppm of ACT and dry air was flowed into a photocatalytic reactor using mass flow controllers, while blue light (10 W, KWLD B1207W, Kwangwon light) was irradiated on the sample at a distance of ~10 cm. The gas mixture that passed through the sample was injected into the GC every 10 min, and the amount of ACT and CO2 were monitored with the lightirradiation time. Figure 3a shows that CO2 is generated as ACT is removed, and it can be seen that ~15% of the ACT can be removed within 5 h. The power (10 W) used was relatively weak compared to 200 W for the decolorization of the RhB dye; hence, more time was required to remove the ACT. A 10 W small powered blue LED was used as the light source to consider its installation inside an air purifier system. Therefore, only 15% of the ACT was removed in 5 h. However, if a stronger power source, such as a 200 W blue LED lamp, was used, the percentage of removal could be increased to >60% within only 2 h, suggesting an increased functionality of photocatalytic activity.

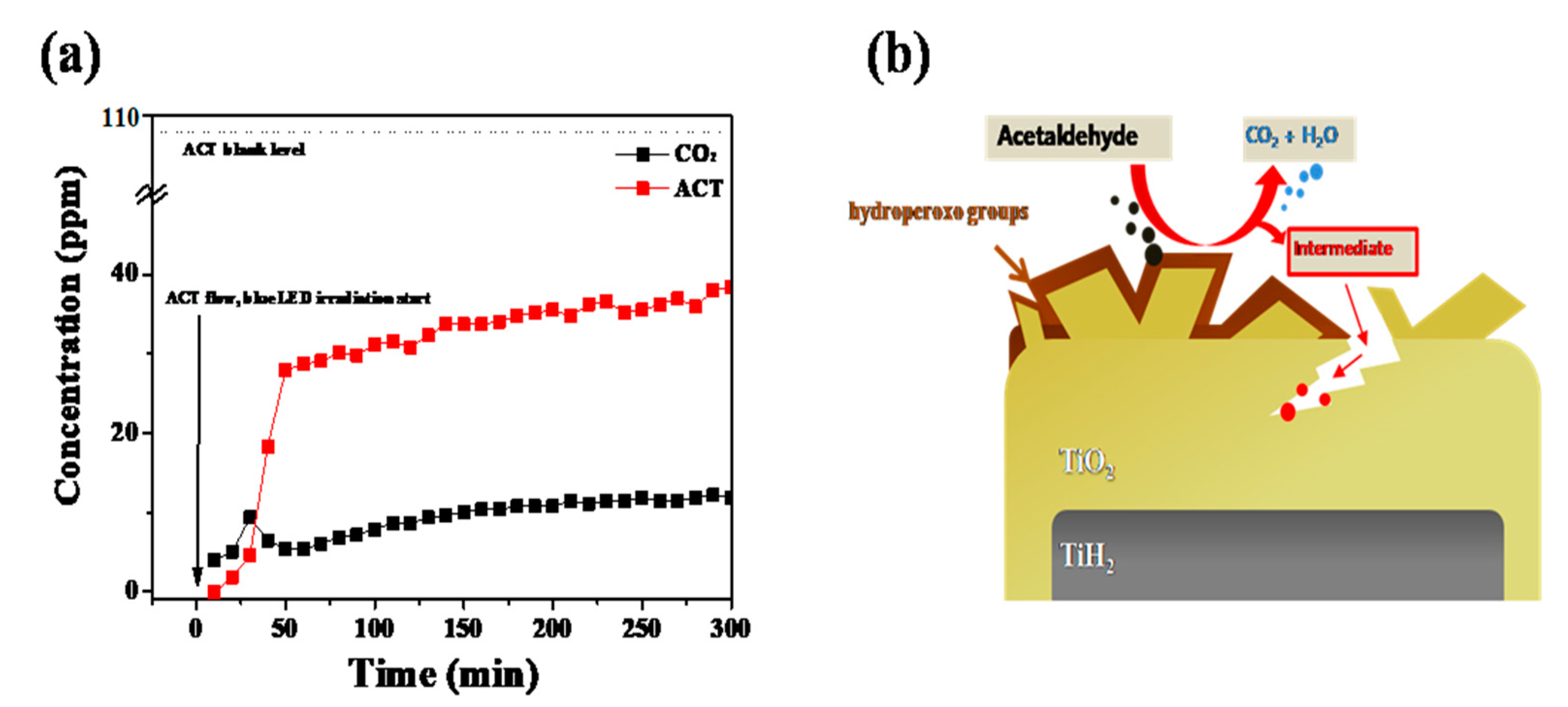

Figure 3. (a) Photocatalytic degradation test of acetaldehyde with two-time ATPC coated sample, and (b) photocatalytic oxidation mechanism of ACT on ATPC surface.
Based on this study, we suggested a possible photocatalytic oxidation mechanism of ATPC as follows [21]. When the hydroperoxo group (Ti-OOH) absorbs visiblelight, radicals are formed and an electron (e−) is also formed by combining with an unshared electron pair of oxygen. The formed e− reacts with oxygen in the air to form superoxide anions, providing strong oxidation. The remaining plus-charged hydroperoxo groups react with water molecules on the photocatalyst’s surface to form OH radicals, which degrade the contaminants (i.e., ACT) through oxidation [21,22,23]. To prove and clarify these mechanisms utilizing various analytical instruments, we have to carry out both in-situ and ex-situ experiments to detect intermediates, radicals, holes, and electrons by time-resolved photoluminescence (TRPL), time-dependent light irradiated UV–Vis spectra, transient absorption spectroscopy, electron spin resonance (ESR), X-ray photoelectron spectroscopy (XPS), Diffuse Reflectance Fourier Translation Infrared Spectroscopy (DRIFTS), etc. Recently, Shu et al. proposed similar photocatalytic oxidation of ammonia (NH3) on TiO2-based catalysts such as P25 and nanosheet TF4 [23]. For systematic investigation into the NH3 adsorption and conversion behaviors, they utilized in-situ DRIFTS and obtainedaprogressed mechanism of NH3 photocatalytic oxidation. Additionally, Karmakar et al. proposed the CO2 photocatalytic reduction mechanism based on time-dependent in-situ DRIFTS experiments on CO2 reduction in a mixture of CO2 and H2O vapor on Ce-MOF-RuII-bpy surface [24]. Based on our data and suggested mechanisms, therefore, our ATPC photocatalytic efficiency shows the best performance because it can form more electrons than conventional photocatalytic TiO2 materials. For these reasons, as seen in Figure 3b, the adsorption and degradation of ACT proceeded rapidly on the surface of ATPC particles. Air pollutants such as ACT are initially adsorbed on the surface of the ATPC photocatalyst, and subsequentlyphoto-oxidative decomposition occurs through light-induced electron–hole pairs. After the reaction, the finally formed water (H2O) and carbon dioxide (CO2) are desorbed from the adsorption site of the ATPC photocatalyst surface.

2.2. Application Test for Air Purifier System

As people spend more time indoors, there is a growing interest in creating a comfortable and healthy indoor air environment. This has led to increased research into ecofriendly airpurification mechanisms [25,26]. Based on the ecofriendly characteristics of our ATPC samples, they have potential for use in future applications that prioritizeefficiency and durability. We successfully incorporated our synthesized ATPC coating layers into a filter system in an air purifier and were able to effectively remove VOCs. To test the commercial viability of our photocatalyst, we applied it to the filter of a small car air purifier. Figure 4 provides a schematic of two different coating methods: (a) direct dip coating of the photocatalyst onto the ABS plastic filter substrate, and (b) dip coating with the addition of the adhesion-promoting leveling agent, EBECRYL 350 (EB-350), to improve the bond between the coating layer and the ABS plastic substrate surface. As shown in Figure 5a, it was very tough for us to obtaina uniform and thick ATPC film on the ABS plastic substrate with good adhesion. Therefore, we introduced an adhesion-promoting leveling agent, EBECRYL 350 (EB-350), to improve the adhesion between the coating layer and the plastic substrate surface. With EB-350, we could modify the plastic surface first, and then successfully grow uniform and thick ATPC film on the ABS plastic substrate, resulting in good adhesion and high photocatalytic activity.

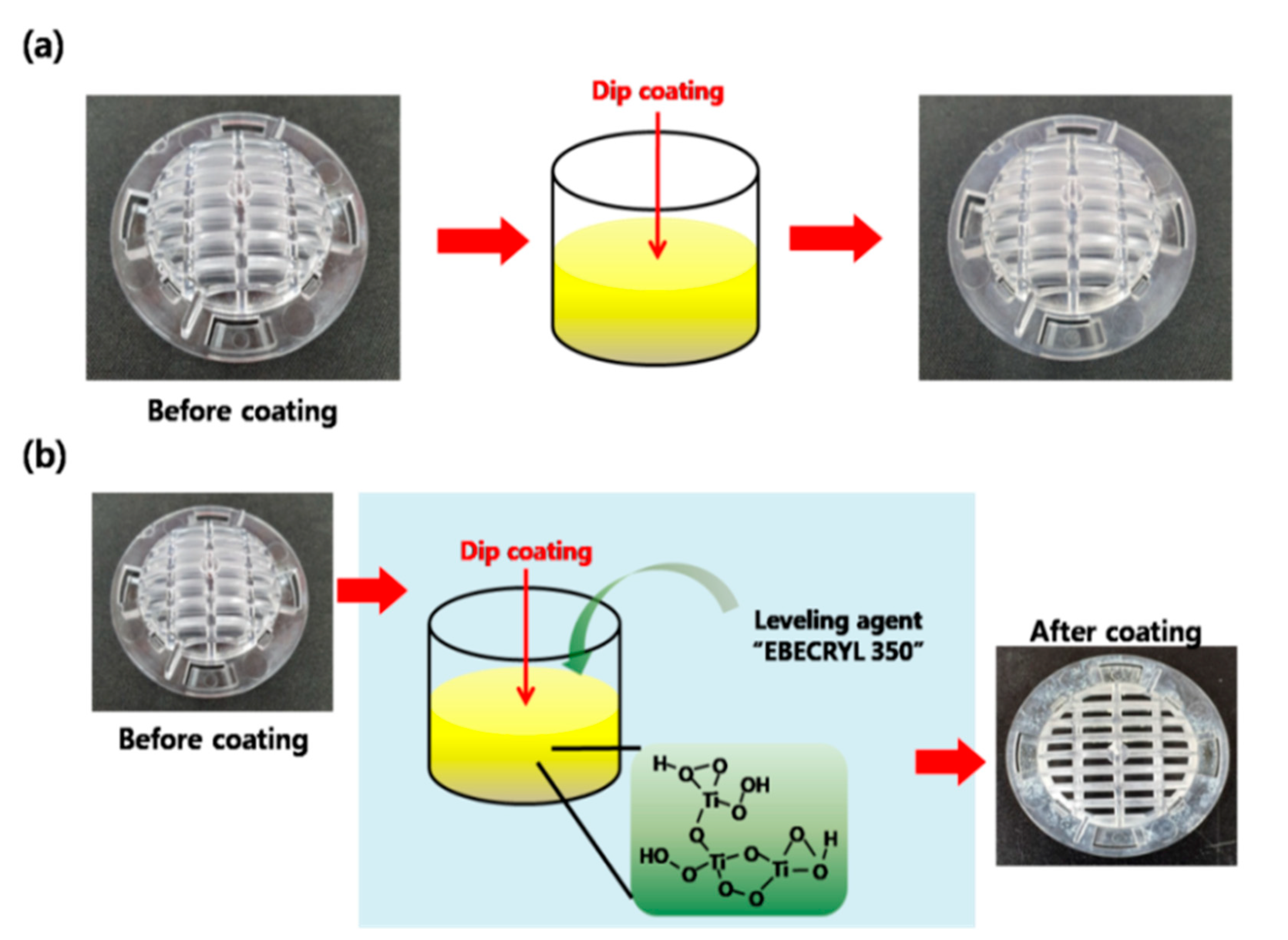

Figure 4. Schematicfor dip coatings of the APTC layer on the ABS plastic filter substrates (a) without EB-350 and (b) with EB-350.

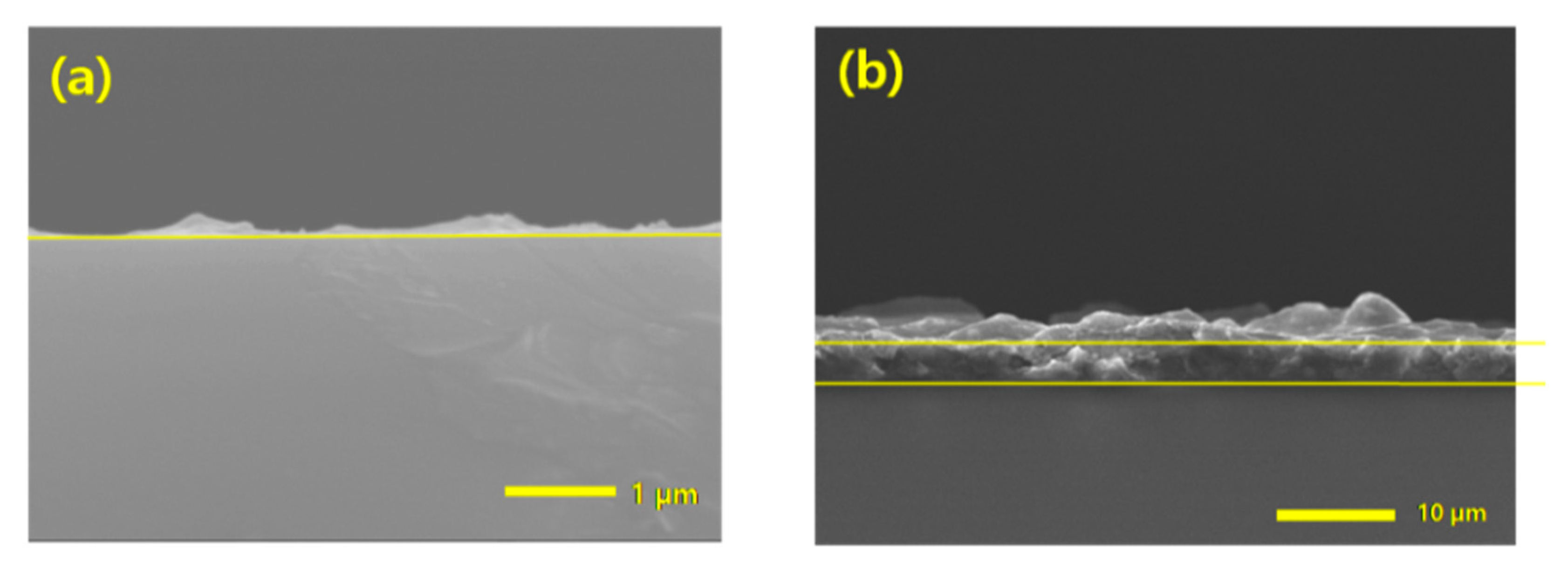

Figure 5. SEM cross-sectional images of the APTC coating layers on the ABS plastic filter substrates (a) without EB-350 and (b) with EB-350.
The cross-sectional images of the coatings are presented in Figure 5. Figure 5a shows the rough surface and thin film thickness of the photocatalyst coated by dip coating without EB-350, while Figure 5b shows a relatively uniform surface and a greaterfilm thickness with the addition of EB-350. A coating film was obtained in Figure 5b that exhibited photocatalytic performance similar to that obtained by spin coating twice on a glass substrate.
Figure 6 displays the results of the RhB removal experiment using the coatings shown in Figure 5. In Figure 6a, only ~40% of the RhB was removed in 2 h owing to the very small thickness and poor surface uniformity, whereas in Figure 6b, >90% of the RhB was removed in 2 h due to a thick film witha high surface area andgood uniformity, as well as better adhesion between the ATPC coating layer and the substrate. These results demonstrate that our synthesized ATPC photocatalyst can be used commercially and can be adopted as an airpurifier filter to remove more VOCs in the future.

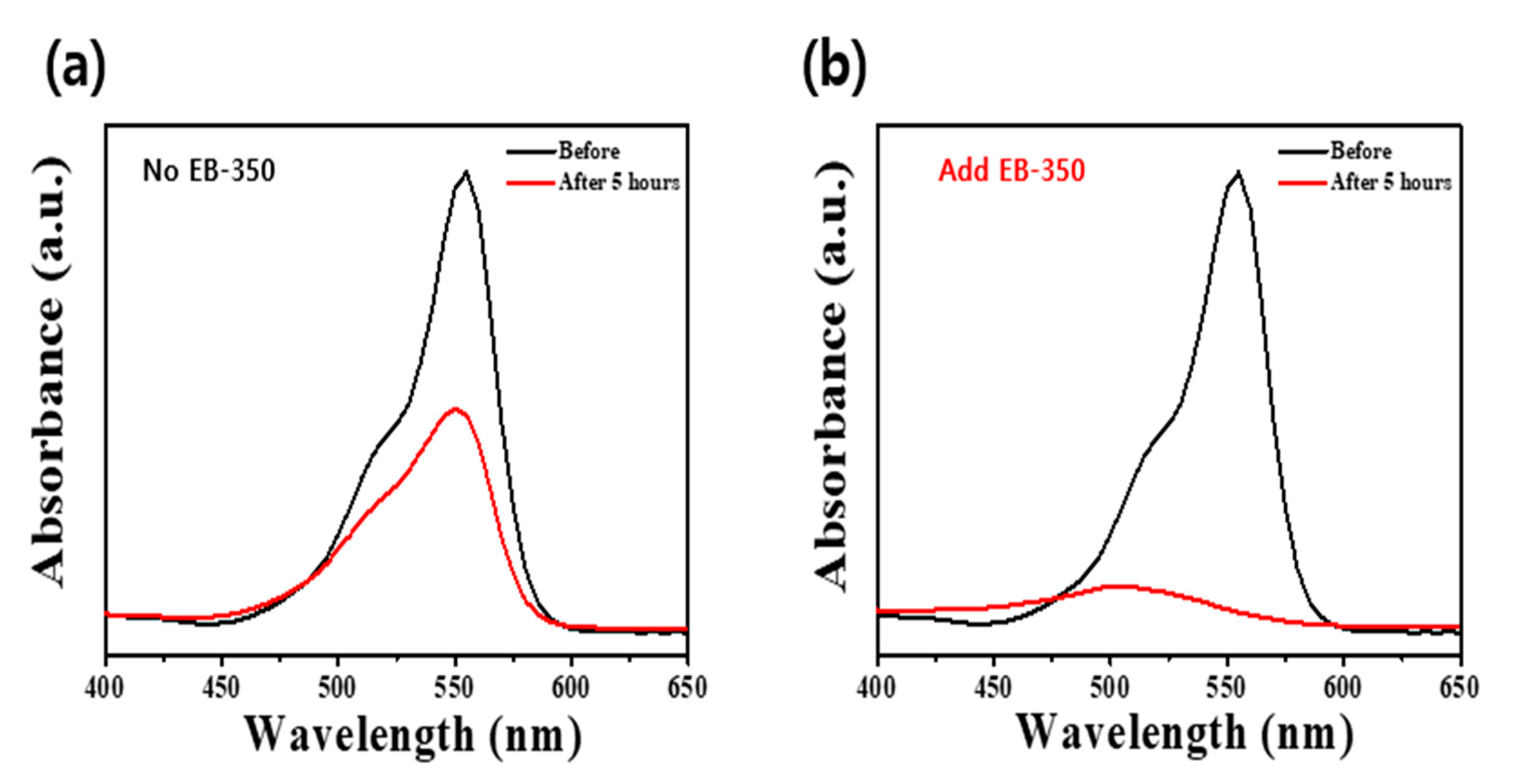

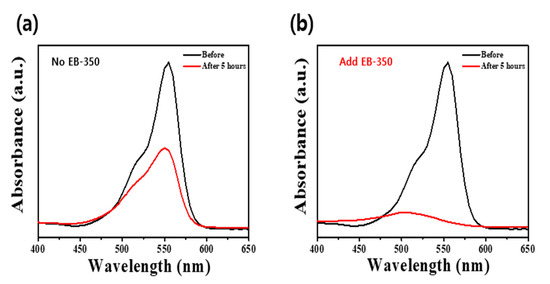

Figure 6. UV–Visible absorption spectra obtained before and after decolorization of RhB dye with the APTC coating layers on the ABS plastic filter substrates (a) without EB-350 and (b) with EB-350.
Figure 7 depicts the appearance of an air purifier with the filter of Figure 4b installed inside a vehicle. The product is expected to be released and sold as early as next year in gold and silver colors. We will also consider more colors and designs that reflect flow mechanics for future products to cater to the consumer’s preference.
Figure 7. Images of air purifier adapted APTC filter.

3. Materials and Methods

3.1. Synthesis of Amorphous Ti-Based Hydroperoxo Complex (ATPC)

All the chemicals used in the synthesis of the amorphous Ti-based hydroperoxo complex (ATPC), namely titanium hydride (TiH2, Sigma-Aldrich, St Louis, MO, USA) and hydrogen peroxide solution (H2O2, 30 wt.% in H2O, Sigma-Aldrich), were used as starting agents without any further purification. The typical synthetic method for ATPC was very simple. First, TiH2 powder (3.0 g) and distilled water (75 mL) were vigorously stirred at 25 °C. Second, 100 mL of H2O2 was slowly added into the solution to form a Ti–OOH surface with a TiH2 core. After 1.5 h, metallic Ti reacted with H2O2, resulting in a gray colored gel state due to an exothermic reaction, followed by an increase in temperature up to 100 °C. Finally, 50 mL of H2O2 was added into the gray gel and stirred for 1 h to form a green colored gel state. After the gel was dried at 100 °C and ground, a fine powder was obtained. The details of our synthetic method as well as the characteristics of ATPC have already been reported elsewhere [21]. With the measurements of XPS and Raman spectra, we confirmed that our synthesized ATPC photocatalysts had large amounts of hydroperoxo groups and many oxygen vacancies on the ATPC surface that could induce very high photocatalytic activity under the visible light catalyst.
XPS shown in Figure 8 was measured to confirm the Ti oxidation number and oxygen related species as well asoxygen vacancy. As shown in the bottom figure of Figure 8a, the typical binding energy of Ti4+ was confirmed in the case of TiO2. One noticeable thing is that the binding energy of metallic Ti and Ti4+ was confirmed through the data of TiH2, because the surface of TiH2 can easily oxidize even in the air. In the case of green and yellow colored ATPC, they showed the various Ti oxidation states such as Ti2+, Ti3+, and Ti4+. This was because surface oxidation proceeded slowly from metallic Ti. In addition, Figure 8b shows the measurements of the O 1s peaks and the results are as follows. First, the green colored ATPC showed the oxygen-bonded binding energy between Ti4+/Ti2+ and VO (oxygen vacancy)/TiOH/TiOOH observed to be high. This could be attributed to our synthesized peroxo complexes, as oxidation and polymerization reactions took place on TiH2 surface. In the case of yellow colored ATPC, it can be explained that the oxidation reaction proceeded by H2O2 from the green gel so that the Ti-OOH groups increased. Raman spectra were also measured to obtain supplement information for peroxo groups present in the synthesized ATPC. As shown in Figure 8c, there were two vibration modes (916 and 685 cm−1) originating from the peroxo groups. In addition, strong Eg mode (286 cm−1) derived from oxygen vacancy and typical TiO2 vibration mode (531 cm−1) was also measured [27].

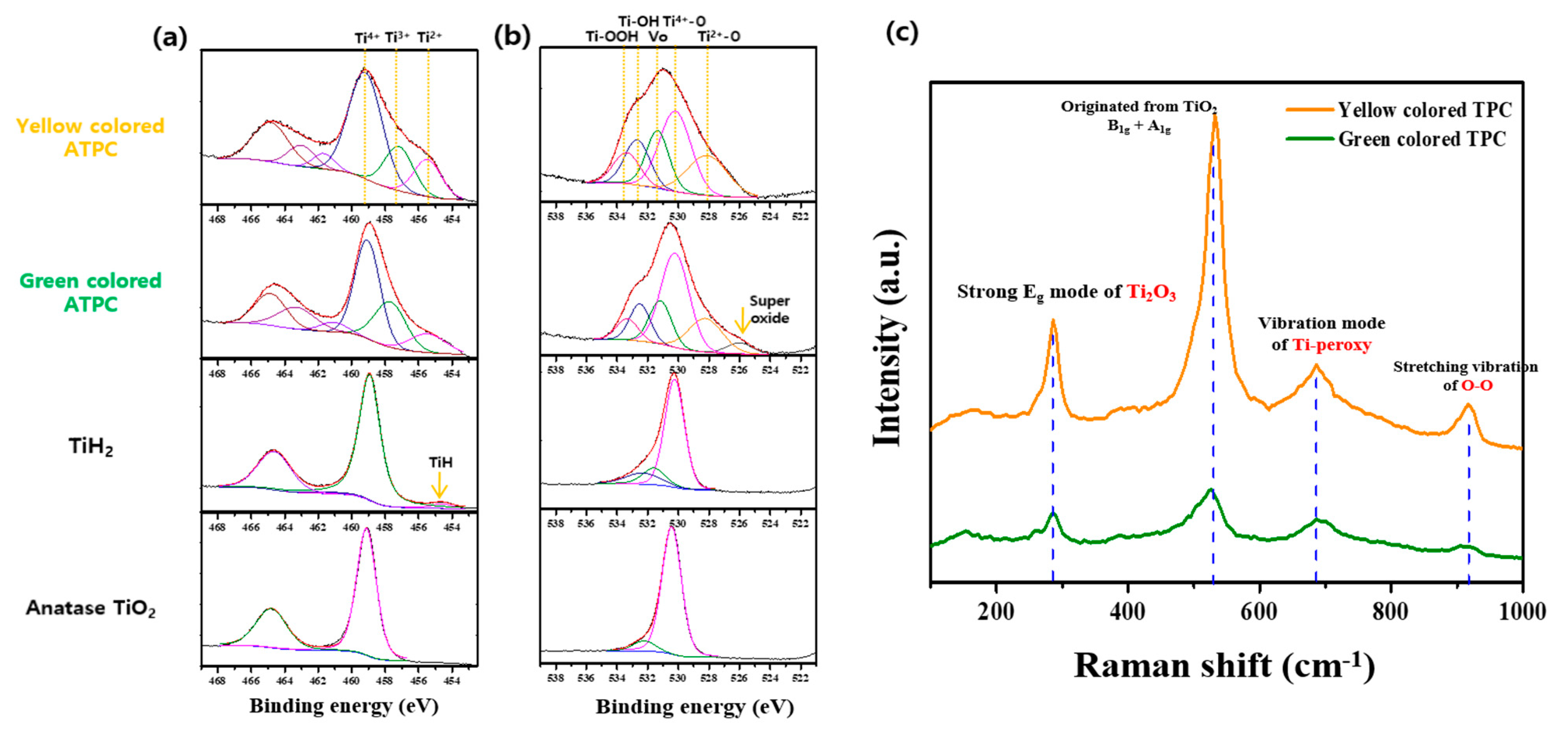

Figure 8. X-ray photoelectron spectra of (a) Ti 2p level and (b) O 1s level of anatase TiO2, TiH2, green and yellow colored ATPC. (c) shows the Raman spectra of green and yellow colored ATPC.

3.2. Characterization

Under a 200 W blue LED lamp, the photocatalytic activity of the synthesized ATPC was first evaluated by the decolorization of RhB. Figure 9 presents the detailed diagrams for the photocatalytic activity measurements for the removals of (a) RhB dye and (b) ACT VOC, respectively. In a typical photocatalytic activity measurement procedure, 20 mg of ATPC powder was added to a 70 mL aqueous solution of 10 ppm RhB and stirred for about 30 min to establish an adsorption–desorption equilibrium. As the first step, a blank test was conducted for about 30 min to confirm whether the RhB dye was physically adsorbed on the surface of the ATPC photocatalyst or decomposed without a visible light source. Next, under visible light conditions, the suspensions were irradiated at a certain distance. During light irradiation, every 5 min the suspensions (each 4 mL) were collected and separated via centrifugation. The separated solution was transferred to a 1 cm × 1 cm cuvette for absorbance measurement using a UV–Visible spectrophotometer. By checking the peak of absorbance at 550 nm corresponding to the   π → π * transition, the photocatalytic activities of each sample were measured. An application test for an airpurifier system was also conducted with the synthesized ATPC coating layers as follows. First, the samples were washed and centrifuged with distilled water after each photocatalytic activity measurement was finished to remove the RhB dye from the sample surface. The following procedure was repeated several times.

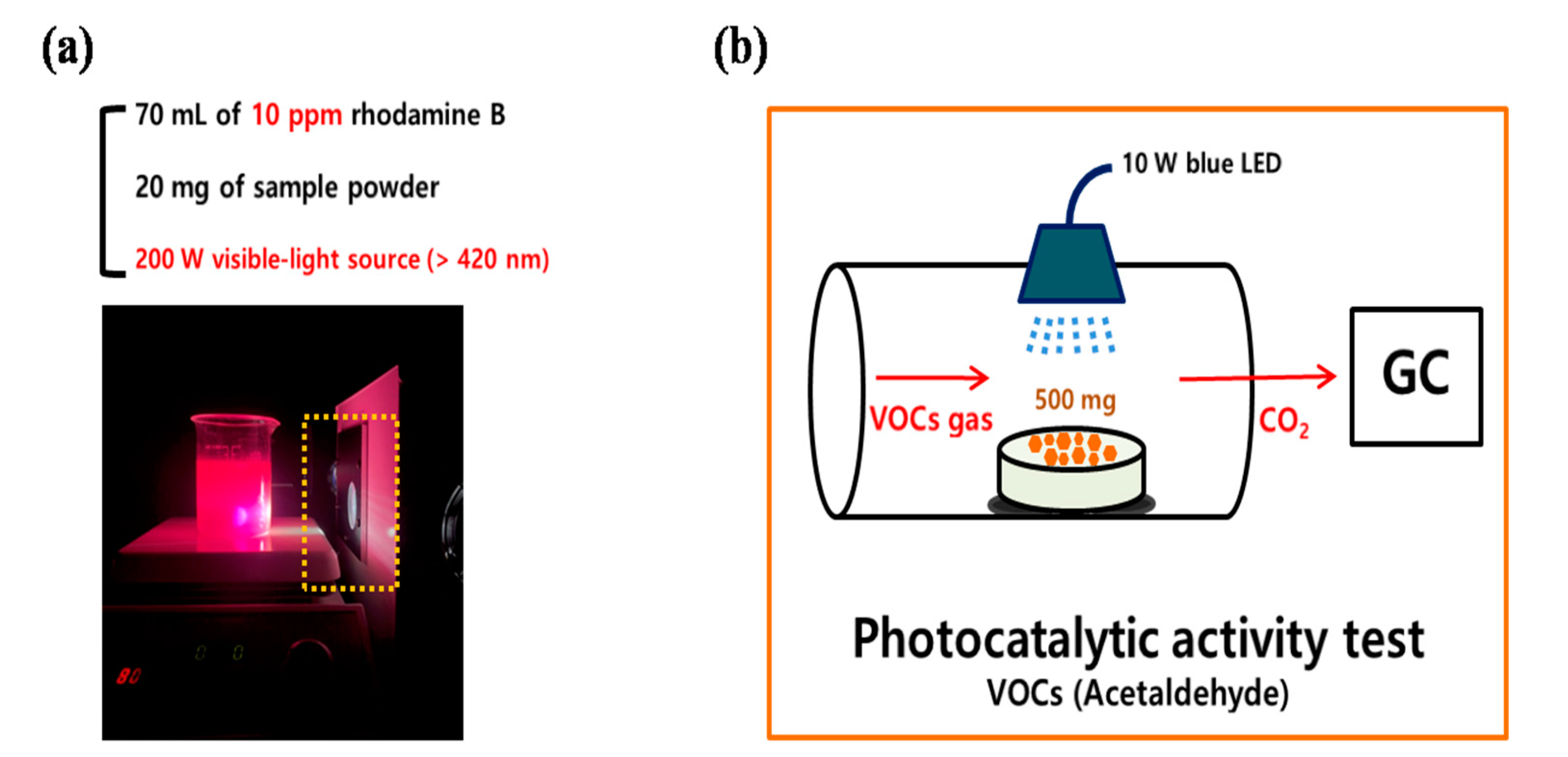

Figure 9. Schematic of the photocatalytic activity tests for the removal of (a) RhB dye and (b) ACT VOC.

4. Conclusions

In this study, an amorphous Ti-based hydroperoxo complex (ATPC) as the new photocatalyst involvingonly titanium hydride (TiH2) and H2O2 was synthesized by using a facile method undermild conditions. Based on the results presented above, we conclude that all the synthesized samples showeda good degradation efficiency owing to the active carriers formed from the peroxo groups and oxygen vacancies of ATPC. Overall data suggest that this study presents a very good approach to solving air pollution problems such as VOCs. The reason is that in the process of synthesizing ATPC, not only low-cost precursors were used but also a facile synthesis method at room temperature was proposed. Moreover, both the synthesis of ATPS and the fabrication of ATPC-based coating layer are expected to be applicable to various fields such as the removal of both organic pollutants and hazardous wastes as well as a scale-up synthesis method. In addition, since our synthetic method does not need any additional heat or pressure during the synthesis process, this mild synthetic method will be very valuable if it can be applied to other metallic materials besides TiH2. Furthermore, it will be easy to build a mass synthesis system in an industrial aspect later.

Author Contributions

Conceptualization, J.W.L. and J.-H.B.; methodology, J.W.L.; software, R.H.J.; validation, J.W.L., R.H.J. and I.S.; formal analysis, J.W.L.; investigation, J.W.L.; resources, J.-H.B.; data curation, R.H.J.; writing—original draft preparation, J.W.L.; writing—review and editing, R.H.J., I.S. and J.-H.B.; visualization, J.W.L.; supervision, J.-H.B.; project administration, J.-H.B.; funding acquisition, J.-H.B. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Basic Science Research Program through the National Research Found This ation of Korea (NRF) funded by the Ministry of Education (No. NRF-2019R1A6A1A10073079).

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Liu, Y.; Shao, M.; Fu, L.; Lu, S. Source profiles of volatile organic compounds (VOCs) measured in China: Part I. Atmos. Environ. 2008, 42, 6247–6260. [Google Scholar] [CrossRef]
  2. Phillips, M.; Herrera, J.; Krishnan, S. Variation in volatile organic compounds in the breath of normal humans. J. Chromatogr. B 1999, 729, 75–88. [Google Scholar] [CrossRef]
  3. Fan, Z.; Lioy, P.; Weschler, C.; Fiedler, N.; Zhang, J. Ozone-Initiated Reactions with Mixtures of Volatile Organic Compounds under Simulated Indoor Conditions. Environ. Sci. Technol. 2003, 37, 1811–1821. [Google Scholar] [CrossRef] [PubMed]
  4. Calfapietra, C.; Fares, S.; Manes, F.; Morani, A.; Sgrigna, G.; Loreto, F. Role of Biogenic Volatile Organic Compounds (BVOC) emitted by urban trees on ozone concentration in cities: A review. Environ. Pollut. 2013, 183, 71–80. [Google Scholar] [CrossRef]
  5. He, J.; Zou, Z.; Yang, X. Measuring whole-body volatile organic compound emission by humans: A pilot study using an air-tight environmental chamber. Build. Environ. 2019, 153, 101–109. [Google Scholar] [CrossRef]
  6. Yang, S.; Gao, K.; Yang, X. Volatile organic compounds (VOCs) formation due to interactions between ozone and skin-oiled clothing: Measurements by extractionanalysis-reaction method. Build. Environ. 2016, 103, 146–154. [Google Scholar] [CrossRef]
  7. Yu, L.; Wang, L.; Xu, W.; Chen, L. Adsorption of VOCs on reduced graphene oxide. J. Environ. Sci. 2018, 67, 171–178. [Google Scholar] [CrossRef]
  8. Kamal, M.S.; Razzak, S.A.; Hossain, M.M. Catalytic oxidation of volatile organic compounds (VOCs)—A review. Atmos. Environ. 2016, 140, 117–134. [Google Scholar] [CrossRef]
  9. Yang, C.; Qian, H.; Li, X.; Cheng, Y.; He, H.; Zeng, G.; Xi, J. Simultaneous Removal of Multicomponent VOCs in Biofilters. Trends Biotechnol. 2018, 36, 673–685. [Google Scholar] [CrossRef]
  10. Ostyn, N.R.; Steele, J.A.; Prins, M.D. Low-temperature activation of carbon black by selective photocatalytic oxidation. Nanoscale Adv. 2019, 1, 2873–2880. [Google Scholar] [CrossRef]
  11. Sheng, Z.; Ma, D.; He, Q.; Wu, K. Mechanism of photocatalytic toluene oxidation with ZnWO4: A combined experimental and theoretical investigation. Catal. Sci. Technol. 2019, 9, 5692–5697. [Google Scholar] [CrossRef]
  12. Shayegan, Z.; Haghighat, F. Effect of surface fluorination of P25-TiO2 on adsorption of indoor environment volatile organic compounds. Chem. Eng. J. 2018, 346, 578–589. [Google Scholar] [CrossRef]
  13. Erdogan, N.; Jongee, P.; Woohyuk, C.; Soo, Y.K.; Abdullah, O. Alkaline hydrothermal synthesis, characterization, and photocatalytic activity of TiO2 nanostructures: The effect of initial TiO2 phase. J. Nanosci. Nanotechnol. 2019, 19, 1511–1519. [Google Scholar] [CrossRef] [PubMed]
  14. Gao, X.X.; Ge, Q.Q.; Xue, D.J.; Ding, J.; Ma, J.Y. Tuning the fermi-level of TiO2 mesoporous layer by lanthanum doping towards efficient perovskite solar cells. Nanoscale 2016, 8, 16881–16885. [Google Scholar] [CrossRef] [PubMed]
  15. Giannakopoulou, T.; Papailias, I.; Todorova, N.; Boukos, N.; Liu, Y.; Yu, J.; Trapalis, C. Tailoring the energy band gap and edged’ potentials of g-C3N4/TiO2 composite photocatalysts for NOX removal. Chem. Eng. J. 2017, 310, 571–580. [Google Scholar] [CrossRef]
  16. Lopez, R.; Ricardo, G. Band-gap energy estimation from diffuse reflectance measurements on sol-gel and commercial TiO2: A comparative study. J. Sol-Gel Sci. Technol. 2012, 61, 1–7. [Google Scholar] [CrossRef]
  17. Mara, M.W.; Bowman, D.N.; Buyukcakir, O.; Shelby, M.L. Electron injection from copper diimine sensitizers into TiO2: Structural effects and their implications for solar energy conversion devices. J. Am. Chem. Soc. 2015, 137, 9670–9684. [Google Scholar] [CrossRef]
  18. Ovsyannikov, S.V.; Xiang, W.; Vladimir, V.S.; Alexander, E.K.; Natalia, D.; Gaston, G.; Leonid, D. Structural stability of a golden semiconducting orthorhombic polymorph of Ti2O3 under high pressures and high temperatures. J. Phys. Condens. Matter 2010, 22, 375402–375411. [Google Scholar] [CrossRef]
  19. Panayotov, D.A.; John, T.Y.J. Depletion of conduction band electrons in TiO2 by water chemisorptions-IR spectroscopic studies of the independence of Ti-OH frequencies on electron concentration. Chem. Phys. Lett. 2005, 410, 11–17. [Google Scholar] [CrossRef]
  20. Qiu, M.; Yuan, T.; Zhangxian, C.; Zeheng, Y.; Wenming, L.; Kai, W.; Lei, W.; Kun, W.; Weixin, Z. Synthesis of Ti3+ self-doped TiO2 nanocrystals based on Le Chatelier’s principle and their application in solar light photocatalysis. RSC Adv. 2016, 6, 74376–74383. [Google Scholar] [CrossRef]
  21. Lee, J.W.; Jeong, R.H.; Kim, D.I.; Yu, J.-H.; Nam, S.-H.; Boo, J.-H. Facile synthesis of amorphous Ti-peroxo complex for photocatalytic activity under visible-light irradiation. J. Clean. Prod. 2019, 239, 118013. [Google Scholar] [CrossRef]
  22. Gligorovski, S.; Strekowski, R.; Barbati, S.; Vione, D. Environmental implications of hydroxyl radicals. Chem. Rev. 2015, 115, 13051–13092. [Google Scholar] [CrossRef]
  23. Shu, Y.; Ji, J.; Zhou, M.; Liang, S.; Xie, Q.; Li, S.; Liu, B.; Deng, J.; Cao, J.; Liu, S.; et al. Selective photocatalytic oxidation of gaseous ammonia at ppb level over Pt and F modified TiO2. Appl. Catal. B Environ. 2022, 300, 120688. [Google Scholar] [CrossRef]
  24. Karmakar, S.; Barman, S.; Rahimi, F.A.; Biswas, S.; Nath, S.; Maji, T.K. Developing post-modified Ce-MOF as a photocatalyst: A detail mechanistic insight into CO2 reduction toward selective C2 product formation. Energy Environ. Sci. 2023, 16, 2187–2198. [Google Scholar] [CrossRef]
  25. Talaiekhozani, A.; Rezani, S.; Kim, K.-H.; Sanaye, R.; Amanie, A.M. Recent advances in photocatalytic removal of organic and inorganic pollutants in air. J. Clean. Prod. 2021, 278, 123895. [Google Scholar] [CrossRef]
  26. Papailias, I.; Todorova, N.; Giannakopoulou, T.; Dvoranová, D.; Brezová, V.; Dimotikali, D.; Trapalis, C. Selective removal of organic and inorganic air pollutants by adjusting the g-C3N4/TiO2 ratio. Catal. Today 2021, 361, 37–42. [Google Scholar] [CrossRef]
  27. Zheng, W.; Liu, X.; Yan, Z.; Zhu, L. Ionic liquid-assisted synthesis of large-scale TiO2 nanoparticles with controllable phase by hydrolysis of TiCl4. ACS Nano 2009, 3, 115–122. [Google Scholar] [CrossRef]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Article Metrics

Citations

Article Access Statistics

Journal Statistics
Multiple requests from the same IP address are counted as one view.
Influence of Nanoscale Intimacy in Bi-Functional Catalysts for CO2-Assisted Dehydrogenation of C5-Paraffins
Previous
Selective Hydrogenation of Adiponitrile to 6-Aminocapronitrile over Ni/α-Al2O3 Catalysts Doped with K2O and La2O3
Next
