Novel Control System Strategy for the Catalytic Oxidation of VOCs with Heat Recovery
Abstract
:1. Introduction
2. Results and Discussion

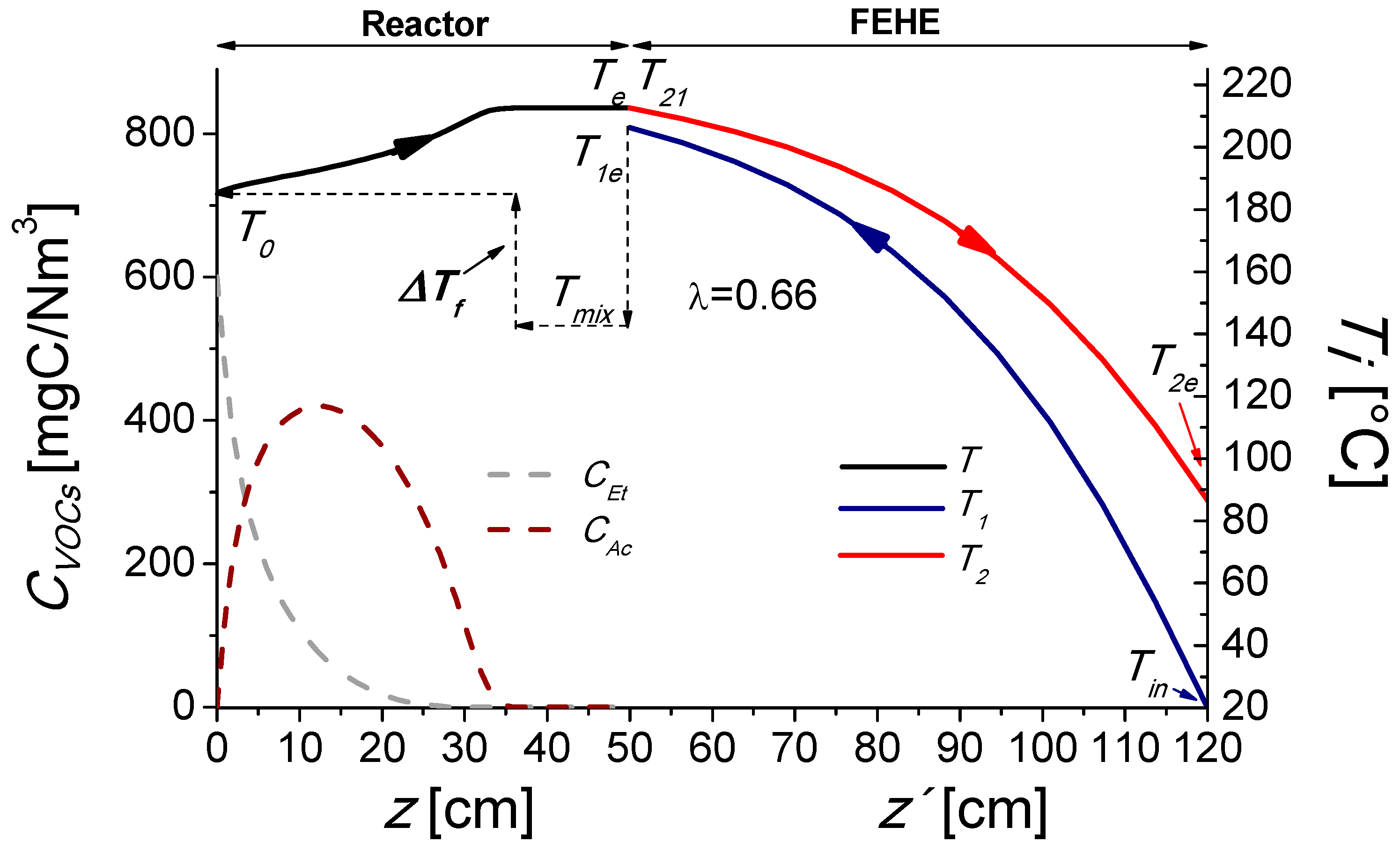

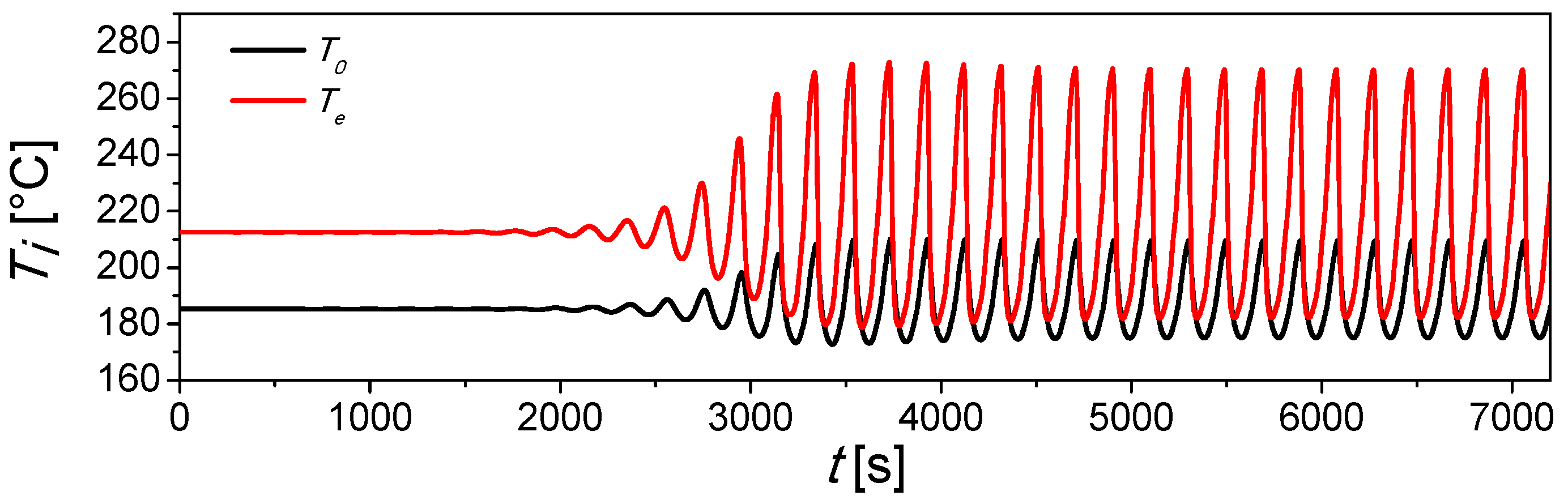

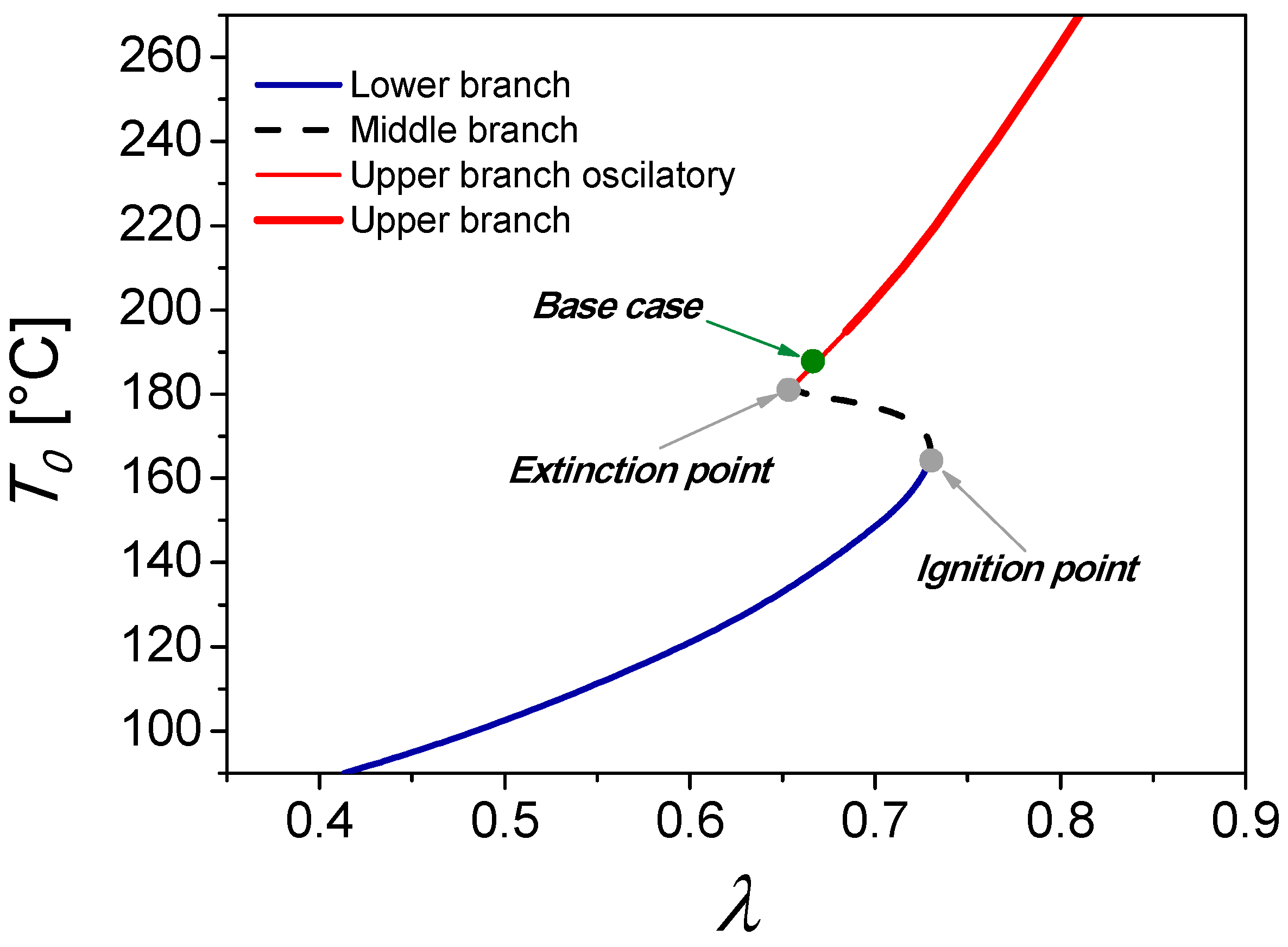

2.1. Base Case
2.2. Control Strategy Results

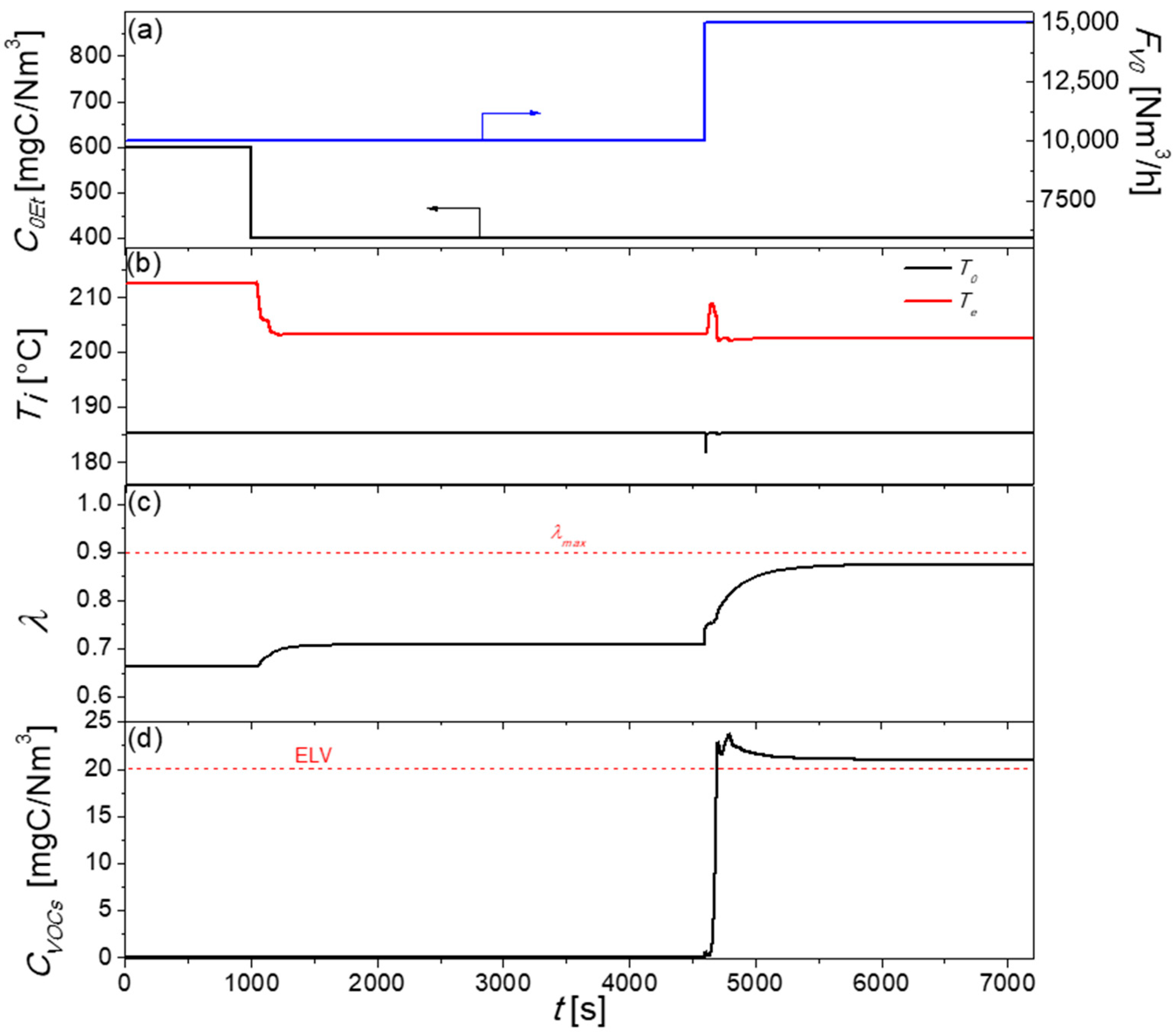

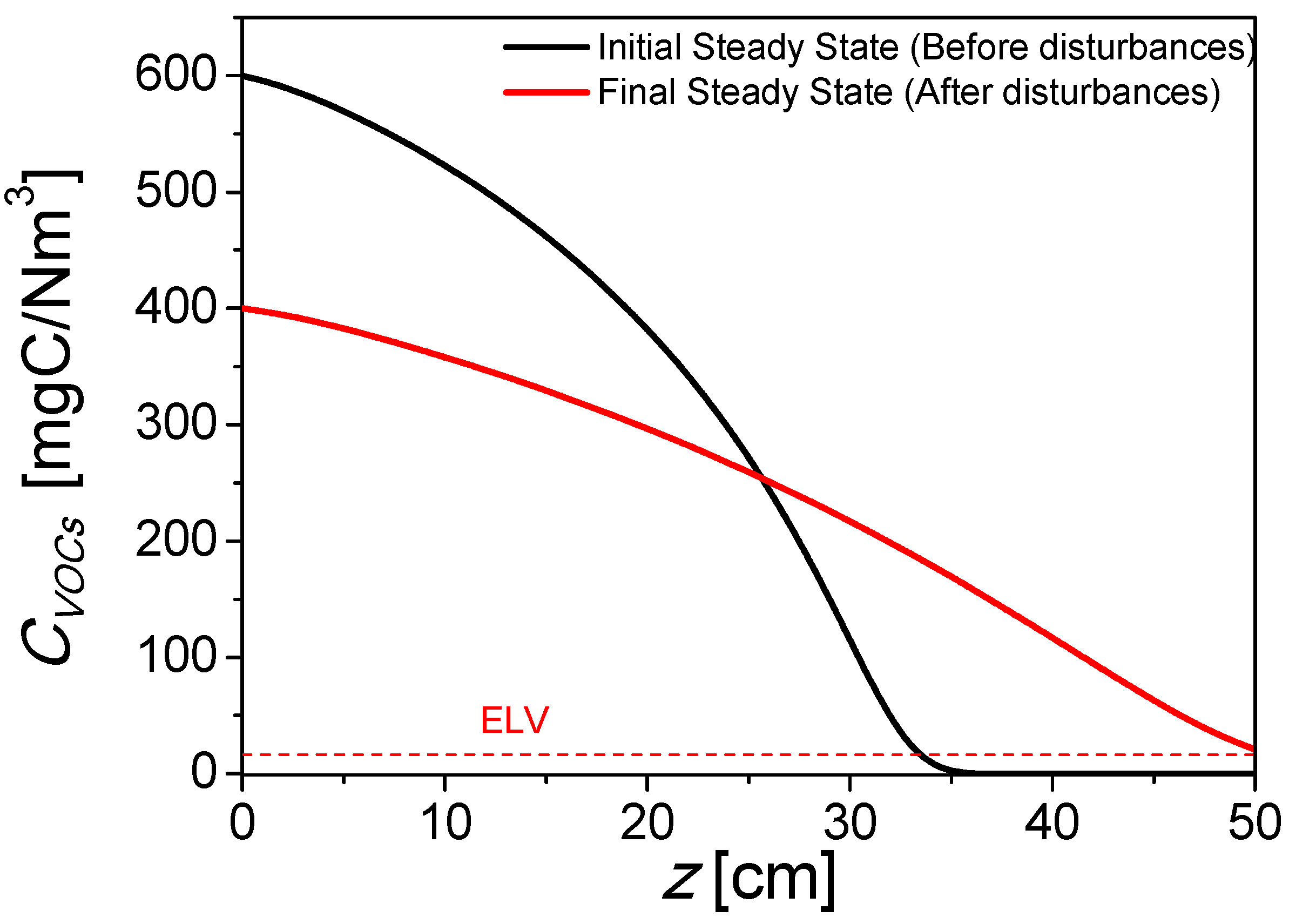

2.2.1. Control Strategy One: Single-Loop Feedback Control

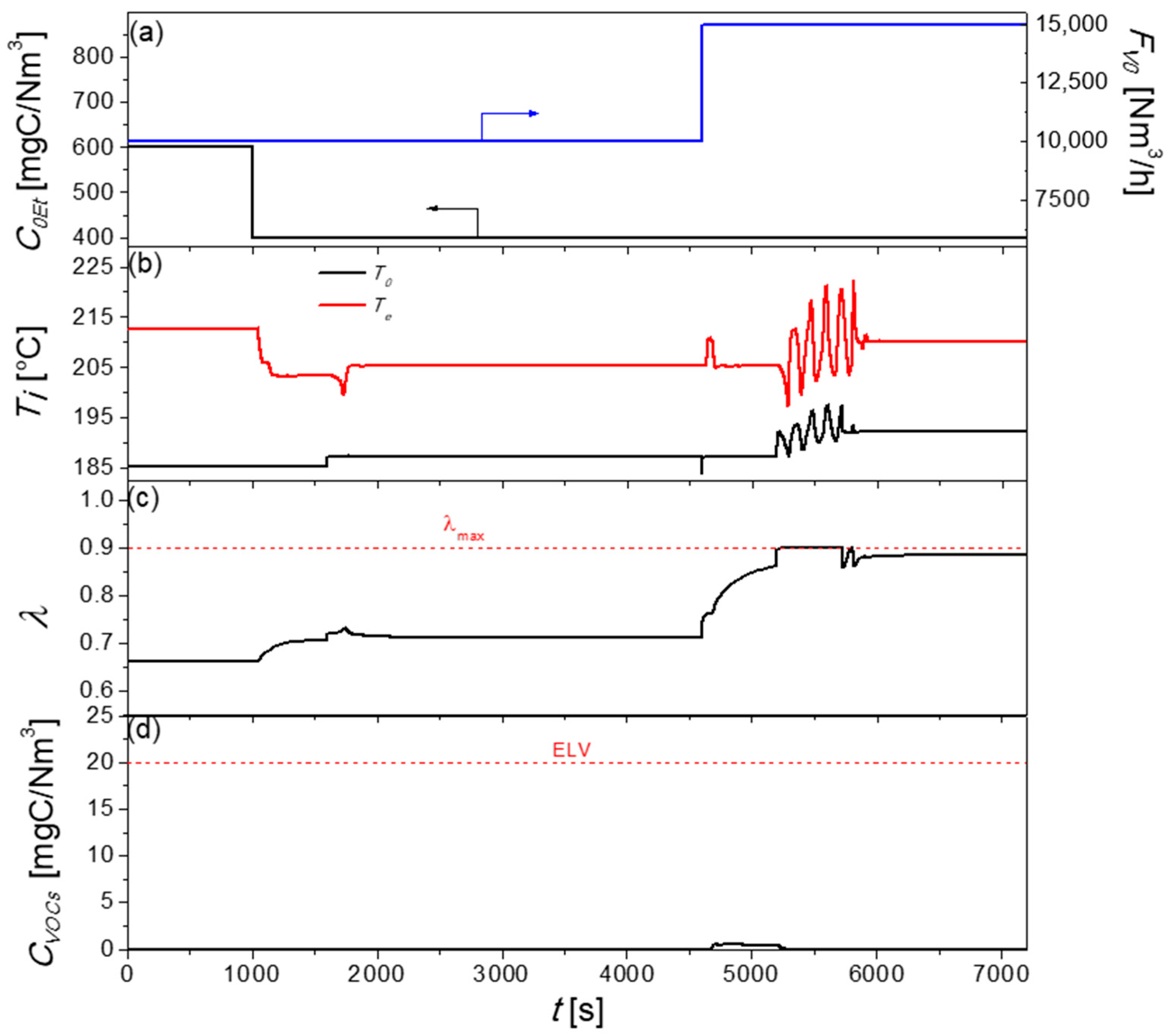

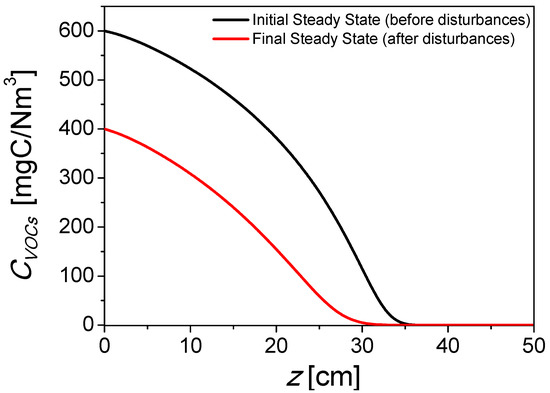

2.2.2. Control Strategy Two: Single-Loop Feedback System with Servomechanism Changes in T0

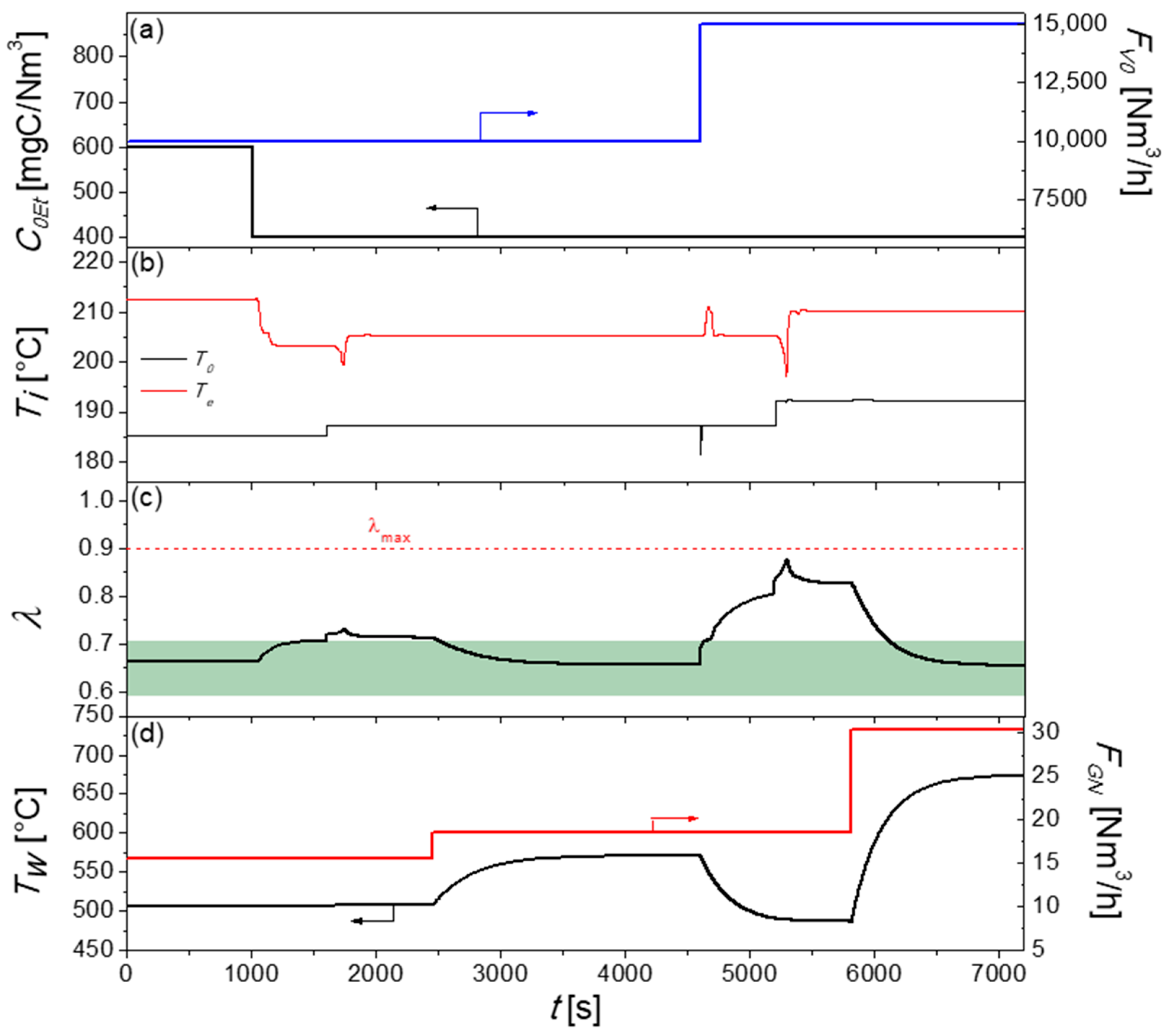

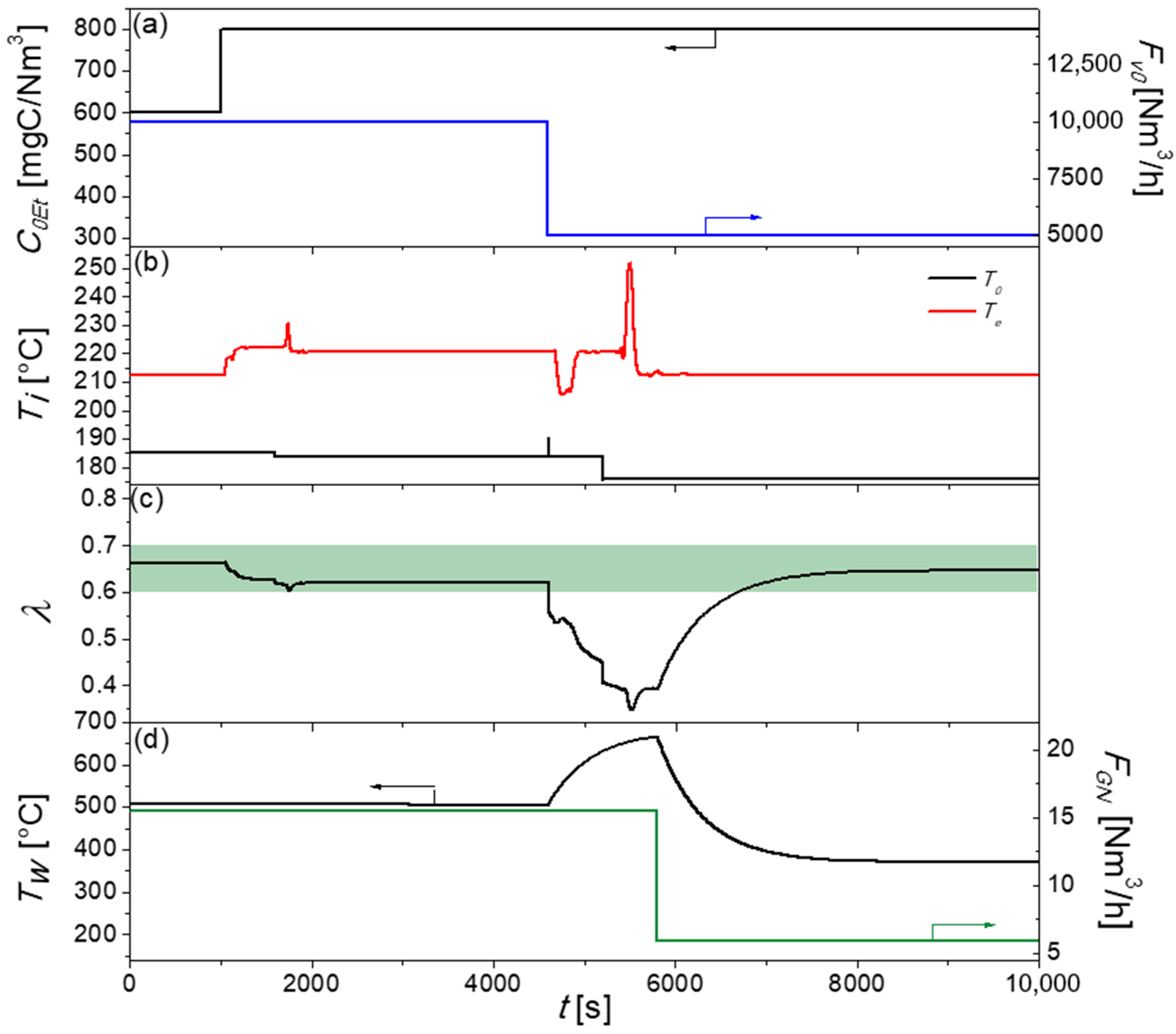

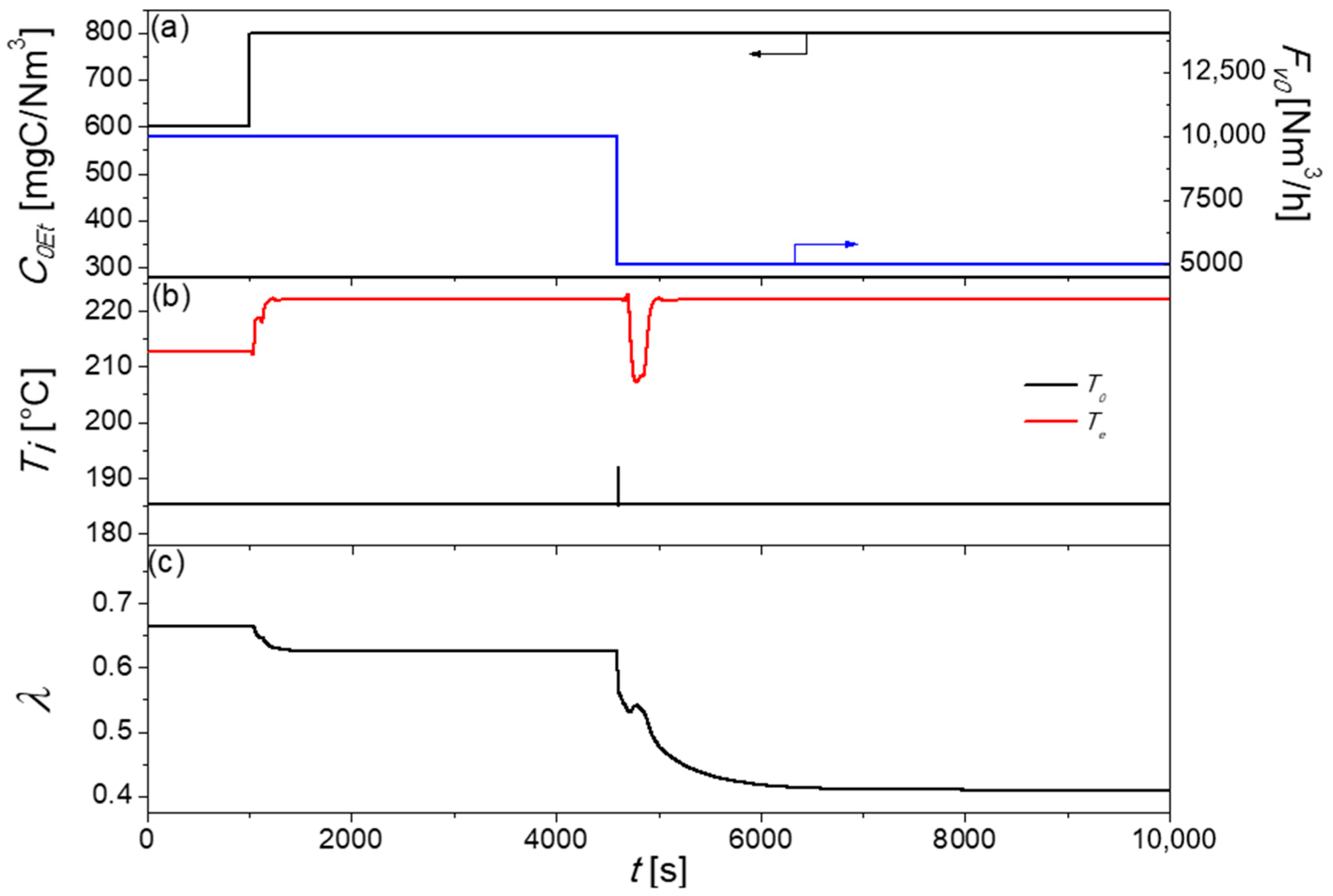

2.2.3. Control Strategy Three: Sequential Control System
2.3. Comparison of Control Strategies: Energy Savings
3. Mathematical Model
3.1. Description of the Process and Control Strategies

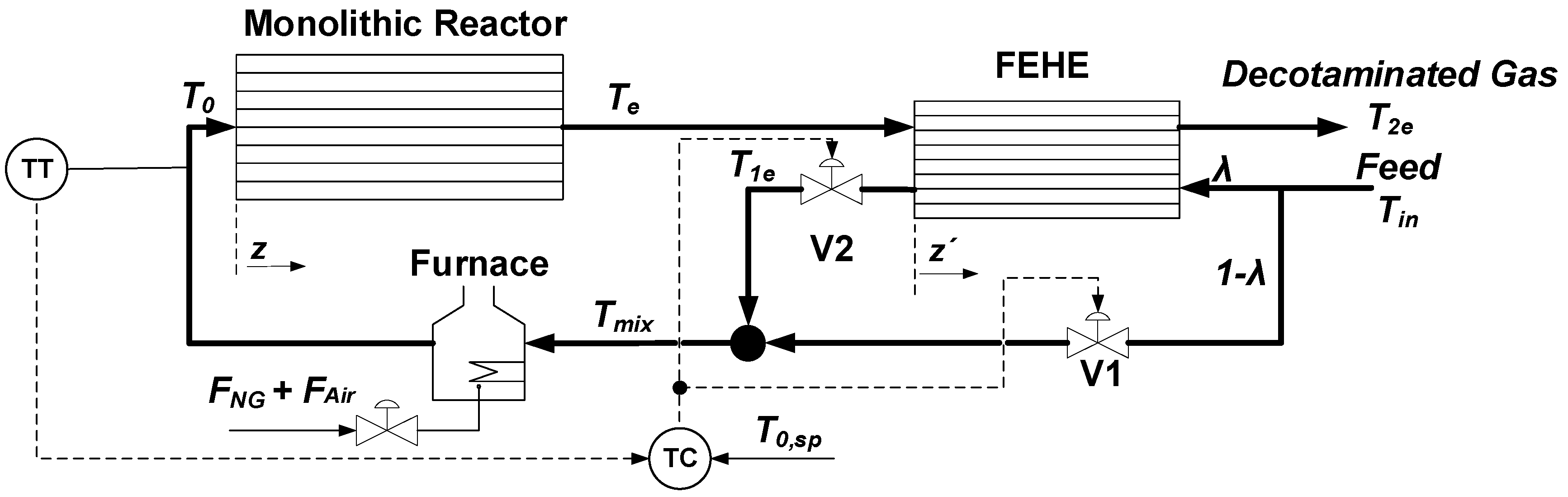

3.1.1. Single-Loop Feedback Control

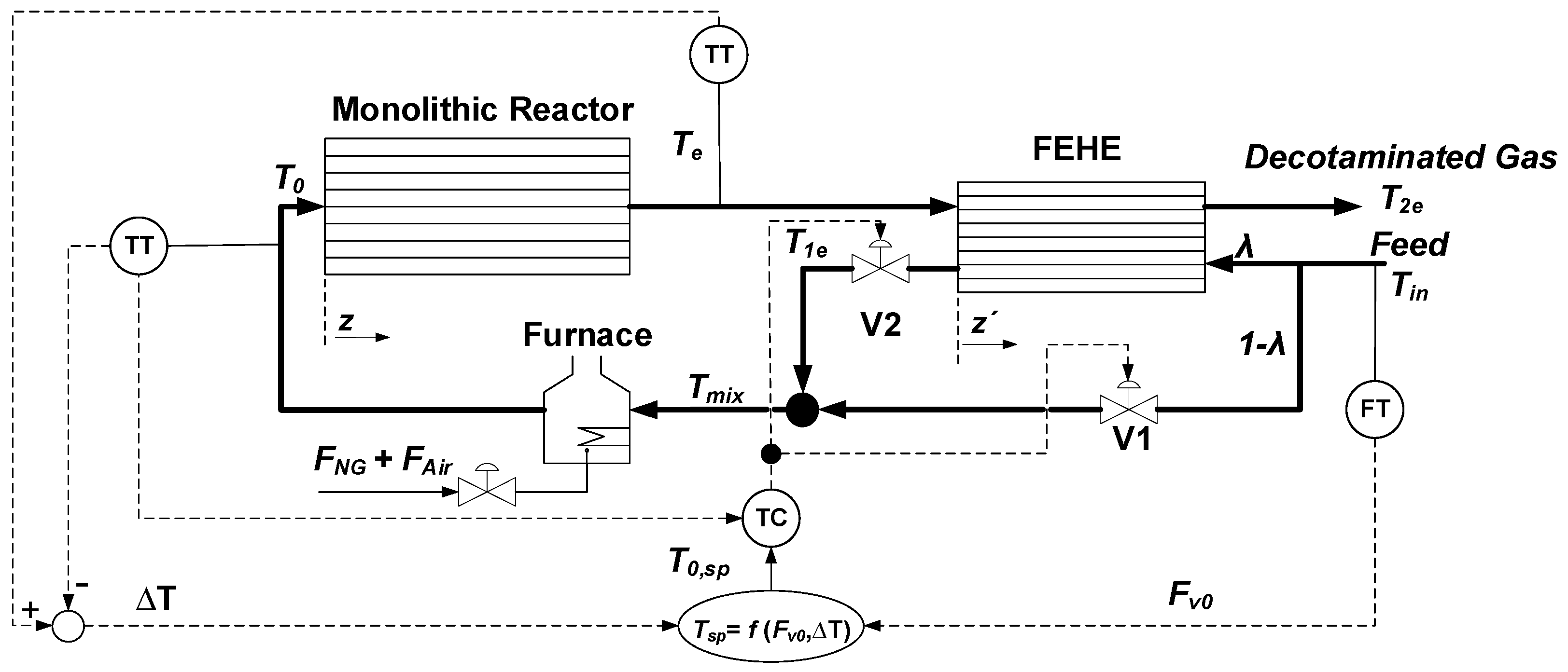

3.1.2. Single-Loop Feedback System with Servomechanism Changes in T0.

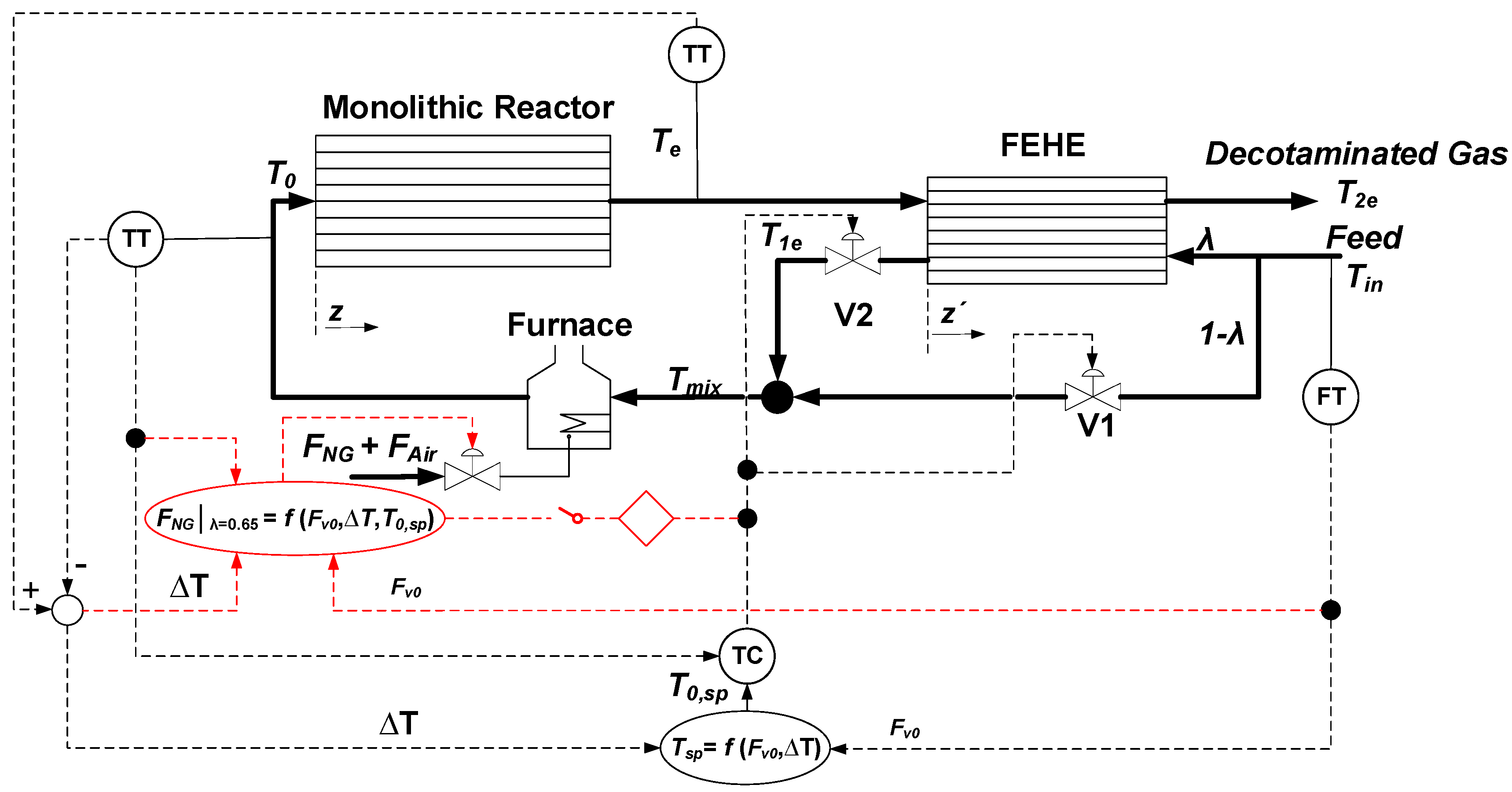

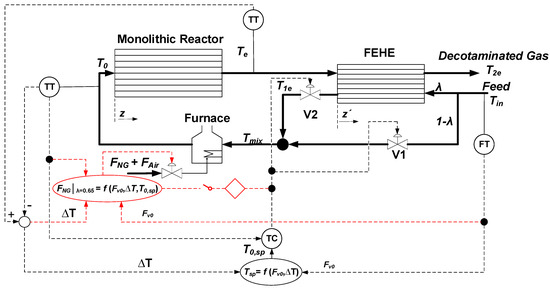

3.1.3. Sequential Control System
3.2. Reactor, FEHE, and Furnace
Parameter | Value |
---|---|
Feed VOC concentration, CEt0 | 400–800 mgC/Nm3 |
Volumetric feed flowrate, FV0 | 5000–15,000 Nm3/h |
Pressure, P | 101.325 kPa |
Feed temperature, TIn | 20 °C |
Reactor gas hourly space velocity, GHSV | 5.93 × 103–1.798 × 104 1/h |
Flow fraction through FEHE, λ | 0.1–0.9 |
Furnace heat, Qf | 50–300 kW |
Parameter | Value |
---|---|
Reactor | |
Channel length, L | 0.5 m |
Channel width = height, b | 1115 um |
Cell density | 400 cpsi |
Channel number | 13,924 × 102 |
Monolithic material | Cordierite (2MgO-2Al2O3-5SiO2) |
Catalytic material | Mn-Cu |
Average washcoat thickness | 20 µm |
Washcoat density, ρw | 4030 kg/m3 |
Reactor weight (washcoat + cordierite) | 682 kg |
Heat exchanger [25] | |
Type | Plate fin heat exchanger (PFHE) |
Flow configuration | Counter-current |
Plate length, L’ | 0.7 m |
Plate width | 0.7 m |
Channel height | 6.35 mm |
Plate thickness | 0.4 mm |
Plates number | 220 |
Fin thickness | 0.154 mm |
Fin density | 437 fins/m |
FEHE weight | 903 kg |
Heat exchanger material | Stainless steel (AISI 316) |
Furnace | |
Type | Indirect fired |
Tube arrangement | Horizontal |
Tube number | 98 + chamber |
Tube length | 1000 mm |
Tube/chamber diameters | 25.4 mm/400 mm |
Fuel | Natural gas |
Furnace weight | 260 kg |
Efficiency, ԑf | 0.9 |
3.3. Controller
3.3.1. Control Strategy One: Single-Loop Feedback System
3.3.2. Control Strategy Two: Single-Loop Feedback System with Servomechanism Changes in T0
3.3.3. Control Strategy Three: Advanced Control System
4. Conclusions
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
Nomenclature
b | Channel width=height, mm |
Cj | Concentration of component j, molj/m3 or mg C/Nm3 |
er | Error, dimensionless |
Ei | Activation energy of reaction i, J/mol |
ELV | Emission limit value, 20 mg C/Nm3 (total VOC emissions under normal conditions) |
FNG | Natural gas flow under normal conditions, Nm3/h |
FV0 | Volumetric feed flowrate, Nm3/h |
FAir | Volumetric air flowrate, Nm3/h |
GHSV | Gas hourly space velocity, 1/h |
kref,1 | Kinetic constant for reaction one, 1/s |
kref,2 | Kinetic constant for reaction two, mol/(m3 s) |
Kcj | Adsorption constant for component j, m3/mol |
Kc | Proportional action parameter |
L | Reactor channel length, m |
L’ | Heat exchanger length, m |
P | Pressure, kPa |
Qf | Furnace heat supply, kW |
Reaction rate for reaction i, mol/(mg3s) | |
t | Time, s |
T | Reactor temperature, °C |
Te | Reactor outlet temperature = hot stream inlet temperature (heat exchanger), °C |
Tk | Temperature of stream k in the heat exchanger, °C |
Tw | Temperature of furnace tube wall |
V1 | Split-range valve to manipulate the bypass flowrate |
V2 | Split-range valve to manipulate the flowrate through the heat exchanger |
Xj | Conversion of component j, dimensionless |
XVOCs | VOC conversion |
Z | Reactor axial coordinate, m |
z’ | Heat exchanger axial coordinate, m |
Compounds/acronyms | |
VOC | Volatile organic compound |
Greek letters | |
∆Hri° | Heat of reaction i under standard conditions, J/mol |
∆T | Temperature difference between the reactor outlet and the reactor inlet |
∆Tad | Adiabatic temperature gradient, °C |
∆Tf | Temperature rise caused by the furnace, °C |
∆C0Et | Concentration disturbance, mg C/Nm3 |
ԑ1 | Degree of advancement of reaction one |
ԑ2 | Degree of advancement of reaction two |
ԑf | Furnace thermal efficiency |
λ | Fraction of stream through the heat exchanger |
1 − λ | Fraction of stream through bypass |
Integral action parameter | |
Subscripts | |
Ac | Acetaldehyde |
e | Exit |
Et | Ethanol |
f | Furnace |
w | Furnace tube wall |
HE | Heat exchanger |
i | Reaction |
j | Component |
mix | Mixing point |
R | Reactor |
sp | Set point (reference value) |
VOCs | Volatile Organic Compounds (ethanol + acetaldehyde) |
T | Total |
1 | Heat exchanger cold stream |
2 | Heat exchanger hot stream |
References
- United States Environmental Protection Agency (EPA). Available online: http://www.epw.senate.gov (accessed on 15 April 2023).
- The Paints Directive 2004/42/EC—European Commission. Off. J. L 2004, 143, 0087–0096. Available online: http://eur-lex.europa.eu (accessed on 17 April 2023).
- Everaert, K.; Baeyens, J. Catalytic combustion of volatile organic compounds. J. Hazard. Mater. 2004, 109, 113–139. [Google Scholar] [CrossRef]
- Luyben, W.L.; Tyreus, B.D.; Luyben, M.L. Plantwide Process Control; McGraw-Hill: New York, NY, USA, 1998. [Google Scholar]
- Morud, J.; Skogestad, S. Effects of recycle on dynamics and control of chemical processing plants. Comput. Chem. Eng. 1994, 18, S529–S534. [Google Scholar] [CrossRef]
- Denn, M.; Lavie, R. Dynamics of plants with recycle. Chem. Eng. J. 1982, 24, 55–59. [Google Scholar] [CrossRef]
- Luyben, W.L. Snowball effects in reactor/separator processes with recycle. Ind. Eng. Chem. Res. 1994, 33, 299–305. [Google Scholar] [CrossRef]
- Morud, J.; Skogestad, S. Dynamic behaviour of integrated plants. J. Process Control 1996, 6, 145–156. [Google Scholar] [CrossRef]
- Bildea, C.S.; Dimian, A.C.; Cruz, S.C.; Iedema, P.D. Design of tubular reactors in recycle systems. Comput. Chem. Eng. 2004, 28, 63–72. [Google Scholar] [CrossRef]
- Morud, J.C.; Skogestad, S. Analysis of instability in an industrial ammonia reactor. AIChE J. 1998, 44, 888–895. [Google Scholar] [CrossRef]
- Luyben, W.L. Dynamics and control of recycle systems. 1. Simple open-loop and closed-loop systems. Ind. Eng. Chem. Res. 1993, 32, 466–475. [Google Scholar] [CrossRef]
- Dimian, A.C.; Bildea, C.S.; Kiss, A.A. Chapter 7—Process Synthesis by the Hierarchical Approach. In Computer Aided Chemical Engineering; Elsevier: Amsterdam, The Netherlands, 2014; Volume 35, pp. 253–300. [Google Scholar] [CrossRef]
- Bildea, C.S.; Dimian, A.C. Stability and multiplicity approach to the design of heat-integrated PFR. AIChE J. 1998, 44, 2703–2712. [Google Scholar] [CrossRef]
- Silverstein, J.L.; Shinnar, R. Effect of design on the stability and control of fixed bed catalytic reactors with heat feedback. 1. Concepts. Ind. Eng. Chem. Process. Des. Dev. 1982, 21, 241–256. [Google Scholar] [CrossRef]
- Terrill, D.L.; Douglas, J.M. Heat-exchanger network analysis. 2. Steady-state operability evaluation. Ind. Eng. Chem. Res. 1987, 26, 691–696. [Google Scholar] [CrossRef]
- Luyben, W.L. New Control Structure for Feed-Effluent Heat Exchanger/Reactor Systems. Ind. Eng. Chem. Res. 2012, 51, 8566–8574. [Google Scholar] [CrossRef]
- Tyreus, B.D.; Luyben, W.L. Dynamics and control of recycle systems. 4. Ternary systems with one or two recycle streams. Ind. Eng. Chem. Res. 1993, 32, 1154–1162. [Google Scholar] [CrossRef]
- Miranda, A.F.; Rodríguez, M.L.; Borio, D.O. Open-loop dynamic analysis of the catalytic oxidation of vocs with heat recovery. Chem. Eng. Res. Des. 2023, 193, 432–446. [Google Scholar] [CrossRef]
- Miranda, Á.; Rodríguez, M.; Cadús, L.; Borio, D. Stability of a Feed-Effluent Heat Exchanger/Reactor system for catalytic combustion of VOCs: Influence of variable emission patterns. J. Environ. Chem. Eng. 2021, 9, 105597. [Google Scholar] [CrossRef]
- Luyben, W.L. Control structures for process piping systems. Chem. Eng. Res. Des. 2020, 162, 28–37. [Google Scholar] [CrossRef]
- Rodríguez, M.; Cadús, L.; Borio, D. VOCs abatement in adiabatic monolithic reactors: Heat effects, transport limitations and design considerations. Chem. Eng. J. 2016, 306, 86–98. [Google Scholar] [CrossRef]
- Campesi, M.A.; Mariani, N.J.; Pramparo, M.C.; Barbero, B.P.; Cadús, L.E.; Martínez, O.M.; Barreto, G.F. Combustion of volatile organic compounds on a MnCu catalyst: A kinetic study. Catal. Today 2011, 176, 225–228. [Google Scholar] [CrossRef]
- Miranda, A.F.; Rodriguez, M.L.; Borio, D.O. Obtaining Effective Reaction Rates in Monolithic Reactors for Ethanol Combustion. IV RITeQ, Carlos Paz, Cordoba, Junio. 2018. Available online: https://drive.google.com/file/d/17HuZ89LsrHVHZIiFIn7hNXdZ9bnuCMo3/view (accessed on 17 April 2023). (In Spanish).
- Shampine, L.F.; Gear, C.W. A User’s View of Solving Stiff Ordinary Differential Equations. SIAM Rev. 1979, 21, 1–17. [Google Scholar] [CrossRef]
- Kays, W.M.; London, A.L. Compact Heat Exchangers, 3rd ed.; Scientific International: New Delhi, India, 2018; ISBN 978-93-87938-03-8. [Google Scholar]
Reaction System | Kinetic Expression | |
---|---|---|
C2H6O + (1/2) O2 → C2H4O + H2O | (1) | |
C2H4O + (5/2)O2 → 2CO2 + 2H2O | (2) |
Parameter | Value |
---|---|
kref,1 | 1.71 × 103 s−1 |
kref,2 | 1.8 × 10−1 mol s−1 m−3 |
E1 | 1.1124 × 105 J mol−1 |
E2 | 1.62 × 105 J mol−1 |
KcAc | 6.75 × 102 m3 mol−1 |
KcEt | ~0 |
∆H0r1 | −1.73 × 105 J/mol |
∆H0r2 | −1.10 x 106 J/mol |
Controller Parameter | Value |
---|---|
0.003 | |
0.5 |
