Biodiesel Production from Waste Oil Catalysed by Metal-Organic Framework (MOF-5): Insights on Activity and Mechanism

Department of Chemical Sciences, Monte Sant’Angelo Campus, University of Naples “Federico II”, Via Cinthia 4, 80126 Naples, Italy
Institute for Polymers, Composites and Biomaterials, National Council of Research, Via Campi Flegrei 34, 80078 Pozzuoli, Italy
Author to whom correspondence should be addressed.
Catalysts 2023, 13(3), 503;
Submission received: 2 January 2023 / Revised: 17 February 2023 / Accepted: 26 February 2023 / Published: 28 February 2023
(This article belongs to the Special Issue Catalytic Valorization of Biomass)


The activity of MOF-5-based solids has been exploited in the simultaneous transesterification and esterification of acid vegetable oils. For this purpose, three different types of MOF-5 have been synthesized and characterized, and then tested in the above-mentioned reactions. It has been demonstrated that the “regular MOF-5” was a suitable catalyst for biodiesel synthesis from waste oil also, rich in FFA (Free Fatty Acids). Moreover, to identify the true structure that acts in the reactions and possible structural modifications due to the presence of alcohols, proper studies have been performed. The results have evidenced a distortion of the regular structure of MOF-5 due to the breakage of some zinc bonds between the cluster and organic framework.

1. Introduction

According to the International Energy Agency report of 2016 on “Renewable Energy Term Market”, the renewable energy sources hold a noteworthy position in the global market of energy consumptions [1]. This increment can be justified considering the depletion of fossil resources and environmental concerns connected to their use. In this scenario, biodiesel represents a promising alternative to face these challenges. Biodiesel, also known as Fatty Acid Methyl Ester (FAME), corresponds to a mixture of methyl esters, derived by the transesterification reaction of vegetable and animal oils or fats with methanol (Figure 1a).
Many advantages are commended by the use of biodiesel in comparison with fossil oil as the energy source: biodegradability, renewability, higher flash point and lubricity, absence of sulphur, reduced emissions, and pollutants [2].
However, there are some limitations for the use of biodiesel compared with petro-diesel; for example, the feedstock costs have been estimated to share about 75–88% of total production costs and the necessity to substitute the classical vegetable oil used for its production with a raw material that is not in competition with food.
Some strategies have been investigated and proposed to overcome the barrier of costs and get competitive the use of biodiesel as an alternative to diesel from the economical point of view: the improvement of the production technologies, the development of better catalysts, and the use of alternative feedstocks [3]. Several raw materials can be considered to produce biodiesel, such as animal fats, vegetable oils, and algae oil. The choice depends on the country and the availability of local resources; for example, soybean oil prevails in the USA, whereas palm and rapeseed prevail in Europe and tropical regions. However, for edible oils, the food-energy debate has been raised for developing countries. Therefore, non-edible oils represent a sustainable answer to this issue. In this regard, the transport oil costs, connected to the use of foreign non-edible oil, must be considered. The logic lies in the application of cheaper local feedstock. Waste oils, derived from restaurants and household cooking, are an economical and local source of oil for biodiesel synthesis, which can allow the reduction of production costs and resolve the disposal problem of the waste. However, the waste oils or fats and non-edible crops oil have higher FFA (Free Fatty Acid) and water content; these can injure the yield and quality of the produced biodiesel due the occurrence of side reactions (Figure 1b).
This setback is mainly noticeable for most economic process based on alkali-catalyzed transesterification with methanol. The presence of FFA and water promotes the soap formation by methoxide specie instead of transesterification reaction with the triglyceride molecule. Therefore, in these cases, the opportune pre-treatment step, based on the esterification reaction, is needed [4].
Moreover, Brønsted acids can be used as catalysts for the transesterification, even if the reaction is slower in this case in addition to corrosivity problems due to the presence of strong acids [5]. The transesterification with supercritical methanol is another advantageous answer. For this technology, catalysts are not employed; thus, the pre-treatment is not needed. However, a very large content of alcohols and severe values of temperature and pressure are required [6].
The use of catalysts capable to promote simultaneously both the transesterification of triglycerides and esterification of FFA in methyl esters (FAME) would simplify the whole process, achieving a reduction of both investment and process costs. Homogenous and heterogenous catalysts have been proposed in the literature as able to promote both reactions [7]. The use of heterogeneous catalysts represents the advantageous choice to get a more sustainable process through the recovery of the catalyst at the end of the reaction cycle, in obedience to some Green Chemistry Principles [8].
Various examples of bifunctional catalysts of esterification and transesterification reactions can be found in the literature. SrO-ZnO/Al2O3 has been involved in biodiesel production and in the esterification of oleic acid [9], as well as ZnO nanoparticles used in the transesterification of α-ketocarboxylic esters [10]. Catalysts based on MgO and hydrotalcites have also been used in the transesterification reaction of soybean oil with methanol by Di Serio et al. [11]. The reaction for the production of biodiesel has also been catalyzed by calcium oxide being a promising catalyst [12], and, in addition to these, MOFs are also a class of catalysts suitable for esterification and transesterification reactions for the production of biodiesel, as reported by Jamil et al. [13]. Table 1 shows a comparison between different catalysts used in the production of biodiesel.
Metal-Organic Frameworks (MOFs) have recently been attracting growing attention as heterogenous catalysts due to their notable versatility [19,20]. They consist of micro-mesoporous hybrid materials, composed by metal or metal-cluster nodes bridged by organic linkers in two- or three-dimensional frameworks [21]. These structures, also named porous coordination polymers (PCPs), correspond to a metal–ligand coordination with an organic ligand containing voids or channels. The interest in MOFs from academic and industrial research can be justified considering the concomitant presence of three key features: high crystallinity, porosity, and strong metal–ligand interactions. The microporous structure, due to pores with a specific volume of about 2 m2 g−1, provides very high specific surfaces up to 6000 m2 g−1, allowing their application for gas separation and storage, explosive vapors, and nerve agent pre-concentrator [22]. In particular, in the literature, a value of 3800 m2 g−1 is reported for the MOF-5 area and 1.55 m2 g−1 for pore volume [23].
An important property of MOFs is their modularity: the pore dimension, shape, and chemical environment can be tailored by the choice of a couple of building blocks (metal and organic linker), in addition to the solvent, and how they are interconnected [24,25,26].
Many metals can be suitable as nodes in MOFs, such as transition, alkaline and alkaline-earth metals, whereas polycaboxylic aromatic molecules, bipyridines, and polyazaheterocycles such as imidazole represent the most used organic linkers.
Several syntheses of MOFs with different structures were described in the literature; in particular, IRMOF [27], ZIF-8 [28,29] and MIL series [30] are the better-known examples.
In the field of the catalysis, they have been recommended for being active for many reactions, such as condensation of carbonyl groups, heterocycles synthesis, oxidations, fine chemicals synthesis, and photocatalysis [31].
Chizallet et al. [28] reported, for the first time, the use of a MOF (ZIF-8) for the transesterification reaction of vegetable oil. ZIF-8 showed significant reactivity in rapeseed oil transesterification with many linear alcohols. Cirujano et al. [32] showed the activity of Zr-containing UiOs-based-MOFs (UiO-66 and UiO-66-NH2) for the esterification reaction of several fatty acids with methanol. However, a decline in yields was reported to increase the complexity of the fatty acid chain in terms of length, ramification, and unsaturation. The same conclusion was shown by Liu et al. [33] for biodiesel production from fatty acids with methanol in the presence of NENU-3a.
Chen et al. [15] reported the application of amine-functionalized MOF (MOF-5, IRMOF-10, and MIL-53(Al)-NH2) as a solid base catalyst for the transesterification of triacetin and glyceryl tributyrate with methanol, showing an excellent performance with about 99% of conversion at low temperature (50 °C) and time (3–4 h).
Starting from this literature analysis, this work aimed at the study of MOF-based materials as active catalysts for biodiesel synthesis from waste oils. For this purpose, the chosen catalyst could be able to promote both reactions of FFA esterification and triglyceride transesterification with methanol. Therefore, in this work, a MOF-5 has been properly synthesized and characterized to confirm the structure by X-ray diffractometry, UV-VIS spectroscopy, and thermogravimetric analysis, and it has been tested in simultaneously acid oil esterification transesterification reactions for the biodiesel production to evaluate the activity.
The use of MOF-5 has already been proposed in the literature to promote the transesterification and esterification reactions, though never simultaneously. It has also never been discussed how the active sites acted in the reaction. Therefore, in this work, the type of mechanism and the possible active sites were studied to clarify the behavior of this solid as a heterogeneous catalyst. It is well known that two crystalline structures for MOF-5 can be possible, such as cubic and tetragonal, depending on the location of the zinc, which can exist separately or coexist together in a mixed structure (blend). Therefore, both structures have been prepared in this work for a general comparison of activity for the MOF-5-based solids in the studied reactions.
Subsequently, to identify if the catalyst undergoes structural changes when it is used in the reaction, a proper study has been performed, keeping the solid in contact with methanol at different temperatures and investigating the final structure, in addition to the activity. Based on the collected data, a conceivable mechanism has been hypothesized.
Finally, stability MOF has been verified in the reaction with proper tests of leaching and recycling.

2. Results and Discussion

2.1. Synthesis of the Catalyst

In this work, three solids based on MOF-5 with different structures were synthesized, as reported in Table 2, together with the obtained final yields. MOF-5 with cubic, tetragonal, and a mixture of them were prepared. From Table 2, it is evident that high yields have been reached, confirming the validity of the synthesis methods applied. Moreover, the cubic and tetragonal structure-based MOF-5s were synthesized with the aim of a comparison in the activity in the simultaneous reaction of the transesterification and esterification of acid oil with the blend MOF-5.

2.2. Characterisation of the Catalyst

Two different crystal structures are possible for a MOF-5-based solid. The first one is a cubic structure, where the inorganic clusters of [Zn4O]6+ are joined to an octahedral array of benzene-1,4-dicarboxylate (BCD) groups, forming a cubic Zn4O(BCD) framework with 12.94 Å as the distance between the centers of adjacent clusters. This structure corresponds to a form of MOF-5, known as “Regular”. The second structure, which is common for MOF-5 solids, is a tetragonal one, due to the presence of ZnO in the BCD framework, which causes a variation of axes length, forming a tetragonal structure.
Herein, the current structure for the synthesized MOF-5 was determined by XRD analysis. According to the literature, the principal difference in XRD profiles between tetragonal and cubic MOF-5 consists in the intensity of the reflections: (200) (2θ ≈ 7.0°) and (220) (2θ ≈ 9.8°). The higher intensity of the (200) reflection suggests the presence of a cubic structure, or a tetragonal one. The XRD pattern, shown in Figure 2a,b, revealed the presence of a tetragonal structure for blend MOF-5 (B-MOF-5), and confirms the tetragonal structure for the T-MOF-5 solid.
To be more precise, according to the literature, the principal difference in XRD profiles between tetragonal and cubic MOF-5 consists in the intensity of the reflections: (200) (2θ ≈ 7.0°) and (220) (2θ ≈ 9.8°). The higher intensity of the (200) reflection suggests the presence of a cubic structure, or a tetragonal one. From Figure 2a,b, it is evident that the intensity of the reflection at 9.8° is strikingly greater than the one at 7.0° for both B-MOF-5 and T-MOF-5. For the C-MOF-5 that has a cubic structure, there are uncertainties in the XRD spectrum, since, as discussed in the literature, this structure is very unstable and tends to change even when in contact with humidity.
Moreover, the predominance of the tetragonal structure for B-MOF-5 was confirmed by DRS analysis, as depicted in Figure 2a,b. Three main signals can be seen in the UV-vis spectrum: two peaks (256 and 286 nm) are usually associated to the electron’s transitions π → π* of the organic aromatic C6 ring. The third signal at 372 nm is distinctive of the type of the structure because it is usually assigned to the electronic transitions of ZnO and to O2−Zn2+ → O-Zn+ ligand-to-metal transfer transition [34,35]. This signal confirmed the presence of ZnO in B-MOF-5, and it is detectable only for the tetragonal MOF-5.
In Figure 2c,d, the thermal decomposition of B-MOF-5 is reported too. The TGA profile shows four weight losses at different temperature values: the first one at 100 °C (2% wt.) can be associated to the evaporation of adsorbed moisture; the second (19% wt.), in the range of 100–240 °C, can be attributed to N,N-Diethyl formamide (DEF) removal; the remaining weight losses at higher temperatures reflect the collapse of the framework, which begins at about 240 °C. This lower thermal stability, observed for the synthesized MOF-5, can be ascribed to the use of DEF as a solvent instead of N,N-Dimethyl formamide (DMF). According to Chen et al. [36], the use of DEF brings forward the structure decomposition at 250 °C rather than at 375 °C with DMF. Therefore, the first weight loss (18 wt%), observed in the range 2400–300 °C, can be assigned to the starting point of the decomposition of MOF-5, whereas the second one, around 400 °C, can be assumed due to the total collapse of the frameworks [37,38].
Scanning electron microscopy (SEM) was used to investigate MOF-5 morphology, shape, and surface structure. In Figure 3a, MOF-5 before the contact with methanol is reported. The images clearly show the presence of distorted cubic structures, typical of MOF-5 [39]. The catalyst after the contact with methanol is indicated with the letter B. In this case, the expected morphology of the MOF-5 that is lost and the break of the bonds are clearly visible.

2.3. Catalytic Activity

Figure 4 shows the results, obtained in the transesterification and esterification reactions of neutral/acid oil with methanol, in the presence of the different types of MOF-5-based solids. At first, blank experiments carried out with bare reagents (acid oil/methanol) without a catalyst showed that there is not any significative contribution to the reaction from the metal walls of the reactor. Regarding the transesterification/esterification reactions, the results highlighted that the structure of MOF-5 strongly influences both the transesterification and the esterification reactions. The better performance has been depicted for B-MOF-5 and T-MOF-5; the worst for C-MOF-5.
These results can be ascribed to the presence of channels with different dimensions, depending on the type of structure or lattice of the MOF. The distortion of the lattice, which is evident in the tetragonal ones (B-MOF-5 and T-MOF-5), creates a more open structure, facilitating the passage of molecules for the reaction, whereas for a cubic structure, the presence of a more closed reticle is assumed, which could create diffusion problems for more bulky molecules such as triglycerides.
On the other hand, this is also evident from the fact that the results obtained with the tetragonal structure (T-MOF-5) are comparable with the blend (B-MOF-5), where this structure predominates (see Figure 4). The distortion of the lattice, which is evident in the tetragonal one, creates a more open structure, facilitating the passage of molecules for the reaction. However, these results appear to be slightly lower than those which have been reported in the literature for esterification/transesterification reactions in the presence of similar MOF-based catalysts. The difference may be ascribed to a larger complexity of the organic substrate investigated: neutral and acid vegetable oil in this work, and carboxylic acids and only glyceril tibutyrate in the literature. Both Cirujano [32] and Liu [33] separately stated a decrease in yield (%) for both reactions, increasing the length and unsaturation degree of fatty acids. Moreover, the adopted experimental conditions and the MOF-5 prepared in this paper have enabled a reduction in the amount of the catalyst required to reach a high value of yield. Nevertheless, the results shown here seem very promising, since they show that MOF-5 is an active catalyst for both the transesterification and esterification reactions and show it as a suitable catalyst for biodiesel production from waste oils. This finding is a novelty for the existing literature concerning the application MOF-based materials in the transesterification of acid oils.
In order to verify the heterogenous nature of the solid catalyst used for this work, the leaching effect was evaluated by a proper test using B-MOF-5, as it was described in the experimental section. For these tests, a slight increase in FAME yield was observed (25%) in respect to blank test yield (less than 5%); these results indicated a low leaching of the active phase in the reaction media.
Considering the instability of some MOF-5 structures with humidity, a study was conducted to identify which of the two structures was active in the transesterification reaction. These tests were carried out by placing them in contact with methanol at different temperatures, and the structure of the dried solid was studied through X-ray analysis and UV spectroscopy. The XRD pattern of the recovered solid (B-MOF-5) is reported in Figure 5a, which highlights that the contact with methanol promotes a lowering of the intensity of the reflection (200) at 2θ ≈ 7°, a shift of the reflex (220) from 2θ ≈ 9.8° to 2θ ≈ 8.7°, and the appearance of a new signal at 2θ ≈ 8.1°.
This finding can be ascribed to a distortion of the regular structure of MOF-5 caused by the breaking of some Zn–O bonds between the cluster and the organic lattice (Figure 6), leading to a more open structure that proves to be still active, which is also evident from a comparison with the literature [40].
In Figure 5, the DRS spectra related to B-MOF-5 both recovered at the end of the reactions (a) and after the contact with the bare methanol at different temperature values, 60 °C (b), 25 °C (c), and 150 °C (d). For all spectra, the characteristic signals of MOF-5 have been observed, as well as a broad shoulder at 372 nm, correlated with the tetragonal structure and also the electronic transitions of ZnO. This finding is especially prevalent for the solid treated with methanol. Therefore, in the light of the collected results, the following hypothesis has been formulated: the methanol in this reaction network acts to promote a modification of the structure of MOF-5 with the break of some bonds in the lattice, leading to a more open structure. This structure is stable, as has been confirmed by the reuse test and leaching tests and maintains its activity in the studied reaction for biodiesel production. The catalyst was reused for three cycles in a Parr Instrument reactor, and a decrease in the catalyst performance was not observed, obtaining almost the same results for the FAME yields in each test (see Figure S1 in Supplementary Materials). This hypothesis has been further confirmed by the results in Figure 7, where the activity in transesterification and esterification reactions after the methanol contact are shown. The obtained results are comparable with that of fresh catalysts (see Figure 4).
A reaction mechanism was hypothesized, reported in Figure 8, in which the contact of the MOF-5 catalyst and methanol leads to a break of the bond between zinc and oxygen, and, at the same time, a bond with methanol itself is formed [41]. The hypothesis of the occurred mechanism is also confirmed by the results of the SEM analysis (Figure 3), in which the difference of the morphology before and after the contact with methanol can be seen. The images show the expected morphology of MOF-5 that is lost after contact with methanol, confirming the results of catalytic activities. The catalyst structure may cause diffusion problems due to the microporosity of the MOF-5. Operating with the catalyst in its open form can be advantageous in that it can avoid problems connected with the diffusion of the large bulk molecules as the triglycerides inside the catalyst itself. In Figure 8, a schematic representation, including part of the catalyst reported in Figure 6, is shown, and it can be extended to the whole structure.
The proposed mechanism for the MOF in the reactions studied retraces the one proposed by Sousa [41] and by Reinoso [42], who consider the nucleophilicity and the steric hindrance for the coordination at the Lewis site of zinc. In fact, considering the large size of the triglycerides, it is hypothesized that the coordination at the zinc site takes place by the action of methanol. After the methanol has broken the bond of the MOF, freeing the site, as evidenced by the XRD and results discussed above, this coordinates with the zinc site, with the formation of the Zn–OCH3 bond. Then, the carboxylate shift occurs with the formation of a carboxylic acid coordinate with Zn2+. These groups, as also reported in the existing literature, correspond to Brønsted sites. Then, the polarization of the bond C=O of the triglyceride molecule absorbed by the methoxide takes place, and the last step is the formation of the methyl ester and diglyceride. For the esterification reaction, a similar mechanism is assumed to occur, where only methanol coordinates with zinc, whereas oleic acid and fatty acids are spectators.

3. Materials and Methods

3.1. Materials

The oil used in the runs was purchased in a local food store. The fatty acid composition, determined by gascromatographic analysis, was (wt%): palmitic = 11, oleic = 23, linoleic = 56, linolenic = 5, others = 1. All other employed reagents were supplied by Aldrich at the highest level of purity and used as received without further purification.

3.2. Synthesis of the MOF- 5 Based Solids

3.2.1. Blend MOF-5

MOF-5 was prepared according to the method reported in [43]. Following this procedure, terephthalic acid (H2BCD) and zinc nitrate hexahydrate (Zn(NO3)2·6H2O) were used as precursors for organic ligand and metal, respectively, whereas dimethylformamide (DMF) was applied as an organic solvent to build the skeletal of MOF. Particularly, a solid mixture containing H2BCD and Zn(NO3)2 (weight ratio 0.2) was dissolved in the solvent at room temperature. Then, the solution was heated until 130 °C and it was kept at this constant temperature for 4 h. During this crystallization step, the solution slowly changed from limpid to turbid due to the formation of a white solid. At last, after the filtration step, the crystals obtained were washed with acetone. The final step was the activation at 60 °C under vacuum overnight. The experimental conditions adopted for the synthesis are resumed in Table 2.

3.2.2. Tetragonal MOF-5

The procedure reported by Zhang and Hu [37] and developed by Yaghi [44] was followed to synthesize MOF-5 with a tetragonal structure. This procedure consisted in the direct mixing of reagents for the formation of the crystals. In particular, weighted amounts of Zn(NO3)2 and H2BDC (see Table 2) were dissolved in DMF as solvent at room temperature. Then, 10 drops of an aqueous solution of hydrogen peroxide (20 wt%) were added, and then 2.5 mL of triethylamine (TEA) was added using a syringe very slowly for about an hour. During this step, the solution slowly changed from limpid to turbid due to the formation of a white solid. Finally, the mixture was vacuum filtered in a nitrogen atmosphere and washed three times with DMF. The filtrate was then activated at 180 °C under vacuum for 24 h.

3.2.3. Cubic MOF-5 Synthesis

The cubic MOF-5 was synthesized following the procedure reported by Zhang [37]: 0.0829 g of H2BDC and 0.4593 g of Zn(NO3)2 were dissolved under vigorous stirring using a solution consisting of 49 mL of DMF and 1 mL of distilled water, at room temperature. After the complete dissolution of the reagents, the reaction mixture was heated to 100 °C and kept at this temperature value for 7 h. On heating, crystal formation was observed and after 7 h, the system was allowed to cool to room temperature. The solid was filtered and washed 6 times with 50 mL of DMF, each time leaving the solid in the DMF for 8 h. After the washing with DMF, the solvent was decanted and the solid was washed 6 times with 50 mL of chloroform, always leaving the solid in chloroform for 8 h. Finally, the chloroform was removed by decantation and the obtained solid was treated at 115 °C for 24 h under vacuum to activate it.

3.3. Characterization of the Catalysts

The X-ray diffraction pattern was determined with a powder diffractometer (Philips Analy-tical, 1887, Amsterdam, Netherlands), using CuKa radiation at 4 0 kV and 25 mA in a range 2°–70° (2-Theta) and at a scan rate of 0.01° (2 theta/s). Ultraviolet and visible light diffuse reflection (UV-DRs) spectra were recorded in the 200–800 nm on a double beam spectrophotometer (JASCO, V-550, Tokyo, Japan). Barium sulfate was used as a reflectance standard. The measured intensity was expressed as Kubelka–Munk function F(R). TGA analysis was performed with (Perkin Elmer, ST 6000, Columbus, OH, USA) heating the sample from 25 to 900 °C at 10 °C min−1 in N2 stream (20 cm3 min−1). The microstructures of the samples were investigated by scanning electron microscopy (SEM, NOVA/NANOSEM 450 FEI, Hillsboro, OR, USA).

3.4. Catalytic Runs

The simultaneous esterification and transesterification reactions were performed using steel vials reactors. The reactants, soybean oil or acid soybean oil (FFA = 10 wt%), and methanol, at a molar ratio of 3:1 and a defined amount of catalyst (5 wt%), were introduced in each reactor. The reaction conditions chosen are those that the research group has usually adopted to effectively study the activity of different catalysts for these reactions [11,14]. The reactors were introduced in a ventilated oven, in which the initial temperature was 50 °C and then increased at a rate 20 °C/min until the final reaction temperature (150 °C). Then, this temperature value was kept for three hours. At the end of the reaction, the reactors were quenched in a cold bath, and the mixture reaction was centrifuged at 3200 rpm for 20 min and then the solid catalyst was filtered. Finally, the excess of methanol was removed through evaporation. Blank runs (without catalyst) were also performed to evaluate any contribution of the non-catalytic reaction. The FAME yields were determined by NMR spectroscopy (Bruker 400 MHz, USA), measuring the area of the 1H-NMR signal related to methoxylic and methylenic groups [45]. The FFA conversions were determined by titration with a 0.1 M solution of KOH in ethanol [46].

3.5. Leaching Test

The leaching of Zn in the reaction system was evaluated through proper experiments. These runs consisted in two steps: at first, the catalyst was kept in contact with methanol, without oil, using the same conditions used in the esterification/transesterification reactions for three hours. Then, the catalyst was removed by filtration and a new catalytic run was carried out with oil and without the catalyst, using methanol recovered from the previous run.

3.6. Reusability of the Catalyst

The reuse tests were performed to verify the stability of the solid catalyst. Each run was carried out in a Parr Instrument steel reactor using 20.5 g of acid oil and a molar ratio methanol/oil 80:1 and 0.125 g of MOF-5 (0.5 wt% respect to the oil), at 150 °C and 14 Bar as pressure for 3 h. After the reaction, the catalyst was separated from the reaction mixture by the decantation and immediately used in the consecutive reuse run by adding fresh oil and methanol to the reaction vessel.

3.7. Study of the Effect of Methanol on MOF-5 Structure

These runs were performed to verify the effective structure of the MOF in the transesterification reaction following contact with methanol and, therefore, to check the stability. For this purpose, 1 g of three MOFs (blend, cubic, and tetragonal) were put in contact with 20 g of methanol (99.8% for GC) in the steel vial reactors at three different temperatures (25 °C, 65 °C, and 150 °C) under stirring for 3 h. Finally, the solids recovered by filtration were dried in a vacuum oven at 40 °C. XRD and DR-UV analysis were performed on the dry samples.

4. Conclusions

In this work, the fundamental role of methanol in activating MOF-5 for simultaneous esterification and transesterification reactions to produce biodiesel from waste oil was highlighted. The methanol, used as a reactant for the reaction, was found to act to further open the structure of MOF-5 through structural distortion of the lattice. In each case, the active sites were created after contact with methanol by the breaking of the Zn–O bonds, increasing the accessibility of the triglyceride for the reaction. Therefore, this work sheds light on the mechanism by which MOF-5 catalyzes transesterification reactions, and paves the way for an improvement on the synthesis in order to make it more stable and active.

Supplementary Materials

The following supporting information can be downloaded at:, Figure S1: Catalyst reuse tests.

Author Contributions

Conceptualization, R.T. (Rosa Turco); methodology, R.V.; formal analysis, V.R.; investigation, R.T. (Rosa Turco); data curation, R.T. (Riccardo Tesser); writing—original draft preparation, R.T. (Rosa Turco); writing—review and editing, F.T. and M.D.S.; visualization, V.R. and R.T. (Riccardo Tesser); supervision, R.T. (Rosa Turco); project administration, M.D.S.; funding acquisition, M.D.S. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.


The authors acknowledge the grant PRIN: Progetti di Ricerca di Interesse Nazionale—Bando 2017—prot. number: 2017KBTK93 “CARDoon valorisation by InteGrAted biorefiNery (CARDIGAN)” of Italian Ministero dell’Istruzione dell’Università e della Ricerca for financial support. The authors also thank Valeria Vassallo for her valid support in experimental runs of the laboratory. Oreste Tarallo is acknowledged for the support in performing SEM analyses.

Conflicts of Interest

The authors declare no conflict of interest.


  1. IEA. Renewable Energy Medium Term Market Report 2016; Executive summary: Market analysis and forecasts to 2021; International Energy Agency: Paris, France, 2016. [Google Scholar]
  2. Hoekman, S.K.; Broch, A.; Robbins, C.; Ceniceros, E.; Natarajan, M. Review of biodiesel composition, properties, and specifications. Renew. Sustain. Energy Rev. 2012, 16, 143–169. [Google Scholar] [CrossRef]
  3. Santacesaria, E.; Vicente, G.M.; Di Serio, M.; Tesser, R. Main technologies in biodiesel production: State of the art and future challenges. Catal. Today 2012, 195, 2–13. [Google Scholar] [CrossRef]
  4. Vitiello, R.; Tesser, R.; Russo, V.; Turco, R.; Andini, S.; Di Serio, M. Loop reactor modeling for lubricants synthesis. Chem. Eng. J. 2017, 329, 295–304. [Google Scholar] [CrossRef]
  5. Schuchardt, U.; Sercheli, R.; Vargas, R.M. Transesterification of vegetable oils: A review. J. Braz. Chem. Soc. 1998, 9, 199–210. [Google Scholar] [CrossRef] [Green Version]
  6. Tan, K.T.; Lee, K.T.; Mohamed, A.R. Production of FAME by palm oil transesterification via supercritical methanol technology. Biomass-Bioenergy 2009, 33, 1096–1099. [Google Scholar] [CrossRef]
  7. Borges, M.E.; Díaz, L. Recent developments on heterogeneous catalysts for biodiesel production by oil esterification and transesterification reactions: A review. Renew. Sustain. Energy Rev. 2012, 16, 2839–2849. [Google Scholar] [CrossRef]
  8. Fechete, I.; Wang, Y.; Védrine, J.C. The past, present and future of heterogeneous catalysis. Catal. Today 2012, 189, 2–27. [Google Scholar] [CrossRef]
  9. Al-Saadi, A.; Mathan, B.; He, Y. Esterification and transesterification over SrO–ZnO/Al2O3 as a novel bifunctional catalyst for biodiesel production. Renew. Energy 2020, 158, 388–399. [Google Scholar] [CrossRef]
  10. Soliman, M.M.A.; Karmakar, A.; Alegria, E.C.B.A.; Ribeir, A.P.C.; Rúbio, G.M.D.M.; Saraiva, M.S.; da Silva, M.F.C.G.; Pombeiro, A.J.L. ZnO nanoparticles: An efficient catalyst for transesterification reaction of α-keto carboxylic esters. Catal. Today 2020, 348, 72–79. [Google Scholar] [CrossRef]
  11. Di Serio, M.; Ledda, M.; Cozzolino, M.; Minutillo, G.; Tesser, R.; Santacesaria, E. Transesterification of Soybean Oil to Biodiesel by Using Heterogeneous Basic Catalysts. Ind. Eng. Chem. Res. 2006, 45, 3009–3014. [Google Scholar] [CrossRef]
  12. Santos, S.; Nobre, L.; Gomes, J.; Puna, J.; Quinta-Ferreira, R.; Bordado, J. Soybean Oil Transesterification for Biodiesel Production with Micro-Structured Calcium Oxide (CaO) from Natural Waste Materials as a Heterogeneous Catalyst. Energies 2019, 12, 4670. [Google Scholar] [CrossRef] [Green Version]
  13. Jamil, U.; Khoja, A.H.; Liaquat, R.; Naqvi, S.R.; Omar, W.N.N.W.; Amin, N.A.S. Copper and calcium-based metal organic framework (MOF) catalyst for biodiesel production from waste cooking oil: A process optimization study. Energy Convers. Manag. 2020, 215, 112934. [Google Scholar] [CrossRef]
  14. Di Serio, M.; Cozzolino, M.; Tesser, R.; Patrono, P.; Pinzari, F.; Bonelli, B.; Santacesaria, E. Vanadyl phosphate catalysts in biodiesel production. Appl. Catal. A Gen. 2007, 320, 1–7. [Google Scholar] [CrossRef]
  15. Chen, J.; Liu, R.; Gao, H.; Chen, L.; Ye, D. Amine-functionalized metal-organic frameworks for the transesterification of triglycerides. J. Mater. Chem. 2014, 2, 7205–7213. [Google Scholar] [CrossRef]
  16. Karmee, S.K.; Chadha, A. Preparation of biodiesel from crude oil of Pongamia pinnata. Bioresour. Technol. 2005, 96, 1425–1429. [Google Scholar] [CrossRef]
  17. Zhou, F.; Lu, N.; Fan, B.; Wang, H.; Li, R. Zirconium-containing UiO-66 as an efficient and reusable catalyst for transesterification of triglyceride with methanol. J. Energy Chem. 2016, 25, 874–879. [Google Scholar] [CrossRef] [Green Version]
  18. Ben-Youssef, C.; Chávez-Yam, A.; Zepeda, A.; Rivera, J.M.; Rincón, S. Simultaneous esterification/transesterification of waste cooking oil and Jatropha curcas oil with MOF-5 as a heterogeneous acid catalyst. Int. J. Environ. Sci. Technol. 2021, 18, 3313–3326. [Google Scholar] [CrossRef]
  19. Daliran, S.; Oveisi, A.R.; Peng, Y.; López-Magano, A.; Khajeh, M.; Mas-Ballesté, R.; Alemán, J.; Luque, R.; Garcia, H. Metal–organic framework (MOF)-, covalentorganic framework (COF)-, and porous-organic polymers (POP)-catalyzed selective C–H bond activation and functionalization reactions. Chem. Soc. Rev. 2022, 51, 7810. [Google Scholar] [CrossRef] [PubMed]
  20. Daliran, S.; Khajeh, M.; Oveisi, A.R.; Albero, J.; García, H. CsCu2I3 Nanoparticles Incorporated within a Mesoporous Metal–Organic Porphyrin Framework as a Catalyst for One-Pot Click Cycloaddition and Oxidation/Knoevenagel Tandem Reaction. ACS Appl. Mater. Interfaces 2022, 14, 36515–36526. [Google Scholar] [CrossRef]
  21. Stock, N.; Biswas, S. Synthesis of Metal-Organic Frameworks (MOFs): Routes to Various MOF Topologies, Morphologies, and Composites. Chem. Rev. 2012, 112, 933–969. [Google Scholar] [CrossRef]
  22. Bhattacharya, B.; Ghoshal, D. Selective carbon dioxide adsorption by mixed-ligand porous coordination polymers. Crystengcomm 2015, 17, 8388–8413. [Google Scholar] [CrossRef]
  23. Zhang, X.; Chen, Z.; Liu, X.; Hanna, S.L.; Wang, X.; Taheri-Ledari, R.; Maleki, A.; Li, P.; Farha, O.K. A historical overview of the activation and porosity of metal–organic frameworks. Chem. Soc. Rev. 2020, 49, 7406–7427. [Google Scholar] [CrossRef]
  24. Qin, L.; Li, Y.; Liang, F.; Li, L.; Lan, Y.; Li, Z.; Lu, X.; Yang, M.; Ma, D. A microporous 2D cobalt-based MOF with pyridyl sites and open metal sites for selective adsorption of CO2. Microporous Mesoporous Mater. 2022, 341, 112098. [Google Scholar] [CrossRef]
  25. Liu, J.; Wang, W.; Luo, Z.; Li, B.; Yuan, D. Microporous Metal–Organic Framework Based on Ligand-Truncation Strategy with High Performance for Gas Adsorption and Separation. Inorg. Chem. 2017, 56, 10215–10219. [Google Scholar] [CrossRef] [PubMed]
  26. Liu, J.; Liu, G.; Gu, C.; Liu, W.; Xu, J.; Li, B.; Wang, W. Rational synthesis of a novel 3,3,5-c polyhedral metal–organic framework with high thermal stability and hydrogen storage capability. J. Mater. Chem. A 2016, 4, 11630–11634. [Google Scholar] [CrossRef]
  27. Eddaoudi, M.; Kim, J.; Rosi, N.; Vodak, D.; Wachter, J.; O’Keeffe, M.; Yaghi, O.M. Systematic Design of Pore Size and Functionality in Isoreticular MOFs and Their Application in Methane Storage. Science 2002, 295, 469–472. [Google Scholar] [CrossRef] [Green Version]
  28. Chizallet, C.; Lazare, S.; Bazer-Bachi, D.; Bonnier, F.; Lecocq, V.; Soyer, E.; Quoineaud, A.-A.; Bats, N. Catalysis of Transesterification by a Nonfunctionalized Metal−Organic Framework: Acido-Basicity at the External Surface of ZIF-8 Probed by FTIR and ab Initio Calculations. J. Am. Chem. Soc. 2010, 132, 12365–12377. [Google Scholar] [CrossRef]
  29. Cravillon, J.; Münzer, S.; Lohmeier, S.-J.; Feldhoff, A.; Huber, K.; Wiebcke, M. Rapid Room-Temperature Synthesis and Characterization of Nanocrystals of a Prototypical Zeolitic Imidazolate Framework. Chem. Mater. 2009, 21, 1410–1412. [Google Scholar] [CrossRef]
  30. Hong, D.-Y.; Hwang, Y.K.; Serre, C.; Férey, G.; Chang, J.-S. Porous Chromium Terephthalate MIL-101 with Coordinatively Unsaturated Sites: Surface Functionalization, Encapsulation, Sorption and Catalysis. Adv. Funct. Mater. 2009, 19, 1537–1552. [Google Scholar] [CrossRef]
  31. Konnerth, H.; Matsagar, B.M.; Chen, S.S.; Prechtl, M.H.G.; Shieh, F.-K.; Wu, K.C.-W. Metal-organic framework (MOF)-derived catalysts for fine chemical production. Coord. Chem. Rev. 2020, 416, 213319. [Google Scholar] [CrossRef]
  32. Cirujano, F.G.; Corma, A.; Xamena, F.X.L.I. Zirconium-containing metal organic frameworks as solid acid catalysts for the esterification of free fatty acids: Synthesis of biodiesel and other compounds of interest. Catal. Today 2015, 257, 213–220. [Google Scholar] [CrossRef]
  33. Liu, Y.; Liu, S.; He, D.; Li, N.; Ji, Y.; Zheng, Z.; Luo, F.; Liu, S.; Shi, Z.; Hu, C. Crystal Facets Make a Profound Difference in Polyoxometalate-Containing Metal–Organic Frameworks as Catalysts for Biodiesel Production. J. Am. Chem. Soc. 2015, 137, 12697–12703. [Google Scholar] [CrossRef]
  34. Calleja, G.; Botas, J.A.; Orcajo, M.G.; Sánchez-Sánchez, M. Differences between the isostructural IRMOF-1 and MOCP-L porous adsorbents. J. Porous Mater. 2010, 17, 91–97. [Google Scholar] [CrossRef]
  35. Bordiga, S.; Lamberti, C.; Ricchiardi, G.; Regli, L.; Bonino, F.; Damin, A.; Lillerud, K.-P.; Bjorgen, M.; Zecchina, A. Electronic and vibrational properties of a MOF-5 metal–organic framework: ZnO quantum dot behaviour. Chem. Commun. 2004, 2300–2301. [Google Scholar] [CrossRef] [PubMed]
  36. Chen, B.; Wang, X.; Zhang, Q.; Xi, X.; Cai, J.; Qi, H.; Shi, S.; Wang, J.; Yuan, D.; Fang, M. Synthesis and characterization of the interpenetrated MOF-5. J. Mater. Chem. 2010, 20, 3758–3767. [Google Scholar] [CrossRef]
  37. Zhang, L.; Hu, Y.H. Structure distortion of Zn4O13C24H12 framework (MOF-5). Mater. Sci. Eng. B 2011, 176, 573–578. [Google Scholar] [CrossRef]
  38. Hafizovic, J.; Bjørgen, M.; Olsbye, U.; Dietzel, P.D.C.; Bordiga, S.; Prestipino, C.; Lamberti, C.; Lillerud, K.P. The Inconsistency in Adsorption Properties and Powder XRD Data of MOF-5 Is Rationalized by Framework Interpenetration and the Presence of Organic and Inorganic Species in the Nanocavities. J. Am. Chem. Soc. 2007, 129, 3612–3620. [Google Scholar] [CrossRef]
  39. Choi, J.-S.; Son, W.-J.; Kim, J.; Ahn, W.-S. Metal–organic framework MOF-5 prepared by microwave heating: Factors to be considered. Microporous Mesoporous Mater. 2008, 116, 727–731. [Google Scholar] [CrossRef]
  40. Rodríguez, N.A.; Parra, R.; Grela, M.A. Structural characterization, optical properties and photocatalytic activity of MOF-5 and its hydrolysis products: Implications on their excitation mechanism. RSC Adv. 2015, 5, 73112–73118. [Google Scholar] [CrossRef]
  41. Sousa, S.F.; Fernandes, P.A.; Ramos, M.J. The Carboxylate Shift in Zinc Enzymes: A Computational Study. J. Am. Chem. Soc. 2007, 129, 1378–1385. [Google Scholar] [CrossRef]
  42. Reinoso, D.M.; Ferreira, M.L.; Tonetto, G.M. Study of the reaction mechanism of the transesterification of triglycerides catalyzed by zinc carboxylates. J. Mol. Catal. A Chem. 2013, 377, 29–41. [Google Scholar] [CrossRef]
  43. Mueller, U.; Schubert, M.; Teich, F.; Puetter, H.; Schierle-Arndt, K.; Pastre, J. Metal-organic frameworks-prospective industrial applications. J. Mater. Chem. 2006, 16, 626–636. [Google Scholar] [CrossRef]
  44. Rosi, N.L.; Eckert, J.; Eddaoudi, M.; Vodak, D.T.; Kim, J.; O’Keeffe, M.; Yaghi, O.M. Hydrogen Storage in Microporous Metal-Organic Frameworks. Science 2003, 300, 1127–1129. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Gelbard, G.; Brès, O.; Vargas, R.M.; Vielfaure, F.; Schuchardt, U.F. 1H nuclear magnetic resonance determination of the yield of the transesterification of rapeseed oil with methanol. J. Am. Oil Chem. Soc. 1995, 72, 1239–1241. [Google Scholar] [CrossRef]
  46. ASTM D974-14e2; Standard Test Method for Acid and Base Number by Color-Indicator Titration. ASTM International: West Conshohocken, PA, USA, 2014.

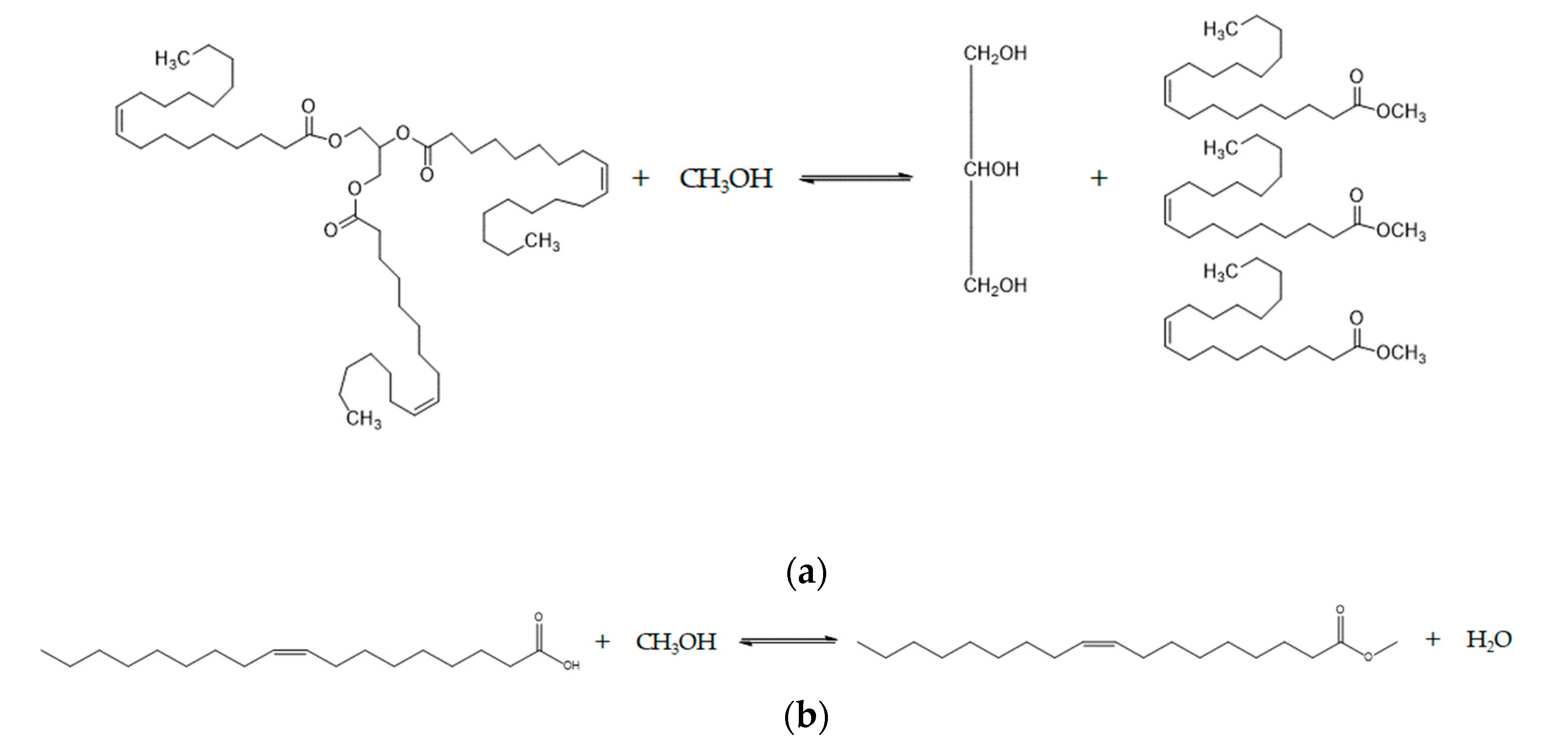

Figure 1. (a) Transesterification reaction of triglycerides with methanol. (b) FFA (Free Fatty Acids) esterification reaction.
Figure 1. (a) Transesterification reaction of triglycerides with methanol. (b) FFA (Free Fatty Acids) esterification reaction.
Catalysts 13 00503 g001

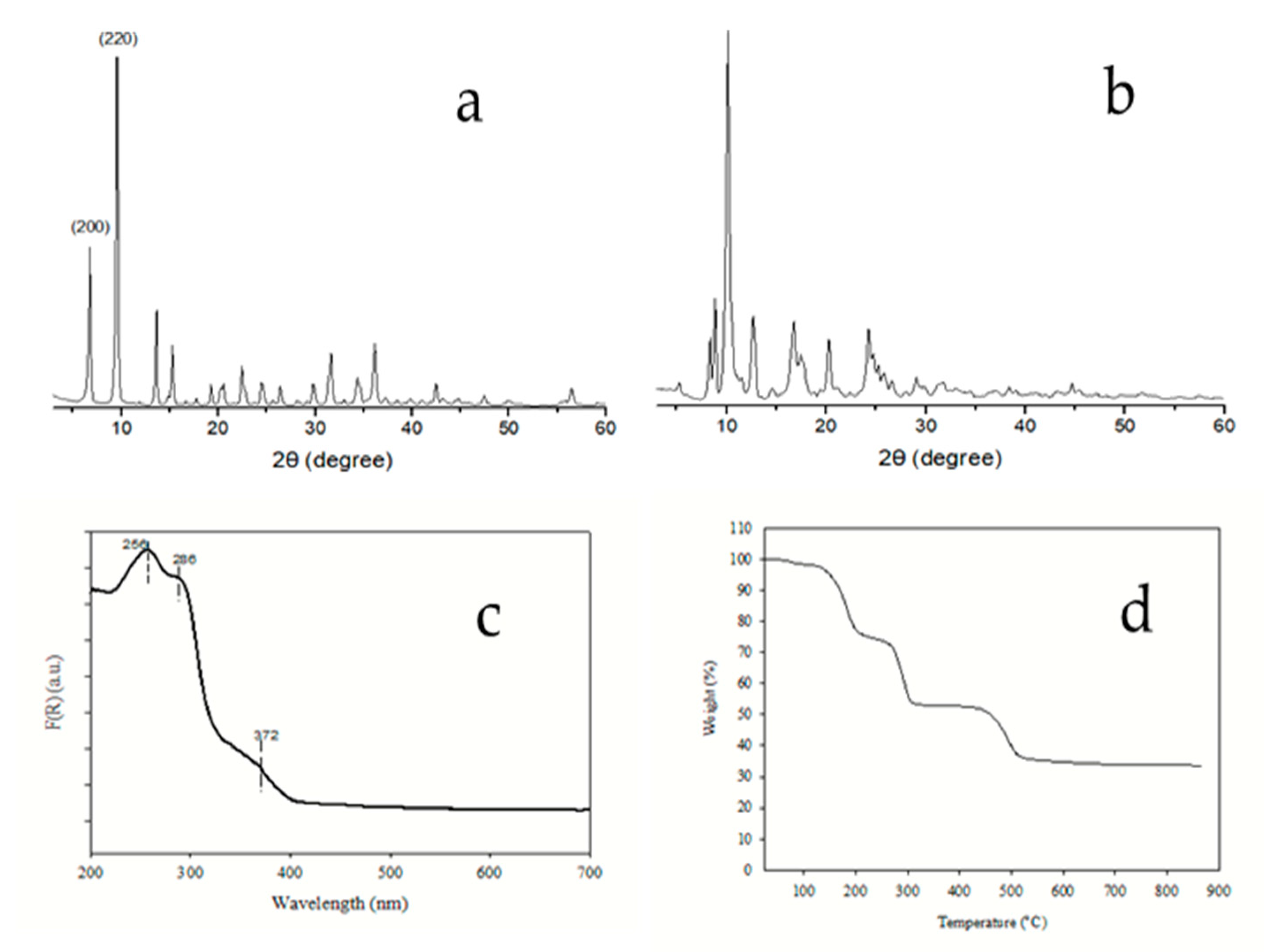

Figure 2. Characterization results for synthesized MOF-5-based solids: XRD patterns for blend (a) and tetragonal (b) MOF-5.; UV-DRS spectrum (c) and thermogravimetric profile (d) for MOF-5-B.
Figure 2. Characterization results for synthesized MOF-5-based solids: XRD patterns for blend (a) and tetragonal (b) MOF-5.; UV-DRS spectrum (c) and thermogravimetric profile (d) for MOF-5-B.
Catalysts 13 00503 g002
Figure 3. (A) MOF-5 before the contact with methanol. (B) MOF-5 after the contact with methanol.
Figure 3. (A) MOF-5 before the contact with methanol. (B) MOF-5 after the contact with methanol.
Catalysts 13 00503 g003

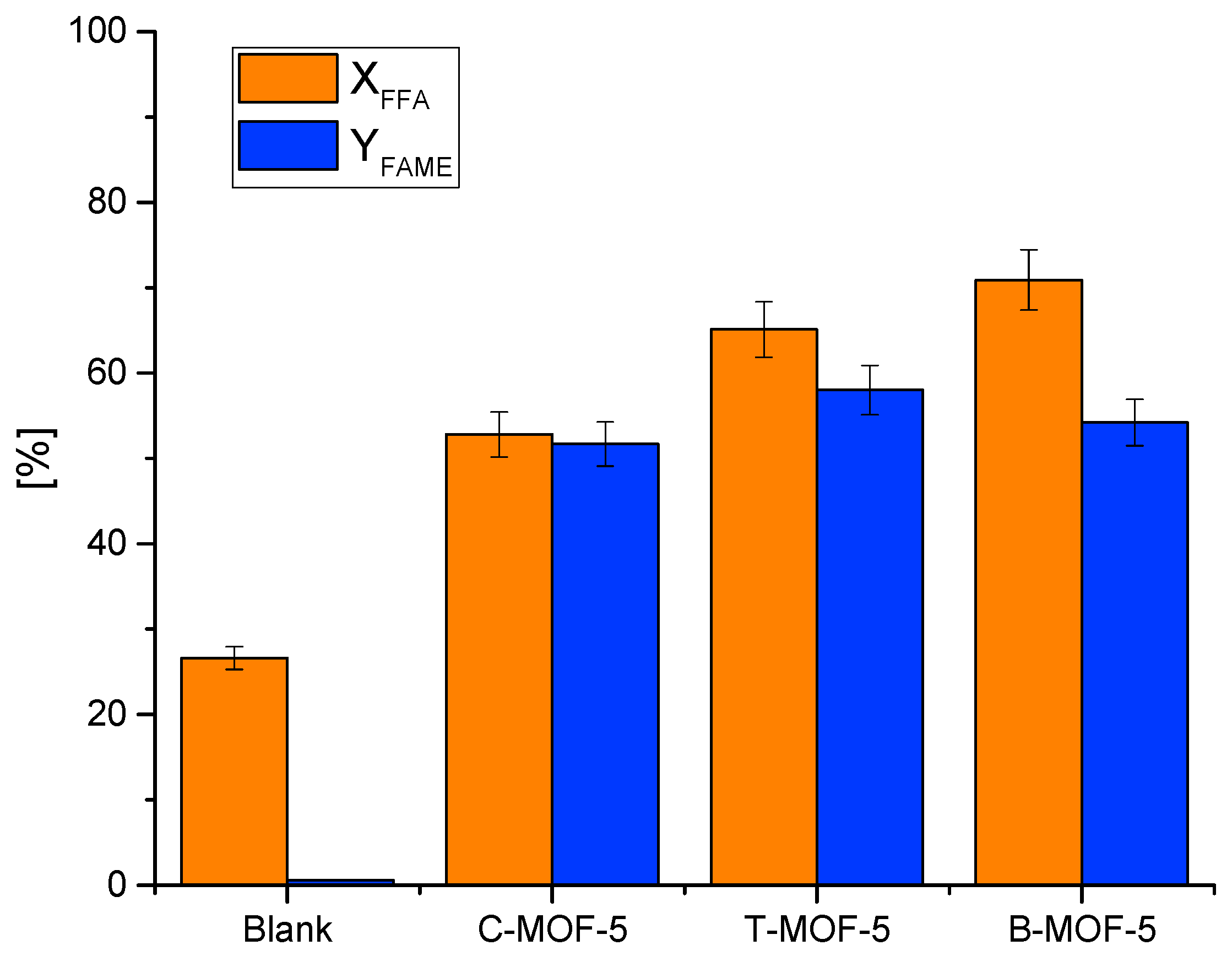

Figure 4. Results of FFA conversion, XFFA, (%) and yields in methylesters, YFAME, (%) obtained with MOF-5 catalyst. Experimental conditions: reactants molar ratio = 3, temperature = 150 °C, catalyst amount = 5 wt%, reaction time = 3 h, (initial acidity number = 16.5 mgKOH/gsample or FFA = 10 wt%).
Figure 4. Results of FFA conversion, XFFA, (%) and yields in methylesters, YFAME, (%) obtained with MOF-5 catalyst. Experimental conditions: reactants molar ratio = 3, temperature = 150 °C, catalyst amount = 5 wt%, reaction time = 3 h, (initial acidity number = 16.5 mgKOH/gsample or FFA = 10 wt%).
Catalysts 13 00503 g004

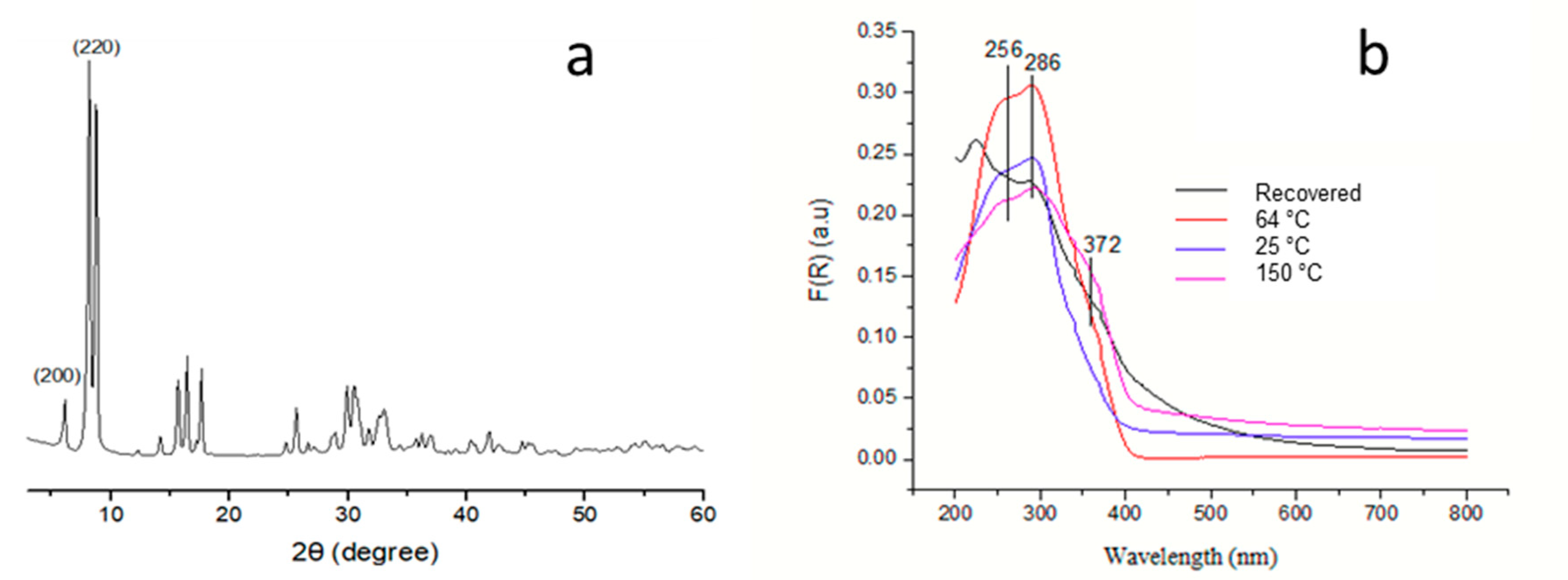

Figure 5. (a) XRD diffractogram of recovered solid (B-MOF-5), (b) DR-UV del Blend MOF-5 at different temperature and recovered.
Figure 5. (a) XRD diffractogram of recovered solid (B-MOF-5), (b) DR-UV del Blend MOF-5 at different temperature and recovered.
Catalysts 13 00503 g005

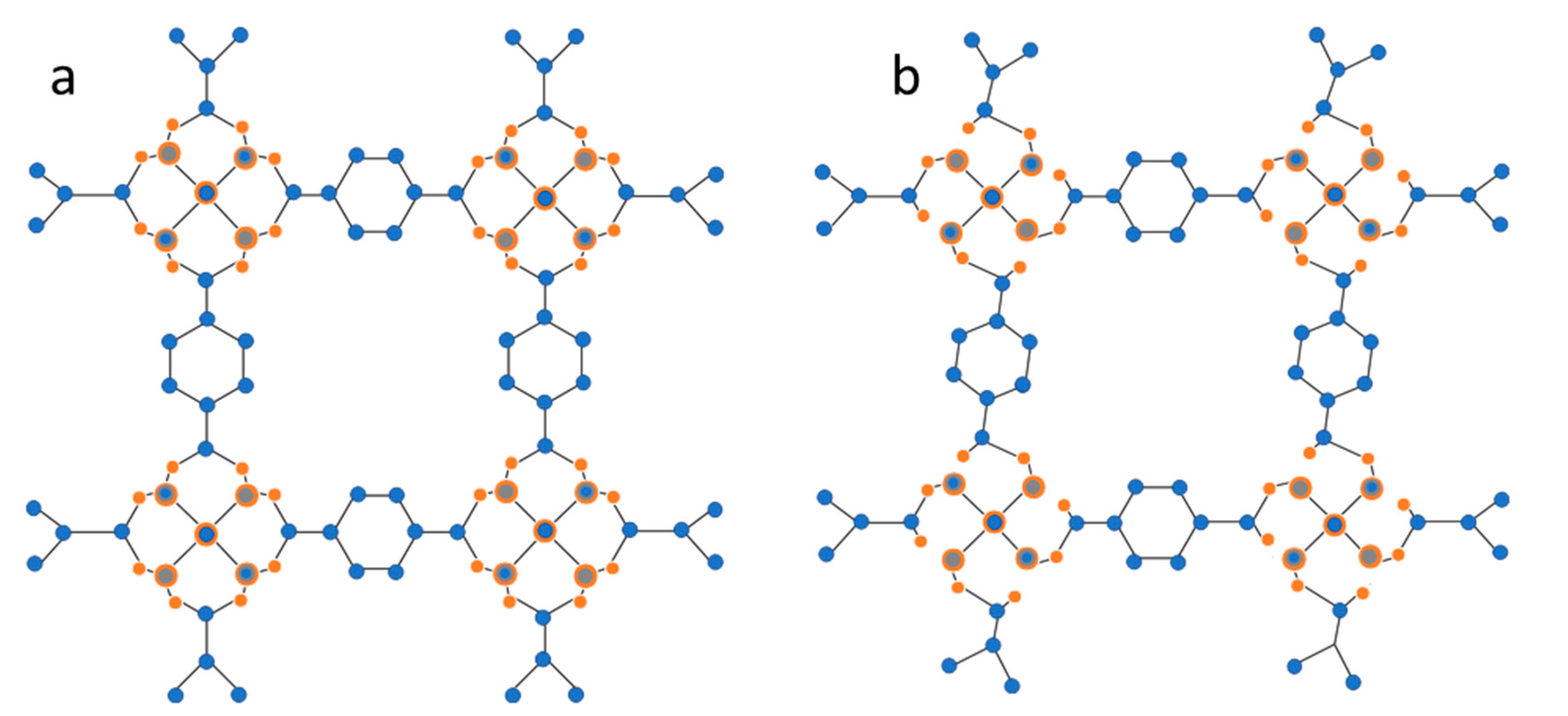

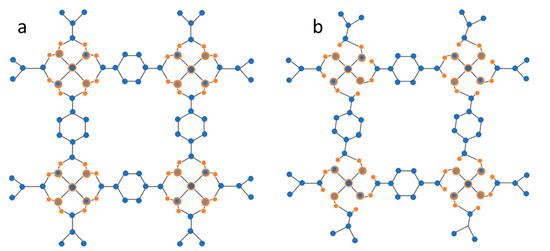

Figure 6. (a) Cubic structure of MOF-5 and (b) distorted structure of MOF-5 after contact with methanol. The atoms are represented in the following way: zinc in grey, oxygen in orange, carbon in blue.
Figure 6. (a) Cubic structure of MOF-5 and (b) distorted structure of MOF-5 after contact with methanol. The atoms are represented in the following way: zinc in grey, oxygen in orange, carbon in blue.
Catalysts 13 00503 g006

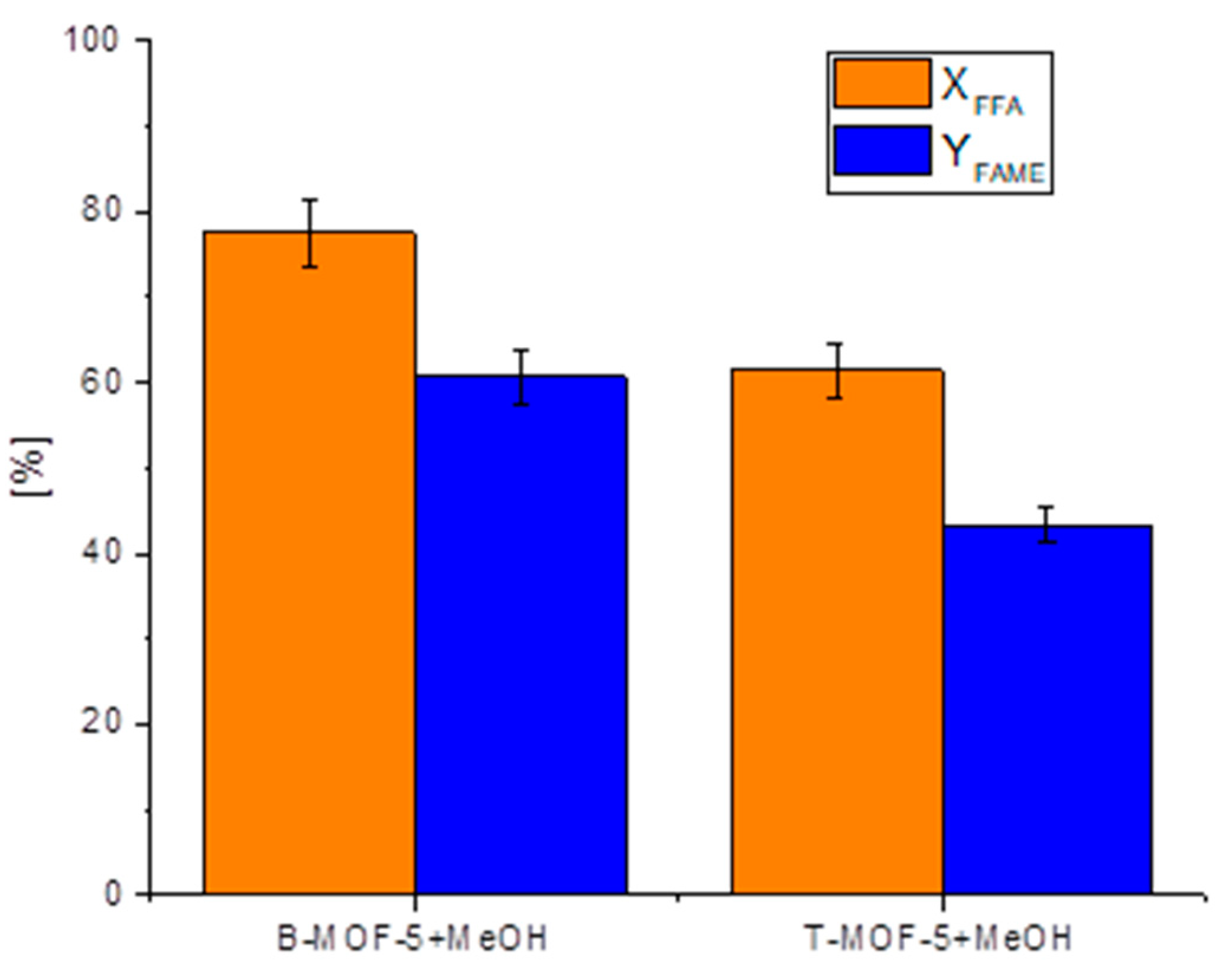

Figure 7. Results of FFA conversion, XFFA, (%) yields in methyl esters, YFAME, (%) obtained with B-MOF-5 and T-MOF-5 catalysts after the contact with methanol.
Figure 7. Results of FFA conversion, XFFA, (%) yields in methyl esters, YFAME, (%) obtained with B-MOF-5 and T-MOF-5 catalysts after the contact with methanol.
Catalysts 13 00503 g007

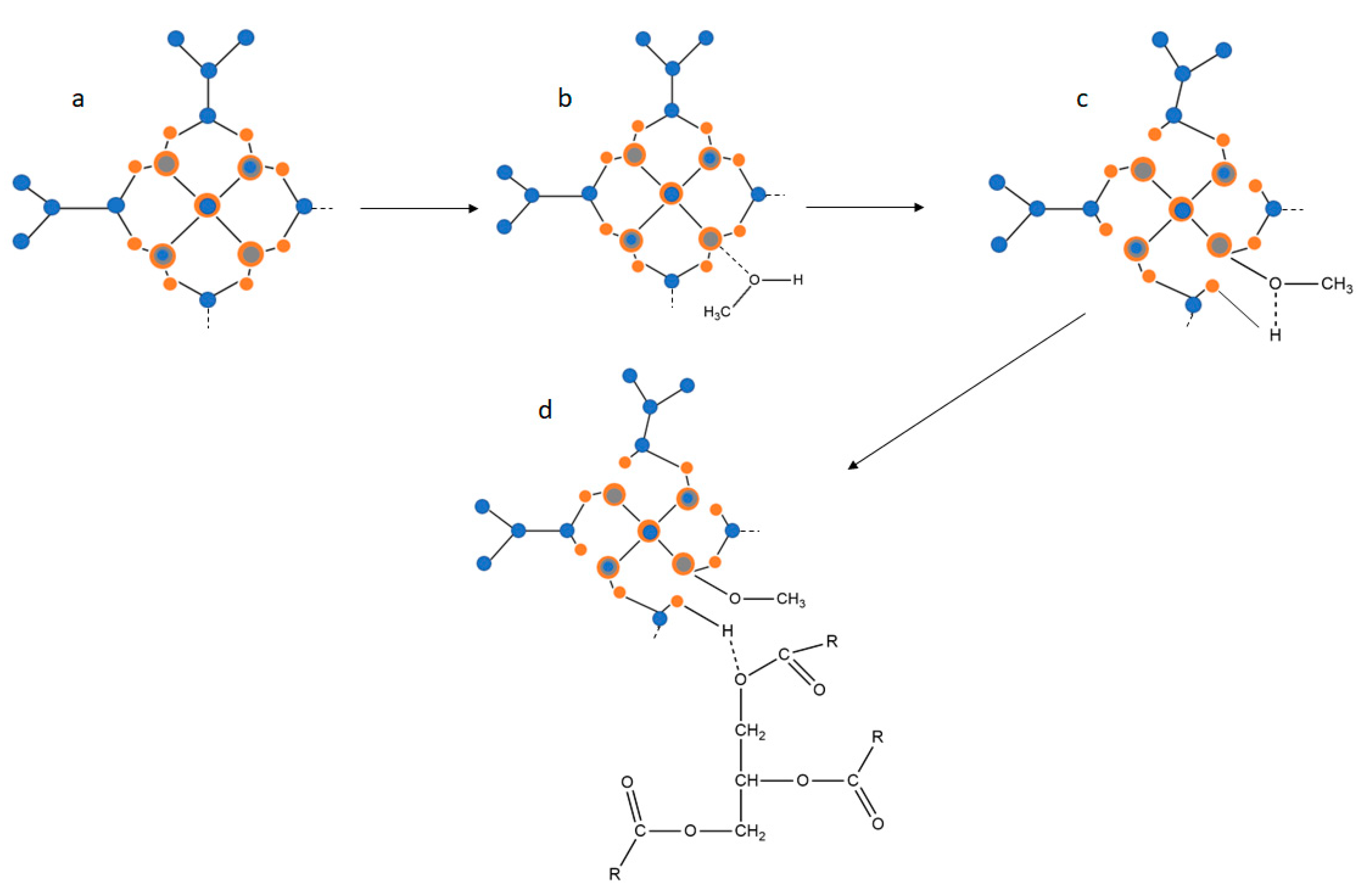

Figure 8. Reaction with MOF-5 in the presence of methanol: (a) MOF-5; (b); methanol coordination with ZnOOCH3 bond formation; (c) breakdown of the zinc-oxygen bond; (d) formation of active species. The atoms are represented in the following way: zinc in grey, oxygen in orange, carbon in blue.
Figure 8. Reaction with MOF-5 in the presence of methanol: (a) MOF-5; (b); methanol coordination with ZnOOCH3 bond formation; (c) breakdown of the zinc-oxygen bond; (d) formation of active species. The atoms are represented in the following way: zinc in grey, oxygen in orange, carbon in blue.
Catalysts 13 00503 g008
Table 1. Catalysts for biodiesel production.
Table 1. Catalysts for biodiesel production.
Loading (wt%)
Substrate (mol/mol)
YFAME (%)Reference
Vanadyl phosphate (VOP)Soybean oil6.527/180.0Di Serio et al. (2007) [14]
MOF-5Glyceril triacetate 16.5180/19.2Chen et al. (2014) [15]
MOF-5-EDGlyceril triacetate 3.030/190.0Chen et al. (2014) [15]
IRMOF-5-EDGlyceril triacetate 16.5180/199.9Chen et al. (2014) [15]
MOF-5-EDGlyceril butyrate10.030/199.0Chen et al. (2014) [15]
IRMOF-5-EDGlyceril butyrate10.030/199.0Chen et al. (2014) [15]
IRMOF-5-EDGlyceril triacetate 5.530/157.6Chen et al. (2014) [15]
Hβ-zeolitePongamia pinnata oil11.510/159.0Karmee and Chadha (2005) [16]
Pongamia pinnata oil11.510/147.0Karmee and Chadha (2005) [16]
ZnOPongamia pinnata oil11.510/183.0Karmee and Chadha (2005) [16]
UiO-66Soybean oil11.040/198.5Zhou et al. (2016) [17]
MOF-5Waste cooking oil0.7536/182.0Ben-Youssef et al. (2021) [18]
Table 2. Summary of experimental conditions for MOF-5-based solids investigated. H2BDC = 2-hydroxy-1,4-benzenedicarboxylic acid; TEA = triethylamine; DMF = N,N-dimethylformamide.
Table 2. Summary of experimental conditions for MOF-5-based solids investigated. H2BDC = 2-hydroxy-1,4-benzenedicarboxylic acid; TEA = triethylamine; DMF = N,N-dimethylformamide.
SampleStructureZn(NO3)2 (g)H2BDC
T (°C)Time (h)Tactivation
Yield (%)
