New Insights into the Effect of Ce Doping on the Catalytic Performance and Hydrothermal Stability of Cu-USY Zeolite Catalysts for the Selective Catalytic Reduction of NO with NH₃

Abstract

5Cu-USY and Ce-doped 5Cu8Ce-USY zeolite catalysts were prepared by the conventional impregnation method. The obtained catalysts were subjected to the hydrothermal ageing process. The catalytic performance of the selective catalytic reduction of NO_x with NH₃ (NH₃-SCR) was evaluated on both fresh and aged catalysts. Physical/chemical characterizations such as X-ray diffraction (XRD), H₂ temperature-programmed reduction (H₂-TPR), and X-ray photoelectron spectroscopy (XPS) were performed, along with detailed in situ diffuse reflectance infrared Fourier-transform spectroscopy (DRIFTS) experiments including CO adsorption, NH₃ adsorption, and NO + O₂ reactions. Results showed that, for the 5Cu-USY catalyst, hydrothermal ageing treatment could somehow improve the low-temperature SCR activity, but it also led to significant formation of unfavorable byproducts NO₂ and N₂O. Such an activity change can be attributed to hydrothermal ageing inducing the migration of isolated Cu⁺ species in the sodalite cavities towards the super cages of the USY zeolites. The increased content of Cu⁺ species in the super cages was beneficial for the low-temperature activity improvement, but, at the same time, it also facilitated ammonia oxidation at high temperatures. Ce doping after hydrothermal ageing has a “double-edged sword” effect on the catalytic performance. First of all, Ce doping can inhibit Cu species migration by self-occupying the internal cage sites; thus, the catalytic performance of 5Cu8Ce-USY-700H remains stable after ageing. Secondly, Ce doping introduces a CuO_x–CeO₂ strong interaction, which facilitates lattice oxygen mobility by forming more oxygen vacancies so as to increase the concentration of surface active oxygen. These changes, on the one hand, could help to promote further oxidative decomposition of nitrate/nitrite intermediates and improve the catalytic performance. But, on the other hand, it also causes the byproduct generation to become more severe.

1. Introduction

The booming development of modern transportation has brought great convenience to both daily life and industrial production, but the environmental pollution and human health hazards caused by vehicle exhaust have posed serious challenges to building a sustainable society. Diesel-engine-powered vehicles have attracted vast attention owing to their higher power and thermal efficiency [1]. However, nitrogen oxides (NO_x) emitted from diesel engines are recognized as major culprits for photochemical smog, acid rain, and ozone layer depletion, as well as various diseases of the human respiratory, nervous, and cardiovascular systems [2]. Among various denitrification (deNO_x) techniques, selective catalytic reduction of NO_x with ammonia as reductant (NH₃-SCR) has been widely accepted and applied as the most practical approach for NO_x elimination regarding diesel engine exhaust [3]. Developing highly efficient novel catalysts is the key to pushing forward NH₃-SCR technology. V₂O₅–WO₃–TiO₂ (VWTi) mixed oxides, known as the early generation of commercialized SCR catalysts, have been successfully employed in diesel engine vehicle deNO_x systems since the 1970s [4]. Unfortunately, with more stringent emission regulations, several challenges are raised against VWTi catalysts, such as inferior performance under lean combustion conditions, limited operation temperature windows, insufficient low-temperature activity, and poor thermal stability, as well as the biological toxicity of Vanadium species [5,6]; therefore, the urgent demand for developing novel SCR catalysts has drawn continuous interest in academia and industry.

Transitional-metal-doped zeolite catalysts have been extensively studied for the NH₃-SCR reaction during the past few decades [7,8]. Fe-based zeolite catalysts such as Fe-ZSM-5 were first proposed as promising for NH₃-SCR due to their wide operation temperature windows, especially at high temperature ranges [9]. However, such Fe-ZSM-5 catalysts generally present unsatisfactory low-temperature SCR activity below 250 °C, and the excessive oxidizing ability of Fe ions also causes the unfavorable NH₃ oxidation problem [10]. Sequentially, Cu-based zeolites have been investigated as advantageous candidates for NH₃-SCR, i.e., Cu-ZSM-5, Cu-Beta, Cu-SAPO-34, Cu-USY, and Cu-SSZ-13. Cu-ZSM-5 zeolite catalysts are reported to exhibit high NO conversion rates, but their applications are prohibited by the poor hydrothermal stability of ZSM-5 due to gradual dealumination [11,12,13]. Cu-based small-pore zeolites with unique chabazite structures (especially Cu-SSZ-13) have demonstrated their excellent SCR activity and good hydrothermal stability and are currently the hot-topic catalysts attracting lots of attention [14]. However, the synthesizing process of the SSZ-13 zeolite requires using an expensive organic template (N,N,N-trimethyl-1-adamantammonium hydroxide, TMAdaOH), and its initial patents lie in the hands of certain industrial giants [15,16]. Hence, the high raw material cost and intellectual property issues of Cu-SSZ-13 zeolites remain inevitable challenges.

USY zeolites possess the advantages of excellent hydrothermal stability, a super large specific surface area, and a unique super cage structure. Ochońska et al. [17] reported that NO conversion over Cu-USY can exceed 50% at temperatures as low as 100 °C, attributable to the high concentration of Cu⁺ species with lower binding energy on the Cu-USY surface. Our previous studies regarding NH₃-SCR performance over various Cu-zeolites also revealed that Cu-USY shows a wider NO conversion temperature window (from 150 °C to 400 °C) along with good N₂ selectivity. It was also reported that introducing Ce into Cu-USY with proper doping content could enhance oxygen mobility as well as increase the active Cu⁺ sites concentration, thus benefiting low-temperature SCR performance [18,19]. Additionally, the stability of the designed catalysts is quite important for assessing their practical application potential. For the SCR reaction, the exhaust gas of diesel engine vehicles can have temperatures as high as 700 °C and contains a large propotion of water vapor. Zeolite catalysts could easily deactivate due to serious dealumination, zeolite framework collapse, or sintering of active metal under high-temperature, humid working conditions [20]. Improving hydrothermal stability by Ce doping has been well examined in Ce-based mixed oxides such as MnO_x–CeO₂, but it is still not well interpreted and needs further exploration regarding Ce-doped USY zeolite catalysts.

In the current work, Cu-USY and Ce-doped Cu-USY zeolite catalysts were synthesized via simple impregnation method. The obtained catalysts were subjected to high-temperature hydrothermal ageing and evaluated for NH₃-SCR catalytic performances. Detailed characterizations including XRD, H₂-TPR, CO DRIFTS, XPS, and in situ reaction DRIFTS were conducted. The scope of this work is to gain new insight into how Ce doping affects the hydrothermal stability of Cu-USY catalysts from the perspective of structure–activity evolution as well as the reaction process.

2. Results and Discussion

2.1. NH₃-SCR Catalytic Activity

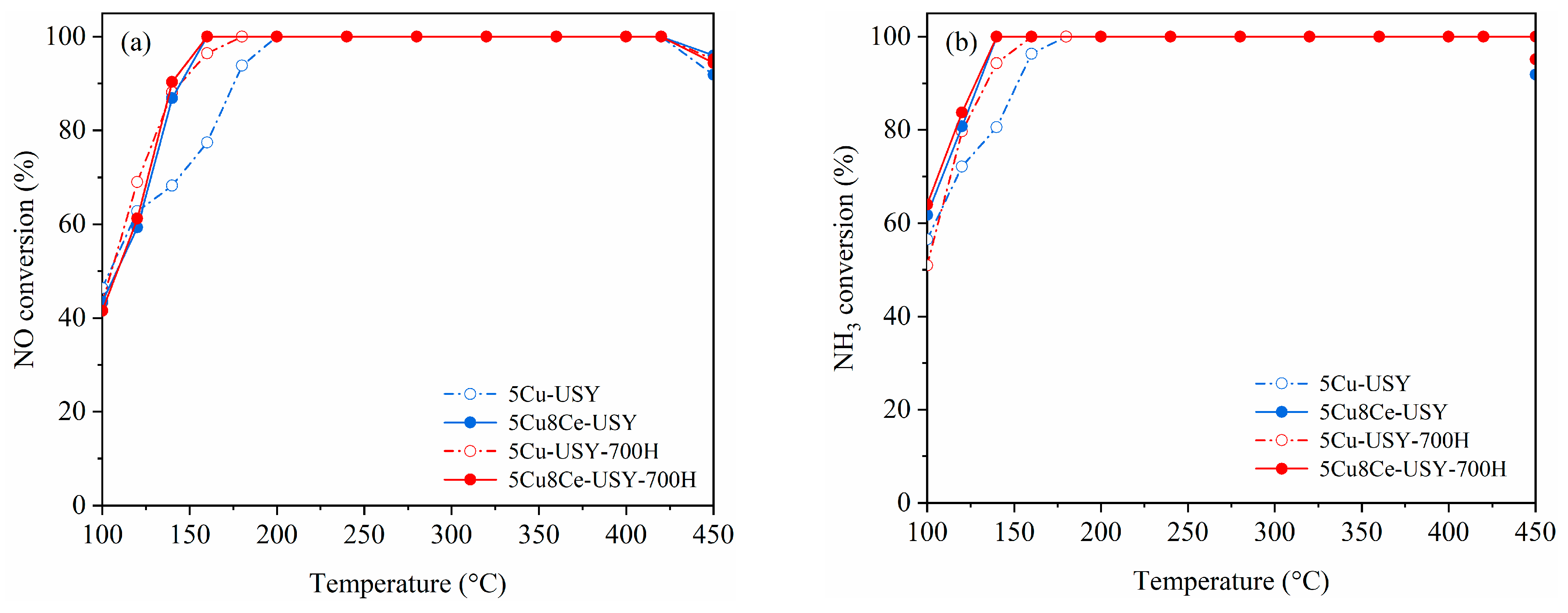

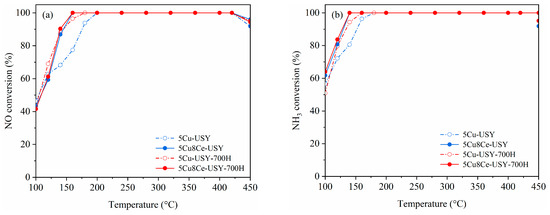

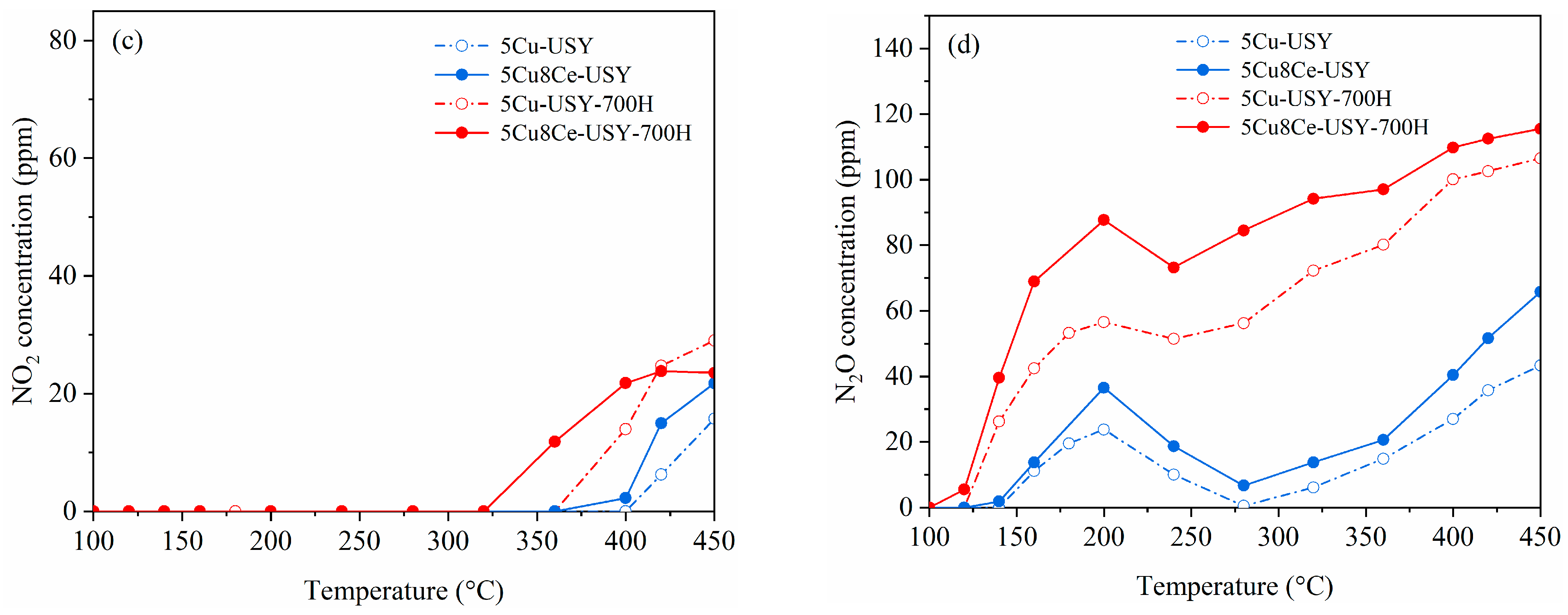

Figure 1 presents the overall NH₃-SCR performance of the obtained 5Cu-USY and 5Cu8Ce-USY catalysts before/after hydrothermal ageing. Figure 1a shows the NO conversion curves. For the fresh catalysts, Ce doping could clearly promote the NH₃-SCR catalytic activity of Cu-USY zeolite catalyst. The temperature at which NO conversion achieved 90% SCR activity was dramatically reduced to about 130 °C over the 5Cu8Ce-USY sample, and the operation temperature window width (the temperature ranges within which the NO conversion stays above 90%) was also significantly broadened compared to that of the 5Cu-USY sample. Table S1 shows the comparison of the NH₃-SCR activity of fresh catalysts in this work with those from other similar previous reports. Such an improving effect of Ce doping on the SCR catalytic performance of the fresh Cu-USY catalyst was reported in our previous study [18], and it was proposed that Ce doping could introduce strong interaction between CuO_x and CeO₂, which facilitates lattice oxygen mobility and enhances the redox ability. For the hydrothermal aged catalyst, it is quite interesting that the low-temperature SCR activity, as well as the operation temperature window, of the aged 5Cu-USY-700H sample was obviously improved compared to that of the fresh 5Cu-USY, while no significant improvement nor deterioration was observed over the 5Cu8Ce-USY-700H catalyst, demonstrating its good stability against hydrothermal ageing. The NH₃ conversion curves shown in Figure 1b present similar trends consistent with the NO conversion curves, suggesting that NH₃ consumption is mainly caused by NO reduction. Figure 1c,d show the monitored concentration of unfavorable byproducts NO₂ and N₂O, respectively. A small amount of NO₂ can be detected due to the partial oxidation of NH₃ when the reaction temperature exceeds 350 °C. For N₂O formation, a typical “saddle-shaped” curve can be seen. According to previous reports [14], N₂O formation at low and high temperatures usually occurs via different mechanisms. At high temperatures, the reaction goes via the standard SCR routes [14], and N₂O is mainly formed because of unfavorable NH₃ oxidation, while, at low temperatures, the reaction goes via the fast SCR route, while N₂O formation is contributed by the generation and decomposition of NH₄NO₃. NH₄NO₃ was formed on the Cu sites via the Langmuir−Hinshelwood mechanism under the “NH₃ + NO + O₂” condition, and its subsequent decomposition led to N₂O formation. Ce doping slightly increased NO₂ and N₂O formation over fresh catalysts, possibly due to its well-known oxidizing ability. After hydrothermal ageing, a sharp increase in NO₂/N₂O generation could be seen over both 5Cu-USY and 5Cu8Ce-USY, suggesting that the catalysts’ selectivity towards harmless N₂ was relatively deteriorated by hydrothermal ageing.

2.2. Crystalline Structure by XRD Analyses

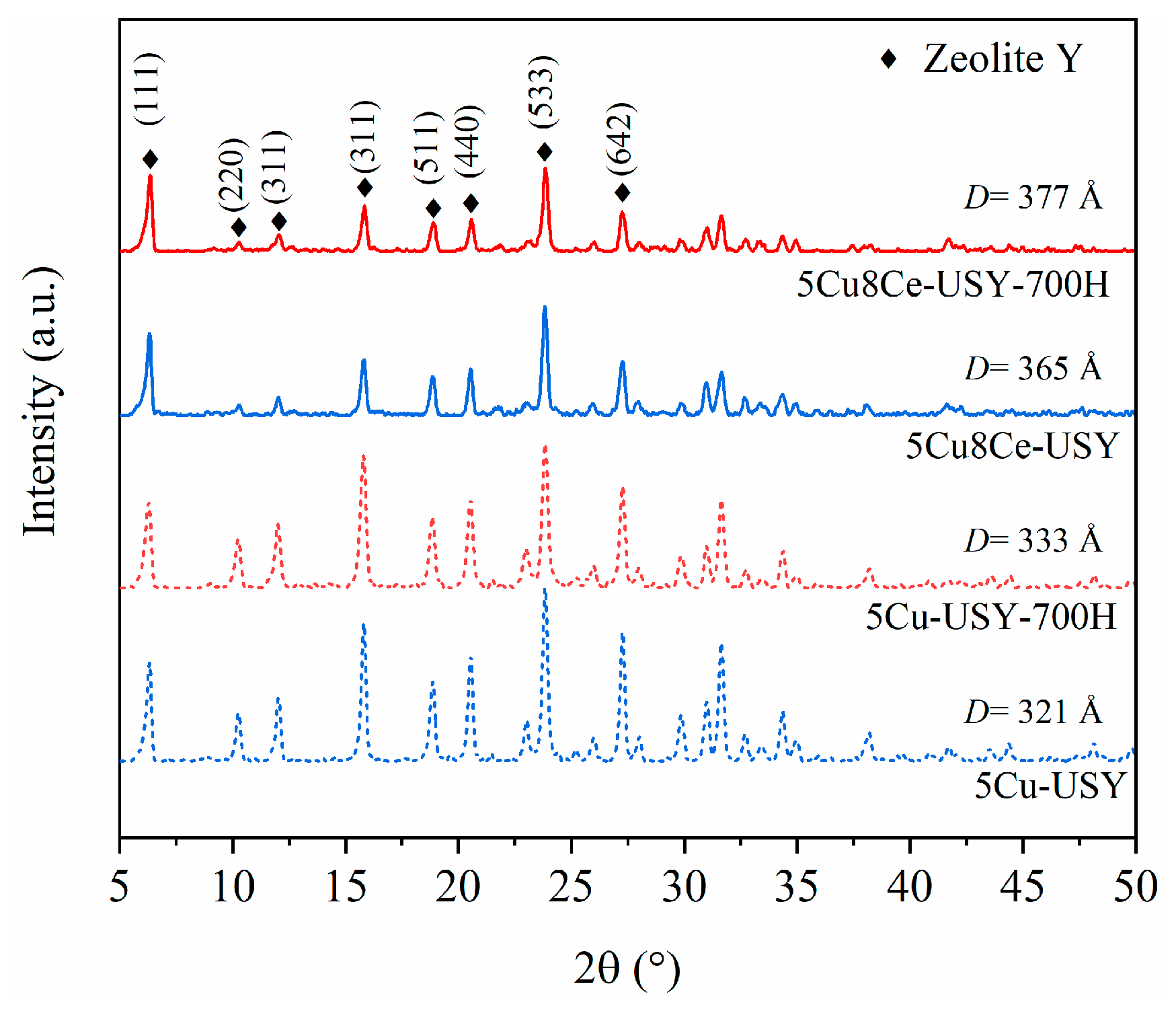

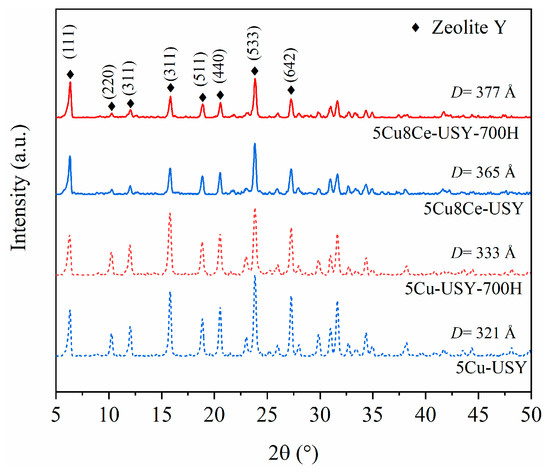

The effect of hydrothermal ageing on the catalysts’ crystalline structure was characterized by XRD analysis, and the obtained XRD patterns are shown in Figure 2. Distinctive diffraction peaks could be observed for all the samples around 6.3°, 10.3°, 12.0°, 15.8°, 18.9°, 20.6°, 23.9°, and 27.3°, which can be assigned to the (111), (220), (311), (331), (511), (440), (533), and (642) crystal planes of Y zeolites with a cubic structure (JCPDS 77-1549) [21]. The distinct peak shape with relatively strong intensity in the fresh 5Cu-USY and 5Cu8Ce-USY suggests that the zeolite structures with good crystallinity were not damaged by Cu/Ce impregnation. After hydrothermal ageing, these characteristic diffraction peaks could still be clearly observed in 5Cu-USY-700H and 5Cu8Ce-USY-700H samples, demonstrating that high-temperature hydrothermal ageing did not cause the zeolite framework to collapse. However, the peak’s intensity was relatively decreased, which could be related to the weakened crystallinity caused by dealumination. The crystal sizes were also calculated using JADE software, and it can be seen that they only increased slightly after hydrothermal ageing. No characteristic diffraction peaks assigned to CuO, Cu₂O, or CeO₂ species were observed in any of these XRD profiles, indicating that the CuO_x and CeO₂ species were highly dispersed in the zeolite or formed agglomerated species with quite a small particle size that was beyond the XRD detection range.

2.3. Redox Properties by H₂-TPR Tests

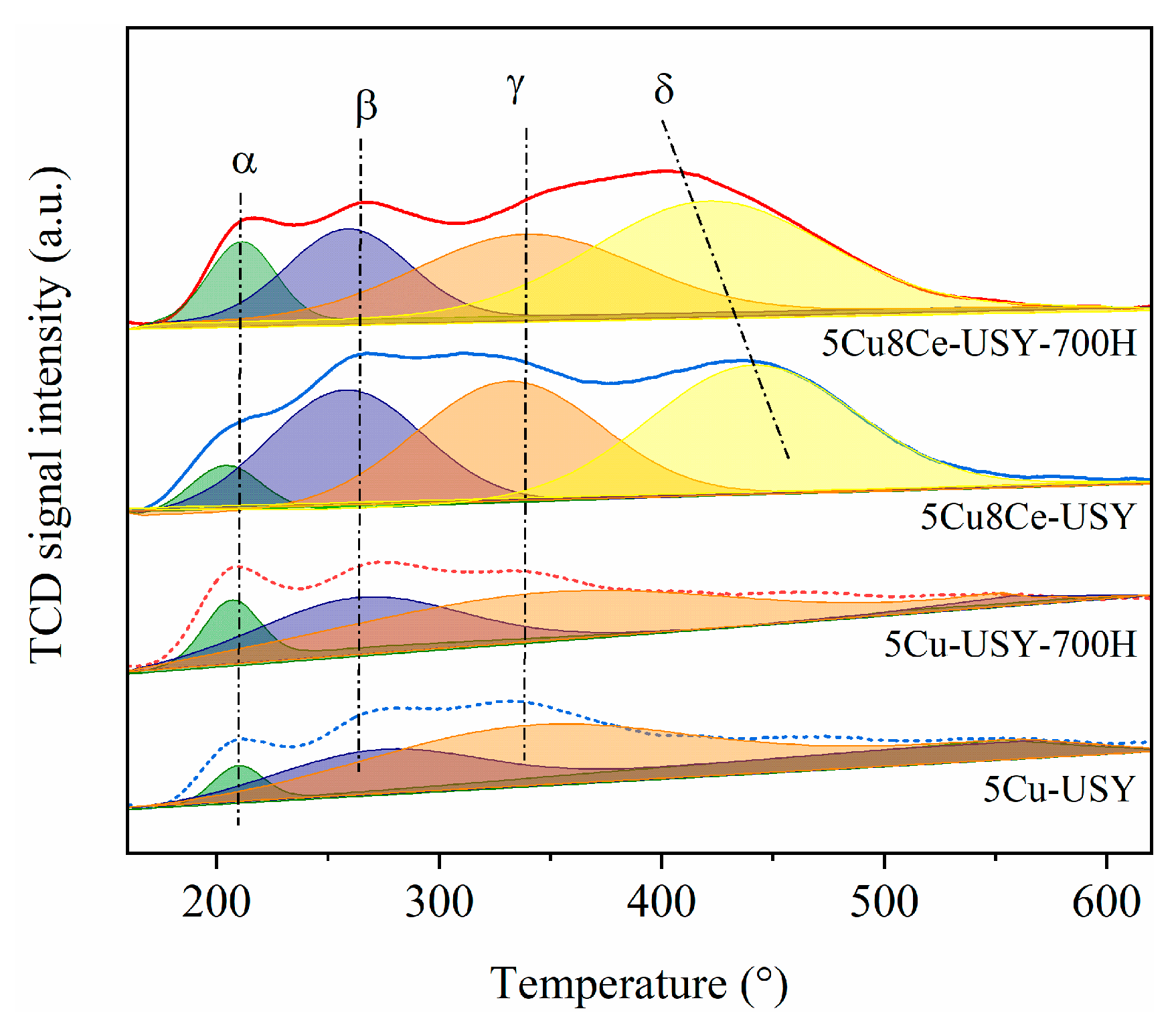

The effect of hydrothermal ageing on the catalysts’ redox properties was characterized by H₂-TPR tests, and the obtained H₂-TPR profiles are shown in Figure 3. Three major reduction peaks (α, β, and γ) around 210 °C, 270 °C, and 340 °C could be verified over the 5Cu-USY catalyst, which can be assigned to the reduction of high valent cupric species [19,22,23]. According to previous studies, peak α (210–215 °C) is generally attributed to the reduction of Cu²⁺ species located in the super cages of the USY framework; peak β (270–285 °C) can be assigned to the reduction in surface highly dispersed CuO_x species [22]; and peak γ (350–355 °C) represents the reduction in Cu²⁺ species located in the sodalite cavities of USY zeolites. For the Ce-doped 5Cu8Ce-USY catalyst, a new reduction peak (δ) appeared around 420 °C, which was related to the reduction in surface active oxygen of CeO₂ [18]. The integrated peak areas and relative proportions of each peak were calculated and are shown in Table S2. After hydrothermal ageing, the intensity of peak α was increased, while peak γ’s intensity weakened in the 5Cu-USY-700H sample. Such peak evolutions suggest that the Cu²⁺ species located in the sodalite cavities gradually migrate into the zeolite super cages during hydrothermal ageing. For the Ce-doped 5Cu8Ce-USY-700H sample, there was no significant change in the intensity of peaks α, β, and γ, indicating that Ce doping could well maintain the stability of Cu²⁺ species in the USY zeolites. Additionally, peak δ in 5Cu8Ce-USY-700H drastically shifted to a lower temperature, which suggests that the reducibility of surface oxygen is improved due to ehanced interaction between CeO₂ and CuO_x species during thermal ageing. This might be the main reason for the more severe NH₃ oxidation, along with the deteriorated N₂ selectivity, of 5Cu8Ce-USY-700H.

2.4. CO DRIFTS Analyses

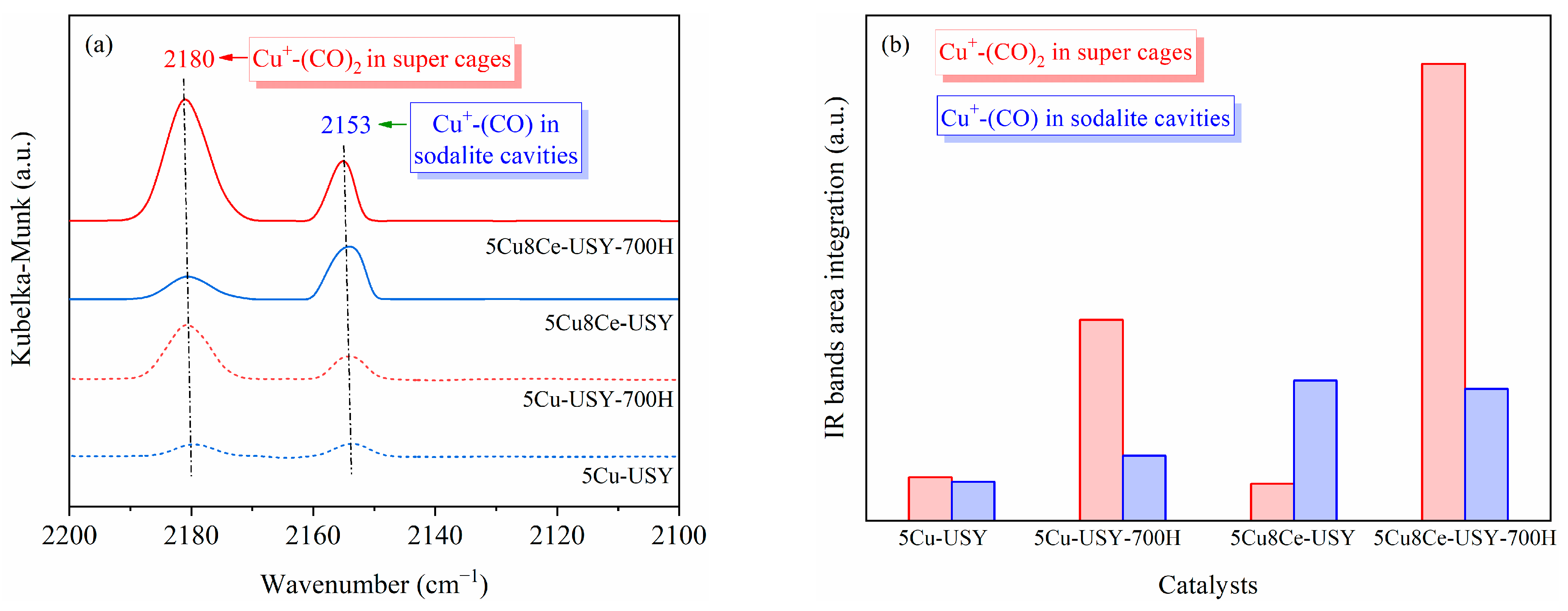

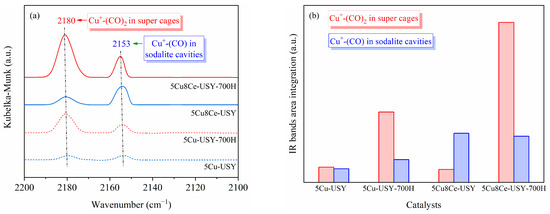

The structural properties of Cu species were further investigated by CO DRIFTS analyses, and the obtained DRIFTS spectra are shown in Figure 4a. Two characteristic IR bands can be seen at 2180 cm⁻¹ and 2153 cm⁻¹. According to Dang et al.’s reports [24], CO does not adsorb on Cu²⁺ sites at room temperature; thus, these IR bands are reasonably attributed to CO adsorption on Cu⁺ sites located within different environments in the USY zeolites. Based on previous reports [25,26], the IR band at 2180 cm⁻¹ can be attributed to Cu⁺ species located in the super cages of USY zeolites, which react with CO to form dicarbonyl species Cu⁺-(CO)₂, while the IR band at 2153 cm⁻¹ corresponds to Cu⁺ species located in the sodalite cavities of USY zeolites, which form monocarbonyl species Cu⁺-CO upon CO adsorption. The proportion of these two different Cu⁺ sites was semi-quantitatively determined by Gaussian fitting and peak area integration (shown in Figure 4b). Compared to the fresh 5Cu-USY catalyst, the Cu⁺ species located in the super cages increased quite significantly after hydrothermal ageing, which once again proved that cupric species located in the sodalite cavities can gradually migrate into the zeolite super cages during hydrothermal ageing. However, for the 5Cu8Ce-USY-700H sample, the number of Cu⁺ species distributed and located in the sodalite cavities remained almost unchanged. This suggests that Ce doping could inhibit the migration of Cu⁺ species located in the sodalite cavities during hydrothermal ageing.

2.5. Surface Chemistry by XPS

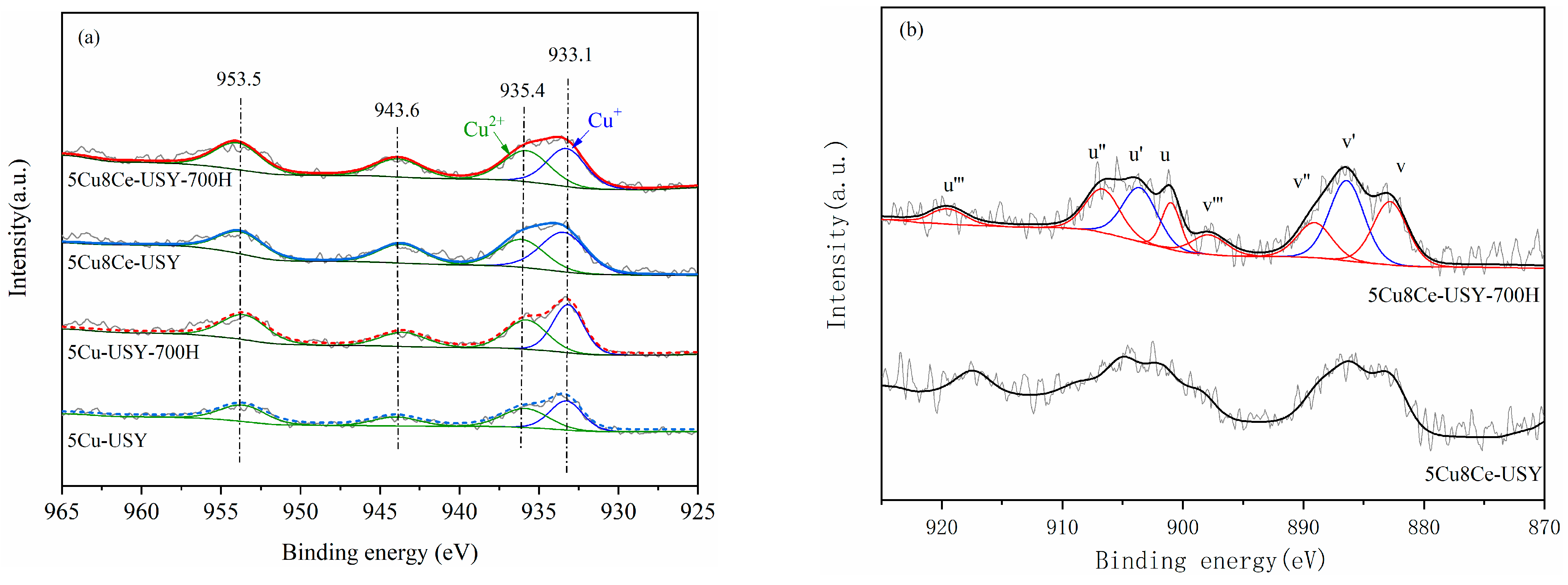

The surface chemical state changes before/after hydrothermal ageing were analyzed by XPS. The recorded spectra are shown in Figure 5. Figure 5a shows the Cu 2p spectra; all the catalysts exhibited typical Cu 2p_3/2 (binding energy around 933~935 eV) and Cu 2p_1/2 (binding energy around 953 eV) characteristic peaks. The Cu 2p_3/2 peaks can be further deconvoluted into two peaks, whereas the peak around 933.1 eV represents the Cu⁺ species, while the peak around 935.4 eV (with the shakeup satellite peak at 943.6 eV) is attributed to Cu²⁺ species (either in the form of isolated Cu²⁺ or CuO) [16,27,28]. Based on the quantitative results calculated in

Table 1. Surface element contents derived from XPS analyses.

Samples	Cu (wt.%)	Ce (wt.%)	Cu (%)		Ce3+ in Ce (%)
			Cu+	Cu2+
5Cu-USY	2.88	-	52.21	47.79	-
5Cu-USY-700H	4.17	-	55.39	44.61	-
5Cu8Ce-USY	4.20	2.62	46.14	53.86	22.07
5Cu8Ce-USY-700H	4.68	2.74	48.79	51.21	23.62

, we can see that, for the fresh 5Cu-USY catalyst, the surface Cu content was significantly lower than the theoretical value, indicating that a large proportion of Cu species entered the internal cage of the USY zeolite during preparation. On the other hand, the surface Cu content of 5Cu8Ce-USY was obviously higher than that of 5Cu-USY, while the surface Ce content was much lower than the theoretical values. This indicates that Ce doping could competitively occupy the site inside zeolite cages to partially prevent Cu species from entering zeolite cages. After hydrothermal ageing, the surface Cu content of 5Cu-USY-700H increased drastically. This phenomenon may be attributed to the unavoidable detachment of Cu species from the zeolite cages to form surface-dispersed CuOx species due to the thermal-induced driving force, causing an increase in the surface Cu content. Meanwhile, the Cu⁺ content on both 5Cu-USY and 5Cu8Ce-USY catalysts increased slightly, while the Cu²⁺ content decreased slightly.

Figure 5b shows the Ce 3d spectra. Eight characteristic peaks can be observed and divided as u series and v series, which originate from the split-orbit multiplex lines of 3d_3/2 and 3_d5/2, respectively. Among these characteristic peaks, u (900.6~901.0 eV), u″ (907.5~907.7 eV), and u‴ (916.6~916.9 eV) can be assigned to Ce⁴⁺ 3d_3/2 lines, while v (882.2~882.6 eV), v″ (889.1~889.3 eV), and v‴ (898.2~898.5 eV) can be assigned to Ce⁴⁺ 3d_5/2 lines. Ce³⁺-related lines are identified as u′ (903.5~904.2 eV, Ce³⁺ 3d_3/2) and v′ (885.1~885.8 eV, Ce³⁺ 3d_5/2) [29,30]. The ratio of Ce³⁺ in Ce was calculated via multi-peak fitting and peak area integration, as shown in Table 1. We can see that the Ce³⁺/(Ce³⁺ + Ce⁴⁺) ratio increased after high-temperature hydrothermal ageing. Various studies [31,32] have pointed out that the generation of Ce³⁺ requires the existence of oxygen vacancies. Therefore, such results provide further evidence that high-temperature hydrothermal ageing can facilitate oxygen vacancies formation, which can improve oxygen mobility by promoting the migration of lattice oxygen from the bulk phase to the catalyst’s surface, thus being conducive to low-temperature SCR activity as well as the oxidation of NO to NO₂.

2.6. In Situ DRIFTS Characterizations

To acquire more insights into the effect of hydrothermal ageing on the reaction intermediates and structure–activity relationship for 5Cu-USY and 5Cu8Ce-USY catalysts, in situ DRIFTS characterizations were conducted under the “NH₃ adsorption followed by NO + O₂ reaction” process at 200 °C. The peak assignments based on the previous literature are summarized in

Table 2. IR band positions and corresponding species based on previous reports.

Positions (cm−1)	Species	References
1617	σas (NH3) on Lewis acid centers	[18,19,33]
1465, 1496	σas (NH4+) on Brønsted acid centers	[33,34]
3182	NH3-Cu species	[18,35]
3221, 3347	NH4+ species	[19,36]
3736, 3630, 3540	Bridged hydroxyl Al-OH-Si	[37,38]

for reference.

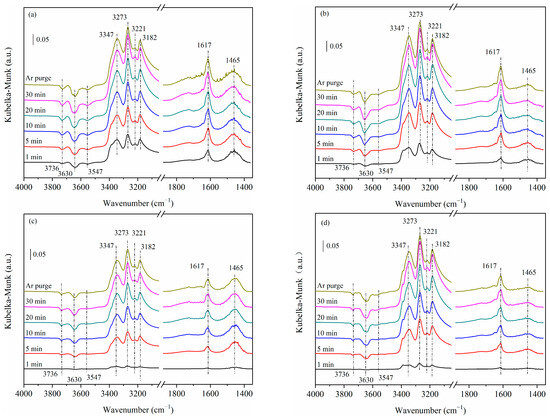

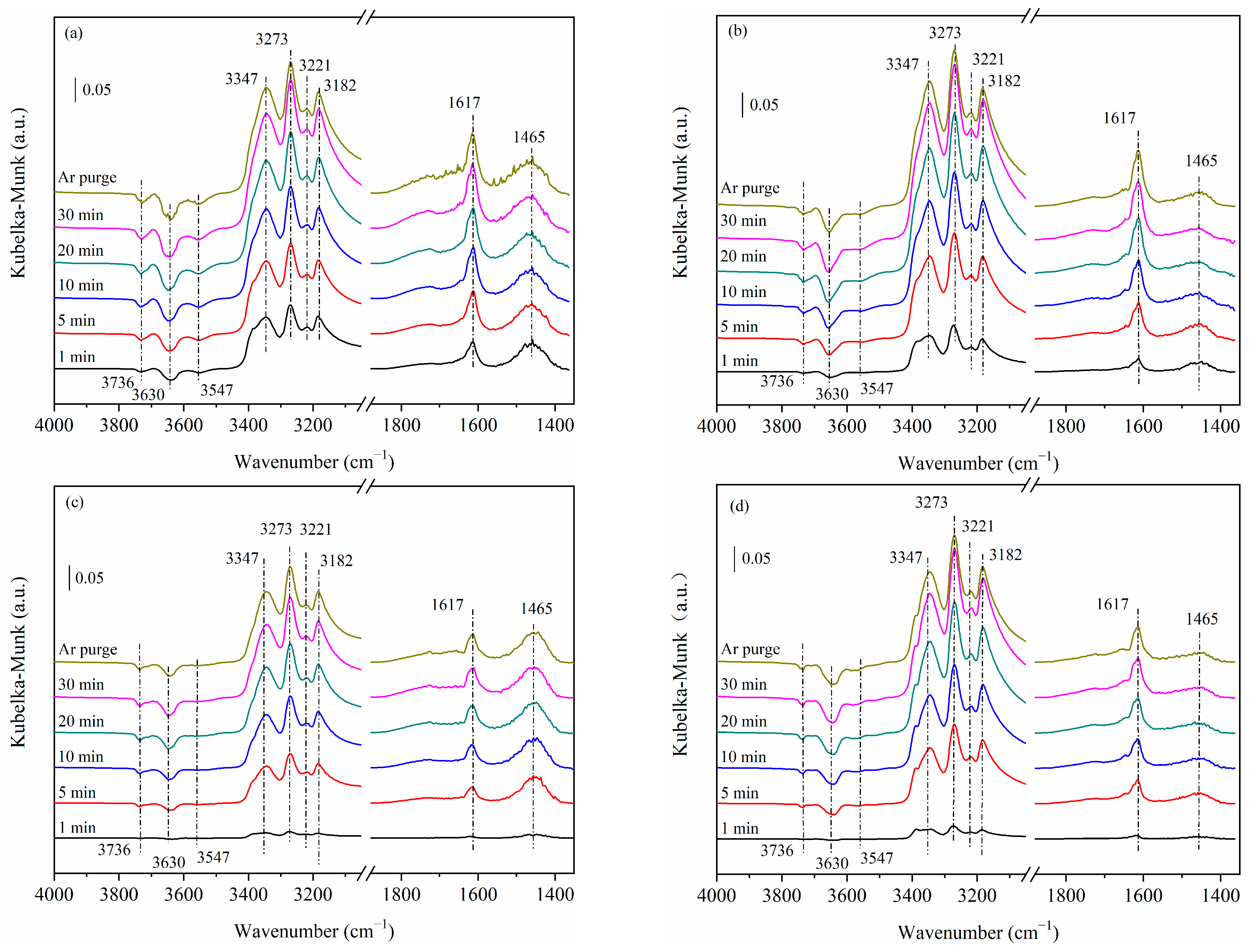

Figure 6 shows the NH₃ adsorption DRIFTS spectra on 5Cu-USY and 5Cu8Ce-USY catalysts before/after hydrothermal ageing. Once NH₃ was introduced into the reaction chamber, two distinct IR bands could be seen at 1617 cm⁻¹ and 1465 cm⁻¹; the former was ascribed to the asymmetric vibration of molecularly adsorbed ammonia on Lewis acid centers (σ_as(NH₃)), while the latter was assigned to the asymmetric vibration of NH₄⁺ adsorbed on the Brønsted acid centers (σ_as(NH₄⁺)). Also, three major IR bands could be observed at 3182 cm⁻¹, 3221 cm⁻¹, and 3347 cm⁻¹; whereas the 3182 cm⁻¹ band was related to N–H stretching vibrations of NH₃ adsorbed on cationic Cu sites, the 3221 cm⁻¹ and 3347 cm⁻¹ bands were attributed to NH₄⁺ groups. Moreover, three negative bands appeared at 3736 cm⁻¹, 3630 cm⁻¹, and 3547 cm⁻¹, which were generated due to the consumption of surface hydroxyl sites by NH₃, reducing the corresponding OH stretching vibrations. Brønsted acid centers and Lewis acid centers were saturated with NH₃ after 20 min adsorption. Upon Ar purging for 30 min after NH₃ saturated adsorption, the intensity of each IR band was weakened slightly, indicating relatively stable adsorption of NH₃ on surface acid centers. After hydrothermal ageing, the intensity of NH₃ adsorbed on Lewis acid centers (1617 cm⁻¹ band) gradually increased, which could be related to partial dealumination of the zeolite frameworks during hydrothermal ageing. On the other hand, the intensity of NH₄⁺ adsorbed on the Brønsted acid centers (1465 cm⁻¹ band) dropped significantly, suggesting severe loss of Brønsted acid centers due to loss of surface hydroxy groups. By comparing 5Cu-USY-700H and 5Cu8Ce-USY-700H, we can see that Ce doping could not attenuate the loss of either Brønsted acid centers or Lewis acid centers on the catalyst’s surface during hydrothermal ageing.

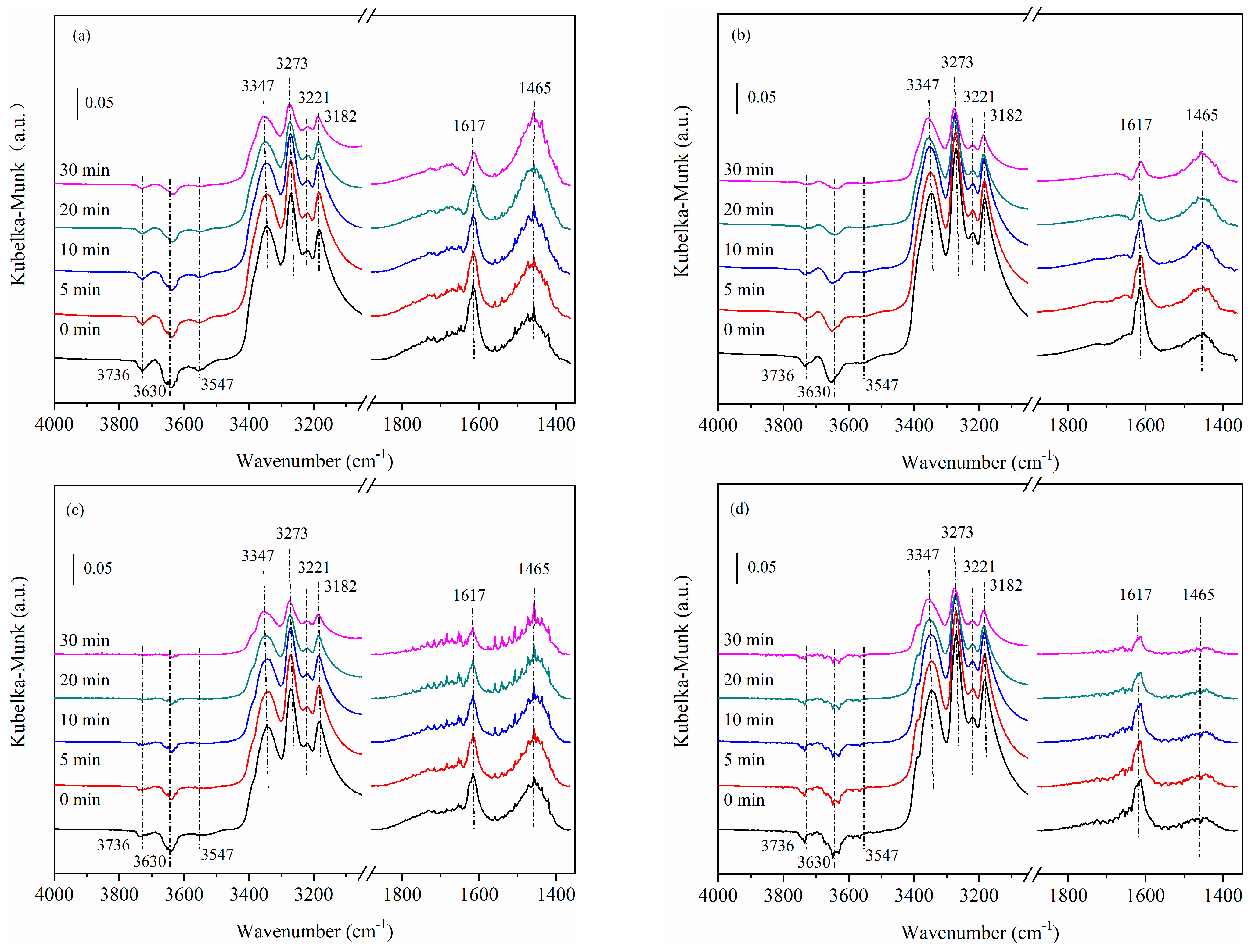

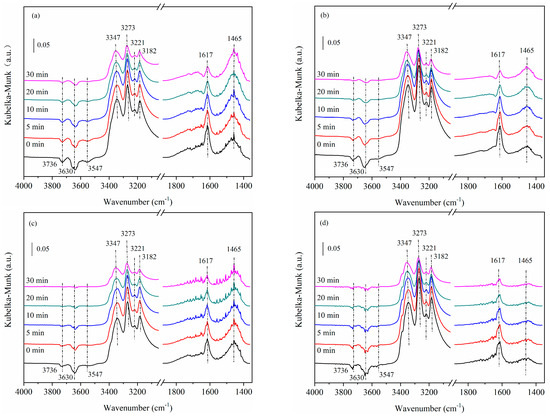

Figure 7 shows DRIFTS spectra of the “NO + O₂” reaction after NH₃ saturated adsorption on 5Cu-USY and 5Cu8Ce-USY catalysts before/after hydrothermal ageing. When the “NO + O₂” reaction atomsphere was introduced into the reaction chamber, the 1617 cm⁻¹ band representing NH₃ adsorbed on Lewis acid centers exhibited an obvious decrease, along with similar decreasing negative OH bands (3736 cm⁻¹, 3630 cm⁻¹, and 3540 cm⁻¹). This demonstrates clear consumption of surface-adsorbed NH₃. Compared to the fresh 5Cu-USY catalyst, the above IR bands disappeared more rapidly on the 5Cu-USY-700H sample after hydrothermal ageing, which reflects its better low-temperature SCR activity. Moreover, the IR bands around 1465 cm⁻¹ first increased and then started to descend with a broadened range, around 1440 to 1500 cm⁻¹. Considering no more NH₃ was fed into the reaction atmosphere, the intensity elevation of 1465 cm⁻¹ bands could be explained due to formation of surface nitrates (NH₄NO₃) or nitrites (NH₄NO₂) species on the Brønsted acid centers, which present various IR bands within 1440–1630 cm⁻¹ ranges. As the reaction continued to proceed, these nitrates/nitrite species further participated in the SCR reaction and eventually decomposed; thus, the corresponding IR bands first increased and then decreased. For the Ce-doped catalyst, similar IR band evolution trends could be observed on the fresh 5Cu8Ce-USY catalyst. However, for 5Cu8Ce-USY-700H after hydrothermal ageing, the 1465 cm⁻¹ bands disappeared remarkably fast with time evolving, which could be caused by the accelerated nitrates/nitrite oxidation due to the enhanced redox ability of CuO_x–CeO₂ interaction.

2.7. Brief Discussions about the Structure–Activity Correlations

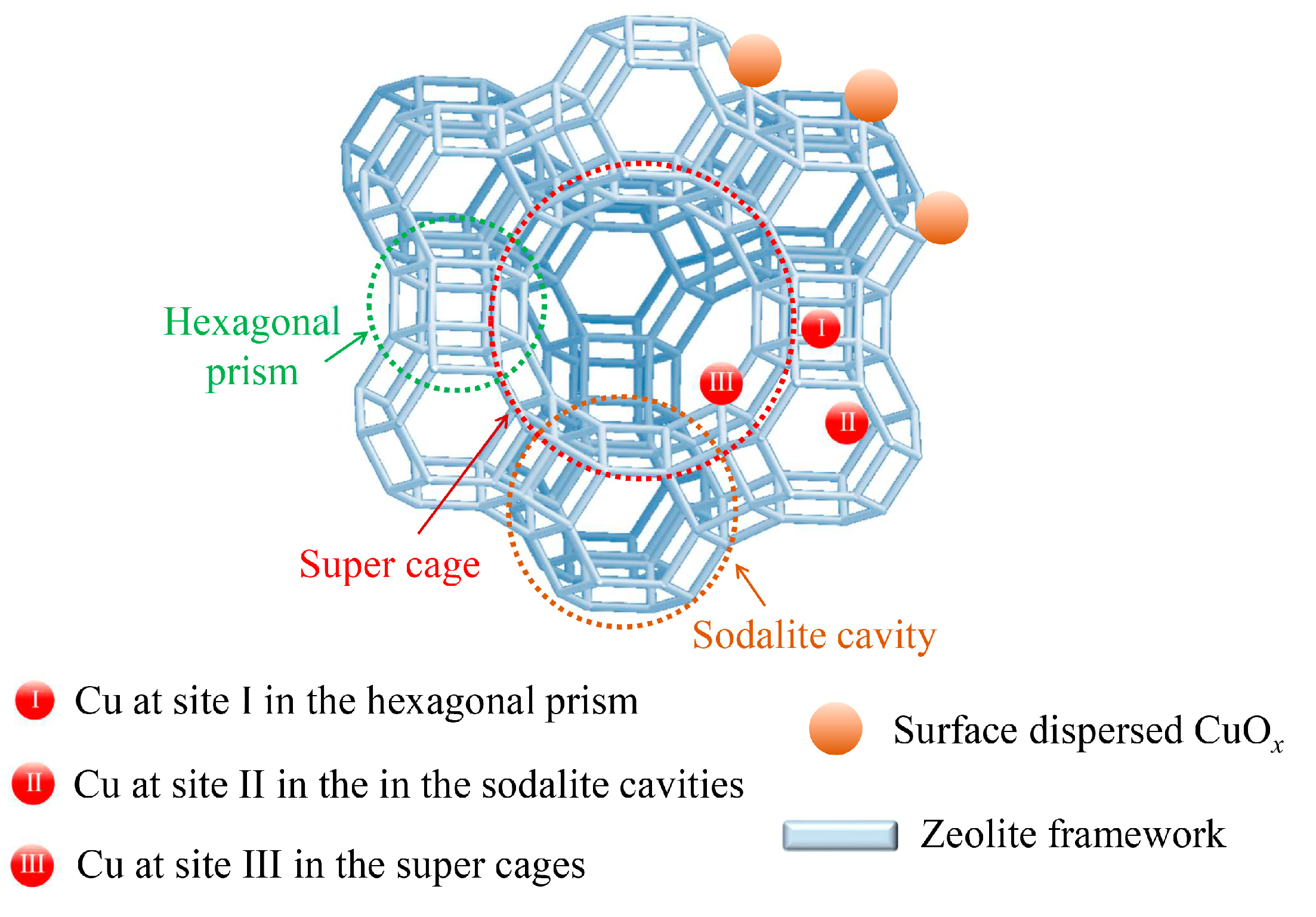

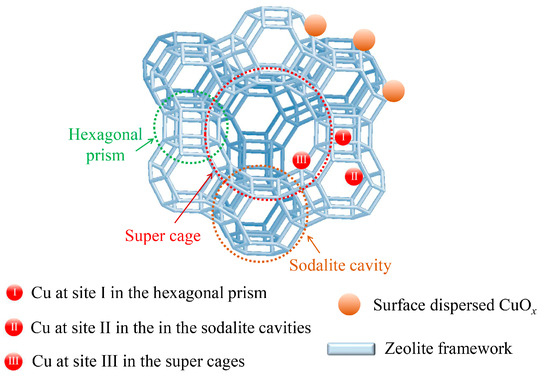

Different Cu species have been previously demonstrated to exist in the Cu-USY catalysts, for example, highly dispersed CuO_x species, Cu²⁺/Cu⁺ species located in the sodalite cavities, and Cu²⁺/Cu⁺ species entering the super cages of USY zeolites. The CuO_x species are generally considered as oxidation centers during the SCR reaction, and they could also accelerate NH₃ oxidation at high temperatures [34]. For the isolated Cu²⁺/Cu⁺ species, both Cu²⁺ and Cu⁺ cations play important roles in the low-temperature SCR reaction process via the reversible redox cycle “Cu²⁺ ↔ Cu⁺”. Hence, the different coordination environment of Cu species should be more worthy of attention than the chemical valent states [19,39]. The three most populated Cu cationic sites could be identified based on previous reports (site I, site II, and site II in Figure 8) [19,40,41]. Site I was located in the hexagonal prism deviating from the face of the d6r subunits, and site II was set in the sodalite cavities near the six-membered ring, while site III was present near four-membered rings facing the super cages of the zeolite structures. The Cu cations at site I could not be reached by reactant molecules such as NO/NH₃ due to the limited dimensions of the small windows connecting the sodalite cavities and hexagonal prism. For the Cu cations at site II, although they were accessible by reactant molecules, these Cu cations have been reported to be highly mobile and tend to migrate into the super cages, losing coordination with the lattice oxygen. Therefore, these Cu species at site II contribute in quite a limited manner to the SCR reactivity. As for the Cu species at site III in the super cages, they can be highly interactive with the reactant molecules due to the large diameter of the super cage windows (about 7.4 Å), while simultaneously maintaining coordination with the lattice oxygen to proceed with the “Cu²⁺ ↔ Cu⁺” redox cycle during the reaction. Thus, Cu speices at site III in the super cages are widely recognized as essential active sites for the low-temperature NH₃-SCR reaction, but they could also cause an NH₃ oxidation problem with excessive content [19,22,23,42]. For 5Cu-USY, the isolated Cu⁺ species in the sodalite cavities migrated towards the super cages of the USY zeolites during hydrothermal ageing, and the increased content of Cu species at site III was beneficial for the low-temperature activity improvement while simutaneously facilitating NO₂/N₂O at high temperatures. For 5Cu8Ce-USY, Ce doping of Cu-USY could cause the internal cages to be pre-occupied by the Ce cations and thereby inhibit Cu species migration. Additionally, the content of highly dispersed CuO_x species was also increased due to the CuO_x–CeO₂ strong interaction. These CuO_x species could promote further oxidative decomposition of nitrate/nitrite intermediates and improve the catalytic performance [43,44,45]. But, at the same time, they also caused more serious byproduct formation.

For the reaction mechanism, it is generally agreed that the SCR reaction over the Cu-USY catalyst follows the Eley–Rideal mechanism; the gas phase NH₃ was first adsorbed on the catalyst’s surface to form ligand-state NH₃, which was then oxidatively activated to form the -NH₂ group and reacted with gaseous NO to generate NH₂NO intermediate species; and the NH₂NO intermediate finally decomposed into N₂ and H₂O. For the Ce-doped CuCe-USY catalysts, considering the significantly enhanced redox ability of CuCe-USY by Ce doping, NO could be more easily oxidized into NO₂, and, hence, the Langmuir–Hinshelwood mechanism could also occur over CuCe-USY; the gaseous NO was first adsorbed on the catalyst’s surface and then oxidized to form either the adsorbed NO₂ or the nitrates/nitrite species. These NO₂/-NO₂ species rapidly reacted with the NH₄⁺ species formed via NH₃ adsorbed on the Brønsted acid centers to ultimately generate N₂ and H₂O. Therefore, multiple reaction pathways may exist for the low-temperature NH₃-SCR reaction over CuCe-USY catalysts.

3. Experimental Section

3.1. Catalysts Preparation

A Cu-USY catalyst was prepared via conventional co-impregnation method (Figure S1). First, a quantitative amount of Cu(NO₃)₂ (Analytical Reagent, Sinopharm Chemical Reagent Co., Ltd., Beijing, China) was dissolved in deionized water to obtain the metal precursor solution. H-USY zeolites (SiO₂/Al₂O₃ molar ratio = 5.2, Analytical Reagent, NKF-8, Nankai University Catalyst Co., Ltd., Tianjin, China) were added into the above solution under vigorous stirring at 80 °C for 3 h. The impregnated sample was then dried at 100 °C for 2 h and calcined at 500 °C in air for 5 h. The obtained Cu-USY catalyst was denoted as “5Cu-USY”; namely, the Cu loading content was 5 wt.% (the actual Cu content was determined by ICP-AES as 4.93 wt.%).

The Ce-doped CuCe-USY catalyst was prepared via similar co-impregnation method using both Cu(NO₃)₂ and Ce(NO₃)₂ (Analytical Reagent, Sinopharm Chemical Reagent Co., Ltd., Beijing, China) as metal precursors. The obtained CuCe-USY catalyst was denoted as “5Cu8Ce-USY”; namely, the Cu loading content was also 5 wt.%, while the Ce doping content was 8 wt.% (the actual Cu and Ce contents were determined by ICP-AES as 4.96 wt.% and 7.92 wt.%). Such Cu and Ce contents were chosen based on the optimized CuCe-USY catalyst compositions in our previous studies [18,19].

3.2. Hydrothermal Ageing

The obtained 5Cu-USY and 5Cu8Ce-USY catalysts were subjected to hydrothermal ageing for 4 h under air/steam vapor flow containing 10 vol.% H₂O. The ageing temperatures were set at 700 °C. The aged catalysts were labelled using “−700H” as a suffix (H stands for hydrothermal ageing, and the number 700 stands for the ageing temperature).

3.3. Catalyst Characterization

X-ray diffraction (XRD) analysis was performed on a Shimadzu XRD7000 X-ray diffractometer (Shimadzu Corporation, Kyoto, Japan) equipped with monochromate Cu Kα radiation operating at 40 kV tube voltage and 30 mA tube current. The XRD diffractograms were collected from 5 to 50° with a scanning rate of 5°/min, and the crystalline phases were identified using standard JCPDS cards.

H₂ temperature-programmed reduction (H₂-TPR) tests were conducted in the ChemBET PULSAR chemisorption apparatus (Quantachrome Instruments, Boynton Beach, FL, USA). A 100 mg sample was purged by Ar flow at 400 °C for 30 min before tests and then cooled down to 50 °C. Then, 5 vol.% H₂/Ar flow (40 mL/min) was introduced into the reactor until the baseline was stable. The H₂-TPR profiles were recorded by monitoring H₂ consumption using thermal conductivity detector (TCD) signals while simultaneously raising the reactor temperature to 600 °C (heating rate of 10 °C/min).

X-ray photoelectron spectroscopy (XPS) analysis was performed on a Thermo ESCALAB 250 X-ray photoelectron spectrometer (Thermo Fisher Scientific, Waltham, MA, USA) equipped with mono-chromated Al Kα radiation. The binding energies were calibrated using the C 1 s peak at 284.8 eV.

CO chemisorption diffuse reflectance infrared Fourier-transform spectroscopy (CO DRIFTS) tests were conducted on the Nicolet 6700 Fourier transform infrared spectrometer (Thermo Fisher Scientific, Waltham, MA, USA) equipped with low-temperature mercury cadmium telluride (MCT) detector. The 100 mg catalyst was first pretreated in Ar at 400 °C for 0.5 h. After cooling down to RT, 0.5 vol.% CO/Ar mixed gas was introduced into the reaction chamber until CO adsorption was saturated. CO DRIFTS spectra were collecting by accumulating 32 scans at 4 cm⁻¹ resolution.

The in situ diffuse reflectance infrared Fourier-transform spectroscopy (in situ DRIFTS) experiments were performed on the same Nicolet 6700 Fourier transform infrared spectrometer (Thermo Fisher Scientific, Waltham, MA, USA). The 100 mg catalyst was firstly pretreated in 5 vol.% O₂/Ar at 400 °C for 30 min and then cooled down to 200 °C. During the DRIFTS tests, 1000 ppm NH₃/Ar was injected into the cell for 30 min adsorption first and purged with Ar, then 1000 ppm NO, along with 5 vol.% O₂, was introduced as reaction gas. The background spectra were collected at different temperatures before injecting the reaction gases. DRIFTS spectra were collected by accumulating 32 scans at 4 cm⁻¹ resolutions with different time intervals.

3.4. Catalytic Activity Tests

The NH₃-SCR activity tests were carried out in a fixed-bed reactor. The reaction gas contained 500 ppm NO, 500 ppm NH₃, 5 vol.% O₂, and Ar as balancing gas. The total gas hourly space velocity (GHSV) of inlet gas was set at 48,000 h⁻¹. During the activity test, the reactor temperature was raised to certain points and maintained until the reaction was stable. The concentrations of NO, NH₃, NO₂, and N₂O in the outlet gases were quantitatively analyzed using a Bruker EQUINOX 55 FTIR spectrometer (Bruker Corporation, Billerica, MA, USA) equipped with a multiple-reflection gas cell (cell volume 1.33 L, path length 10.0 m) and a pre-installed quantitative gas analysis program. NO and NH₃ conversions were calculated according to the following formulas:

$$C_{NO}=\frac{N{O}_{inlet}-N{O}_{outlet}}{N{O}_{inlet}}\times 100\%$$

(1)

$$C_{N{H}_3}=\frac{N{H}_{3-inlet}-N{H}_{3-outlet}}{N{H}_{3-inlet}}\times 100\%$$

(2)

where C_NO (%) and C_NH3 (%) are the conversion of NO and NH₃, respectively; NO_inlet (ppm) and NO_outlet (ppm) are the NO concentration before and after the SCR activity test, respectively; NH_3-inlet (ppm) and NH_3-outlet (ppm) are the NH₃ concentration before and after the SCR activity test, respectively.

4. Conclusions

In this study, Cu-USY and Ce-doped CuCe-USY zeolite catalysts were prepared using impregnation method and subjected to high-temperature hydrothermal ageing. The catalytic performance for NH₃-SCR was evaluated, and detailed characterizations were conducted to explore the possible structure–activity correlations. Results showed that, for the 5Cu-USY catalyst, hydrothermal ageing caused the isolated Cu⁺ species in the sodalite cavities to migrate towards the super cages of the USY zeolites. The increased content of Cu⁺ species in the super cages was conducive to improving the low-temperature SCR activity, but it also promoted ammonia oxidation to generate unfavorable NO₂ and N₂O at high temperatures. Ce doping can restrain Cu species’ migration during hydrothermal ageing by self-occupying the internal cage sites. It can also increase the surface active oxygen concentration by establishing a CuO_x–CeO₂ strong interaction, which helps to promote lattice oxygen mobility by forming more oxygen vacancies. Therefore, the effect of Ce doping is like two sides of the same coin. On the one hand, it can accelarate oxidative decomposition of nitrate/nitrite intermediates and improve the catalytic performance; on the other hand, it also causes the severe generation of byproducts NO₂ and N₂O.
